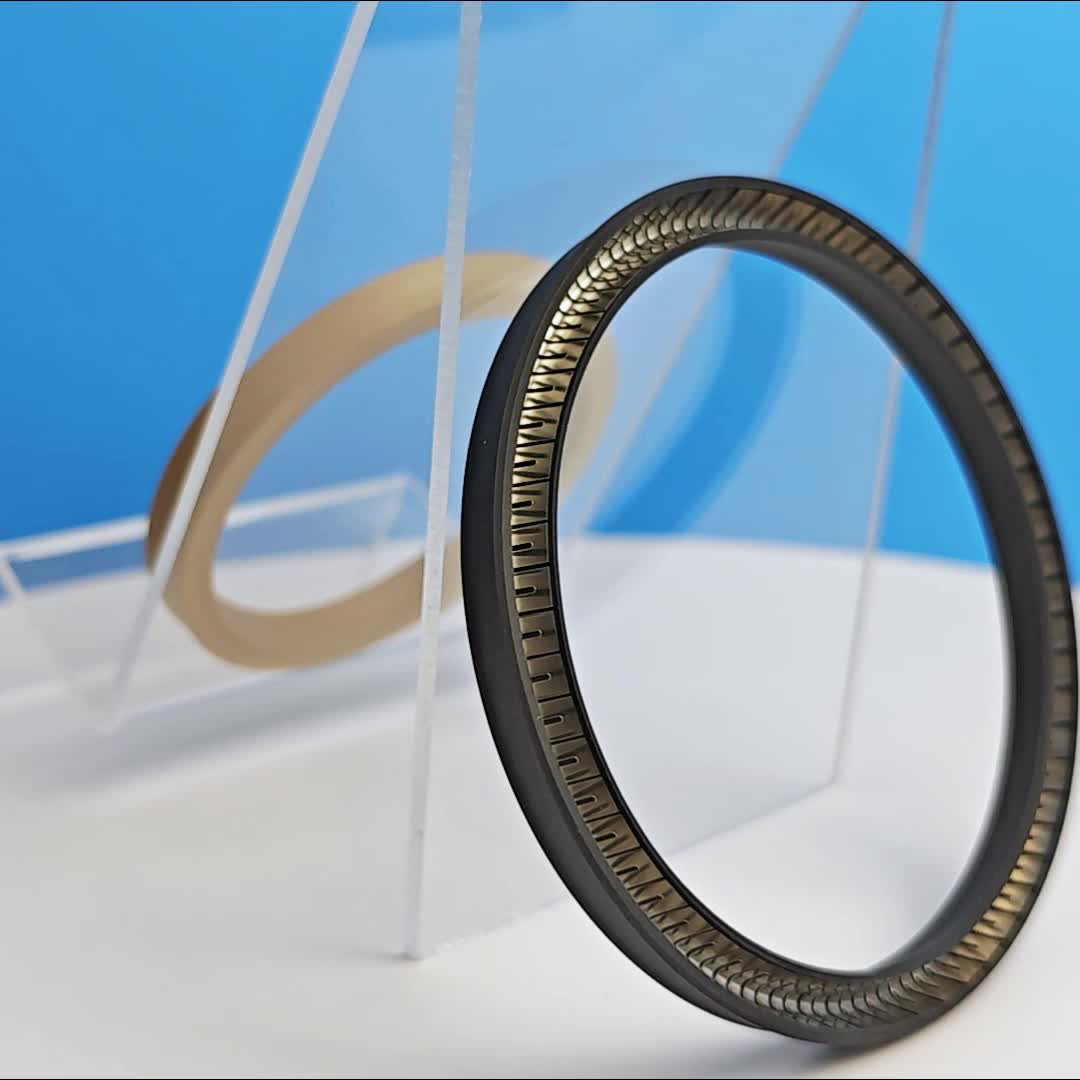

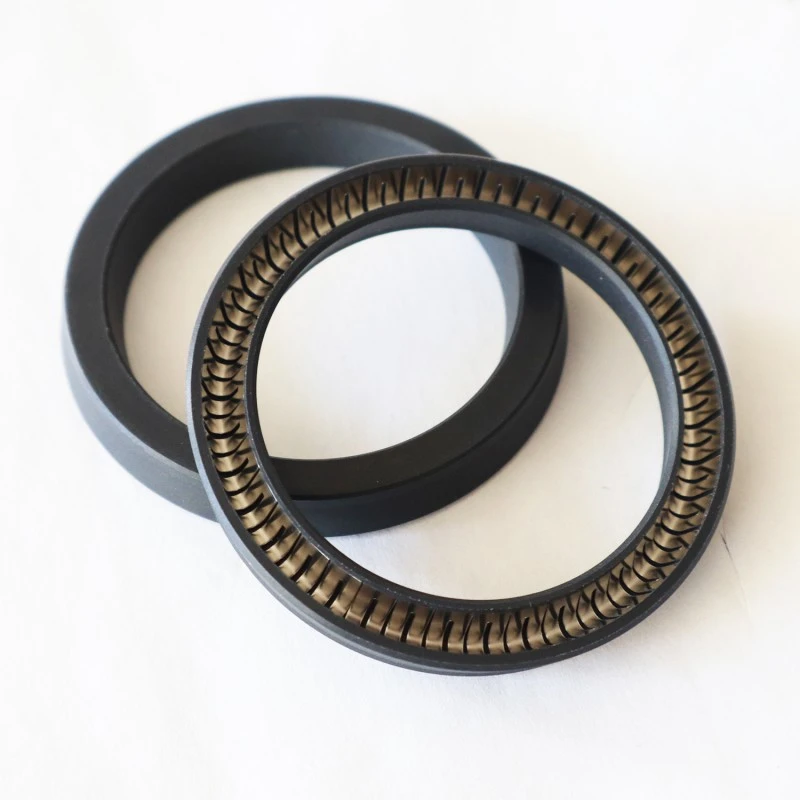

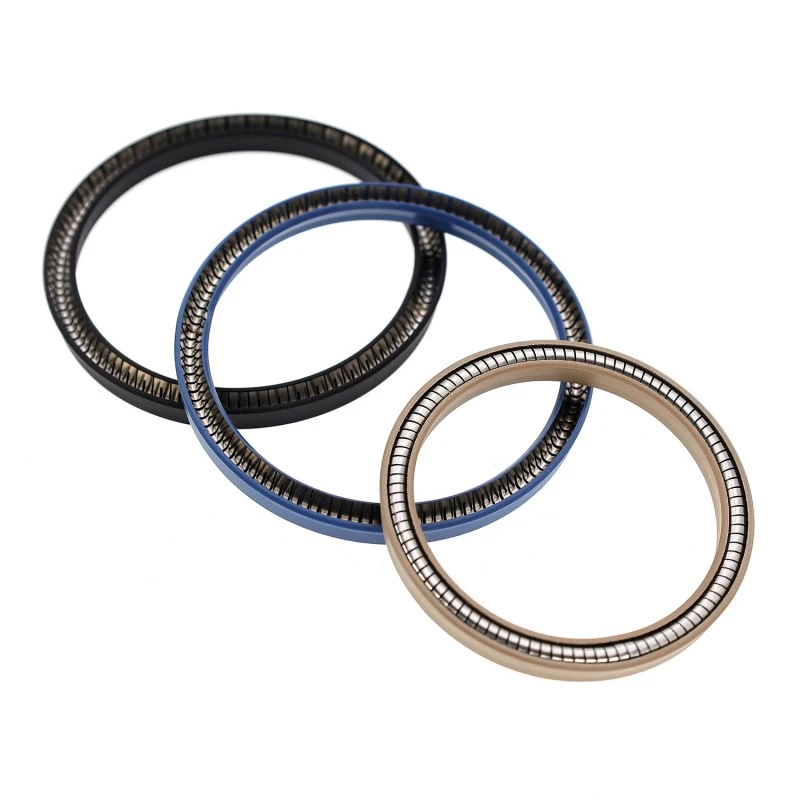

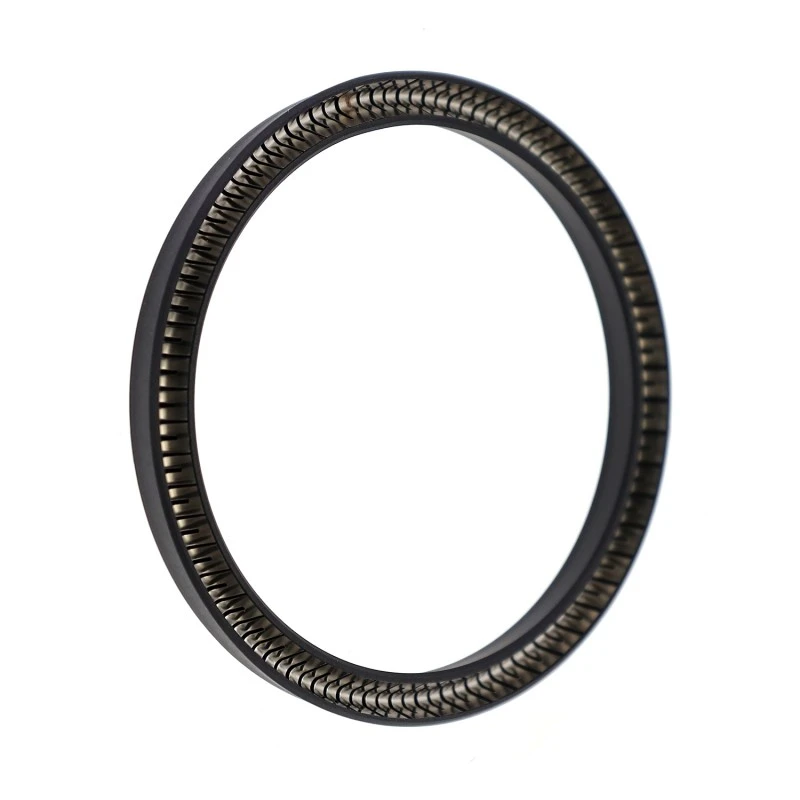

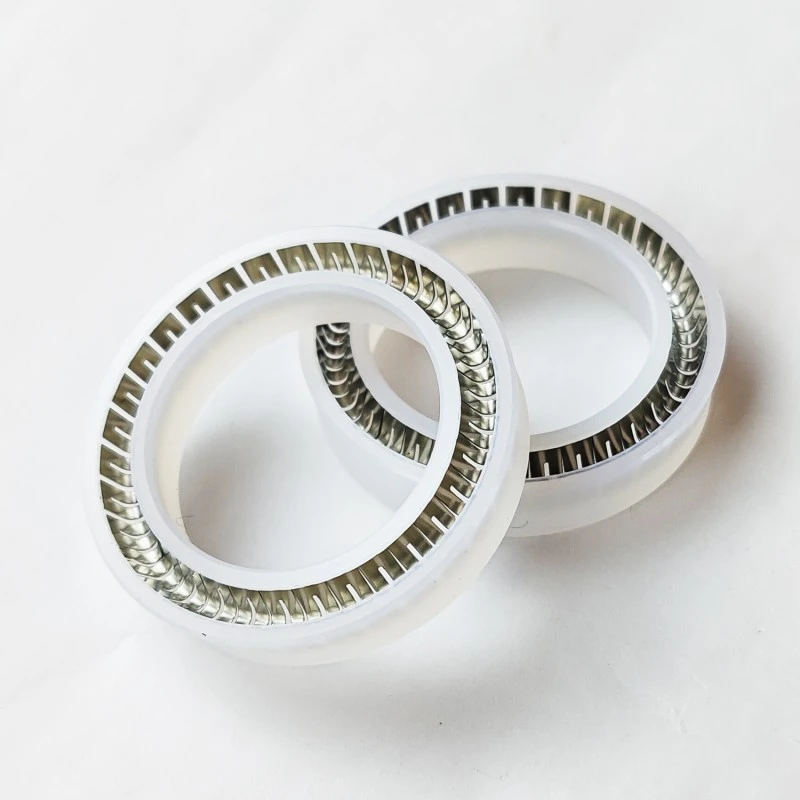

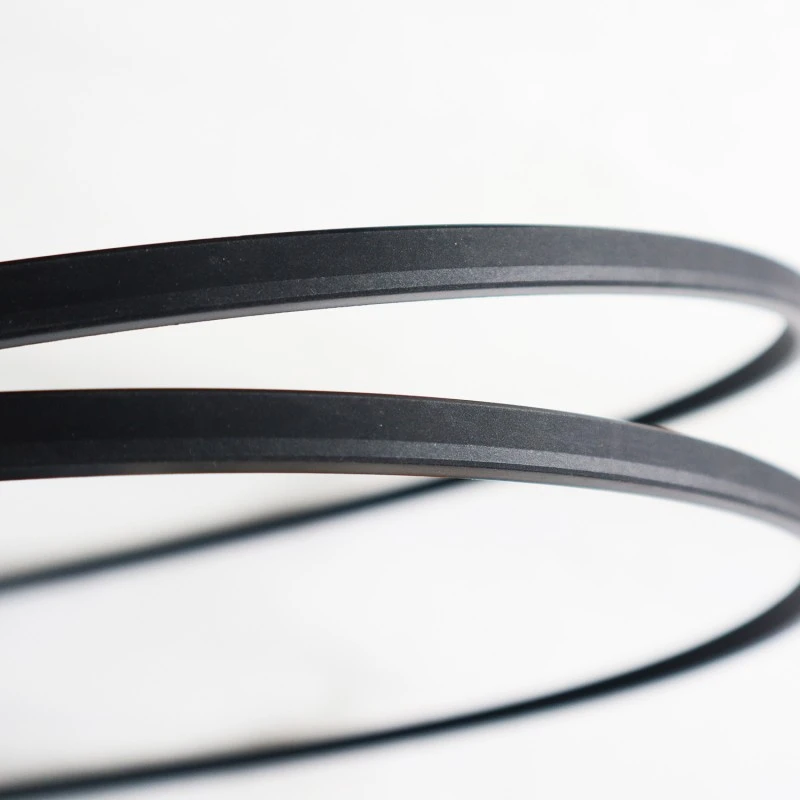

The RC65 spring-energized seal is composed of a stainless steel spring and high-performance plastic. The stainless steel spring can be either a V-shaped spring or an O-shaped spring.
Applicable operating conditions (extreme values should not occur simultaneously)
|
Pressure (MPa) |
Speed (m/s) |
Temperature (°C) |
Medium |
||
|
RC65<40 |
RC65-B<80 |
<10 |
RC65-200~250 |
RC65-B -35~250 |
几乎所有介质 |
Material Selection
1. The O-ring material can be selected from: R01 Nitrile rubber (NBR), R02 Fluororubber (FKM), etc.
2. Seal ring materials include: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Stainless steel springs can be selected from O-shaped springs and V-shaped springs.
Order example
RC65-40-PTFE4+V: Bore diameter 40, sealing ring material is PTFE4, stainless steel spring is V-shaped spring.
RC65-B-40-PTFE4+R02: Bore diameter 40, sealing ring material is PTFE4, O-ring is made of fluororubber.
Specifications and Parameters Table (Any size within the specified range is available)
|
DH9 |
df8 |
L+0.2 |
SMax(<20MPA) |
SMax(<40MPA) |
Zmin |
rmax |
|
6~13.9 |
D-2.9 |
2.4 |
0.08 |
0.05 |
0.8L |
0.4 |
|
14~24.9 |
D-4.5 |
3.6 |
0.10 |
0.07 |
0.4 |
|
|
25~45.9 |
D-6.2 |
4.8 |
0.15 |
0.08 |
0.6 |
|
|
46~124.9 |
D-9.4 |
7.1 |
0.20 |
0.10 |
0.8 |
|
|
125~999.9 |
D-12.2 |
9.5 |
0.25 |
0.12 |
0.8 |
Specifications and dimensions table (If your required specifications are not listed in this table, please contact our company; we can supply products up to 1600mm).
|
D |
d |
L |
|
D |
d |
L |
|
D |
d |
L |
|
D |
d |
L |
|
D |
d |
L |
|
15 |
10.5 |
3.6 |
42 |
35.8 |
4.8 |
75 |
65.6 |
7.1 |
160 |
147.8 |
9.5 |
320 |
307.8 |
9.5 |
||||
|
16 |
11.5 |
3.6 |
45 |
38.8 |
4.8 |
80 |
70.6 |
7.1 |
180 |
167.8 |
9.5 |
350 |
337.8 |
9.5 |
||||
|
18 |
13.5 |
3.6 |
48 |
38.6 |
7.1 |
85 |
75.6 |
7.1 |
190 |
177.8 |
9.5 |
400 |
387.8 |
9.5 |
||||
|
20 |
15.5 |
3.6 |
50 |
40.6 |
7.1 |
90 |
80.6 |
7.1 |
200 |
187.8 |
9.5 |
420 |
407.8 |
9.5 |
||||
|
22 |
17.5 |
3.6 |
52 |
42.6 |
7.1 |
95 |
85.6 |
7.1 |
210 |
197.8 |
9.5 |
450 |
437.8 |
9.5 |
||||
|
25 |
18.8 |
4.8 |
55 |
45.6 |
7.1 |
100 |
90.6 |
7.1 |
220 |
207.8 |
9.5 |
480 |
467.8 |
9.5 |
||||
|
28 |
21.8 |
4.8 |
56 |
46.6 |
7.1 |
110 |
100.6 |
7.1 |
230 |
217.8 |
9.5 |
500 |
487.8 |
9.5 |
||||
|
30 |
23.8 |
4.8 |
60 |
50.6 |
7.1 |
120 |
110.6 |
7.1 |
240 |
227.8 |
9.5 |
600 |
587.8 |
9.5 |
||||
|
32 |
25.8 |
4.8 |
63 |
53.6 |
7.1 |
125 |
112.8 |
9.5 |
250 |
237.8 |
9.5 |
700 |
687.8 |
9.5 |
||||
|
35 |
28.8 |
4.8 |
65 |
55.6 |
7.1 |
130 |
117.8 |
9.5 |
280 |
267.8 |
9.5 |
800 |
787.8 |
9.5 |
||||
|
40 |
33.8 |
4.8 |
70 |
60.6 |
7.1 |
150 |
137.8 |
9.5 |
300 |
287.8 |
9.5 |
900 |
887.8 |
9.5 |
In which fields can Ruichen's sealing products be used?
We are a leading company in China in the field of high-pressure and ultra-high-pressure sealing, having successfully solved numerous industry challenges.
• Ultra-high pressure capability: Our sealing products have a pressure rating of up to 600 MPa, and we have successful application cases from customers operating under extreme conditions of 720 MPa, setting a benchmark for sealing technology in China.
• High-pressure and high-temperature composite working conditions: We have successfully overcome the technical bottleneck of simultaneous operation under 300 MPa pressure and 200℃ high temperature, and our product performance has reached internationally advanced levels.
