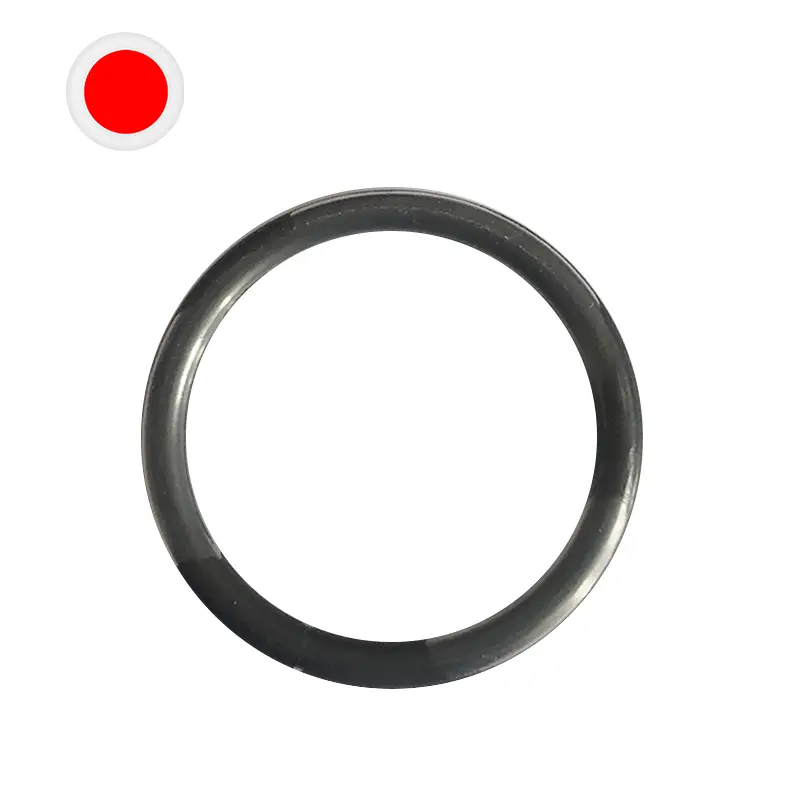

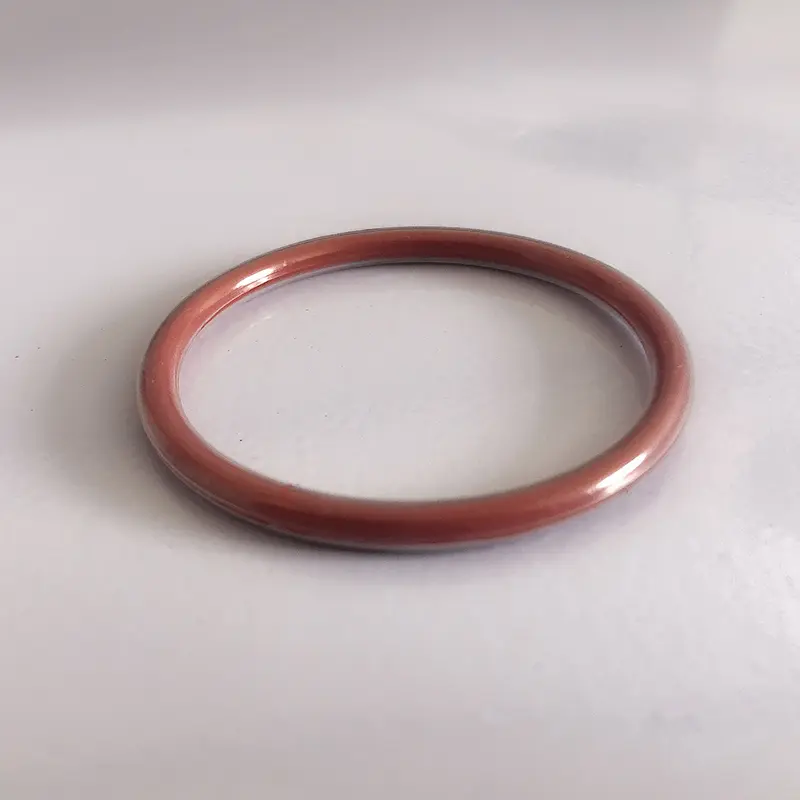

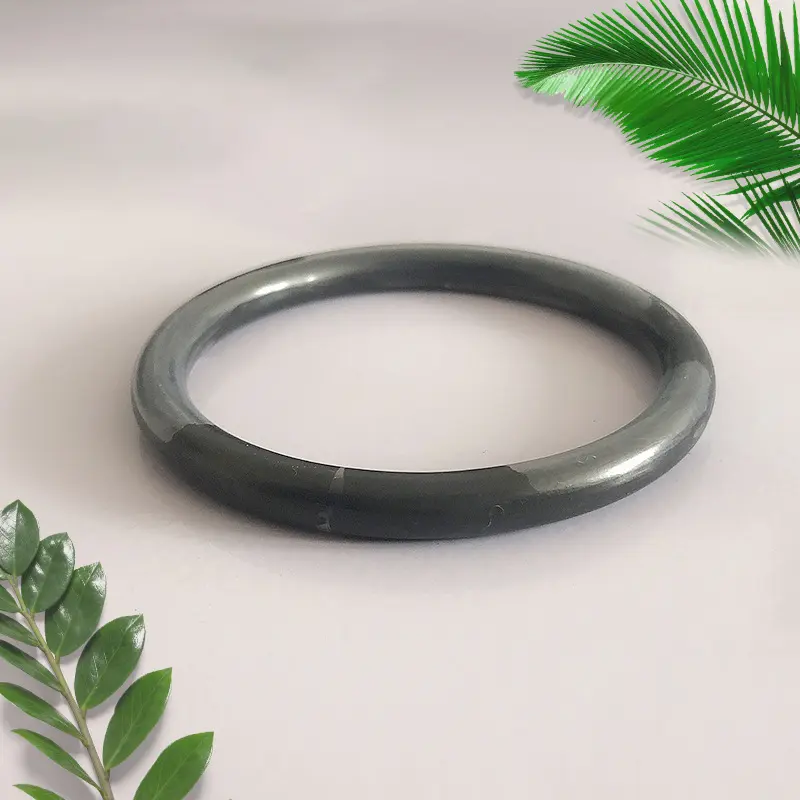

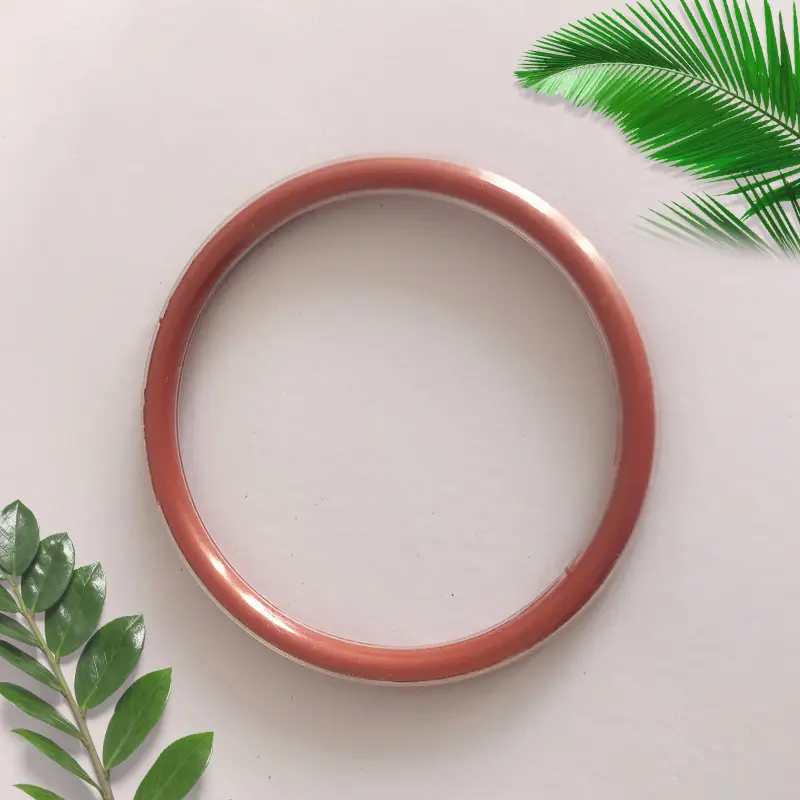

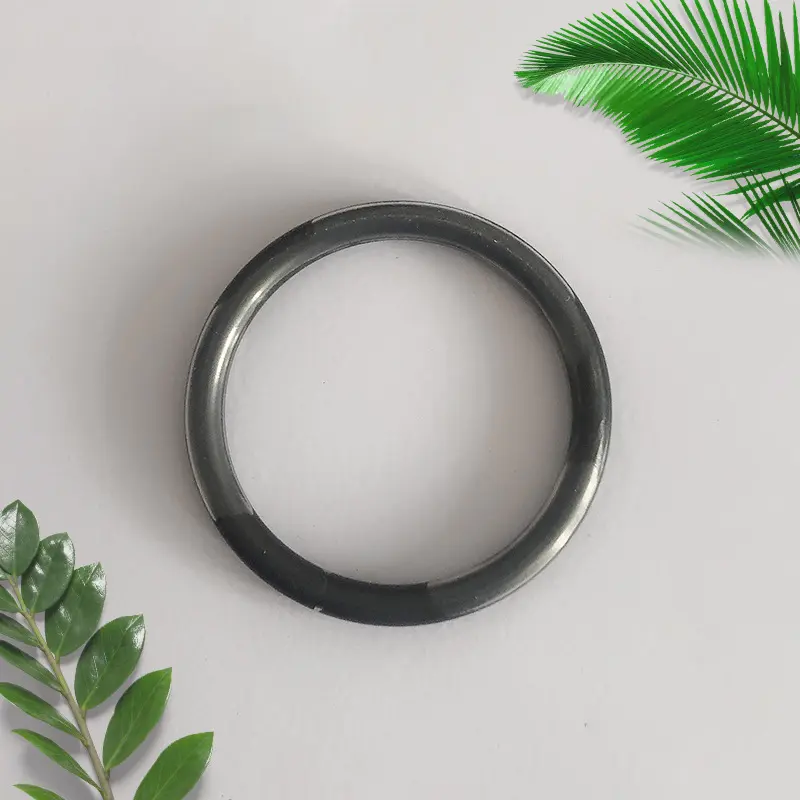

The clad O-ring combines the elasticity and sealing of rubber with the chemical resistance of Teflon. It is composed of a silicone or fluororubber inner core and a relatively thin Teflon FEP or Tefon PFA outer cover.
Applications of clad O-ring: pumps and valves, reaction vessels, mechanical seals, filters, pressure vessels, heat exchangers, boilers, pipeline flanges, gas compressors, etc.
Application industries: chemical industry, aircraft manufacturing, pharmaceutical industry, transportation of petroleum and chemicals, oil refining, film industry, refrigeration engineering, food processing industry, papermaking industry, dye manufacturing, paint spraying, etc.
Product features and applications:
Advantages:
Clad O-ring has outstanding chemical resistance, is suitable for almost all chemical media, has a wide temperature range, good compression resistance, high pressure resistance, anti-friction ability, and good anti-swelling properties, which together constitute excellent sealing durability and long service life.
Applicable temperature range
Teflon FEP shell: -60℃~205℃, can be used at 260℃ for a short time;
Teflon PFA shell: -60℃~260℃, can be used at 300℃ for a short time.
Static sealing is 15%-20%; dynamic sealing is 10%-12%; pneumatic sealing is 7%-8%.

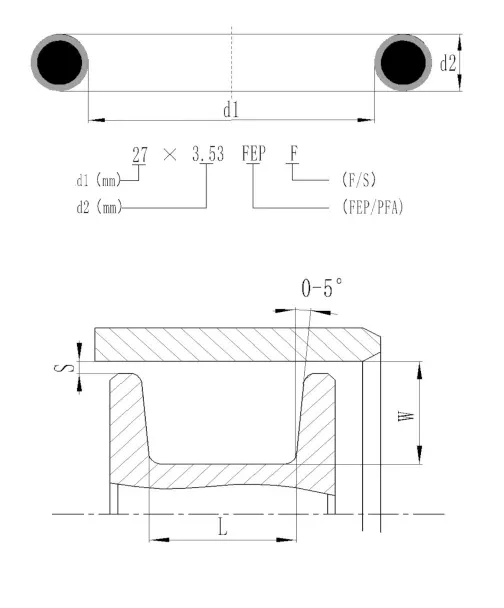

Clad O-ring Groove Size Table (Recommended)
| Wire diameter d2 | L (mm) | W (mm) | ||
| Static seal | Dynamic seal | Pneumatic seal | ||
| 1.78 | 2.36/2.49 | 1.42/1.52 | 1.55/1.60 | 1.63/1.65 |
| 2.62 | 3.56/3.68 | 2.08/2.21 | 2.29/2.36 | 2.39/2.44 |
| 3.53 | 4.75/4.88 | 2.82/3.00 | 3.10/3.18 | 3.22/3.28 |
| 5.33 | 7.14/7.26 | 4.27/4.52 | 4.67/4.80 | 4.90/4.95 |
| 6.99 | 9.63/9.65 | 5.59/5.89 | 6.15/6.27 | 6.43/6.48 |
