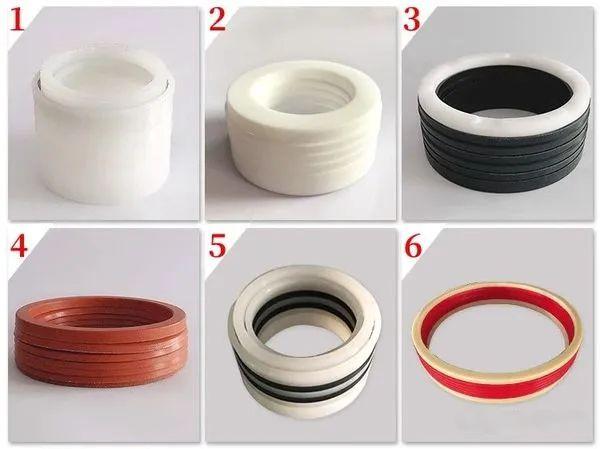

The RC15 V-Shaped Combination Seal for piston rods consists of a set (of at least three) V-shaped sealing rings, a compression ring, and a support ring. It is suitable for unidirectional pressure sealing in reciprocating hydraulic applications. A grease compatible with the sealing material must be applied during installation. It cannot be installed in integral (closed) grooves.
1. A wide range of materials are available, allowing for optimal adjustment to suit various applications.
2. Suitable for use in harsh operating conditions, adapting to nearly all media and demanding conditions.
3. Long service life, suitable for oil-free lubrication (with appropriate material selection).
4. Adjustable sealing and friction can be achieved by adjusting the gasket, and axial dimension can be adjusted by adding or removing V-Shaped Seals.

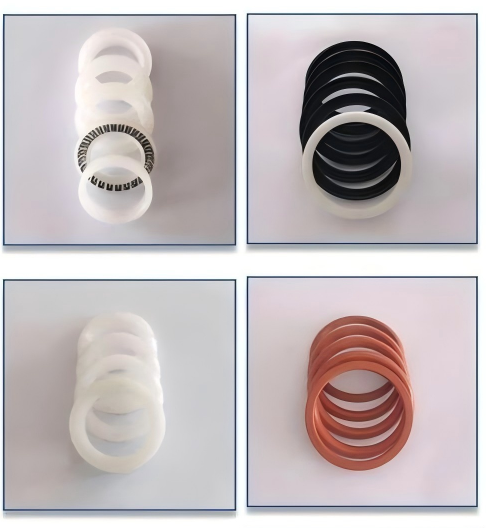

Product Materials Available:
1. Compression Ring Material: PTFE, Nitrile Cloth, Fluororubber Cloth, Nylon, Polyoxymethylene.
2. V-Ring Material: PTFE, Nitrile Cloth, Nitrile Cloth, Fluororubber, Polyurethane, Fluororubber Cloth.
3. Support Ring Materials: Nitrile cloth, Fluorocarbon cloth, Nylon, Polyoxymethylene, Polytetrafluoroethylene.
The RC15 piston V-shaped combination seal has a wide range of applications and can be used in the following applications.
Applicable to: Almost all media (select the appropriate material combination)
