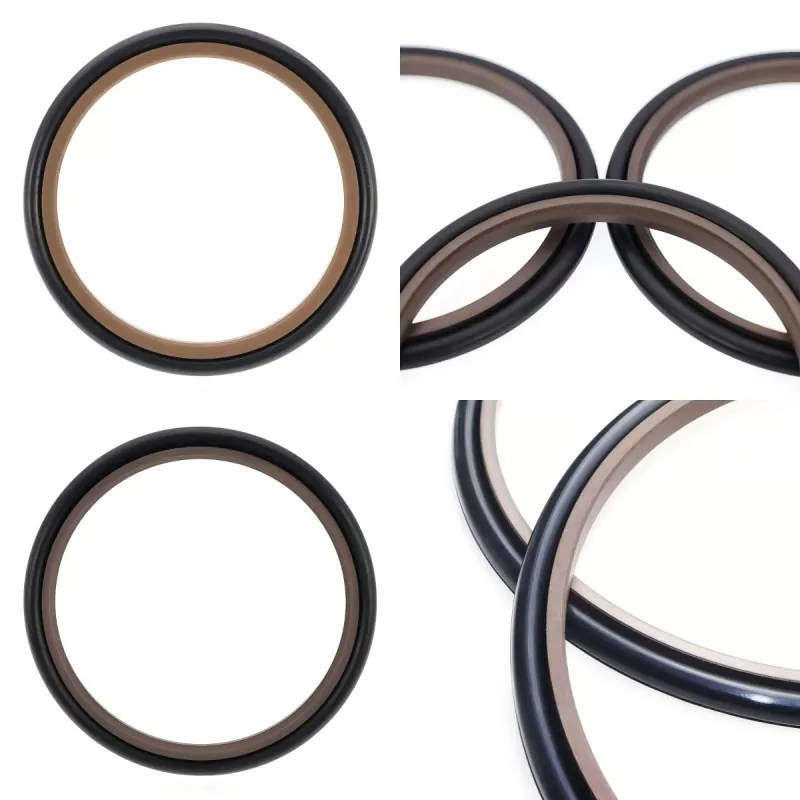

The RC11 consists of a filled-PTFE stepped sealing ring and a rubber O-ring; it is designed for single-acting pressure sealing in hydraulic reciprocating applications. The RC11-B consists of a filled-PTFE rectangular sealing ring and a rubber O-ring; it is designed for double-acting pressure sealing in hydraulic reciprocating applications. The O-ring provides radial preload and compensates for wear on the sealing ring. It is generally used in conjunction with a guide ring. For rod diameters smaller than 30 mm, a split (open) groove design should be used.
1. Low friction, low breakaway force, smooth operation, equal static and dynamic friction, and no stick-slip;
2. Excellent pressure stability under high-pressure and demanding operating conditions;
3. Long service life; suitable for oil-free sealing applications;
4. Suitable for sealing low-viscosity media, such as water.
|
Pressure (MPa) |
Temperature (°C) |
Speed (m/s) |
Medium |
|
≤60 |
+35 to +100 (with NBR O-ring) |
≤6 |

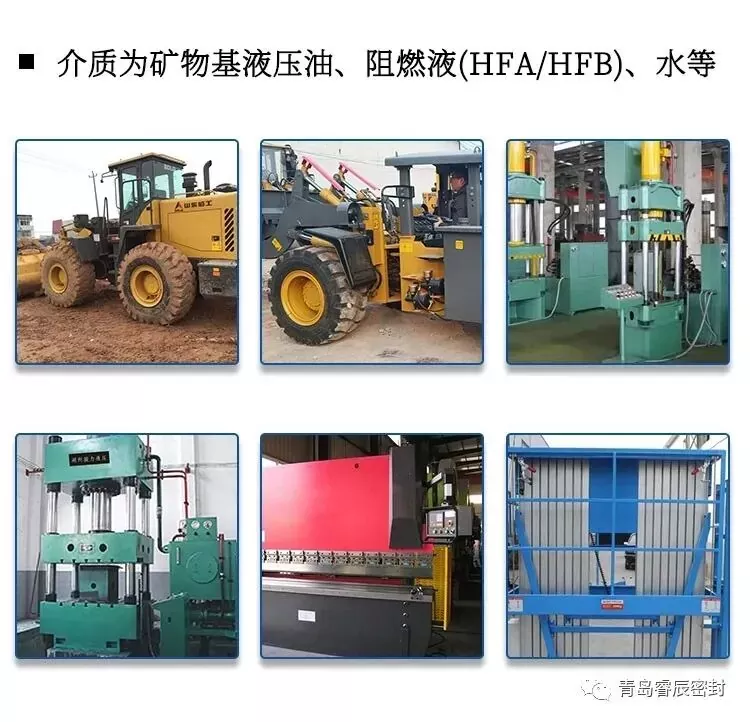

Mineral-based hydraulic oil, fire-resistant fluids (HFA/HFB), water, etc. |
|
-20 to +200 (with FKM O-ring) |
1. Compatible O-ring materials include: R01 Nitrile Rubber (NBR), R02 Fluororubber (FKM), etc.
2. Sealing ring materials: PTFE2, PTFE3, PTFE4, PU, etc.

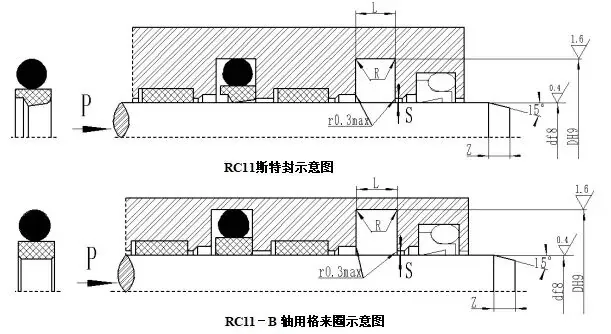

Order Model: RC11—40x55.1x6.3—PTFE3—R01
Order Model: RC11-B—40x55.1x6.3—PTFE3—R02
Model - Rod Diameter x Groove Diameter x Groove Width; PTFE3 – Modified PTFE material code; R01, R02 – O-ring material codes.
