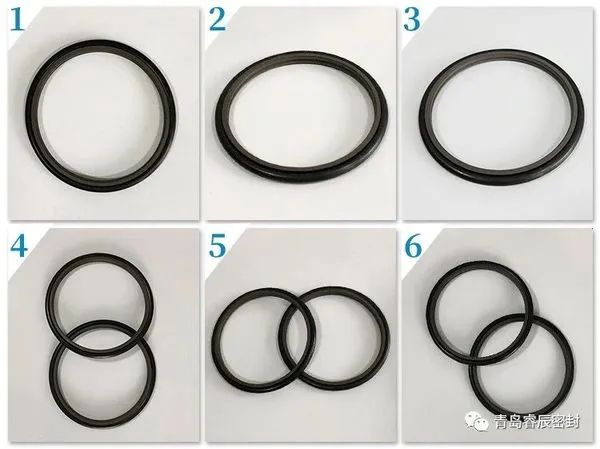

The RC2059 rotary shaft combination seal consists of a modified, contoured sealing ring and an O-ring.
The RC2059 rotary shaft combination seal offers excellent sealing performance, extremely low friction, zero adhesion, a simple structure, and easy installation.
Applicable working conditions (limit values should not appear at the same time)
| Diameter range mm | Speed m/s | Pressure MPa | Temperature ℃ | Medium |
| 6~1000 | ≤5 | 0~30 | -50~+220 (depending on the O-ring material) | Hydraulic oil, gas, water, emulsion, etc. |

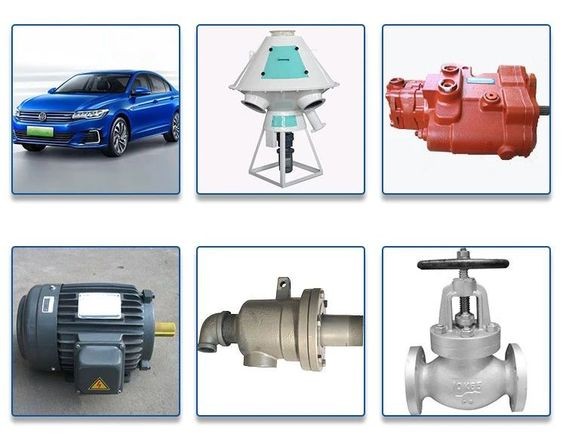

It is used for bidirectional rotary sealing in hydraulic and pneumatic applications, such as rotary distributors, hydraulic pumps, motors, adapters, and valves.
Ordering Example
Specific dimensions, specifications, and materials can be customized. Rotating shaft diameter d = Φ80mm. Order number: RC2059-80-P3-R01. RC2059 - Model: 80 - Shaft diameter: P3 - Sealing ring material: 01 - Matching O-ring material.
The RC2059 rotary shaft combination seal is used for bidirectional rotary sealing in hydraulic and pneumatic applications, such as rotary distributors, hydraulic pumps, motors, rotary joints, and valves.
Suitable for hydraulic oil, emulsion, water, gas, etc.
Used for hydraulic and pneumatic bidirectional rotary seals, such as rotary distributors, hydraulic pumps, motors, rotary joints, and valves.
-
