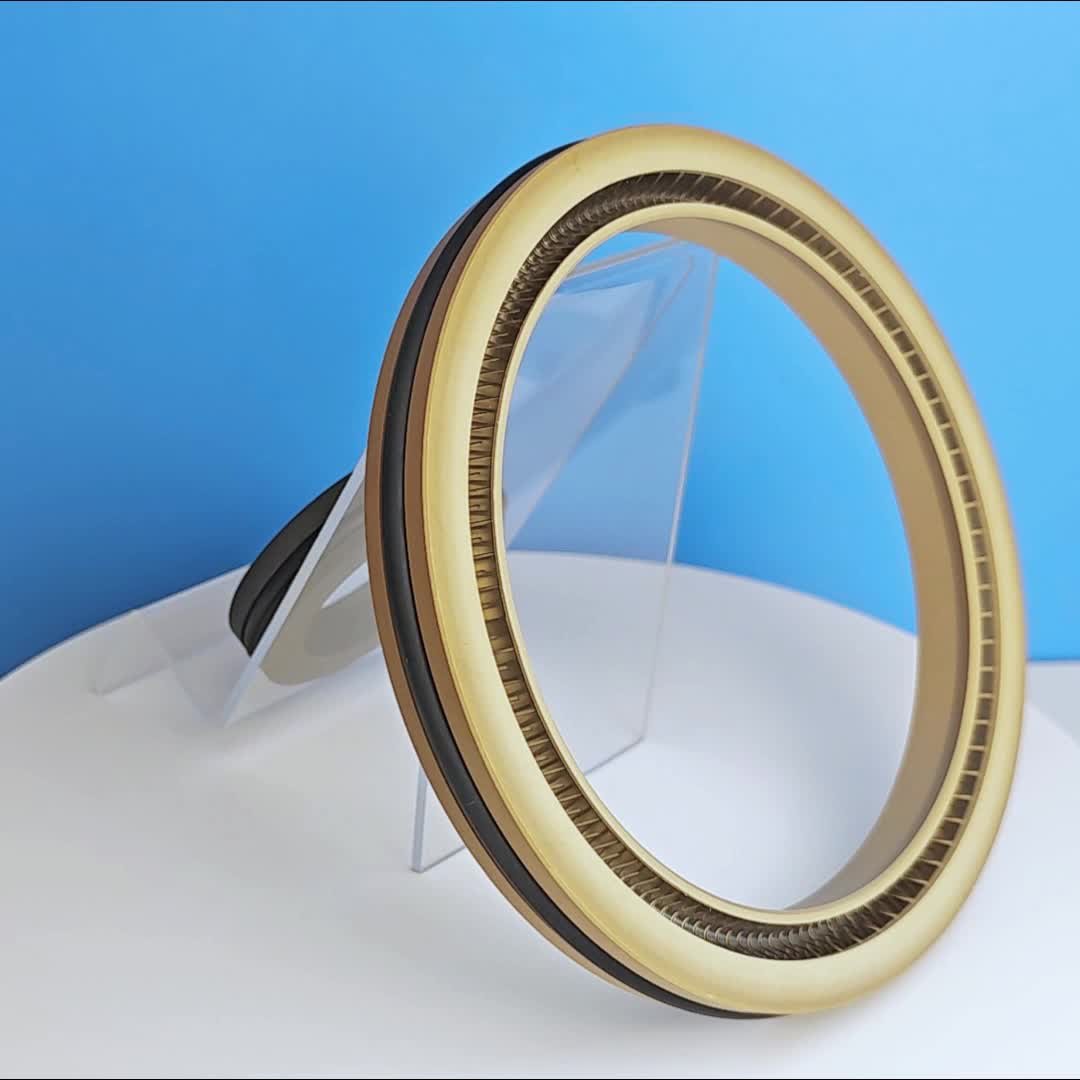

Ruichen Sealing is a professional manufacturer, and our RC2056 rotary lip seal is composed of a stainless steel spring and high-performance plastic.
Applicable operating conditions (extreme values should not occur simultaneously)
|
Pressure/MPa |
Temperature/°C |
Speed / m/s |
Medium |
||
|
≤2 |
RC2056 -200~+250 |
RC2056-B -35~+250 |
RC2056 <14M/S |
RC2056-B <6M/S |
Almost all liquid and gaseous media |
1. Suitable O-ring materials include: R01 nitrile rubber (NBR), R02 fluororubber (FKM), etc.
2. Seal ring materials: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Stainless steel spring: V-shaped spring.
RC2056-40*62*8-PTFE4+V d*D*L, seal ring material is PTFE4, stainless steel spring is V-shaped spring
RC2056-B-40*62*8-PTFE4+R02 d*D*L, seal ring material is PTFE4, matching O-ring is made of fluororubber
|
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
|
7*20*6 |
14*26*6 |
17*35*7 |
20*35*8 |
25*37*6 |
30*42*6 |
|
7*20*7 |
14*28*7 |
17*35*8 |
20*40*7 |
25*38*8 |
30*42*7 |
|
8*18*7 |
14*30*8 |
18*30*6 |
20*40*7 |
25*40*7 |
30*42*8 |
|
8*20*6 |
15*25*6 |
18*30*7 |
20*40*10 |
25*40*8 |
30*45*8 |
|
8*22*6 |
15*30*7 |
18*32*6 |
20*40*11 |
25*40*10 |
30*50*11 |
|
8*22*7 |
15*30*8 |
18*32*8 |
22*32*6 |
25*42*6 |
30*52*7 |
|
10*22*6 |
15*32*7 |
18*35*6 |
22*35*6 |
25*42*10 |
32*44*8 |
|
10*22*7 |
15*32*8 |
18*35*8 |
22*35*8 |
25*45*11 |
32*47*6 |
|
10*25*7 |
15*35*6 |
19*35*6 |
22*38*8 |
25*47*6 |
32*47*8 |
|
12*22*6 |
16*26*7 |
19*35*8 |
22*42*11 |
26*40*6 |
32*48*7 |
|
12*22*7 |
16*30*7 |
20*30*7 |
24*40*6 |
28*40*8 |
32*50*8 |
|
12*24*6 |
16*35*8 |
20*32*7 |
24*40*7 |
28*40*9 |
32*52*6 |
|
12*25*8 |
16*40*10 |
20*32*8 |
24*40*8 |
28*45*8 |
32*52*11 |
|
12*32*7 |
17*30*6 |
20*35*6 |
25*35*6 |
28*48*11 |
34*54*11 |
|
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
Inner diameter * Outer diameter * Height |
|
35*47*6 |
45*65*8 |
60*75*8 |
80*100*10 |
105*130*12 |
140*180*12 |
|
35*47*8 |
45*65*10 |
60*75*10 |
80*105*7.5 |
105*135*14 |
150*180*8.5 |
|
35*50*7 |
47*62*7 |
60*80*7 |
80*105*13 |
110*135*12 |
150*180*12 |
|
35*50*8 |
48*65*10 |
60*80*10 |
85*105*7.5 |
110*140*14 |
150*180*14 |
|
35*52*6 |
48*70*12 |
60*82*12 |
85*105*10 |
110*150*8 |
160*185*8.5 |
|
35*54*6 |
50*65*7 |
60*85*8 |
85*110*8 |
115*145*14 |
160*185*12 |
|
35*55*11 |
50*65*8 |
60*85*10 |
85*110*12 |
120*140*7.5 |
160*190*15 |
|
38*50*6 |
50*68*7 |
62*85*7 |
85*110*13 |
120*140*10 |
160*200*10 |
|
38*52*8 |
50*68*8 |
62*85*10 |
85*120*8 |
120*145*12 |
170*195*12 |
|
38*58*11 |
50*70*10 |
62*85*12 |
90*110*7.5 |
120*150*10 |
170*200*12 |
|
40*52*7 |
50*72*7 |
65*85*10 |
90*110*10 |
120*150*12 |
170*200*14 |
|
40*52*8 |
50*72*12 |
65*90*7 |
90*110*12 |
120*150*14 |
170*200*16 |
|
40*55*6 |
52*68*10 |
65*90*12 |
90*115*10 |
125*150*12 |
180*205*12 |
|
40*55*7 |
52*70*10 |
65*90*13 |
90*115*12 |
125*155*14 |
180*210*8.5 |
|
40*55*8 |
52*75*12 |
70*85*10 |
90*115*13 |
130*150*7.5 |
190*215*12 |
|
40*58*8 |
55*70*7 |
70*90*7 |
90*120*10 |
130*155*12 |
190*225*16 |
|
40*62*6 |
55*72*7 |
70*90*10 |
95*115*10 |
130*160*14 |
200*225*12 |
|
40*62*8 |
55*72*8 |
70*95*13 |
95*120*12 |
135*160*12 |
200*230*13 |
|
40*62*12 |
55*75*7 |
75*95*7 |
95*120*13 |
135*165*14 |
240*265*12 |
|
42*62*7 |
55*75*10 |
75*95*10 |
100*120*7.5 |
140*160*10 |
240*270*8.5 |
|
42*65*12 |
55*78*12 |
75*100*11 |
100*120*10 |
140*160*12 |
260*280*10 |
|
45*58*7 |
55*83*7 |
75*100*13 |
100*125*12 |
140*165*12 |
260*285*12 |
|
45*62*10 |
58*80*12 |
80*95*10 |
100*125*13 |
140*170*14 |
300*330*15 |
|
45*65*7 |
60*72*7 |
80*100*7 |
105*130*7.5 |
140*170*15 |
300*340*20 |
Note: Products with a maximum size of 1600mm are available; please contact our company for details.
We possess deep customization and collaborative development capabilities. Many competitors primarily offer standard product catalogs. However, we believe that true value lies in solving your unique problems.
Ruichen has a team of experienced engineers who can work collaboratively with your technical department, starting from the design phase. We analyze sealing conditions, friction coefficients, media compatibility, and more, providing you with tailor-made solutions. Whether it's non-standard dimensions, special material composites, or highly challenging performance requirements, we are happy to accept the challenge and turn it into a success story.
