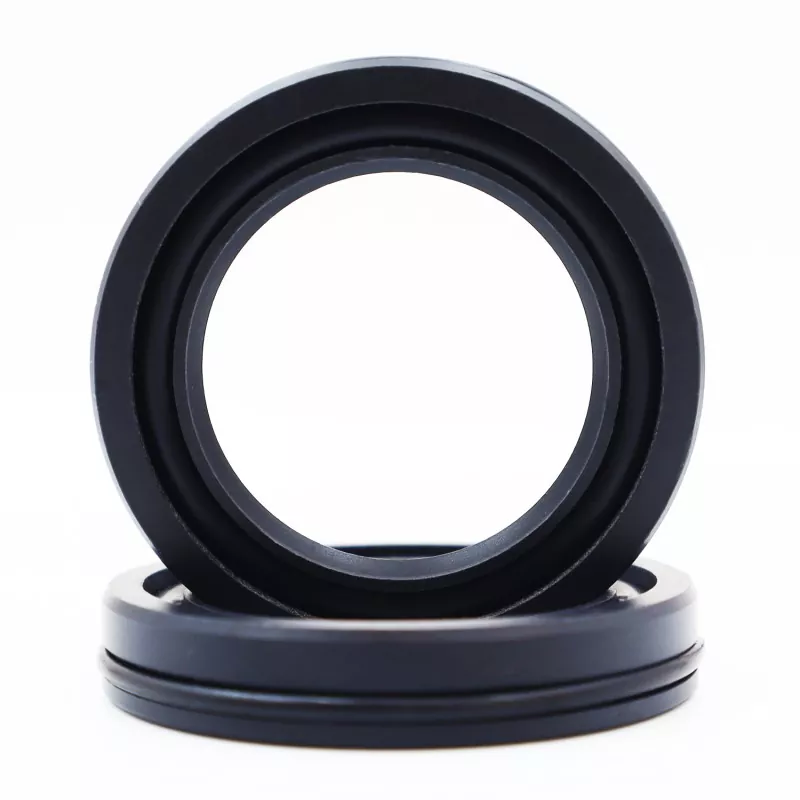

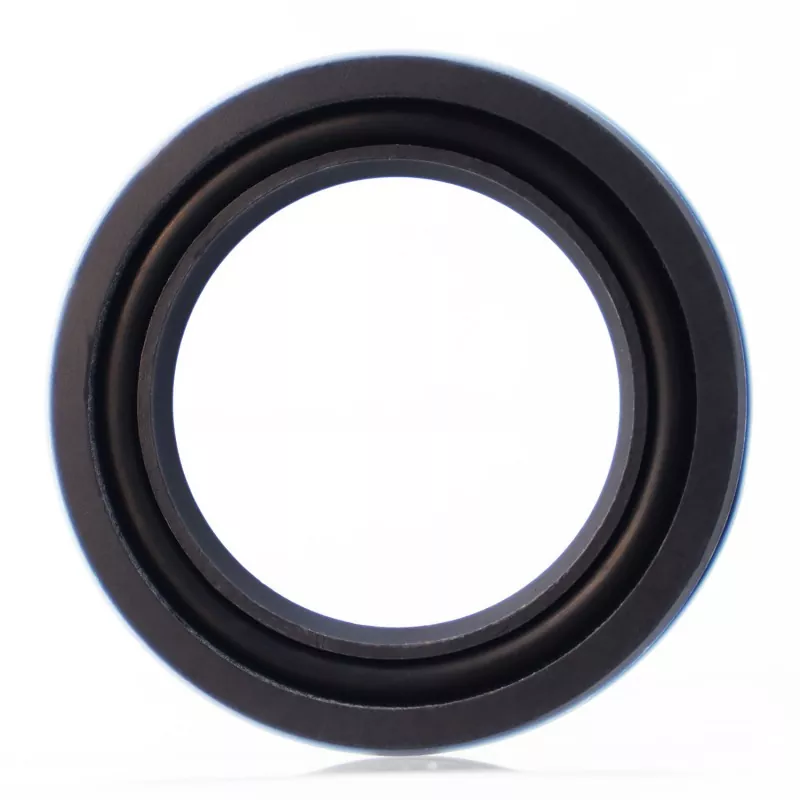

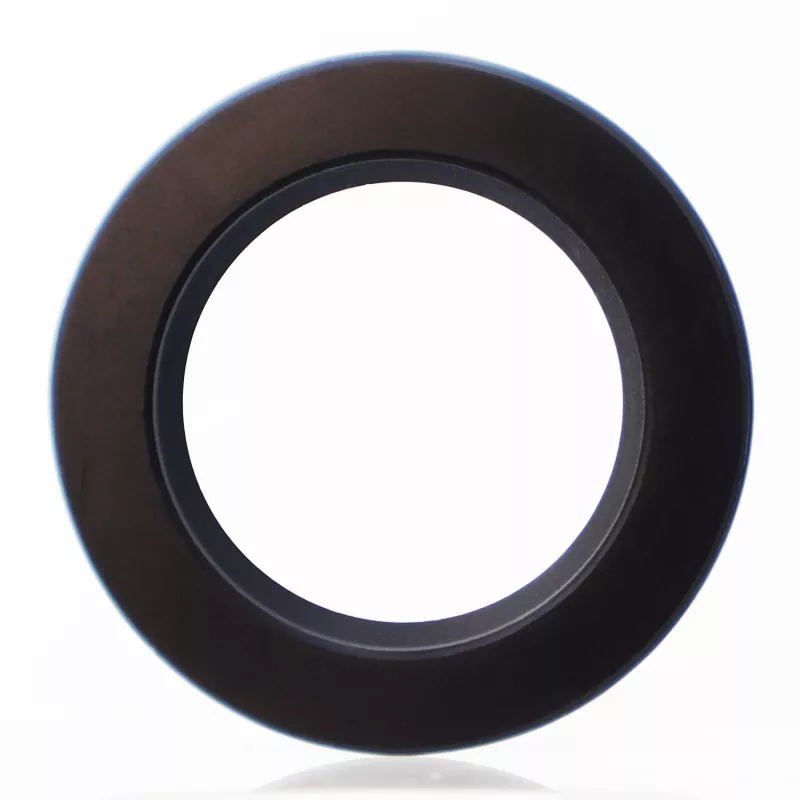

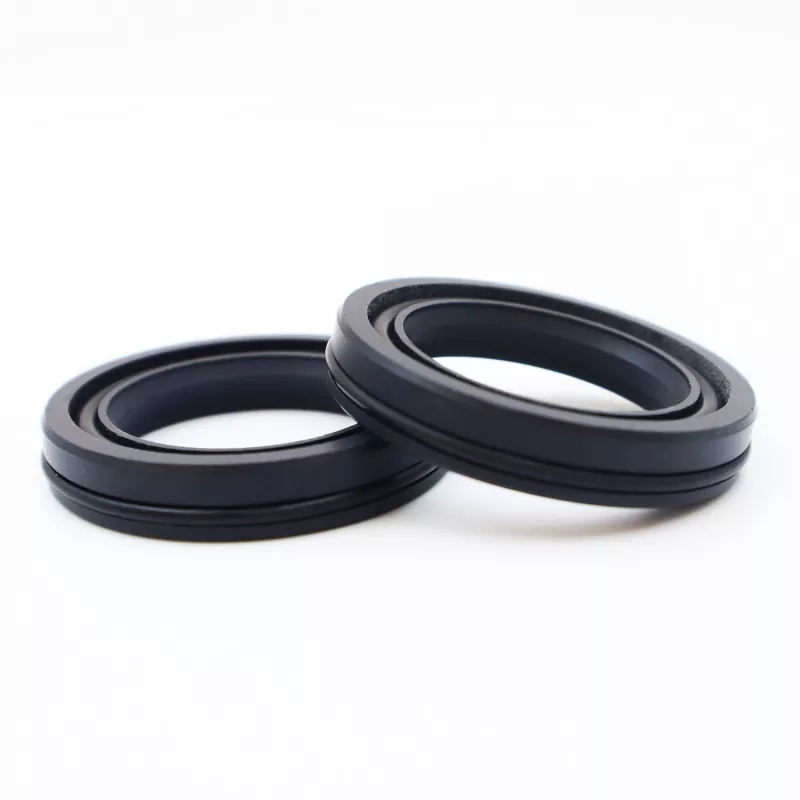

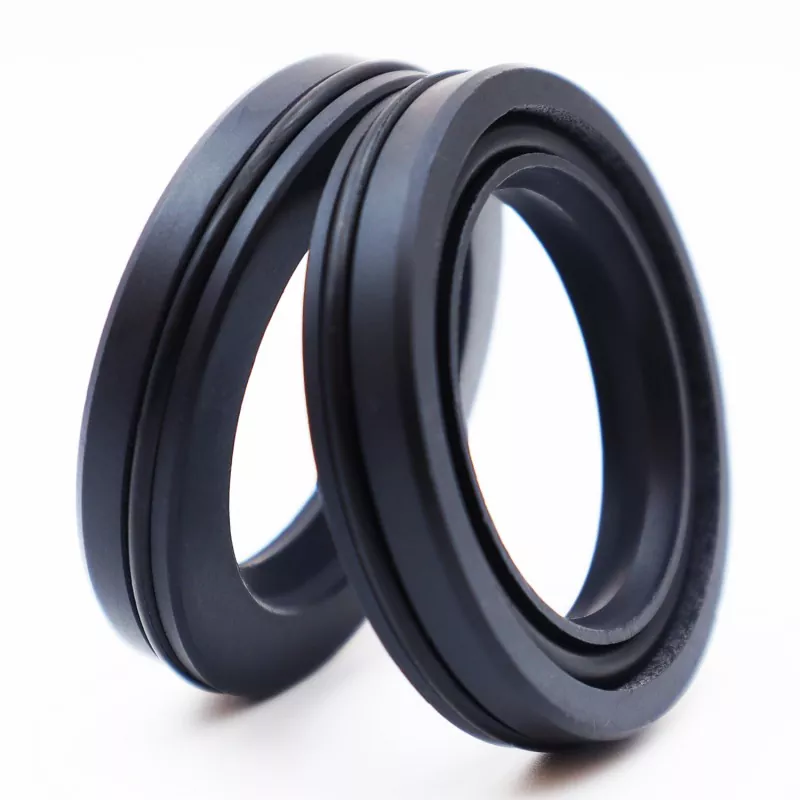

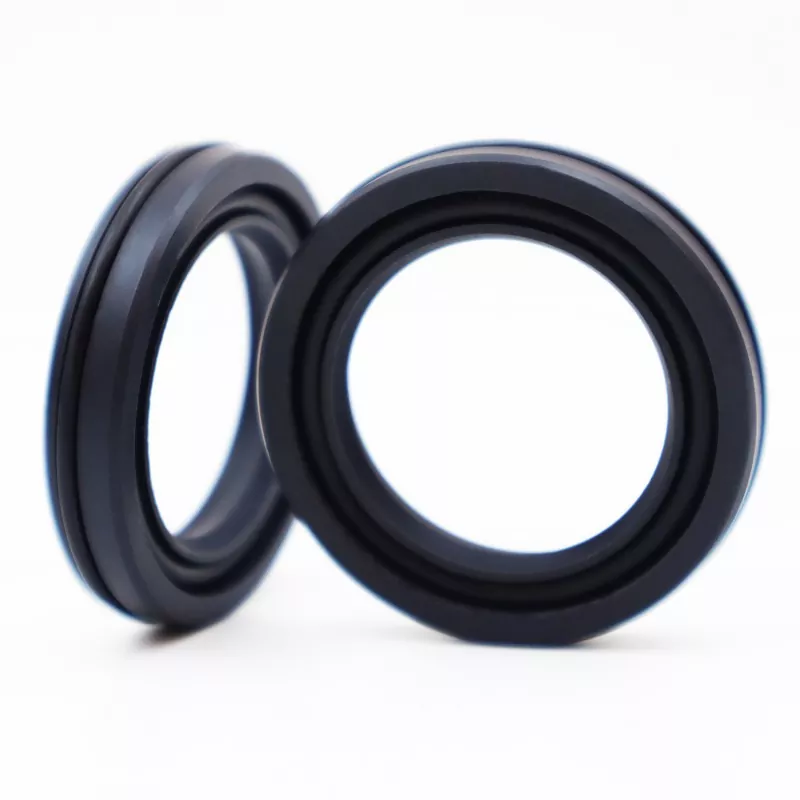

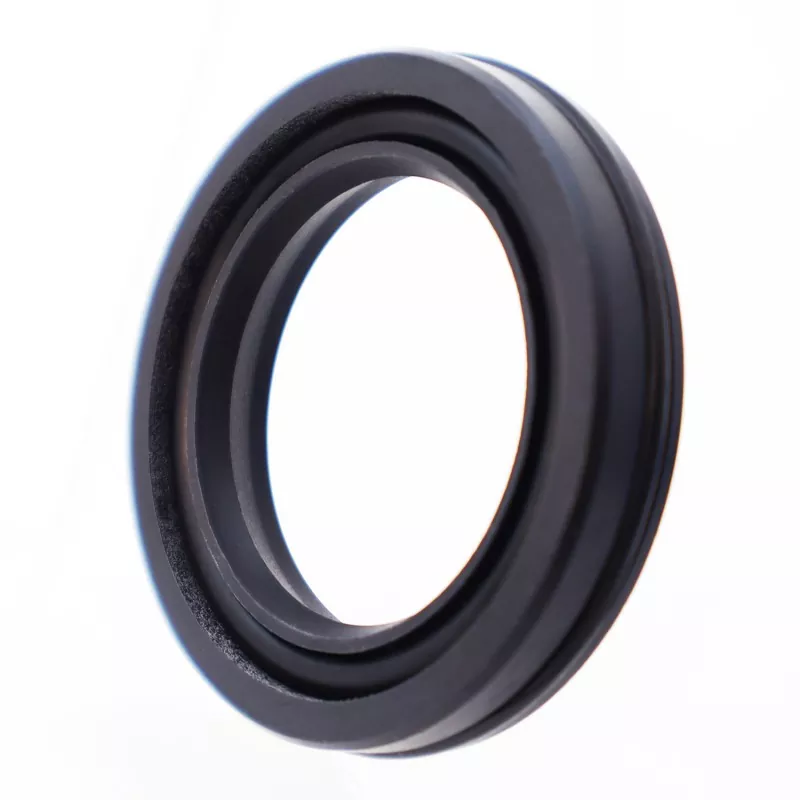

The Ruichen RC2056-B Rotary Y-Seal is a high-performance, unidirectional pressure seal specifically designed for rotating shafts. When conventional rotary oil seals underperform in extreme operating conditions—such as high temperatures, corrosive environments, or poor lubrication—the custom-engineered Ruichen RC2056-B offers a more reliable and durable dynamic sealing solution.
By utilizing compatible elastomer materials, this seal effectively meets the long-term sealing requirements of pumps, mixing equipment, and drive systems operating in complex chemical media and across a wide temperature range.
Limit values should not occur simultaneously.
|
Pressure (MPa) |
Temperature (°C) |
Speed (m/s) |
Media |
||
|
≤2 |
RC2056 -200~+250 |
RC2056-B -35~+250 |
RC2056 <14M/S |
RC2056-B <6M/S |
Almost all liquid and gaseous media |

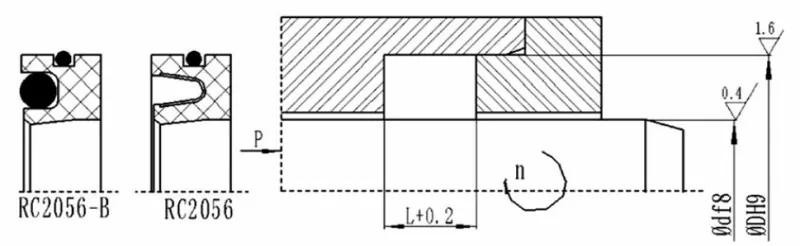

As a key achievement of Ruichen Rotary Sealing Technology, this product was specifically developed to address the challenges of sealing rotating shafts in harsh environments. By combining an optimized Y-shaped lip design with high-performance elastomeric materials, it delivers low friction, minimal wear, and a long service life during rotary operation. This directly addresses core customer concerns regarding how to reduce energy consumption and maintenance frequency for rotating equipment operating under conditions of high temperature, severe corrosion, or inadequate lubrication.
The successful application of this product hinges on the precise selection of the accompanying elastomer material. Based on factors such as rotational surface speed, media type, operating temperature, and pressure, Ruichen’s engineering team will assist you in selecting the optimal material—such as high-temperature resistant fluoroelastomer or wear-resistant specialty polyurethane. Whether for use in chemical pumps, centrifuges, and mixing equipment, or in the rotating components of aerospace machinery, purchasing the Ruichen RC2056-B rotary seal ensures access to tailored technical support.
It boasts outstanding overall performance: suitable for both rotary and oscillating movements; excellent media compatibility; low start-up friction with smooth, stick-slip-free operation; capable of functioning under oil-free lubrication conditions; a wide range of material options to handle complex operating environments and rapid temperature fluctuations; and compliance with the contamination-free and sterilizability standards required by the food and pharmaceutical industries. Choosing the Ruichen RC2056-B means securing a stable, long-lasting sealing solution for your rotating equipment in demanding environments.
Note on specifications: Products up to 1600mm in size are available; please contact us regarding dimensions not listed here.
|
Inner Diameter × Outer Diameter × Height |
Inner Diameter × Outer Diameter × Height |
Inner Diameter × Outer Diameter × Height |
Inner Diameter × Outer Diameter × Height |
Inner Diameter × Outer Diameter × Height |
Inner Diameter × Outer Diameter × Height |
|
7*20*6 |
14*26*6 |
17*35*7 |
20*35*8 |
25*37*6 |
30*42*6 |
|
7*20*7 |
14*28*7 |
17*35*8 |
20*40*7 |
25*38*8 |
30*42*7 |
|
8*18*7 |
14*30*8 |
18*30*6 |
20*40*7 |
25*40*7 |
30*42*8 |
|
8*20*6 |
15*25*6 |
18*30*7 |
20*40*10 |
25*40*8 |
30*45*8 |
|
8*22*6 |
15*30*7 |
18*32*6 |
20*40*11 |
25*40*10 |
30*50*11 |
|
8*22*7 |
15*30*8 |
18*32*8 |
22*32*6 |
25*42*6 |
30*52*7 |
|
10*22*6 |
15*32*7 |
18*35*6 |
22*35*6 |
25*42*10 |
32*44*8 |
|
10*22*7 |
15*32*8 |
18*35*8 |
22*35*8 |
25*45*11 |
32*47*6 |
|
10*25*7 |
15*35*6 |
19*35*6 |
22*38*8 |
25*47*6 |
32*47*8 |
|
12*22*6 |
16*26*7 |
19*35*8 |
22*42*11 |
26*40*6 |
32*48*7 |
|
12*22*7 |
16*30*7 |
20*30*7 |
24*40*6 |
28*40*8 |
32*50*8 |
|
12*24*6 |
16*35*8 |
20*32*7 |
24*40*7 |
28*40*9 |
32*52*6 |
|
12*25*8 |
16*40*10 |
20*32*8 |
24*40*8 |
28*45*8 |
32*52*11 |
|
12*32*7 |
17*30*6 |
20*35*6 |
25*35*6 |
28*48*11 |
34*54*11 |
