Piston Rod Seal Turning Seals

Our RCS series, through professional design and technical production, meets the diverse needs of piston rod seal turning seals, providing precise solutions from general scenarios to extreme working conditions.

In terms of structural design, the basic models are centered on stability and ease of use: RCS101/103 enhances embedding stability through pre-tightening O-rings or auxiliary lips, especially for short strokes; RCS102/104R/117R supports higher pressures by optimizing material and groove compatibility (such as RCS102R for standard groove high-pressure scenarios). For pneumatic systems, RCS105/205 adopts a special lip design to maintain lubricating oil film and adapt to lubrication/non-lubrication environments.

Ruichen Seals also focuses on material and functional innovation. Models such as RCS118/119/124-129 use polytetrafluoroethylene (PTFE) or polyurethane as the main body, combined with Mander springs or O-rings to balance pressure, to achieve low friction, anti-dry wear, and corrosion resistance, meeting the cleanliness and high temperature resistance requirements of chemical and food filling equipment. RCS129 can form a sealing system with RCS101, which is suitable for walking machinery and heavy hydraulic equipment; RCS126-128 optimizes low-pressure sealing through asymmetric V-piece design and is customized for the pharmaceutical and chemical industry.

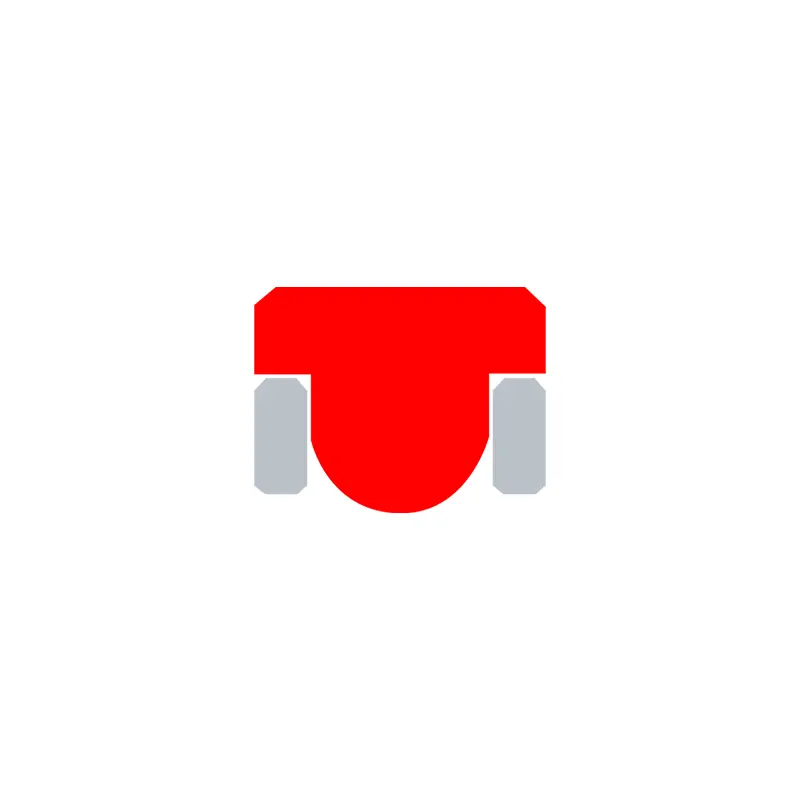

For complex working conditions, RCS120/138 and other double-acting seals have integrated support ring design, which is resistant to high pressure and distortion and adapts to compact grooves; RCS131 is an O-ring substitute, which is both resistant to extrusion and chemical resistance, and has become the preferred choice for the food and pharmaceutical industry. And RCS116/216 can quickly repair old cylinders through fixture installation to reduce downtime costs.

The RCS series helps customers cope with high pressure, high speed, corrosive media and special industry challenges, and improve equipment reliability and life.

Product features and applications:

Piston rod seal turning seals are suitable for hydraulic cylinders and cylinders, engineering vehicles, agricultural machinery, cranes and marine hydraulic equipment, machine tools.

Used in heavy industrial machinery, presses, chemical industry, fast oil cylinders and positioning machinery food industry, pharmaceutical industry.

Advantages

Piston rod seal turning seals are embedded in the groove stably, with a wide temperature range, excellent static and dynamic sealing performance, and strong residual oil recovery ability under dynamic conditions. Low friction, no creeping, high wear resistance, low static and friction values, only good anti-extrusion performance, good thermal conductivity, and a wide temperature range.

Suitable for old piston rods, open type easy to install creeping.

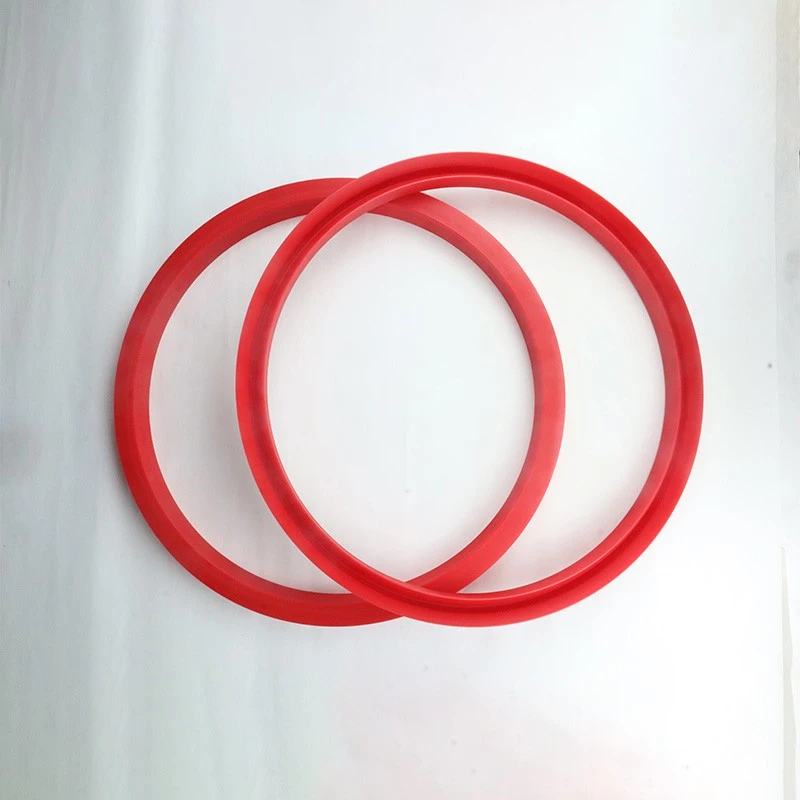

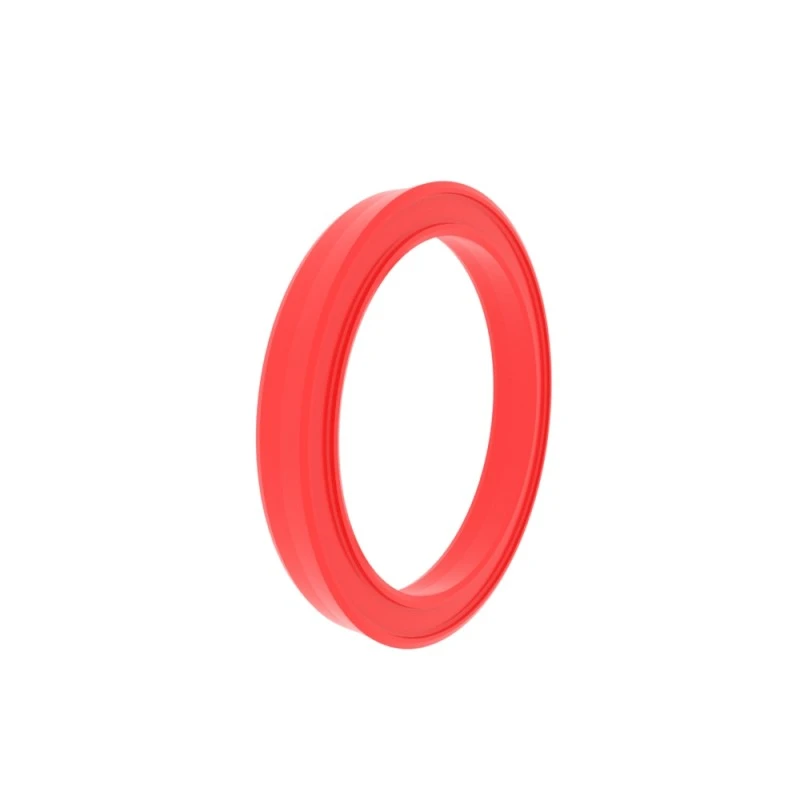

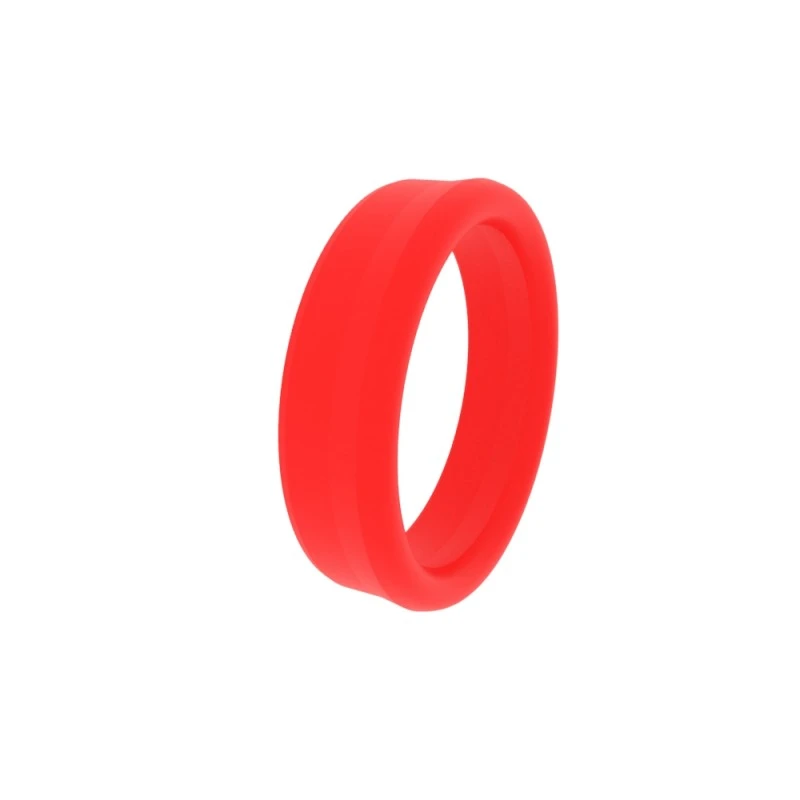

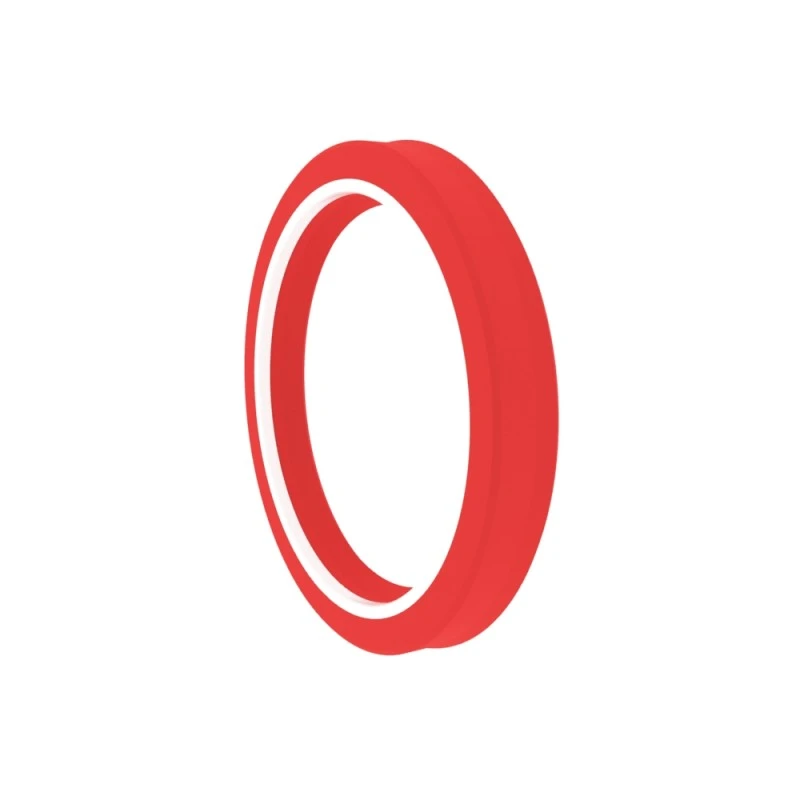

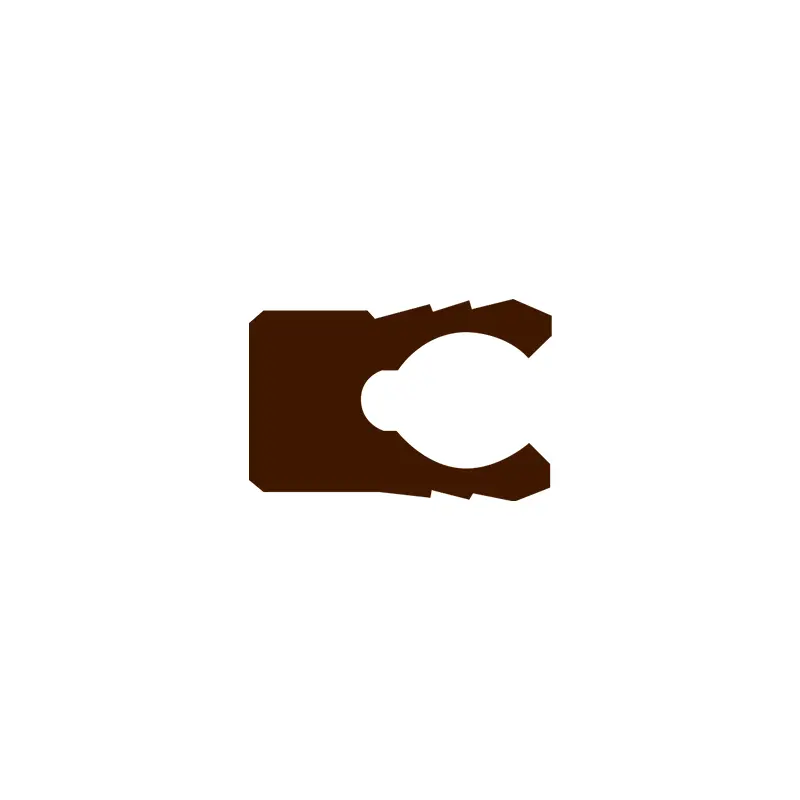

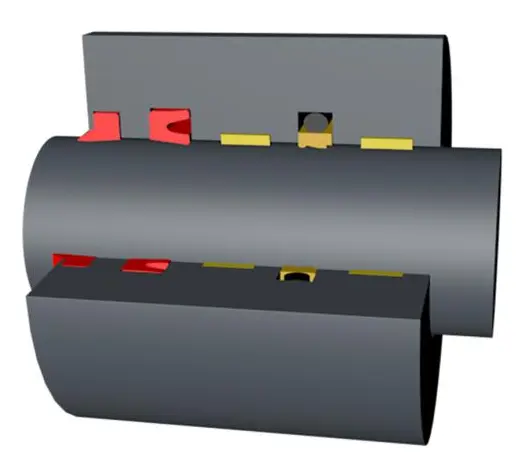

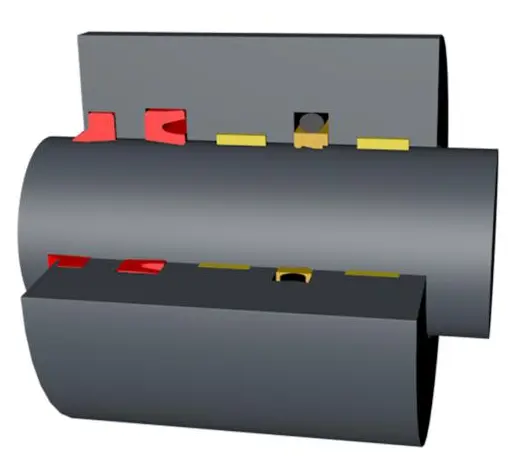

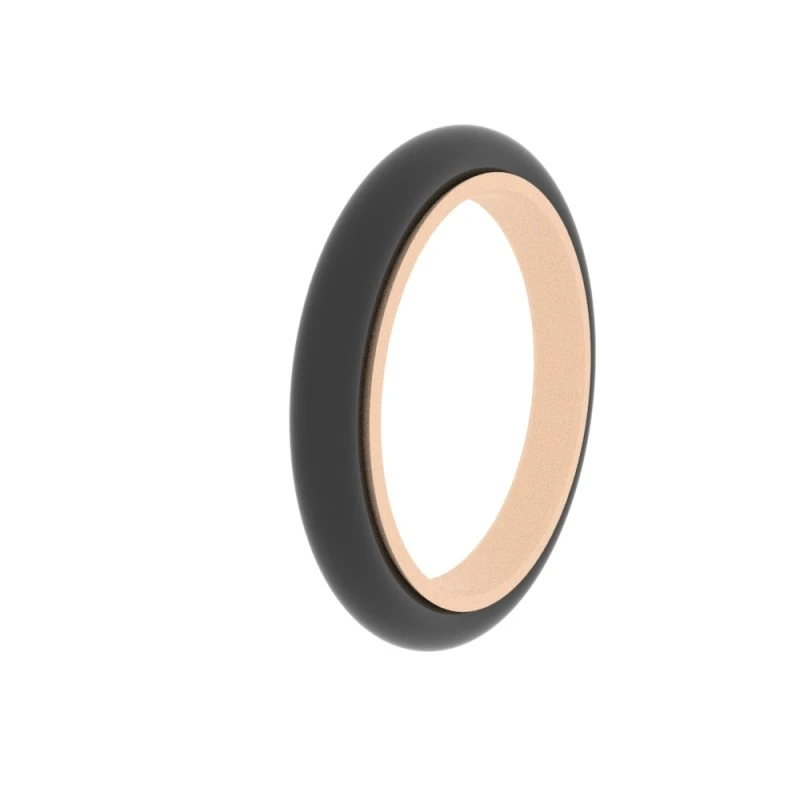

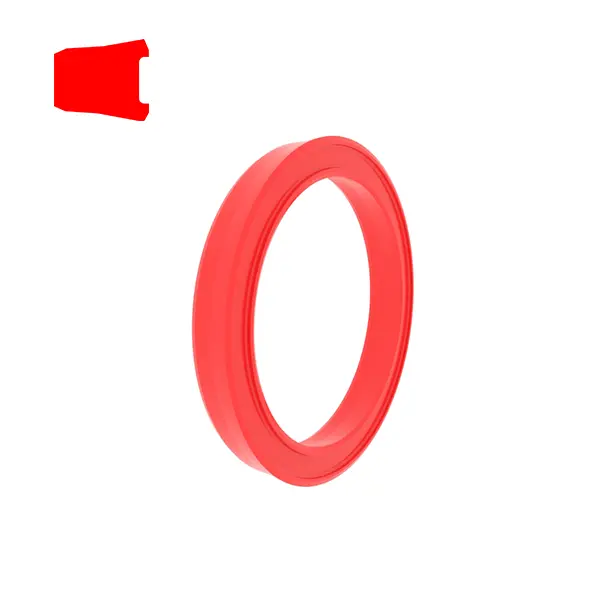

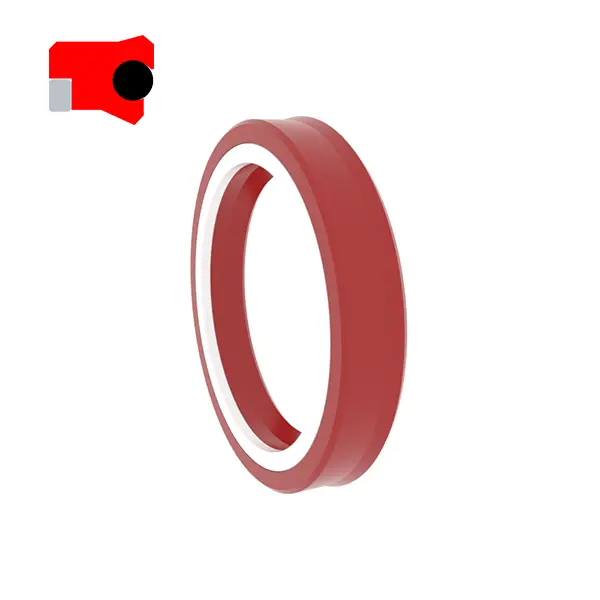

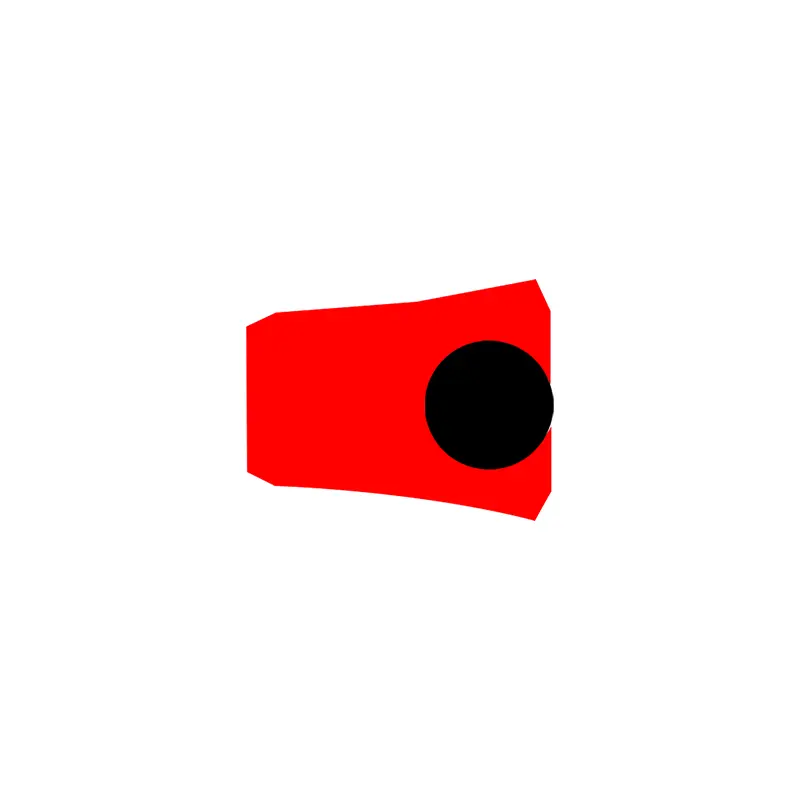

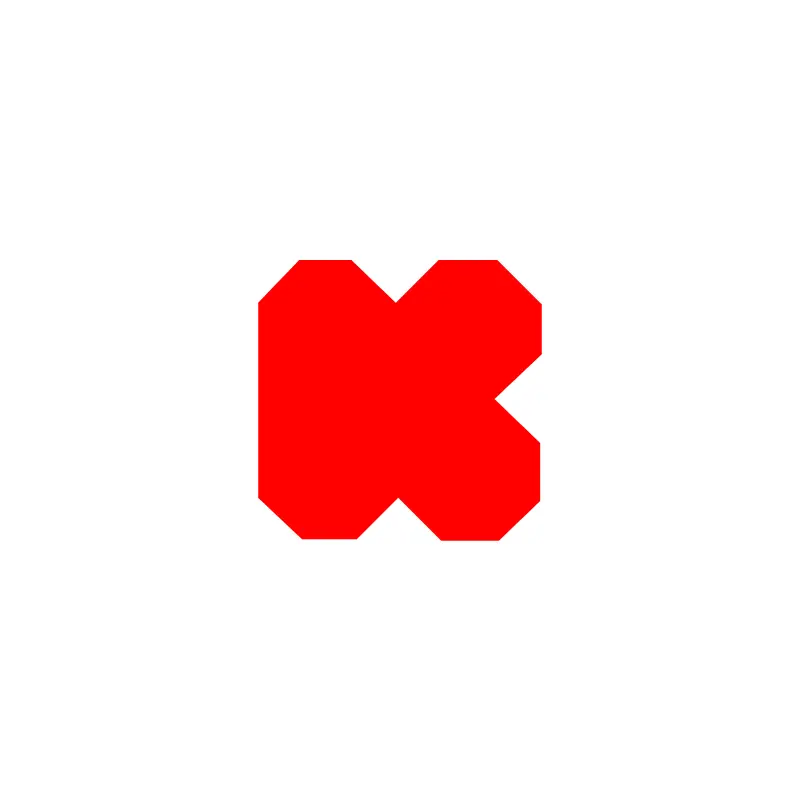

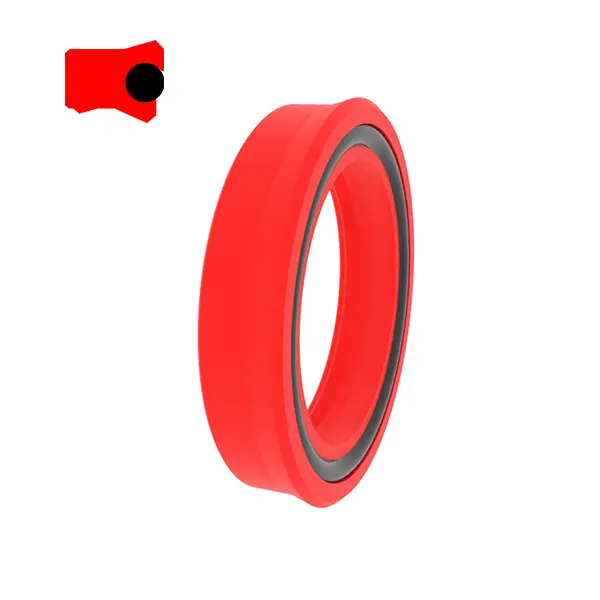

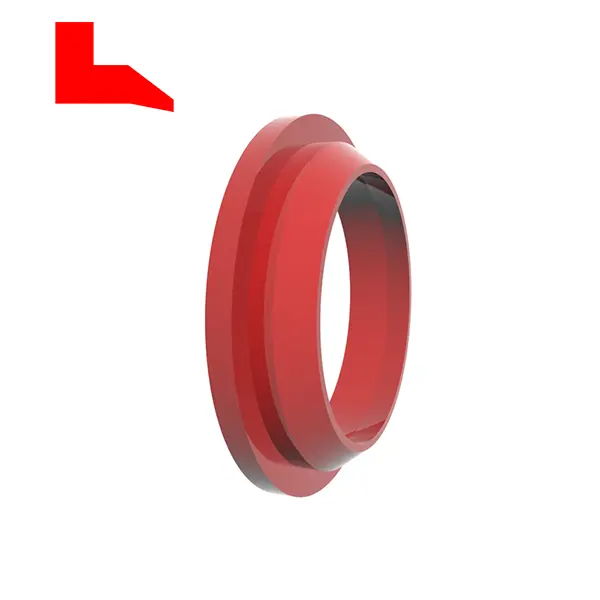

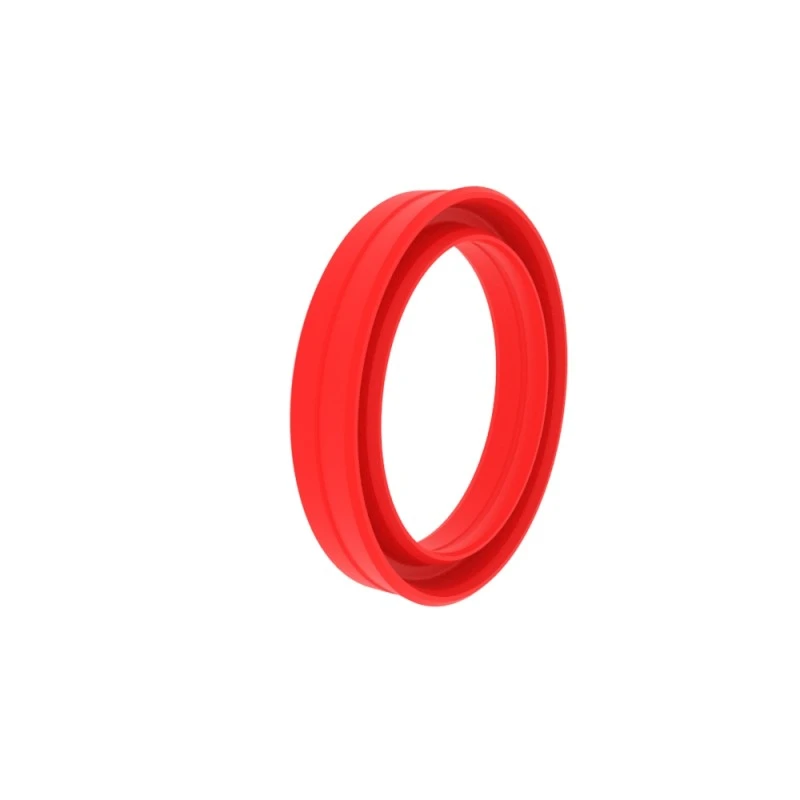

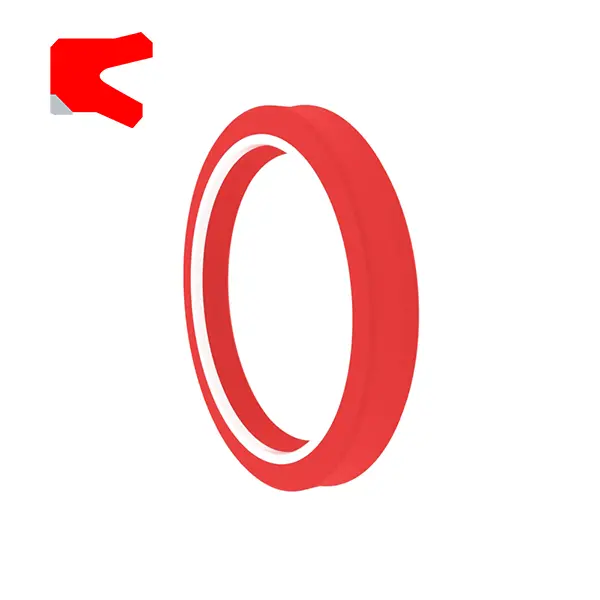

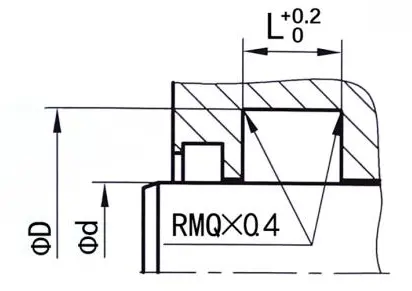

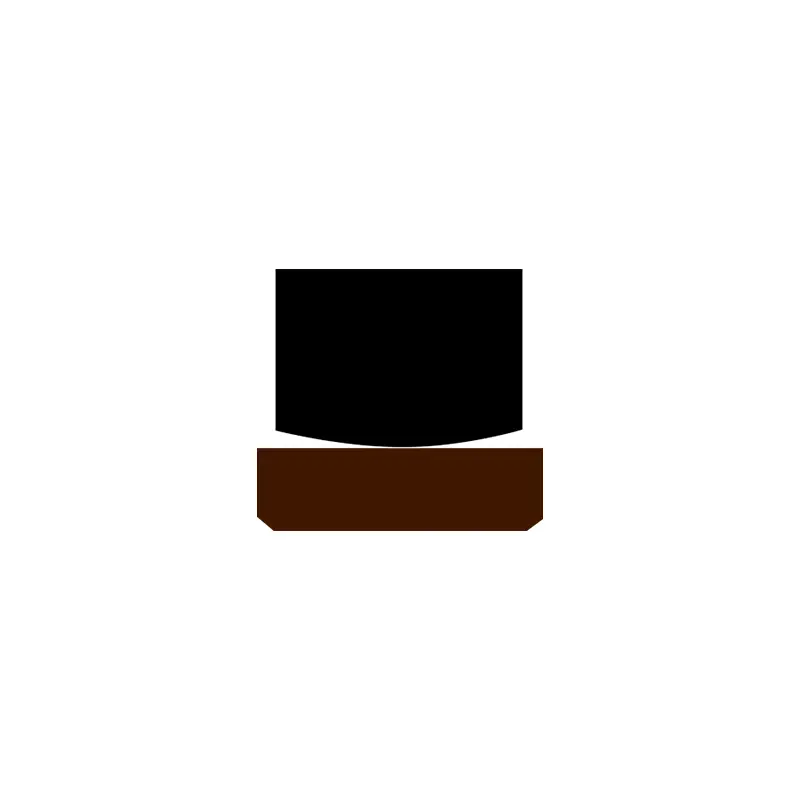

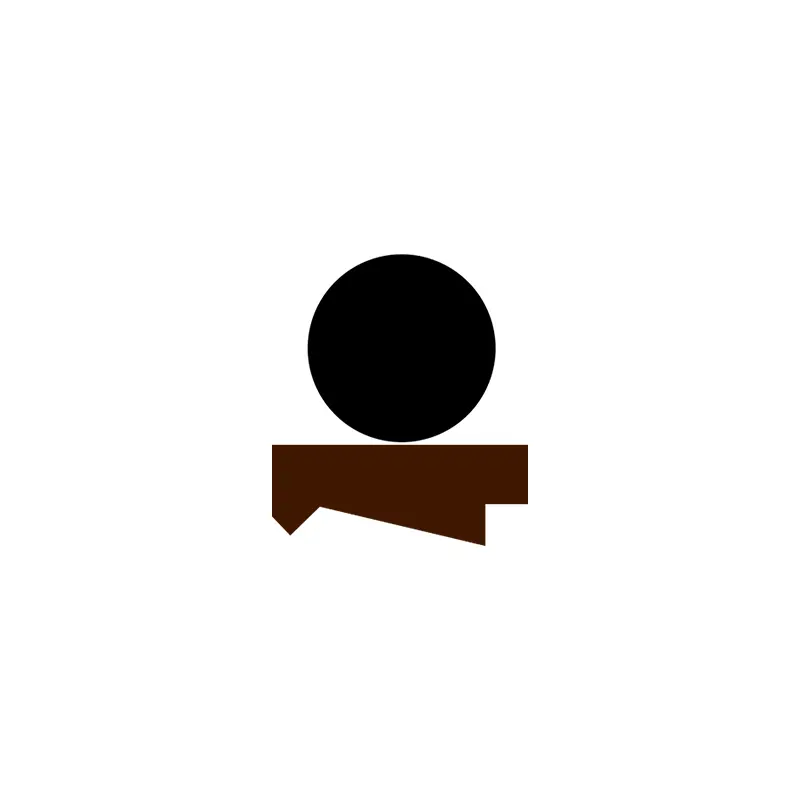

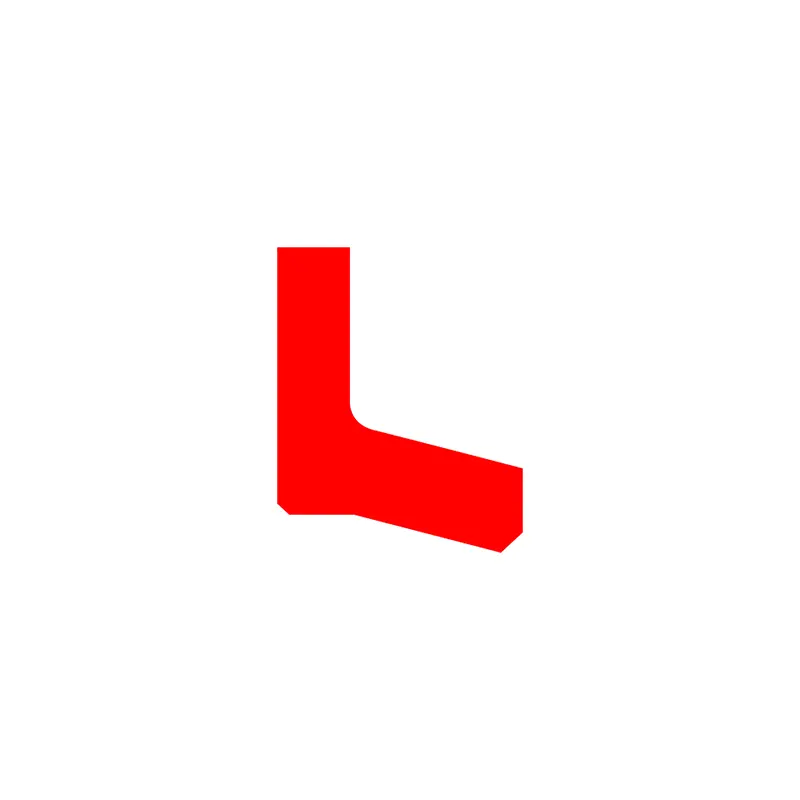

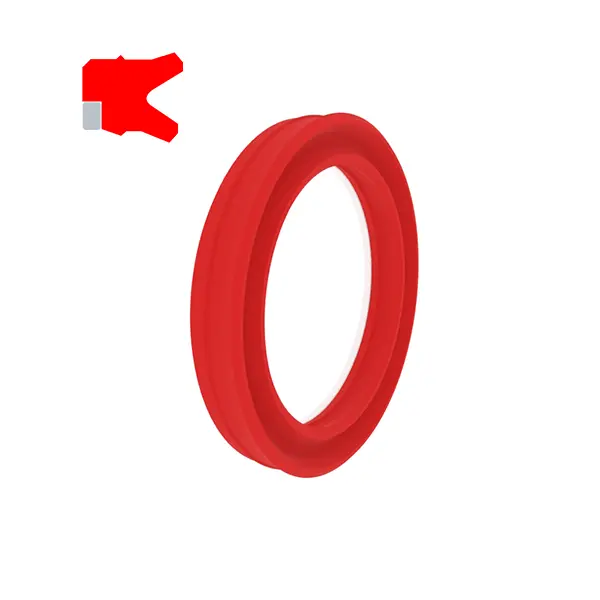

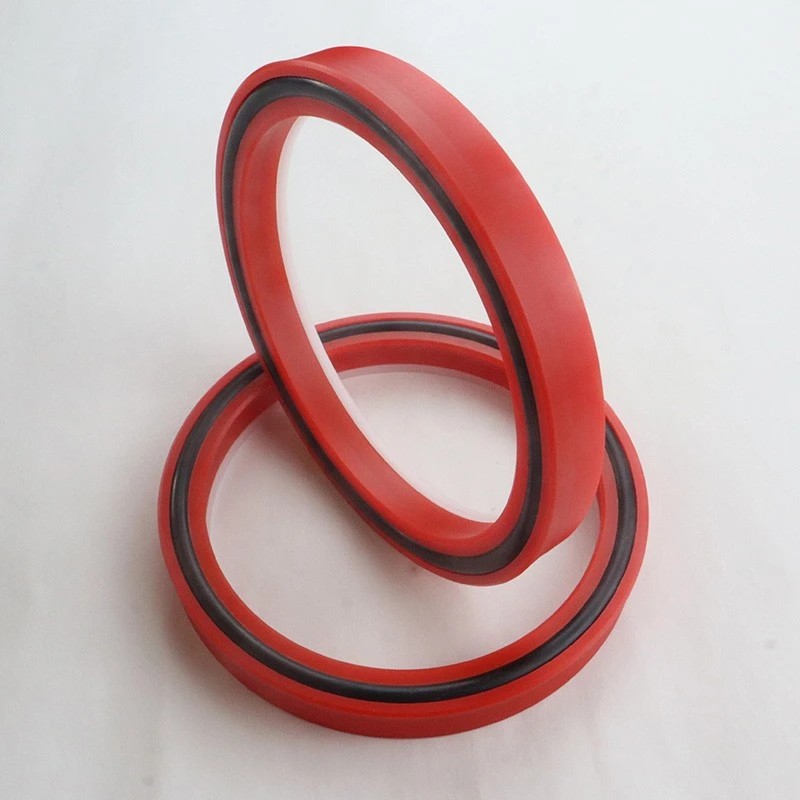

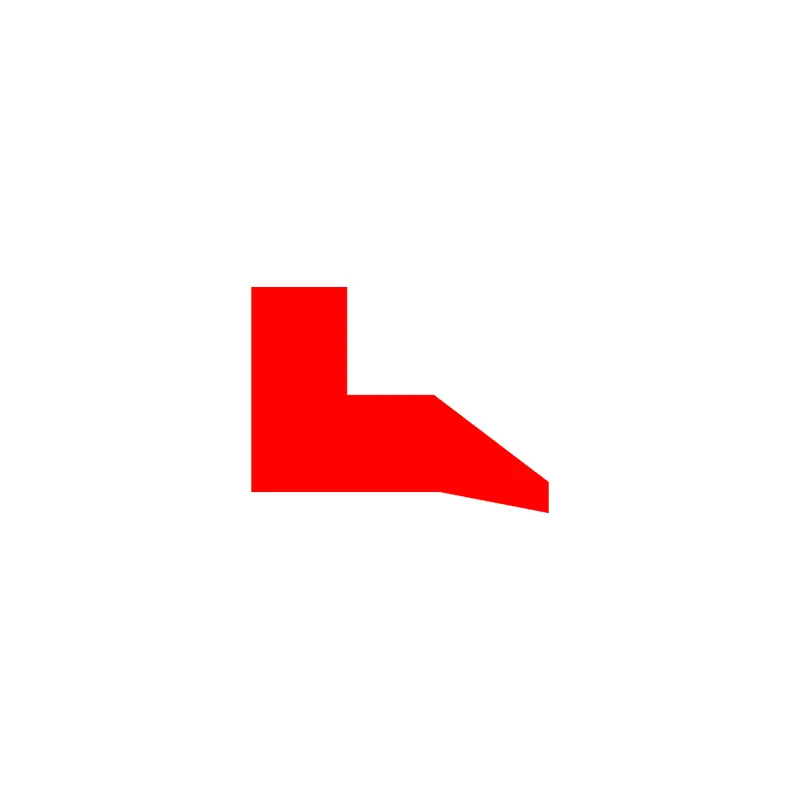

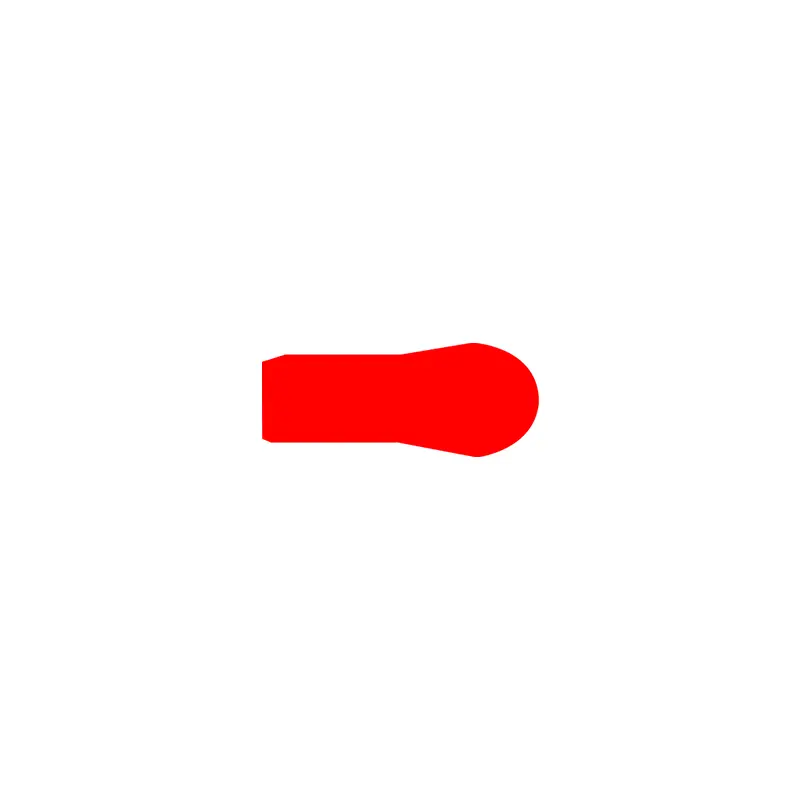

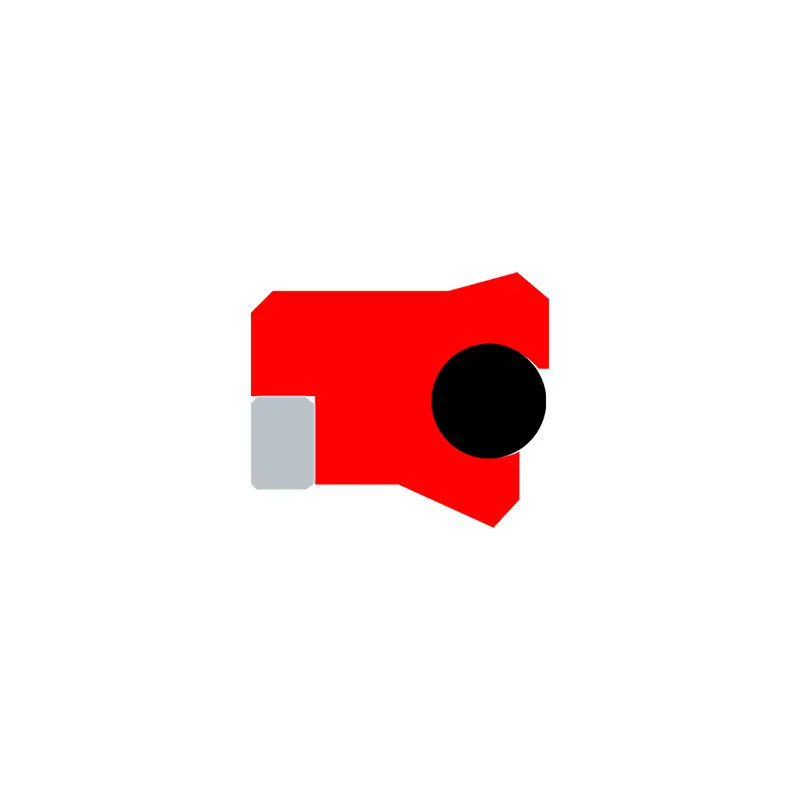

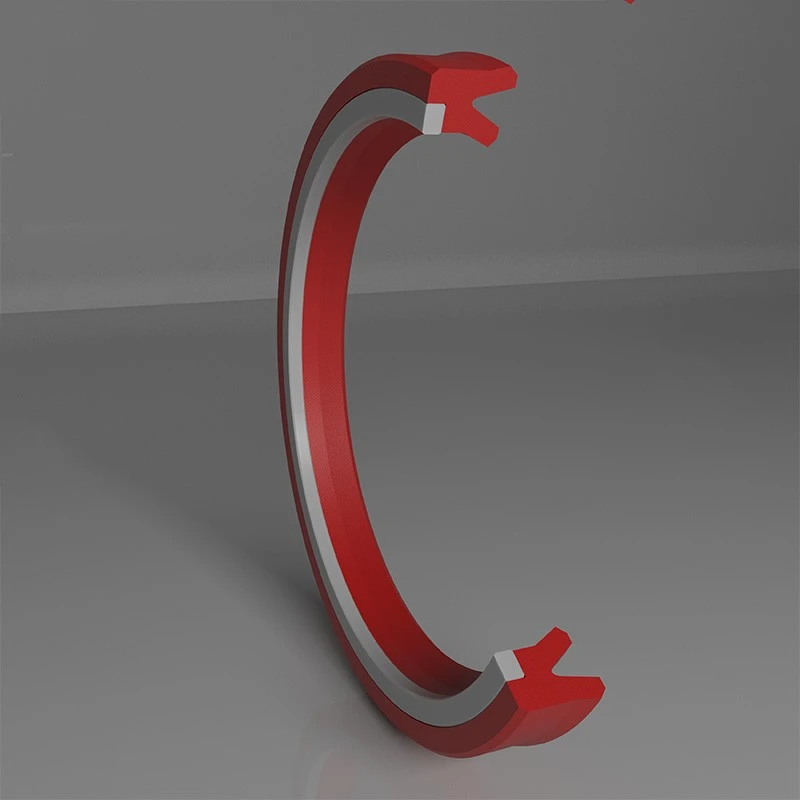

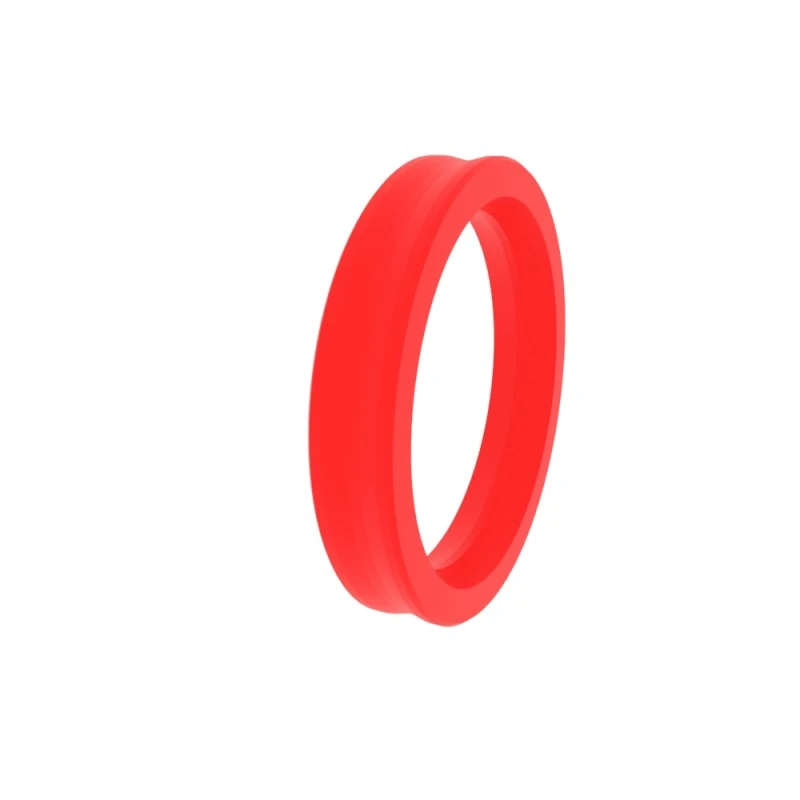

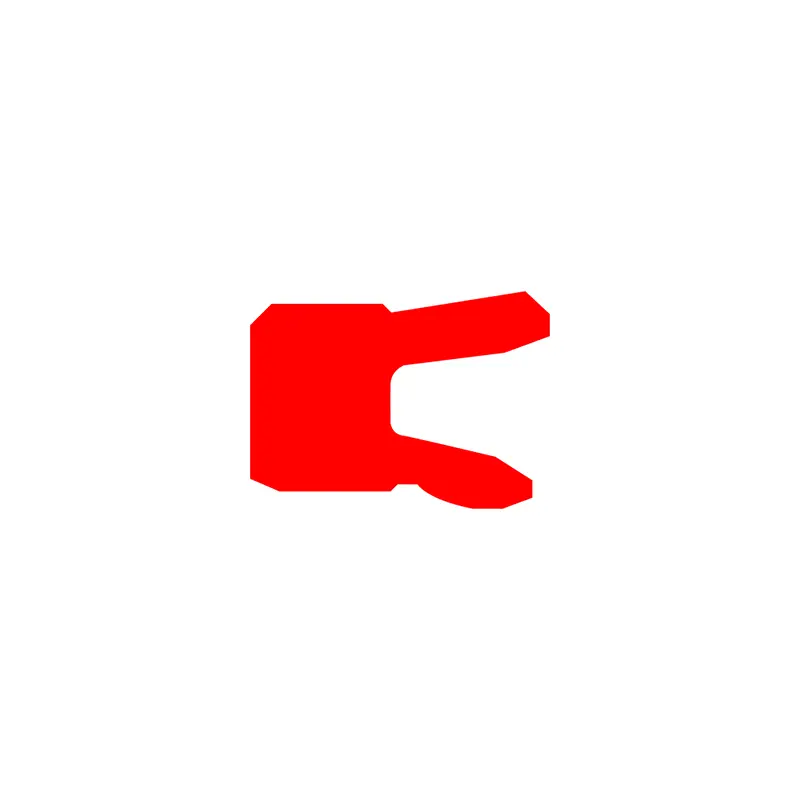

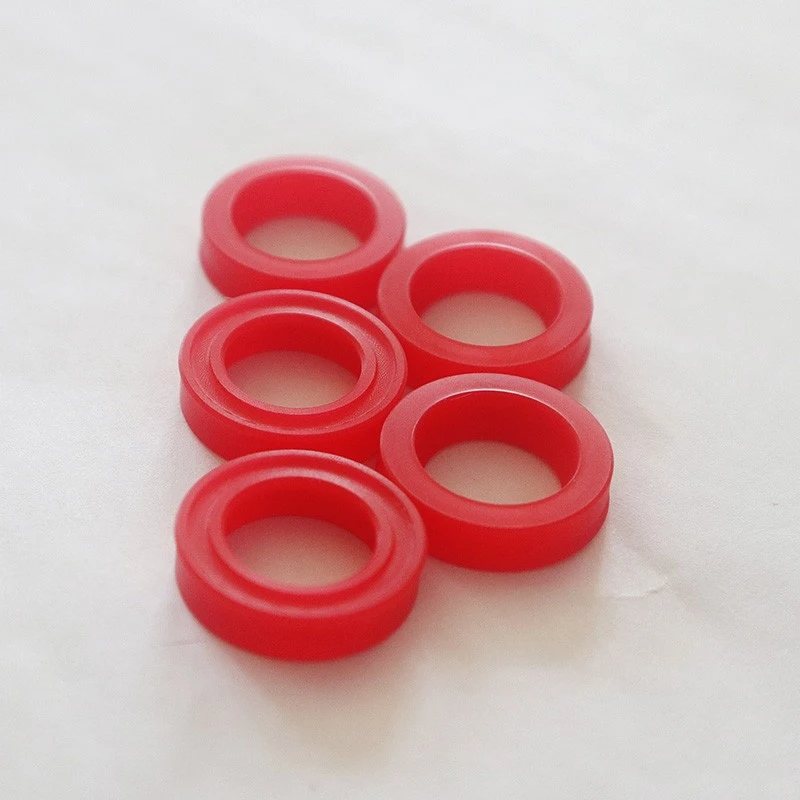

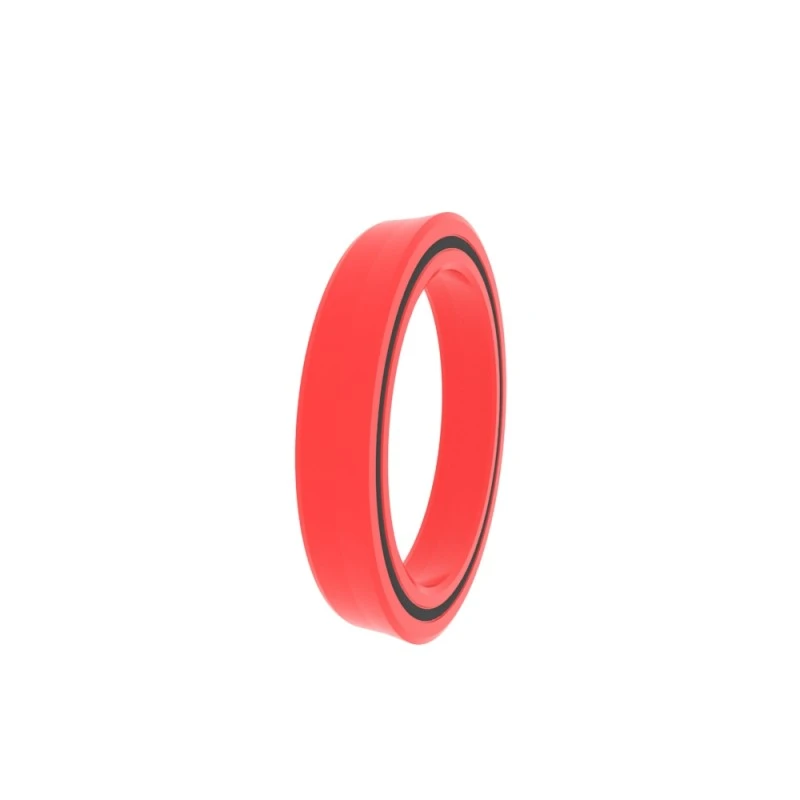

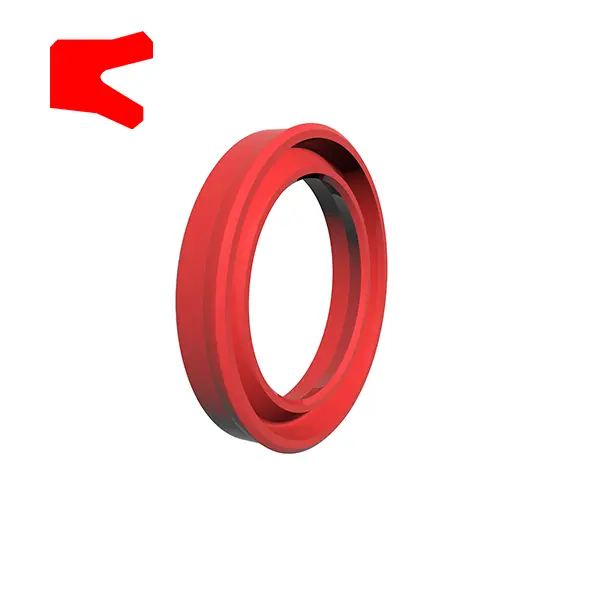

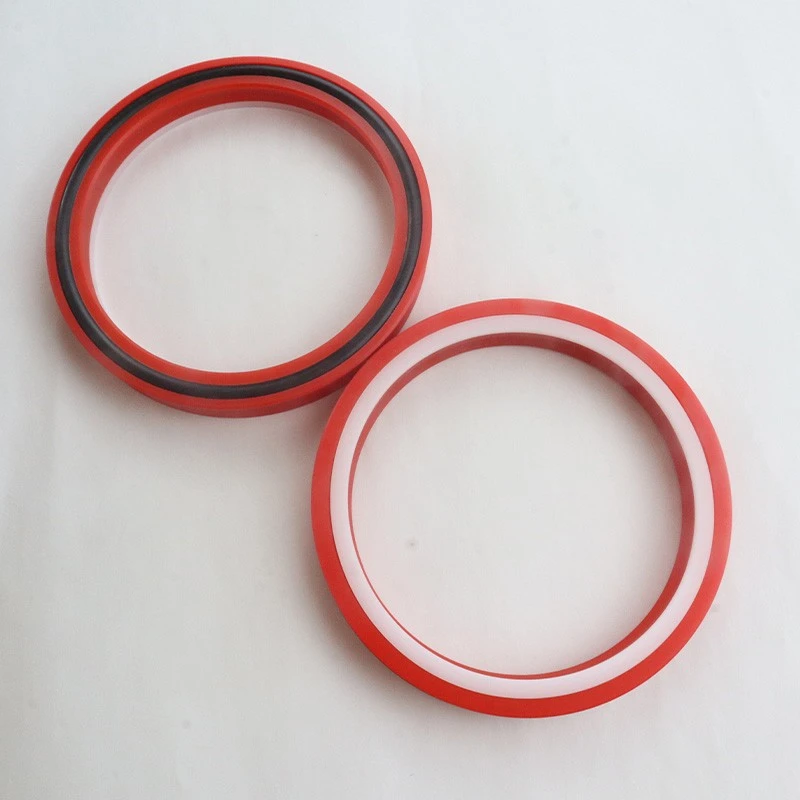

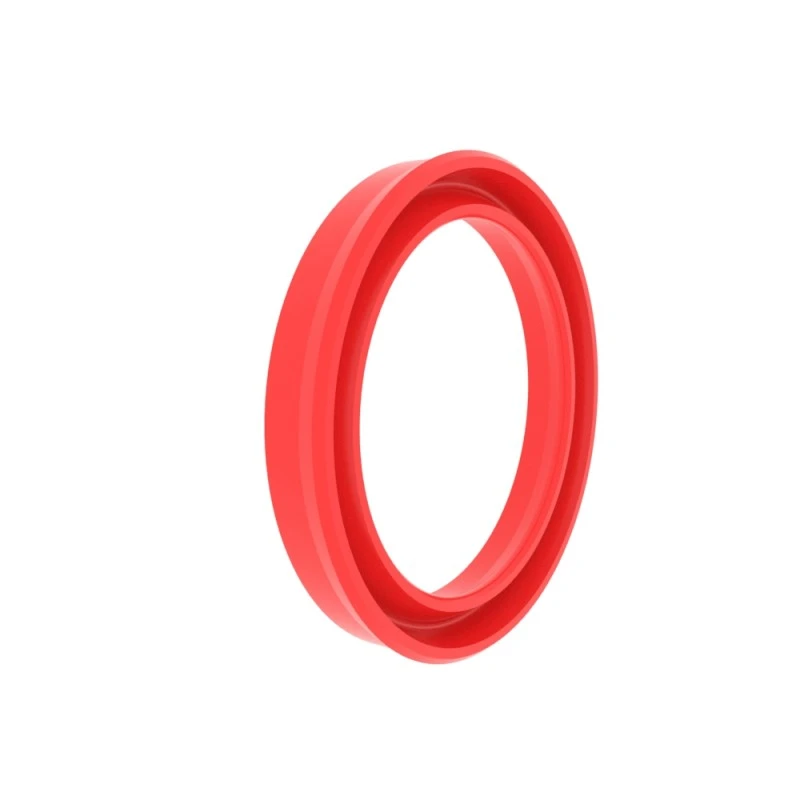

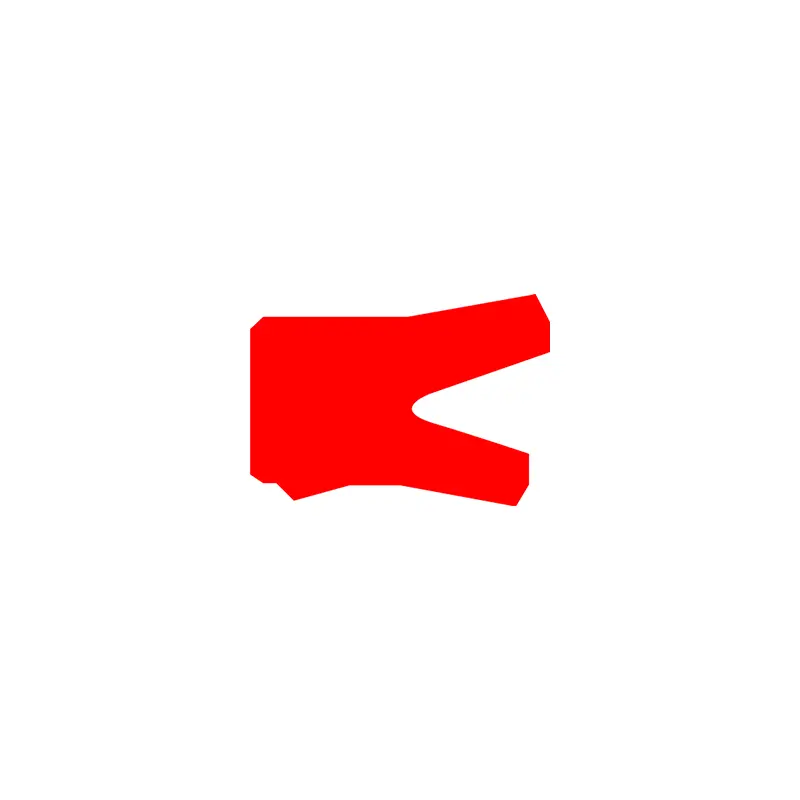

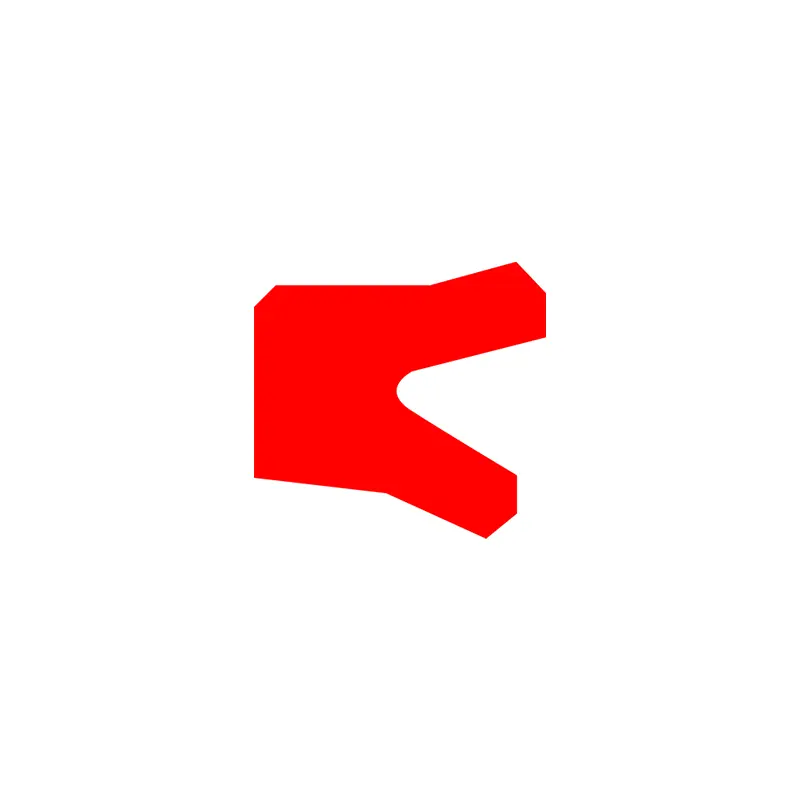

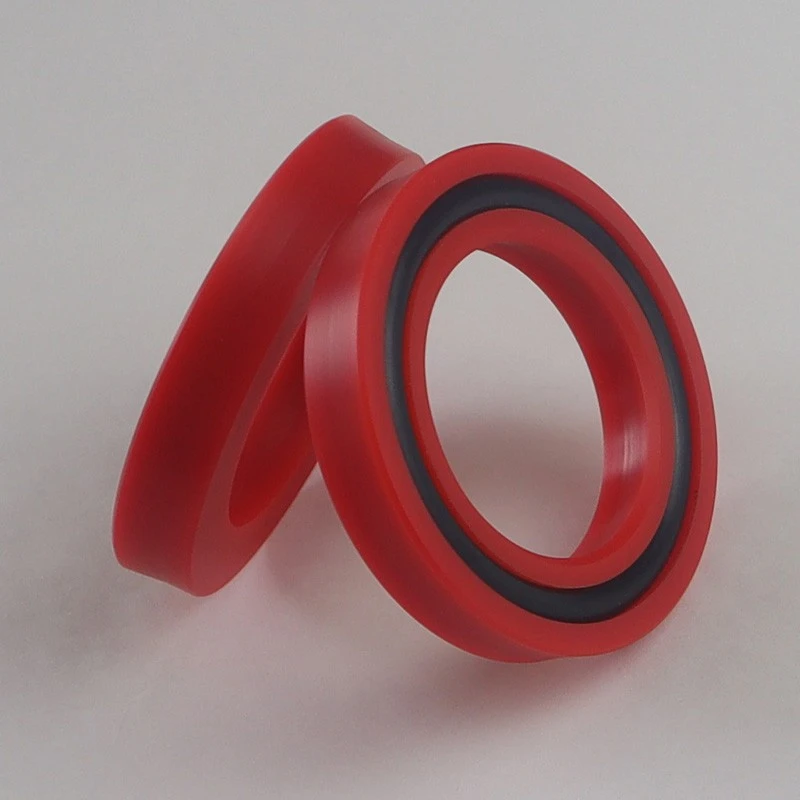

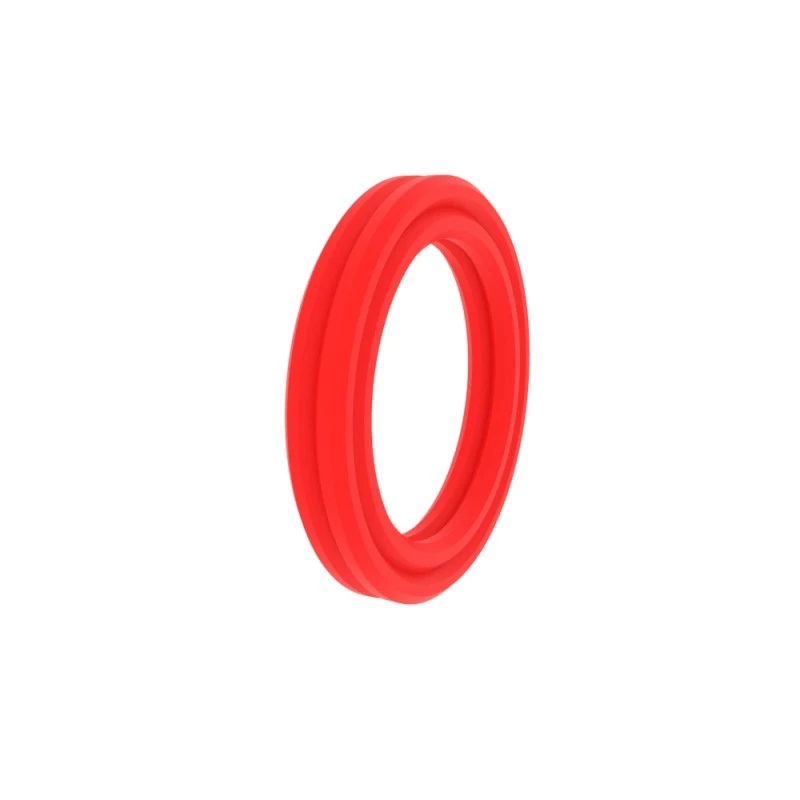

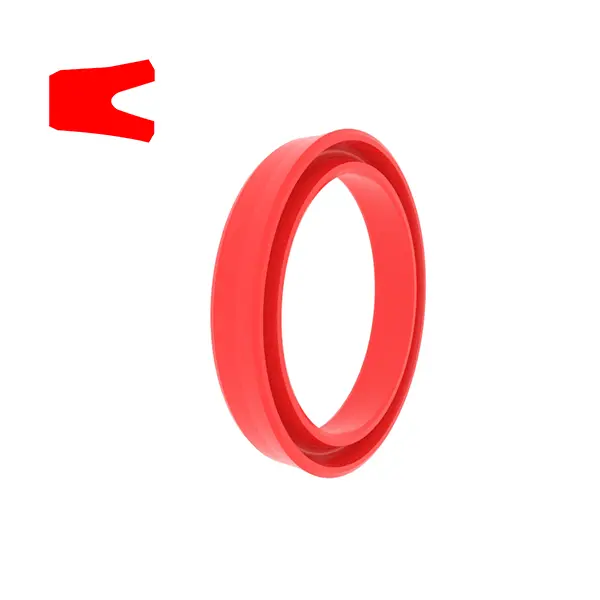

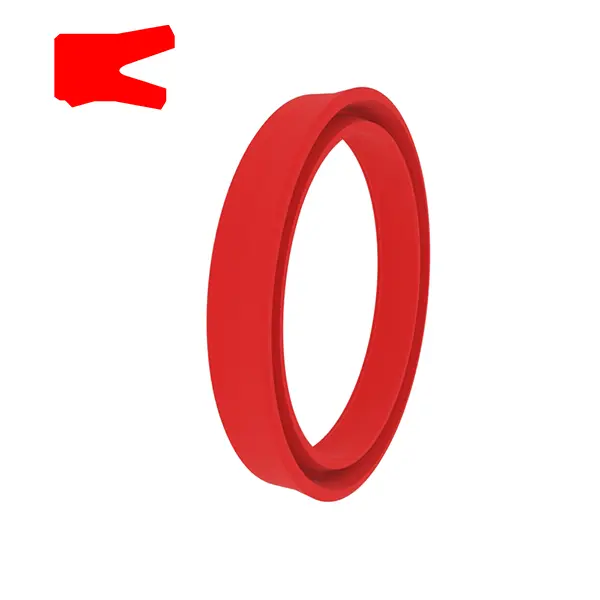

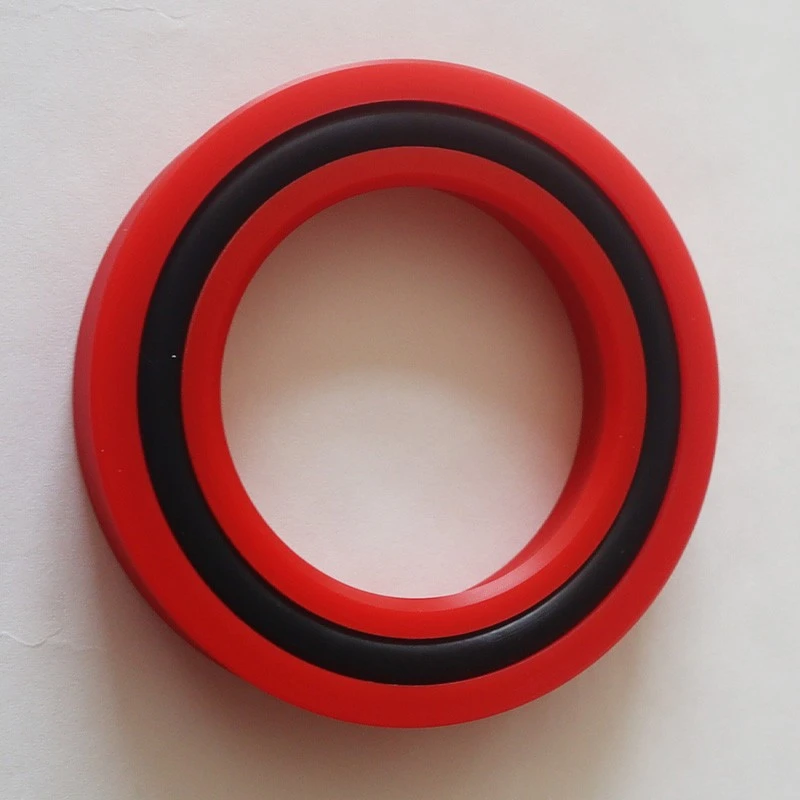

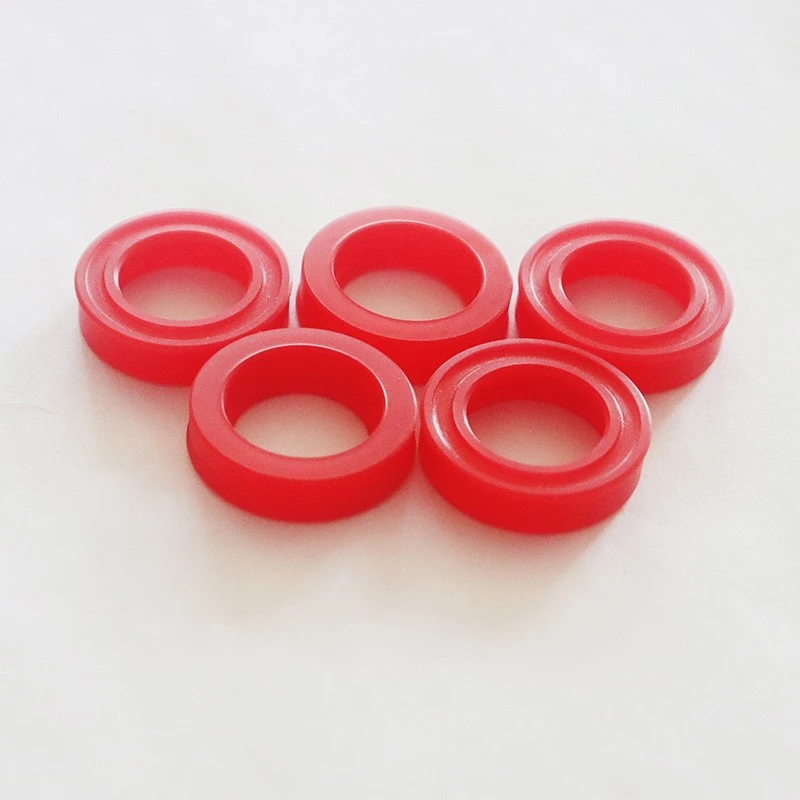

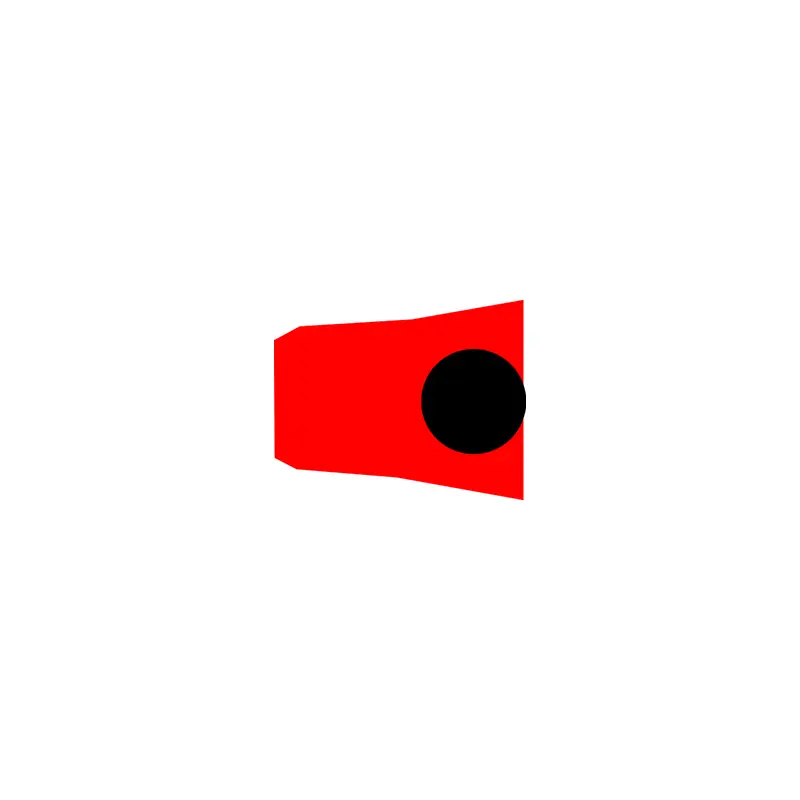

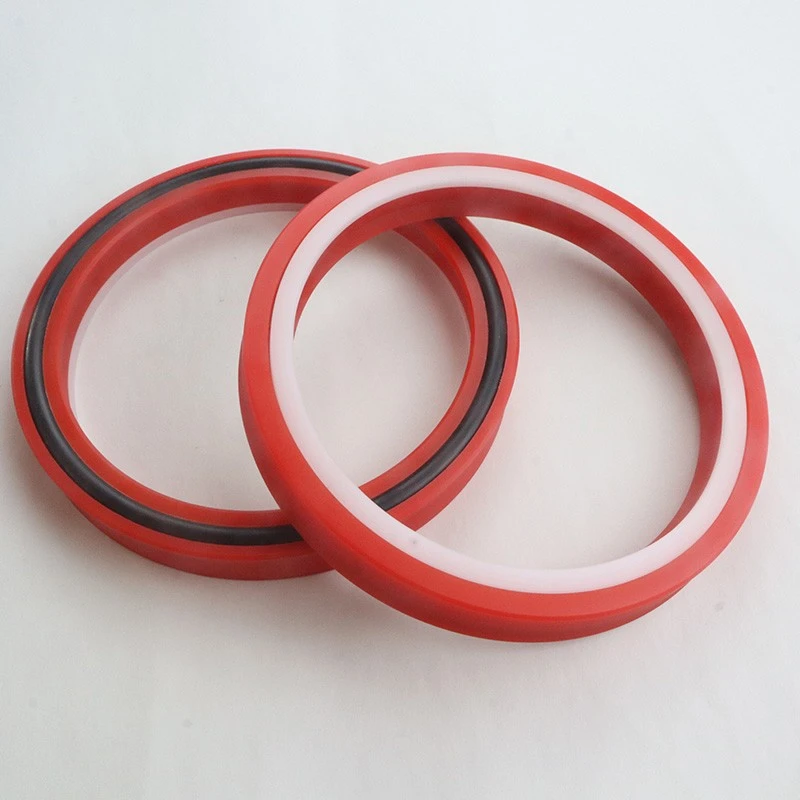

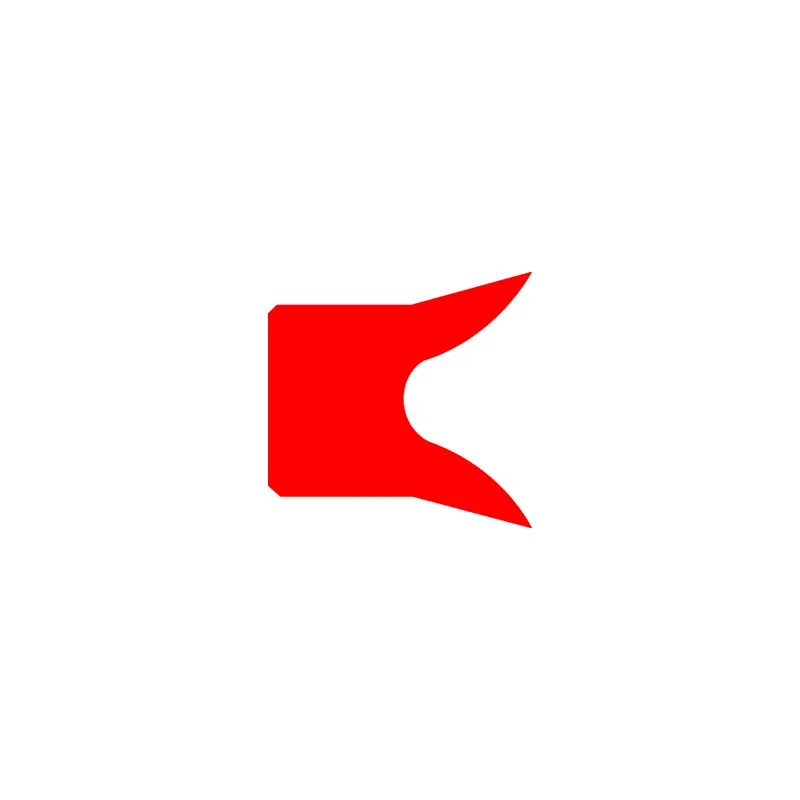

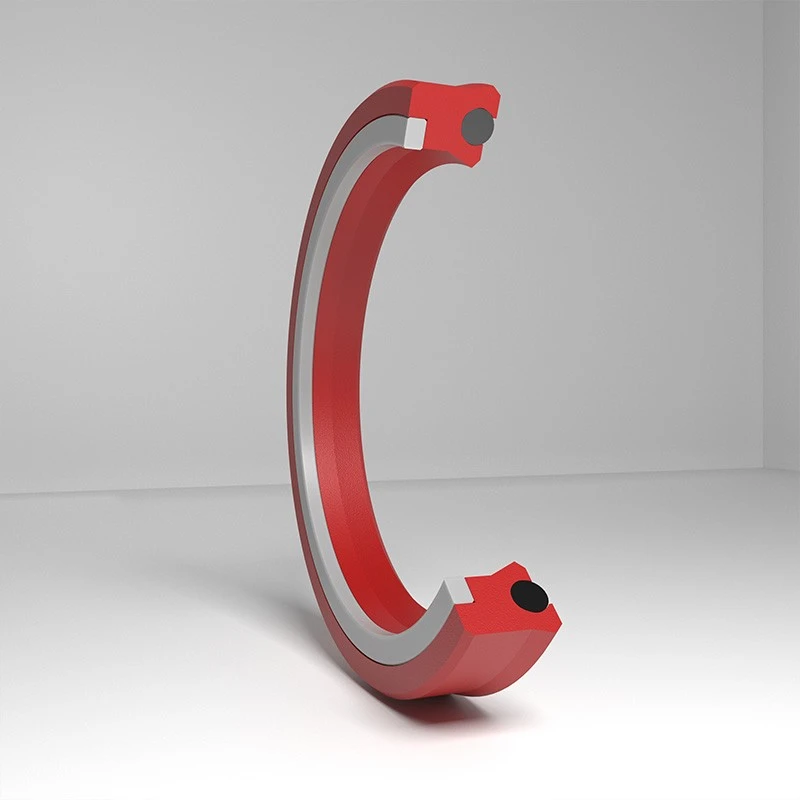

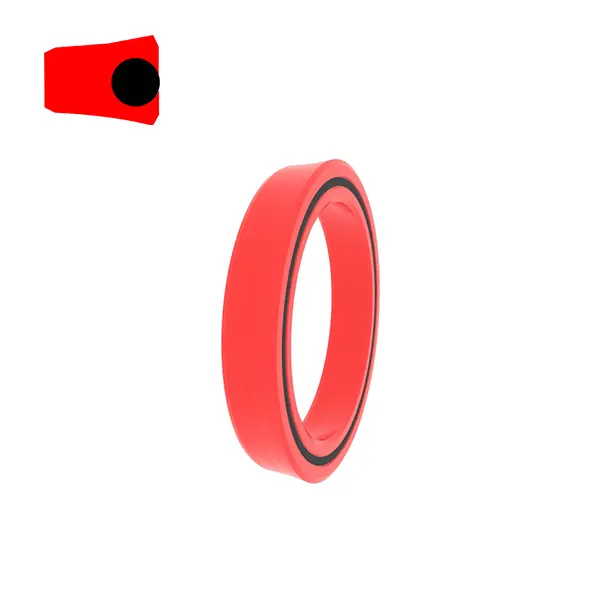

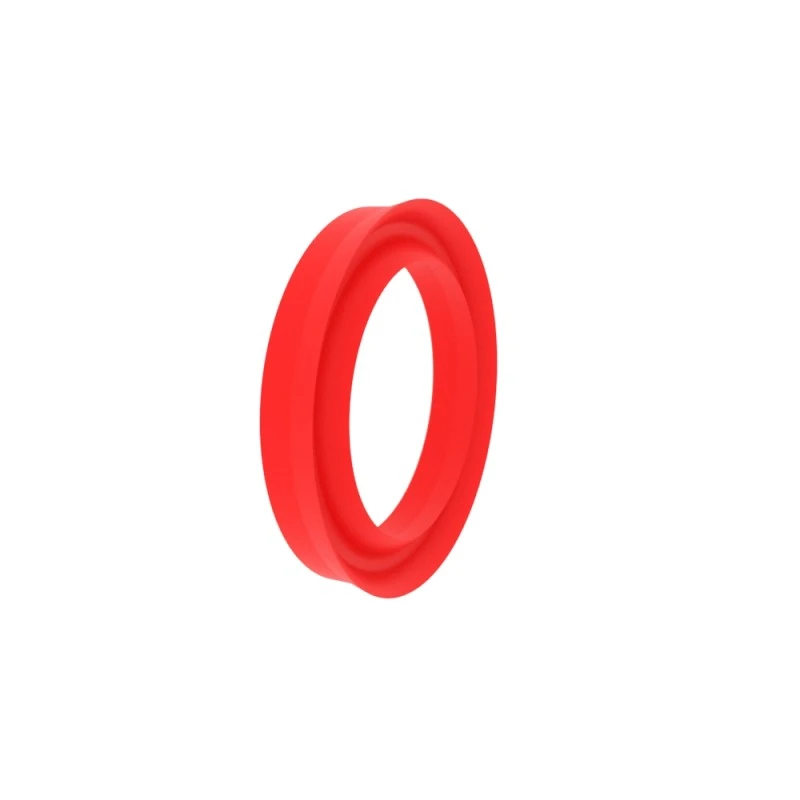

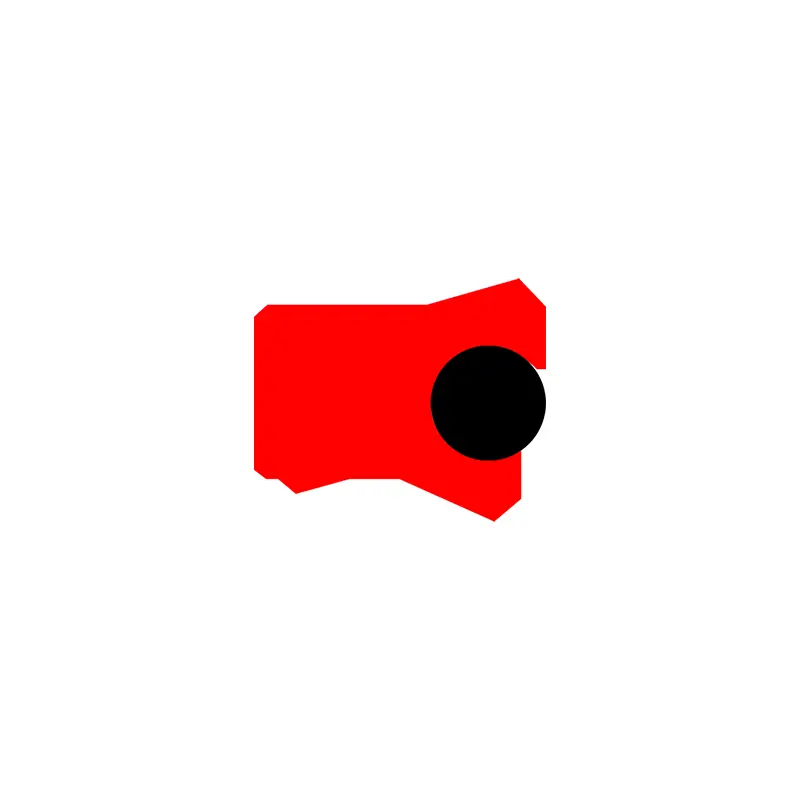

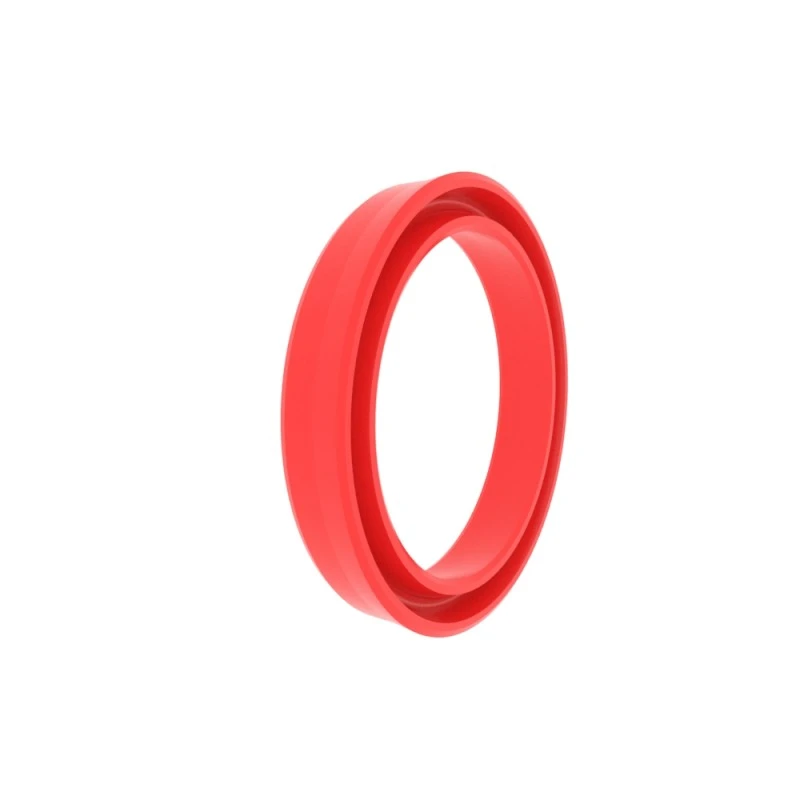

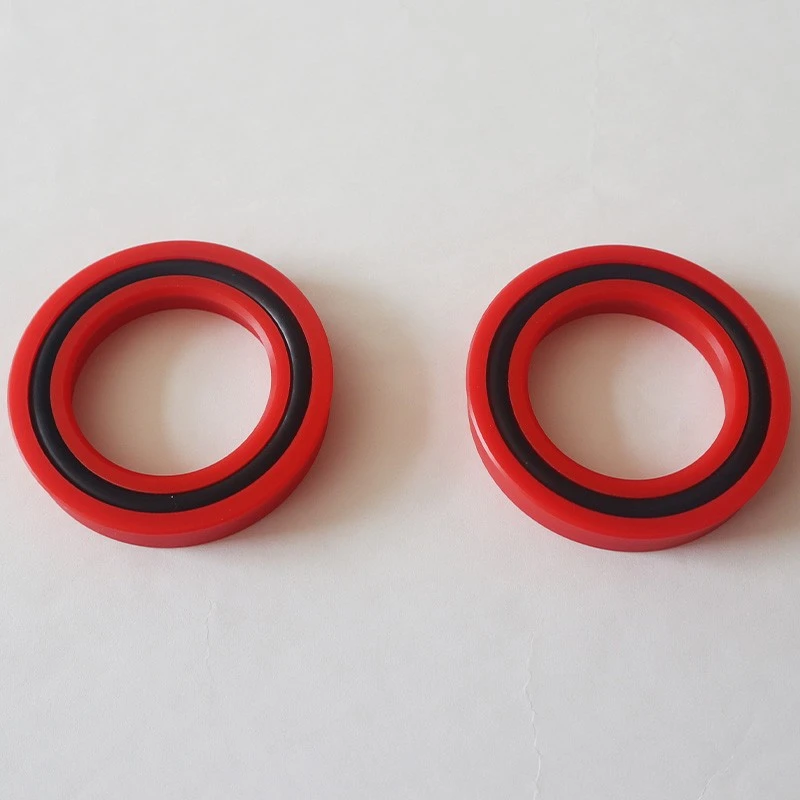

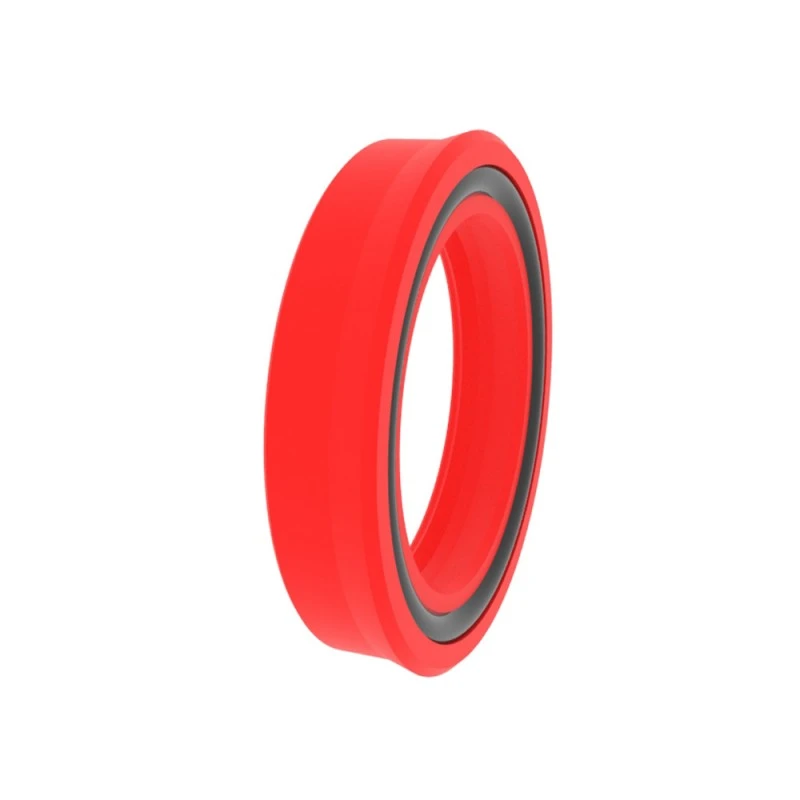

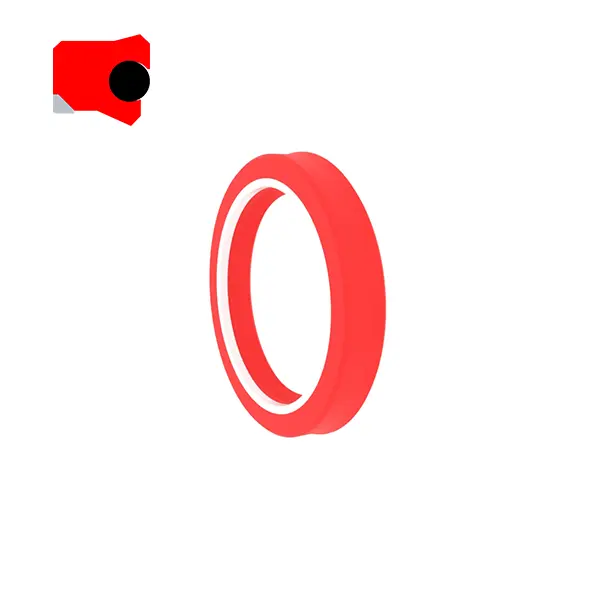

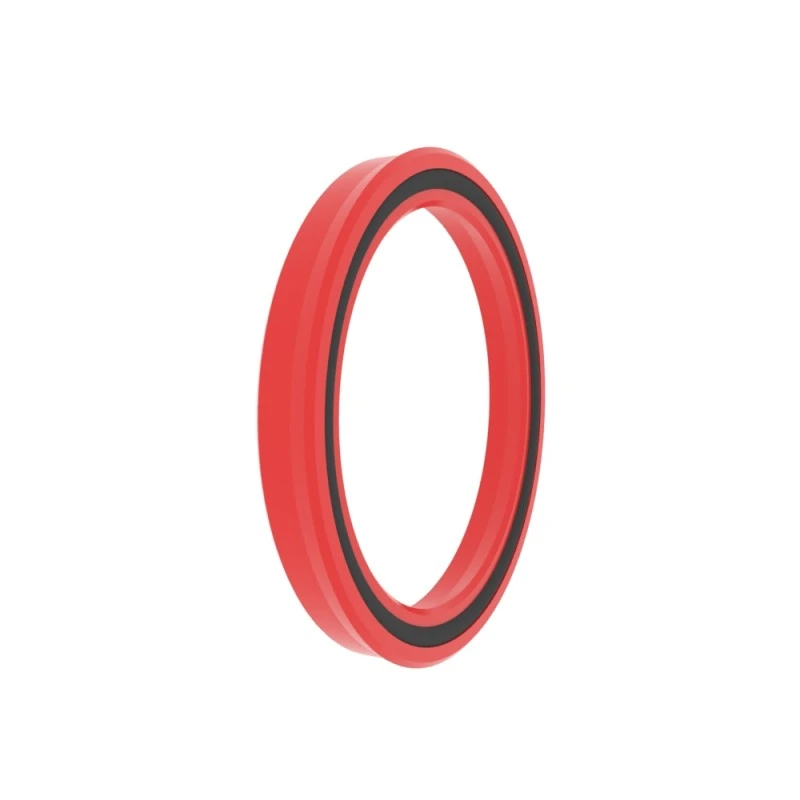

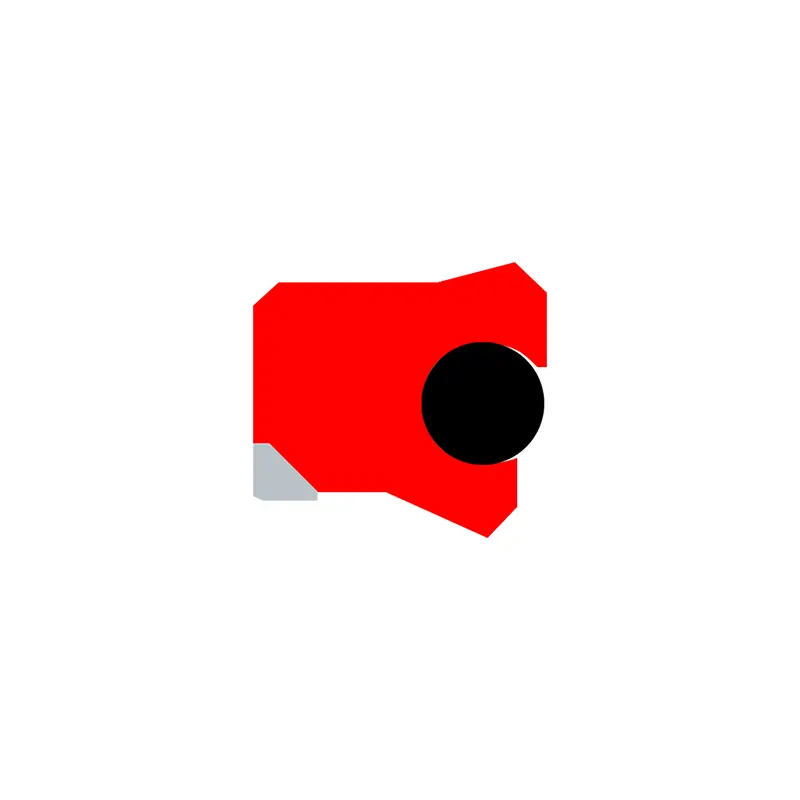

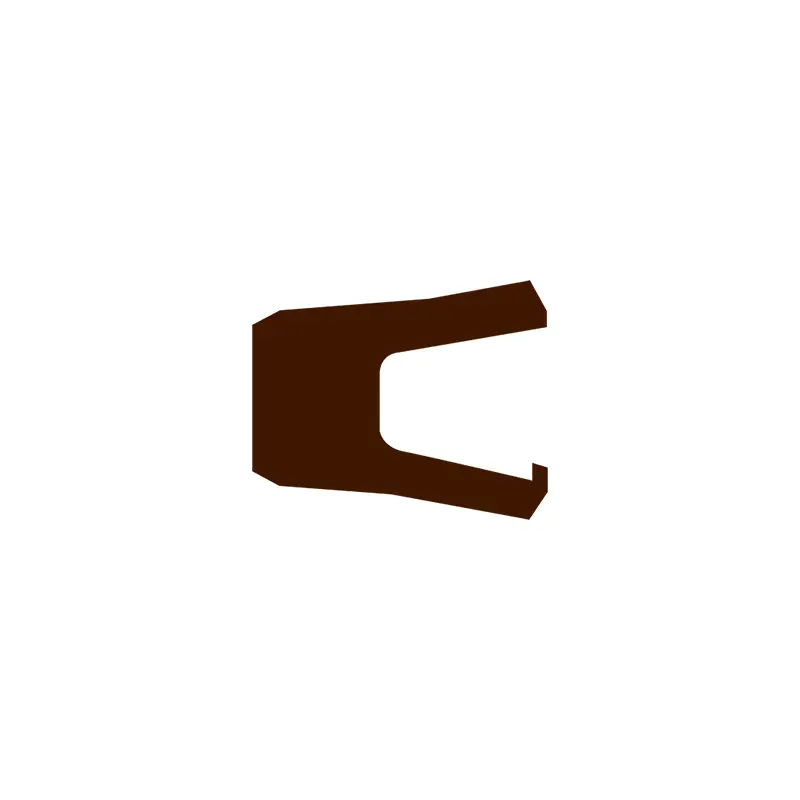

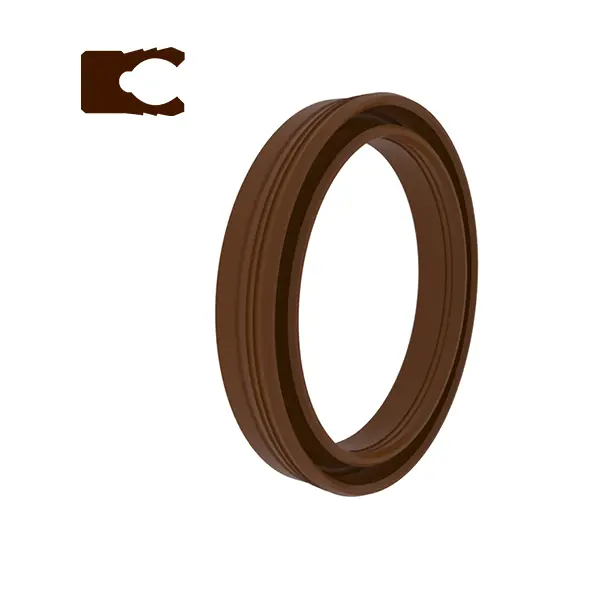

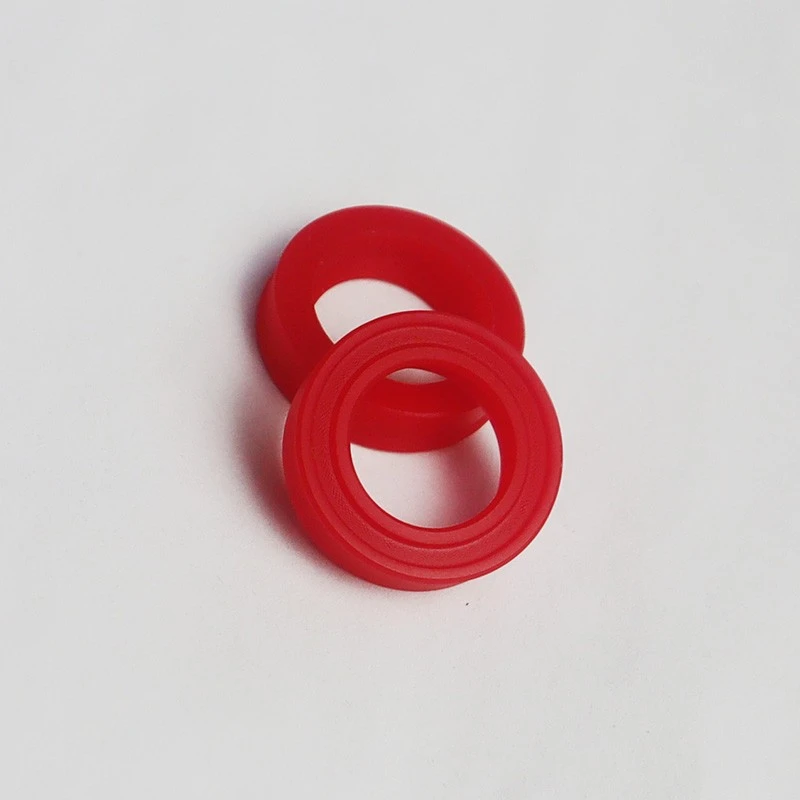

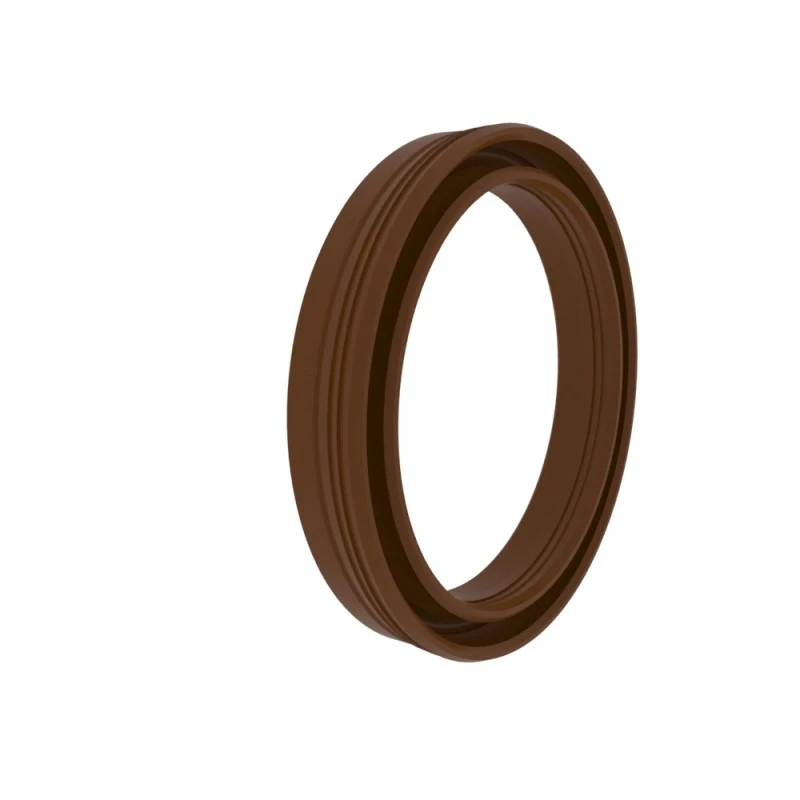

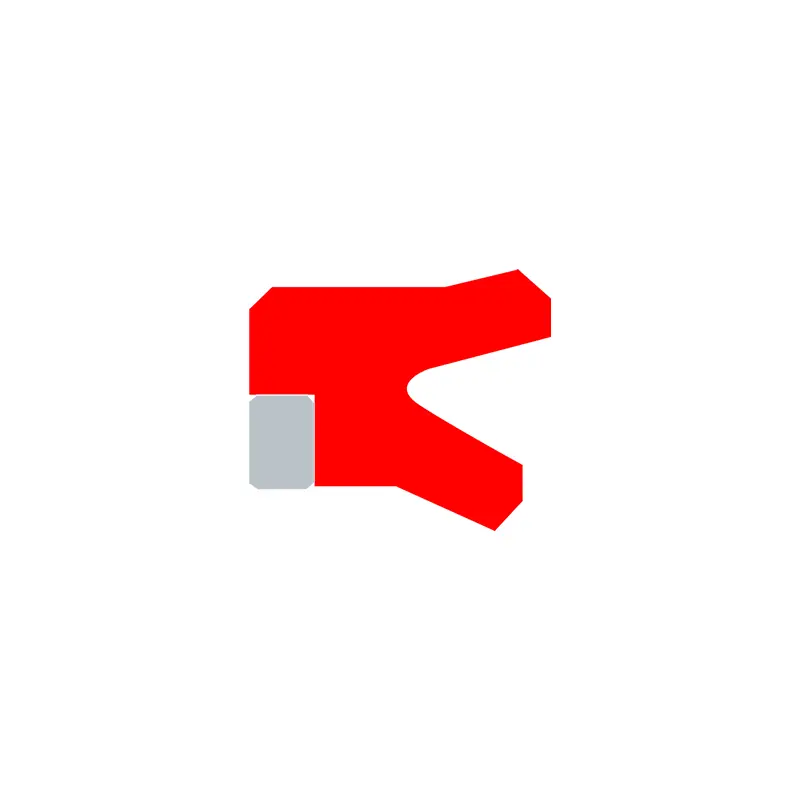

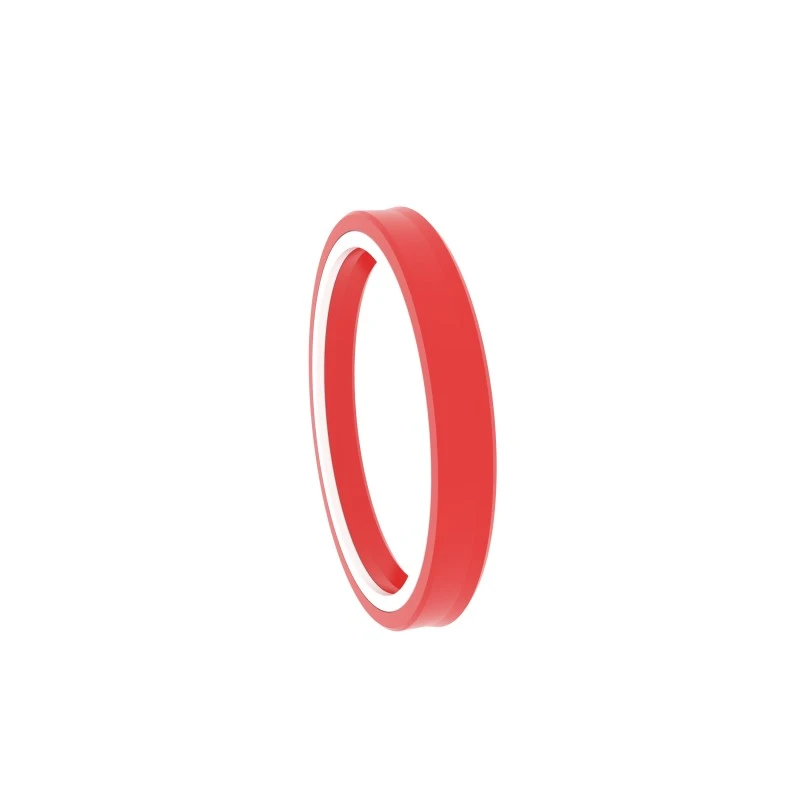

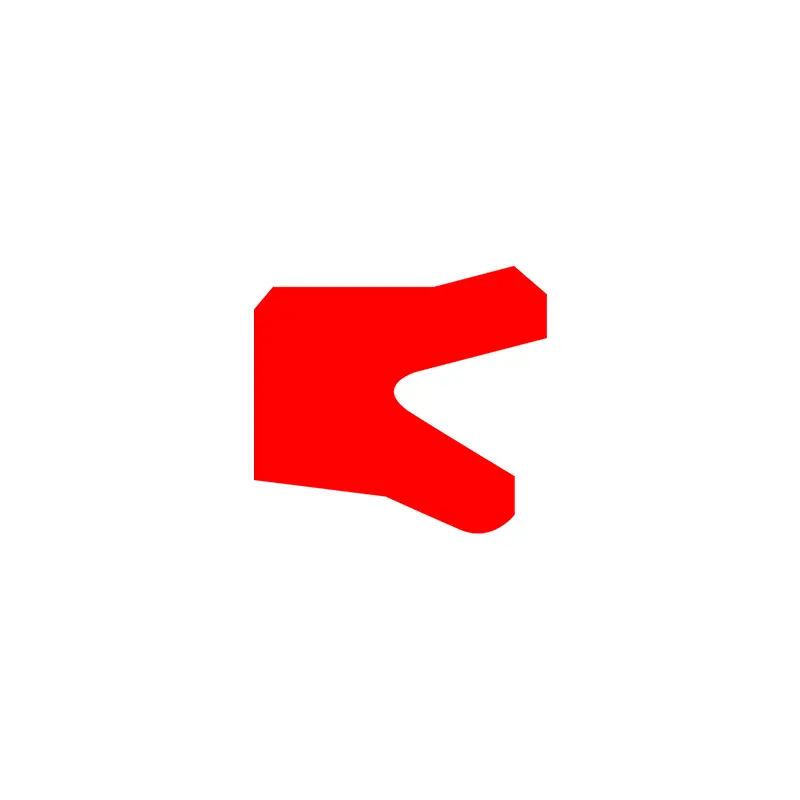

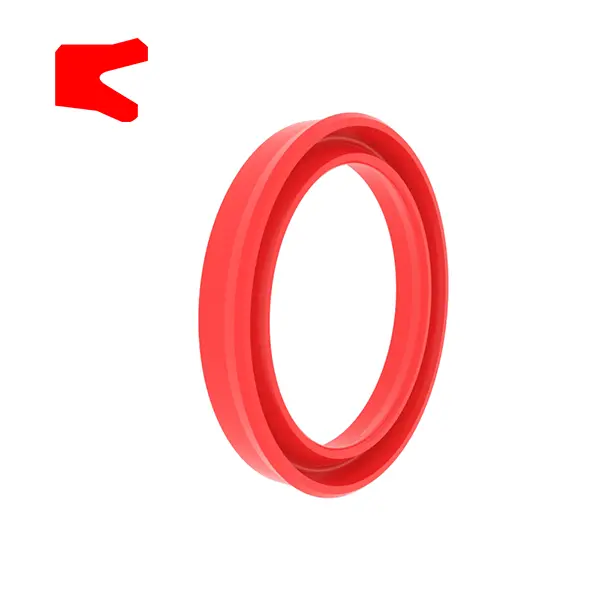

RCS101
Order size

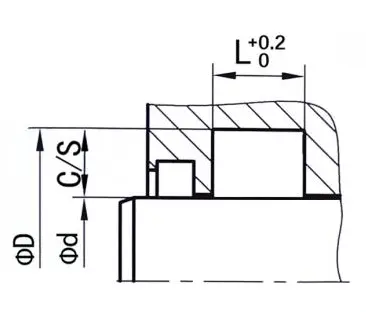

ΦD......Outer diameter
Φd......Inner diameter
L......Groove width

Ordering Example

Model: RCS101

Groove size: 100x115x10

Material: RC-PU-H

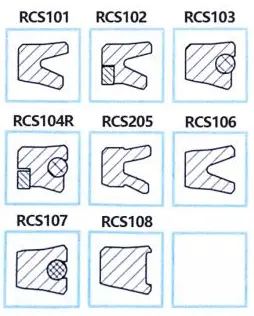

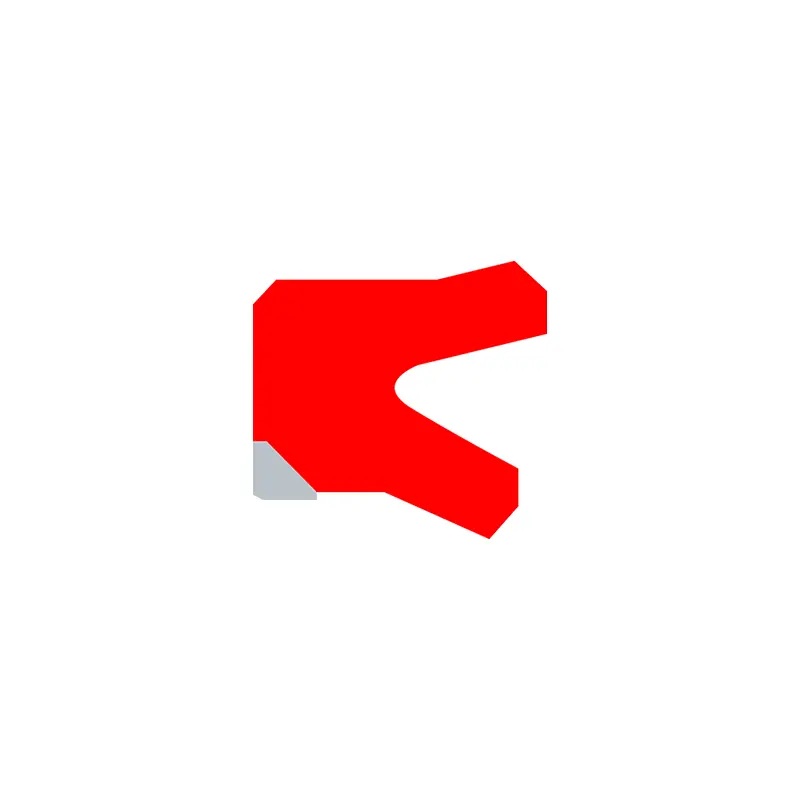

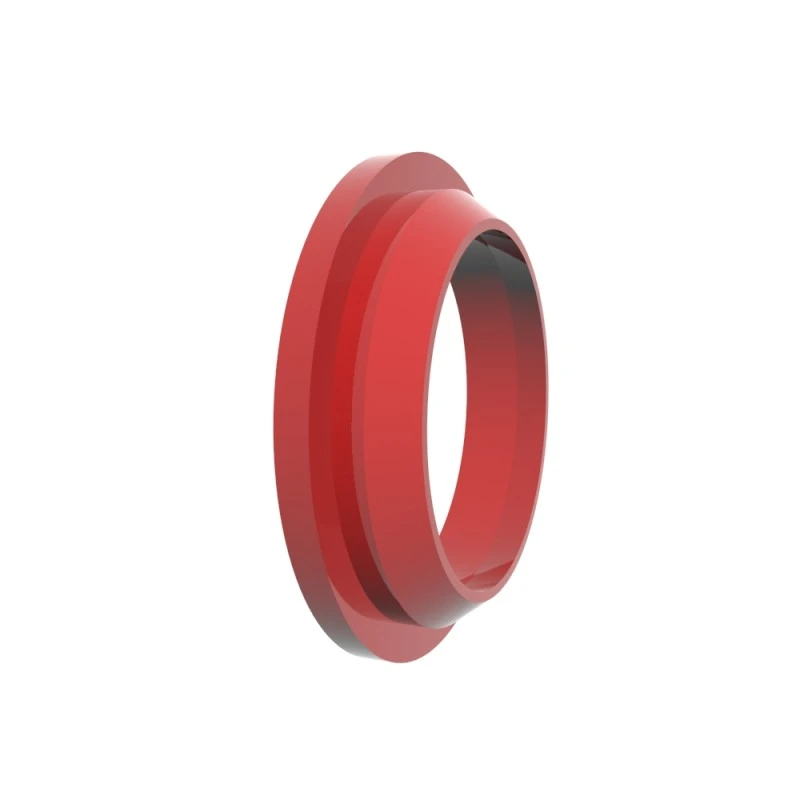

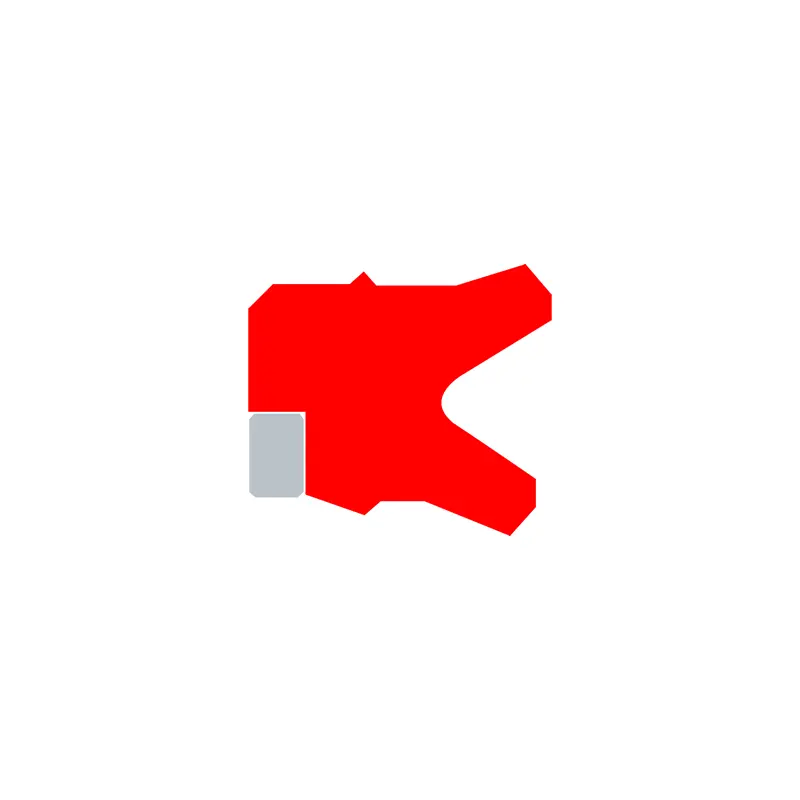

Seal Type: RCS101, RCS102, RCS103, RCS104, RCS205, RCS106, RCS107, RCS108, RCS117, RCS121
Main application: Suitable for hydraulic and pneumatic cylinders
Advantages: Stable embedding in the groove, wide temperature range, excellent static and dynamic sealing performance, strong residual oil extraction ability under dynamic conditions.
Material: Polyurethane, rubber

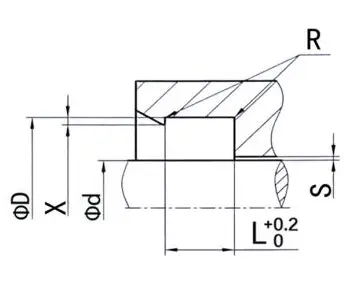

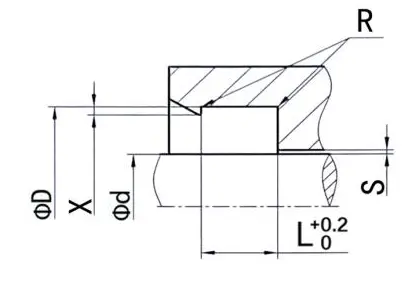

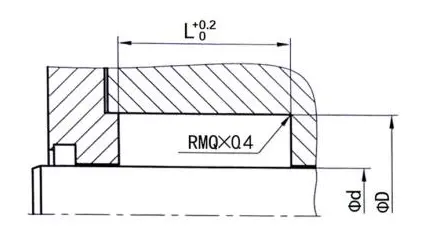

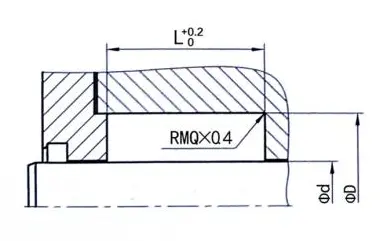

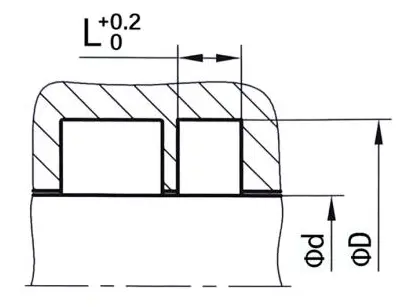

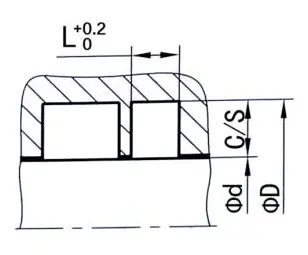

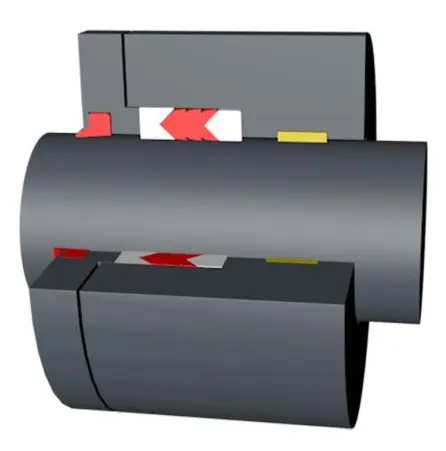

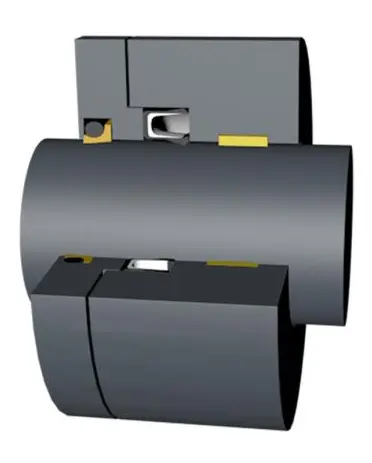

Seal groove examples	The following are standard groove dimensions (dust seals of any size within the size range can be produced)
		Φd	ΦD	L	c/s	Maximum extrusion gap
						100bar	250bar	400bar
		5-24.9	Φd+8	6.3	4	0.50	0.35	0.25
		25-49.9	Φd+10	8	5	0.50	0.35	0.25
		50-149.9	Φd+15	10	7.5	0.50	0.35	0.25
		150-229.9	Φd+20	14	10	0.50	0.35	0.25
		300-499.9	Φd+25	17	12.5	0.50	0.35	0.25
		500-699.9	Φd+30	25	15	0.50	0.35	0.25
		＞700	Φd+40	32	20	0.60	0.40	0.30
		＞1000	Φd+50	40	25	0.70	0.50	0.40

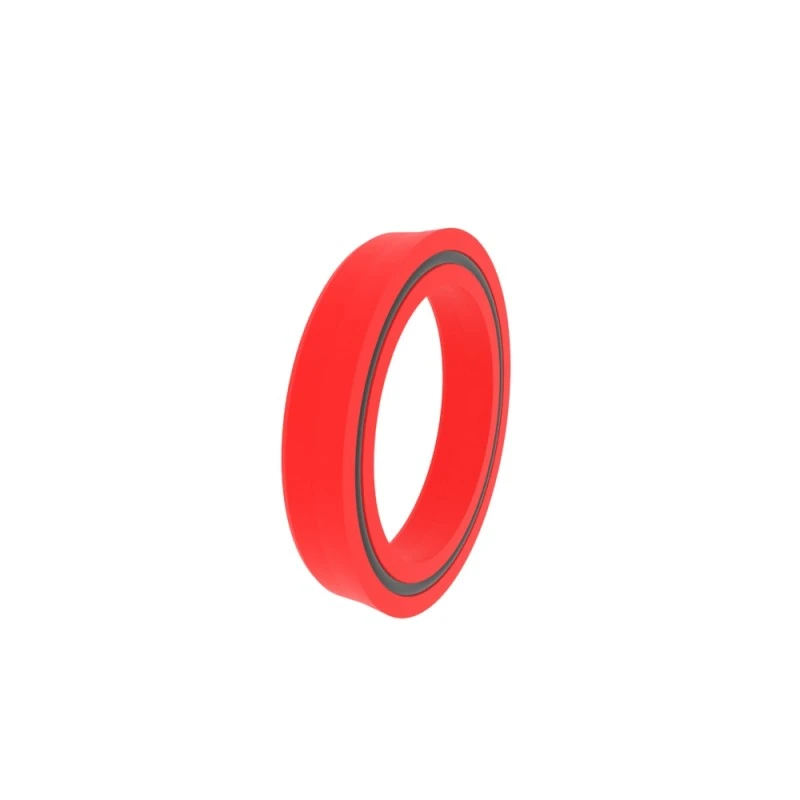

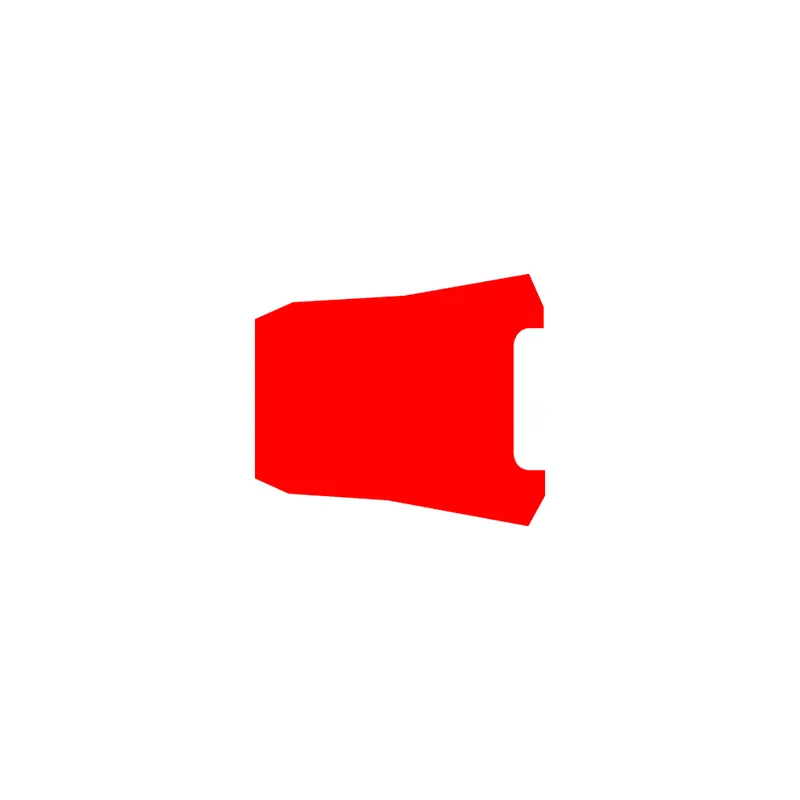

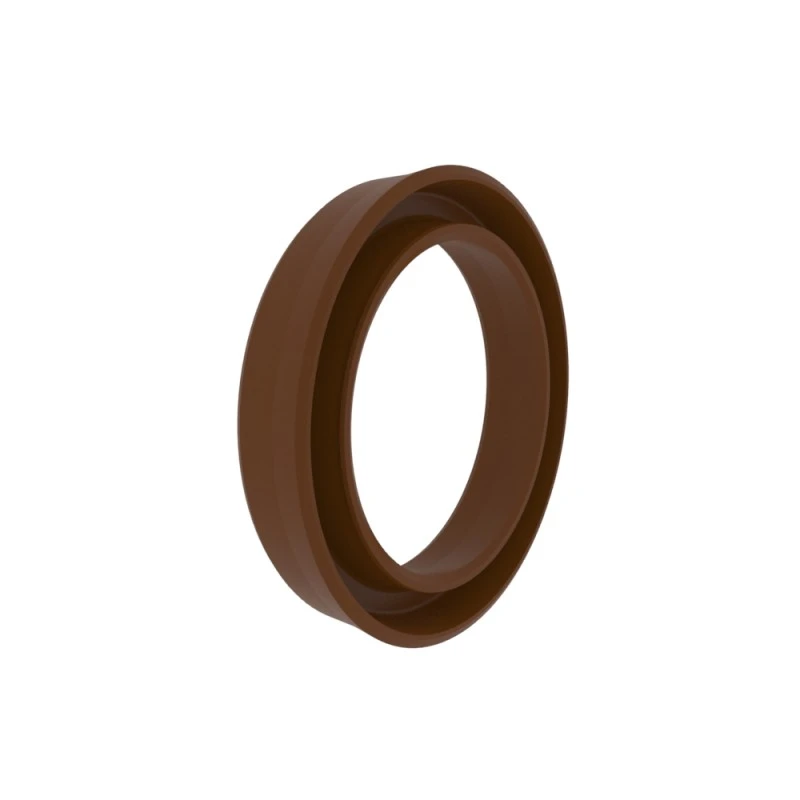

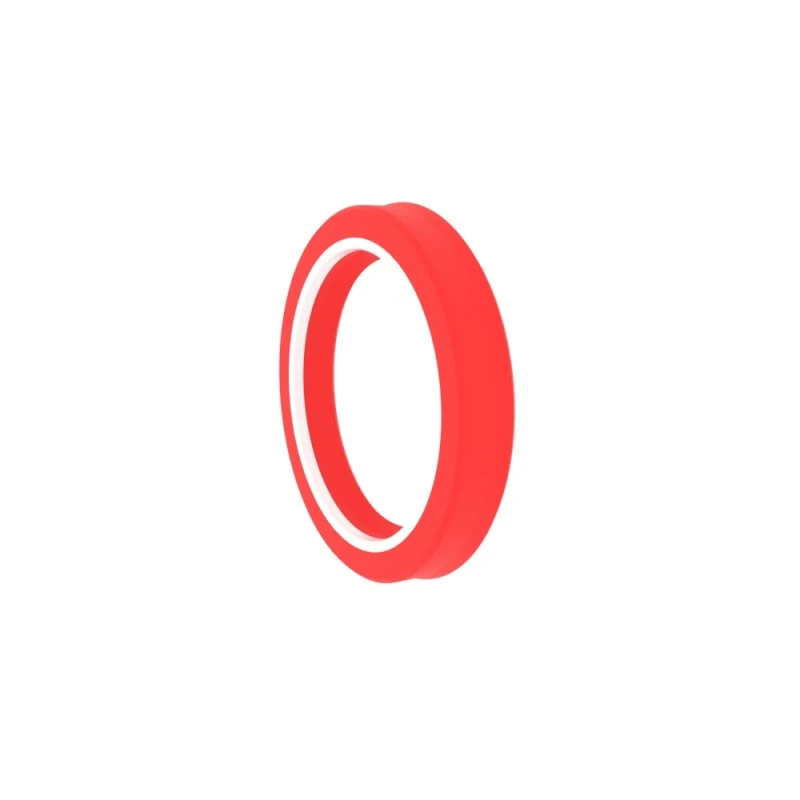

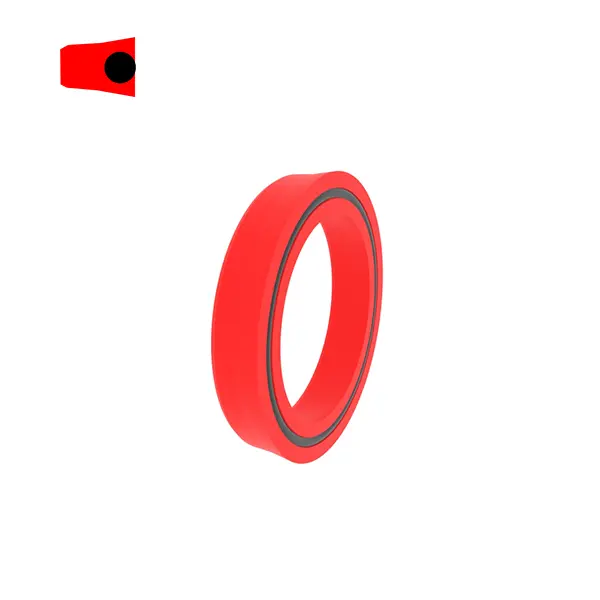

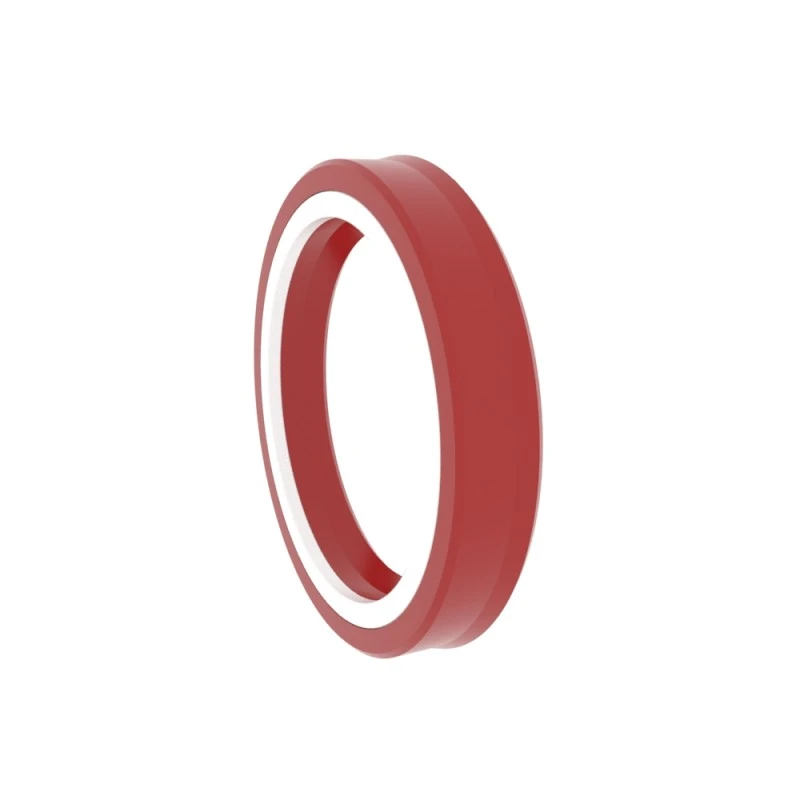

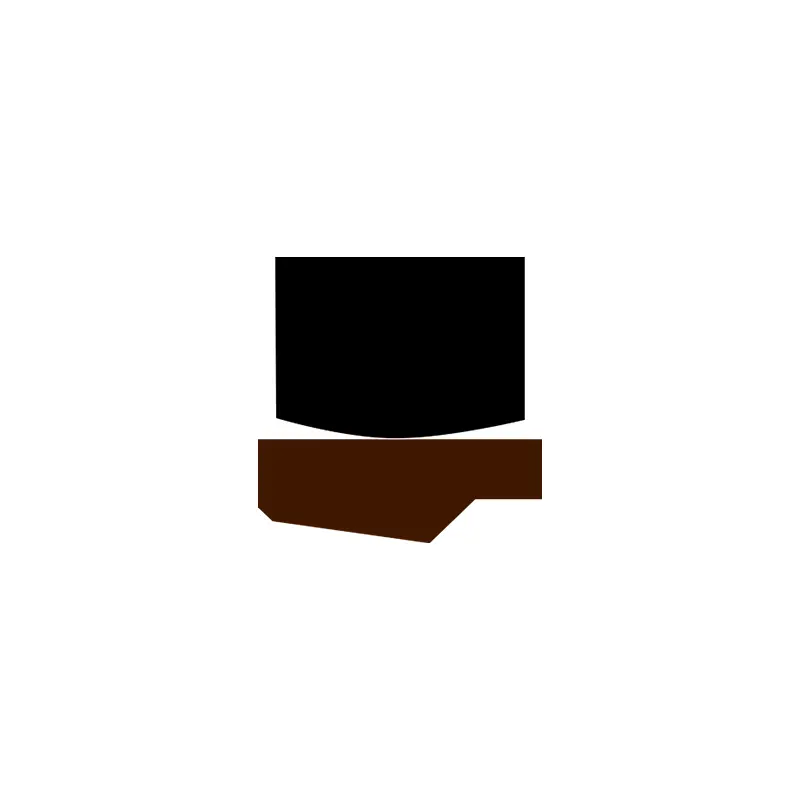

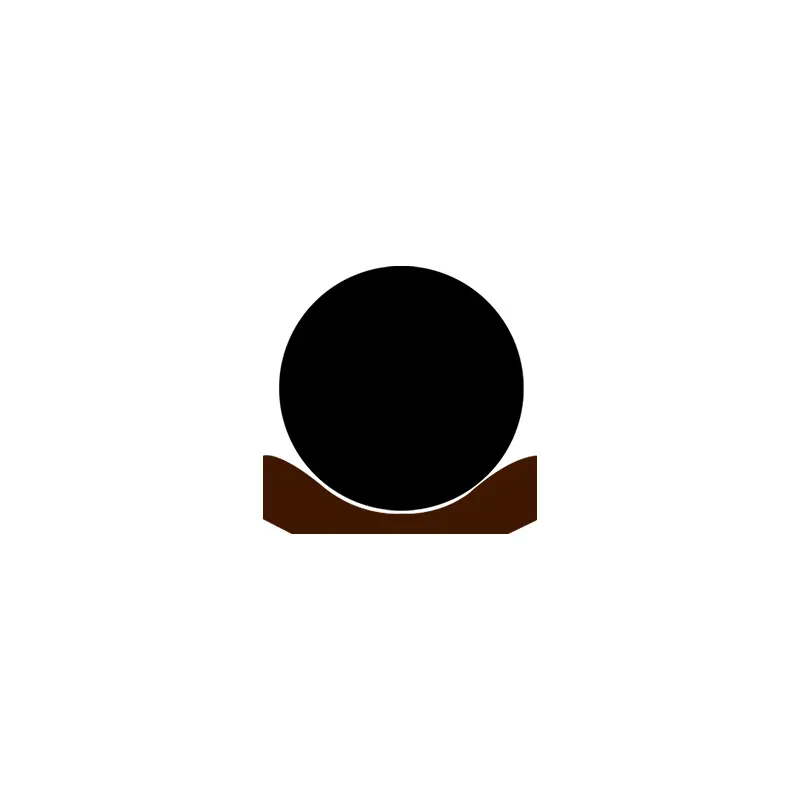

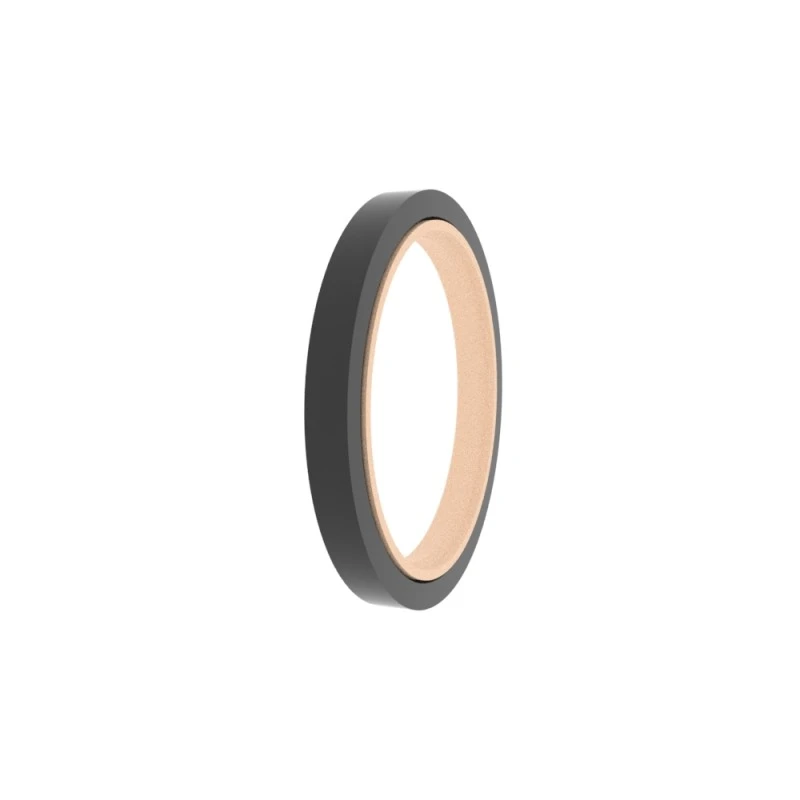

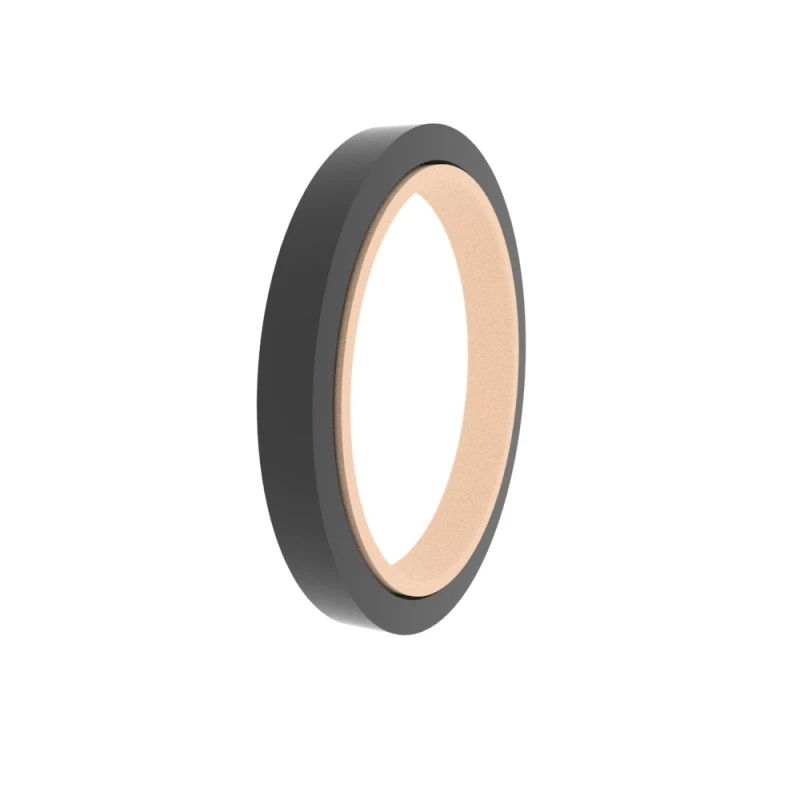

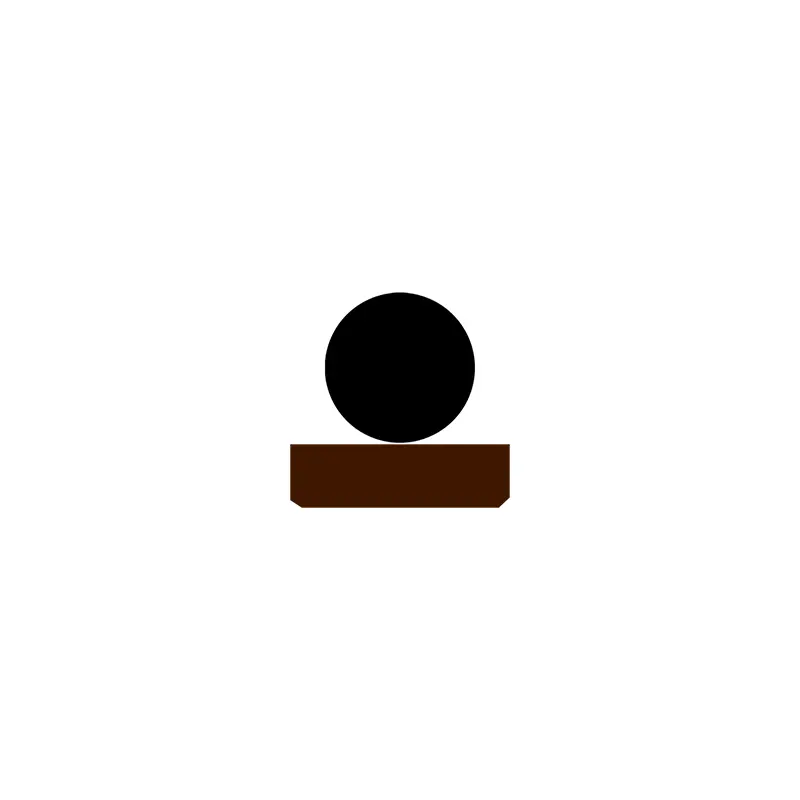

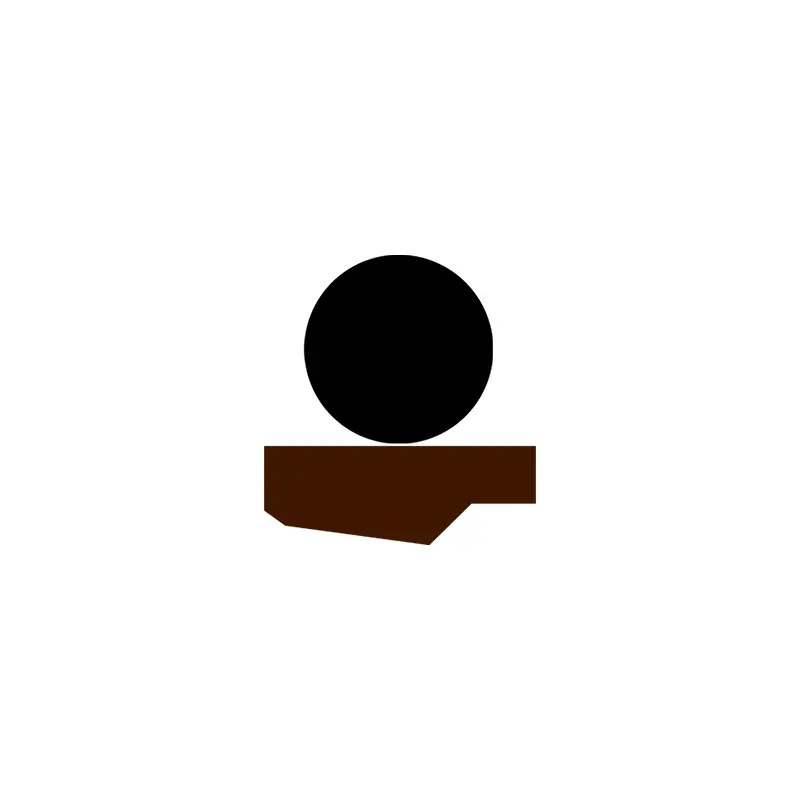

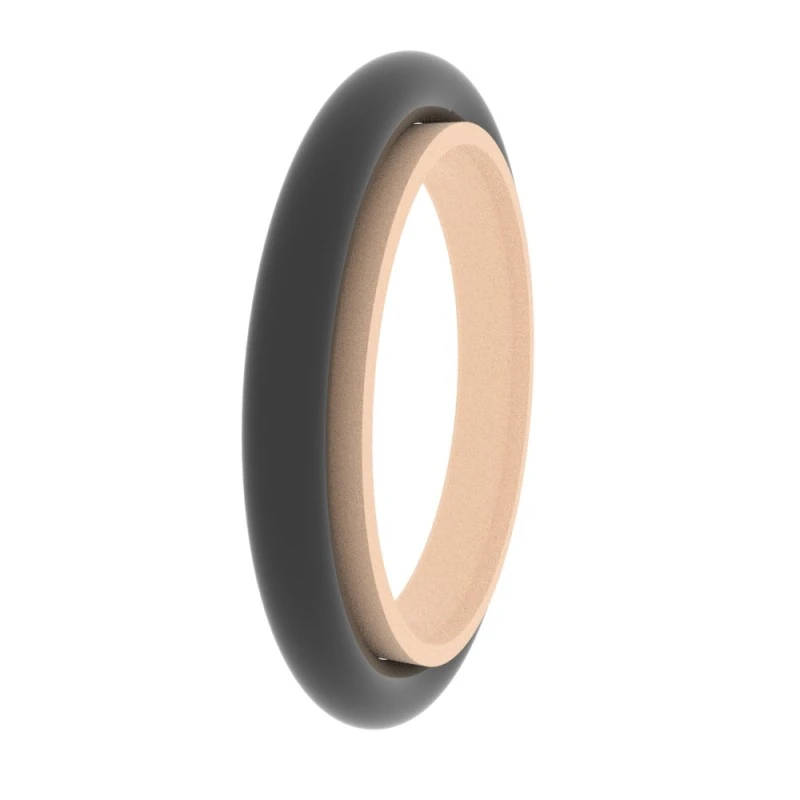

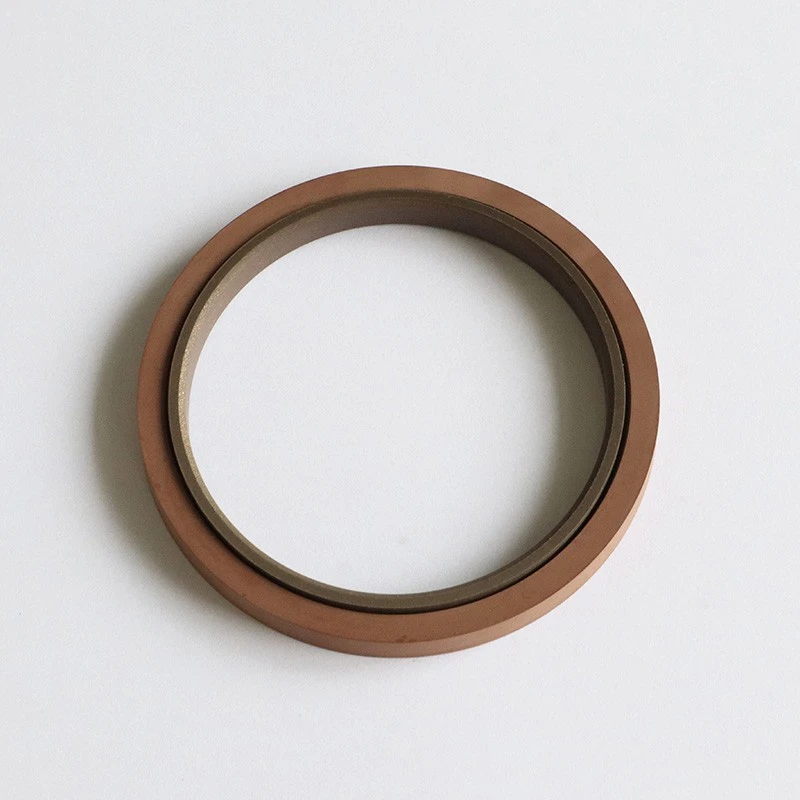

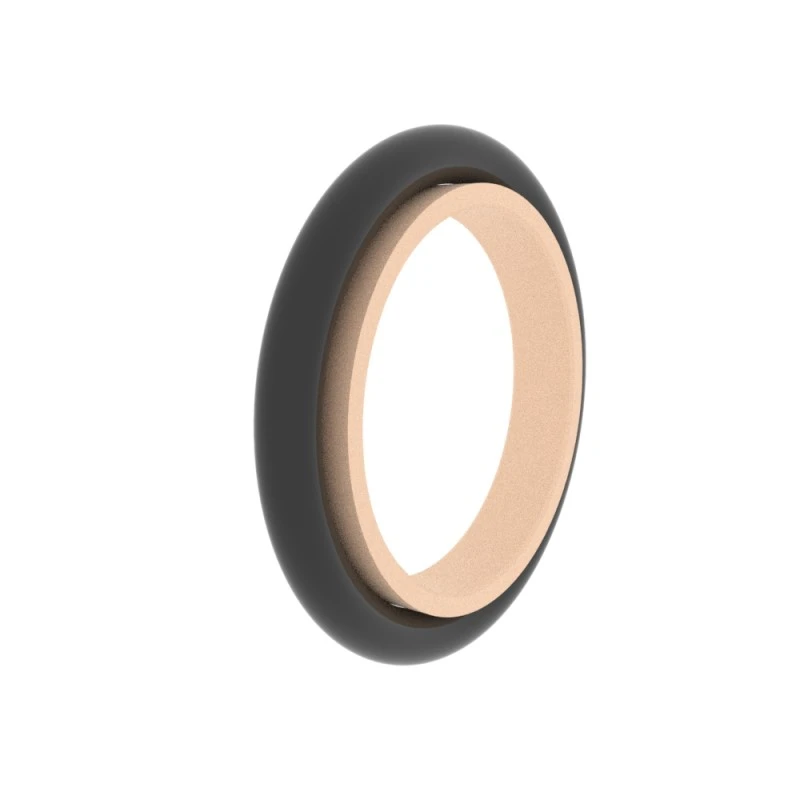

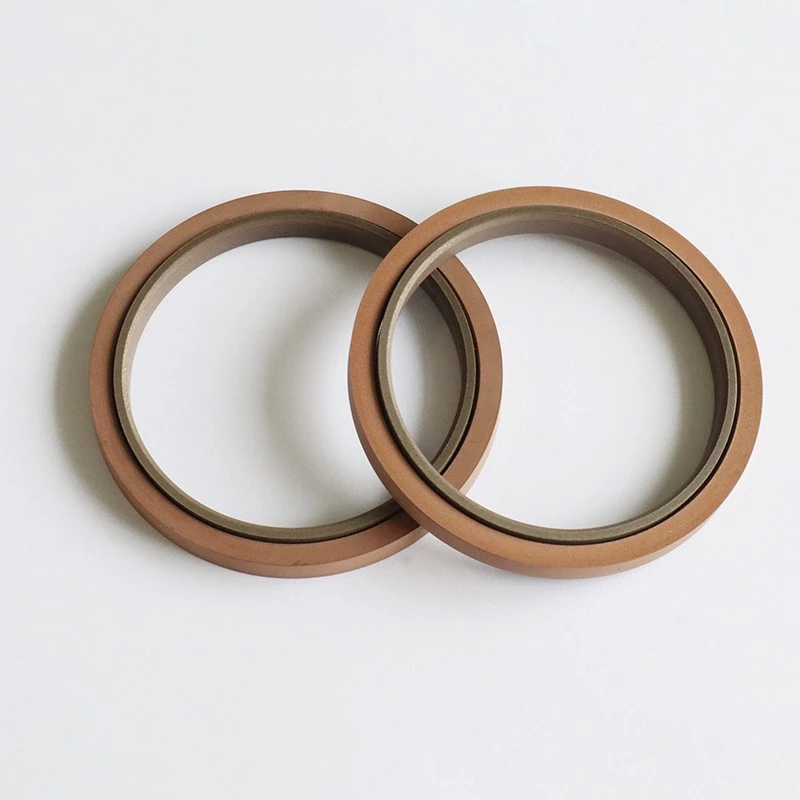

RCS109
Order size
ΦD......Outer diameter
Φd......Inner diameter
L......Groove width

Ordering Example

Model: RCS109

Groove size: 100x115.1x6.3

Material: PTFE3+NBR

Seal Type: RCS109
Main application: Engineering vehicles, agricultural machinery, cranes, marine hydraulic equipment, machine tools.
Advantages: Low friction, no creep, high wear resistance, only good anti-extrusion performance, good thermal conductivity, stable embedding groove, wide temperature range.
Material: Tetrafluoroethylene, nitrile rubber or fluorine rubber

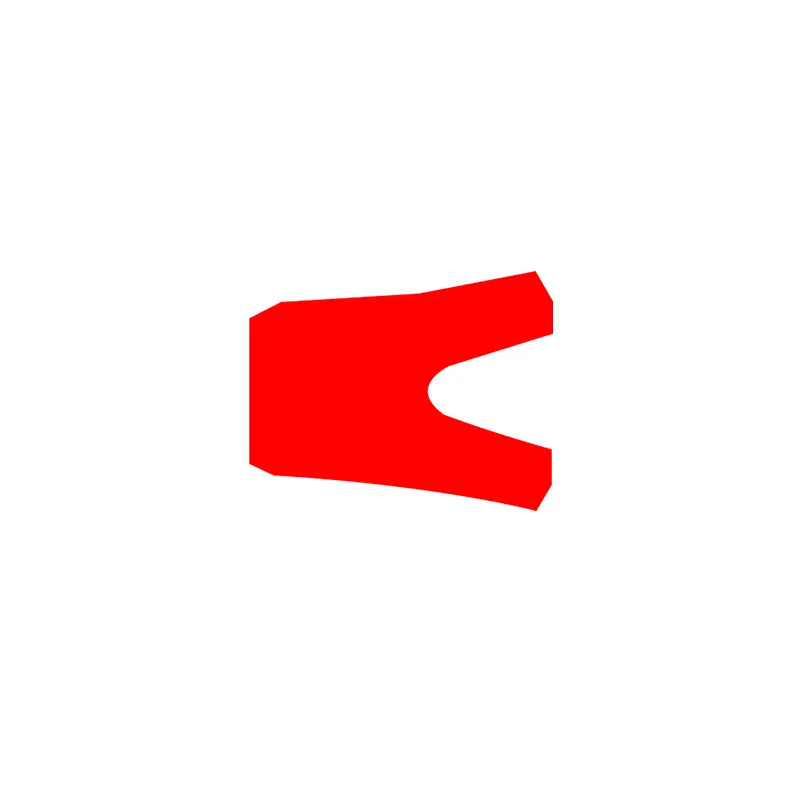

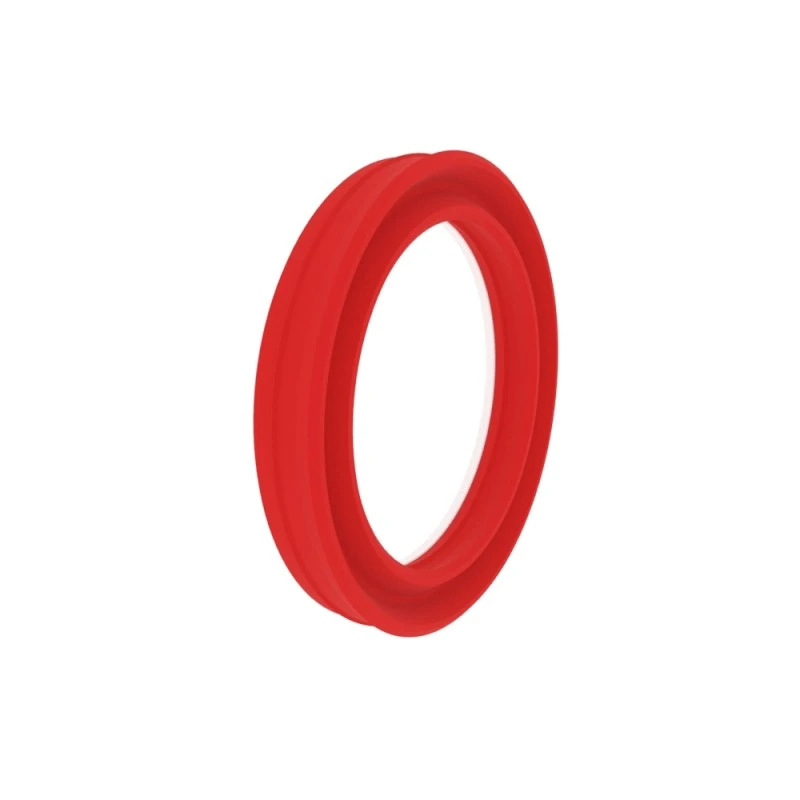

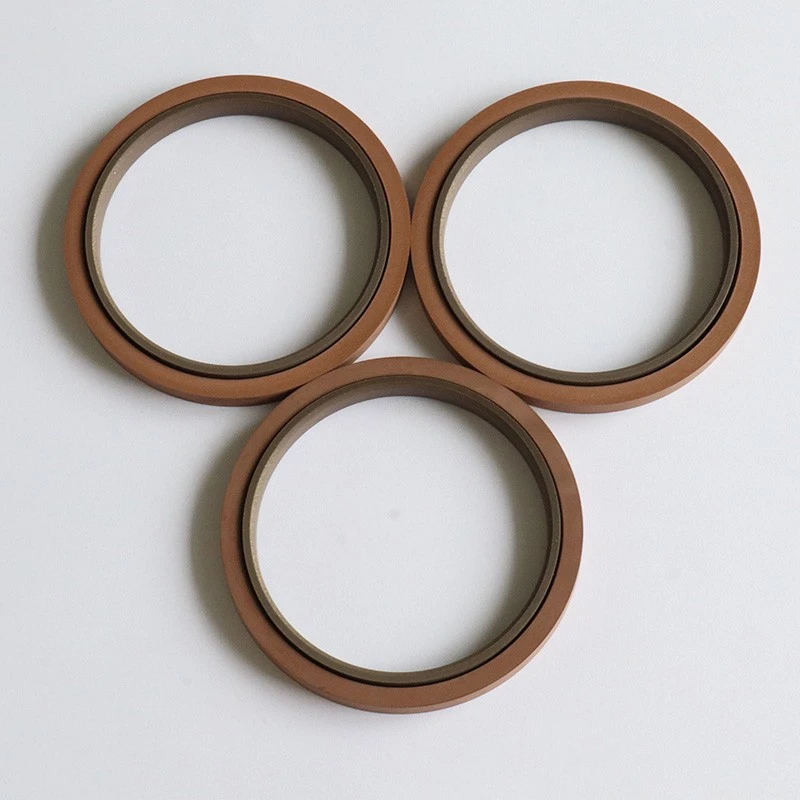

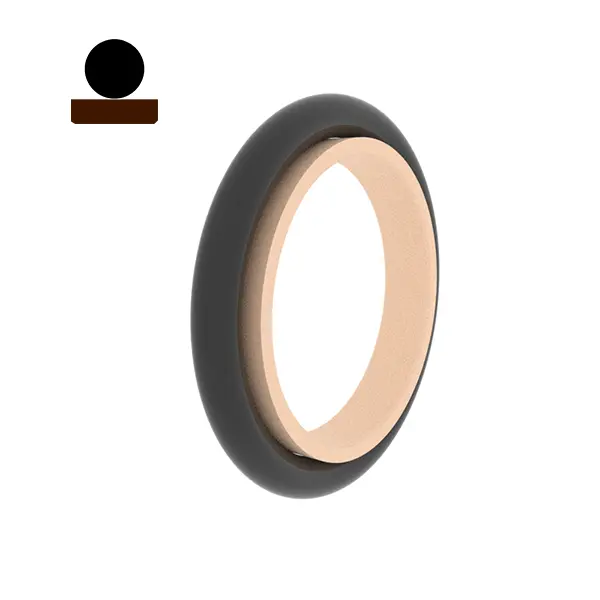

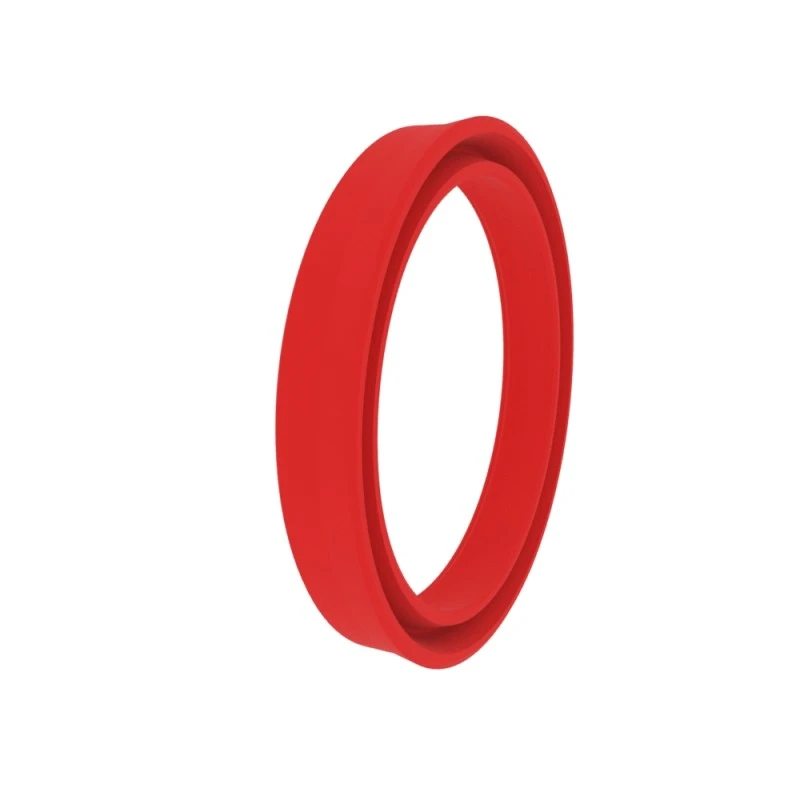

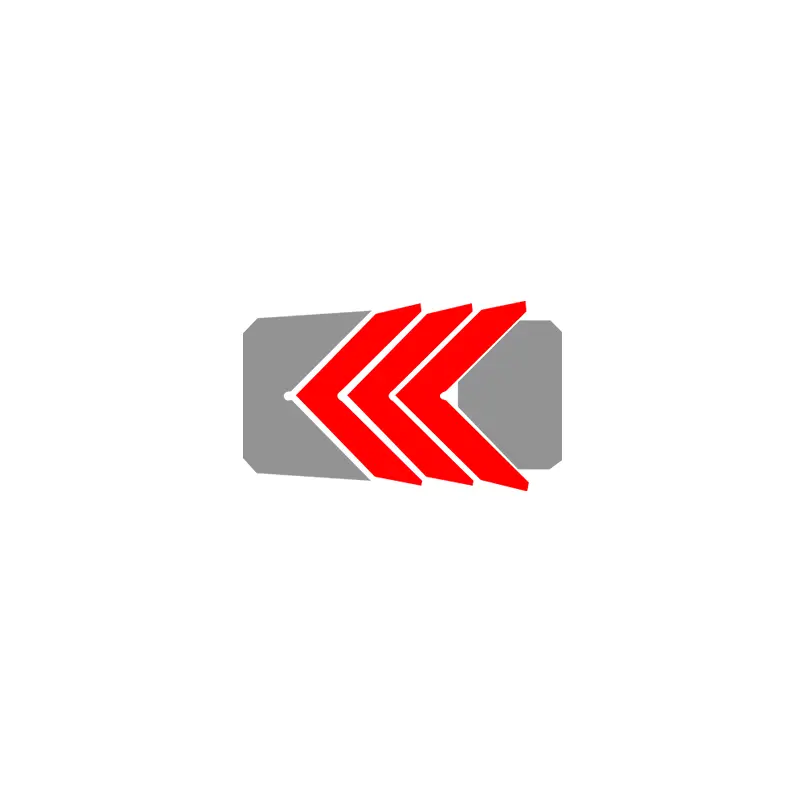

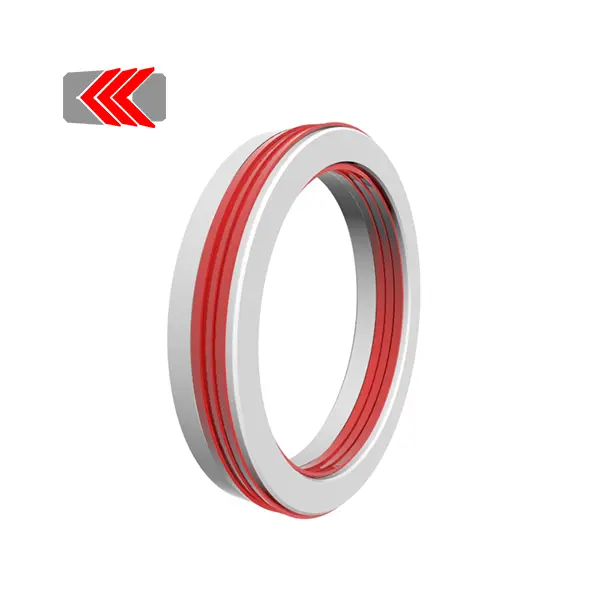

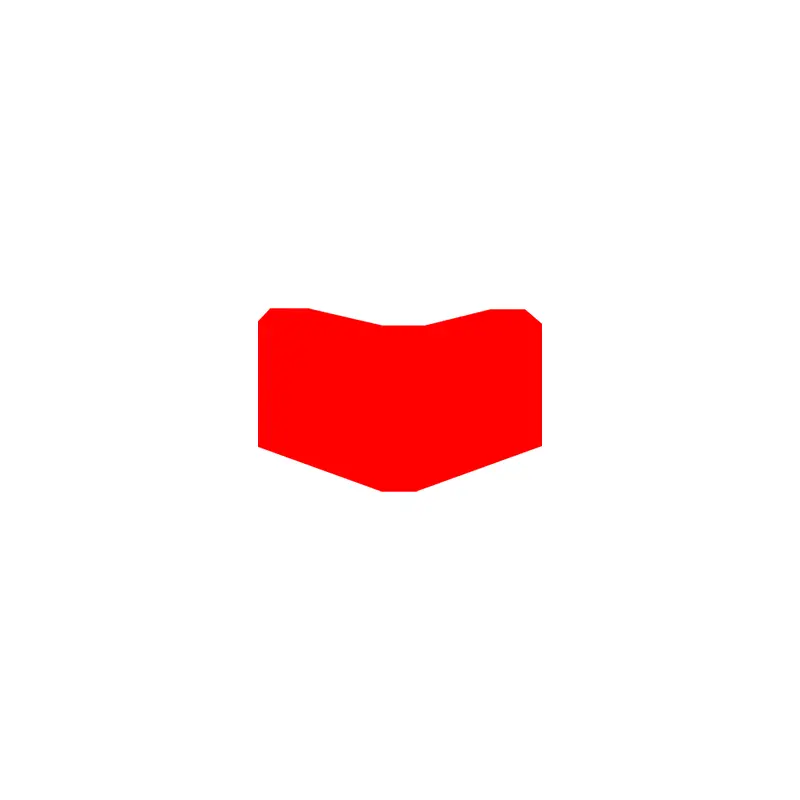

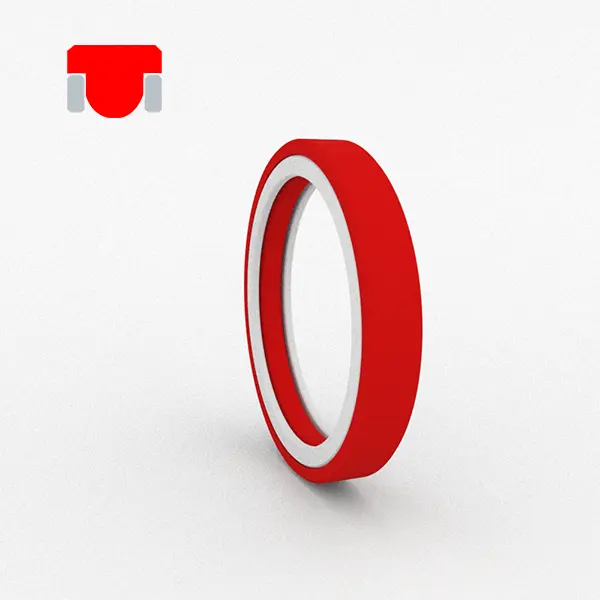

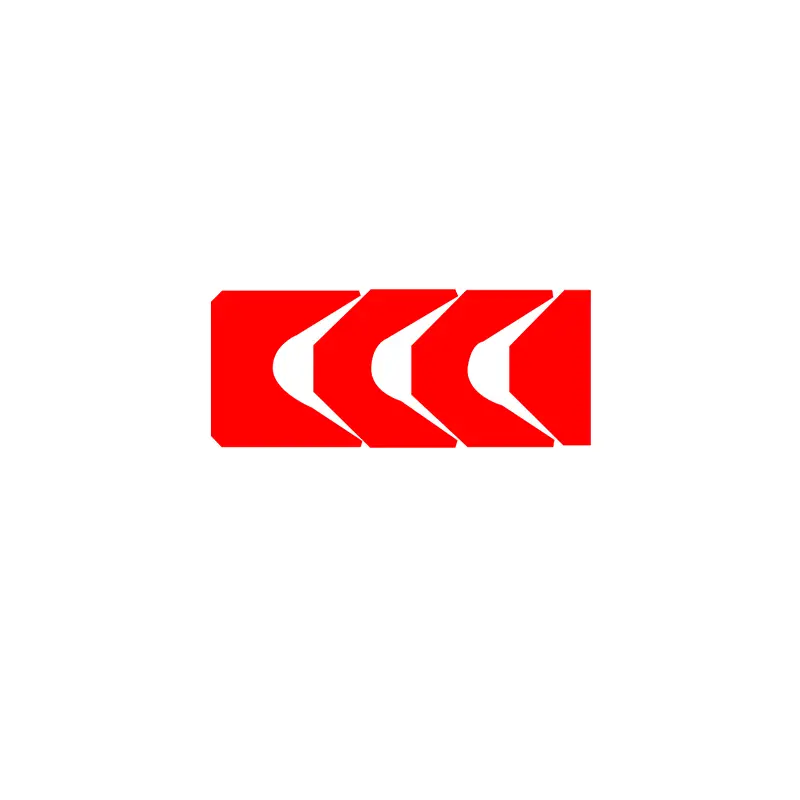

RCS110-112
Order size
ΦD......Outer diameter
Φd......Inner diameter
L......Groove width

Ordering Example

Model: RCS110-112

Groove size: 100x120x32

Material: RC-PU-H+POM

Seal Type: RCS110-112, RCS126-128
Main application: For heavy industrial machinery, presses
Advantages: Suitable for old piston rods, open type easy to install creeper
Material: Polyurethane, polyoxymethylene, nylon

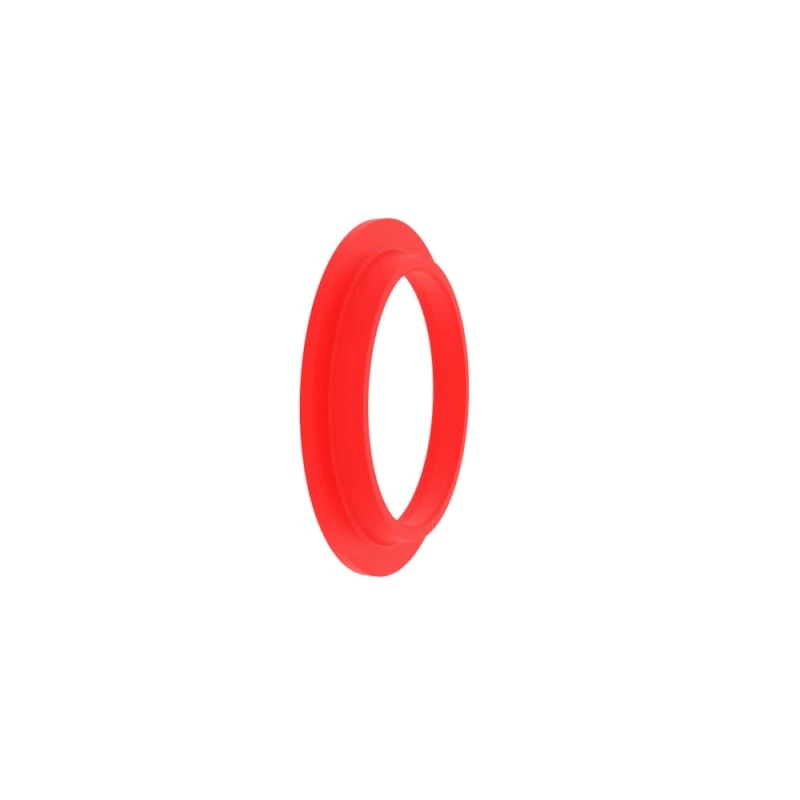

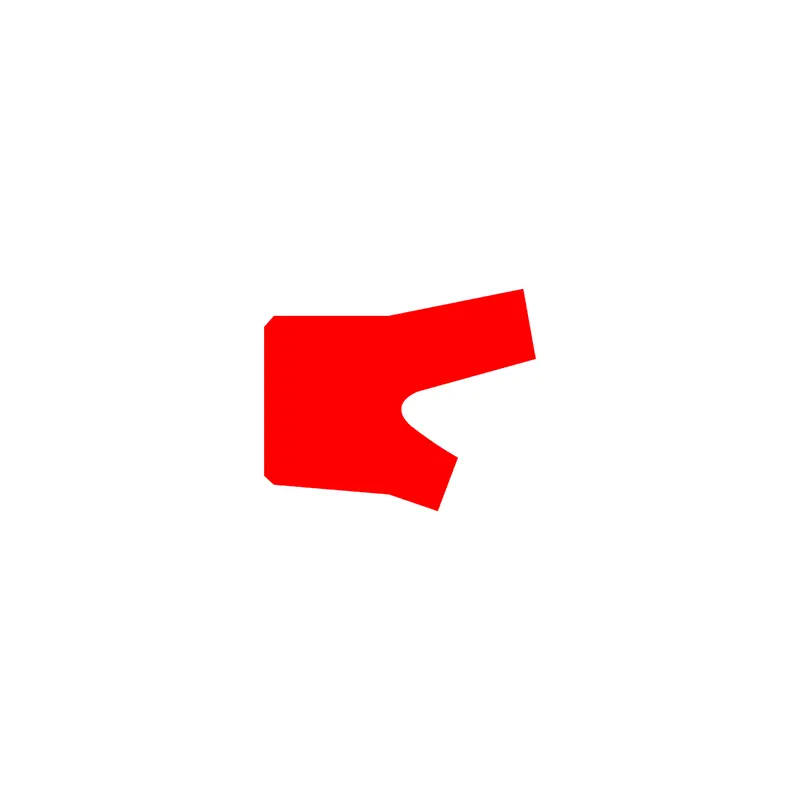

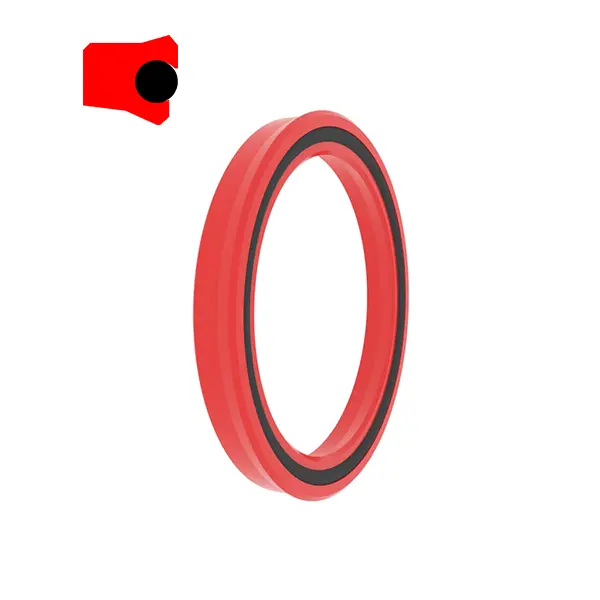

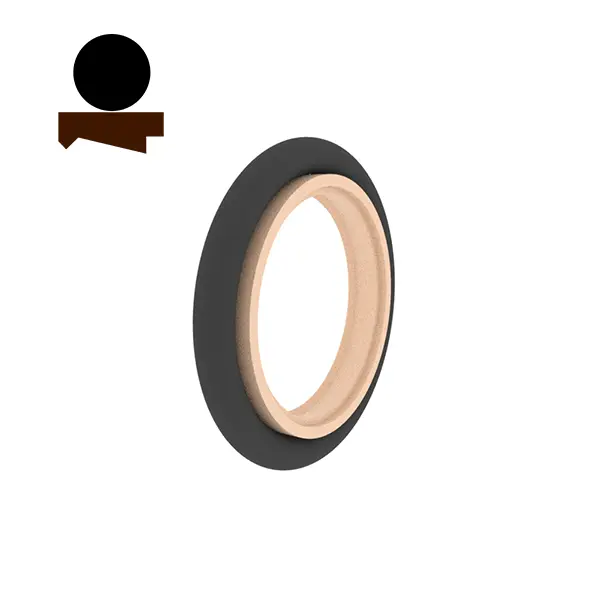

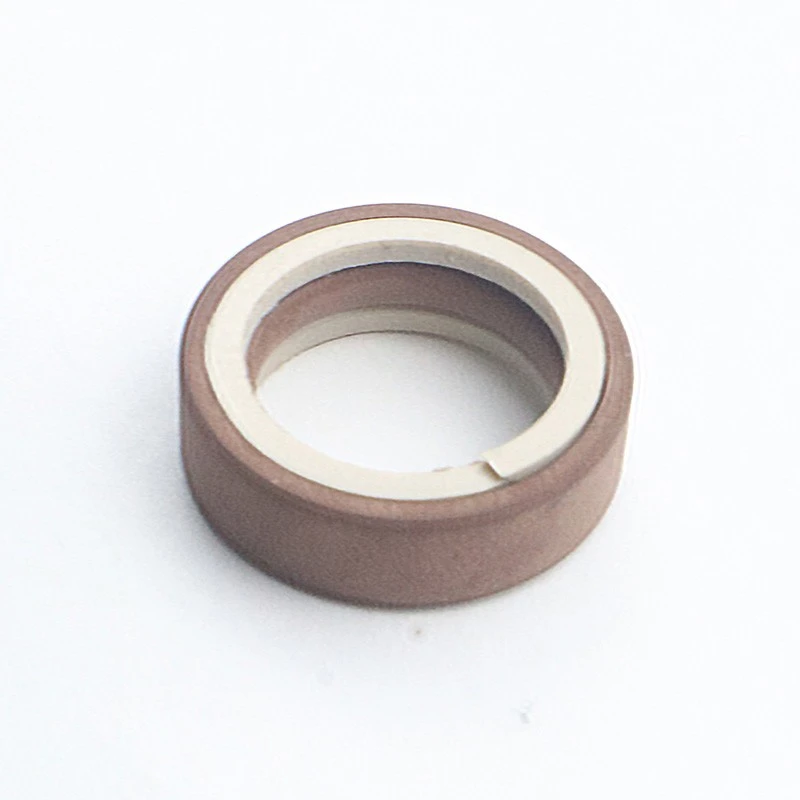

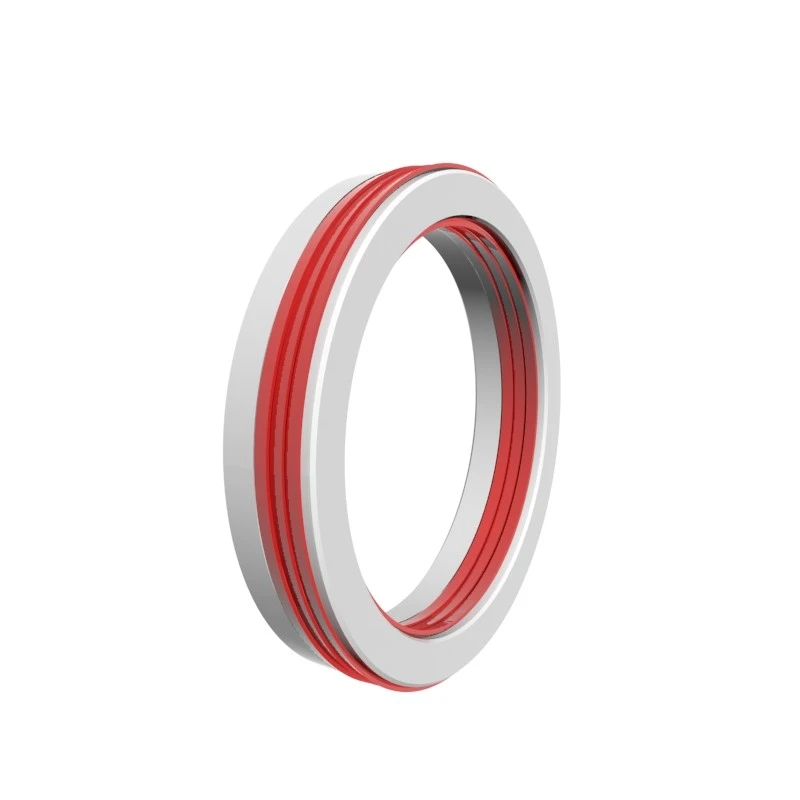

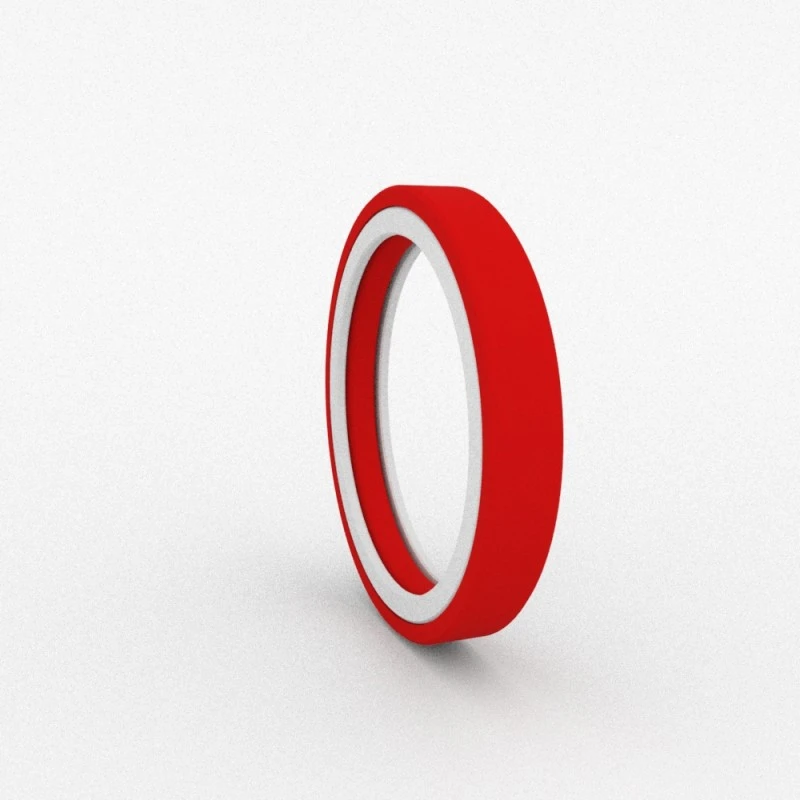

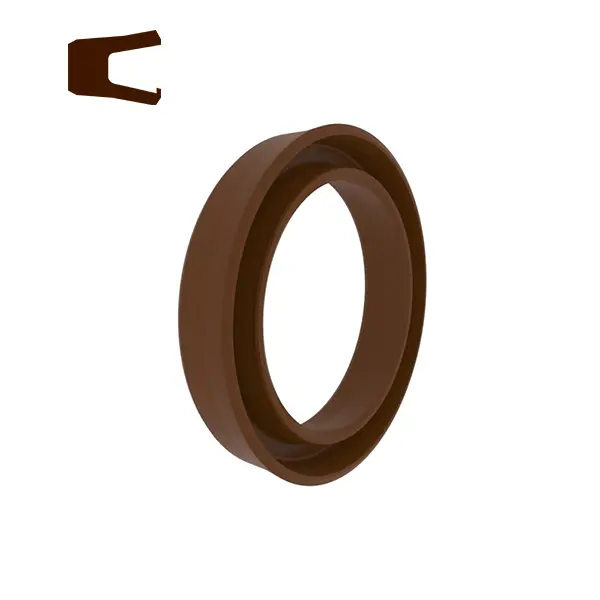

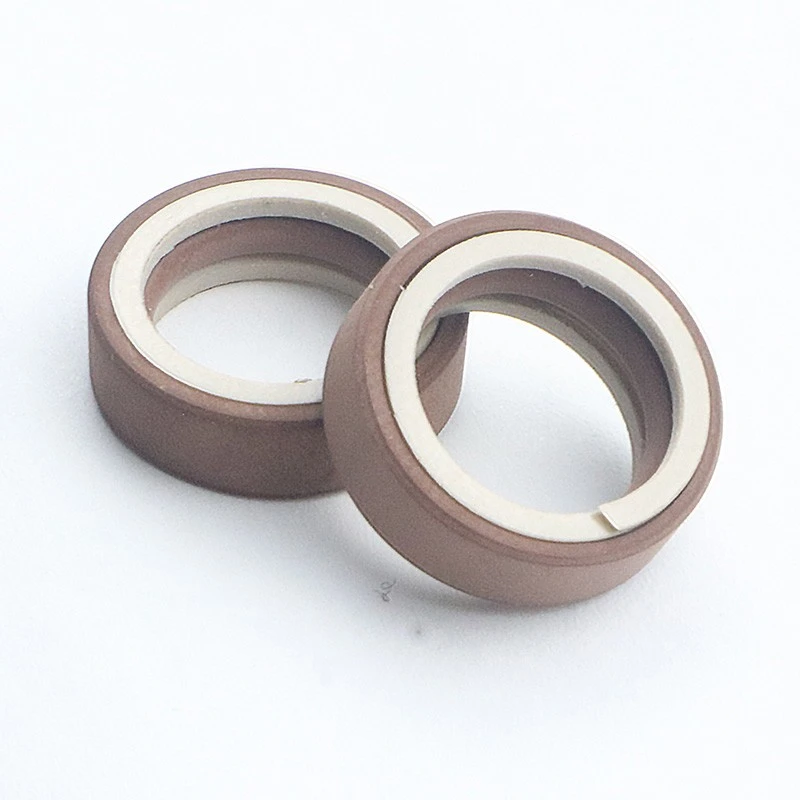

RCS119
Order size
ΦD......Outer diameter
Φd......Inner diameter
L......Groove width

Ordering Example

Model: RCS119

Groove size: 100x109.4x7.1

Material: PTFE2+NBR

Seal Type: RCS119
Main application: Chemical industry, rapid cylinders and positioning machinery. Food industry, pharmaceutical industry.
Advantages: Resistant to high temperatures and various chemical media, low friction coefficient, no creep, good dry friction characteristics, low static and friction values.
Material: PTFE+leaf spring
