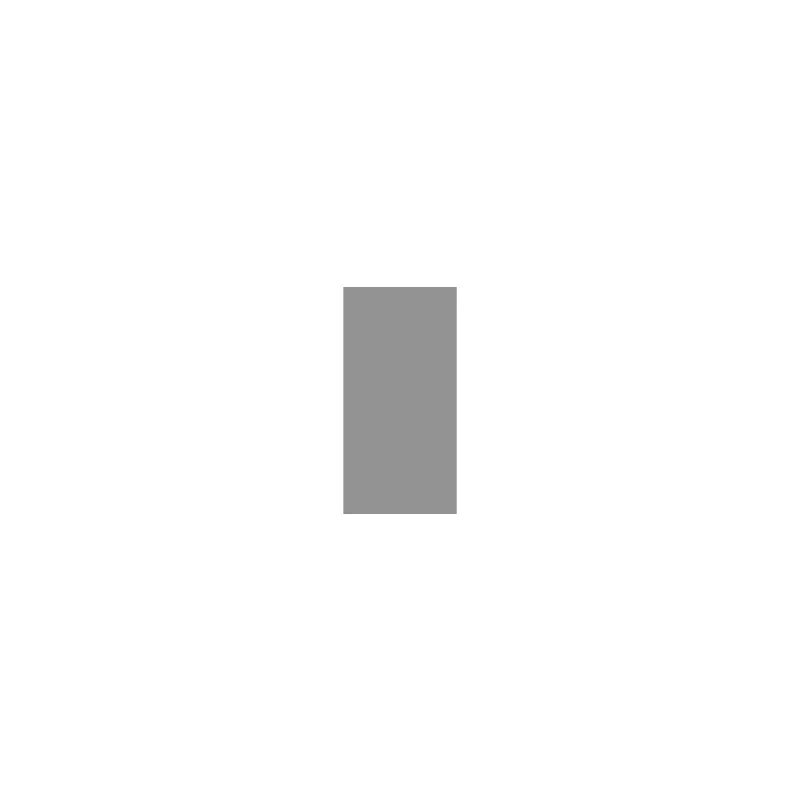

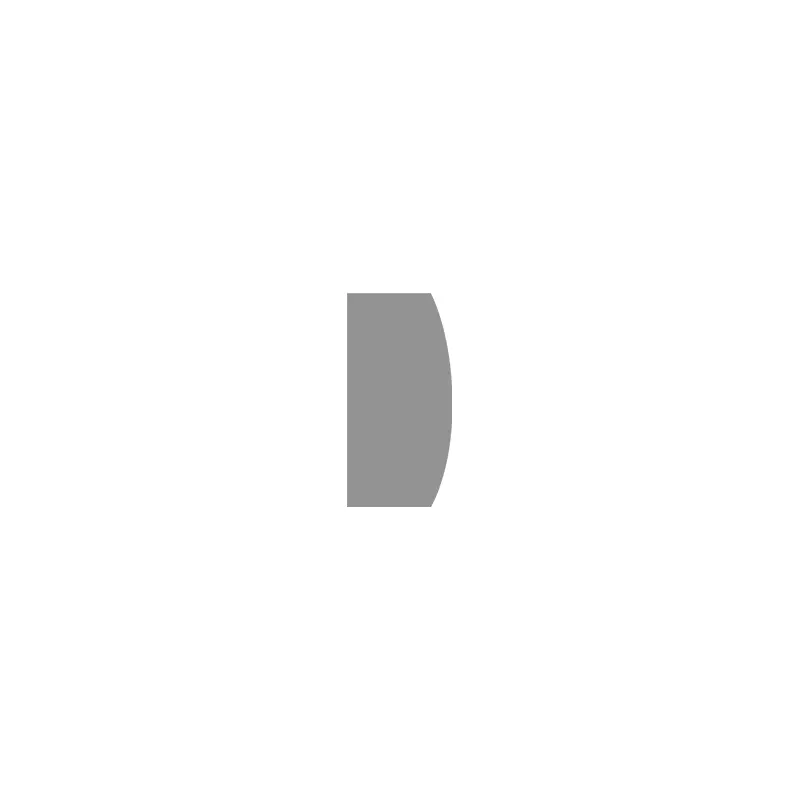

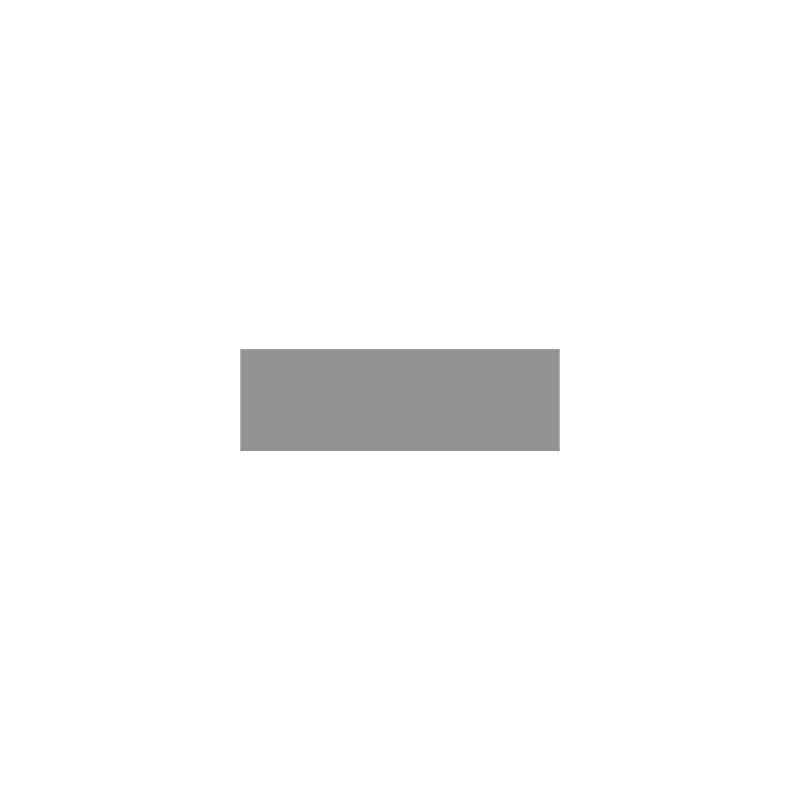

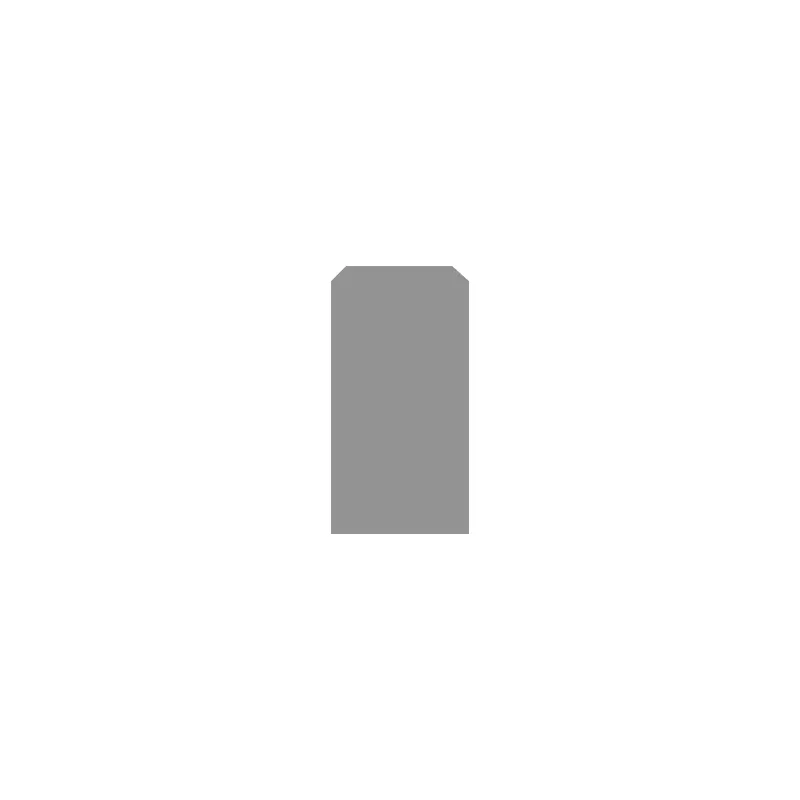

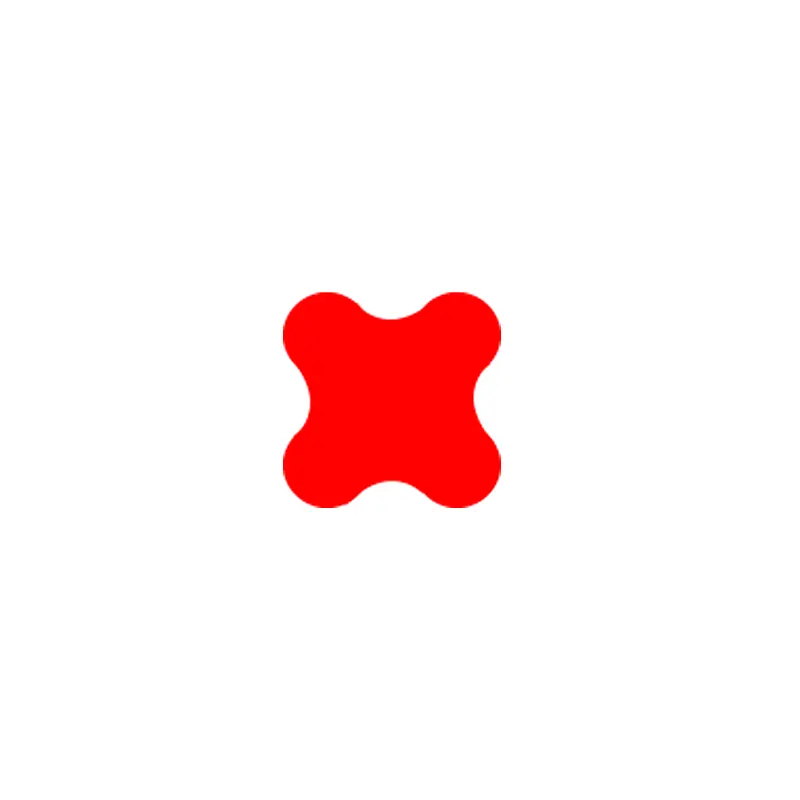

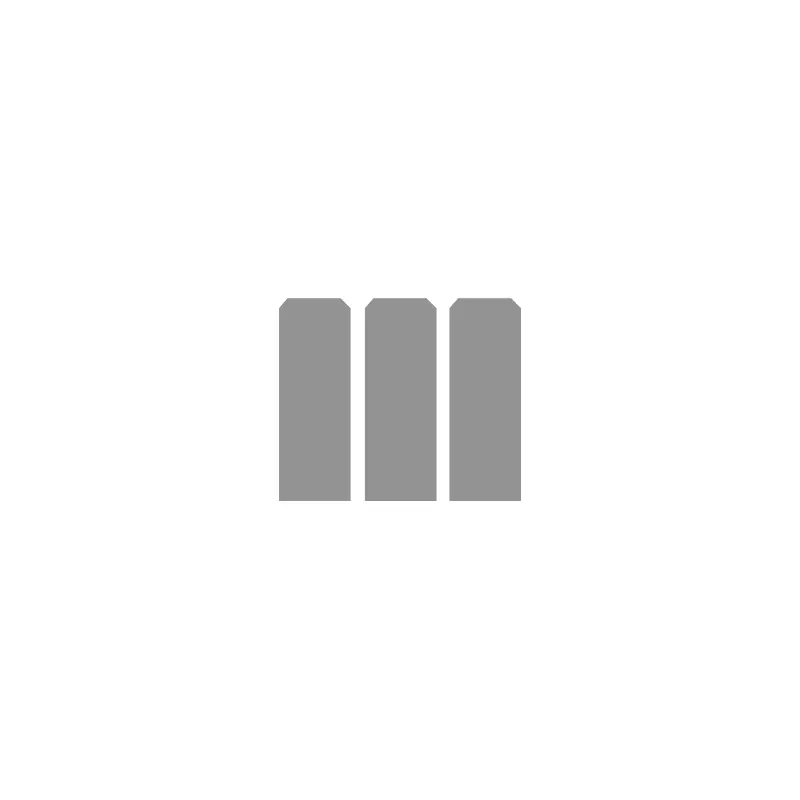

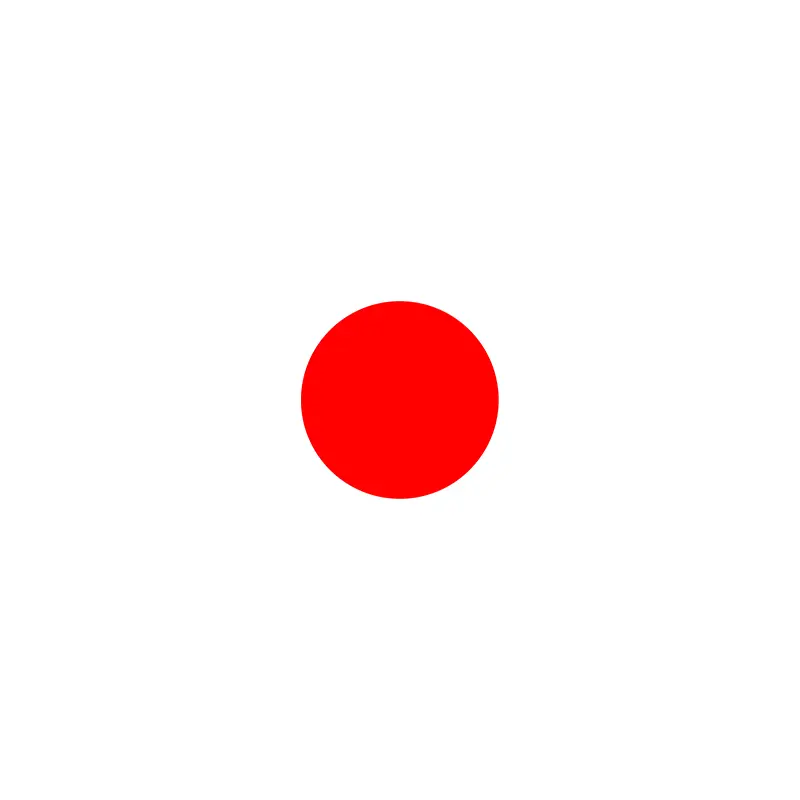

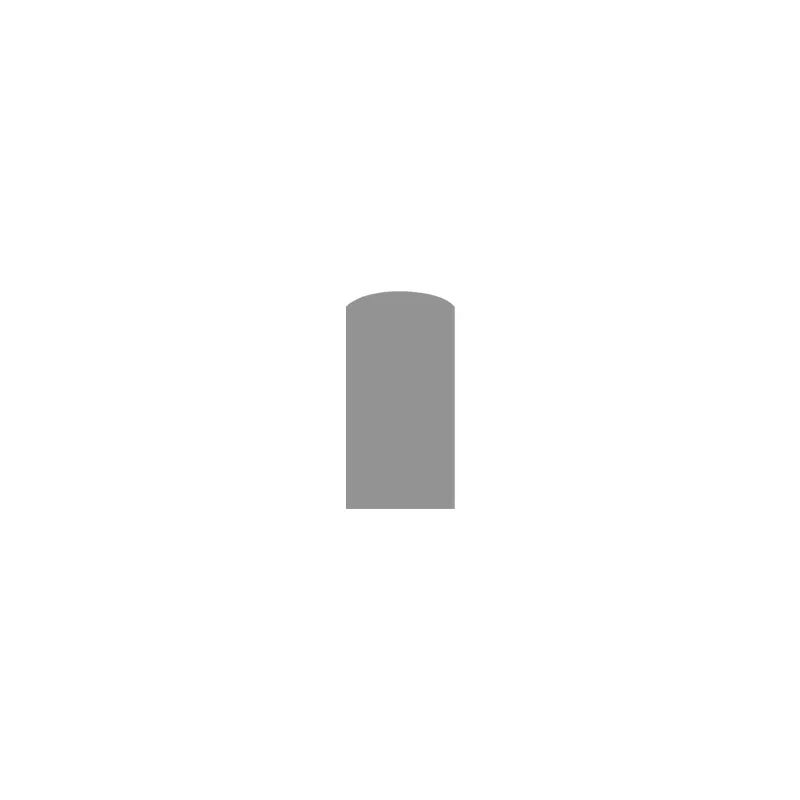

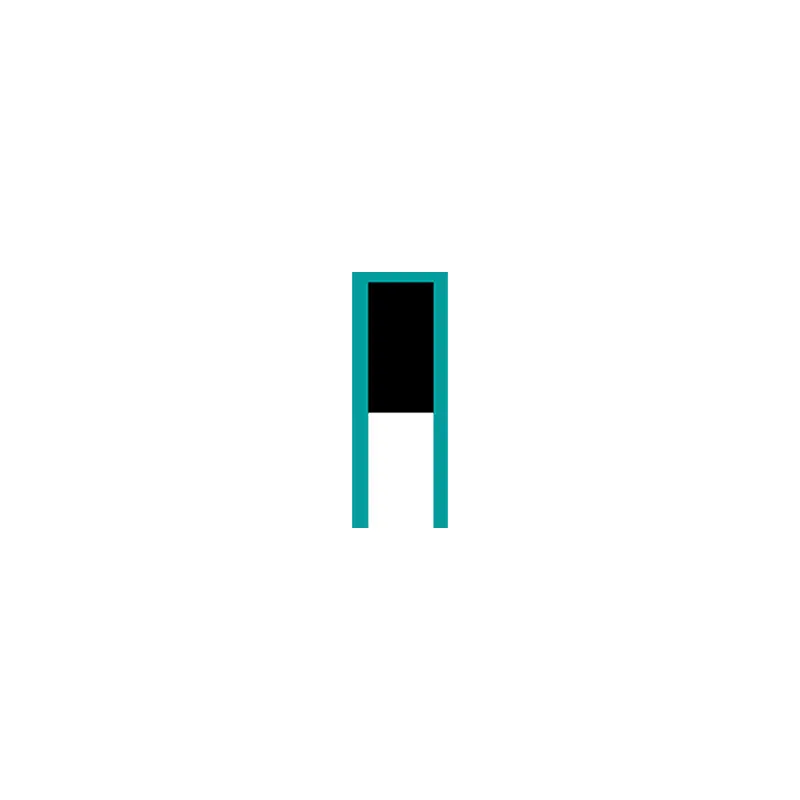

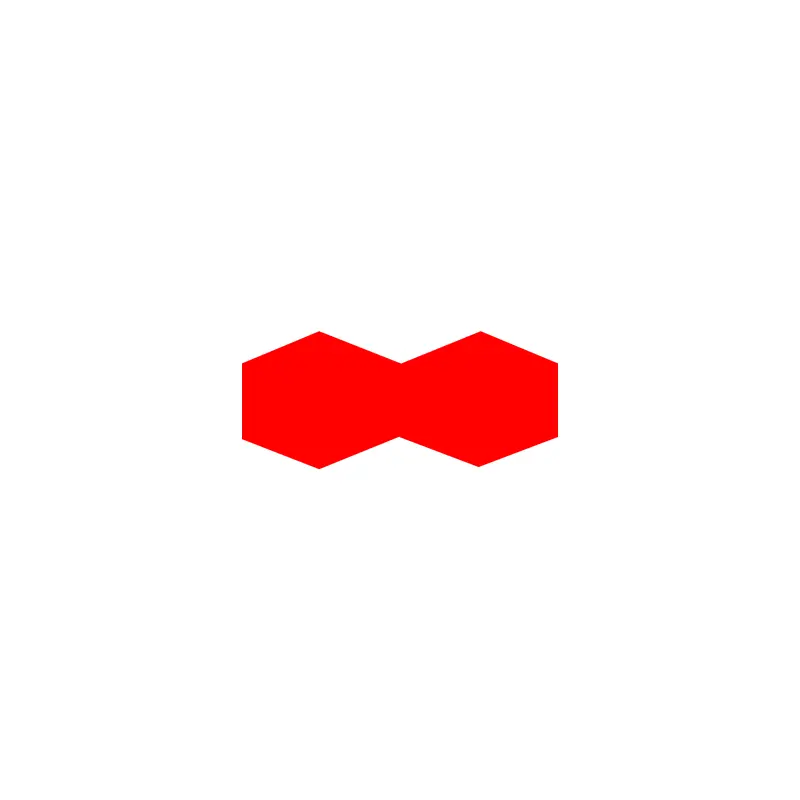

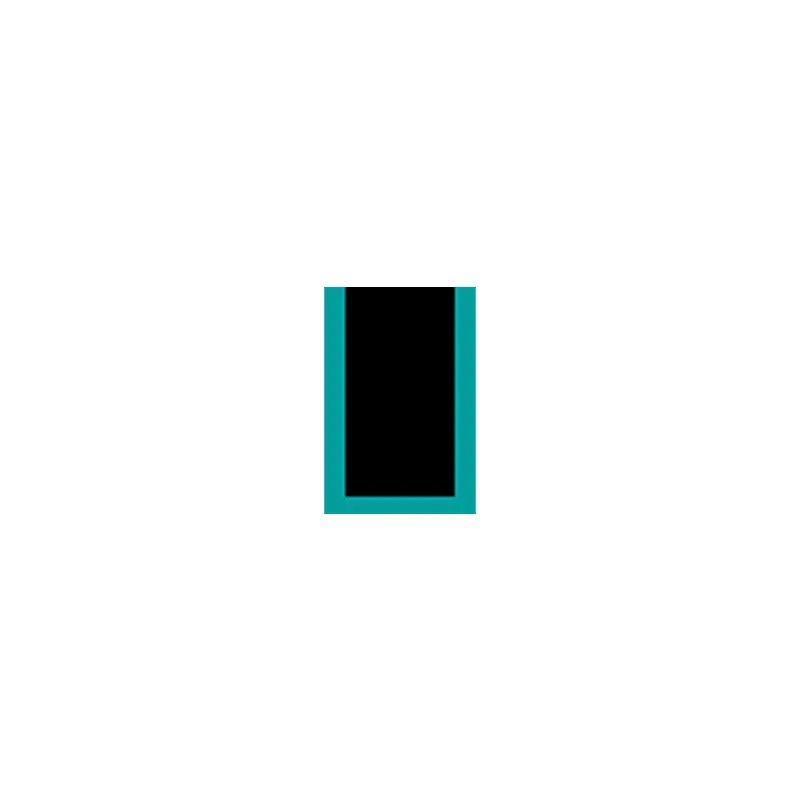

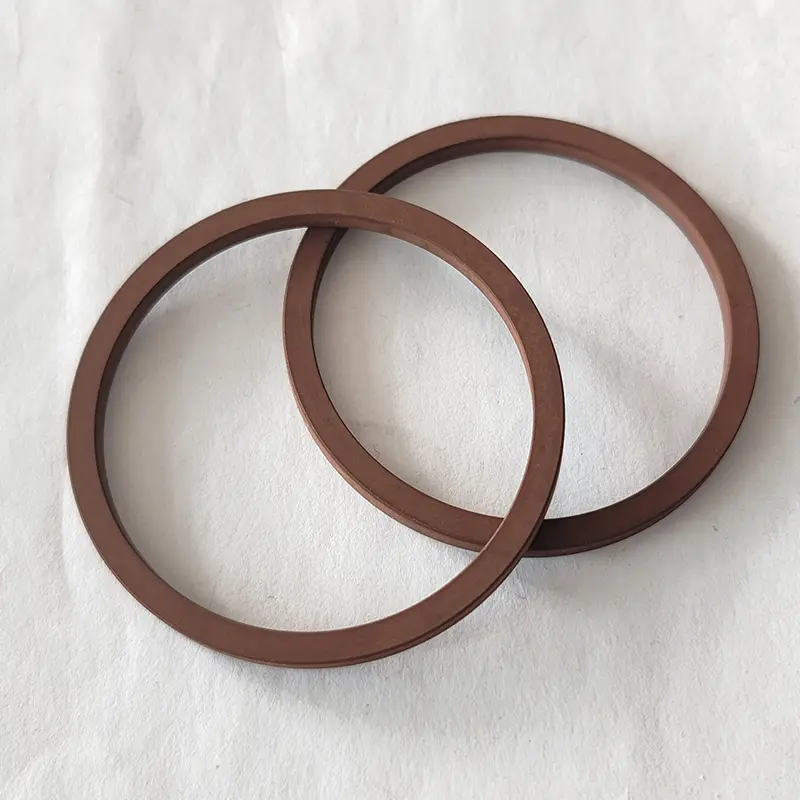

We provide a full range of turning static seals solutions, covering standard general-purpose and high-pressure special products. RCFL106/102 and RCK126 are basic models with simple structure and wide application; RCS130/131 and RCFL108 adopt extrusion outer diameter installation design to ensure the stability of groove embedding; RCK120/127 and other similar series products achieve the same reliability through extrusion inner diameter installation.
In response to flange sealing needs, RCF110 and RCR118 can bear pressure in both directions, and the pressure direction must be indicated when ordering. The product line fully covers low-pressure to high-pressure working conditions, and the material is wear-resistant and corrosion-resistant, and is widely used in hydraulic systems, pipeline connections and industrial equipment sealing.
Product features and applications:
Application: general purpose, ID seal, OD seal, axial seal
O-ring specifications and grooves
Order size
Φd1......Inner diameter
Φd2......Section diameter
Ordering Example
Model: RCFL106
Inner diameter Section diameter: 14x1.8
Material: NBR
Application
Pressure from inside: O-ring is compressed from outside diameter
Pressure from outside: O-ring is compressed from inside diameter

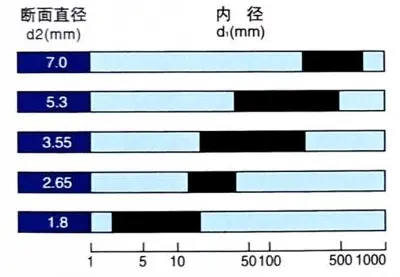

O-rings have precise manufacturing tolerances. The allowable tolerances have been standardized according to DIN3771 and ISO3601/1 (cross-section diameter up to 7mm, inner diameter up to 670mm). The corresponding tolerances are shown in the following table.
| Section tolerance | ||||||||
| Section | 1.80 | 2.65 | 3.55 | 5.30 | 7.00 | 8.4 | 10.00 | 12.00 |
| Tolerance | ±0.08 | ±0.09 | ±0.10 | ±0.13 | ±0.15 | ±0.18 | ±0.21 | ±0.25 |
| Inner diameter tolerance | ||||||||||
| Inner diameter | 1.80~6.30 | 6.70~11.20 | 11.8~21.2 | 22.4~40.0 | 41.2~80.0 | 82.5~160 | 165~300 | 300~650 | 670~910 | 910~1180 |
| Tolerance | ±0.13 | ±0.16 | ±0.19 | ±0.95 | ±0.86 | ±0.78 | ±0.74 | ±0.67 | ±0.60 | ±0.65 |
| Corresponding inner diameter percentage % | ||||||||||

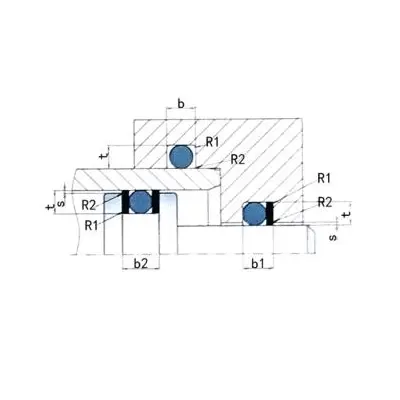

Groove size
 |
||||||||||
| Section d2 | Groove depth t | Groove width Unit: mm (+0.20) | Radius r1 mm | |||||||
| mm | Static | Dynamic (hydraulic) | Dynamic (pneumatic) | b No retaining ring | b1 1 retaining ring | b2 2 retaining rings | ||||
| 1.00 | 0.65 | ±0.05 | 0.75 | ±0.02 | 0.80 | ±0.02 | 1.4 | 2.4 | 3.4 | 0.2-0.4 |
| 1.50 | 1.05 | 1.20 | 1.25 | 2.0 | 3.0 | 4.0 | 0.2-0.4 | |||
| 1.80 | 1.30 | 1.45 | 1.55 | 2.4 | 3.4 | 4.4 | 0.2-0.4 | |||
| 2.00 | 1.50 | 1.65 | 1.75 | 2.7 | 3.7 | 4.7 | 0.2-0.4 | |||
| 2.50 | 1.95 | 2.10 | 2.20 | 3.4 | 4.9 | 6.4 | 0.2-0.4 | |||
| 2.65 | 2.05 | 2.25 | 2.35 | 3.6 | 5.1 | 6.6 | 0.2-0.4 | |||
| 3.00 | 2.40 | 2.55 | 2.70 | 4.2 | 5.7 | 7.2 | 0.2-0.4 | |||
| 3.50 | 2.80 | ±0.07 | 3.05 | ±0.05 | 3.20 | ±0.05 | 4.8 | 5.3 | 7.8 | 0.3-0.6 |
| 3.55 | 2.85 | 3.10 | 3.25 | 4.8 | 6.3 | 7.8 | 0.3-0.6 | |||
| 4.00 | 3.25 | 3.50 | 3.65 | 5.4 | 6.9 | 8.4 | 0.3-0.6 | |||
| 5.00 | 4.15 | ±0.10 | 4.45 | 4.65 | 6.8 | 8.8 | 10.8 | 0.3-0.6 | ||
| 5.30 | 4.40 | 4.70 | 4.90 | 7.2 | 9.3 | 11.2 | 0.6-1.0 | |||
| 7.00 | 5.85 | 6.25 | 6.55 | 9.6 | 12.1 | 14.6 | 0.6-1.0 | |||
| 8.40 | 7.10 | 7.50 | 7.90 | 12.9 | 13.4 | 15.6 | 0.6-1.0 | |||
