Turning Rotary Seals

We are committed to providing a "protection-pressure resistance-long-term" trinity solution for every scenario that requires turning rotary seals. Through 200+ material formulas and structural patents, we help customers reduce failure rates and achieve TCO optimization. The entire series of product models is very diverse. You can choose according to actual needs, or customize turning rotary seals from us.

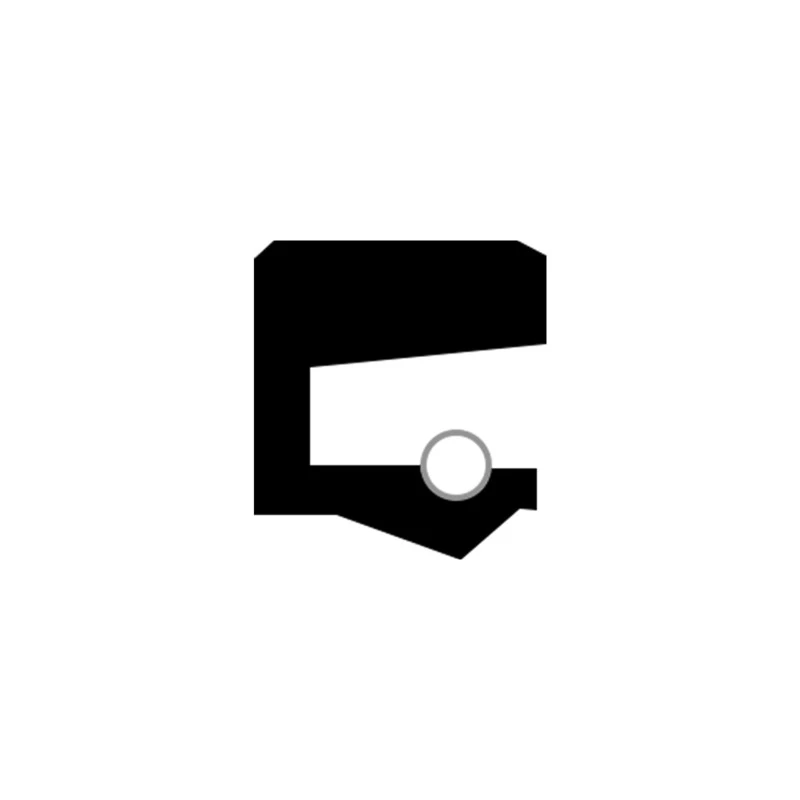

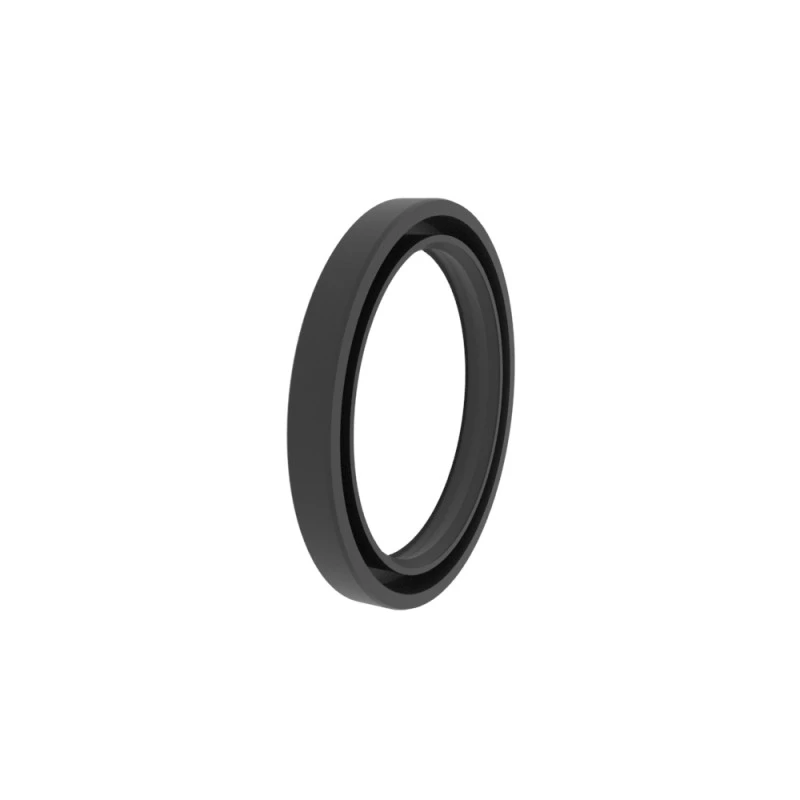

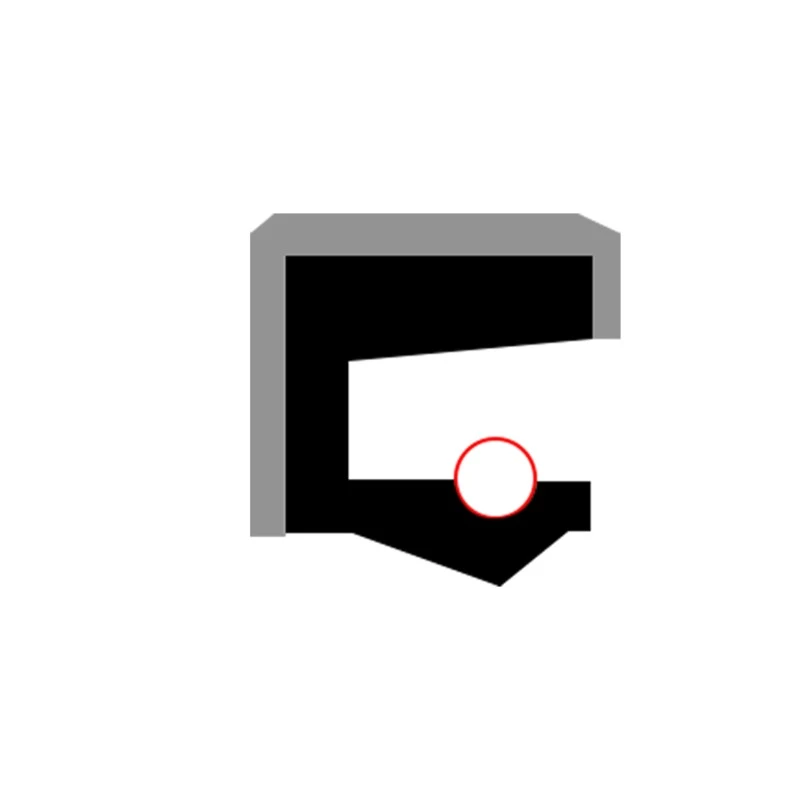

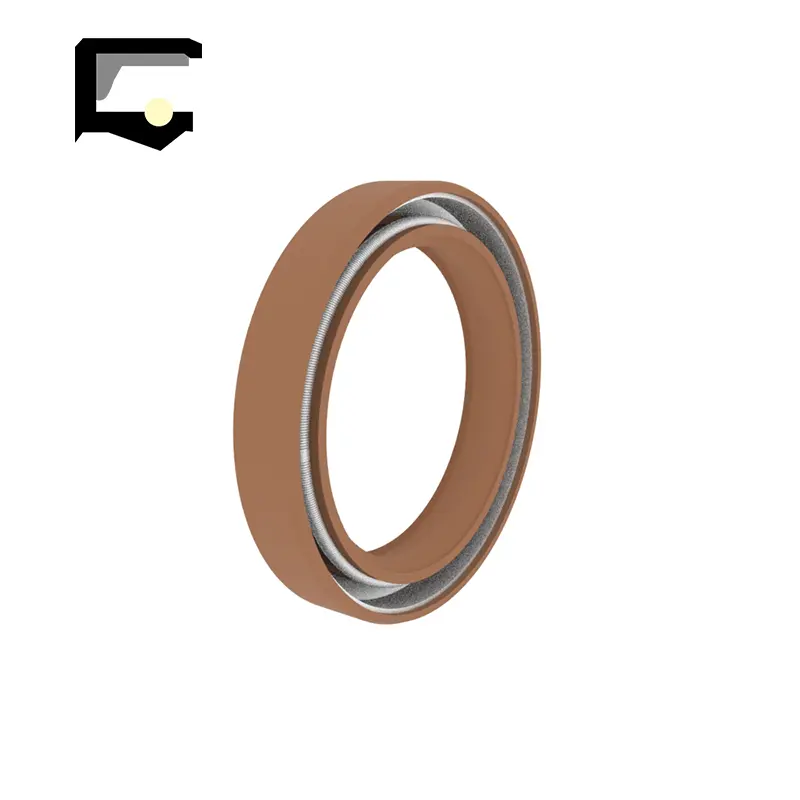

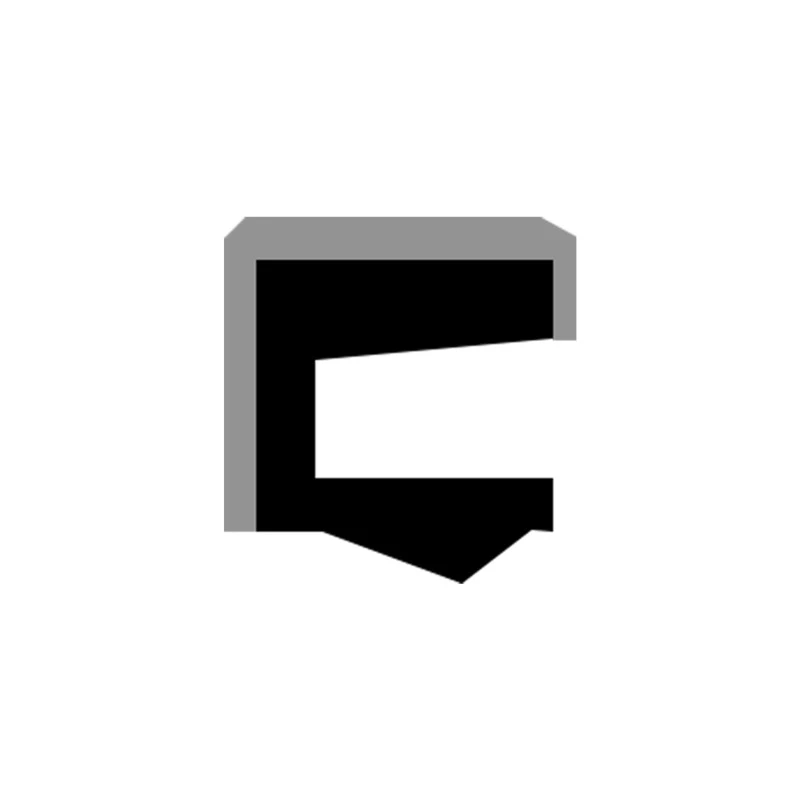

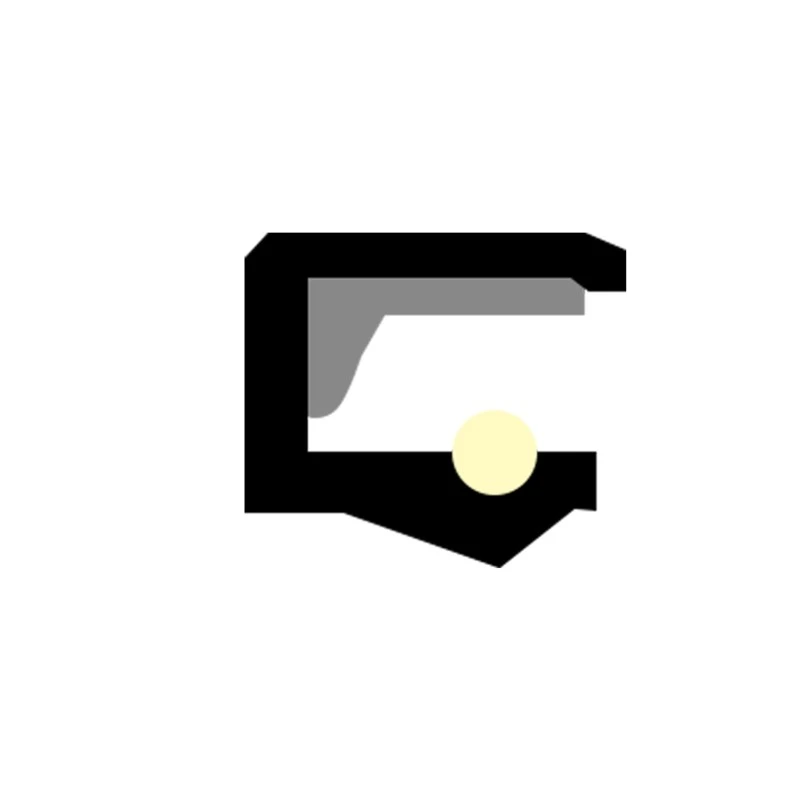

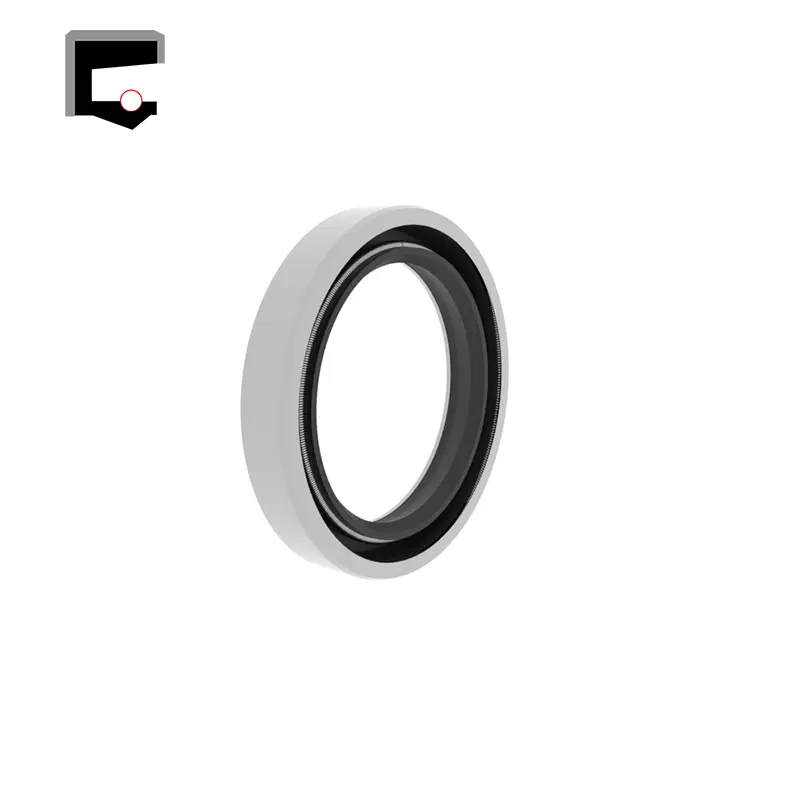

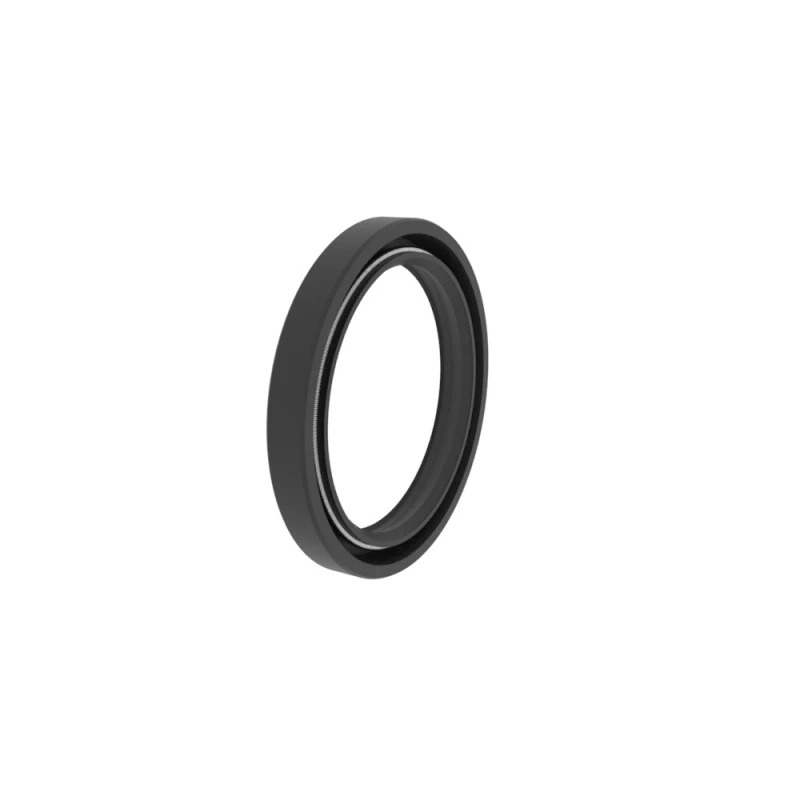

RCR101 rotary skeleton single lip seal, single acting, axial open groove installation, widely used, mostly used as a protective element for bearings.

RCR102 rotary skeleton double lip seal, single acting, with dustproof auxiliary lip, axial open groove installation, widely used, mostly used as a protective element for bearings.

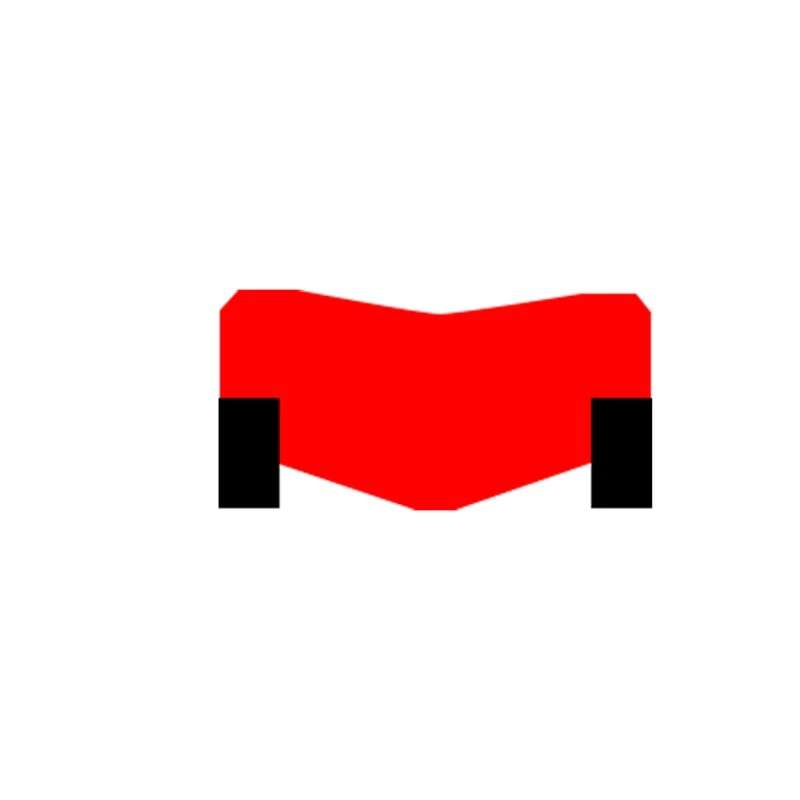

RCR103 rotary seal, double acting, with support ring, better sealing effect under high pressure rotary sealing conditions.

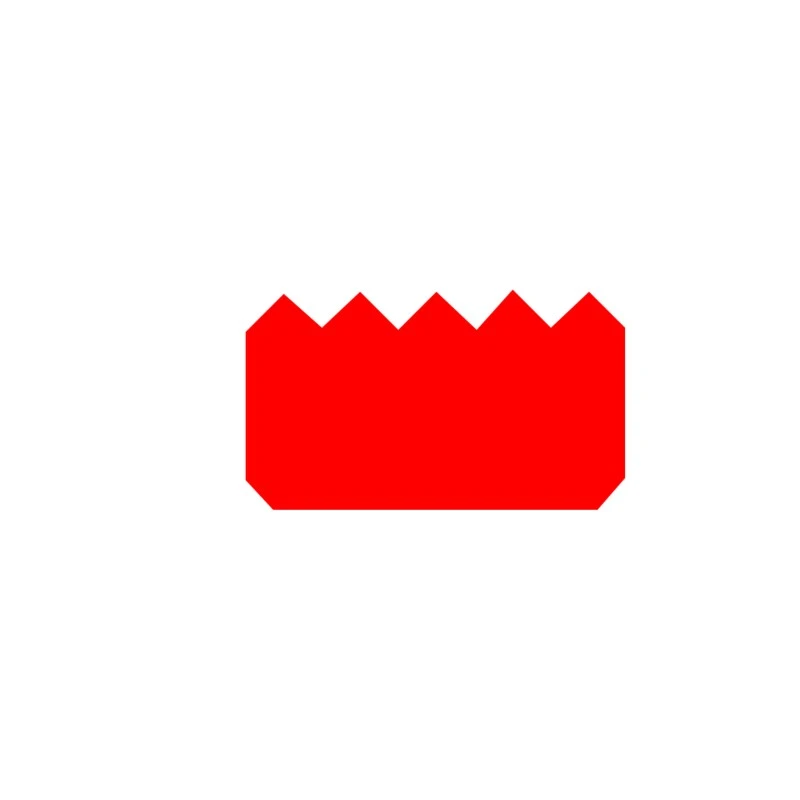

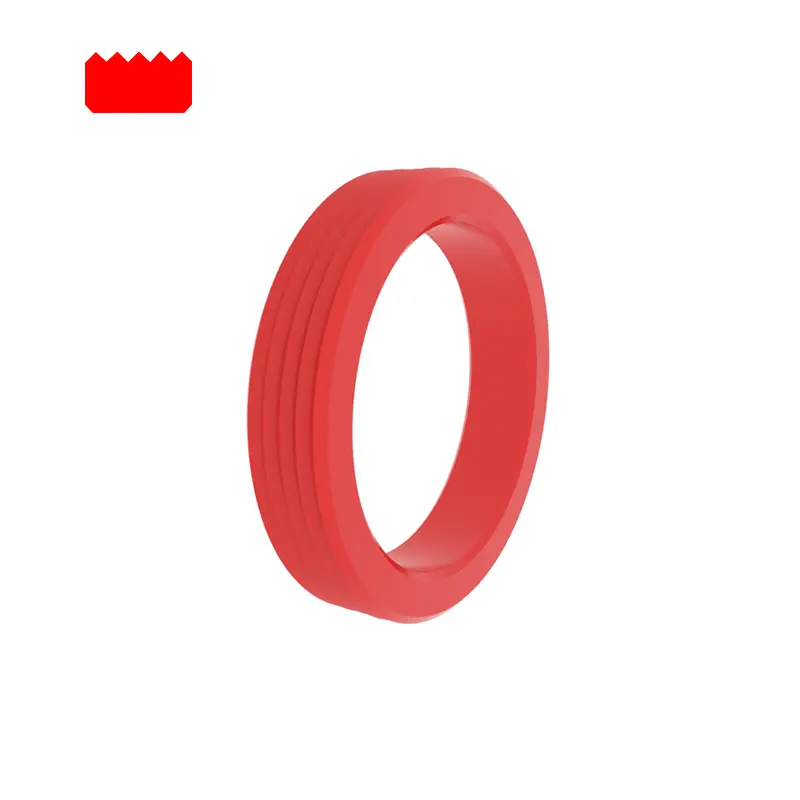

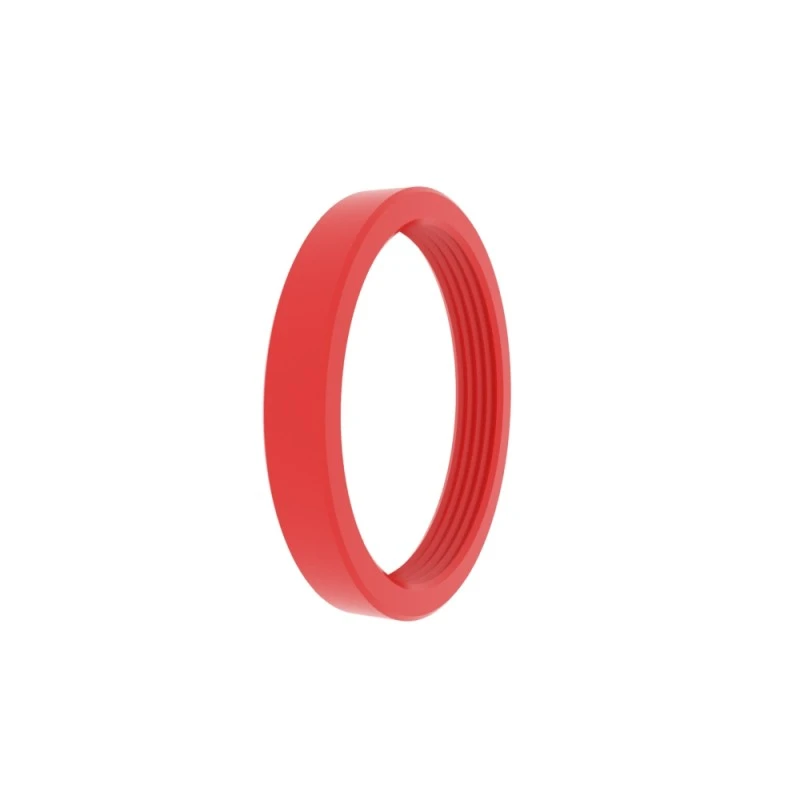

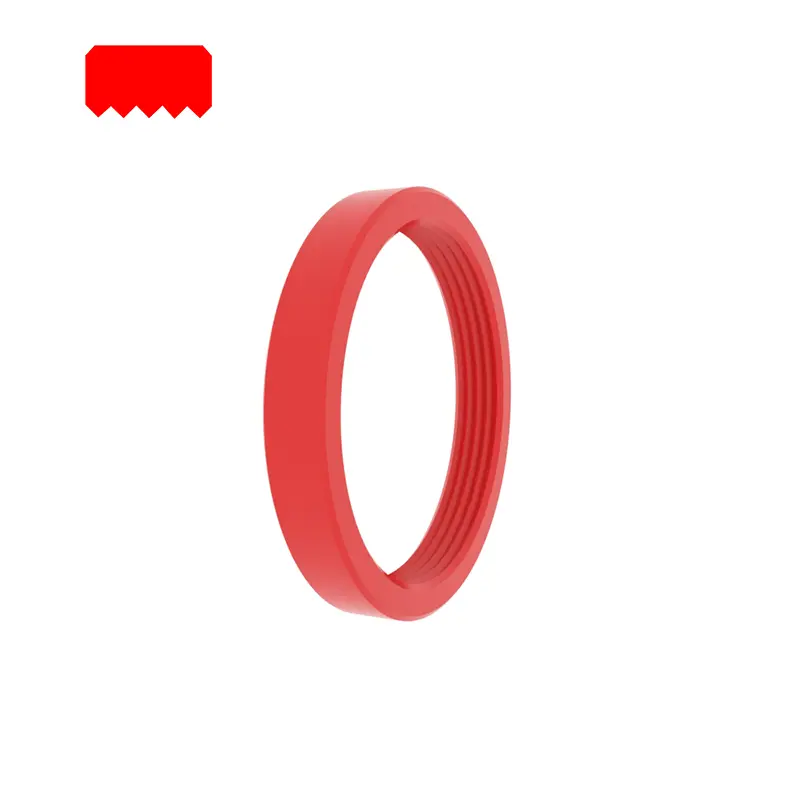

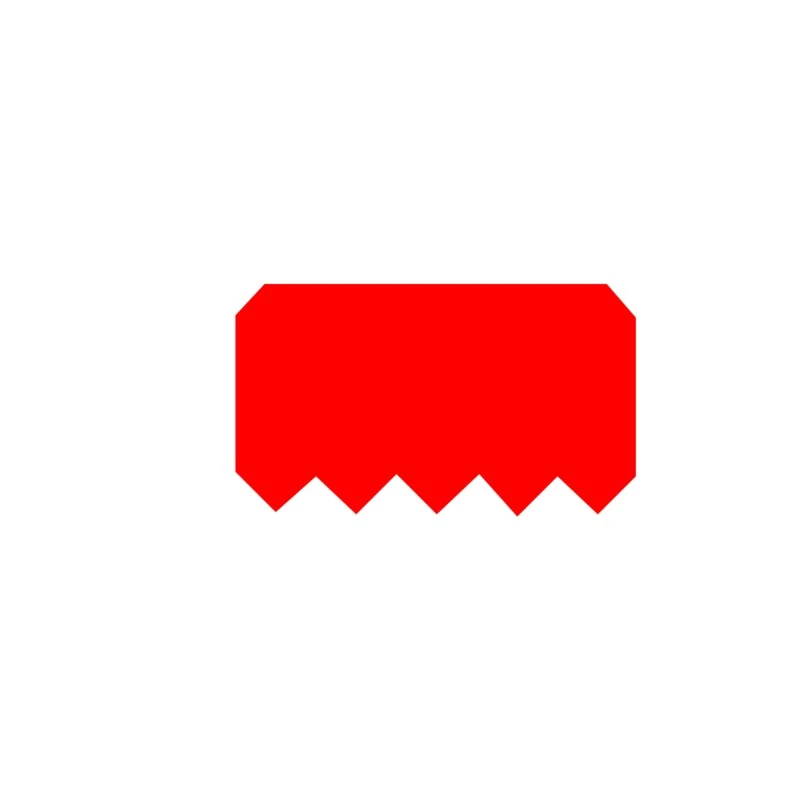

RCR104, RCR105 rotary seal, double acting, narrow groove, stable groove embedding, and toothed sealing surface.

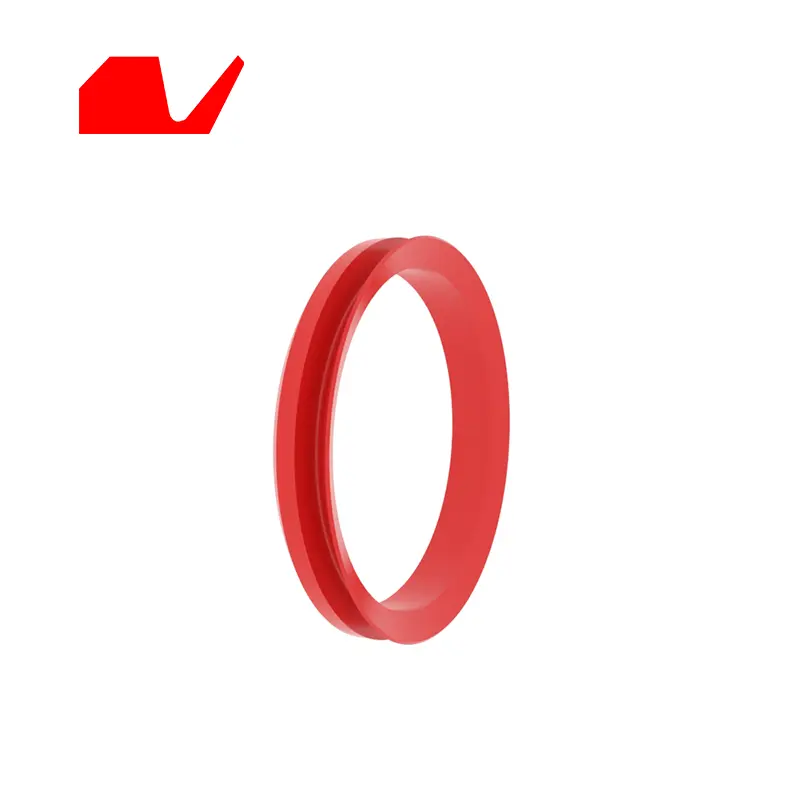

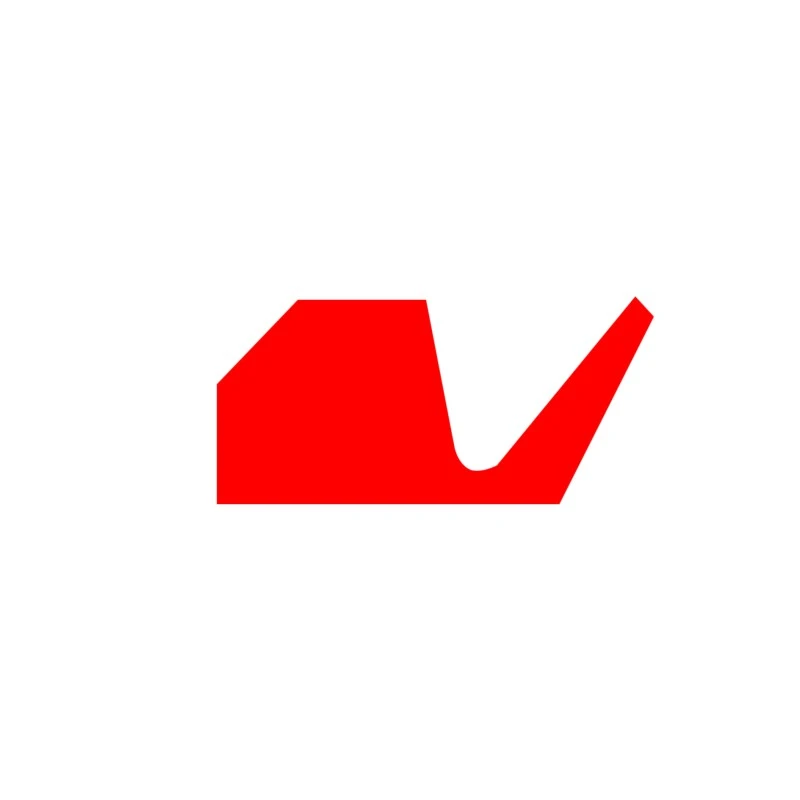

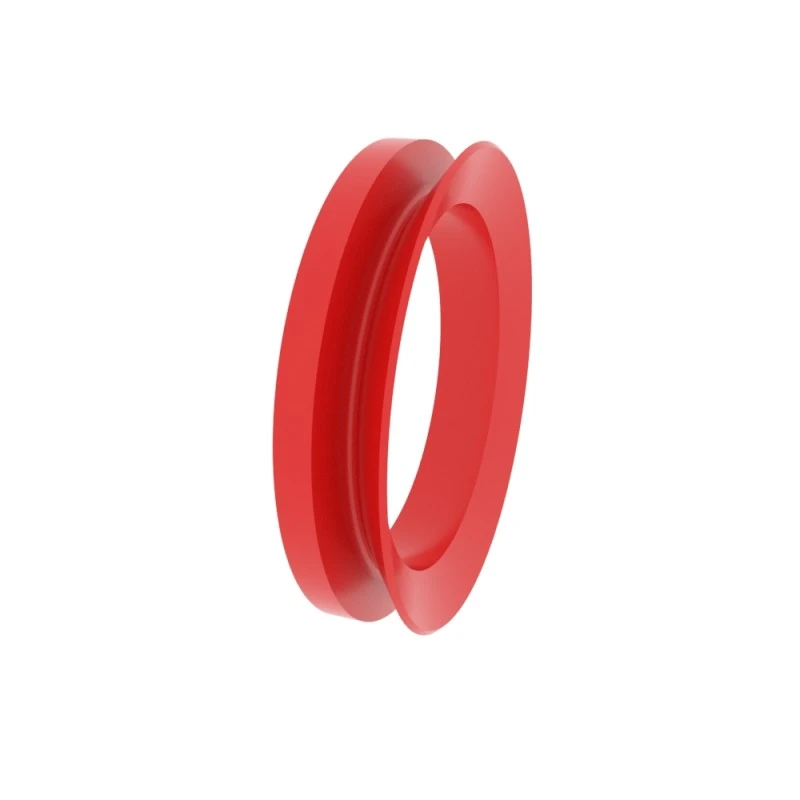

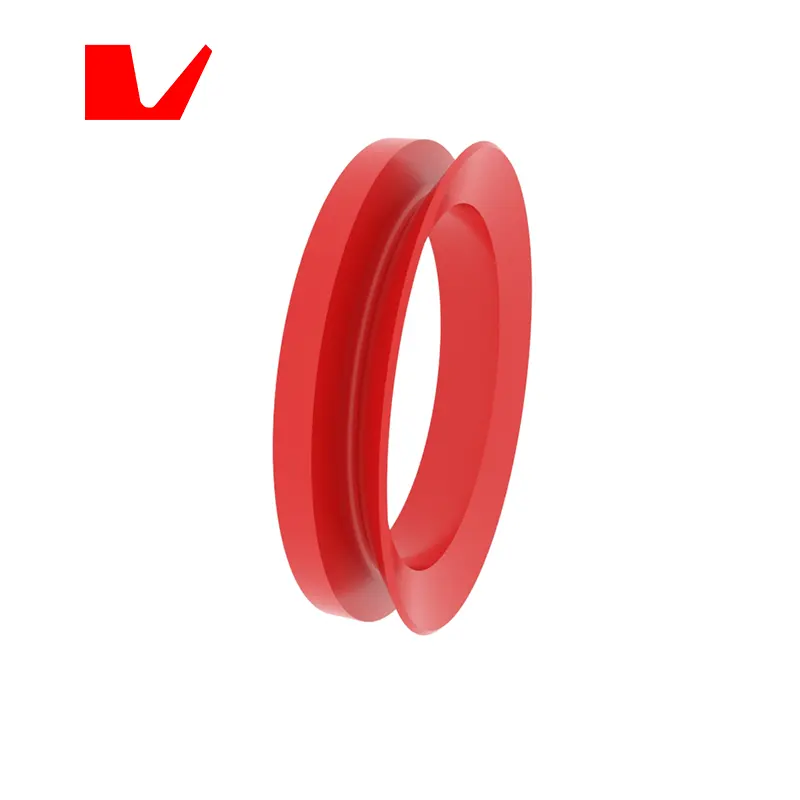

RCR106, RCR107 V-shaped rotary seal, axial movement, large elastic modulus, friction resistance, dust, pollutants, water splash, oil splash, etc.

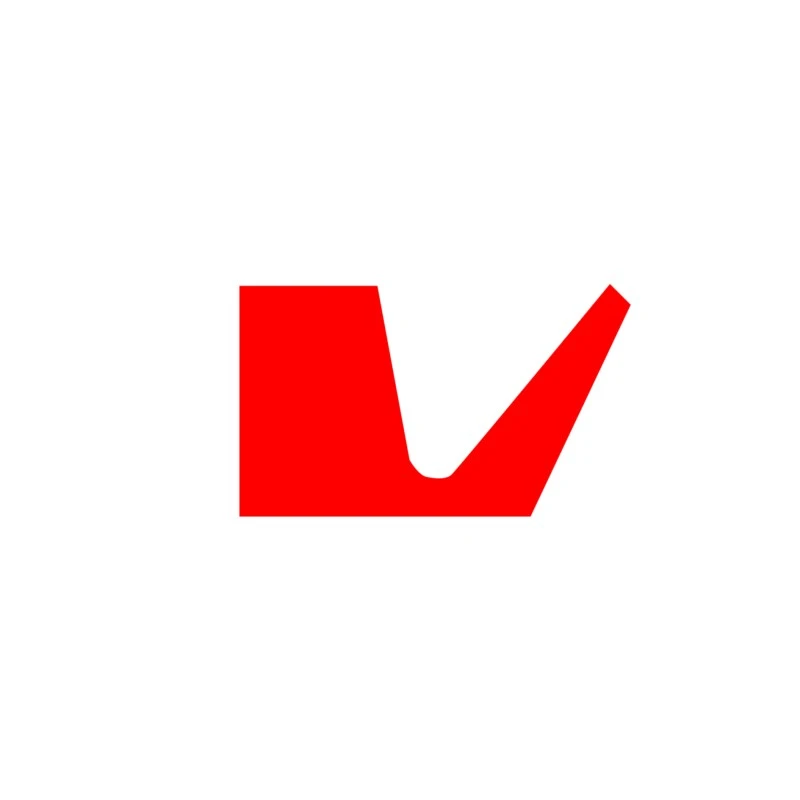

RCR108 rotary seal, single acting, no spring, the interference of inner and outer lips is determined according to different working conditions.

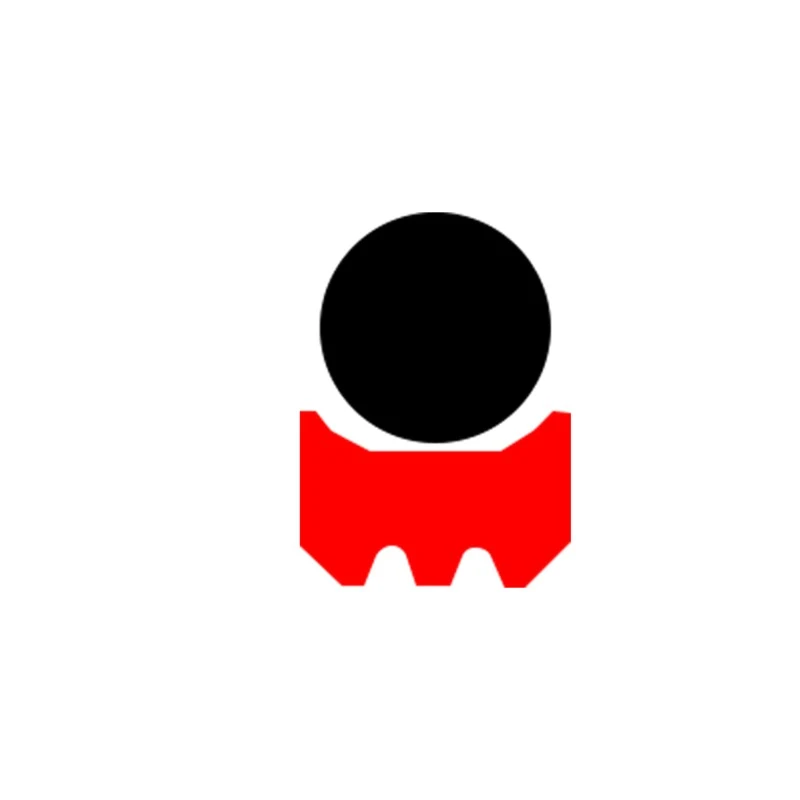

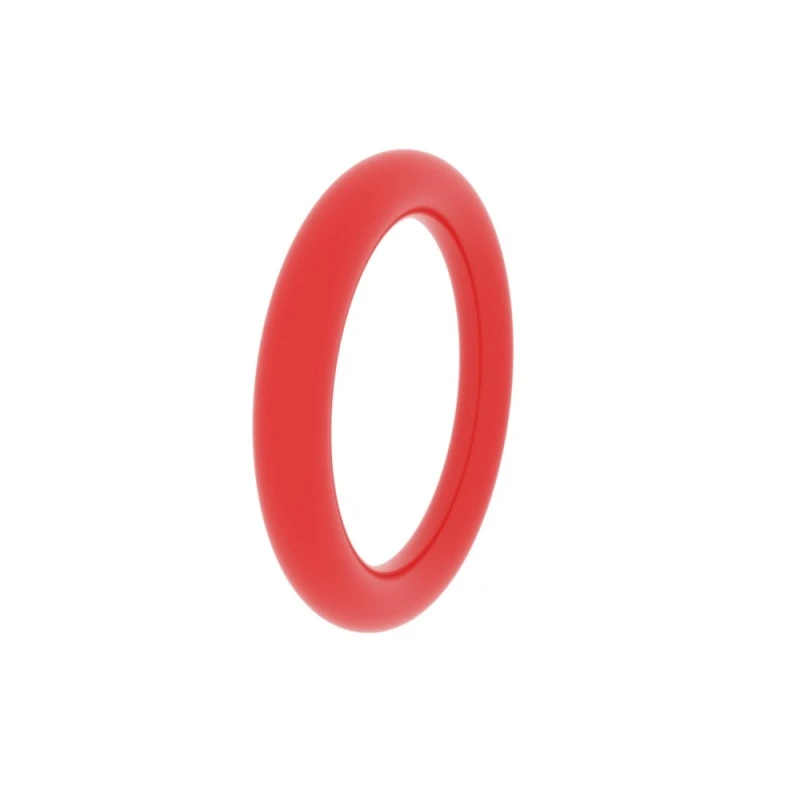

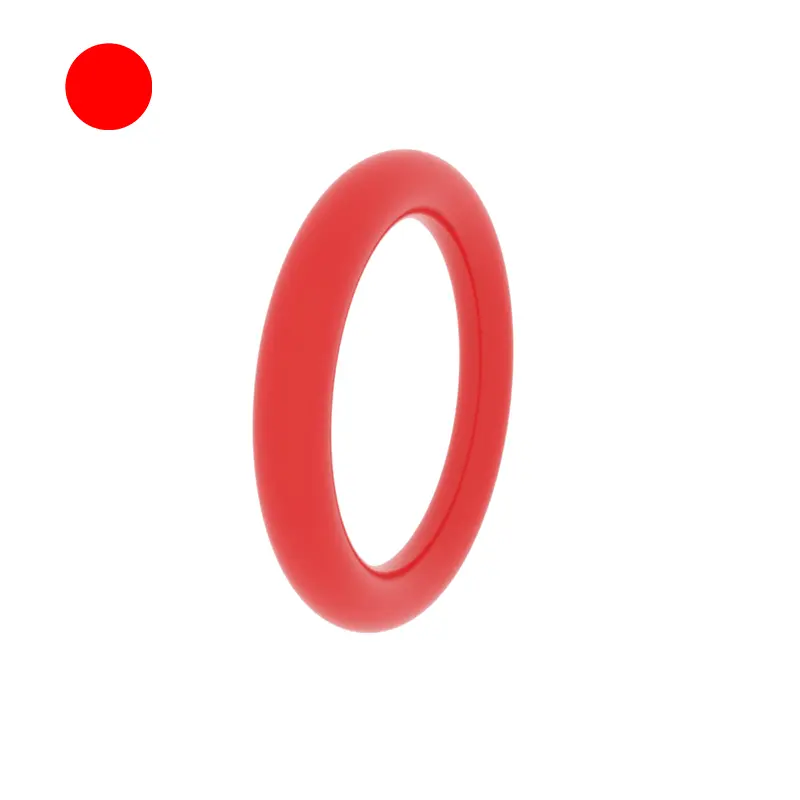

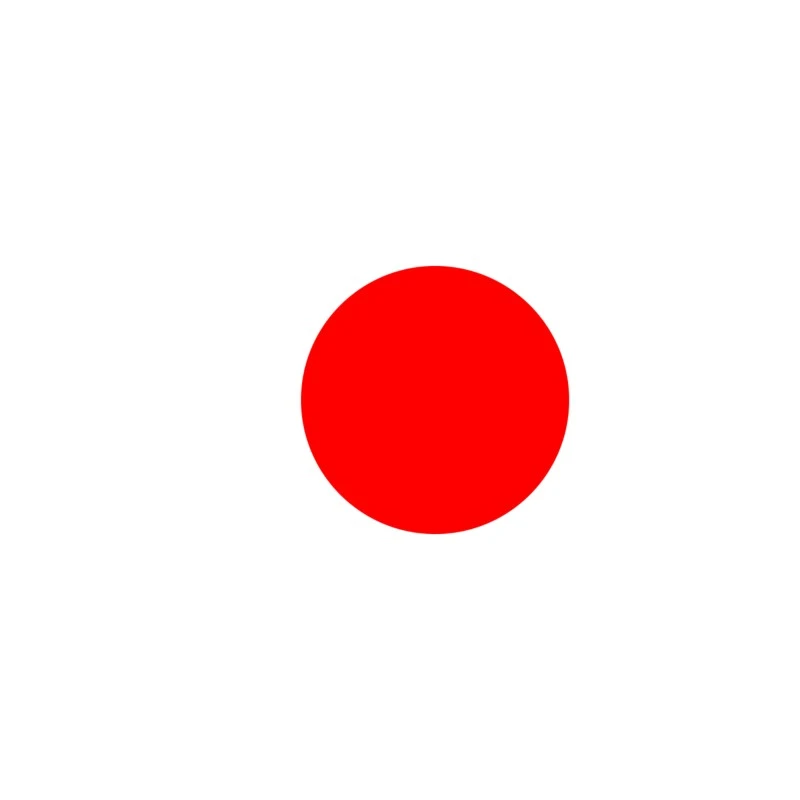

RCR109 O-ring, elastic ring mostly used for static sealing or dynamic sealing, flexible temperature medium selection. For detailed grooves, please refer to the O-ring sample.

RCR110 Rotary tetrafluoroethylene seal for shaft, double acting, suitable for narrow grooves.

RCR111 Rotary tetrafluoroethylene seal for hole, double acting, suitable for narrow grooves.

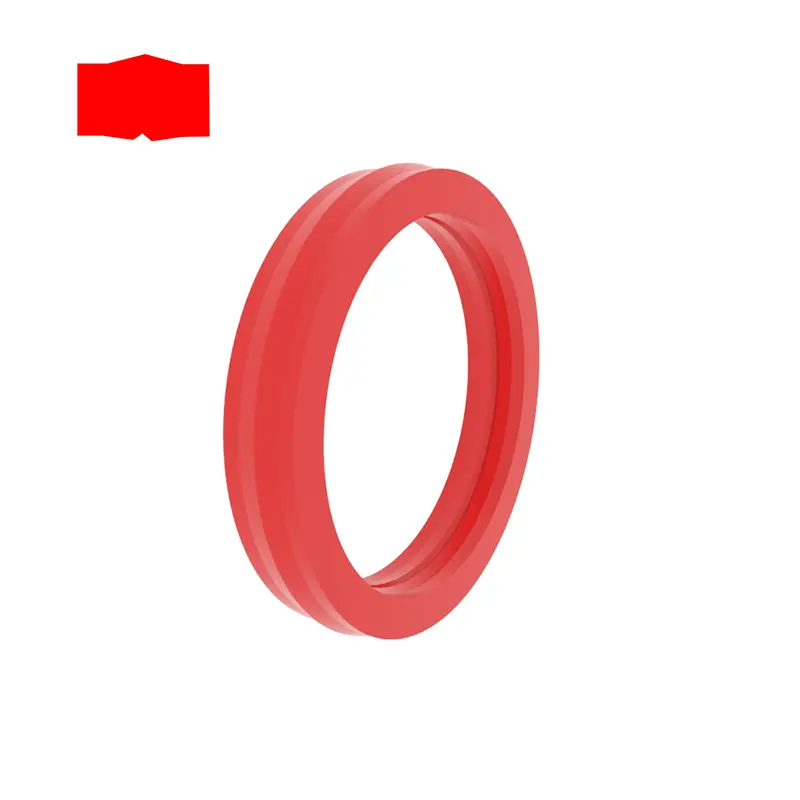

RCR112 Rotary seal, double acting, narrow groove, suitable for lubricated working conditions.

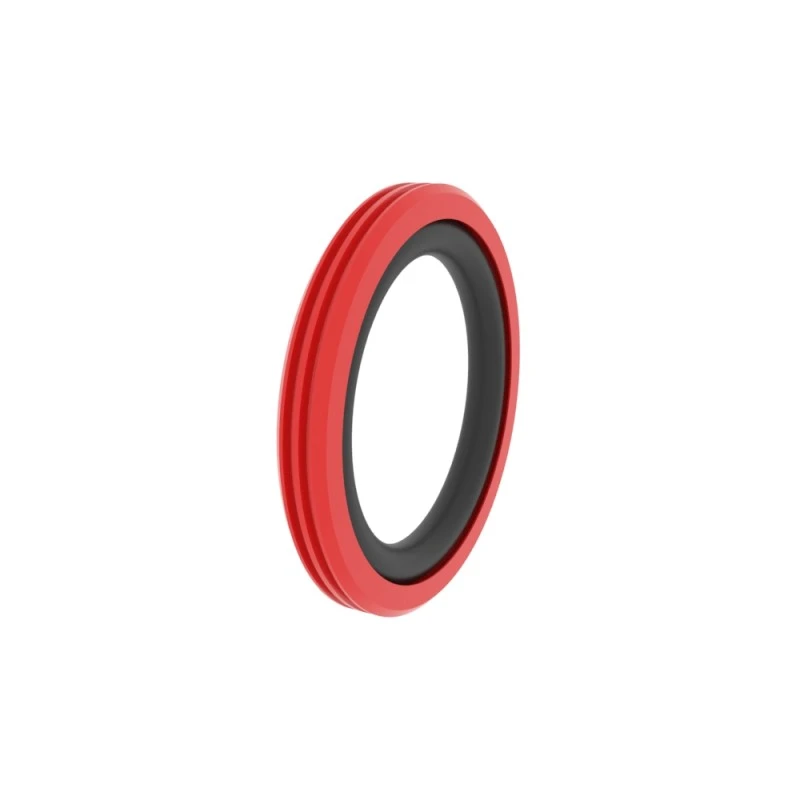

RCR113 Rotary seal, double acting, with support ring, stable groove embedding, allowing larger extrusion gap and pressure, mostly used on the rotating shaft of excavation equipment.

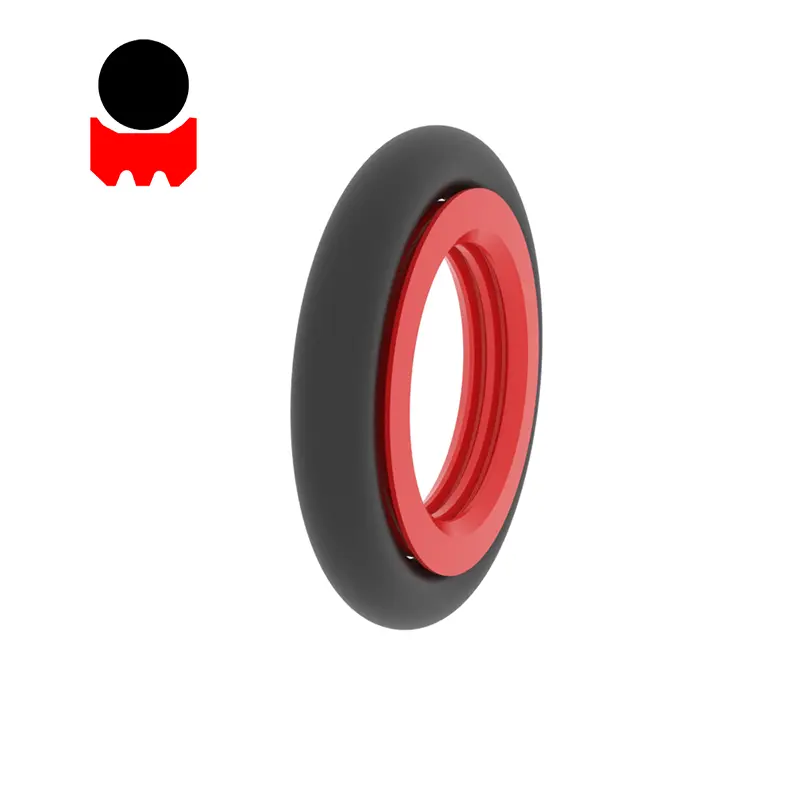

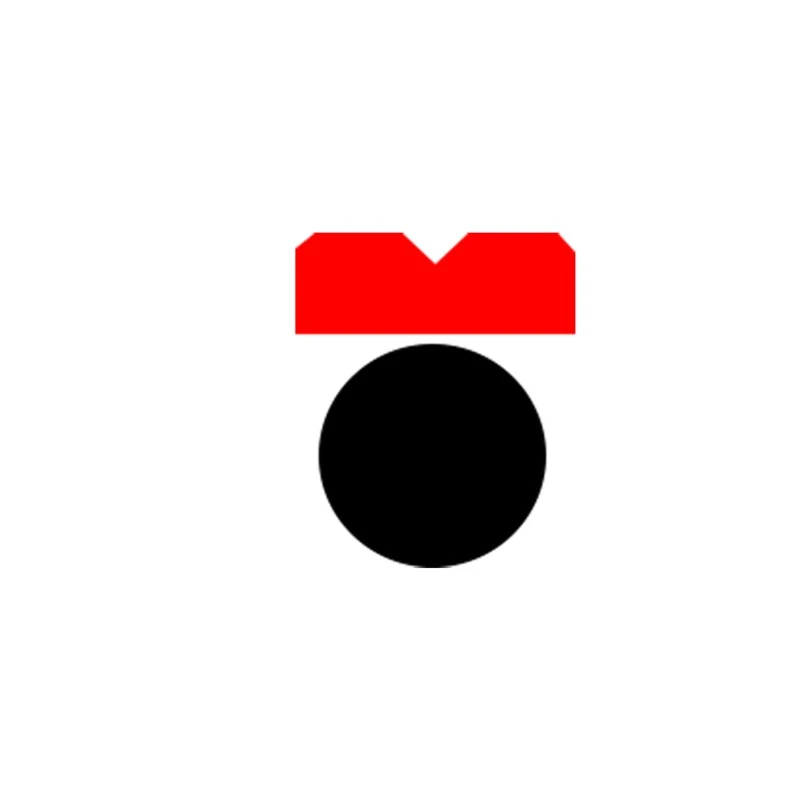

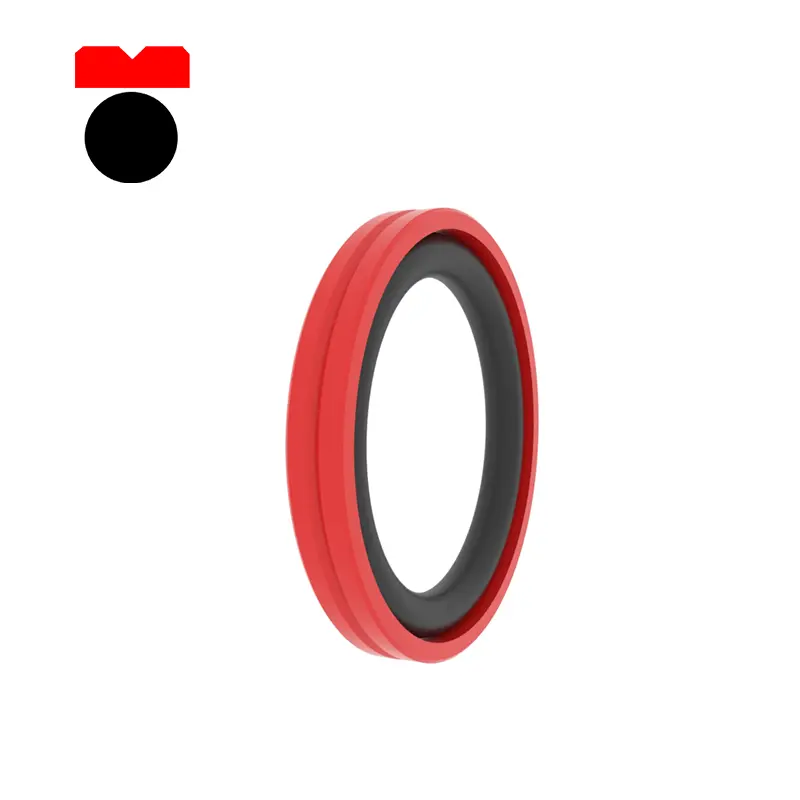

RCR115 Rotary tetrafluoroethylene seal for shaft, double acting, low friction, anti-side high pressure, anti-high temperature corrosion.

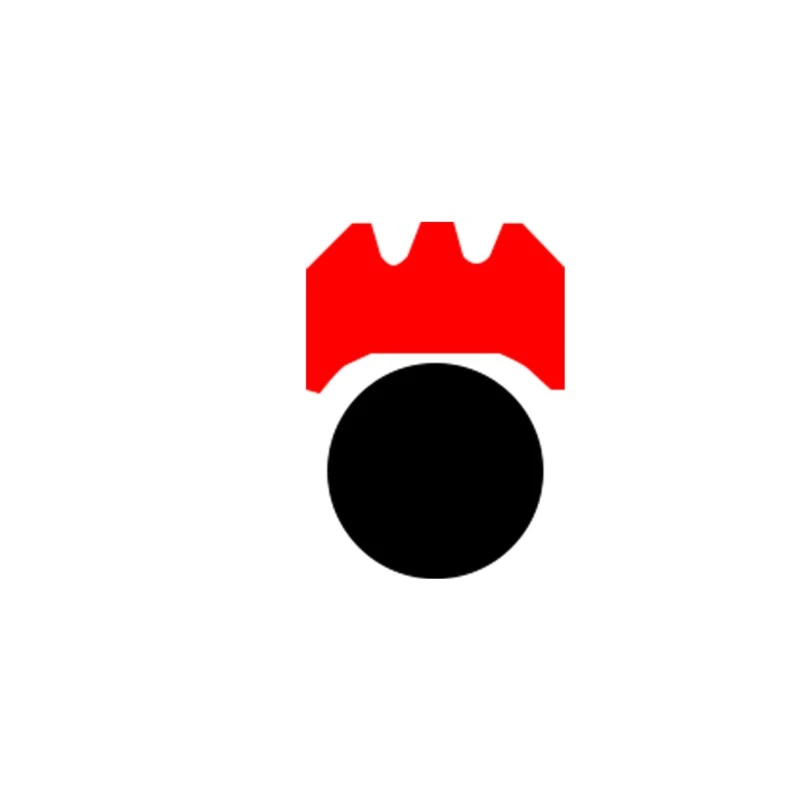

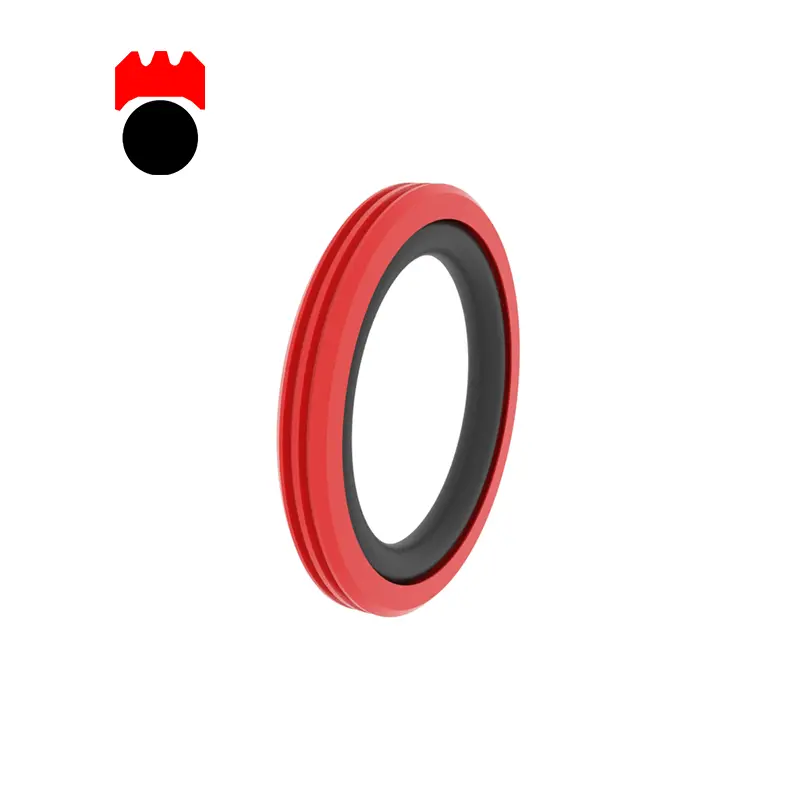

RCR116 Rotary tetrafluoroethylene seal for hole, double acting, low friction, anti-side high pressure, anti-high temperature corrosion.

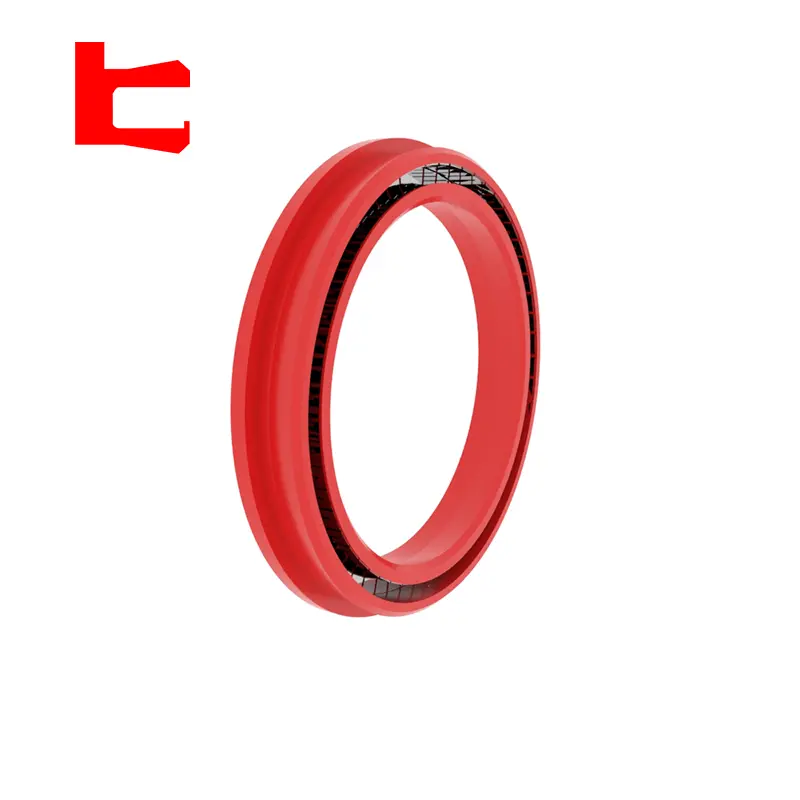

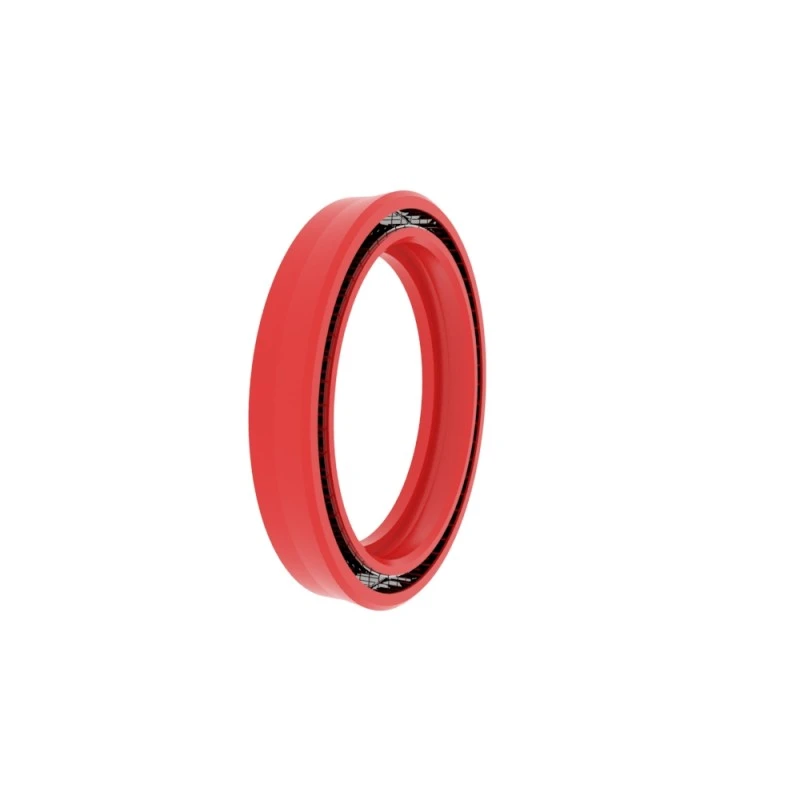

RCR117, RCR121 rotary PTFE seal, with mander spring, single acting, high temperature corrosion resistance, suitable for relatively high speed and high pressure.

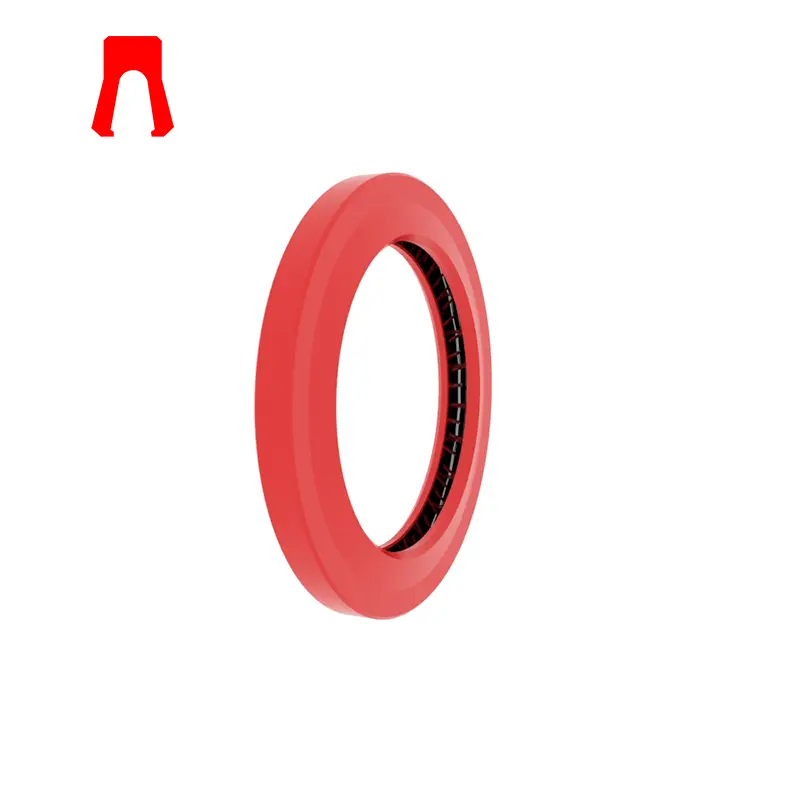

RCR118 end PTFE rotary seal, with mander spring, single acting, high temperature corrosion resistance, mostly used in the chemical industry.

RCR119 rotary skeleton single lip seal, single acting, axial open groove installation, widely used, mostly used as a protective element for bearings.

RCR201, RCR202 rotary skeleton double lip seal, single acting, with dustproof auxiliary lip, axial open groove installation, widely used, mostly used as a protective element for bearings.

RCR203, RCR204 rotary skeleton-free single lip seal, single acting, axial open groove fixture fixed installation, mostly used in heavy industries such as metallurgy and shipbuilding.

RCR205 cut-off rotary skeleton-free single lip seal, single acting, axial open groove fixture fixed installation, mostly used in heavy industries such as metallurgy and shipbuilding.

RCR206, RCR207 cut-off rotary frameless single lip seal, single acting, axial open groove fixture fixed installation, mostly used in heavy industries such as metallurgy and shipbuilding. Suitable for low-speed sealing, the sealing medium is lithium-based grease.

Product features and applications:

Main applications

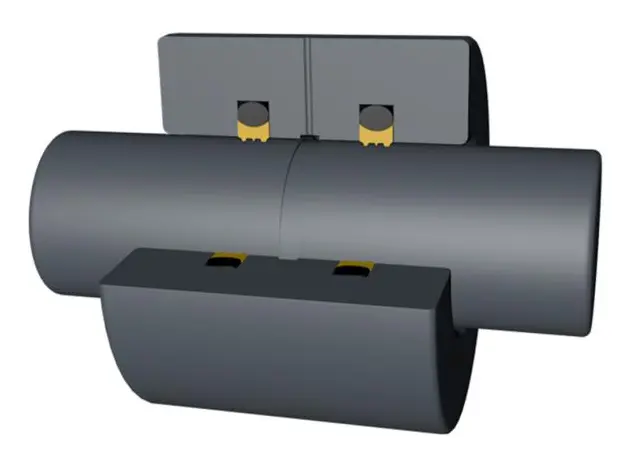

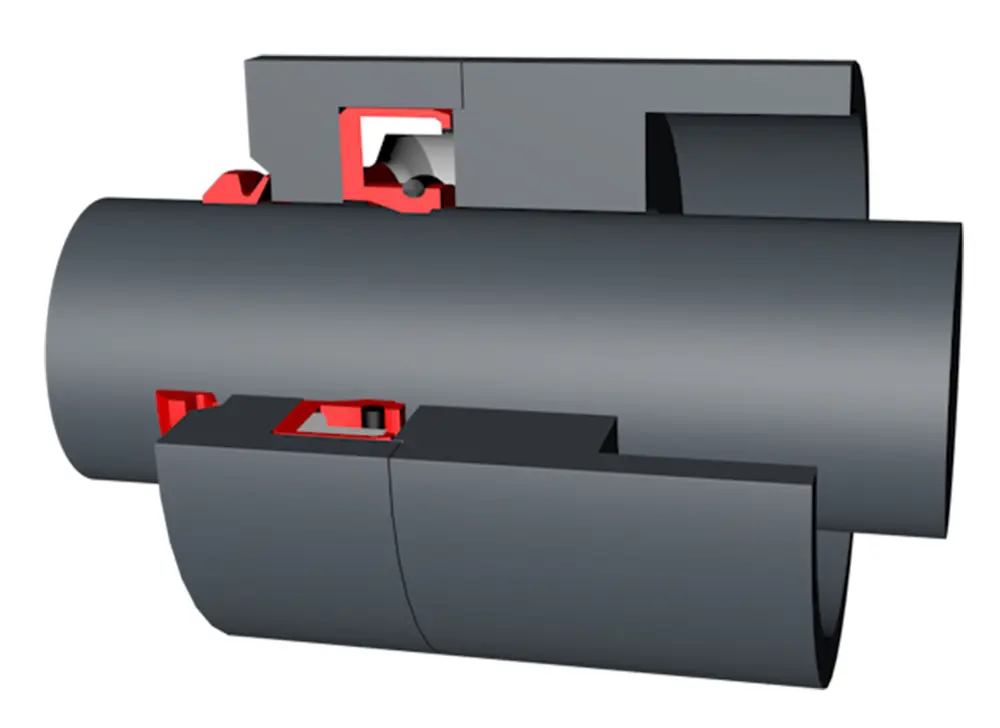

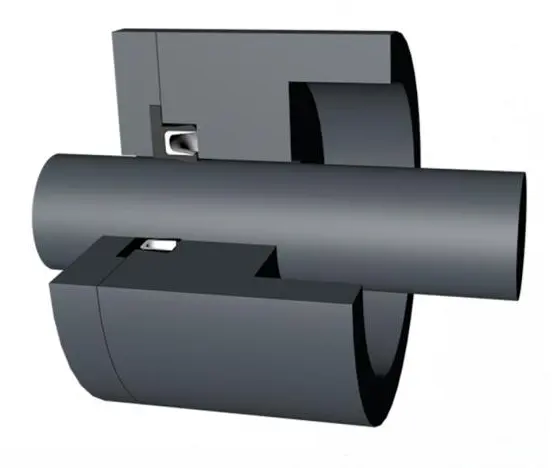

Turning rotary seals are suitable for rotating shaft end sealing, rotating shaft sealing, excavators, grabbers, rotary joints, rotary distributors, and this type of seal is often used in the petroleum and chemical industries

Advantages

Turning rotary seals have a wide range of adaptable media and temperature ranges, good sealing effect, high pressure resistance, small cross-sectional size, hydraulic oil resistance, low friction, and no stick-slip phenomenon.

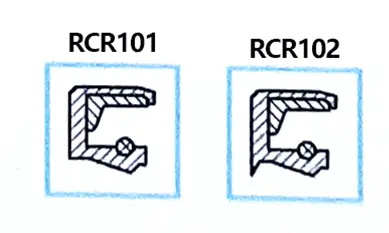

RCR101

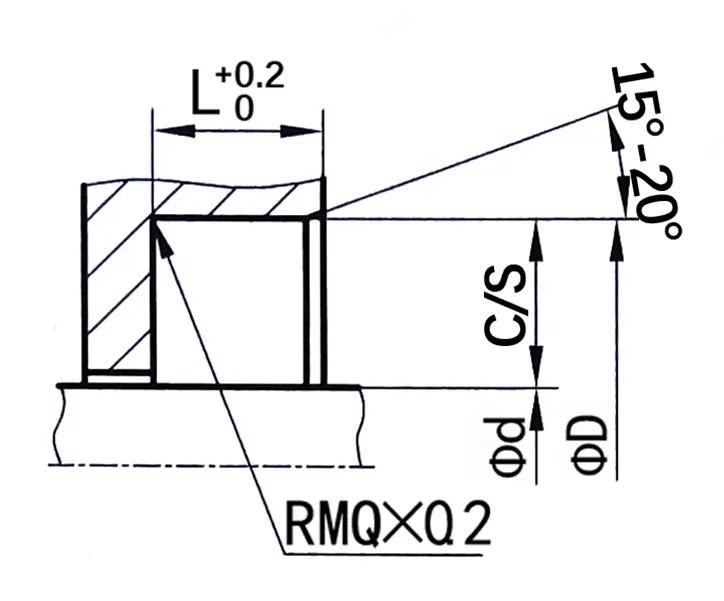

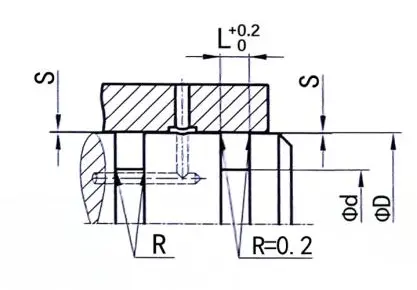

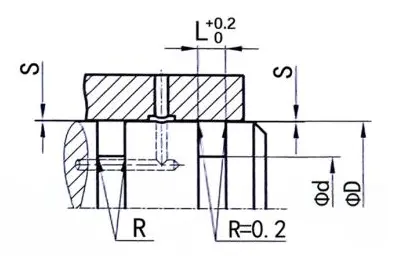

Order size
ΦD......Outer diameter
Φd......Inner diameter
L......Groove width

Ordering Example

Model: RCR101

Groove size: 100x115x8

Material: NBR/POM

Seal Type: RCR101, RCR102
Main application: Suitable for rotating shaft end sealing
Advantages: Suitable for a wide range of media, a wide temperature range, and good sealing effect
Material: Polyurethane, rubber/polyoxymethylene

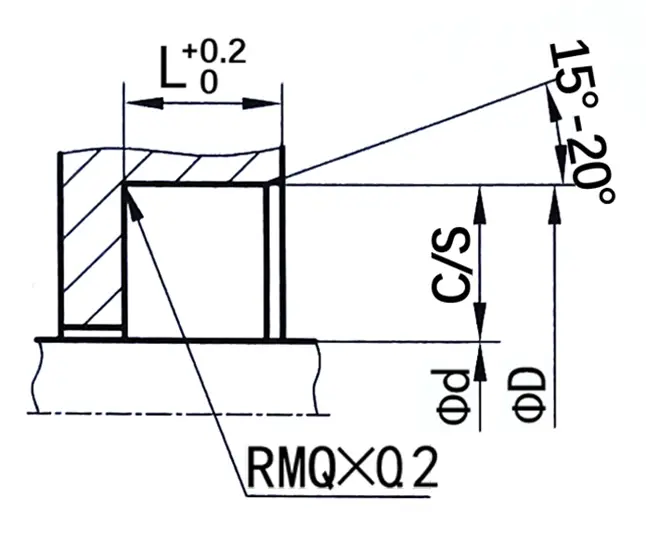

RCR115
Order size
ΦD......Outer diameter
Φd......Inner diameter
L......Groove width

Ordering Example

Model: RCR115

Groove size: 100x111x4.2

Material: PTFE4+NBR

Seal Type: RCR115
Main application: Suitable for rotary shaft seals, excavators, grabbers, swivel joints.
Advantages: It can resist high pressure, has small cross-sectional size, is resistant to hydraulic oil, has low friction and no stick-slip phenomenon.
Material: Tetrafluoroethylene + nitrile rubber or fluororubber

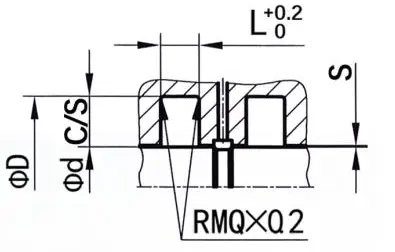

RCR116

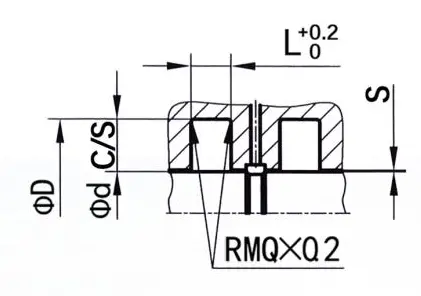

Order size
ΦD......Outer diameter
Φd......Inner diameter
L......Groove width

Ordering Example

Model: RCR116

Groove size: 100x89x4.2

Material: PTFE4+NBR

Seal Type: RCR116
Main application: Suitable for rotary shaft end seals, excavators, grabbers, rotary joints, rotary distributors.
Advantages: It is suitable for a wide range of media and temperature, has good sealing effect, small cross-sectional size, strong resistance to hydraulic oil, low friction, and no stick-slip phenomenon.
Material: Tetrafluoroethylene + nitrile rubber or fluororubber

RCR117

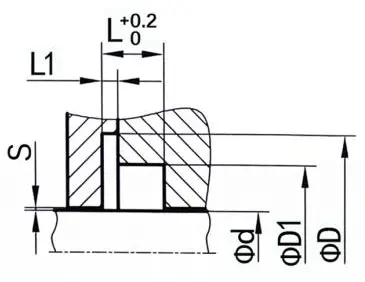

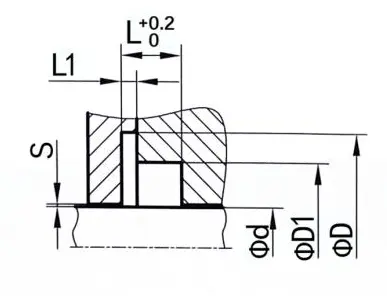

Order size
ΦD......Outer diameter
ΦD1......Outer diameter
Φd......Inner diameter
L......Groove width
L1......Groove width

Ordering Example

Model: RCR117

Groove size: 100x117.5x110.5x7.1x1.8

Material: PTFE4+V

Seal Type: RCR117
Main application: Suitable for rotating shaft end sealing, this type of seal is often used in the petroleum and chemical industries
Advantages: Low friction, corrosion resistance, high temperature resistance, suitable for high speed
Material: PTFE, stainless steel spring
