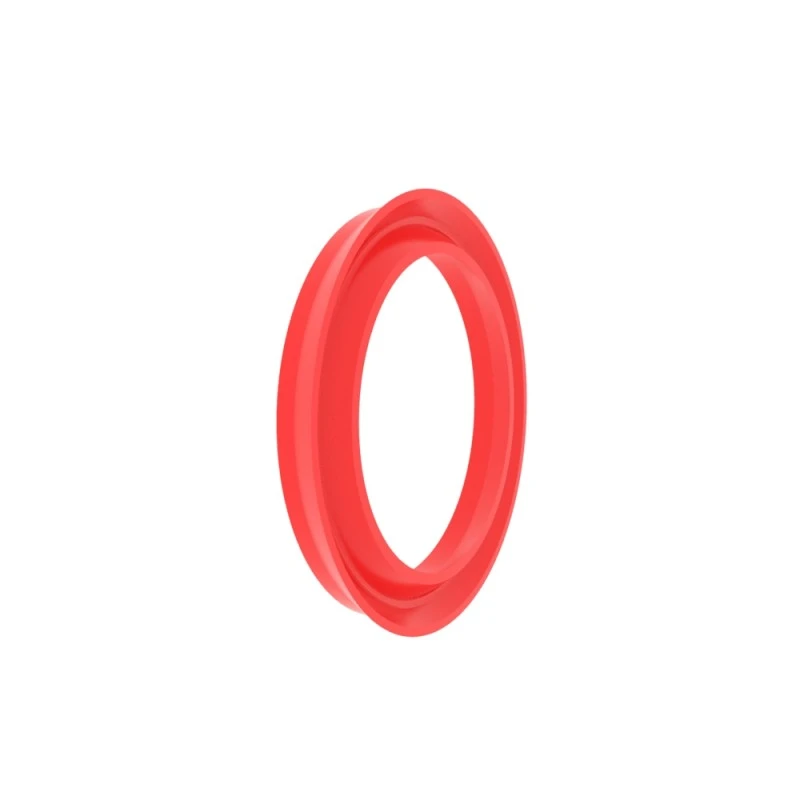

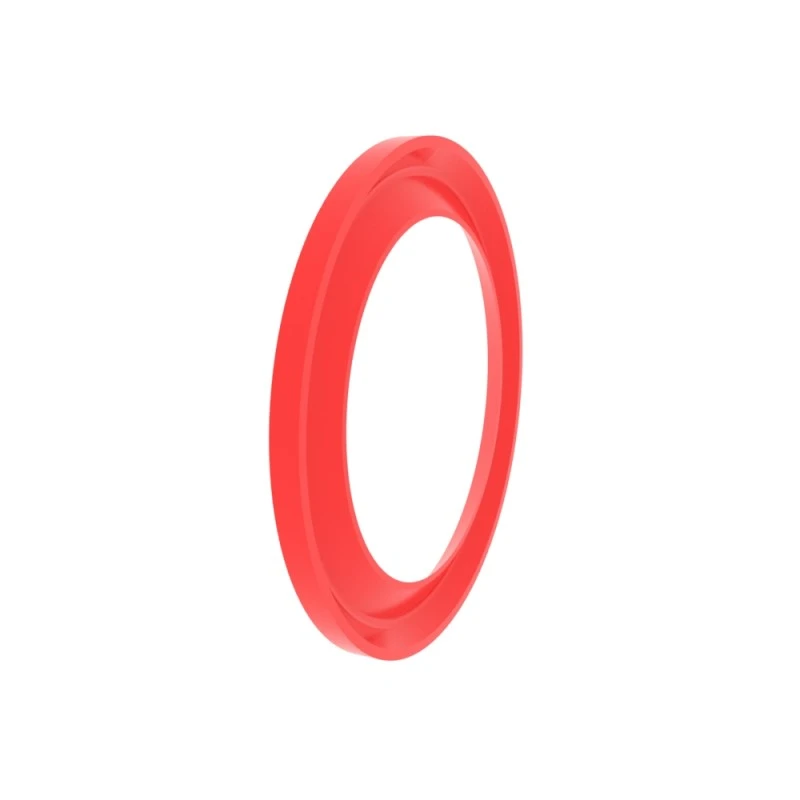

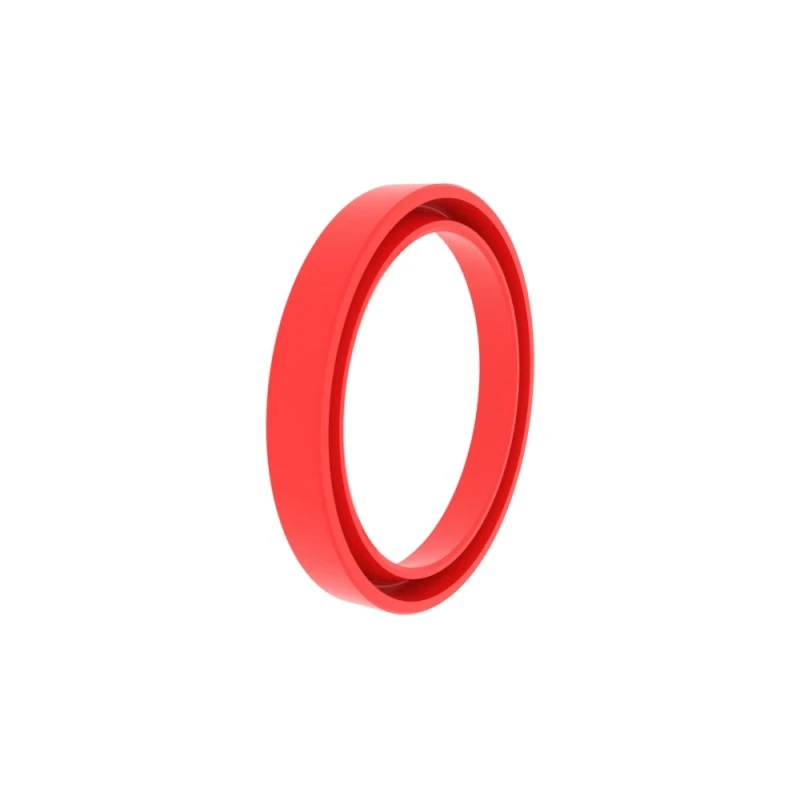

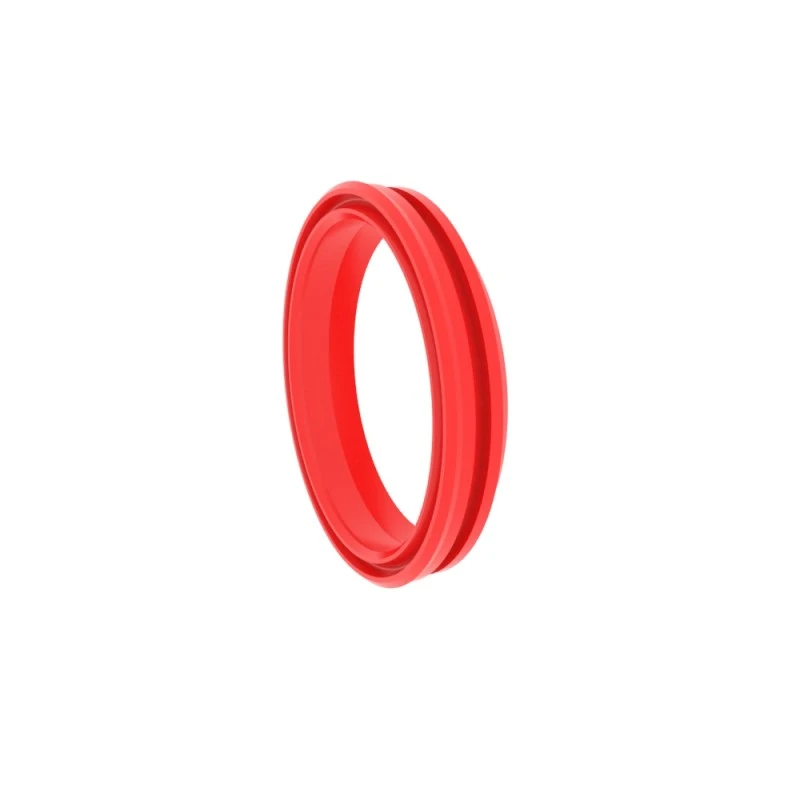

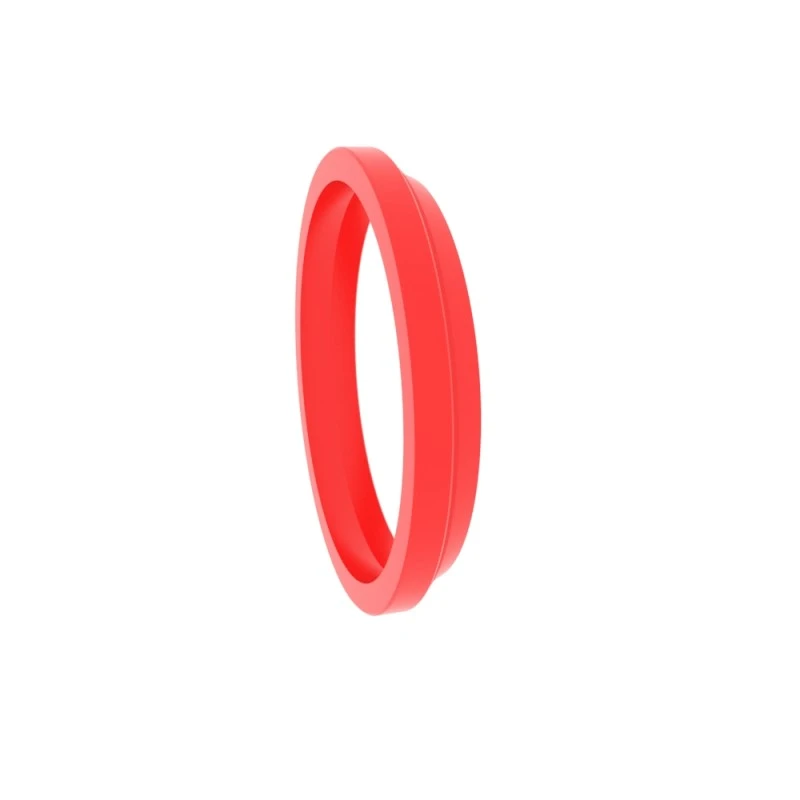

Dust Seal Turning Seals

As a supplier of professional sealing solutions, the RCA series of dust seal turning seals launched by Ruichen Seals has diversified designs and targeted functions, fully covering the core needs of the industrial field for dust prevention, pressure resistance and environmental adaptability.

In terms of technical design, the dust seal turning seals series products are centered on flexibility. There are general seals (such as RCA101/104/105) that are installed with extruded outer diameters, which are compatible with ISO 6195-A standard grooves and suitable for compact space scenarios; there are also models with integrated anti-extrusion skeletons (such as RCA103/106), which enhance the structural stability under dynamic loads through axial open groove design (ISO 6195-B). For special working conditions, RCA107 supports 30° inclined groove installation and is compatible with imperial and metric equipment, while RCA108 simplifies the maintenance process of old cylinders through flange fixing design, significantly reducing the cost of transformation.

In terms of sealing performance optimization, we improve reliability through innovative structures: the oil return groove design of RCA101 promotes oil reflux and reduces pollutant accumulation; the double lip or auxiliary lip structure (RCA109/111/112, etc.) is combined with a tetrafluoroethylene combined seal to achieve dual-action dust and oil barrier; and the composite design of PTFE (polytetrafluoroethylene) material and O-ring (RCA115~119) further balances the pressure distribution, is resistant to high temperatures of 250°C, and is resistant to chemical corrosion, suitable for clean environments such as semiconductors, food and medicine. For extreme working conditions, RCA213 is used in combination with the DA series, using high-hardness materials to resist sticky pollutants such as mud and tar, and protect the internal seal from erosion.

In terms of application, the RCA series is widely adapted to engineering machinery, mining equipment, hydraulic and pneumatic systems, and precision industrial fields. For example, RCA111/211 can withstand 1.6MPa high pressure, providing double protection for hydraulic cylinders; RCA115~119 has become the first choice for dust prevention of precision equipment due to its non-creeping and low friction characteristics; RCA108 provides a quick solution for the maintenance of old equipment without the need to modify the groove. In terms of materials, we insist on giving equal importance to environmental protection and performance. PTFE modification technology takes into account both self-lubrication and wear resistance. O-ring elastomers (such as NBR) ensure sealing stability. Some models (such as RCA119) use a silicone-free formula to meet the stringent requirements of clean workshops. For many years, Ruichen Seals has always aimed at "precise adaptation and long-term protection". Through the RCA series, it helps customers cope with challenges such as dust intrusion, oil leakage, and high-temperature corrosion, providing reliable guarantees for the efficient operation of equipment.

Product features and applications:

Main application: Standard dustproof for oil cylinder

Advantages: Dust seal turning seals are easy to install, with excellent anti-friction and dustproof effects. They will not move in the opposite direction in the cavity, and there will be no pressure opening between the seal ring and the dustproof ring.

Material: Polyurethane, rubber

Specific application areas:

General dustproof (RCA101~105/113/114): widely used in engineering machinery and automation equipment to resist dust intrusion.

Heavy and maintenance scenarios (RCA103/106/108): skeleton support and flange fixing design are suitable for high-load scenarios such as mining machinery and old cylinder transformation.

Precision and harsh environment (RCA115~119): semiconductor, food and medicine and other industries, meet the requirements of no creeping, low friction and corrosion resistance.

Multi-standard compatibility: RCA107 supports British equipment, and the RCA series fully covers ISO 6195 standard grooves to simplify the selection process.

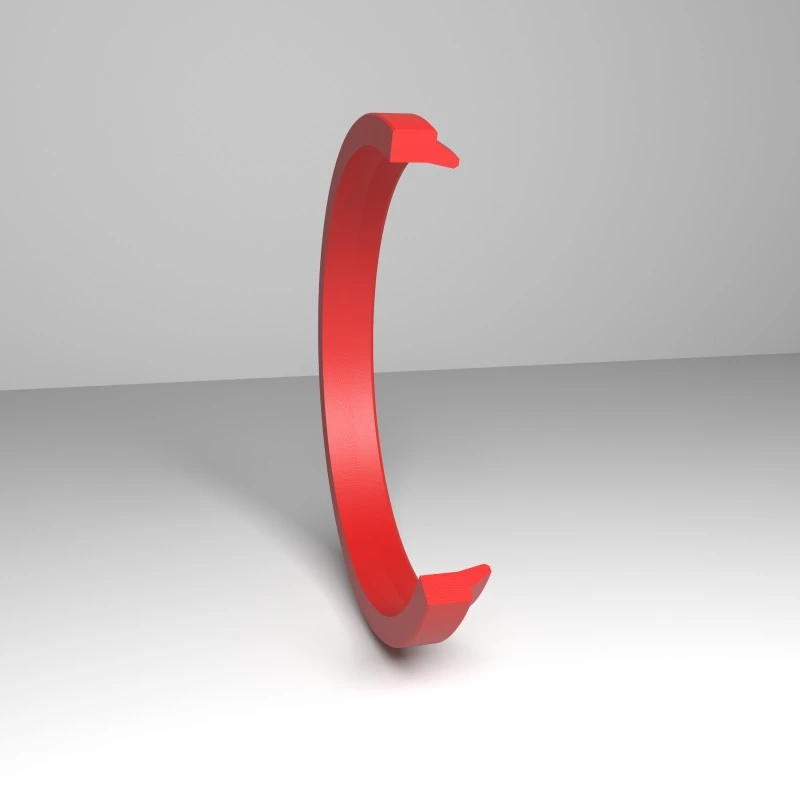

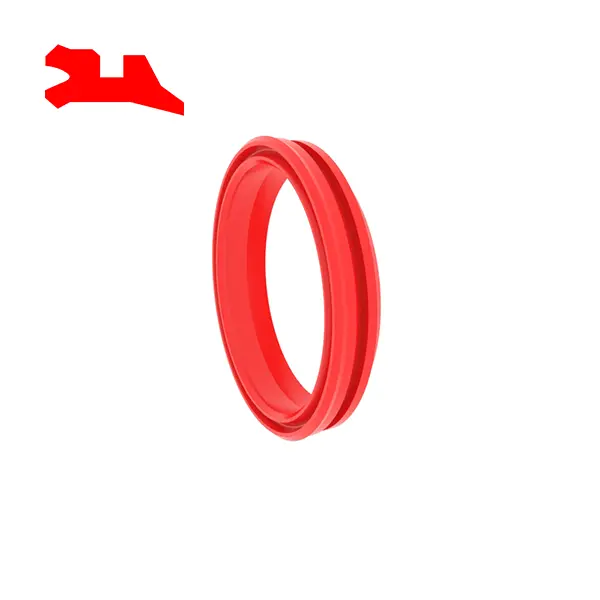

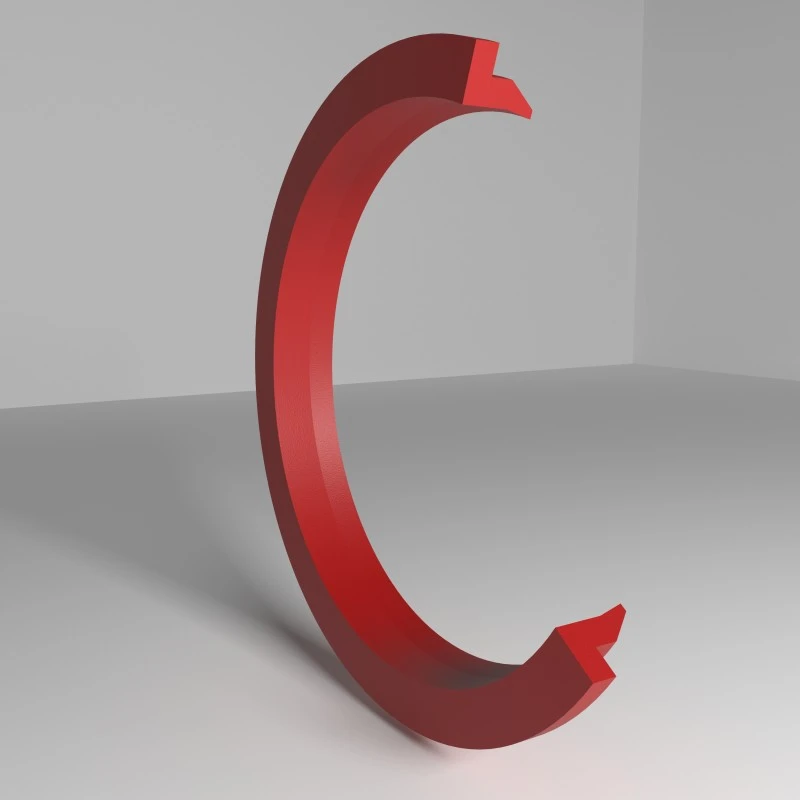

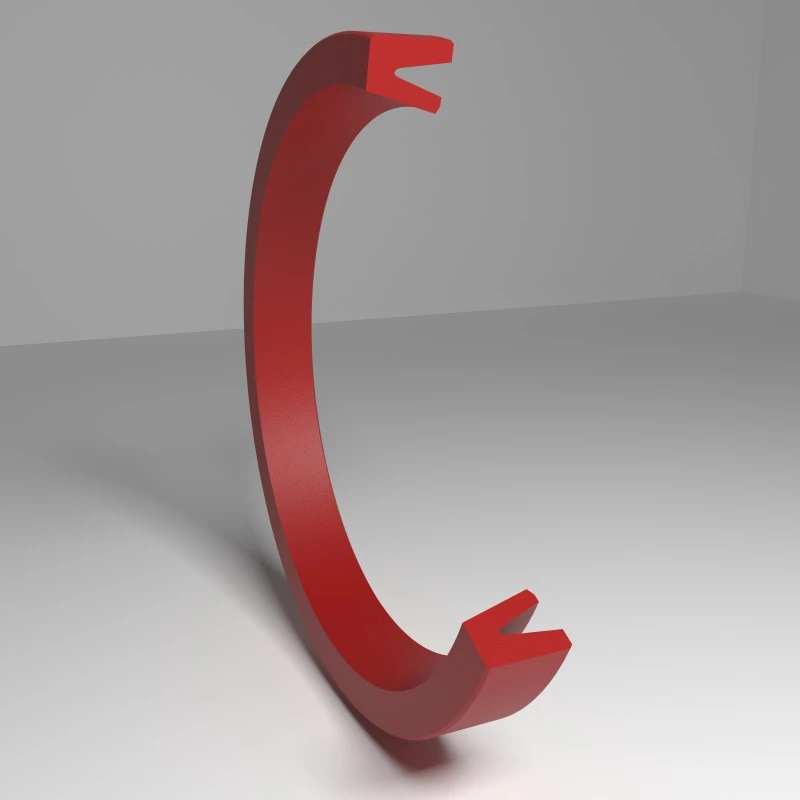

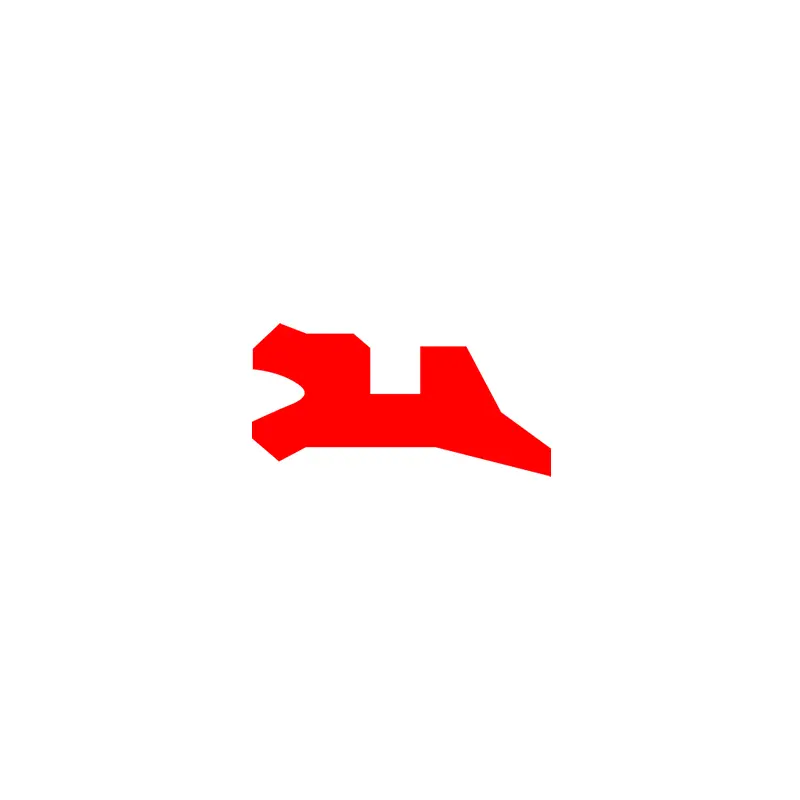

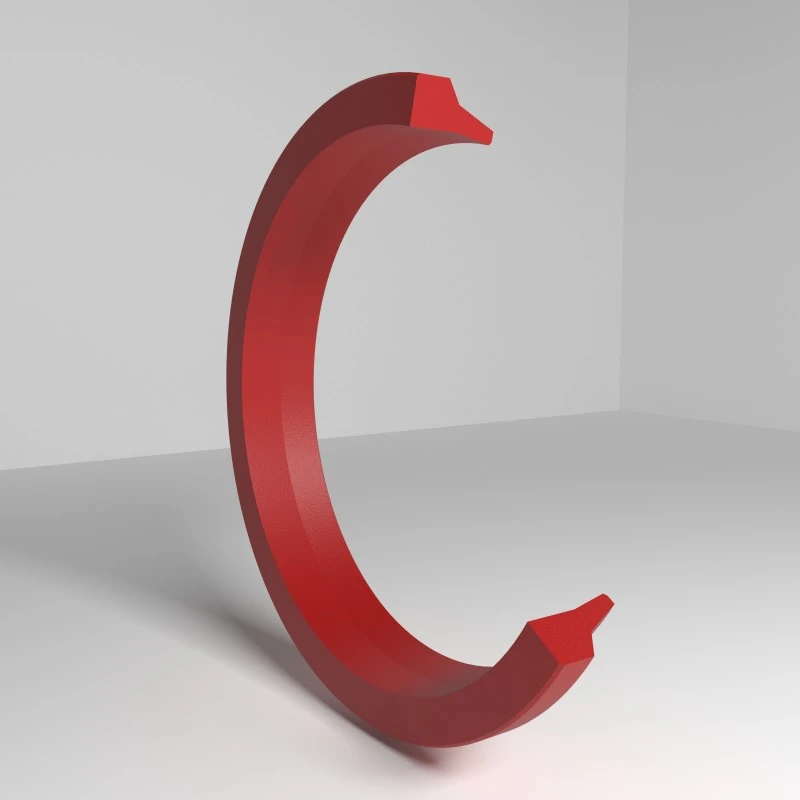

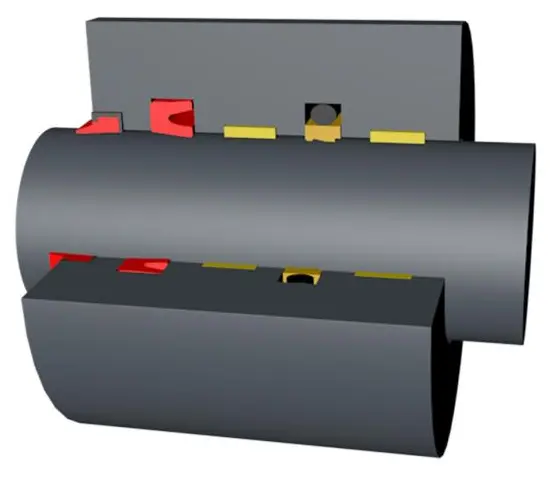

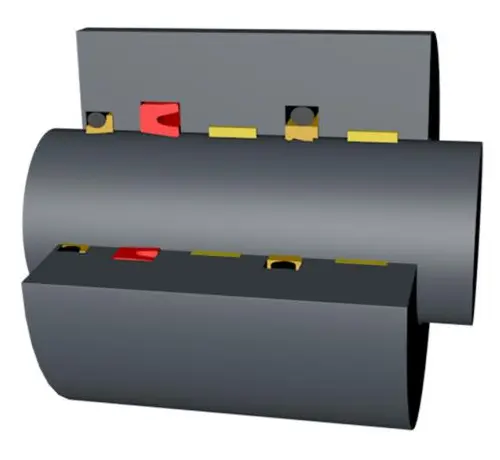

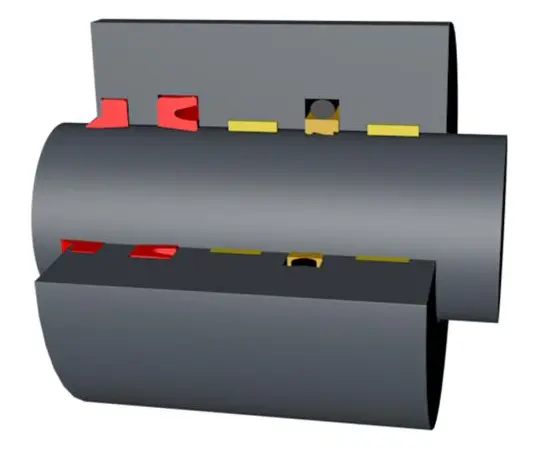

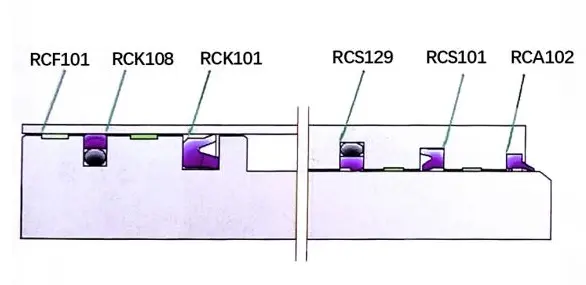

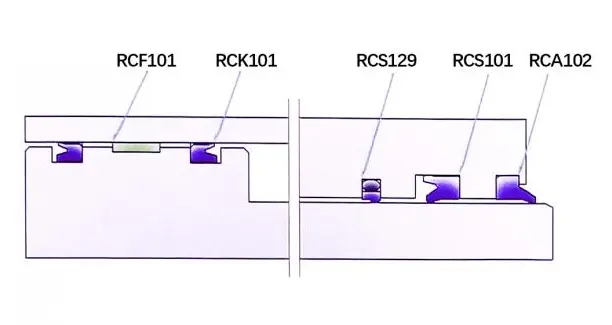

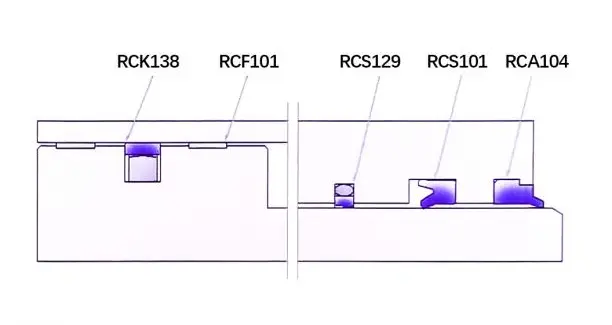

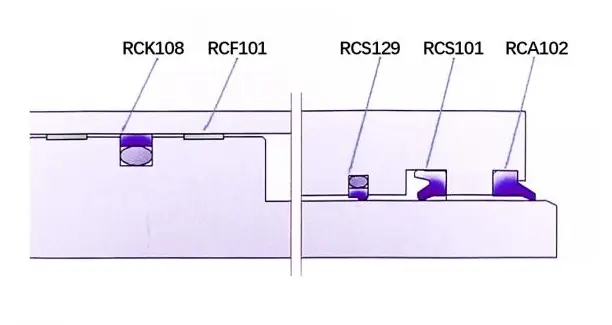

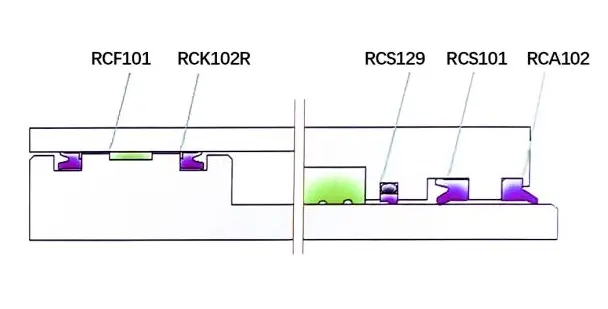

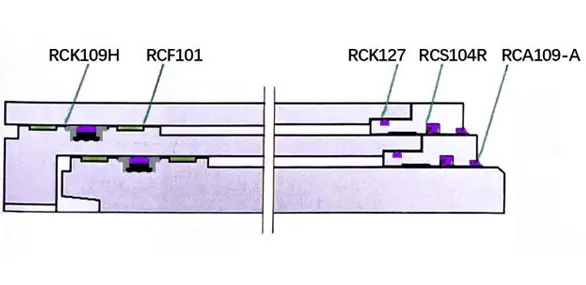

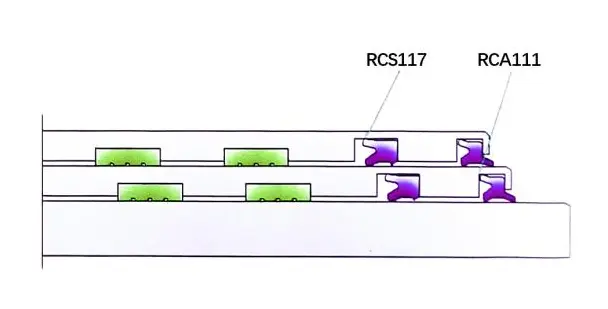

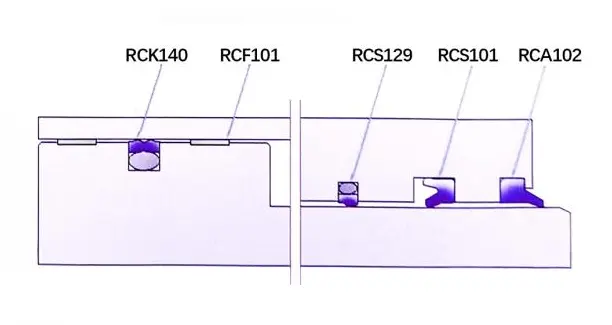

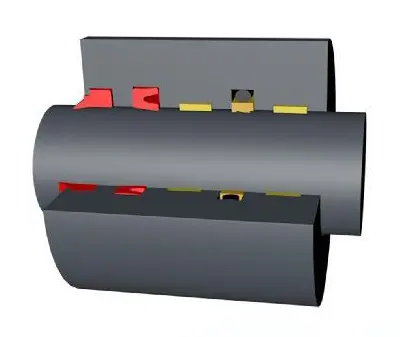

Sealing application & cylinder design

Heavy Industry: Industry examples: heavy machine tools (forging machines, hydraulic presses, bending machines, etc.), metallurgy (rolling mills, AGC cylinders, etc.), mining (hydraulic supports, mining equipment, etc.), heavy construction machinery (cranes, excavators, etc.)

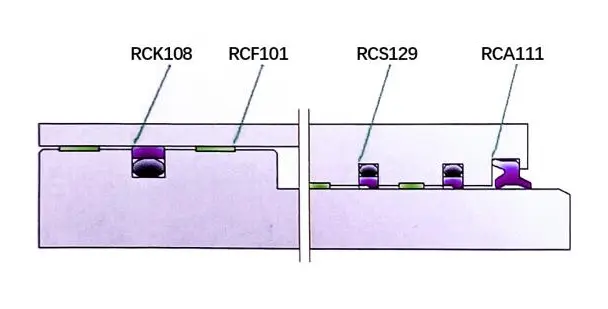

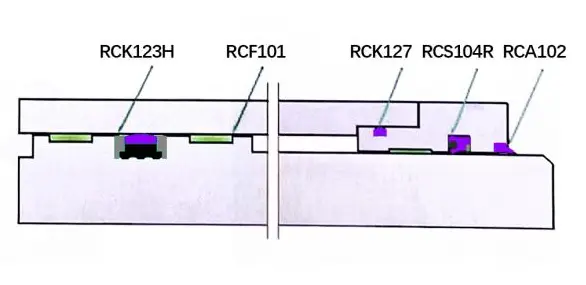

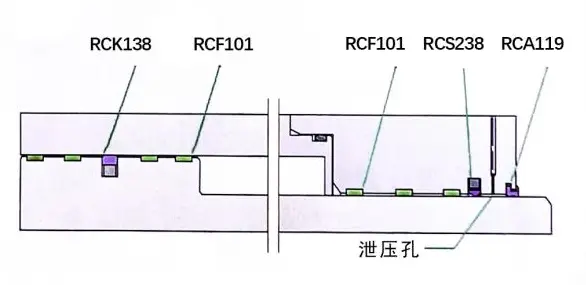

Recommended sealing design:

Heavy forging machine

Metallurgy AGC

Hydraulic support column cylinder

Hydraulic support guard jack

Crane lifting cylinder

Crane luffing cylinder

Medium Industry: Industry examples: lifting equipment, agricultural machinery, light transport tools, lifting platforms, machine tools (bending machines, injection molding machines, milling machines, etc.), forklifts, dump trucks

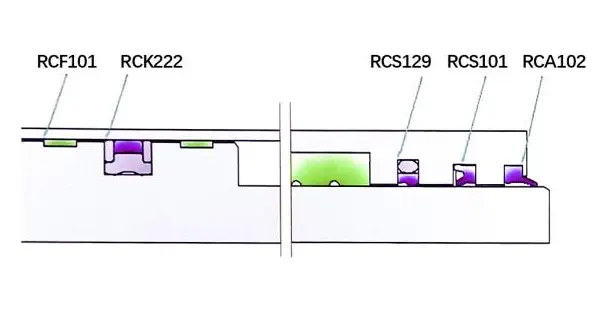

Recommended sealing design:

Bending Machine

Dump truck lifting device

Agricultural machinery

Lifting platform

Light Industry: Industry examples: machine tools, forklifts, injection molding machines, agricultural machinery, balers

Recommended sealing design:

Small forklift

Injection molding machine

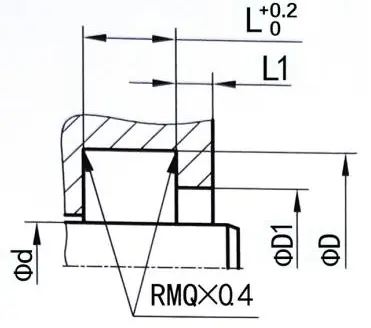

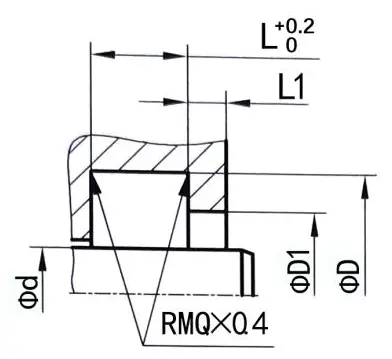

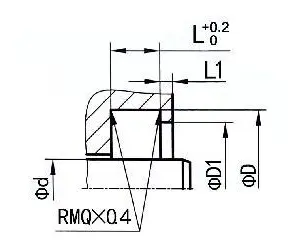

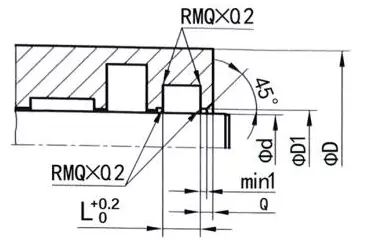

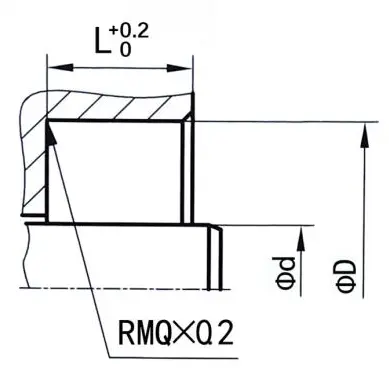

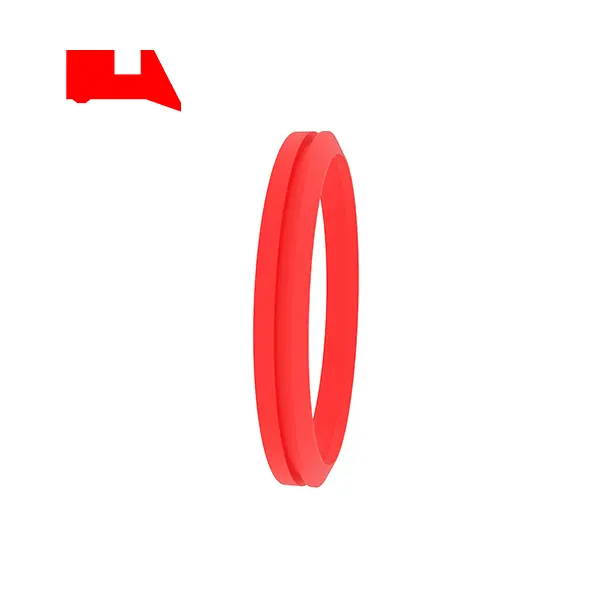

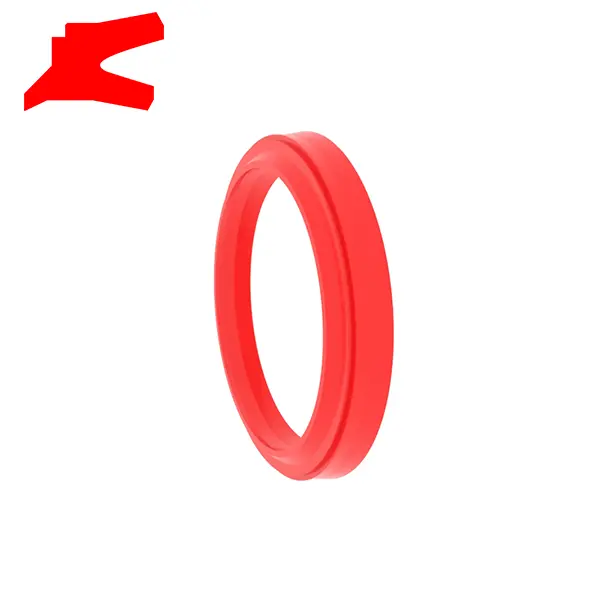

Dust seal groove

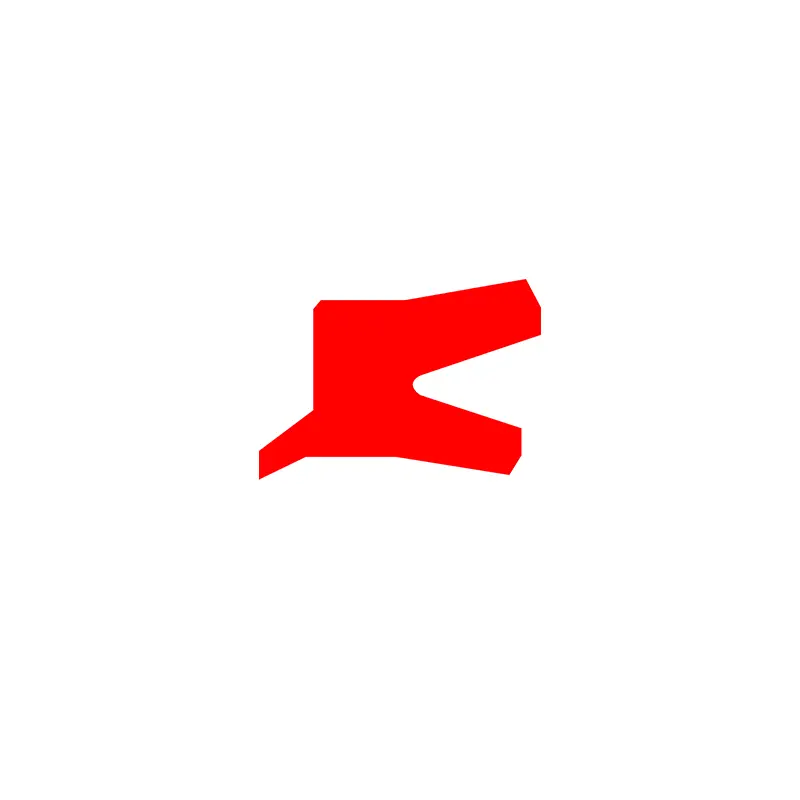

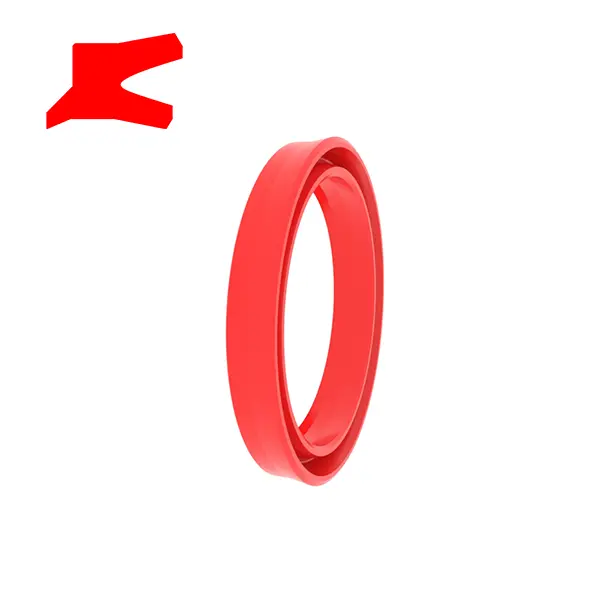

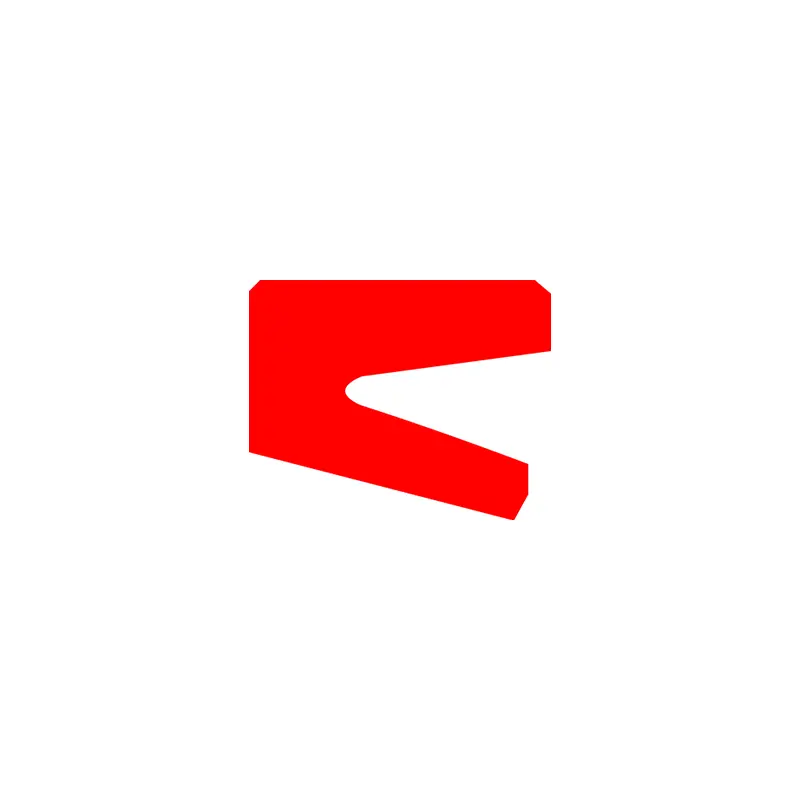

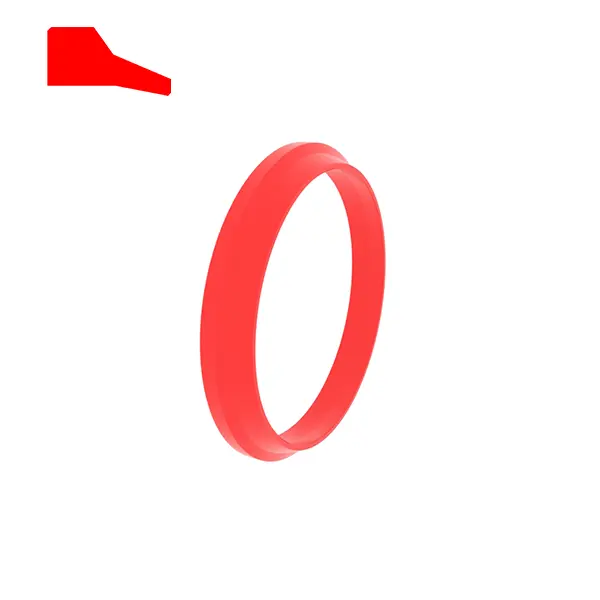

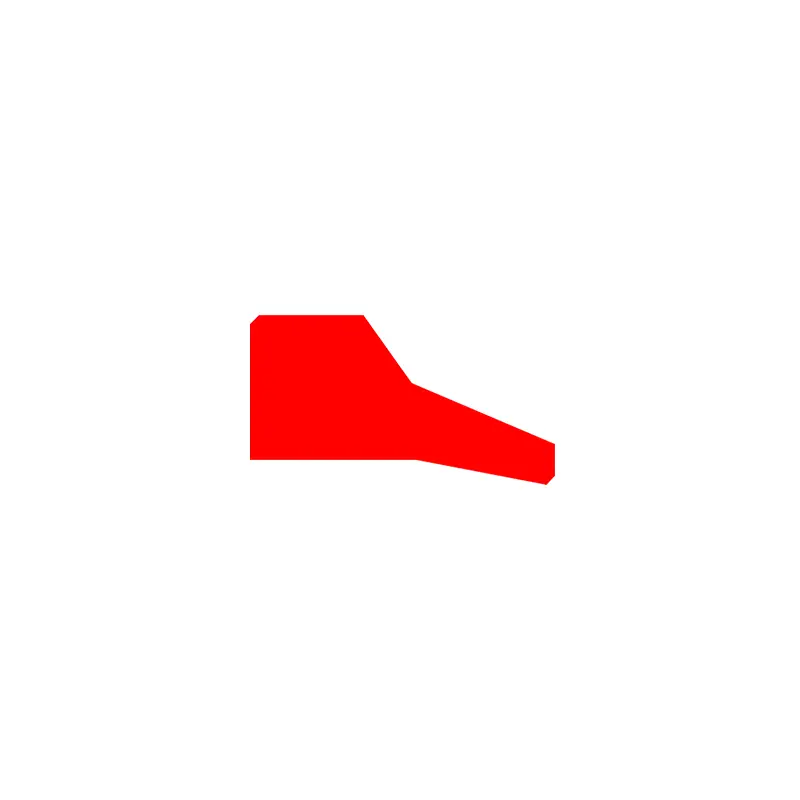

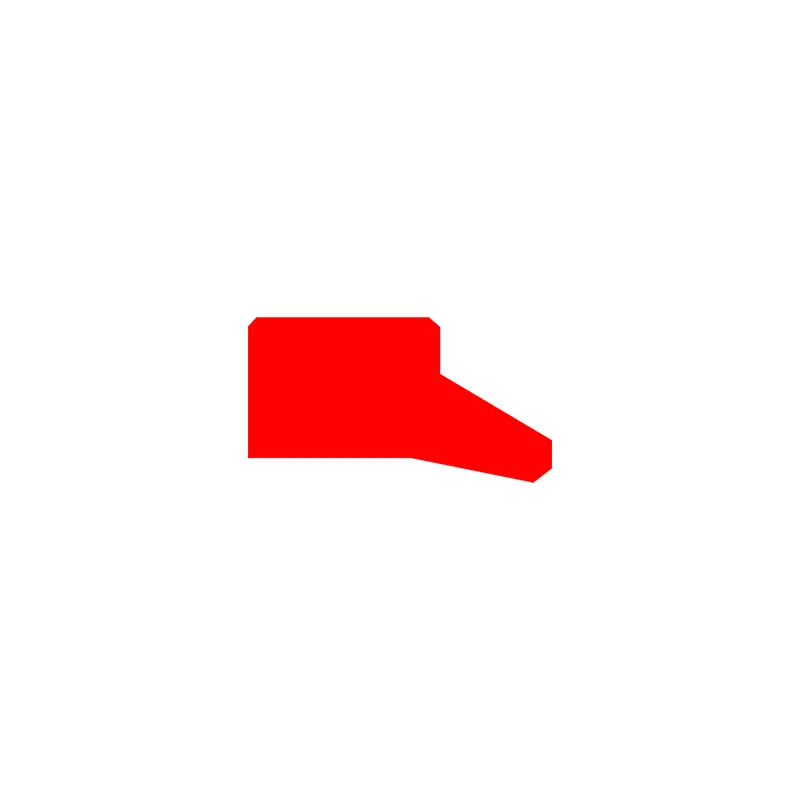

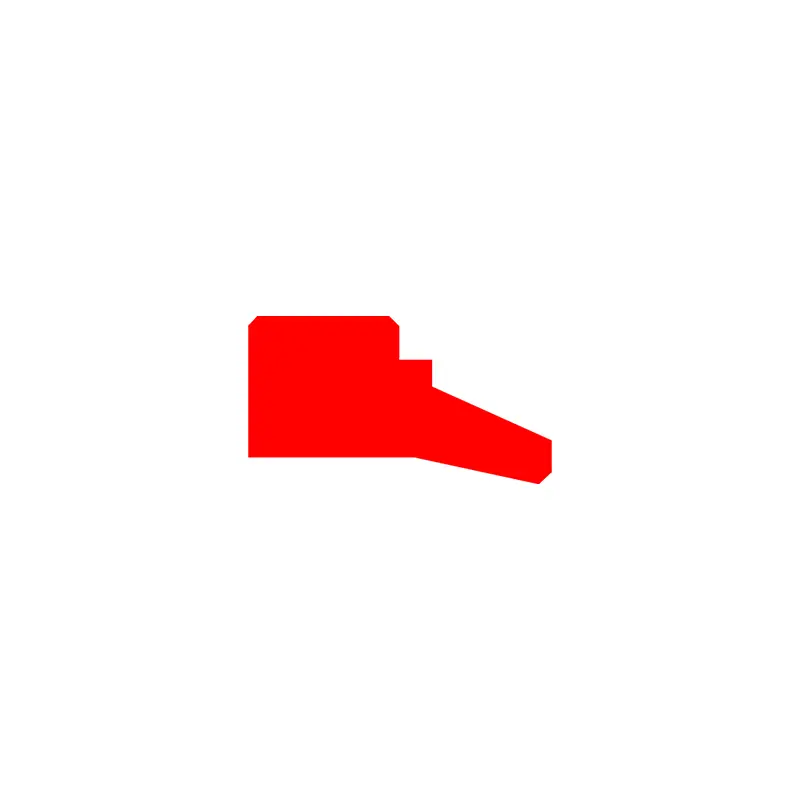

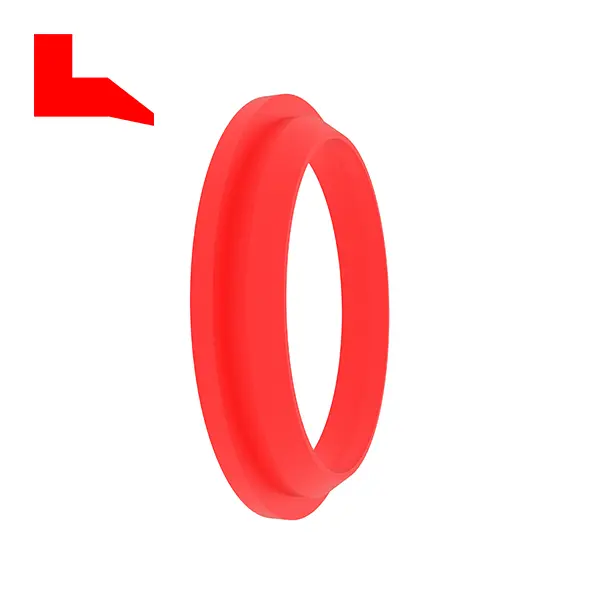

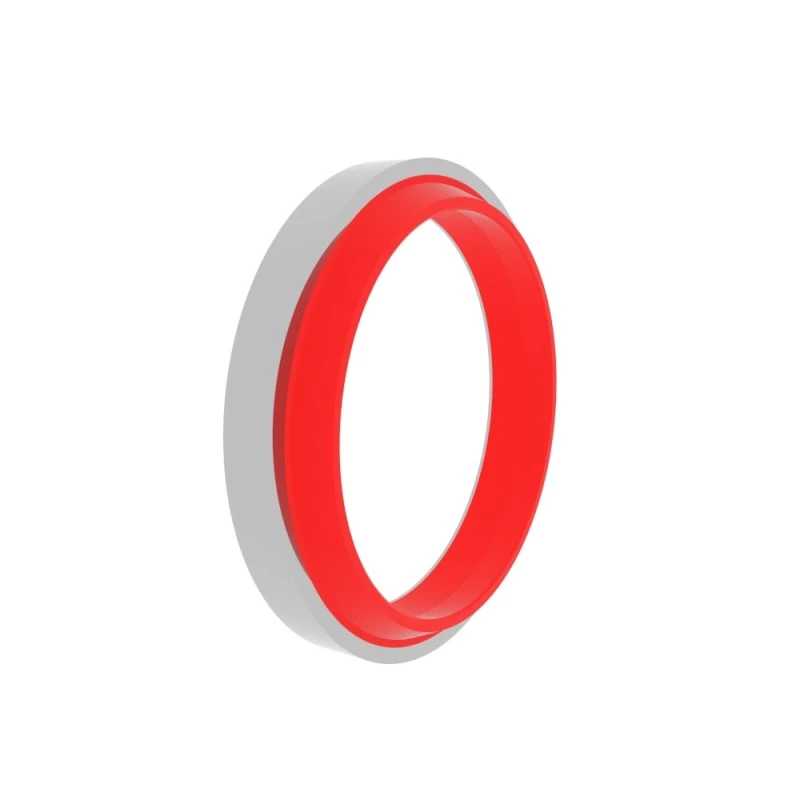

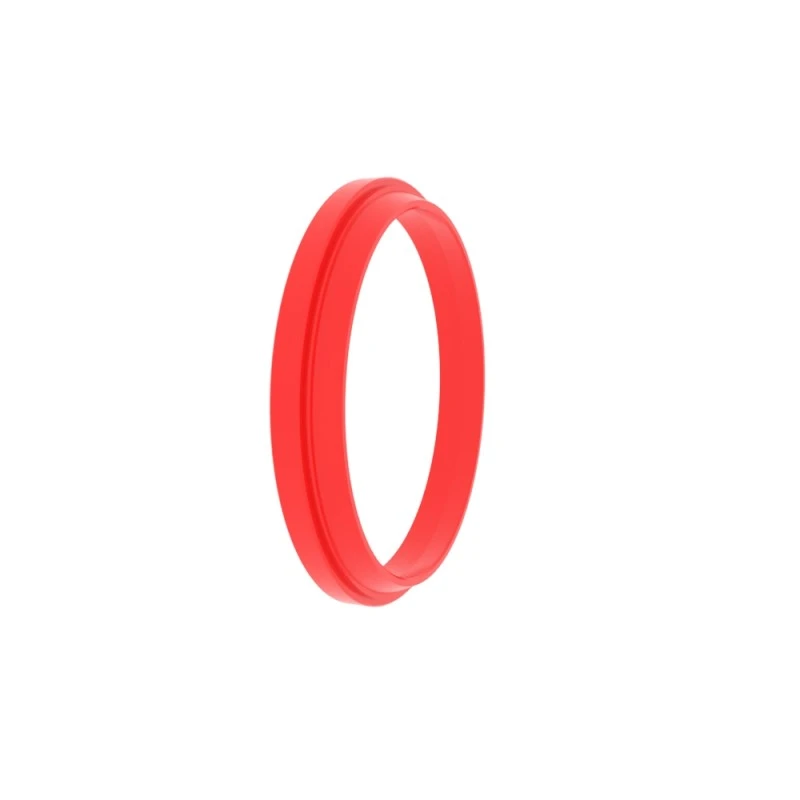

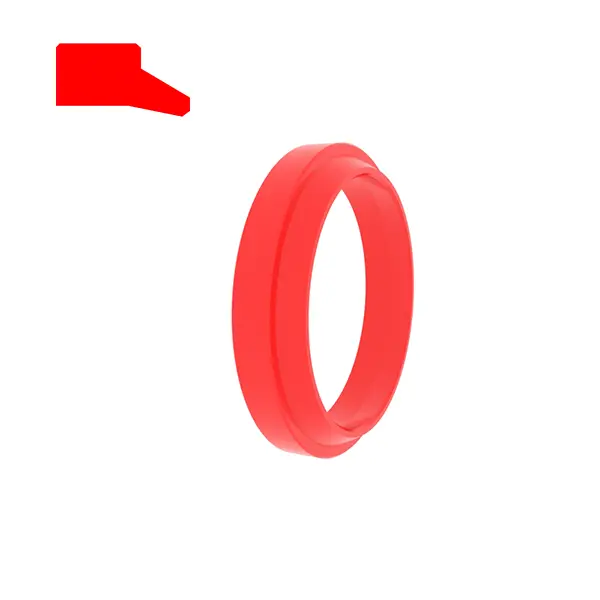

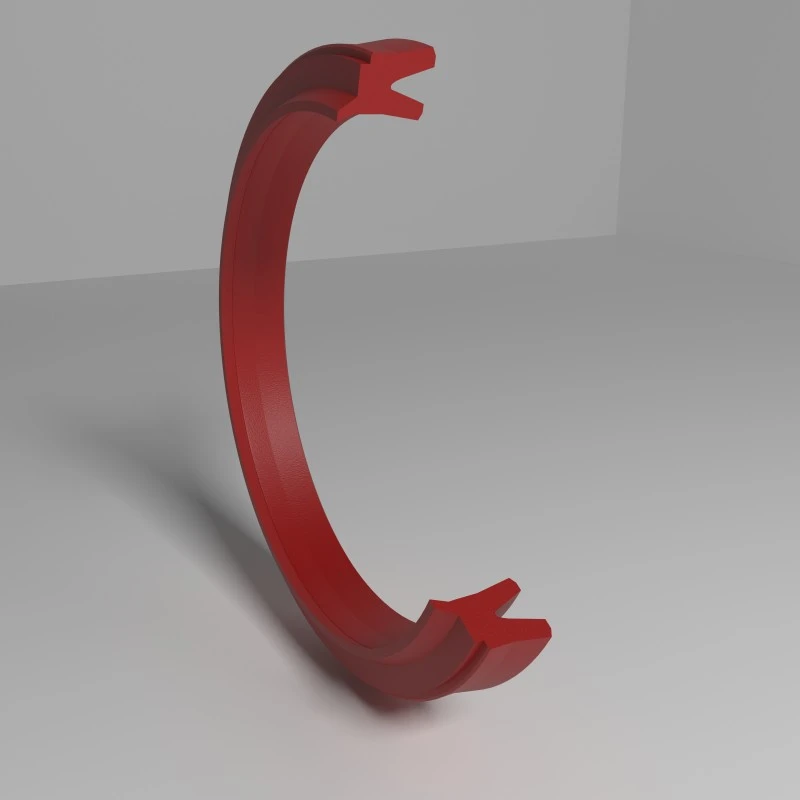

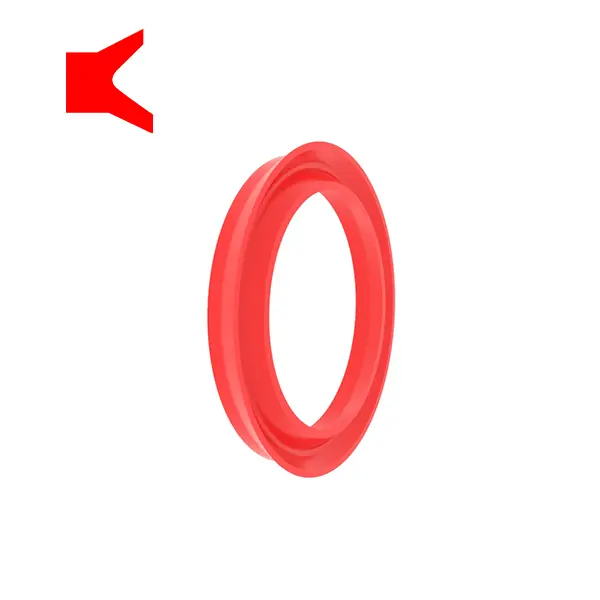

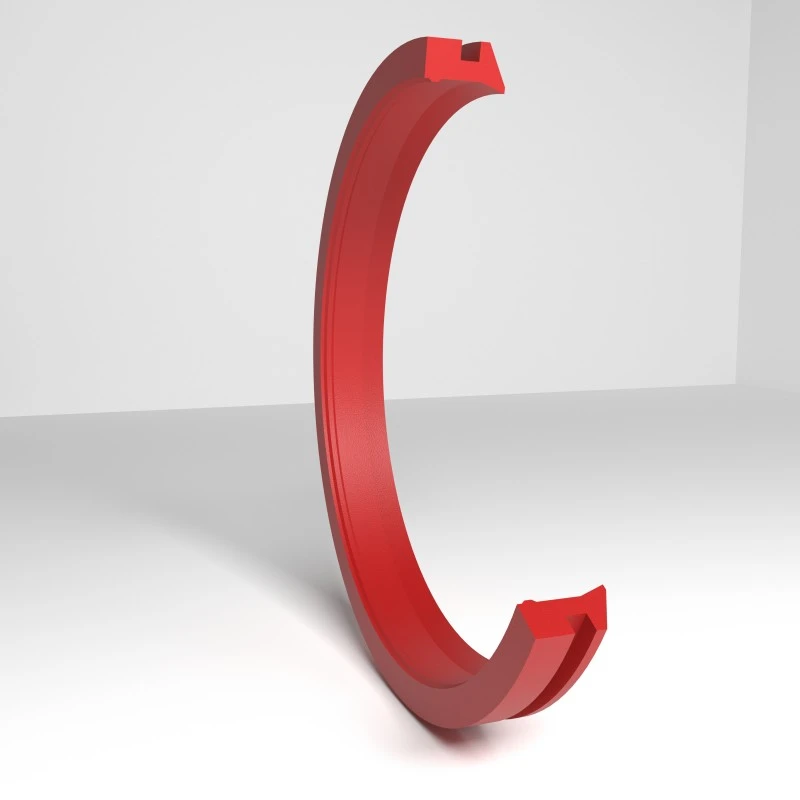

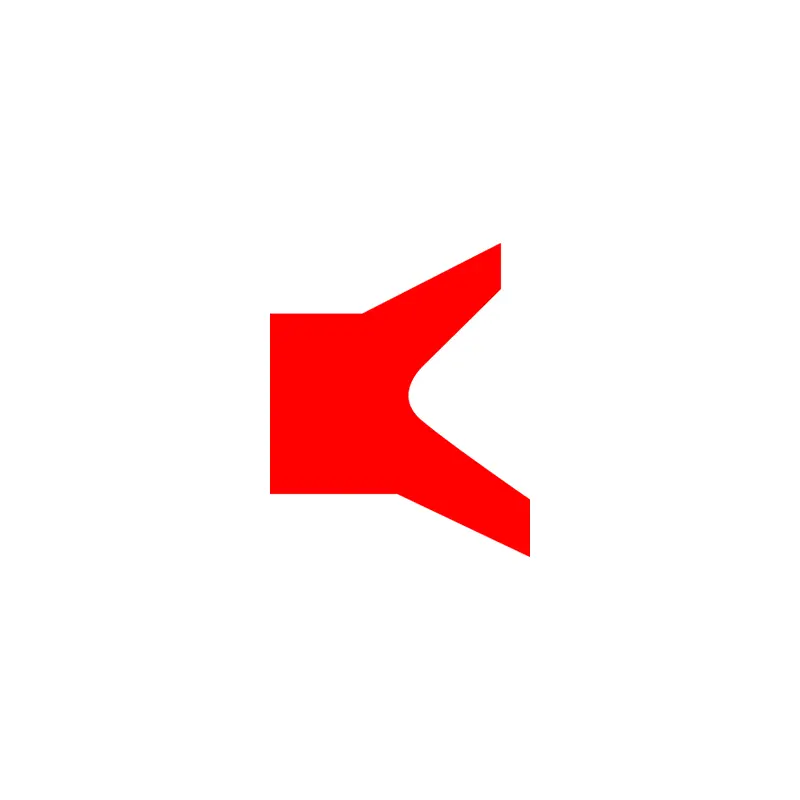

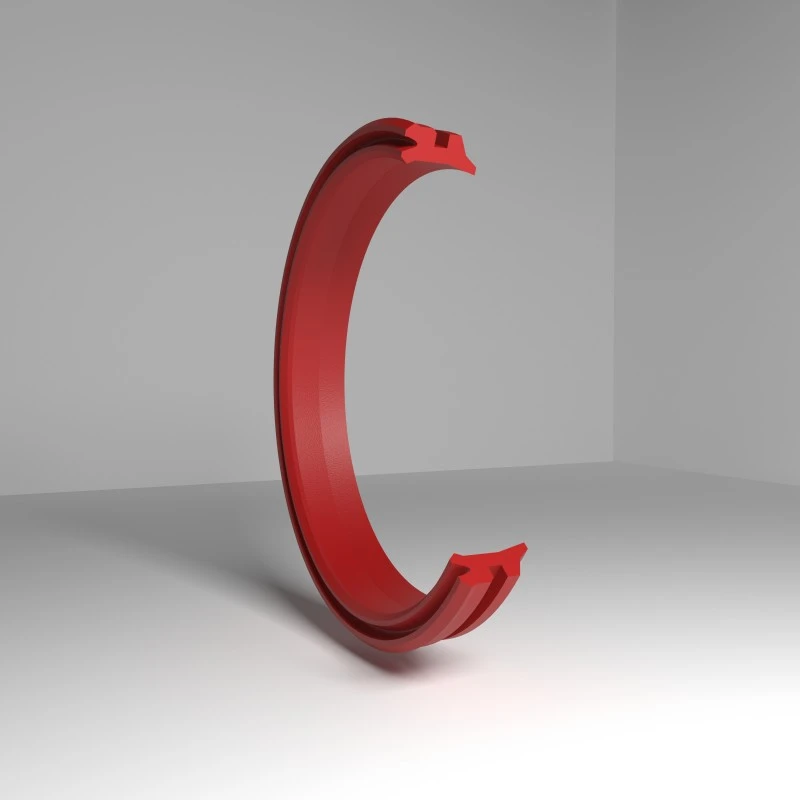

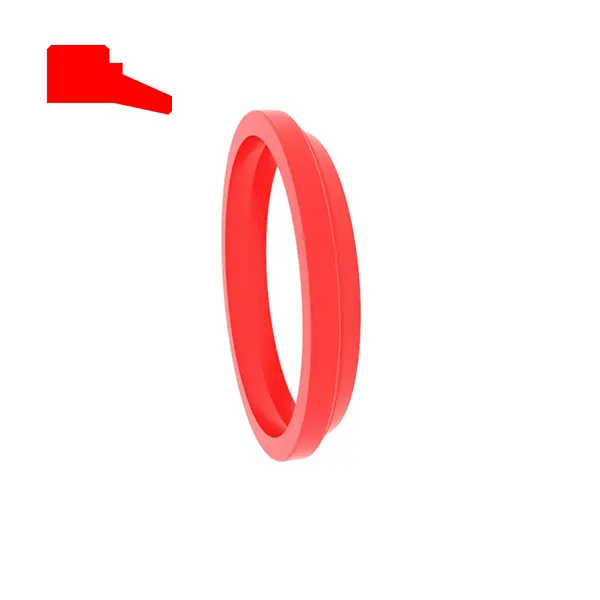

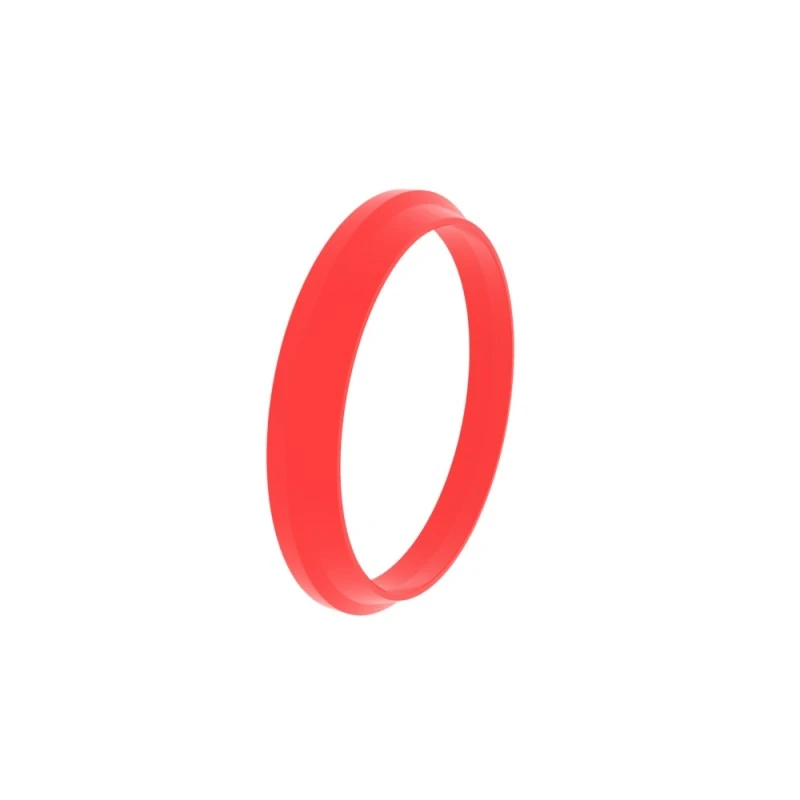

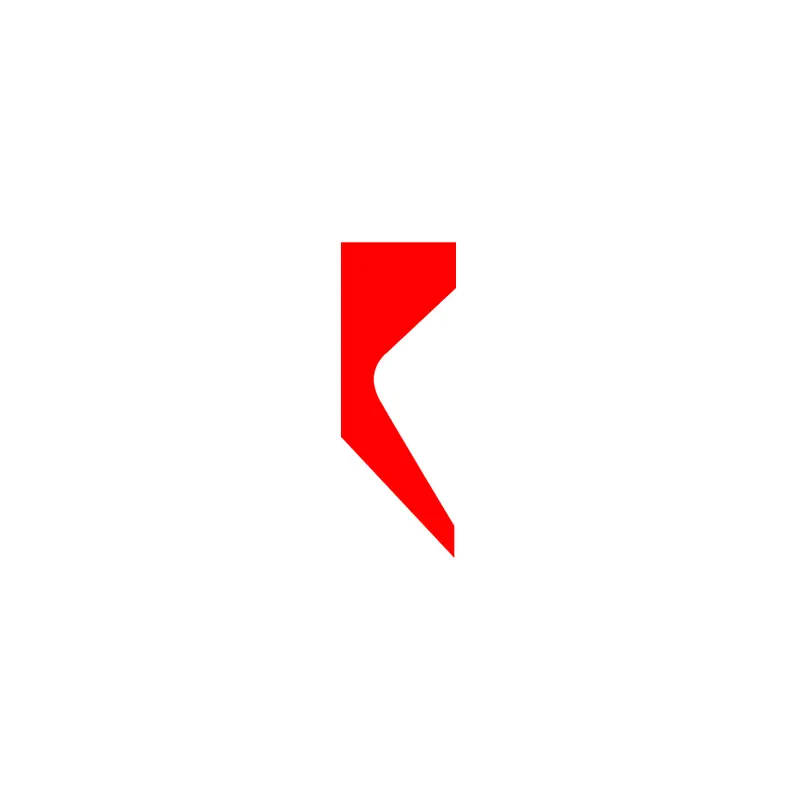

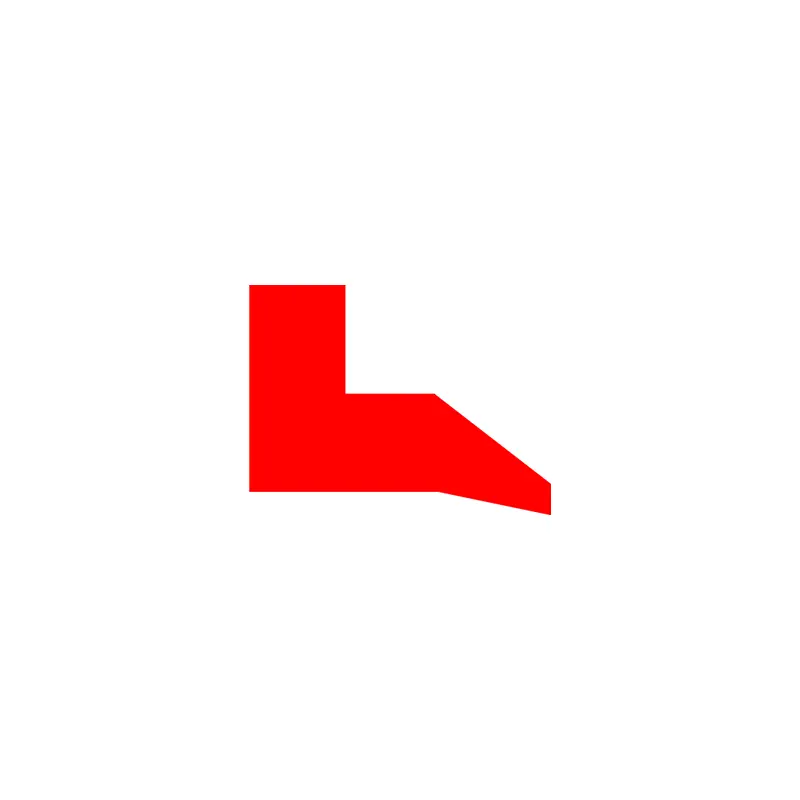

RCA101
Order size
ΦD......Outer diameter
Φd......Inner diameter
L......Groove width
H......Total height of dust seal

Ordering Example

Model: RCA101

Groove size: 100x108x4/7

Material: RC-PU-H

Seal Type: RCA101, RCA104
Main application: Standard dust protection for oil cylinders
Advantages: simple installation, excellent anti-friction and dustproof effect, no reverse ovement in the cavity, no pressure opening between the sealing ring and the dust ring.
Material: Polyurethane, Rubber

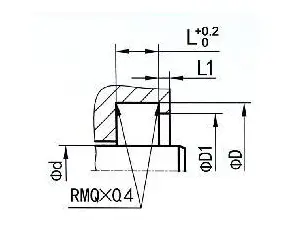

Seal groove examples	The following are standard groove dimensions (dust seals of any size within the size range can be produced)
	RCA101	Φd	ΦD	ΦD1	L	L1	H
		6-100	Φd+8	Φd+6	4	1	7
	RCA104	100.1-149.9	Φd+12	Φd+9	5.5	1.5	10
		≥150	Φd+15	Φd11	6.5	2	13

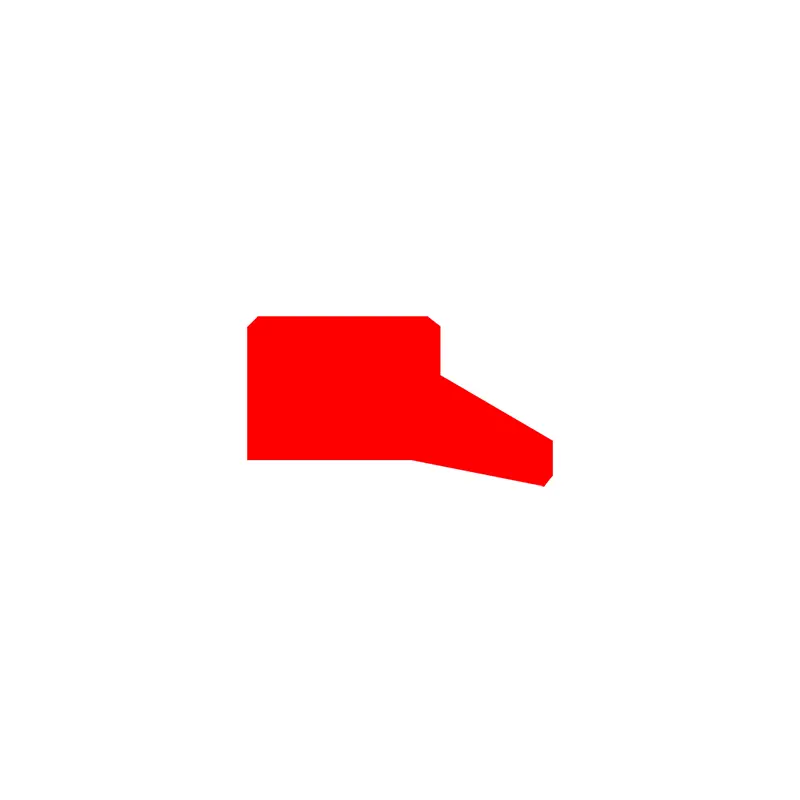

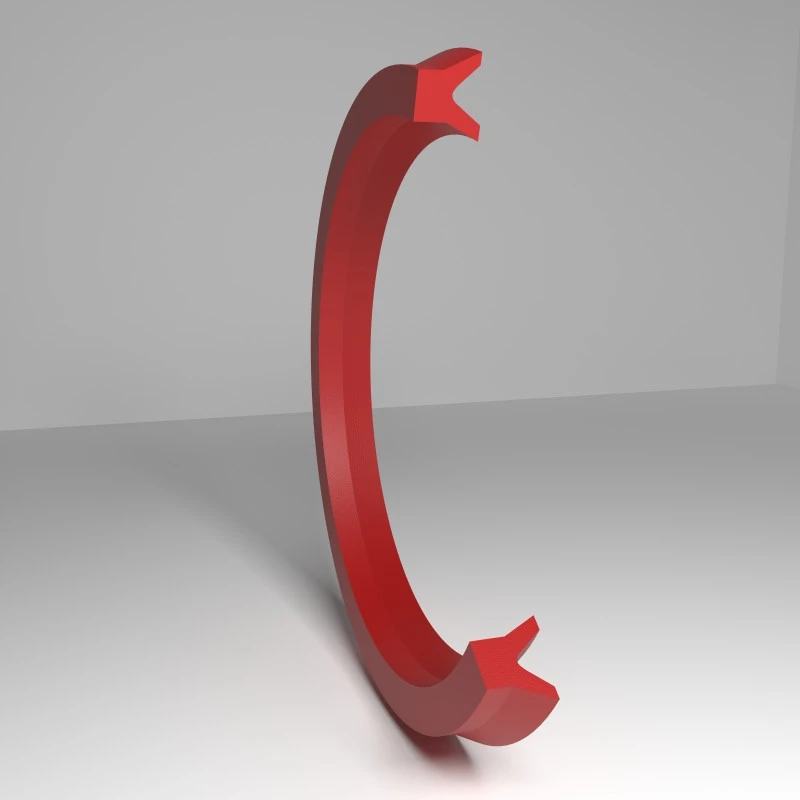

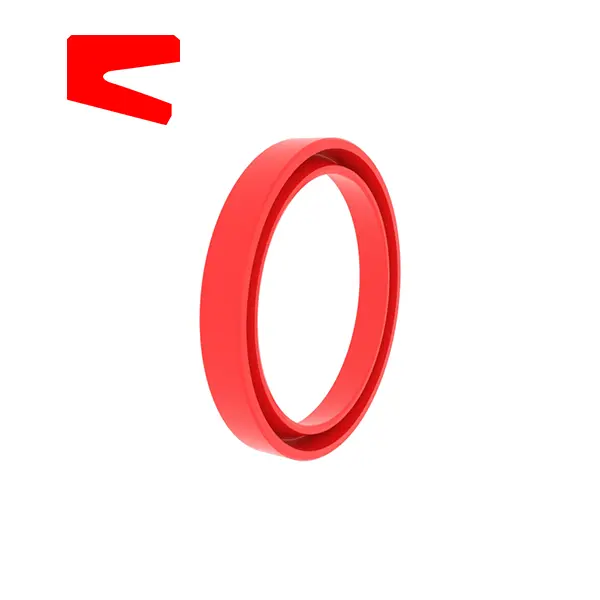

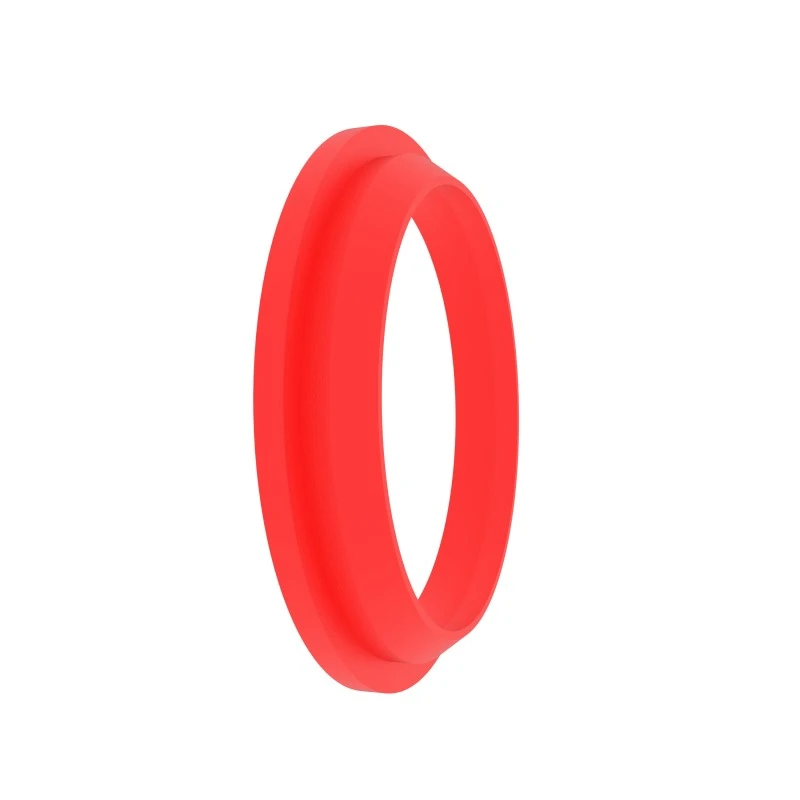

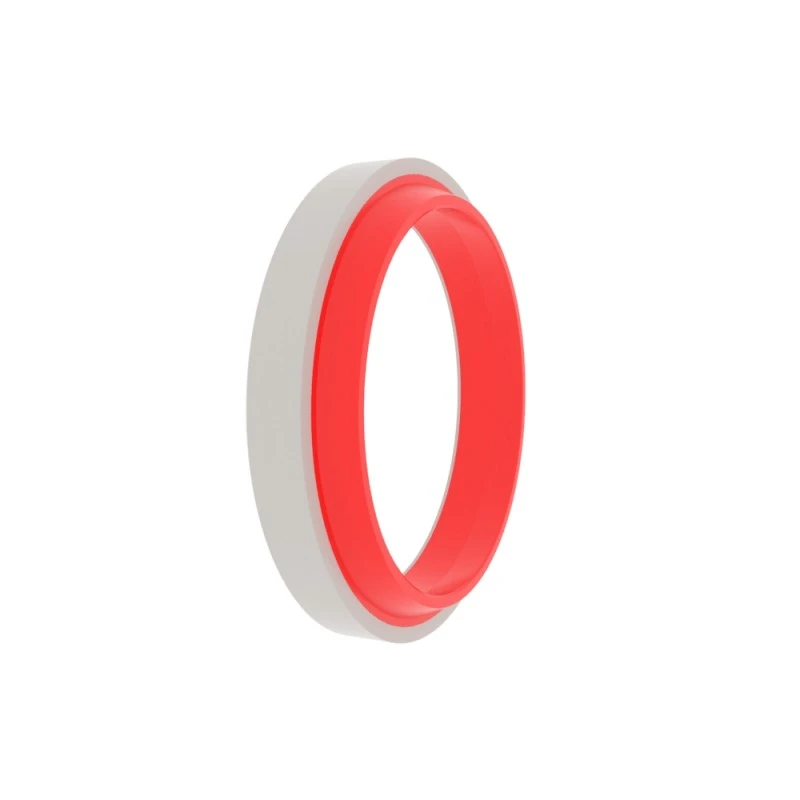

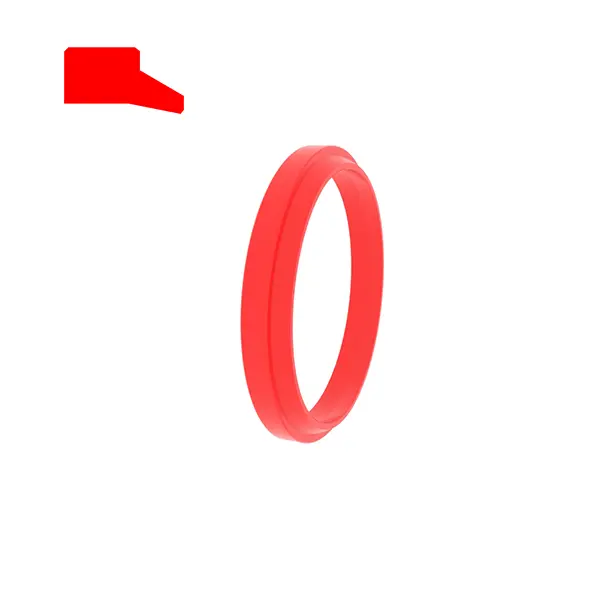

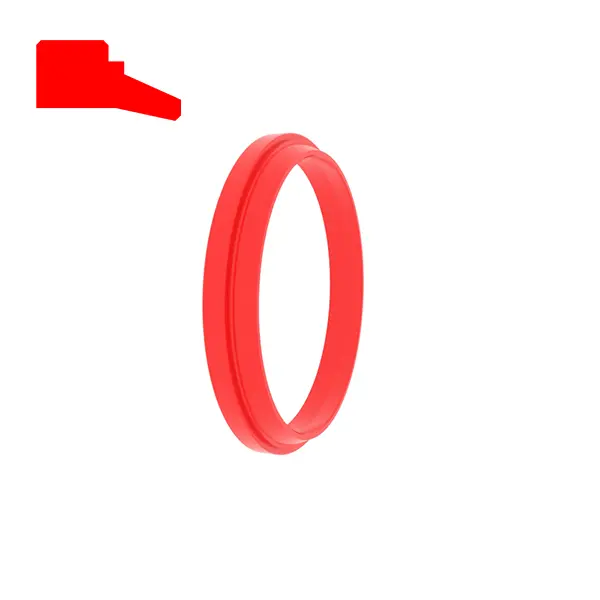

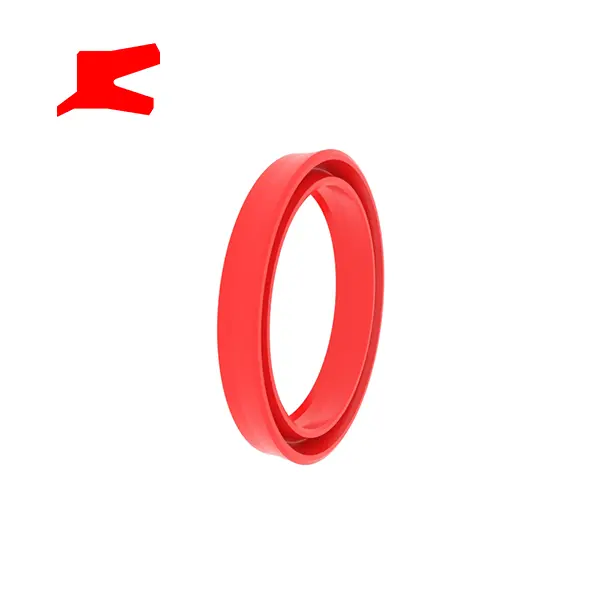

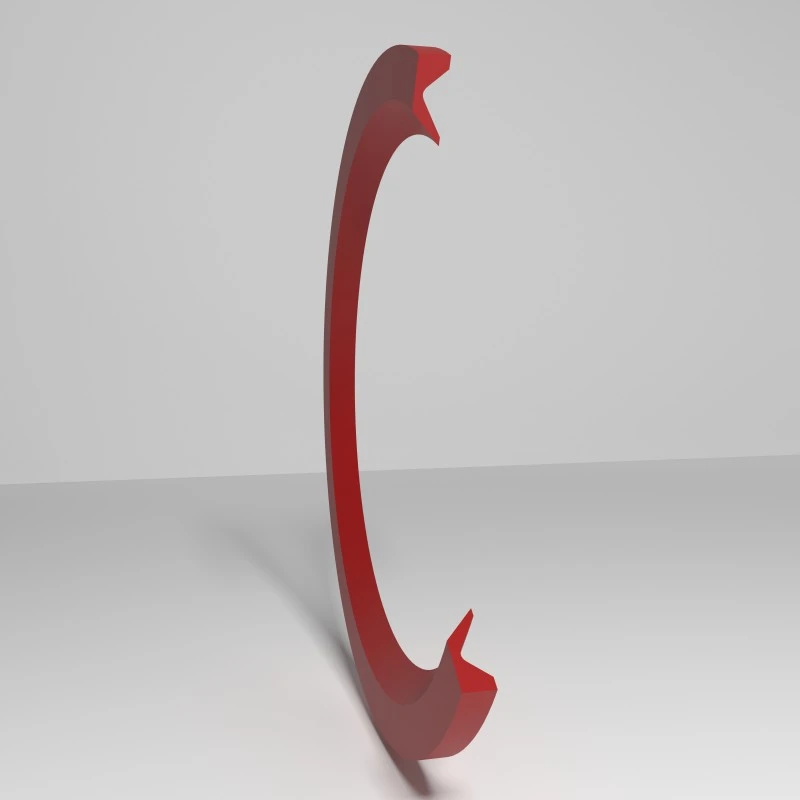

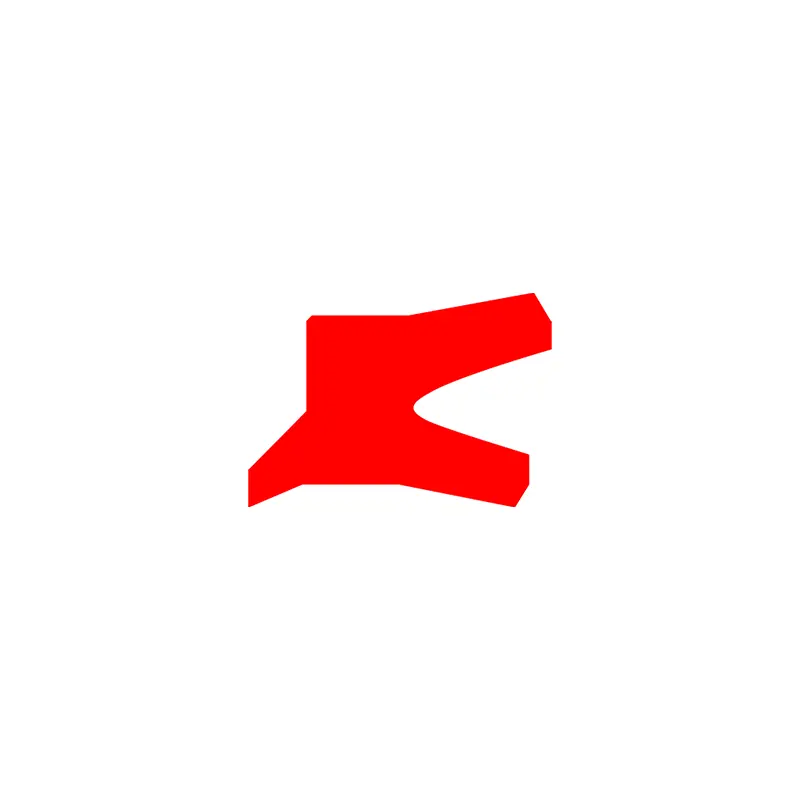

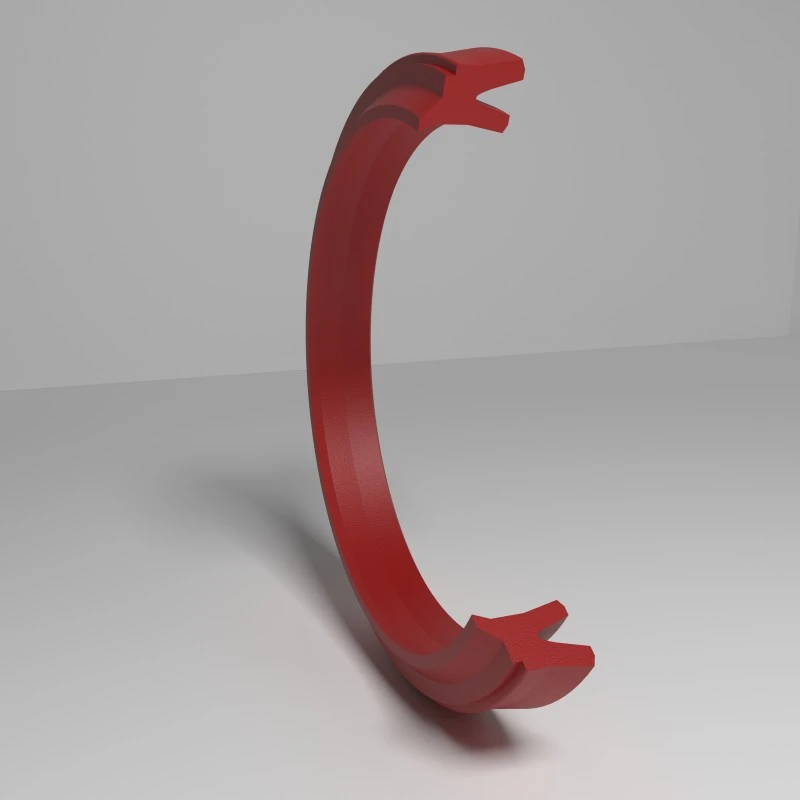

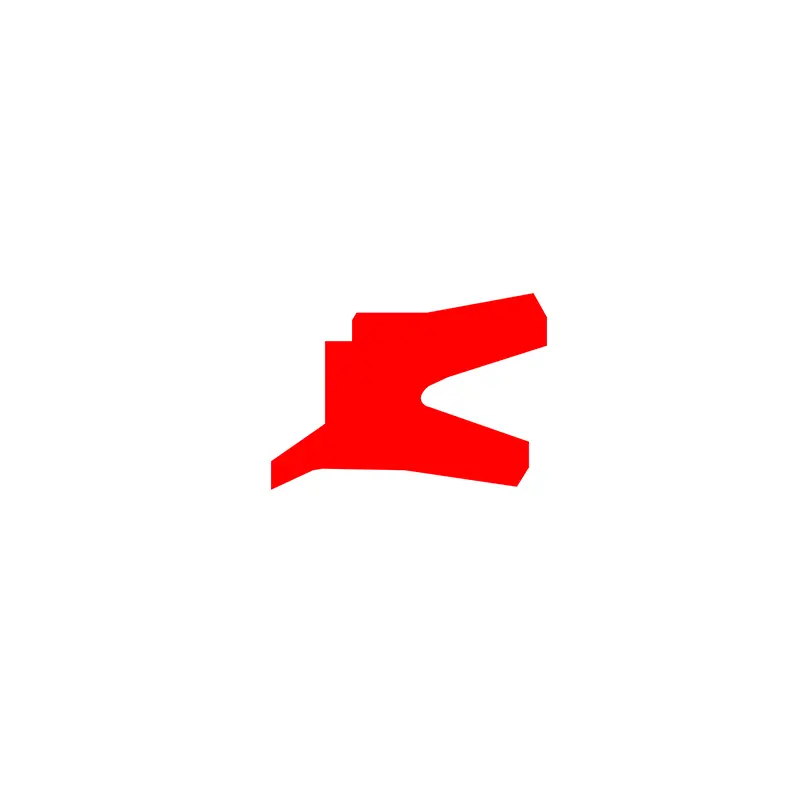

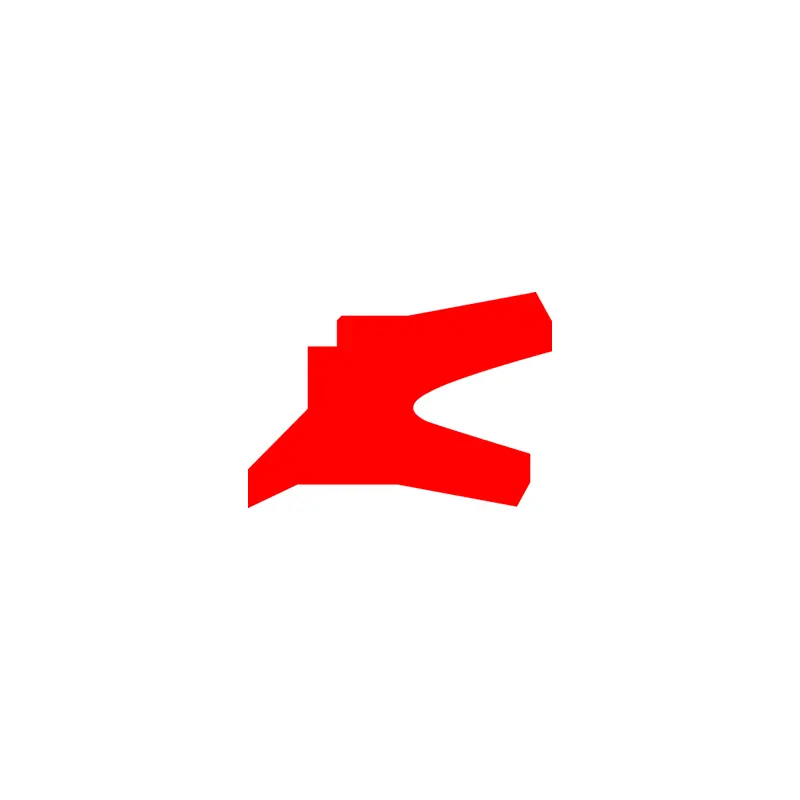

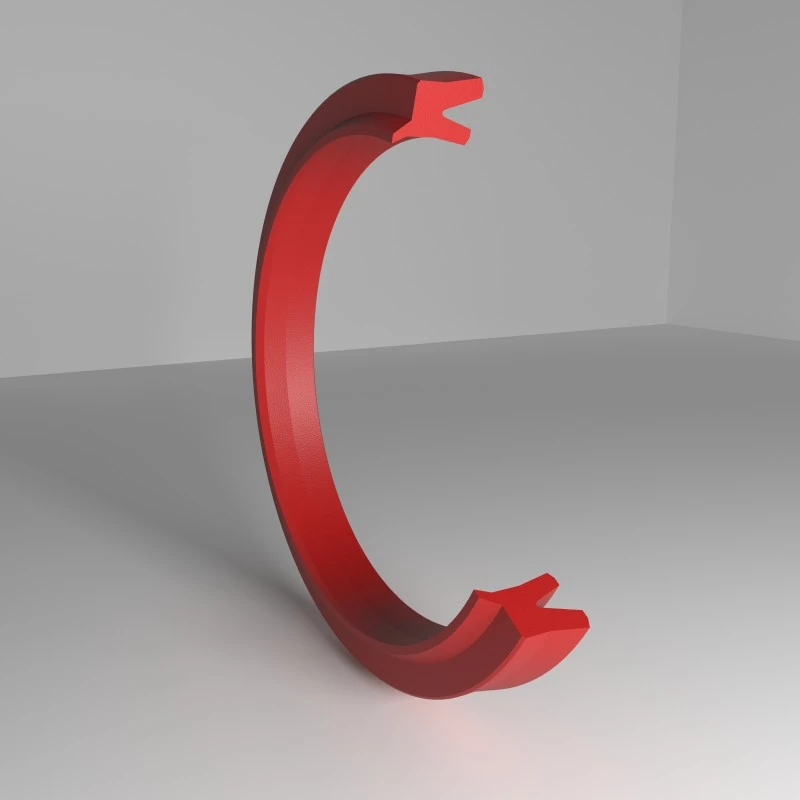

RCA102
Order size
ΦD......Outer diameter
Φd......Inner diameter
L......Groove width
H......Total height of dust seal

Ordering Example
Model: RCA102
Groove size/total dust seal height: 100x115x8.5
Material: RC-PU-H

Seal Type: RCA102, RCA105, RCA211
Main application: Mainly used with sliding combination seals
Advantages: Good friction performance, RCA211 bidirectional seal
Material: (Ultra-high hardness) Polyurethane, rubber

Seal groove examples	The following are standard groove dimensions (dust seals of any size within the size range can be produced)
	RCA102	Φd	ΦD	ΦD1	L	L1	H
	RCA105	6-49.9	Φd+8	Φd+4	5	≥2	6
	RCA211	50-99.9	Φd+10	Φd+5	6	≥2	7
		＞100	Φd+15	Φd+7.5	8.5	≥2	11.5

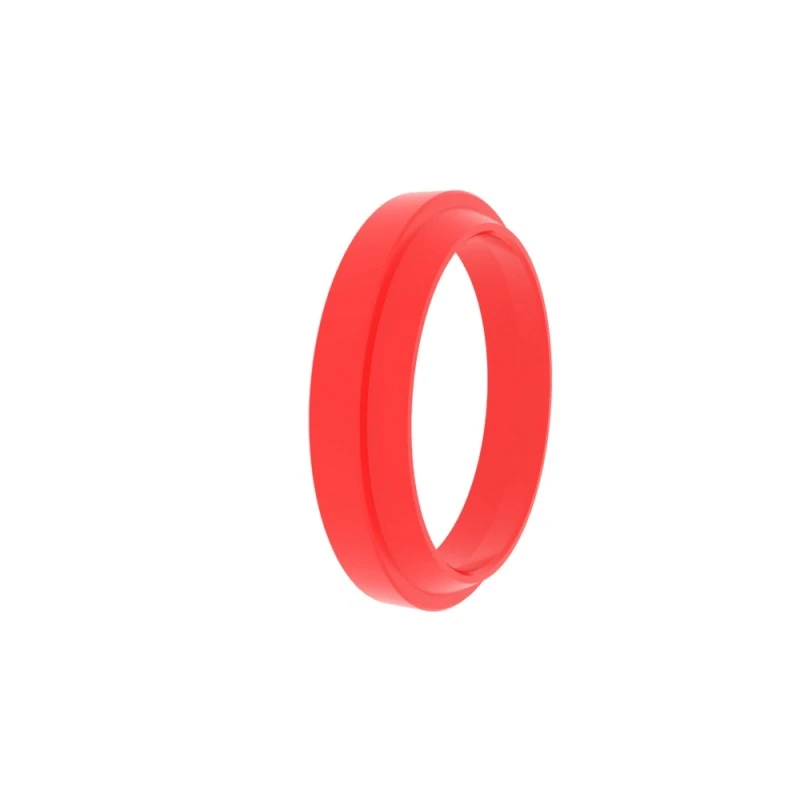

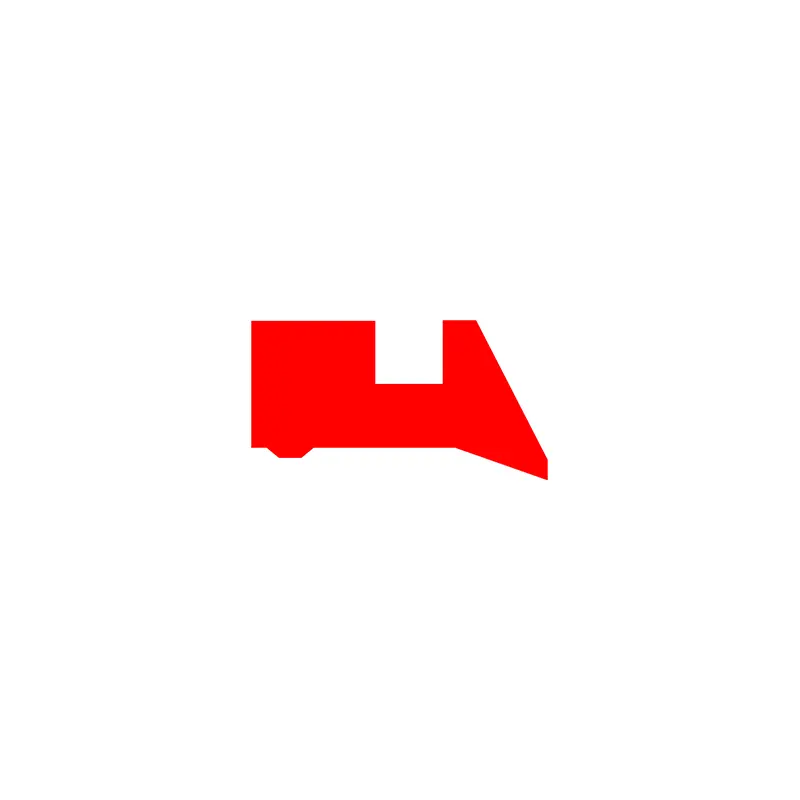

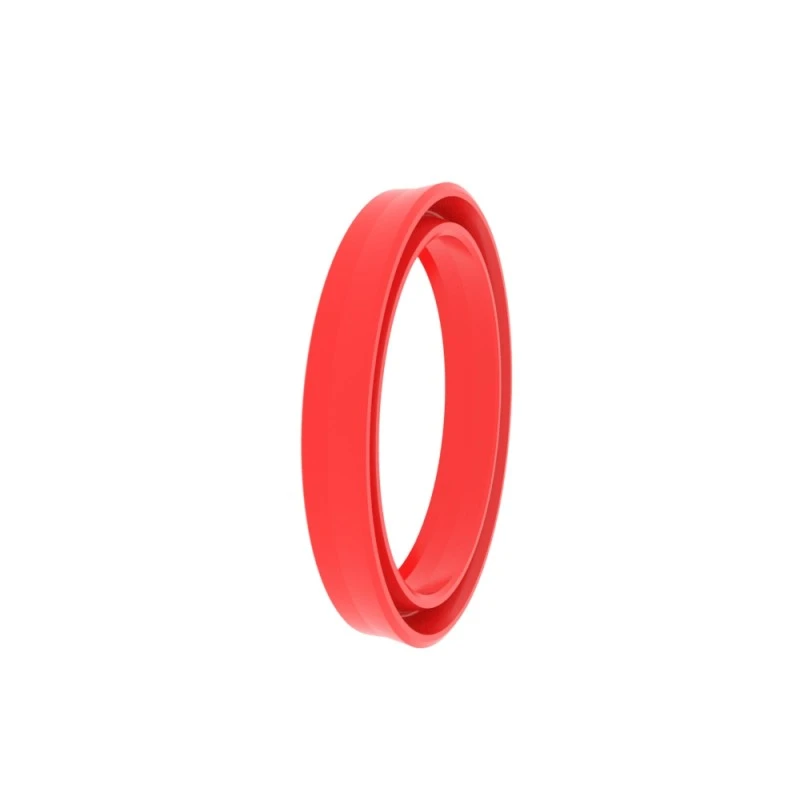

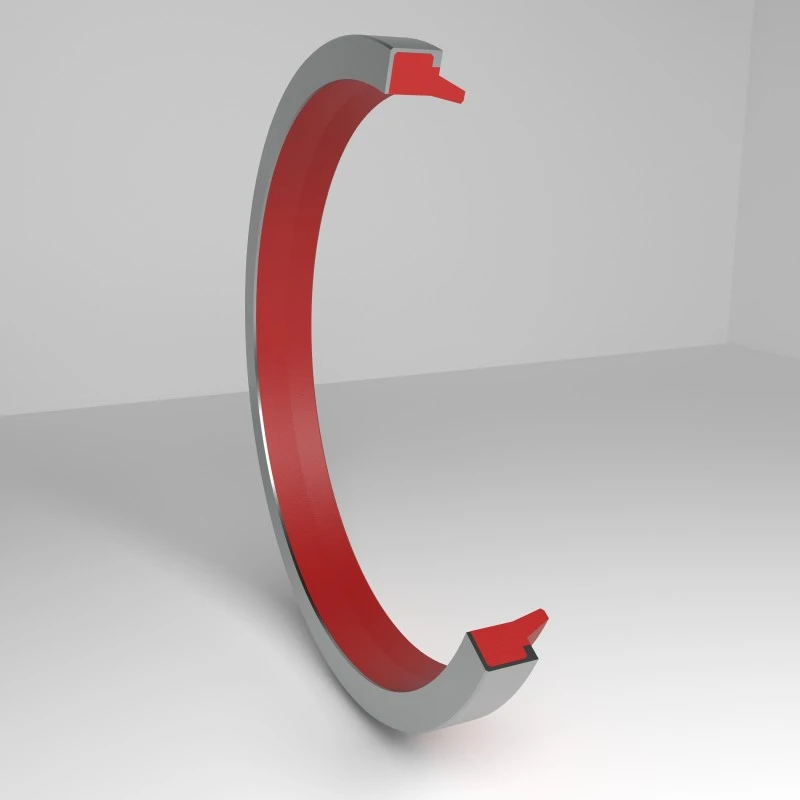

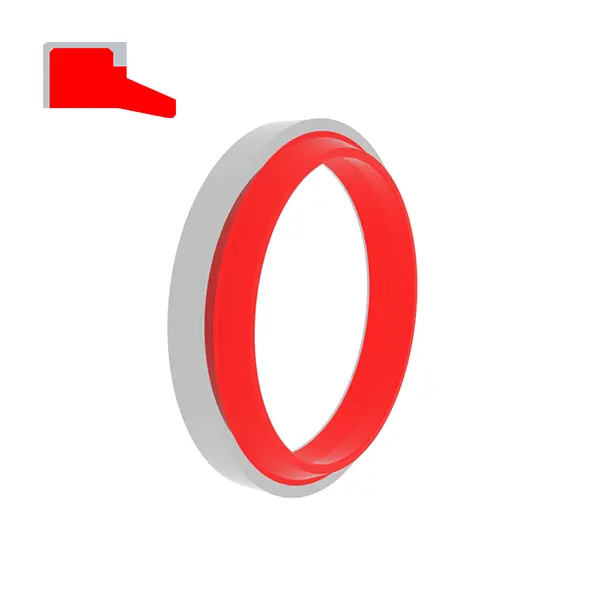

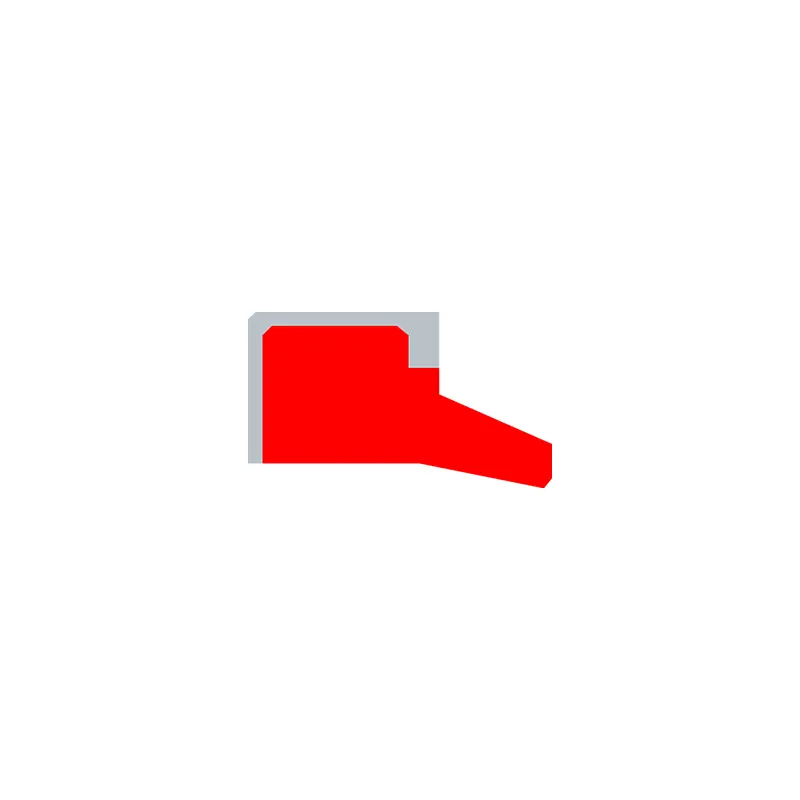

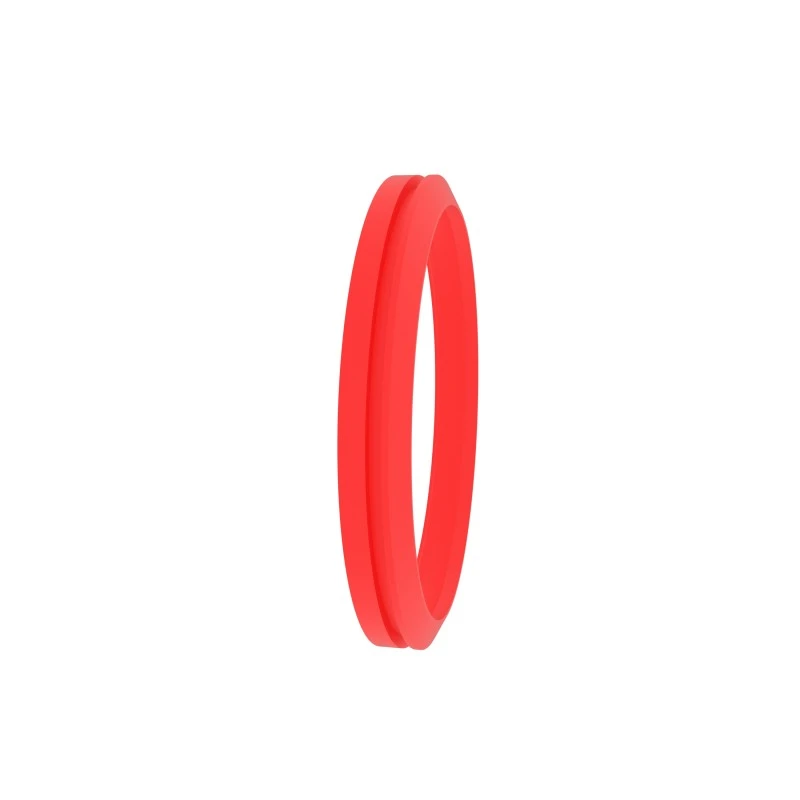

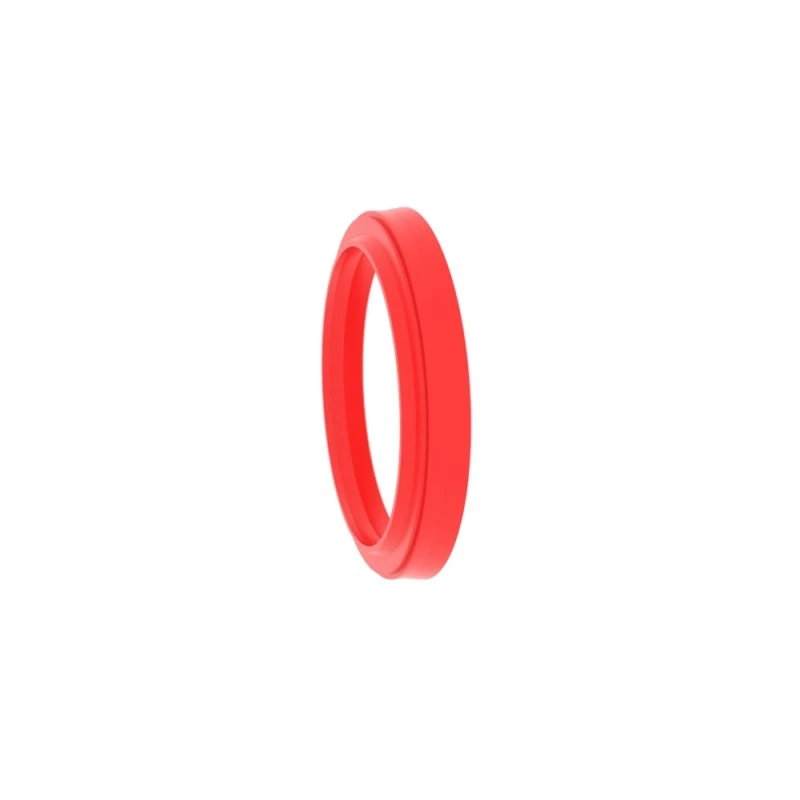

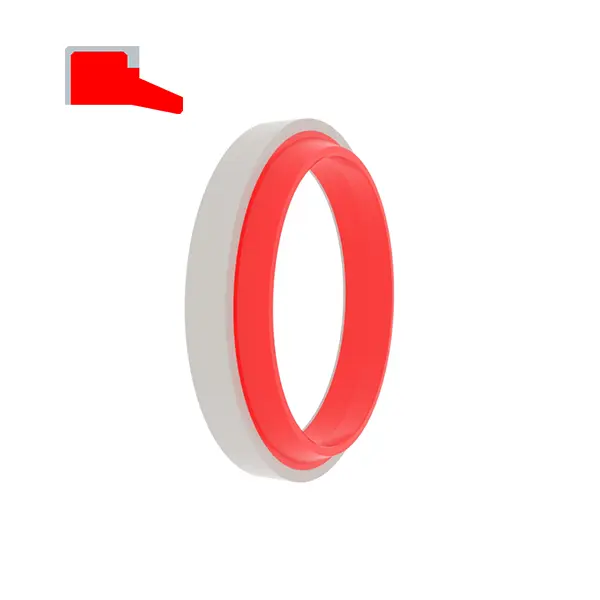

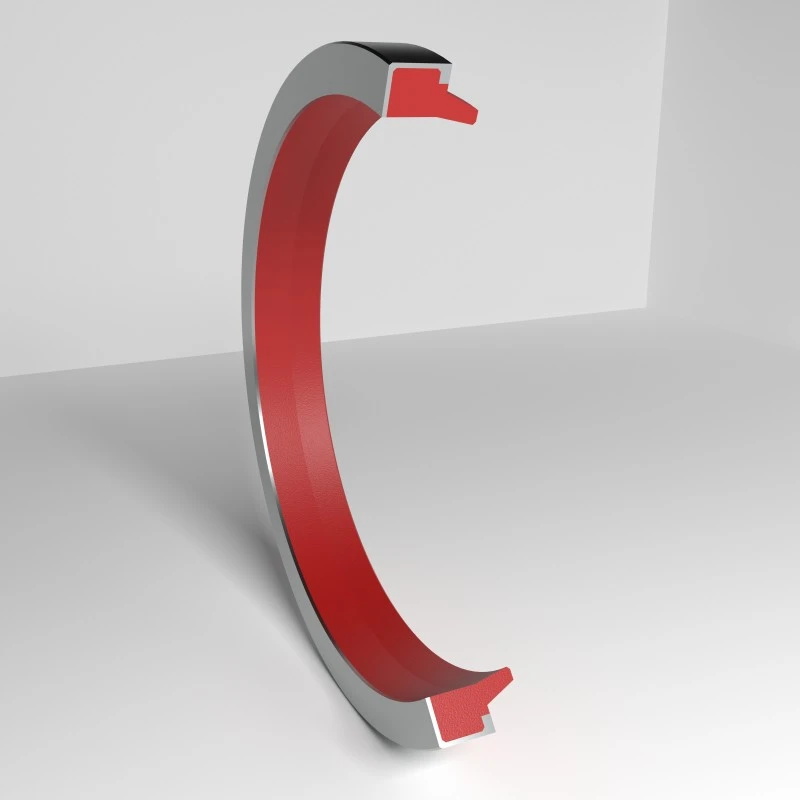

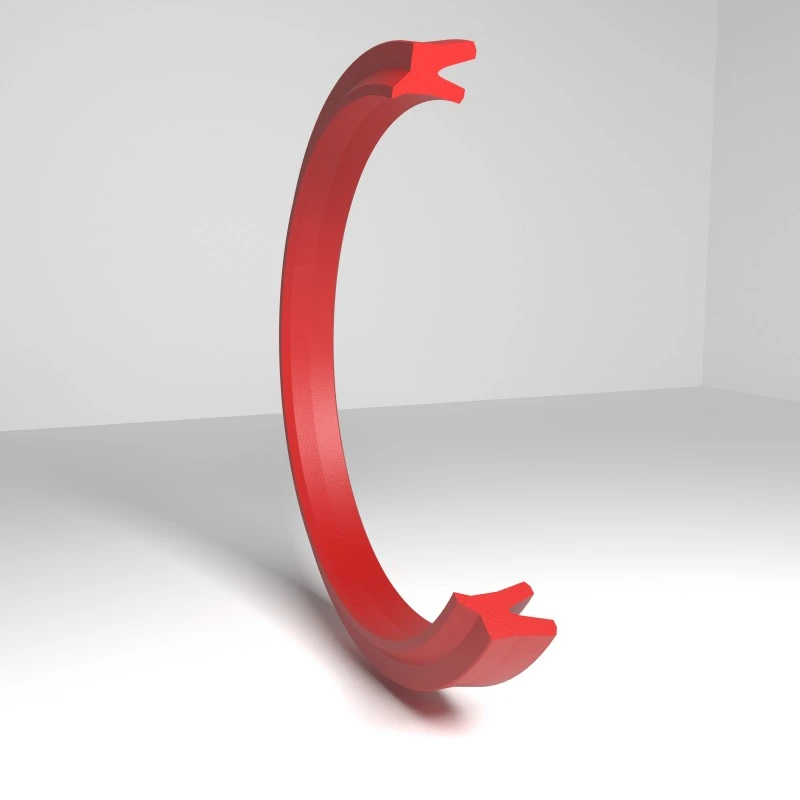

RCA103
Order size
ΦD......Outer diameter
Φd......Inner diameter
L......Groove width
H......Total height of dust seal

Ordering Example

Model: RCA103

Groove size/total dust seal height: 100x115x9/12

Material: RC-PU-H+POM

Seal Type: RCA103, RCA106
Main application: Standard cylinders and for open grooves
Advantages: The anti-friction performance is good, and the support ring prevents oxidation from occurring between the groove and the seal, and the positioning and fit in the cavity are firm.
Material: (Ultra-high hardness) Polyurethane + polyoxymethylene, rubber + polyoxymethylene

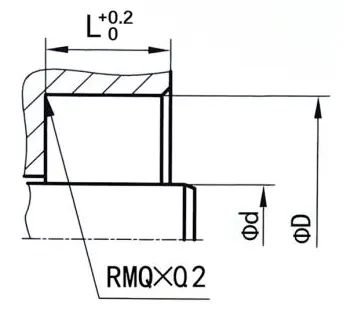

Seal groove examples	The following are standard groove dimensions (dust seals of any size within the size range can be produced)
	RCA103	Φd	ΦD	L	H
		6-9.9	Φd+8	5	8
	RCA106	10-99.9	Φd+10	7	10
		100-200	Φd+15	9	12
		＞200	Φd+20	12	16

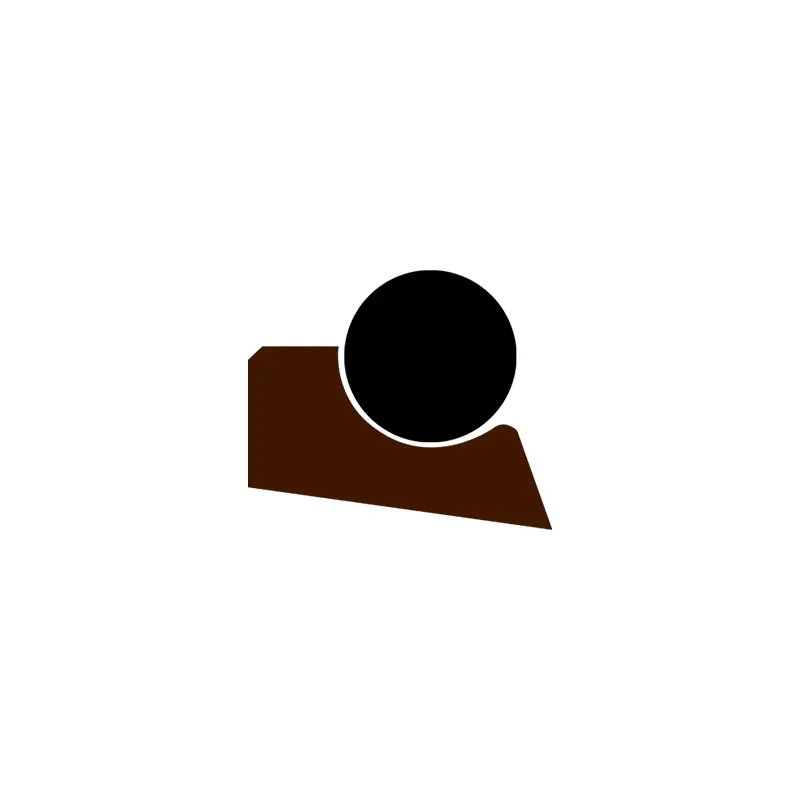

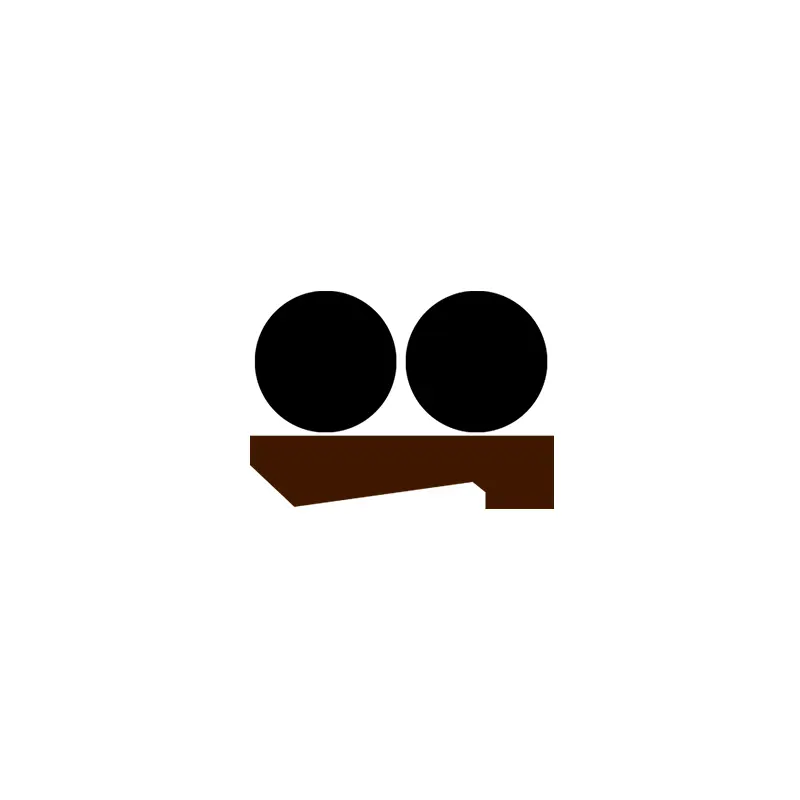

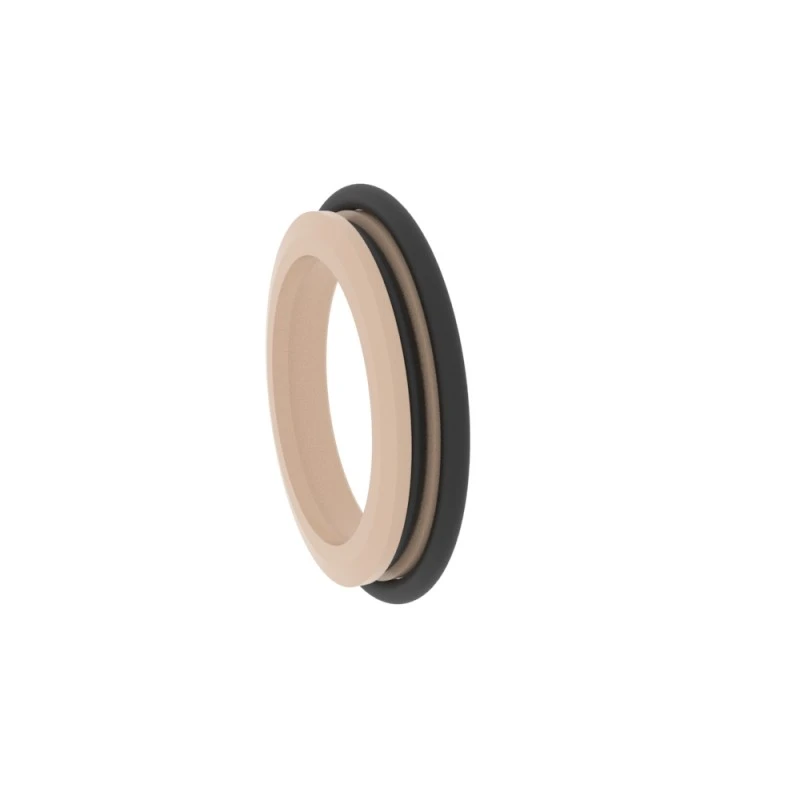

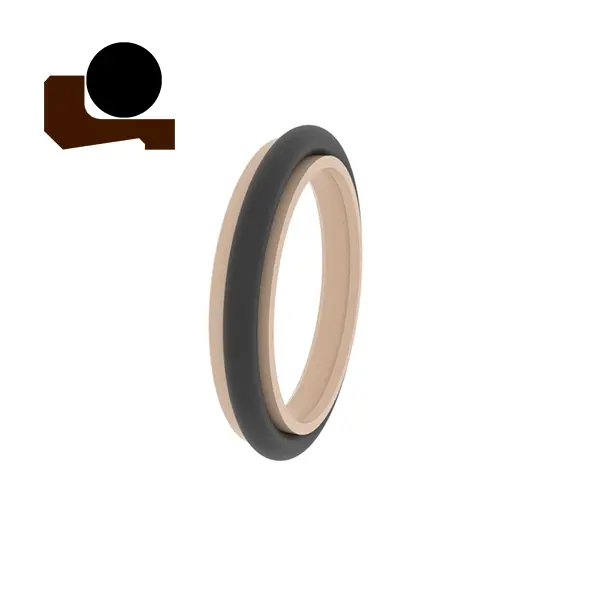

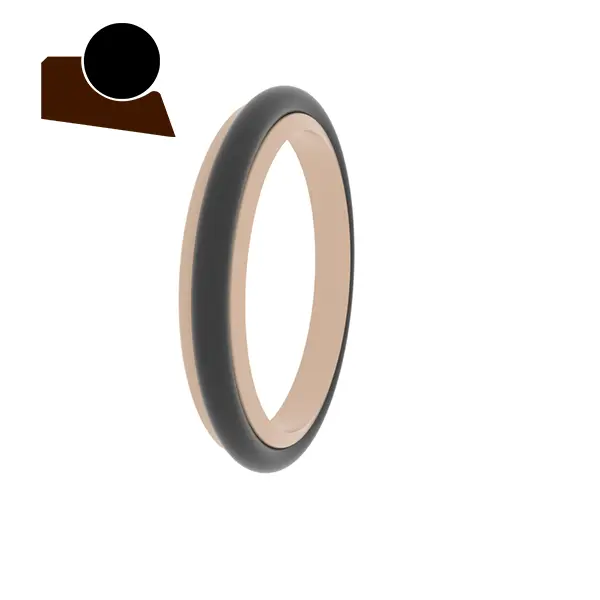

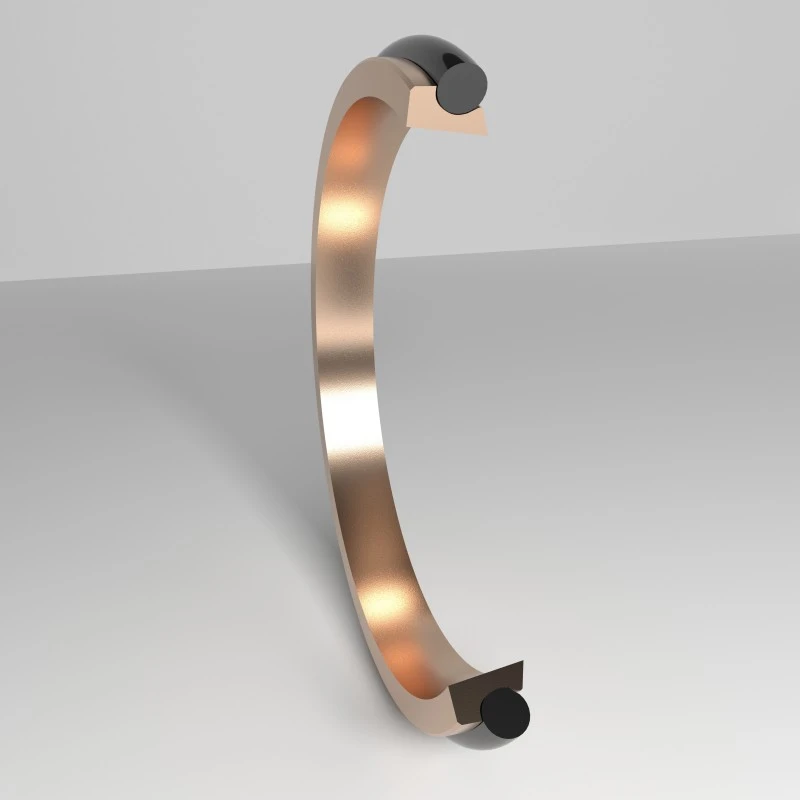

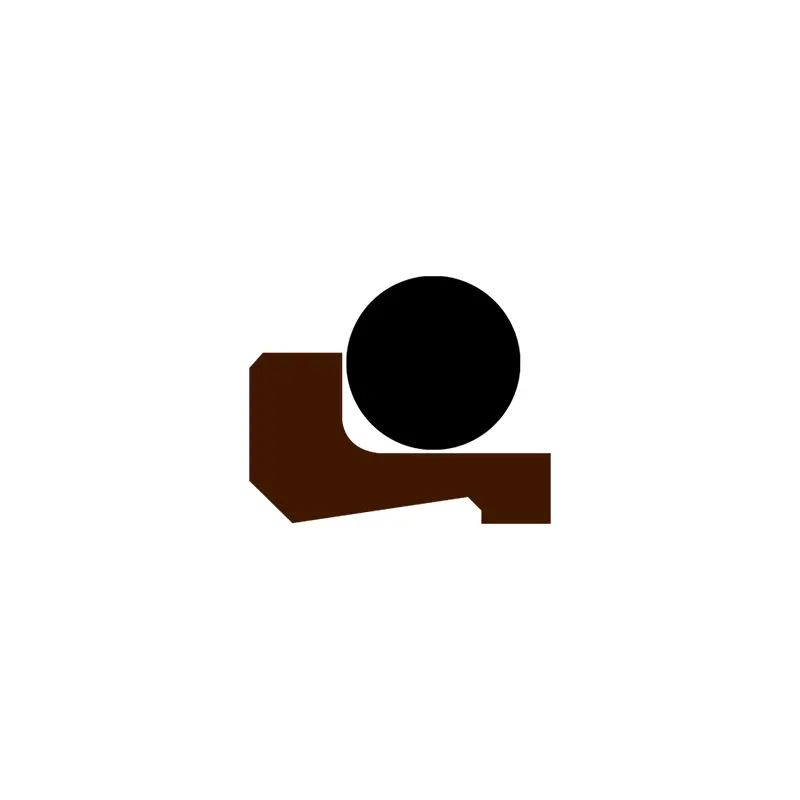

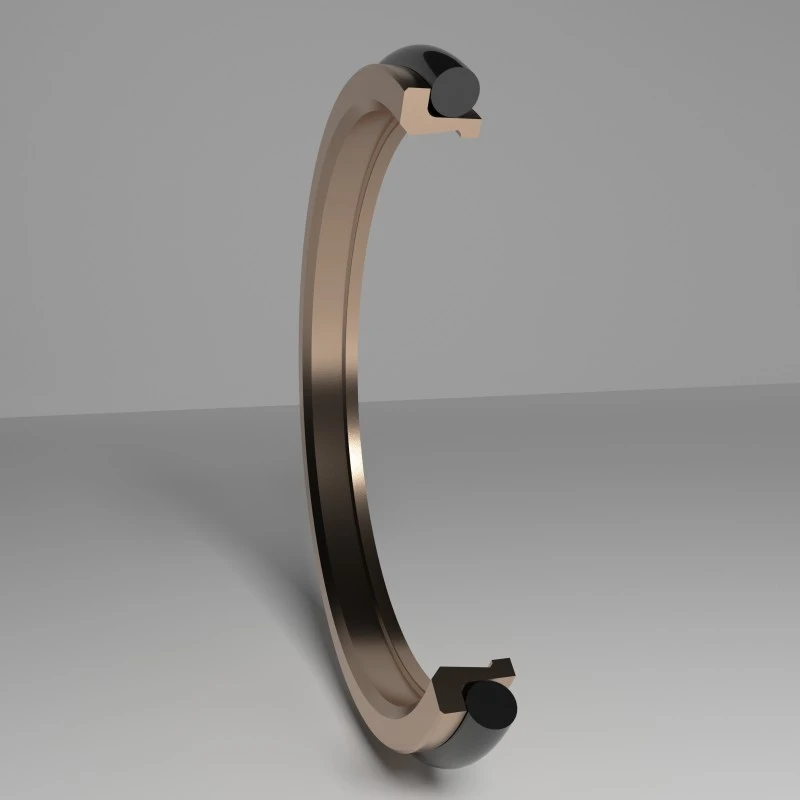

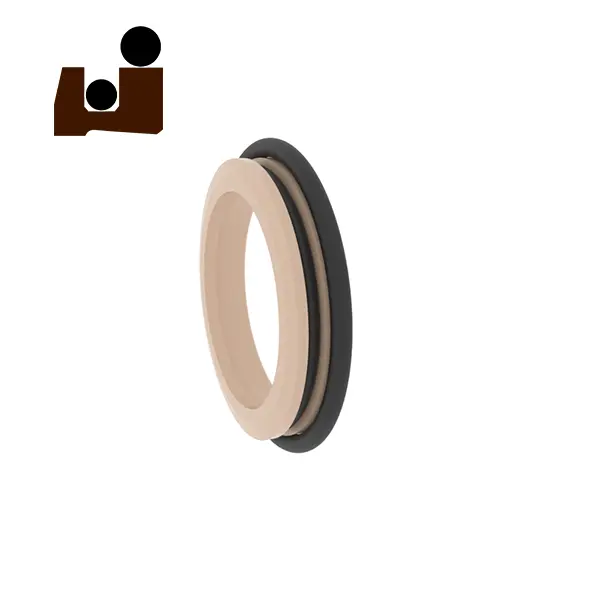

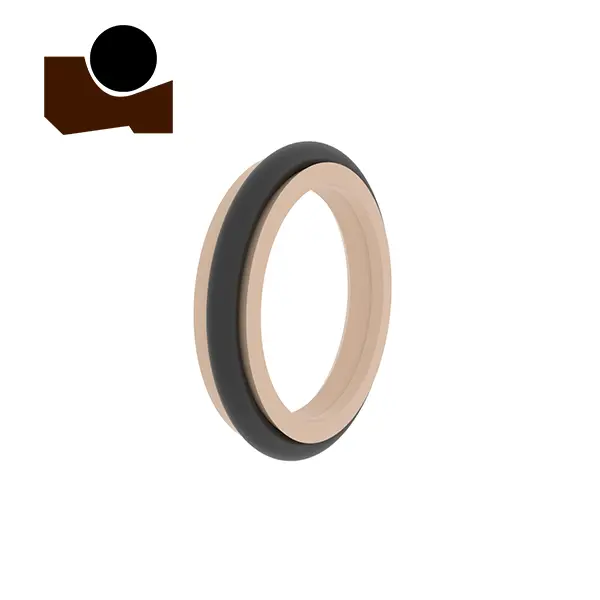

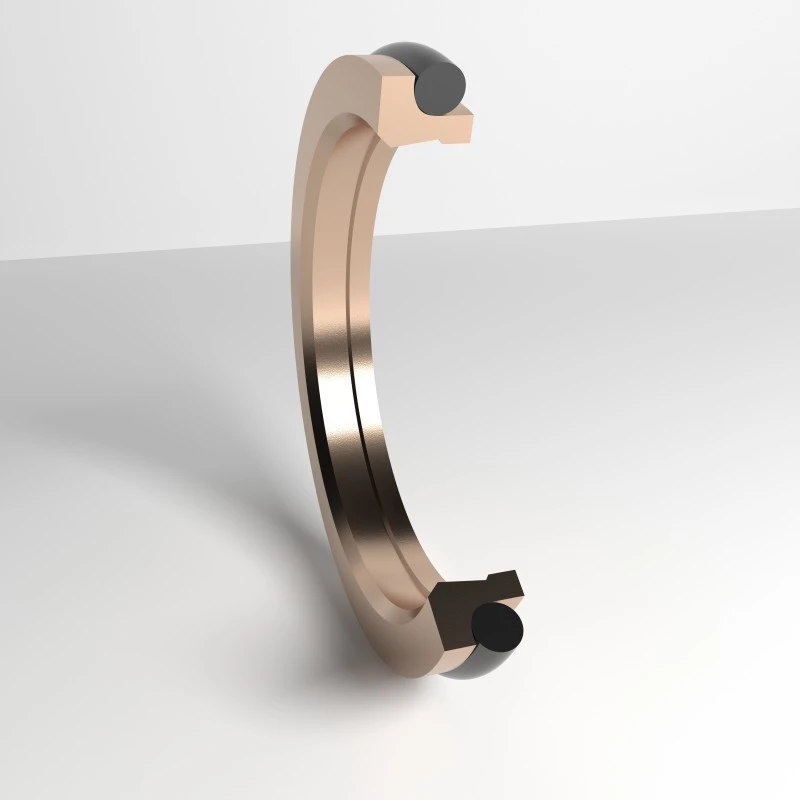

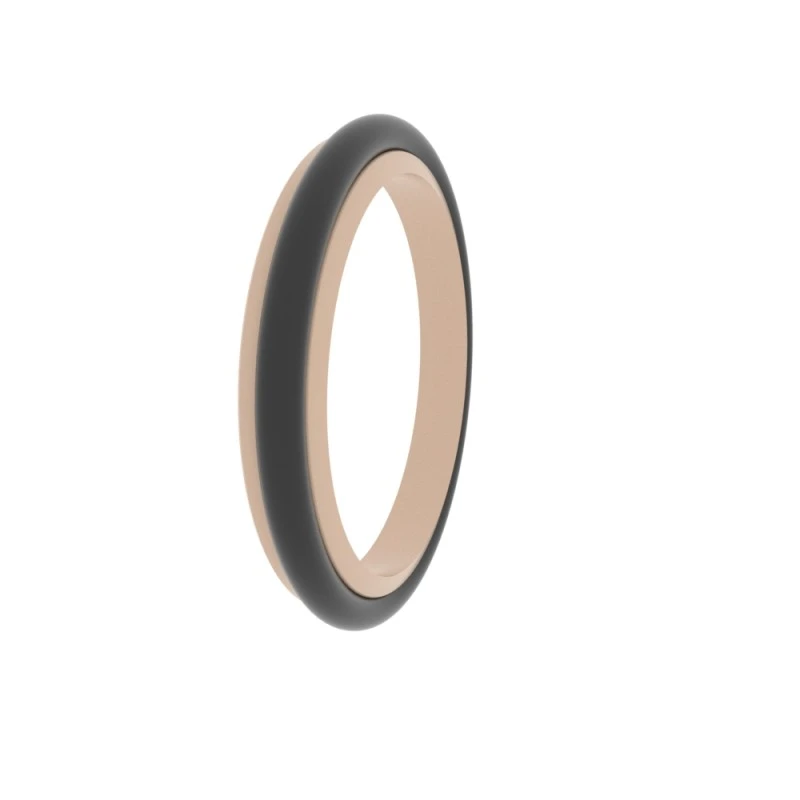

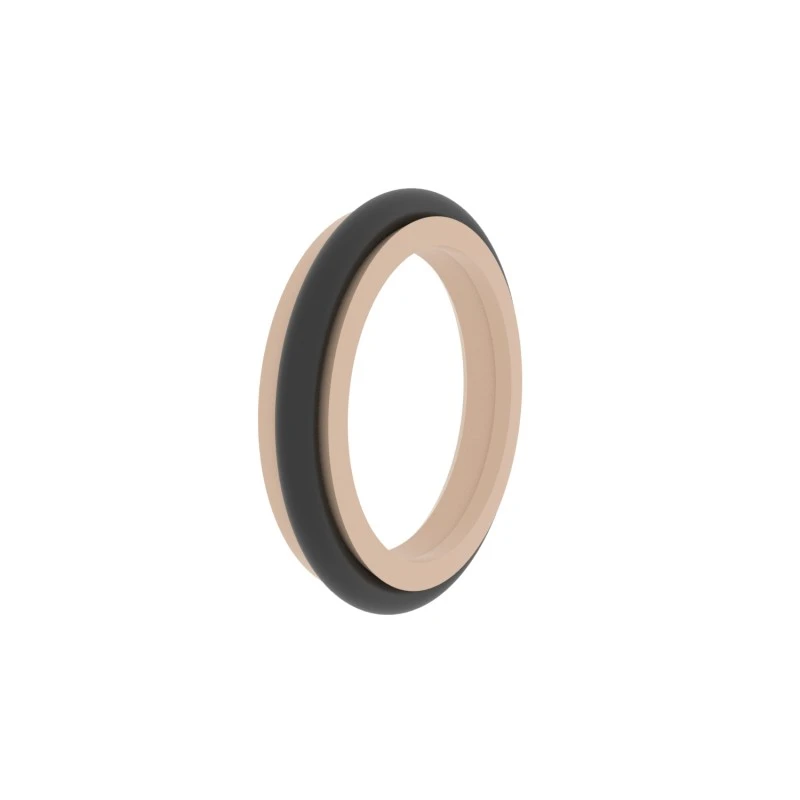

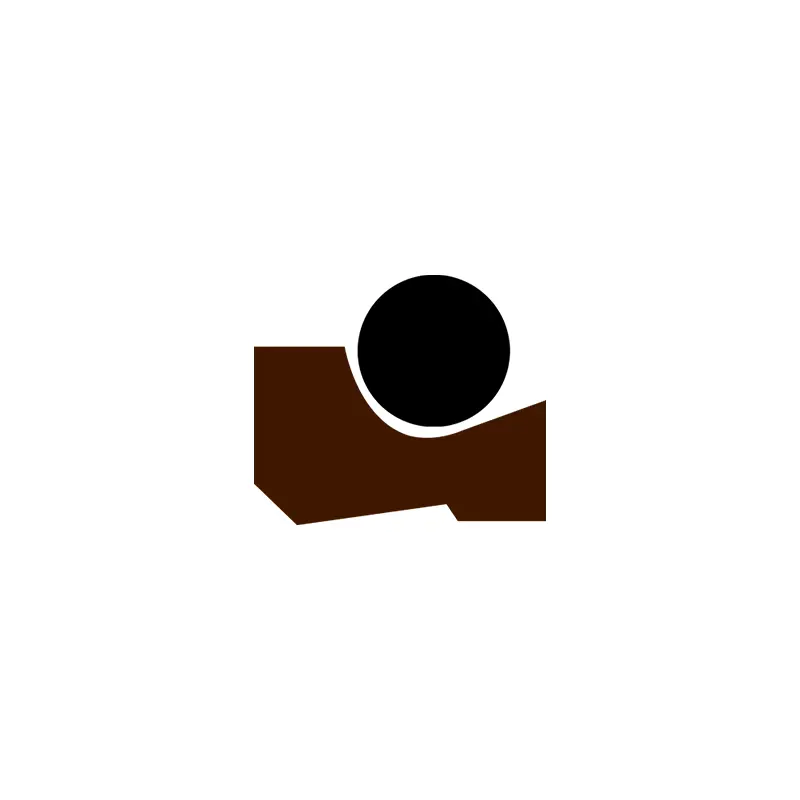

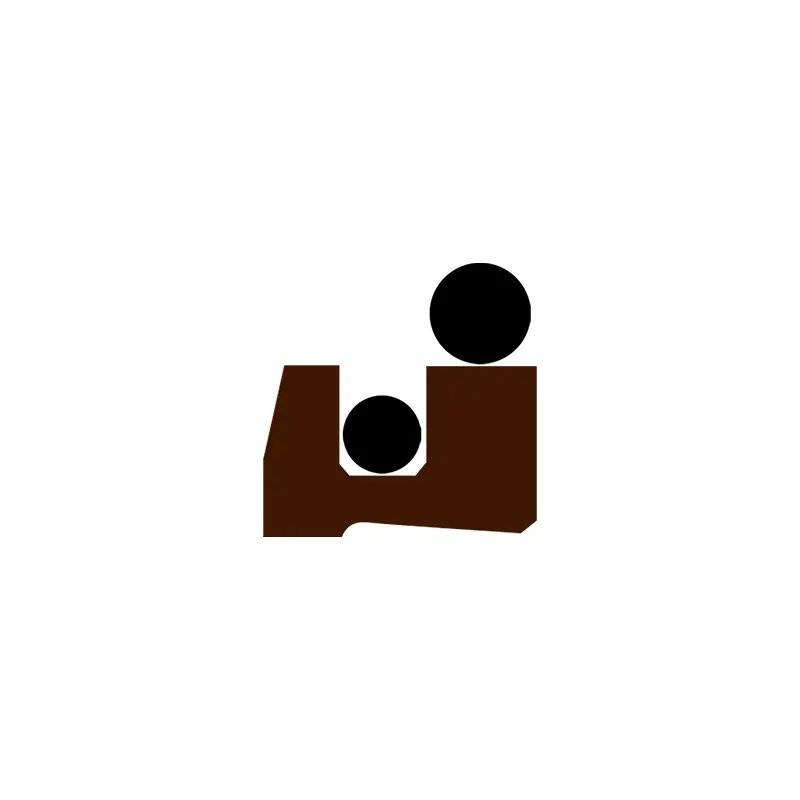

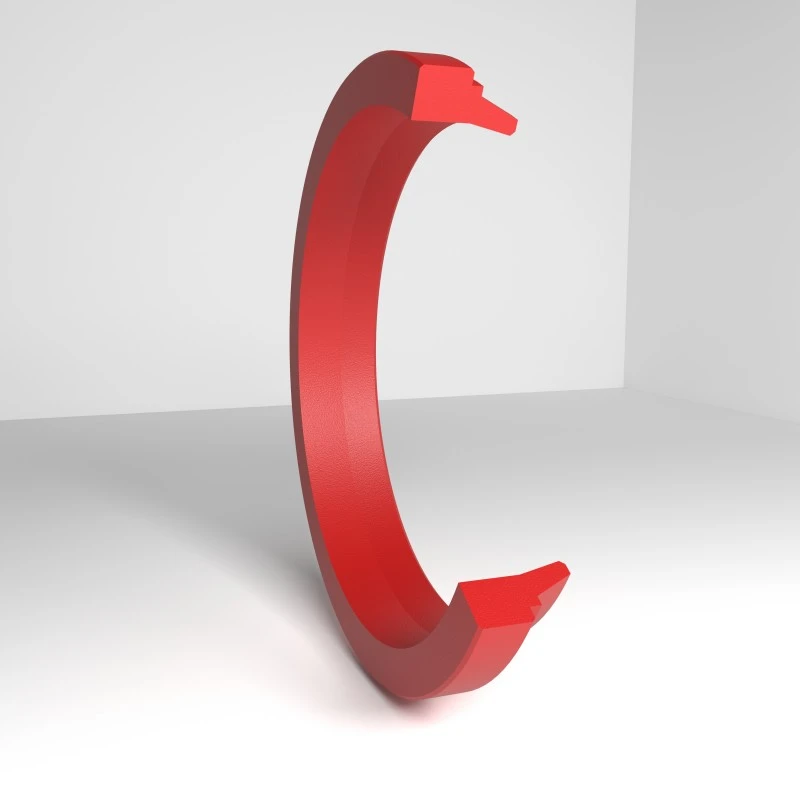

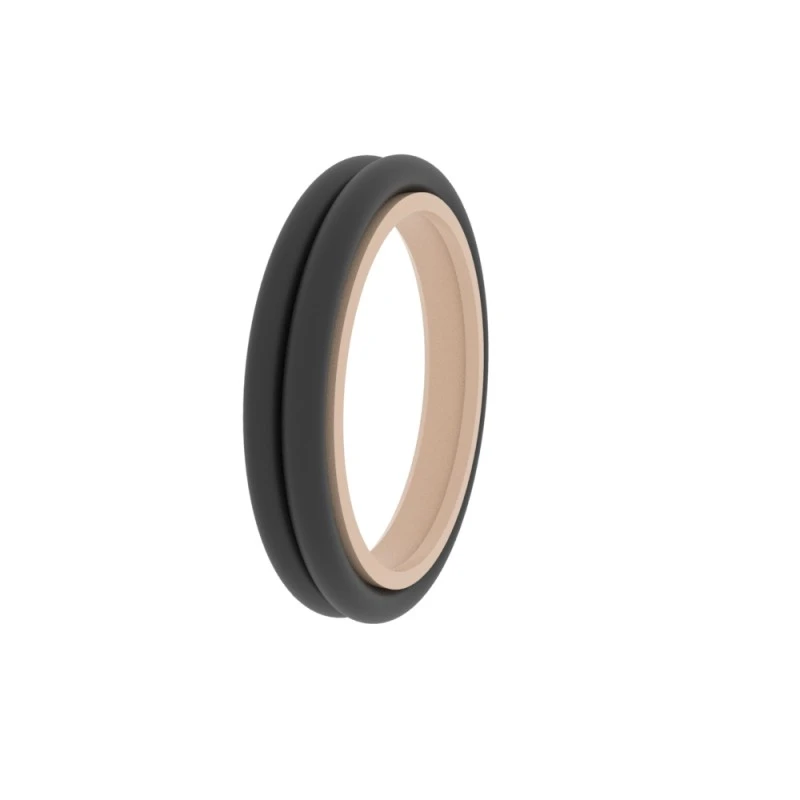

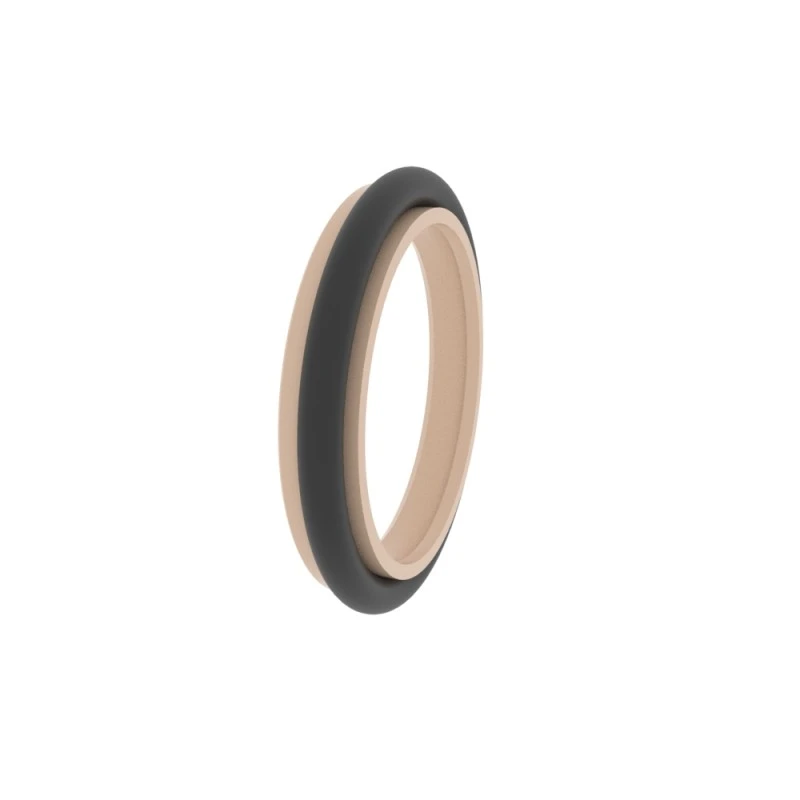

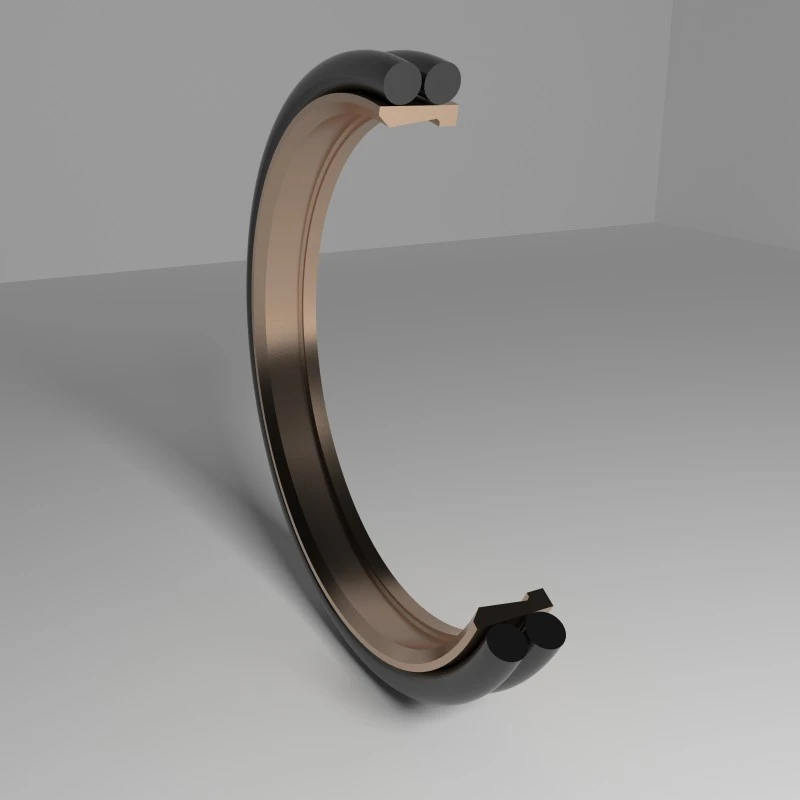

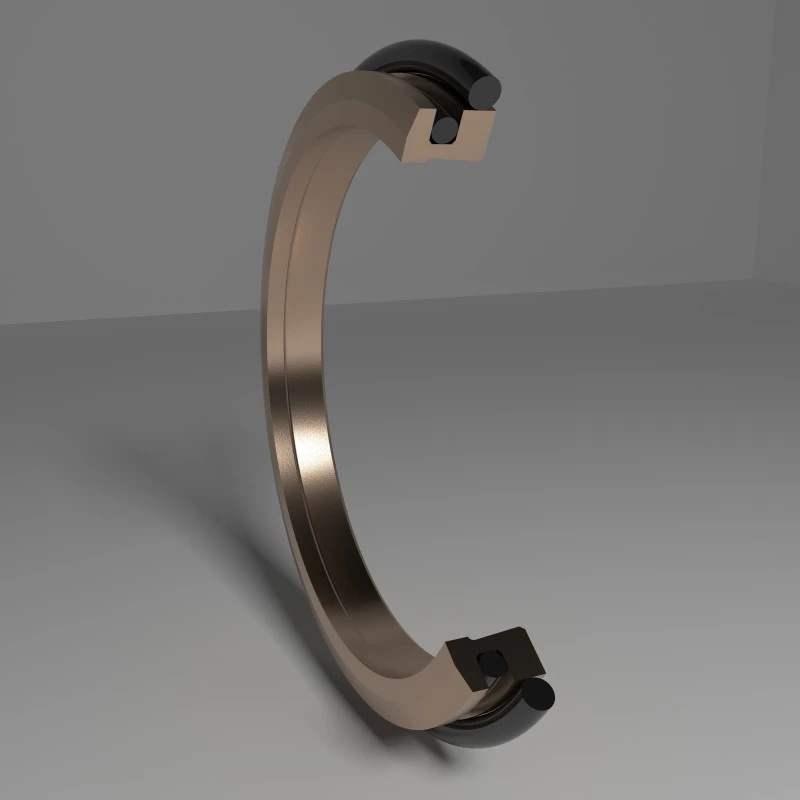

RCA115



Order size
ΦD......Outer diameter
ΦD1......Outer diameter
Φd......Inner diameter
L......Groove width

Ordering Example
Model: RCA115
Groove size/total dust seal height: 100x108.8x6
Material: PTFE3+NBR

Seal Type: RCA115, RCA118
Main application: Chemical industry, food industry and servo valves
Advantages: Low friction coefficient, no creeping, small installation space, long wear-resistant life, and excellent adjustment and positioning capabilities during work.
Material: Tetrafluoroethylene, nitrile rubber or fluorine rubber

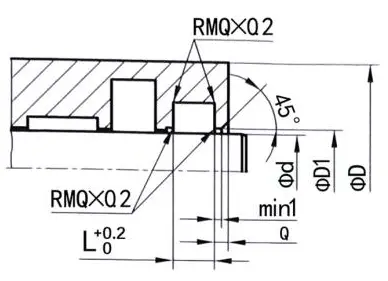

Seal groove examples	The following are standard groove dimensions (dust seals of any size within the size range can be produced)
	RCA115	Φd	ΦD	L	D1	a	O-Ring
		6-11.9	Φd+4.8	3.7	d+1.5	2	1.78
		12-64.9	Φd+6.8	5.0	d+1.5	2	2.62
	RCA116	65-250.9	Φd+8.8	6.0	d+1.5	3	3.53
		251-420.9	Φd+12.2	8.4	d+2	3	5.33
		421-650.9	Φd+16.0	11.0	d+2	4	7.00
		≥150	Φd+20.0	12.0	d+2.5	5	8.40
