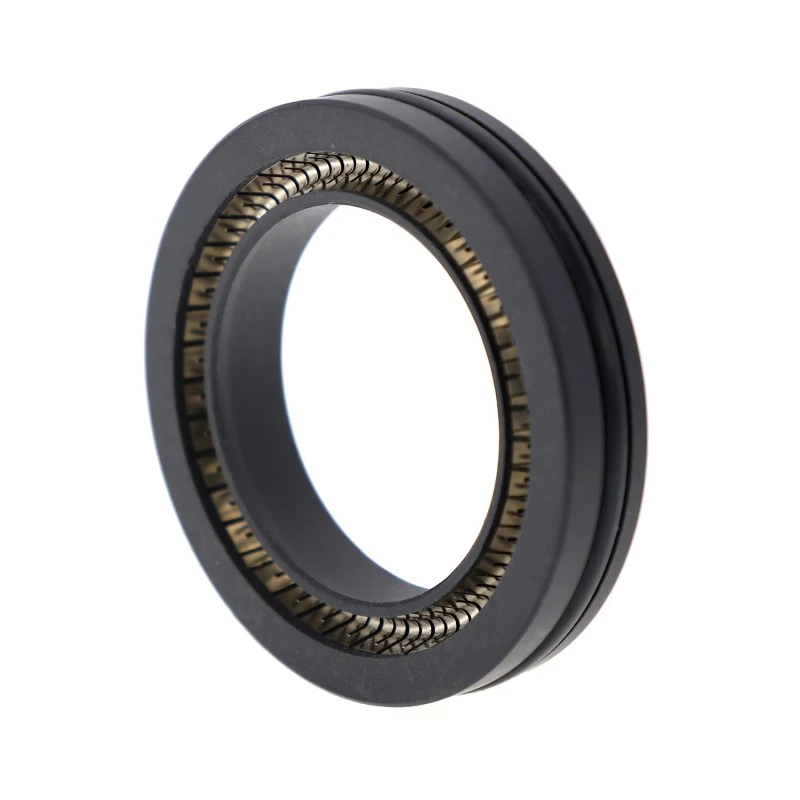

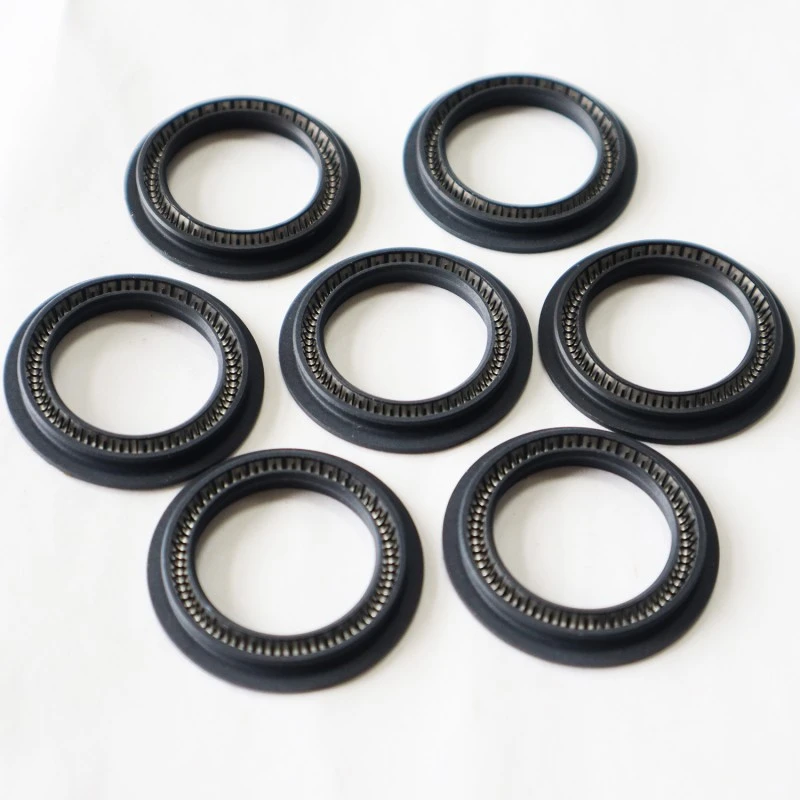

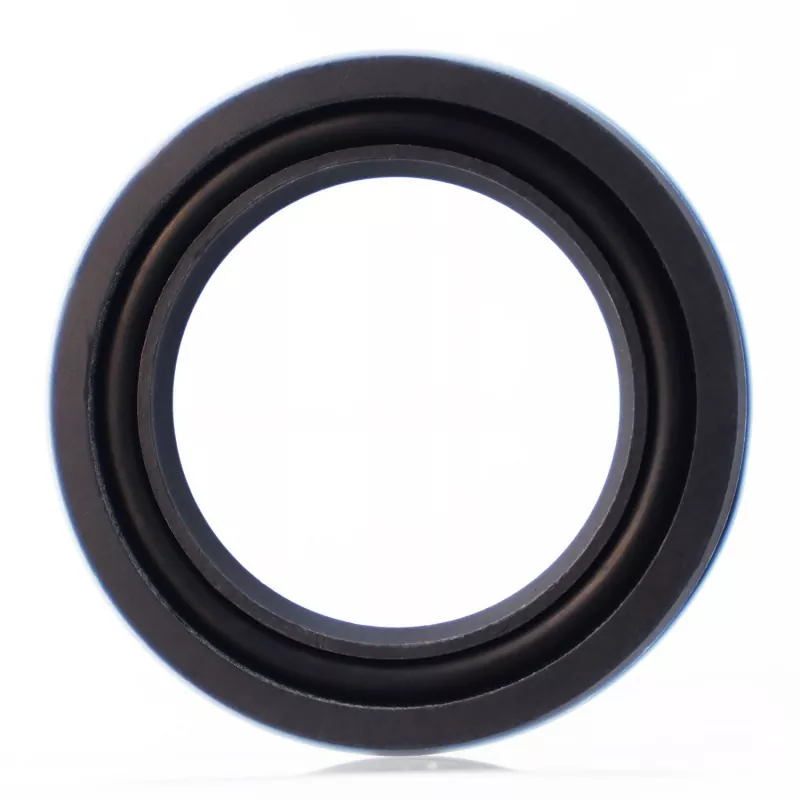

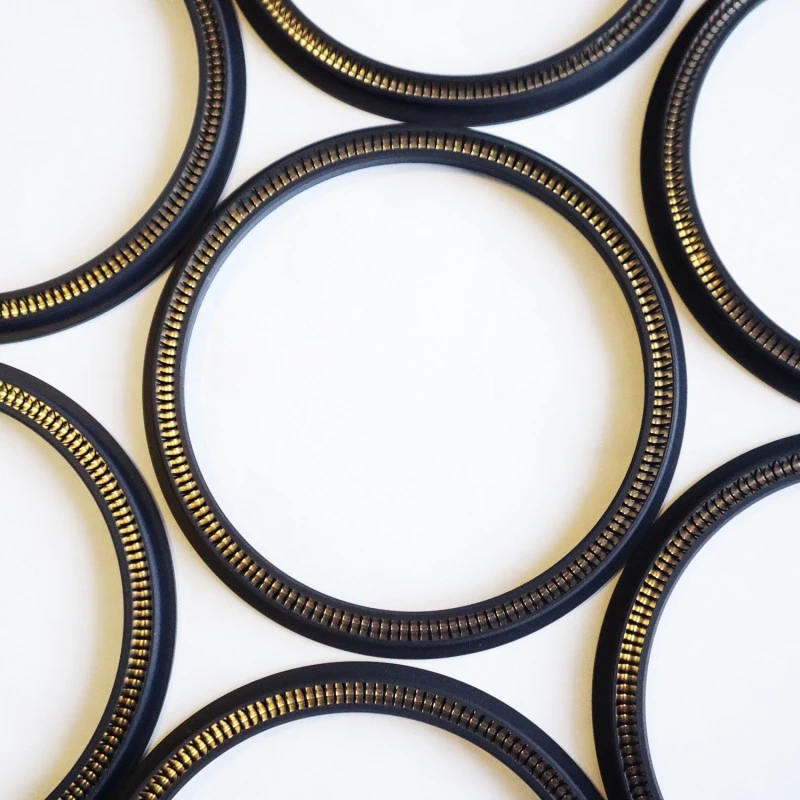

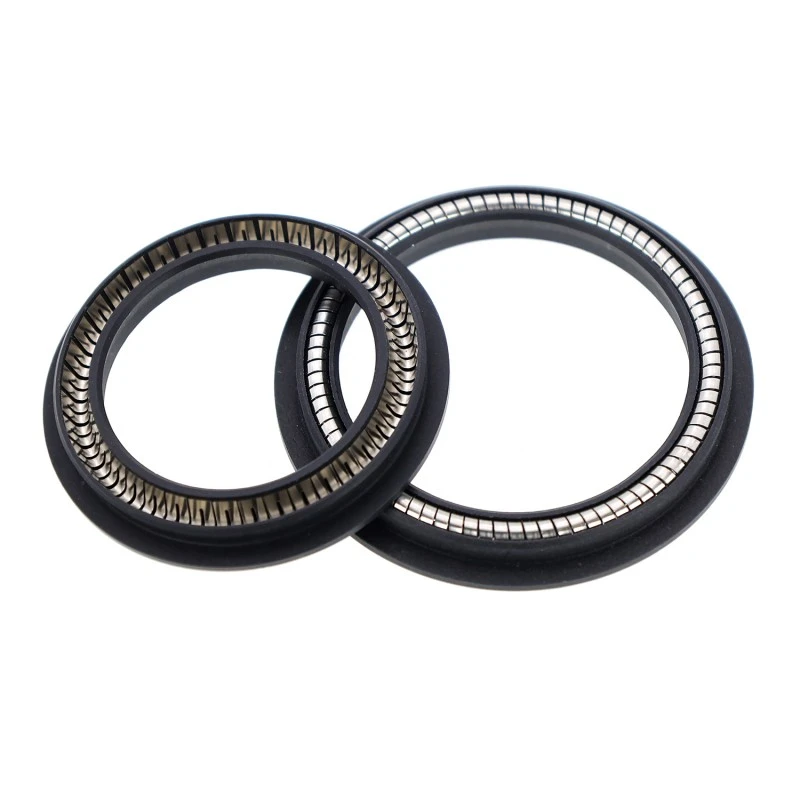

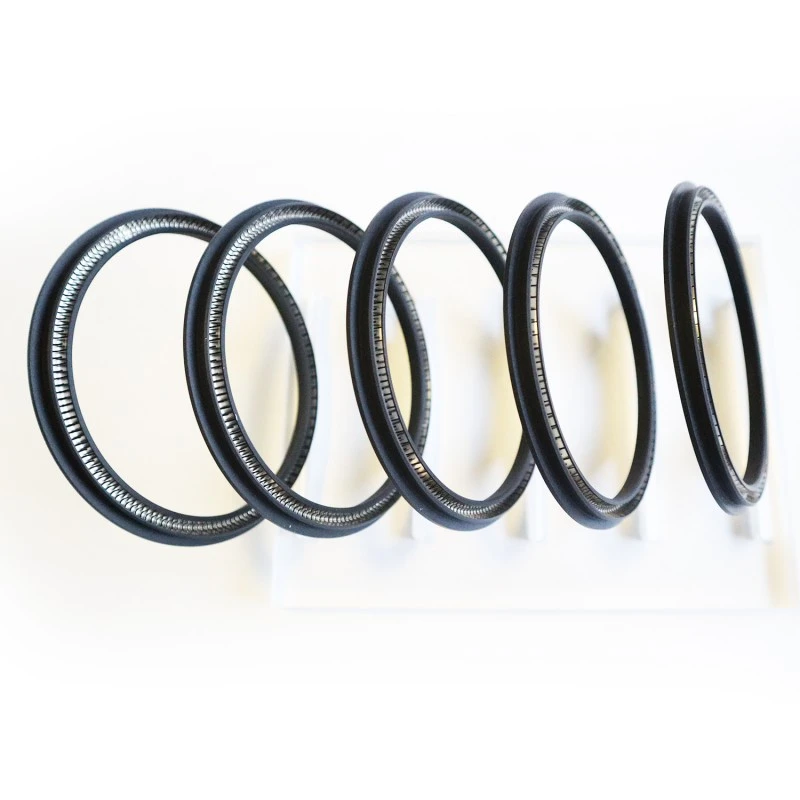

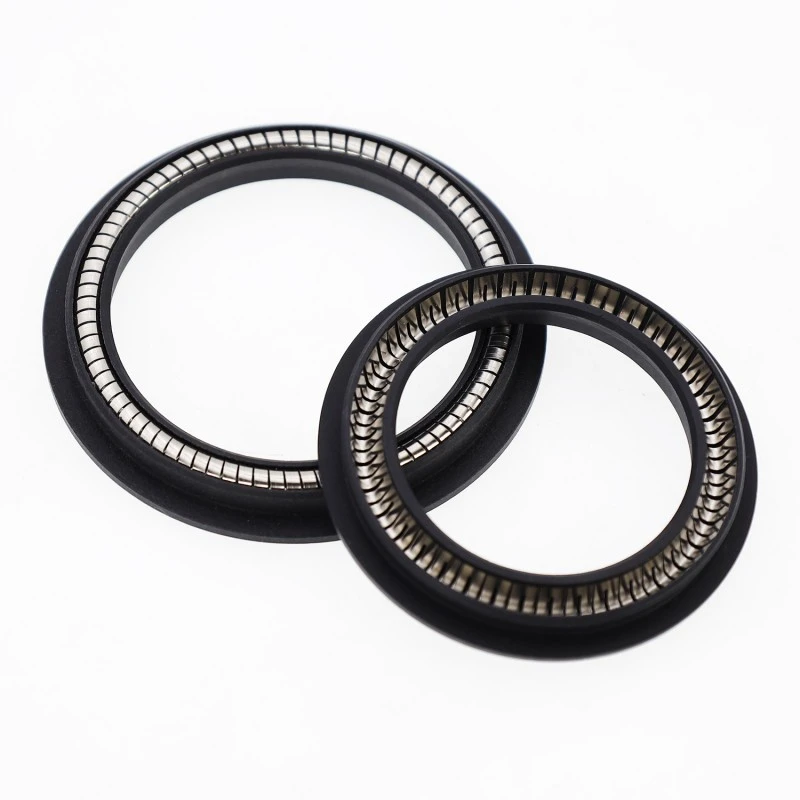

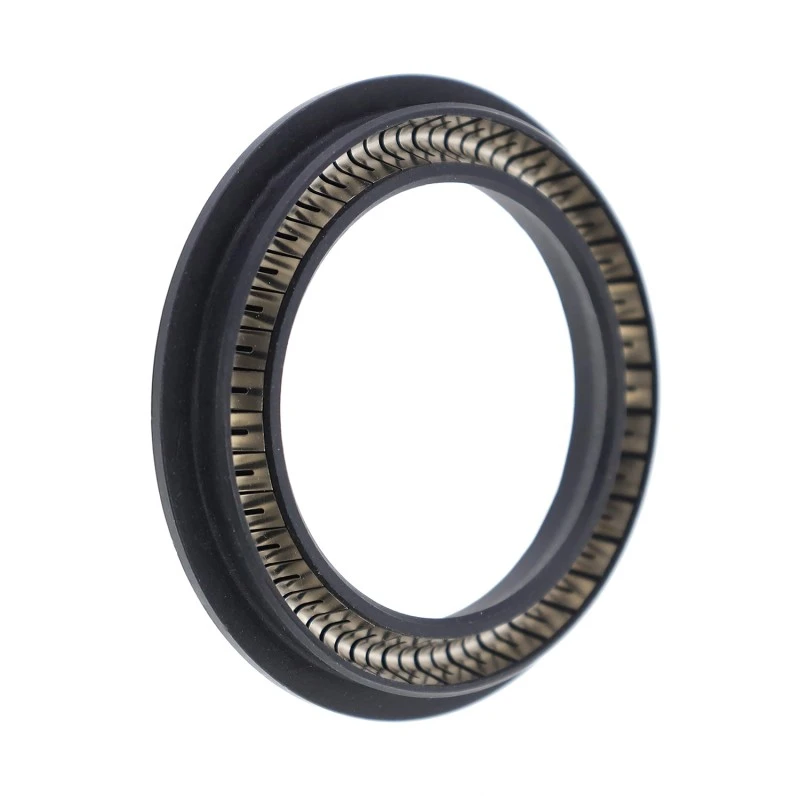

Spring-energized seals for rotary shafts are high-performance, unidirectional pressure seals used in rotary shaft applications. The RC2055 rotary seal consists of a stainless steel spring and high-performance plastic. When using RC2055-B and RC2055-C, the appropriate elastomer material must be carefully selected.
Applicable operating conditions (extreme values should not occur simultaneously)
|
Pressure/MPa |
Temperature / °C |
Speed / m/s |
Medium |
|||
|
≤35 |
RC2055 |
RC2055-B/C |
RC2055 |
RC2055-B |
RC2055-C |
Almost all liquid and gaseous media |
|
-200~+250 |
-35~+250 |
<2M/S |
<6M/S |
<2M/S |
||
Material Selection
1. Available O-ring materials include: R01 Nitrile rubber (NBR), R02 Fluororubber (FKM), etc.
2. Seal ring materials: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Stainless steel spring: V-shaped spring.
Production Process Control
RuiChen's modern production base is equipped with high-precision injection molding machines, automatic vacuum vulcanizing machines, and CNC precision machining equipment. During the production process, we utilize SPC (Statistical Process Control) methods to monitor key process parameters such as temperature, pressure, and time in real time, ensuring that every molded product exhibits high consistency and stability.
For critical products, we implement a 100% inspection system, rather than random sampling, to ensure that every seal delivered to our customers is qualified.
Order example
RC2055-40-PTFE4+V: Shaft diameter 40, sealing ring material PTFE4, stainless steel spring is V-shaped.
RC2055-B-40-PTFE4+R02: Shaft diameter 40, sealing ring material PTFE4, matching O-ring is fluororubber.
RC2055-C-40-PTFE4+R02: Shaft diameter 40, sealing ring material PTFE4, matching O-ring is fluororubber.

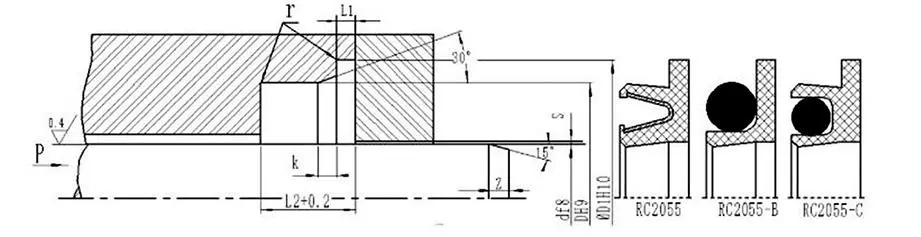

Specifications Table (All specifications within the parameter range are available)
|
Rod diameter range d f8 |
Groove diameter DH9 |
Groove diameter D1H10 |
Edge depth L1 |
Groove width L |
Import chamfer k |
Radial clearance Smax |
Chamfer length |
r max |
|
|
10MPA |
20MPA |
||||||||
|
5~19.9 |
d+5 |
d+9 |
0.85-0.1 |
3.6 |
0.3 |
0.15 |
0.1 |
Zmin=0.8L |
0.8 |
|
20~39.9 |
d+7 |
d+12.5 |
1.35-0.15 |
4.8 |
0.4 |
0.20 |
0.15 |
1.1 |
|
|
40~400.9 |
d+10.5 |
d+17.5 |
1.8-02 |
7.1 |
0.5 |
0.25 |
0.20 |
1.4 |
|
|
401~1500 |
d+14 |
d+22 |
2.8-02 |
9.5 |
0.5 |
0.30 |
0.25 |
1.6 |
|
Note: It is recommended that the surface hardness of the rotating shaft be HRC ≥ 58.
Specifications and dimensions table (This table applies to RC2055-B and RC2055-C, which have the same specifications)
|
Model |
d |
D |
D1 |
L |
L1 |
|
Model |
d |
D |
D1 |
L |
L1 |
|
RC2055-5 |
5 |
10 |
14 |
3.6 |
0.85 |
RC2055-28 |
28 |
35 |
40.5 |
4.8 |
1.35 |
|
|
RC2055-6 |
6 |
11 |
15 |
3.6 |
0.85 |
RC2055-30 |
30 |
37 |
42.5 |
4.8 |
1.35 |
|
|
RC2055-8 |
8 |
13 |
17 |
3.6 |
0.85 |
RC2055-32 |
32 |
39 |
44.5 |
4.8 |
1.35 |
|
|
RC2055-10 |
10 |
15 |
19 |
3.6 |
0.85 |
RC2055-35 |
35 |
42 |
47.5 |
4.8 |
1.35 |
|
|
RC2055-12 |
12 |
17 |
21 |
3.6 |
0.85 |
RC2055-36 |
36 |
43 |
48.5 |
4.8 |
1.35 |
|
|
RC2055-15 |
15 |
20 |
24 |
3.6 |
0.85 |
RC2055-40 |
40 |
50.5 |
57.5 |
7.1 |
1.8 |
|
|
RC2055-18 |
18 |
23 |
27 |
3.6 |
0.85 |
RC2055-45 |
45 |
55.5 |
62.5 |
7.1 |
1.8 |
|
|
RC2055-20 |
20 |
27 |
32.5 |
4.8 |
1.35 |
RC2055-50 |
50 |
60.5 |
67.5 |
7.1 |
1.8 |
|
|
RC2055-22 |
22 |
29 |
34.5 |
4.8 |
1.35 |
RC2055-55 |
55 |
65.5 |
72.5 |
7.1 |
1.8 |
|
|
RC2055-25 |
25 |
32 |
37.5 |
4.8 |
1.35 |
RC2055-56 |
56 |
66.5 |
73.5 |
7.1 |
1.8 |
|
Model |
d |
D |
D1 |
L |
L1 |
|
Model |
d |
D |
D1 |
L |
L1 |
|
RC2055-60 |
60 |
70.5 |
77.5 |
7.1 |
1.8 |
RC2055-210 |
210 |
220.5 |
227.5 |
7.1 |
1.8 |
|
|
RC2055-63 |
63 |
73.5 |
80.5 |
7.1 |
1.8 |
RC2055-220 |
220 |
230.5 |
237.5 |
7.1 |
1.8 |
|
|
RC2055-65 |
65 |
75.5 |
82.5 |
7.1 |
1.8 |
RC2055-230 |
230 |
240.5 |
247.5 |
7.1 |
1.8 |
|
|
RC2055-70 |
70 |
80.5 |
87.5 |
7.1 |
1.8 |
RC2055-240 |
240 |
250.5 |
257.5 |
7.1 |
1.8 |
|
|
RC2055-80 |
80 |
90.5 |
97.5 |
7.1 |
1.8 |
RC2055-250 |
250 |
260.5 |
267.5 |
7.1 |
1.8 |
|
|
RC2055-90 |
90 |
100.5 |
107.5 |
7.1 |
1.8 |
RC2055-260 |
260 |
270.5 |
277.5 |
7.1 |
1.8 |
|
|
RC2055-100 |
100 |
110.5 |
117.5 |
7.1 |
1.8 |
RC2055-280 |
280 |
290.5 |
297.5 |
7.1 |
1.8 |
|
|
RC2055-110 |
110 |
120.5 |
127.5 |
7.1 |
1.8 |
RC2055-300 |
300 |
310.5 |
317.5 |
7.1 |
1.8 |
|
|
RC2055-115 |
115 |
125.5 |
132.5 |
7.1 |
1.8 |
RC2055-320 |
320 |
330.5 |
337.5 |
7.1 |
1.8 |
|
|
RC2055-120 |
120 |
130.5 |
137.5 |
7.1 |
1.8 |
RC2055-350 |
350 |
360.5 |
367.5 |
7.1 |
1.8 |
|
|
RC2055-125 |
125 |
135.5 |
142.5 |
7.1 |
1.8 |
RC2055-380 |
380 |
390.5 |
397.5 |
7.1 |
1.8 |
|
|
RC2055-130 |
130 |
140.5 |
147.5 |
7.1 |
1.8 |
RC2055-400 |
400 |
410.5 |
417.5 |
7.1 |
1.8 |
|
|
RC2055-140 |
140 |
150.5 |
157.5 |
7.1 |
1.8 |
RC2055-420 |
420 |
434 |
442 |
9.5 |
2.8 |
|
|
RC2055-150 |
150 |
160.5 |
167.5 |
7.1 |
1.8 |
RC2055-450 |
450 |
464 |
472 |
9.5 |
2.8 |
|
|
RC2055-160 |
160 |
170.5 |
177.5 |
7.1 |
1.8 |
RC2055-480 |
480 |
494 |
502 |
9.5 |
2.8 |
|
|
RC2055-170 |
170 |
180.5 |
187.5 |
7.1 |
1.8 |
RC2055-500 |
500 |
514 |
522 |
9.5 |
2.8 |
|
|
RC2055-180 |
180 |
190.5 |
197.5 |
7.1 |
1.8 |
RC2055-600 |
600 |
614 |
622 |
9.5 |
2.8 |
|
|
RC2055-190 |
190 |
200.5 |
207.5 |
7.1 |
1.8 |
RC2055-700 |
700 |
714 |
722 |
9.5 |
2.8 |
|
|
RC2055-200 |
200 |
210.5 |
217.5 |
7.1 |
1.8 |
RC2055-800 |
800 |
814 |
822 |
9.5 |
2.8 |
Note: If the required specifications are not listed in this table, please contact our company. We can supply products up to 1600mm in size.
