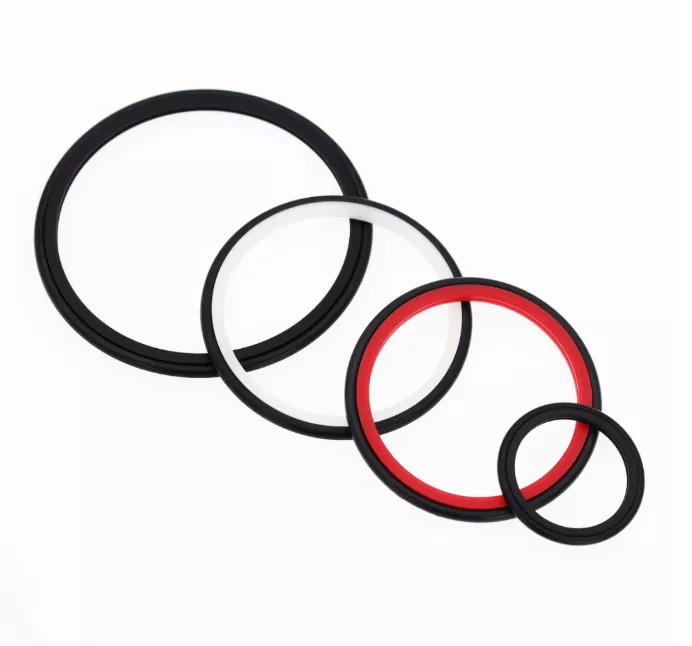

The RC2052 consists of a square sealing ring made of filled PTFE—featuring an integrated oil reservoir—combined with a rubber O-ring. It offers a long service life, low friction, excellent sealing performance, and a compact design, and is suitable for hydraulic sealing applications.
Product Name: Rotary Shaft Square-Profile Composite Seal (Rotary Glyd Ring)
Product Model: RC2052/RC2052D
|
Pressure (MPa) |
Temperature (°C) |
Speed (m/s) |
Medium |
|
≤40 |
-35 to +100 (with NBR O-ring) |
≤2 |
Hydraulic oil, emulsion, water, gas, etc. |
|
-20 to +200 (with NBR O-ring) |
1. Materials for the accompanying O-ring include: R01 Nitrile Rubber (NBR), R02 Fluororubber (FKM), etc.
2. Sealing ring materials: Standard materials are PTFE3 and PTFE4; other available options include PTFE1, PTFE2, and PTFE5.

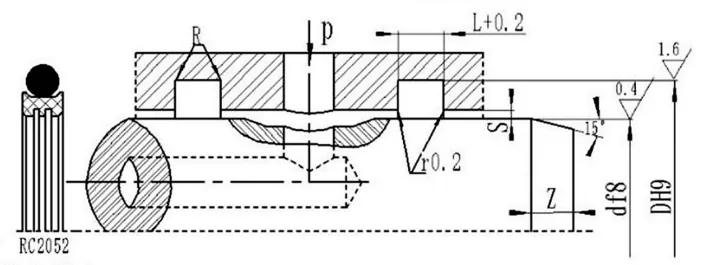

Order Model
RC2052—80x91x4.2—PTFE3—R01 (Model - d x D x L - Material Code)
We can manufacture seals in a wide range of specifications, cross-sections, and quantities, offering various material options. We ensure rapid delivery and can produce seals using specialized materials for specific applications to meet customer requirements.

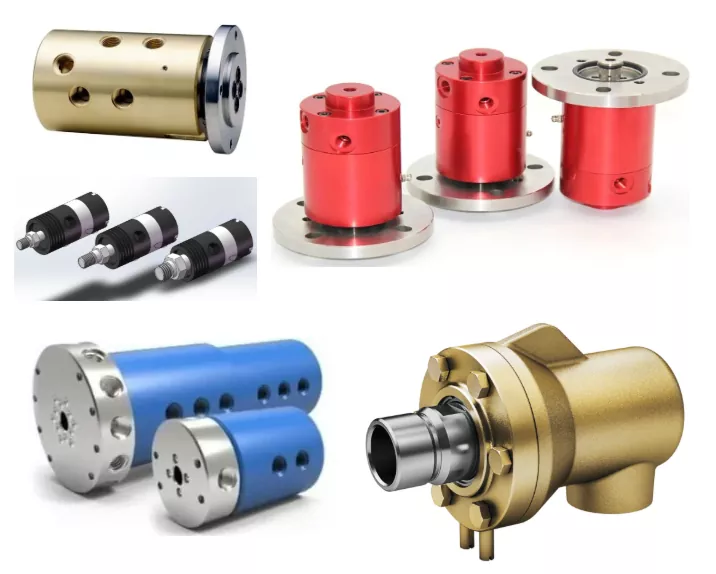

The RC2052 rotary Glyd Ring is designed for bidirectional sealing in hydraulic rotary applications. These products are suitable for use in industrial equipment such as rotary joints.
