Hydraulic Seals for Pistons and Piston Rods

Hydraulic seals for pistons and piston rods is one of the hydraulic seal series that Ruichen Seals can provide you. Our R&D and production capabilities have been tested by time and practical applications. The subdivided models in the product series are rich and diverse, providing more targeted solutions for different working conditions and scenarios.

Send Inquiry

Product Description

Hydraulic seals for pistons and piston rods is a unified name for a class of hydraulic seals, but in fact we have subdivided many different models, and the characteristics and focus of different models will also be different. As a professional manufacturer, we are very happy to introduce you. Of course, if you have other customized needs, you can also contact us for a deeper understanding.

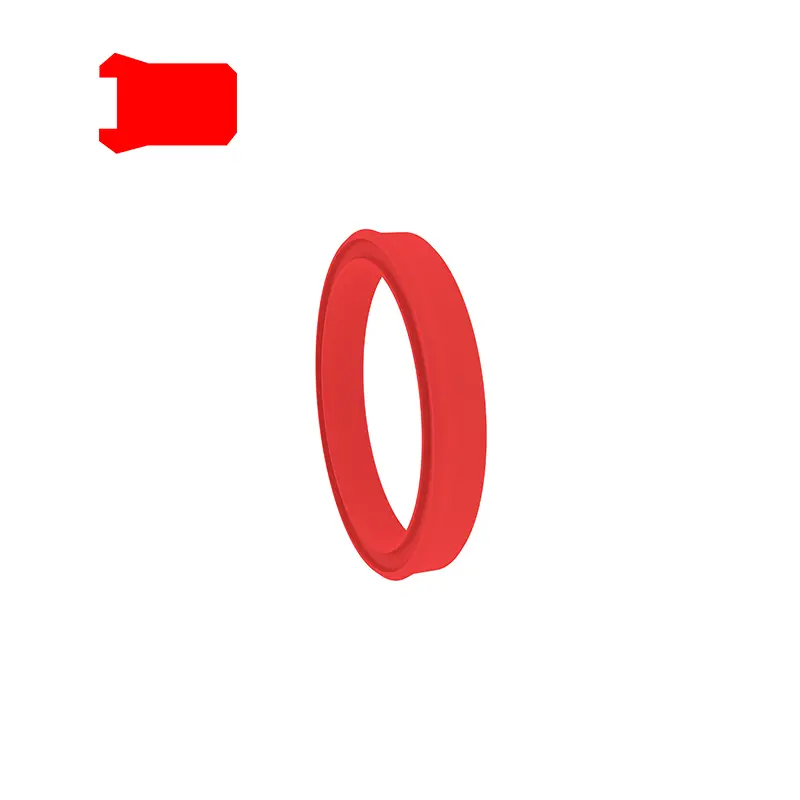

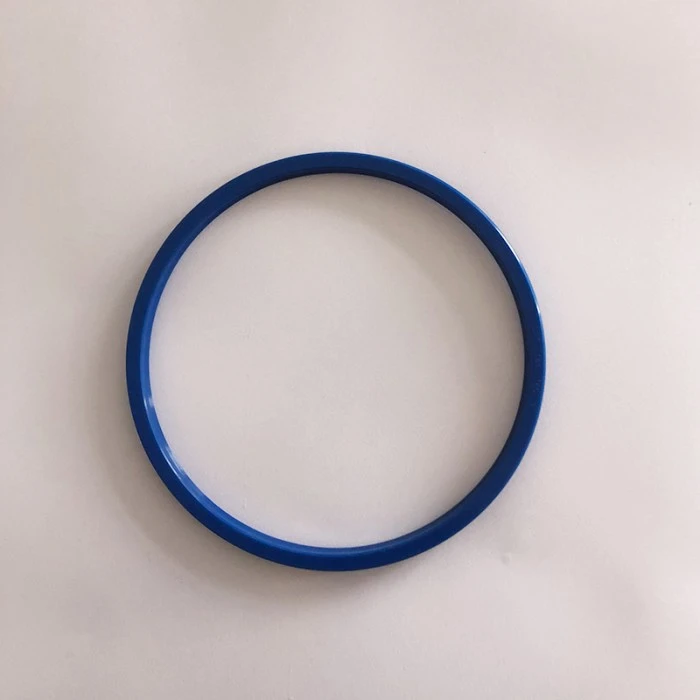

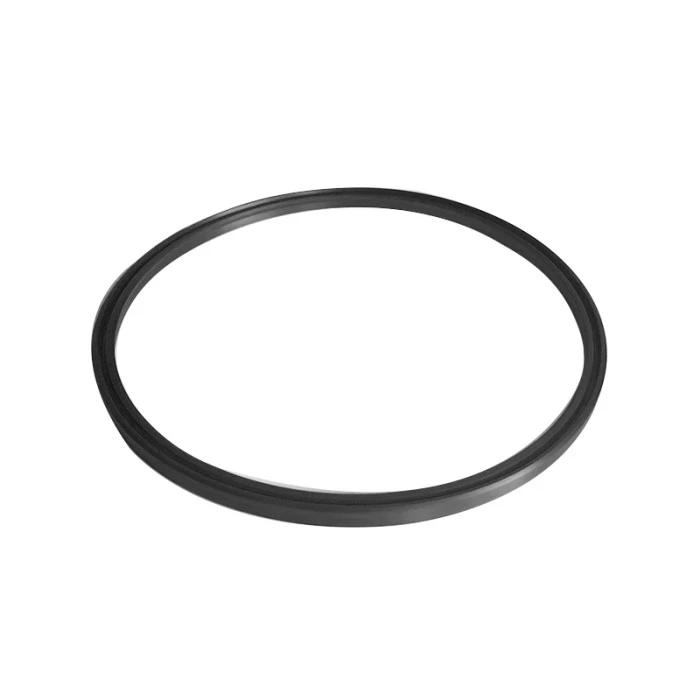

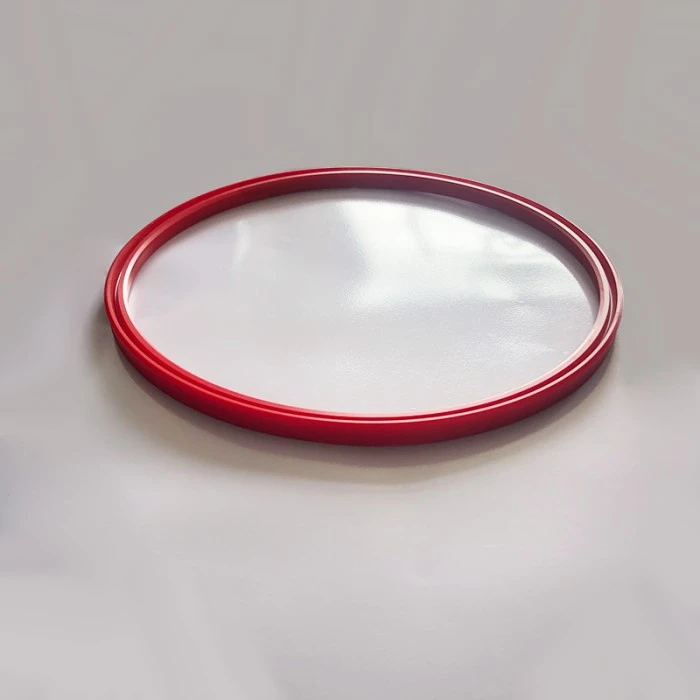

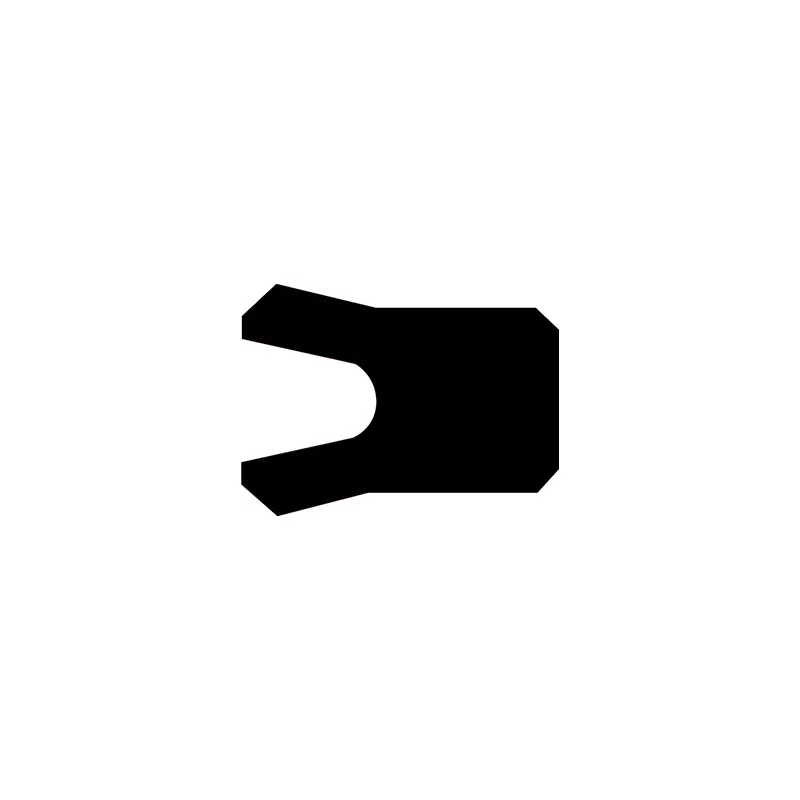

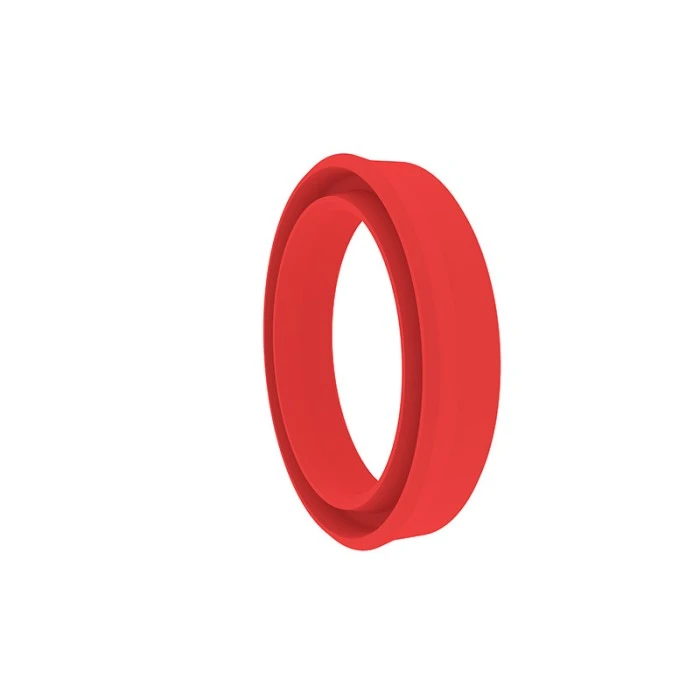

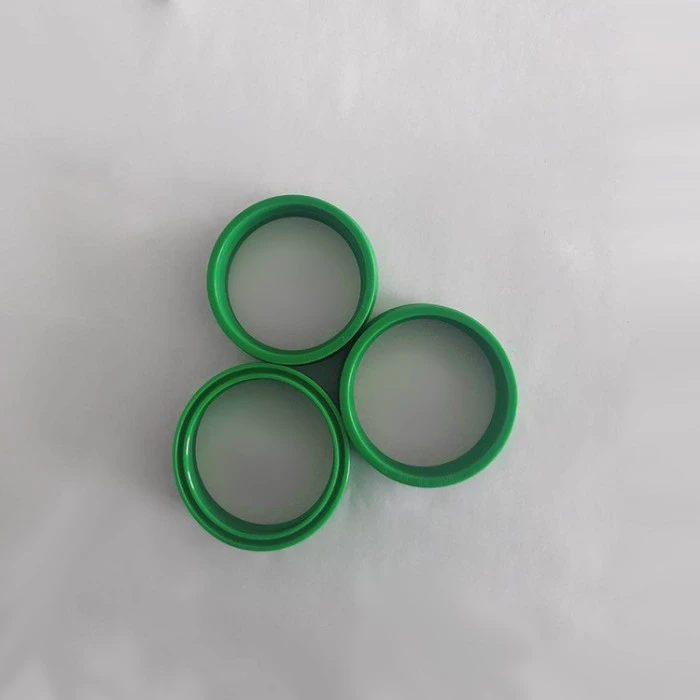

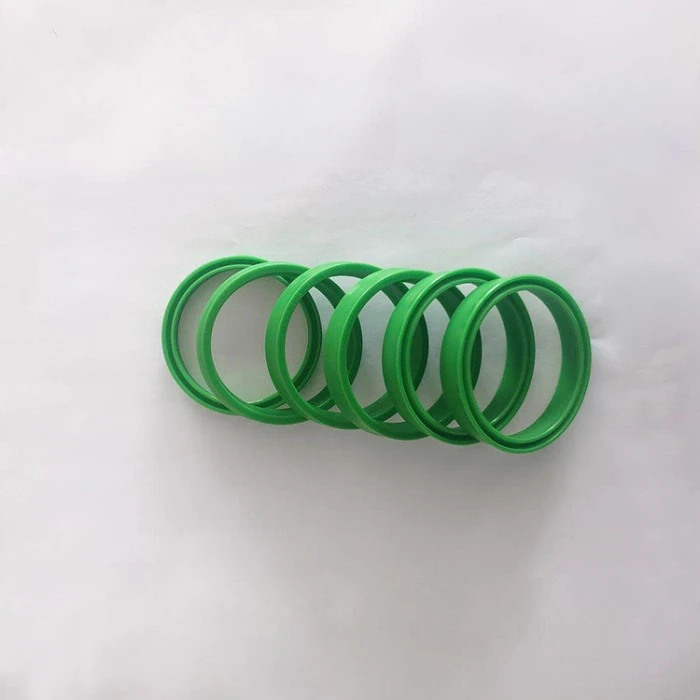

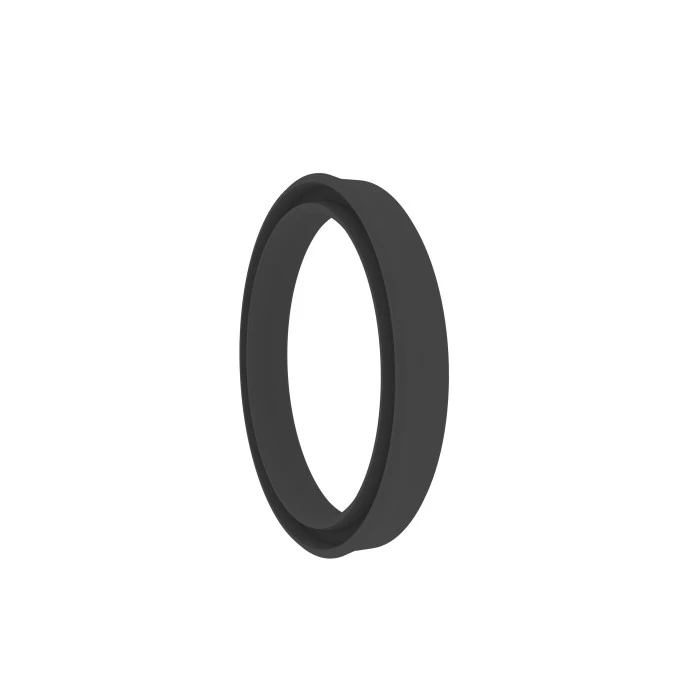

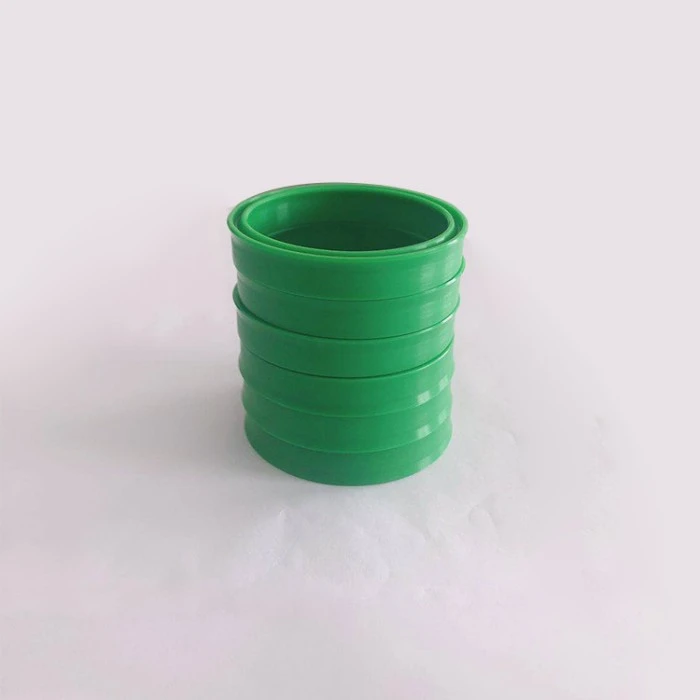

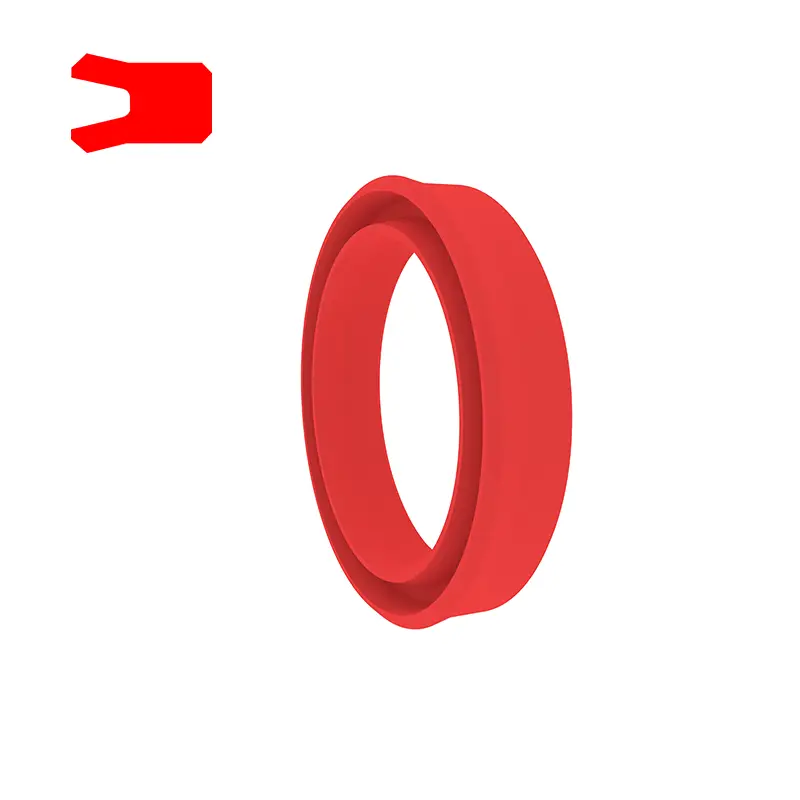

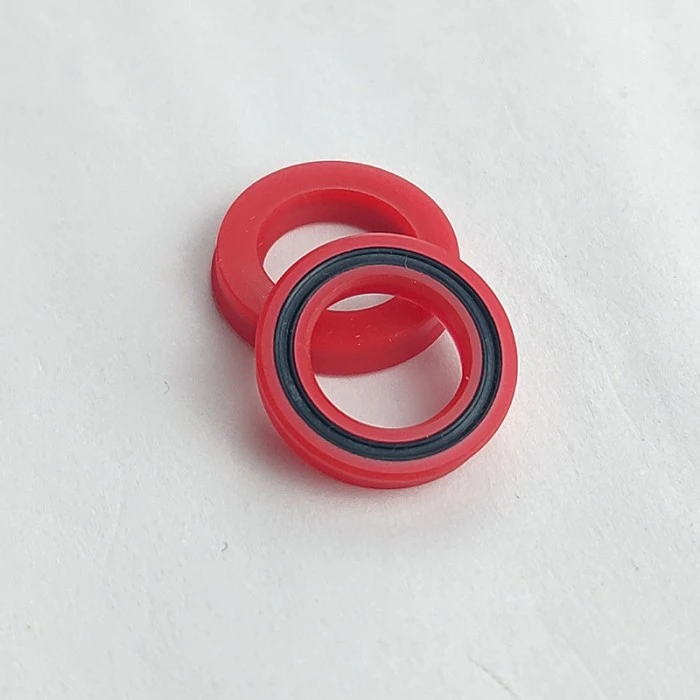

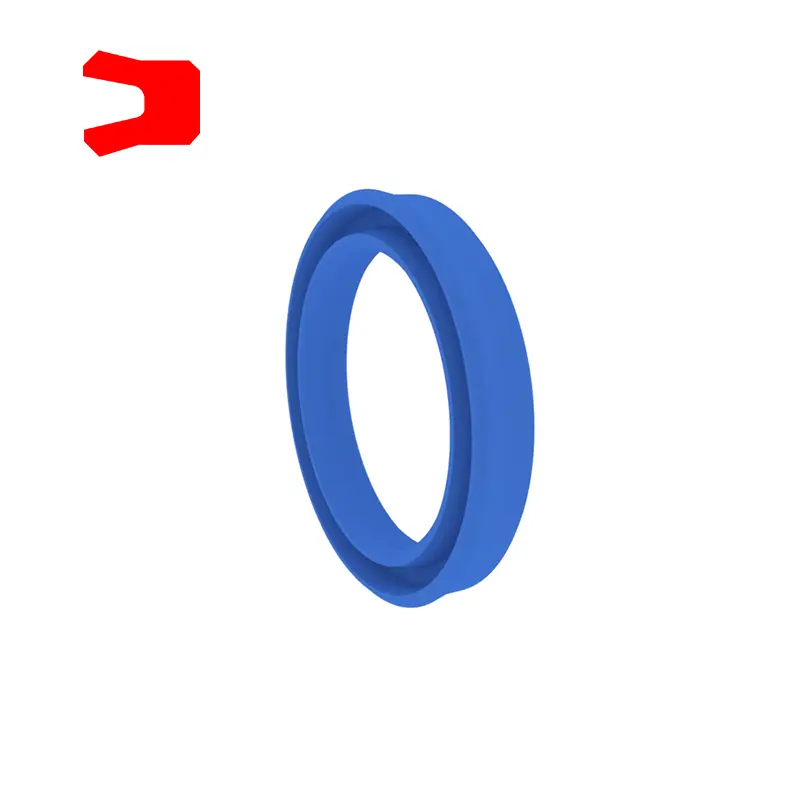

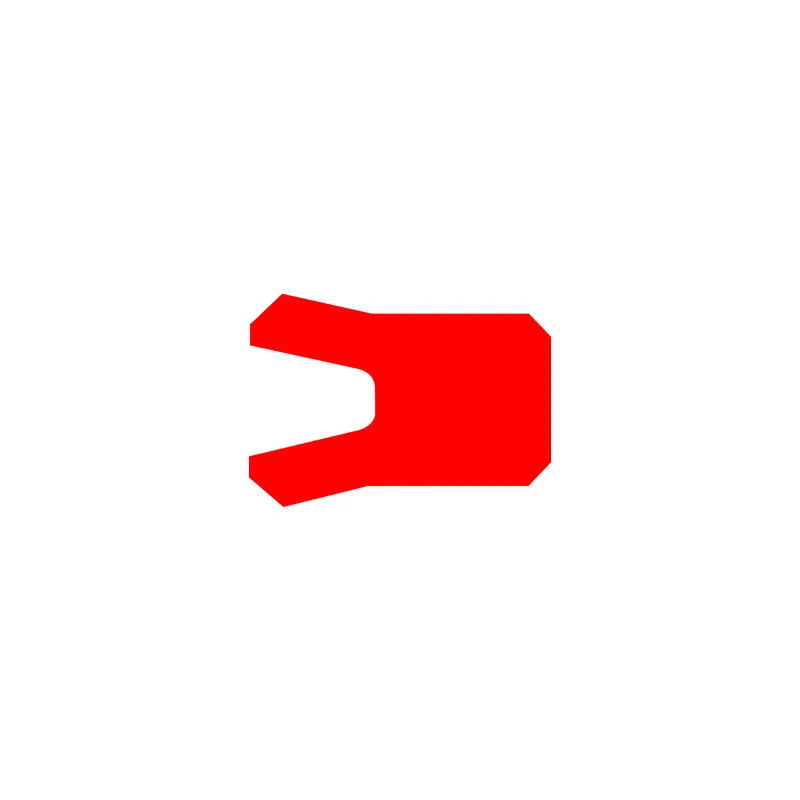

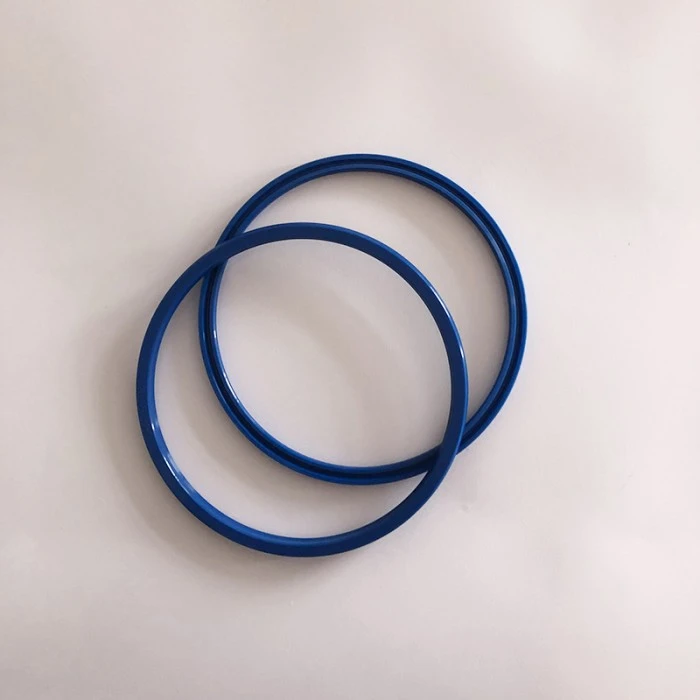

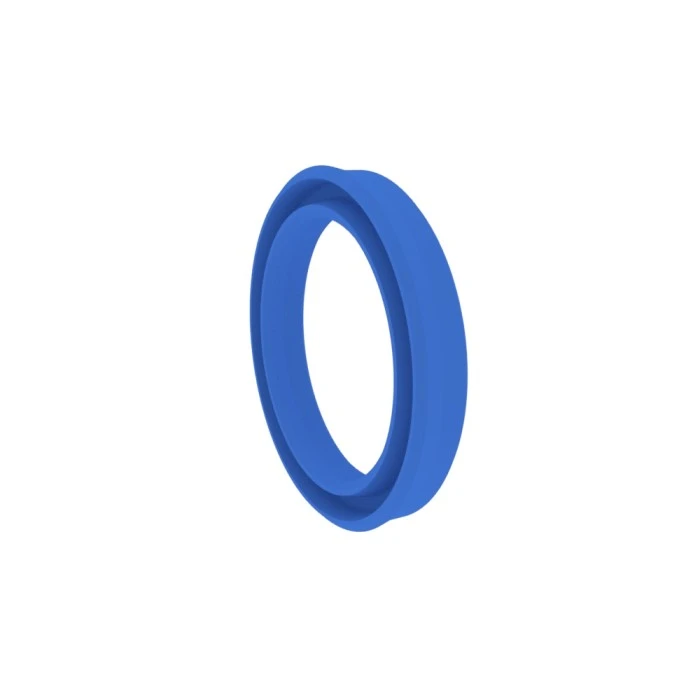

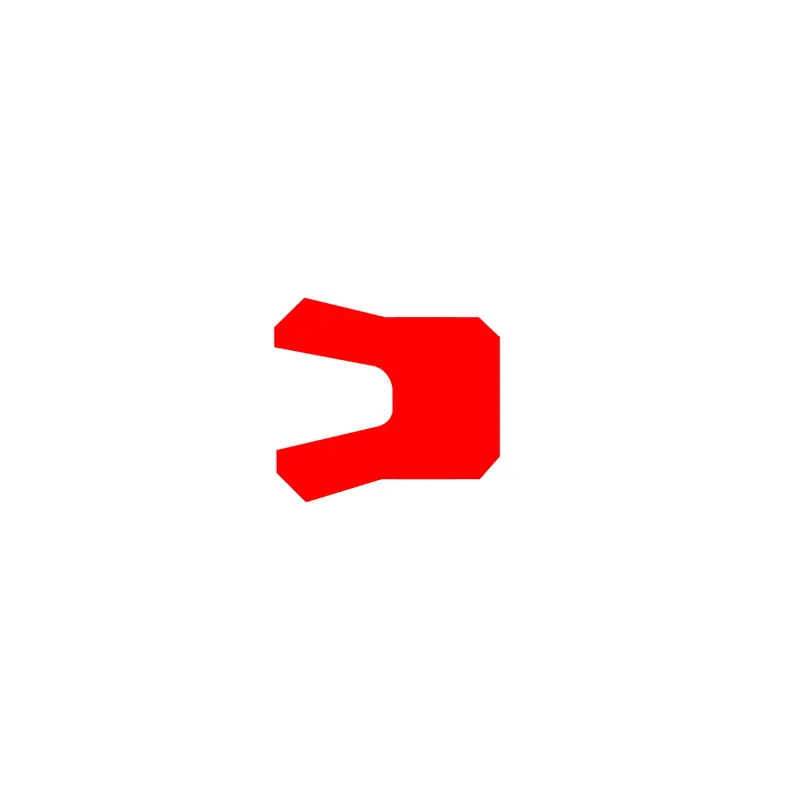

UN-type seal is a symmetrical seal specially used on pistons or piston rods, used in walking machinery, light industrial machinery, agricultural machinery, cranes, automobiles, forestry machinery, mining machinery, etc.

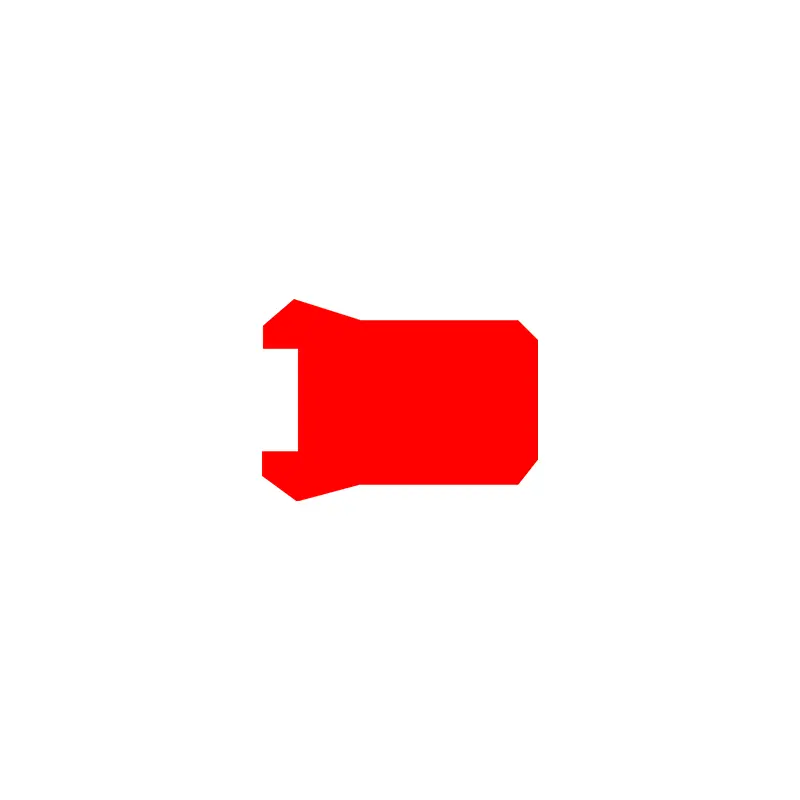

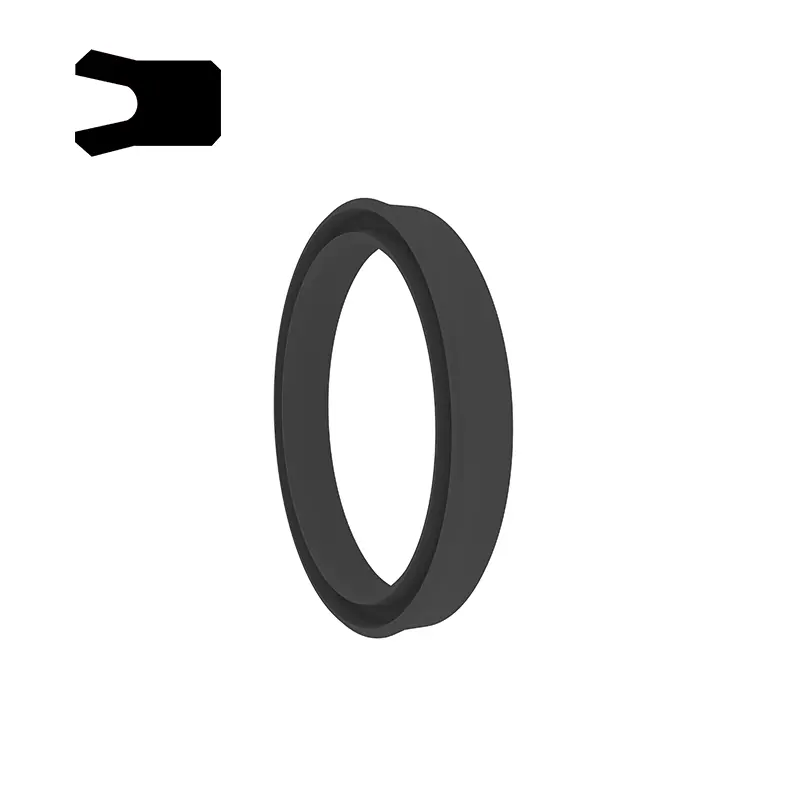

UHS-type seal is a symmetrical seal for both holes and shafts, with a smaller cross-section, which can be installed in the integral groove. A retaining ring is required at the root when used under 16~32Mpa.

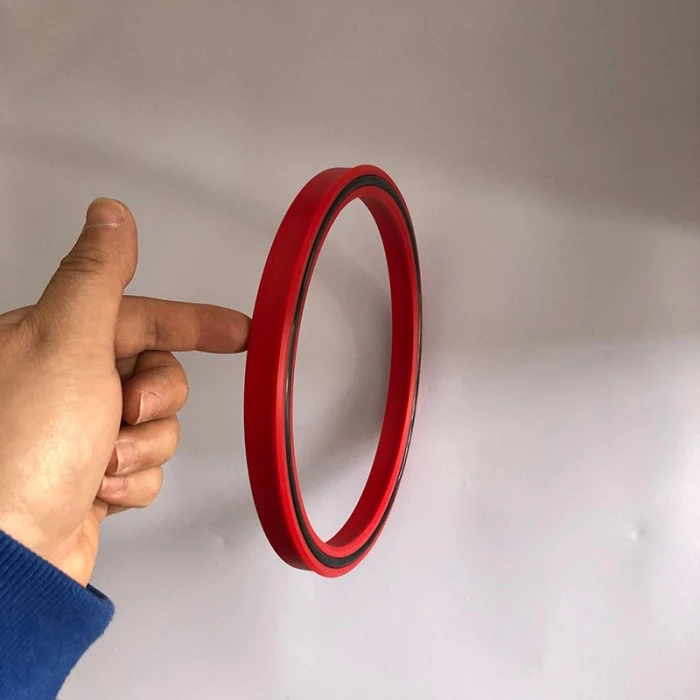

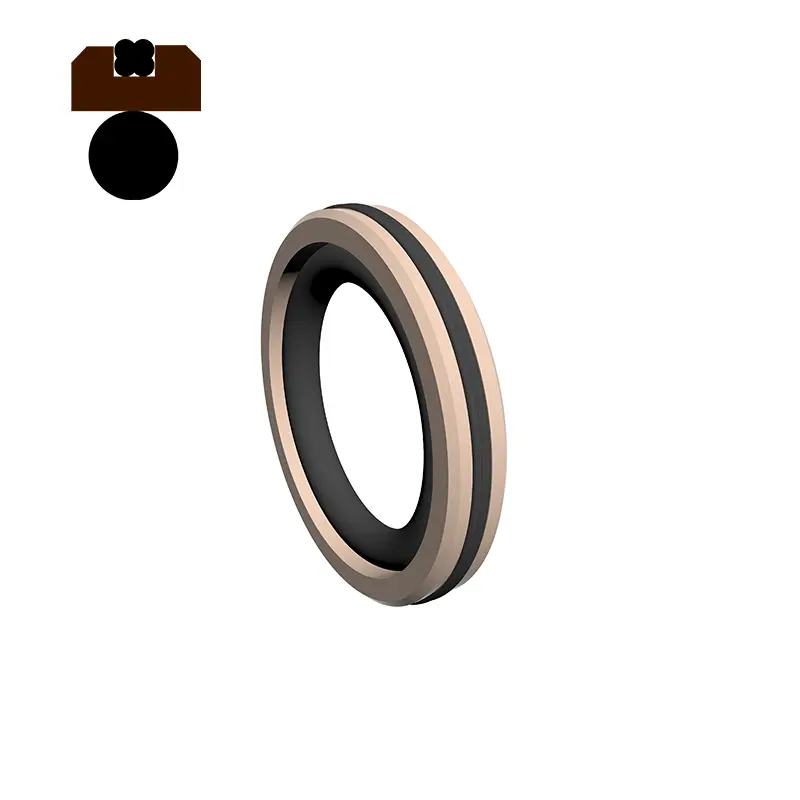

RCBKY-type seal is a symmetrical seal for both holes and shafts, with good dynamic and static sealing performance. It is mainly used for large diameter sealing, and the material is nitrile rubber (NBR).

BA-type seal is a symmetrical seal for both holes and shafts, mainly used to seal plungers, piston rods, forging machines and hydraulic equipment for walking equipment. Features:

1. Insensitive to vibration loads and pressure peaks

2. Good anti-extrusion ability

3. Better sealing under no load and low temperature

Suitable for harsh working conditions

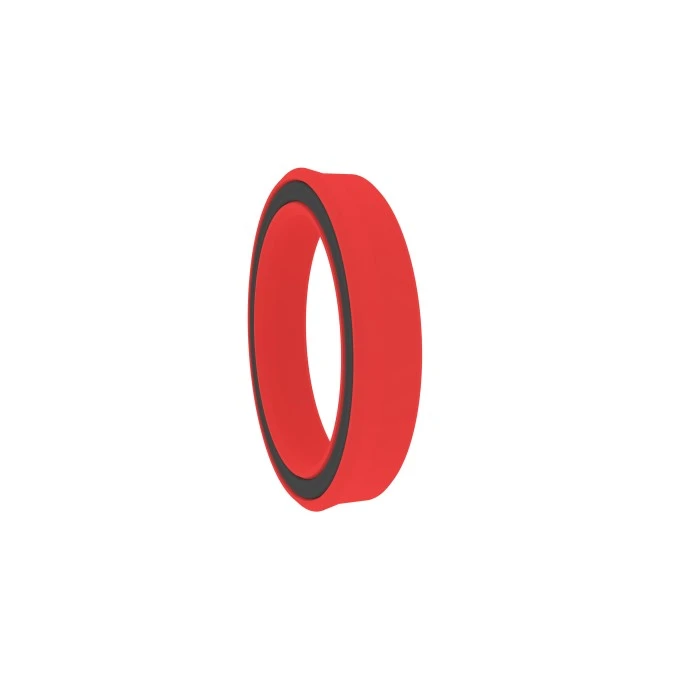

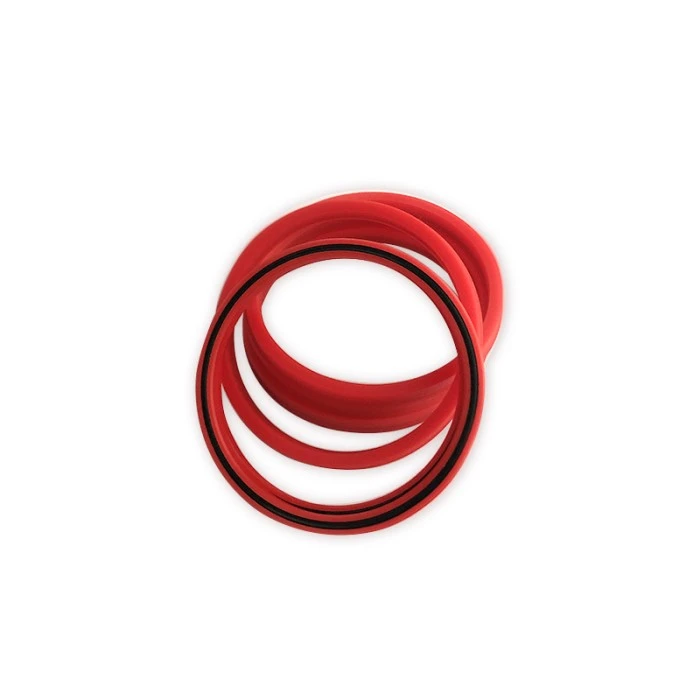

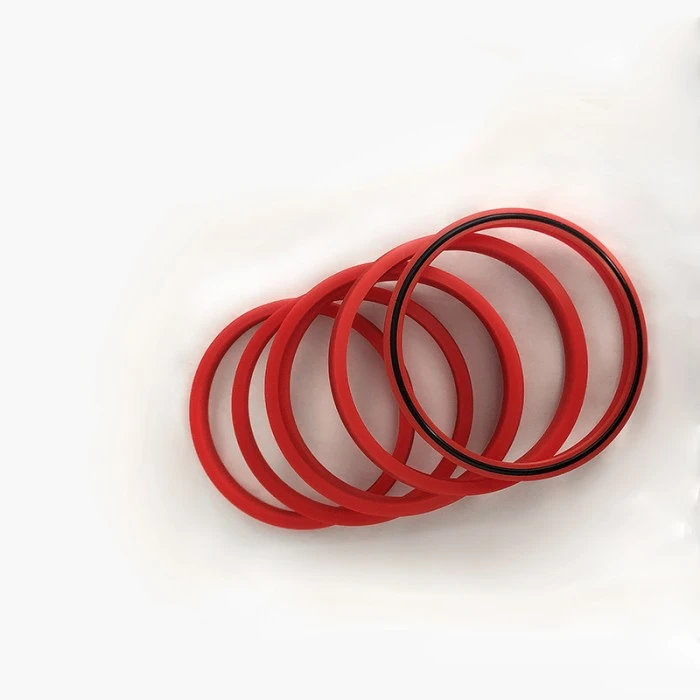

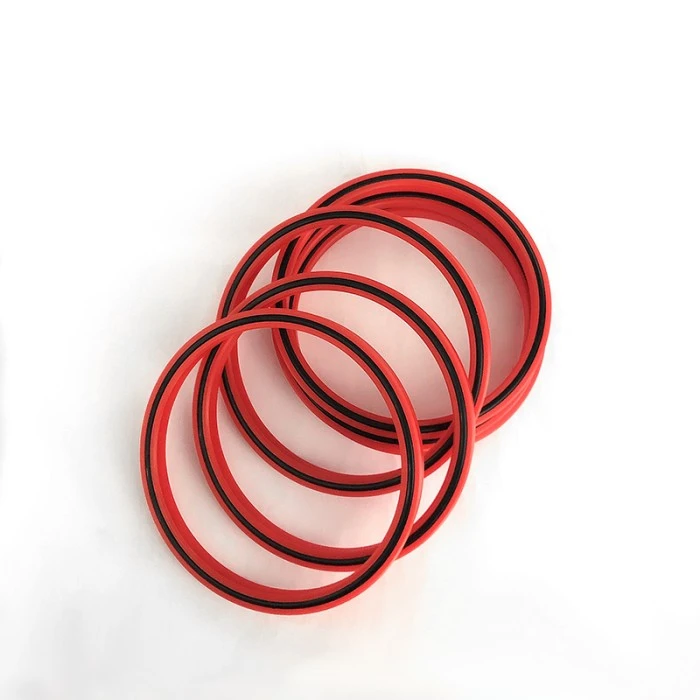

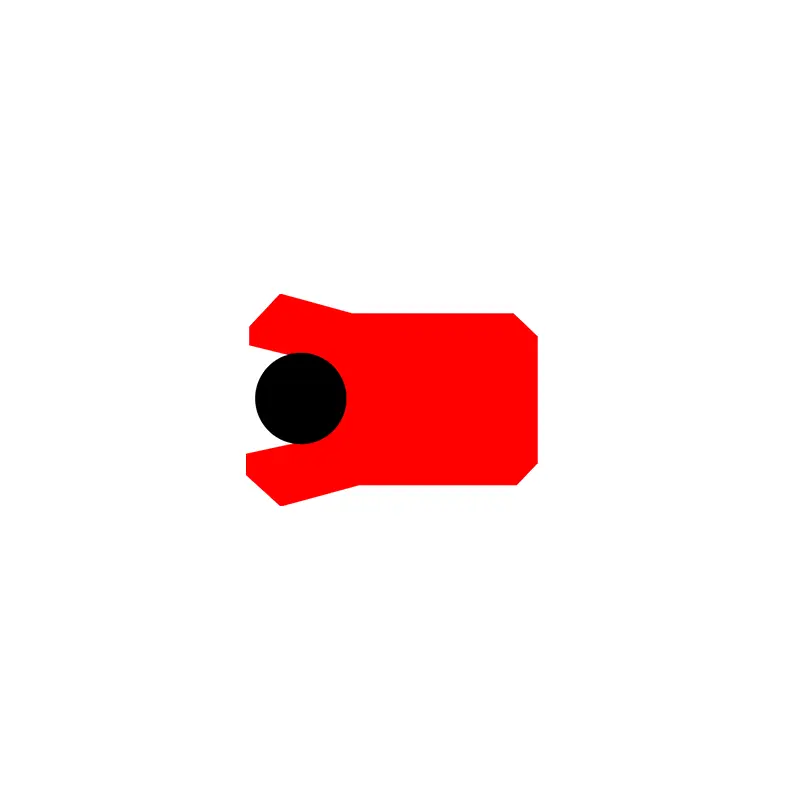

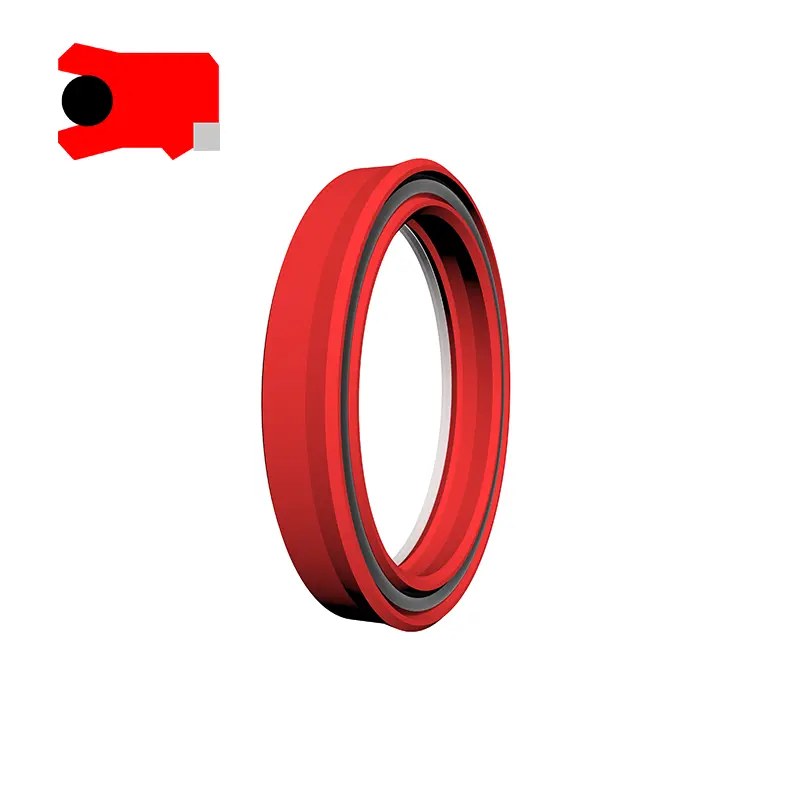

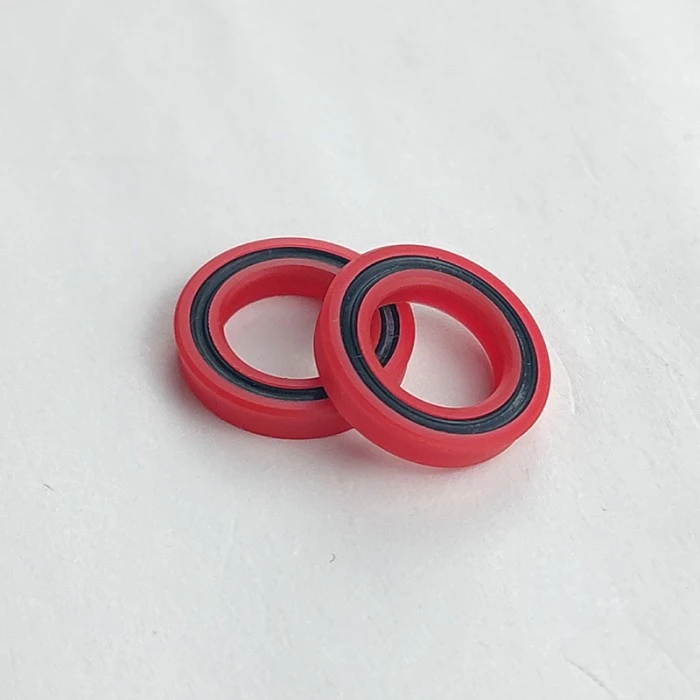

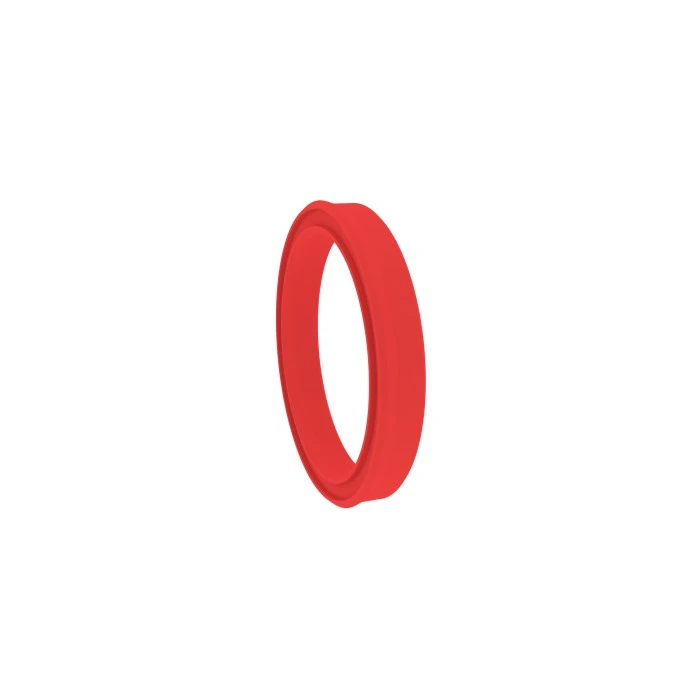

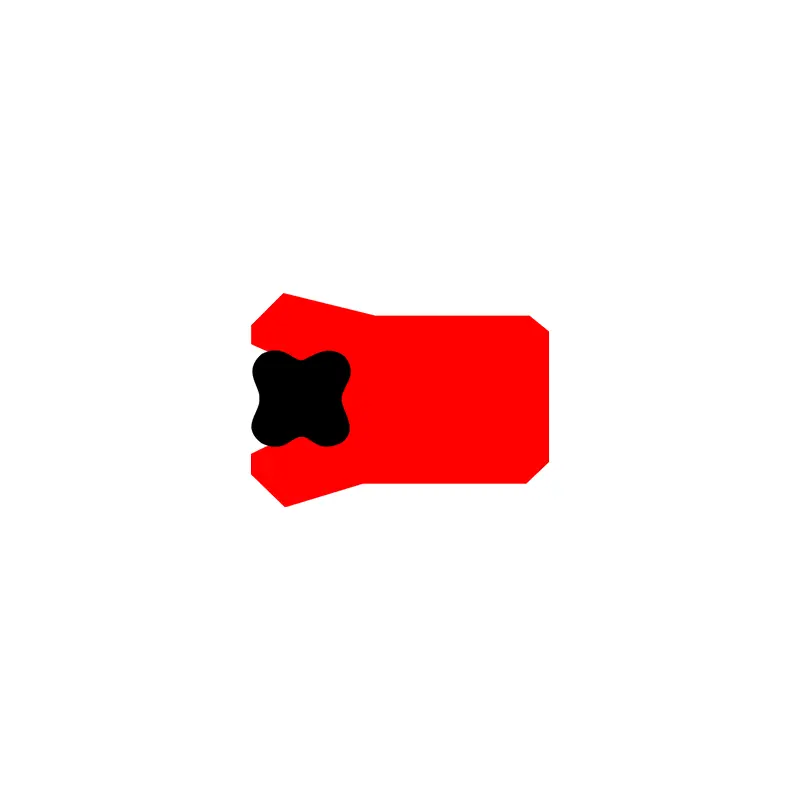

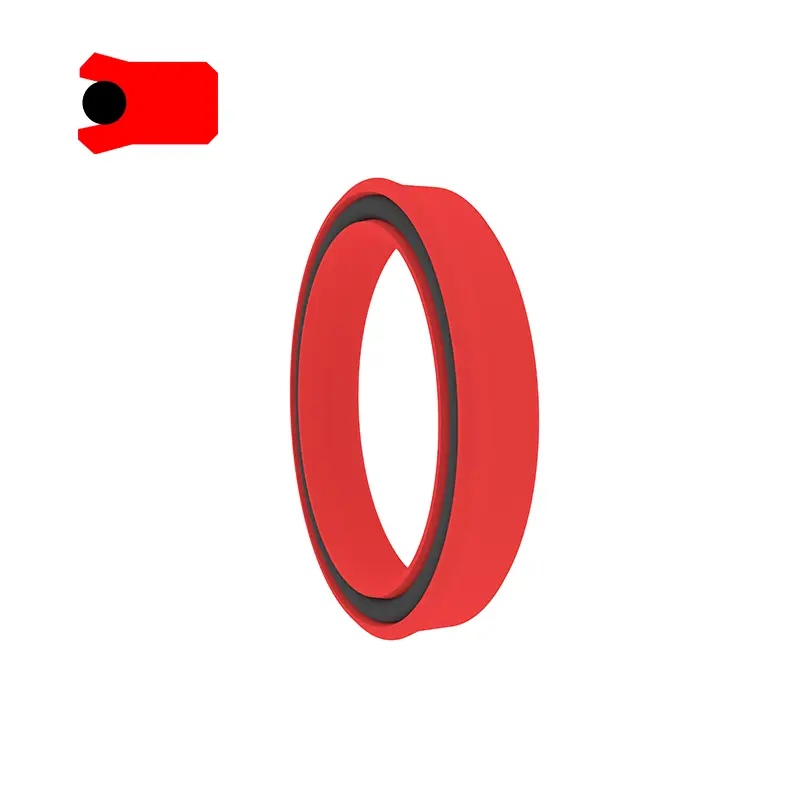

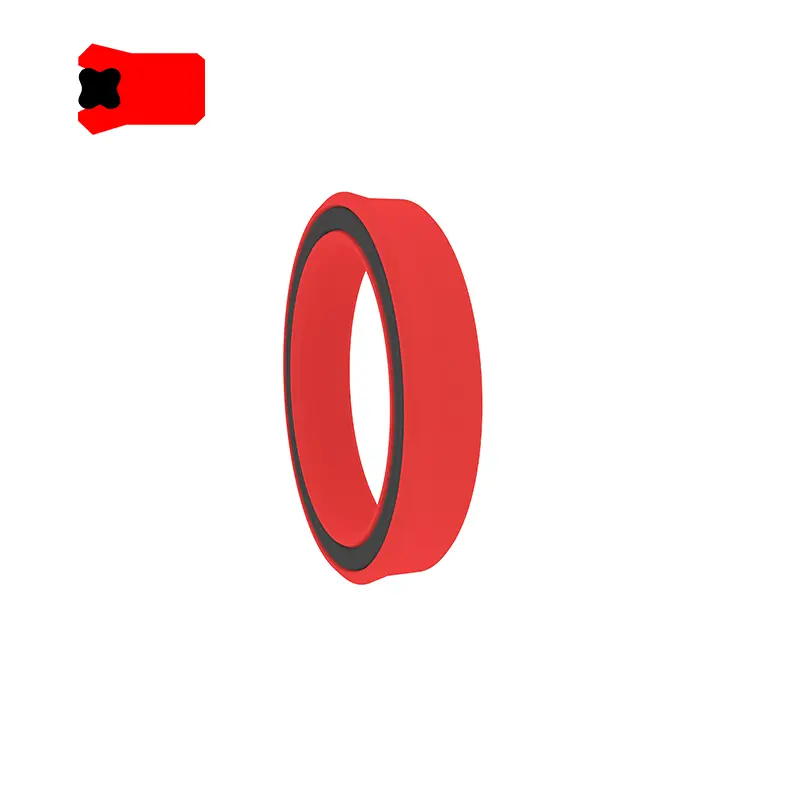

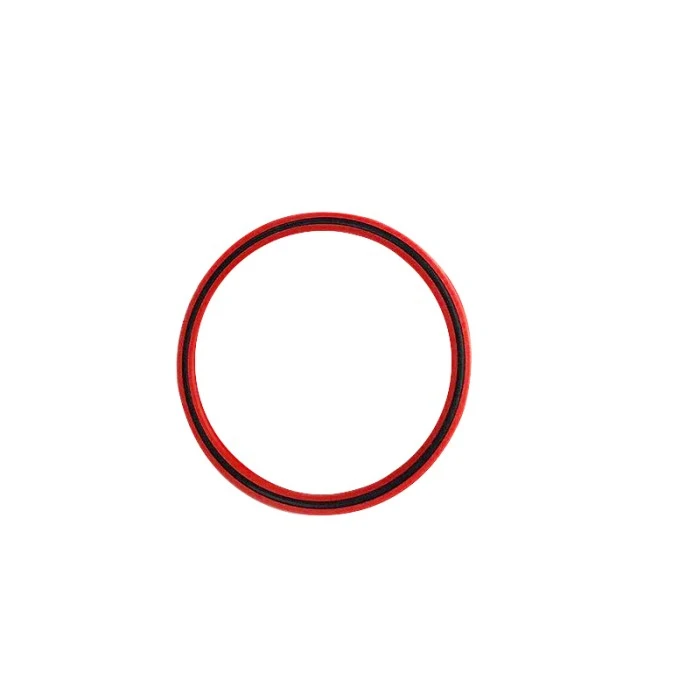

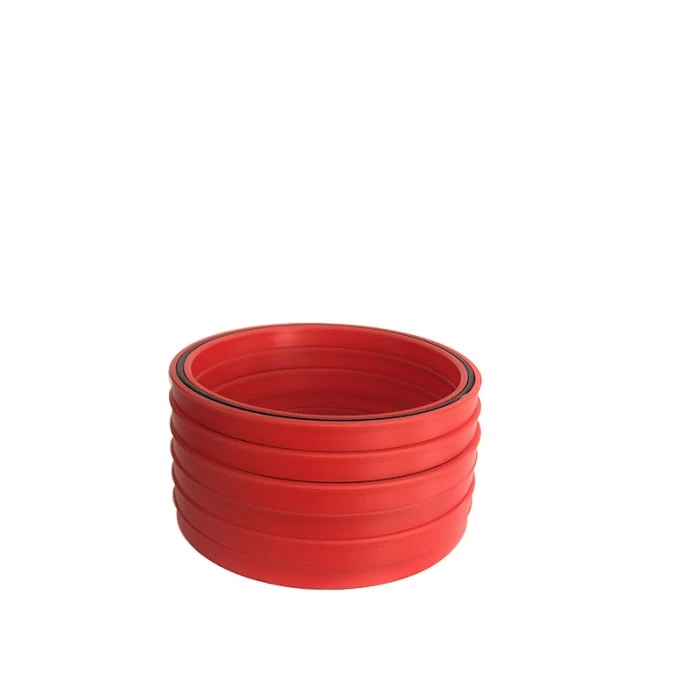

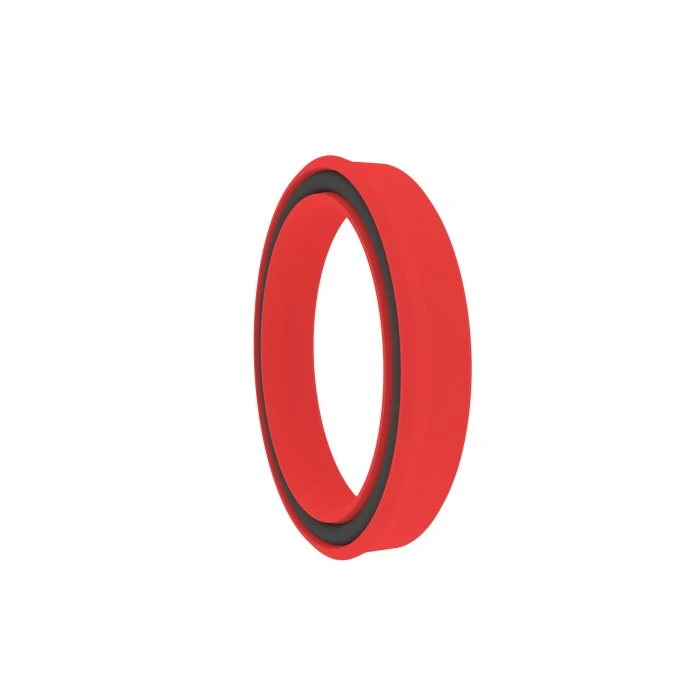

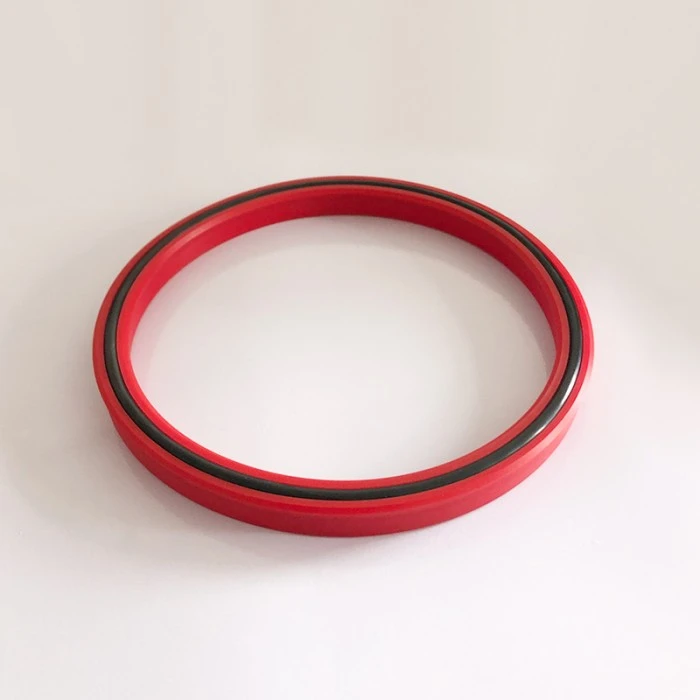

VAD seal is a symmetrical seal for both hole and shaft. It is the result of further development of lip seal. The star ring plays a radial force role and compensates for the wear of the sealing lip. The system pressure is transmitted to the sealing lip through the compressed and deformed star ring, so the high and low pressure sealing performance is excellent. It is mainly used for sealing columns, piston rods, forging machines and hydraulic equipment for walking equipment. The material is: polyurethane material (PU) + nitrile rubber (NBR), features:

1. Insensitive to vibration load and pressure peak

2. Good anti-extrusion ability

3. Better sealing under no load and low temperature

4. Suitable for harsh working conditions

5. Long life.

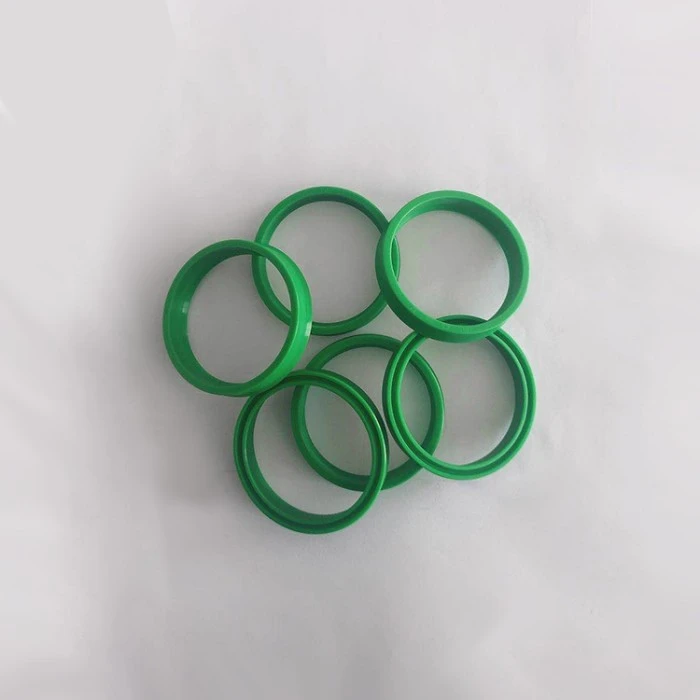

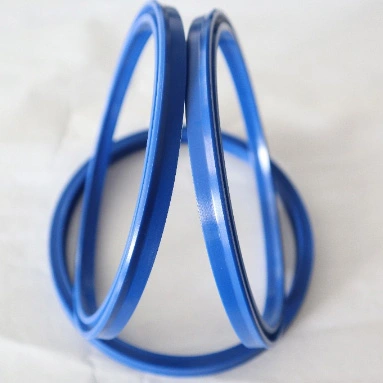

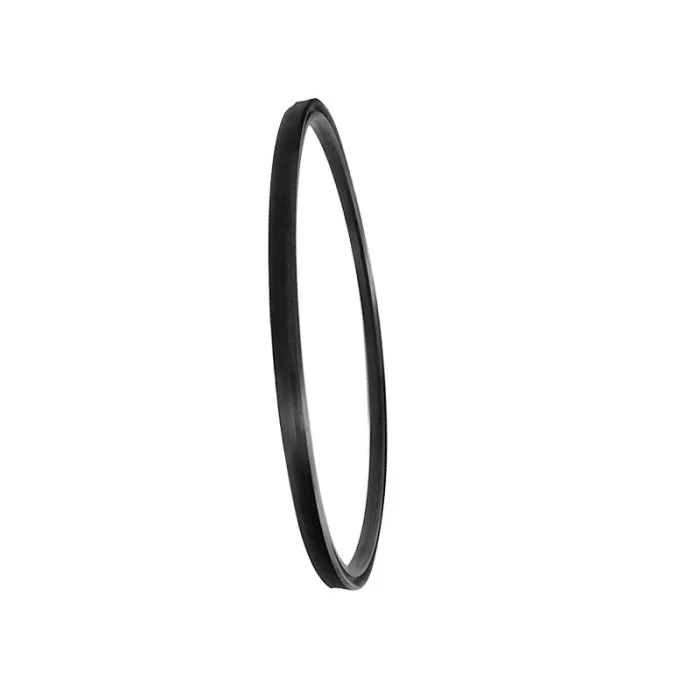

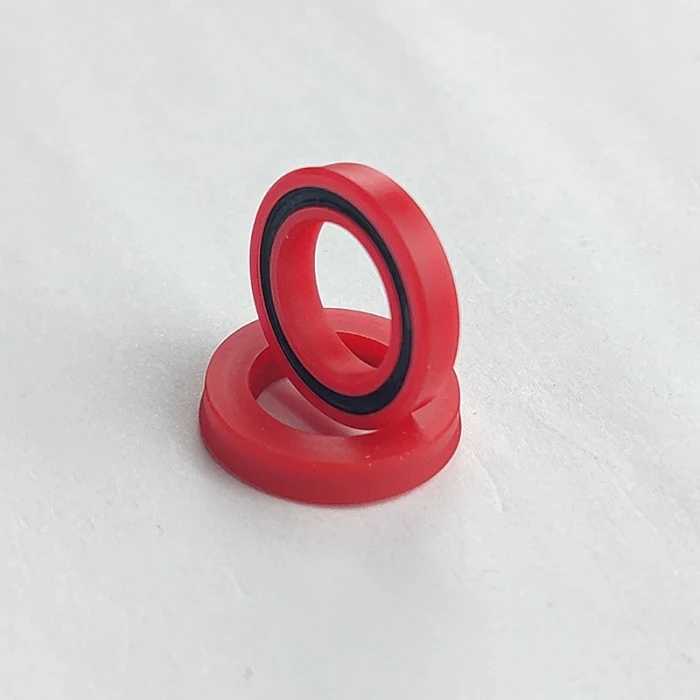

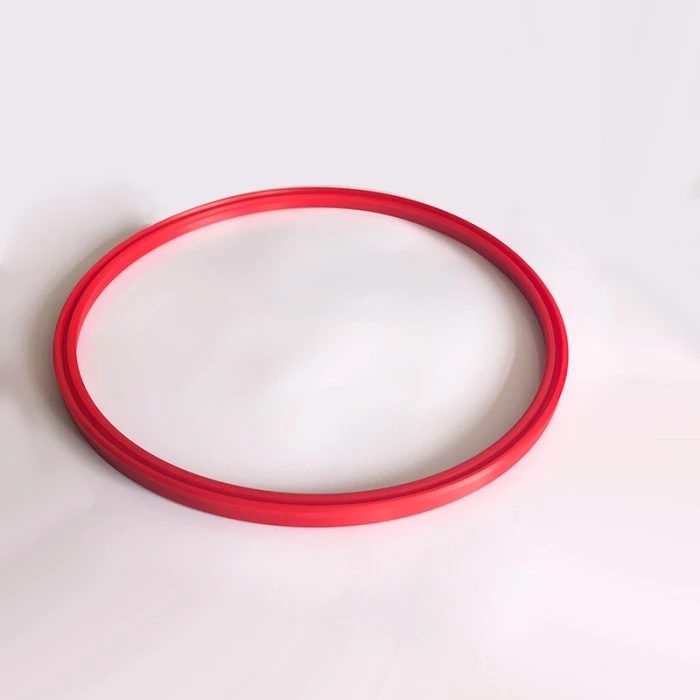

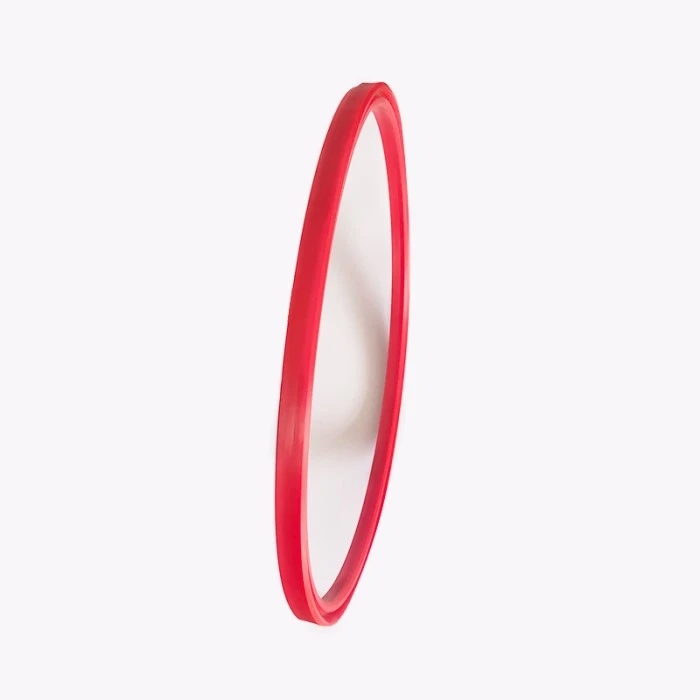

KI-A type seal is a symmetrical seal for both hole and shaft, mainly used in engineering machinery, industrial vehicles, dump trucks, agricultural machinery, cranes, injection molding machines, telescopic cylinders, steering hydraulic cylinders, etc. The material is polyurethane (PU), features:

1. Excellent dynamic and static sealing performance

2. Compact structure, groove ground allows higher surface roughness

3. Design for limited radial dimension space of cavity

Product features and applications:

Material selection:

Standard material: polyurethane material PU Other optional materials: nitrile rubber R01, fluororubber R02 (please consult our company)

UHS

Standard material: nitrile rubber R01 Other optional materials: polyurethane material PU, fluororubber R02

Polyurethane material PU + nitrile rubber R01

Ordering example:

Ordering example: hole shaft universal seal UN50×65×10PU (dxDxH) + material code

Ordering example: Hole-shaft universal seal UHS50×60x6 R01 (dxD×H) + material code

RCBKY

Ordering example: BA50×60×10 (d×D×H)

VAD

KI-A

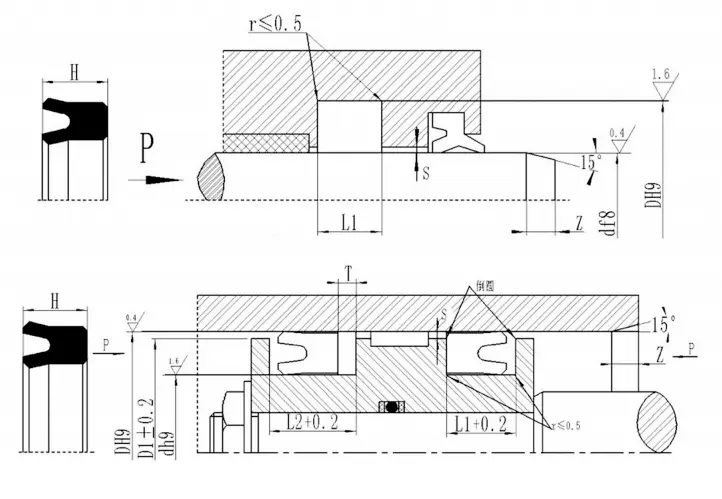

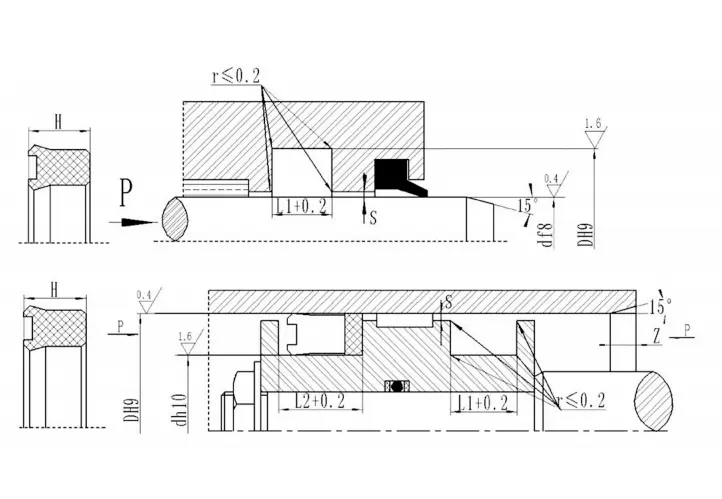

Specifications and dimensions:

UHS

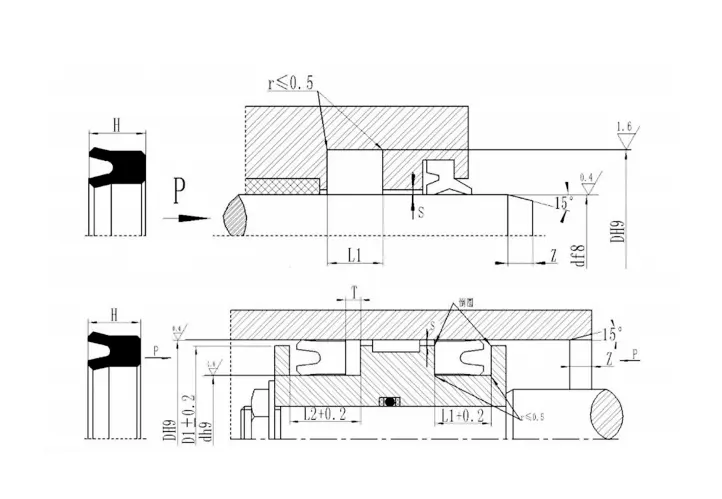

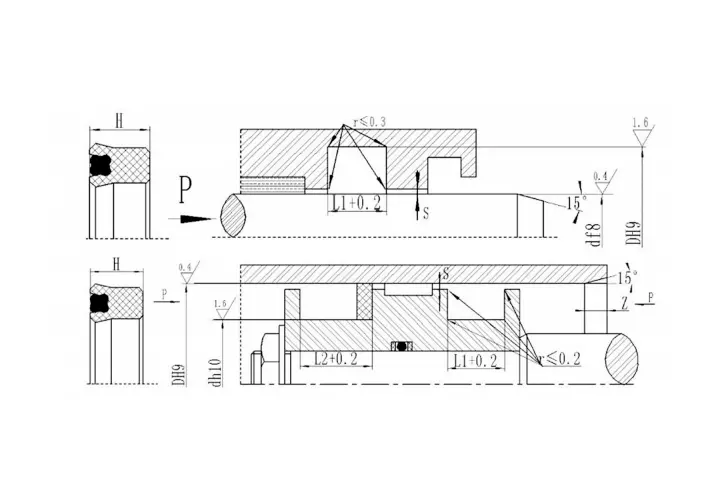

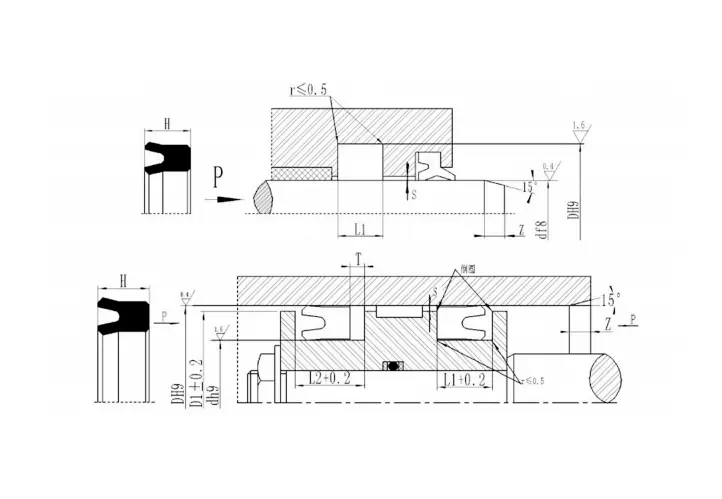

Specifications and groove dimensions
Product Number	d	D	H	L1	L2	T	Product Number	d	D	H	L1	L2	T
UHS-6125	6	12	5	5.7	7.2	2	UHS-30406	30	40	6	7	9	3
UHS-11.219.25	11.2	19.2	5	5.7	7.2	2	UHS-31.541.56	31.5	41.5	6	7	9	3
UHS-12.520.55	12.5	20.5	5	5.7	7.2	2	UHS-32426	32	42	6	7	9	3
UHS-14225	14	22	5	5.7	7.2	2	UHS-35456	35	45	6	7	9	3
UHS-15235	15	23	5	5.7	7.2	2	UHS-35457	35	45	7	8	10	3
UHS-16245	16	24	5	5.7	7.2	2	UHS-35.5456	35.5	45	6	7	9	3
UHS-18265	18	26	5	5.7	7.2	2	UHS-38486	38	48	6	7	9	3
UHS-20285	20	28	5	5.7	7.2	2	UHS-40506	40	50	6	7	9	3
UHS-22.4305	22.4	30	5	5.7	7.2	2	UHS-45556	45	55	6	7	9	3
UHS-23.531.55	23.5	31.5	5	5.7	7.2	2	UHS-45567	45	56	7	8	10	3
UHS-25335	25	33	5	5.7	7.2	2	UHS-47576	47	57	6	7	9	3
UHS-27355	27	35	5	5.7	7.2	2	UHS-50606	50	60	6	7	9	3
UHS-2835.55	28	35.5	5	5.7	7.2	2	UHS-53636	53	63	6	7	9	3

RCBKY

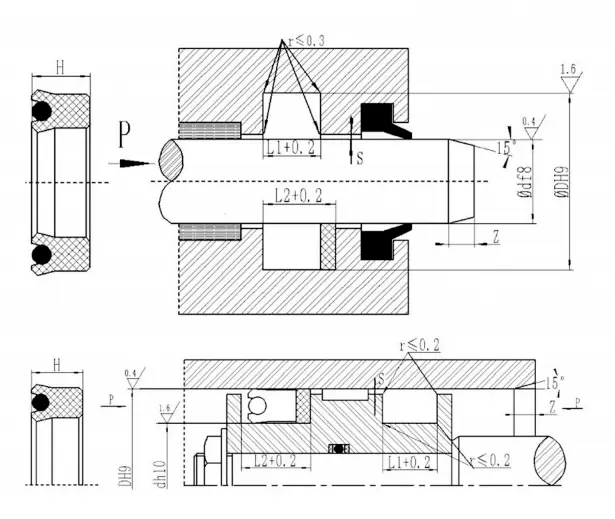

Standard size table Ordering example: RCBKY 800×770×18(D×d×H)
Product Number	D	d	H	DI	L1	L2	Zmin
RCBKY25022516	250	225	16	247	18	21.5	10
RCBKY25523016	255	230	16	252	18	21.5	10
RCBKY26524016	265	240	16	262	18	21.5	10
RCBKY27525016	275	250	16	272	18	21.5	10
RCBKY28025516	280	255	16	277	18	21.5	10
RCBKY30027516	300	275	16	297	18	21.5	10
RCBKY30528016	305	280	16	302	18	21.5	10
RCBKY32029516	320	295	16	317	18	21.5	10
RCBKY32530016	325	300	16	322	18	21.5	10
RCBKY34031516	340	315	16	337	18	21.5	10
RCBKY34532016	345	320	16	342	18	21.5	10
RCBKY35032516	350	325	16	347	18	21.5	10
RCBKY35533016	355	330	16	352	18	21.5	10

Standard size table
d	D	H	L1	d	D	H	L1	d	D	H	L1	d	D	H	L1
3	8.5	4	4.4	15	23	5.7	6.3	20	28	5.7	6.3	24	32	7	7.7
6	14	5.7	6.3	16	24	5.7	6.3	20	28	6.5	7.2	24	35	5.7	6.3
8	16	5.7	6.3	16	26	7.3	8	20	30	7.3	8	25	33	5.7	6.3
10	18	5.7	6.3	18	24	5	5.5	22	30	5.7	6.3	25	35	7	7.7
10	20	7.3	8	18	26	5.7	6.3	22	32	7.3	8	25	35	7.3	8
12	20	5.7	6.3	18	28	7.3	8	22	35	10	11	25	40	10	11
12	22	7.3	8	20	28	5.5	6	24	30	5	5.5	25	40	11	12.1

VAD

Standard size table Ordering example: VAD 65×75×8(d×D×H)
d	D	H	L1	d	D	H	L1	d	D	H	L1	d	D	H	L1
20	28	5	6	55	70	9	10	80	90	8	9	110	130	10	11
25	33	5	6	63	75	8.7	10	80	100	12	13	110	130	15	16
28	36	5	6	65	75	8	9	85	100	10	11	110	130	16	17
30	40	6	7	65	85	12	13	90	105	12	13	112	125	10	11
32	42	6	7	65	75	7	8	90	110	10	11	115	135	12	13
32	40	8	9	70	83	10	11	90	110	12	13	115	135	16	17
35	45	6	7	70	85	9	10	90	100	7	8	115	130	10	11
38	48	6	7	70	85	10	11	90	105	11.4	12	120	140	10	11
40	50	6	7	70	90	12	13	95	120	12	13	120	140	12	13
40	50	7.3	8	70	80	6	7	100	120	12	13	130	150	12	13
45	55	7	8	70	80	7	8	105	120	9	10	140	160	13	14
45A	55	6	7	75	90	10	11	105	120	10	11	145	160	10	11
50	65	9	10	75	95	12	13	105	125	12	13	180	200	13	14
50	60	7.3	8	75	90	6	7	110	125	9	10
55	65	9	10	80	90	11.4	12	110	125	10	11
Note: Turned seals are not limited by this table and can be supplied in any size.

KI-A

Specifications Ordering example: KI-A 50×60×7(d×D×H)
d	D	H	L1	d	D	H	L1	d	D	H	L1	d	D	H	L1	d	D	H	L1
10	18	5.5	6.3	24	32	6	7	40	48	6	7	60	70	7.5	8.5	85	93	6.5	7.5
12	20	5.5	6.3	25	33	6	7	40	48	8	9	63	71	8	9	85	94	15	16
14	22	5.5	6.3	25	33	8	9	42	50	6	7	65	73	8	9	85	97	9	10
16	24	6	7	28	36	6	7	45	53	8	9	65	73	11.5	12.5	90	98	8	9
18	25	5	5.8	28	36	8	9	45	55	7	8	65	75	12	13	90	102	9	10
18	26	6	7	30	38	6	7	50	58	8	9	65	77	9	10	100	108	8	9
20	26	5	5.8	30	38	8	9	50	60	7	8	70	78	8	9	105	113	6.5	7.5
20	28	6	7	32	40	6	7	52	60	5.5	6.3	70	82	9	10	115	124	15	16
22	28	4.5	5.3	32	40	8	9	55	63	8	9	75	83	8	9	118	126	13	14
22	29	5	5.8	32	42	8	9	55	65	7.5	8.5	75	87	9	10	125	133	6.5	7.5
22	30	6	7	35	43	6	7	55	65	10	11	78	86	8	9	145	153	6.5	7.5
22	30	7	8	36	44	6	7	55	65	12	13	80	88	8	9
22	32	8	9	36	44	8	9	60	68	8	9	80	90	10	11
24	30	8	9	38	45	6	7	60	68	13	14	80	92	9	10
