Hydraulic Piston Rod Seals

Ruichen Seals has extensive experience in the production and development of seals and sealing materials. Our hydraulic piston rod seals include a variety of different models. You can make a suitable choice based on the detailed information below, or contact us to obtain a more suitable and customized sealing solution.

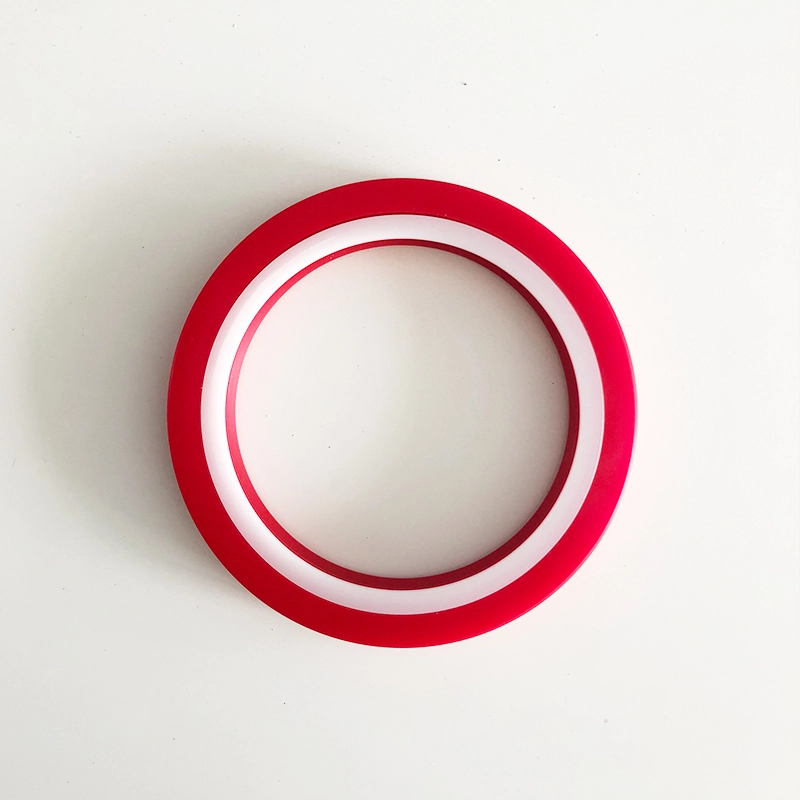

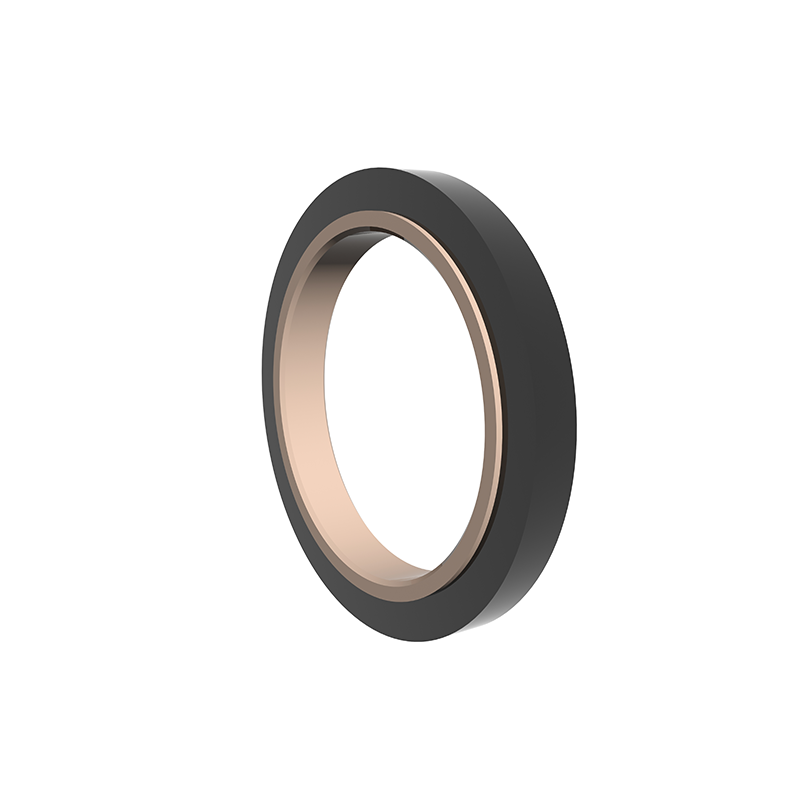

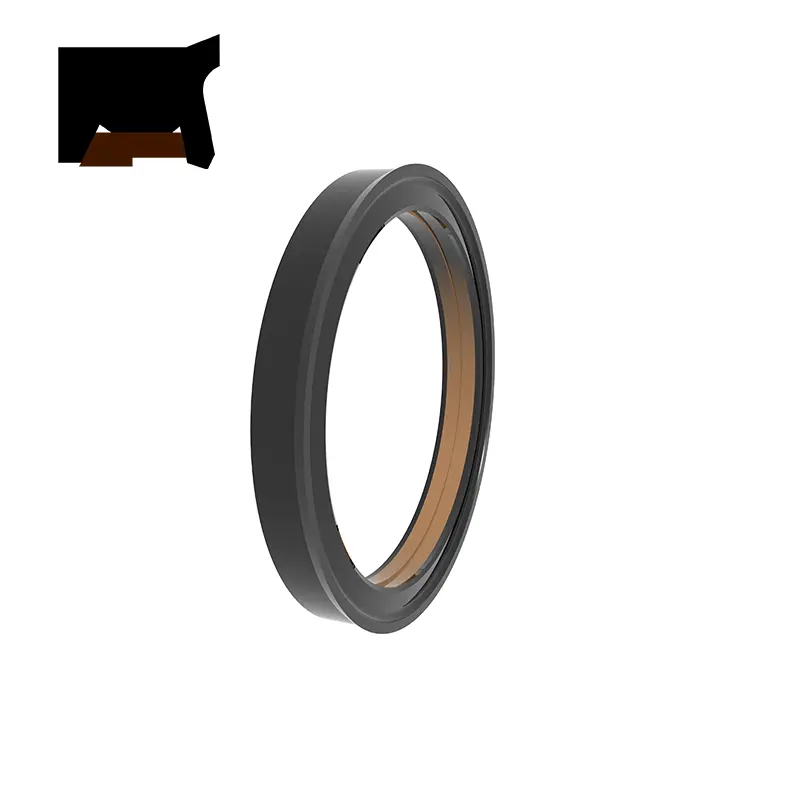

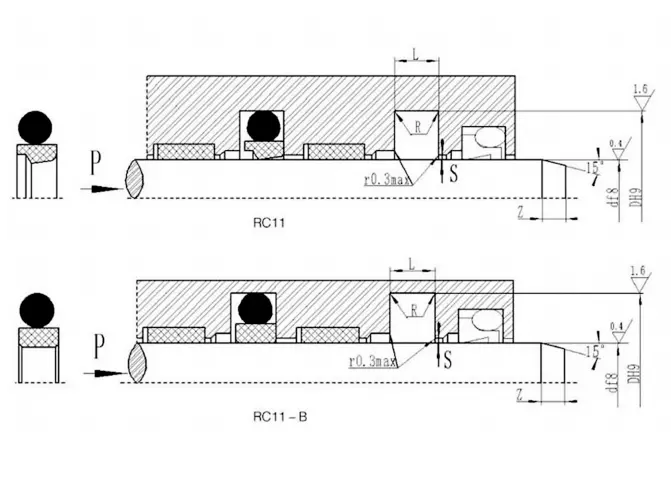

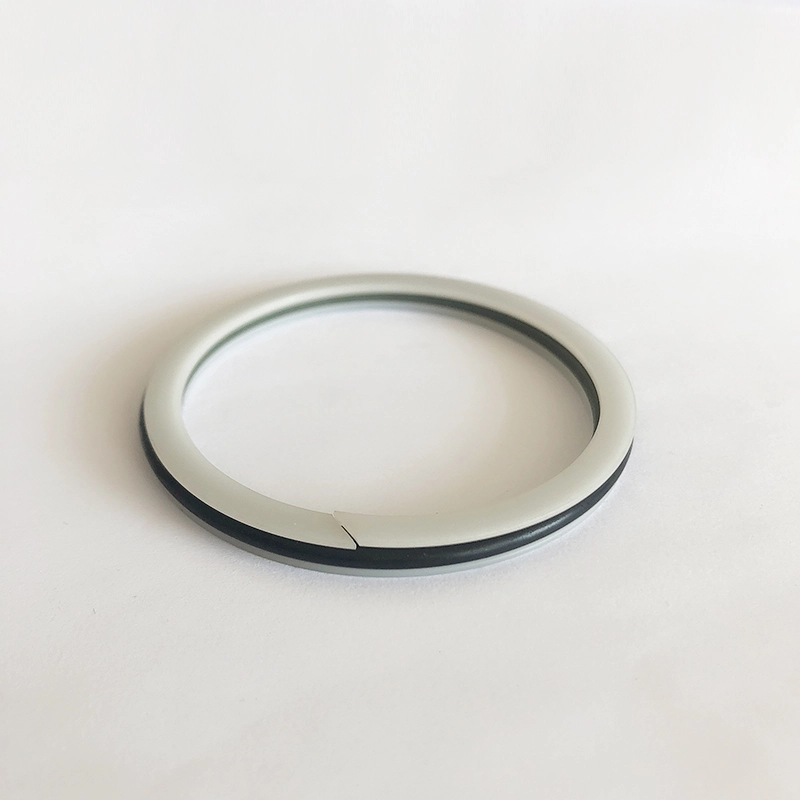

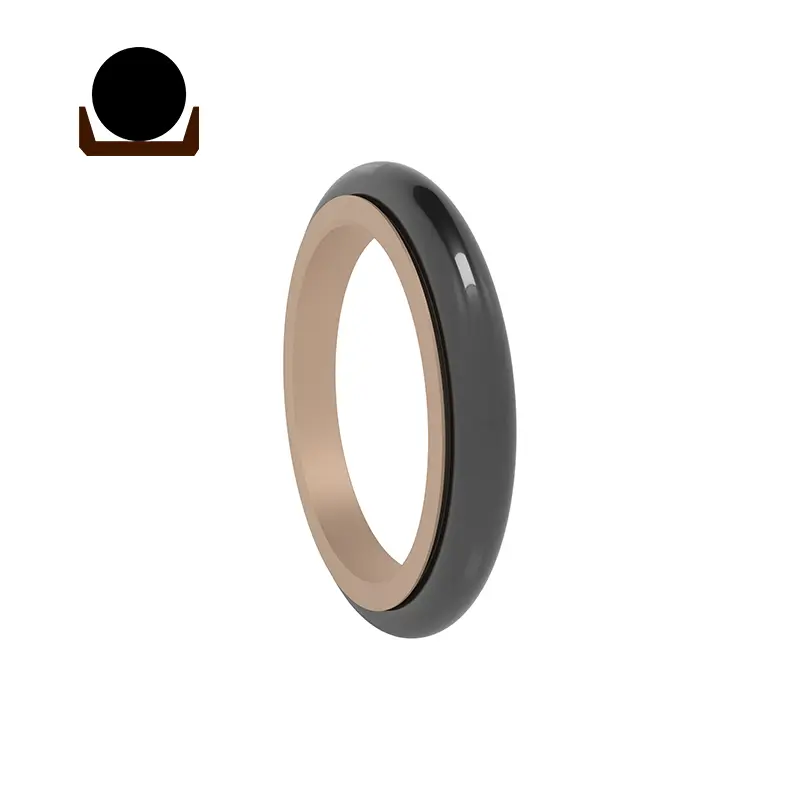

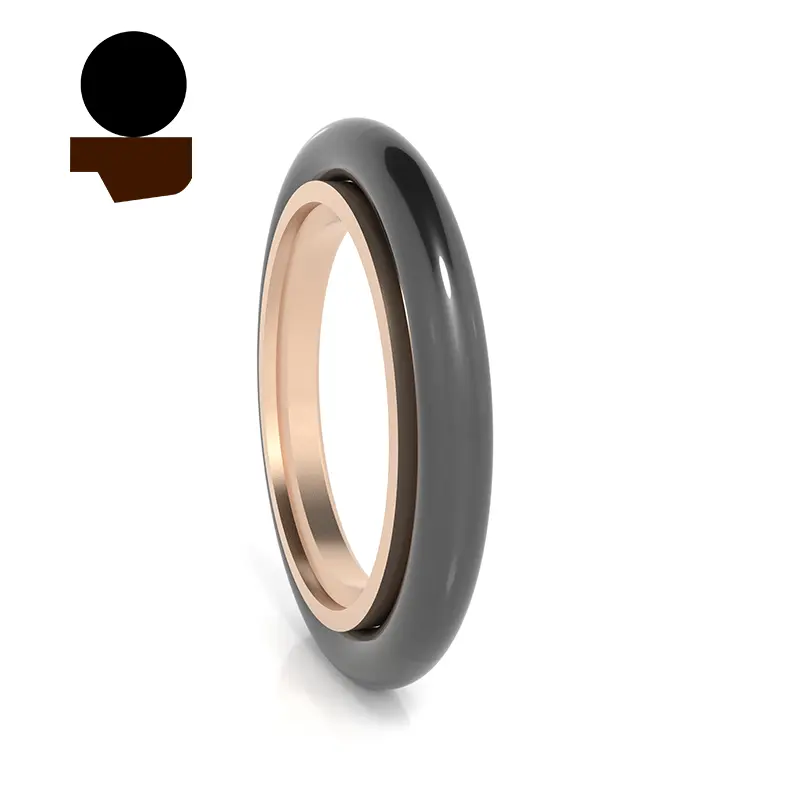

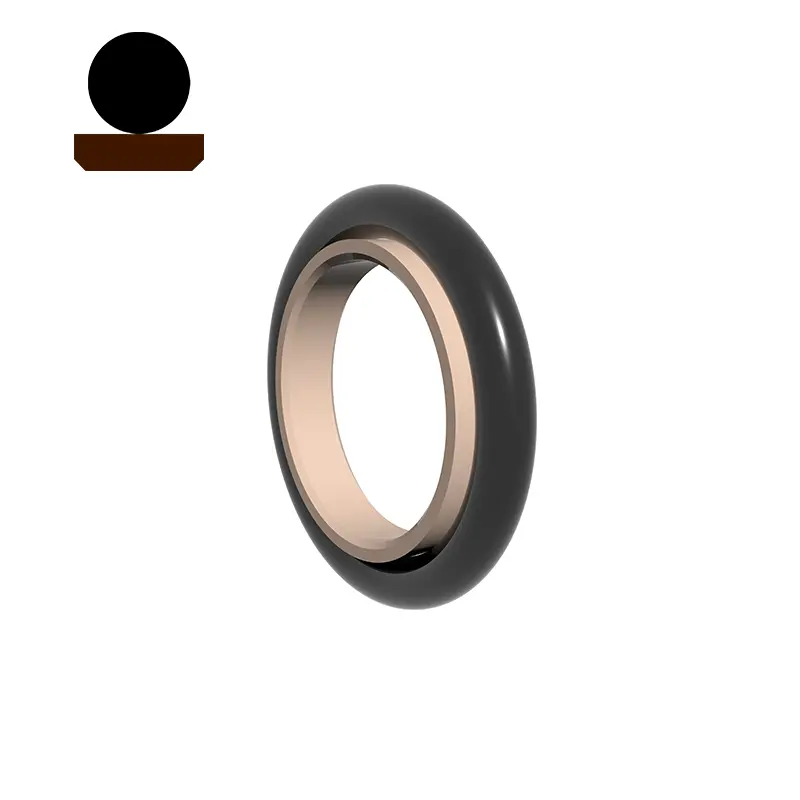

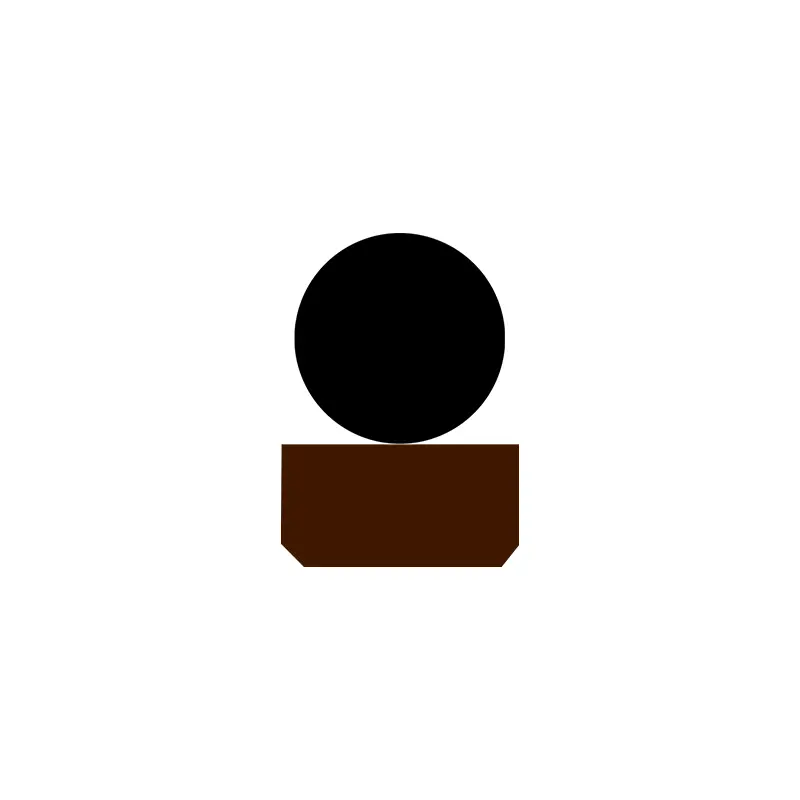

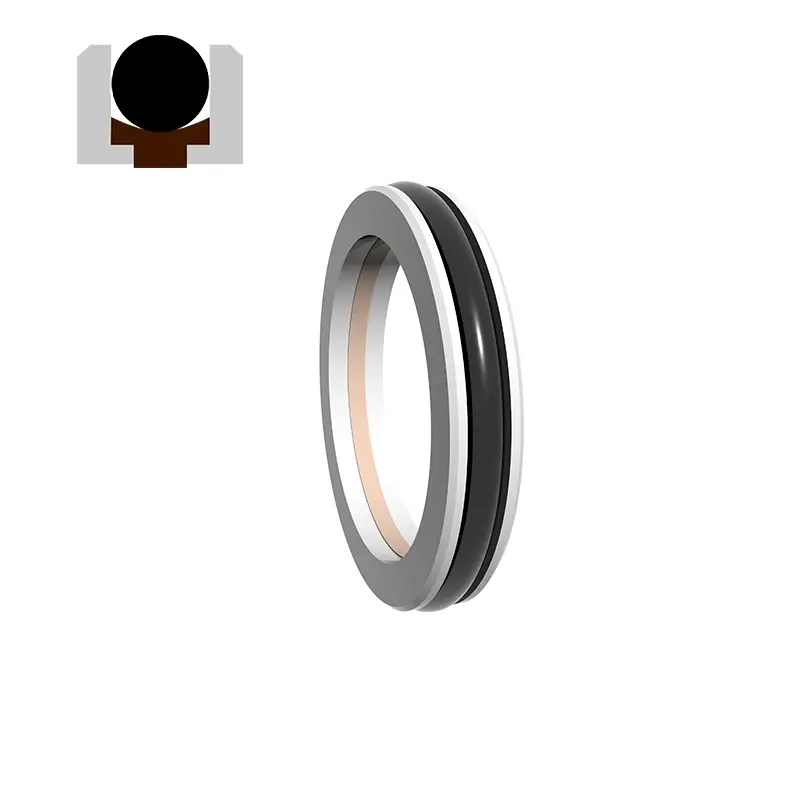

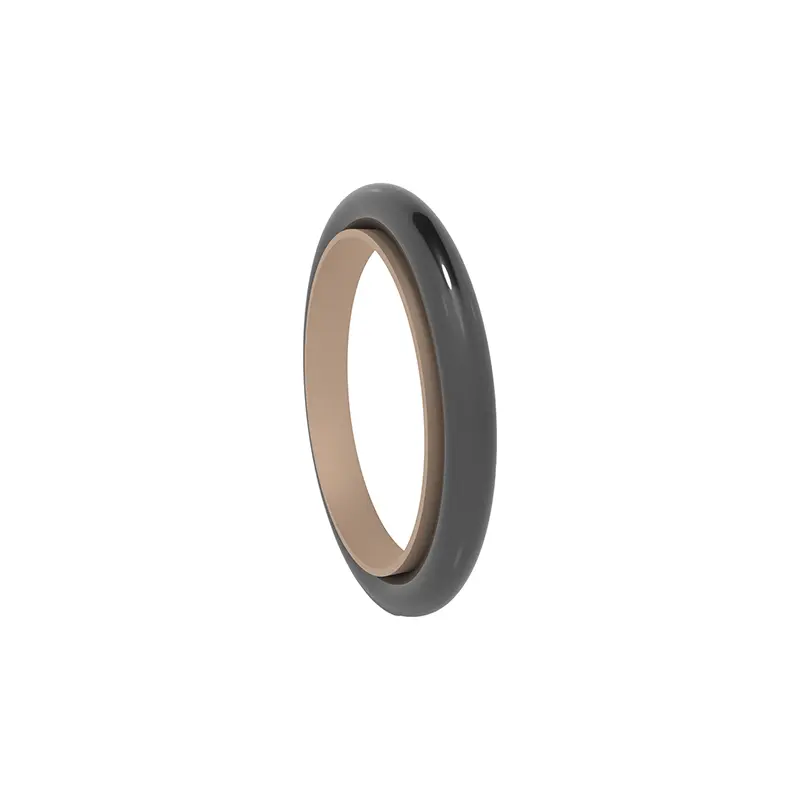

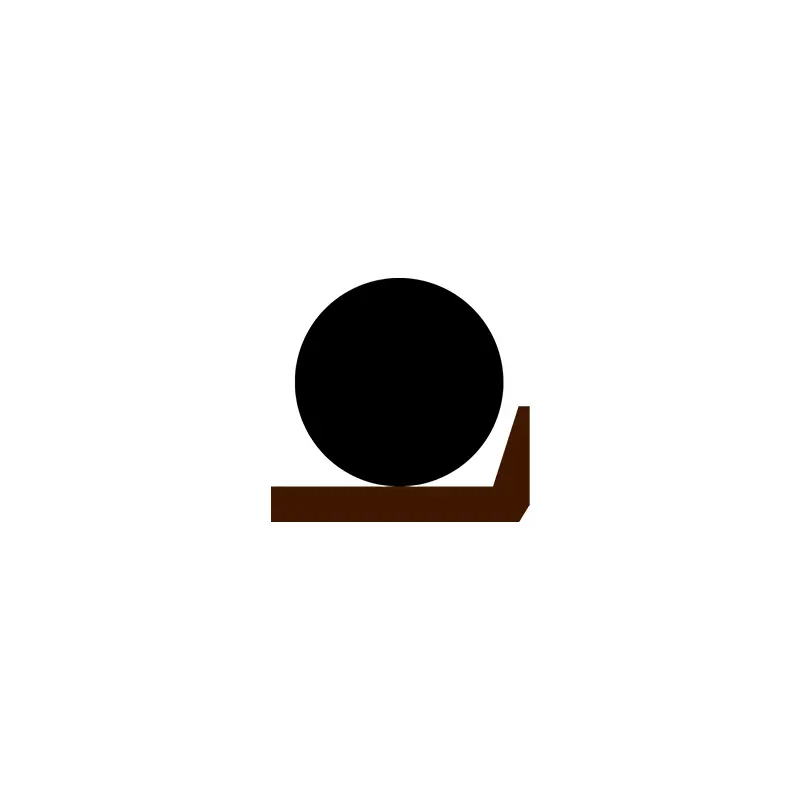

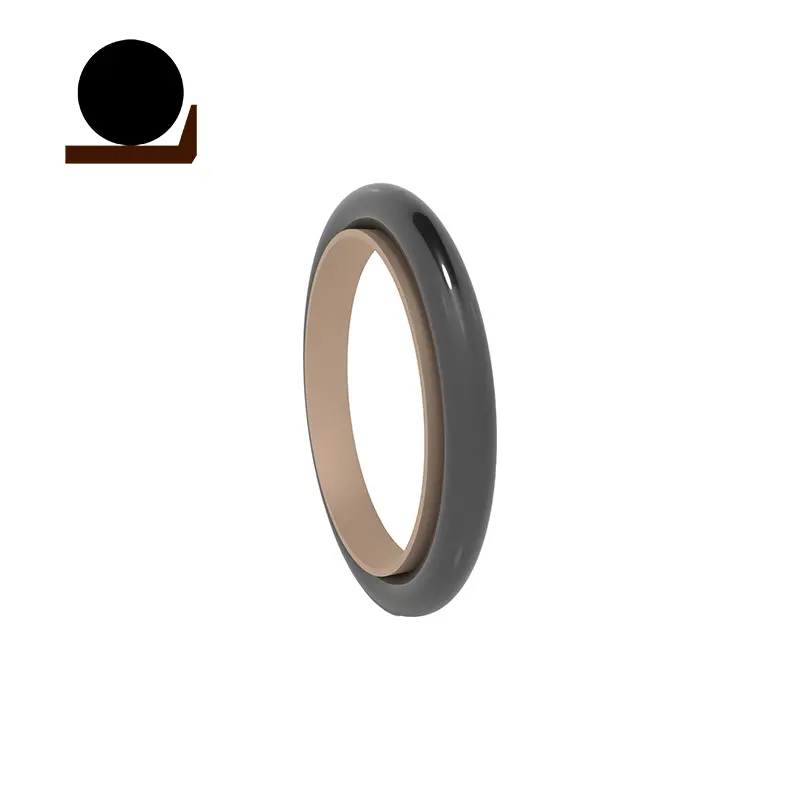

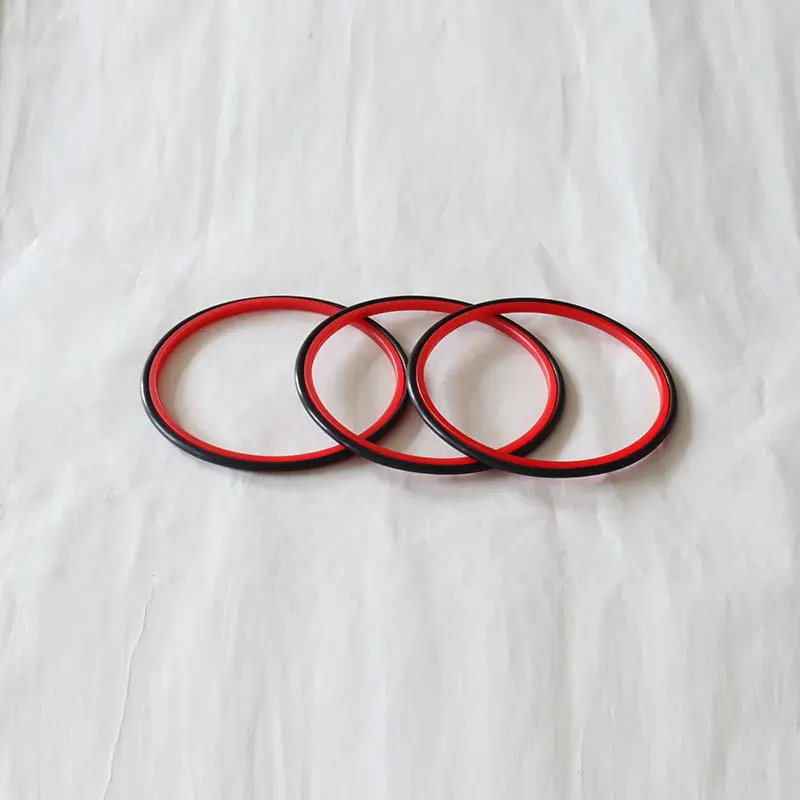

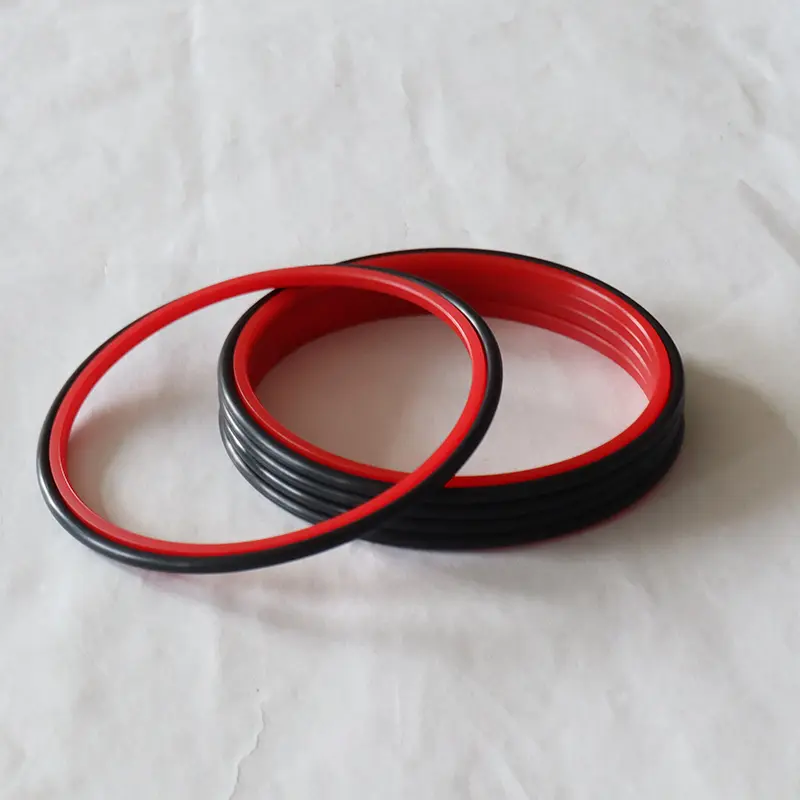

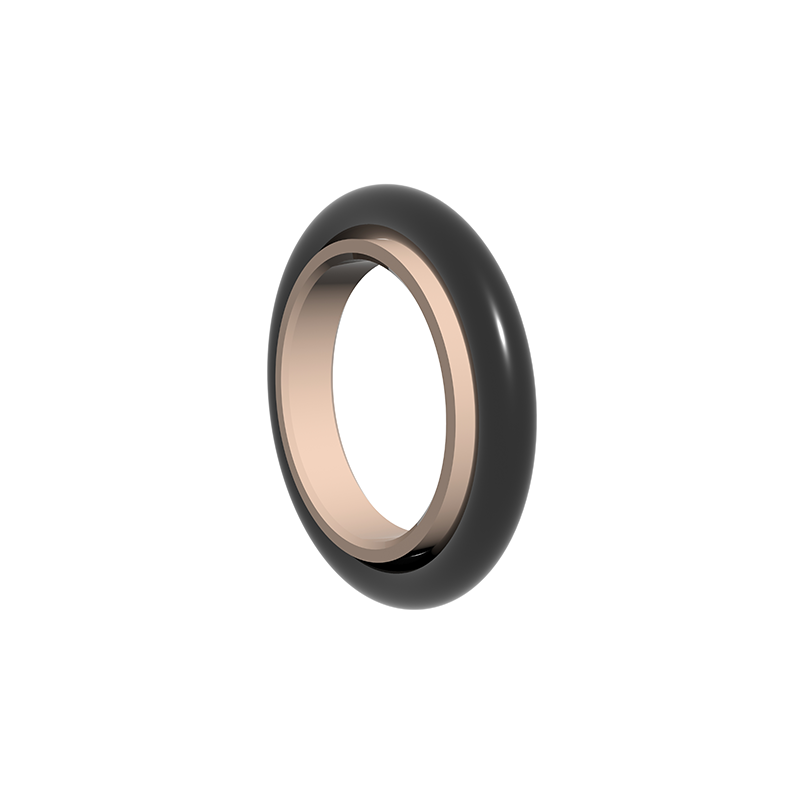

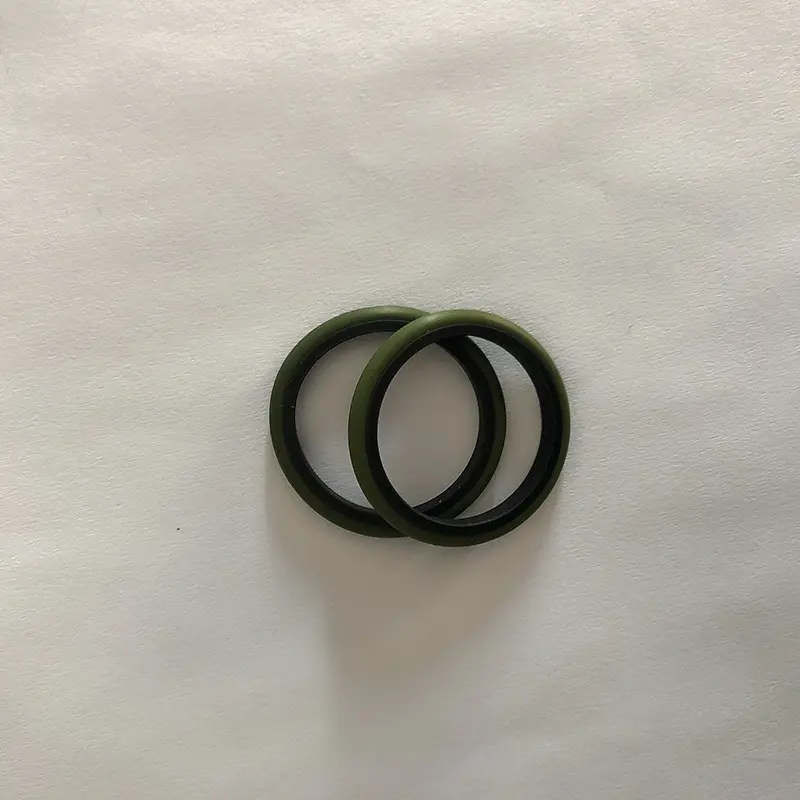

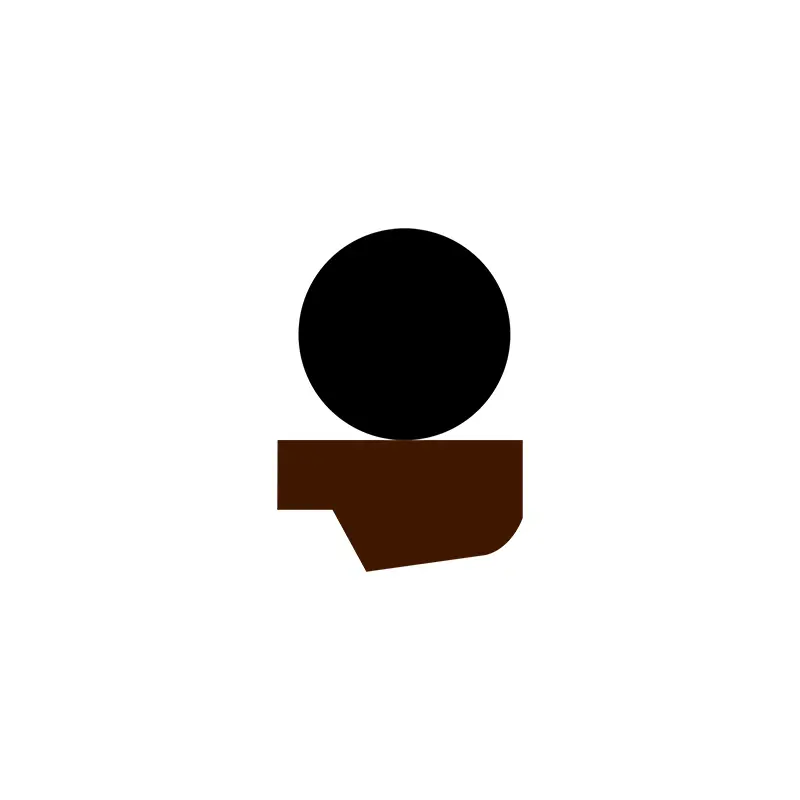

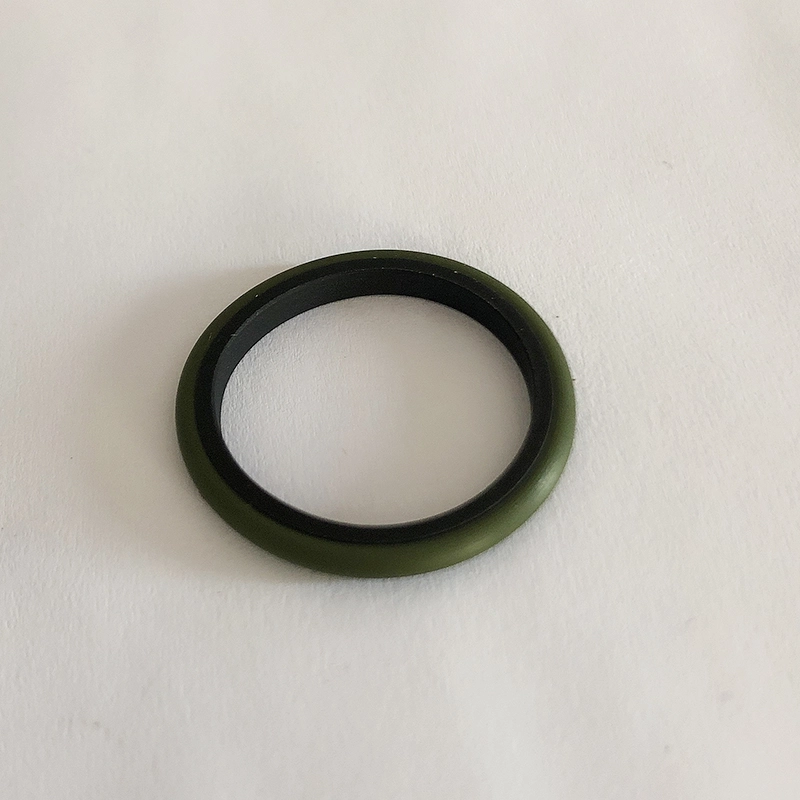

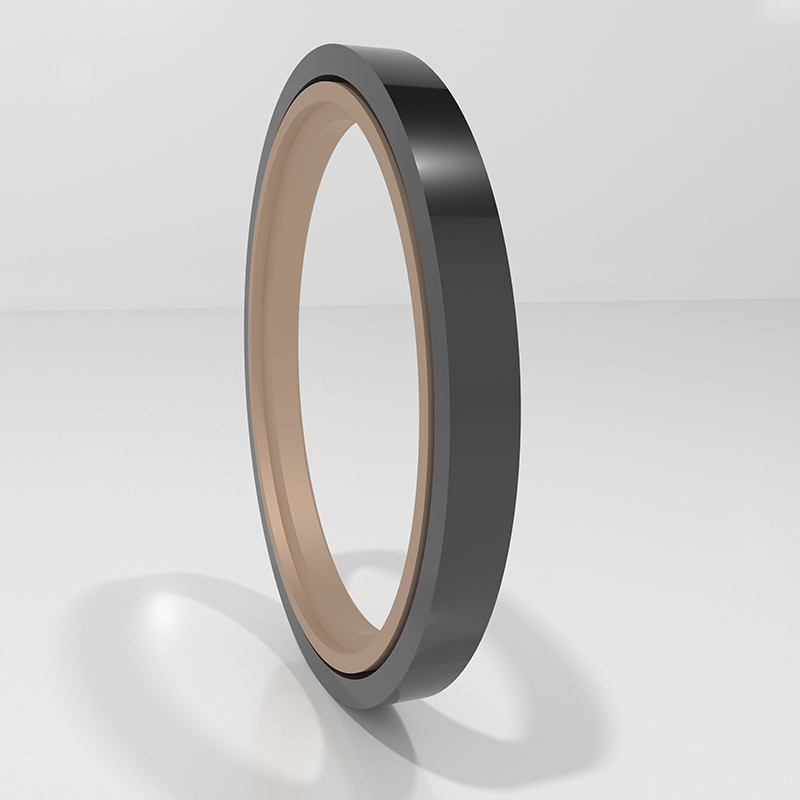

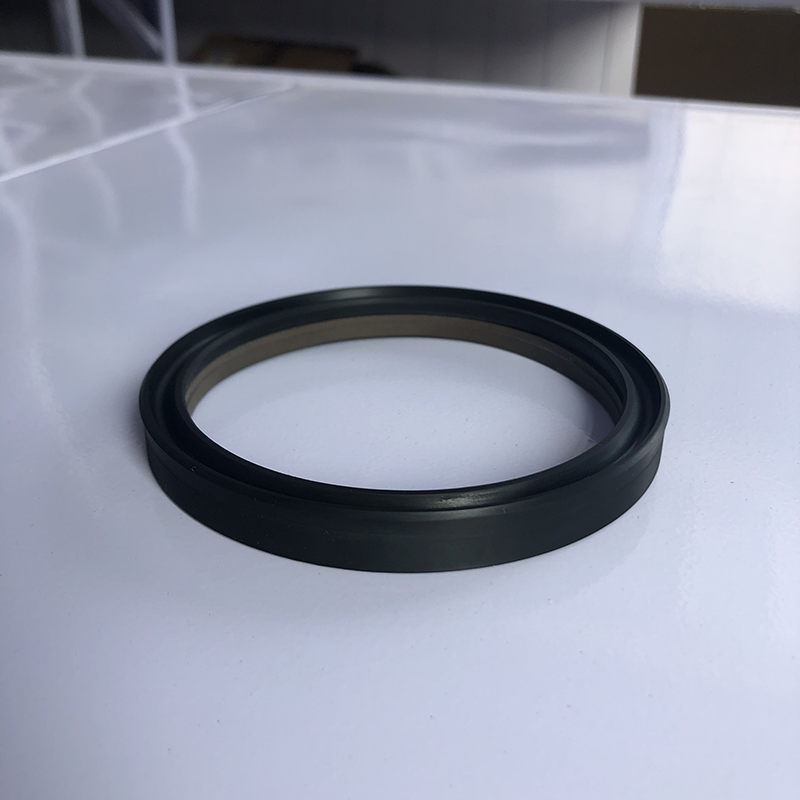

RC11 is composed of a filled PTFE stepped sealing ring and an O-shaped rubber ring, suitable for hydraulic reciprocating motion one-way pressure sealing.

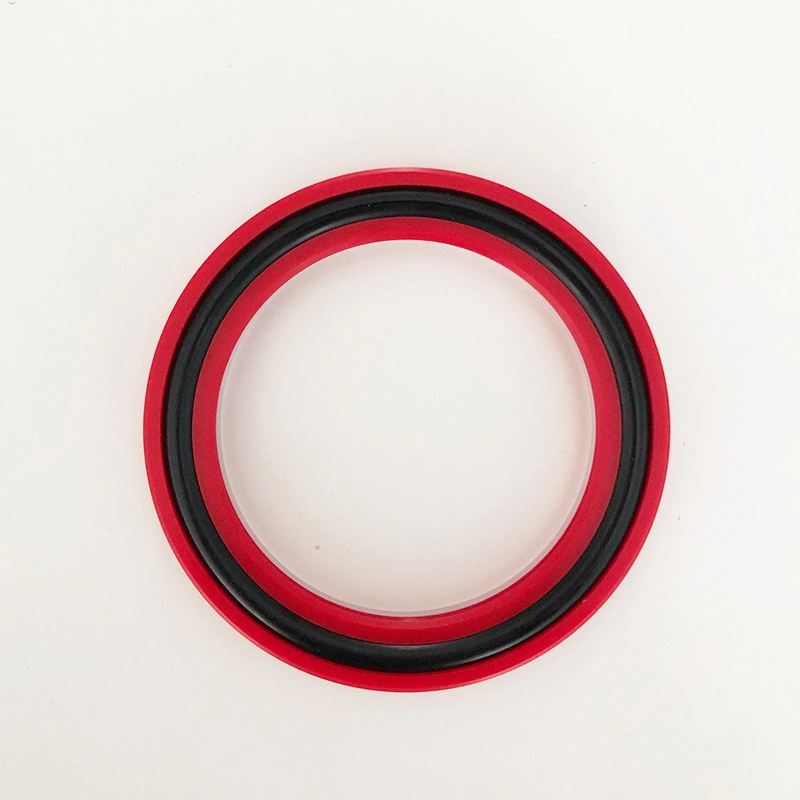

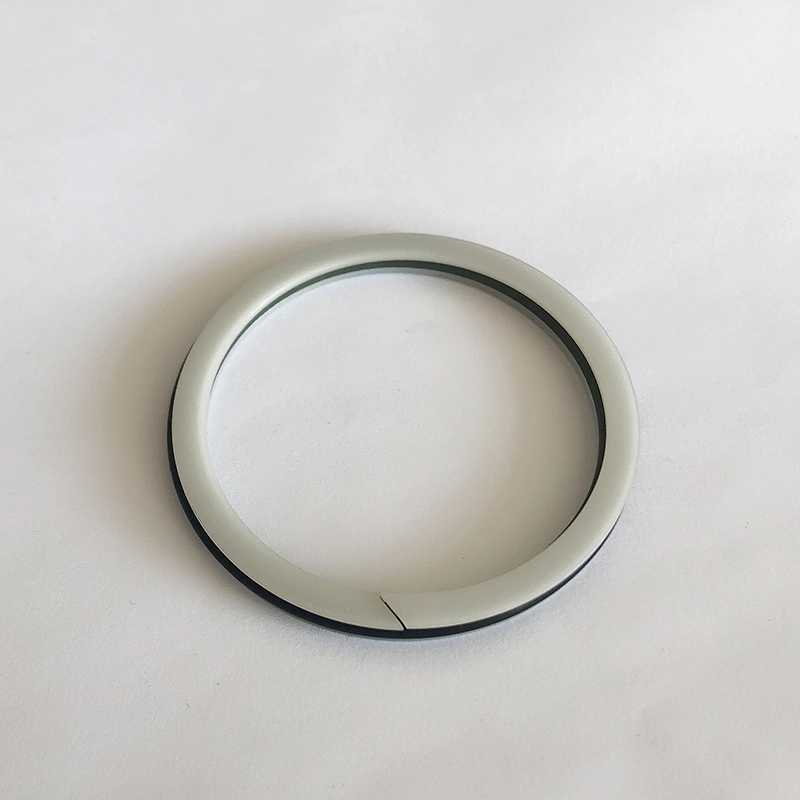

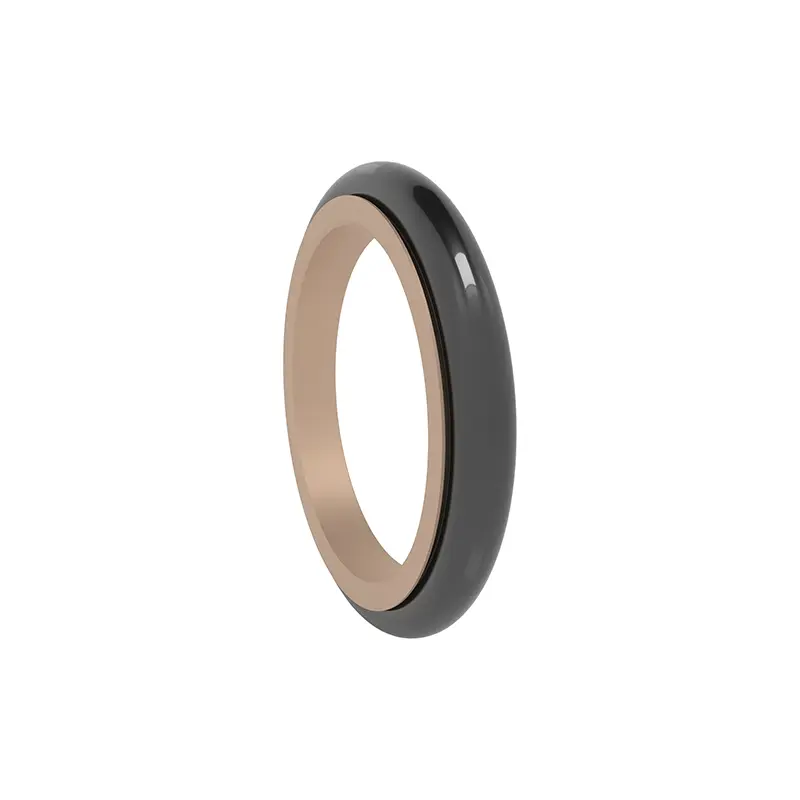

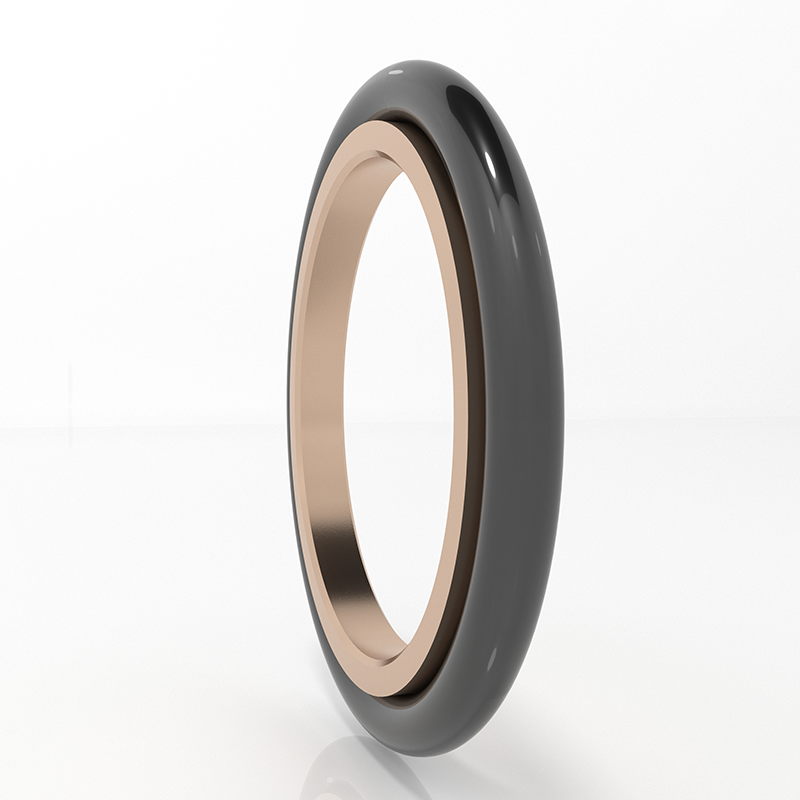

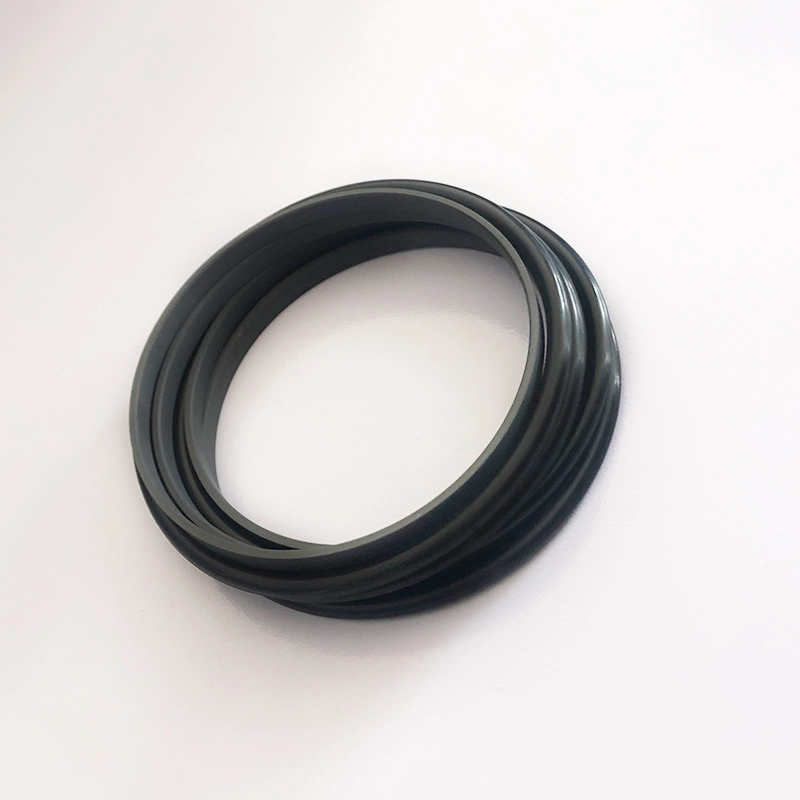

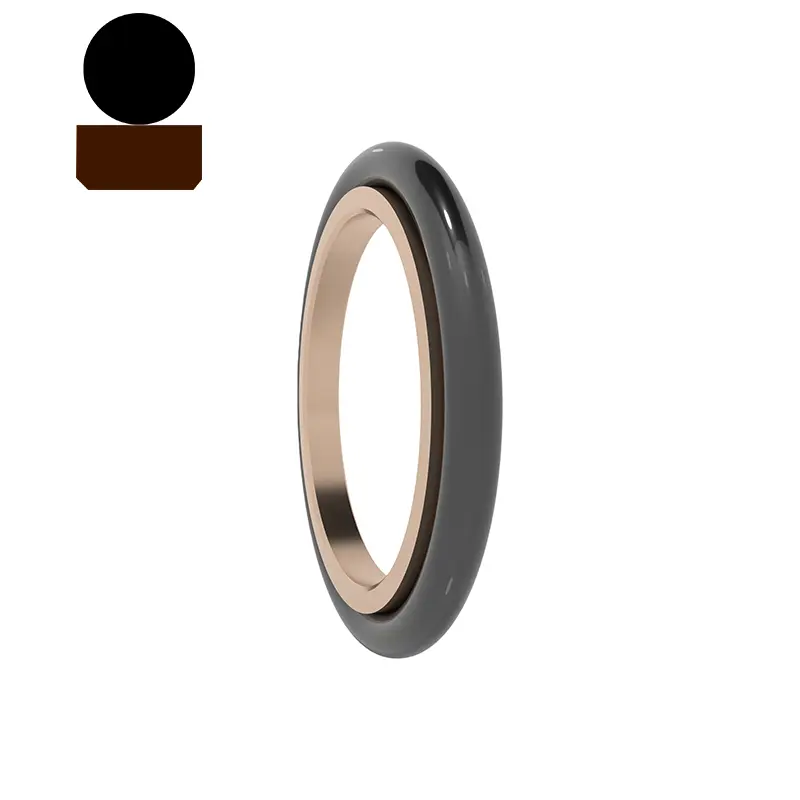

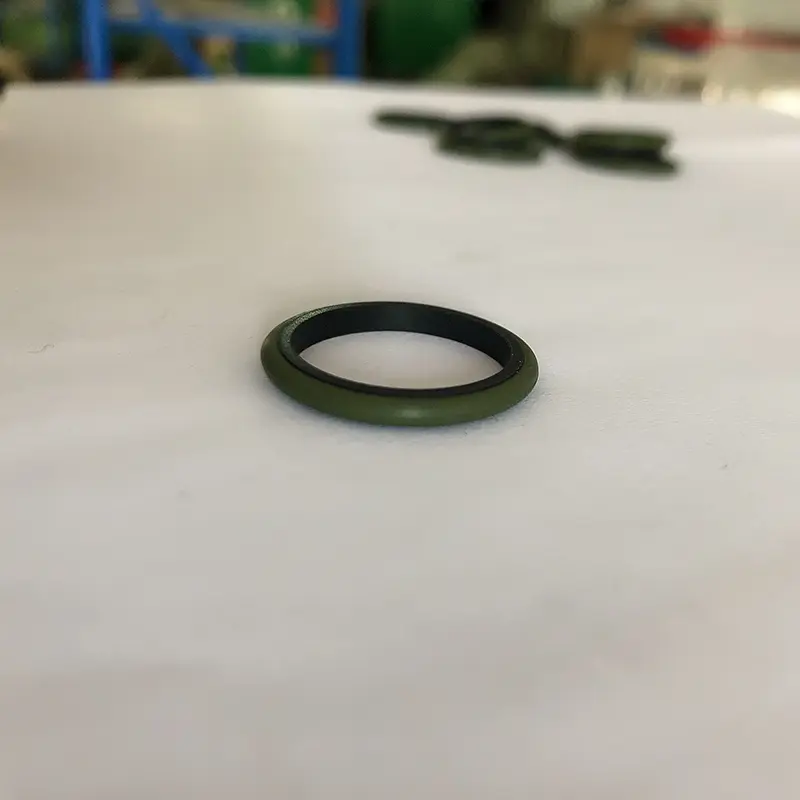

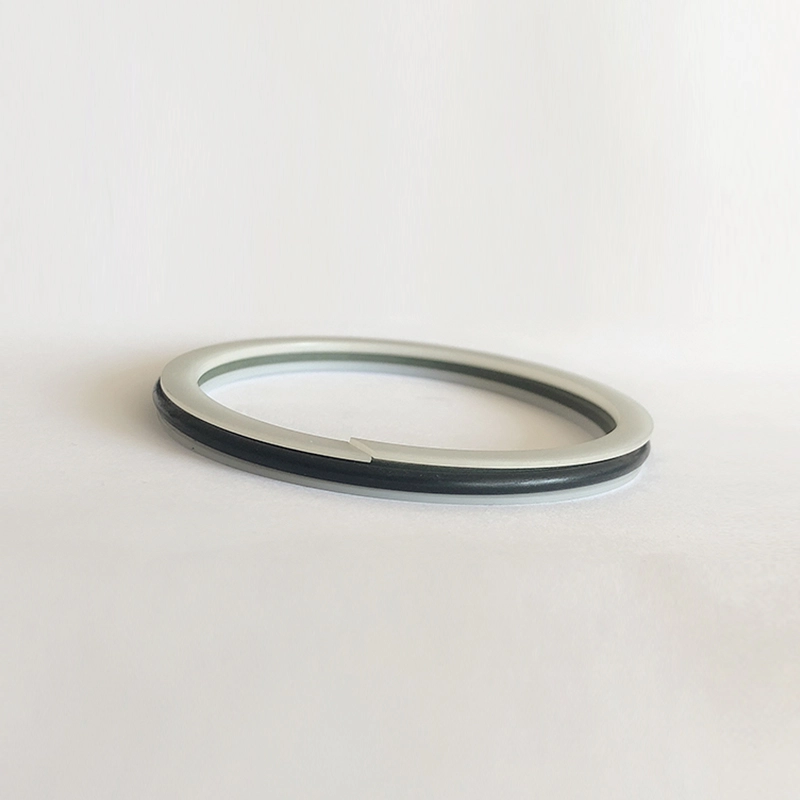

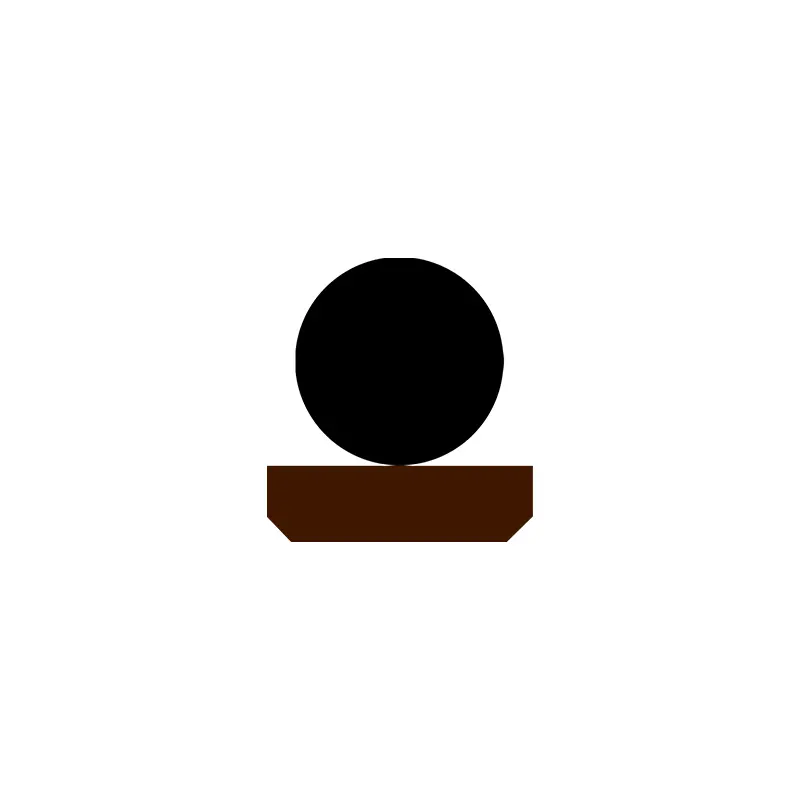

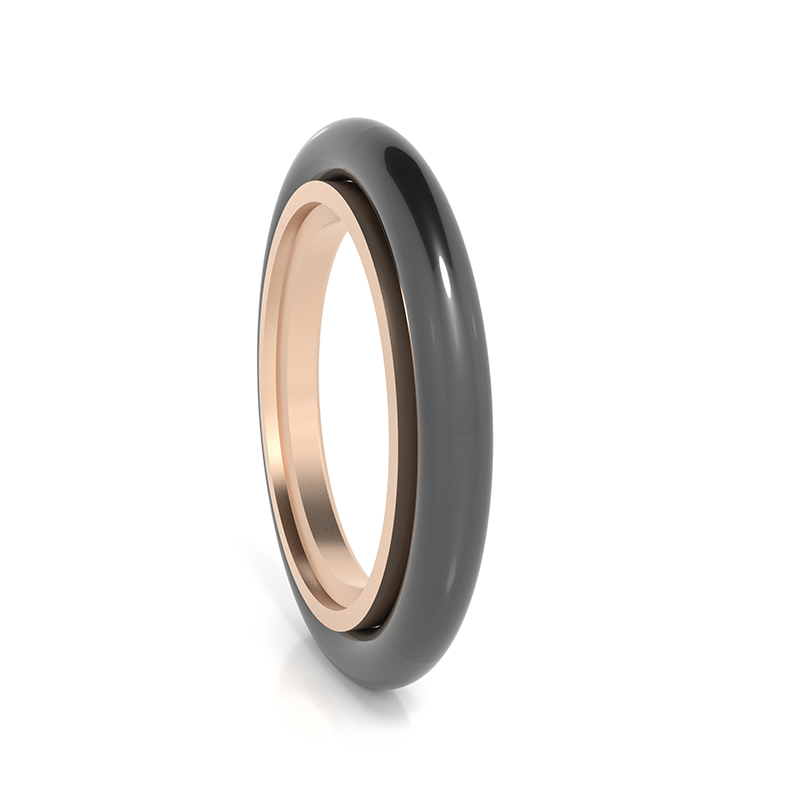

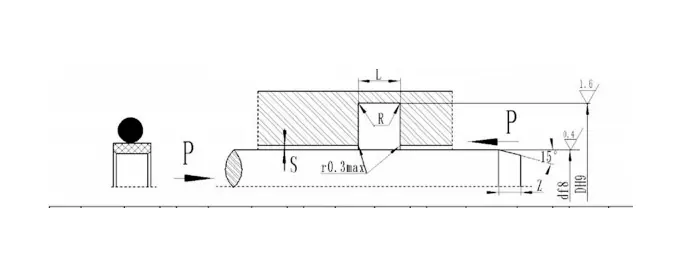

RC11-B is composed of a filled PTFE rectangular sealing ring and an O-shaped rubber ring, suitable for hydraulic reciprocating motion two-way pressure sealing. The O-ring provides radial force and compensates for the wear of the sealing ring. It is generally used in conjunction with a guide ring. Split (open) grooves should be used for rod diameters less than 30mm. Features:

1. Low friction, small starting resistance, smooth movement, equal dynamic and static friction, no creeping;

2. Very high pressure stability under pressure and harsh conditions;

3. High life, can be used for oil-free lubrication seals;

4. Can be used for sealing low-viscosity media such as water;

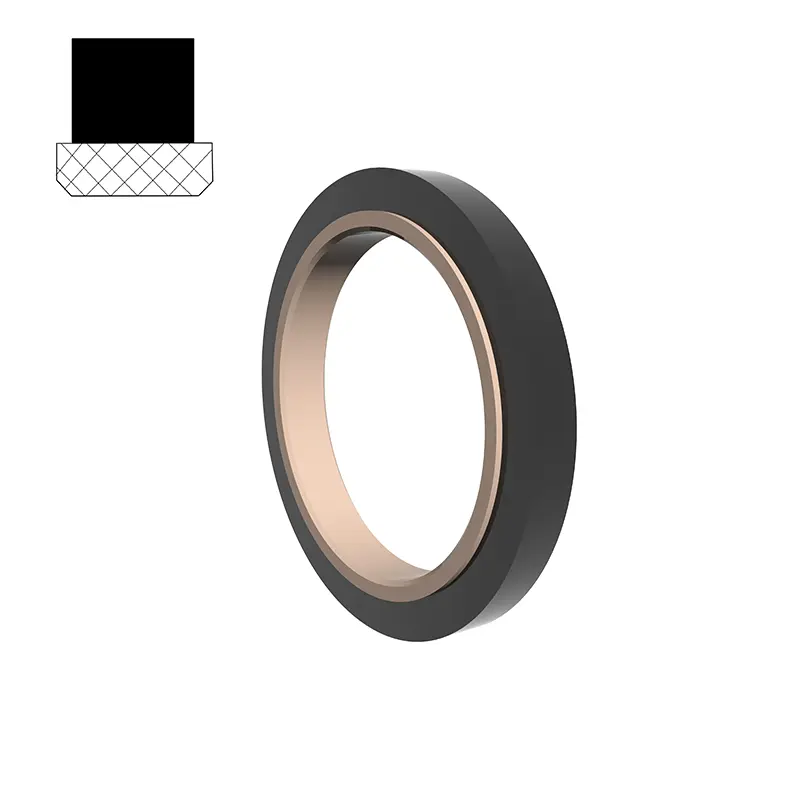

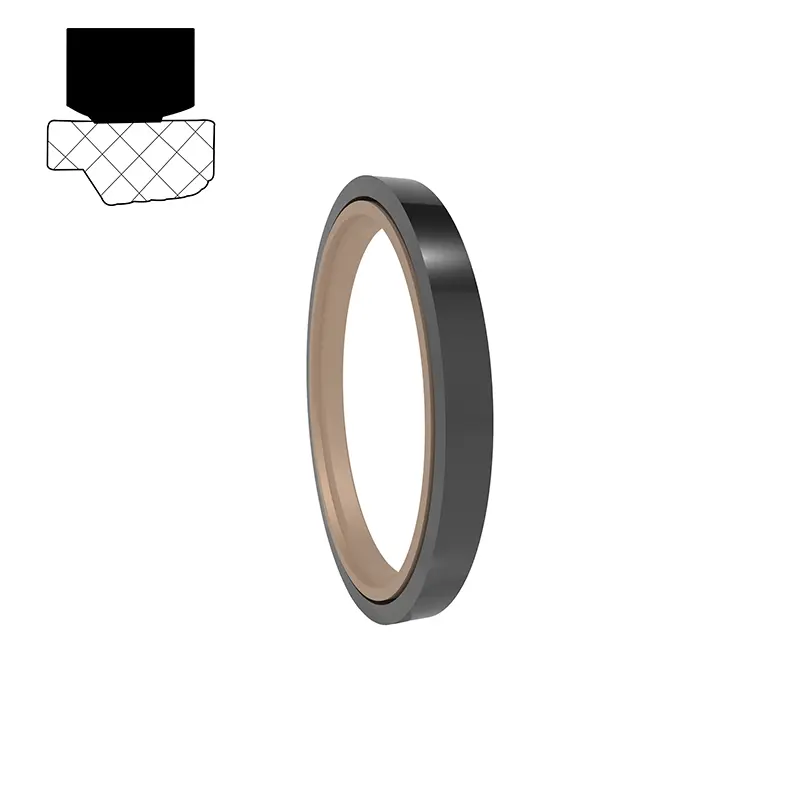

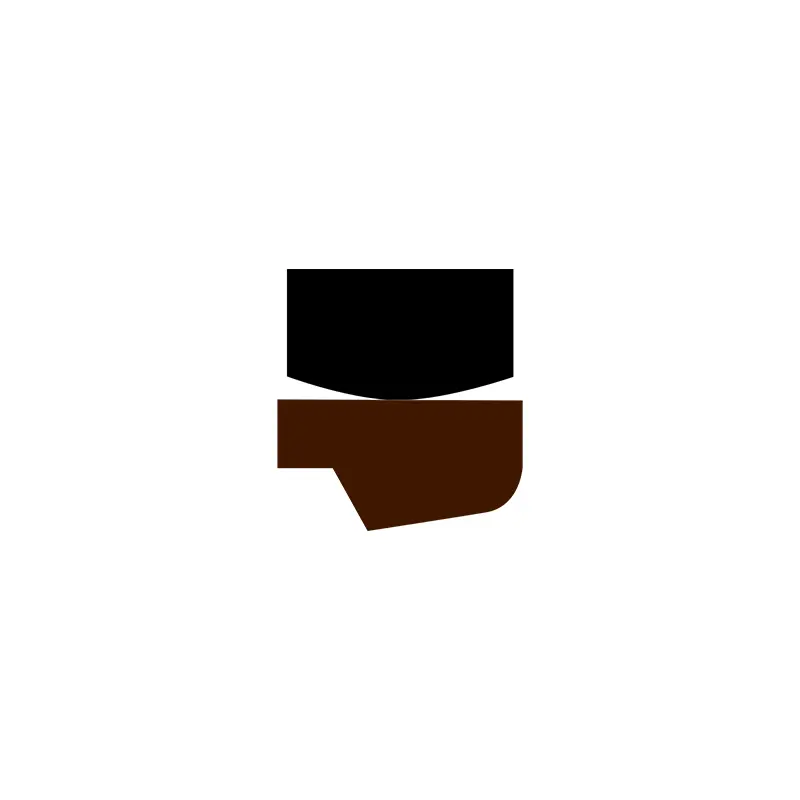

RC12 is composed of a filled PTFE stepped sealing ring and a rectangular rubber ring, suitable for hydraulic reciprocating motion one-way pressure sealing. The rectangular ring provides radial force and compensates for the wear of the sealing ring. It is generally used in conjunction with a guide ring. Split (open) grooves should be used for rod diameters less than 30mm. It is mostly used in heavy hydraulic equipment.

Features:

1. Low friction, small starting resistance, smooth movement, equal dynamic and static friction, no creeping;

2. Very high pressure stability under pressure and harsh conditions;

3. High life, can be used for oil-free lubrication seals;

4. Can be used for sealing low-viscosity media such as water;

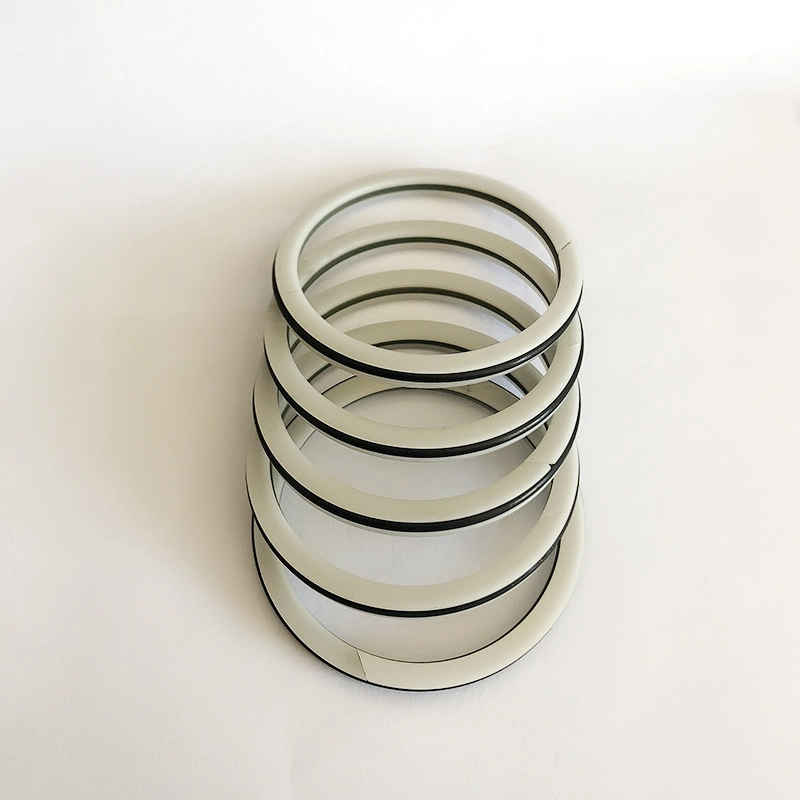

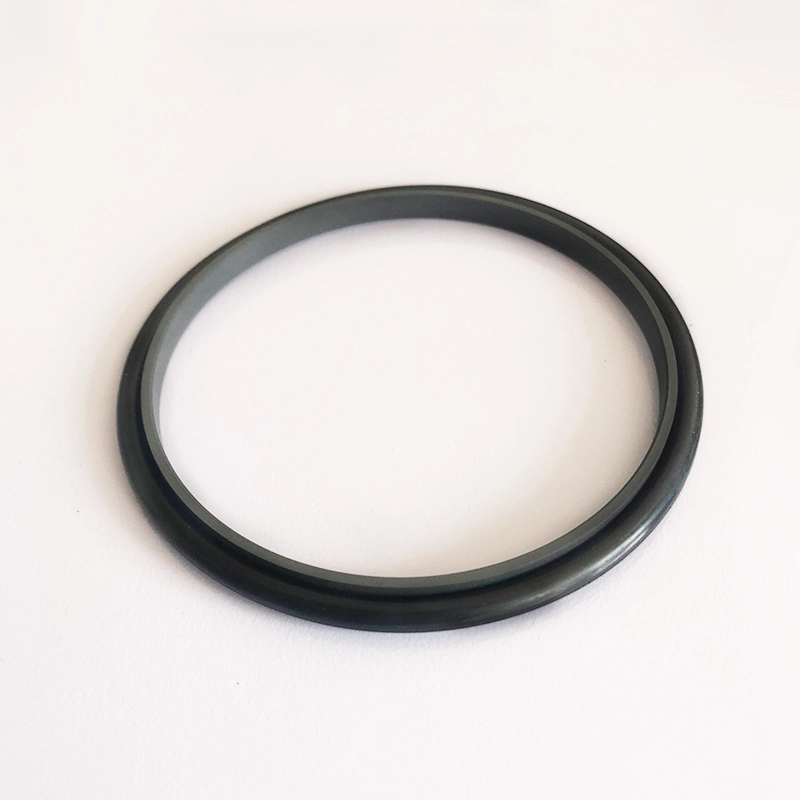

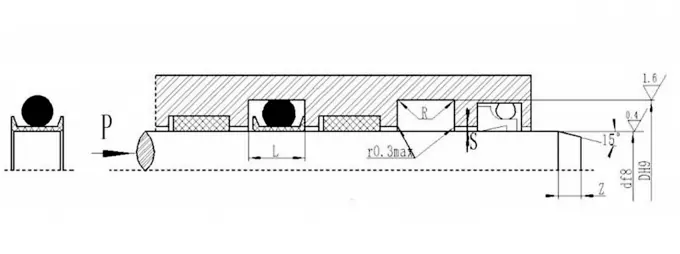

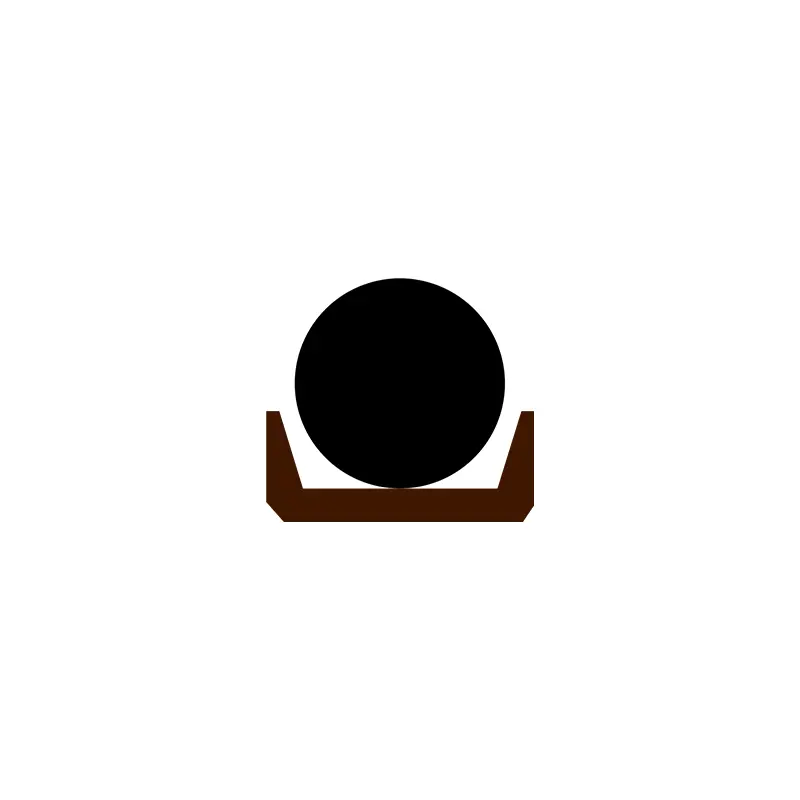

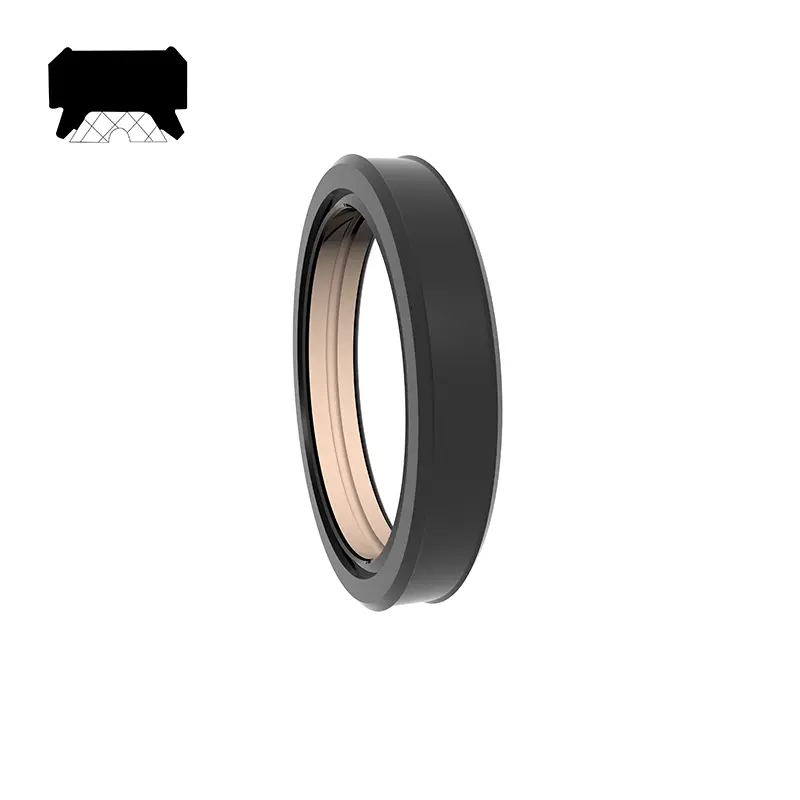

SPNC/RC13 is composed of a PTFE cap-shaped sealing ring and an O-shaped rubber ring, which is suitable for hydraulic and pneumatic reciprocating motion bidirectional pressure sealing. The O-shaped ring provides radial force and compensates for the wear of the sealing ring. The sealing ring adopts a thin lip design, which has good follow-up compensation ability, so the sealing performance is good and can be installed in the GB12350 ring groove. Split (open) grooves should be used for rod diameters less than 30mm. Features:

1. It can be used for both hydraulic and pneumatic, and can be used for bidirectional pressure sealing;

2. Low friction, small starting resistance, smooth movement, equal dynamic and static friction, and no creeping;

3. Long life, can be used for oil-free lubrication seals;

4. Small structural space, easy installation and maintenance;

RC14 is composed of a PTFE triangular sealing ring and an O-shaped rubber ring, which is suitable for hydraulic and pneumatic reciprocating motion one-way pressure sealing. The O-ring provides radial force and compensates for the wear of the sealing ring. Since the sealing ring adopts a thin lip design, the follow-up compensation ability is better, so the sealing performance is good. The split (open) groove should be used for rod diameters less than 30mm. Features:

1. It can be used for both hydraulic and pneumatic;

2 Low friction, small starting resistance, smooth movement, equal dynamic and static friction, no creeping;

3. Long life, can be used for oil-free lubrication seals;

4. Small structural space, easy installation and maintenance;

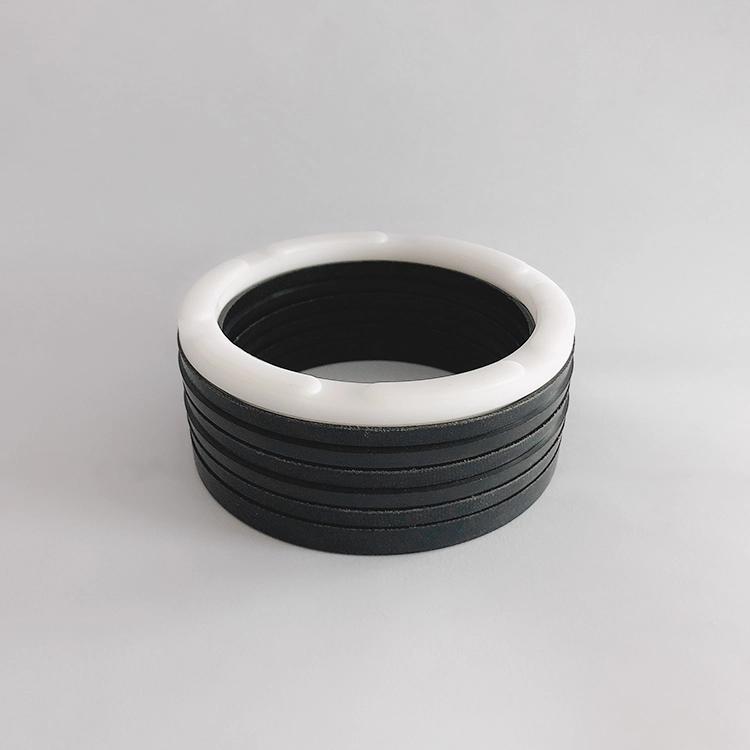

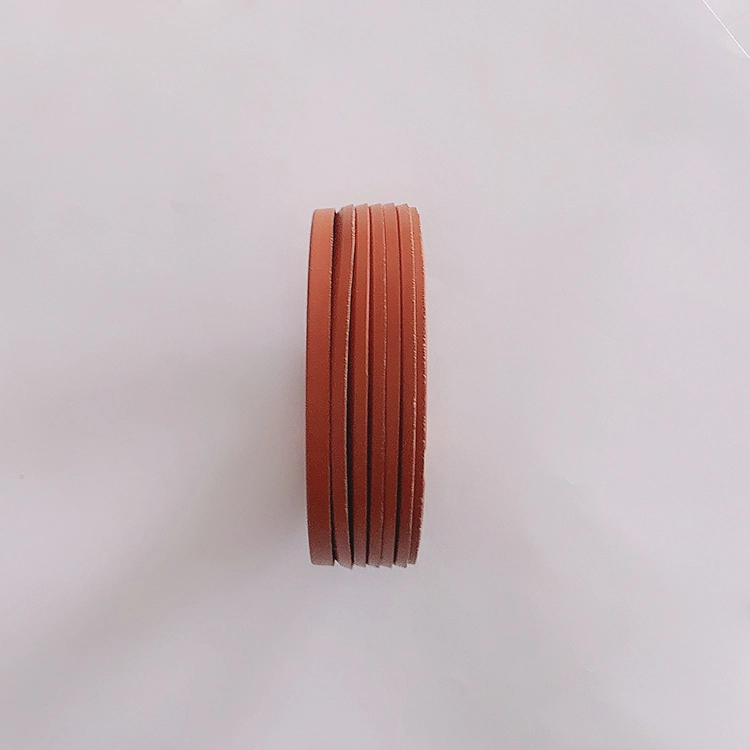

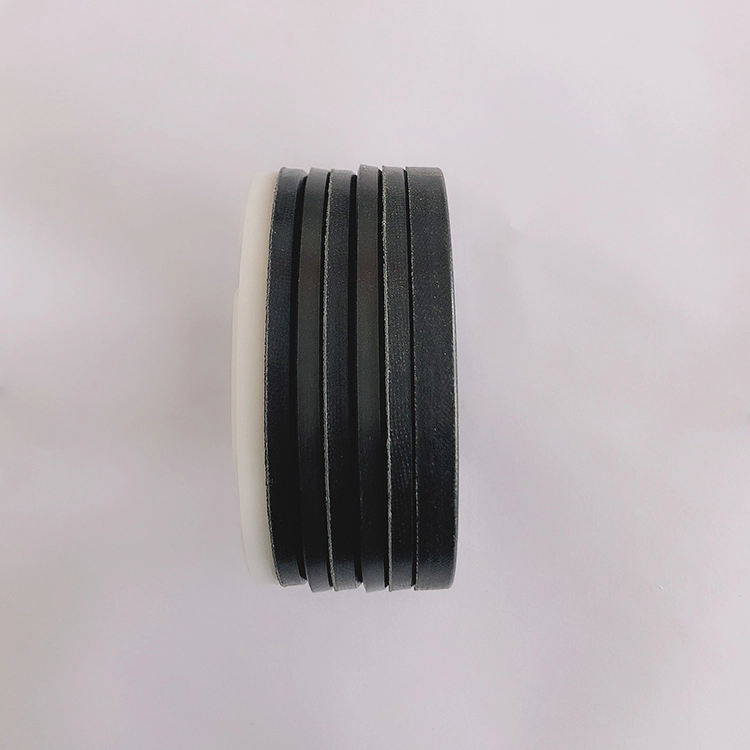

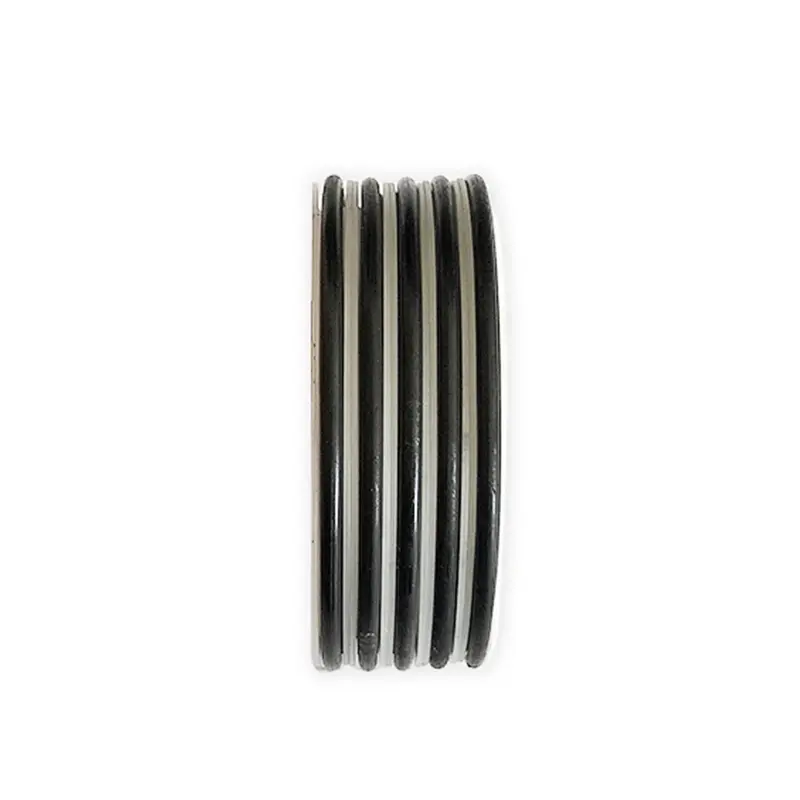

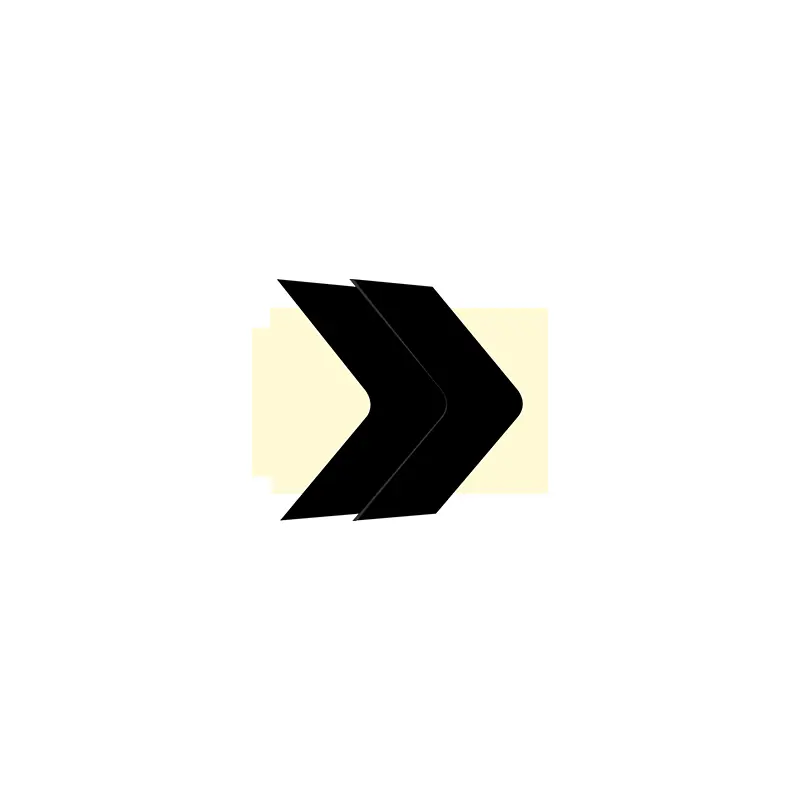

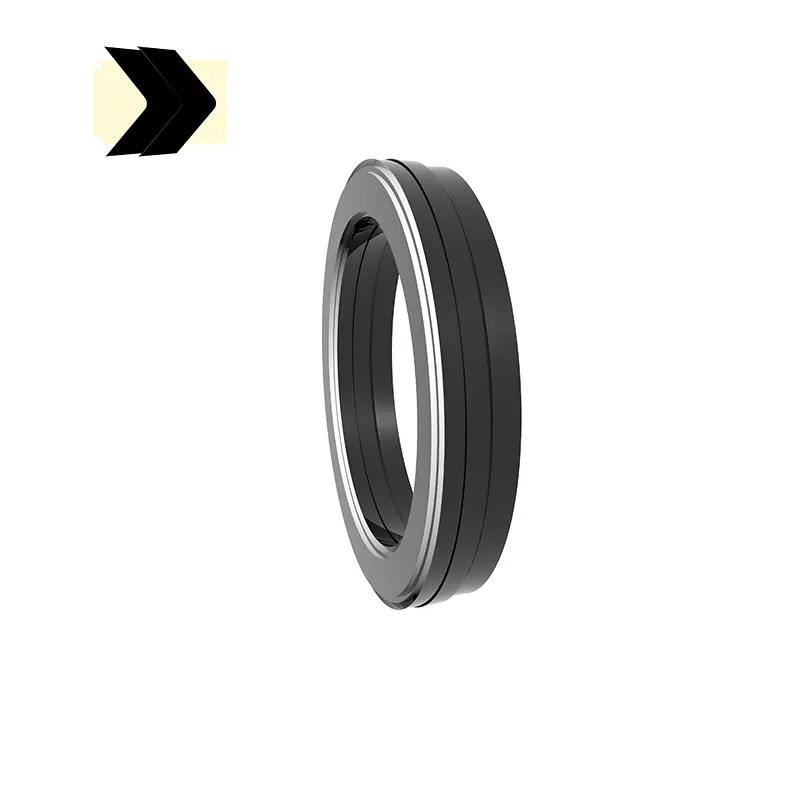

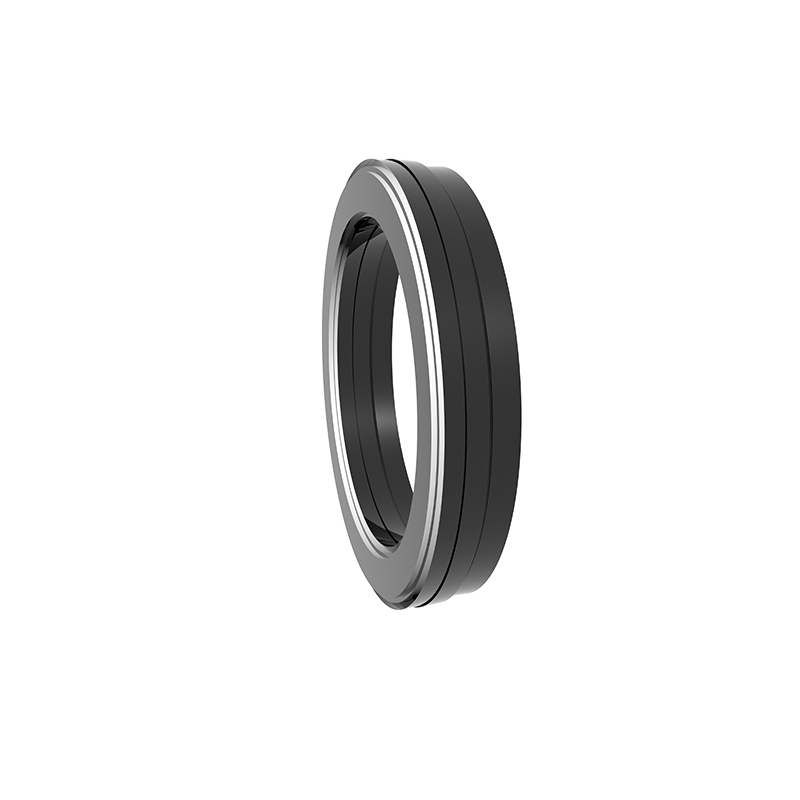

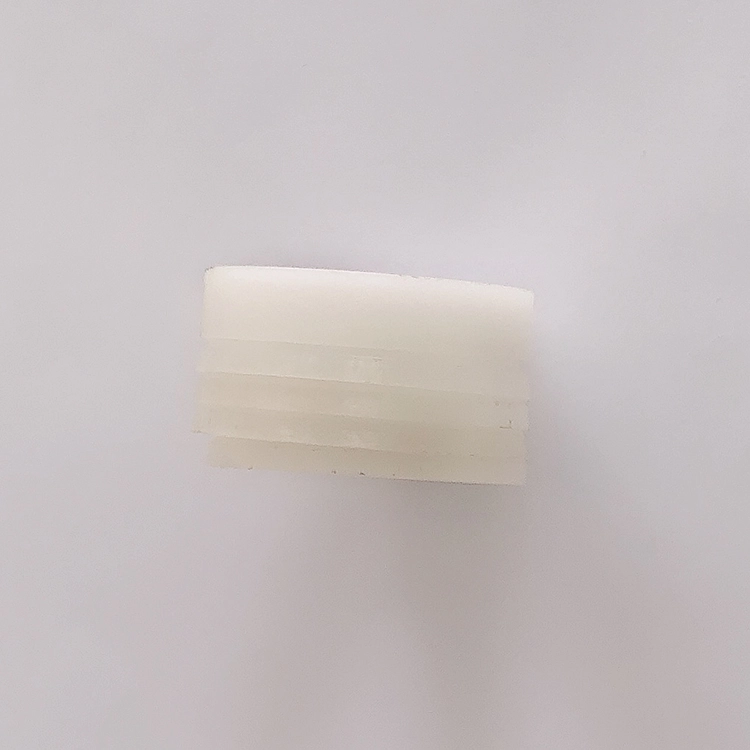

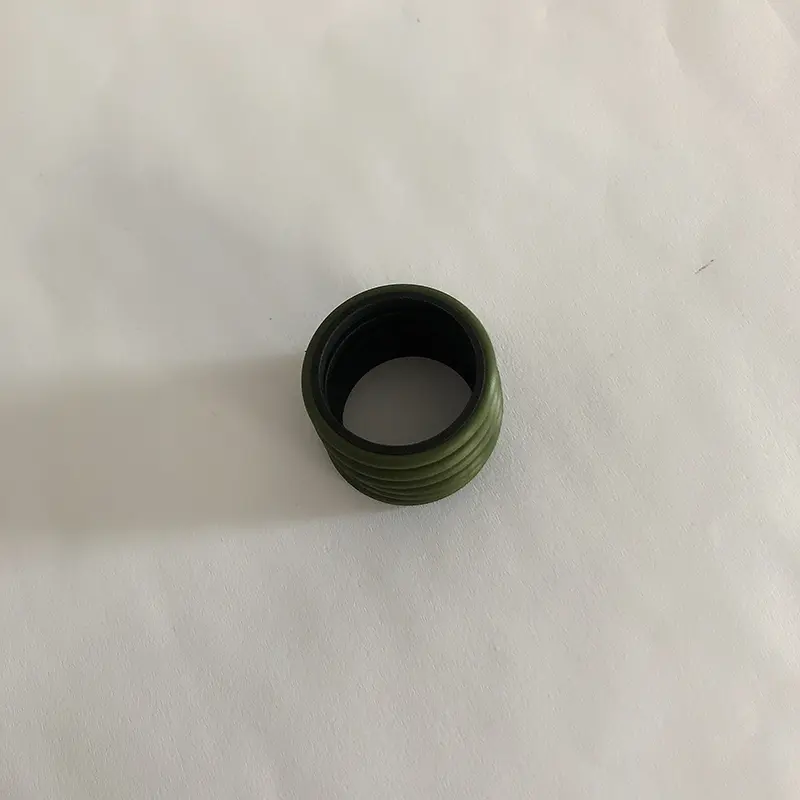

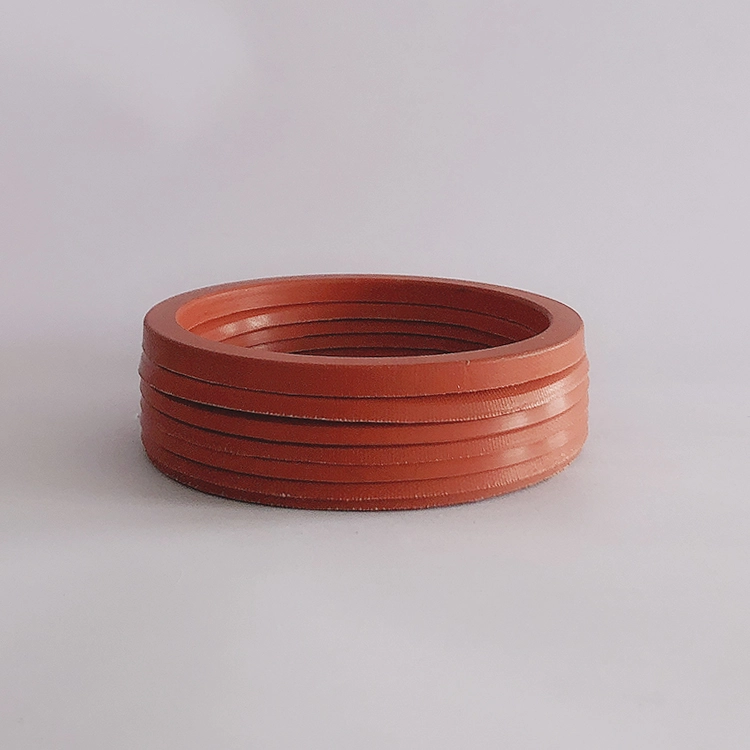

RC15 is composed of a set (more than 3) of V-shaped sealing rings, a pressure ring and a support ring, and is suitable for hydraulic reciprocating motion one-way pressure sealing. Grease compatible with the sealing material must be applied during installation. It cannot be installed in an integral (closed) groove. Features:

1. A variety of materials are available, which can be optimally adjusted to suit various purposes;

2. It can be used under harsh working conditions and is suitable for almost all media and harsh conditions;

3. It has a long service life and can be used for oil-free lubricated seals (reasonable material selection);

4. The sealing and friction can be adjusted by adjusting the gasket, and the axial size can be adjusted by adding or removing the V-shaped sealing ring;

5. It can work effectively even if the sealing surface quality is poor.

Spn is composed of a filled PTFE rectangular sealing ring and a rectangular rubber ring, suitable for hydraulic and pneumatic reciprocating motion bidirectional pressure sealing. The rectangular ring provides radial force and compensates for the wear of the sealing ring. Split (open) grooves should be used for rod diameters less than 30mm.

Features:

1. Low friction, small starting resistance, smooth movement, equal dynamic and static friction, no creeping;

2. Hydraulic and pneumatic dual-use seals, can be used for bidirectional pressure sealing;

3. High life, can be used for oil-free lubrication seals;

4. Small structural space, easy installation and maintenance;

RC17 is suitable for hydraulic and pneumatic reciprocating bidirectional pressure sealing. The O-ring provides radial force and compensates for the wear of the sealing ring. Split (open) grooves should be used for rod diameters less than 30mm. Features:

1. Low friction, small starting resistance, smooth movement, equal dynamic and static friction, no creeping;

2. Hydraulic and pneumatic dual-use seals, can be used for bidirectional pressure sealing;

3. Long life, can be used for oil-free lubrication seals;

4. Small structural space, easy installation and maintenance:

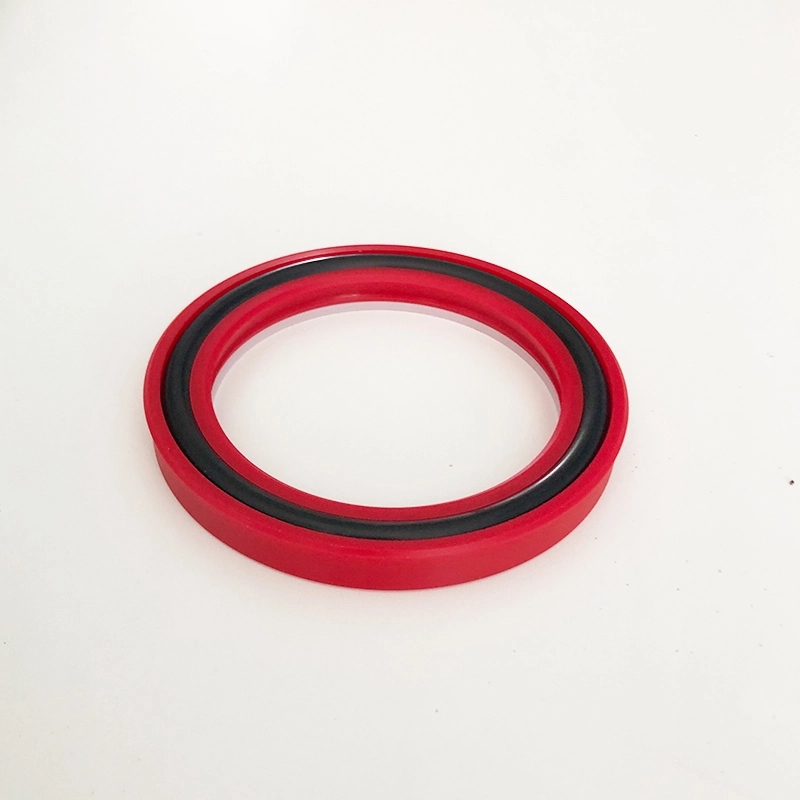

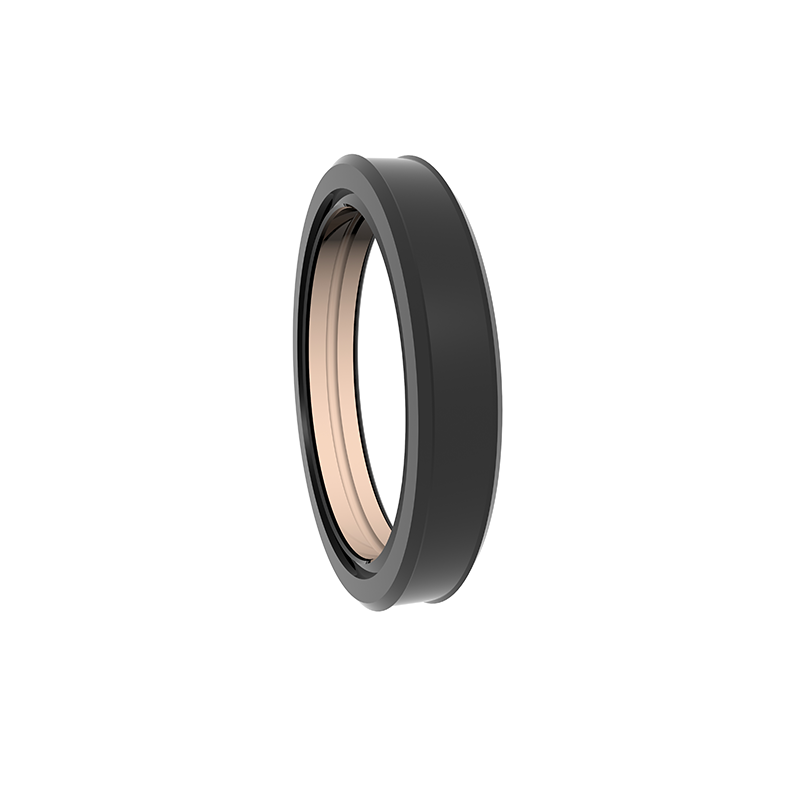

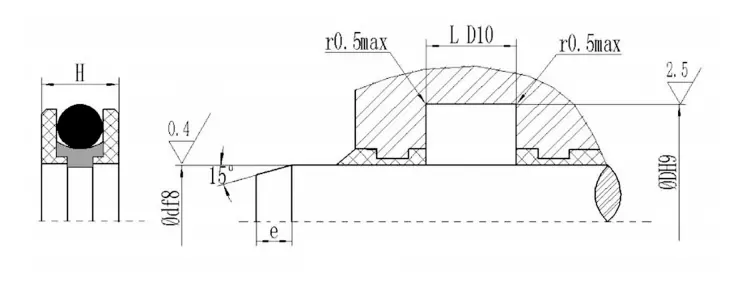

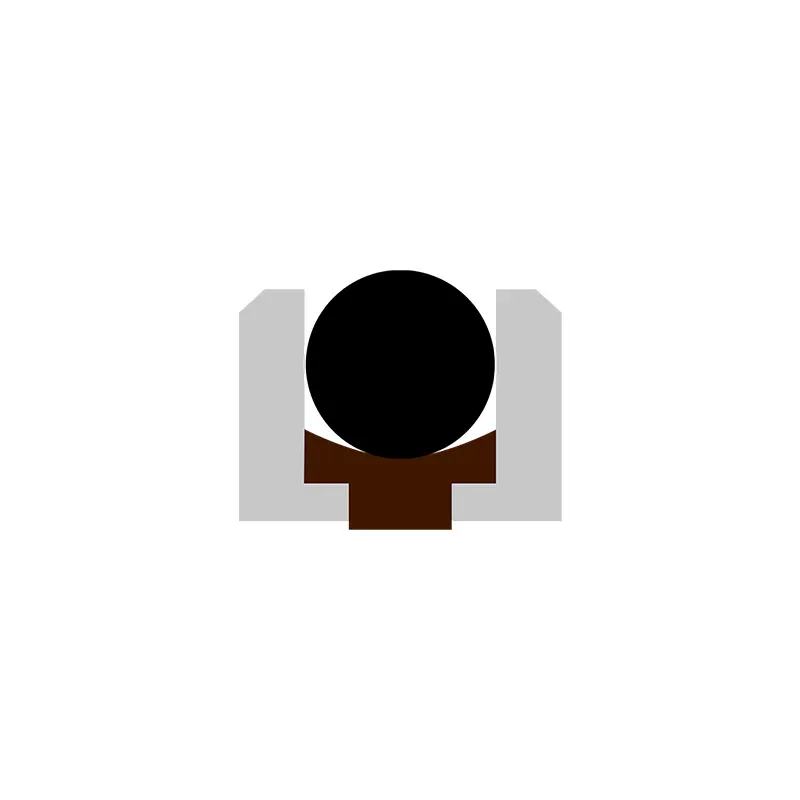

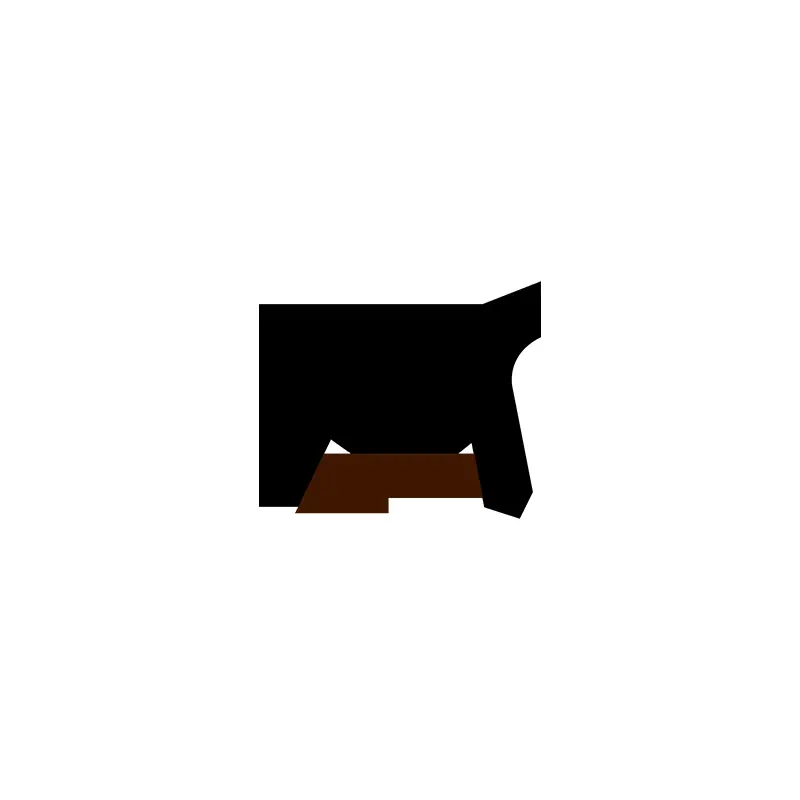

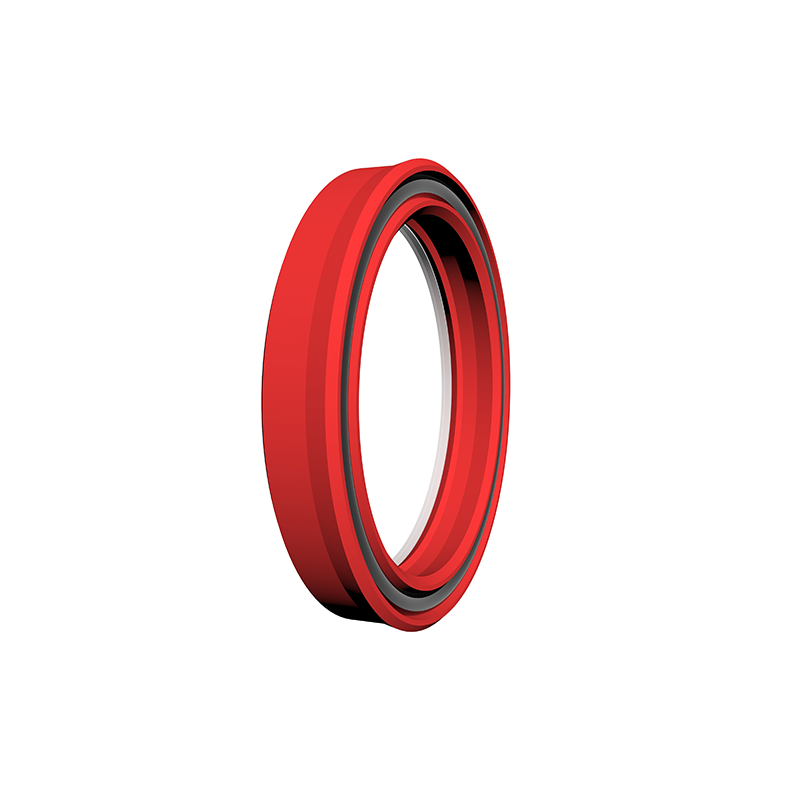

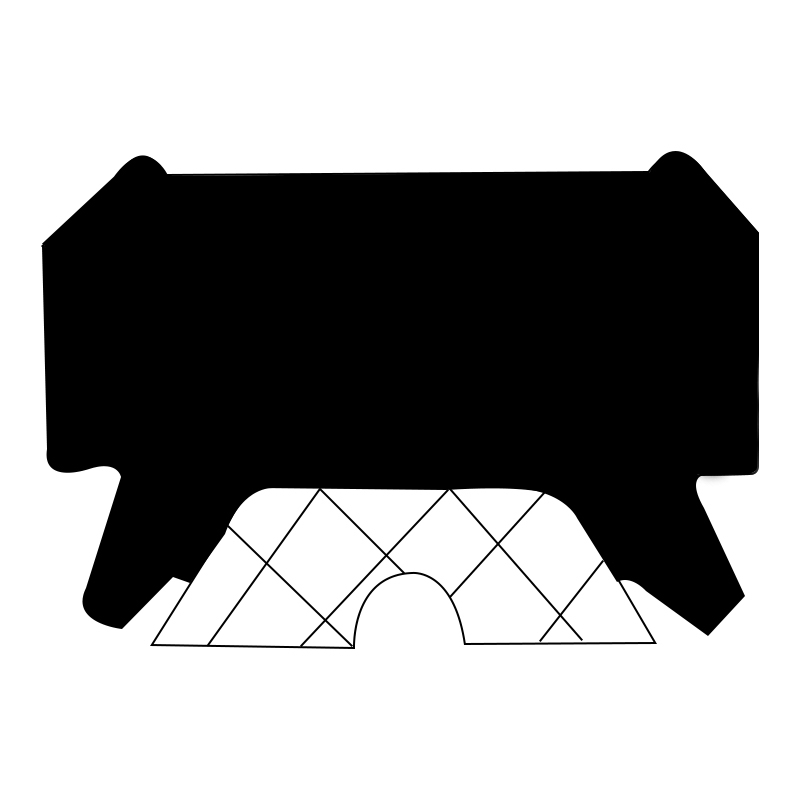

Gtdi is composed of a special-shaped rubber (or polyurethane) elastomer and a modified PTFE sealing ring, and has the characteristics of good sealing, long life, low friction, etc. Tdmi is composed of a special-shaped rubber (or polyurethane) elastomer and a modified PTFE sealing ring, and has the characteristics of good sealing, long life, low friction, no creeping, etc. GGDI is composed of a PTFE-filled sealing ring, two L-shaped plastic support rings and an elastic force O-ring, and has the characteristics of good sealing, long life, low friction, no creeping, etc.

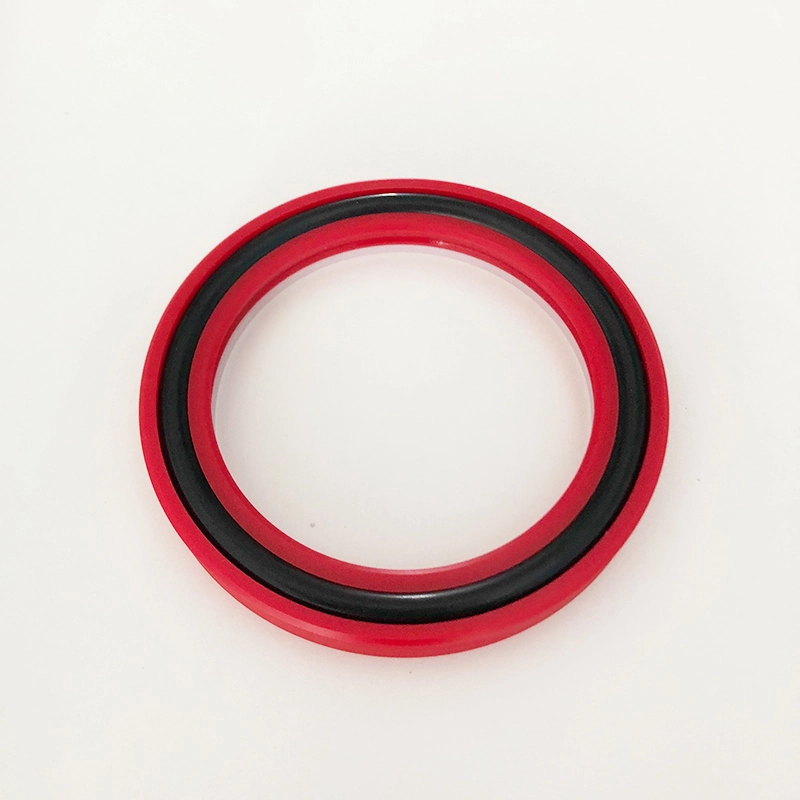

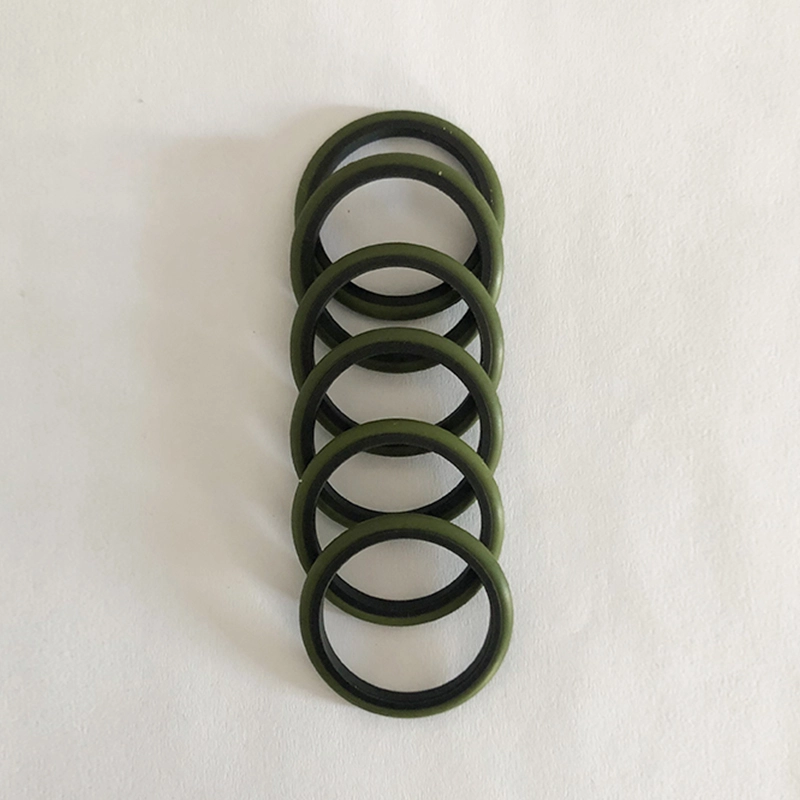

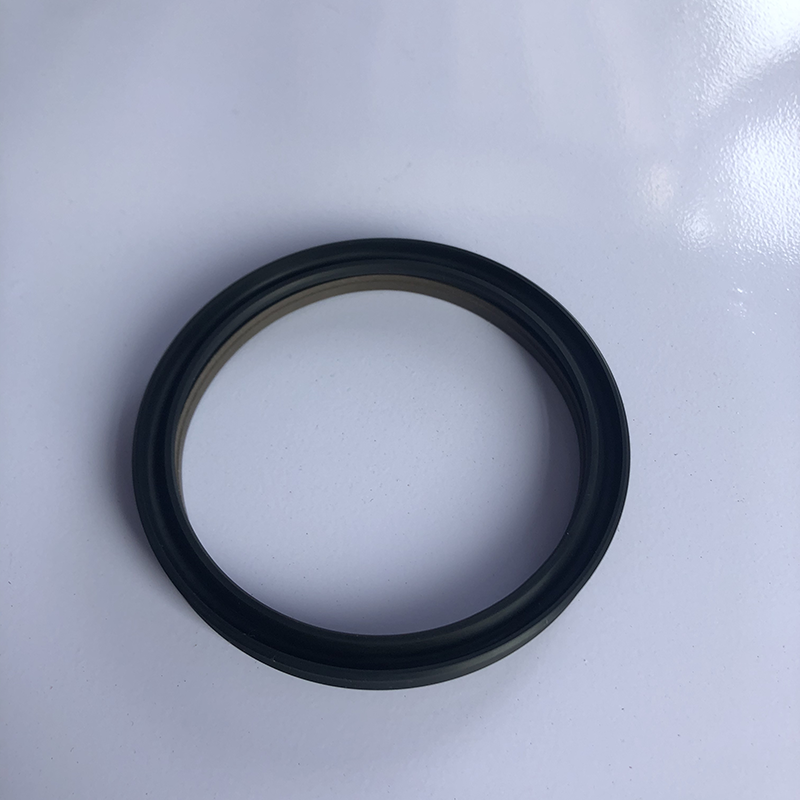

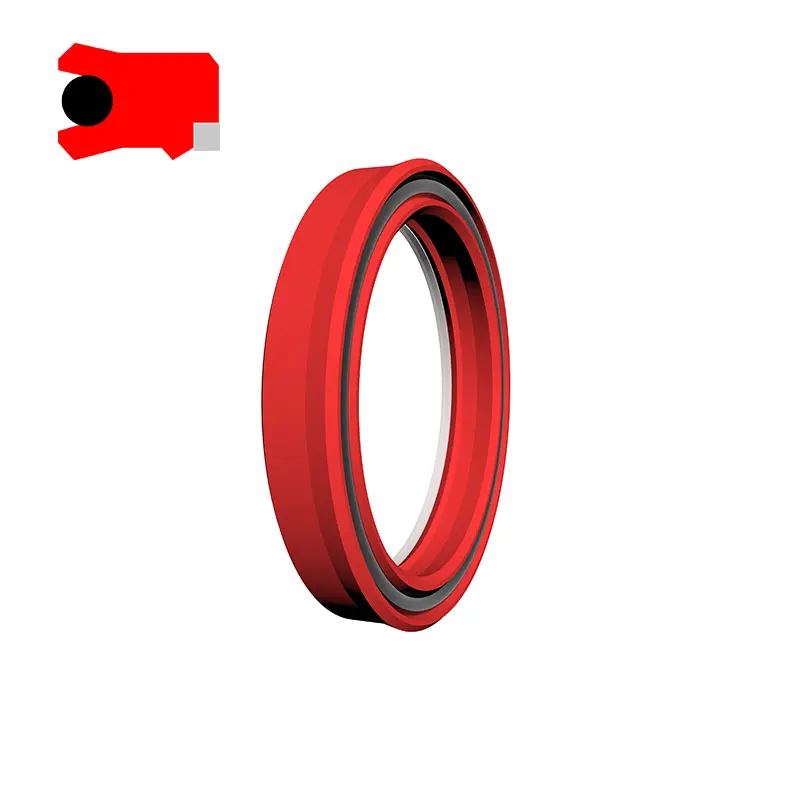

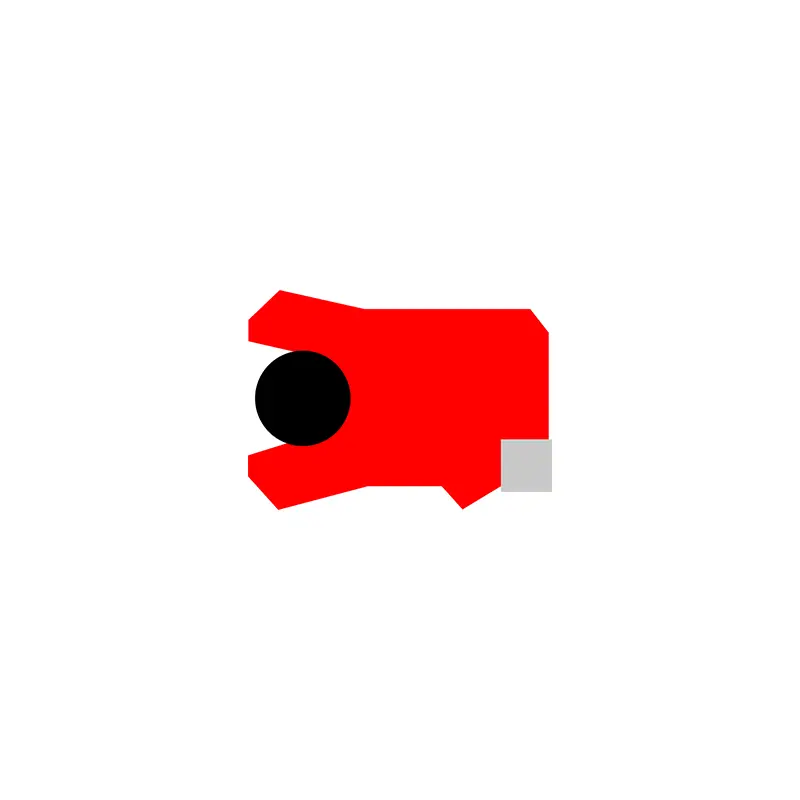

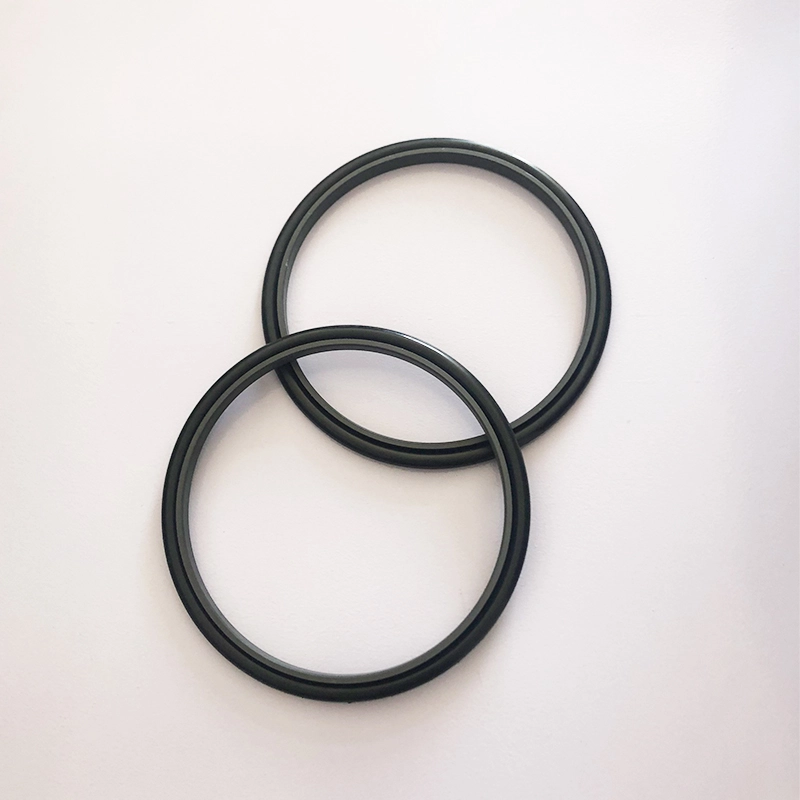

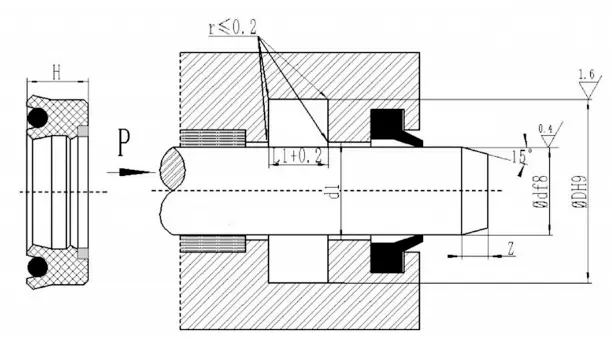

BD type sealing ring is a piston rod seal, mainly used for sealing plungers, piston rods, forging machines and hydraulic equipment for walking equipment. Features:

1. Insensitive to vibration loads and pressure peaks

2. Good anti-extrusion ability

3. Better sealing under no load and low temperature

4. Suitable for harsh working conditions

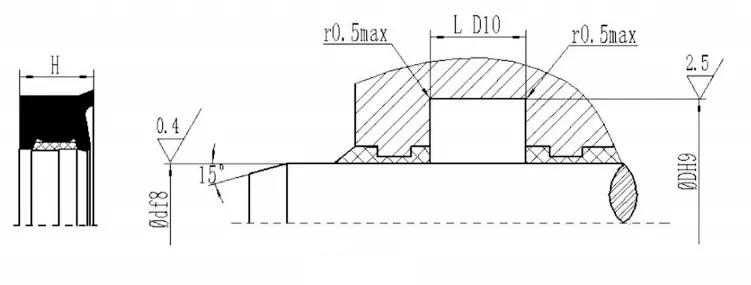

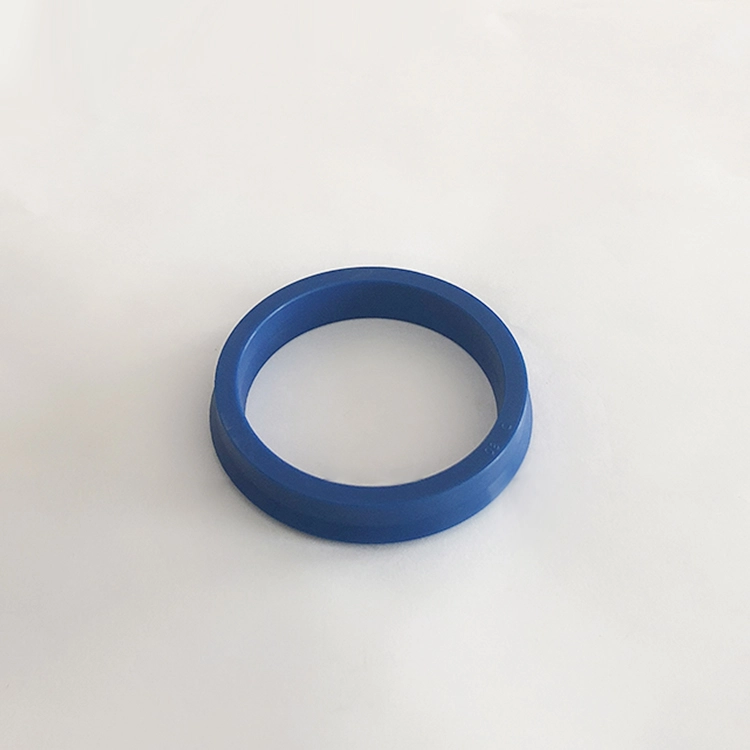

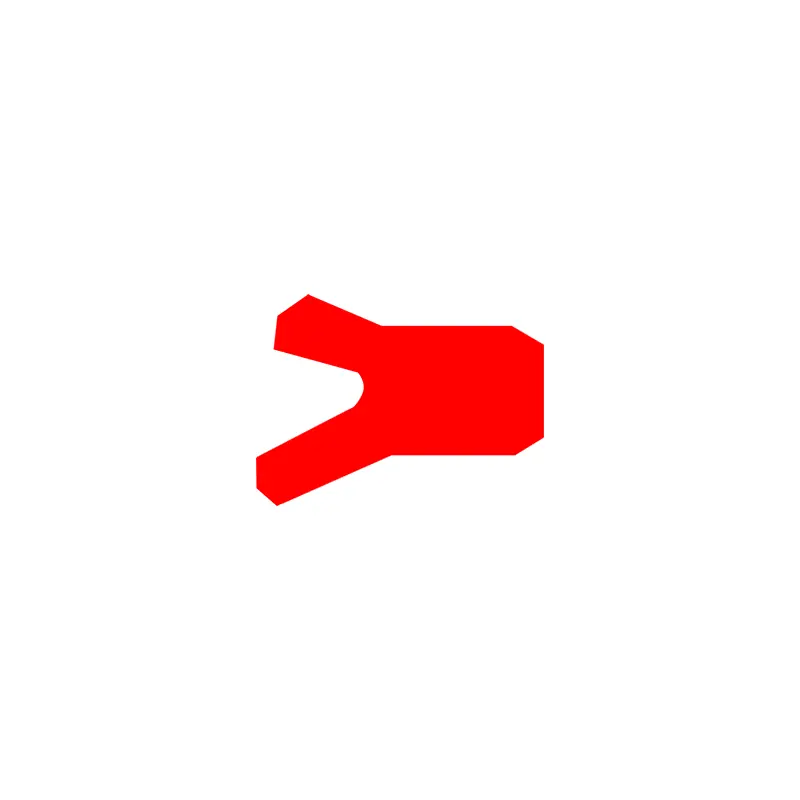

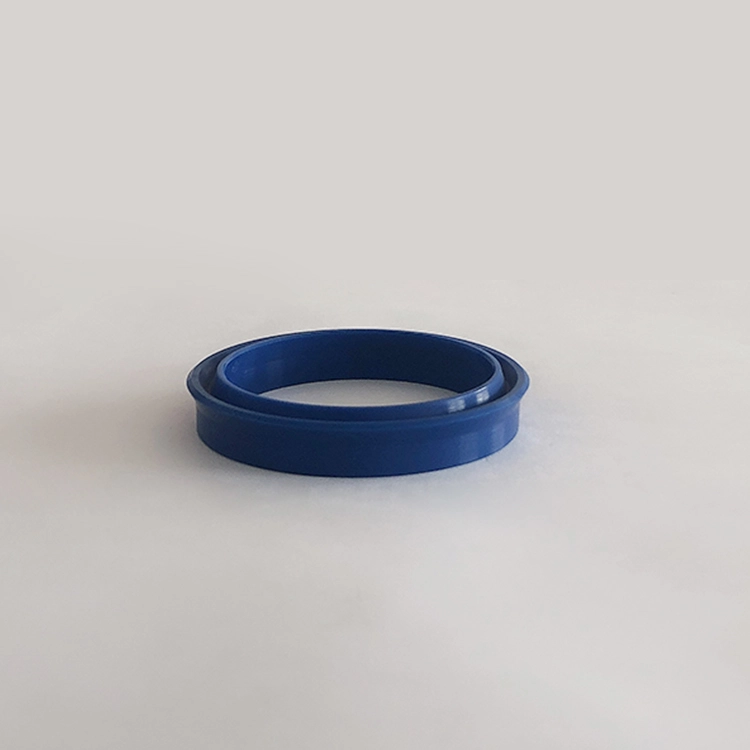

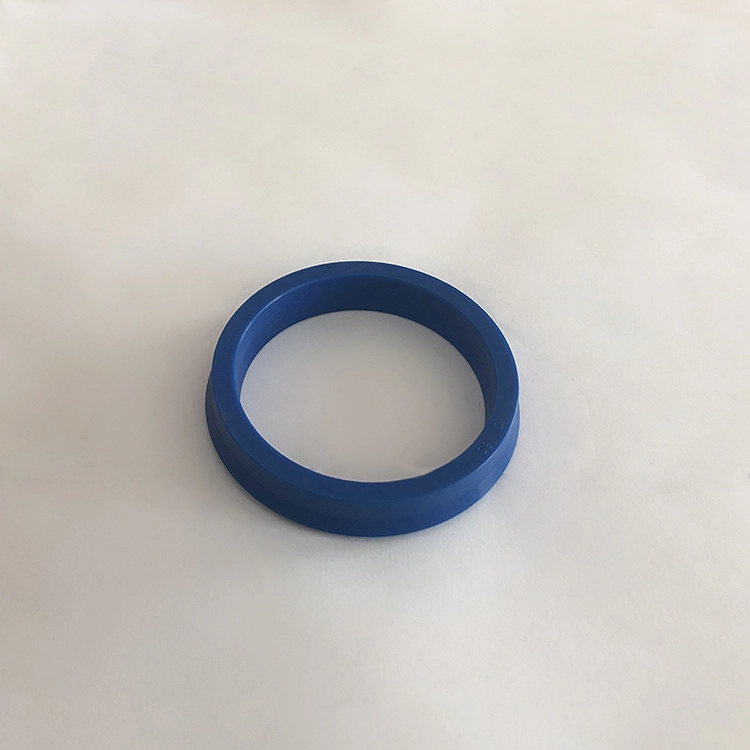

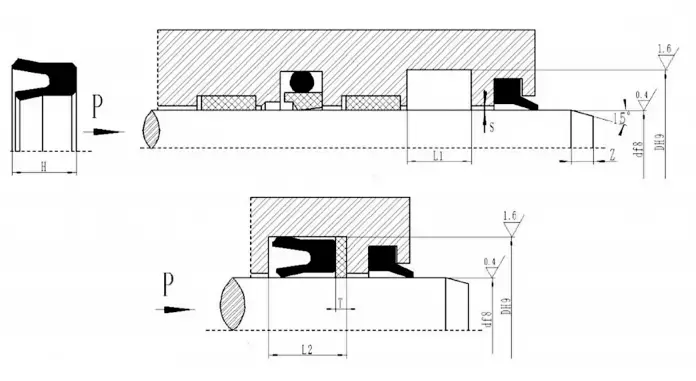

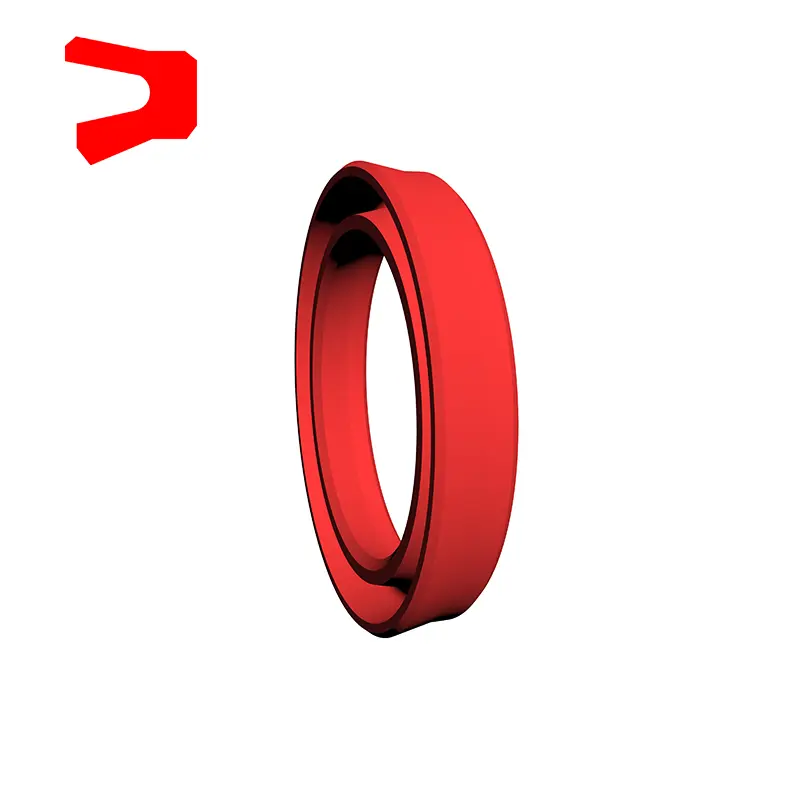

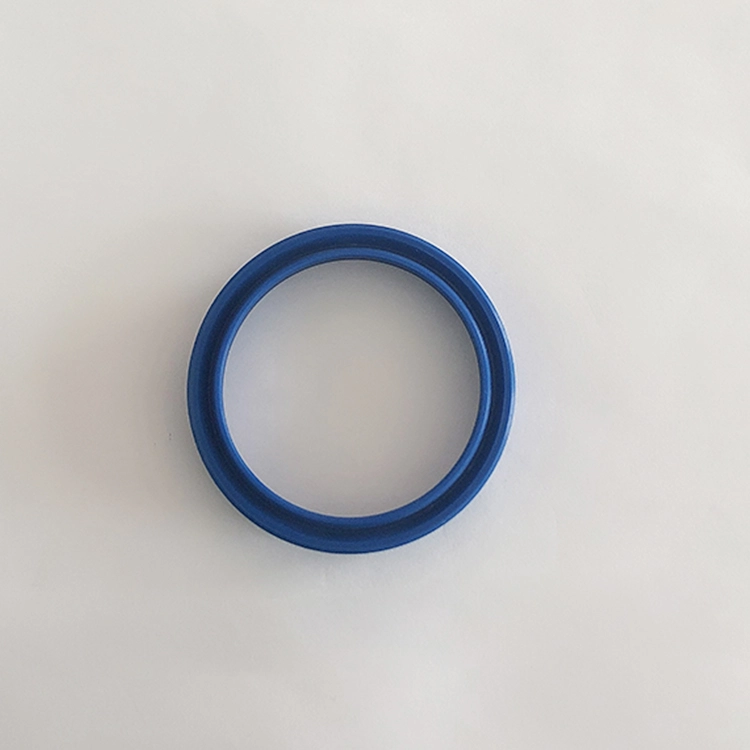

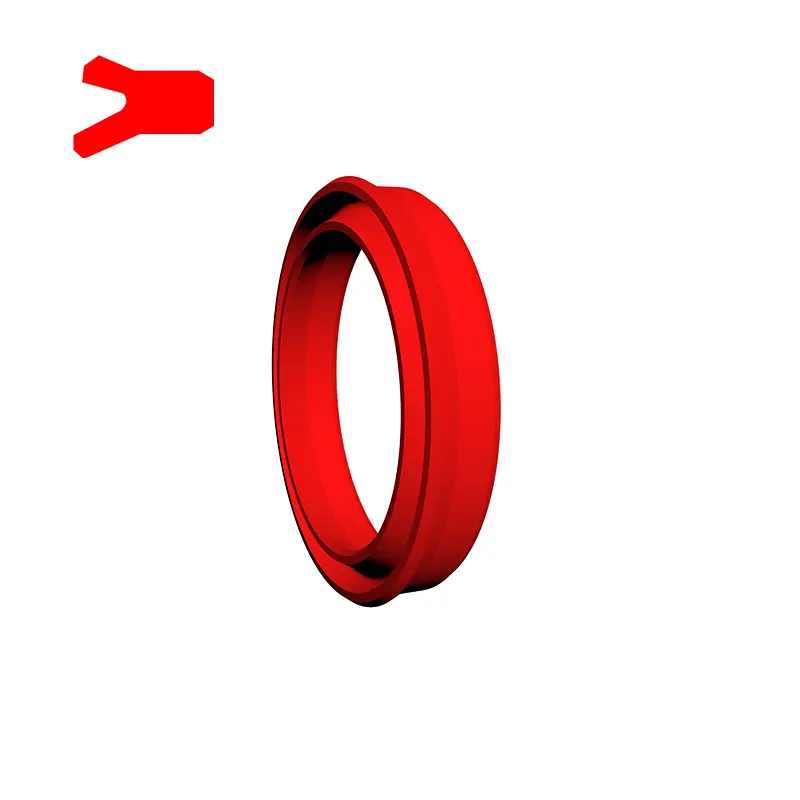

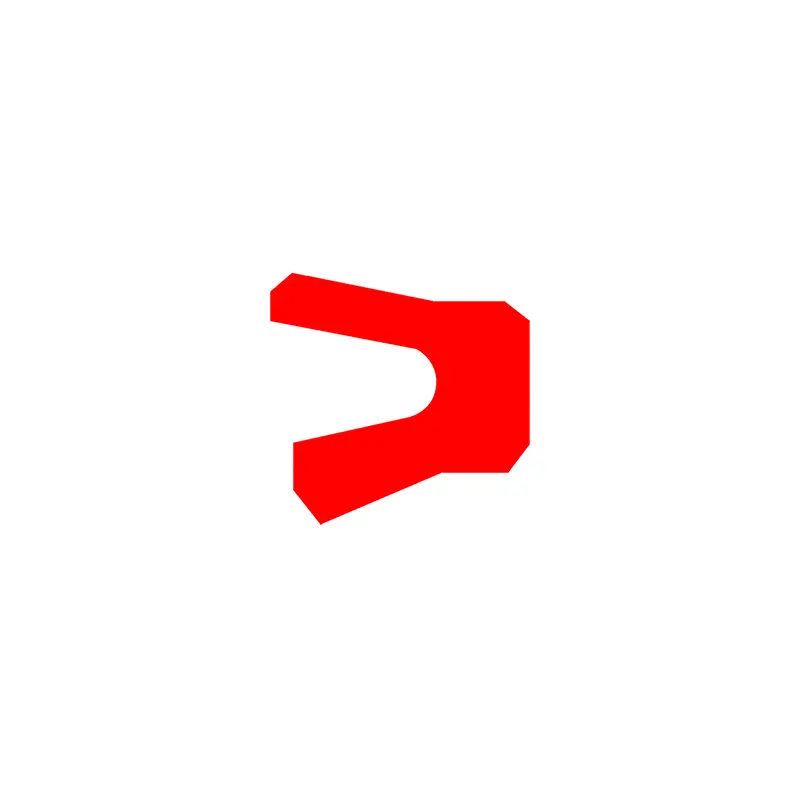

The Yxd type seal ring for shaft is an asymmetric seal specially used on the piston rod. It is suitable for one-way sealing of hydraulic reciprocating motion and has good sealing performance. When used under 12~32Mpa, a retaining ring is required at the heel. The groove conforms to the JB/ZQ4265-97 standard. Its characteristics:

1. Applicable to light loads and medium loads;

2. Good sealing performance for both high-pressure and low-pressure seals;

3. A variety of materials are available, and the medium resistance performance is more extensive;

4. Simple structure and easy installation and maintenance.

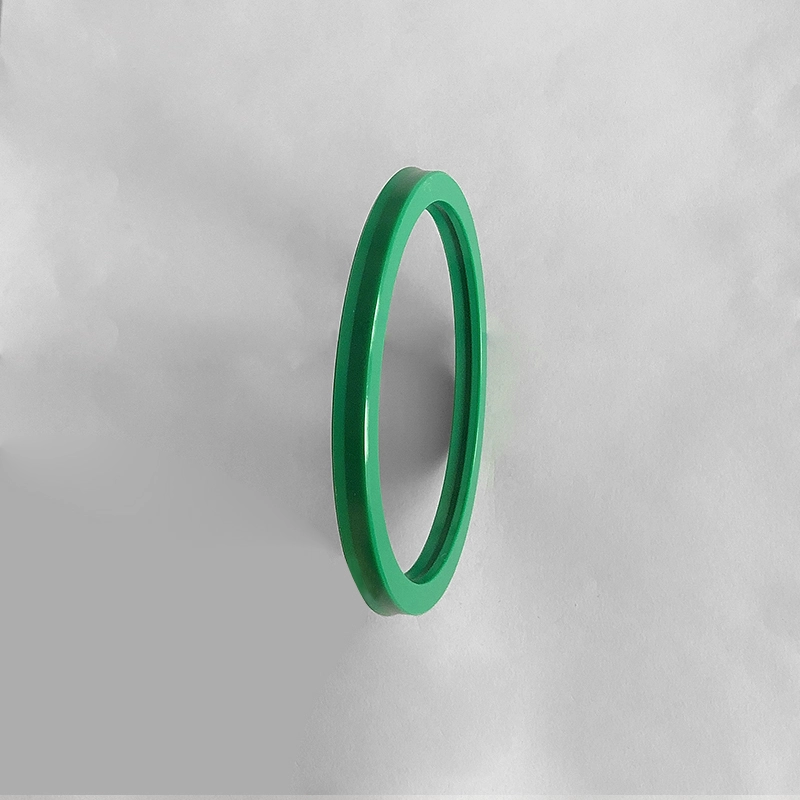

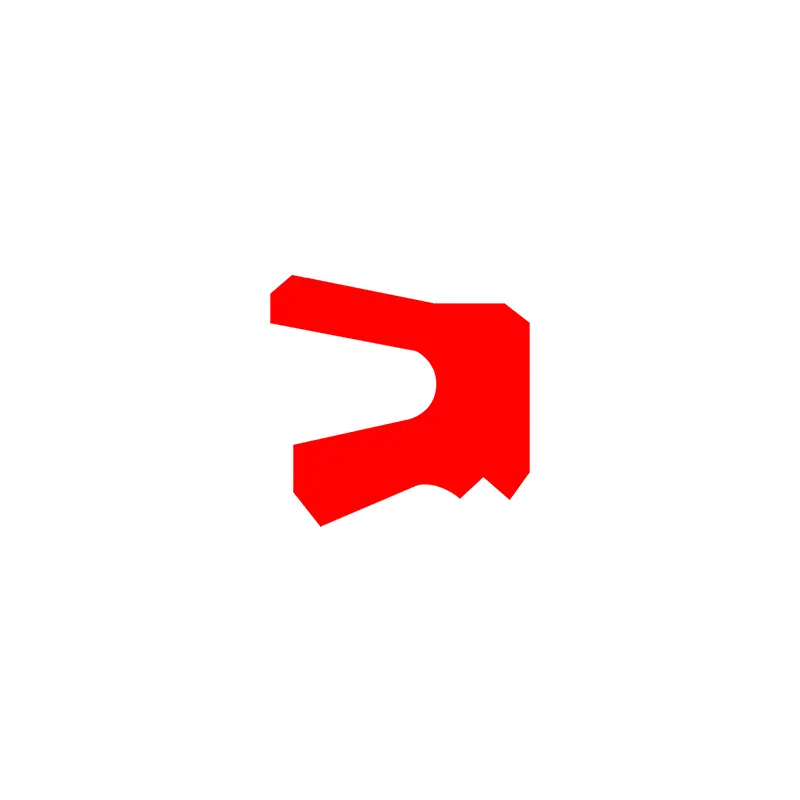

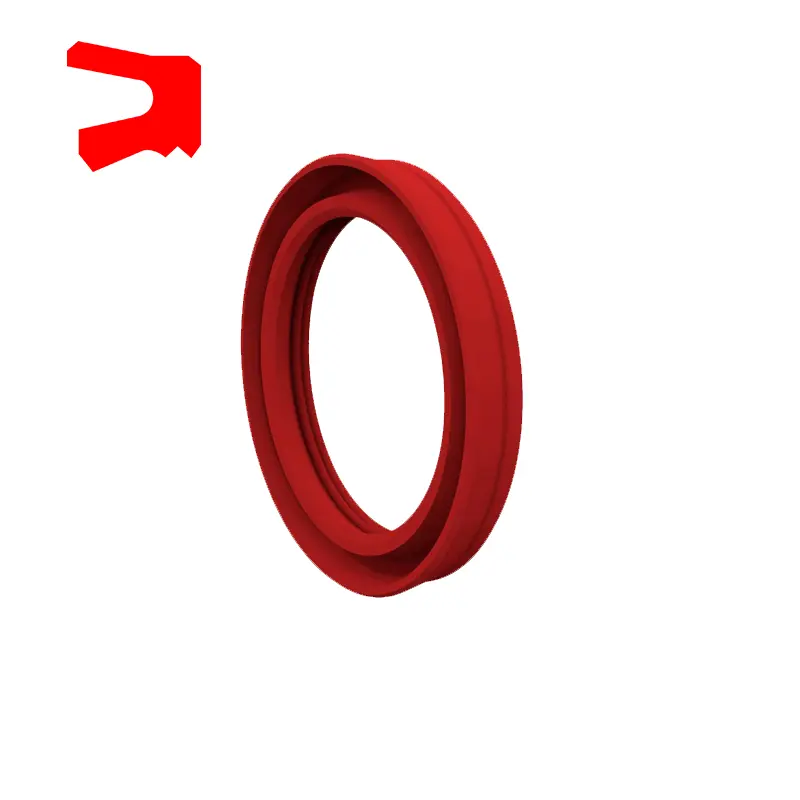

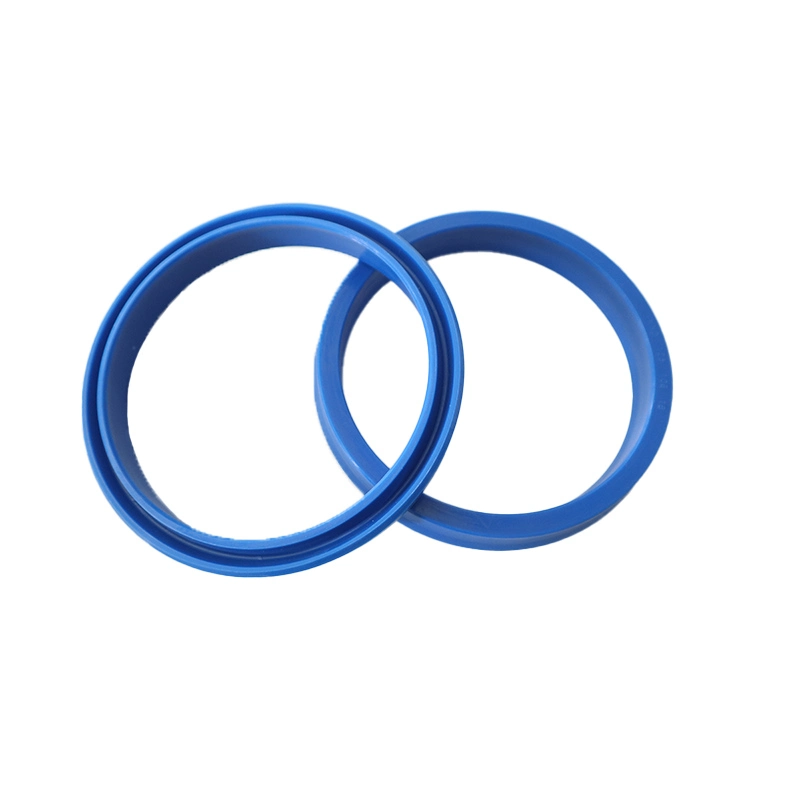

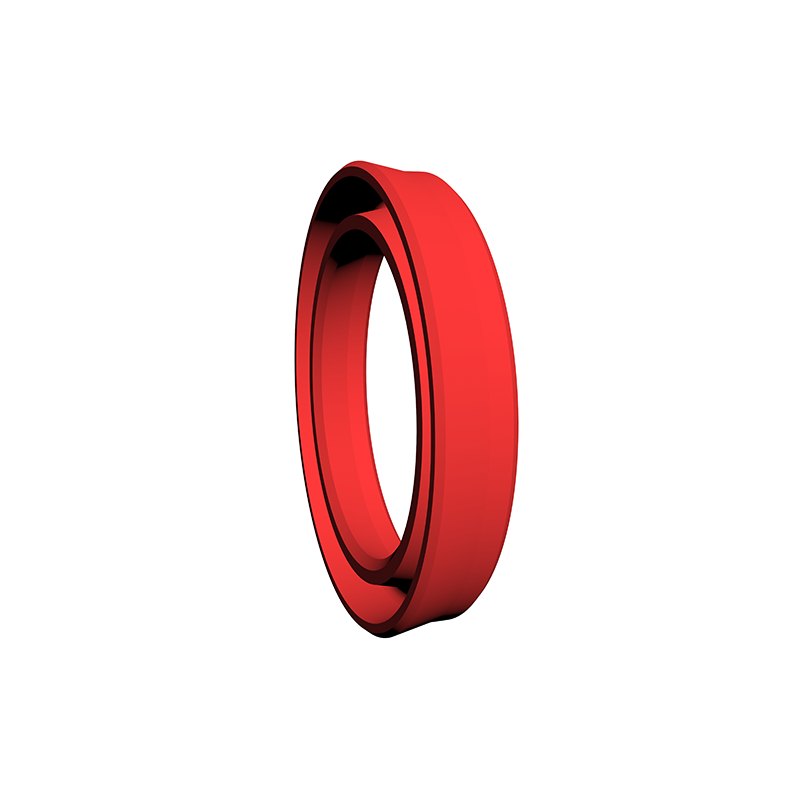

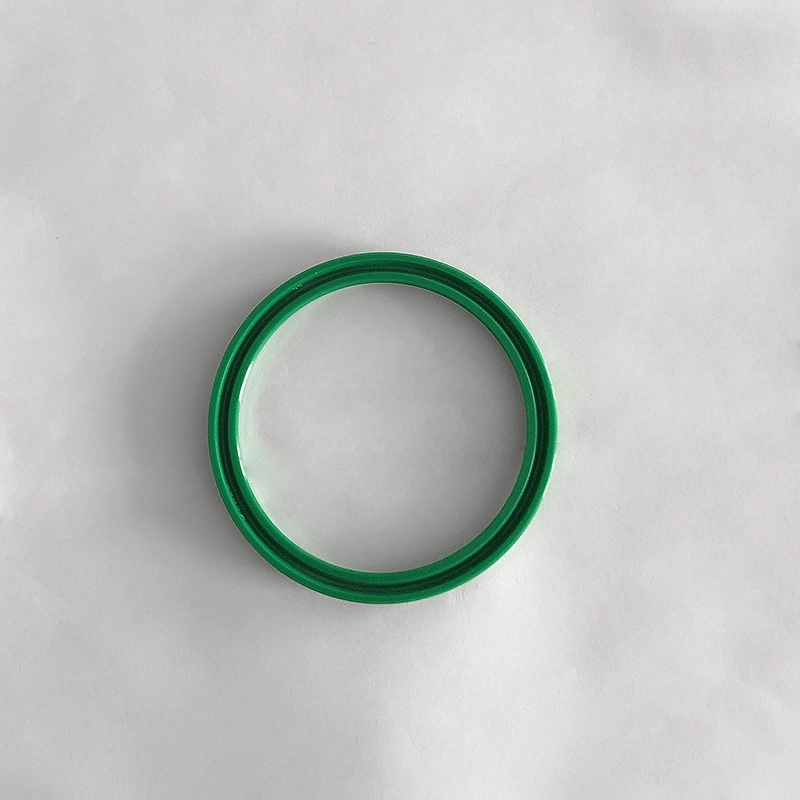

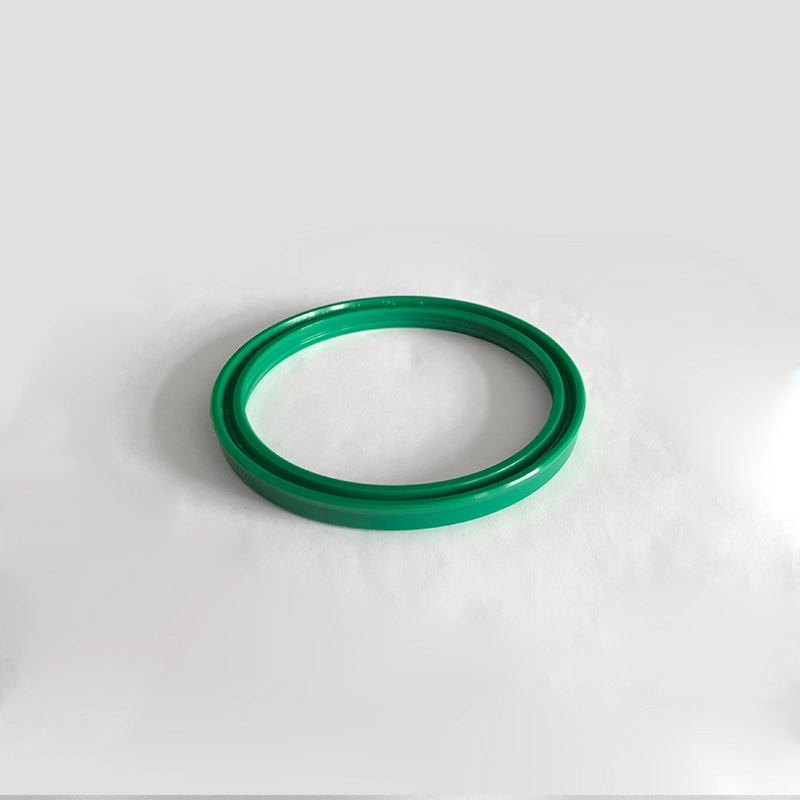

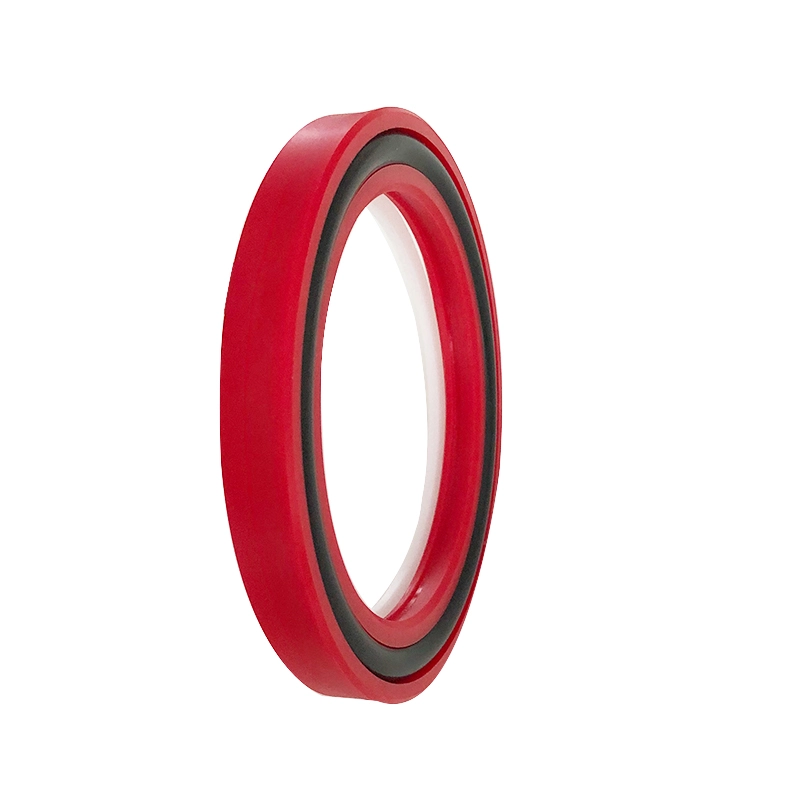

RCUR seal ring is an asymmetric seal specially used on piston rod, suitable for one-way sealing of hydraulic reciprocating motion, with good sealing performance. The groove conforms to ISO5597 standard. It is used as auxiliary seal in the sealing system. Its characteristics:

1. Good static and dynamic sealing performance;

2. Strong residual oil recovery ability under dynamic conditions;

3. Simple structure and easy installation and maintenance.

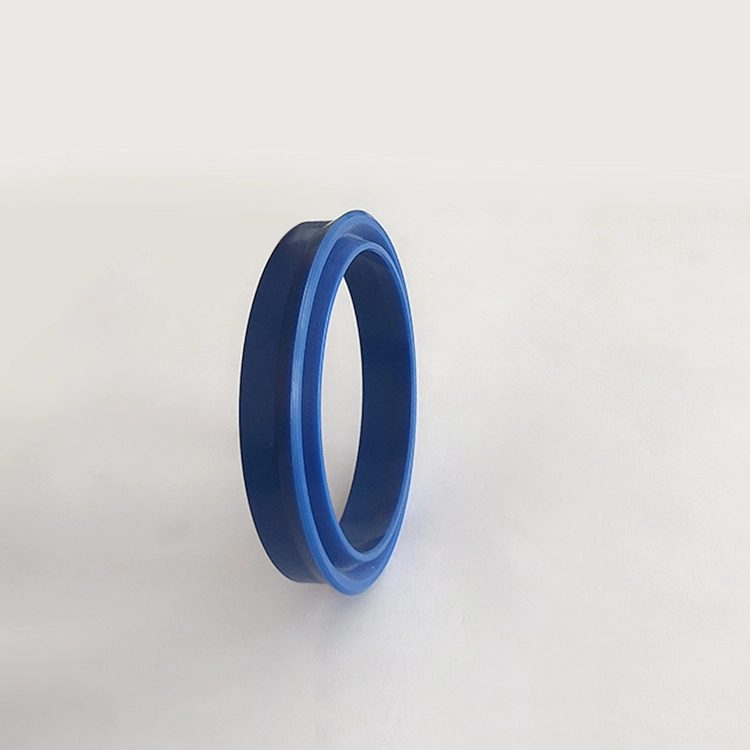

RCUSR seal ring is an asymmetric seal specially used on piston rod, with auxiliary lip on the inner side of the seal ring. It is suitable for one-way sealing of hydraulic reciprocating motion and has good sealing performance. The groove conforms to ISO5597 standard. It can be used alone or as an auxiliary seal in the sealing system. Its characteristics:

1. Good static and dynamic sealing performance;

2. Low friction, smooth movement, strong residual oil recovery ability under dynamic conditions;

3. Simple structure and easy installation and maintenance.

Product features and applications:

Material selection

1. The supporting O-ring materials can be selected: R01 nitrile rubber (NBR), RO2 fluororubber (FKM), etc.

2. Sealing ring materials: PTFE2, PTFE3, PTFE4, PU, etc.

RC15 material selection

1. Pressure ring material: polytetrafluoroethylene, nitrile cloth, fluororubber cloth, nylon, polyoxymethylene

2. V-ring material: polytetrafluoroethylene, nitrile rubber, nitrile cloth, fluororubber, fluororubber cloth, polyurethane

3. Support ring material: nitrile cloth, fluororubber cloth, nylon, polyoxymethylene, polytetrafluoroethylene

Rcur material selection polyurethane (PU)

Ordering Example：

Ordering model RC11-40x55.1x6.3-PTFE3-R01

Ordering model RC11-B-40x55.1x6.3-PTFE3-R02

Model-rod diameter x groove diameter x groove width PTFE3-modified PTFE material code R01, R02-O-ring material code

Order model RC12-40x55x7.5—PTFE3—R01

Model-rod diameter x groove diameter x groove width PTFE3-modified tetrafluoroethylene material code R01-rectangular ring material code

Order model RC13-80-PTFE3-R01 or SPNC-80-PTFE3-R01

RC13/SPNC-model 80-shaft diameter d PTFE3-PTFE material code R01-O-ring material code

Order model RC14-80-PTFE3-R01

RC14-model 80-shaft diameter d PTFE3-PTFE material code R01-O-ring material code

RC15

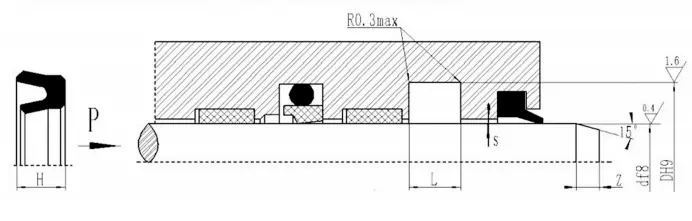

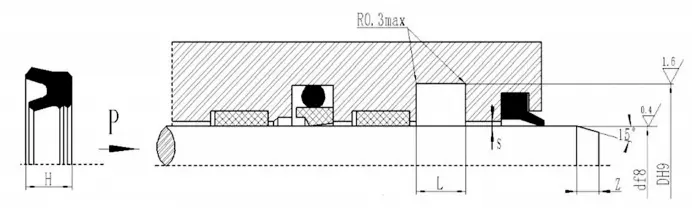

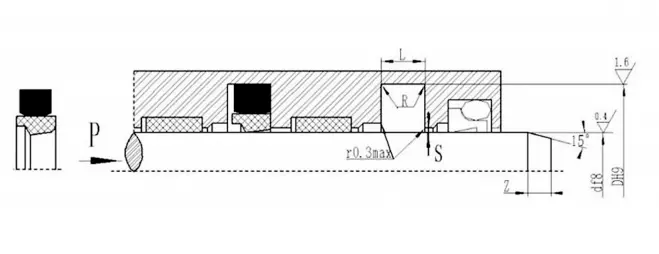

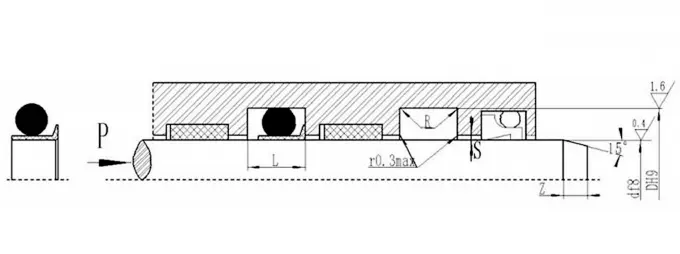

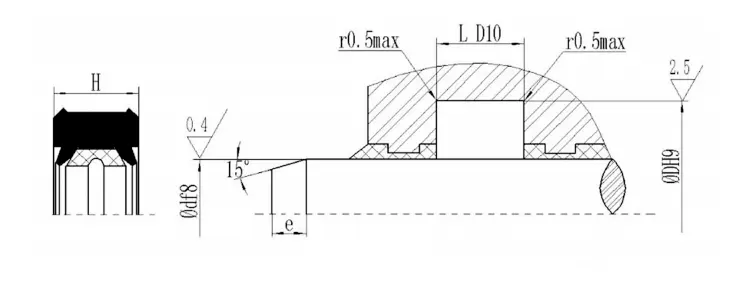

Ordering example RC15-A-40x55x22.5RC15-A-Model dxDxL Installation chamfer regulations

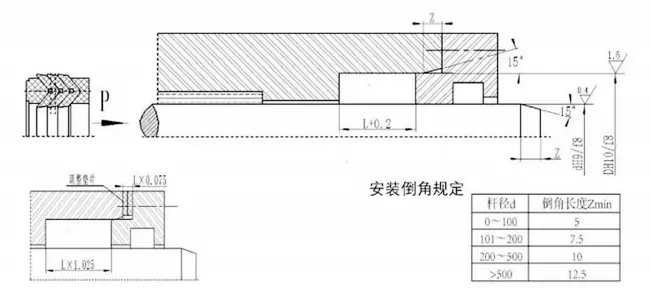

The V-shaped combined seal can achieve the best state of sealing and friction by adjusting the axial size of the gasket. The initial wear after long-term operation can be extended by adjusting the axial size. It is recommended that the adjustable axial size of the sealing cavity be designed to be 1.025L, and the adjustment amount is 7.5%L.

Spn

Order model SPN-d*D*L-PTFE3-R01 rod diameter*groove bottom diameter*groove width

SPN model PTFE3-modified PTFE material code R01-rectangular ring material code

RC17

Order model RC17-d*D*L-PTFE3-R01 Rod diameter*Groove bottom diameter*Groove width

Gtdi

Tdmi

Ggdi

Bd

Order model BD40*55*11.4 rod diameter×groove diameter×seal height

Yxd

Order model Yxd63x75x14-R01 rod diameter × groove diameter × seal height - material code

Rcur

Order model RCUR63x73×10 rod diameter×groove diameter×seal height

Order model RCUSR63x73x6 Rod diameter × groove diameter × seal height

Specifications
