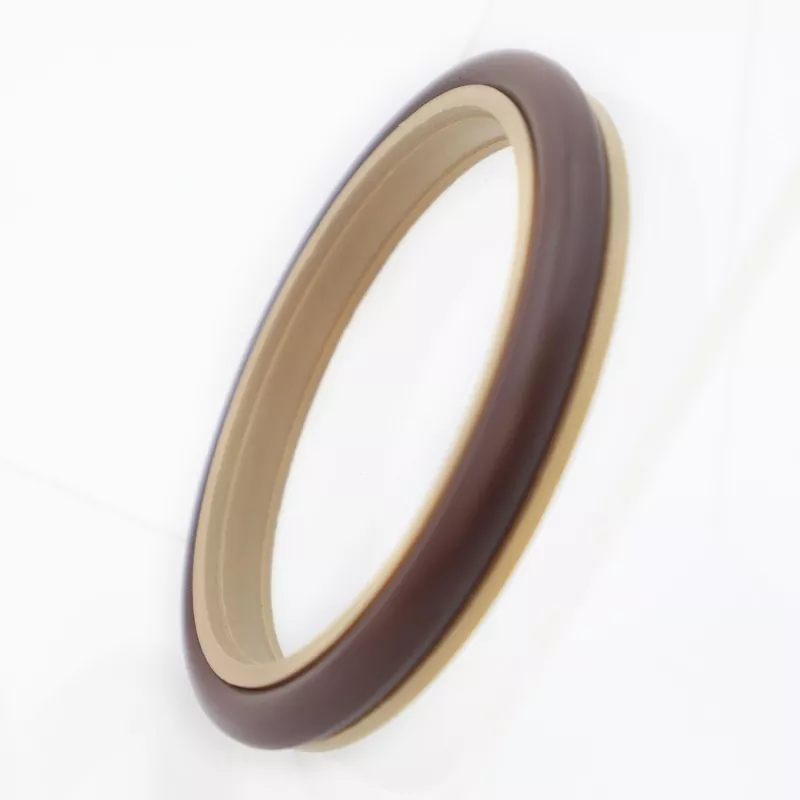

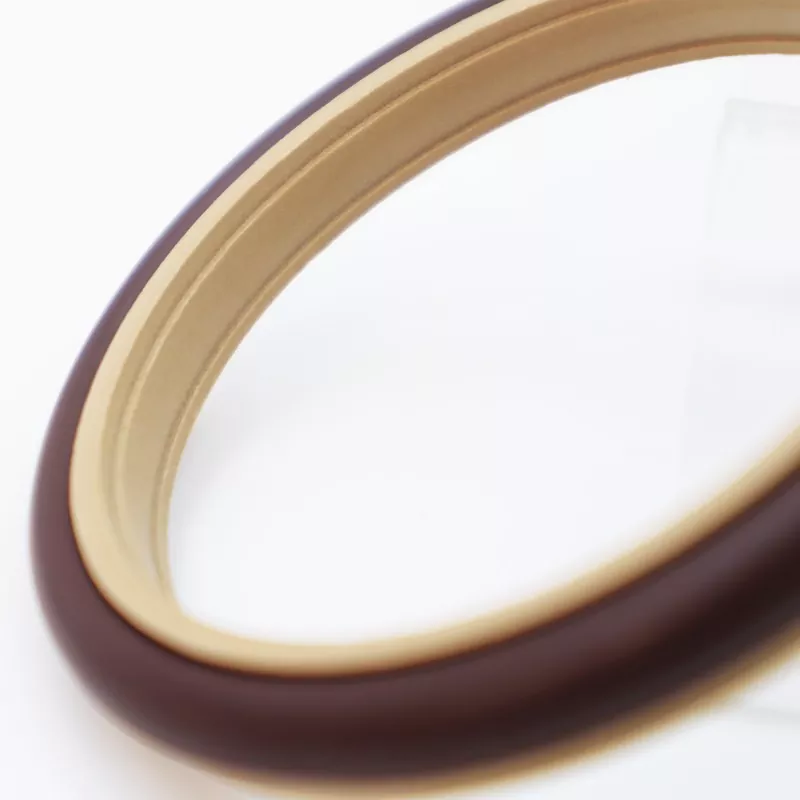

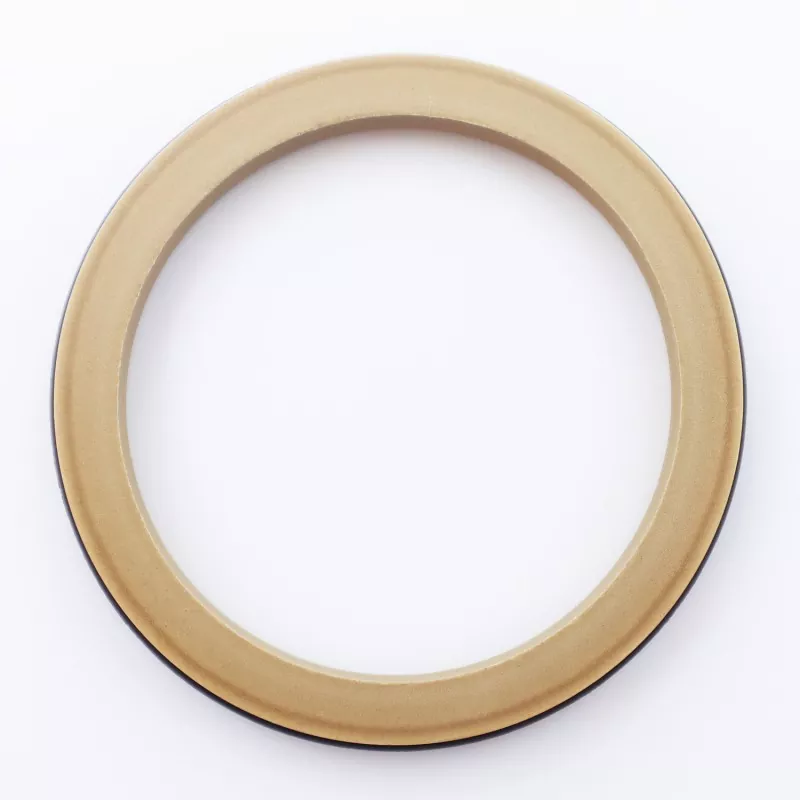

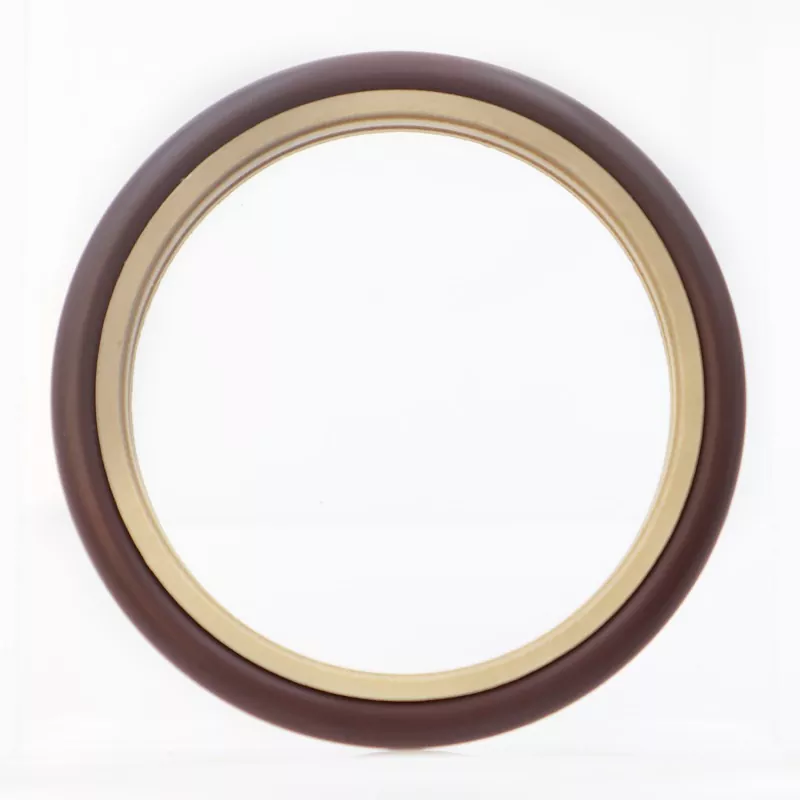

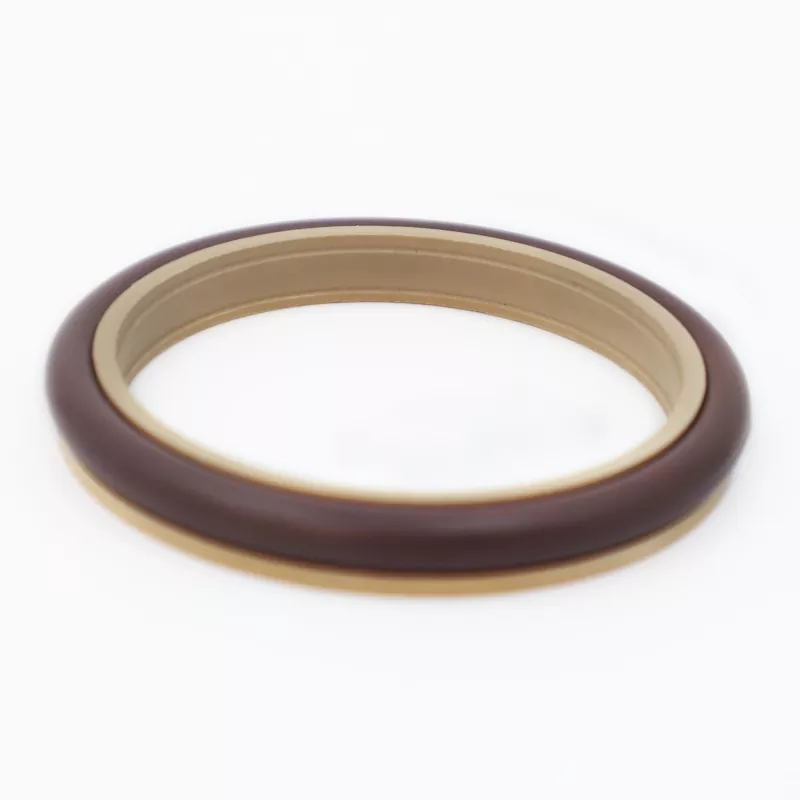

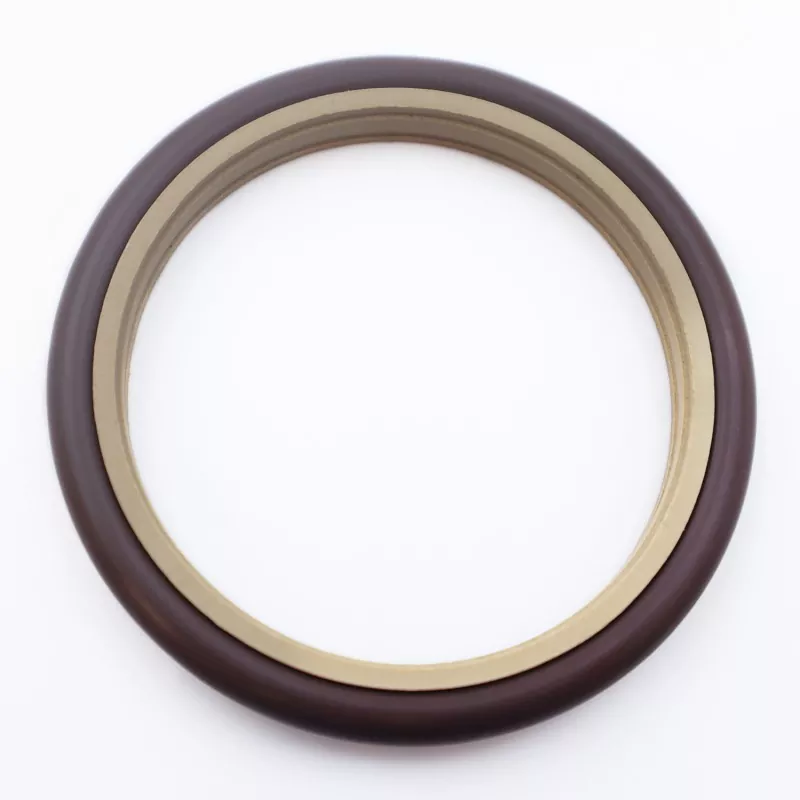

The RC2051-B/G Toothed Combination Rotary Shaft Seal consists of a toothed sealing ring made of filled PTFE and a rubber O-ring. It is designed for unidirectional sealing in hydraulic and pneumatic applications involving both reciprocating and rotary motion. Key features include a long service life, low friction, excellent sealing performance, and a compact design. It also delivers outstanding sealing results and minimal frictional resistance in water-hydraulic rotary sealing applications.
It maintains reliable sealing performance even under water-hydraulic rotary operating conditions, effectively reducing shaft surface wear and minimizing the risk of equipment leakage. We welcome inquiries from OEM clients regarding product selection, comparison, and bulk purchasing.
Limit values should not occur simultaneously.
|
Pressure (MPa) |
Temperature (°C) |
Reference PV value (MPa·m/s) |
Reference speed (m/s) |
Medium |
|
≤70 (Standard type) |
-35 to +100 (NBR O-ring) |
≤10 |
<2 |
Hydraulic oil, emulsion, water, air, etc. |
|
≤30 (High-speed type) |
-20 to +200 (FKM O-ring) |
<6 |
1. Compatible O-ring materials include: RO1 Nitrile Rubber (NBR), RO2 Fluororubber (FKM), etc.
2. Sealing ring material: Standard material PTFE4; other available options include PTFE1, PTFE2, PTFE3, and PTFE5.
Order Model: RC2051—80x91.7x7.6—PTFE3—R01
Model - d x D x L - Material Code
Specifications within the specified ranges are available.
|

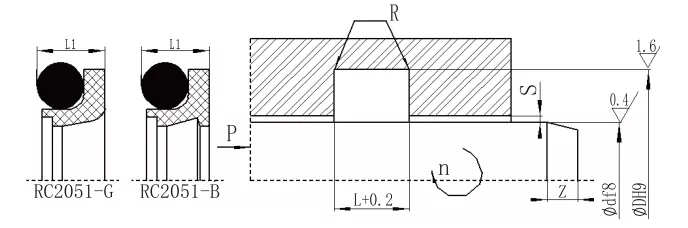

d f8 Standard type RC2051 |
d f8 Light-duty RC2051-Q |
d f8 Heavy-duty RC2051-Z |
D H9 |
L+0.2 |
L1 |
Rmax |
Smax |
Zmin |
do |
||
|
<10MPa |
<20MPa |
<40MPa |
|||||||||
|
-- |
5~15.9 |
-- |
d+4.5 |
3.1 |
2.8 |
0.3 |
0.3 |
0.2 |
0.15 |
3 |
1.8 |
|
5~15.9 |
16~38.9 |
-- |
d+6.3 |
4.0 |
3.7 |
0.4 |
0.4 |
0.25 |
0.15 |
4 |
2.65 |
|
16~38.9 |
39~107.9 |
5~15.9 |
d+8.2 |
5.2 |
4.7 |
0.4 |
0.4 |
0.25 |
0.2 |
5 |
3.55 |
|
39~107.9 |
108~670.9 |
16~38.9 |
d+11.7 |
7.6 |
7.1 |
0.5 |
0.5 |
0.3 |
0.2 |
7 |
5.30 |
|
108~670.9 |
671～999 |
39~107.9 |
d+15.5 |
9.6 |
8.9 |
0.6 |
0.6 |
0.35 |
0.25 |
10 |
7.00 |
|
671～999 |
1000-1599 |
108~670.9 |
d+19.4 |
12.1 |
11.3 |
0.7 |
0.7 |
0.5 |
0.3 |
12 |
8.60 |
|
1000-1599 |
≥1600 |
671～999 |
d+22 |
14.8 |
13.5 |
0.8 |
0.8 |
0.6 |
0.4 |
15 |
10.0 |
|
≥1600 |
-- |
1000-1599 |
d+26 |
17.8 |
16.3 |
1.0 |
1.0 |
0.7 |
0.6 |
20 |
12.0 |
Note: 1. For shaft diameters ≤30 mm, an open groove design is recommended.
2. It is recommended that the surface hardness of the rotating shaft exceed HRC 58.
