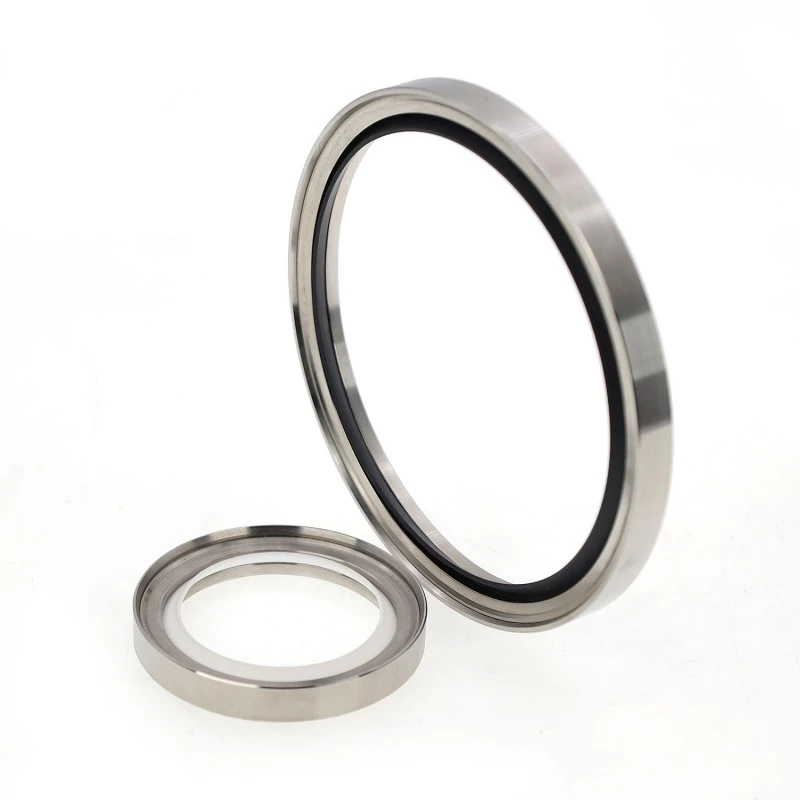

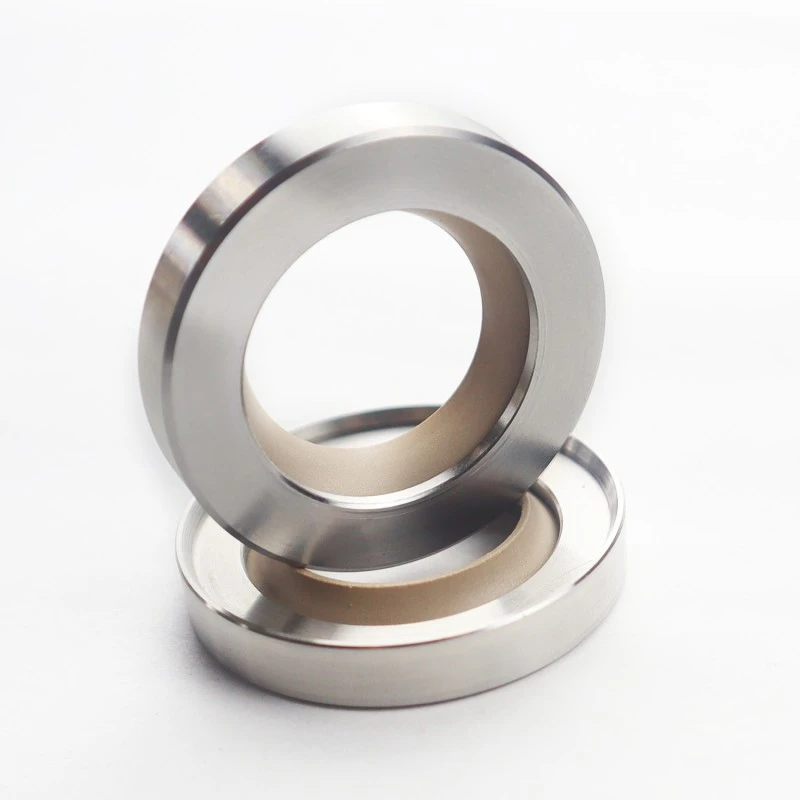

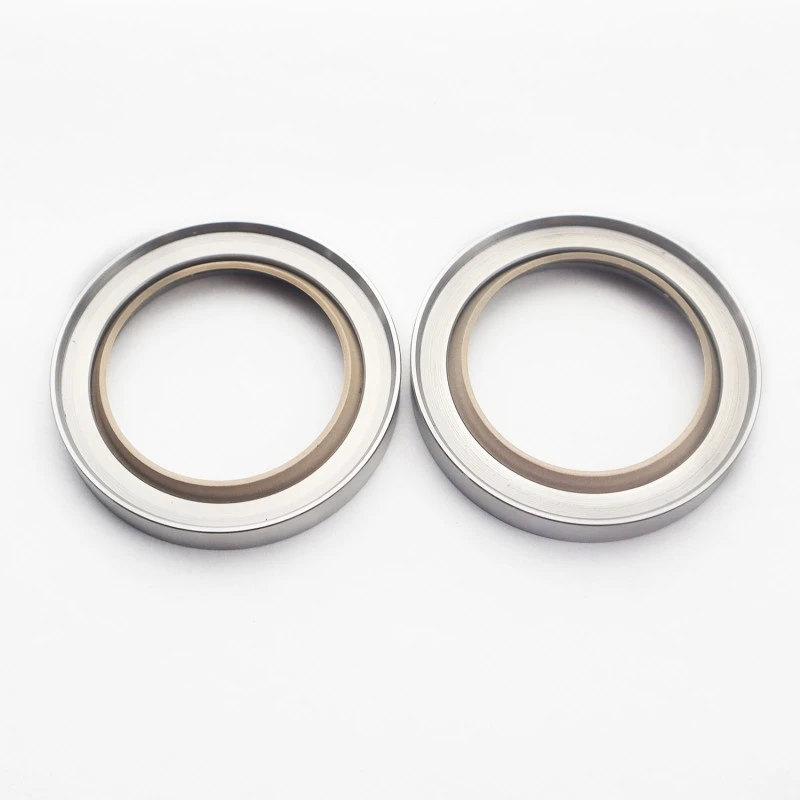

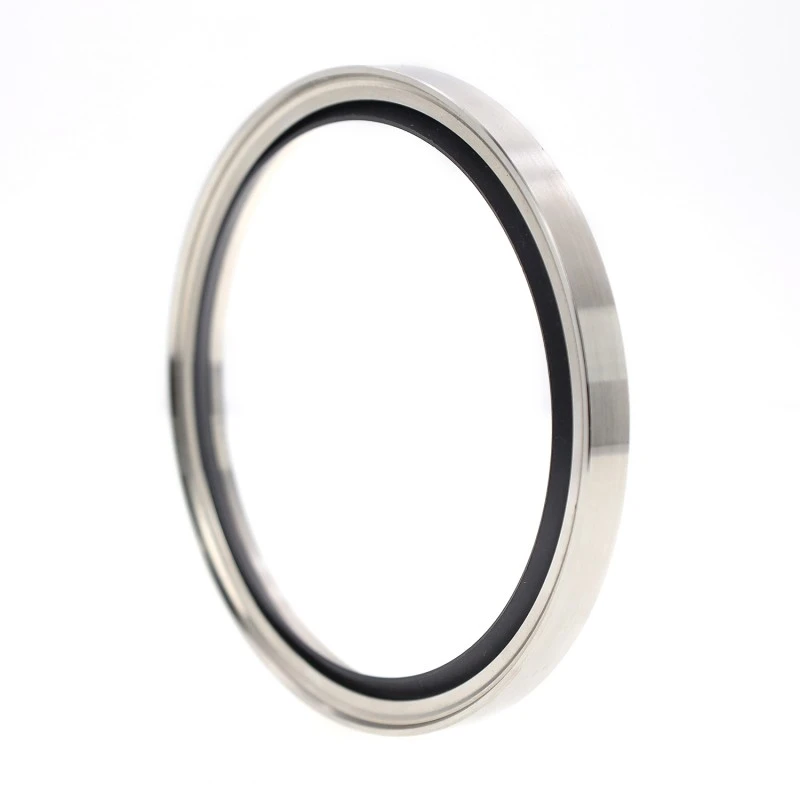

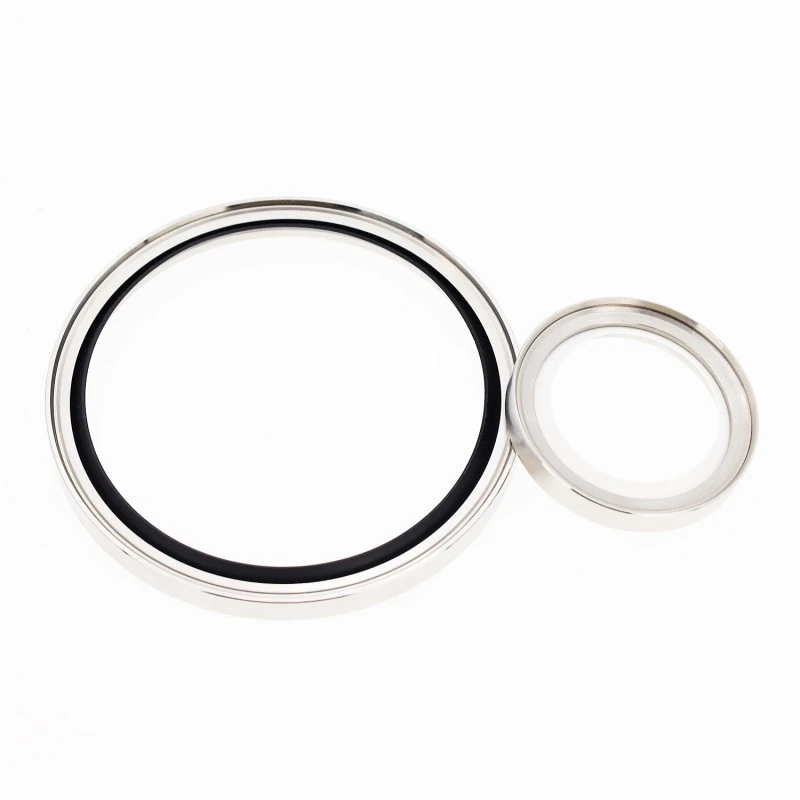

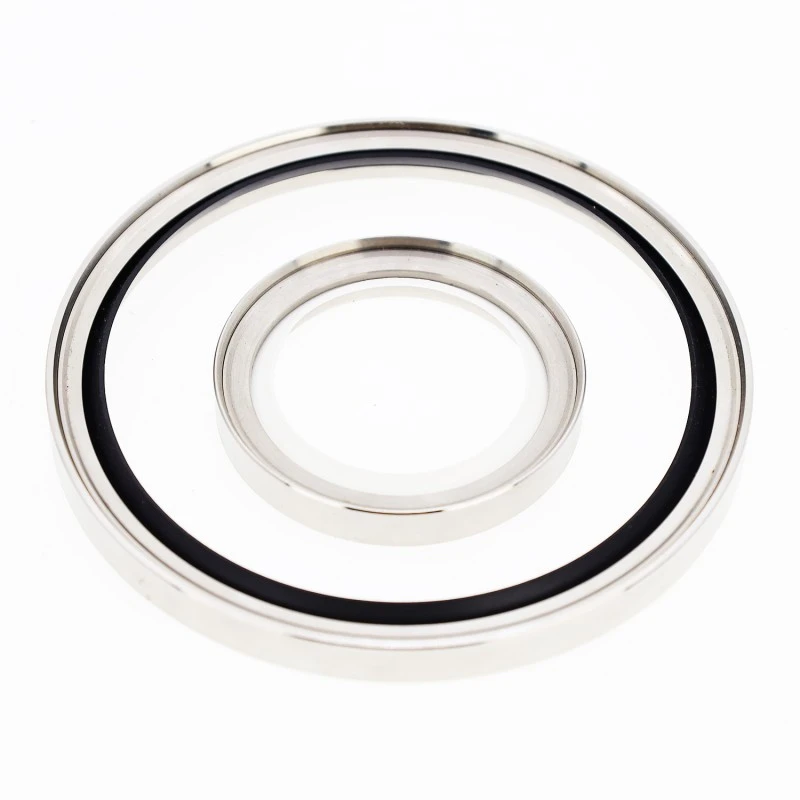

1. Excellent chemical resistance
2. Wide operating temperature range
3. Suitable for low-lubrication and oil-free lubrication
4. Low friction for minimum power consumption
5. Suitable for high linear speeds
6. No stick-slip effect, low starting resistance after prolonged downtime
7. Suitable for unhardened rotating shafts (with appropriate selection of PTFE lip seals)
8. Suitable for high-pressure applications
Typical applications include: rotary compressors, screw compressors, transmissions/gearboxes, blowers, engines, machine tools, pumps, hydraulic motors, centrifuges, etc.
Hardness requirements for mating surfaces
Recommended hardness: HRC ≥ 58. The required hardness depends on many factors; for low-pressure and low-speed applications, softer rotating shafts are also suitable. For soft metals, PTFE6 lip seals are recommended.
Quality requirements for mating surfaces Ra=0.2-0.63 um Rz=1-3um Rmax=1-4um
|
Cross-sectional shape |
Model |
Pressure |
Temperature |
Speed |
Medium |
|
|
RCS-A |
0.5 |
-35~+200 |
40 |
Oil, gas, water, etc. |
|
|
RCS-B |
2 |
-35~+200 |
20 |
Oil, gas, water, etc. |
|
|
RCS-C |
1 |
-35~+200 |
20 |
Oil, gas, water, etc. |
|
|
RCS-D |
2 |
-35~+200 |
20 |
Oil, gas, water, etc. |
Fluid Dynamic Spiral Recirculation Seal: The RCS-D type utilizes a lip seal with a spiral recirculation pattern, improving sealing performance. The rotating shaft is only permitted to rotate in one direction.
Installation location requirements
Ordering example: RCS-A-65×85×10 Model - d×D×H
|
d*D*H |
d*D*H |
d*D*H |
d*D*H |
d*D*H |
d*D*H |
d*D*H |
d*D*H |
|
7*20*6 |
18*30*6 |
25*40*10 |
35*50*7 |
50*68*8 |
70*85*10 |
100*120*10 |
150*180*12 |
|
7*20*7 |
18*30*7 |
25*42*6 |
35*50*8 |
50*70*10 |
70*90*7 |
100*125*12 |
150*180*14 |
|
8*18*7 |
18*32*6 |
25*42*10 |
35*52*6 |
50*72*7 |
70*90*10 |
100*125*13 |
160*185*8.5 |
|
8*20*6 |
18*32*8 |
25*45*11 |
35*54*6 |
50*72*12 |
70*95*13 |
105*130*7.5 |
160*185*12 |
|
8*22*6 |
18*35*6 |
25*47*6 |
35*55*11 |
52*68*10 |
75*95*7 |
105*130*12 |
160*190*15 |
|
8*22*7 |
18*35*8 |
26*40*6 |
38*50*6 |
52*70*10 |
75*95*10 |
105*135*14 |
160*200*10 |
|
10*22*6 |
19*35*6 |
26*42*8 |
38*52*8 |
52*75*12 |
75*100*11 |
110*135*12 |
170*195*12 |
|
10*22*7 |
19*35*8 |
27*47*11 |
38*58*11 |
55*70*7 |
75*100*13 |
110*140*14 |
170*200*12 |
|
10*25*7 |
20*30*7 |
28*40*6 |
40*52*7 |
55*72*7 |
80*95*10 |
110*150*8 |
170*200*14 |
|
12*22*6 |
20*32*7 |
28*40*7 |
40*52*8 |
55*72*8 |
80*100*7 |
115*145*14 |
170*200*16 |
|
12*22*7 |
20*32*8 |
28*40*8 |
40*55*6 |
55*75*7 |
80*100*10 |
120*140*7.5 |
180*205*12 |
|
12*24*6 |
20*35*6 |
28*40*9 |
40*55*7 |
55*75*10 |
80*105*7.5 |
120*140*10 |
180*210*8.5 |
|
12*25*8 |
20*35*8 |
28*45*8 |
40*55*8 |
55*78*12 |
80*105*13 |
120*145*12 |
190*215*12 |
|
12*32*7 |
20*40*7 |
28*48*11 |
40*58*8 |
55*83*7 |
85*105*7.5 |
120*150*10 |
190*225*16 |
|
14*26*6 |
20*40*7 |
30*42*6 |
40*62*6 |
58*80*12 |
85*105*10 |
120*150*12 |
200*225*12 |
|
14*28*7 |
20*40*10 |
30*42*7 |
40*62*8 |
60*72*7 |
85*110*8 |
120*150*14 |
200*230*13 |
|
14*30*8 |
20*40*11 |
30*42*8 |
40*62*12 |
60*75*8 |
85*110*12 |
125*150*12 |
240*265*12 |
|
15*25*6 |
22*32*6 |
30*45*8 |
42*62*7 |
60*75*10 |
85*110*13 |
125*155*14 |
240*270*8.5 |
|
15*30*7 |
22*35*6 |
30*50*11 |
42*65*12 |
60*80*7 |
85*120*8 |
130*150*7.5 |
260*280*10 |
|
15*30*7 |
22*35*8 |
30*52*7 |
45*58*7 |
60*80*10 |
90*110*7.5 |
130*155*12 |
260*285*12 |
|
15*32*7 |
22*38*8 |
32*44*8 |
45*62*10 |
60*82*12 |
90*110*10 |
130*160*14 |
300*330*15 |
|
15*32*8 |
22*42*11 |
32*47*6 |
45*65*7 |
60*85*8 |
90*110*12 |
135*160*12 |
300*340*20 |
|
15*35*6 |
24*40*6 |
32*47*8 |
45*65*8 |
60*85*10 |
90*115*10 |
135*165*14 |
|
|
16*26*7 |
24*40*7 |
32*48*7 |
45*65*10 |
62*85*7 |
90*115*12 |
140*160*10 |
|
|
16*30*7 |
24*40*8 |
32*50*8 |
47*62*7 |
62*85*10 |
90*115*13 |
140*160*12 |
|
|
16*35*8 |
25*35*6 |
32*52*6 |
48*65*10 |
62*85*12 |
90*120*10 |
140*165*12 |
|
|
16*40*10 |
25*37*6 |
32*52*11 |
48*70*12 |
65*85*10 |
95*115*10 |
140*170*14 |
|
|
17*30*6 |
25*38*8 |
34*54*11 |
50*65*7 |
65*90*7 |
95*120*12 |
140*170*15 |
|
|
17*35*7 |
25*40*7 |
35*47*6 |
50*65*8 |
65*90*12 |
95*120*13 |
140*180*12 |
|
|
17*35*8 |
25*40*8 |
35*47*8 |
50*68*7 |
65*95*13 |
100*120*7.5 |
150*180*8.5 |
|
Please contact our company; the RC2057 model offers products with a maximum length of 1600mm.
PTFE Oil Seal Installation Guide
1. Clean and lubricate the oil seal and all installation parts;
2. Before installation, the oil seal should be fitted onto a smooth shaft with the same diameter as the shaft to prevent over-tightening and installation failure, and to avoid overheating during initial operation;
3. Before installation, apply sealant (such as Loctite 601 or 641) to the outer circumference and end face of the oil seal to prevent leakage at the outer diameter;
4. When fitting the PTFE oil seal lip onto the shaft, the PTFE oil seal lip should be protected to prevent damage to the sealing lip from threads, keyways, etc.;

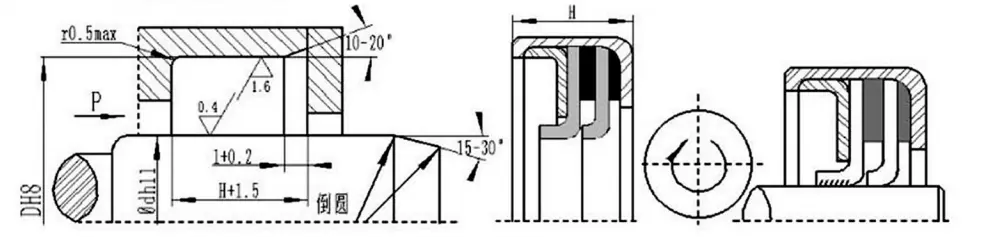

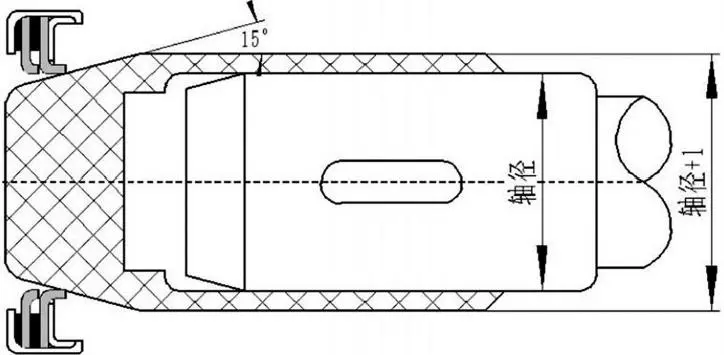

5. A guide sleeve should be used to install the PTFE oil seal to protect the lip from damage. The guide sleeve has a 15-degree taper angle at the guiding end, and the inner hole of the other end is a sliding fit on the shaft. The outer diameter of the guide sleeve is the shaft diameter + 1mm, with a smooth surface and rounded edges. See Figure 1 for the installation of the PTFE oil seal;
6. The guide sleeve material is recommended to be hard plastic;

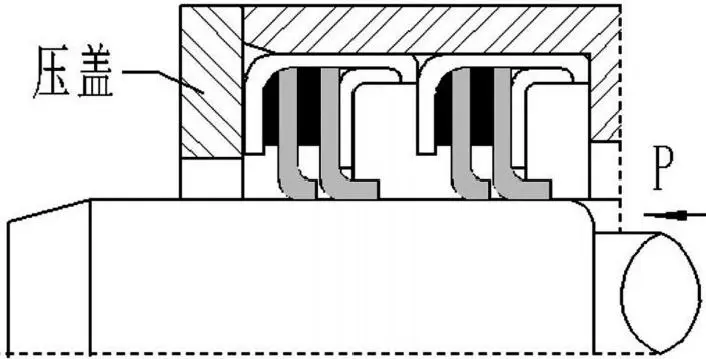

7. After the oil seal is installed, it must be fixed with a clamping device and sealed with sealant on the outer circumference and end face. See Figure 2 for the fixing of the PTFE oil seal.
Figure 1. Installation of the PTFE oil seal.
Figure 2. Fixing of the PTFE oil seal.
