Radial Spring Energized Seals

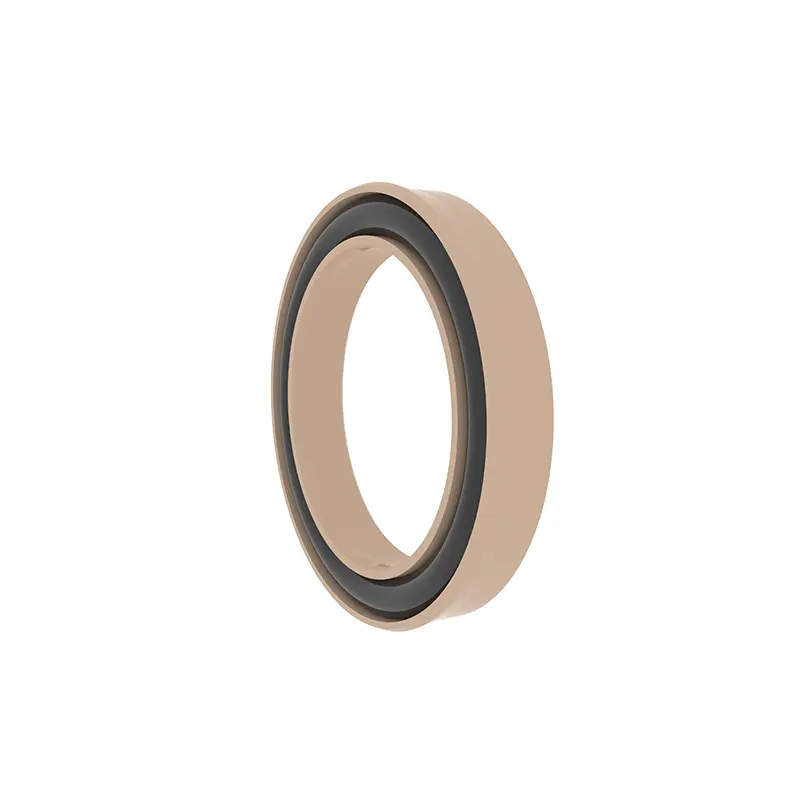

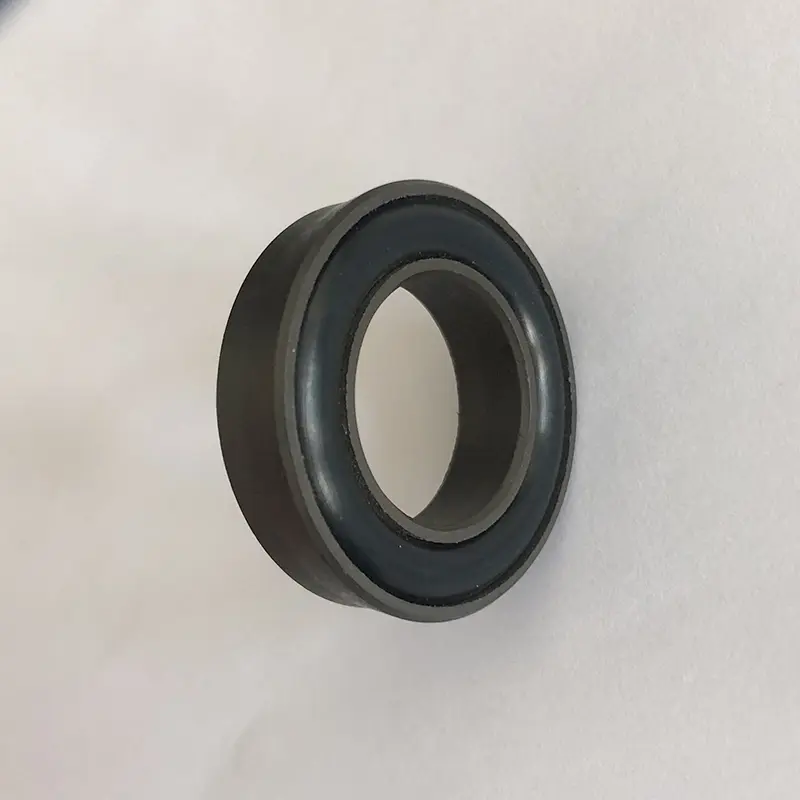

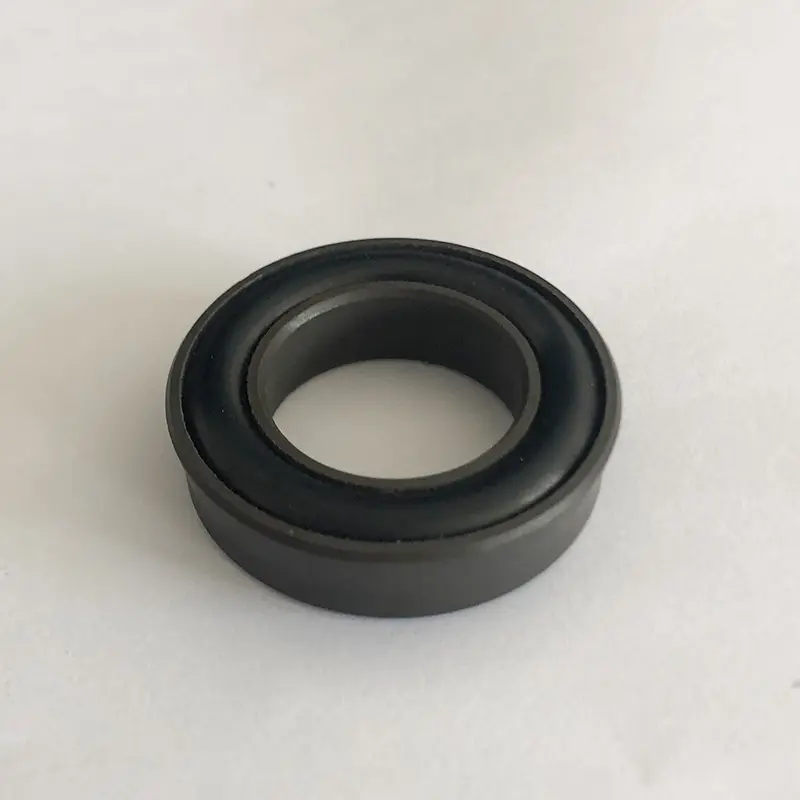

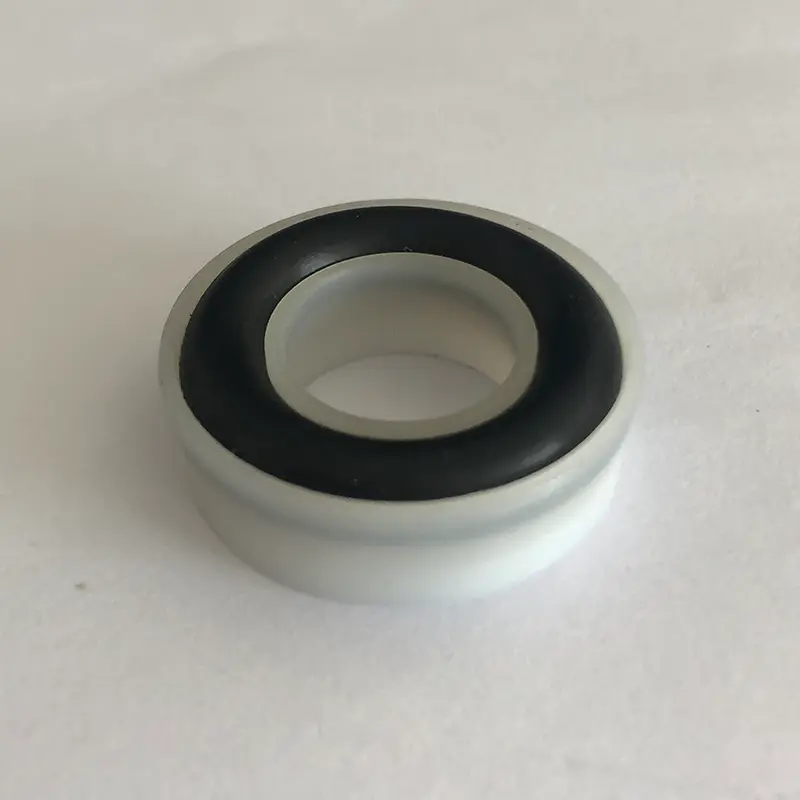

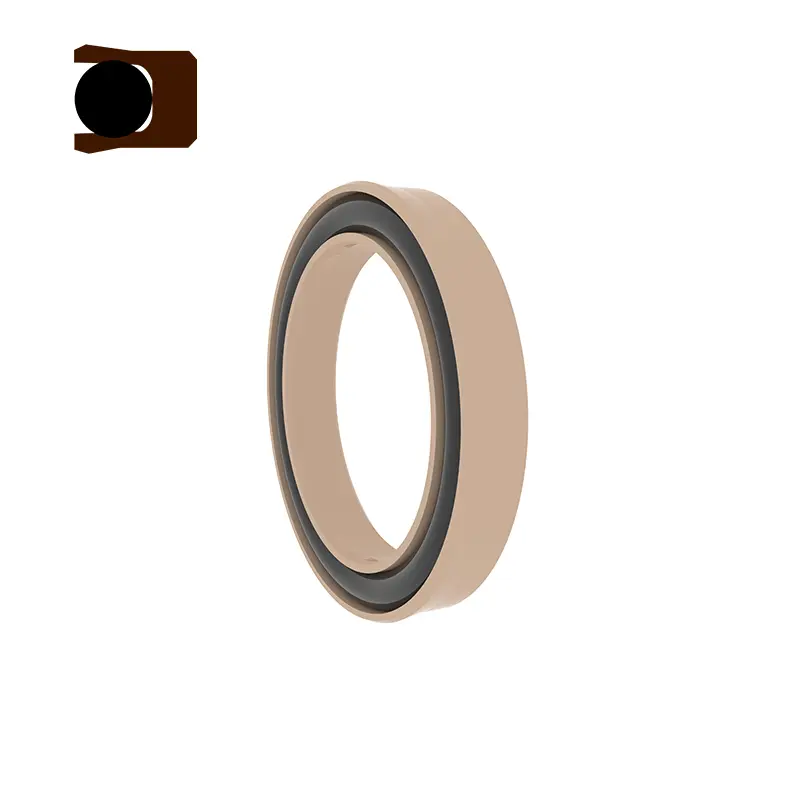

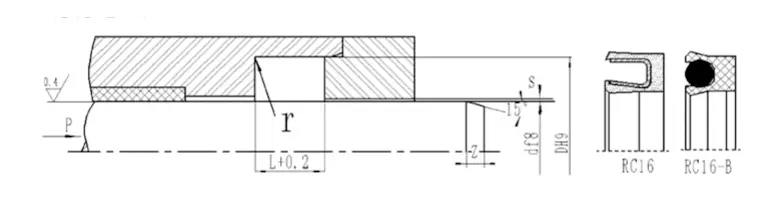

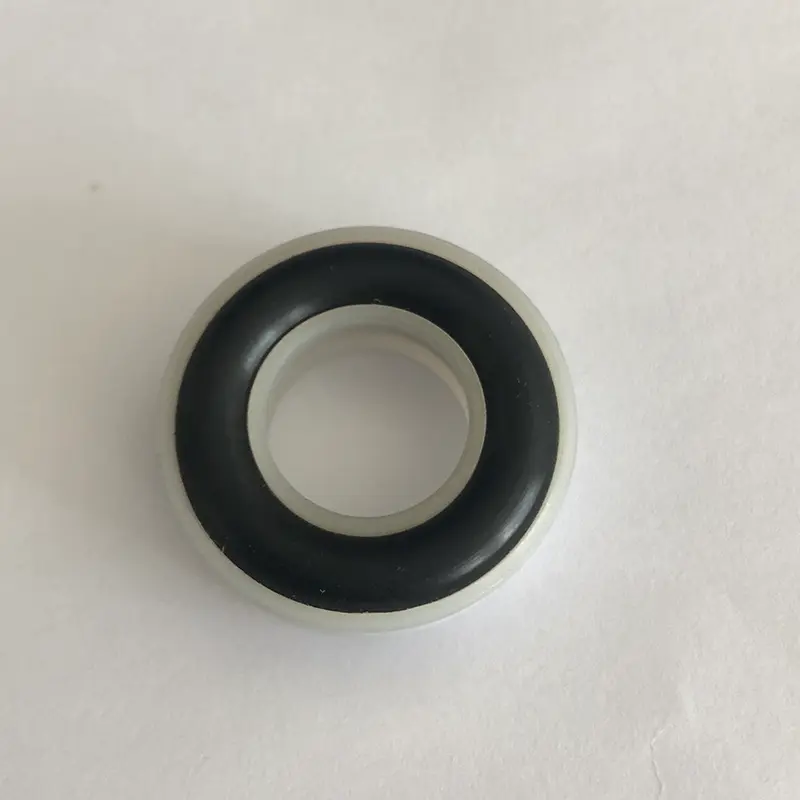

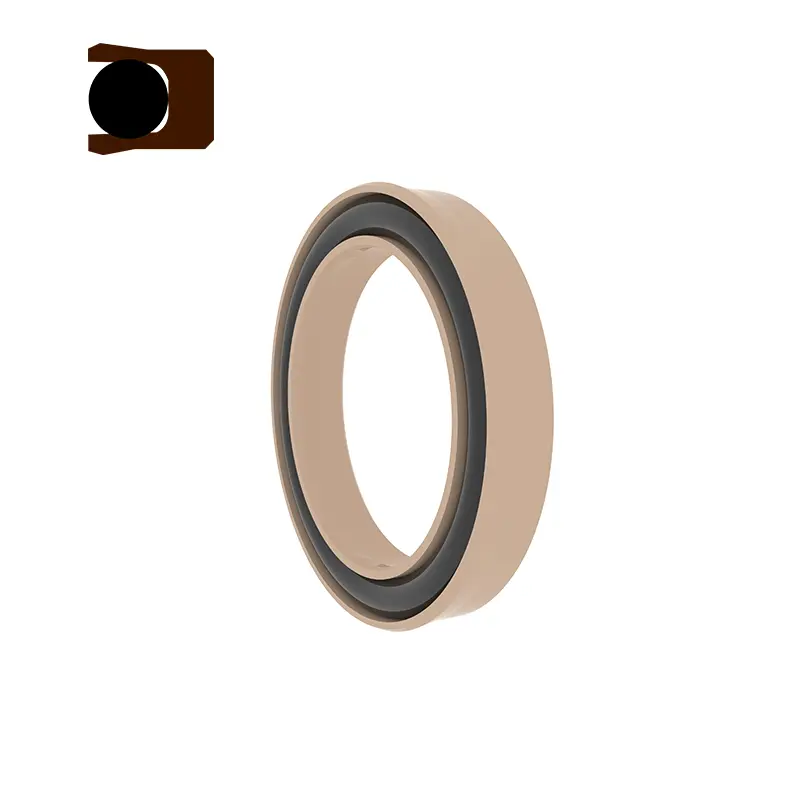

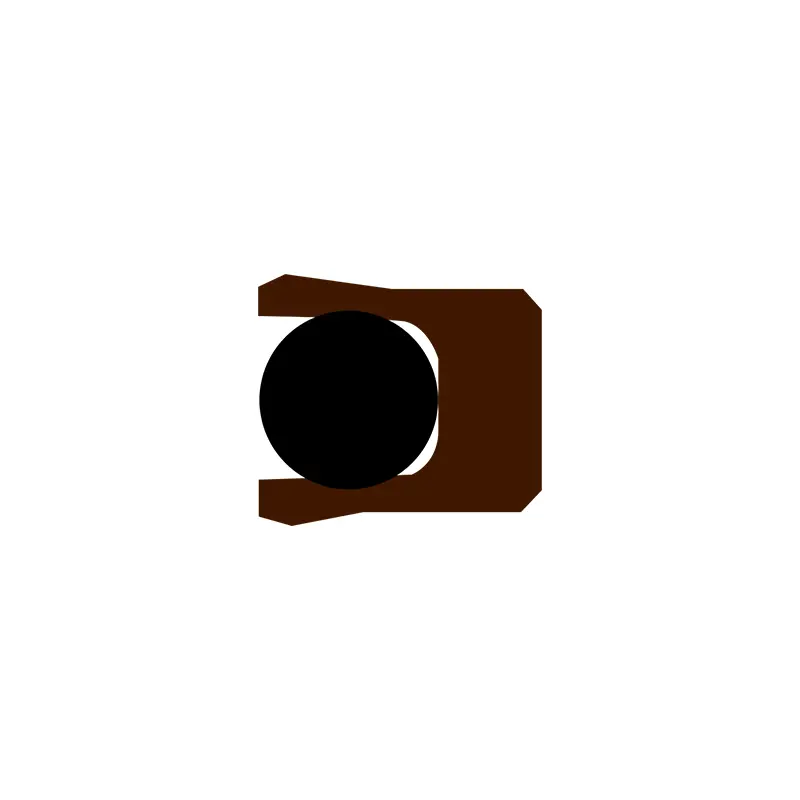

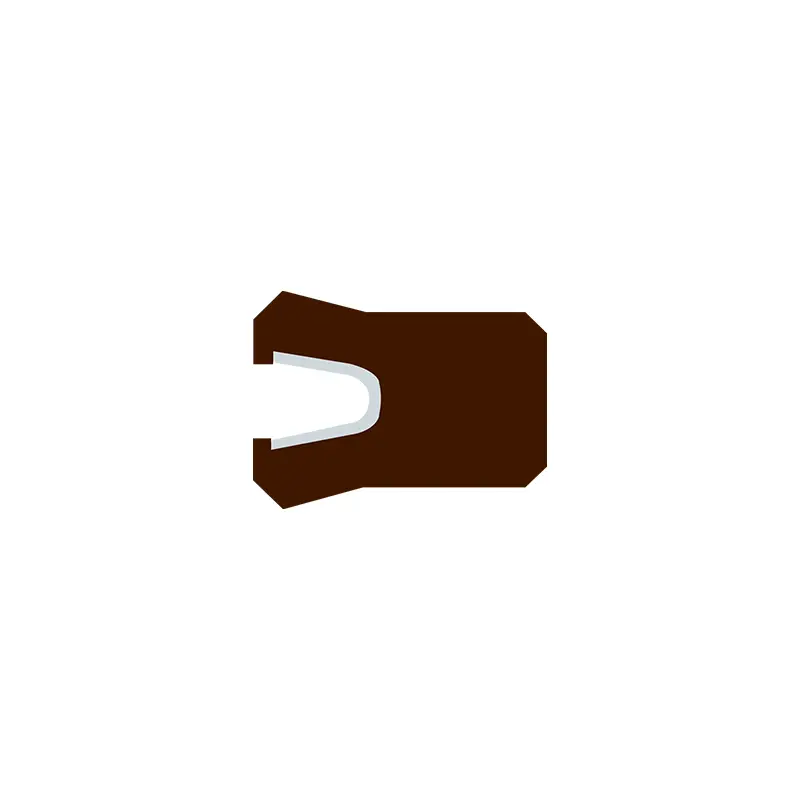

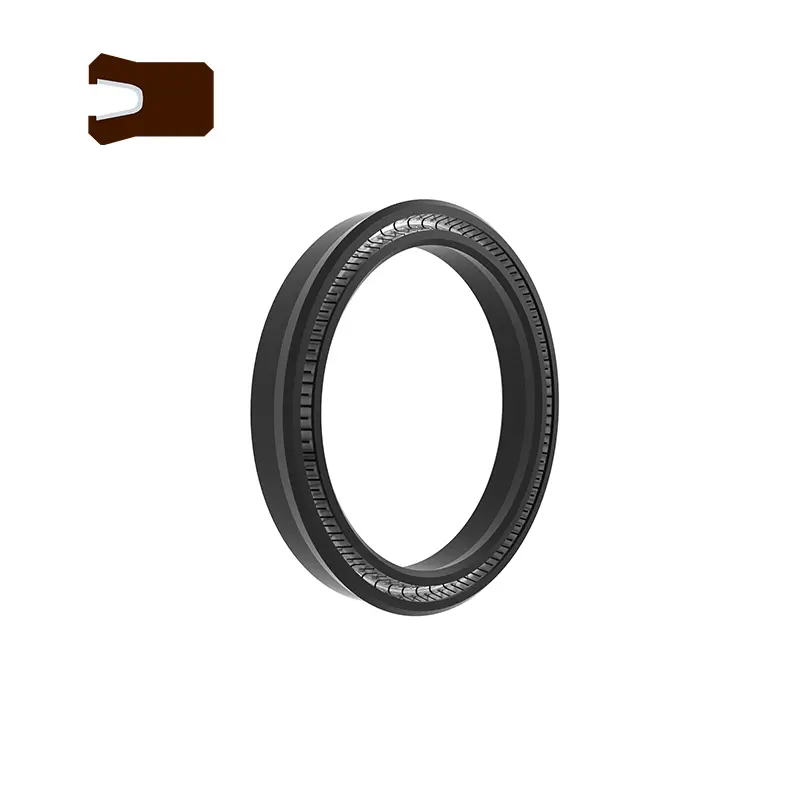

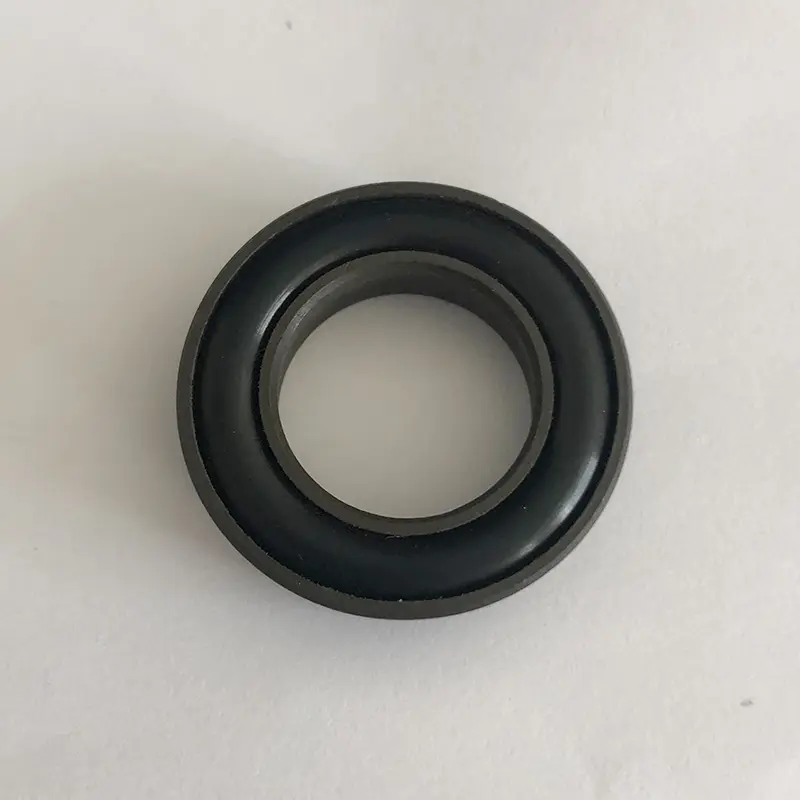

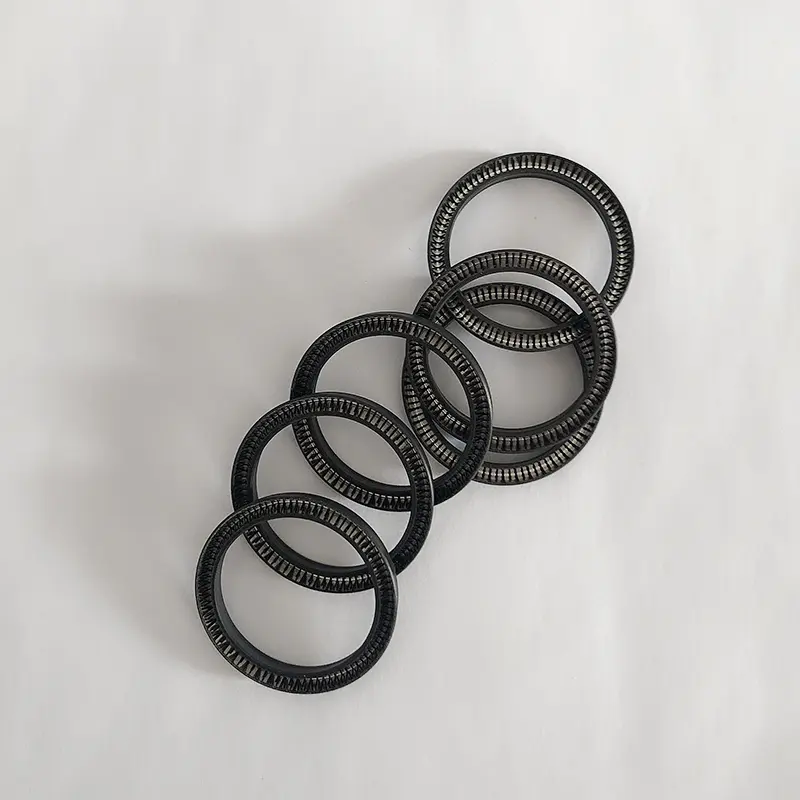

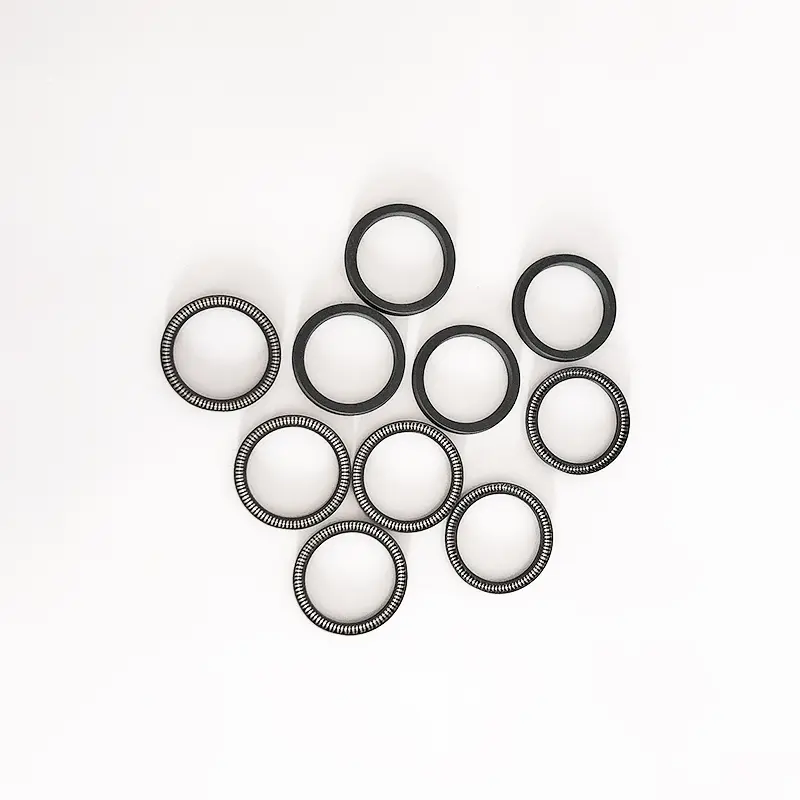

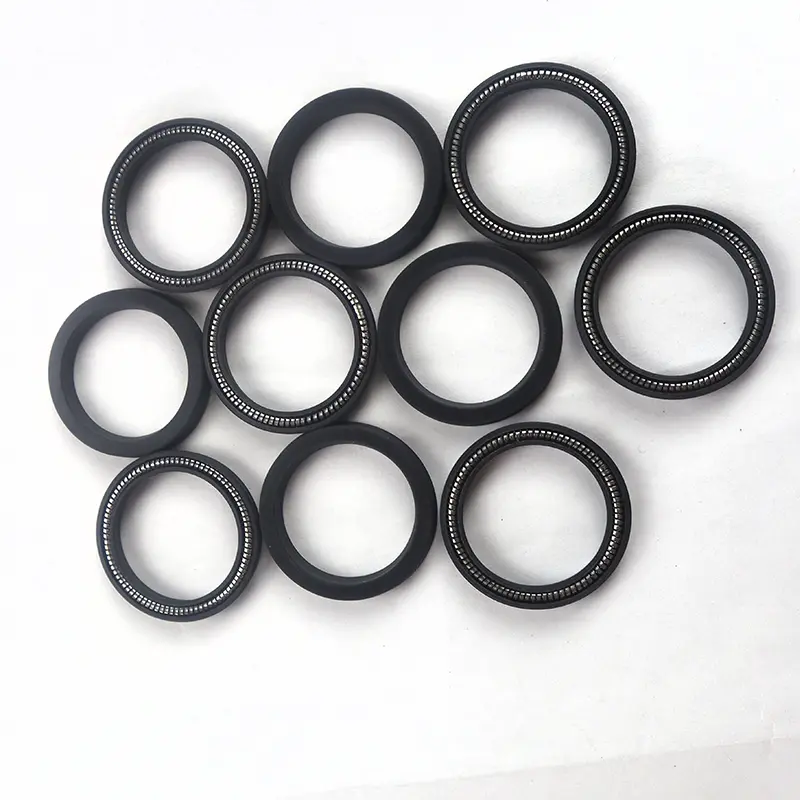

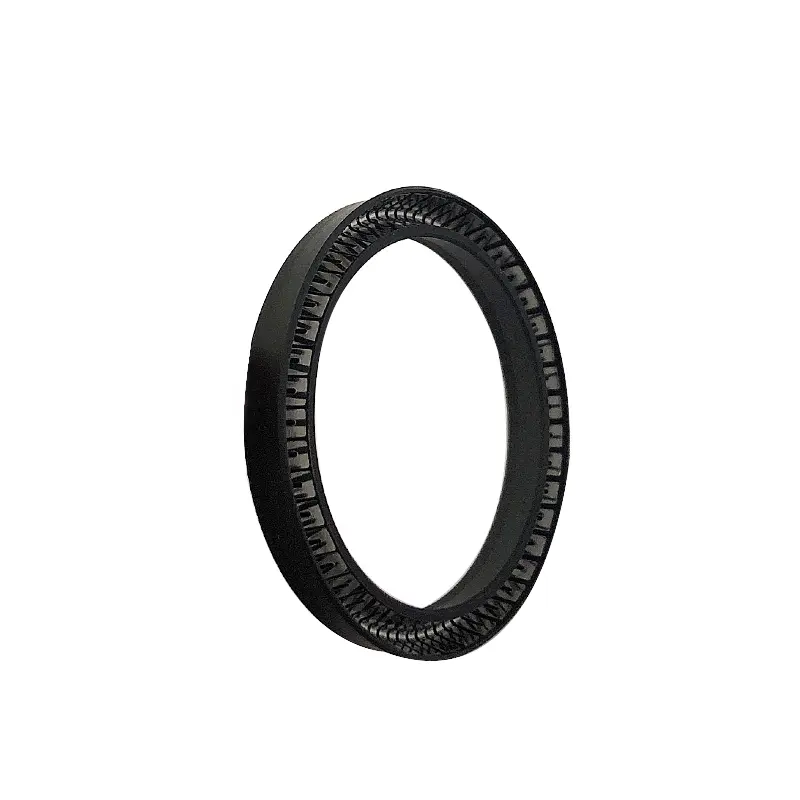

Our RC16 is a plug seal, and RC16-B is a Y-shaped combination seal. The grooves of the two are the same and can be installed in the grooves specified by ML5514F and ISO3771.

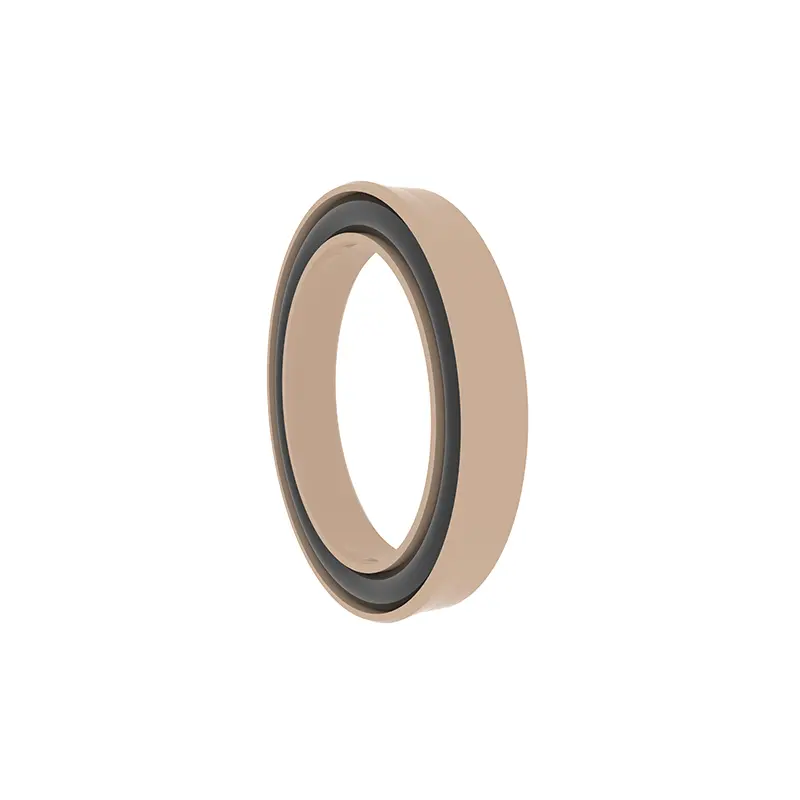

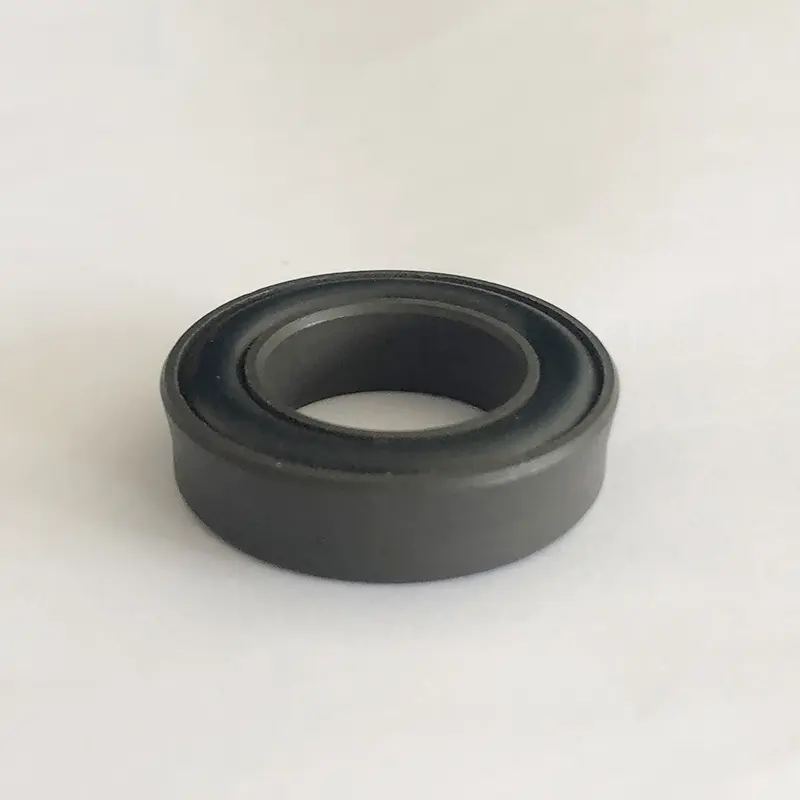

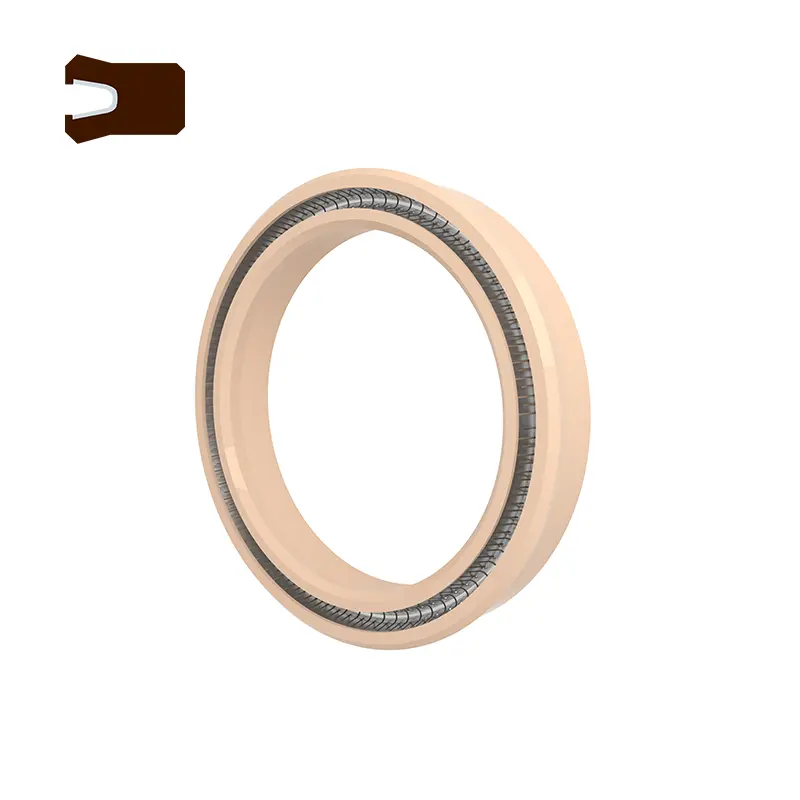

In another radial spring energized seals product, the RC65 series, RC65 is a plug seal, and RC65-B is a Y-shaped combination seal. They also have the same groove design and can be installed in the grooves specified by ML5514F and ISO3771.

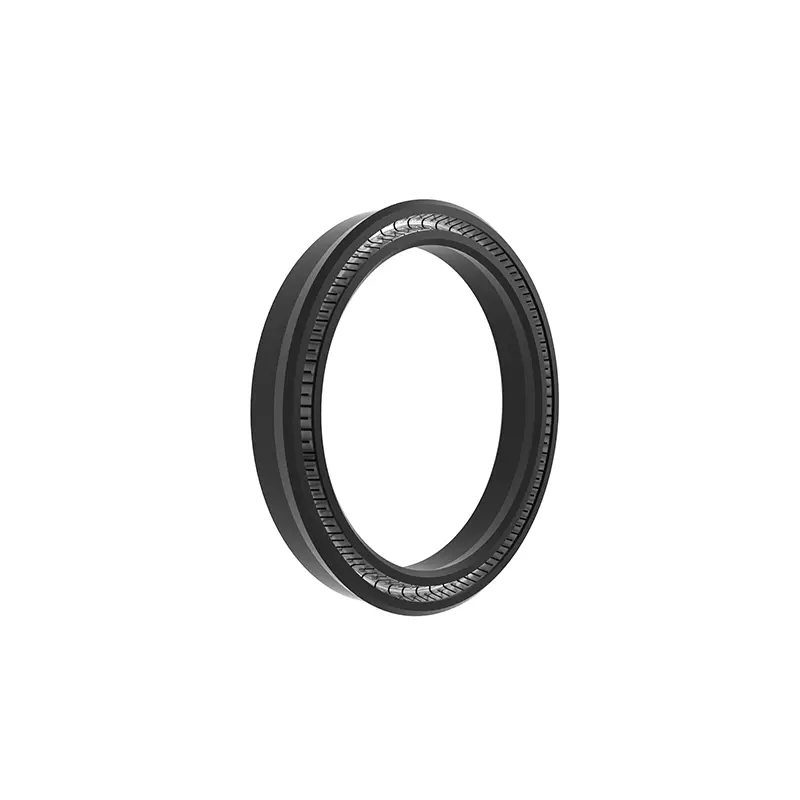

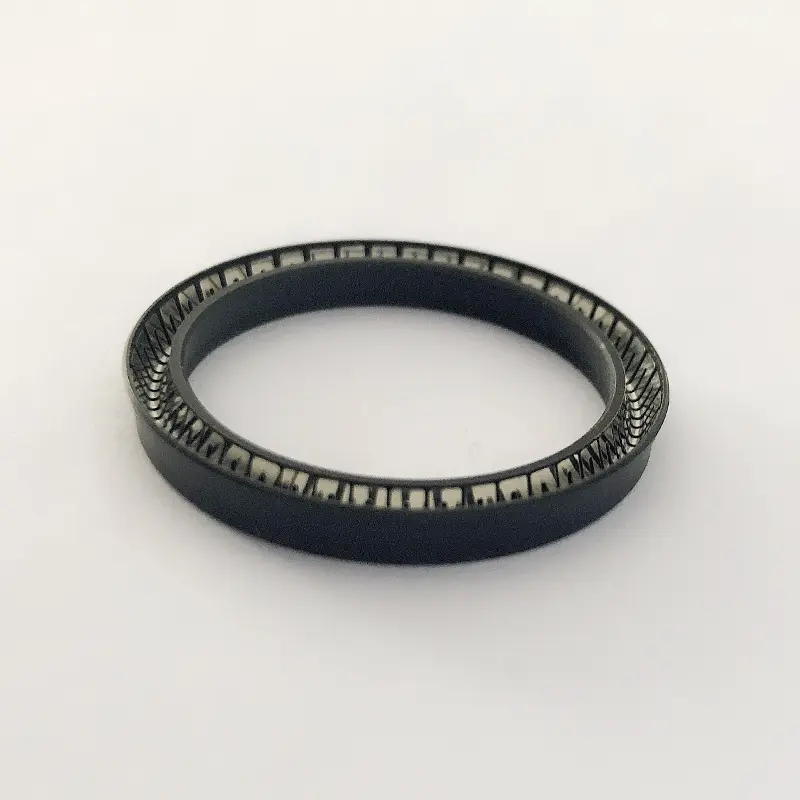

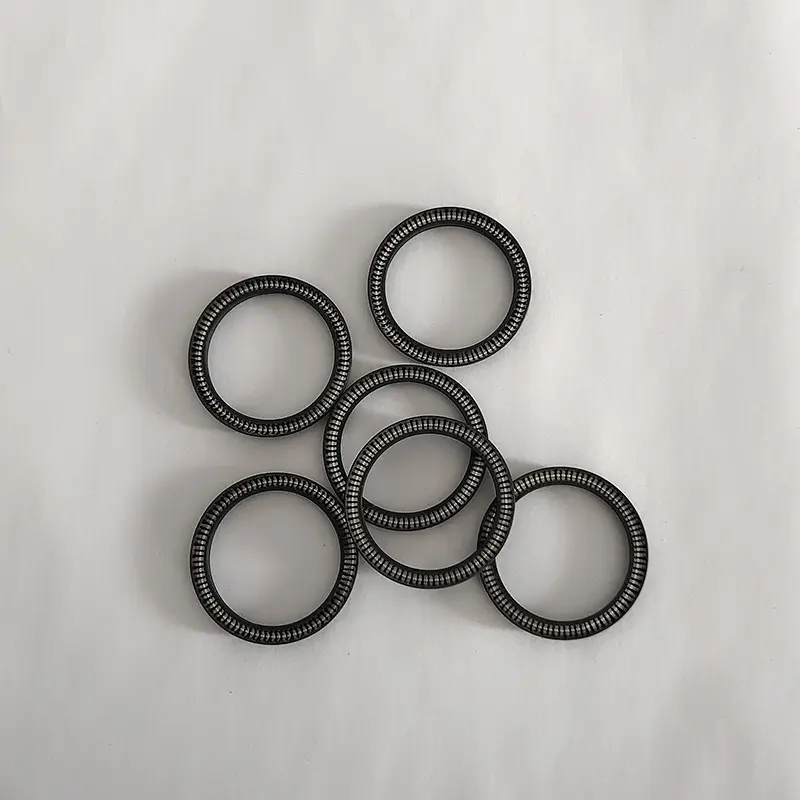

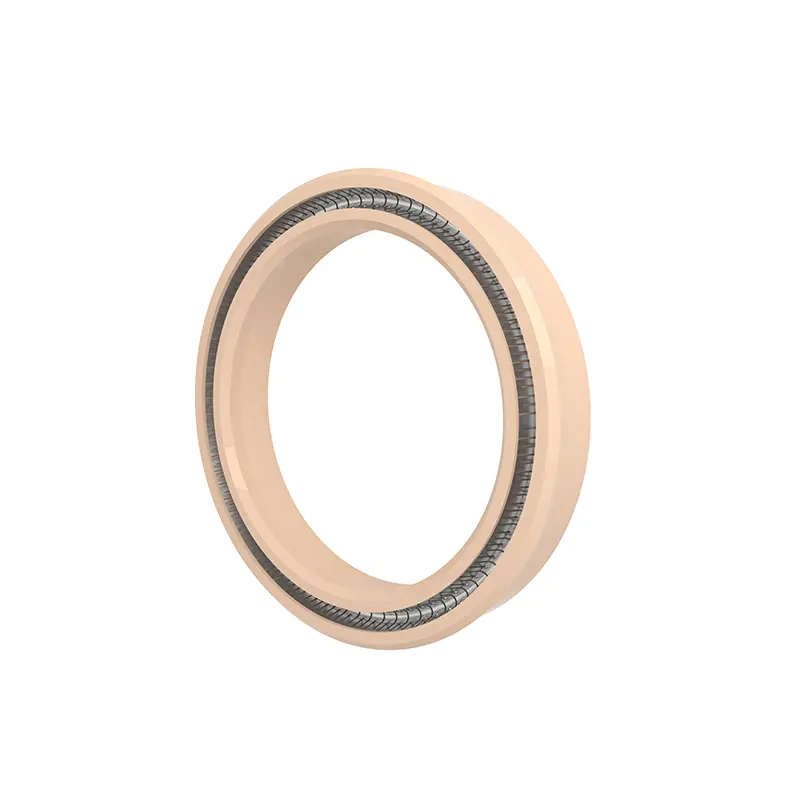

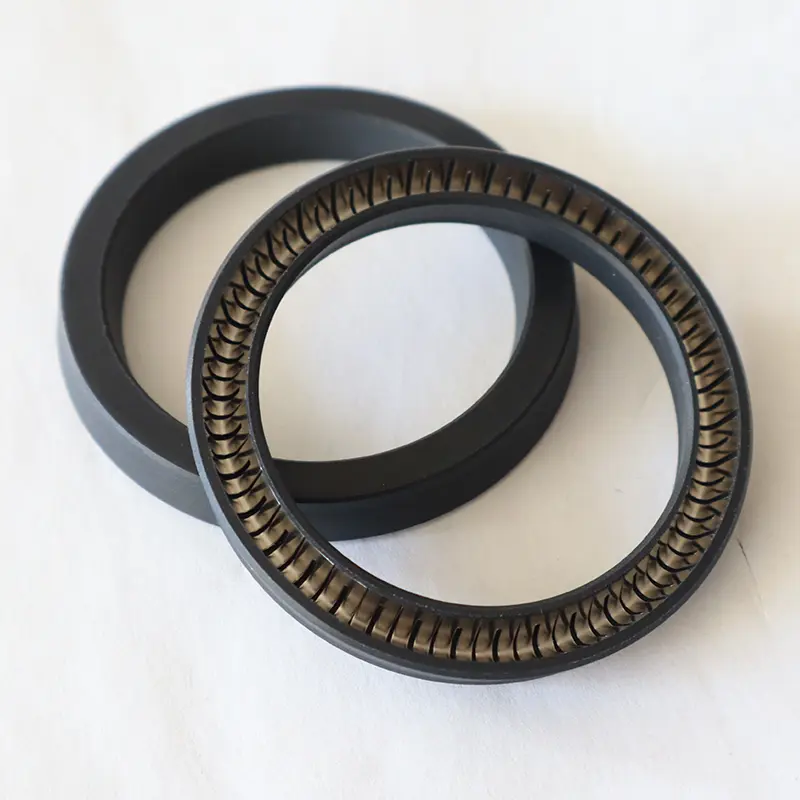

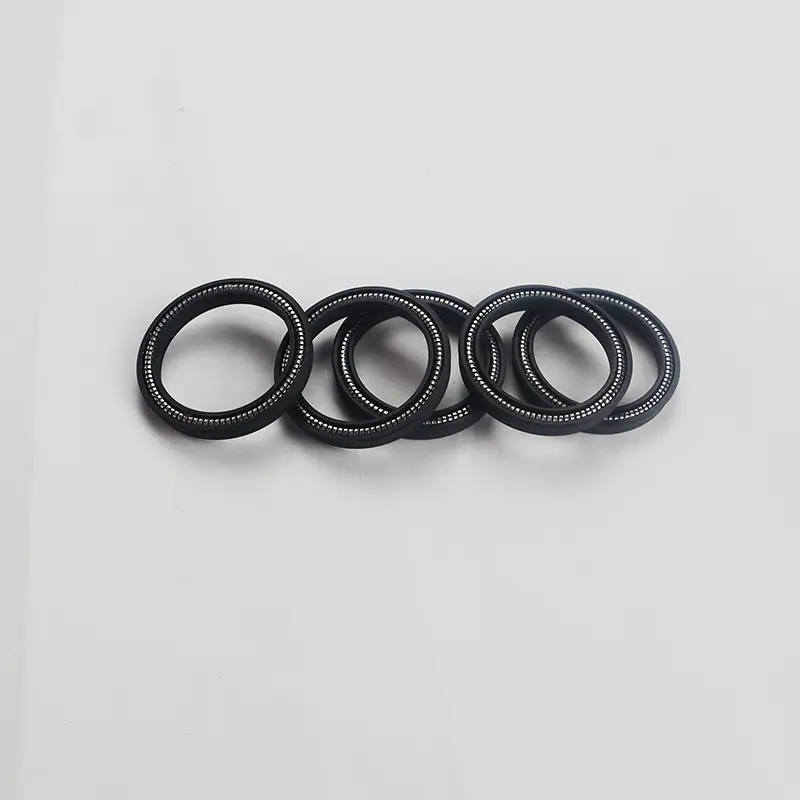

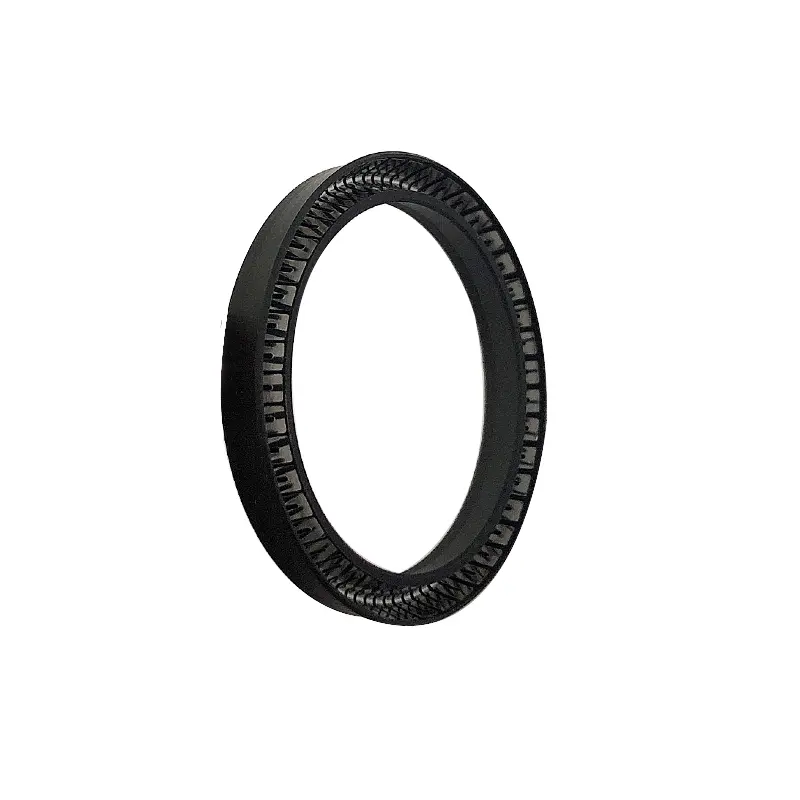

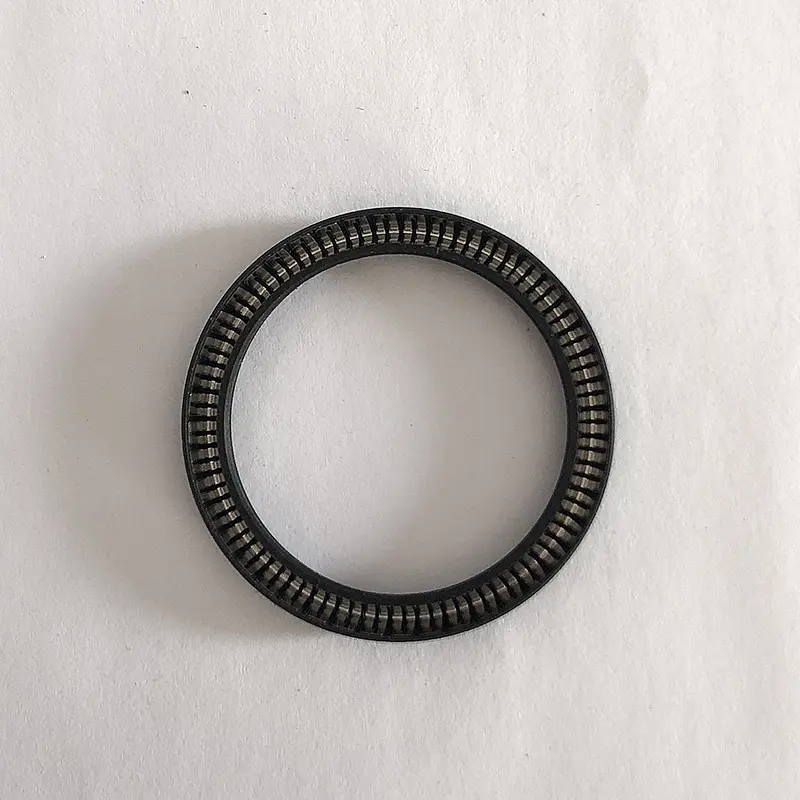

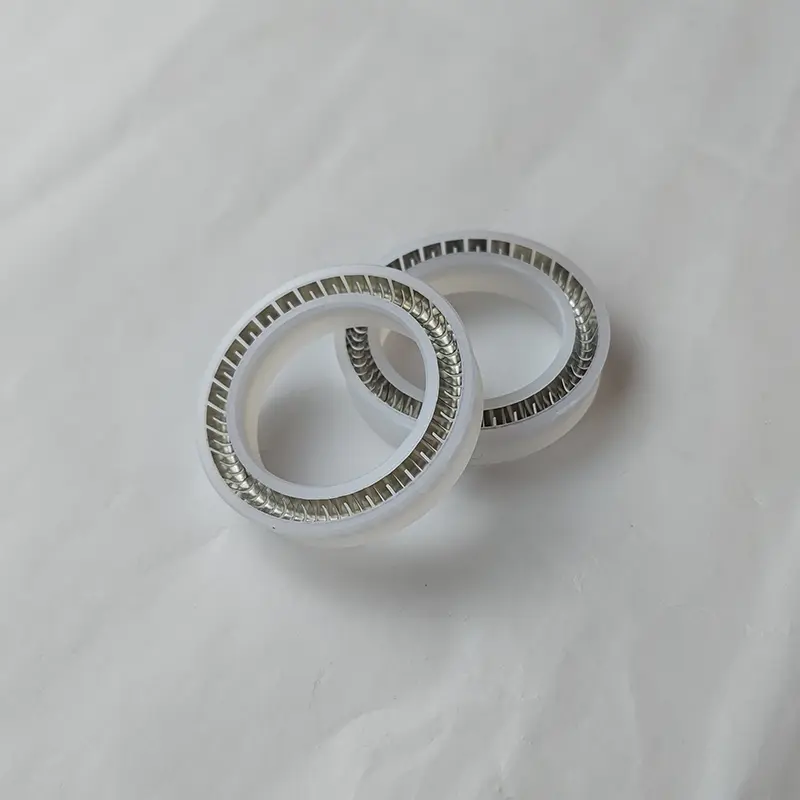

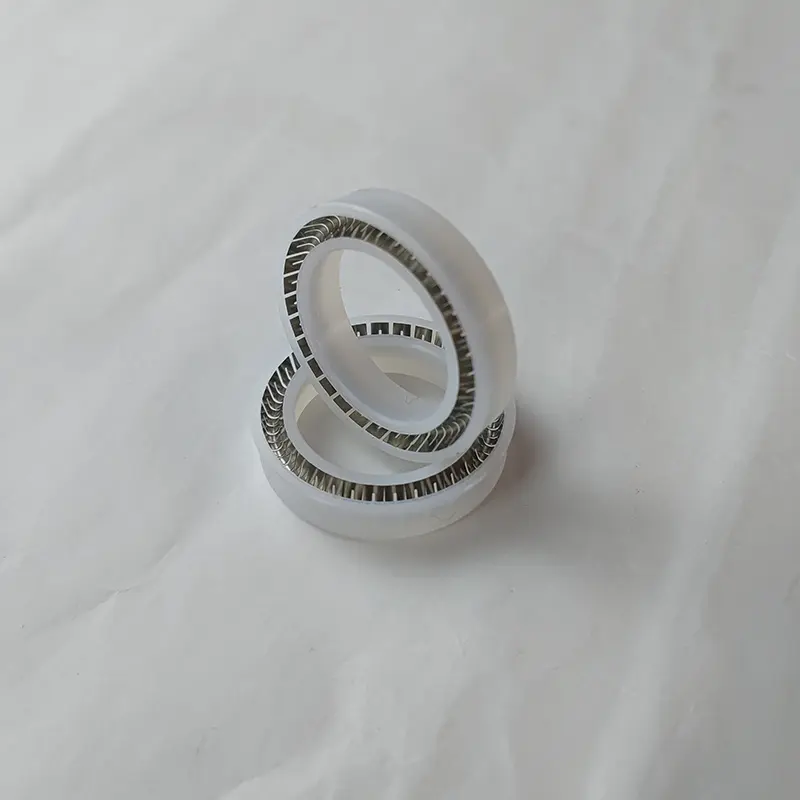

RC16 and RC65 plug seals are composed of stainless steel springs and high-functional plastics. Stainless steel springs can choose V-shaped springs and O-shaped springs. When using RC16-B and RC65-B, it is necessary to reasonably select the matching elastomer material.

Both models of radial spring energized seals have high performance, interchangeability and wide applicability. They are suitable for hydraulic and pneumatic equipment sealing under harsh working conditions and special media environments, such as chemical, petroleum, energy and other fields. The stainless steel spring provides a stable radial force to ensure long-term sealing effect, while the combination of high-performance plastic and elastomer materials is suitable for high pressure, high speed and corrosive media. The standardized groove design simplifies installation and maintenance and reduces the cost of use.

Product features and applications:

Common features of radial spring energized seals:

1. Can be used for reciprocating, rotating (swinging) and static sealing;

2. Applicable to almost all fluids and chemical media;

3. Excellent sealing performance for high and low pressure and vacuum sealing;

4. Low friction, small starting resistance, smooth movement, no creeping;

5. Long life, can be used for oil-free lubrication seals;

6. A variety of materials are available to adapt to rapid changes in temperature and various complex working conditions;

7. No pollution to the medium when in contact with food and medicine circulation;

8. Can be sterilized, almost no storage period limit.

RC16

Applicable working conditions

Material selection

1. The matching O-ring materials can be: R01 nitrile rubber (NBR), R02 fluororubber (FKM), etc.

2. Sealing ring materials: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.

3. Stainless steel springs can be selected from O-shaped springs and V-shaped springs.

Ordering example

RC16-40-PTFE4+V shaft diameter 40, sealing ring material is PTFE4, stainless steel spring is V-shaped spring

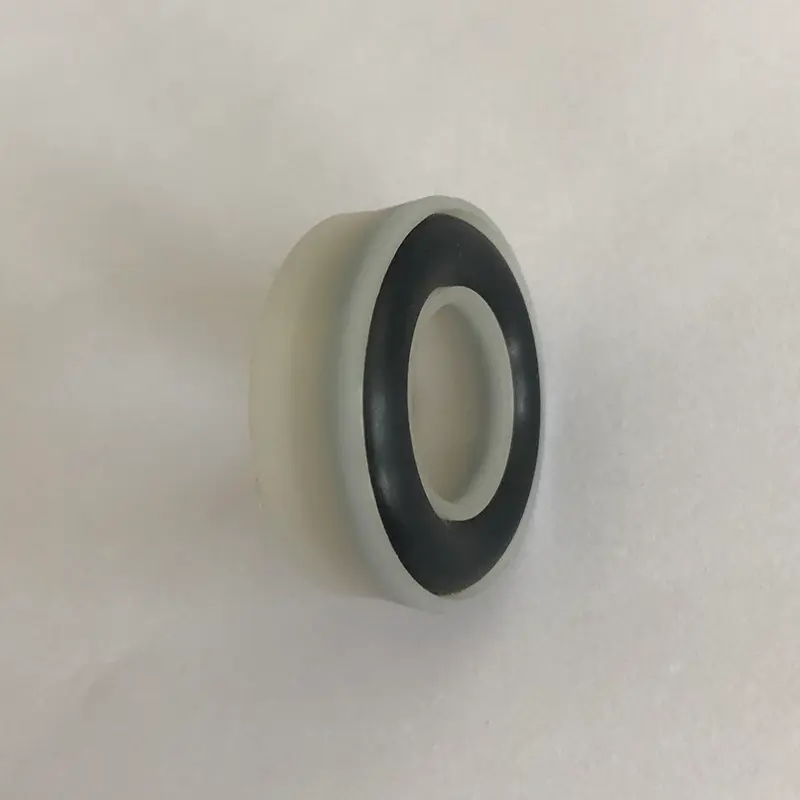

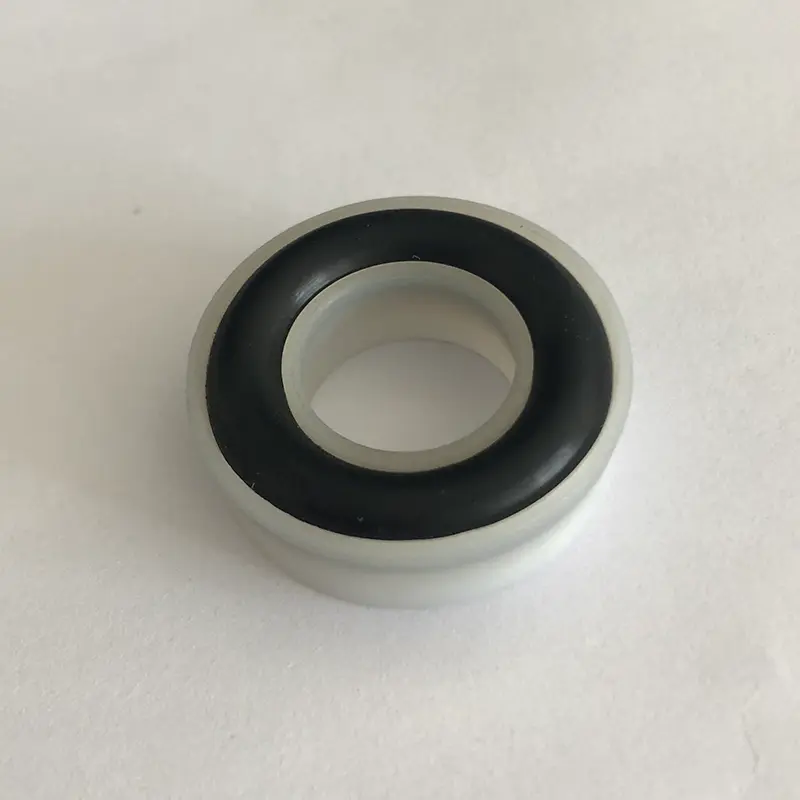

RC16-B-40-PTFE4+R02 shaft diameter is 40, sealing ring material is PTFE4, matching O-ring is fluororubber

Specification parameter table (any size within the parameter range is available)

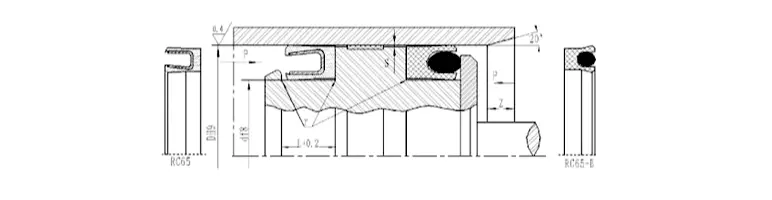

Installation of the pan seal: generally use an open groove, and for the installation of a closed groove, see the installation of the pan seal.

Specification size table (the required specifications are not in this table, please contact our company, we can supply products up to 1600mm.)

RC65

Applicable working conditions

1. The matching O-ring materials can be: R01 nitrile rubber (NBR), R02 fluororubber (FKM), etc.

2. Sealing ring materials: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.

3. Stainless steel springs can be selected from O-shaped springs and V-shaped springs.

Ordering example

RC65-40-PTFE4+V cylinder diameter 40, sealing ring material is PTFE4, stainless steel spring is V-shaped spring

RC65-B-40-PTFE4+R02 cylinder diameter is 40, sealing ring material is PTFE4, matching O-ring is fluororubber

Specification parameter table (any size within the parameter range is available)
