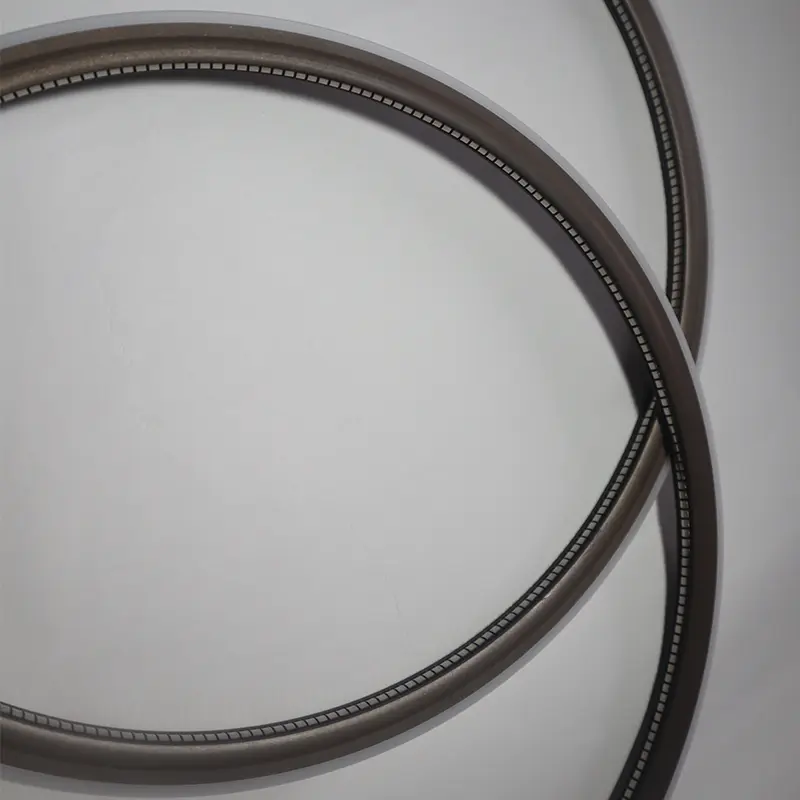

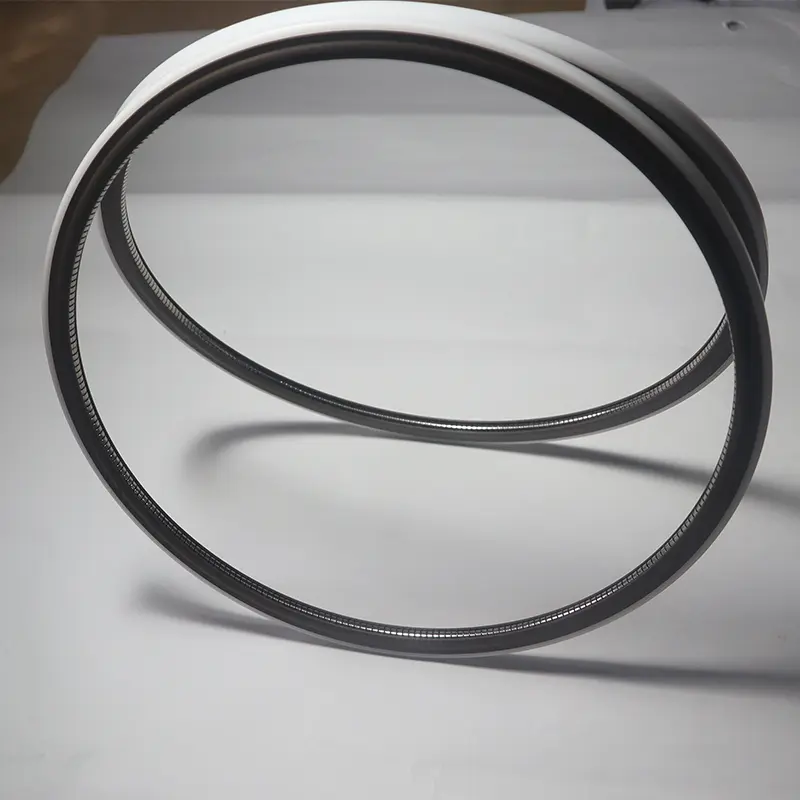

The end flange spring energized seals we launched include different models, each with its own subdivisions. They are all strictly developed, produced, and tested.

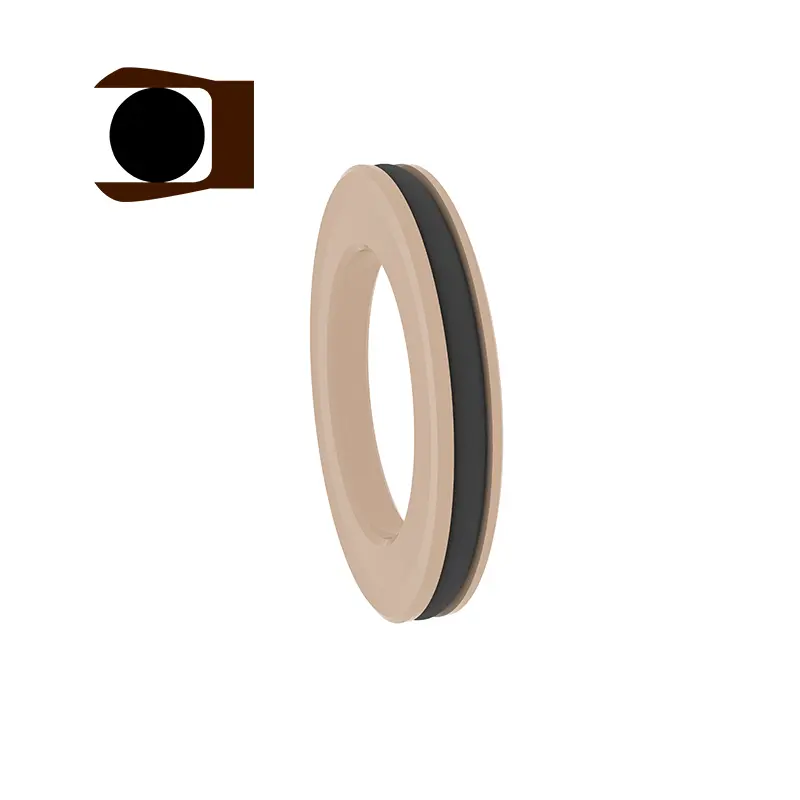

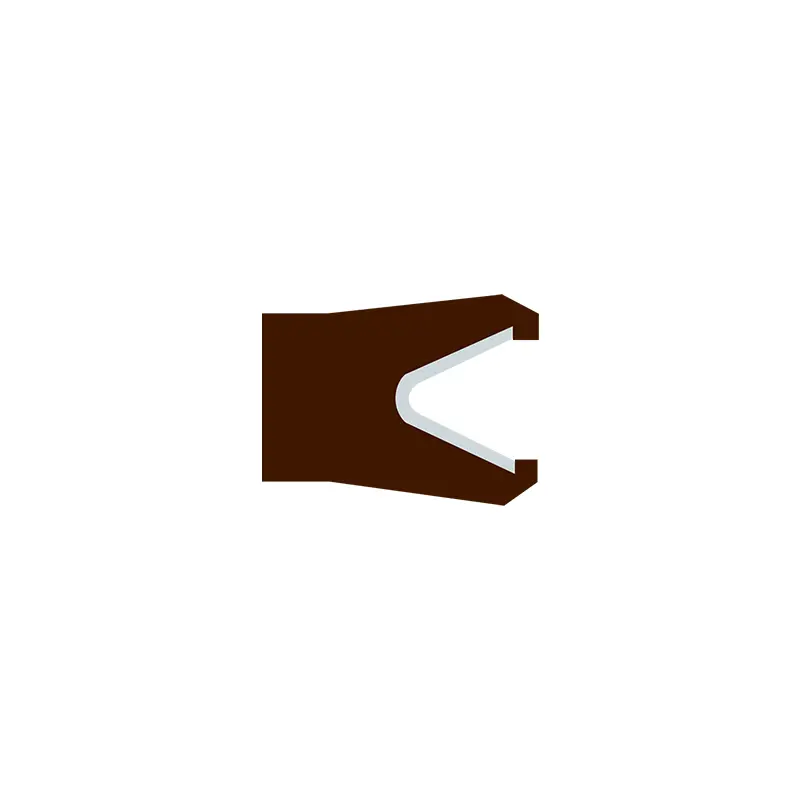

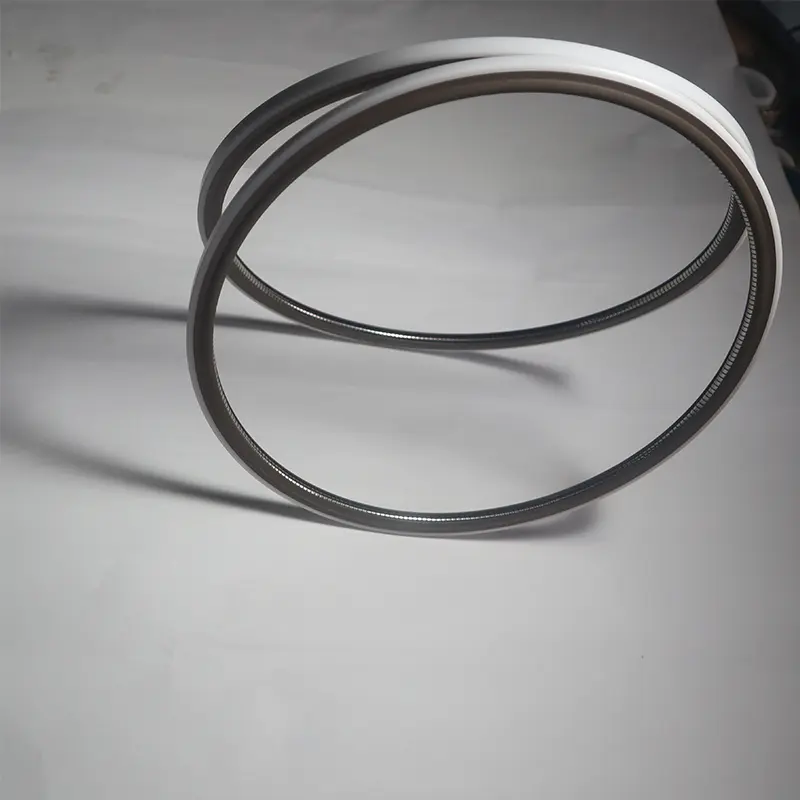

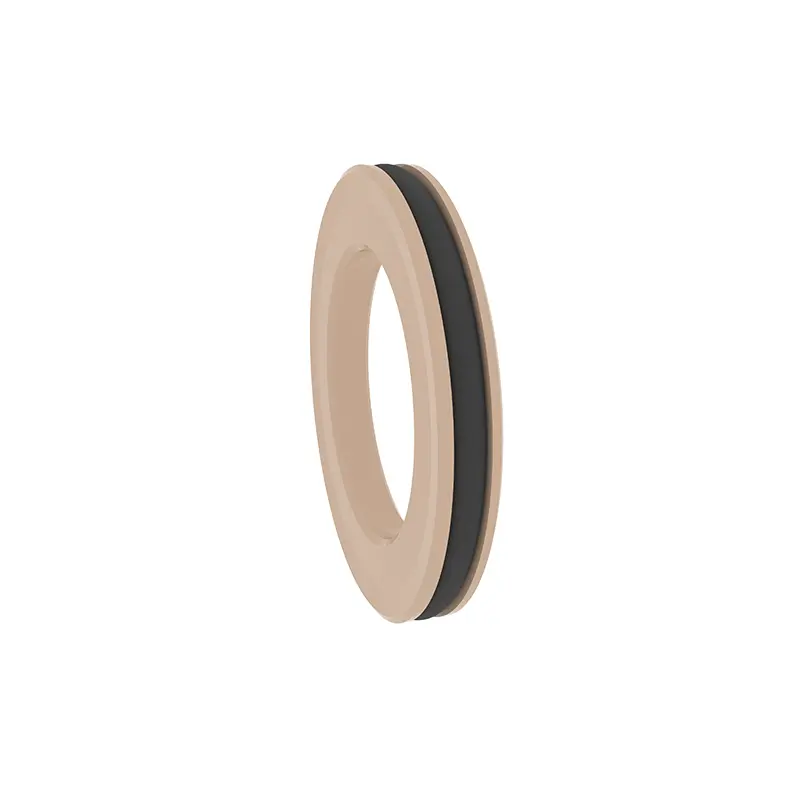

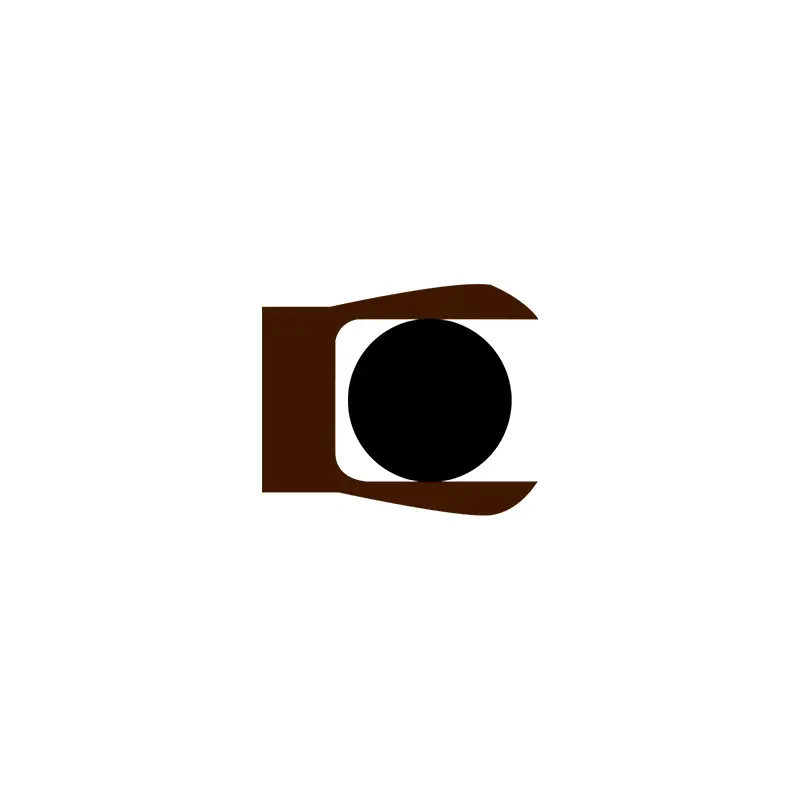

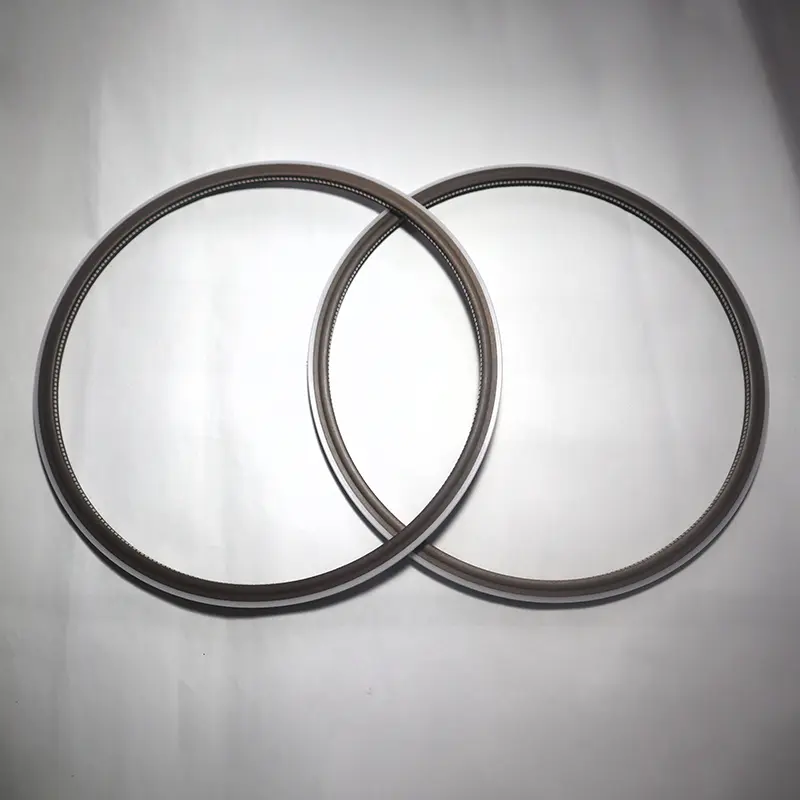

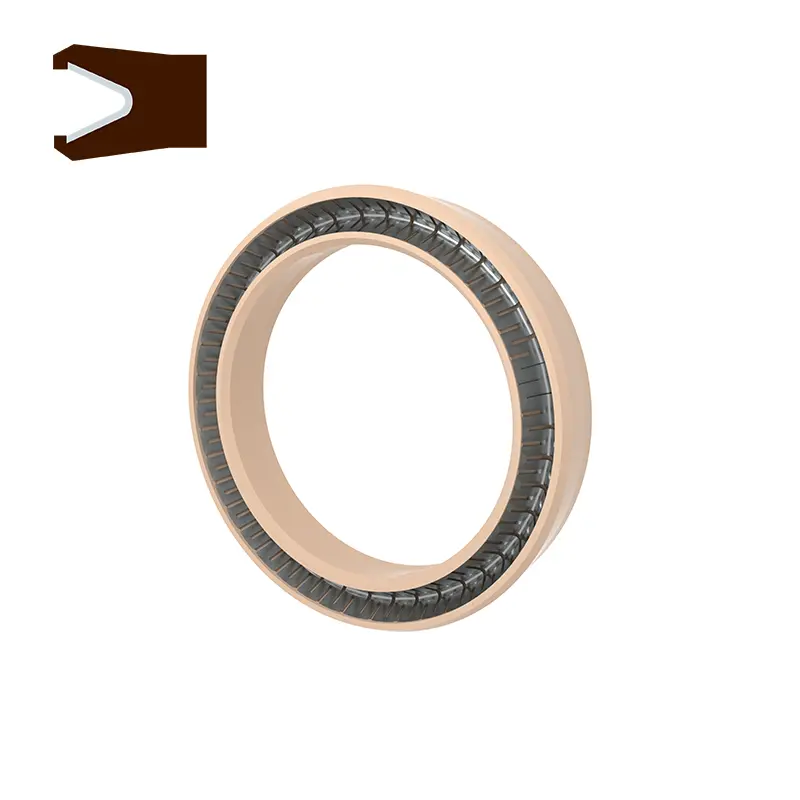

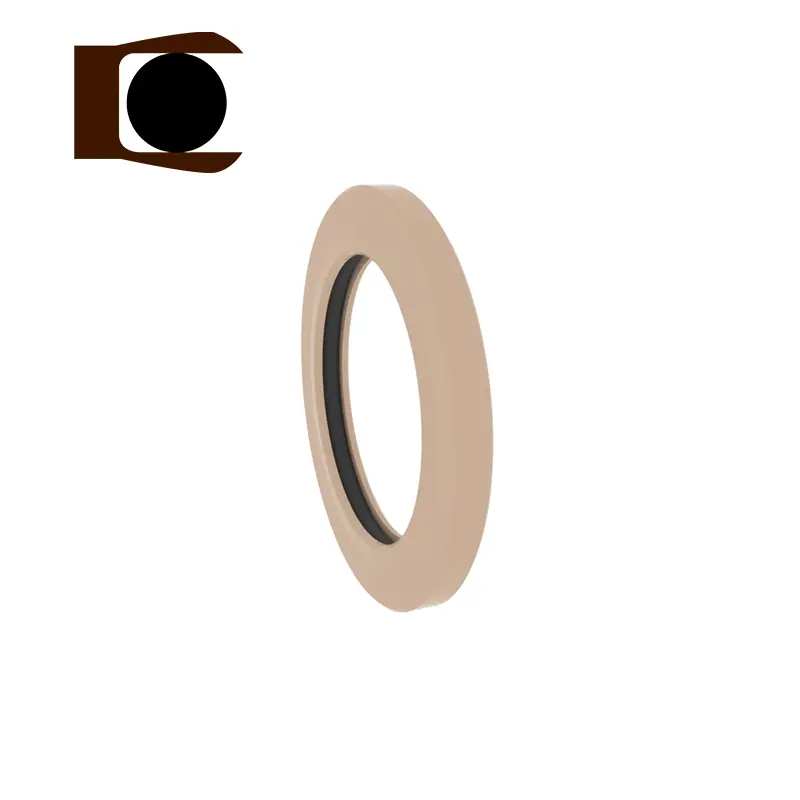

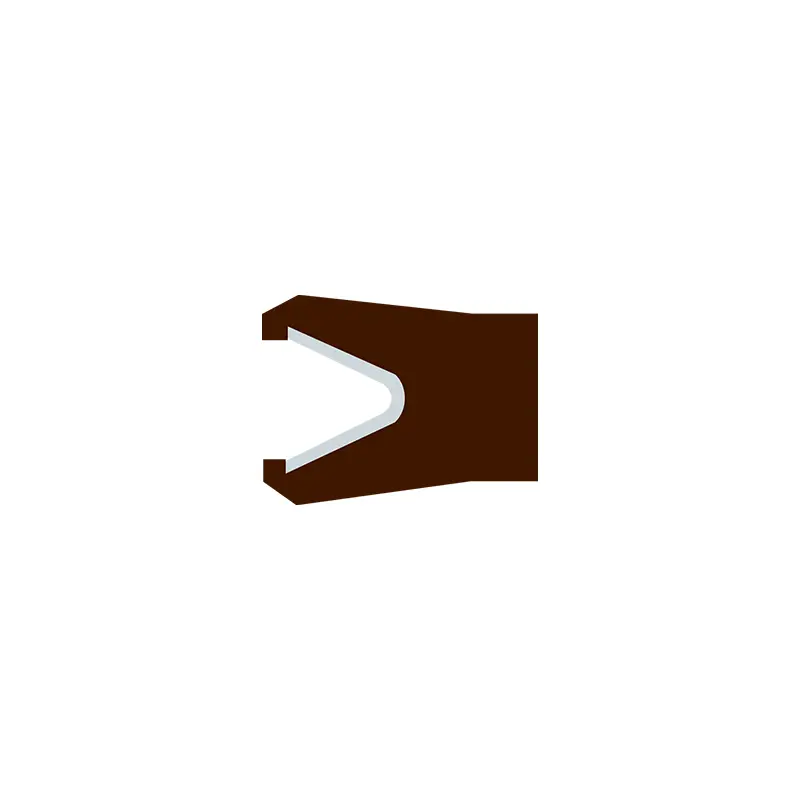

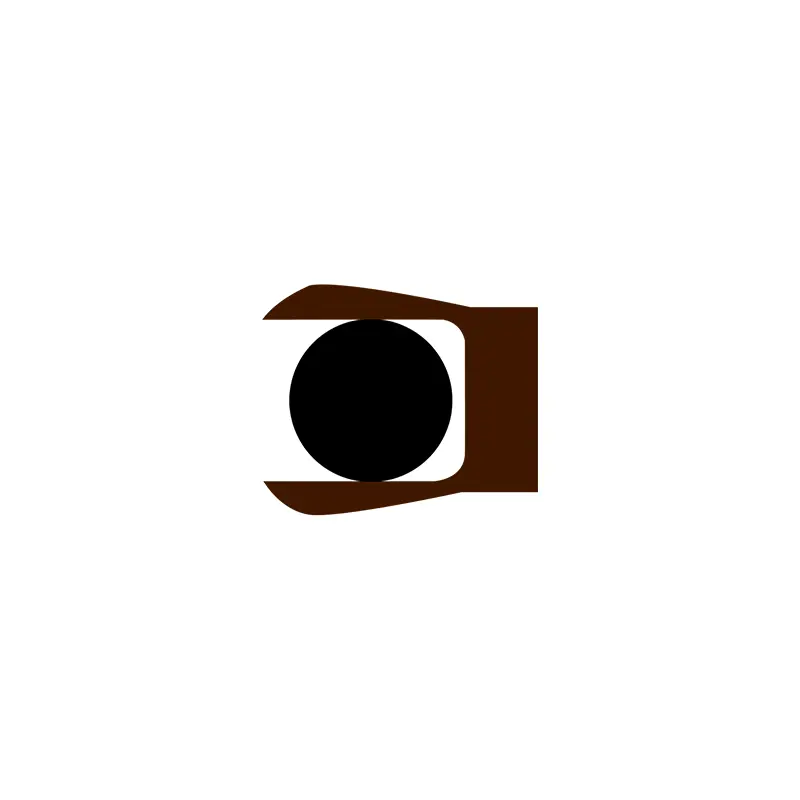

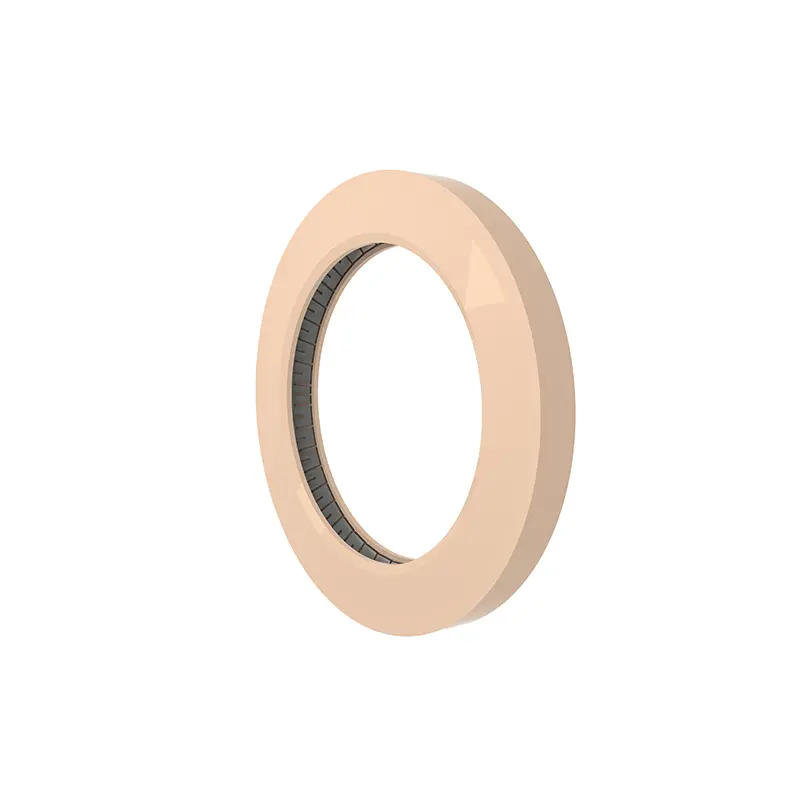

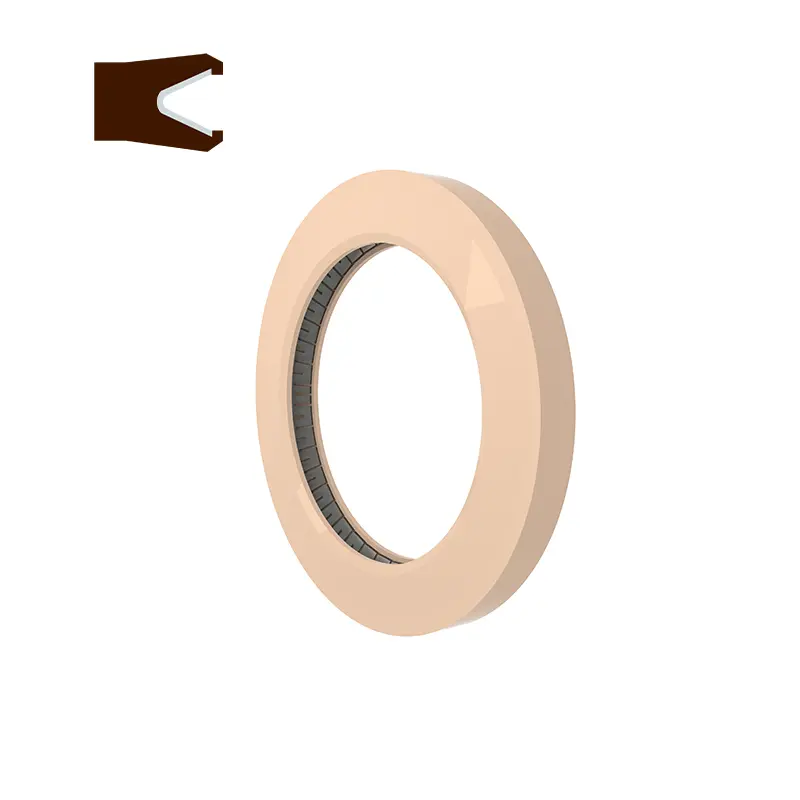

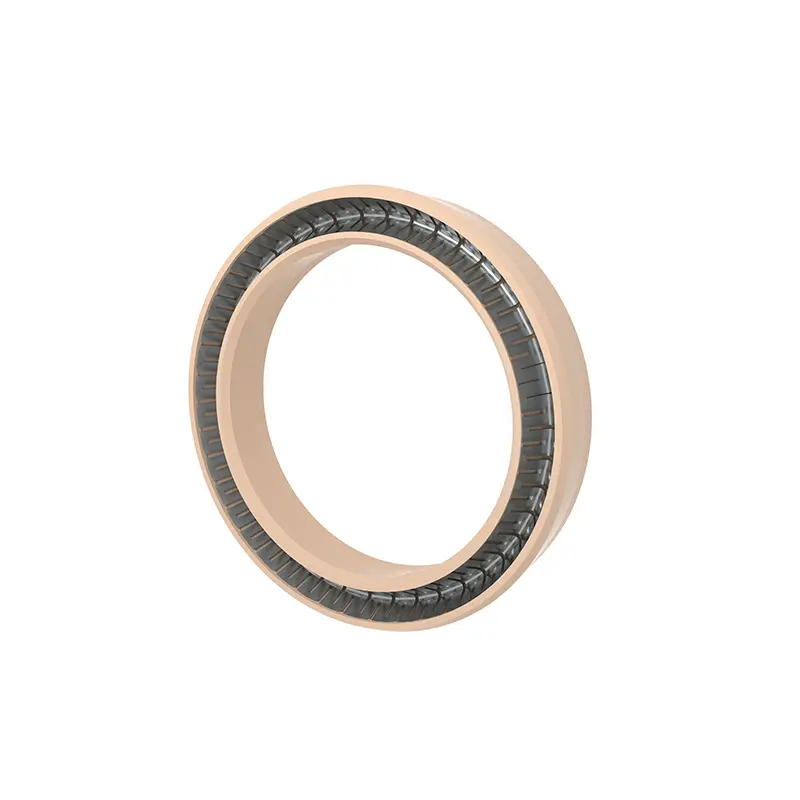

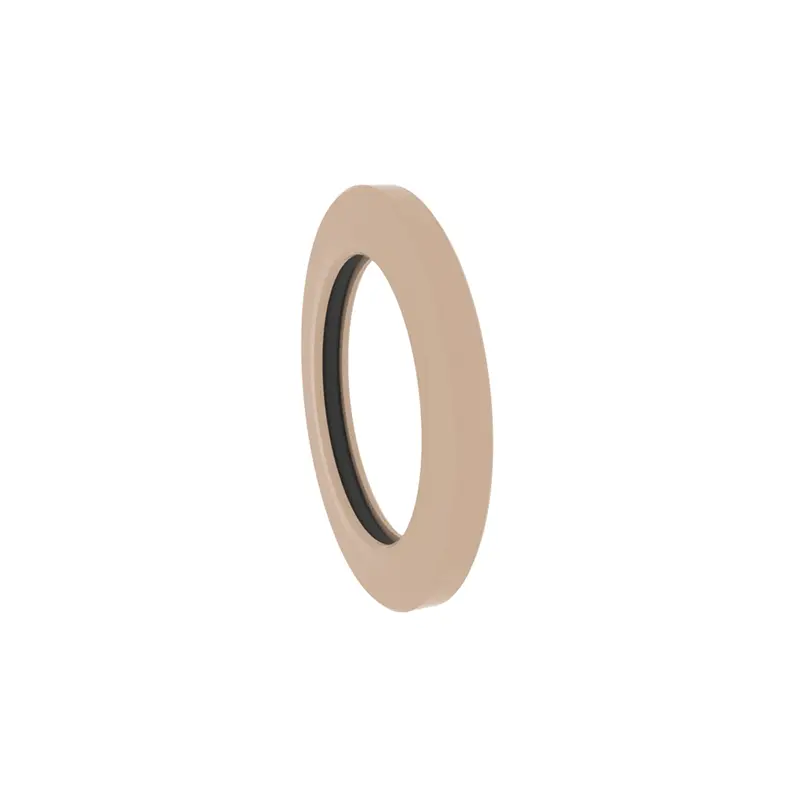

RC2876 and RC2877 are pan-seals, and RC2876-B and RC2877-B are Y-shaped combined seals. The two different divisions between each model have the same groove and can be interchanged. They are suitable for axial (end) and flange one-way pressure static seals and can be used in places where the surface roughness is not ideal. The two pan-seals are composed of stainless steel springs and high-function plastics. Stainless steel springs can be selected as V-shaped springs and O-shaped springs. And when using RC2876-B and RC2877-B, it is necessary to reasonably select the matching elastomer materials.
Product features and applications:
RC2876
Applicable working conditions (limit values should not appear at the same time)
| Pressure Mpa | Speed m/s | Temperature ℃ | Medium | ||
| RC2876 | RC2876-B | - | RC2876 | RC2876-B | All liquids, chemicals, gases |
| <40 | <80 | -200~+250 | -35~+250 | ||
Material selection
1. The matching O-ring materials can be: R01 nitrile rubber (NBR), R02 fluororubber (FKM), etc.
2. Sealing ring materials: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Stainless steel springs can be selected from O-shaped springs and V-shaped springs.
Ordering example
RC2876-40-PTFE4+V The outer diameter of the internal pressure groove is 40, the sealing ring material is PTFE4, and the spring is v-shaped spring
RC2876-B-40-PTFE4+R02 The outer diameter of the internal pressure groove is 40, the sealing ring material is PTFE4, and the matching O-ring is fluororubber
Note: If you choose the extended range, please use the series number.

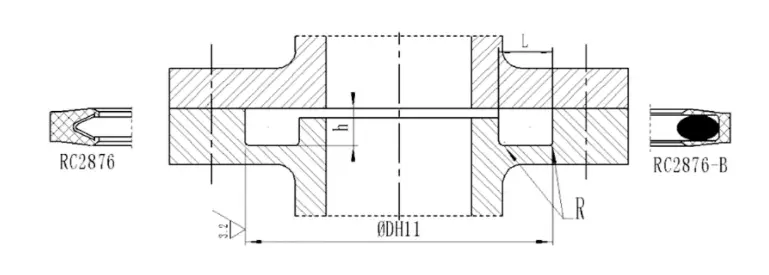

| Serial Number | Serial Number | Standard range DH11 | Extended range DH11 | Groove Depth h-0.05 | Groove width L+0.2 | Round Corners Rmax |
| RC2876-0 | RC2876-B-0 | 10~13.9 | 10~40 | 1.45 | 2.4 | 0.4 |
| RC2876-1 | RC2876-B-1 | 14~24.9 | 13~200 | 2.25 | 3.6 | 0.4 |
| RC2876-2 | RC2876-B-2 | 25~45.9 | 18~400 | 3.1 | 4.8 | 0.6 |
| RC2876-3 | RC2876-B-3 | 46~124.9 | 28~700 | 4.7 | 7.1 | 0.8 |
| RC2876-4 | RC2876-B-4 | 125~999.9 | 45~1000 | 6.1 | 9.5 | 0.8 |
| RC2876-5 | RC2876-B-5 | ≥1000 | ≥110 | 9.5 | 15.0 | 0.8 |
RC2877
Applicable working conditions (limit values should not appear at the same time)
| Pressure Mpa | Speed m/s | Temperature ℃ | Medium | ||
| RC2877 | RC2877-B | - | RC2877 | RC2877-B | All liquids, chemicals, gases |
| <40 | <80 | -200~+250 | -35~+250 | ||
1. The matching O-ring materials can be: R01 nitrile rubber (NBR), R02 fluororubber (FKM), etc.
2. Sealing ring materials: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Stainless steel springs can be selected from O-shaped springs and V-shaped springs.
Ordering example
RC2877-40-PTFE4+V The inner diameter of the external pressure groove is 40, the sealing ring material is PTFE4, and the stainless steel spring is a v-shaped spring
RC2877-B-40-PTFE4+R02 The inner diameter of the external pressure groove is 40, the sealing ring material is PTFE4, and the matching O-ring is fluororubber
Note: If you choose an extended range, please use the series number.

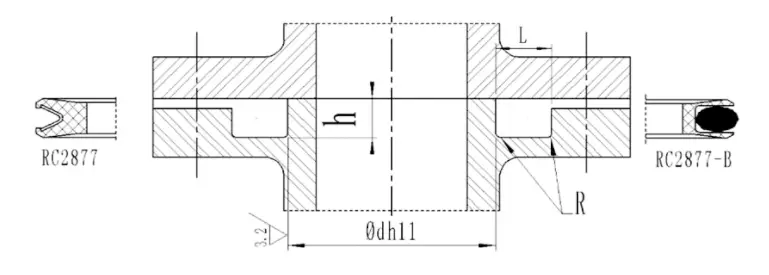

| Serial Number | Serial Number | Standard range d h11 | Extended range dh11 | Groove Depth h-0.05 | Groove width L+0.2 | Round Corners Rmax |
| RC2877-0 | RC2877-B-0 | 3~9.9 | 3~40 | 1.45 | 2.4 | 0.4 |
| RC2877-1 | RC2877-B-1 | 10~19.9 | 8~200 | 2.25 | 3.6 | 0.4 |
| RC2877-2 | RC2877-B-2 | 20~39.9 | 12~400 | 3.1 | 4.8 | 0.6 |
| RC2877-3 | RC2877-B-3 | 40~119.9 | 20~700 | 4.7 | 7.1 | 0.8 |
| RC2877-4 | RC2877-B-4 | 120~999.9 | 35~1000 | 6.1 | 9.5 | 0.8 |
| RC2877-5 | RC2877-B-5 | ≥1000 | ≥110 | 9.5 | 15.0 | 0.8 |
