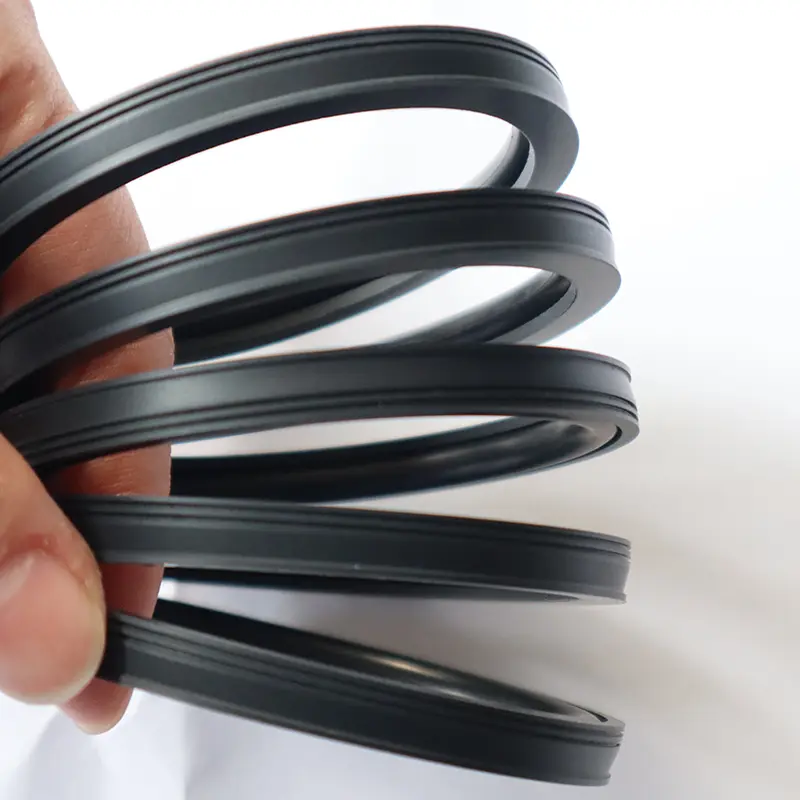

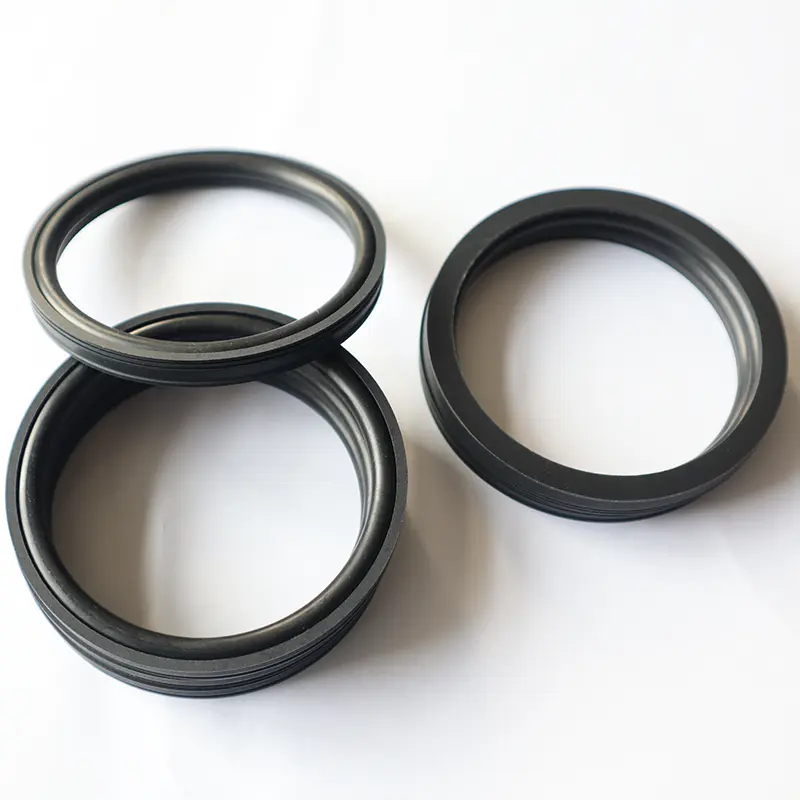

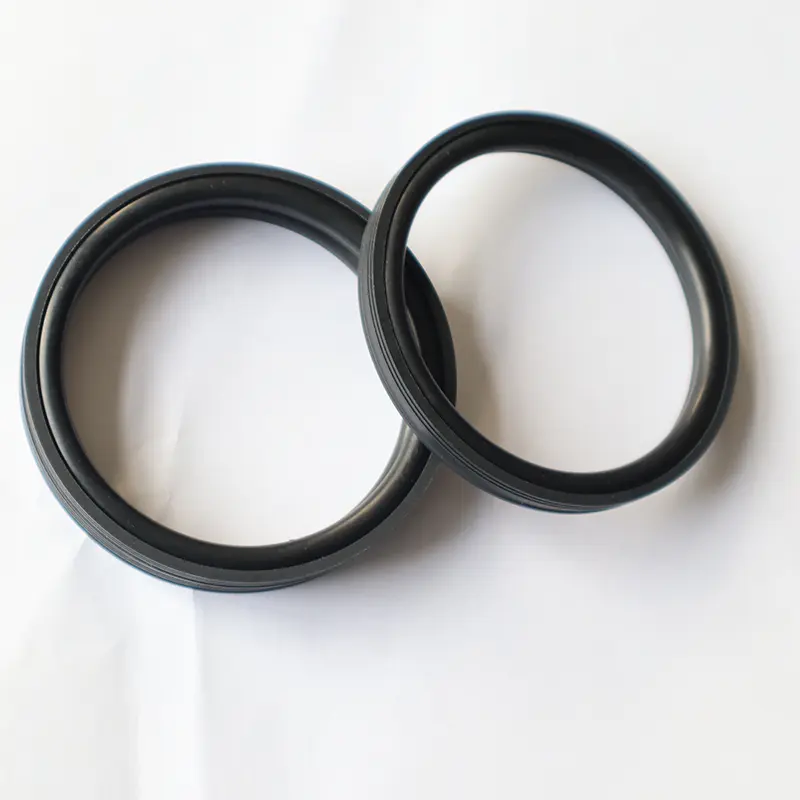

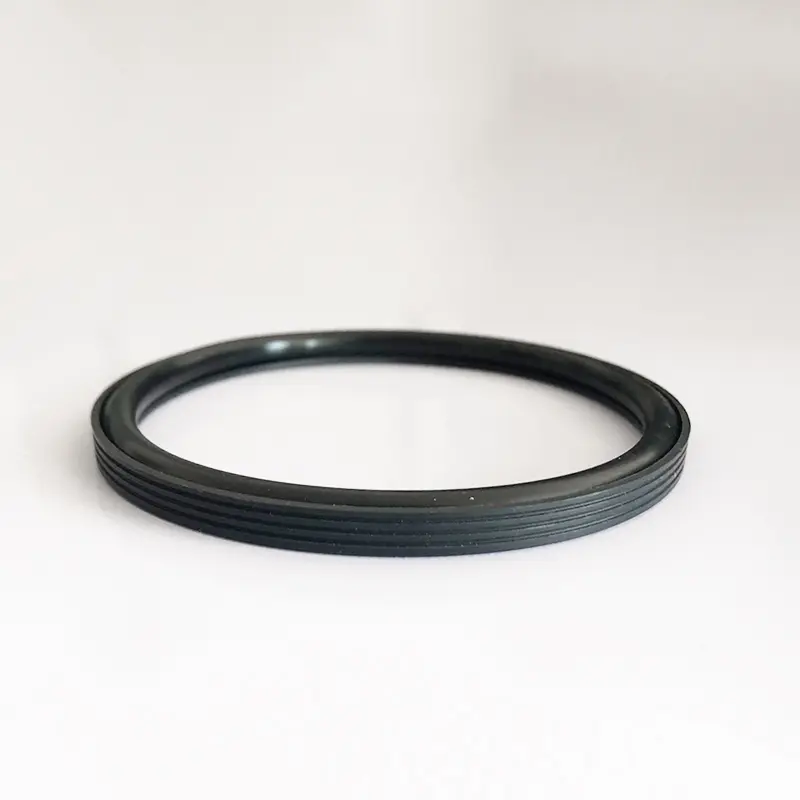

The RC2061 and RC2062 high-pressure seals for cement slurry launched by Ruichen Seals are designed to cope with complex and harsh cement slurry sealing conditions.
These two products have the same structure, both of which are composed of carefully designed high-function engineering plastic toothed seal rings and O-rings to achieve one-way sealing of hydraulic reciprocating and rotary motion. They have a wide range of applications and can play an important role in equipment such as plunger pumps, mud pumps, screw drills, drilling rigs, oil exploration equipment, and concrete mixing plants.
In terms of performance, our high-pressure seals for cement slurry can show many advantages. The long life characteristics reduce the need for frequent replacement of sealing parts and reduce equipment maintenance costs; low friction performance ensures smooth operation of equipment and reduces energy loss; good sealing effectively prevents cement slurry leakage and ensures stable operation of equipment; small structural space is convenient for installation and layout in limited spaces of various equipment; easy installation, use and maintenance further improve the efficiency of equipment use.
For malignant media such as cement slurry, the product can enhance the sealing effect through special sealing lip and thickness optimization design. When used for sealing slurry media, in order to further improve the sealing performance and component life, we recommend grease lubrication between two (or more) seals. These two high-pressure seals for cement slurry provide a reliable and efficient solution to the high-pressure cement slurry sealing problem.
Product features and applications:
Ordering example:

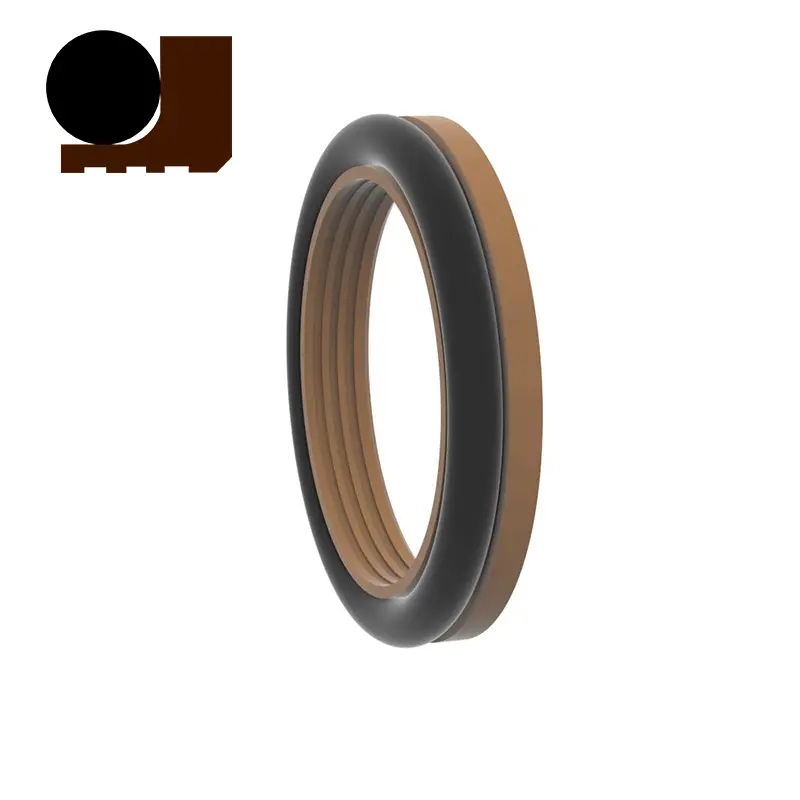

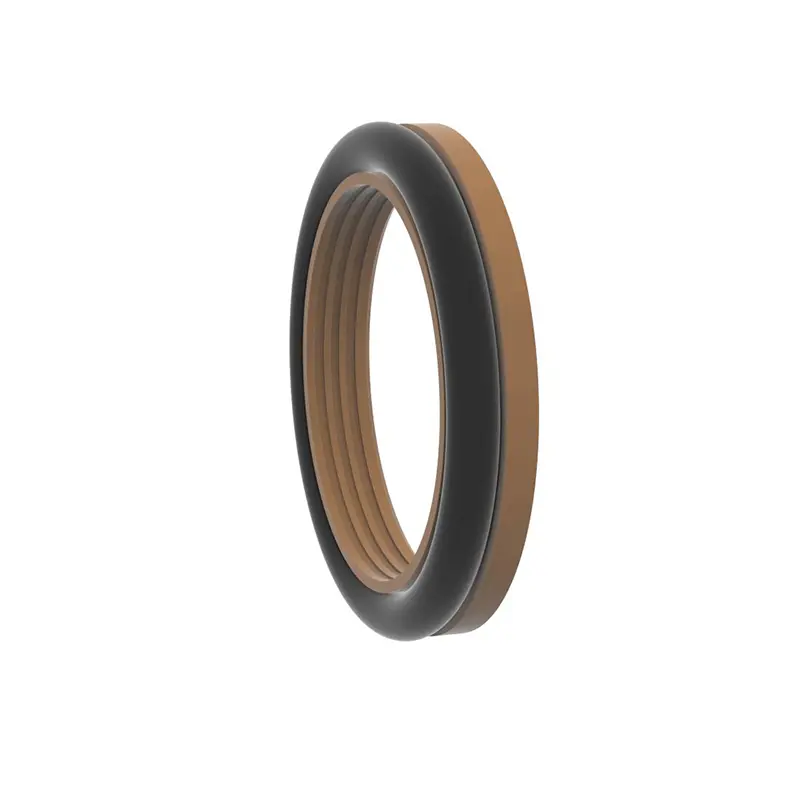

Order model RC2061-80x91.7x7.6-PTFE4-R01 Model-shaft diameter x groove diameter x groove width-material code

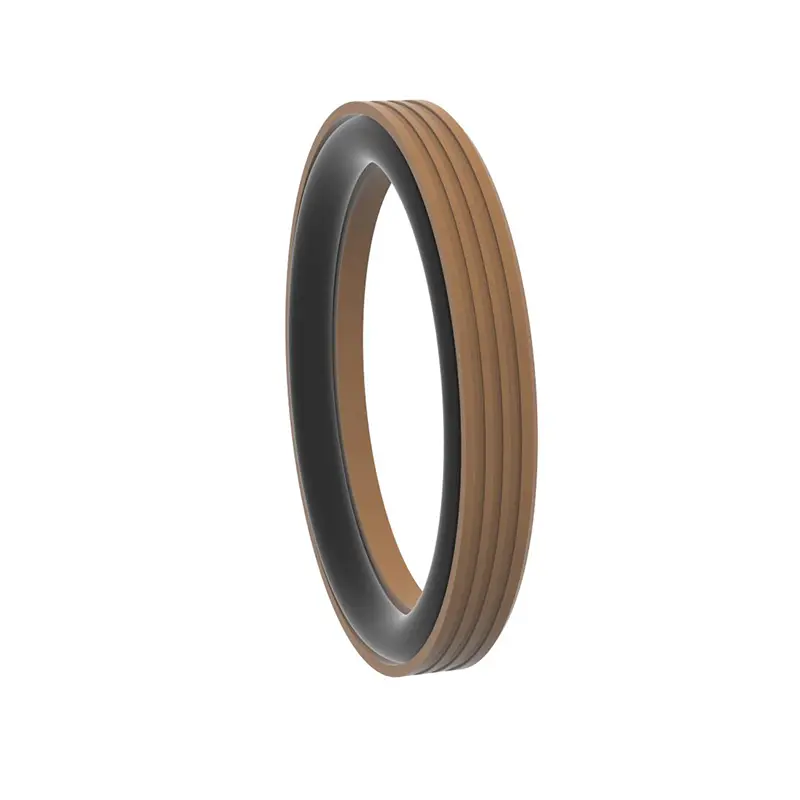

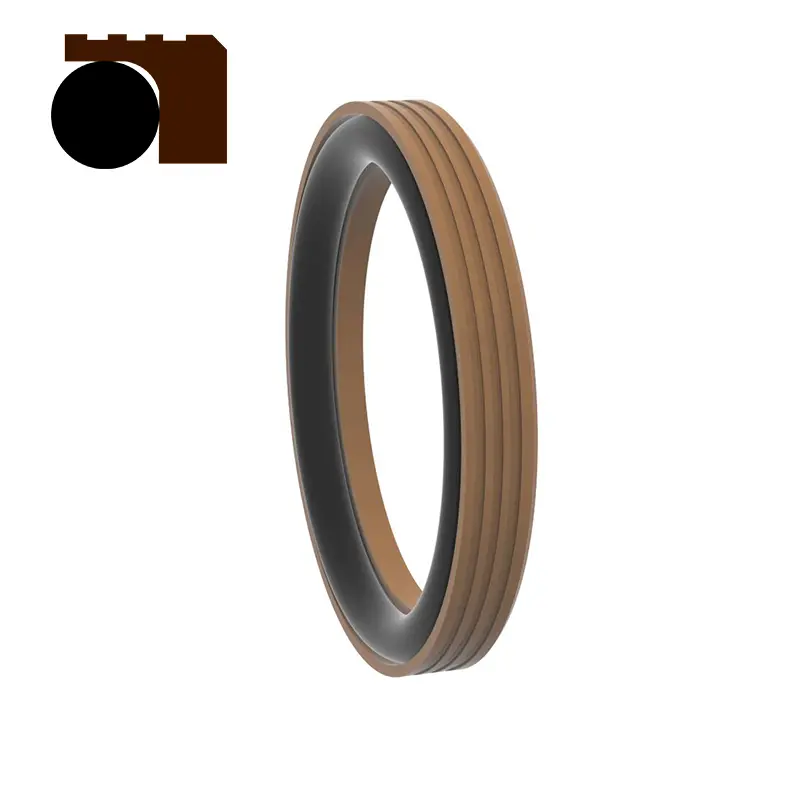

Order model RC2062-80x68.3x7.6-PTFE4-R01

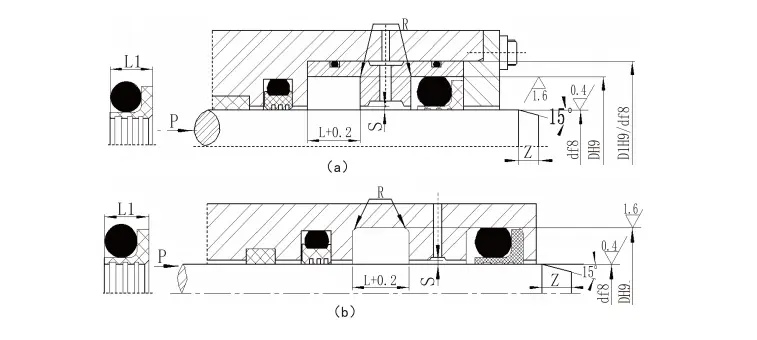

Model-cylinder diameter x groove diameter x groove width-material code

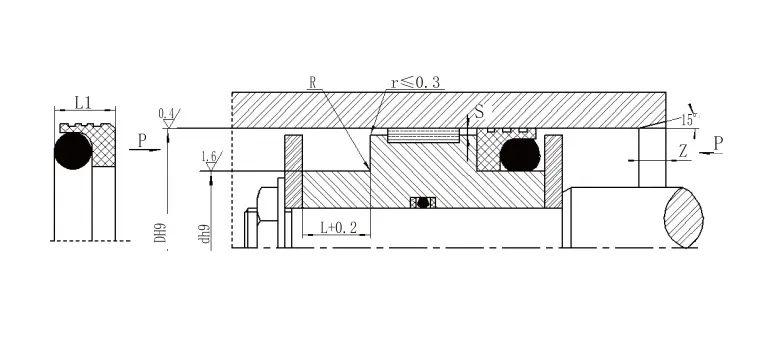

Specifications:
|

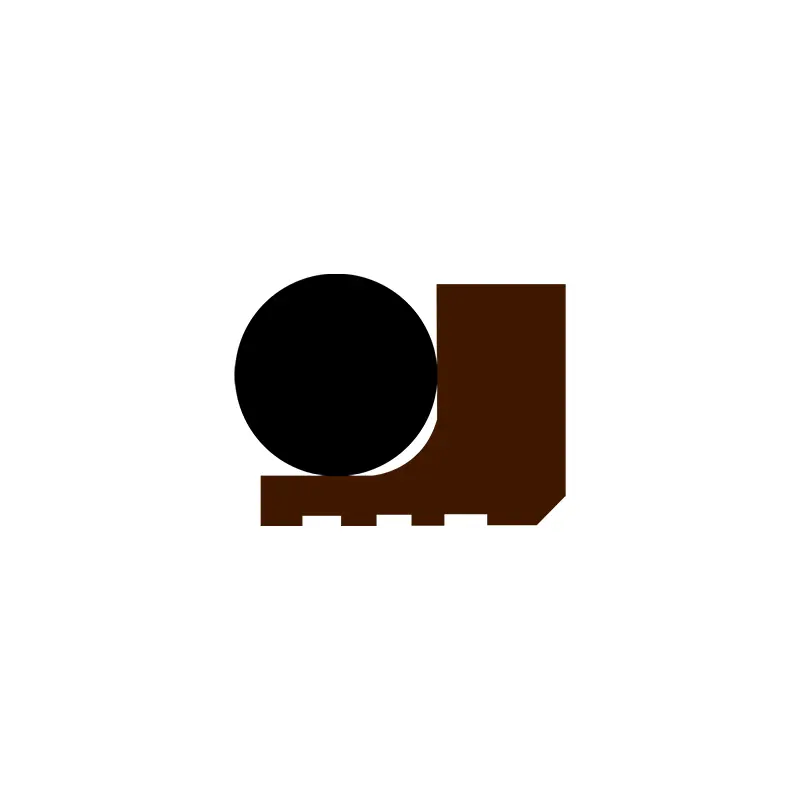

Shaft diameter range
Standard type d f8 RC2061 |
Shaft diameter range
Heavy load d f8 RC2061-Z |
Groove diameter D H9 |
Groove width L+0.2 |
Seal widthL1 |
Round corners Rmax |
Radial clearance Smax |
Chamfer Zmin |
O-ring wire diameter | ||
| <10MPA | <20MPA | <40MPA | ||||||||
| 5~15.9 | - | d+6.3 | 4.0 | 3.65 | 0.4 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| 16~38.9 | 5~15.9 | d+8.2 | 5.2 | 4.55 | 0.4 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| 39~107.9 | 16~38.9 | d+11.7 | 7.6 | 6.80 | 0.5 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| 108~670.9 | 39~107.9 | d+15.5 | 9.6 | 8.50 | 0.6 | 0.6 | 0.35 | 0.25 | 8 | 7.00 |
| 671~1600 | 108~670.9 | d+19.4 | 12.1 | 11.1 | 0.7 | 0.7 | 0.5 | 0.3 | 10 | 8.60 |
| Note: 1. For shaft diameter ≤30mm, open groove is recommended. | ||||||||||
| 2. For rotary seal, the surface hardness of the rotary shaft is recommended to be HRC ≥58. 3. For pressure greater than 30MPA, H8/f8 is recommended for extrusion gap. | ||||||||||
|

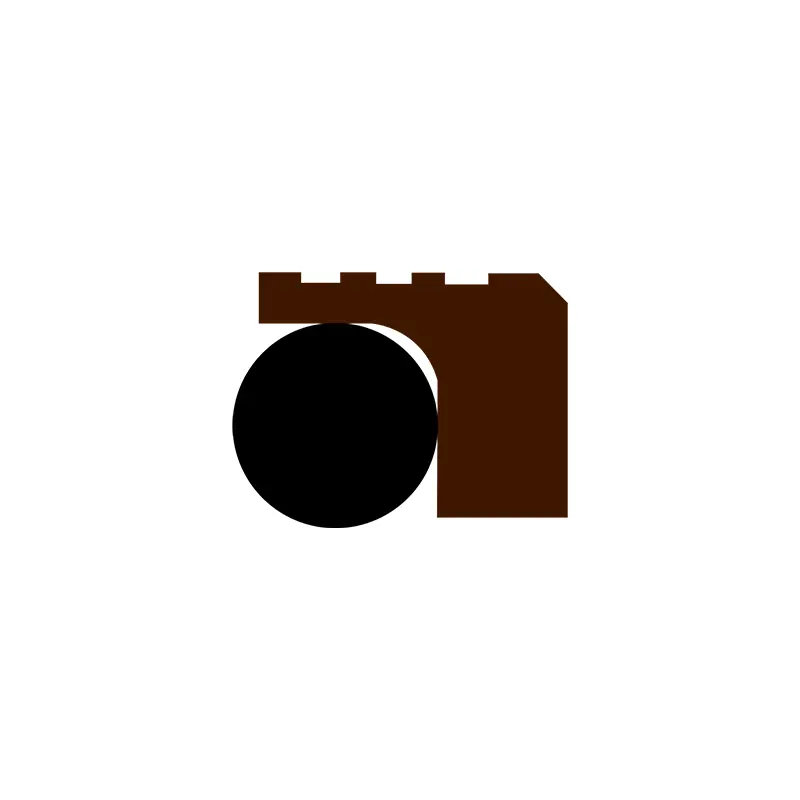

Aperture range
Standard D H9 RC2062 |
Aperture range
Heavy load D H9 RC2062-Z |
Groove diameter d h9 |
Groove width L+0.2 |
Seal widthL1 |
Rounded corners Rmax |
Radial clearance Smax |
Chamfer Zmin |
O-ring wire diameter | ||
| <10MPA | <20MPA | <40MPA | ||||||||
| 8~12.9 | - | D-4.5 | 3.1 | 2.8 | 0.3 | 0.3 | 0.2 | 0.15 | 3 | 1.8 |
| 13~24.9 | 10~12.9 | D-6.3 | 4 | 3.65 | 0.4 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| 25~51.9 | 13~24.9 | D-8.2 | 5.2 | 4.55 | 0.4 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| 52~127.9 | 25~51.9 | D-11.7 | 7.6 | 6.80 | 0.5 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| 128~500.9 | 52~127.9 | D-15.5 | 9.6 | 8.50 | 0.6 | 0.6 | 0.35 | 0.25 | 8 | 7.00 |
| 501~1500 | 128~500.9 | D-19.4 | 12.1 | 11.1 | 0.7 | 0.7 | 0.5 | 0.3 | 10 | 8.60 |
| Note: 1. For cylinder diameters ≤ 30 mm, open grooves are recommended. | ||||||||||
| 2. For pressures greater than 30 MPA, H8/f8 is recommended for extrusion clearance. | ||||||||||
| High-pressure seals for cement slurry working conditions | ||||||
| Profile | Model |
Pressure MPa |
Temperature (℃) |
Speed (m/s) |
Media | |
| Reciprocating motion | Rotational motion | |||||
 |
RC2061 | ≤100 | -35~+100(matching O-ring NBR) | ≤6 | ≤2 | Water, mud, crude oil, hydraulic oil, emulsion, etc. |
| -20~+200(matching O-ring FKM) | ||||||
 |
RC2062 | ≤100 | -35~+100(matching O-ring NBR) | ≤6 | ≤2 | Water, mud, crude oil, hydraulic oil, emulsion, etc. |
| -20~+200(matching O-ring FKM) | ||||||
