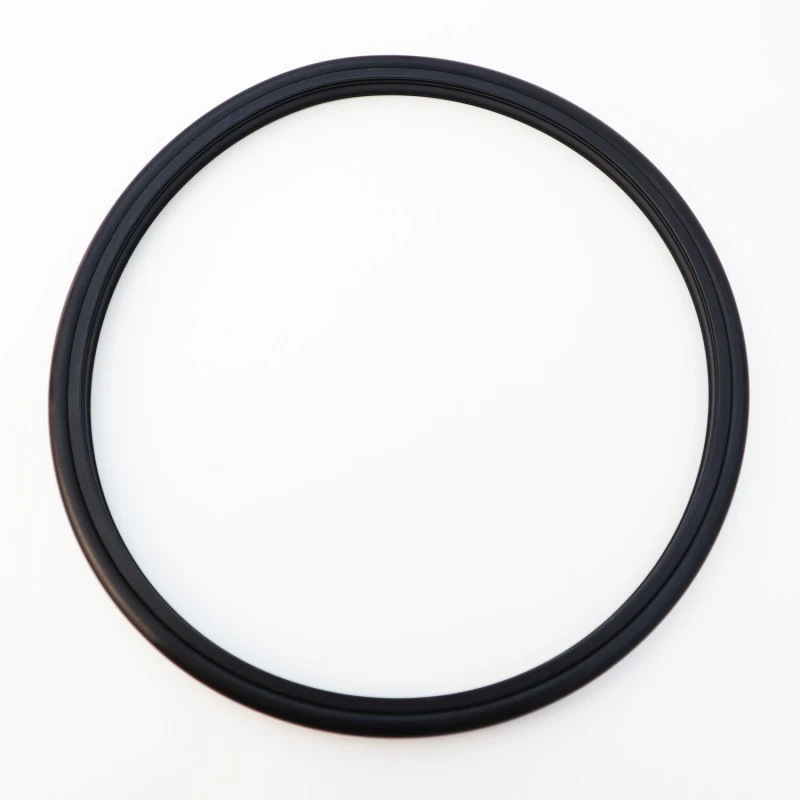

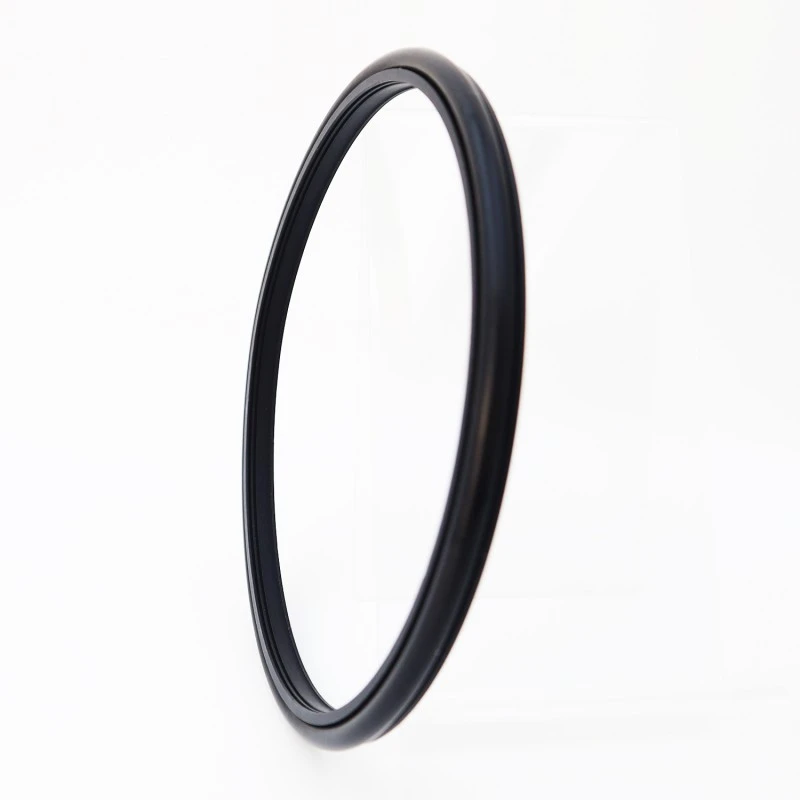

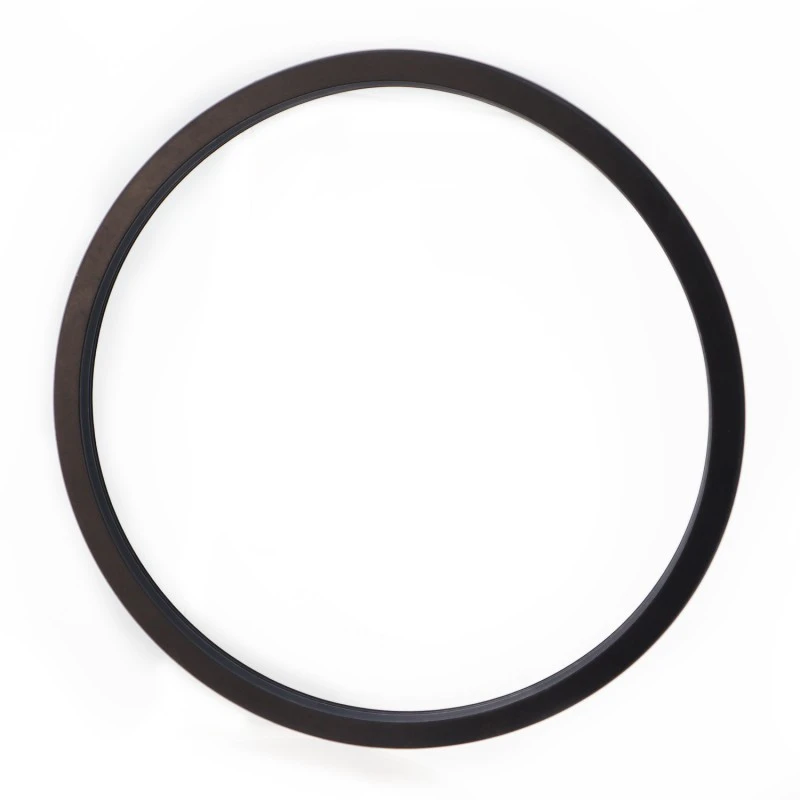

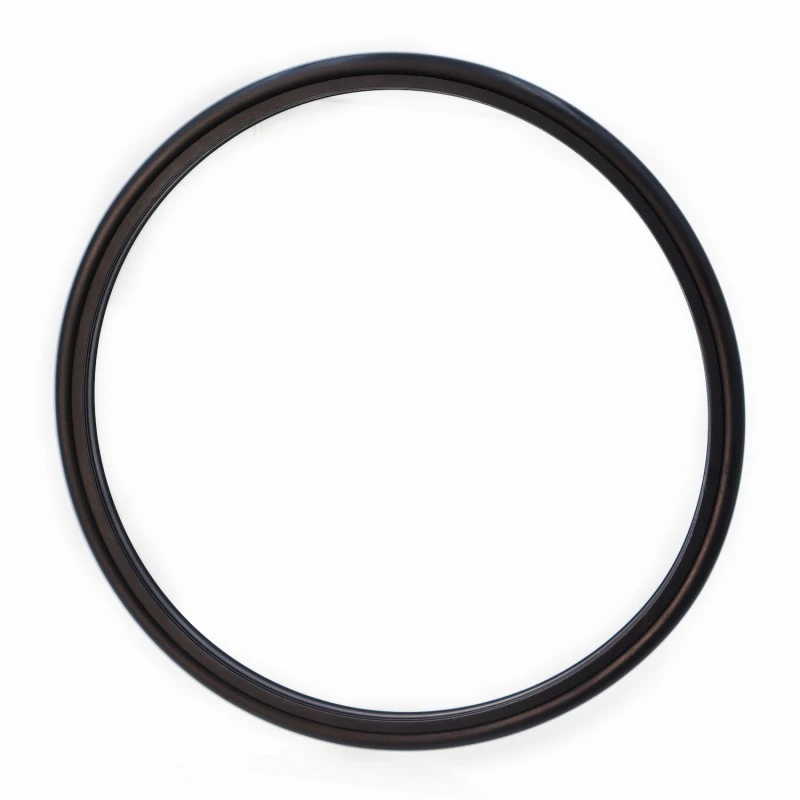

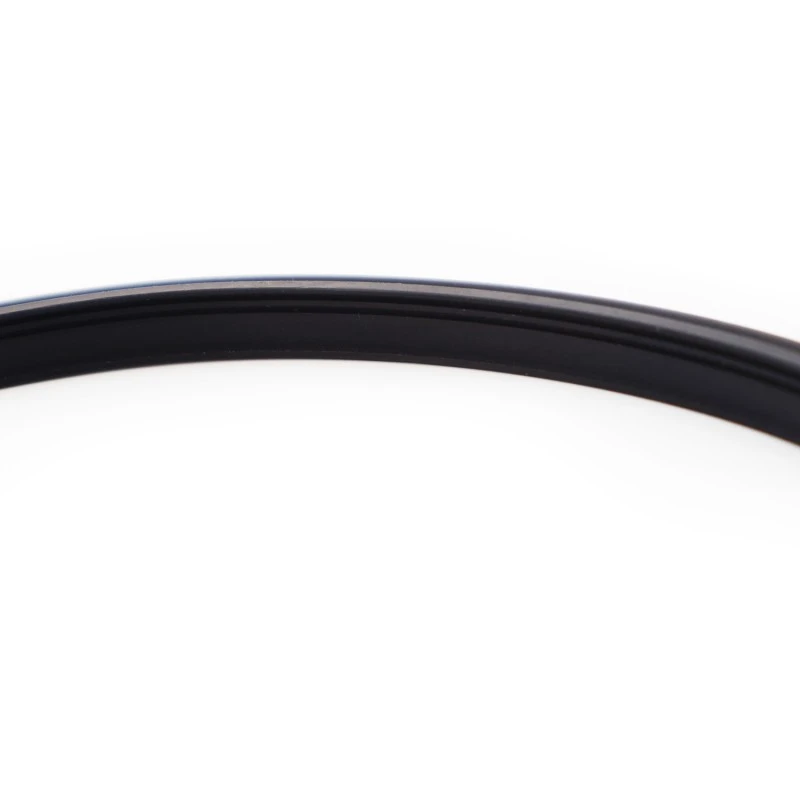

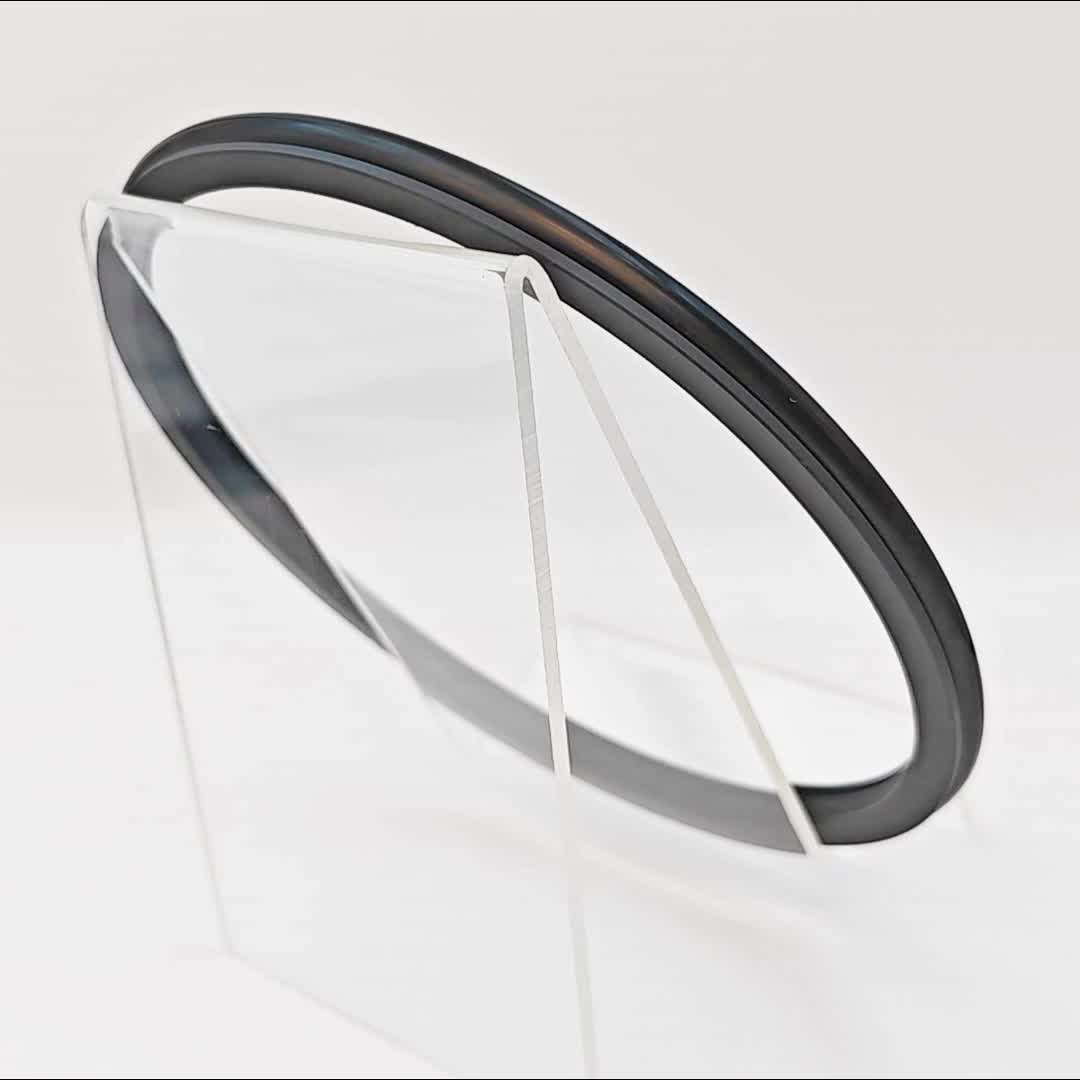

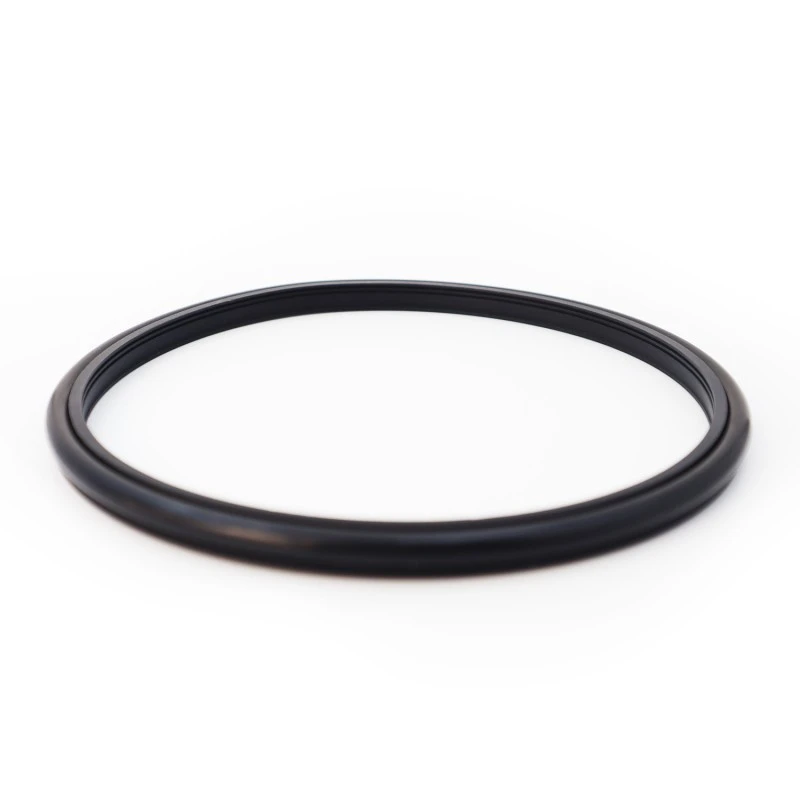

Shaft Seal for High-Pressure Cement Slurry: High lifespan, low friction, excellent sealing performance, compact design, and easy installation, use, and maintenance. Its special sealing lip and optimized thickness design provide good sealing even in harsh media such as cement slurry. When used for sealing mud-like media, we recommend grease lubrication between two (or more) seals.
Applicable operating conditions (limiting values should not occur simultaneously)
|
Pressure/MPa |
Temperature / °C |
Speed / m/s |
Medium |
|
|
Reciprocating motion |
Rotational motion |
|||
|
≤100 |
-35~+100 (with matching NBR O-rings) |
≤6 |
≤2 |
Water, mud, crude oil, hydraulic oil, emulsion |
|
-20~+200 (with matching O-ring FKM) |
||||
When you encounter any questions or emergencies during the use of your products, you can contact Ruichen at any time. We provide a 7 x 24 hour technical consultation hotline for handling urgent technical problems.
In the event of a seal leak, abnormal wear or any performance failure, our technical support team will initiate the response process immediately with a phone call or email. We can provide you with preliminary judgment and solutions through remote video diagnosis, image analysis and other methods. For complex problems, we promise to give a preliminary analysis report within 48 hours, and if necessary, send engineers to the site to provide technical support, and jointly investigate the problem with you until the problem is completely solved.
Material selection
1. Suitable O-ring materials include: R01 Nitrile Butadiene Rubber (NBR), R02 Fluororubber (FKM), etc.
2. Sealing ring materials: Standard material PTFE4, other optional materials include PTFE2/PTFE3/PTFE5/UPE/PK1/PK2, etc.
Ordering Example
Ordering model RC2061-80*91.7*7.6-PTFE4-R01 Model - Shaft Diameter * Groove Diameter * Groove Width - Material Code

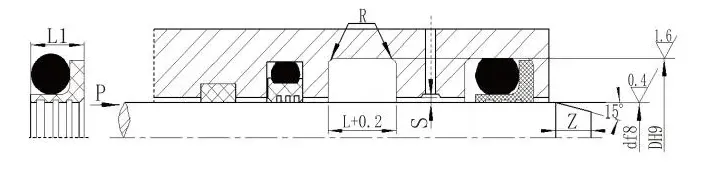

(a) Open structure
(b) Closed structure
Specifications (any size within the specified range is available)
|
Shaft diameter range Standard type d f8 RC2061 |
Shaft diameter range Heavy load type d f8 RC2061-Z |
Groove diameter DH9 |
Groove width L+0.2 |
Seal width L1 |
Rounded corners Rmax |
Radial clearance Smax |
Chamfer Zmin |
O-ring wire diameter |
||
|
<10MPA |
<20MPA |
<40MPA |
||||||||
|
5~15.9 |
- |
d+6.3 |
4.0 |
3.65 |
0.4 |
0.4 |
0.25 |
0.15 |
4 |
2.65 |
|
16~38.9 |
5~15.9 |
d+8.2 |
5.2 |
4.55 |
0.4 |
0.4 |
0.25 |
0.2 |
5 |
3.55 |
|
39-107.9 |
16-38.9 |
d+11.7 |
7.6 |
6.80 |
0.5 |
0.5 |
0.3 |
0.2 |
7 |
5.30 |
|
108-670.9 |
39~107.9 |
d+15.5 |
9.6 |
8.50 |
0.6 |
0.6 |
0.35 |
0.25 |
8 |
7.00 |
|
671~1600 |
108-670.9 |
d+19.4 |
12.1 |
11.1 |
0.7 |
0.7 |
0.5 |
0.3 |
10 |
8.60 |
Note: 1. For shaft diameters ≤ 30mm, an open groove design is recommended.
2. When used for rotary seals, a surface hardness of HRC ≥ 58 for the rotating shaft is recommended.
3. For pressures greater than 30MPa, an H8/8 fit is recommended for the extrusion gap.
