Our high pressure sealing guide element has a rich variety of types.
Support ring is an important basic component of hydraulic cylinder. Ruichen Seal has successfully developed cloth-reinforced phenolic support ring (belt) to comply with the development of international sliding ring combined seal and soft support structure. After years of practice, the quality exceeds that of similar foreign products and has been well received by users. The performance table can be used for reference.

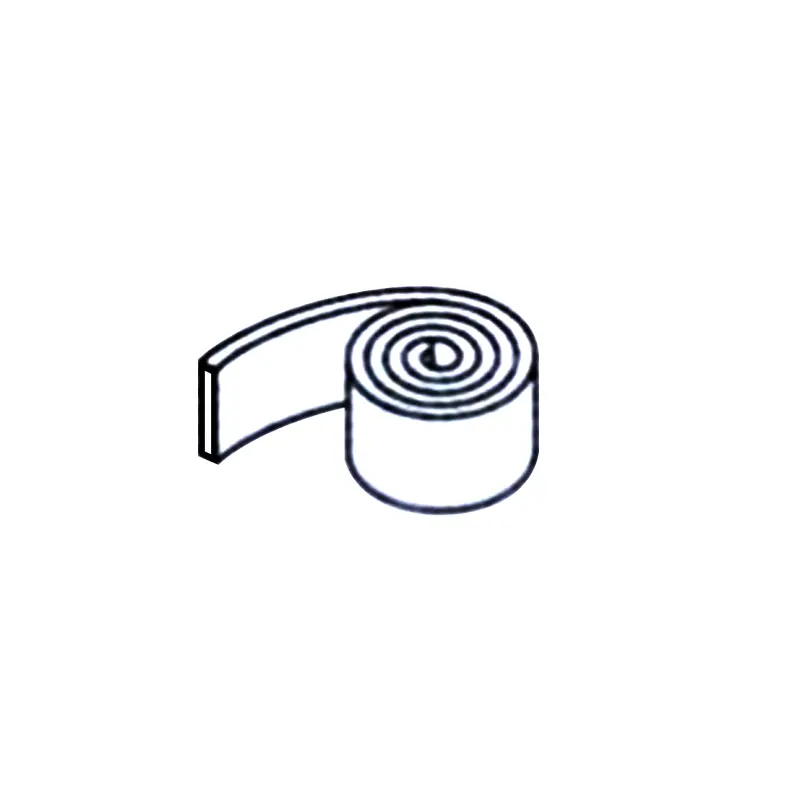

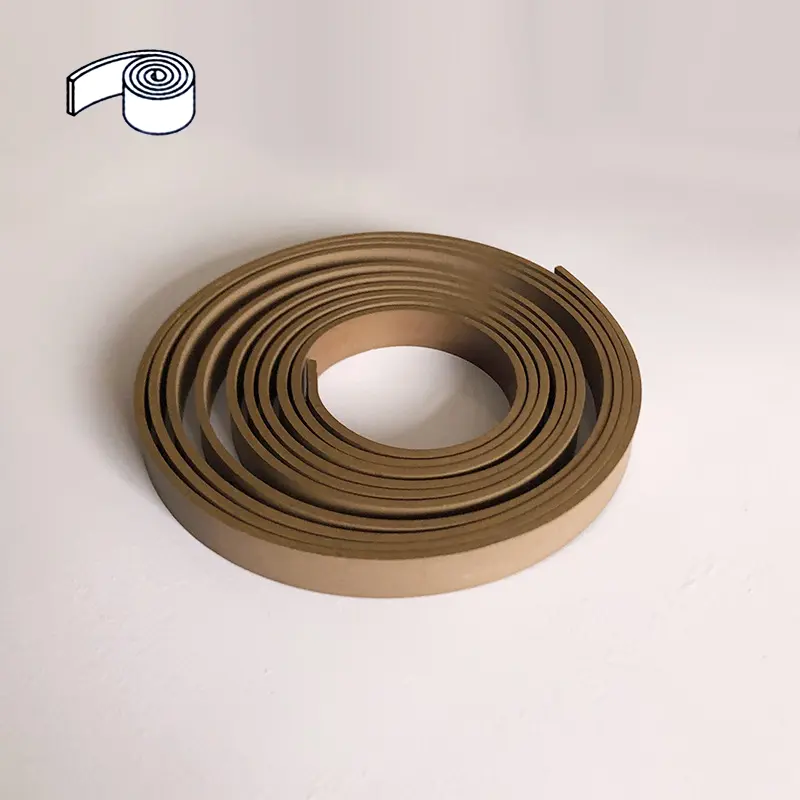

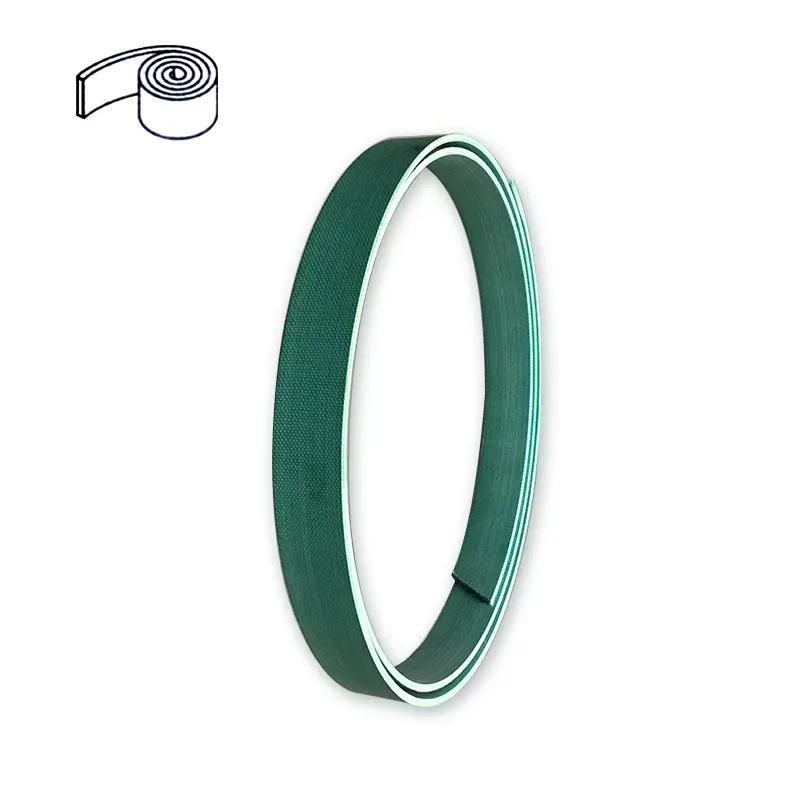

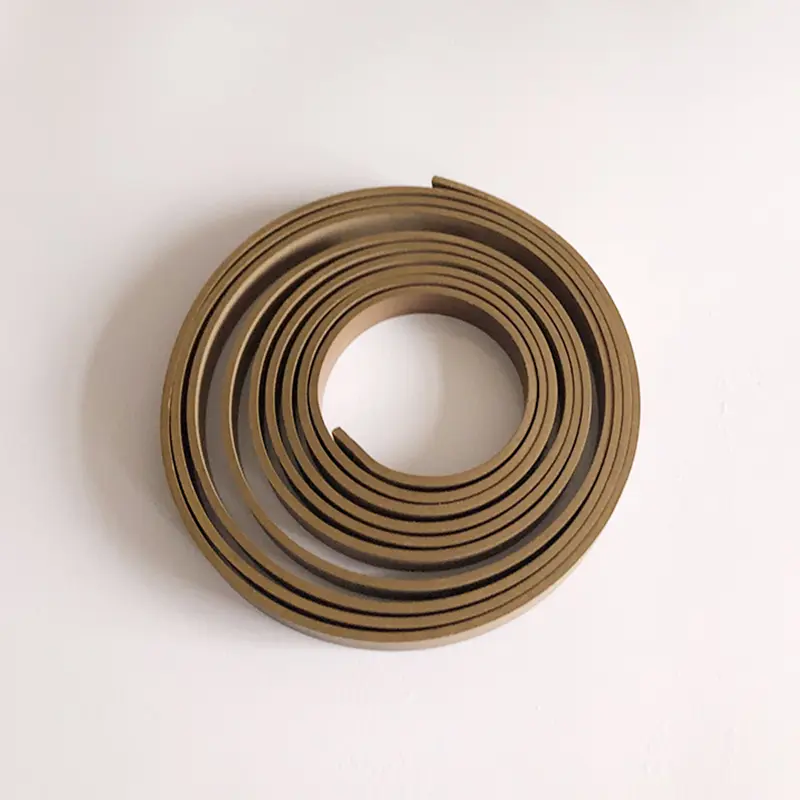

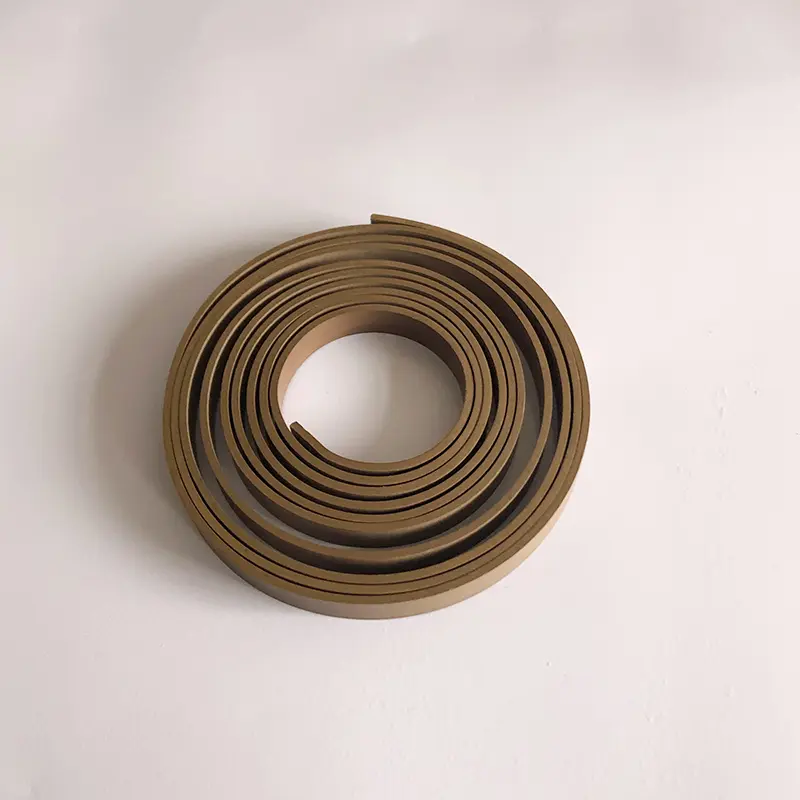

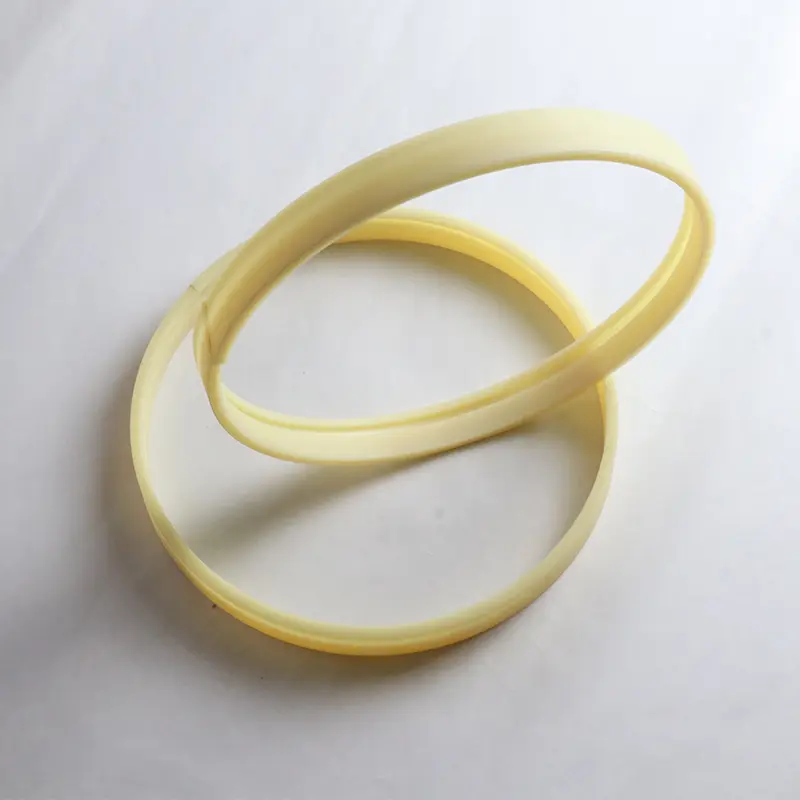

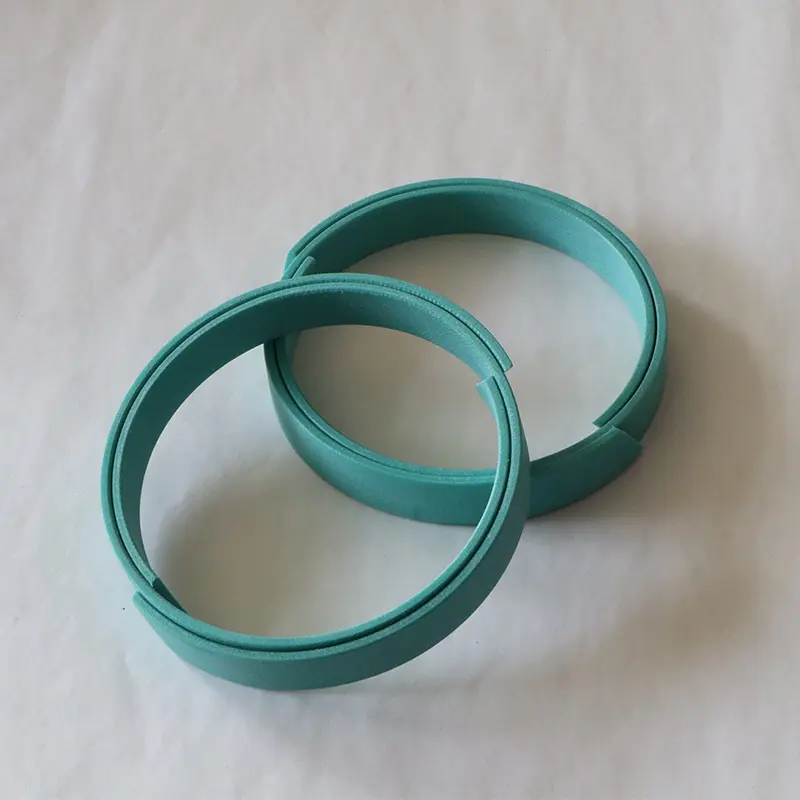

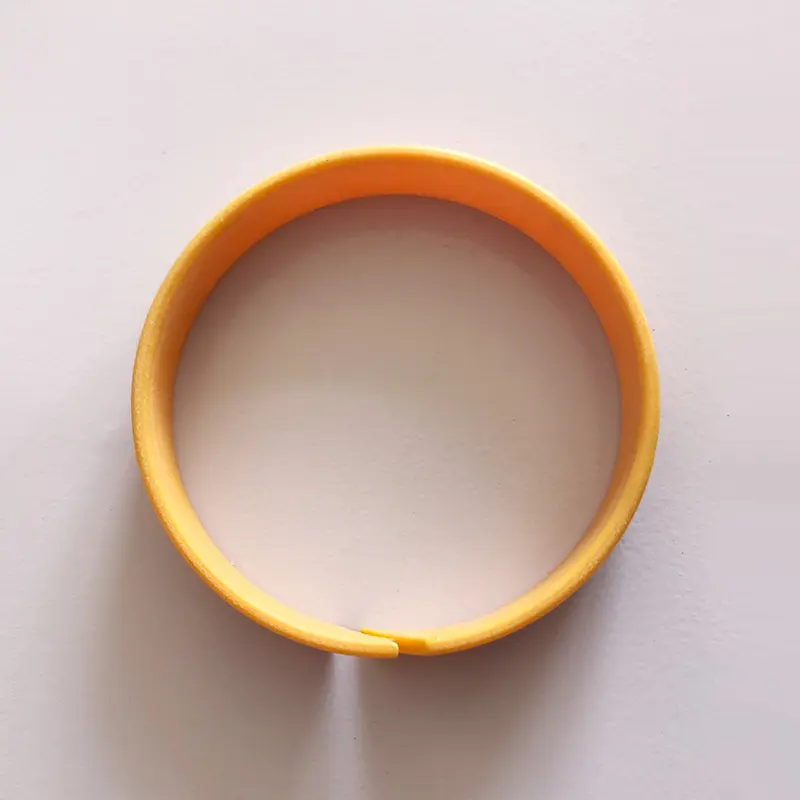

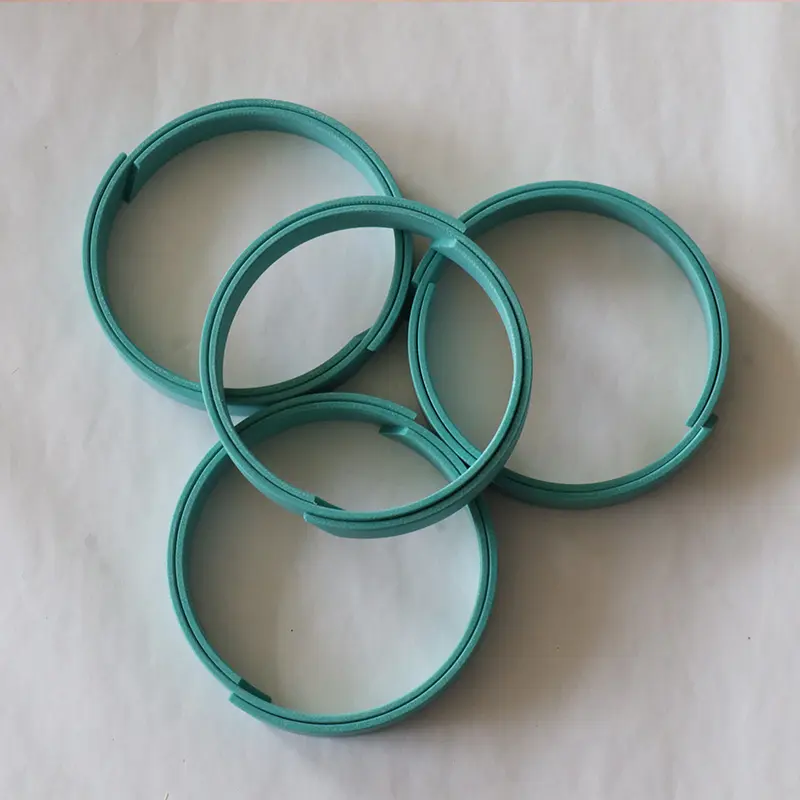

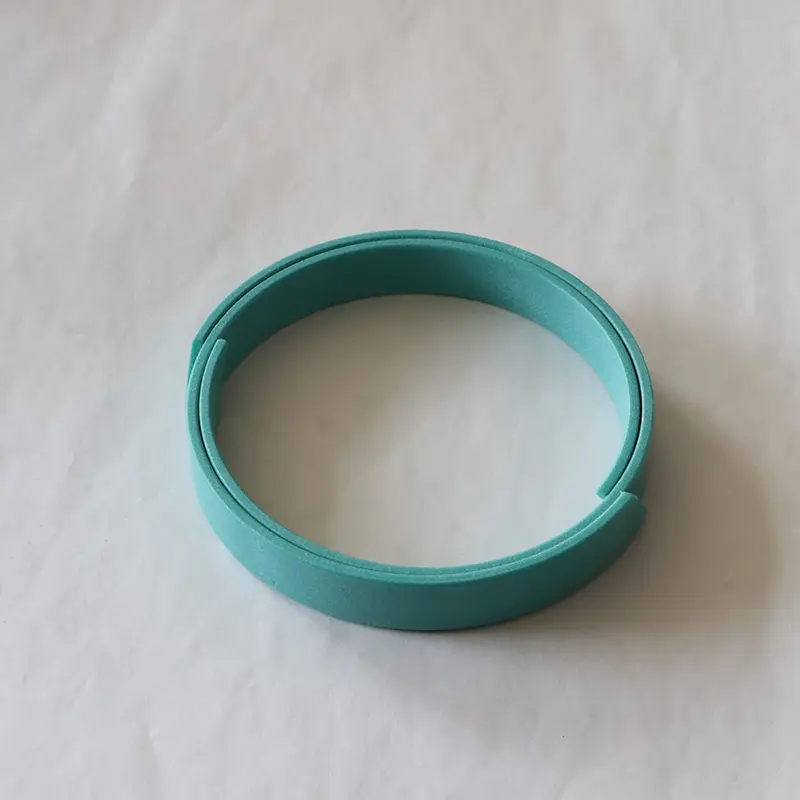

In terms of guide belt, RC1081 reinforced polytetraethylene guide belt adds bronze powder to PTFE, etc., with high load-bearing, low wear, low friction and no creeping characteristics; RC1082 cloth-reinforced phenolic guide belt adopts phenolic cloth-reinforced material, and its radial load-bearing capacity is better than that of PTFE guide belt. Both are supplied in rolls, which are easy to cut and install, and can avoid metal contact. RCS and RCT guide rings are used for piston rod and piston respectively.
Wear-resistant rings have the function of accurately guiding the piston or piston rod in the hydraulic cylinder and absorbing radial force, which can prevent metal contact. Compared with metal wear rings, non-metallic wear rings have the advantages of wear resistance, avoiding metal contact, suppressing vibration, allowing larger radial clearance, simple grooves and easy installation, and low maintenance costs. They are widely used. Among them, cloth-reinforced phenolic and PTFE guide rings are available in on-site cutting and ready-to-use types.
In terms of guide sleeves, GFAI is used for piston rods, with supporting, guiding and dustproof functions; GFI is also used for piston rods, playing a supporting and guiding role; GFA is used for pistons, providing supporting and guiding. These products help hydraulic cylinders operate stably in all aspects.
Product features and applications:
Ordering example:

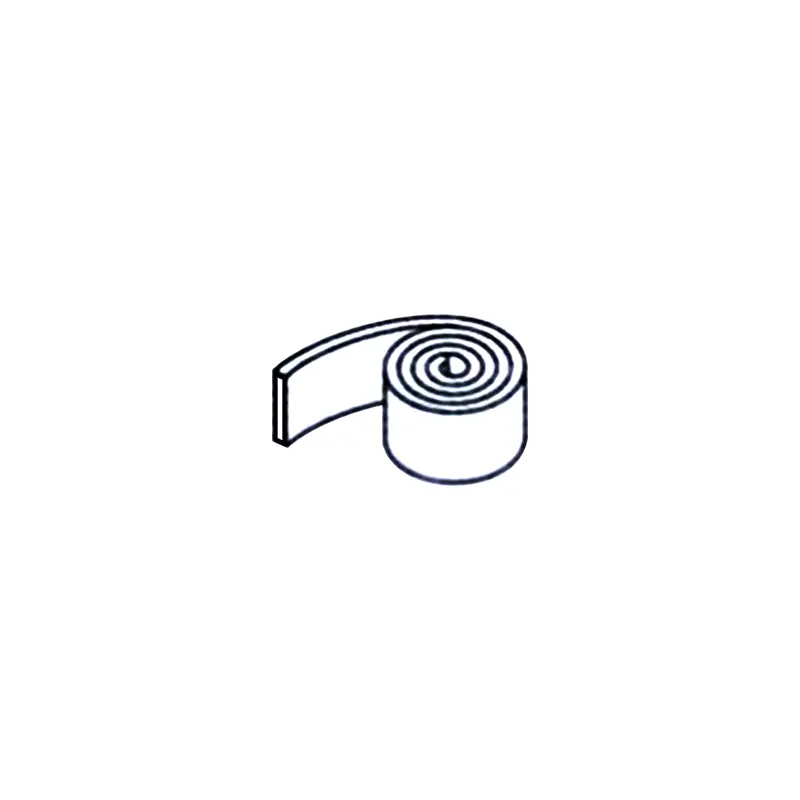

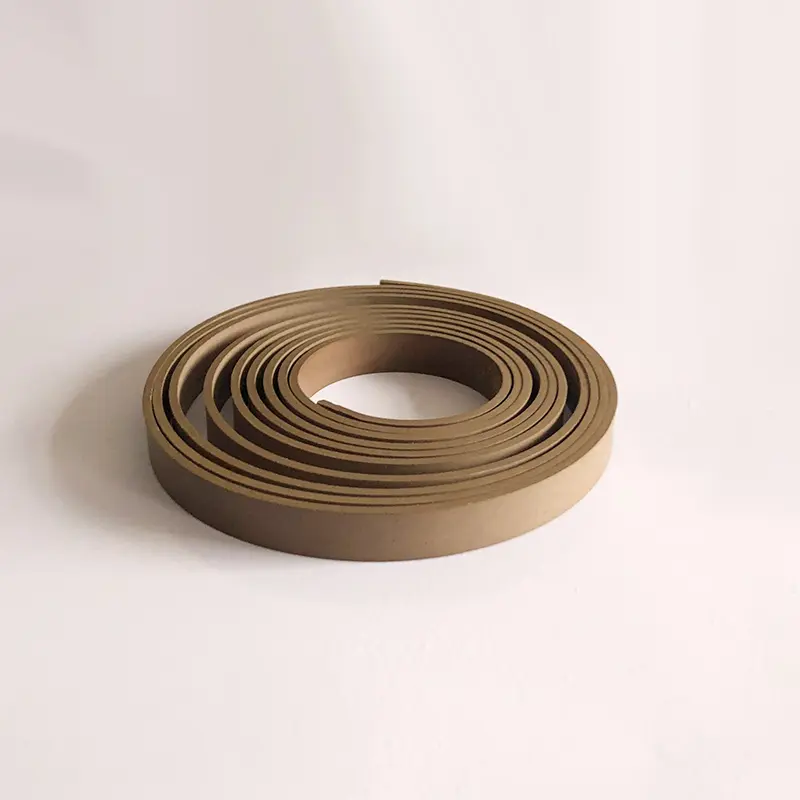

PTFE guide tape ordering example RC1081-9.7x2.5

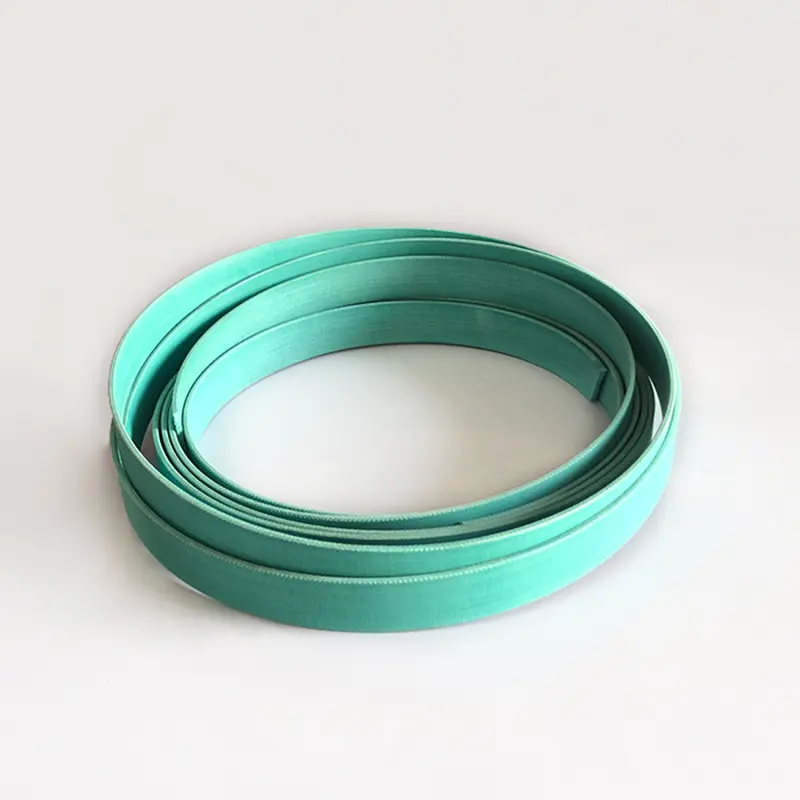

Phenolic cloth guide tape ordering example RC1082-9.7x2.5

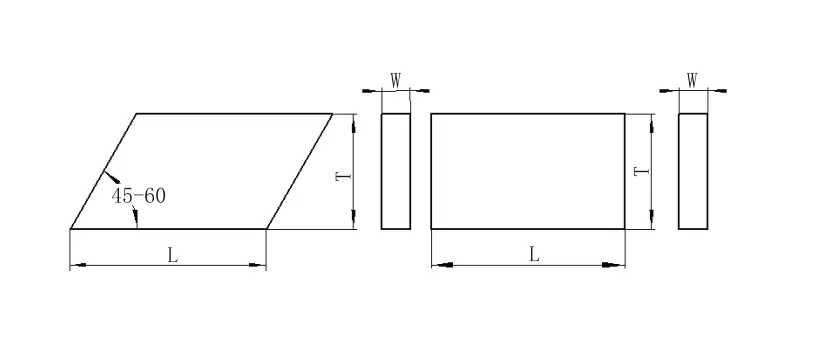

Cutting length calculation
For shaft: L=3.1(d+W) For hole: L=3.1(D-W)
L---ring length d---shaft diameter D---hole diameter W---ring thickness Z---cut clearance

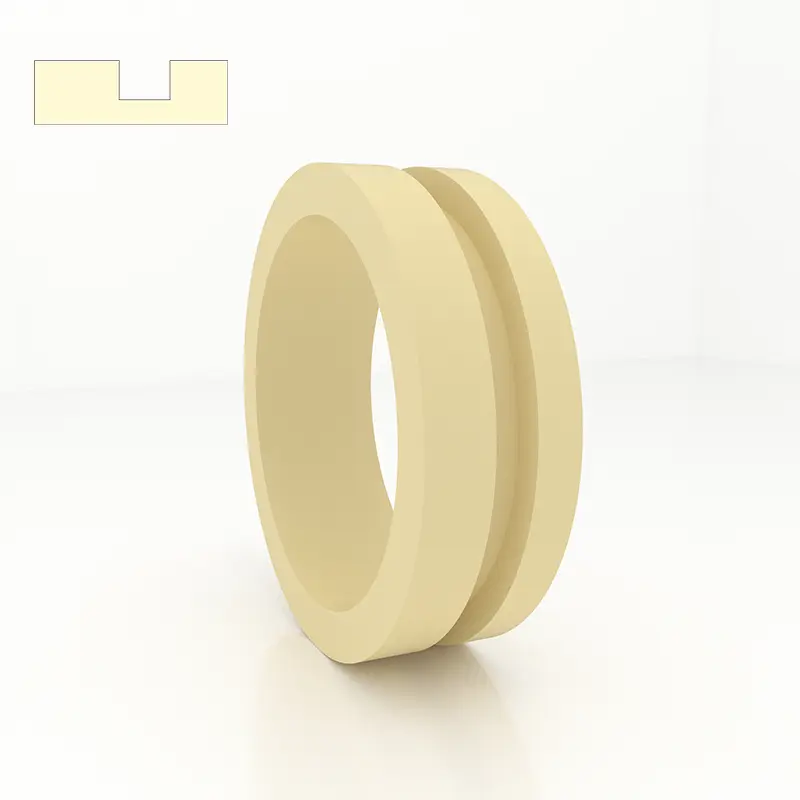

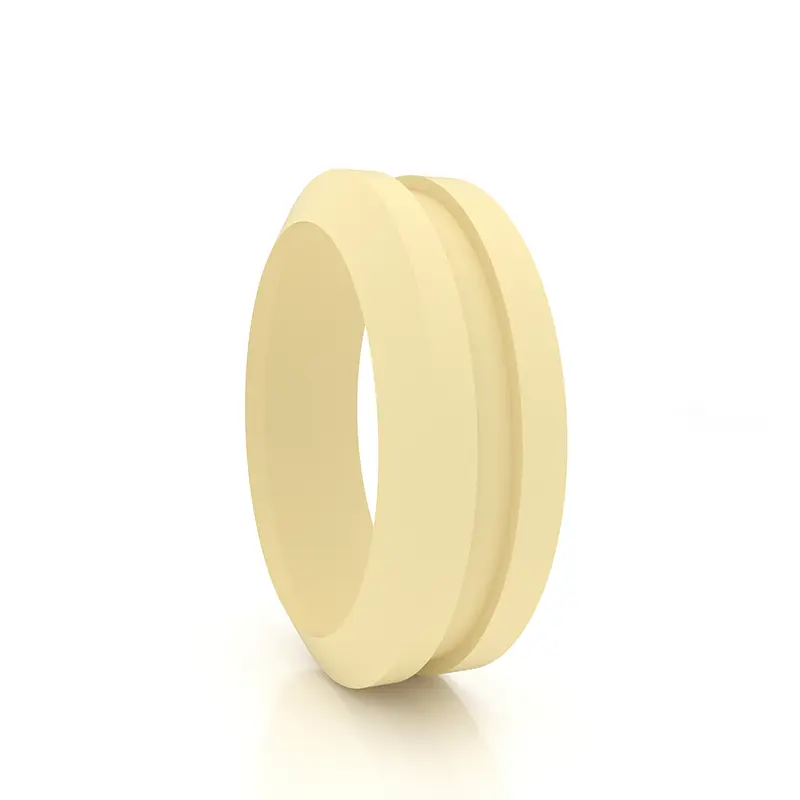

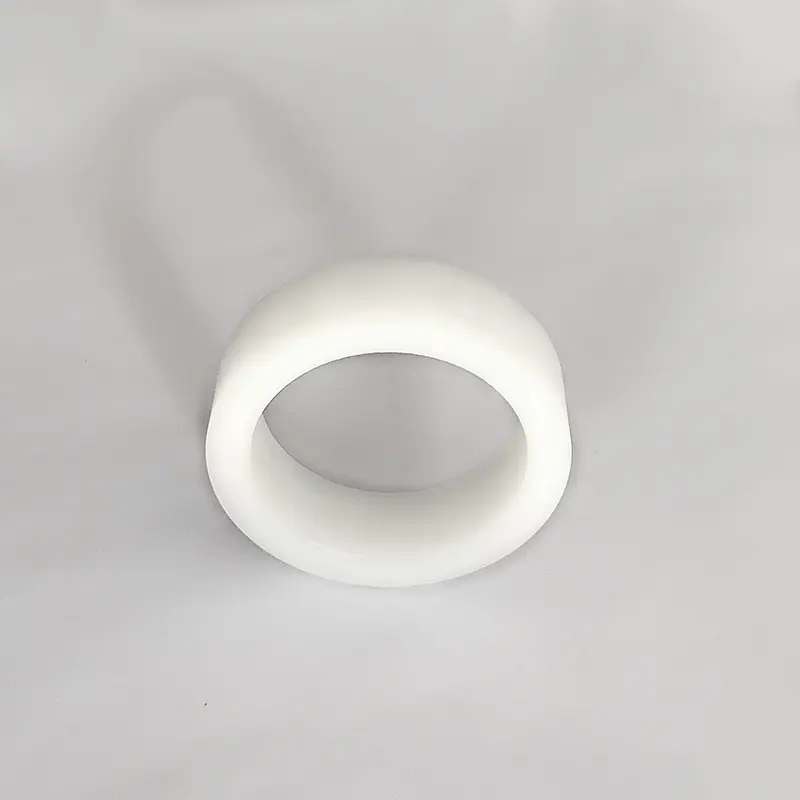

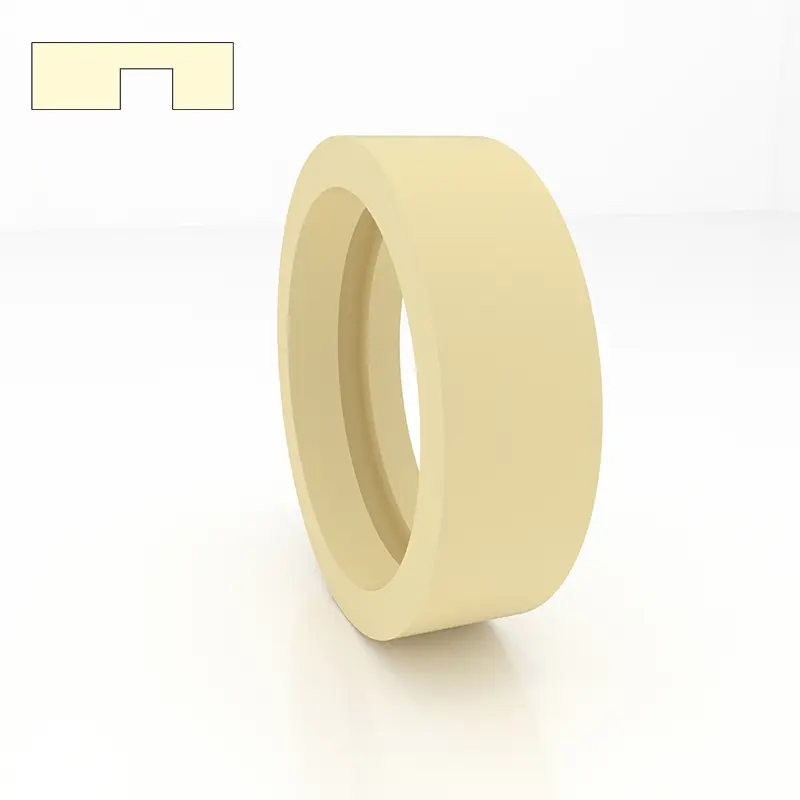

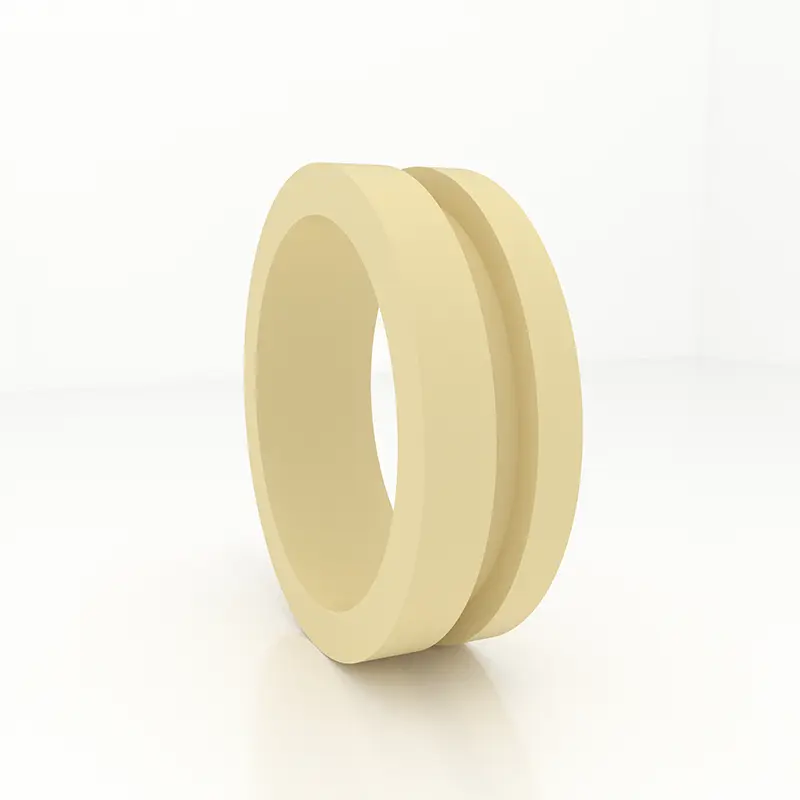

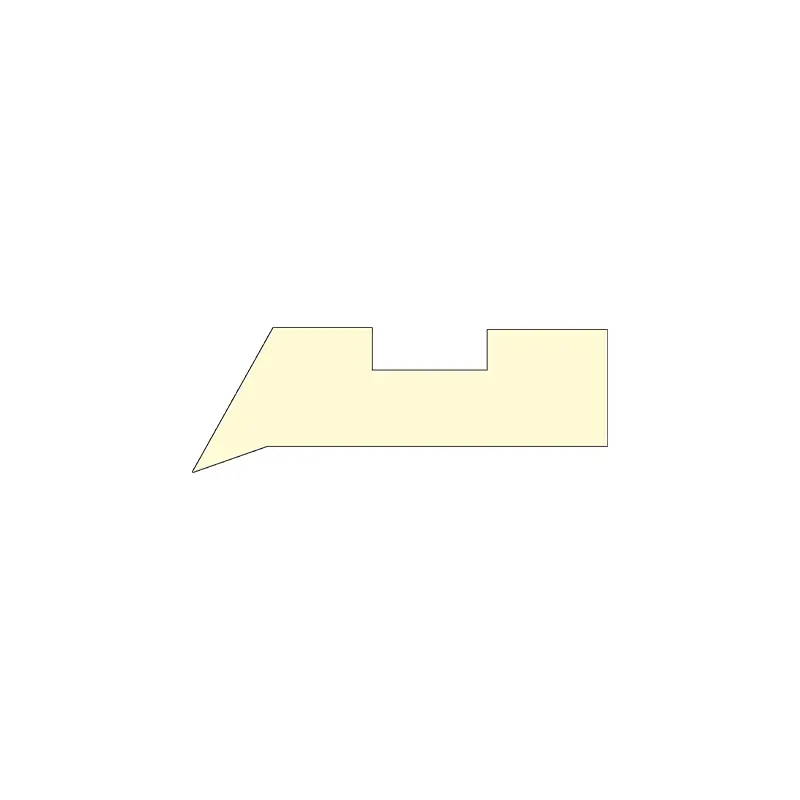

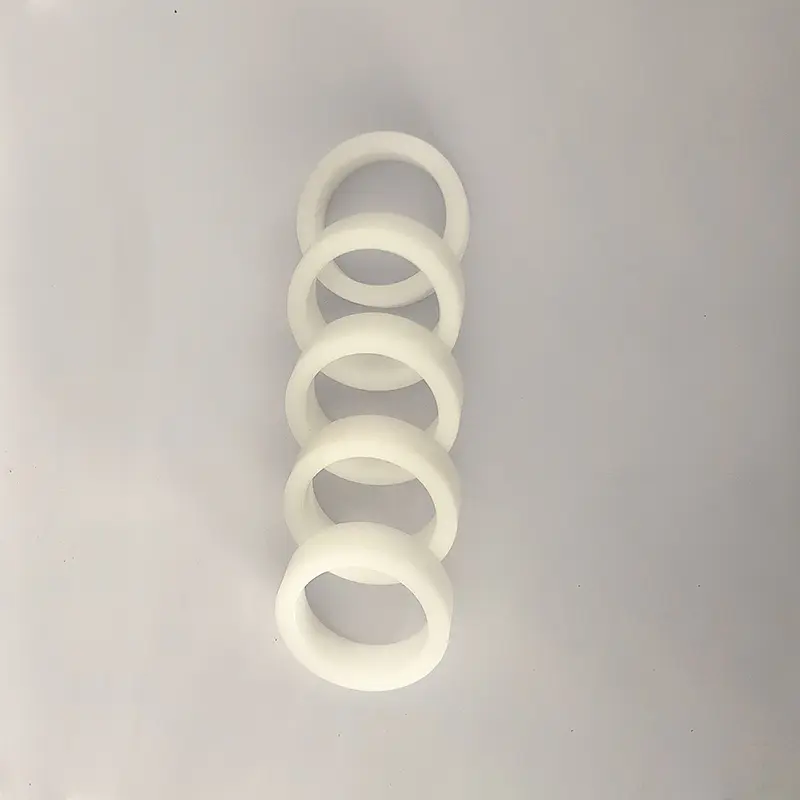

Guide sleeve GFAI
1. Performance and use: Guide sleeve GFAI is a guide sleeve for piston rod, which supports and guides the piston rod and has dustproof function.
2. Material: nylon PA, polyoxymethylene POM and polytetrafluoroethylene PTFE.
3. Working conditions: Working temperature: -55～+225℃ (PTFE is used above 120℃).
4. Design standard: When designing and selecting, refer to the FAI series of Hunger Company.
5. Marking and ordering method: Guide sleeve GFAI is marked with order number, example: GFAI-0600PTFE

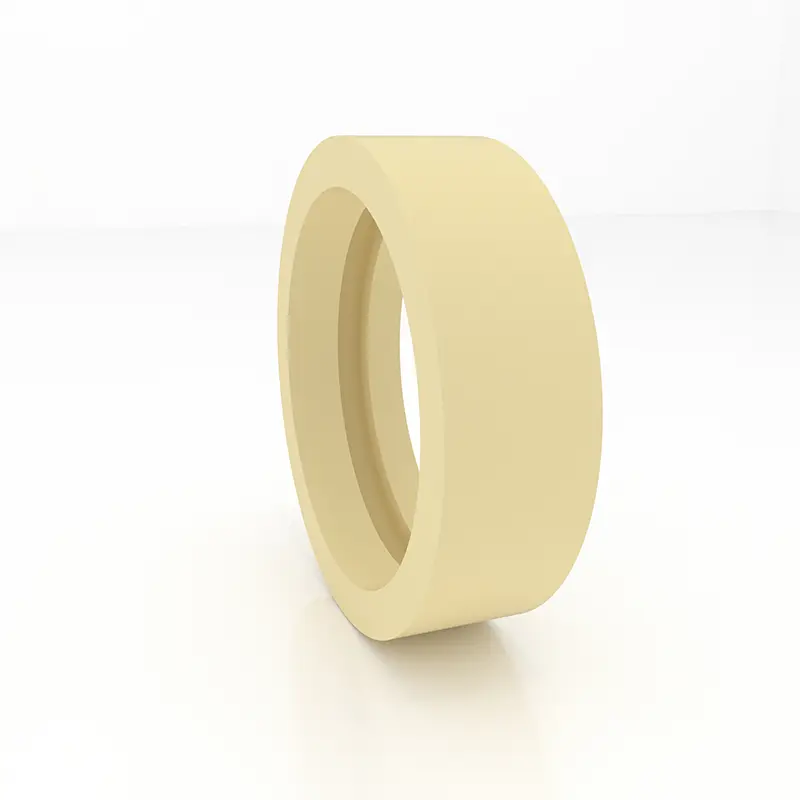

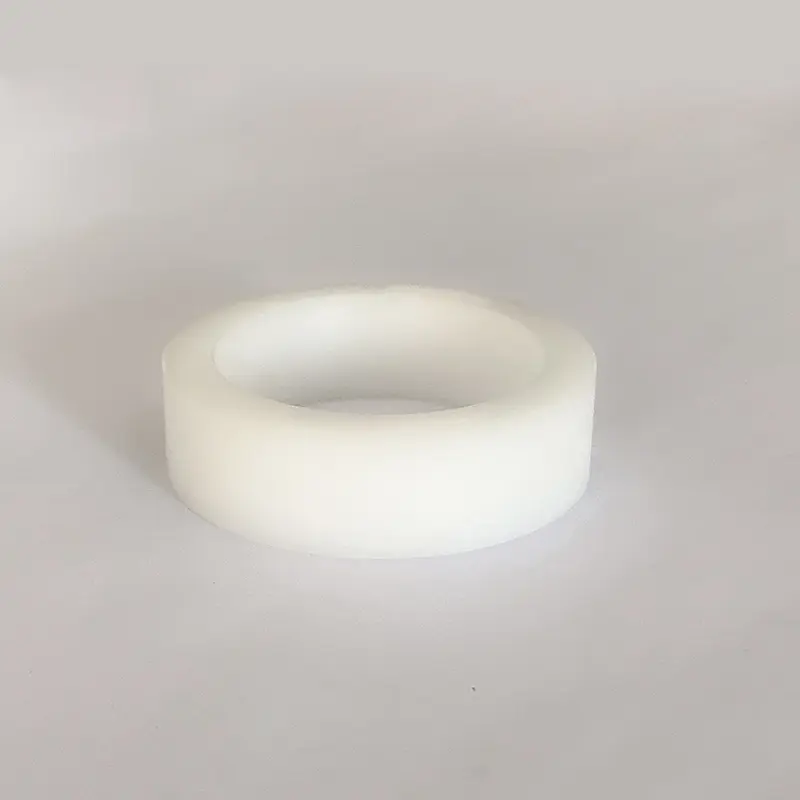

Guide sleeve GFI
1. Performance and use: Guide sleeve GFI is a guide sleeve for piston rod, which supports and guides the piston rod.
2. Material: Nylon PA, polyoxymethylene POM and polytetrafluoroethylene PTFE.
3. Working conditions: Working temperature: -55~+255℃ (PTFE is used above 120℃)
4. Design standard: When designing and selecting, refer to Hunger's FI series.
5. Marking and ordering method: Guide sleeve GFI is marked with order number, example: GFI-0360PA

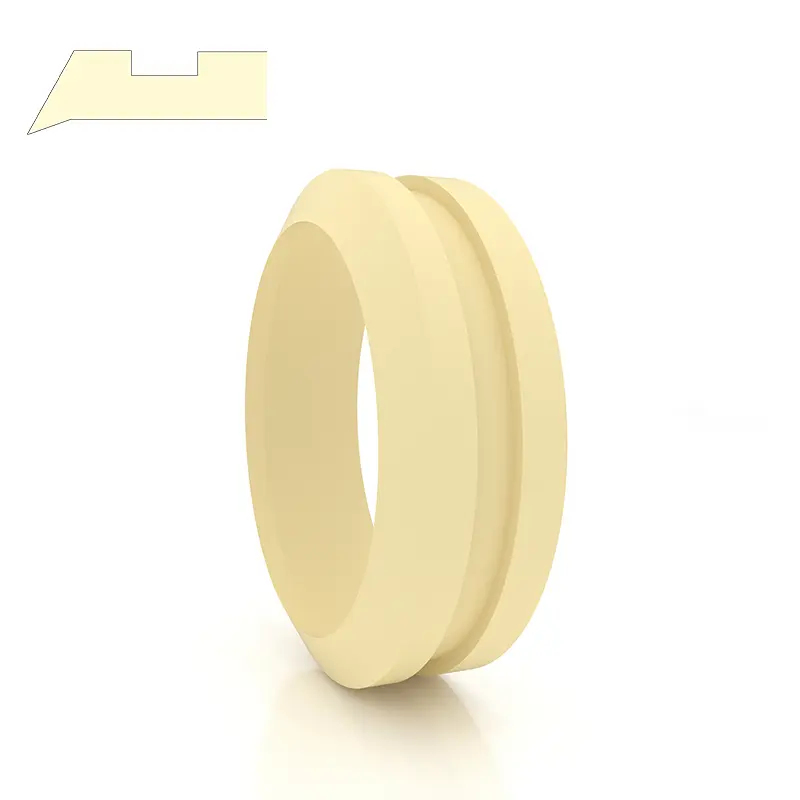

Guide sleeve GFA
1. Performance and use: Guide sleeve GFA is a guide sleeve for piston, which supports and guides the piston.
2. Material: Nylon PA, polyoxymethylene POM and polytetrafluoroethylene PTFE.
3. Working conditions: Working temperature: -55~+255℃ (PTFE is used above 120℃)
4. Design standard: When designing and selecting, refer to Hunger's FA series.
5. Marking and ordering method: Guide sleeve GFA is marked with order number, example: GFA-0560PA

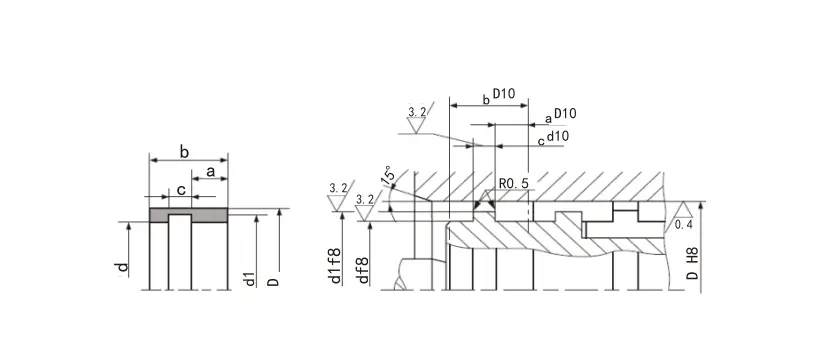

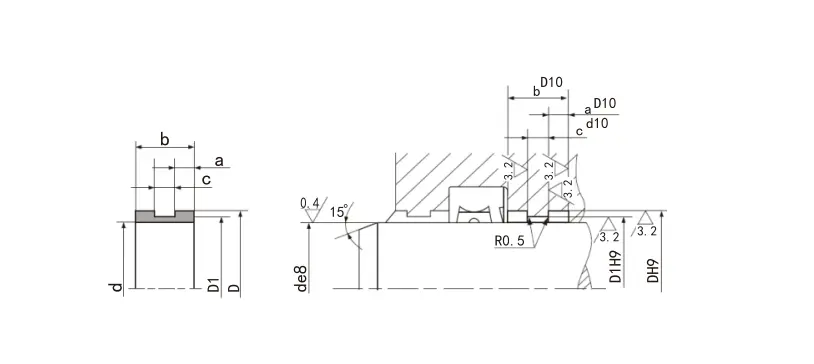

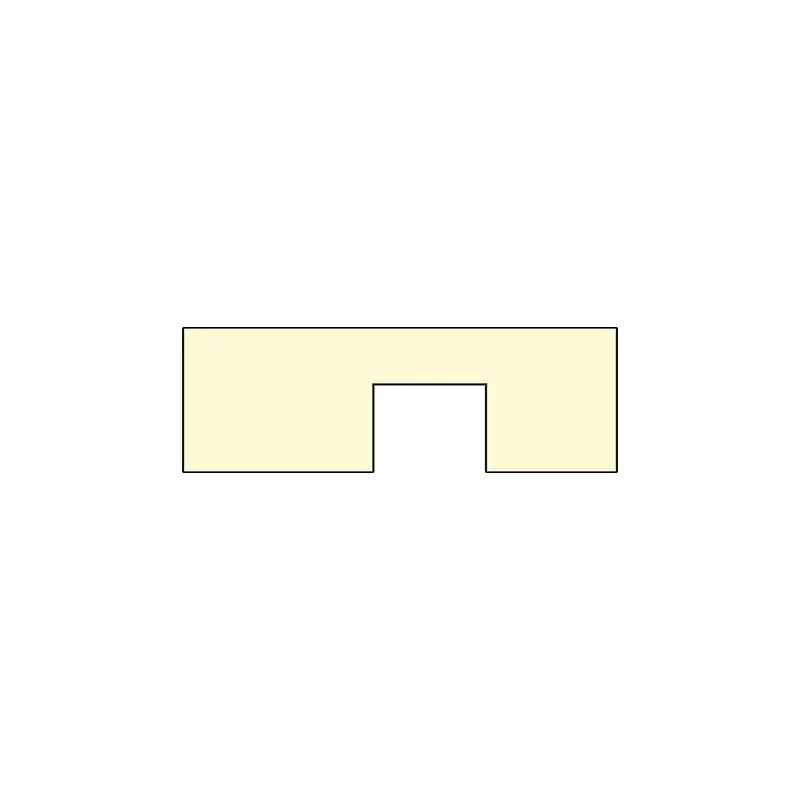

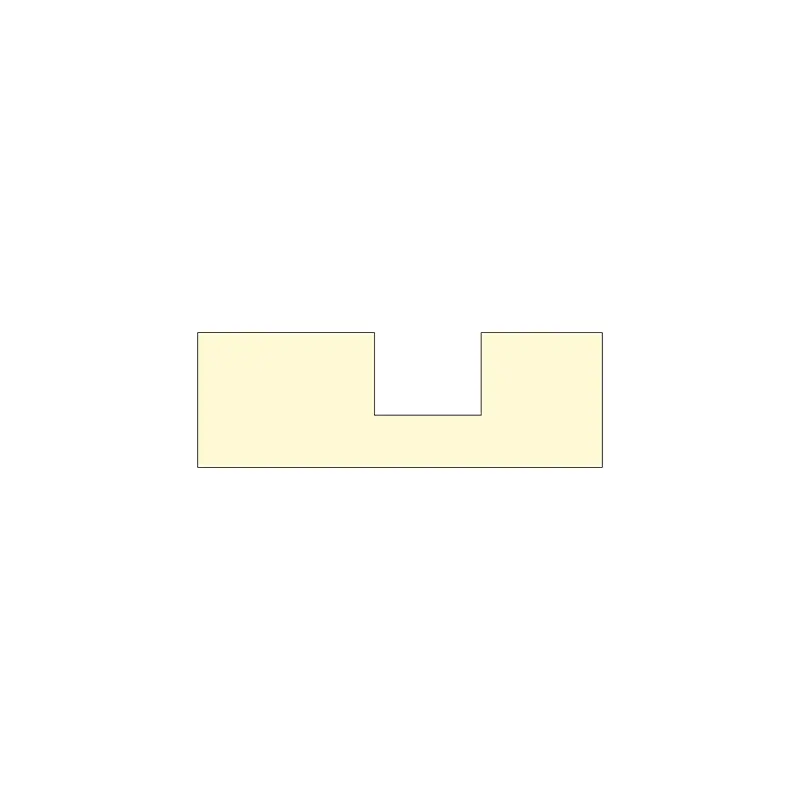

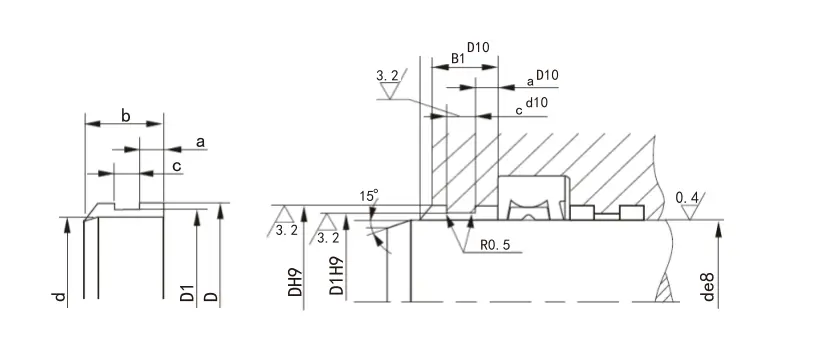

6. Structural device:
Specifications:
| Model |
Groove width H+0.2 |
Thickness T - 0.05 |
Thickness T T - 0.05 |
Thickness T - 0.05 |
Thickness T - 0.05 |
Thickness T - 0.05 |
| RC1081/1082-4.2 | 4.2 | 1 | 1.55 | 2 | 2.5 | - |
| RC1081/1082-5.6 | 5.6 | 1.55 | 2 | 2.5 | - | - |
| RC1081/1082-6.3 | 6.3 | 1.55 | 2 | 2.5 | - | - |
| RC1081/1082-8.1 | 8.1 | 1.55 | 2 | 2.5 | - | - |
| RC1081/1082-9.7 | 9.7 | 2 | 2.5 | 3 | 3.5 | 4 |
| RC1081/1082-12.7 | 12.7 | 2 | 2.5 | 3 | 3.5 | 4 |
| RC1081/1082-15 | 15 | 2 | 2.5 | 3 | 3.5 | 4 |
| RC1081/1082-20 | 20 | 2 | 2.5 | 3 | 3.5 | 4 |
| RC1081/1082-25 | 25 | 2 | 2.5 | 3 | 3.5 | 4 |
| RC1081/1082-30 | 30 | 2 | 2.5 | 3 | 3.5 | 4 |
| RC1081/1082-35 | 35 | 2 | 2.5 | 3 | 3.5 | 4 |
| Note: The boldface series are commonly used series. If the required product is not in this table, please contact us. | ||||||

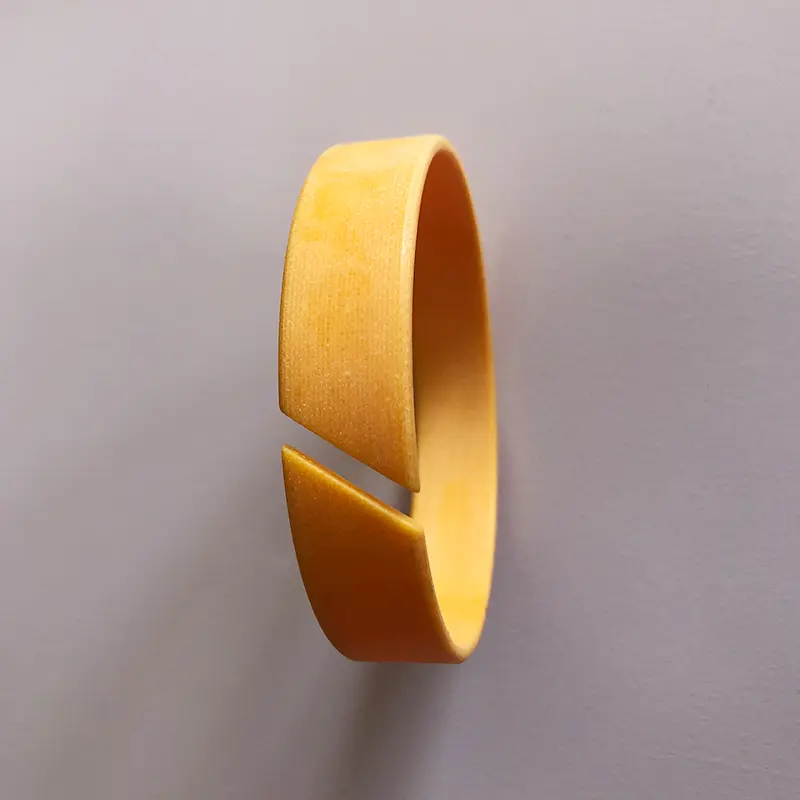

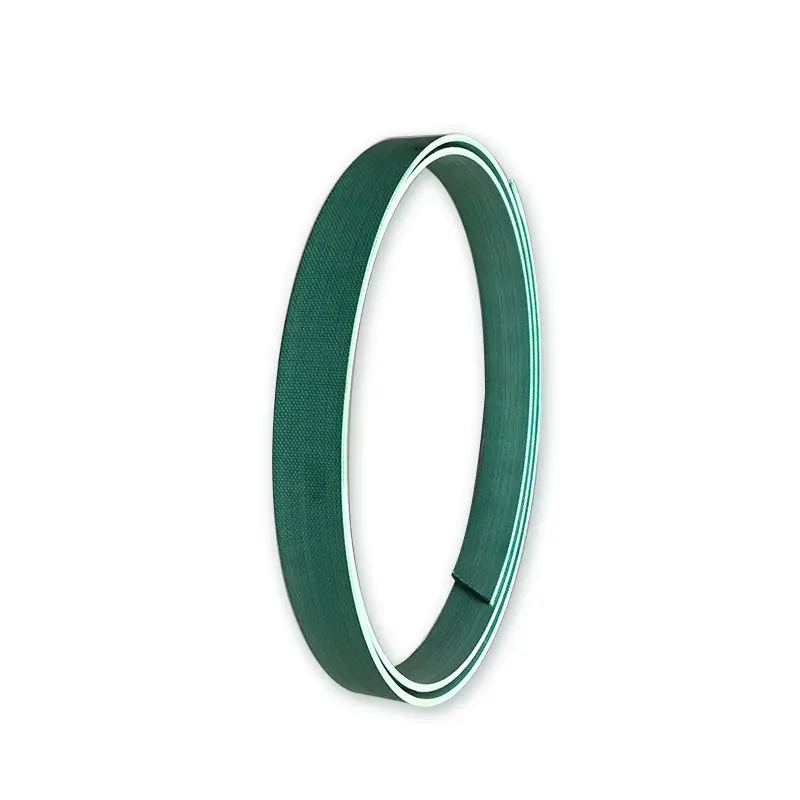

Cloth-reinforced phenolic support ring (belt)
The support ring is an important basic component of the hydraulic cylinder. In order to adapt to the development of sliding ring combined seals and soft bearing structures in the world, our company has successfully developed cloth-reinforced phenolic support rings (belts). Years of actual use have shown that this product has reached or exceeded the quality level of similar foreign products and has been widely praised by users. Tables 1 to 4 are the performance tables of the support rings (belts) produced by our company.
Table1 Comparison of physical properties of our support ring and Busak+Shamba products
| Sample source | Support ring thickness (mm) | Compressive strength (Mpa) | Oil resistance weight change rate hydraulic oil (70±2℃*24h) | Breaking strength (Mpa) | Interlayer adhesion (KN/M) |
| Busak+Shamba | 2.48 | 338.9 | 2.83 | 35.6 | 1.2 |
| Our Products | 2.48 | 425 | 0.90 | 37.0 | 2.9 |
| 2.48 (with graphite) | 390 | 0.63 | 36.4 | 2.08 |
| Sample type | Our Products | Orkot TLG ① | Duratec900 ① | Turcite47 ② | MT64/5B | NokWR (day) | POMModified polyoxymethylene | CAT(US) | |
| Measured value | Required indicators | ||||||||
| Compressive strength (Mpa) | ≥350 | ≥330 | ≥350 | ≥280 | ≥50 | ≥270 | ≥150 | ≥80 | ≥217 |
| Sample type | Our Products | Orkot TLG ① | Duratec900 ① | Turcite47 ② | MT64/5B | NokWR (day) | POMModified polyoxymethylene | CAT(US) | |
| Measured value | Required indicators | ||||||||
| Compressive strength (Mpa) | ≥350 | ≥330 | ≥350 | ≥280 | ≥50 | ≥270 | - | ≥80 | ≥217 |
| Load per unit contact length W(N/mm) | Hertz contact relay δh (N/mm2) | Friction coefficient | |||
| Dry friction state | Oil drip lubrication state | ||||
| Our products | Orkot TLG | Our products | Orkot TLG | ||
| 5.9 | 22.0 | 0.054 | 0.066 | 0.057 | 0.079 |
| 29.0 | 48.7 | 0.052 | 0.067 | 0.056 | 0.081 |
| 44.4 | 60.3 | 0.045 | 0.071 | 0.055 | 0.088 |
| 59.8 | 69.8 | 0.021 | 0.073 | 0.053 | 0.087 |
| 75.2 | 78.3 | 0.020 | 0.075 | 0.052 | 0.085 |
| Material | PTFE+BRONZE |

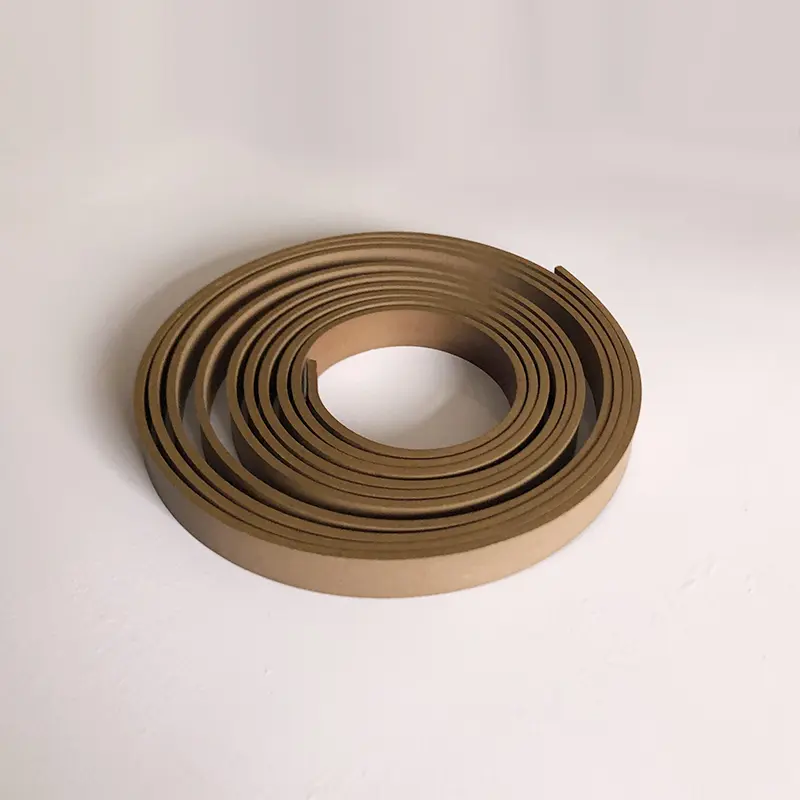

| Supply | Roll (usually about 20 meters/roll) or cut to required length |
| Advantages | 1. Low friction, no creeping and biting; |
| 2. Can work well even without sufficient lubrication; | |
| 3. Resistant to a variety of media, excellent chemical stability; | |
| 4. Can accommodate hard objects embedded in the wear-resistant ring to reduce hard objects scratching the cylinder and seals, so in heavy-load situations, use multiple wear-resistant rings; | |
| 5. It also has good wear resistance in high-speed and light-load situations, so it is the most widely used wear-resistant ring; | |
| 6. No size restrictions, can be used in large diameter situations. | |
| Temperature | -60~+200℃ |
| Maximum speed | 15m/s |
| Maximum extrusion strength | 15N/mm2(20°) |
| 7.5N/mm2(80°) | |
| 5N/mm2(120°) |

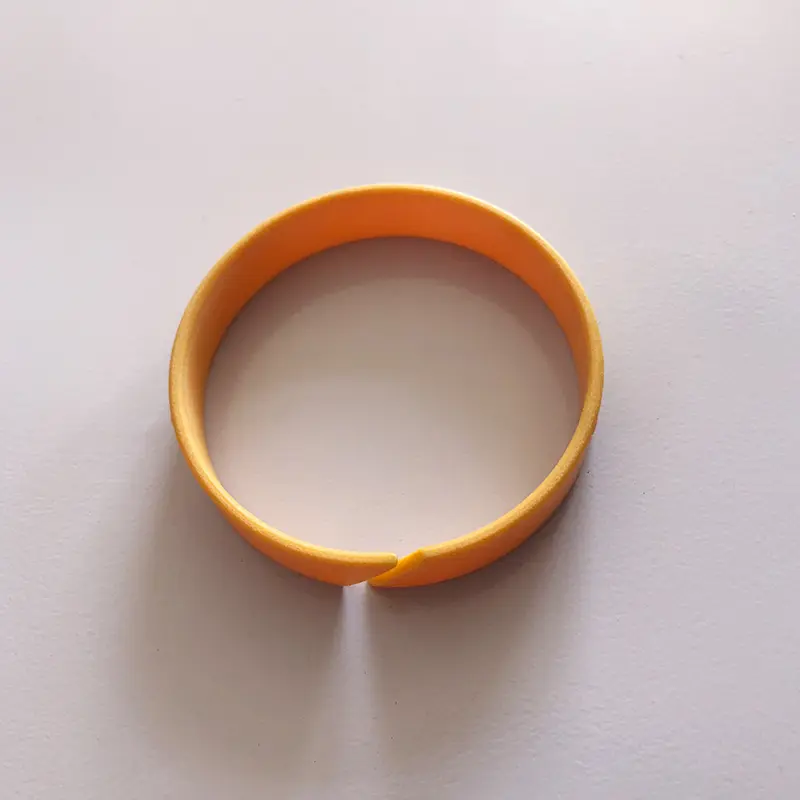

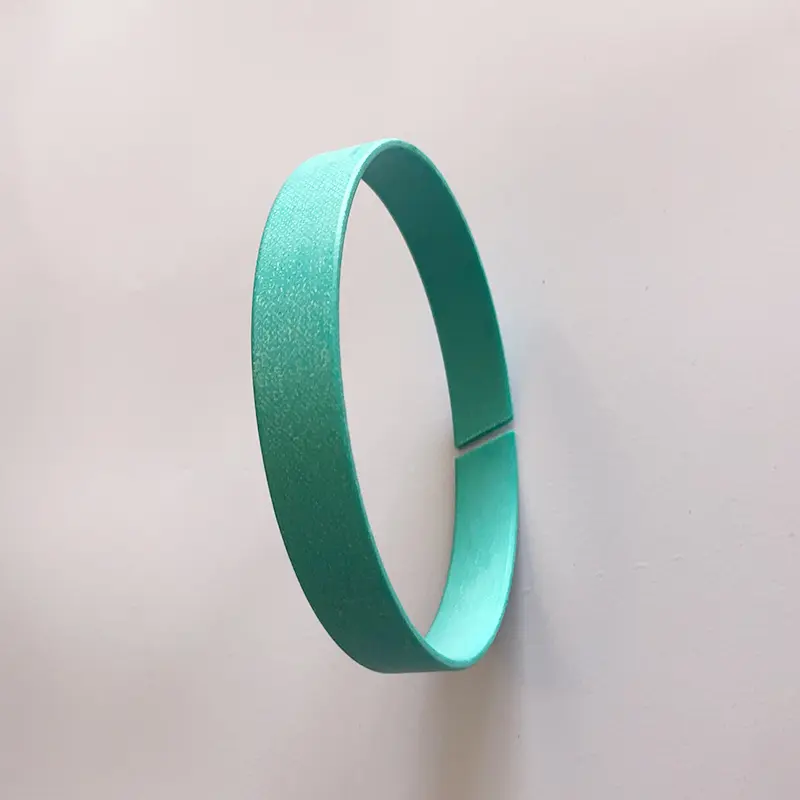

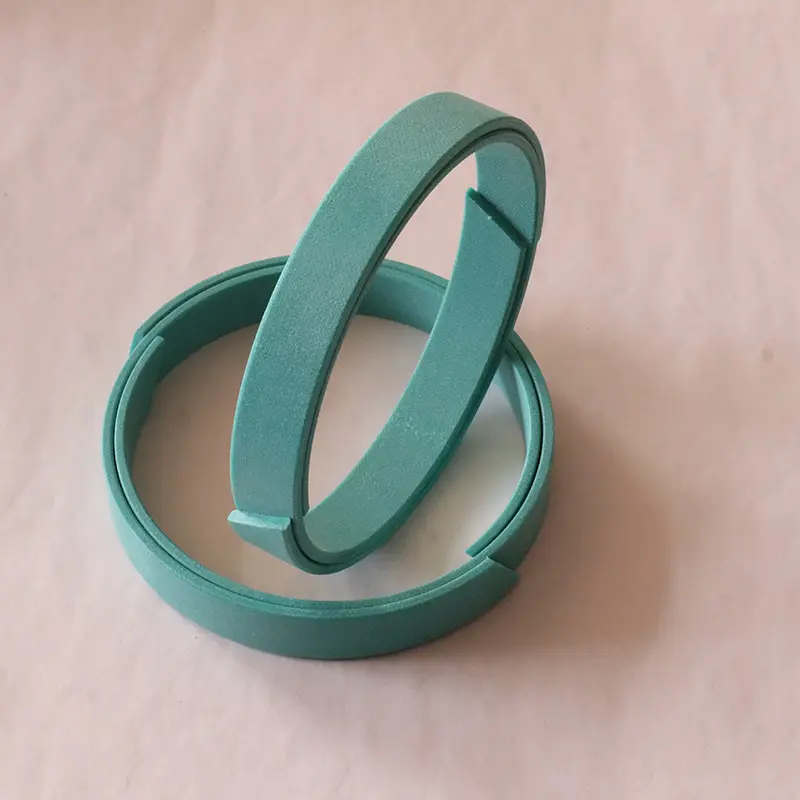

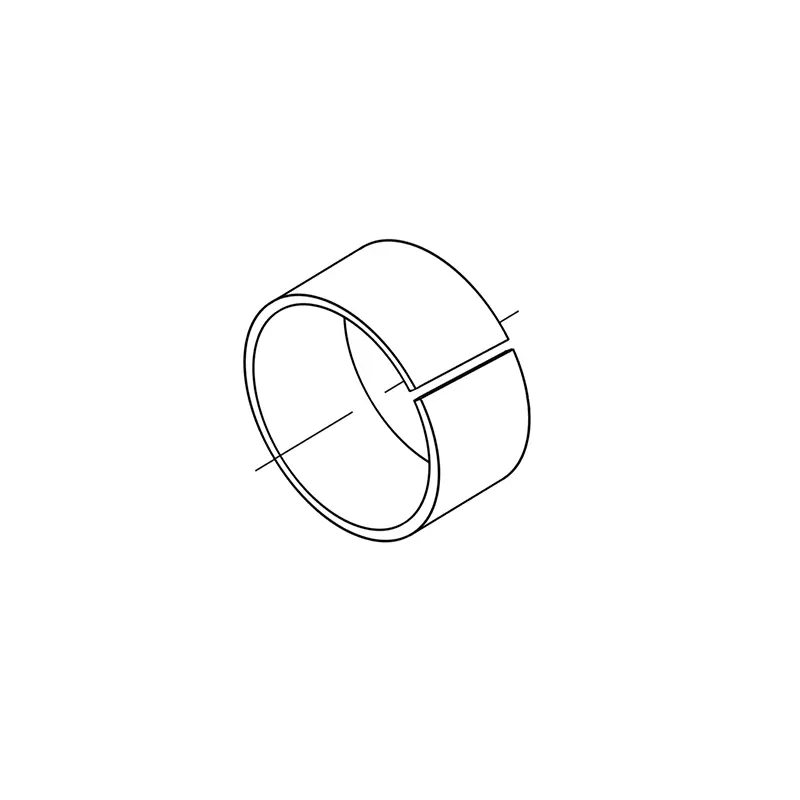

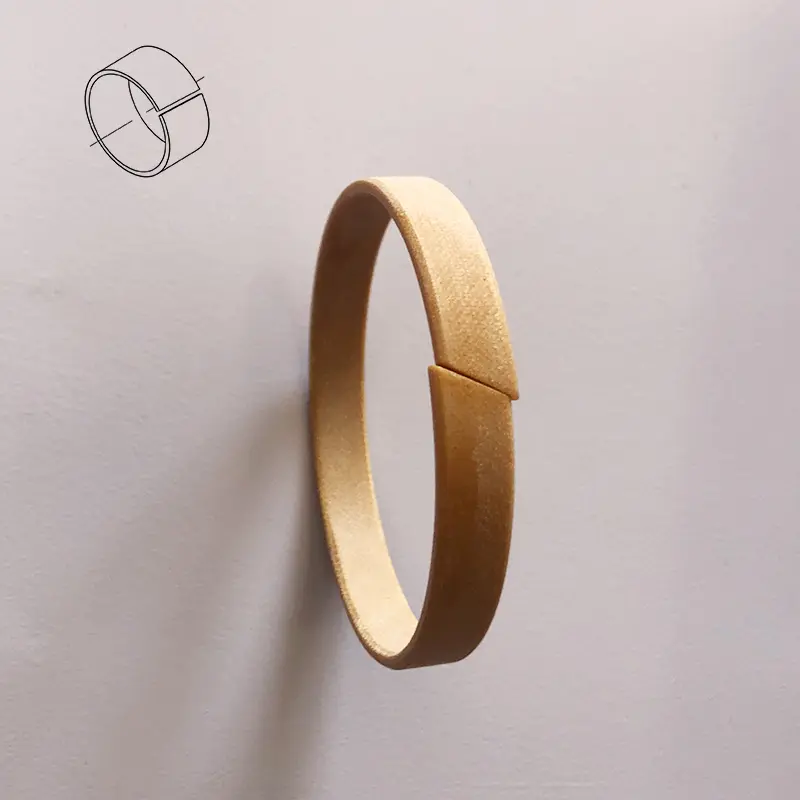

RCS non-metallic guide ring for piston rod
RCT non-metallic guide ring for piston
For the piston or piston rod running in the hydraulic cylinder, the wear ring has a precise guiding effect and can absorb radial forces. At the same time, the wear ring can prevent metal contact of sliding parts in the hydraulic cylinder. Compared with metal wear rings, non-metallic wear rings have many advantages. Among them, cloth-reinforced phenolic and PTFE guide rings are available in on-site cutting type and ready-to-use type.
1. Good wear resistance
2. Avoid metal-to-metal contact
3. Can suppress mechanical vibration
4. Due to the centering effect of the wear-resistant ring, a large radial clearance is allowed
5. The groove is simple and easy to install
6. Low maintenance cost Based on the above advantages, it is widely used
Material:
1. Polytetrafluoroethylene PTFE3 (general material), PTFE4 (applicable to low viscosity media such as water), PTFE1 (low friction requirements such as pneumatics)
2. Polyoxymethylene POM or nylon PA and its modified materials
3. Formaldehyde resin + reinforcing fiber PRIF
Comparison table of load-bearing capacity of different materials (reference)
| Material | Carrying capacity max(N/mm2) |
| PTFE-filled copper powder | 15(20℃); 7.5(80℃)5(120℃) |
| Phenolic powder with cloth | 90(60℃); 40(80℃) |
| Polyoxymethylene or nylon | 25(60℃); 15(80℃) |
| Polyoxymethylene or nylon filled | 40(60℃); 30(80℃) |
| Smoothness | Rtmax (μm) | Ra (μm) |
| Sliding surface | ≤2.5 | 0.05-0.3 |
| Groove bottom | ≤10 | ≤2 |
| Groove side | ≤15 | ≤3 |

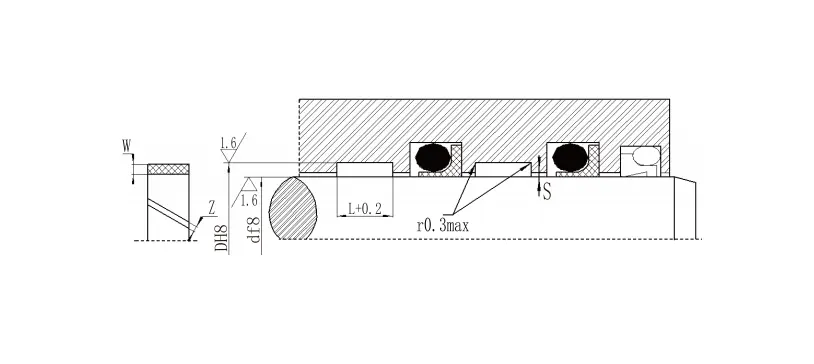

Piston rod guide ring specification series
| Rod diameter | Bottom diameter | Groove width | Thickness | Gap |
|
Rod diameter | Bottom diameter | Groove width | Thickness | Gap |
| d f8/h9 | D H8 | L+0.2 | W | Z | d f8/h9 | D H8 | L+0.2 | W | Z | |
| 8-20 | d+3.1 | 2.5 | 1.55 | 1-2 | 200-999.9 | d+5 | 25 | 2.5 | 8-33 | |
| 10-50 | d+3.1 | 4 | 1.55 | 1-3 | 1000-4200 | d+5 | 25 | 2.5 | 33-134 | |
| 15-140 | d+5 | 5.6 | 2.5 | 2-5 | 280-999.9 | d+8 | 25 | 4 | 10-33 | |
| 20-220 | d+5 | 9.7 | 2.5 | 2-9 | 1000-2200 | d+8 | 25 | 4 | 33-70 | |
| 80-400 | d+5 | 15 | 2.5 | 4-15 |
|
|
|
|
|
