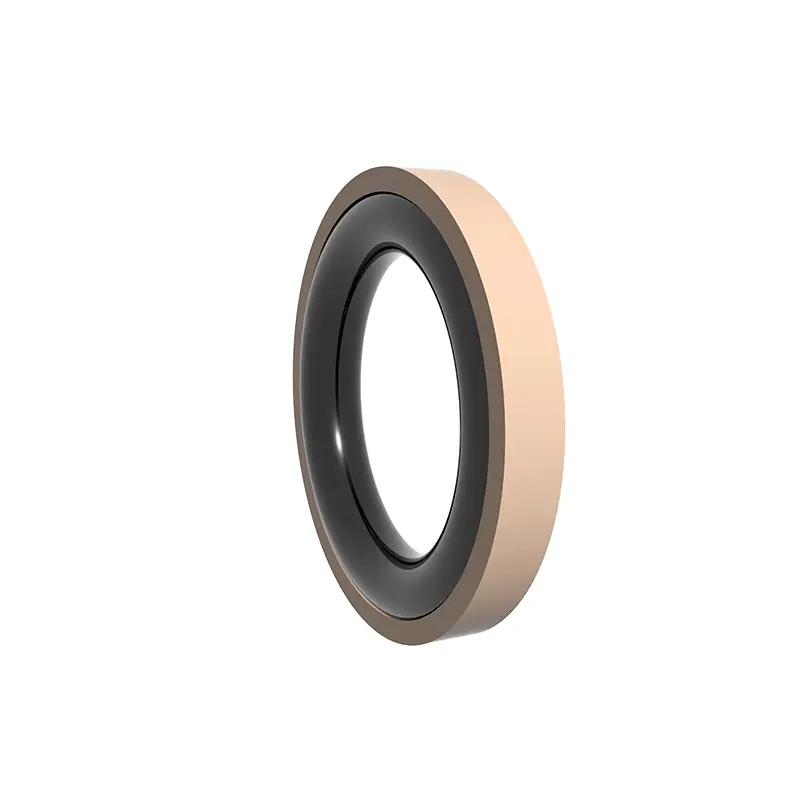

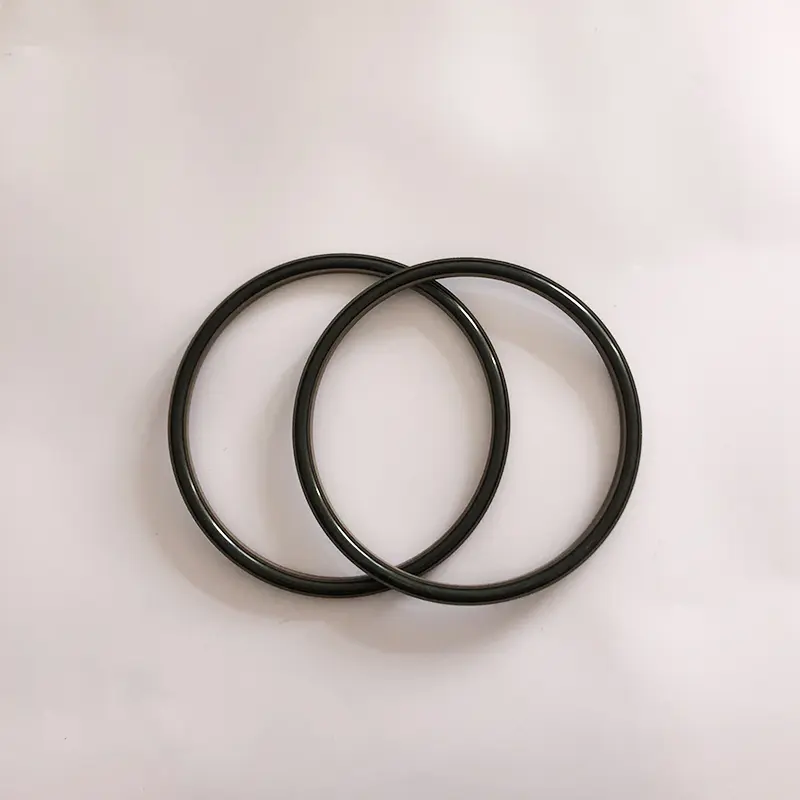

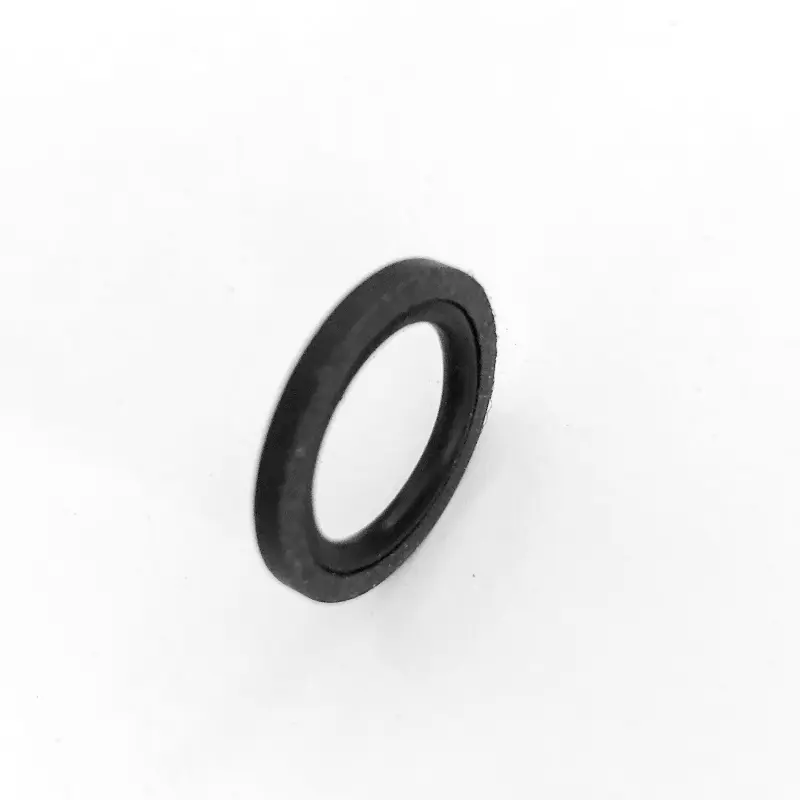

Our Ruichen seals high pressure end flange seals adopt innovative design to provide better product performance. The core is a combination of filled or modified PTFE material special-shaped sealing ring and O-shaped (rubber) ring, which is suitable for axial (end), flange one-way static (pressure) sealing and water pressure sealing needs.
High pressure end flange seals have significant advantages, long life, reduced maintenance costs, excellent sealing to prevent media leakage, high pressure and ultra-high pressure resistance to meet extreme working conditions, and exquisite structure for easy installation.

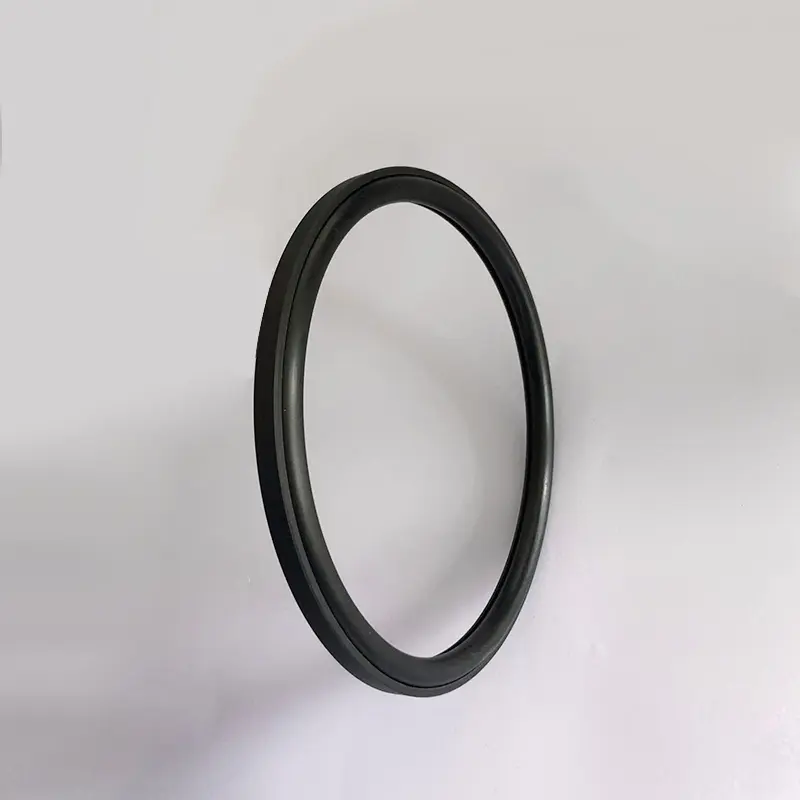

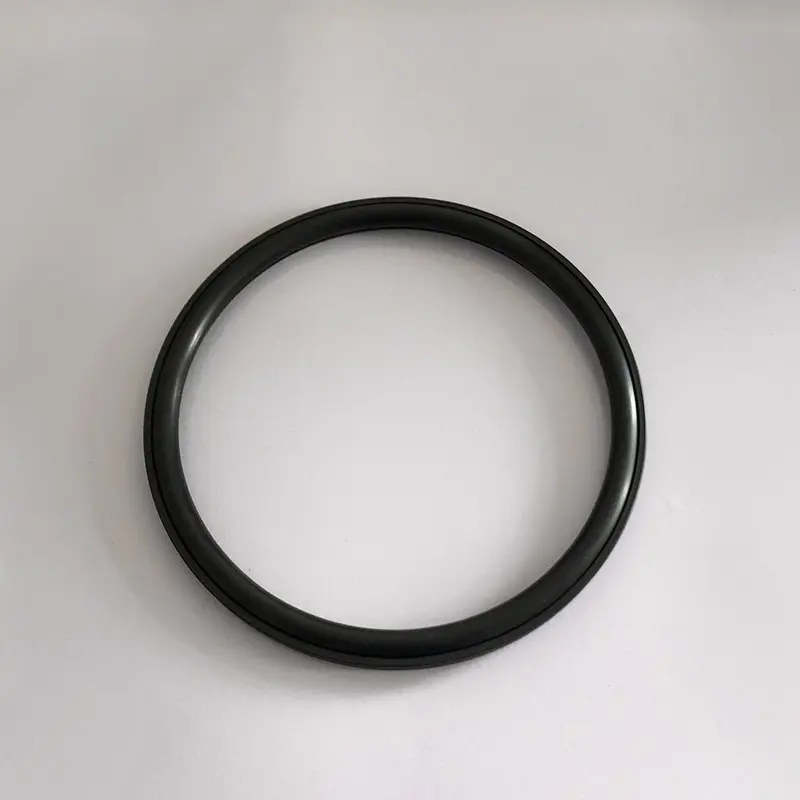

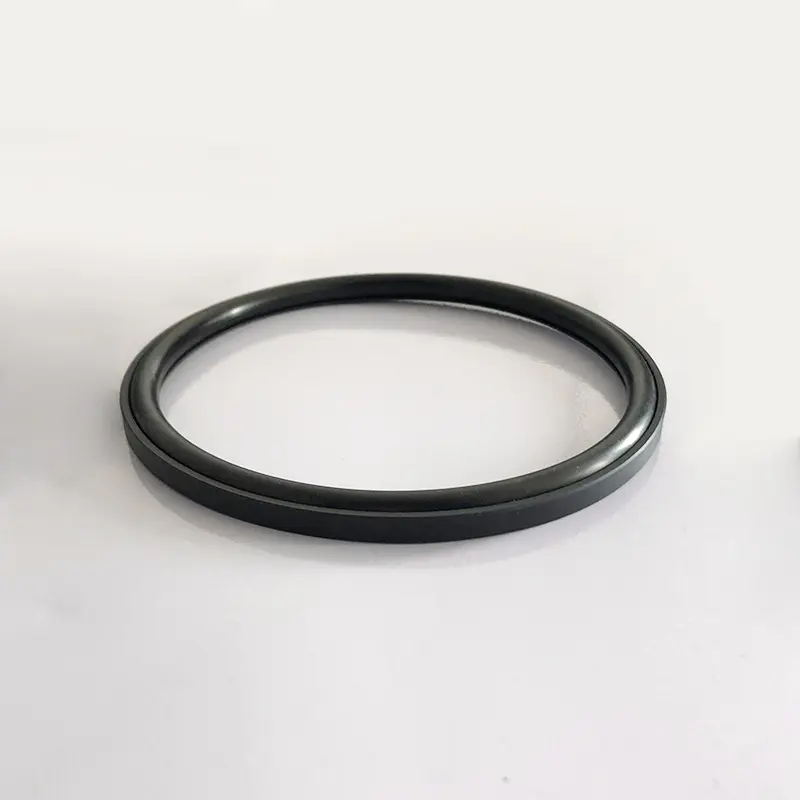

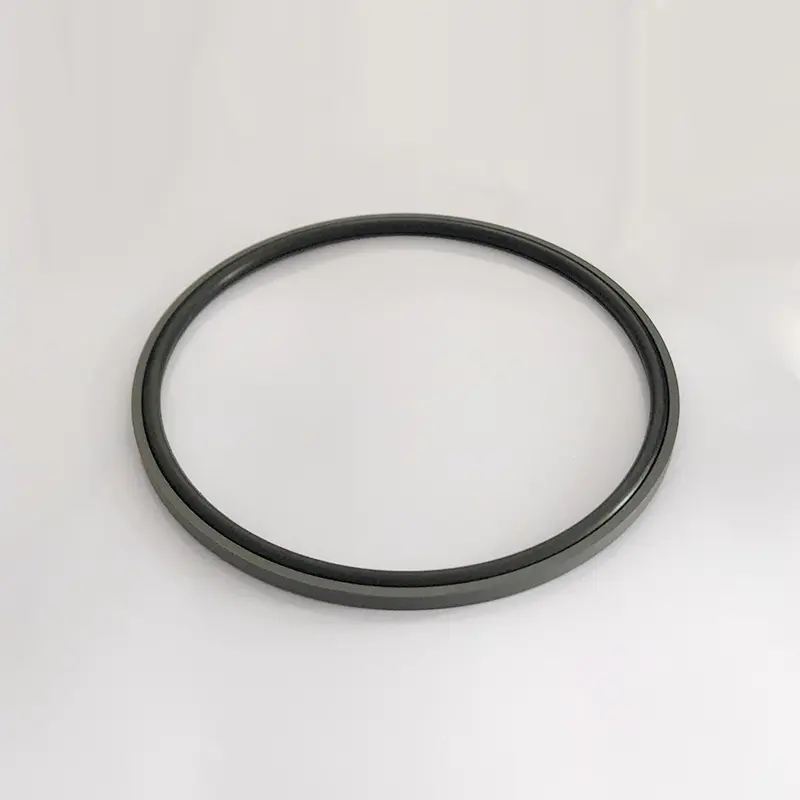

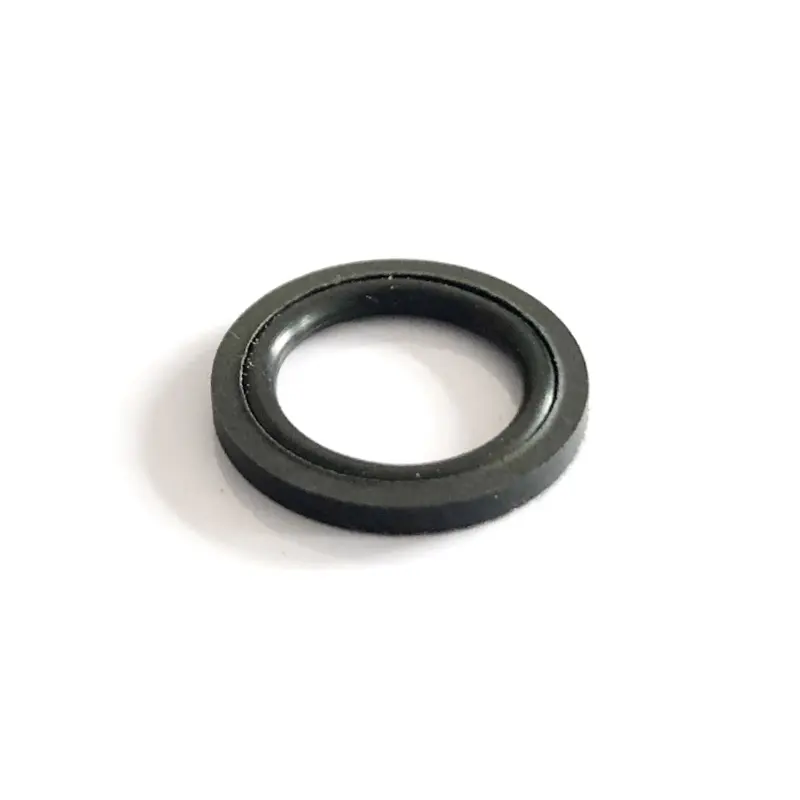

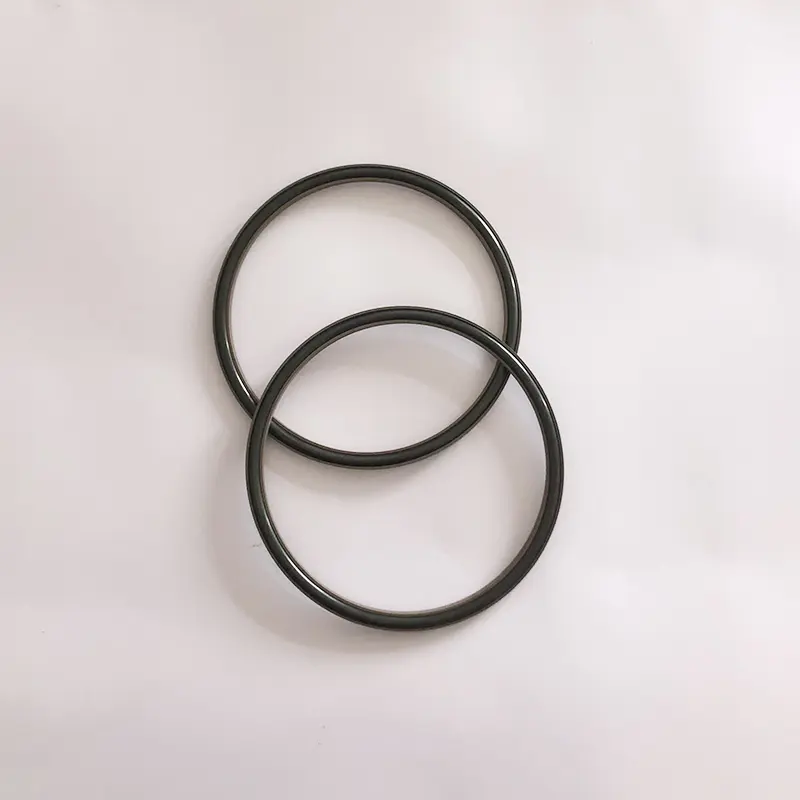

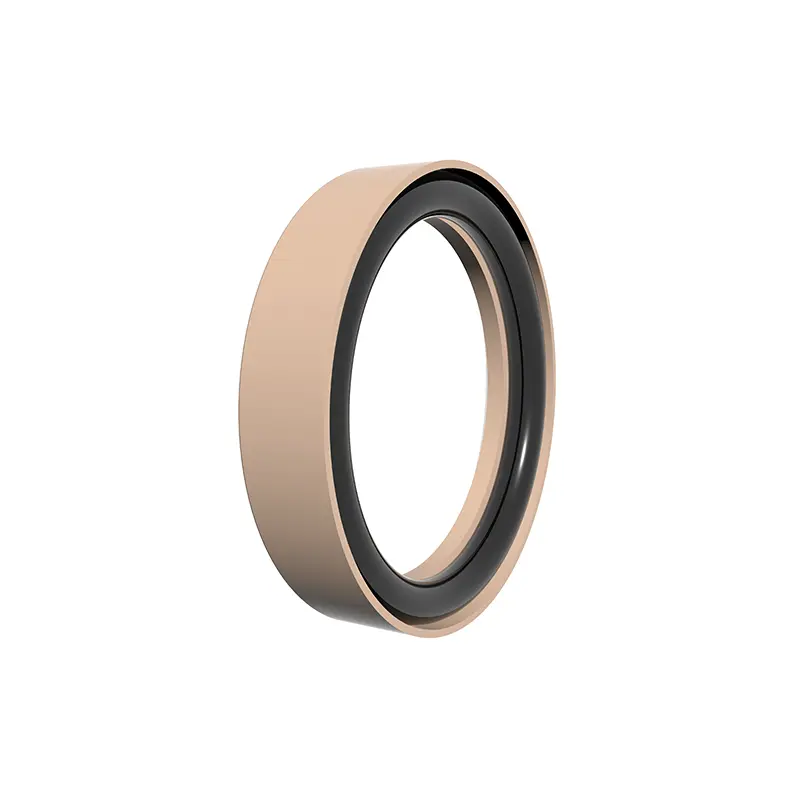

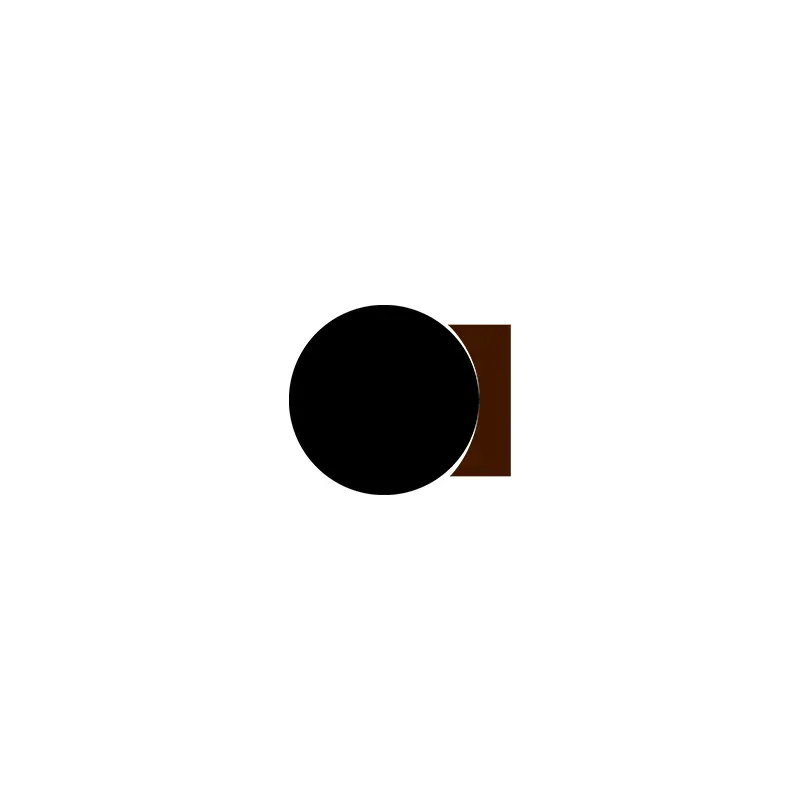

According to different working conditions, we have made subdivided models for you to choose from: RC2871 series (right-angle sealing ring and O-shaped rubber ring) is divided into A and B types to cope with different pressure scenarios; RC2872 series (C-shaped sealing ring and O-shaped rubber ring) is suitable for static pressure sealing; RC2873 (reinforced right-angle sealing ring and O-shaped rubber ring) specializes in ultra-high pressure static sealing; RC2874 (Y-shaped sealing ring and O-shaped rubber ring) ensures the stability of ultra-high pressure sealing; RC2875 series (foot-shaped sealing ring and O-shaped rubber ring) is divided into A and B types to meet various static sealing needs.
Some special combinations are full of highlights, such as the modified foot-shaped sealing ring with O-ring, which uses pre-compression and flange structure to achieve better sealing at higher pressures and withstand high and ultra-high pressures; the same is true for the combination of C-shaped and reinforced right-angle sealing rings and O-rings, providing a reliable solution to the high-pressure end (flange) sealing problem in all directions.
Product features and applications:

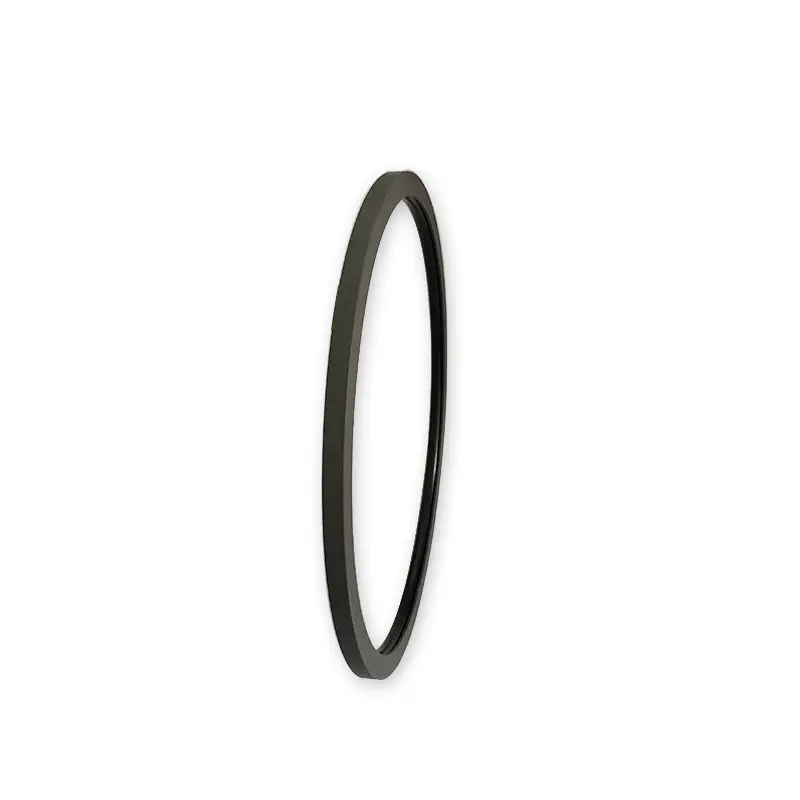

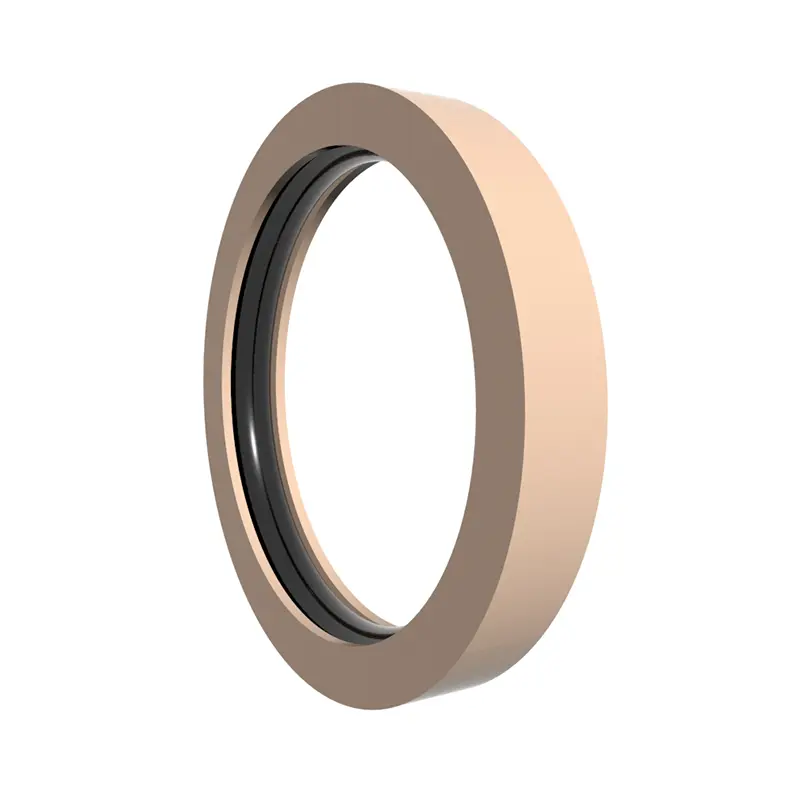

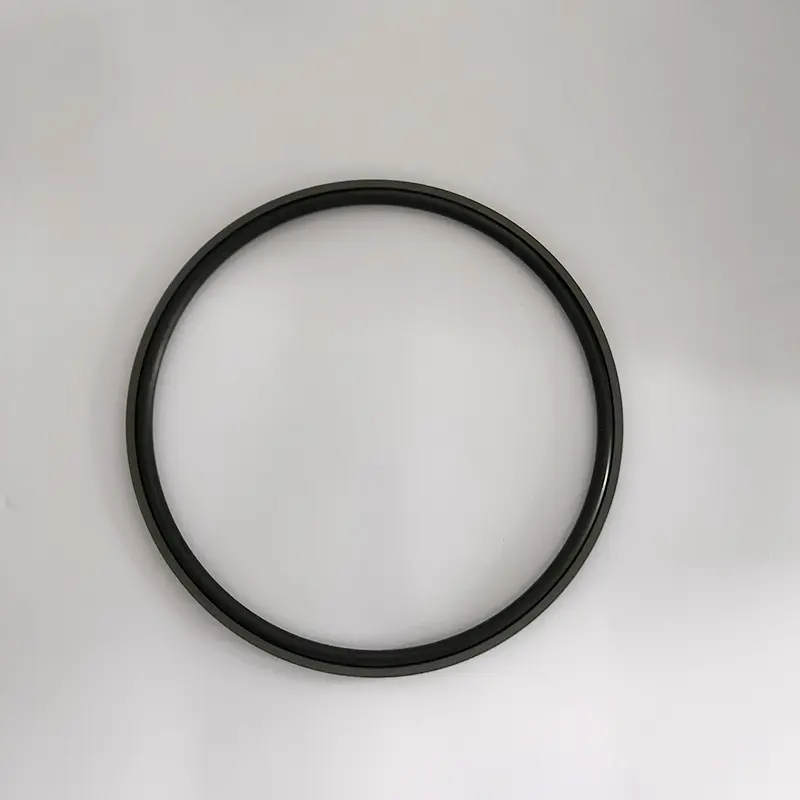

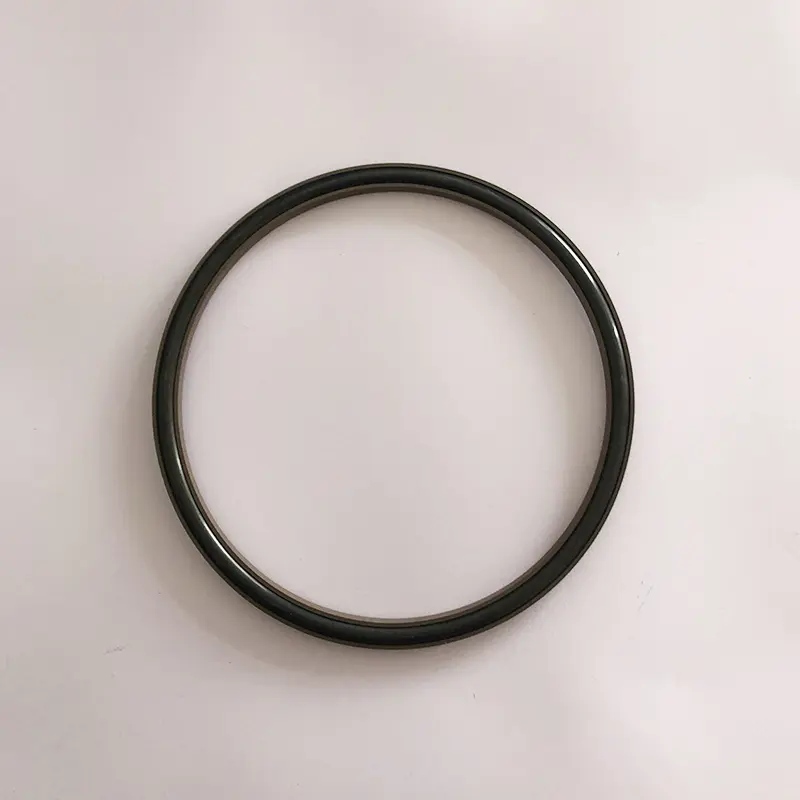

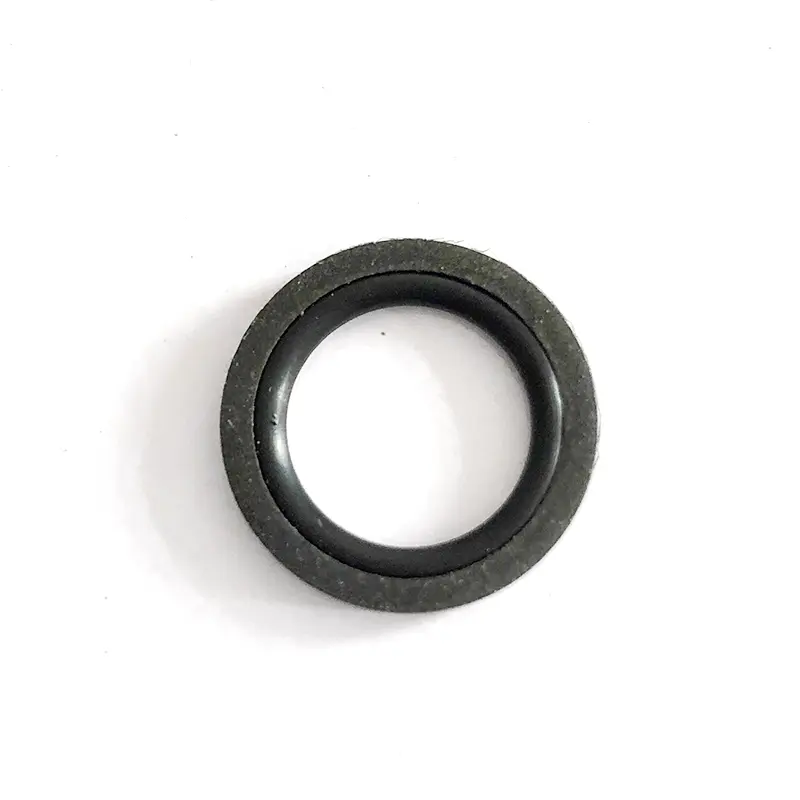

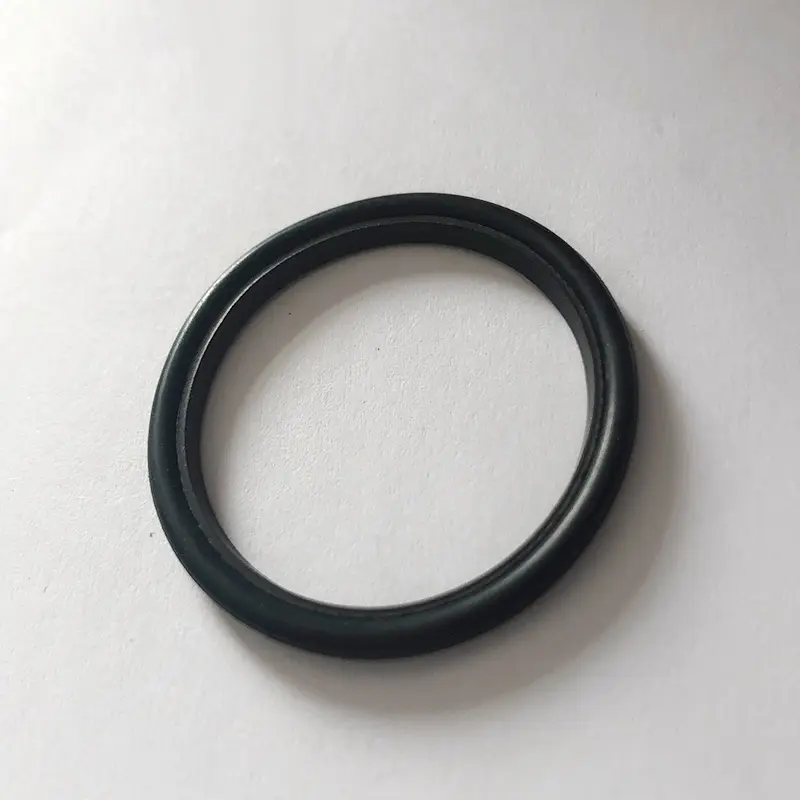

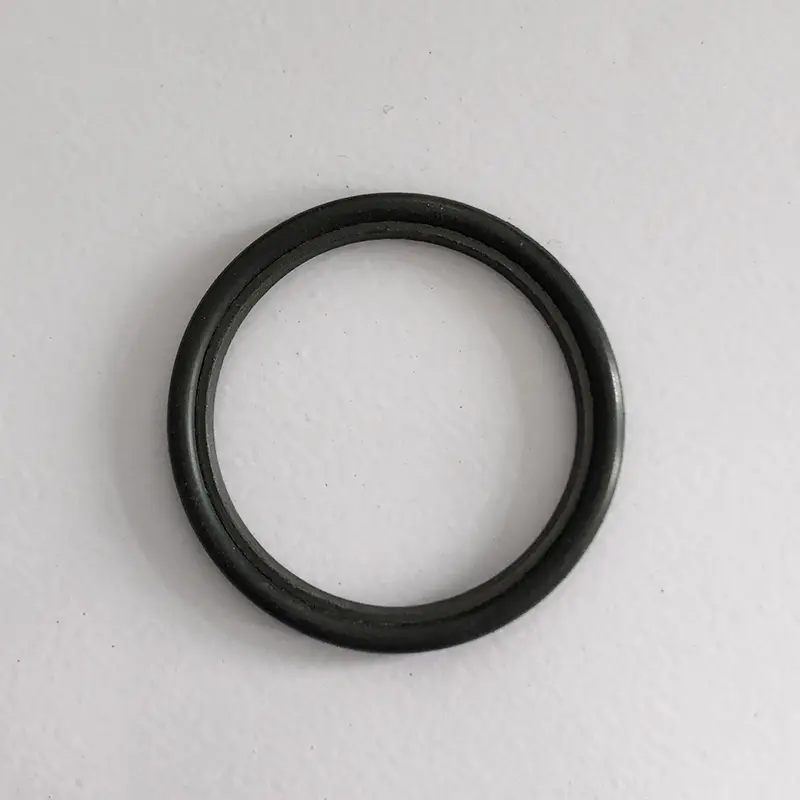

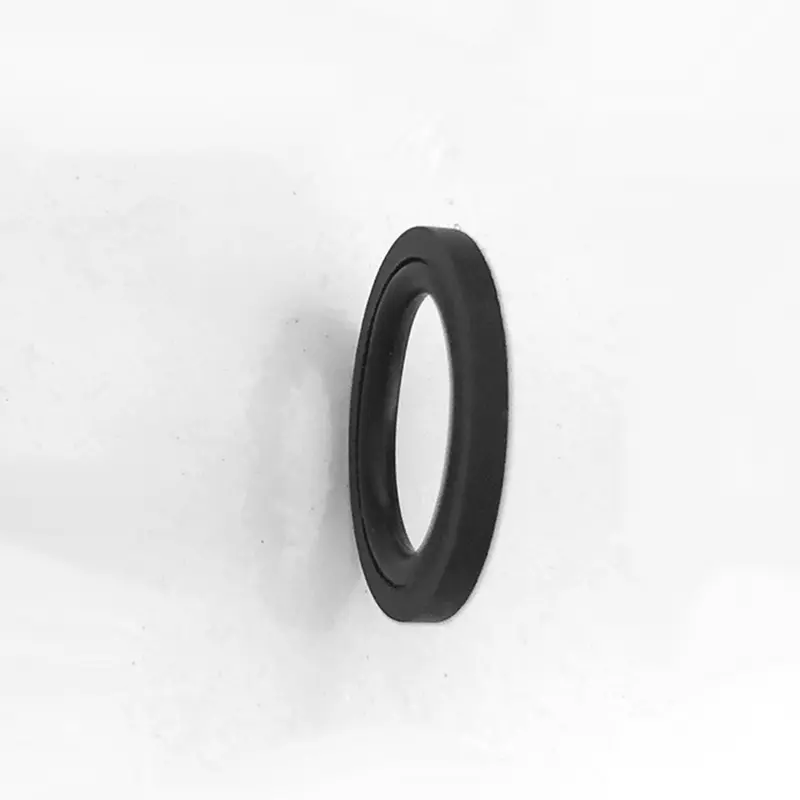

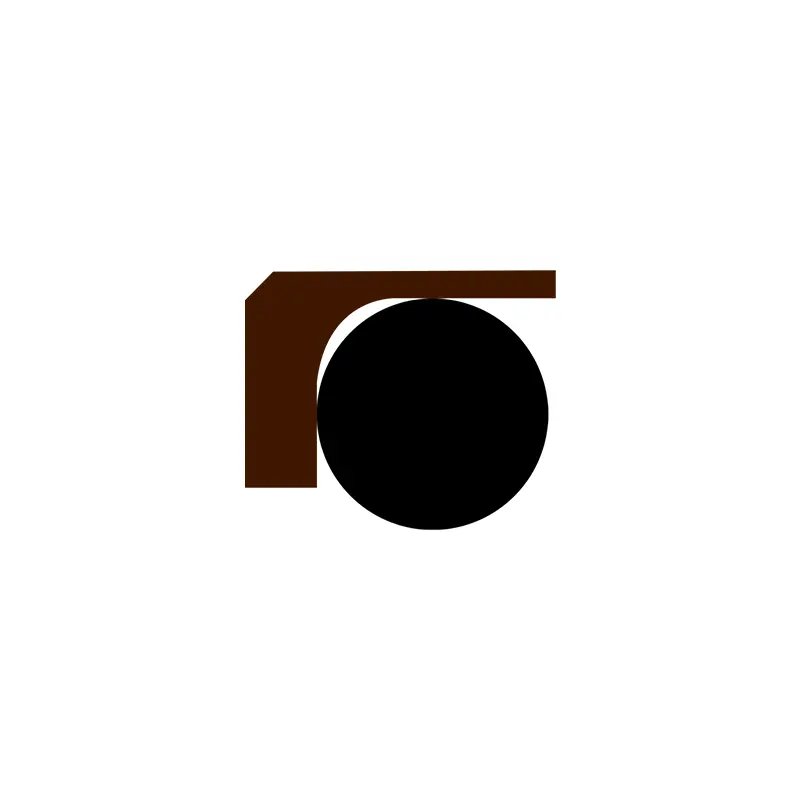

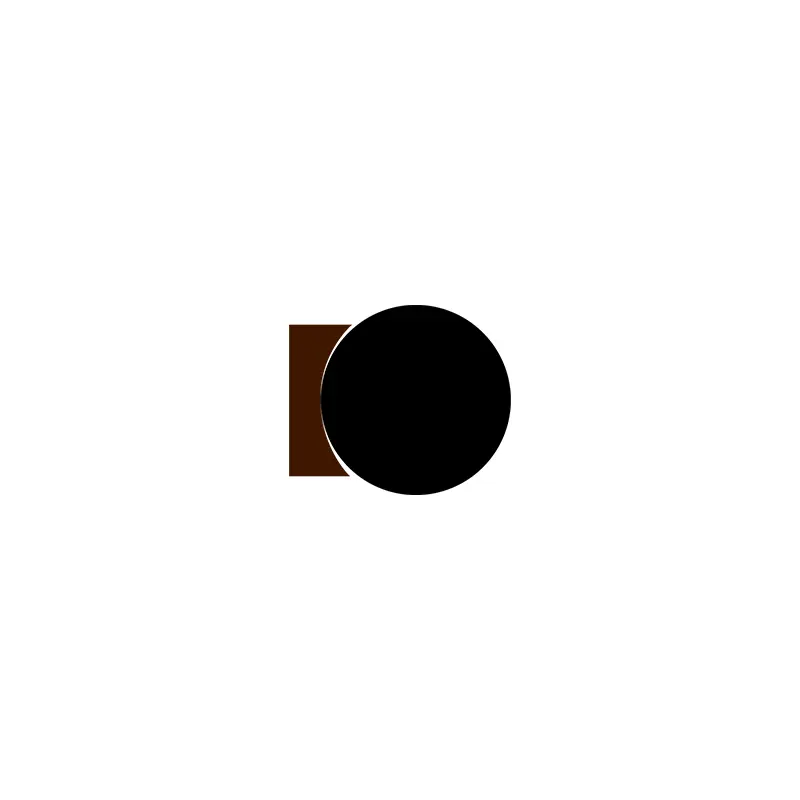

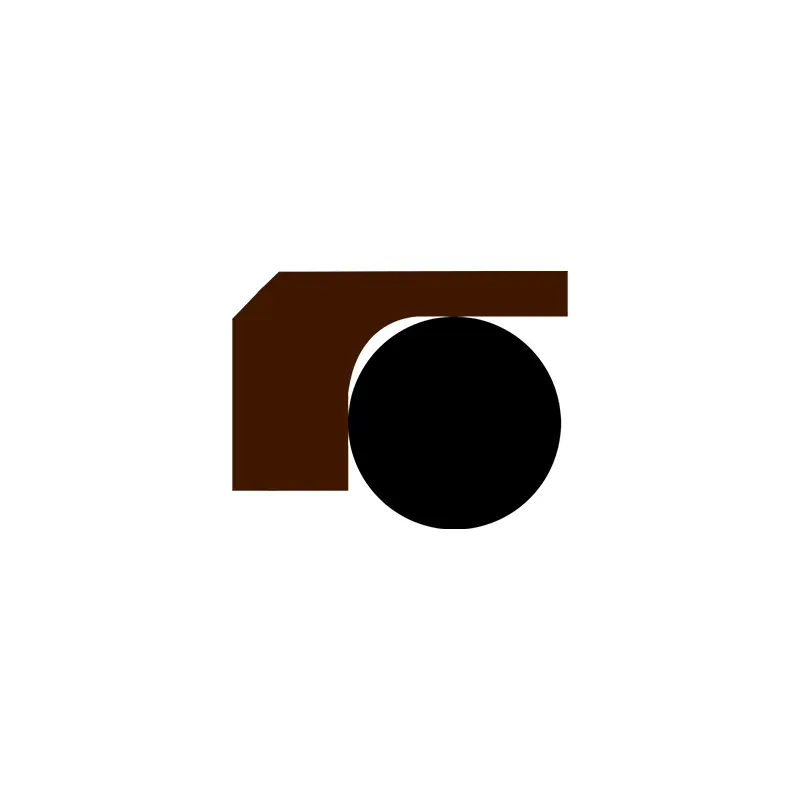

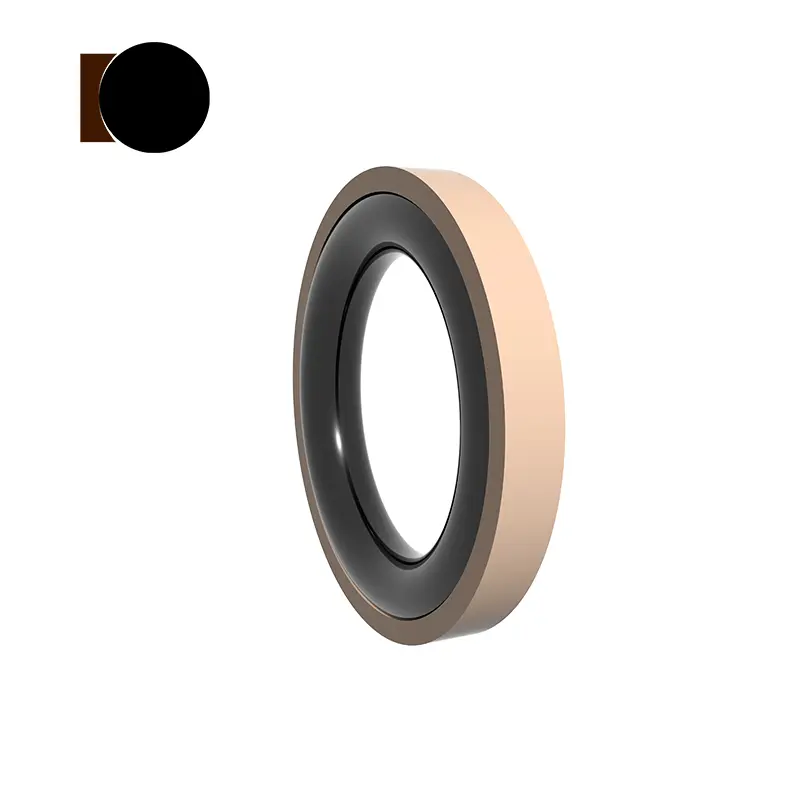

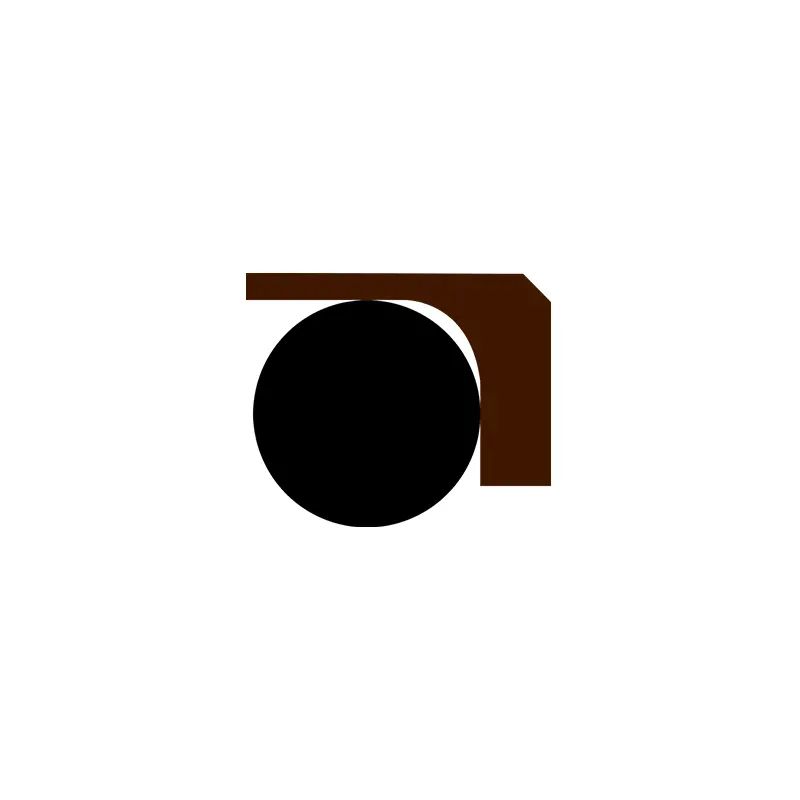

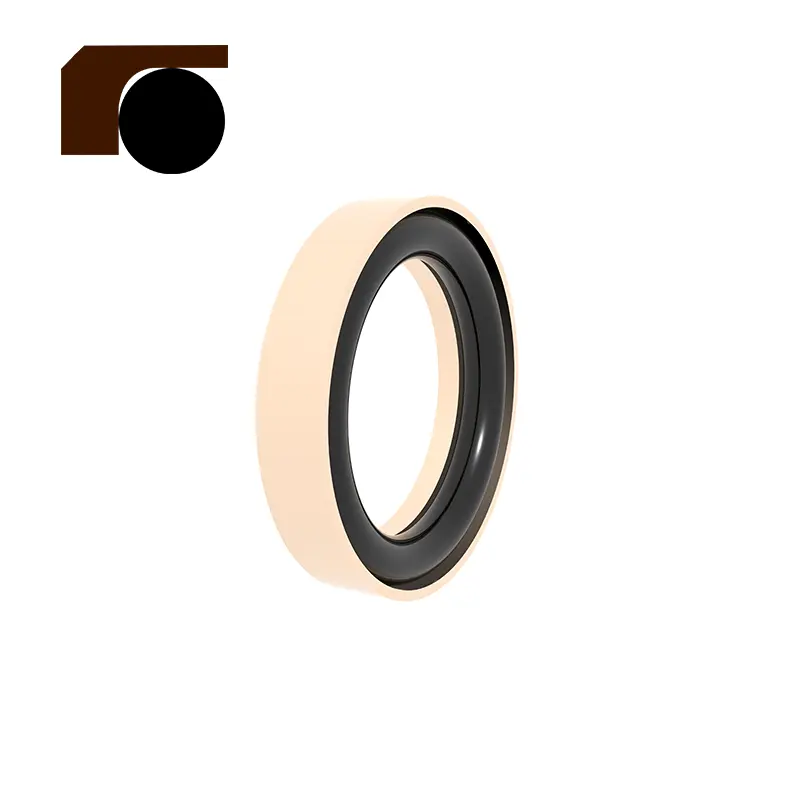

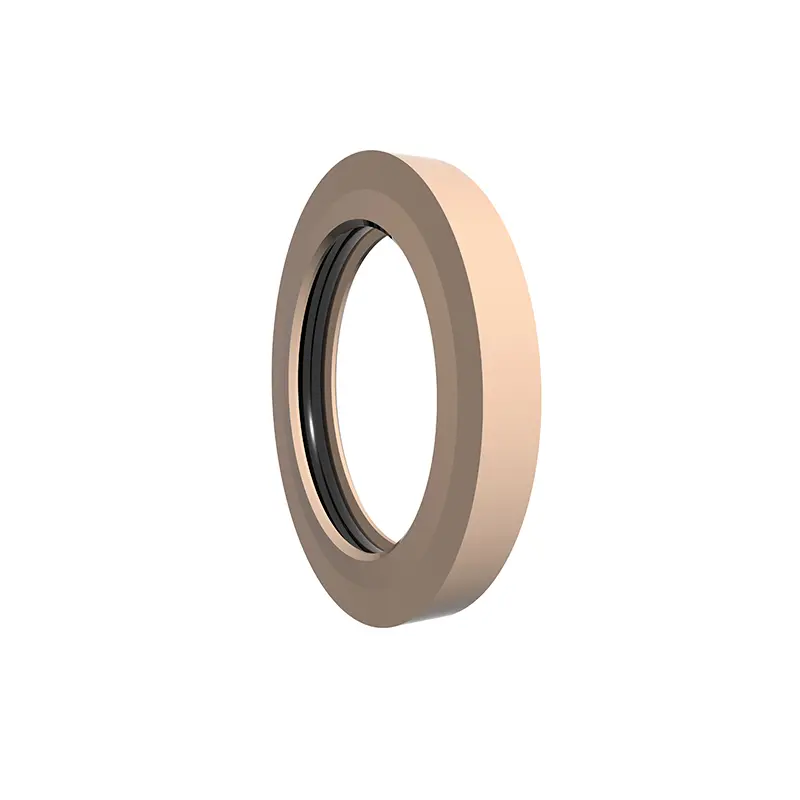

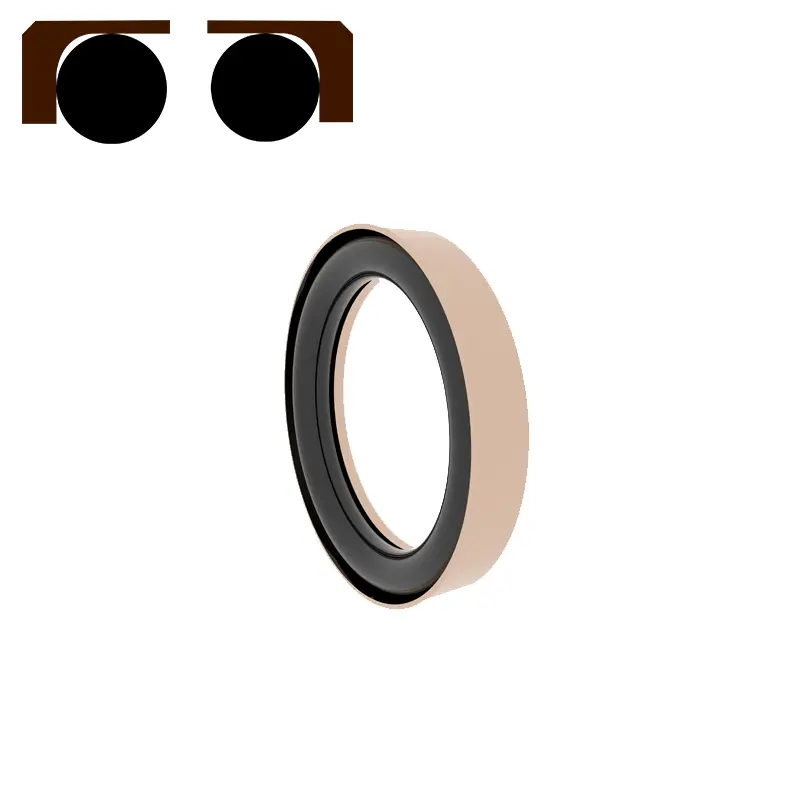

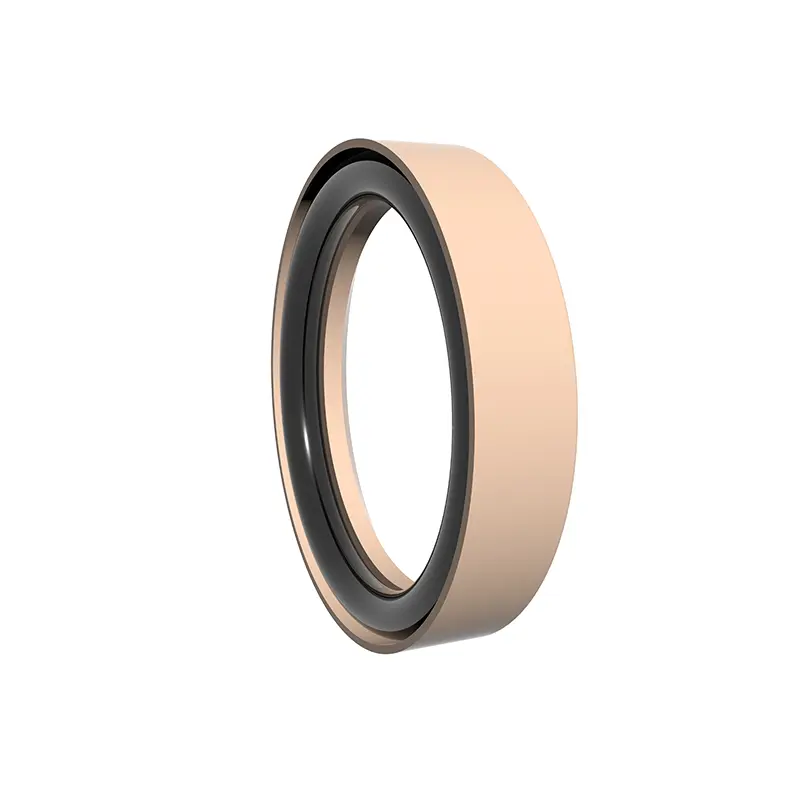

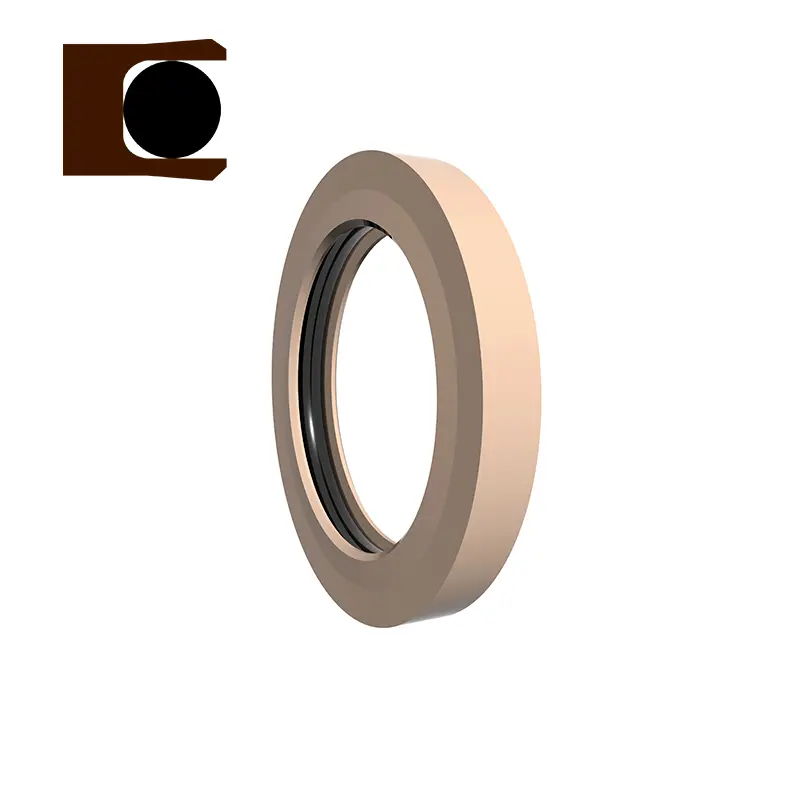

This seal is composed of a right-angle sealing ring made of PTFE and an O-ring. The O-ring is pre-compressed to generate a clamping force to achieve sealing. The clamping force of the seal increases under pressure, that is, the higher the pressure, the better the sealing. Since the slip ring adopts a side rib structure, the O-ring will not be squeezed out and can withstand high pressure.

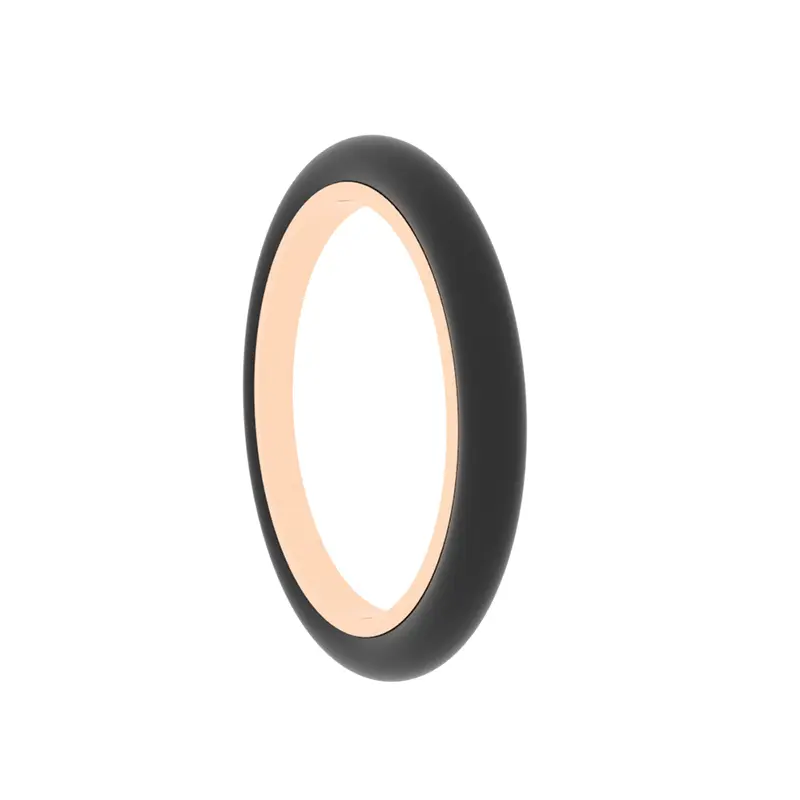

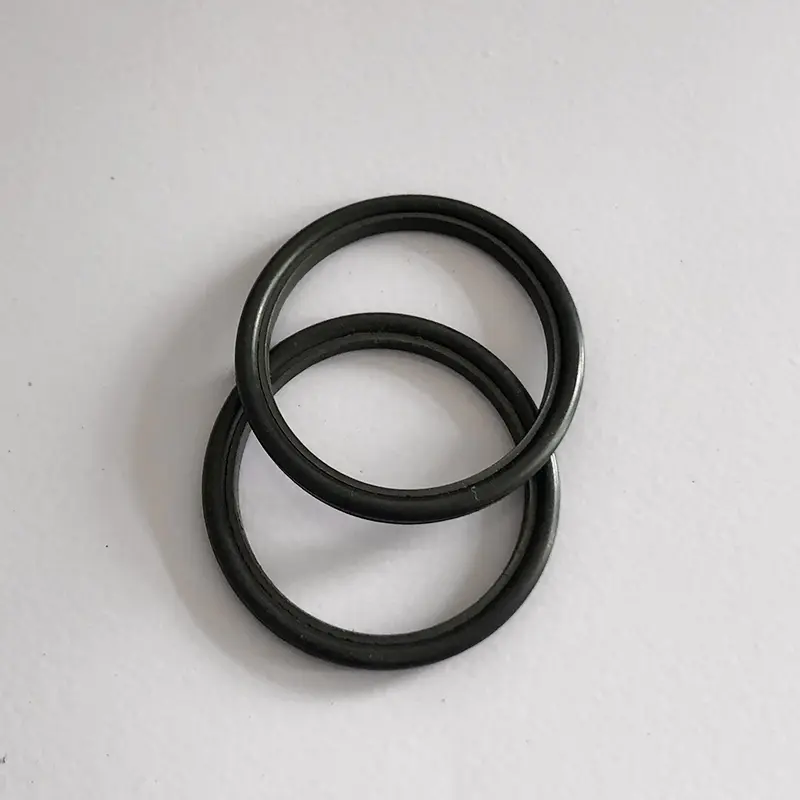

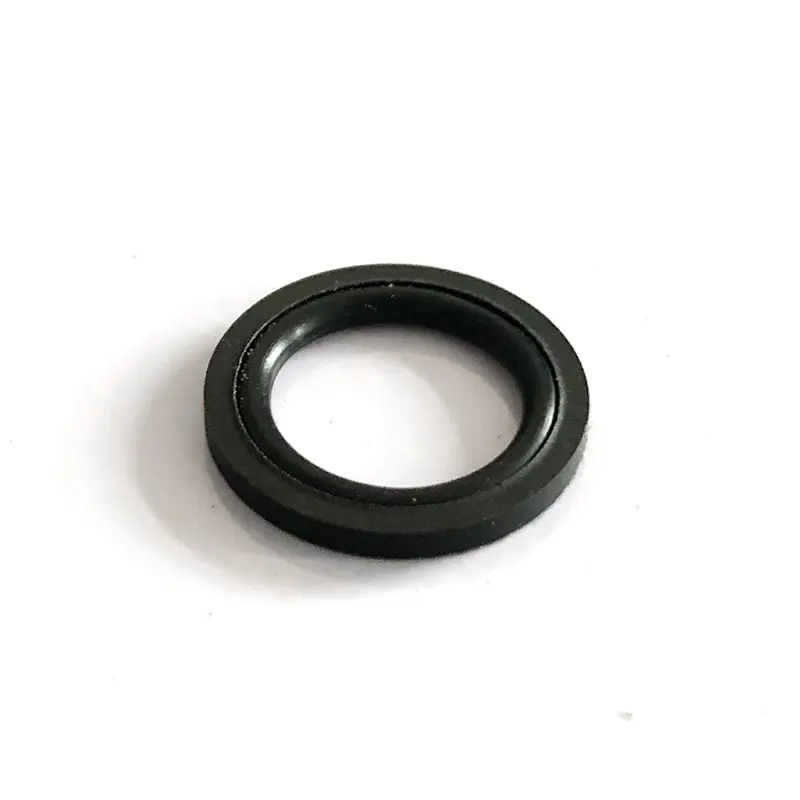

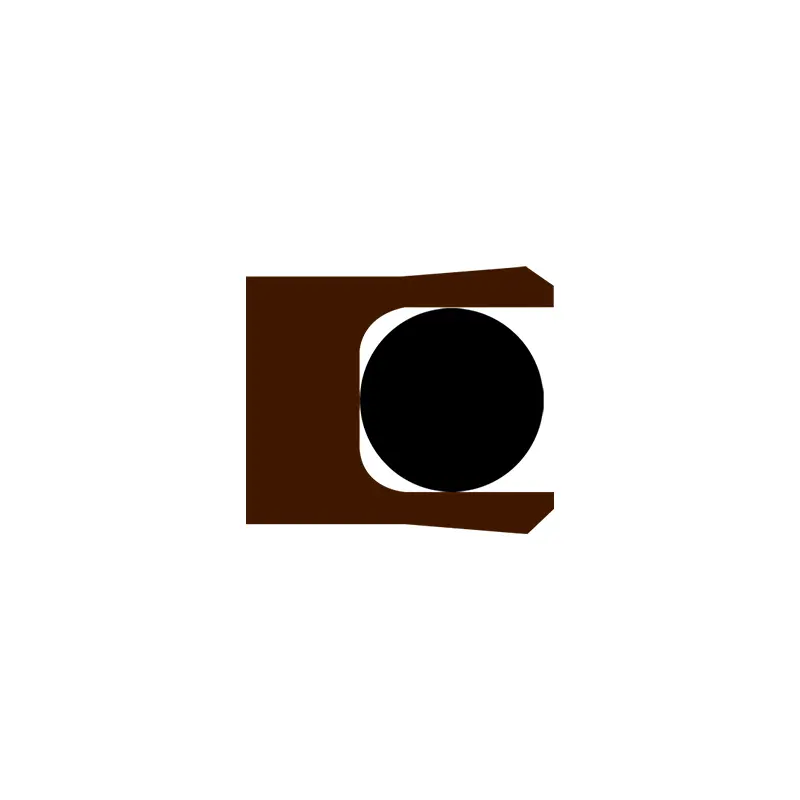

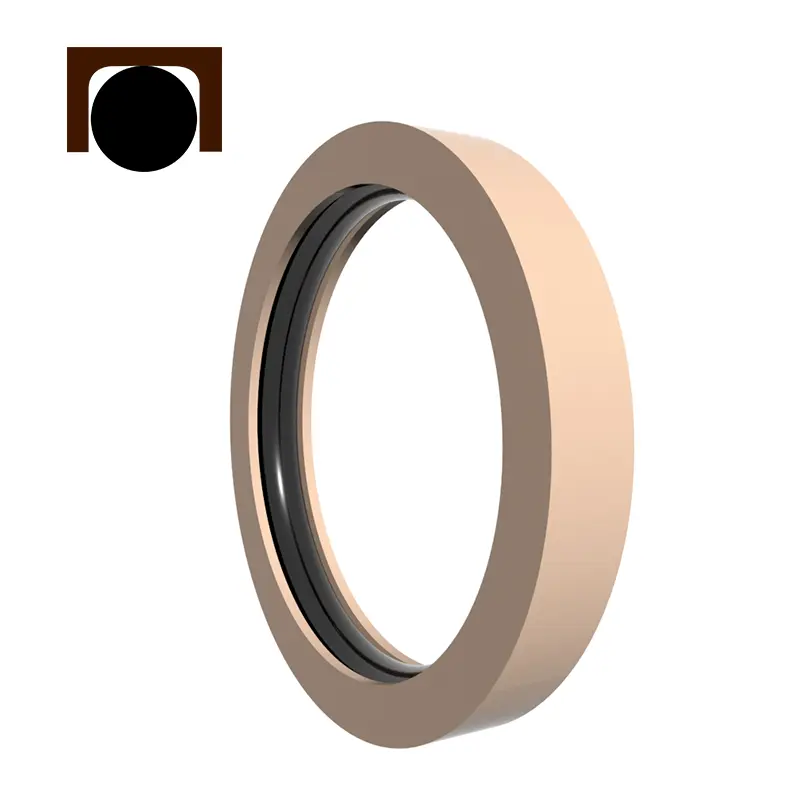

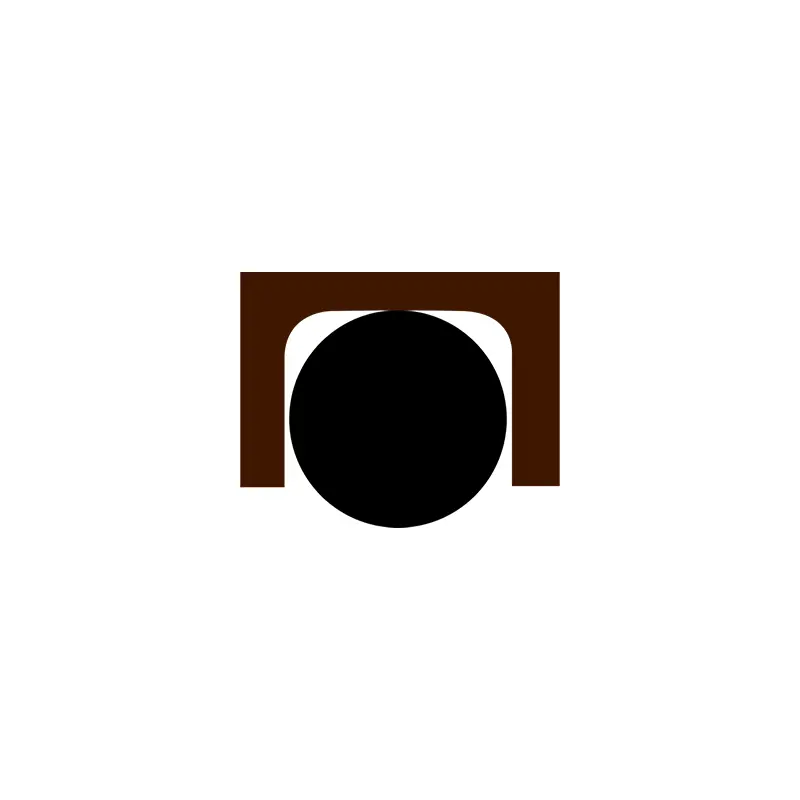

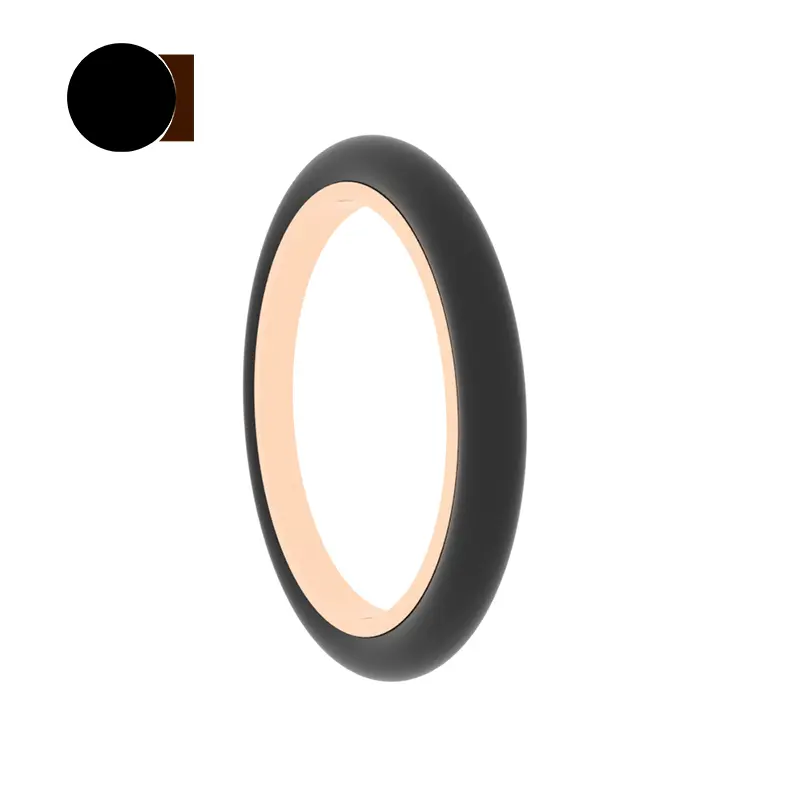

This seal is composed of a PTFE C-shaped sealing ring and an O-ring. The O-ring is pre-compressed to generate a clamping force to achieve sealing. The clamping force of the seal increases under pressure, that is, the higher the pressure, the better the sealing. Since the slip ring adopts a double-sided rib structure, the O-ring will not be squeezed out and can withstand high pressure.
RC2873
RC2874

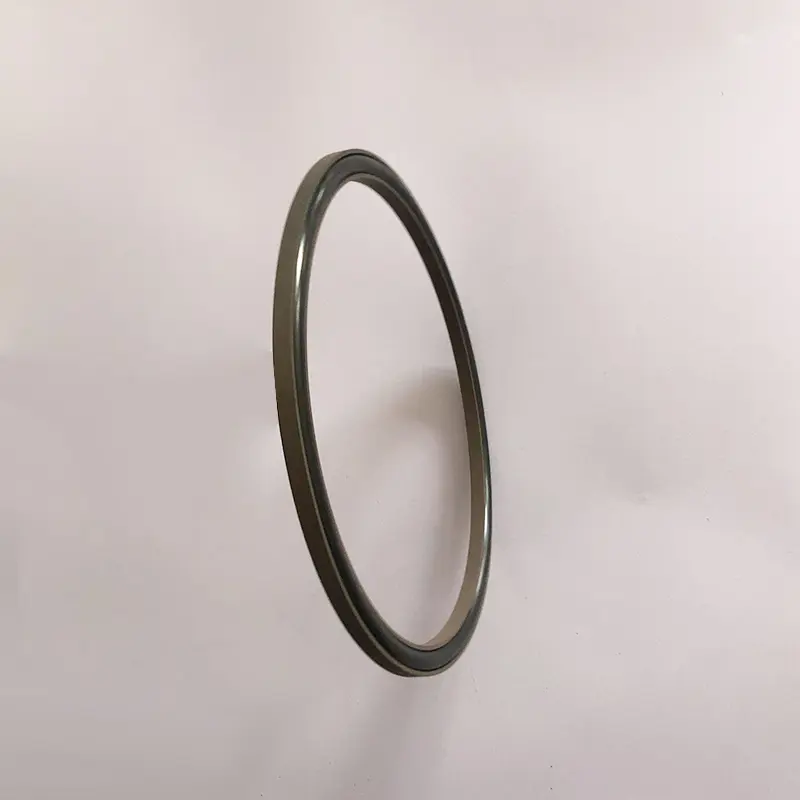

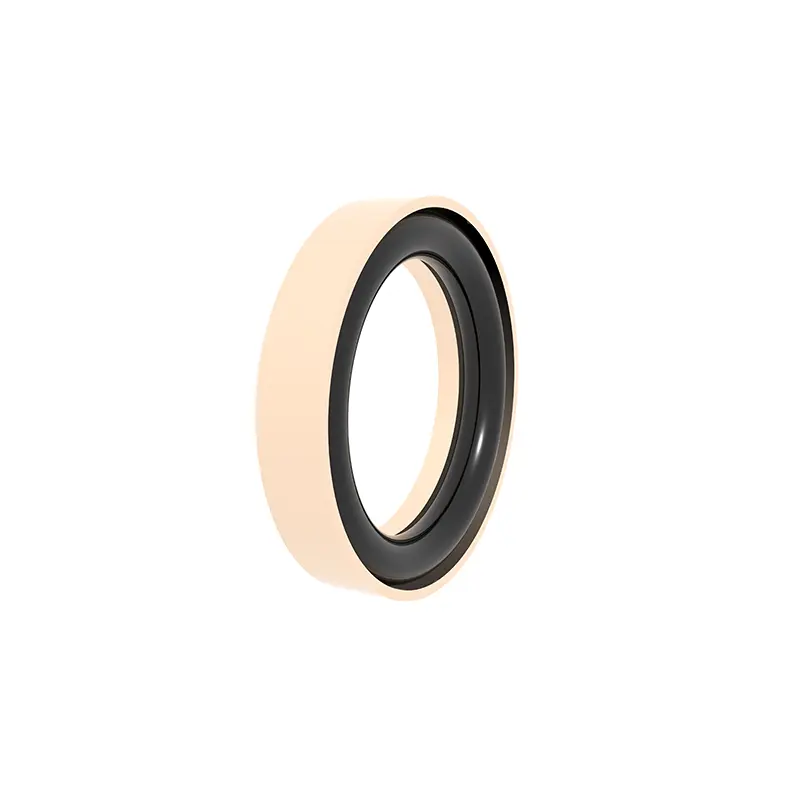

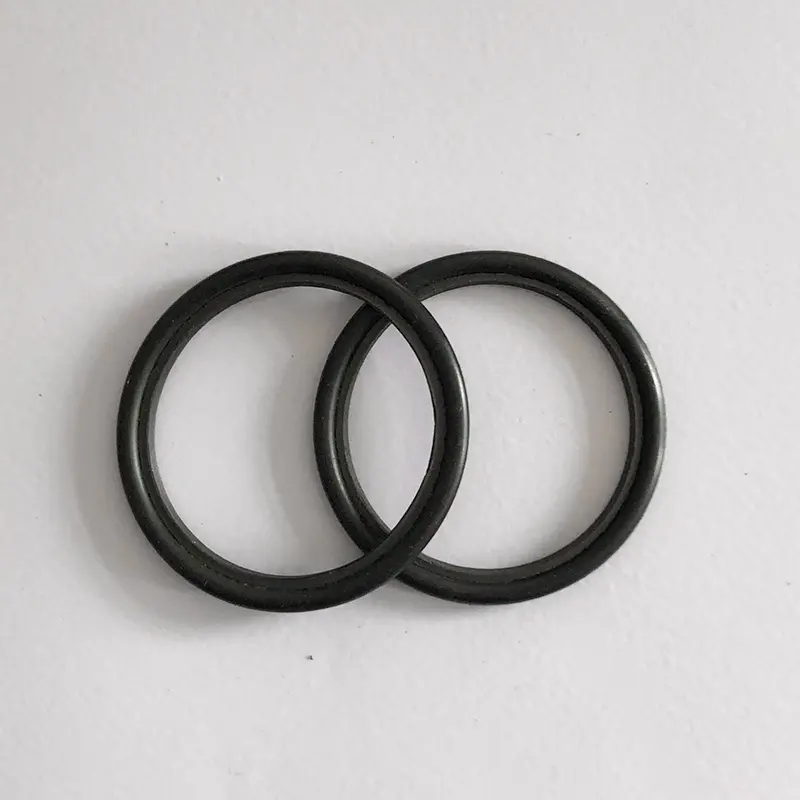

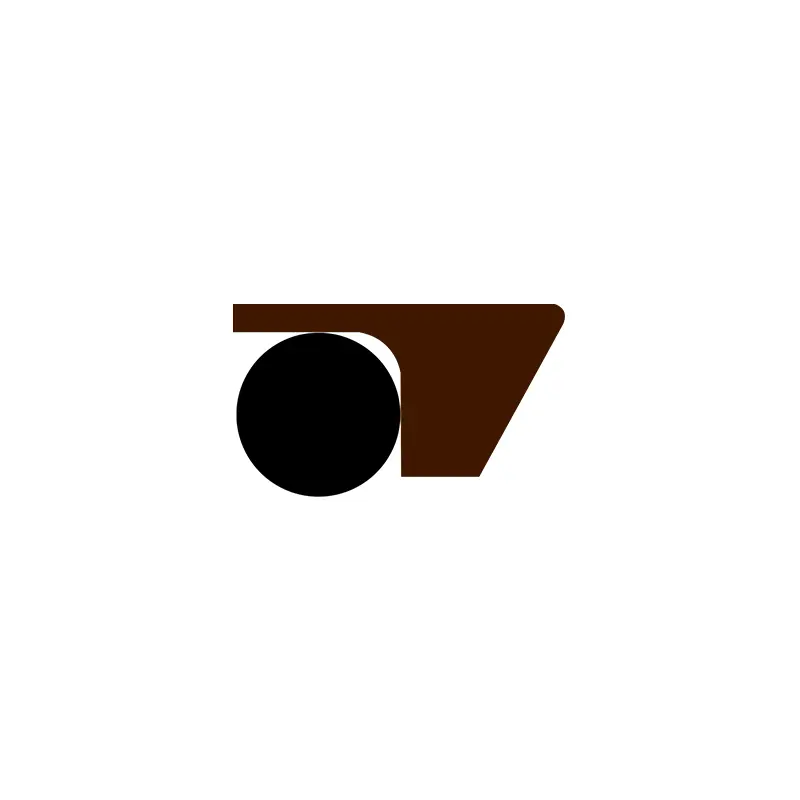

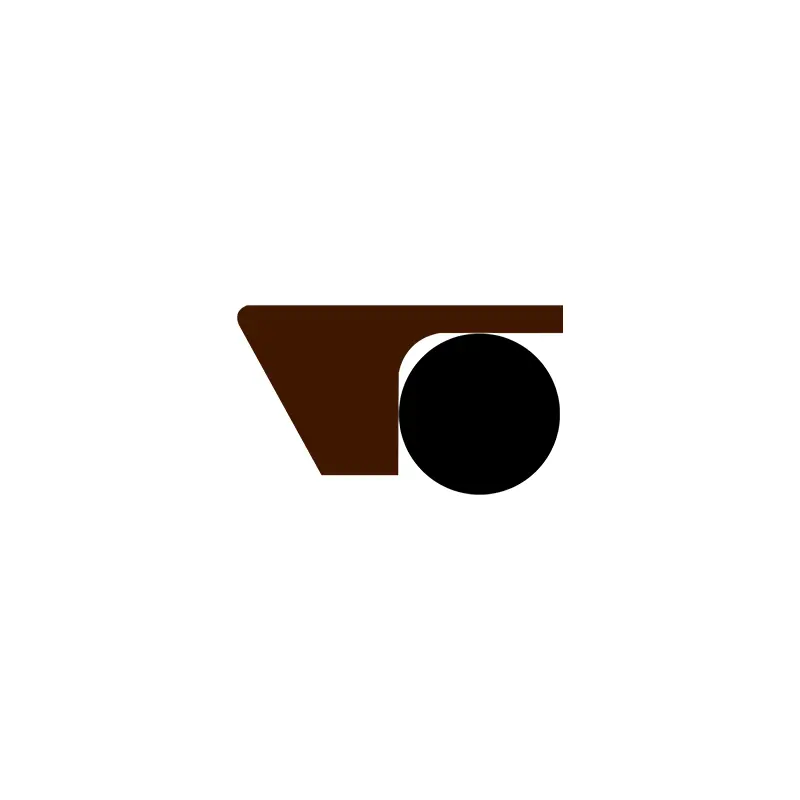

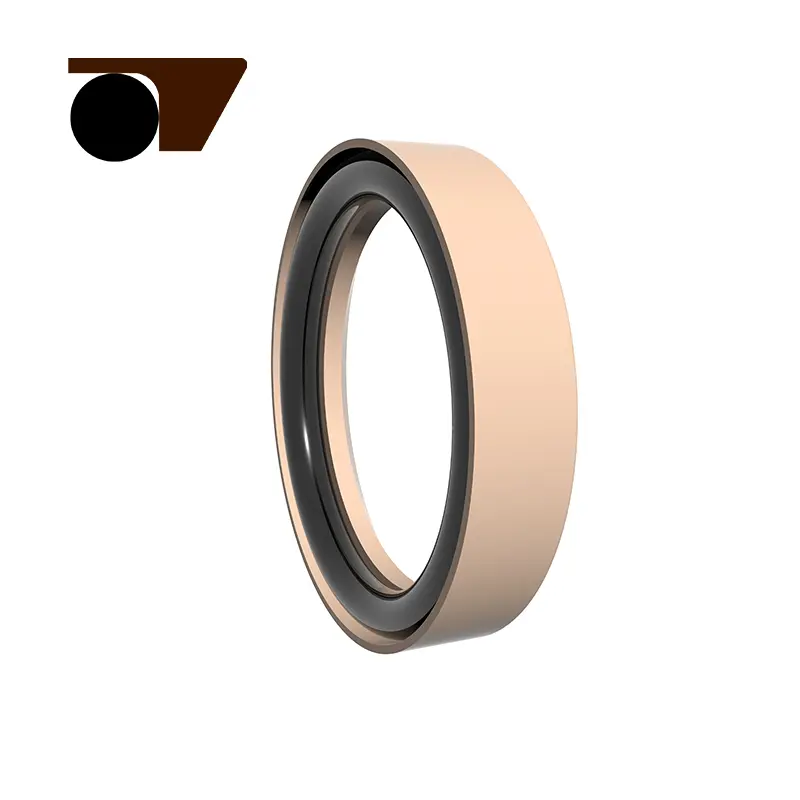

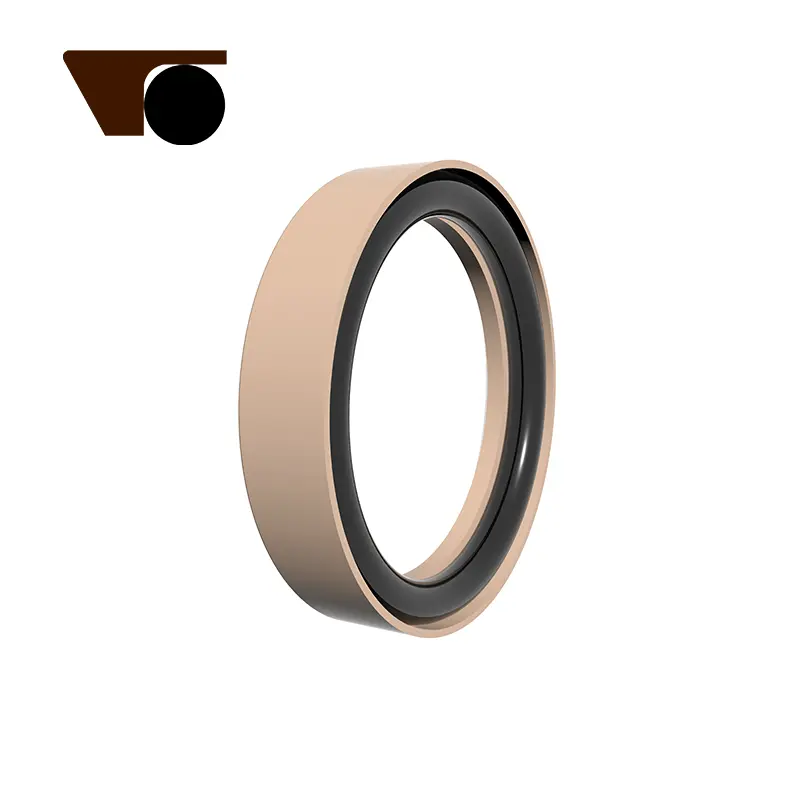

This seal is composed of a foot-shaped sealing ring made of modified PTFE material and an O-ring. The O-ring is pre-compressed to generate a clamping force to achieve sealing. The clamping force of the seal increases under pressure, that is, the higher the pressure, the better the sealing. Since the slip ring adopts a side foot-shaped rib structure, the O-ring will not be squeezed out and can withstand high and ultra-high pressure.
Specifications:

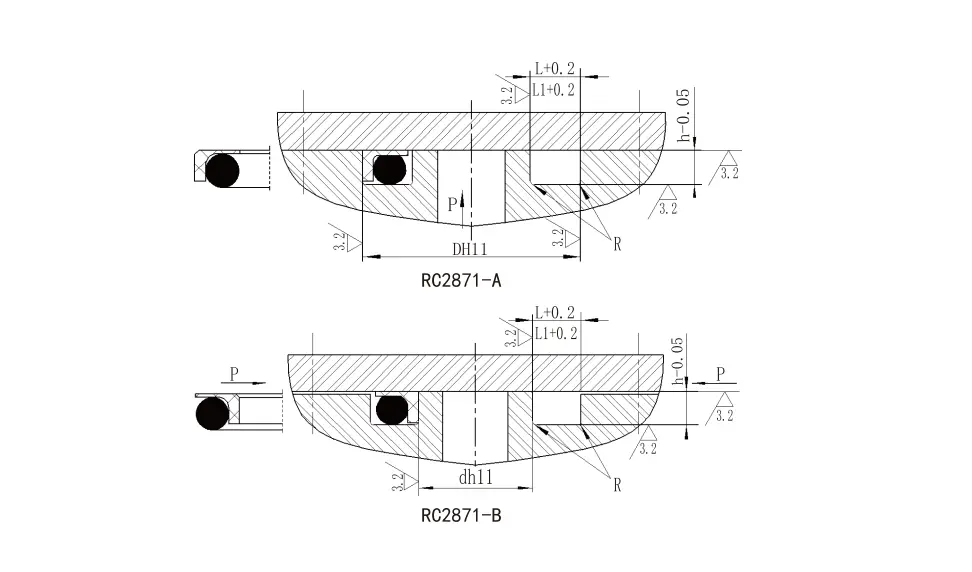

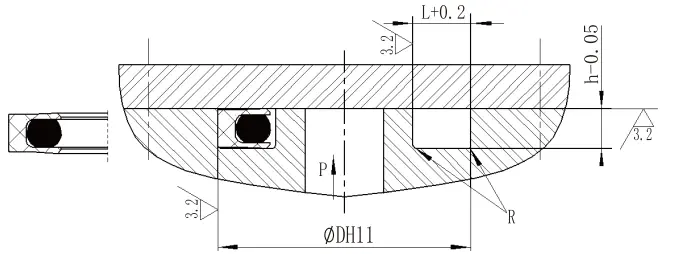

| RC2871-A Internal Pressure Type Specifications (All specifications within the parameter range are available) | |||||
|
Outer diameter range D H11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Groove width
L1+0.2 pressure>80MPA |
Rounded corners Rmax |
O-ring wire diameter dO |
| 12~30 | 2.35 | 4.5 | 6.8 | 0.4 | 2.65 |
| 31~50 | 3.10 | 5.6 | 8.0 | 0.4 | 3.55 |
| 51~127 | 4.65 | 7.6 | 11.0 | 0.5 | 5.30 |
| 128~499 | 6.25 | 10.2 | 12.6 | 0.6 | 7.00 |
| 500~1600 | 7.50 | 12.5 | 15.0 | 0.7 | 8.60 |
| RC2871-B External Pressure Type Specifications (All specifications within the parameter range are available) | |||||
| Outer diameter range Dh11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Groove width L1+0.2 pressure>80MPA |
Rounded corners Rmax |
O-ring wire diameter dO |
| 5~30 | 2.35 | 4.5 | 6.8 | 0.4 | 2.65 |
| 31~50 | 3.10 | 5.6 | 8.0 | 0.4 | 3.55 |
| 51~127 | 4.65 | 7.6 | 11.0 | 0.5 | 5.30 |
| 128~499 | 6.25 | 10.2 | 12.6 | 0.6 | 7.00 |
| 500~1600 | 7.50 | 12.5 | 15.0 | 0.7 | 8.60 |

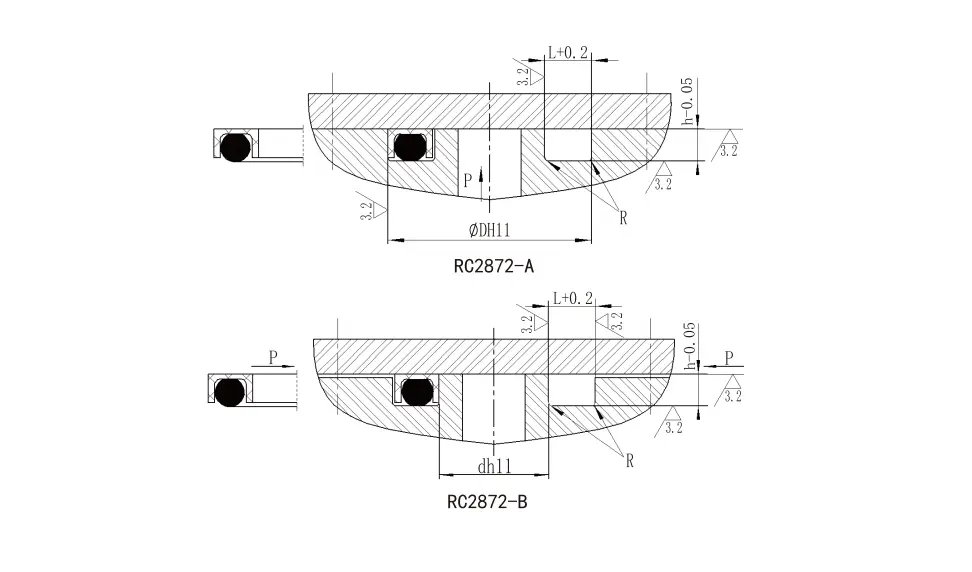

| RC2872-A Internal Pressure Type Specifications (All specifications within the parameter range are available) | ||||
|
Outer diameter range D H11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Rounded corners Rmax |
O-ring wire diameter dO |
| 15~30 | 2.35 | 5.5 | 0.4 | 2.65 |
| 31~50 | 3.10 | 6.6 | 0.4 | 3.55 |
| 51~127 | 4.65 | 9.6 | 0.5 | 5.30 |
| 128~499 | 6.25 | 11.7 | 0.6 | 7.00 |
| 500~1600 | 7.5 | 13.6 | 0.7 | 8.60 |
| RC2872-B External Pressure Type Specifications (All specifications within the parameter range are available) | ||||
|
Outer diameter range d h11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Rounded corners R |
O-ring wire diameter dO |
| 5~30 | 2.35 | 5.5 | 0.4 | 2.65 |
| 31~50 | 3.10 | 6.6 | 0.4 | 3.55 |
| 51~127 | 4.65 | 9.6 | 0.5 | 5.30 |
| 128~499 | 6.25 | 11.7 | 0.6 | 7.00 |
| 500~1600 | 7.50 | 13.6 | 0.7 | 8.60 |
|

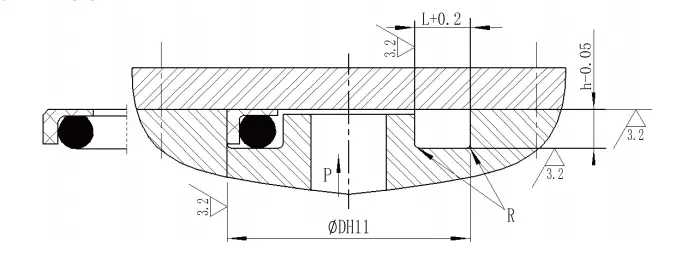

Outer diameter range DH11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Rounded corners Rmax |
O-ring wire diameter dO |
| 15~28 | 2.80 | 5.5 | 0.4 | 2.65 |
| 29~54 | 3.55 | 6.6 | 0.4 | 3.55 |
| 55~128 | 5.30 | 9.1 | 0.5 | 5.30 |
| 129~499 | 7.20 | 11.8 | 0.6 | 7.00 |
| 500~1600 | 8.50 | 13.8 | 0.7 | 8.60 |
|
Outer diameter range DH11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Rounded corners Rmax |
O-ring wire diameter dO |
| 15~26 | 3.4 | 5.5 | 0.4 | 2.65 |
| 27~50 | 4.2 | 6.6 | 0.4 | 3.55 |
| 51~127 | 6.1 | 9.1 | 0.5 | 5.30 |
| 128~499 | 8.0 | 11.8 | 0.6 | 7.00 |
| 500~1600 | 9.5 | 15.5 | 0.7 | 8.60 |

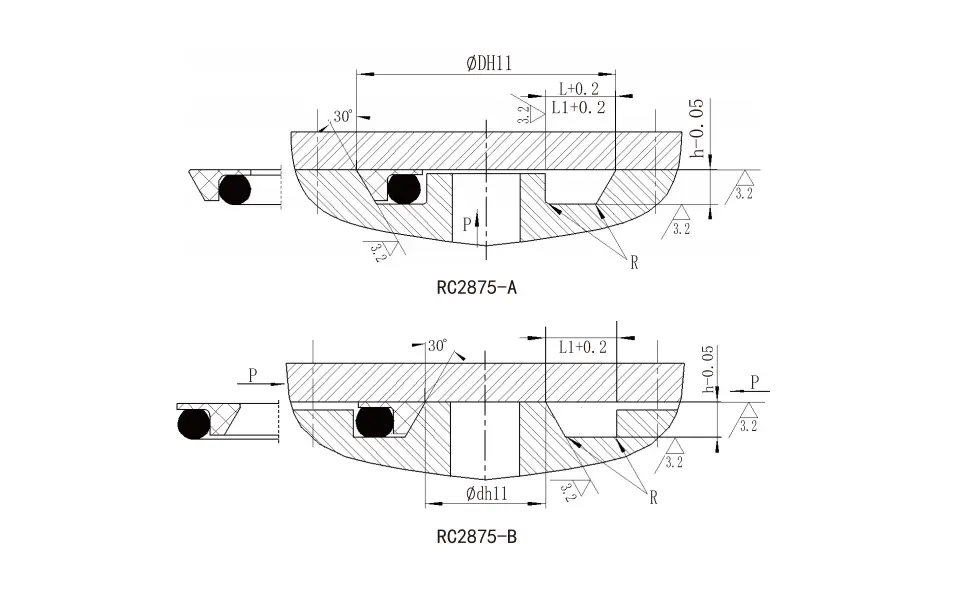

| RC2875-A Internal Pressure Type Specifications (All specifications within the parameter range are available) | |||||
|
Outer diameter range D H11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Groove width L1+0.2 pressure>100MPA |
Rounded corners Rmax |
O-ring wire diameter dO |
| 17~50 | 3.1 | 6.6 | 8.6 | 0.4 | 3.55 |
| 51~127 | 4.6 | 10.0 | 12.0 | 0.5 | 5.30 |
| 128~499 | 6.3 | 13.2 | 15.2 | 0.6 | 7.00 |
| 500~1600 | 7.5 | 15.8 | 17.8 | 0.7 | 8.60 |
| RC2875-B External Pressure Type Specifications (All specifications within the parameter range are available) | |||||
|
Outer diameter range D H11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Groove width L1+0.2 pressure>100MPA |
Rounded corners Rmax |
O-ring wire diameter dO |
| 5~40 | 3.1 | 6.6 | 8.6 | 0.4 | 3.55 |
| 41~127 | 4.6 | 10.0 | 12.0 | 0.5 | 5.30 |
| 128~499 | 6.3 | 13.2 | 15.2 | 0.6 | 7.00 |
| 500~1600 | 7.5 | 15.8 | 17.8 | 0.7 | 8.60 |
| High pressure end flange seals applicable working conditions | ||||
| Profile | Model |
Pressure (MPa) |
Temperature (℃) | Media |
 |
RC2871-A | ≤300 | -35~+100(matching O-ring NBR) | Hydraulic oil, emulsion, water, gas, etc. |
| -20~+200(matching O-ring FKM) | ||||
 |
RC2871-B | ≤300 | -35~+100(matching O-ring NBR) | Hydraulic oil, emulsion, water, gas, etc. |
| -20~+200(matching O-ring FKM) | ||||
 |
RC2872-A | ≤100 | -35~+100(matching O-ring NBR) | Hydraulic oil, emulsion, water, gas, etc. |
| -20~+200(matching O-ring FKM) | ||||
 |
RC2872-B | ≤100 | -35~+100(matching O-ring NBR) | Hydraulic oil, emulsion, water, gas, etc. |
| -20~+200(matching O-ring FKM) | ||||
 |
RC2873 | ≤200 | -35~+100(matching O-ring NBR) | Hydraulic oil, emulsion, water, gas, etc. |
| -20~+200(matching O-ring FKM) | ||||
 |
RC2874 | ≤300 | -35~+100(matching O-ring NBR) | Hydraulic oil, emulsion, water, gas, etc. |
| -20~+200(matching O-ring FKM) | ||||
 |
RC2875-A | ≤300 | -35~+100(matching O-ring NBR) | Hydraulic oil, emulsion, water, gas, etc. |
| -20~+200(matching O-ring FKM) | ||||
 |
RC2875-B | ≤300 | -35~+100(matching rectangular ring NBR) | Hydraulic oil, emulsion, water, gas, etc. |
| -20~+200(matching rectangular ring FKM) | ||||
 |
RC2879-A | 105 | -35~+100(matching rectangular ring NBR) | Hydraulic oil, emulsion, water, gas, etc. |
| -20~+200(matching O-ring FKM) | ||||
 |
RC2875-B | 105 |
-35~+100(matching O-ring NBR) -20~+200(matching O-ring FKM) |
Hydraulic oil, emulsion, water, gas, etc. |
