High Pressure Piston Rod Seals

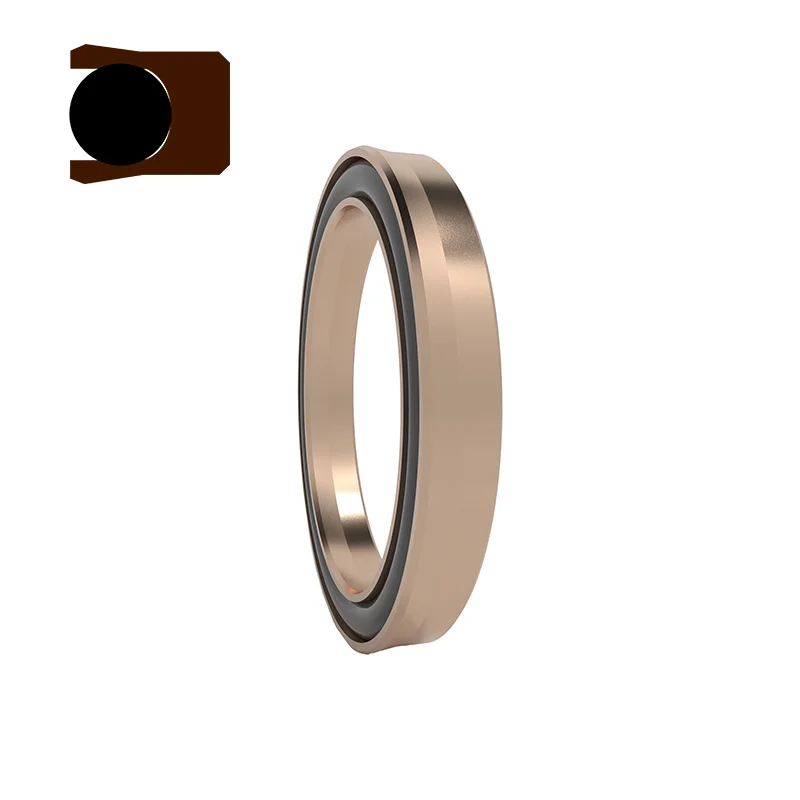

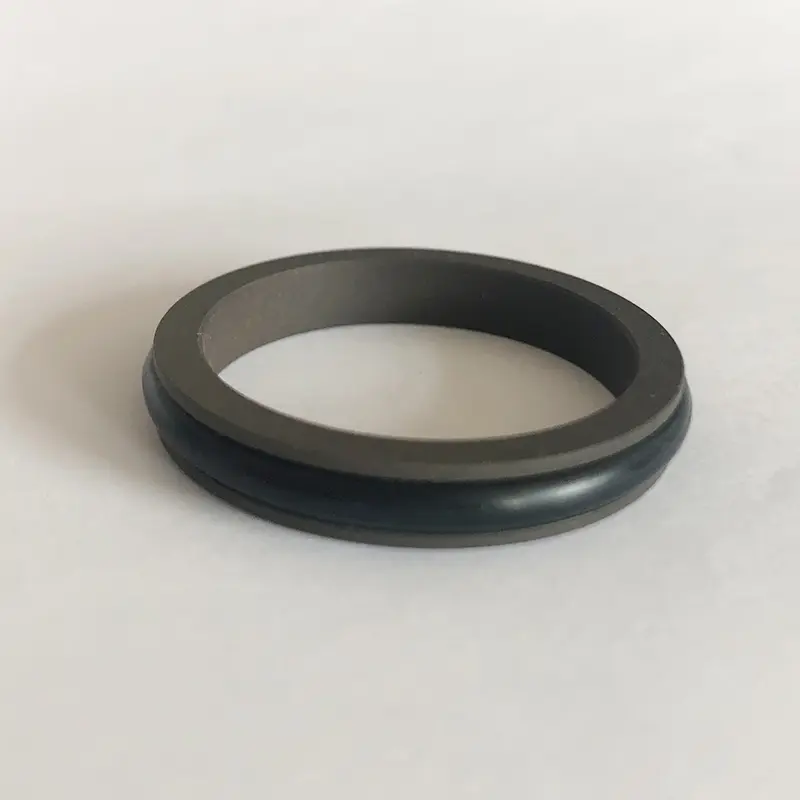

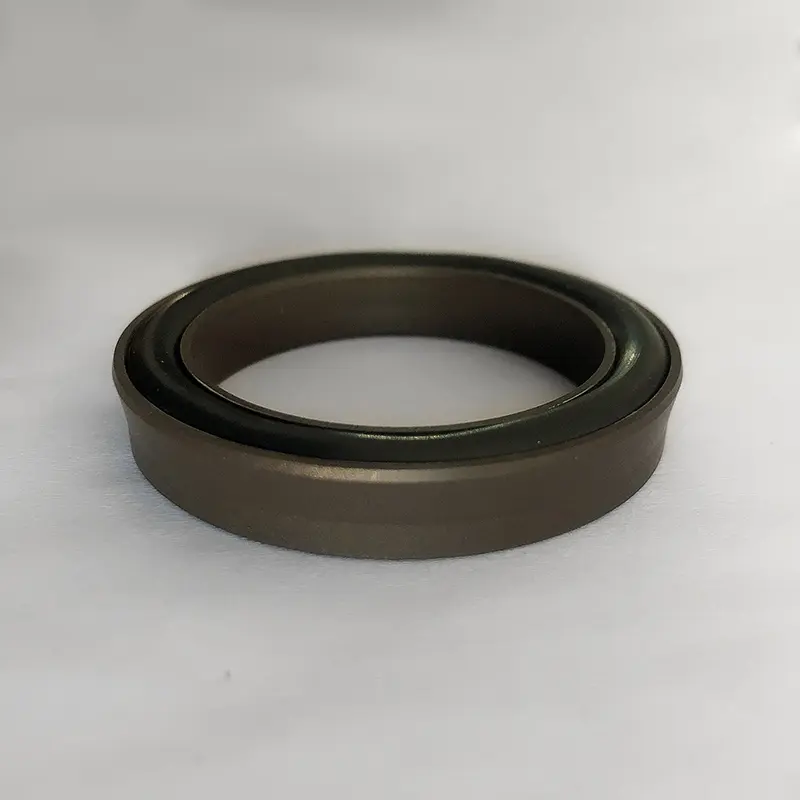

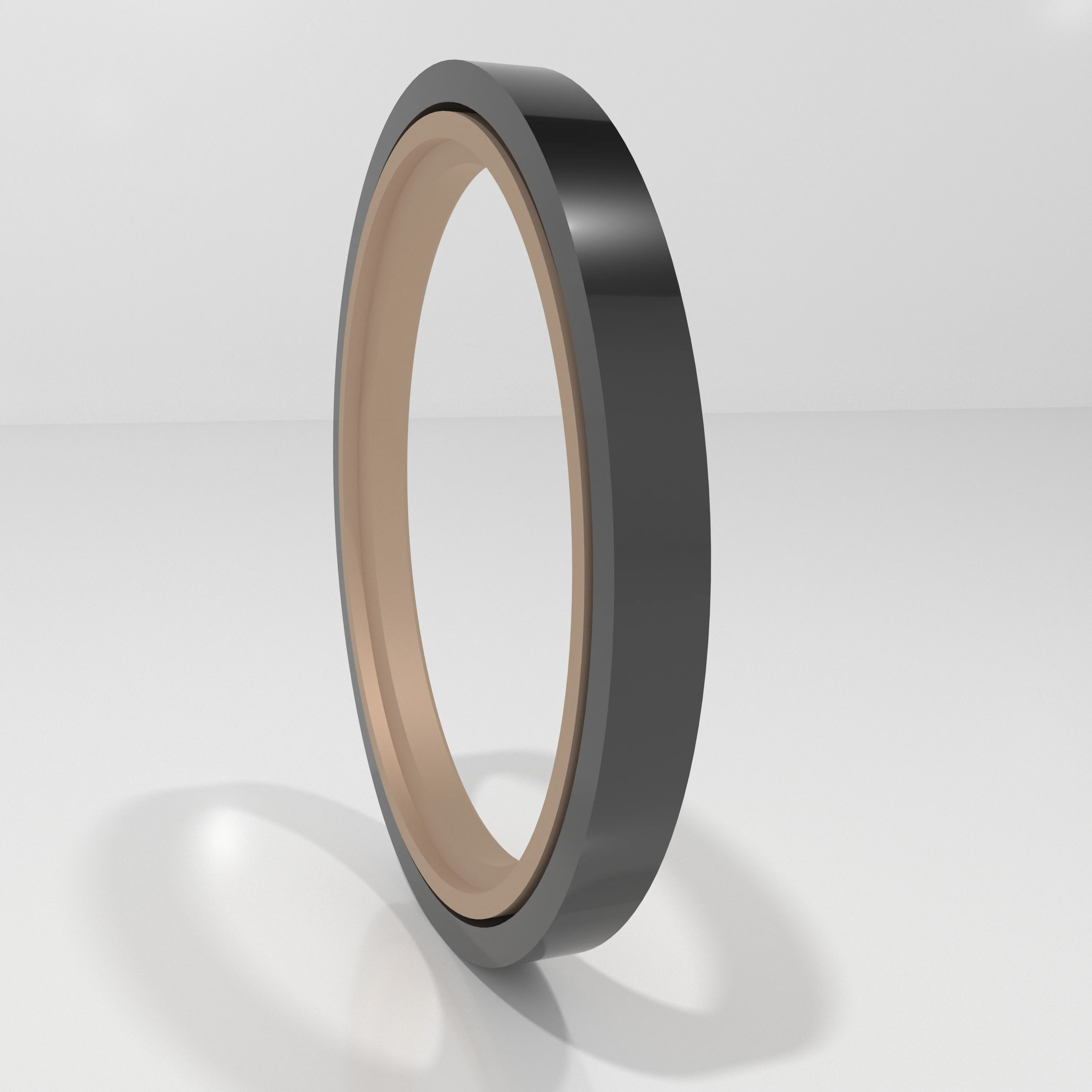

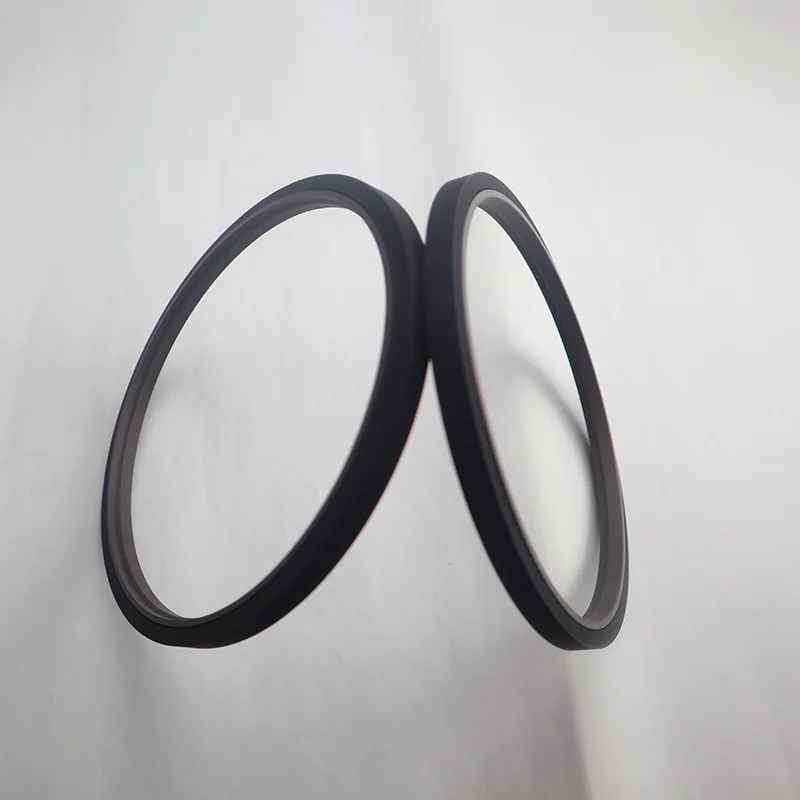

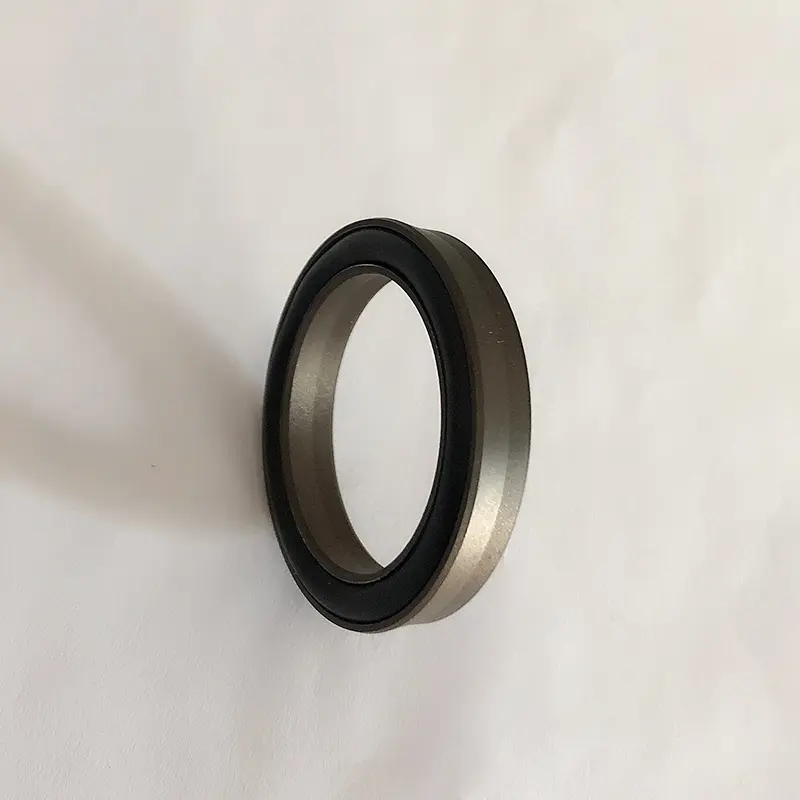

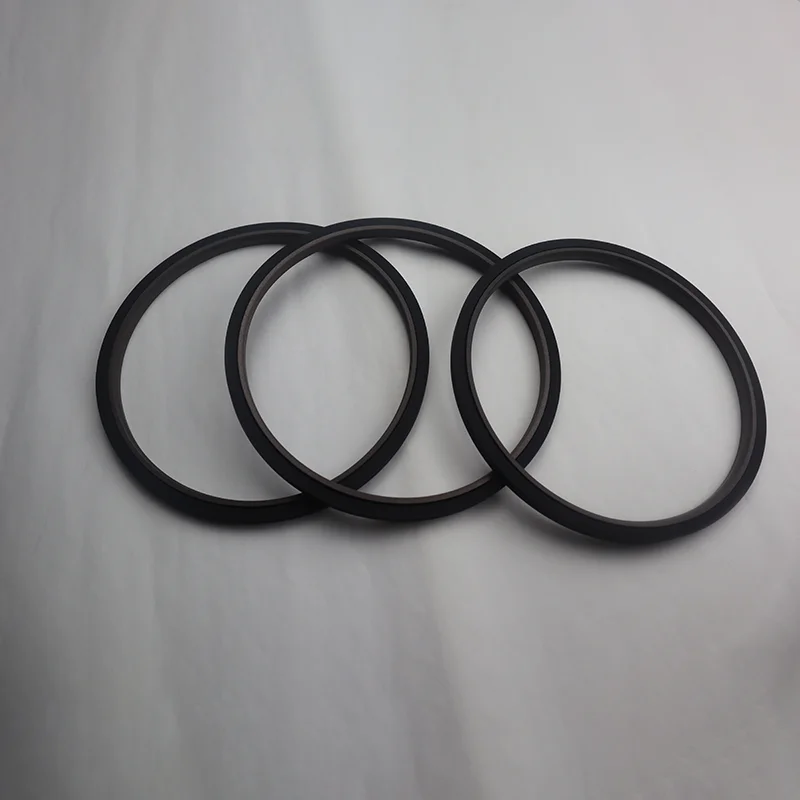

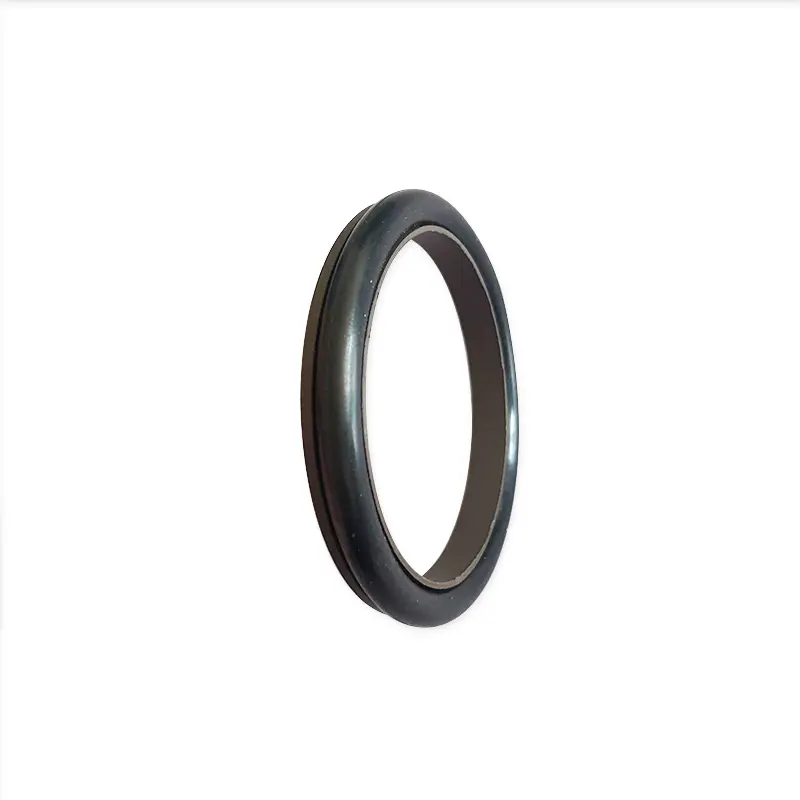

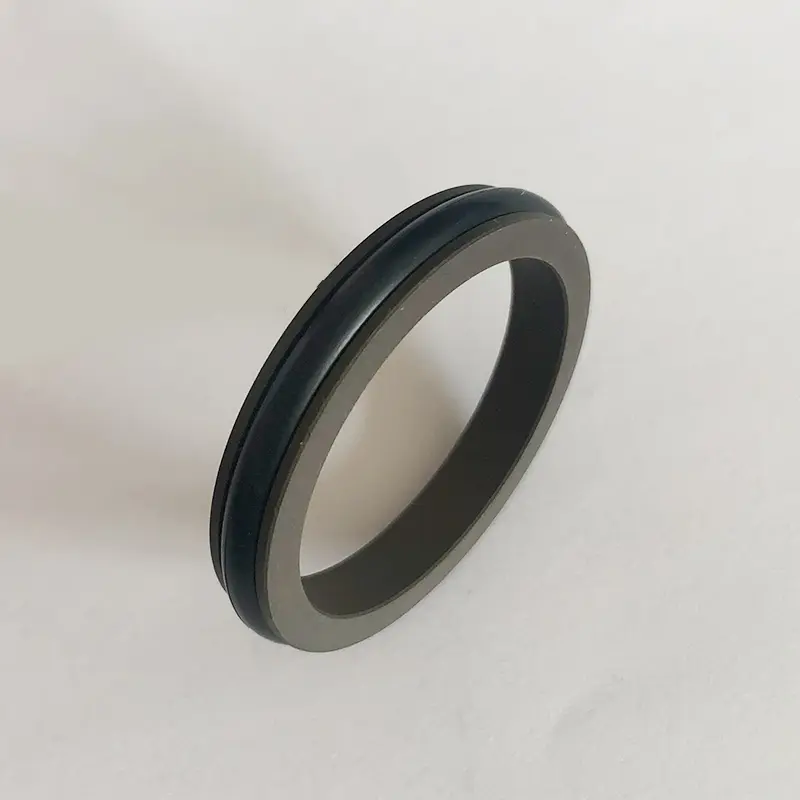

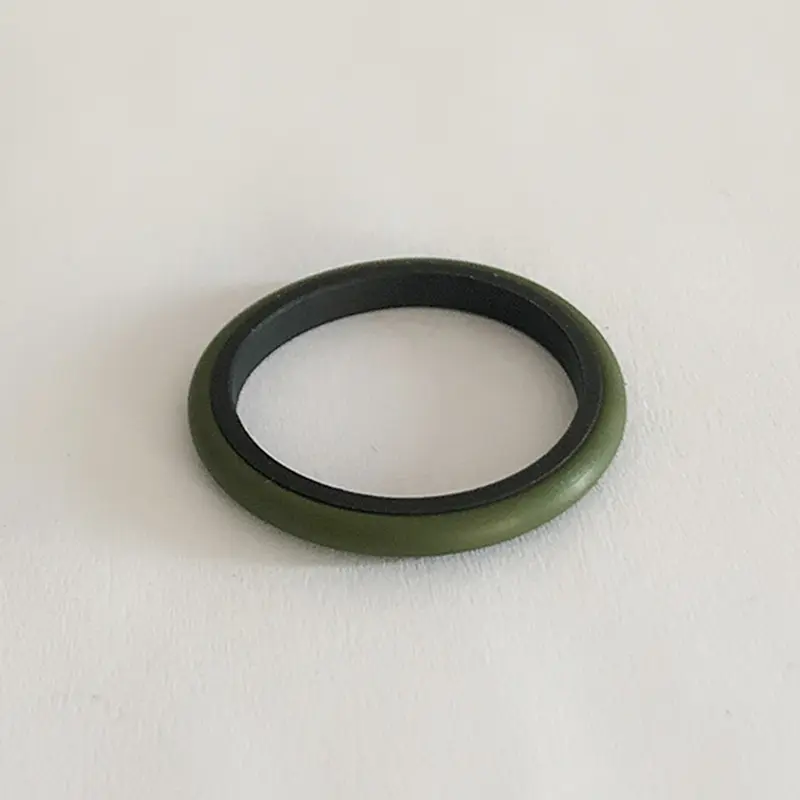

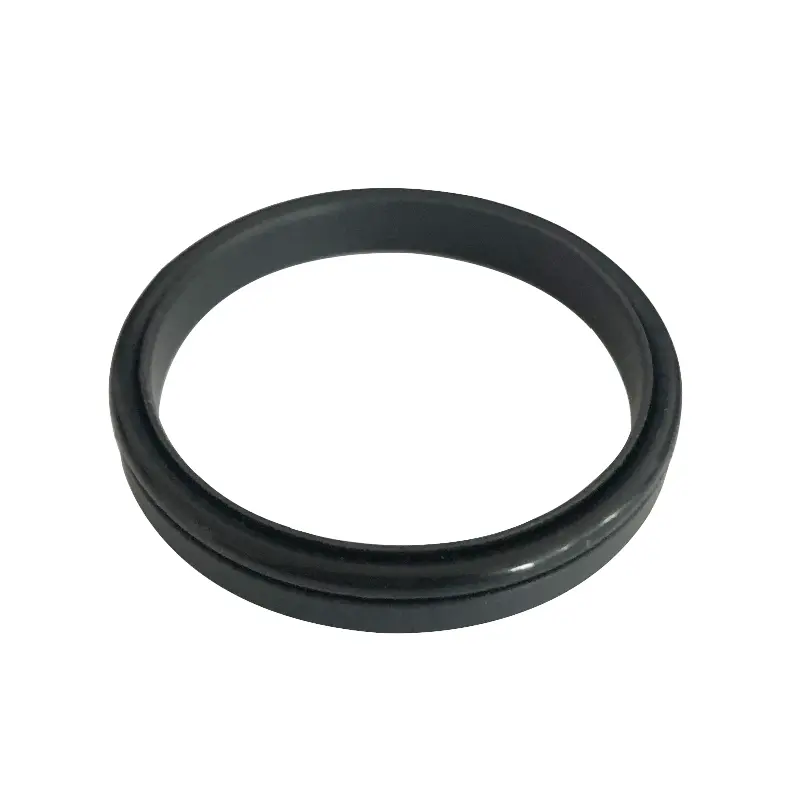

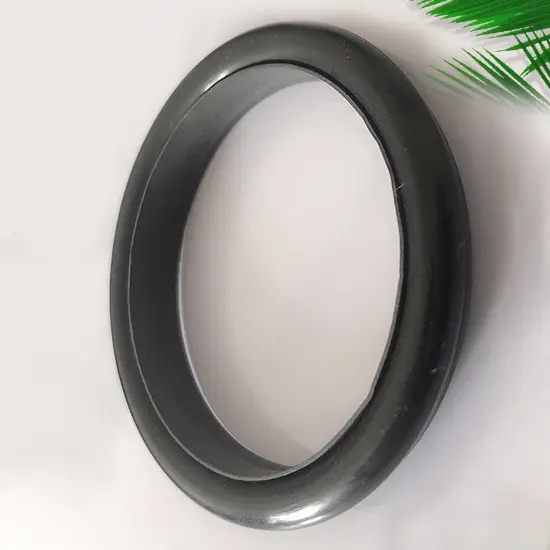

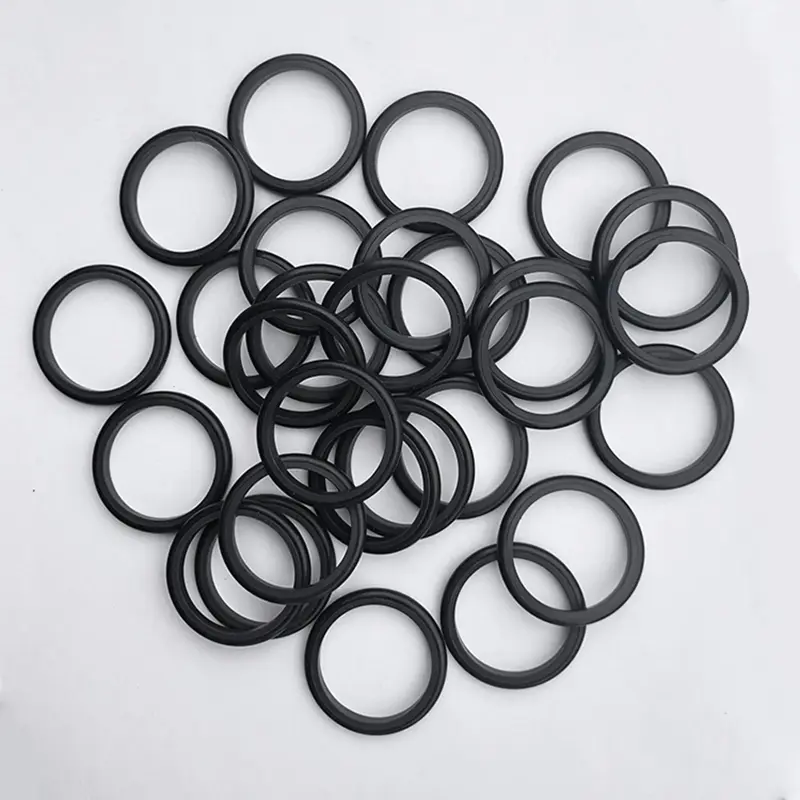

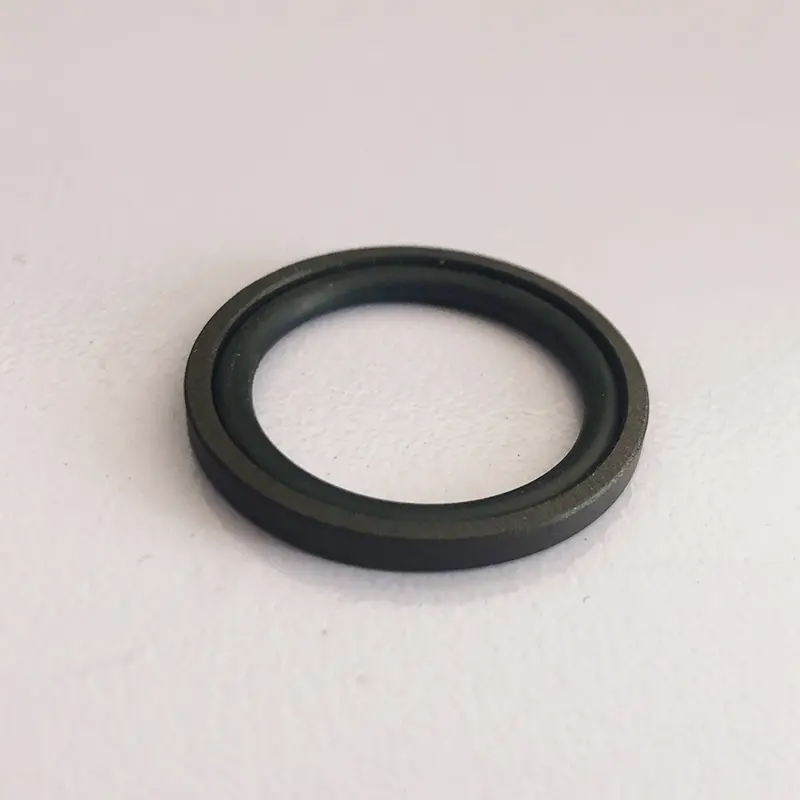

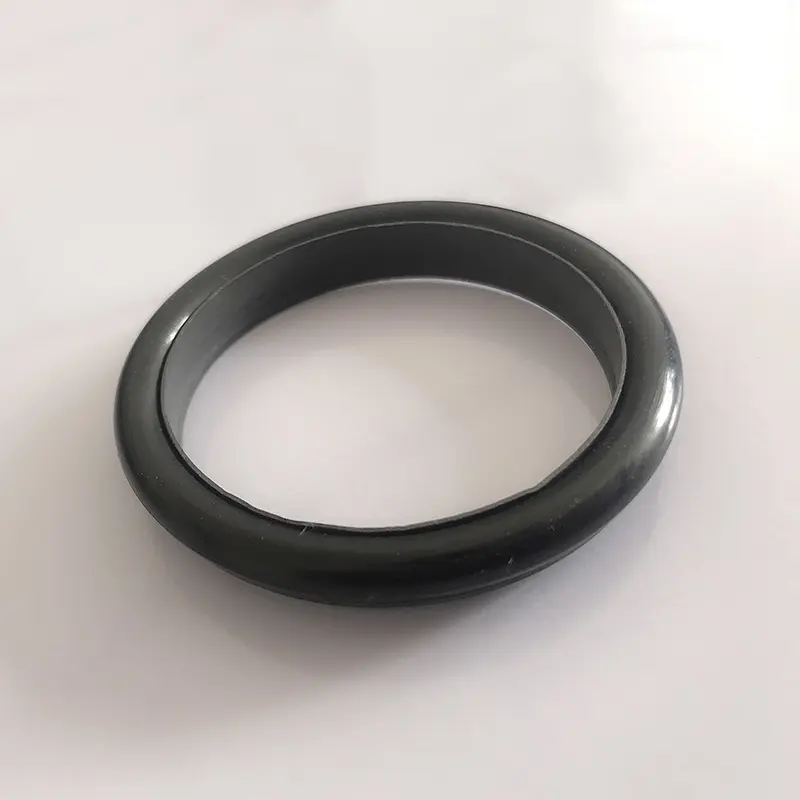

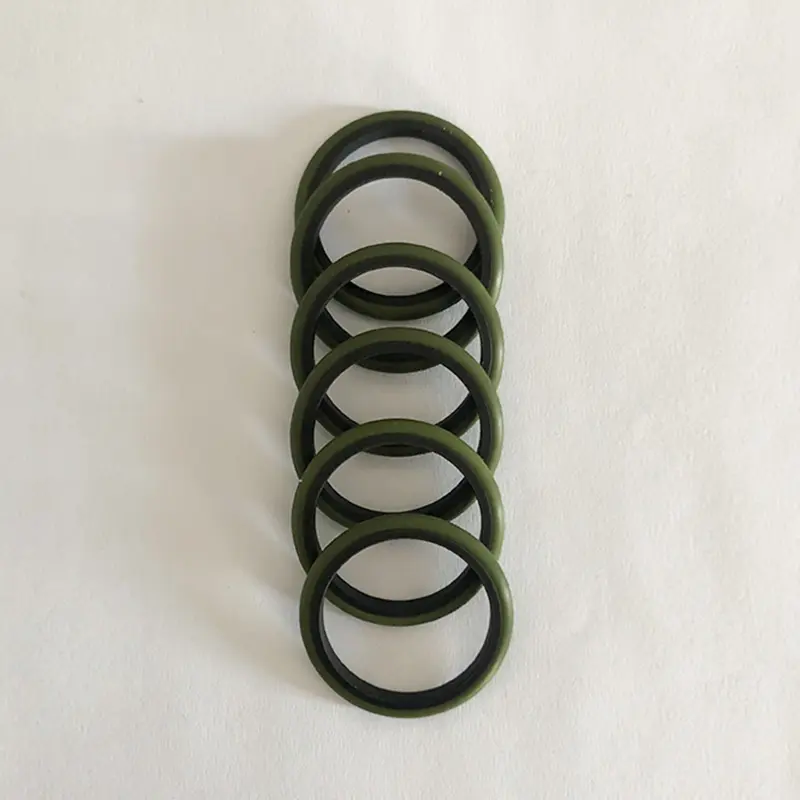

High Pressure Piston Rod Seals is a high pressure sealing product of Ruichen Seals. We are a professional seal manufacturer and supplier. This product is composed of a PTFE sealing ring and an O-shaped rubber ring, which is suitable for hydraulic reciprocating motion one-way sealing. We are very willing to provide you with more product information and quotations, please feel free to contact us.

Send Inquiry

Product Description

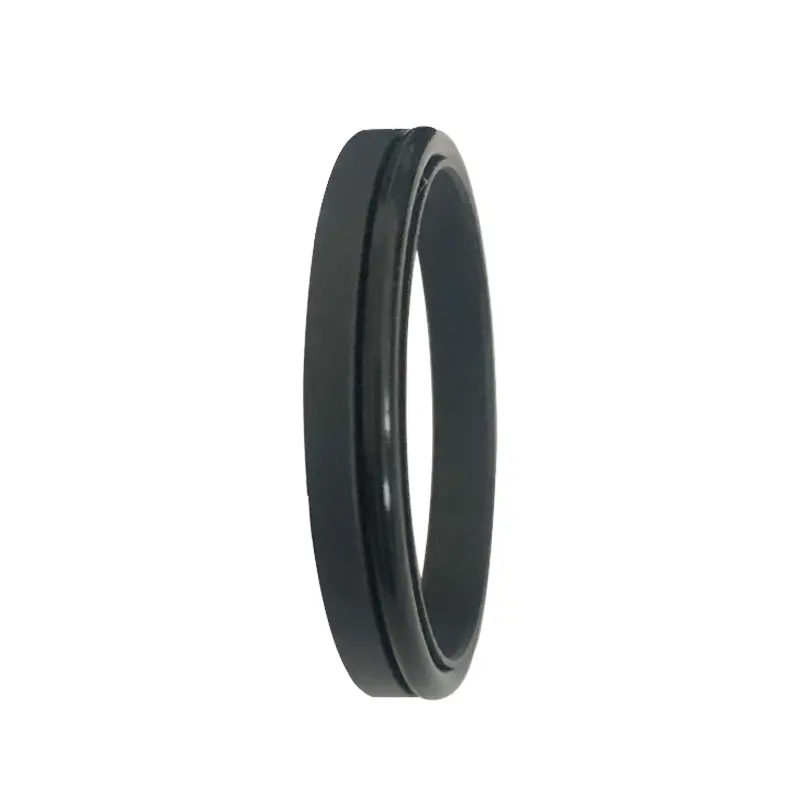

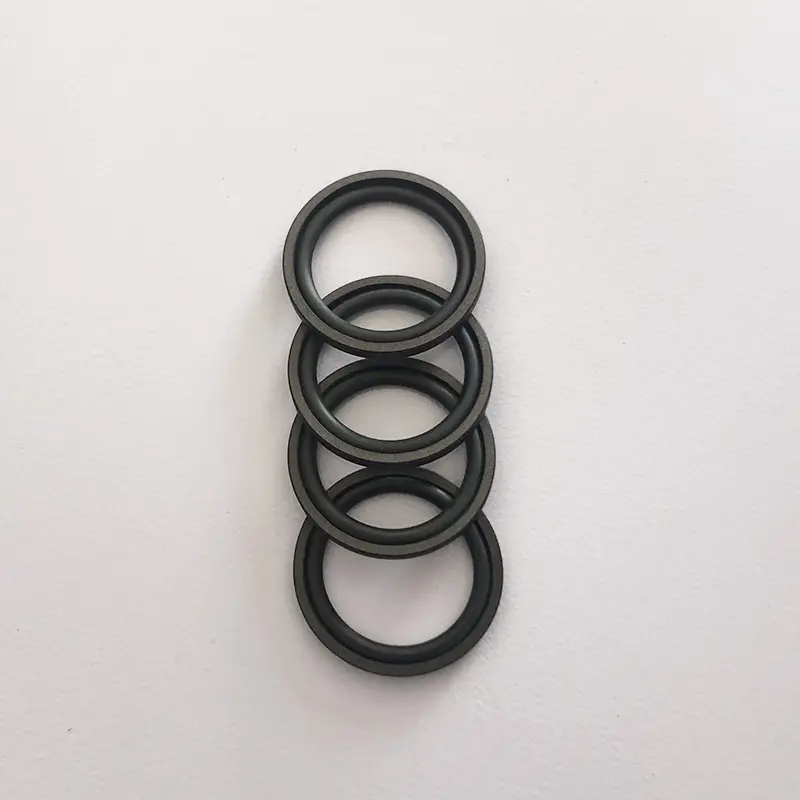

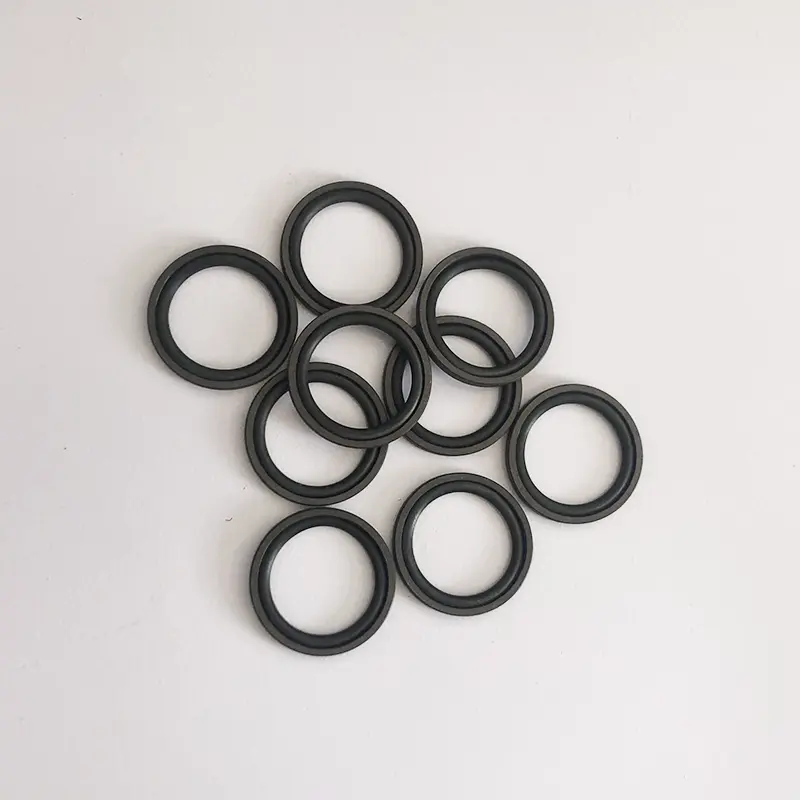

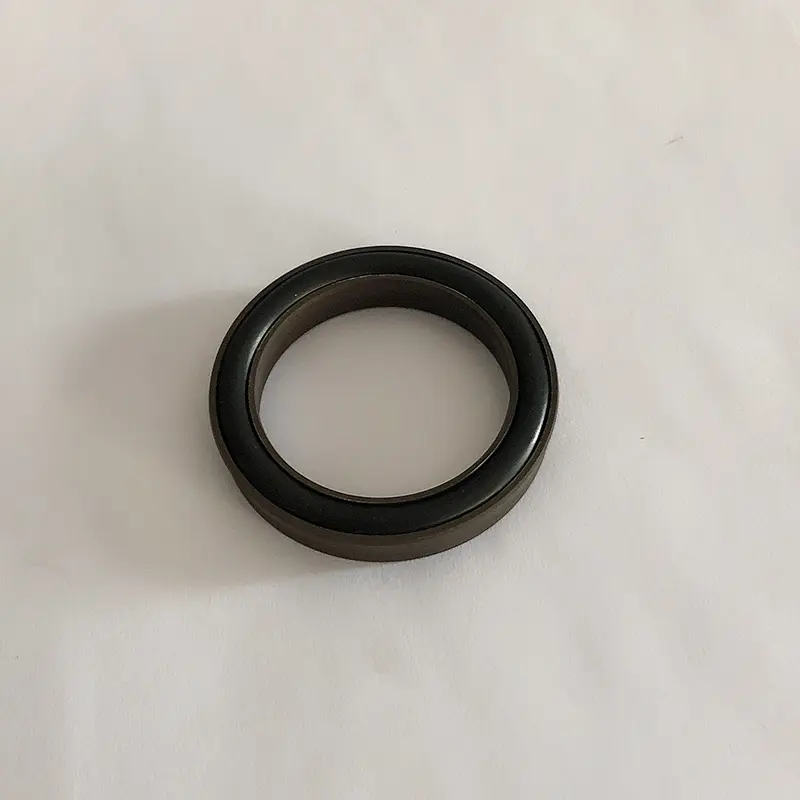

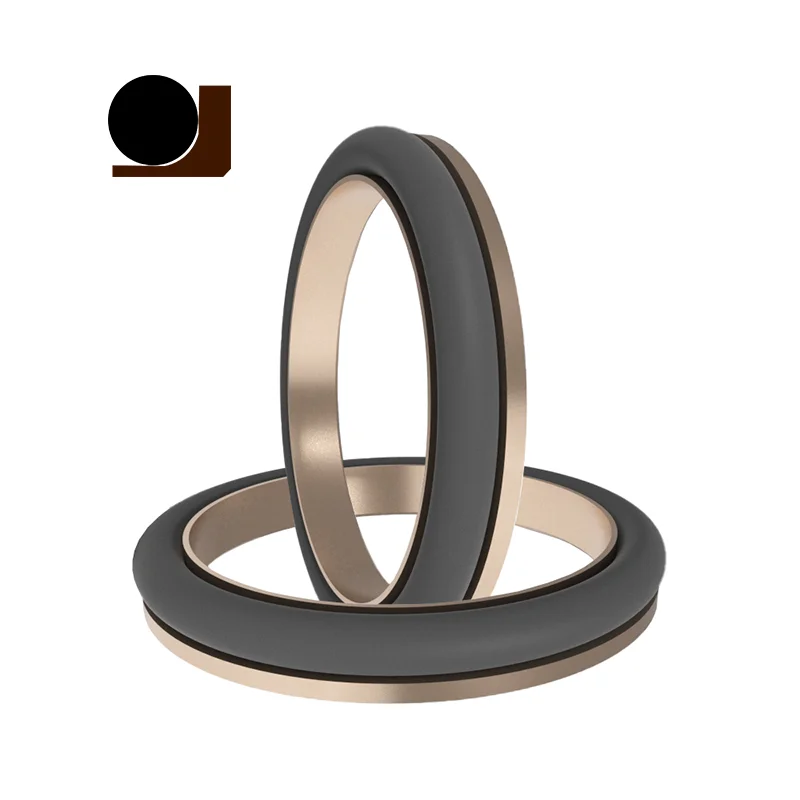

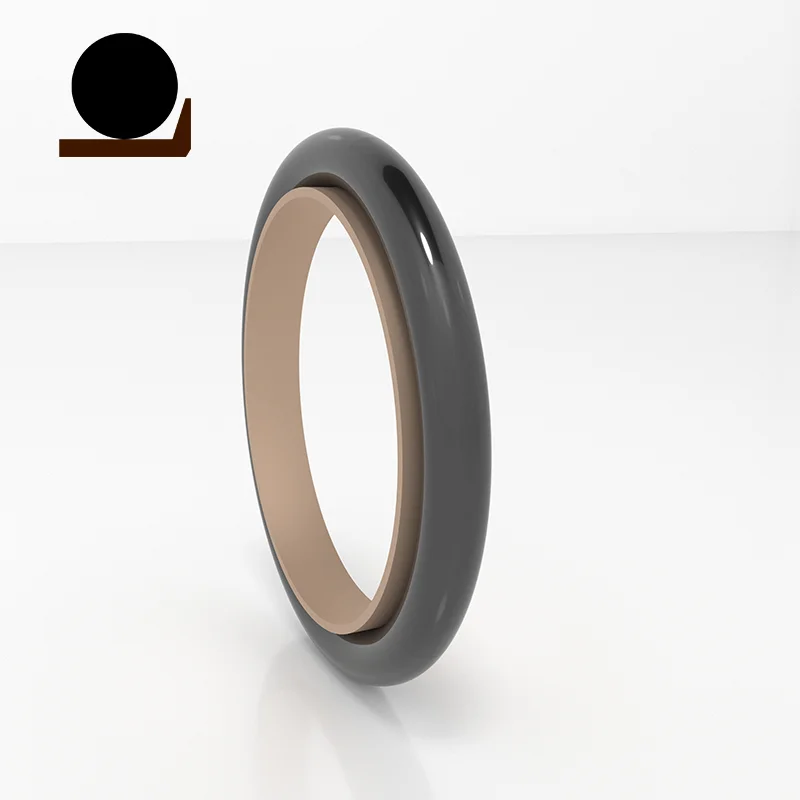

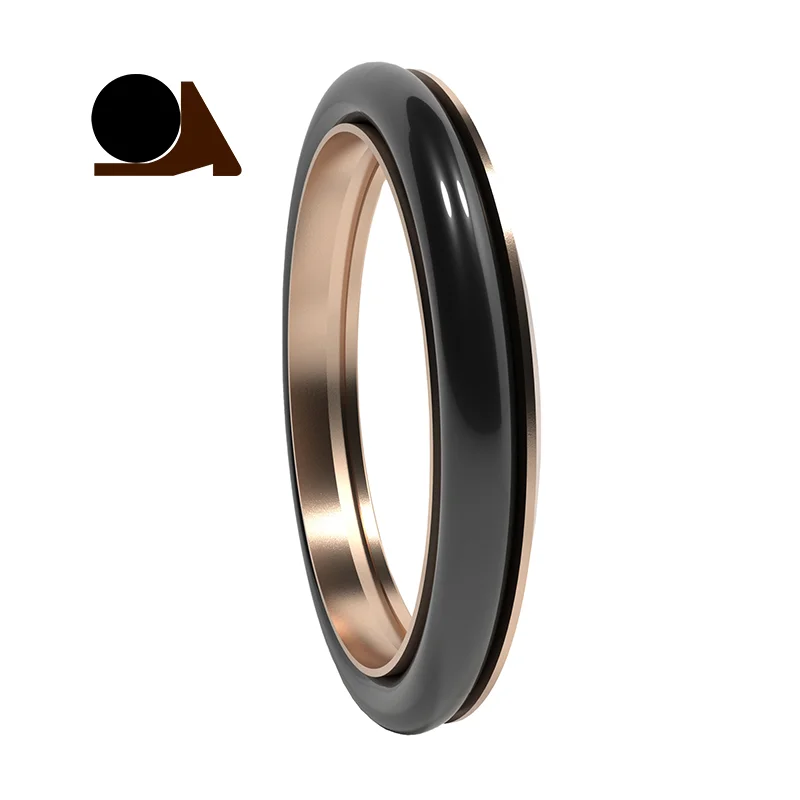

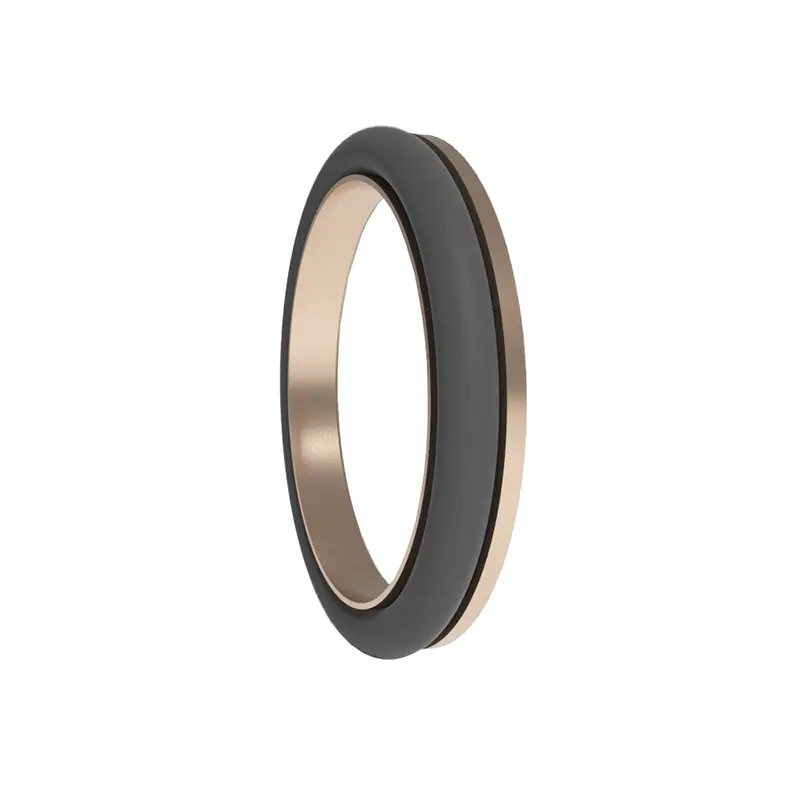

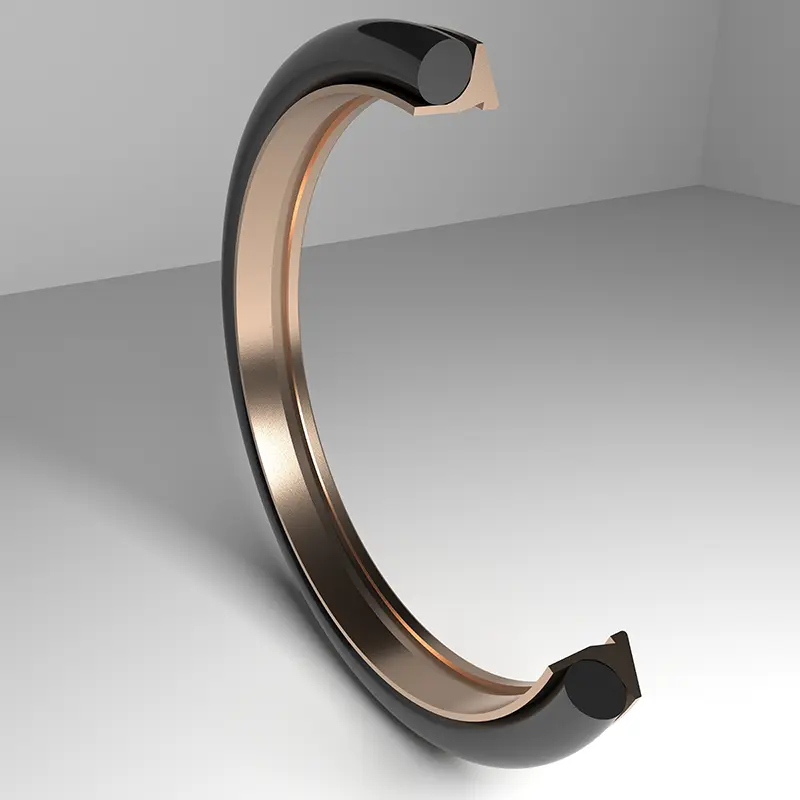

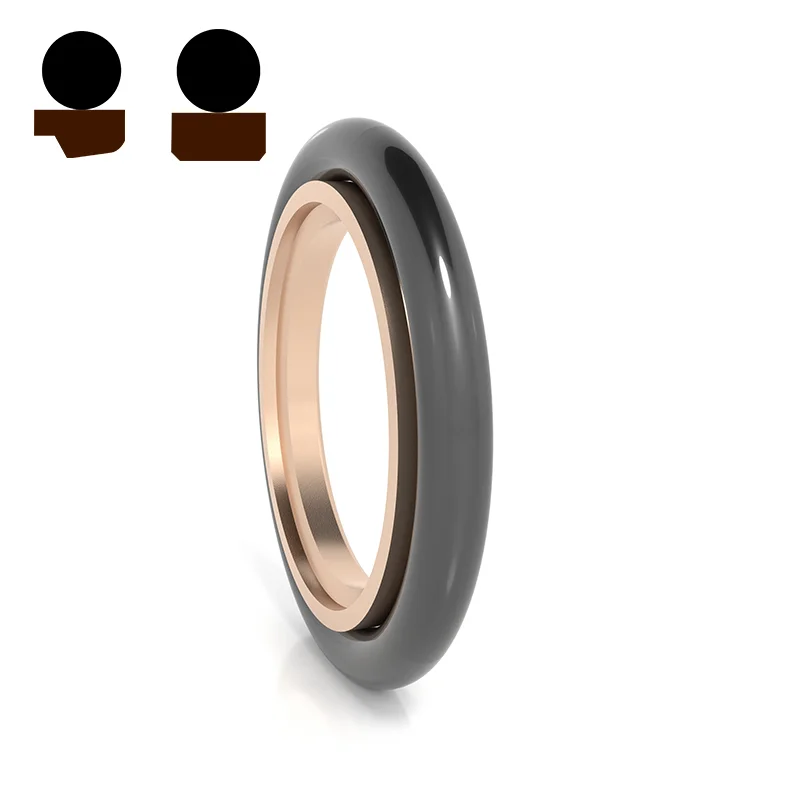

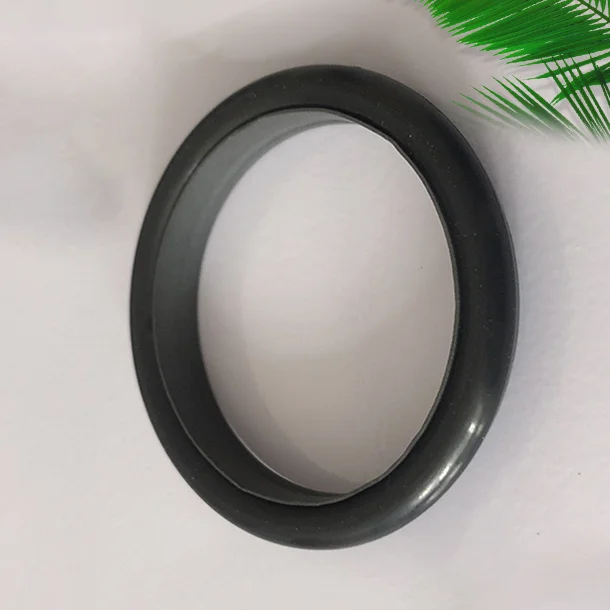

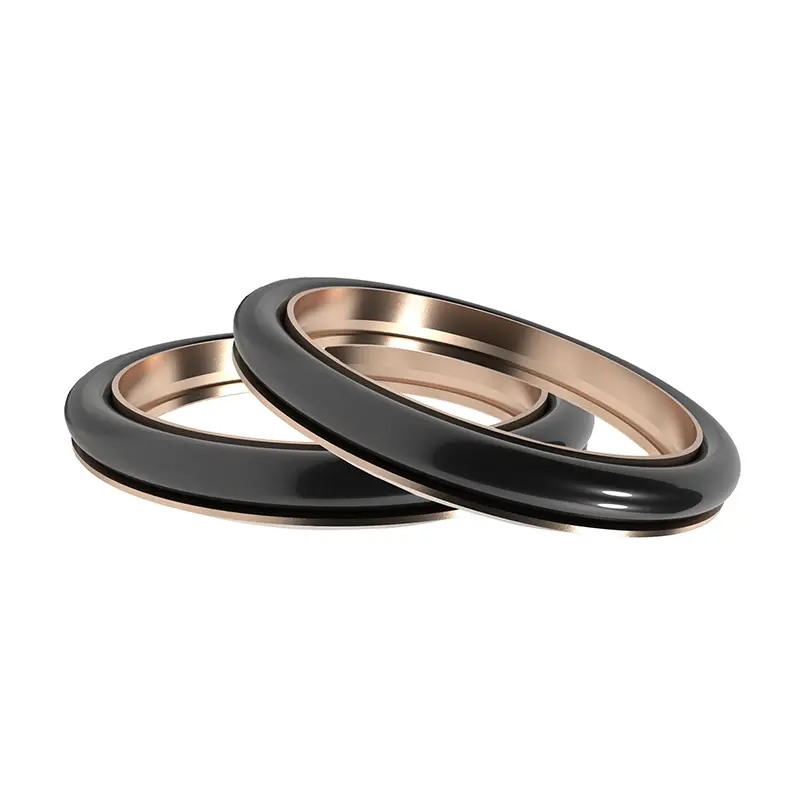

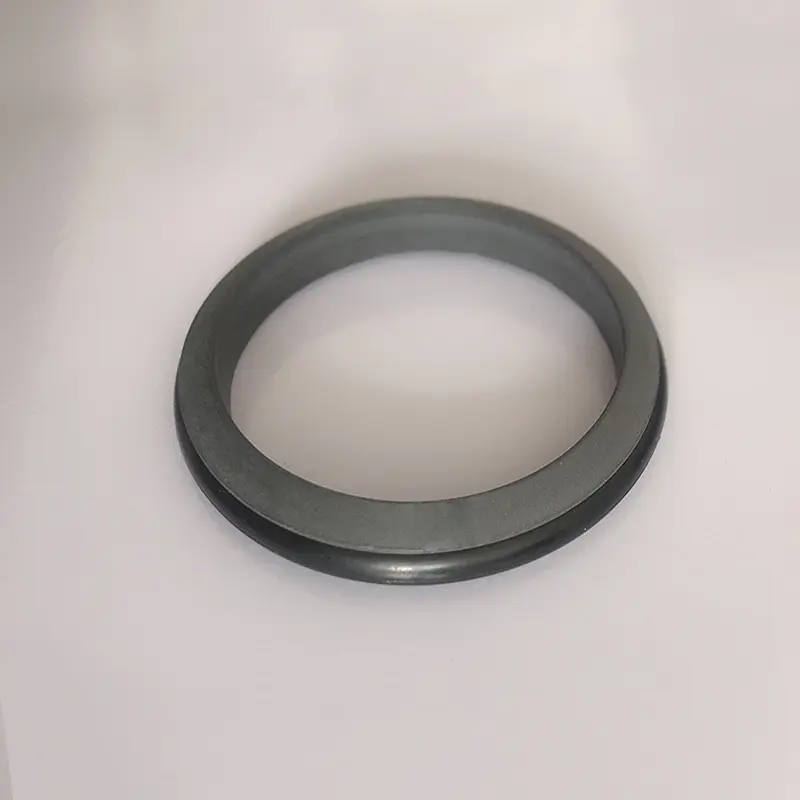

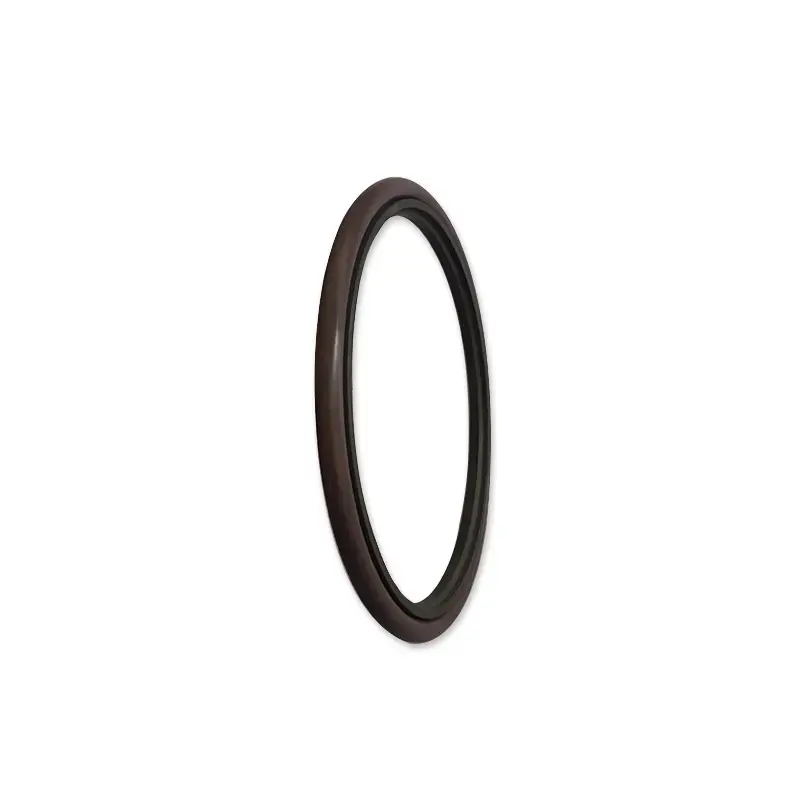

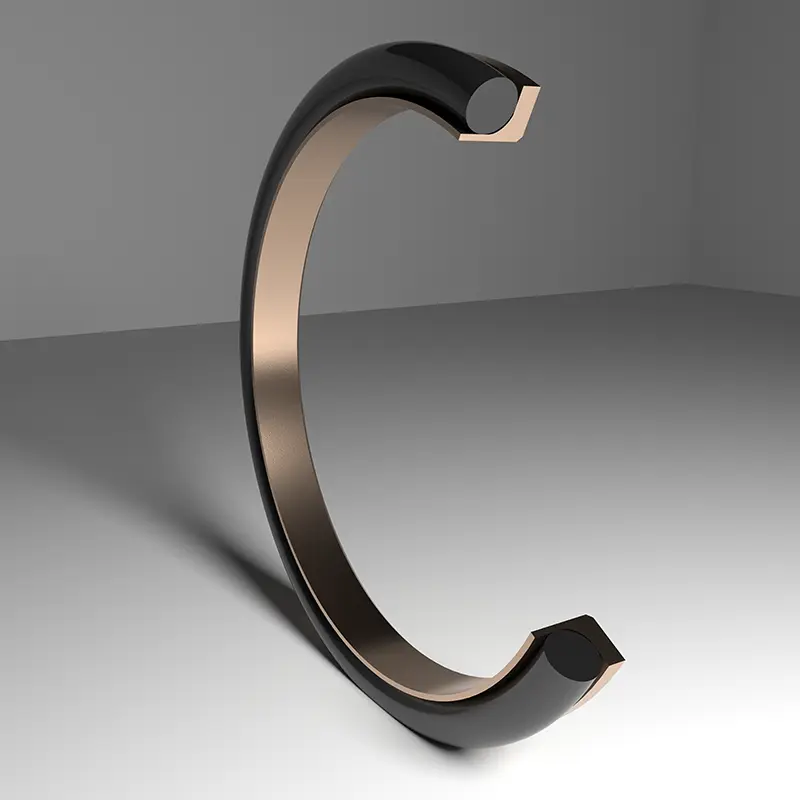

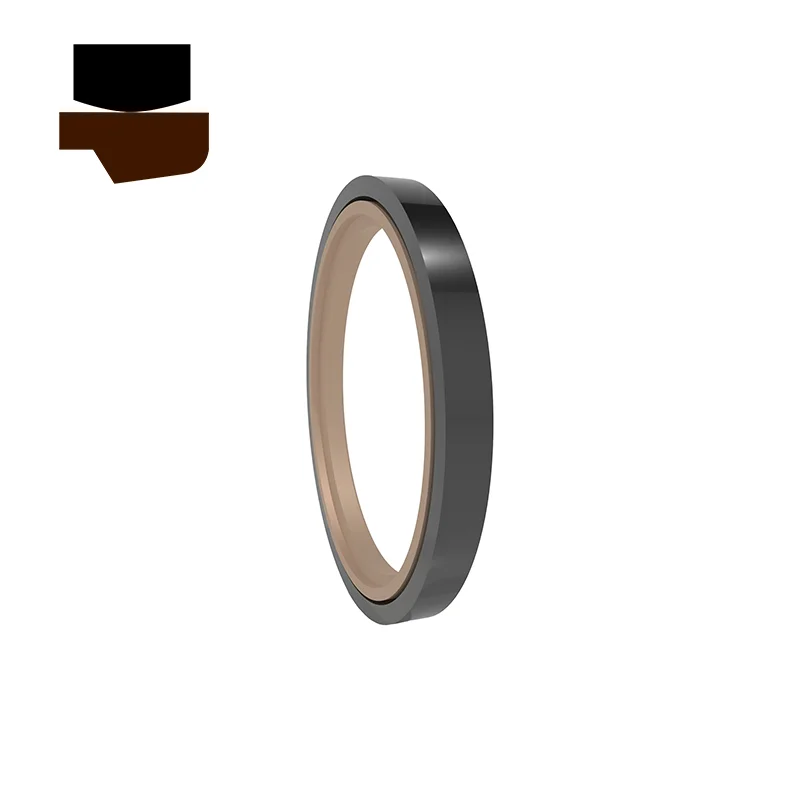

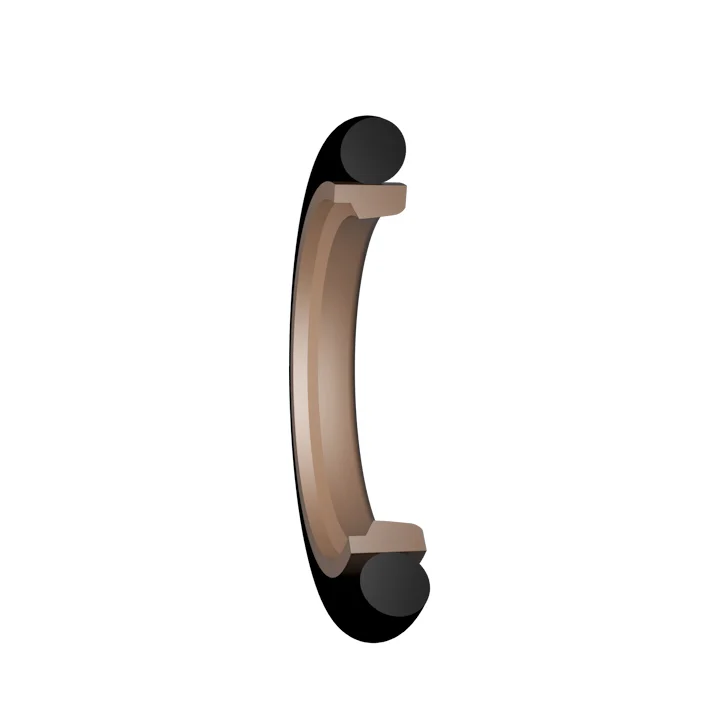

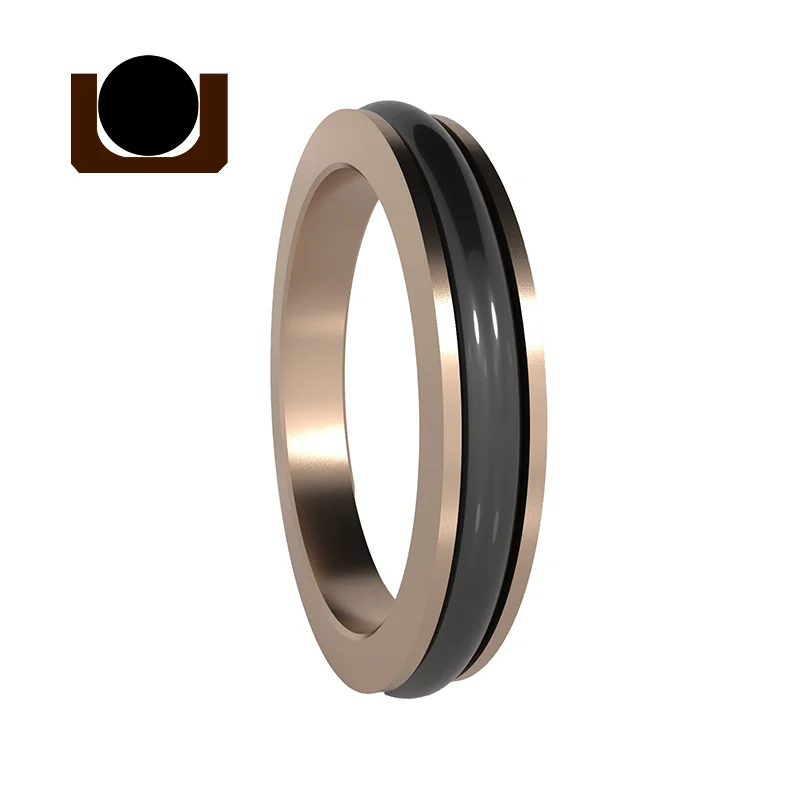

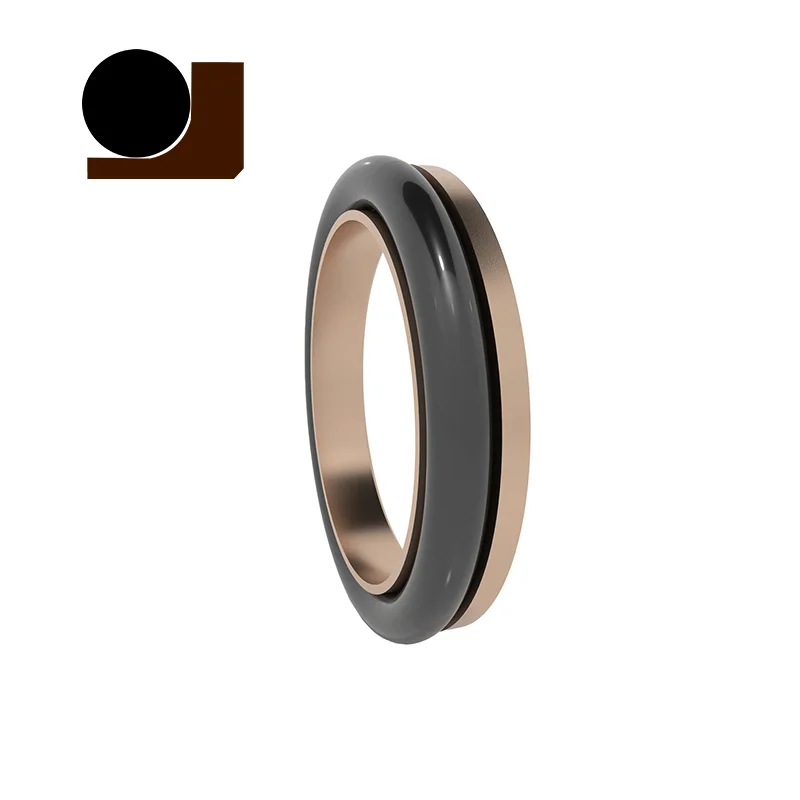

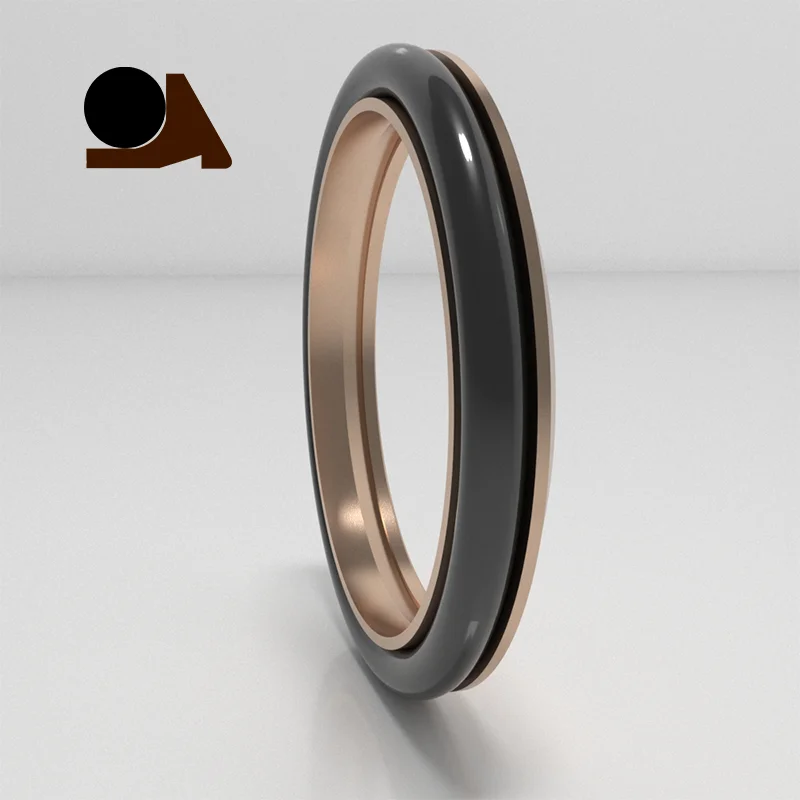

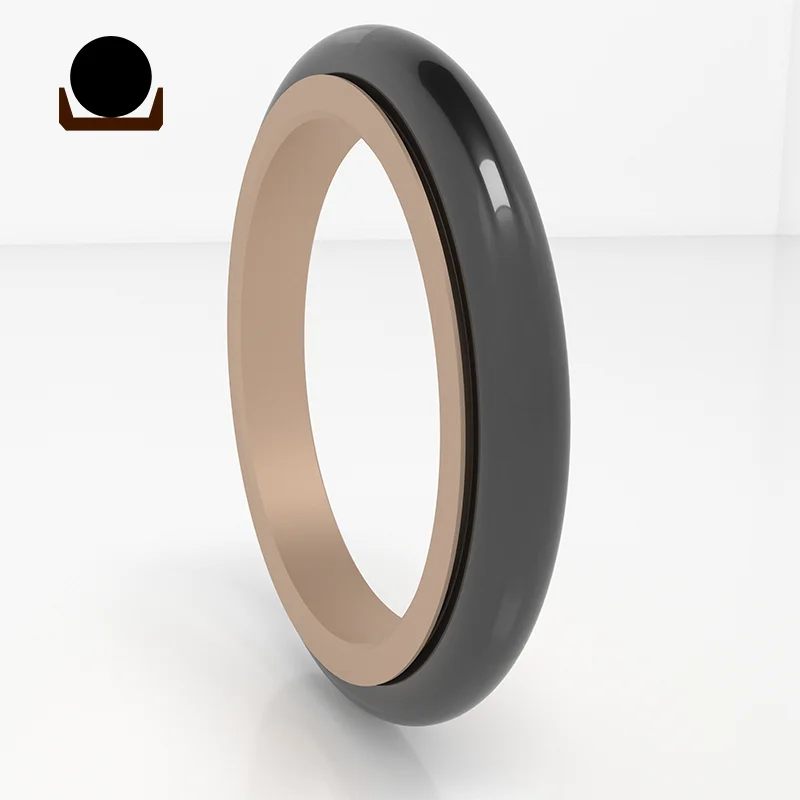

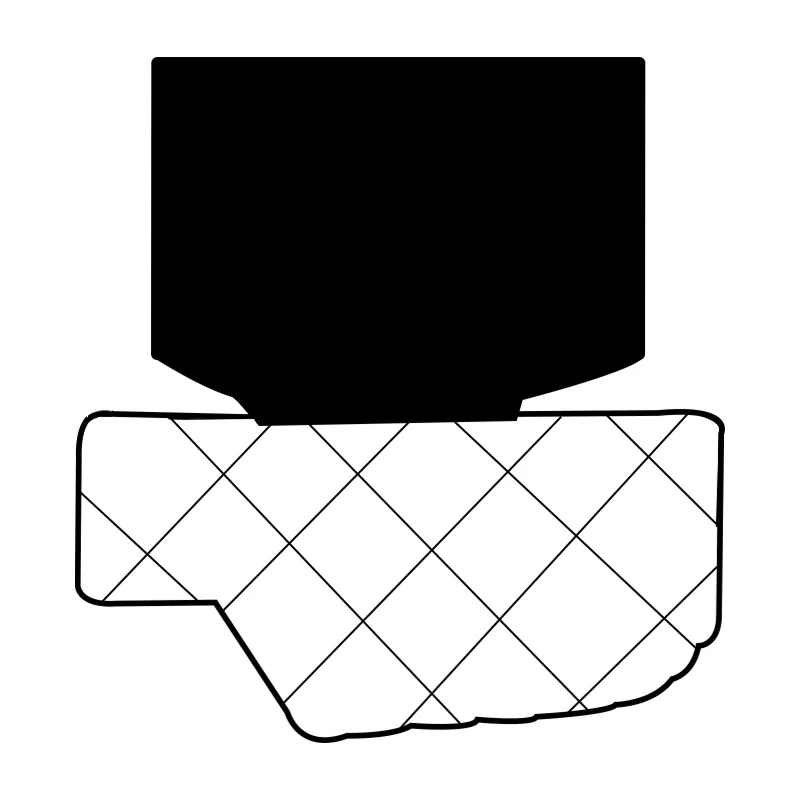

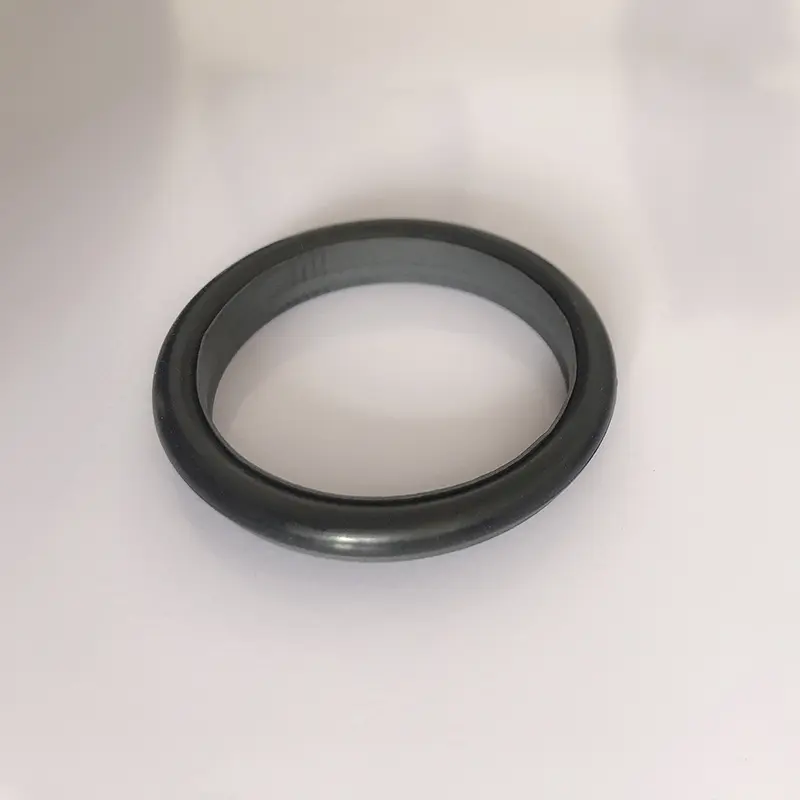

The high pressure piston rod seals provided by Ruichen are composed of PTFE sealing rings and O-shaped rubber rings, which are specially used for one-way sealing of hydraulic reciprocating motion. They are divided into RC01-RC14 series according to the matching O-rings. When working, the O-ring provides radial force to compensate for the wear of the sealing ring, and the thin lip design of the sealing ring has good fit. The two work together to create a good sealing effect.

Our high pressure piston rod seals are widely used in injection molding machines and die-casting machines in industrial hydraulic systems, excavators and loaders in engineering machinery, hydraulic parts in automobile manufacturing and maintenance, landing gear and actuators in aerospace, and hydraulic steering gears and windlasses in shipbuilding. They can effectively ensure the stable operation of hydraulic systems and avoid leakage.

Product features and applications:

Features:

1. High pressure piston rod seals can be used for both hydraulic and pneumatic applications.

2. The sealing performance is always good whether it is high or low pressure sealing conditions.

3. Low friction, small starting resistance, smooth movement, equal dynamic and static friction, no creeping.

4. The seal has a long life, suitable for oil-free lubrication sealing.

5. Small structural space and easy installation and maintenance.

Applicable working conditions:

Applicable working conditions of high pressure piston rod seals (limit values should not appear at the same time)

Profile	Model	Pressure (MPa)	Temperature (℃)	Speed (m/s)	Media
	RC01/RC02	≤70	-35~+100 (matching O-ring NBR)	≤6	Hydraulic oil, flame retardant fluid (HFA/HFB), gas, etc.
			-20~+180 (matching O-ring FKM)
	RC03/RC04	≤100	-35~+100 (matching O-ring NBR)	≤6	Hydraulic oil, flame retardant fluid (HFA/HFB), gas, etc.
			-20~+180 (matching O-ring FKM)
	RC05	≤200	-35~+100 (matching O-ring NBR)	≤6	Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), water, etc.
			-20~+180 (matching O-ring FKM)
	RC06/RC07	≤100	-35~+100 (matching O-ring NBR)	≤6	Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), gas, etc.
			-20~+180 (matching O-ring FKM)
	RC08/RC09	≤200	-35~+100 (matching O-ring NBR)	≤6	Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), water, etc.
			-20~+180 (matching O-ring FKM)
	RC10	≤260	-35~+100 (matching O-ring NBR)	≤6	Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), water, etc.
			-20~+180 (matching O-ring FKM)
	RC11	≤60	-35~+100 (matching O-ring NBR)	≤6	Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), water, etc.
			-20~+180 (matching O-ring FKM)
	RC11-B	≤60	-35~+100 (matching O-ring NBR)	≤6	Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), water, etc.
			-20~+180 (matching O-ring FKM)
	RC12	≤60	-35~+100 (matching O-ring NBR)	≤6	Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), water, etc.
			-20~+180 (matching O-ring FKM)
	RC13	≤20	-35~+100 (matching O-ring NBR)	≤6	Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), gas, etc.
			-20~+180 (matching O-ring FKM)
	RC14	≤20	-35~+100 (matching O-ring NBR)	≤6	Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), gas, etc.
			-20~+180 (matching O-ring FKM)

Material selection:

1. The matching O-ring materials can be selected: R01 nitrile rubber (NBR), RO2 fluororubber (FKM), etc.

2. Sealing ring materials: PTFE1, PTFE2, PTFE3, PTFE4, PU, etc.

Ordering example: (Only some models are shown, please contact us for specific ordering models)

Order model RC01-80x89.6x7.8-PTFE3-R01

Model-rod diameter x groove diameter x groove width PTFE3-modified PTFE material code R01 O-ring material code

Order model RC03—80x89x10-PTFE3-R01
Model-rod diameter x groove diameter x groove width PTFE3-modified PTFE material code R01-O-ring material code

Order model RC06—80x89.9x9.2-PTFE3-R01
Model-rod diameter x groove diameter x groove width PTFE3-modified PTFE material code R01 O-ring material code

Order model RC08-80x90.2x11.2-PTFE3-R01 model-rod diameter x groove diameter x groove width-material code

Specifications:

(Only some models are shown, please contact us for specific order models)

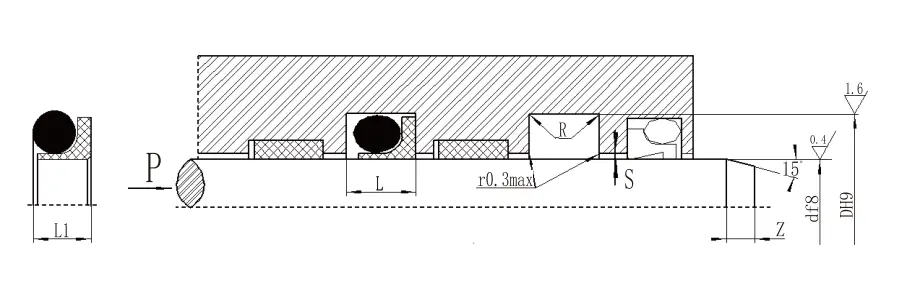

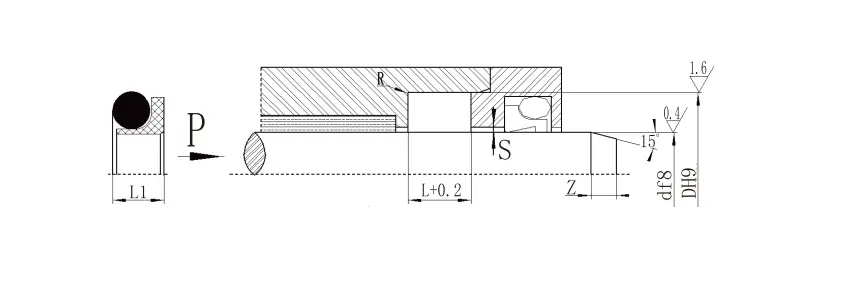

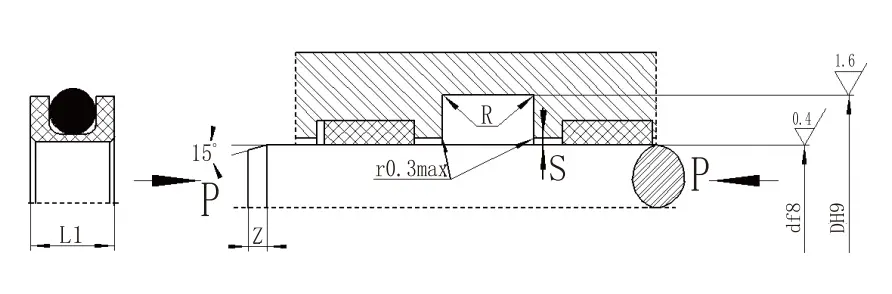

4.1 RC01 Specifications (Products of any size in the specification table can be produced)
df8 Standard type RC01	df8 Light load RC01-Q	df8 Heavy load RC01-Z	D H9	L⁺⁰^.²	L1	Rmax	S_max		Z_min	d₀
df8 Standard type RC01	df8 Light load RC01-Q	df8 Heavy load RC01-Z	D H9	L⁺⁰^.²	L1	Rmax	<20MPA	<40MPA	Z_min	d₀
-	5~17.9	-	d+3.5	3.2	2.8	0.3	0.2	0.15	3	1.8
5~17.9	18~39.9	-	d+5.0	4.2	3.8	0.4	0.25	0.15	4	2.65
18~39.9	40~108.9	5~17.9	d+6.6	5.2	4.7	0.4	0.25	0.2	5	3.55
40~108.9	109~629	18~39.9	d+9.6	7.8	7	0.5	0.3	0.2	7	5.3
109~629	630~999	40~108.9	d+12.5	9.8	8.8	0.6	0.35	0.25	10	7.00
630~999	1000~1599	109~629	d+15.2	11.6	10.6	0.7	0.5	0.3	12	8.6
1000~1599	≥1600	630~999	d+17.8	14.8	13.5	0.8	0.6	0.4	15	10.0
≥1600	-	1000~1599	d+21.2	17.8	16.3	1	0.7	0.6	20	12.0
Note: 1. For ≤30mm, it is recommended to use open groove.
2. For the installation of integral (closed) groove seals, please refer to our company's installation guide. 3. For pressure >40MPA, the root area of the seal uses H8/f8 fit tolerance.

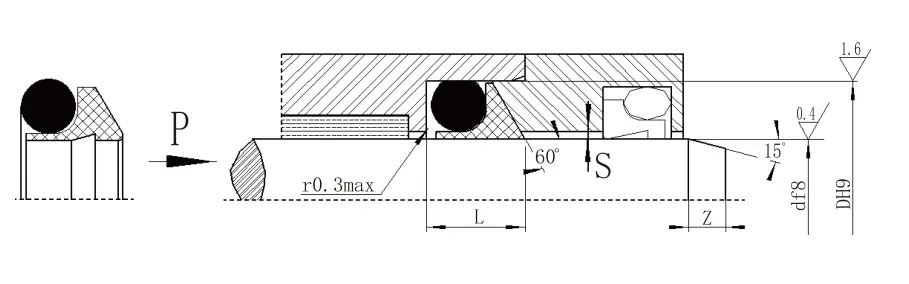

4.1 RC03 Specification Parameter Table (Products of any size in the specification table can be produced)
d f8	D H9	L^+0.2	Smax		Z_min	d₀
d f8	D H9	L^+0.2	<40MPA	<60MPA	Z_min	d₀
5~17	d+4.7	5.2	0.25	0.15	4	2.65
18~39	d+6.2	6.6	0.25	0.2	5	3.55
40~108	d+9.0	10	0.3	0.2	7	5.3
109~670	d+12.0	13.2	0.35	0.25	10	7
671~999	d+14.6	15.8	0.5	0.3	12	8.6
1000~1600	d+18	17.4	0.6	0.4	15	10
>1600	d+21.2	22	0.7	0.6	20	12
Note: 1. For pressure > 60MPA, the seal root area uses H8/f8 fit tolerance, and the ultra-high pressure seal Smax < 0.05.
2. Please consult our company when a closed groove structure must be used.

4.1 RC06 Specifications (Products of any size in the specification table can be produced)
d f8 Standard type RC06	d f8 Light load RC06-Q	d f8 Heavy load RC06-Z	D H9	L⁺⁰^.²	L1	Rmax	S_max		Z_min	d₀
d f8 Standard type RC06	d f8 Light load RC06-Q	d f8 Heavy load RC06-Z	D H9	L⁺⁰^.²	L1	Rmax	<20MPA	<40MPA	Z_min	d₀
-	4~17.9	-	d+3.6	4	3.6	0.3	0.2	0.15	3	1.8
4~17.9	18~39.9	-	d+5.0	5	4.6	0.4	0.25	0.15	4	2.65
18~39.9	40~106.9	4~17.9	d+6.6	6.2	5.6	0.4	0.25	0.2	5	3.55
40~106.9	107~630.9	18~39.9	d+9.9	9.2	8.5	0.5	0.3	0.2	7	5.30
107~630.9	631~999	40~106.9	d+13.0	12.3	10.6	0.6	0.35	0.25	10	7.00
631~999	1000~1600	107~630.9	d+15.2	13.6	12	0.7	0.5	0.3	12	8.6
1000~1600	≥1600	631~999	d+18.5	16	14.5	0.8	0.6	0.4	15	10
≥1600	-	1000~1600	d+22	19	17	1	0.7	0.6	20	12.0
Note: 1. For shaft diameter ≤70mm, it is recommended to use open groove. For the installation of integral (closed) groove seals, please refer to the installation guide.
2. For pressure >40MPA, the root area of the seal uses H8/f8 fit tolerance.

4.1 RC08 Specifications (Products of any size in the specification table can be produced)
Standard type df8 RC08	Light load df8 RC08-Q	Heavy load df8 RC08-Z	Groove diameter D H9	Groove width L+0.2	Seal height L1	Rounded corners Rmax	Radial clearance S_max		Chamfer Z_min	O-ring wire diamete d₀
Standard type df8 RC08	Light load df8 RC08-Q	Heavy load df8 RC08-Z	Groove diameter D H9	Groove width L+0.2	Seal height L1	Rounded corners Rmax	<20MPA	<60MPA	Chamfer Z_min	O-ring wire diamete d₀
-	5~17.9	-	d+3.6	4.7	4.2	0.3	0.2	0.15	3	1.8
5~17.9	18~39.9	-	d+5.2	6.1	5.5	0.4	0.25	0.15	4	2.65
18~39.9	40~108.9	5~17.9	d+6.8	8	7	0.4	0.25	0.2	5	3.55
40~108.9	109~629	18~39.9	d+10.2	11.2	10	0.5	0.3	0.2	7	5.30
109~629	630~999	40~108.9	d+13.4	14.2	12.7	0.6	0.35	0.25	10	7.00
630~999	1000~1599	109~629	d+16.0	16.2	14.5	0.7	0.5	0.3	12	8.6
1000~159	≥1600	630~999	d+18.8	18.6	16.8	0.8	0.6	0.4	15	10.0
≥1600	-	1000~1599	d+22.8	21.8	19.8	1.0	0.7	0.6	20	12.0
Note: 1. Please consult our company when closed groove is required.
2. Pressure>60MPA, root H8/f8 matching tolerance, ultra-high pressure seal Smax<0.05.
