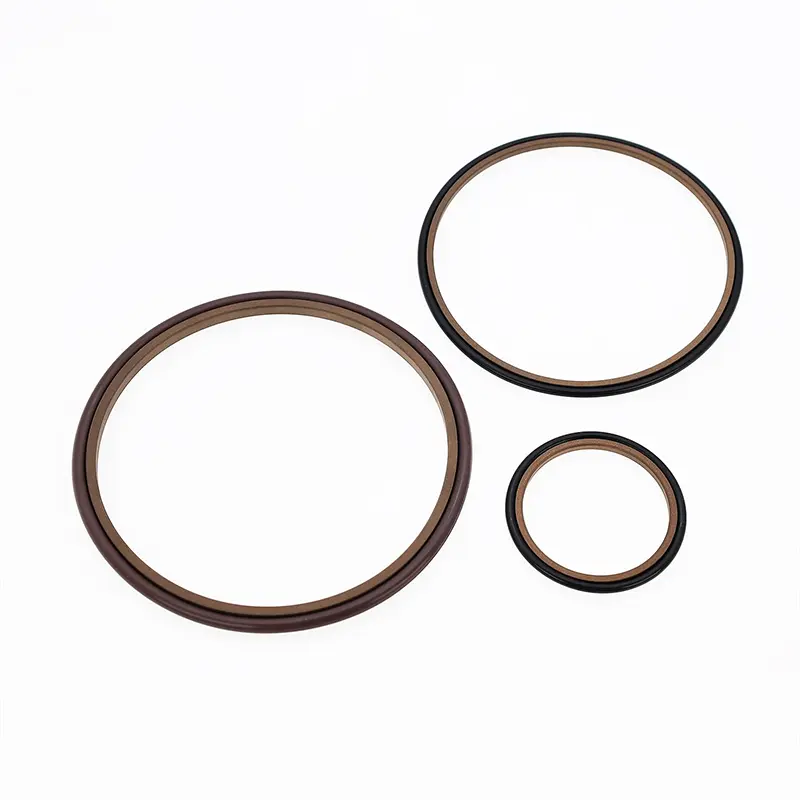

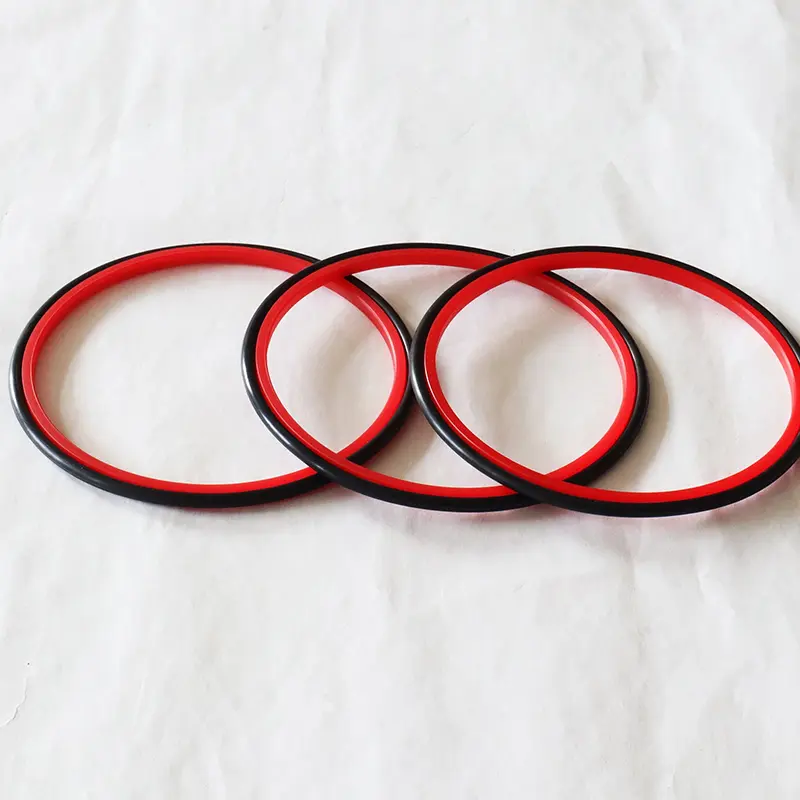

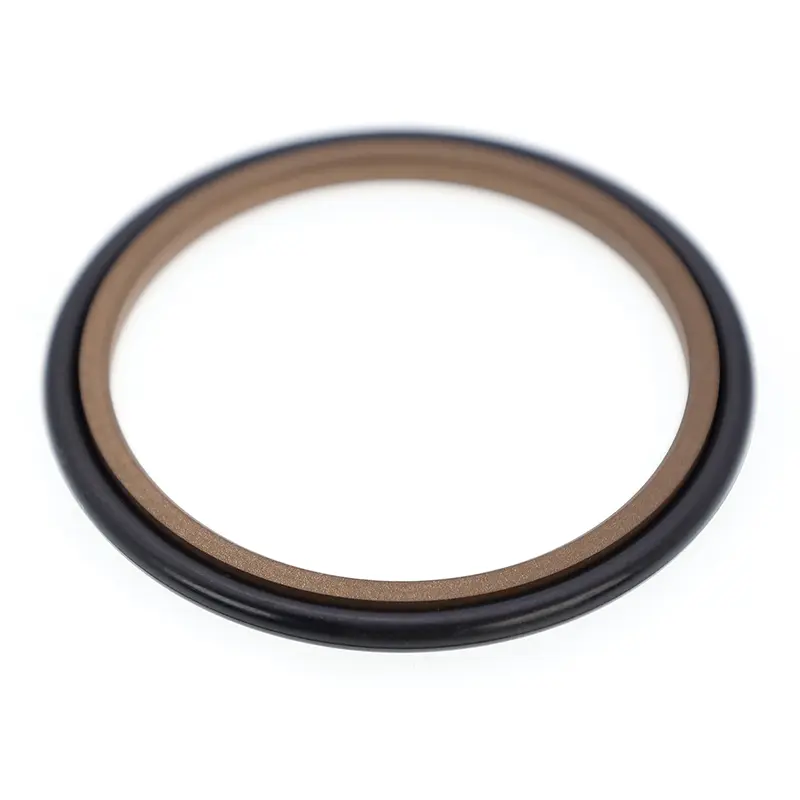

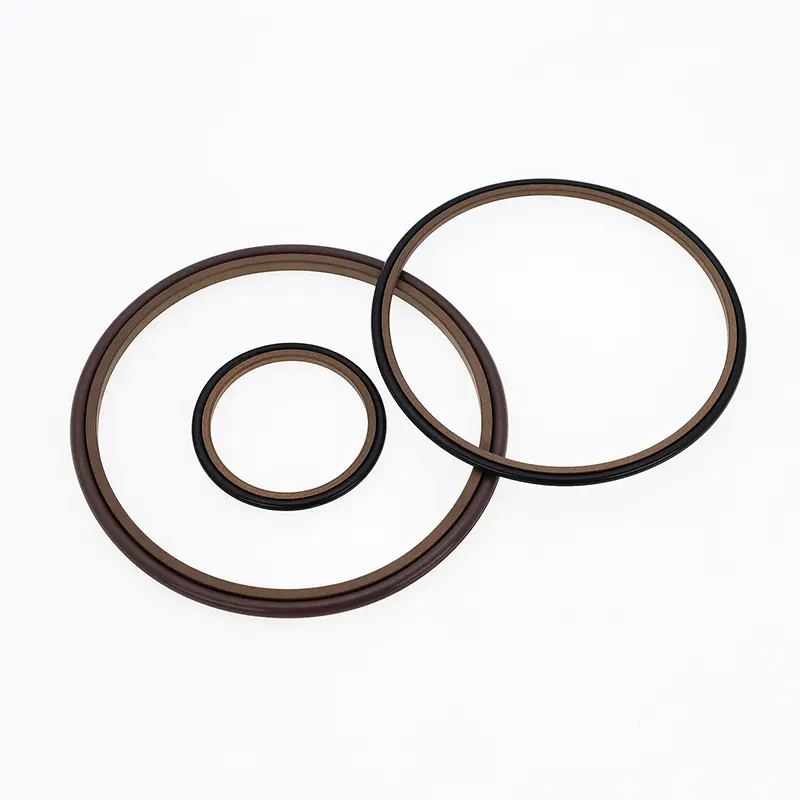

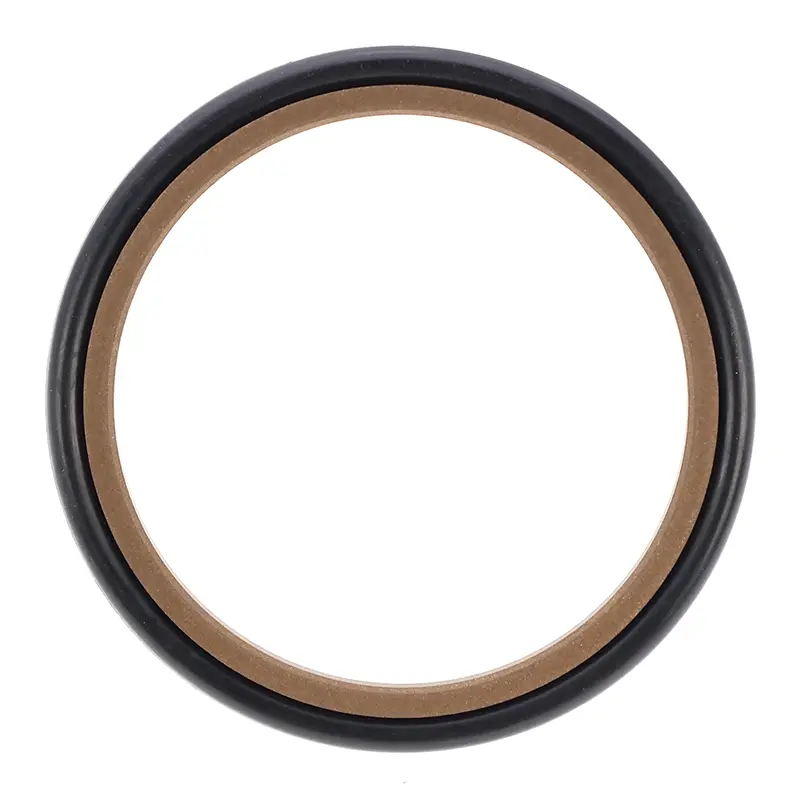

Glyd Rings for shafts consist of a PTFE-filled rectangular sealing ring and an O-ring, suitable for bidirectional pressure sealing in reciprocating hydraulic applications. The O-ring provides radial force and compensates for seal ring wear. They are generally used in conjunction with a guide ring. Split (open) grooves should be used for rod diameters less than 30mm.
Features:
1. Low friction, low starting resistance, smooth movement, equal dynamic and static friction, and no creep;
2. Highly stable pressure under pressure and harsh conditions;
3. Long life, suitable for oil-free sealing;
4. Suitable for sealing low-viscosity media such as water;
Applicable working conditions (limit values should not appear at the same time)
|
Pressure Mpa |
Temperature ℃ |
Speed m/s |
Medium |
|
≤60 |
-35~+100 (matching O-ring NBR) |
≤6 |
Mineral-based hydraulic oil, flame retardant fluid (HFA/HFB), water, etc. |
|
-20~+200 (matching O-ring FKM) |
Material Selection
1. O-ring materials available: R01 Nitrile-butadiene rubber (NBR), RO2 Fluororubber (FKM), etc.
2. Sealing ring materials: PTFE2, PTFE3, PTFE4, PU, etc.
Ordering Example
Order Model: RC11-40x55.1x6.3-PTFE3-R01

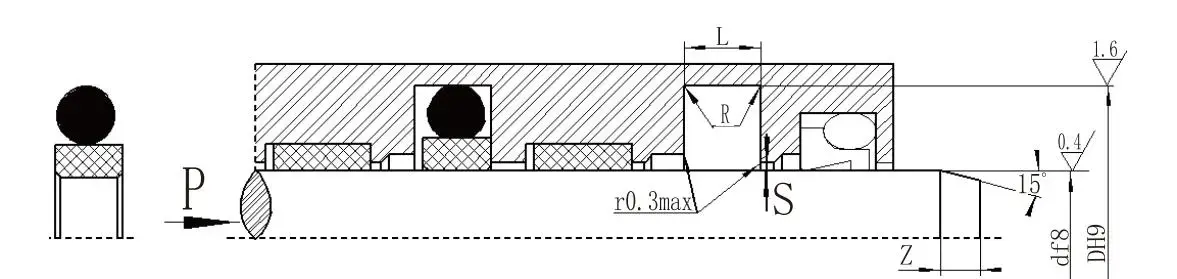

Order Model: RC11-B-40x55.1x6.3-PTFE3-RO2 Model: Rod Diameter x Groove Diameter x Groove Width PTFE3 (Modified PTFE) Material Code: R01, R02 - O-Ring Material Code
