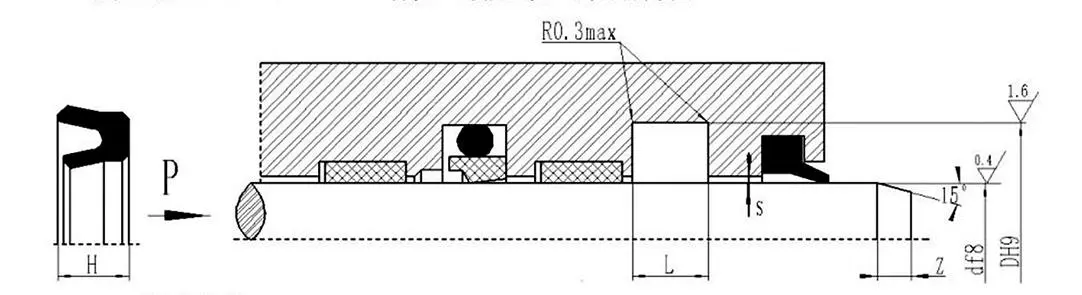

The RCUR shaft seal is an asymmetric seal designed for piston rods, suitable for one-way sealing in reciprocating hydraulic applications, offering excellent sealing performance. Its groove conforms to ISO 5597. It serves as a secondary seal in sealing systems.
Features:
1. Excellent static and dynamic sealing performance;
2. Strong residual oil recovery capability under dynamic conditions;
3. Simple structure, easy installation and maintenance.
Applicable Operating Conditions (Extreme Values Should Not Appear Simultaneously)
|
Pressure Mpa |
Temperature ℃ |
Speed m/s |
Medium |
|
≤35 |
-30~+100 |
≤0.5 |
Hydraulic oil, minerals, emulsion, etc. |
Material Selection
Polyurethane (PU)
Ordering Example
Order Model RCUR 63x73x10 Rod Diameter x Groove Diameter x Seal Height
Extrusion Gap
|
Pressure/Mpa |
Extrusion gap Smax |
|
|
Rod diameter d≤60mm |
Rod diameter d>60mm |
|
|
≤5 |
0.4 |
0.5 |
|
≤10 |
0.3 |
0.4 |
|
≤20 |
0.2 |
0.3 |
|
≤30 |
0.15 |
0.2 |
|
≤40 |
0.1 |
0.15 |
