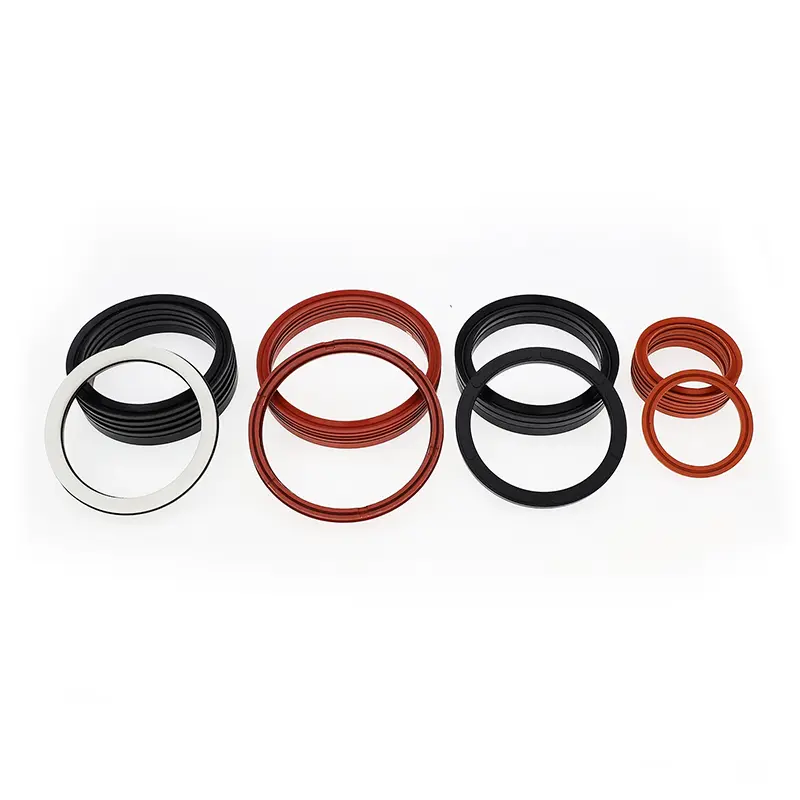

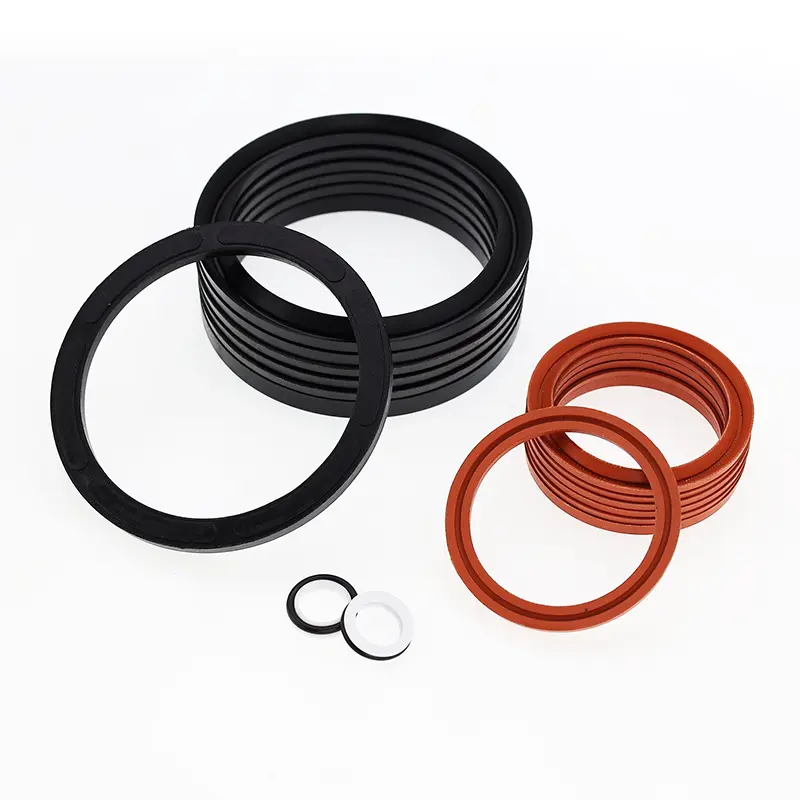

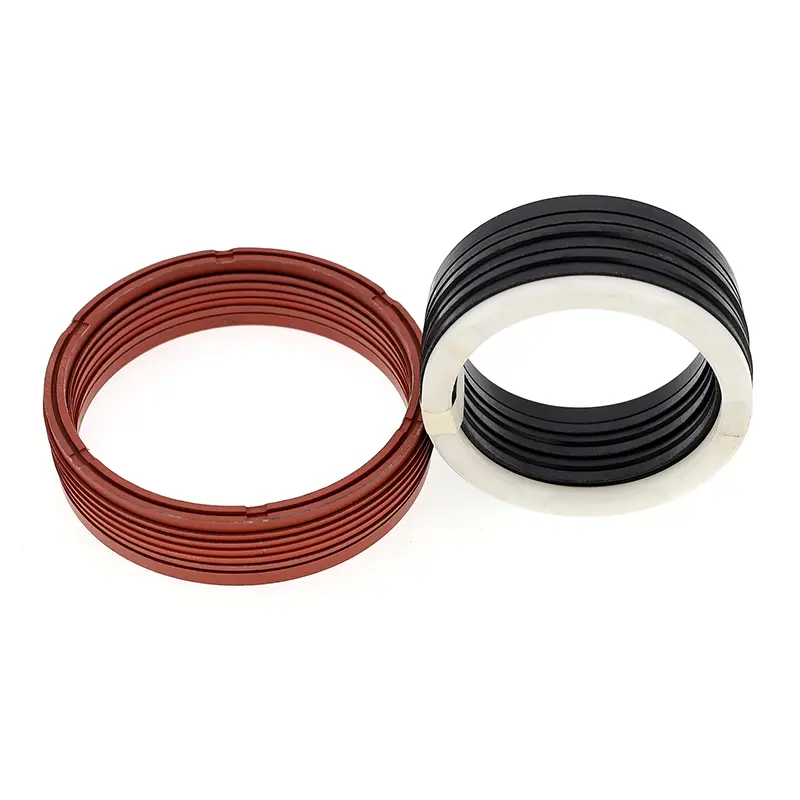

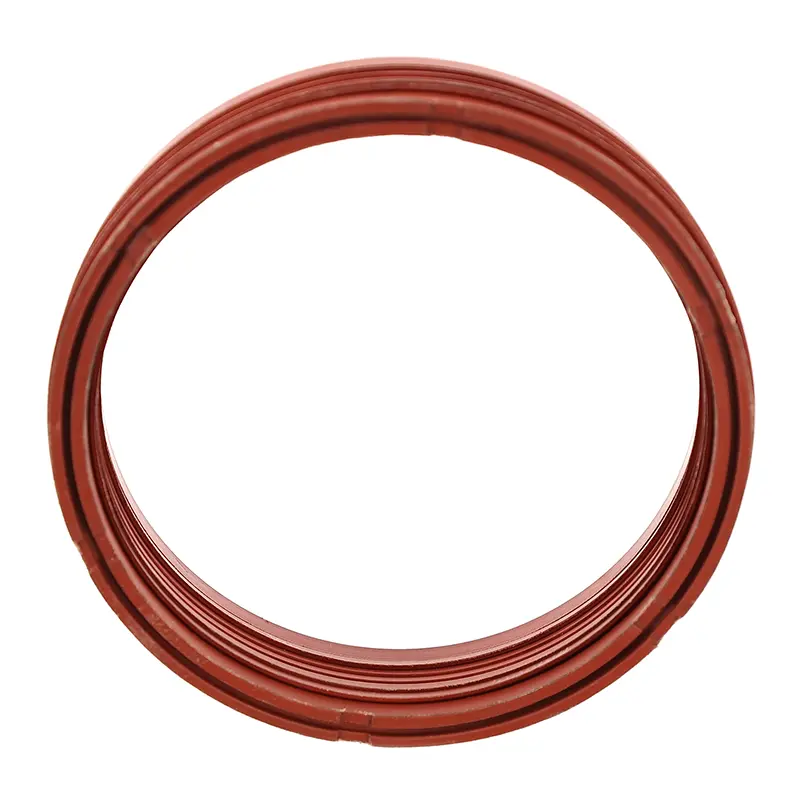

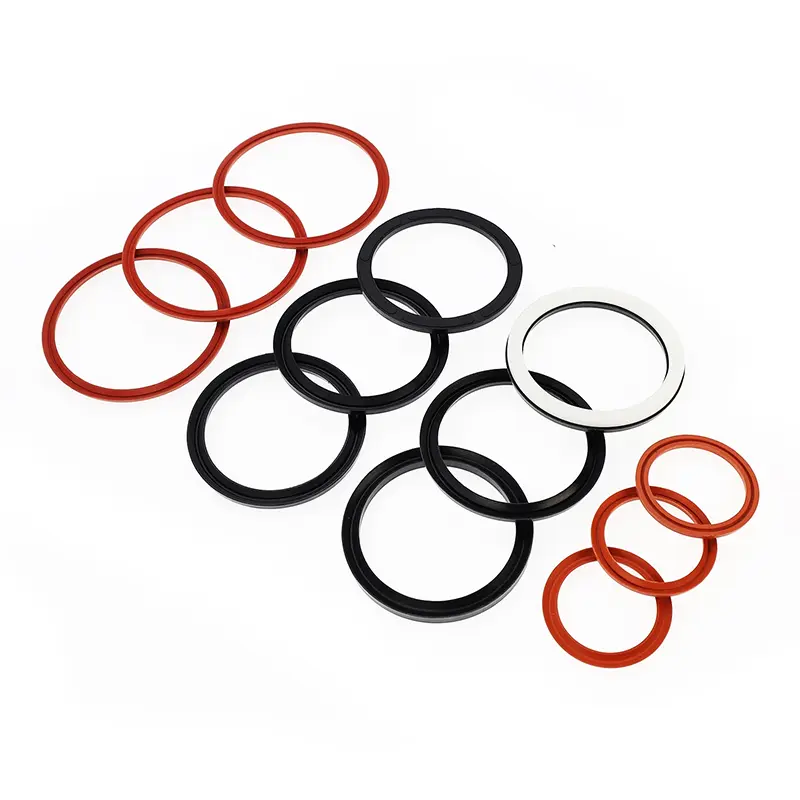

The V-shaped combination seal for piston rods consists of a set (of at least three) V-shaped sealing rings, a compression ring, and a support ring. It is suitable for unidirectional pressure sealing in reciprocating hydraulic applications. A grease compatible with the sealing material must be applied during installation. It cannot be installed in a monolithic (closed) groove.
Features:
1. A wide range of materials are available, allowing for optimal adjustment to suit various applications.
2. Suitable for use in harsh operating conditions, adapting to virtually all media and demanding conditions.
3. Long service life, suitable for oil-free lubrication seals (with appropriate material selection).
4. Adjustable sealing performance and friction can be achieved by adjusting the gasket, and the axial dimension can be adjusted by adding or removing V-shaped sealing rings.
5. Effective even with poor sealing surface quality.
Applicable Operating Conditions (Extreme Values Should Not Appear Simultaneously)
|
Pressure Mpa |
Temperature ℃ |
Speed m/s |
Medium |
|||
|
≤60 |
-35~+100 (nitrile rubber or nitrile cloth rubber) |
-20~+200 (fluororubber or fluororubber cloth) |
-200~+260 (PTFE) |
≤0.5 (rubber or cloth-reinforced rubber) |
≤15 (PTFE) |
Almost all media (reasonable choice of material combination) |
Materials
1. Pressure Ring Materials: PTFE, Nitrile-Butadiene Rubber (NBR) Fabric, Fluororubber-Butadiene Rubber Fabric, Nylon, Polyoxymethylene
2. V-Ring Materials: PTFE, Nitrile-Butadiene Rubber (NBR) Fabric, Fluororubber, Fluororubber-Butadiene Rubber Fabric, Polyurethane
3. Support Ring Materials: Nitrile-Butadiene Rubber Fabric, Fluororubber-Butadiene Rubber Fabric, Nylon, Polyoxymethylene, PTFE
Ordering Example
|
Model |
Material |
Applicable scope |
Sealing |
|
RC15-A |
V-ring: NBR cloth, pressure ring, support ring: NBR cloth/PA/POM/PTFE |
Normal temperature, high pressure |
Good |
|
RC15-B |
V-ring: FKM cloth, pressure ring, support ring: FKM cloth/PTFE |
High temperature, high pressure |
Good |
|
RC15-C |
V-ring: NBR, pressure ring, support ring: NBR cloth/PA/POM/PTFE |
Normal temperature, medium and low pressure |
Excellent |
|
RC15-D |
V-ring: FKM, pressure ring, support ring: FKM cloth/PTFE |
High temperature, medium and low pressure |
Excellent |
|
RC15-E |
V-ring: NBR+NBR cloth combination, pressure ring, support ring: NBR cloth/PA/POM/PTFE |
Normal temperature, medium and high pressure |
Very good |
|
RC15-F |
V-ring: FKM+FKM cloth combination, pressure ring, support ring: FKM cloth/PTFE |
High temperature, medium and high pressure |
Very good |
|
RC15-G |
V-ring, pressure ring, support ring: PTFE1/PTFE2/PTFE3/PTFE4 |
High temperature and high pressure corrosive media |
Normal |
|
RC15-H |
V-ring: PU, pressure ring, support ring: PU/PA/POM/PTFE |
Normal temperature, medium and high pressure |
Very good |

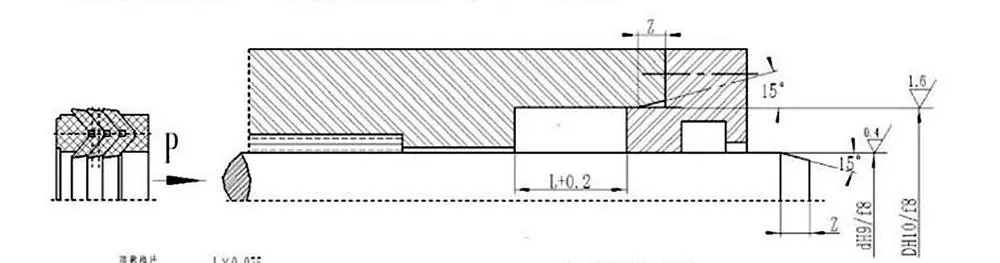

Installation chamfer regulations
|
Rod diameter d |
Chamfer length Zmin |
|
0~100 |
5 |
|
101~200 |
7.5 |
|
200~500 |
10 |
|
＞500 |
12.5 |
V-shaped seals can be adjusted in the axial dimension by adjusting the gasket to achieve optimal sealing and friction. Initial wear after long-term operation can be extended by adjusting the axial dimension. The recommended design for the adjustable seal cavity axial dimension is 1.025L, with an adjustment range of 7.5%L.
