Right‑angle Combined Seal

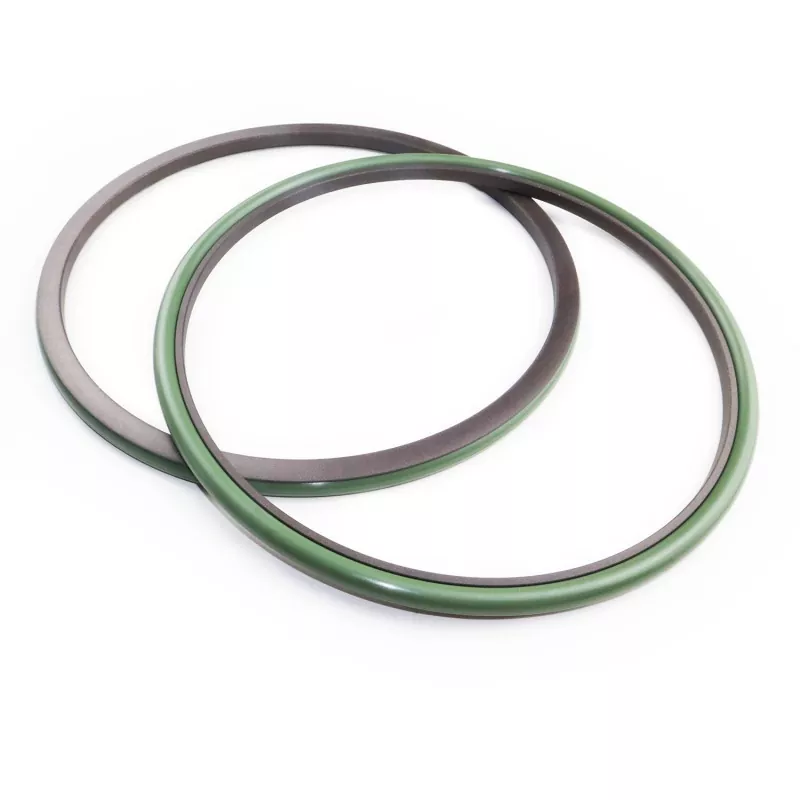

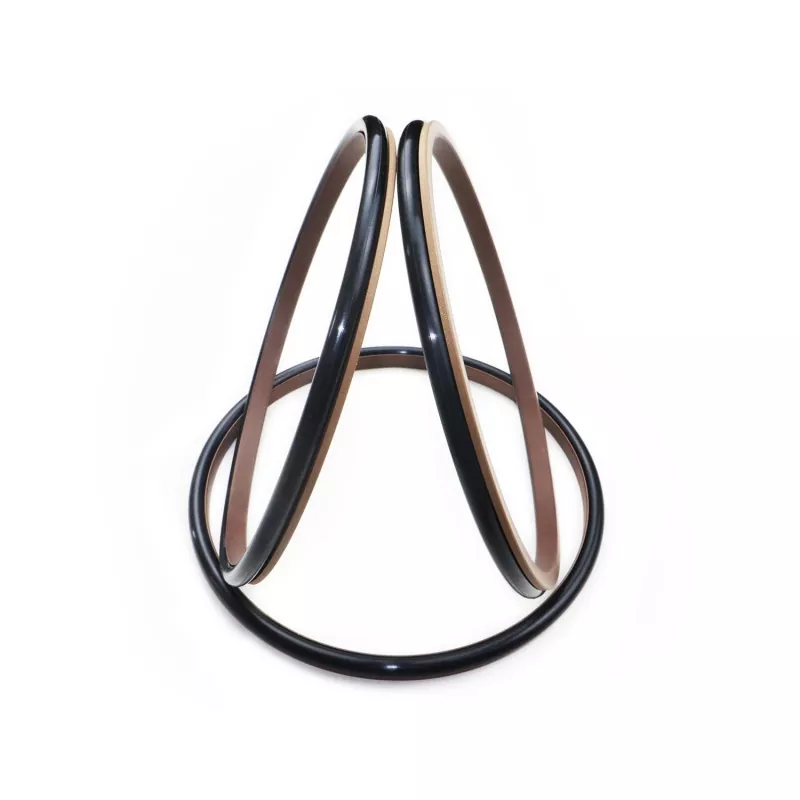

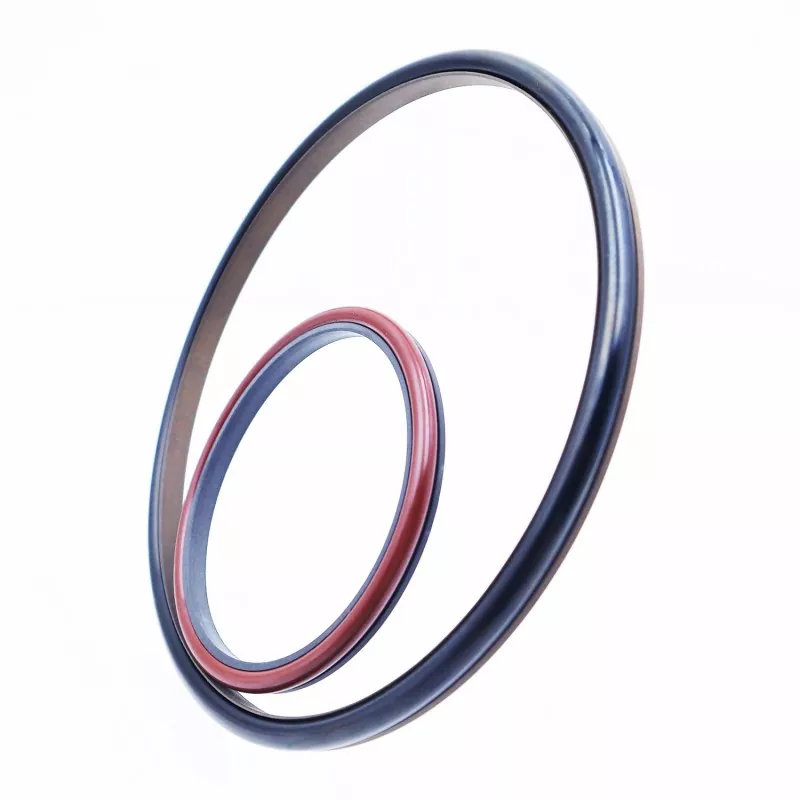

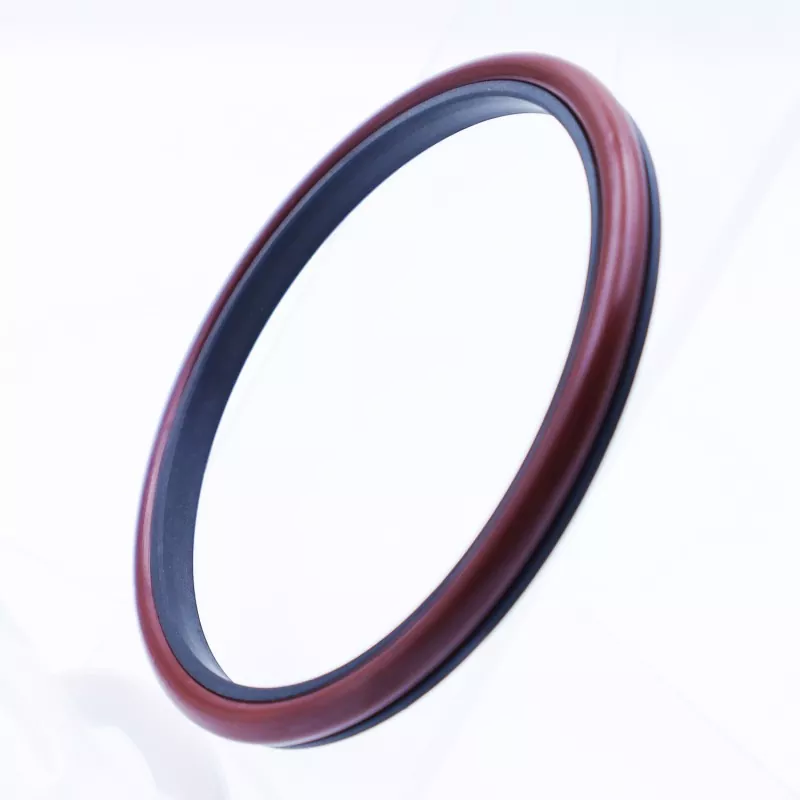

The Right-angle Combined Seal consists of a right-angled sealing ring made of PTFE (or PTFE composite) and a rubber O-ring; it is designed for unidirectional reciprocating sealing in hydraulic and pneumatic applications.

The product is categorized into the RC01 and RC02 series based on the matching O-ring (compatible with the GB1235 series). The right-angled sealing ring features a thin-lip design that offers excellent follow-up compensation, resulting in superior sealing performance.

Product Features

1. Suitable for both hydraulic and pneumatic applications;

2. Excellent sealing performance under both high and low-pressure conditions;

3. Low friction with minimal start-up resistance; ensures smooth motion with equal dynamic and static friction, eliminating stick-slip (crawling);

4. Long service life; suitable for oil-free lubrication applications;

5. Compact structural design; easy to install and maintain;

Operating Conditions

Note: Limit values should not occur simultaneously.

Material Selection

1. Compatible O-ring materials include: RO1 Nitrile Rubber (NBR), RO2 Fluororubber (FKM), etc.

2. Sealing ring material: Standard material PTFE3; other available options include PTFE2, PTFE4, and other high-performance materials.

Ordering Example

Order Model: RC01—80x89.6x7.8—PTFE3—R01

Model - Rod Diameter × Groove Diameter × Groove Width | PTFE3: Modified PTFE material code | R01: O-ring material code
