Cap Combination Seal

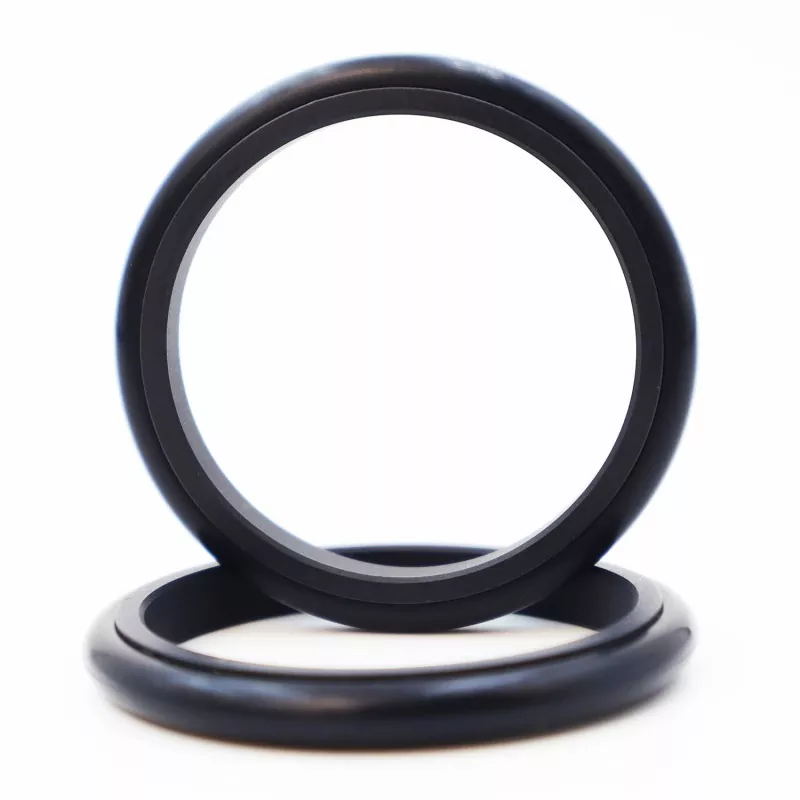

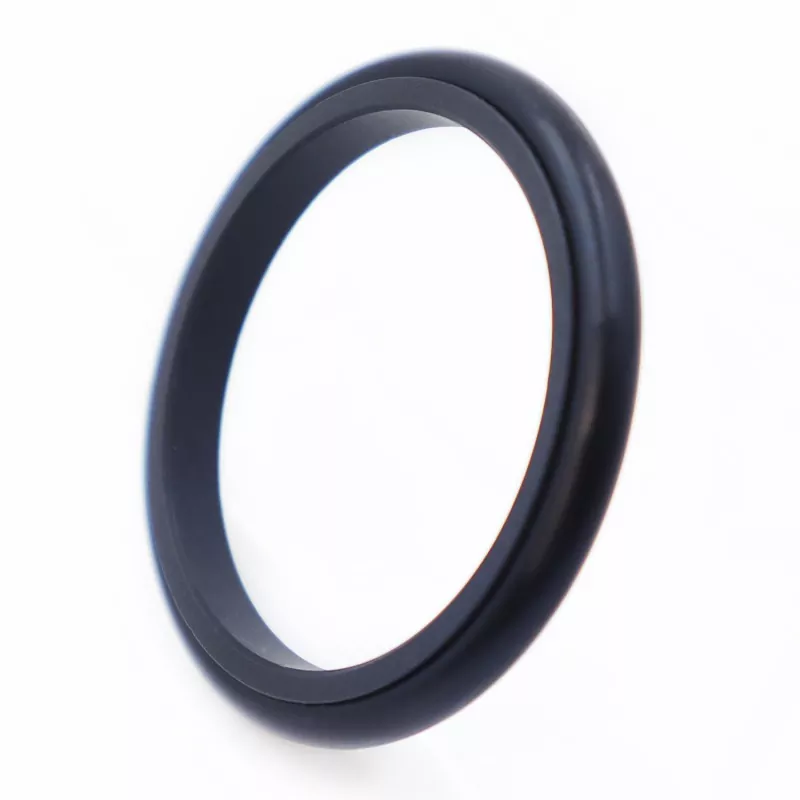

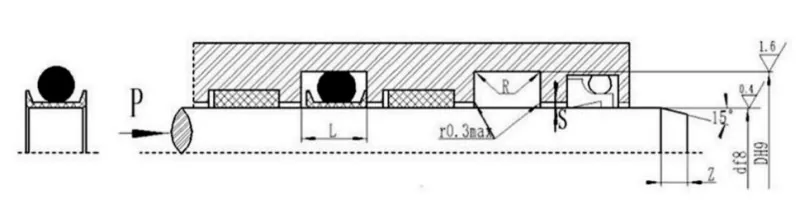

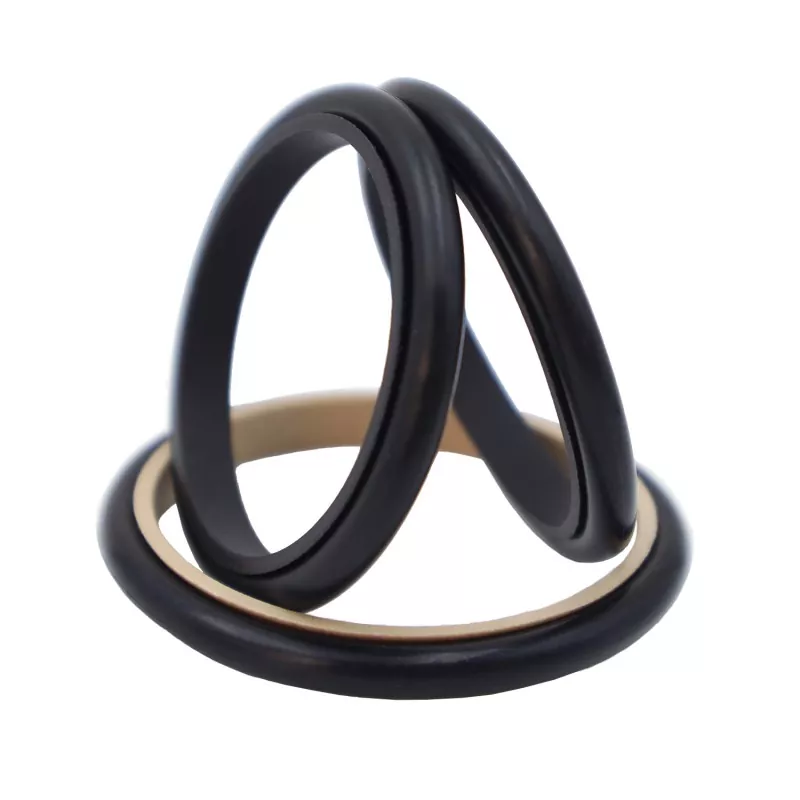

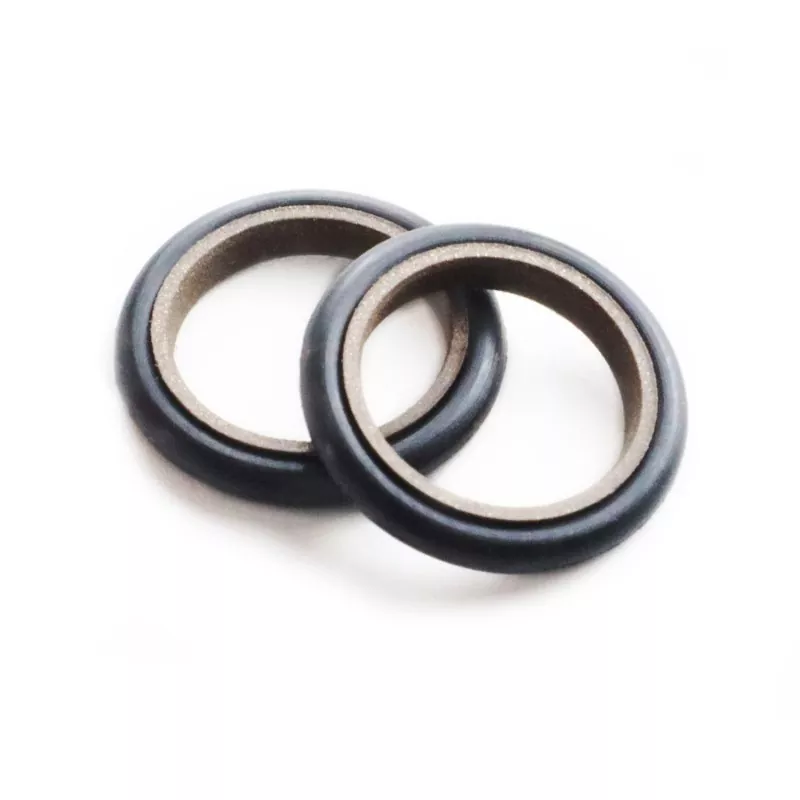

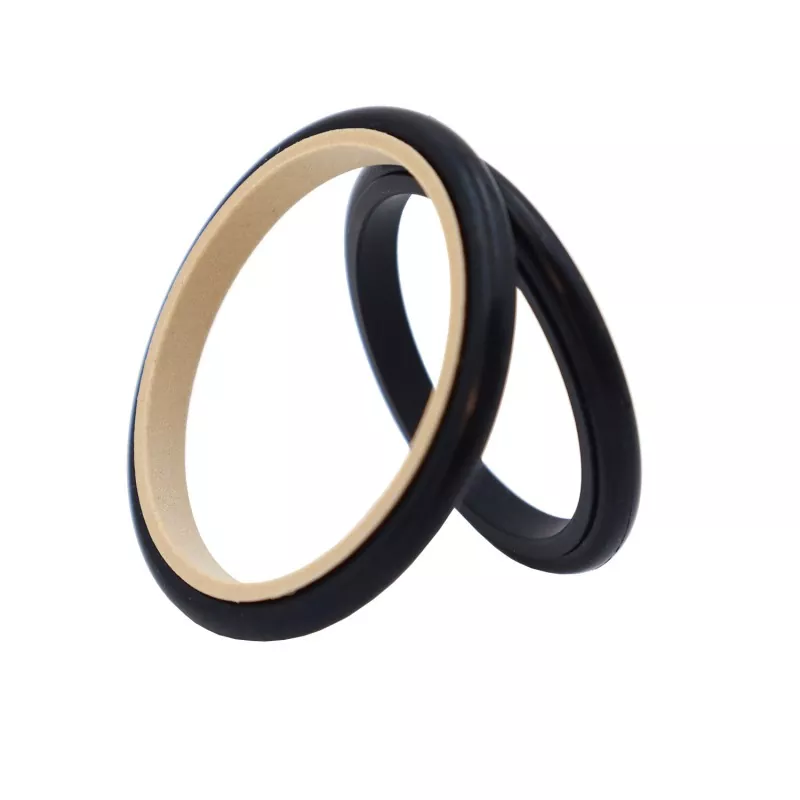

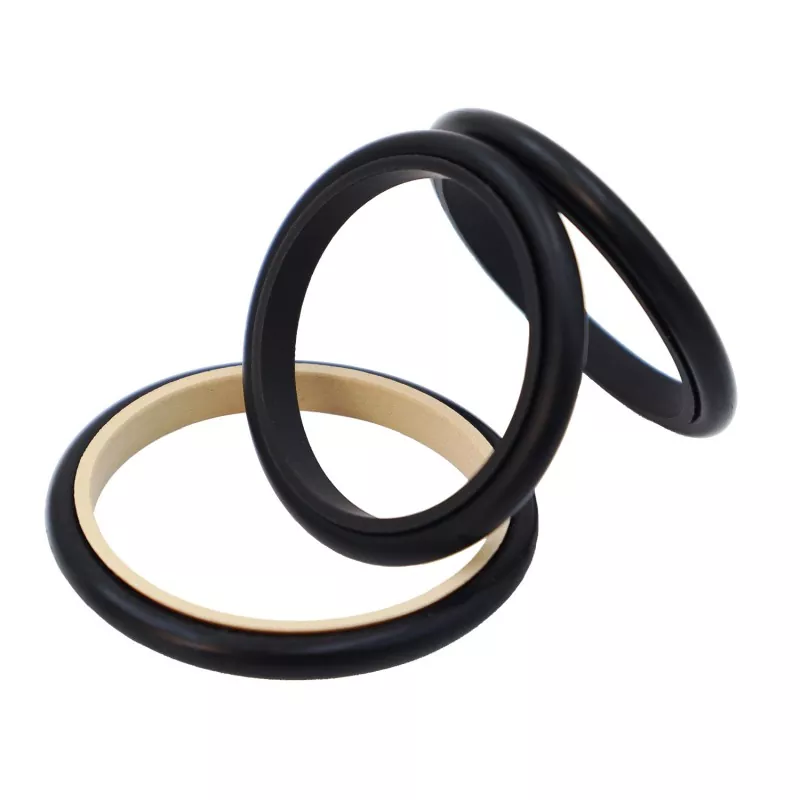

The Cap Combination Seal consists of a PTFE cap-shaped seal ring and a rubber O-ring, designed for bidirectional pressure sealing in hydraulic and pneumatic reciprocating applications. The O-ring provides radial force and compensates for wear on the seal ring; the seal ring features a thin-lip design that offers excellent follow-up compensation capabilities, resulting in superior sealing performance. It is compatible with standard GB1235 O-ring grooves. For rod diameters smaller than 30mm, a split-type (open) groove design should be used.

This seal is suitable for both hydraulic and pneumatic operating conditions and supports bidirectional pressure sealing. It offers advantages such as low friction, minimal breakaway resistance, smooth operation without stick-slip, suitability for oil-free lubrication, and a long service life. It requires minimal installation space and allows for easy disassembly and maintenance.

Selection Note: For applications with rod diameters of 30mm or less, the use of a split-type (open) groove is recommended for installation.

Product Features

1. Suitable for both hydraulic and pneumatic applications; supports bidirectional pressure sealing.

2. Low friction, minimal breakaway resistance, and smooth motion; equal dynamic and static friction; no stick-slip.

3. Long service life; suitable for oil-free lubrication applications.

4. Compact design; easy installation and maintenance.

Applicable Operating Conditions

Limit values should not occur simultaneously.

Material Selection

1. Materials for the accompanying O-ring include: R01 Nitrile Rubber (NBR), R02 Fluororubber (FKM), etc.

2. Sealing ring material: Standard material PTFE3; alternative materials include PTFE1, PTFE2, and PTFE4.

Ordering Example

Order Model: RC13—80-PTFE3—R01 or SPNC-80-PTFE3—R01

RC13/SPNC - Model 80 - Shaft Diameter dPTFE3 - PTFE Material Code R01 - O-ring Material Code

Specifications Table

Products can be manufactured in any size listed in the specifications table.
