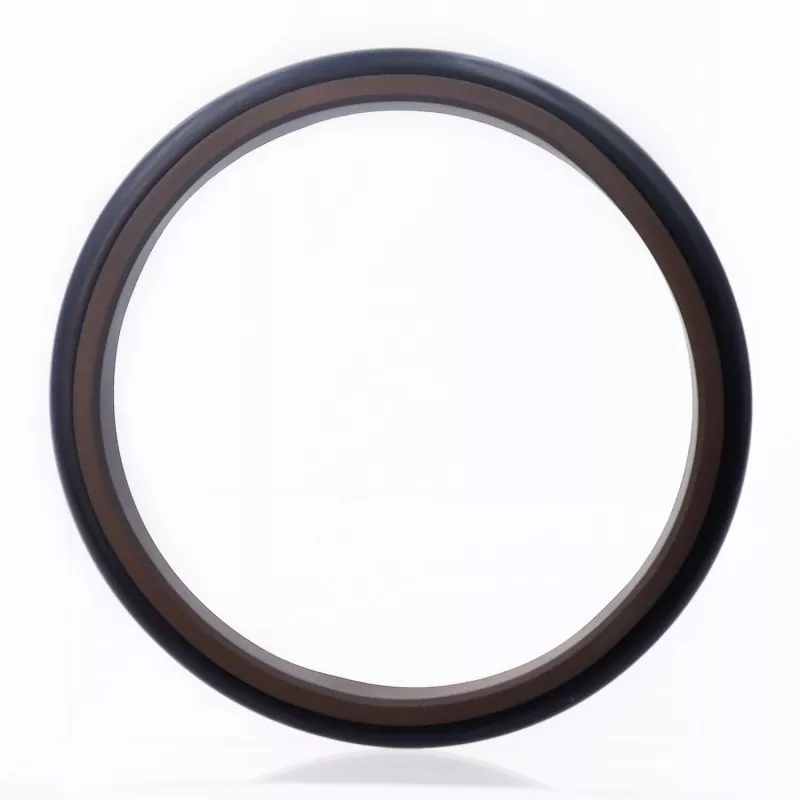

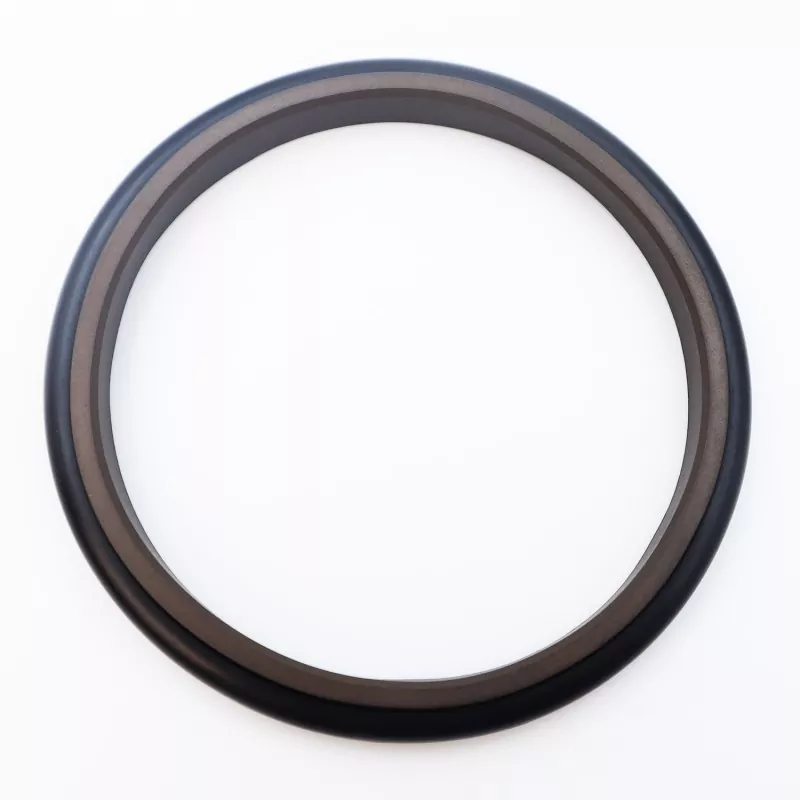

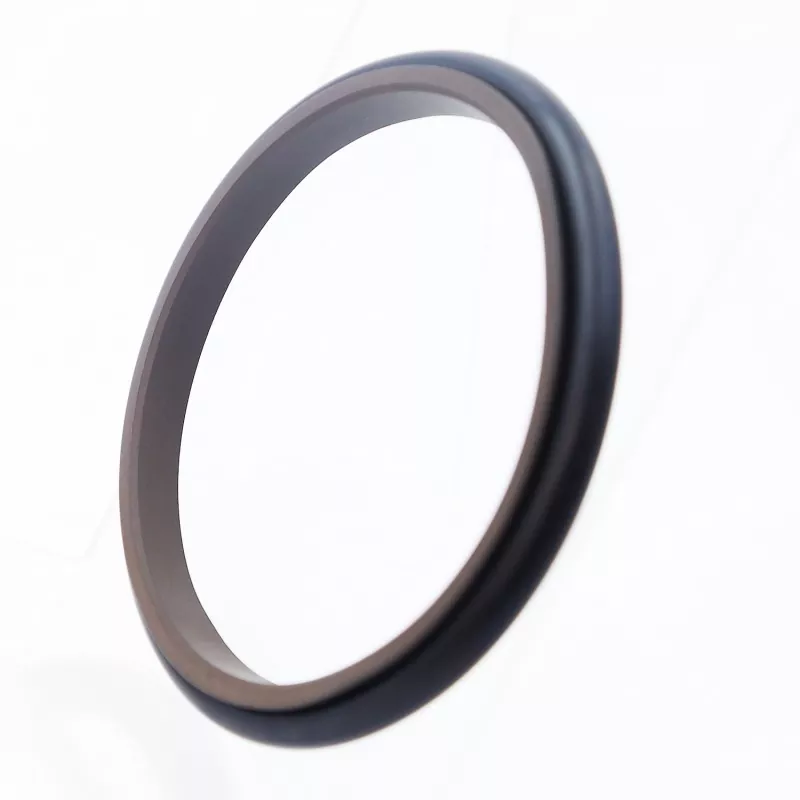

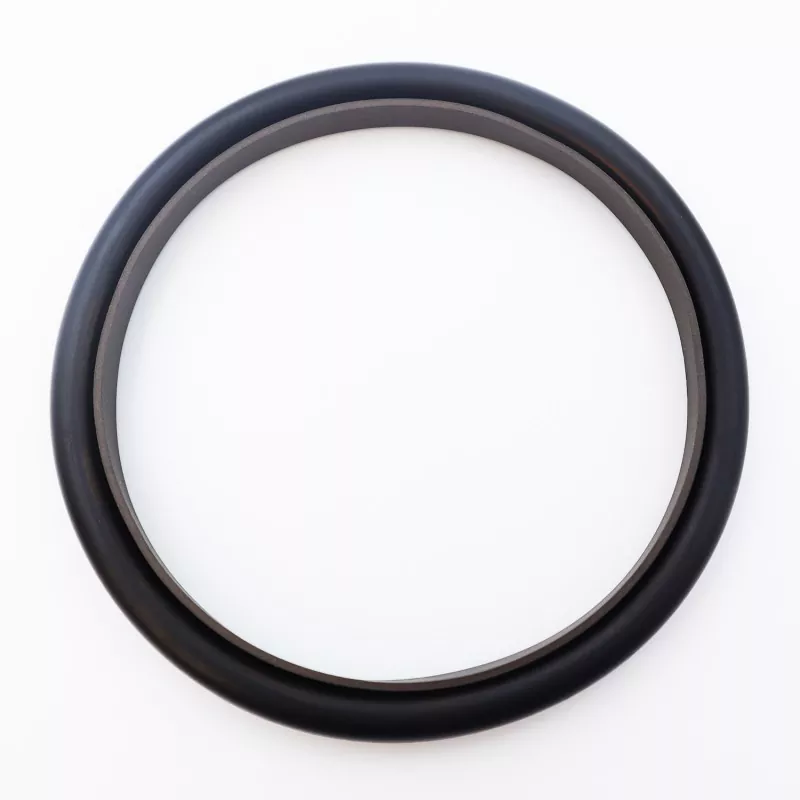

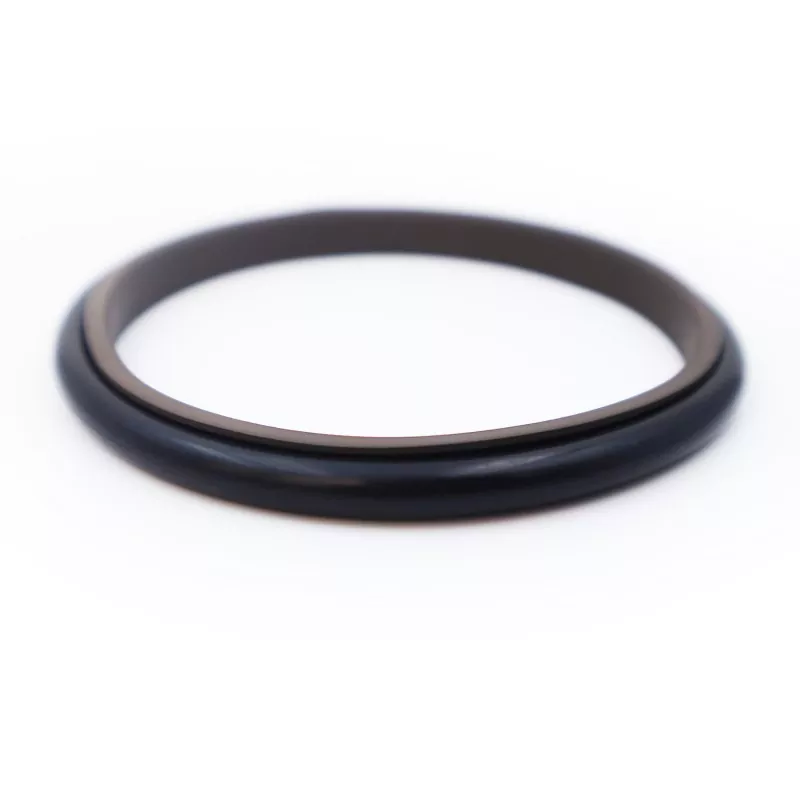

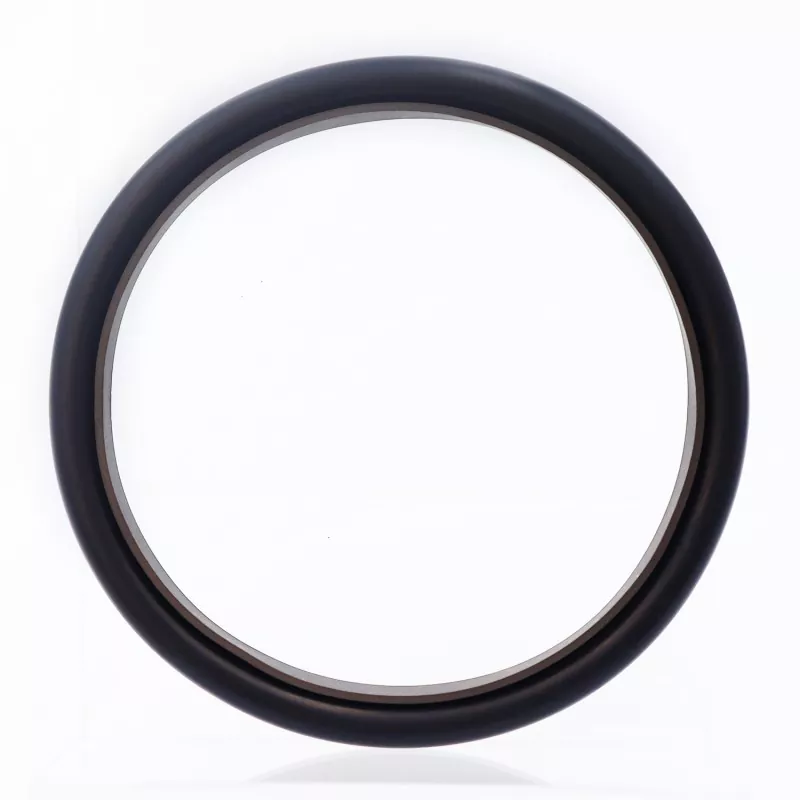

Triangle Combination Seal

For high-performance unidirectional reciprocating shaft sealing solutions, consider the Ruichen Seal Triangle Combination Seal. Comprising a PTFE triangular sealing ring and a rubber O-ring, it is widely suitable for unidirectional pressure sealing applications in hydraulic and pneumatic reciprocating systems. The seal balances dynamic and static friction, ensures smooth operation without stick-slip, supports long-term oil-free operation, and features a compact design that saves installation space.
Technical Note: For applications involving rod diameters of 30mm or less, a split-type open groove is recommended for installation.

The Triangle Combination Seal consists of a triangular PTFE sealing ring and a rubber O-ring; it is designed for single-acting pressure sealing in hydraulic and pneumatic reciprocating applications. The O-ring provides radial force and compensates for wear on the sealing ring. Thanks to the sealing ring's thin-lip design, it offers excellent follow-up compensation and sealing performance. For rod diameters smaller than 30 mm, a split (open-type) groove design should be used.


Product Features

1. Suitable for both hydraulic and pneumatic applications;

2. Low friction, low breakaway resistance, smooth movement, equal dynamic and static friction, and no stick-slip;

3. Long service life; suitable for oil-free lubrication applications;

4. Compact design; easy to install and maintain;


Operating Conditions

Limit values should not occur simultaneously.

Pressure (MPa)

Temperature (°C)

Speed m/s

Media

≤20

-35 to +100 (with NBR O-ring)

≤6

Mineral-based hydraulic oils, fire-resistant fluids (HFA/HFB), gases, etc.

-20 to +180 (with FKM O-ring)


Material Selection

1. Compatible O-ring materials include: R01 Nitrile Rubber (NBR), R02 Fluororubber (FKM), etc.

2. Sealing ring material: Standard material PTFE3; alternative materials include PTFE1, PTFE2, and PTFE4.


Ordering Example

Order Model: RC14—80—PTFE3—R01

RC14 – Model 80 – Shaft Diameter d – PTFE (Material Code R01) – O-ring Material Code


Triangle Combination Seal

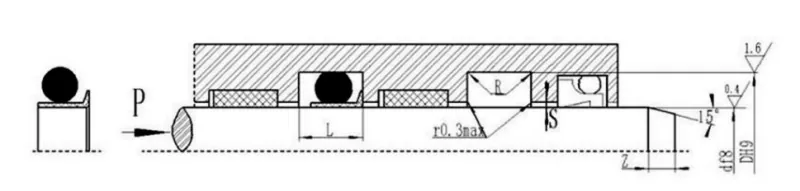

Specifications Table

Products can be manufactured in any size listed in the specifications table.

Shaft diameter range

d f8

Groove diameter

D H9

Groove width

L+0.2

Corner radius

Rmax

Radial clearance

S

Chamfer

Z

O-ring wire diameter

do

8~17

d+5.2

3.8

0.6

0.25

3

2.65

18~39

d+6.6

4.8

1

0.3

4

3.55

40~108

d+10

7.3

1.3

0.35

6

5.30

109~1500

d+13

9.5

1.8

0.4

8

7.00

Note: For shaft diameters ≤30 mm, the use of open grooves is recommended.
