As a manufacturer specializing in high-pressure seals, Ruichen Sealing offers the "Foot-type Combined Seal." The sealing ring features a thin-lip structure that provides excellent dynamic compensation capabilities. Its unique foot-shaped sealing surface—incorporating a wedge-shaped groove—enhances contamination resistance and reduces friction; this specialized design significantly boosts pressure resistance, making it suitable for high-pressure and ultra-high-pressure applications. Note: This seal is not suitable for installation in closed grooves.
We welcome inquiries regarding selection and bulk orders from engineering equipment purchasers.

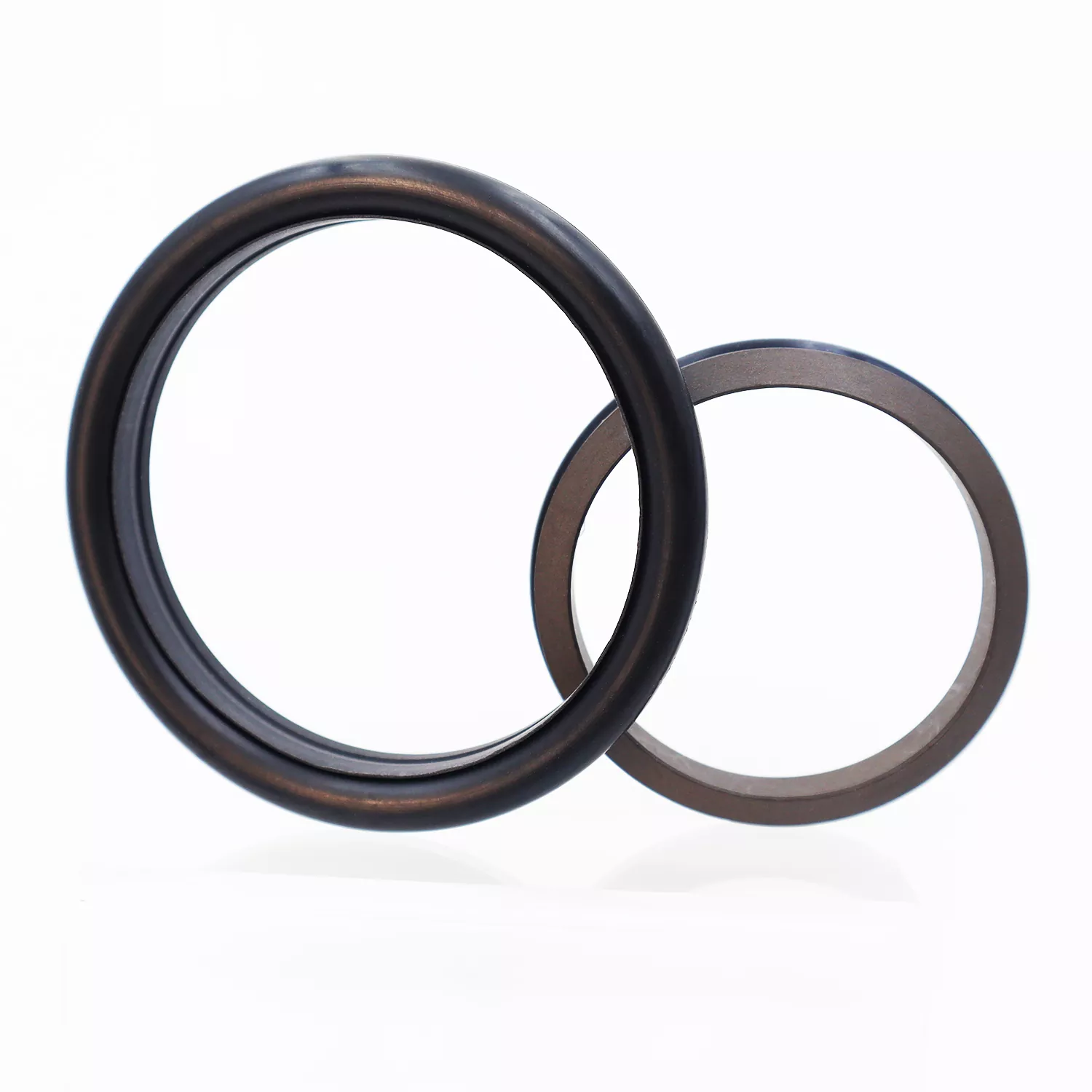

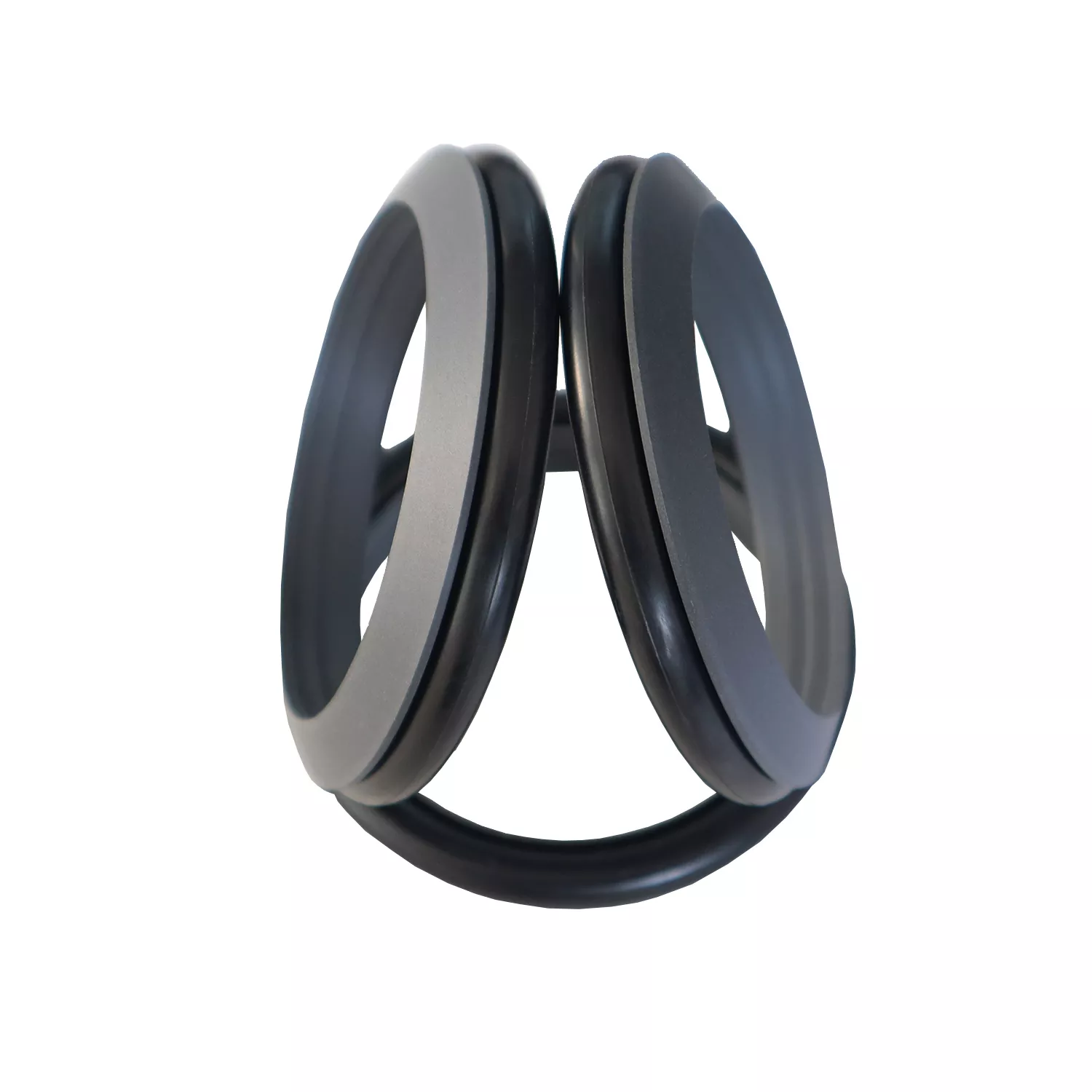

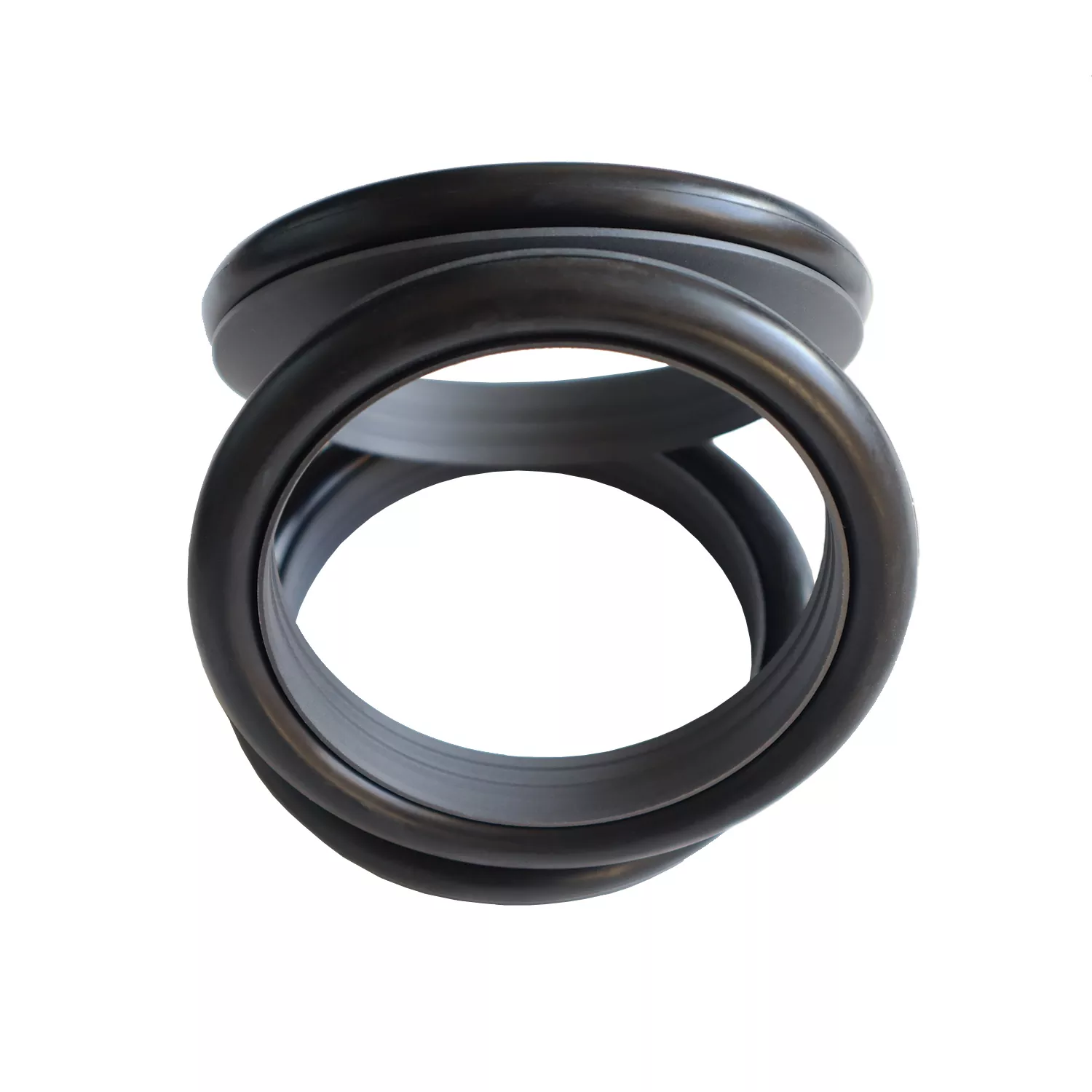

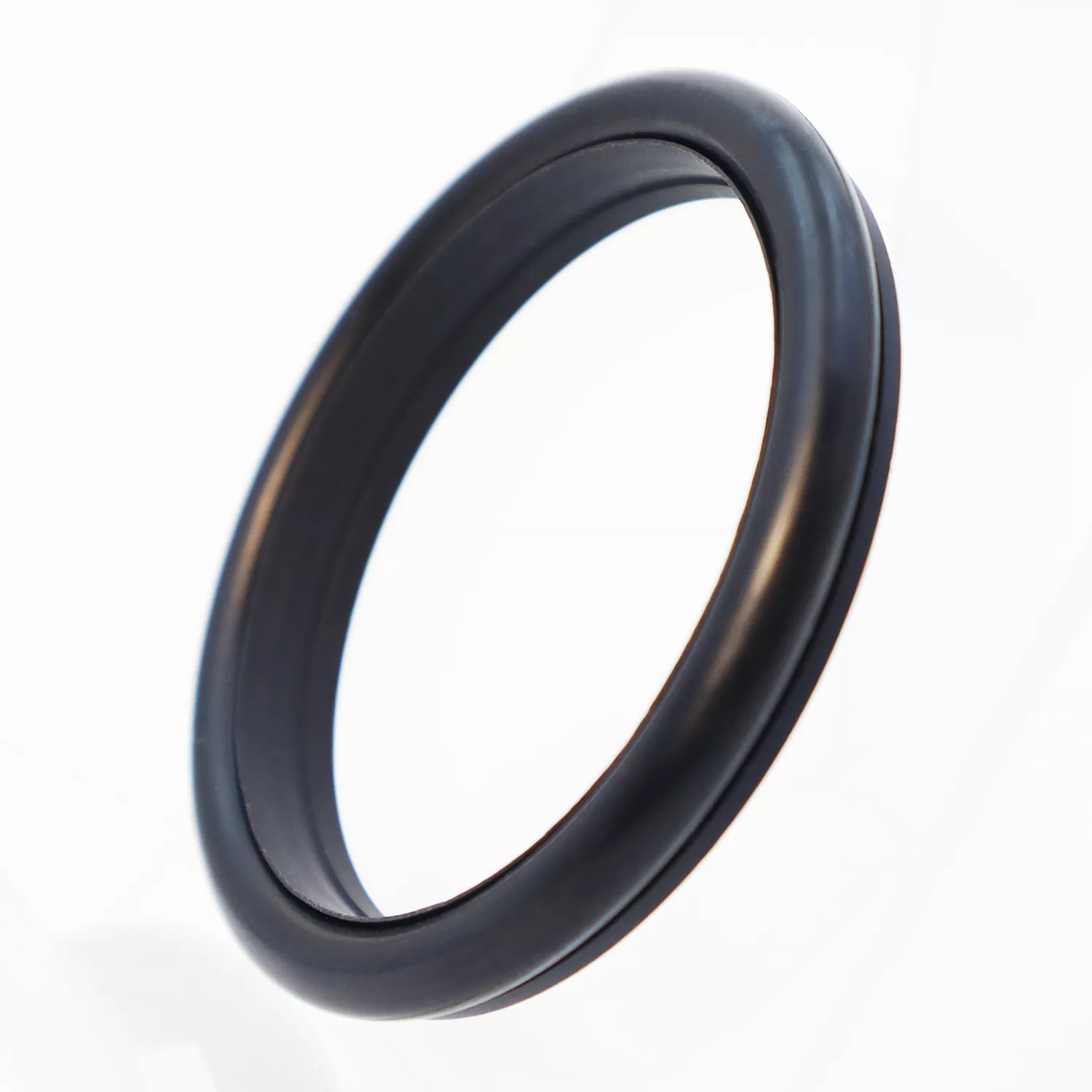

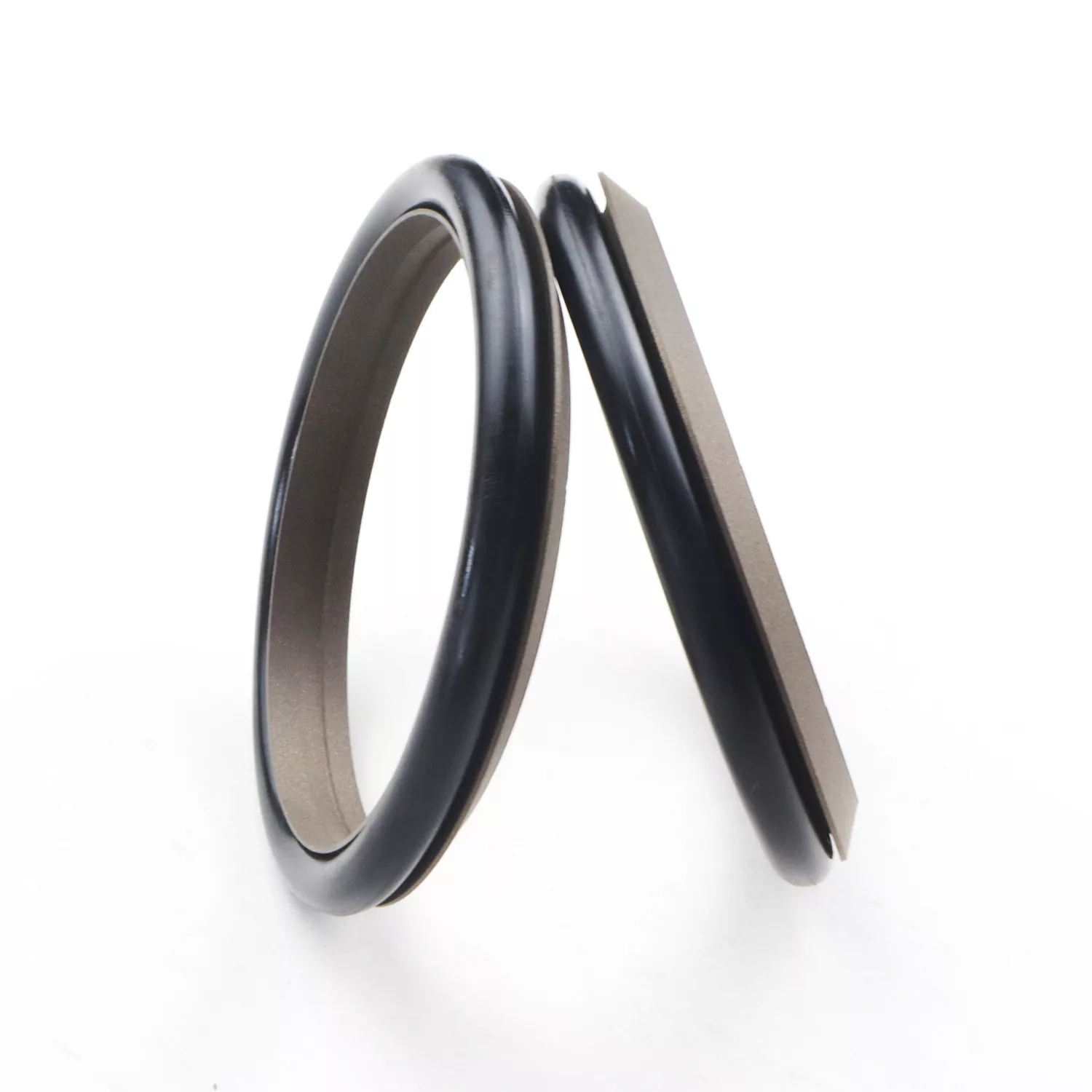

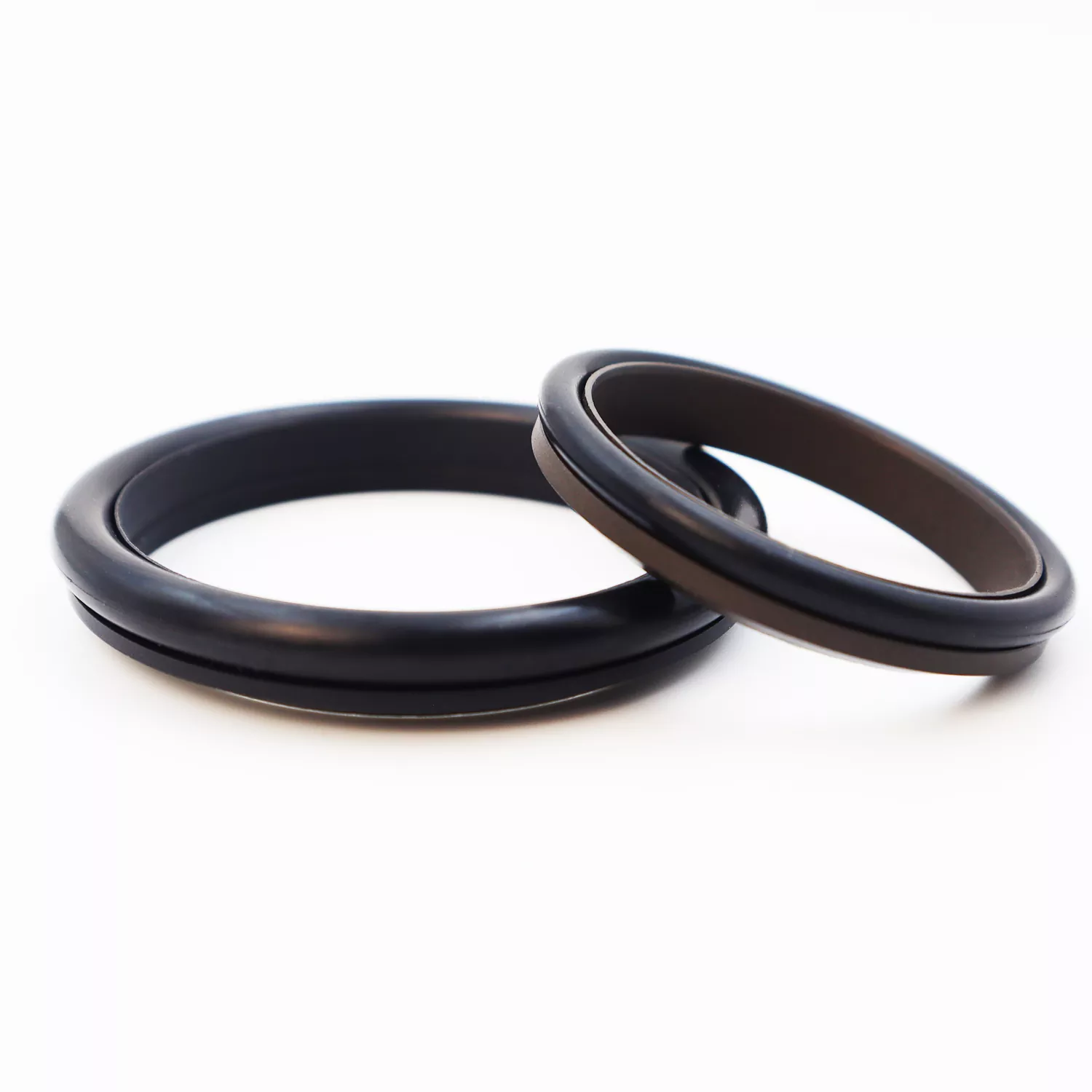

The Foot-type Combined Seal consists of a foot-shaped sealing ring (made of PTFE or PTFE composites) paired with a rubber O-ring; it is designed for single-acting sealing in hydraulic and pneumatic reciprocating applications.
It is categorized into the RC03 series and the RC04 series (which utilizes GB1235 series O-rings) based on the accompanying O-ring. The sealing ring features a thin-lip design that offers superior dynamic compensation, resulting in excellent sealing performance. The wedge-shaped groove on the foot-shaped sealing surface improves sealing integrity and contamination resistance while reducing friction. The structural design also enhances the seal's pressure-handling capabilities. Generally, it cannot be installed in closed grooves.
1. Suitable for both hydraulic and pneumatic applications
2. Excellent sealing performance in both high-pressure and low-pressure environments
3. Low friction; minimal start-up resistance and smooth movement; equal dynamic and static friction; no stick-slip effect
4. Long service life; suitable for oil-free lubrication applications
5. Capable of handling high-pressure and ultra-high-pressure sealing requirements
Limiting values should not occur simultaneously.
|
Pressure (MPa) |
Temperature (°C) |
Speed (m/s) |
Media |
|
≤100 |
-35 to +100 (with NBR O-ring) |
≤6 |
Hydraulic oil, fire-resistant fluids (HFA/HFB), gas, etc. |
|
-20 to +180 (with FKM O-ring) |
1. Compatible O-ring materials include: RO1 Nitrile Rubber (NBR), RO2 Fluororubber (FKM), etc.
2. Sealing ring material: Standard material PTFE3; other available options include PTFE2, PTFE4, and other high-performance materials.
Order Model: RC03—80x89x10-PTFE3-R01
Model - Rod Diameter x Groove Diameter x Groove Width PTFE3 - Modified PTFE material code R01 - O-ring material code
Products can be manufactured in any size listed in the specifications table.
|
d f8 |
D H9 |
L+0.2 |
Smax |
Zmin |
d0 |
|
|
<40MPA |
<60MPA |
|||||
|
5~17 |
d+4.7 |
5.2 |
0.25 |
0.15 |
4 |
2.65 |
|
18~39 |
d+6.2 |
6.6 |
0.25 |
0.2 |
5 |
3.55 |
|
40~108 |
d+9.0 |
10.0 |
0.3 |
0.2 |
7 |
5.30 |
|
109~670 |
d+12.0 |
13.2 |
0.35 |
0.25 |
10 |
7.00 |
|
671~999 |
d+14.6 |
15.8 |
0.5 |
0.3 |
12 |
8.6 |
|
1000~1600 |
d+18 |
17.4 |
0.6 |
0.4 |
15 |
10 |
|
>1600 |
d+21.2 |
22 |
0.7 |
0.6 |
20 |
12 |
Notes: 1. For pressures >60 MPa, use an H8/f8 fit tolerance at the seal base area; for ultra-high-pressure sealing, Smax < 0.05.
2. Please consult the office if a closed-groove structure is required.
Compatible with GB1235 O-rings; products of any size listed in the specification table can be manufactured.
|
d f8 |
D H9 |
L+0.2 |
Smax |
Zmin |
d0 |
|
|
<40MPA |
<60MPA |
|||||
|
5~39 |
d+6.2 |
6.6 |
0.25 |
0.2 |
5 |
3.5 |
|
40~150 |
d+9.8 |
10.6 |
0.3 |
0.2 |
7 |
5.7 |
|
151~1500 |
d+14.6 |
15.8 |
0.5 |
0.3 |
12 |
8.6 |
