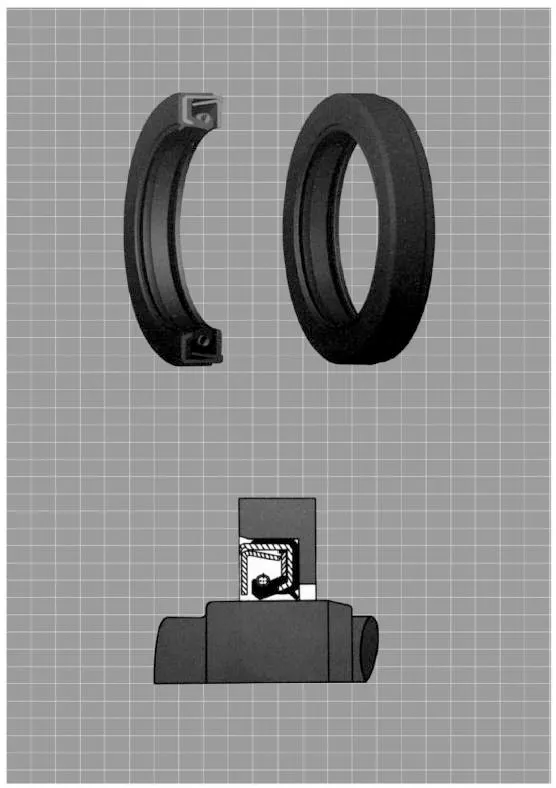

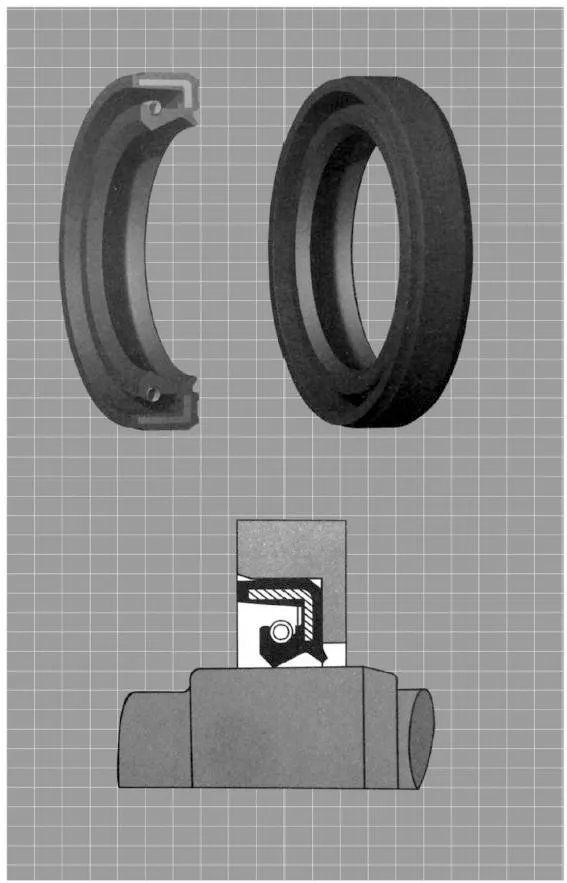

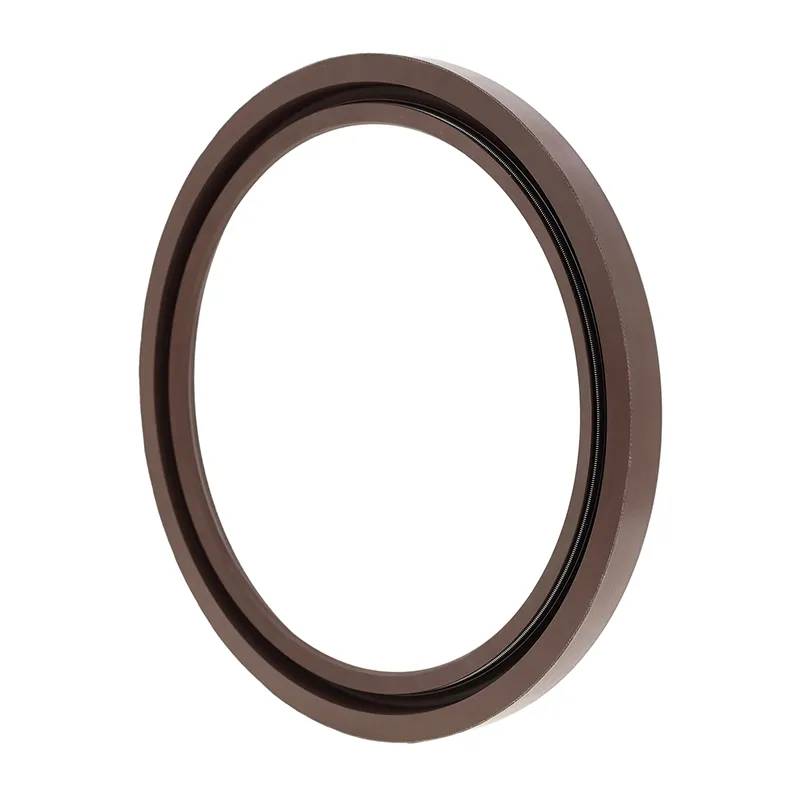

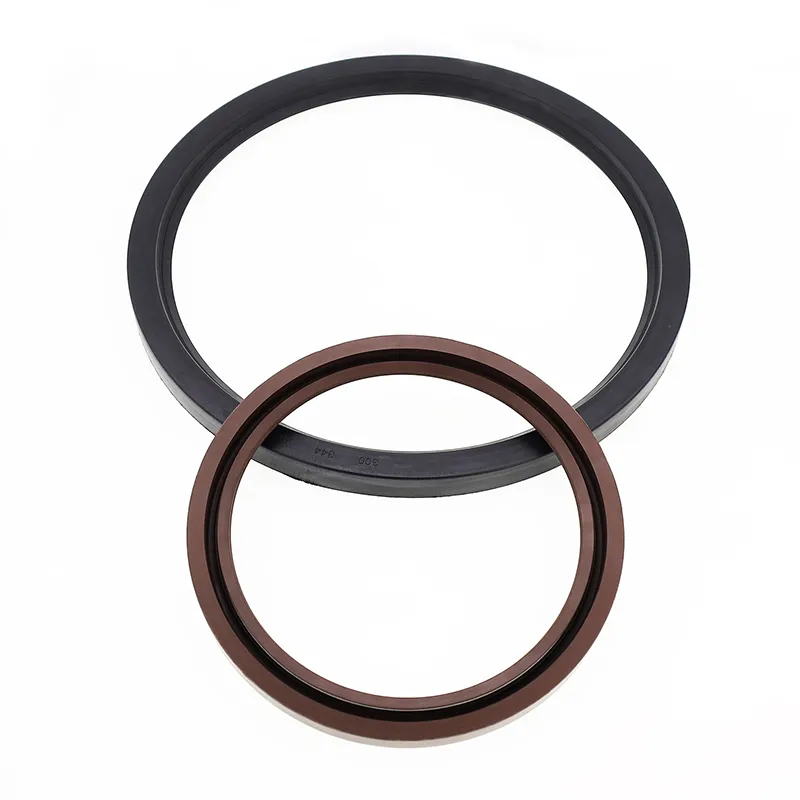

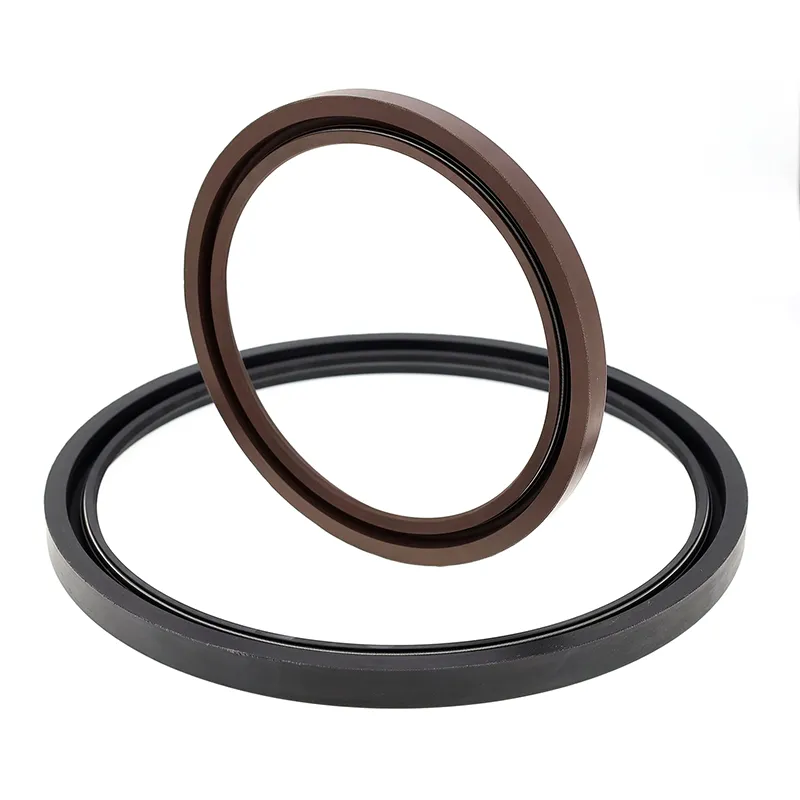

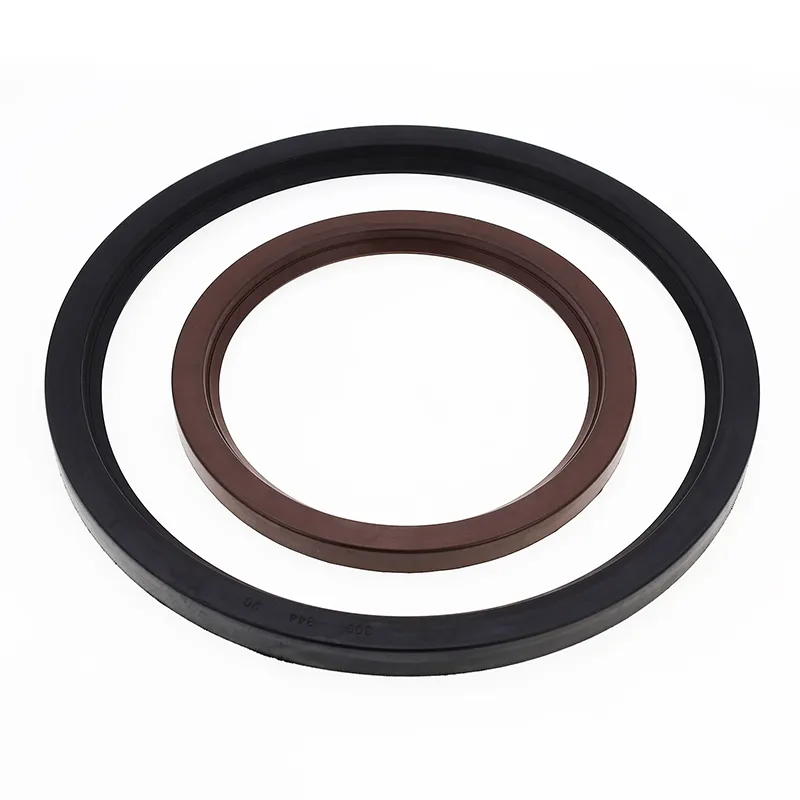

A skeleton oil seal consists of three parts: a sealing body, a reinforcing skeleton, and a self-tightening helical spring. The sealing body is further divided into the bottom, waist, cutting edge, and sealing lip, depending on the location. Typically, in its free state, the inner diameter of a skeleton oil seal is smaller than the shaft diameter, exhibiting a certain "interference fit."
Therefore, when the oil seal is inserted into the seal seat and shaft, the elasticity of the seal cutting edge and the contraction force of the self-tightening helical spring generate a radial clamping force on the shaft, resulting in optimal sealing performance.
Material
NBR (Nitrile Butadiene Rubber)
Medium
Based Hydraulic Oil
Operating Temperature
-25°C to +100°C
Speed
-
Operating Pressure
0.3 MPa
Material Hardness
-
|

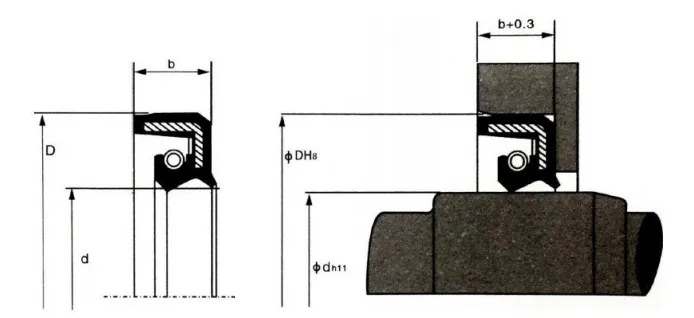

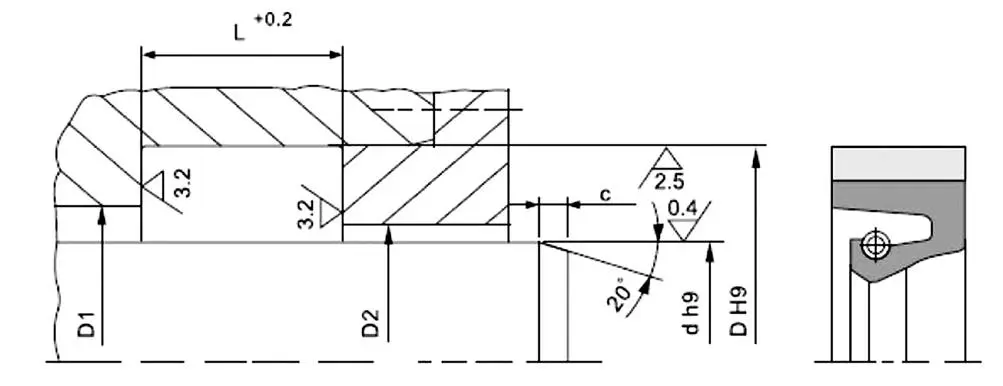

Model |
d |
D |
b |
Order Model |
|
RCTCV |
7 |
20 |
7 |
RCTCV-7 |
|
RCTCV |
8 |
18 |
7 |
RCTCV-8 |
|
RCTCV |
8 |
22 |
7 |
RCTCV-8A |
|
RCTCV |
10 |
25 |
7 |
RCTCV-10 |
|
RCTCV |
12 |
25 |
7 |
RCTCV-12 |
|
RCTCV |
13 |
28 |
7 |
RCTCV-13 |
|
RCTCV |
14 |
28 |
7 |
RCTCV-14 |
|
RCTCV |
15 |
30 |
7 |
RCTCV-15 |
|
RCTCV |
16 |
30 |
7 |
RCTCV-16 |
|
RCTCV |
17 |
35 |
8 |
RCTCV-17 |
|
RCTCV |
18 |
35 |
8 |
RCTCV-18 |
|
RCTCV |
19 |
35 |
8 |
RCTCV-19 |
|
RCTCV |
20 |
32 |
8 |
RCTCV-20 |
|
RCTCV |
20 |
40 |
11 |
RCTCV-20A |
|
RCTCV |
22 |
35 |
8 |
RCTCV-22 |
|
RCTCV |
22 |
42 |
11 |
RCTCV-22A |
|
RCTCV |
23 |
42 |
11 |
RCTCV-23 |
|
RCTCV |
24 |
40 |
8 |
RCTCV-24 |
|
RCTCV |
25 |
40 |
8 |
RCTCV-25 |
|
RCTCV |
25 |
45 |
11 |
RCTCV-25A |
|
RCTCV |
26 |
42 |
8 |
RCTCV-26 |
|
RCTCV |
27 |
47 |
11 |
RCTCV-27 |
|
RCTCV |
28 |
48 |
11 |
RCTCV-28 |
|
RCTCV |
30 |
42 |
7 |
RCTCV-30 |
|
RCTCV |
30 |
50 |
11 |
RCTCV-30A |
|
RCTCV |
32 |
52 |
11 |
RCTCV-32 |
|
RCTCV |
34 |
54 |
11 |
RCTCV-34 |
|
RCTCV |
35 |
55 |
11 |
RCTCV-35 |
|
RCTCV |
38 |
58 |
11 |
RCTCV-38 |
|
RCTCV |
40 |
62 |
11 |
RCTCV-40 |
|
RCTCV |
42 |
65 |
12 |
RCTCV-42 |
|
RCTCV |
45 |
68 |
12 |
RCTCV-45 |
|
RCTCV |
48 |
70 |
12 |
RCTCV-48 |
|
RCTCV |
50 |
72 |
12 |
RCTCV-50 |
|
RCTCV |
52 |
75 |
12 |
RCTCV-52 |
|
RCTCV |
55 |
78 |
12 |
RCTCV-55 |
|
RCTCV |
58 |
80 |
12 |
RCTCV-58 |
|
RCTCV |
60 |
82 |
12 |
RCTCV-60 |
|
RCTCV |
62 |
85 |
12 |
RCTCV-62 |
RCTCN Double-lip High-Pressure Oil Seal
Overview: The overall pressure-resistant skeleton design minimizes lip deformation, making it suitable for sealing rotating shafts in pressurized applications.
Materials: NBR (Nitrile Butadiene Rubber)
Media: Petroleum-based hydraulic oil
Operating Temperature (°C): -25 to +100
Speed: -
Operating Pressure: 1 MPa
Material Hardness: -
Why Choose Ruichen?
Comprehensive Testing System: We possess a comprehensive materials and product testing laboratory, including:
● Material mechanical property testing (tensile testing machine, etc.).
● Dedicated testing bench for hydraulic seal performance, lifespan, and rotary seals.
● Specialized testing capabilities for high-pressure seals, capable of performing starting resistance, performance, and durability tests at pressures exceeding 200 MPa.
Authoritative Qualifications and Honors: We are a national high-tech enterprise and a provincial-level "Specialized, Refined, and Innovative" enterprise, holding over 40 national patents (including multiple invention patents).
Industry Contribution: We are a member of the China Hydraulic and Pneumatic Seals Industry Association and participate in the drafting of national standards, serving as a bidding unit in the industry.
