Installation Structure and Requirements
1. Shaft Material: Commonly used are carbon steel and stainless steel. For high speeds, chrome plating is applied to the surface, HRC40-45.
2. Design of Rotating Shaft and Grooves: The shaft surface should be smooth and burr-free. Spiral machining marks can create a pumping effect, leading to leakage. It is recommended that the oil seal mounting area be ground to a surface roughness of Ra0.1-0.5µm, becoming smoother with increasing speed. For ease of installation and disassembly, the shaft and grooves must be designed with chamfers or rounded edges See Figures 1 and 2.
|
Sealing height b |
b1(0.85xb) mm |
b2(b+0.3) mm |
r max. |
|
7 |
5.95 |
7.3 |
0.5 |
|
8 |
6.80 |
8.3 |
0.5 |
|
10 |
8.50 |
10.3 |
0.5 |
|
12 |
10.30 |
12.3 |
0.7 |
|
15 |
12.75 |
15.3 |
0.7 |
|
20 |
17.00 |
20.3 |
0.7 |
Figure 1. Groove chamfer design
|
d |
d3 |
R |
|
<10 |
d-1.5 |
2 |
|
10~20 |
d-2.0 |
2 |
|
20~30 |
d-2.5 |
3 |
|
30~40 |
d-3.0 |
3 |
|
40~50 |
d-3.5 |
4 |
|
50~70 |
d-4.0 |
4 |
|
70~95 |
d-4.5 |
5 |
|
95~130 |
d-5.5 |
6 |
|
130~240 |
d-7.0 |
8 |
|
240~500 |
d-11.0 |
12 |
|
500~800 |
d-14.0 |
14 |
|
800~1250 |
d-18.0 |
16 |

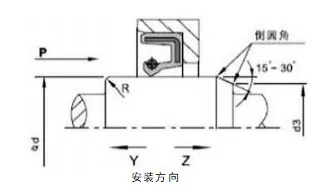

Figure 2 Chamfer design of the rotating shaft
Factors affecting the performance of rotary shaft lip seals

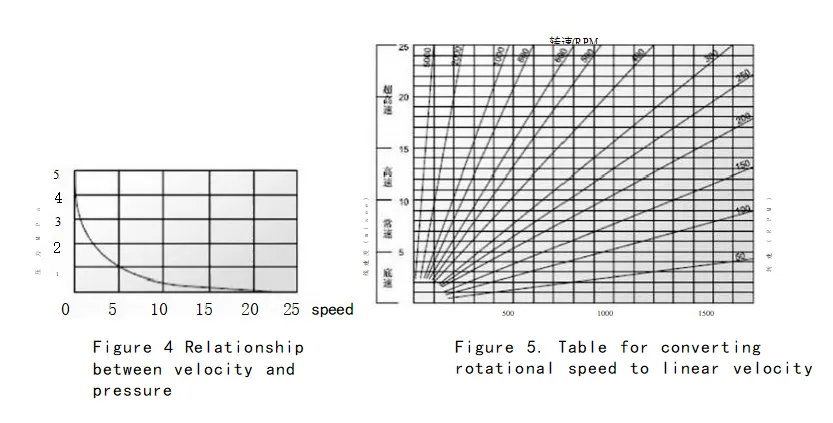

There are dozens of factors that affect the sealing effect. Besides the oil seal itself, such as its material and structure, other factors like the medium, temperature, pressure, lubrication, speed, and surface roughness also directly affect the sealing effect, and these factors often interact with each other. The following charts are for user reference only.

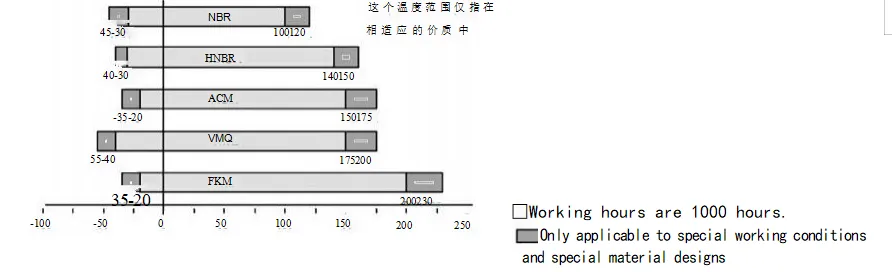

Figure 3. Effect of temperature on oil seal
Installation: Careful installation is a prerequisite for the proper functioning of oil seals.
|
Installation diagram (cavity installation) |
||
|
Correct installation method |
Applicable working conditions |
Incorrect installation method |
|
|
This method is only applicable when the oil seal end face and the cavity end face are flush. When the pressing equipment operates rapidly, the oil seal must be positioned correctly; otherwise, misalignment may occur. |
|
|
|
This design is suitable for situations where the oil seal end face is lower than the cavity end face. Even with rapid pressing, the oil seal can still be well positioned. However, this type of fixture lacks radial positioning, therefore the axial perpendicularity of the pressing device's flat plate and pressure shaft must achieve a certain precision. |
|
|
|
This method is suitable for situations where the oil seal end face is lower than the cavity end face. When pressing in the equipment quickly, it is crucial to ensure the oil seal is positioned correctly; otherwise, misalignment may occur. |
 |
|
|
This method is only suitable for maintenance or simple installation conditions where pressure equipment is unavailable. Because absolutely uniform pressing cannot be achieved during installation, various installation problems are inevitable. It is primarily designed to prevent radial misalignment during installation, which could deform the oil seal, or to prevent damage to the rubber of the oil seal mating part (outer circle) due to pauses during installation. Therefore, this installation method is generally not recommended. |
|

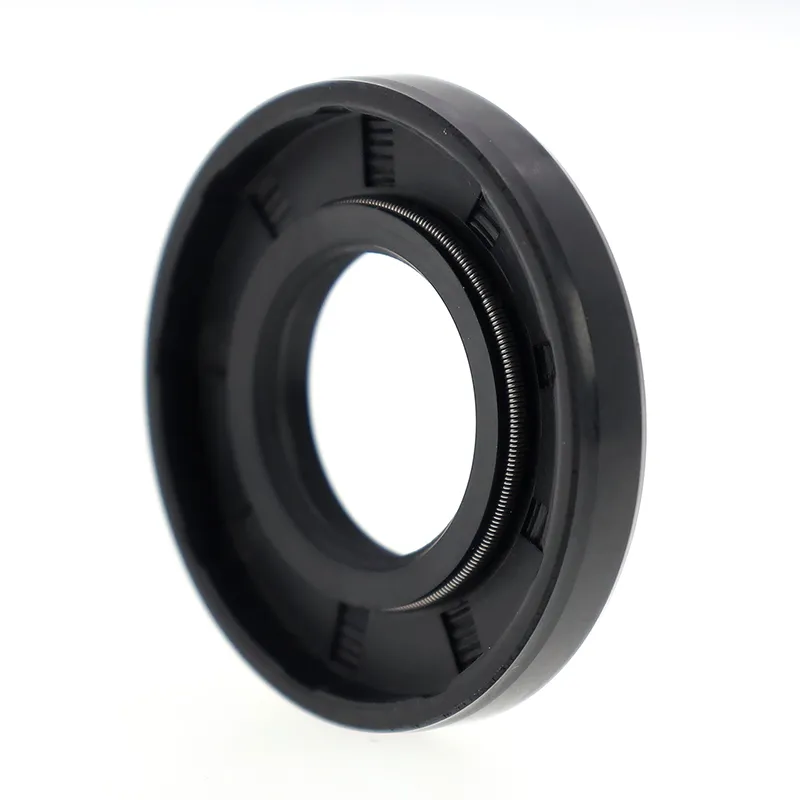

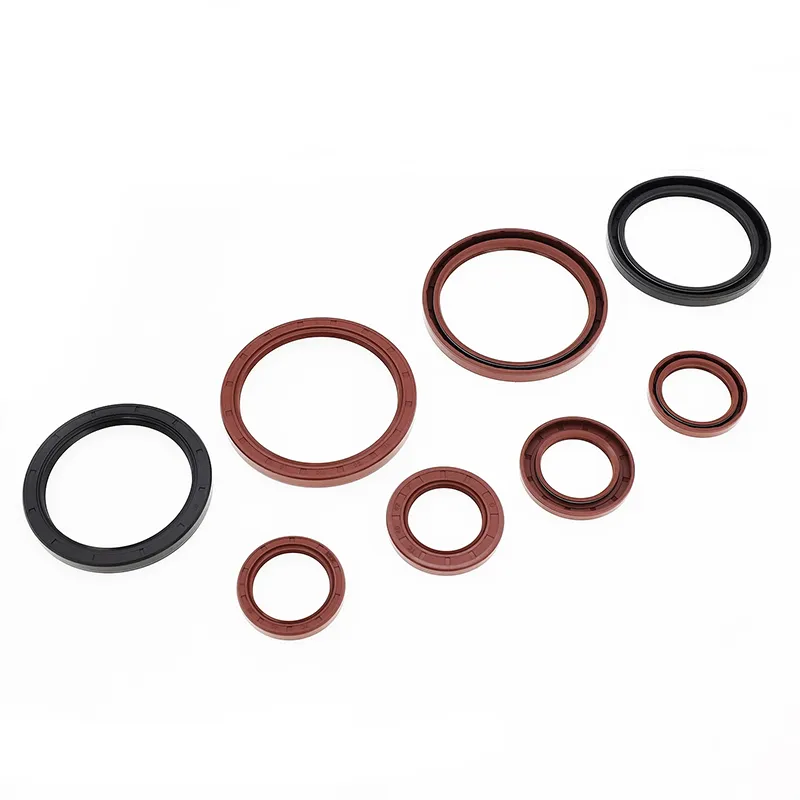

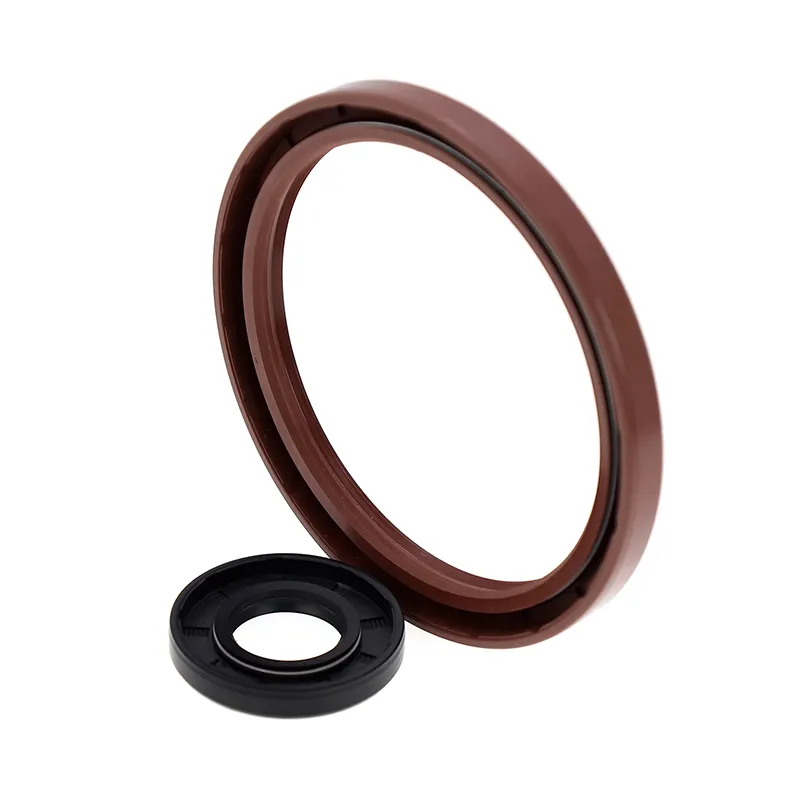

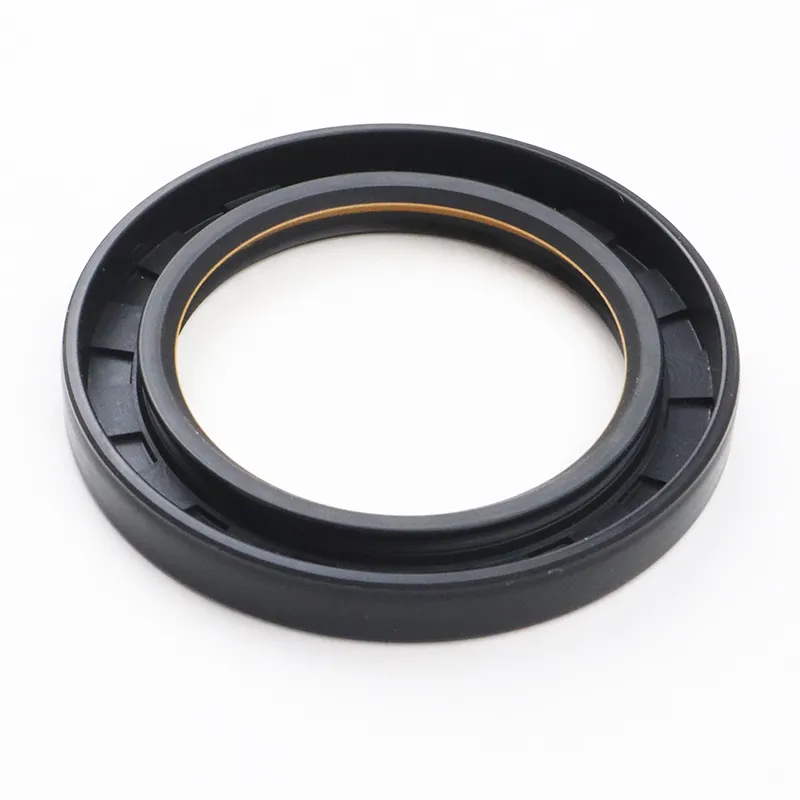

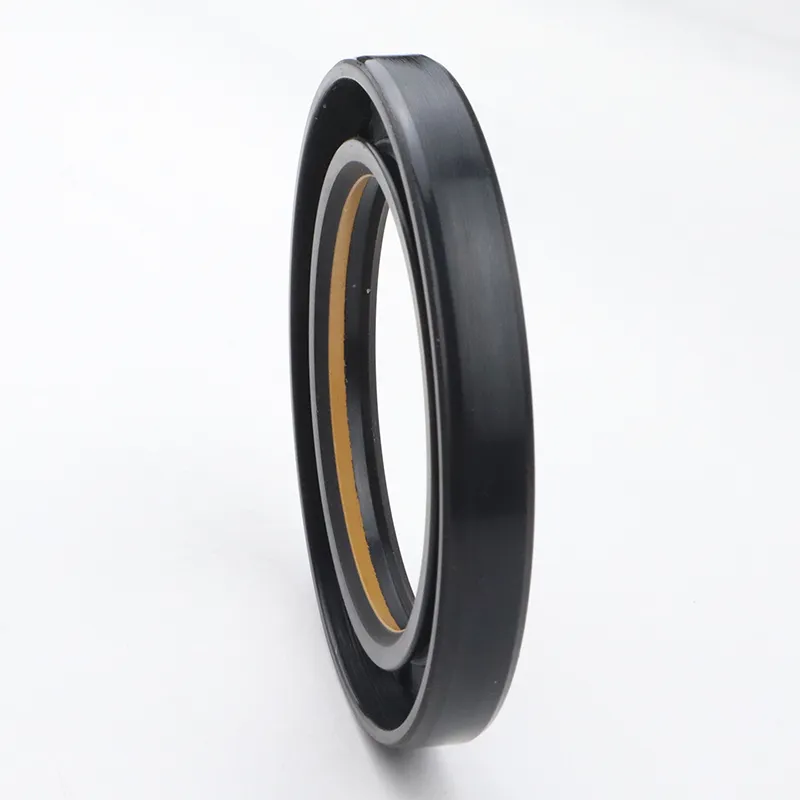

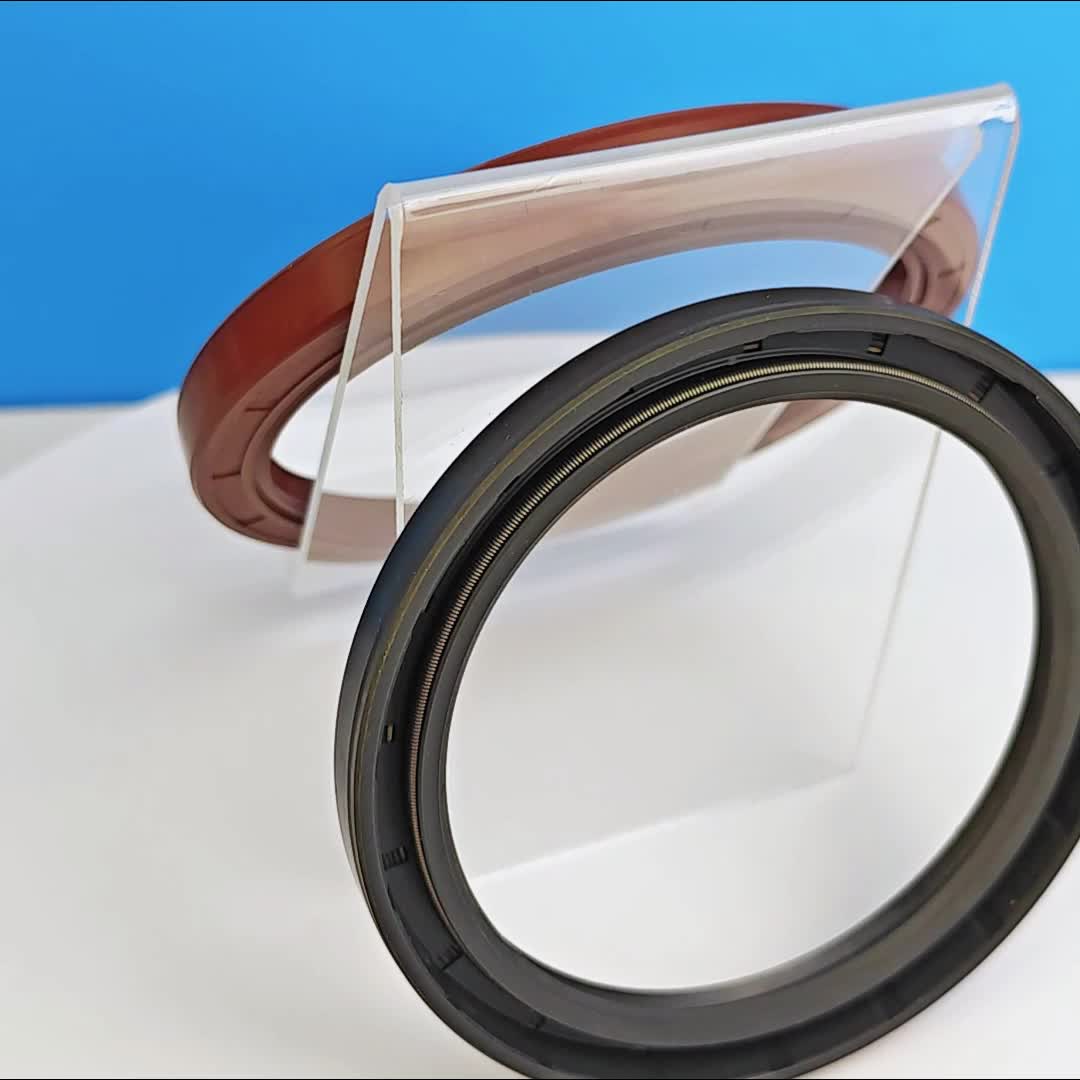

TC/SC/TB/SB oil seals

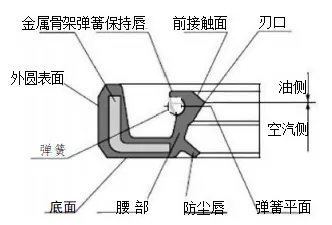

Both consist of a metal frame, a spring, and a rubber body. The metal frame provides support, and the spring applies radial force to the sealing lip. Both TC and TB models have a dustproof auxiliary lip, suitable for applications where one side contains the sealing medium and the other side contains dust. TB/SB models have a metal outer circle, making the oil seal more secure and precise within the cavity. However, the sealing ability of the outer circle is limited for low-viscosity and gaseous media; therefore, it is recommended to apply sealant to the outer circle during installation and use.
|

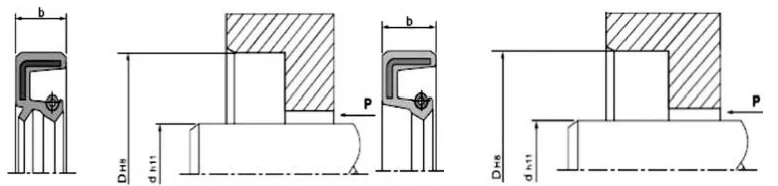

Cross-sectional shape |
Model |
Application |
Pressure |
Temperature |
Speed |
Medium |
Material |
|
|
TC |
Sealing, dustproof |
0.03MPa |
-30~+160 |
20m/s |
Lubricating oil and grease |
NBR/FKM + Carbon Steel |
|
|
SC |
Sealing |
|||||
|
|
TB |
Sealing, dustproof |
-30~+100 |
25m/s |
Water, lubricating oil, grease |
NBR + Carbon Steel |
|
|
|
SB |
Sealing |
Order model TC-d*D*b
|
Specification |
Specification |
Specification |
Specification |
Specification |
Specification |
Specification |
|
TC-6*17*3.5 |
TC-9*25*7 |
TC-10*30*7 |
TC-12*25*10 |
TC-13*25*7 |
TC-14*32*8 |
TC-15*30*7 |
|
TC-7*18*7 |
TC-10*18*7 |
TC-11*22*7 |
TC-12*26*7 |
TC-13*26*7 |
TC-14*32*10 |
TC-15*30*8 |
|
TC-8*18*7 |
TC-10*19*7 |
TC-I1*25*7 |
TC-12*28*7 |
TC-13*28*7 |
TC-14*35*7 |
TC-15*30*10 |
|
TC-8*20*7 |
TC-10*20*5 |
TC-11*30*10 |
TC-12*28*8 |
TC-13*30*8 |
TC-14*35*8 |
TC-15*32*7 |
|
TC-8*22*7 |
TC-10*20*7 |
TC-12*19*3 |
TC-12*30*7 |
TC-14*24*7 |
TC-14*40*7 |
TC-15*32*10 |
|
TC-8*22*8 |
TC-10*22*5 |
TC-12*20*7 |
TC-12*30*10 |
TC-14*25*7 |
TC-15*22*8 |
TC-15*35*7 |
|
TC-8*25*7 |
TC-10*22*7 |
TC-12*21*7 |
TC-12*32*7 |
TC-14*26*7 |
TC-15*24*7 |
TC-15*35*8 |
|
TC-8*25*8 |
TC-10*22*8 |
TC-12*22*5 |
TC-12*32*10 |
TC-14*27*7 |
TC-15*25*5 |
TC-15*35*10 |
|
TC-8*30*7 |
TC-10*22*10 |
TC-12*22.5*5.5 |
TC-12*35*7 |
TC-14*28*7 |
TC-15*25*7 |
TC-15*38*7 |
|
TC-9*16*5 |
TC-10*24*7 |
TC-12*22*7 |
TC-12*35*10 |
TC-14*28*8 |
TC-15*25*8 |
TC-15*38*8 |
|
TC-9*18*7 |
TC-10*25*5 |
TC-12*22*8 |
TC-12.7*22.22*5 |
TC-14*28*10 |
TC-15*26*7 |
TC-15*38*10 |
|
TC-9*19*7 |
TC-10*25*7 |
TC-12*24*6 |
TC-12.7*25.4*7 |
TC-14*29*7 |
TC-15*27*7 |
TC-15*40*8 |
|
TC-9*20*7 |
TC-10*25*10 |
TC-12*24*7 |
TC-12.7*26*8 |
TC-14*30*7 |
TC-15*27*8 |
TC-15*40*10 |
|
TC-9*22*7 |
TC-10*26*7 |
TC-12*25*7 |
TC-12.7*30*8 |
TC-14*30*10 |
TC-15*28*7 |
TC-15*42*7 |
|
TC-9*24*7 |
TC-10*28*7 |
TC-12*25*8 |
TC-13*23*7 |
TC-14*32*7 |
TC-15*28*10 |
TC-15*42*8 |
