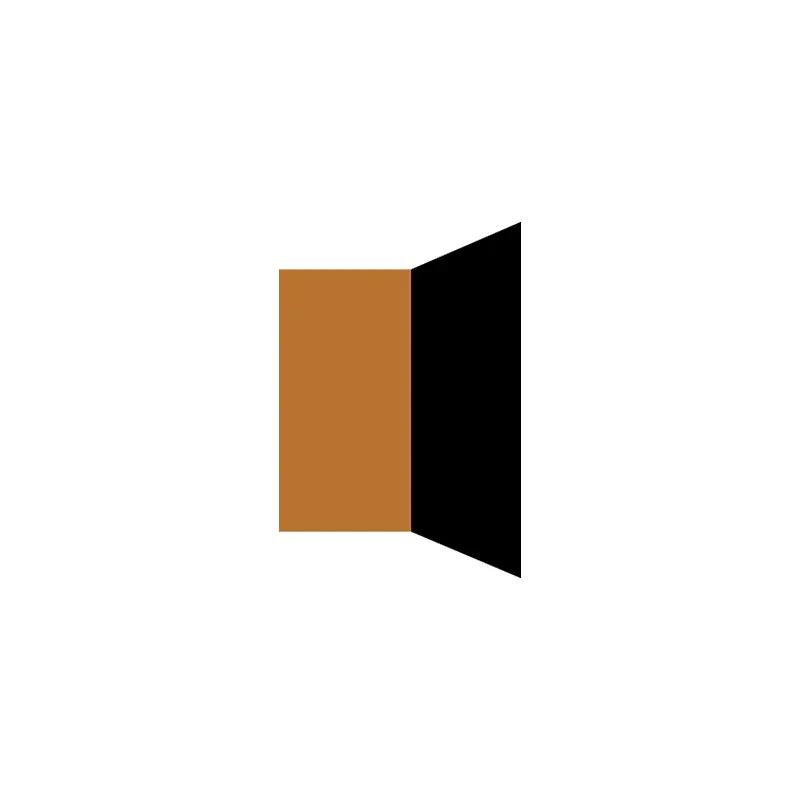

Combined Gasket

As a manufacturer and supplier of combined gaskets, our combined gaskets are specially designed for pipeline systems with oil as the medium. They can provide reliable sealing for ferrules, pipe joints, bolts and mechanical device pressure systems, effectively prevent leakage of oil, fuel, water, medicines, etc., and can also seal bolts to prevent loosening. They are currently widely used standard seals, providing solid protection for the safe and stable operation of your pipeline system.

Product features and applications:

Product advantages:

The combined gasket has excellent sealing performance, effectively preventing leakage of media such as oil, fuel, water and medicine, and ensuring the safe operation of the system. The anti-loosening design can also be used for bolt sealing to prevent screws from loosening. Overall, our combined gaskets have made a wide range of applicability matching, meet widely used standards, are easy to select and install, and are suitable for sealing pressure systems of ferrules, pipe joints, bolts and mechanical devices.

Application scenarios:

Pipeline system: used for sealing ferrules and pipe joints in hydraulic and pneumatic systems.

Bolt sealing: prevents screws from loosening, suitable for mechanical devices and pressure systems.

Material

Metal frame: galvanized surface MZP

stainless steel SS

Copper CU

Rubber part: Nitrile rubber NBR   Working temperature: -40°C...120°C

Fluororubber FKM   Working temperature: -25°C...220°C

Technical Data

Working pressure: with recess - 80MPa;

without recess - 40MPa, when D1≥40mm;

without recess - 25MPa, when D1≤40mm.

Installation Requirements

Surface quality: surface roughness         Rmax          Ra

contact surface        ≤15μm      ≤2.5μm

Model

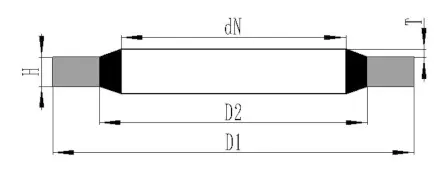

Normal BS:

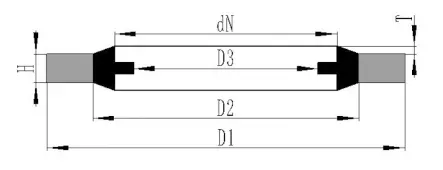

Self-centering SCBS:
