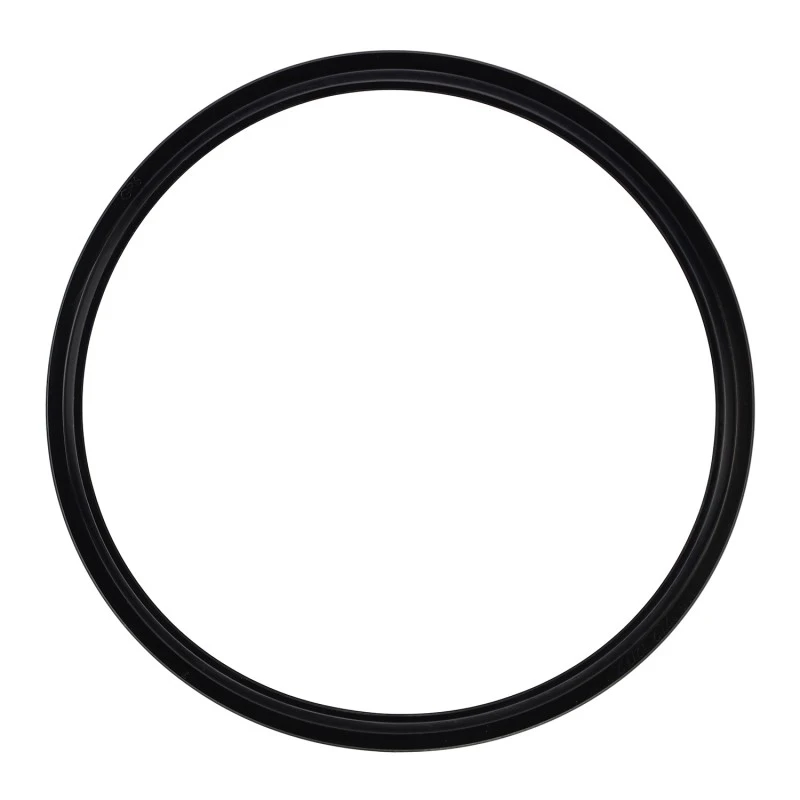

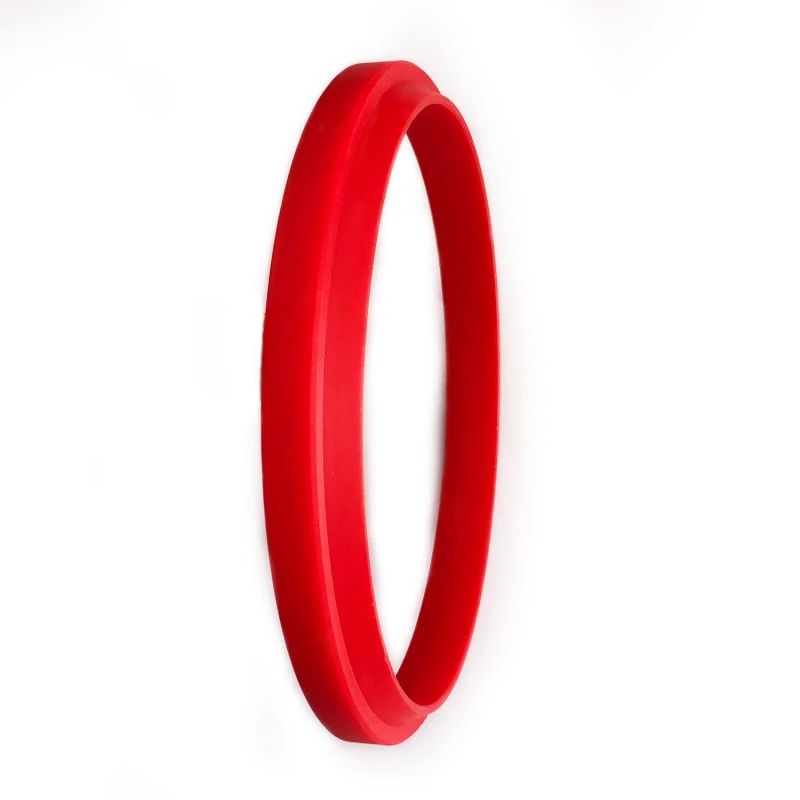

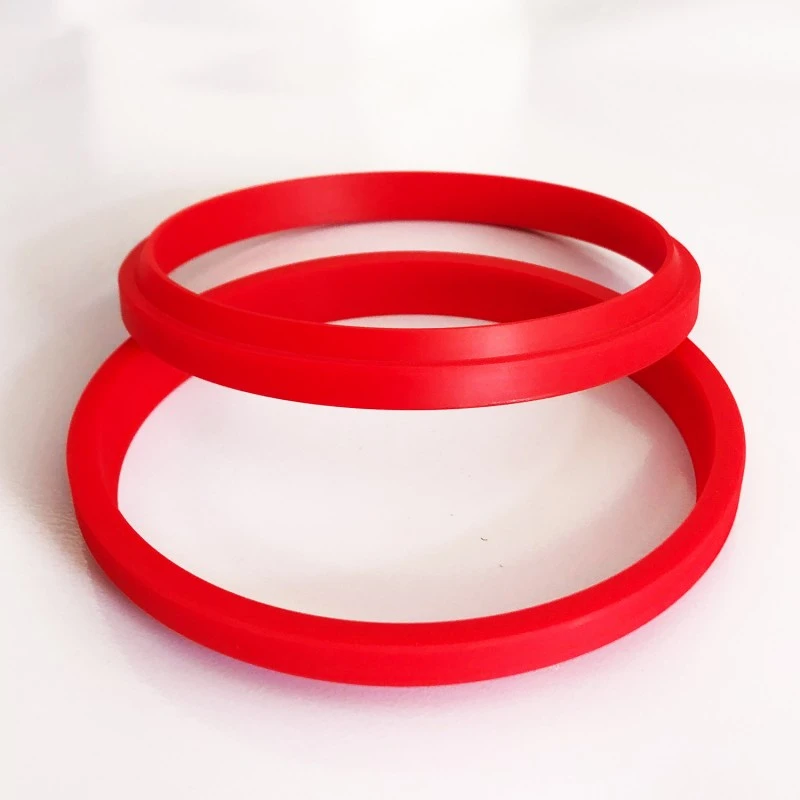

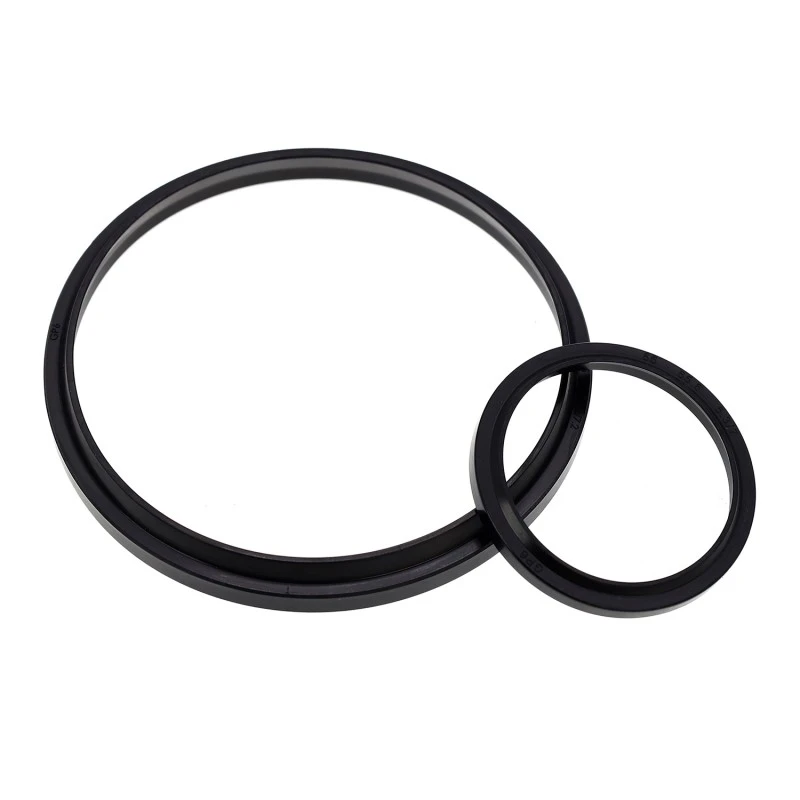

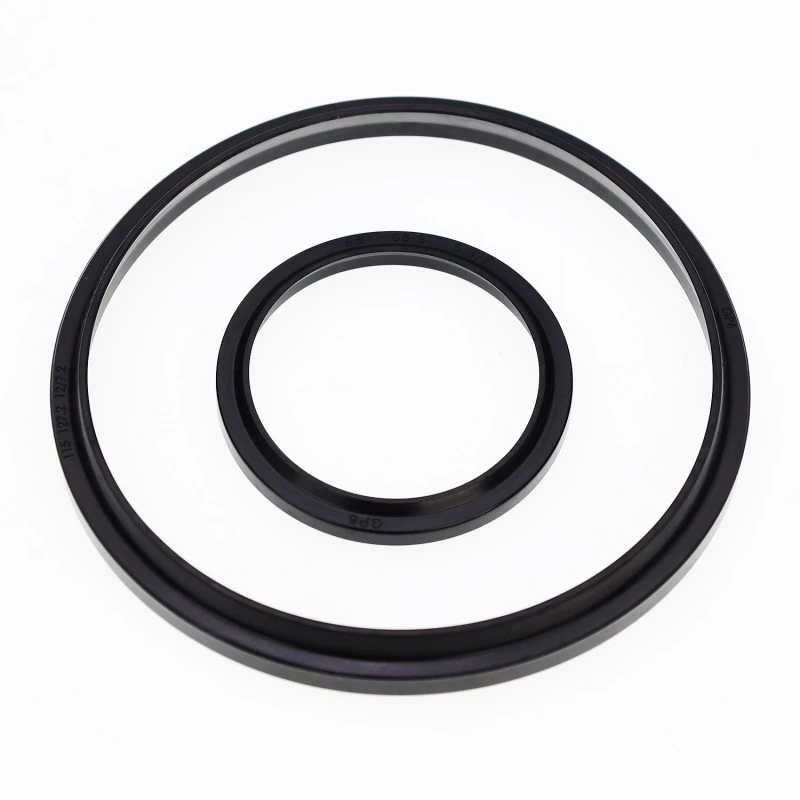

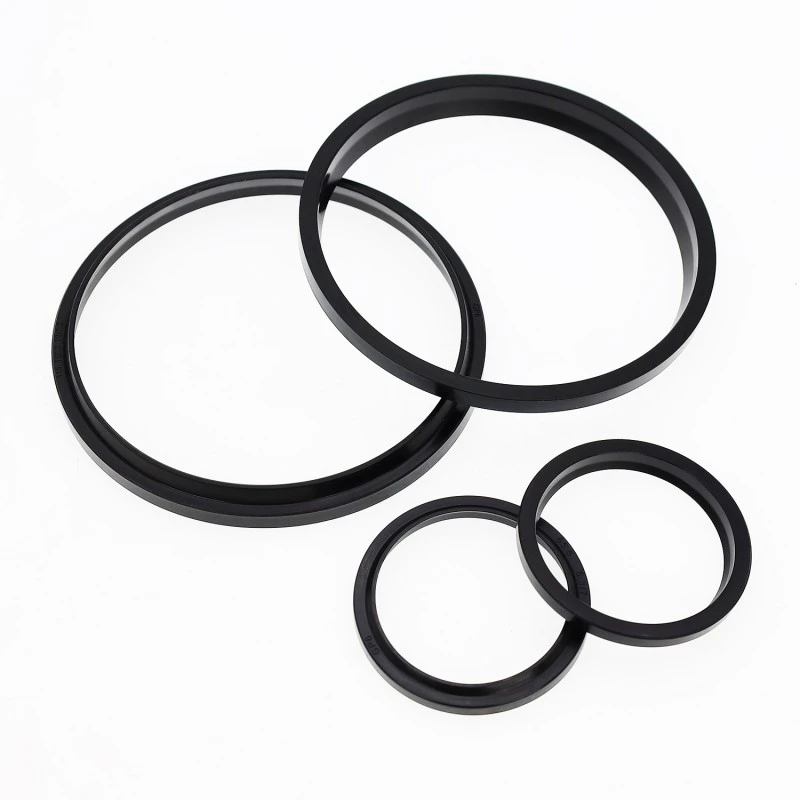

Wiper Seal GP6

As a leading manufacturer and supplier of piston rod seals in China, Ruichen Seals' GP6 dust ring is designed specifically for large-diameter piston rods. Made of nitrile rubber (NBR) (fluororubber (FKM) is optional for high-temperature conditions), it effectively blocks the intrusion of pollutants, has excellent wear resistance and environmental adaptability, and significantly improves the reliability and service life of hydraulic system seals.

Send Inquiry

Product Description

GP6 wipers are used to prevent contaminants from entering hydraulic and sealing systems. Made of NBR (nitrile rubber), or FKM (fluorinated rubber) for high-temperature applications, they are primarily used for dust sealing large-diameter piston rods.

Pressure Mpa	Temperature °C	Speed m/s	Medium
-	-35~+100 (NBR)	1	Hydraulic oil, emulsion, water, etc.
	-20~+200 (FKM)

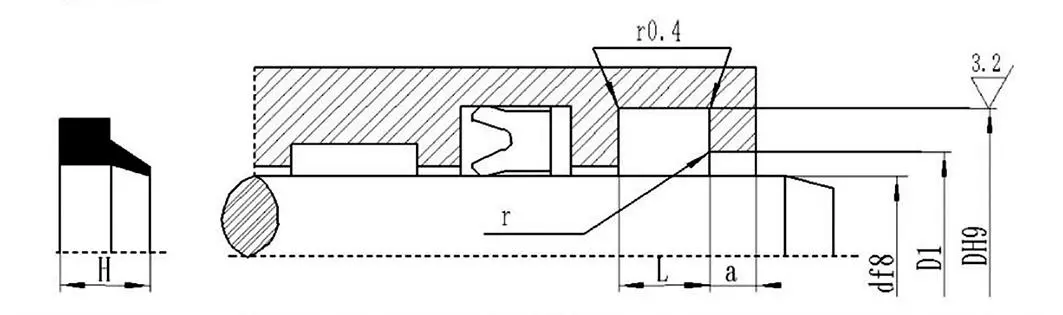

Marking method GP6-70*80.6*5.3/7 Model-d*D*L/H
