Performance and Applications

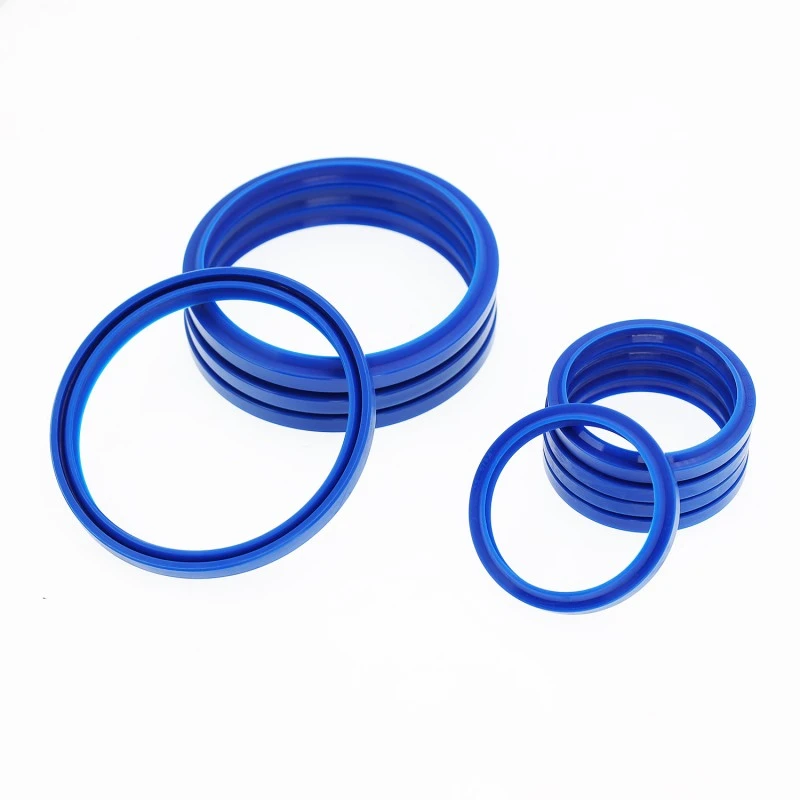

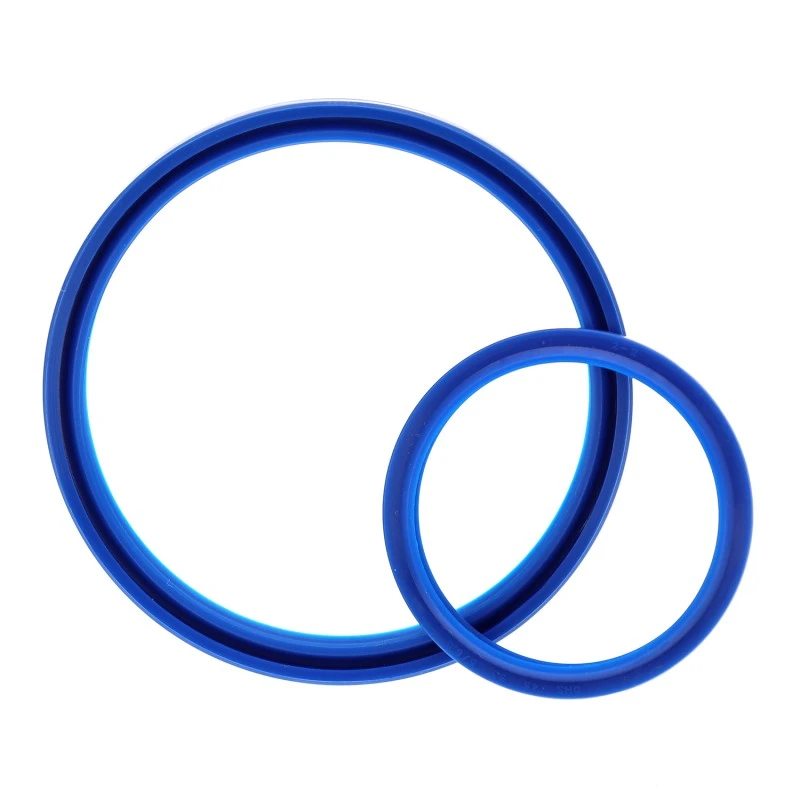

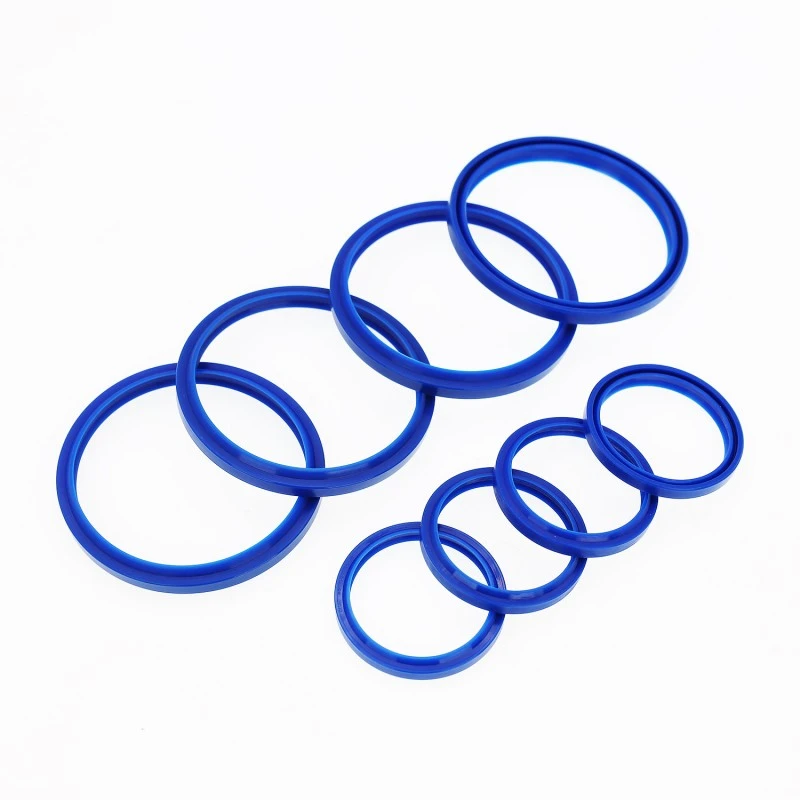

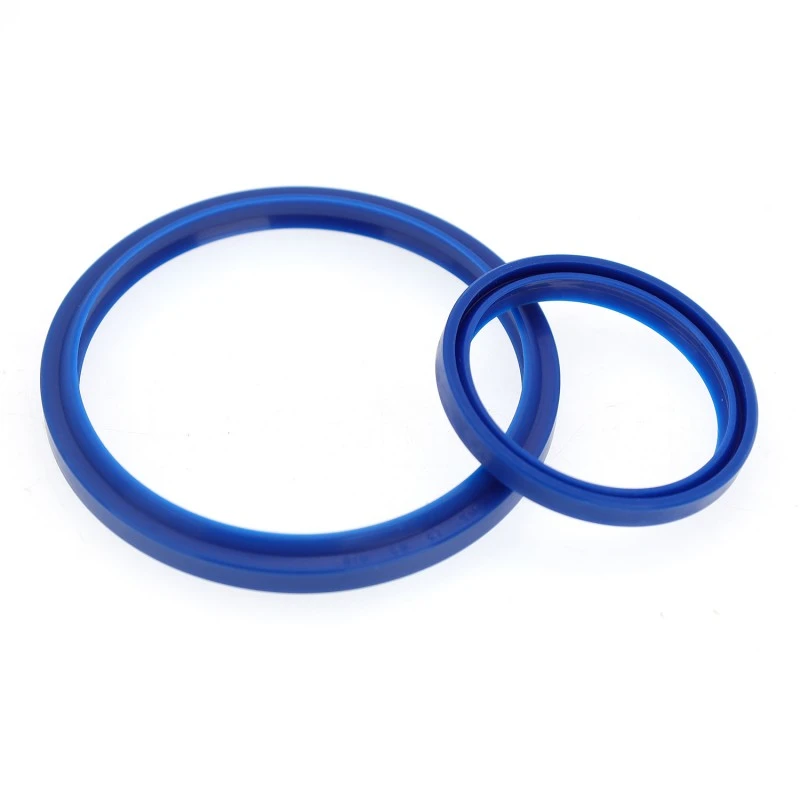

The DHS wiper is a dual-function wiper, providing both excellent dust protection and a certain oil film sealing function. It is made of high-performance polyurethane, nitrile rubber, and fluororubber.
Applicable Working Conditions
|
Pressure Mpa |
Temperature °C |
Speed m/s |
Medium |
|
- |
-35~+100 (NBR/PU) |
1 |
Hydraulic oil, emulsion, etc. |
|
-30~+200 (FKM) |
Order Example
Order Model: DHS-130*143*8/9.5-R01 d*D1*G/H

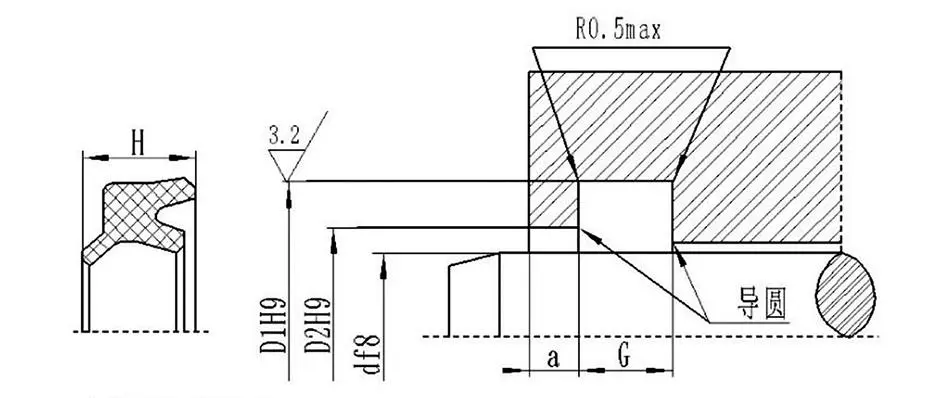

Specifications and groove dimensions
|
Product Number |
d |
D1 |
H |
G+0.3 |
D2 |
a |
|
DHS 12 |
12 |
20 |
6 |
5 |
16.3 |
2 |
|
DHS 14 |
14 |
22 |
6 |
5 |
18.3 |
2 |
|
DHS 16 |
16 |
24 |
6 |
5 |
20.3 |
2 |
|
DHS 18 |
18 |
26 |
6 |
5 |
22.3 |
2 |
|
DHS 20 |
20 |
28 |
6 |
5 |
24.3 |
2 |
|
DHS 22 |
22 |
30 |
6 |
5 |
26.3 |
2 |
|
DHS 25 |
25 |
33 |
6 |
5 |
29.3 |
2 |
|
DHS 28 |
28 |
36 |
6 |
5 |
32.3 |
2 |
|
DHS 30 |
30 |
38 |
6.5 |
6 |
34 |
2 |
|
DHS 32 |
32 |
40 |
6.5 |
6 |
36 |
2 |
|
DHS 35 |
35 |
43 |
6.5 |
6 |
39 |
2 |
|
DHS 38 |
38 |
46 |
6.5 |
6 |
42 |
2 |
|
DHS 40 |
40 |
48 |
6.5 |
6 |
44 |
2 |
|
DHS 45 |
45 |
53 |
6.5 |
6 |
49 |
2 |
|
DHS 48 |
48 |
56 |
6.5 |
6 |
52 |
2 |
|
DHS 50 |
50 |
58 |
6.5 |
6 |
54 |
2 |
|
DHS 55 |
55 |
63 |
6.5 |
6 |
59 |
2 |
|
DHS 56 |
56 |
64 |
6.5 |
6 |
60 |
2 |
