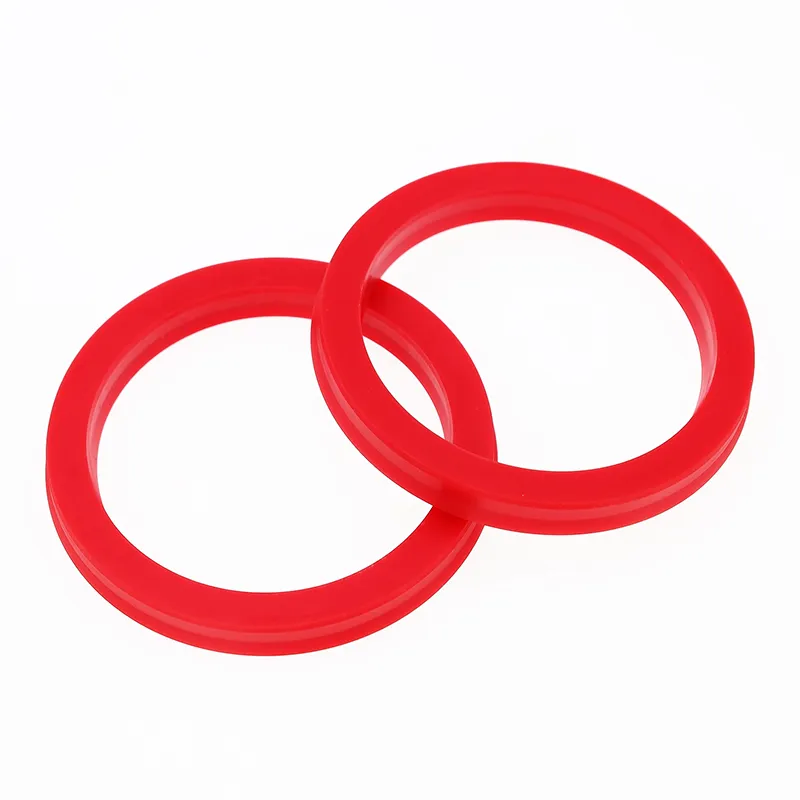

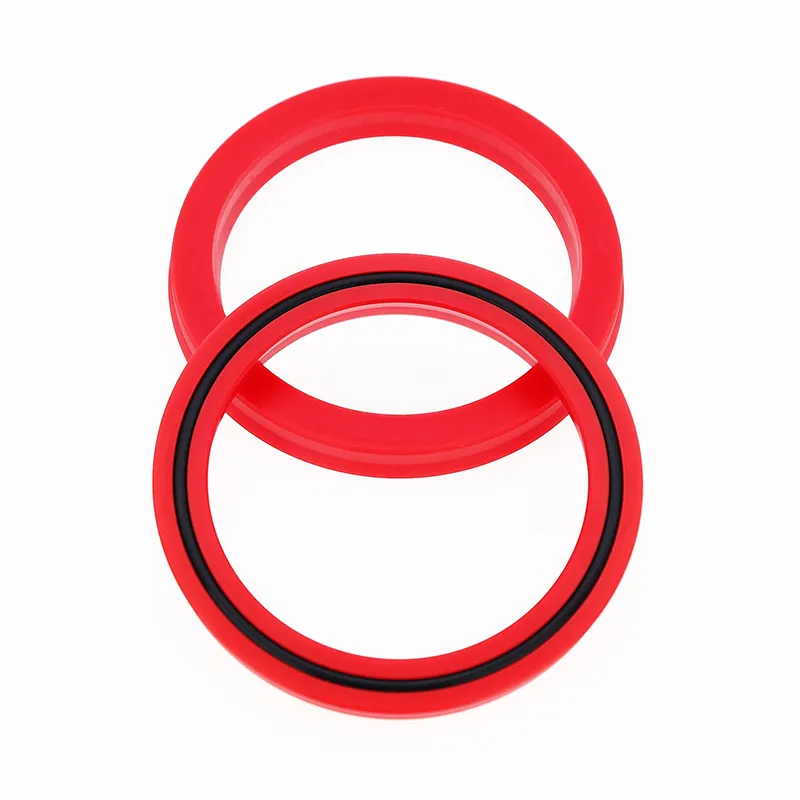

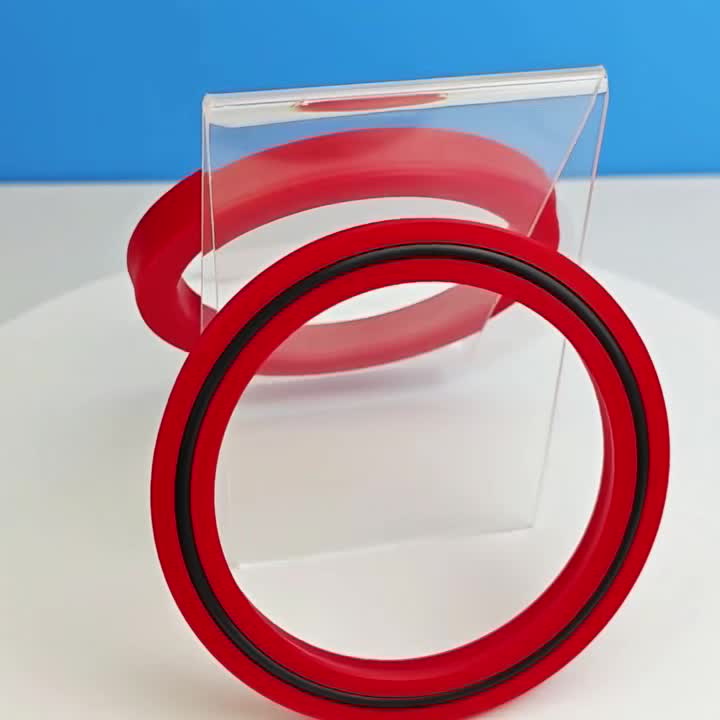

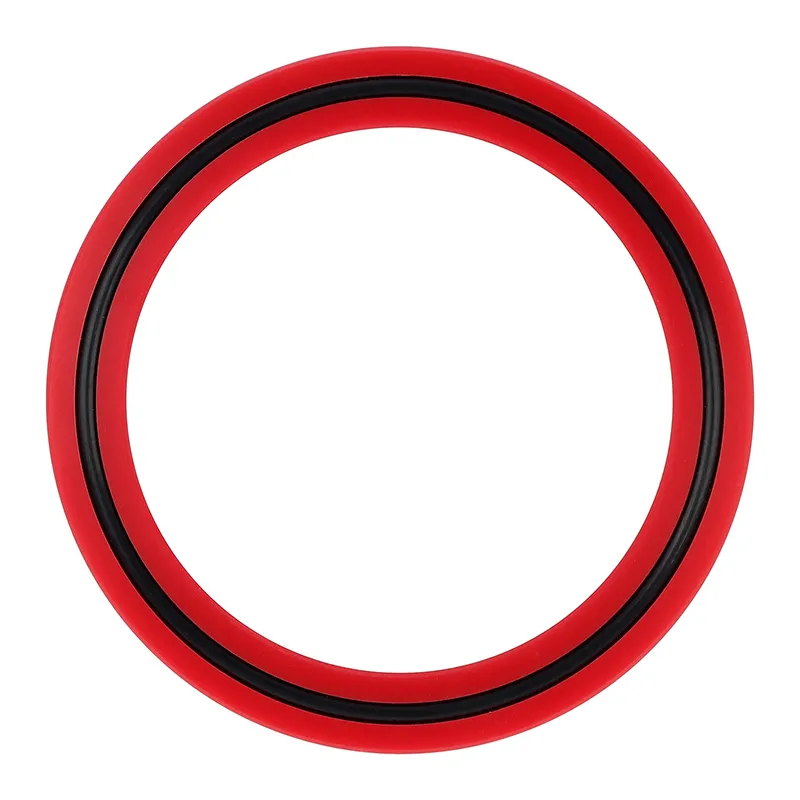

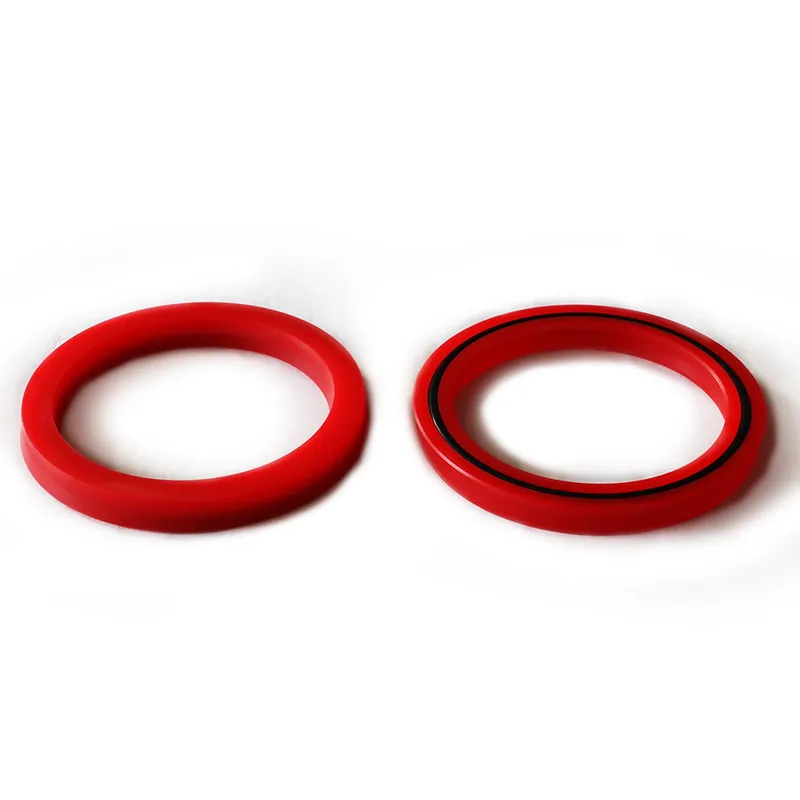

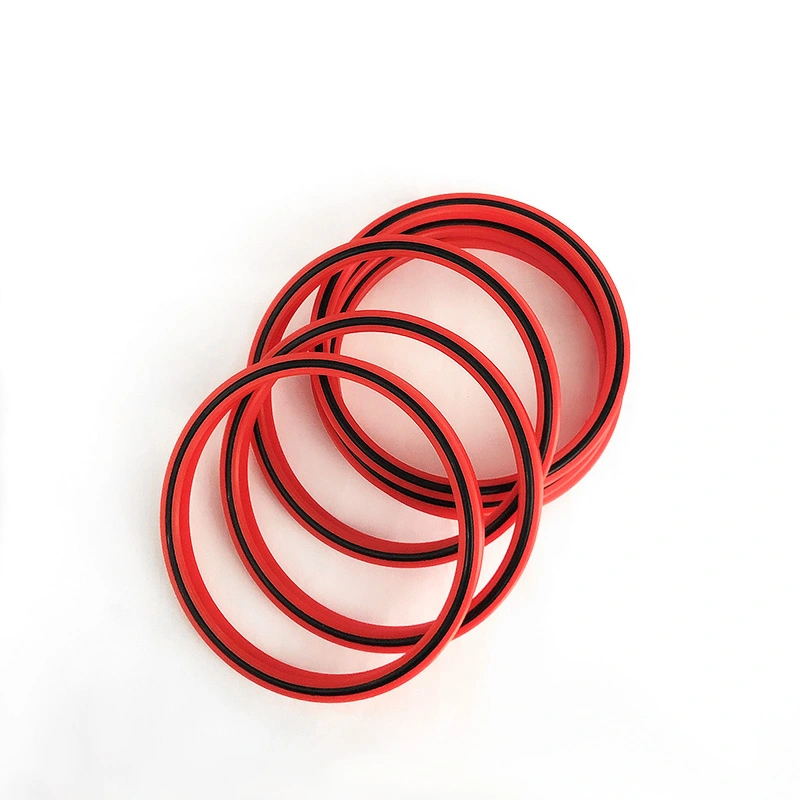

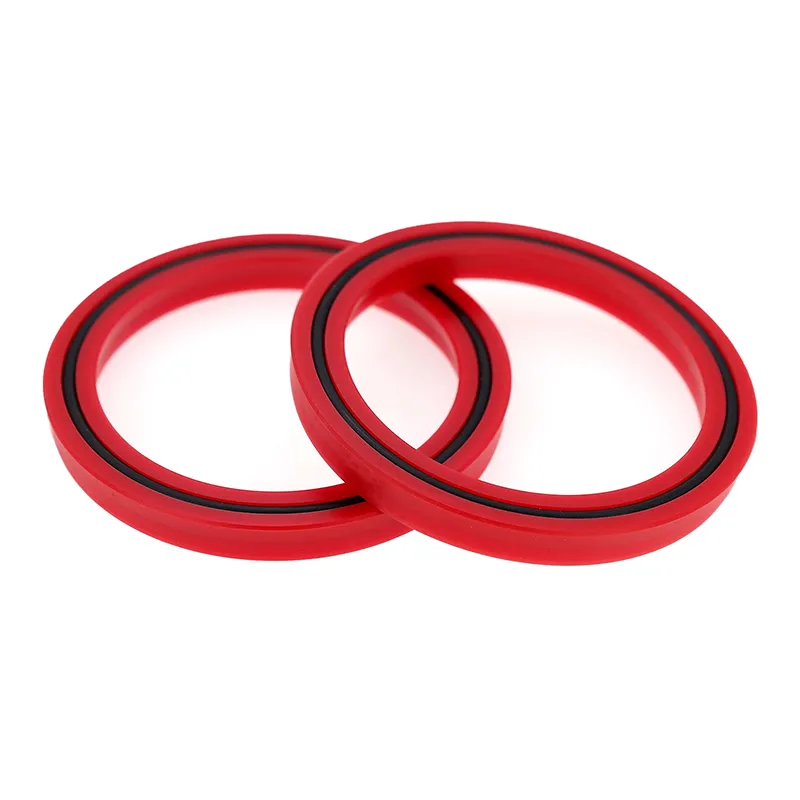

The BA Type Universal Rod and Bore Seal is a symmetrical seal designed for both bore and shaft applications. It is primarily used for sealing plungers, piston rods, forging machines, and hydraulic equipment used in mobile equipment.
1. Insensitive to vibration loads and pressure spikes
2. Excellent extrusion resistance
3. Improved sealing performance under no-load conditions and at low temperatures
4. Suitable for harsh operating conditions
|
Pressure Mpa |
Temperature ℃ |
Speed m/s |
Media |
|
≤35 |
-35~+100 (PU/NBR) |
≤0.5 |
Hydraulic oil, emulsion, etc. |
Standard material: polyurethane material PU + nitrile rubber R01

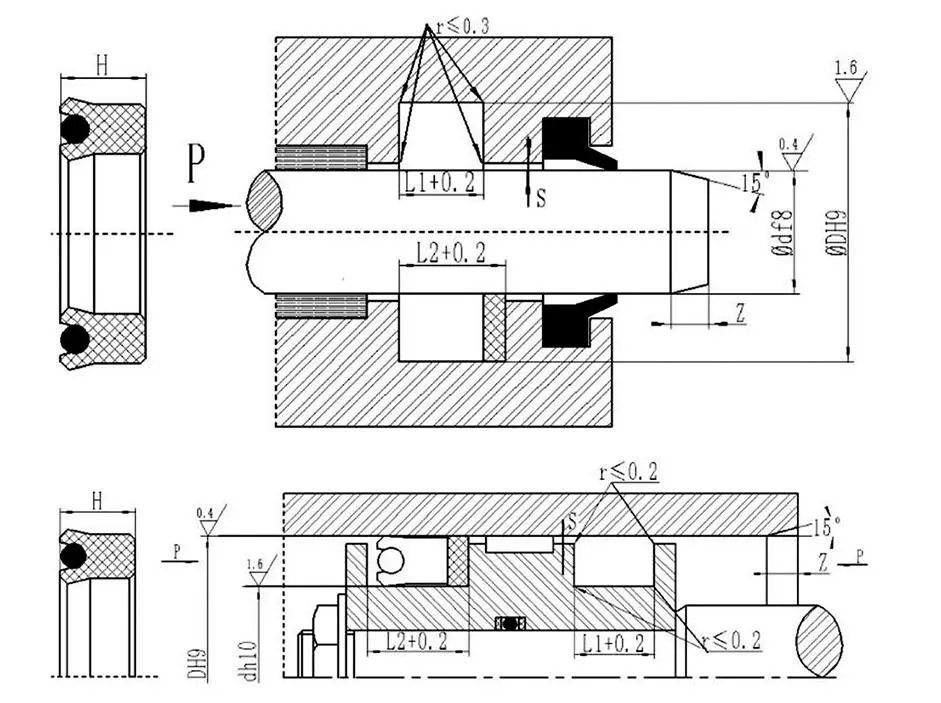

Ordering example: BA50x60x10(dxDxH)
