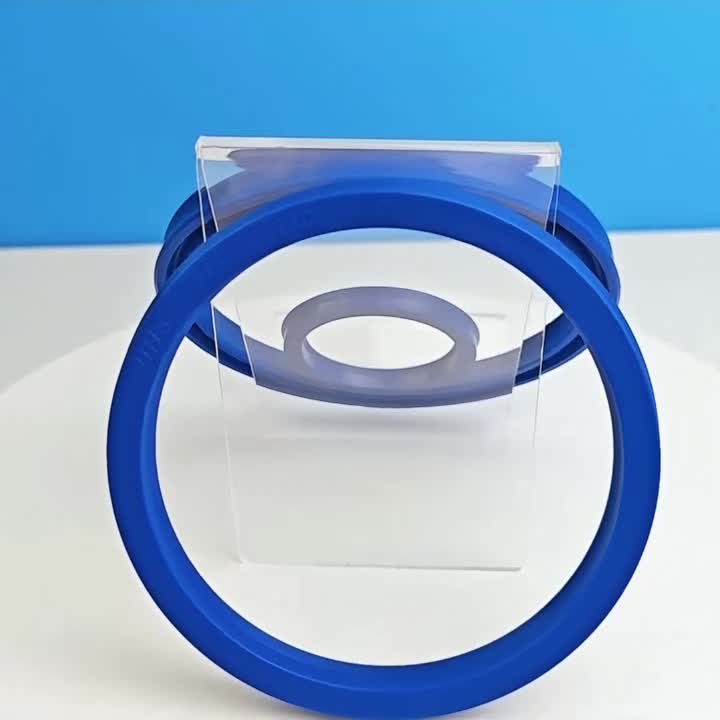

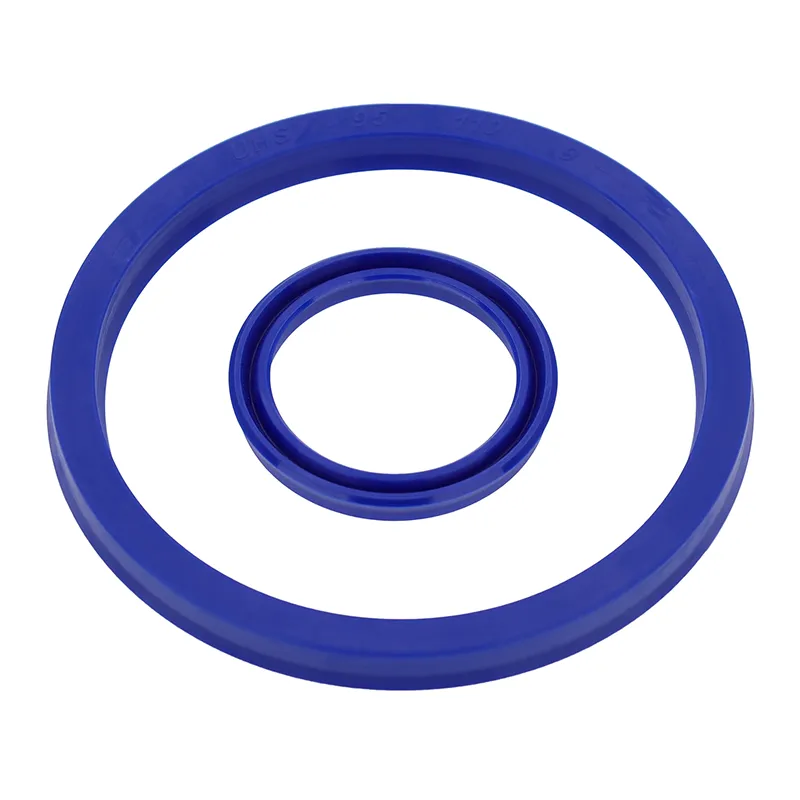

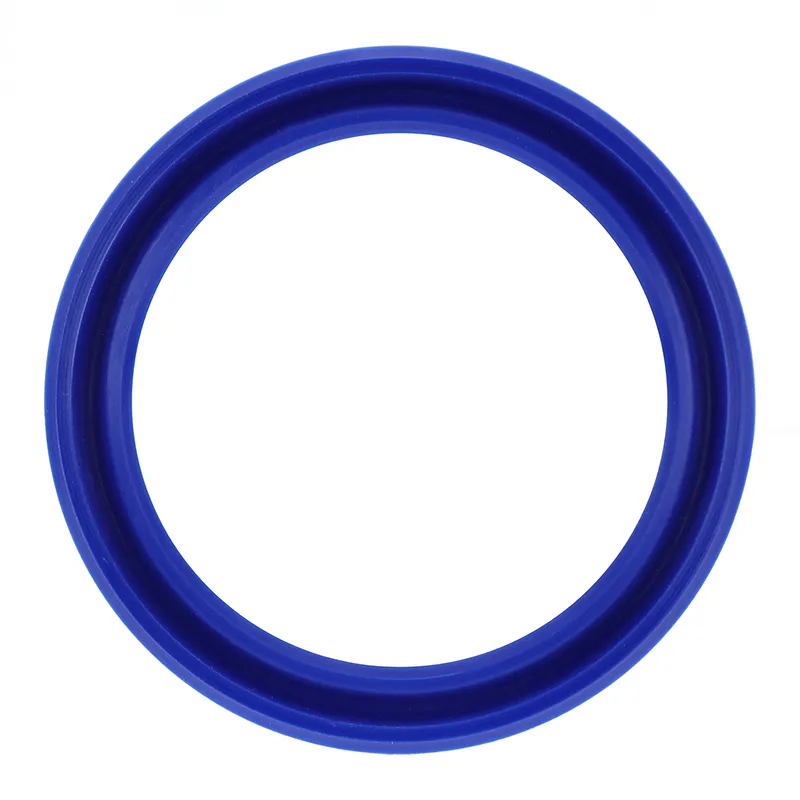

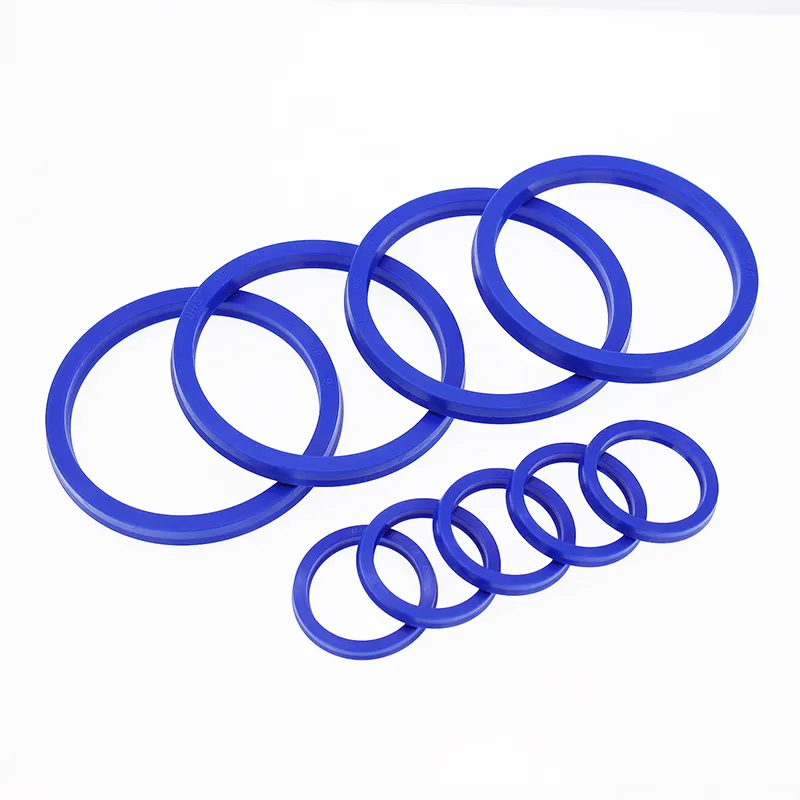

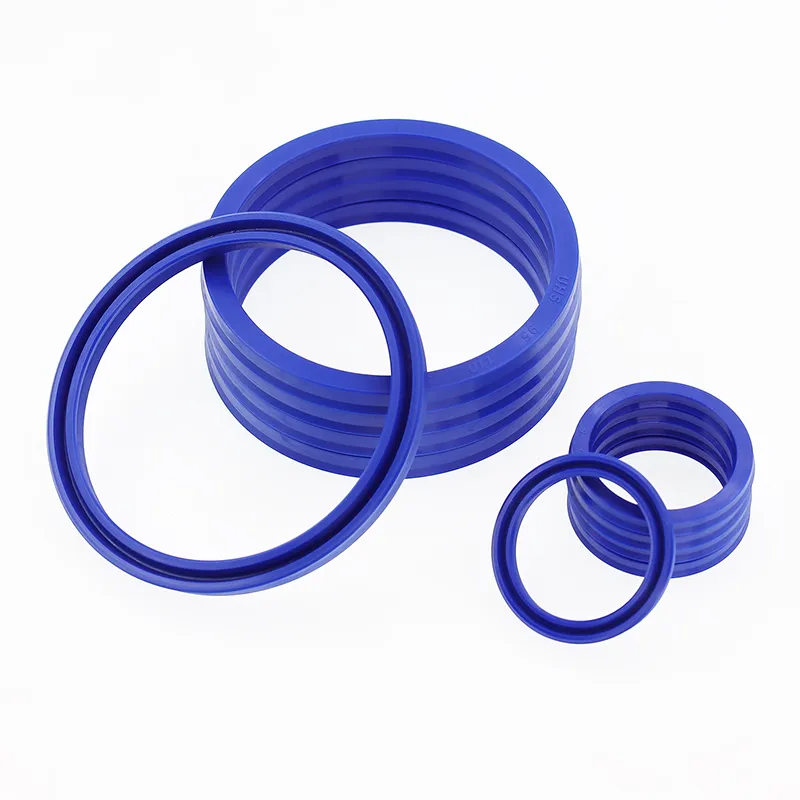

UHS U-Seal

professional piston rod seal manufacturer in China, our symmetrical seals feature a sophisticated cross-section design that allows for direct installation into integral grooves. They excel in combination with retaining rings under high-pressure conditions and are widely used for bidirectional sealing of shafts and bores in construction machinery, hydraulic systems, and heavy equipment.

Send Inquiry

Product Description

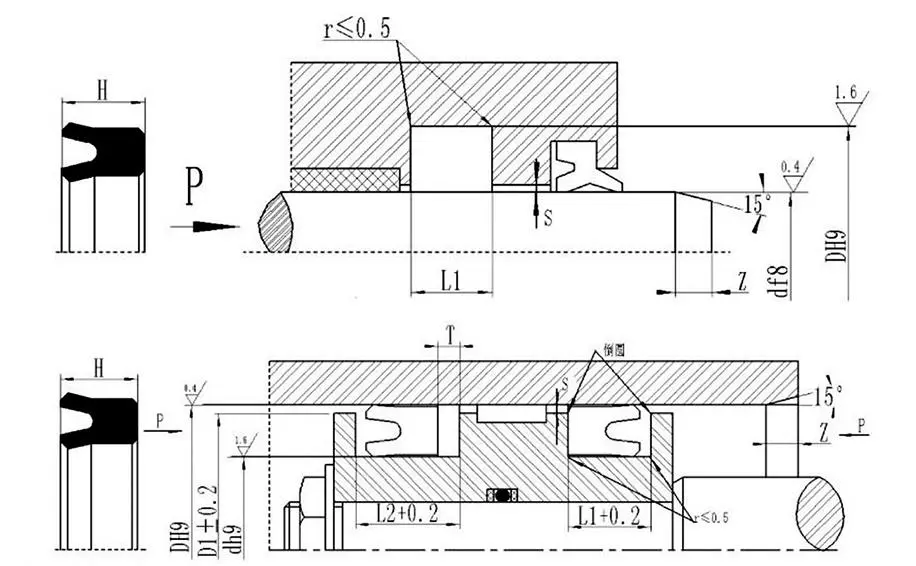

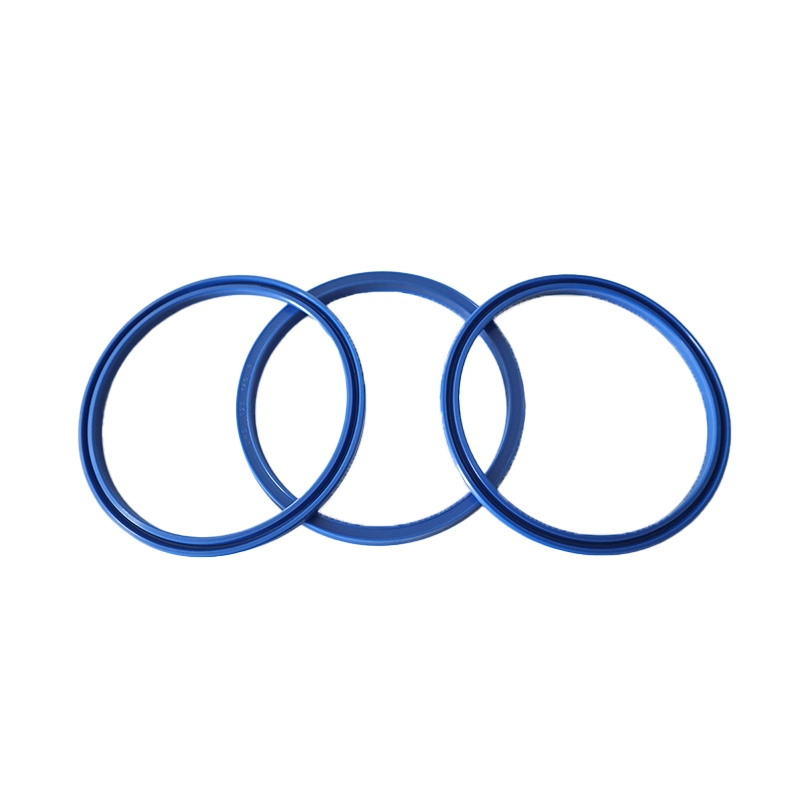

The UHS U-Seal is a symmetrical seal for both bore and shaft applications. It has a smaller cross-section and can be installed in integral grooves. A retaining ring is required at the root when used under pressures of 16-32 MPa.

Working Conditions

Pressure Mpa	Temperature ℃	Speed m/s	Media
≤32	-35~+100 (PU/NBR)	≤0.5	Hydraulic oil, emulsion, etc.
	-20~+180 (FKM)

Material Selection

Standard material: Nitrile rubber R01

Other available materials: Polyurethane (PU), Fluororubber R02

Ordering example: Universal seal for shaft and hole UHS50x60x6R01(dxDxH)+material code
