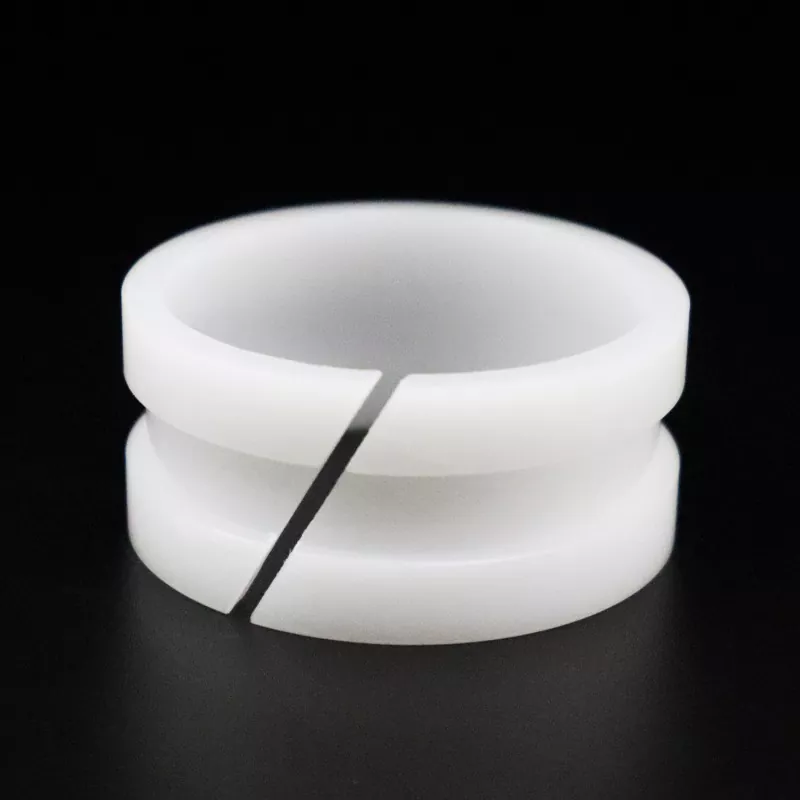

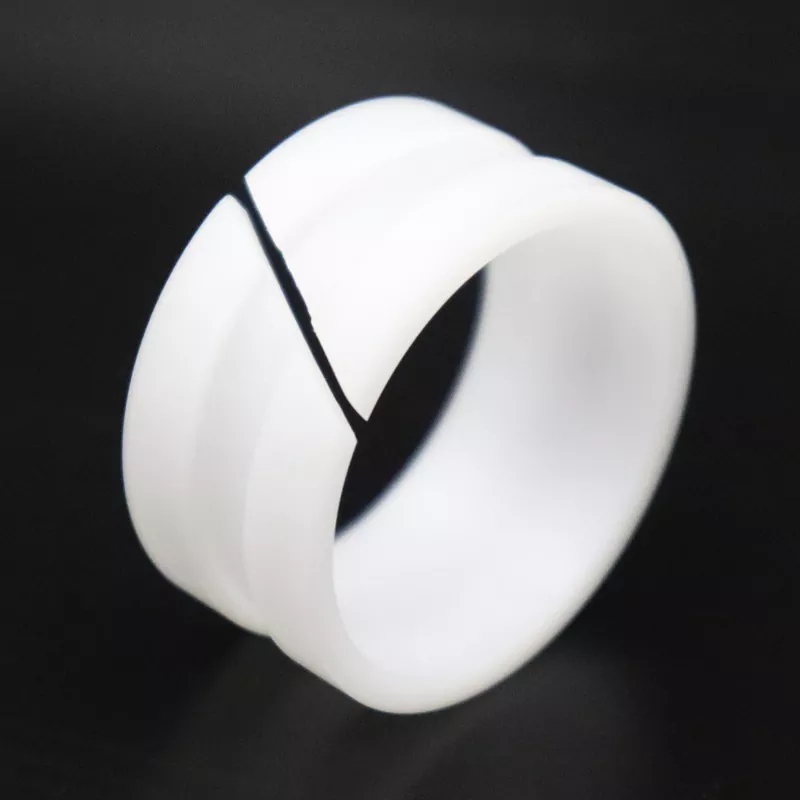

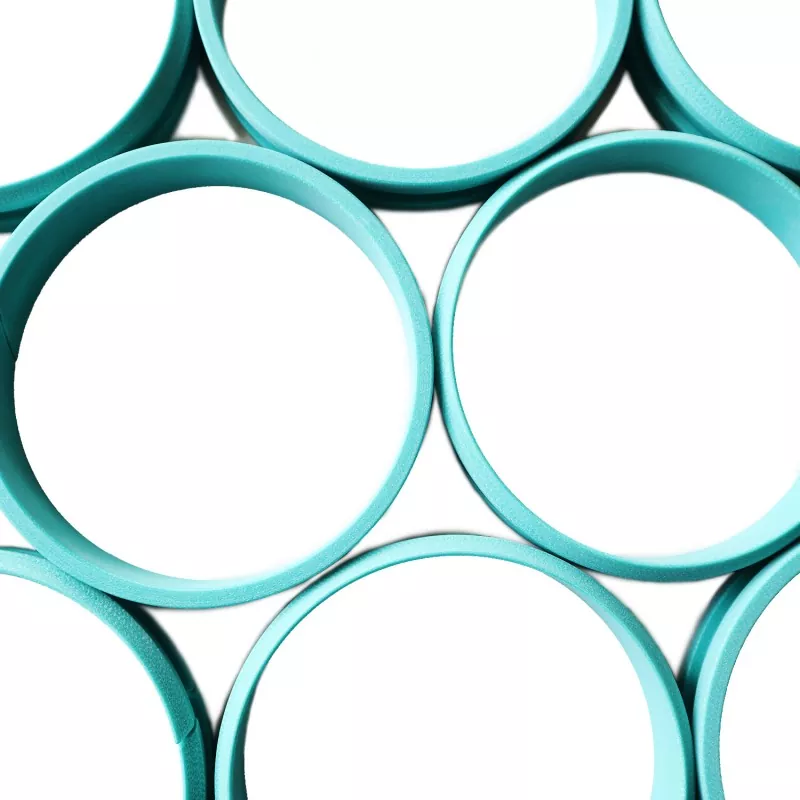

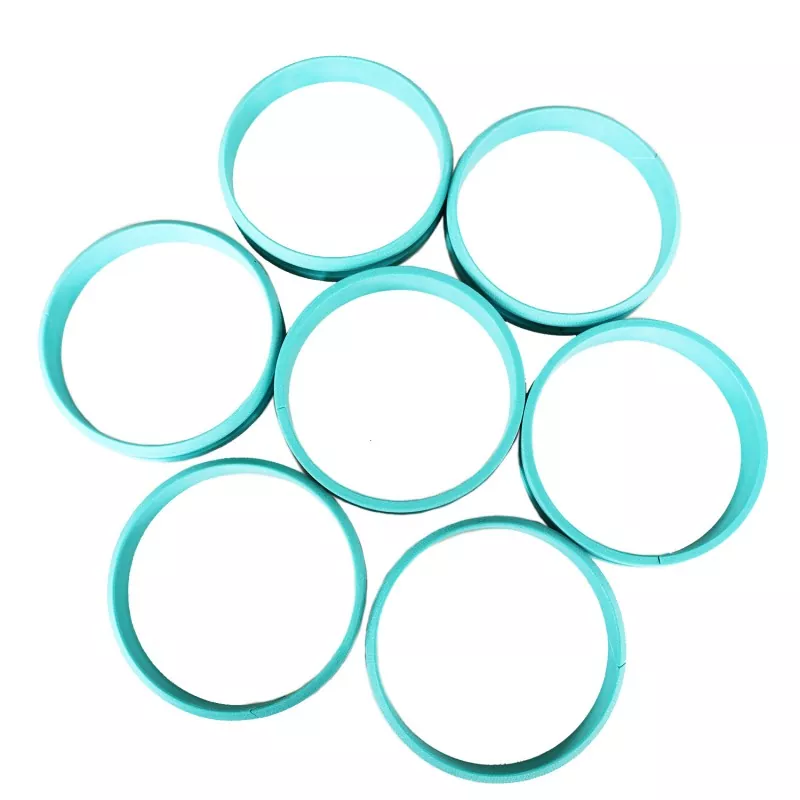

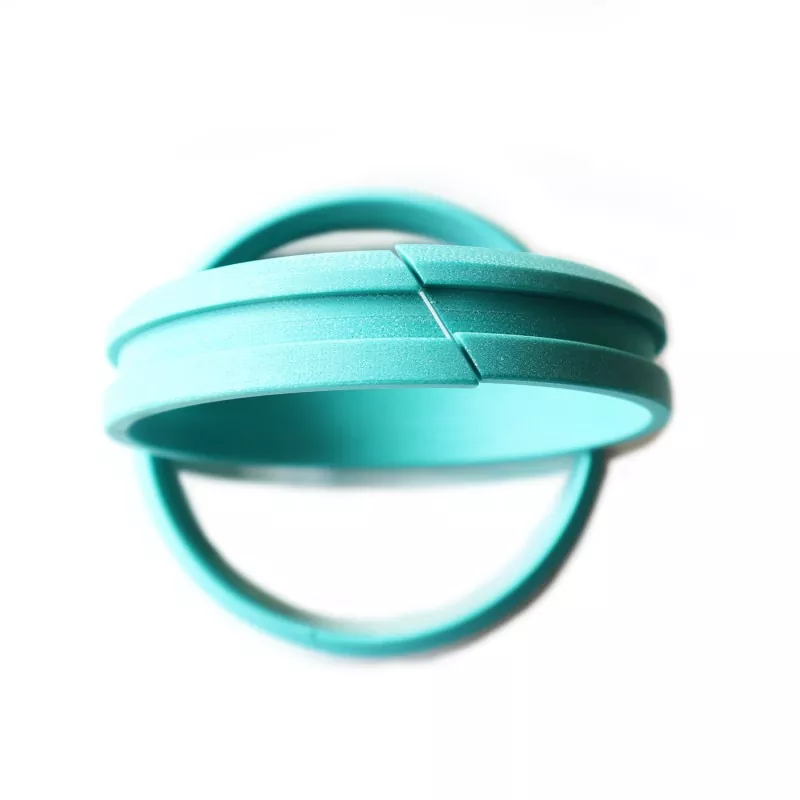

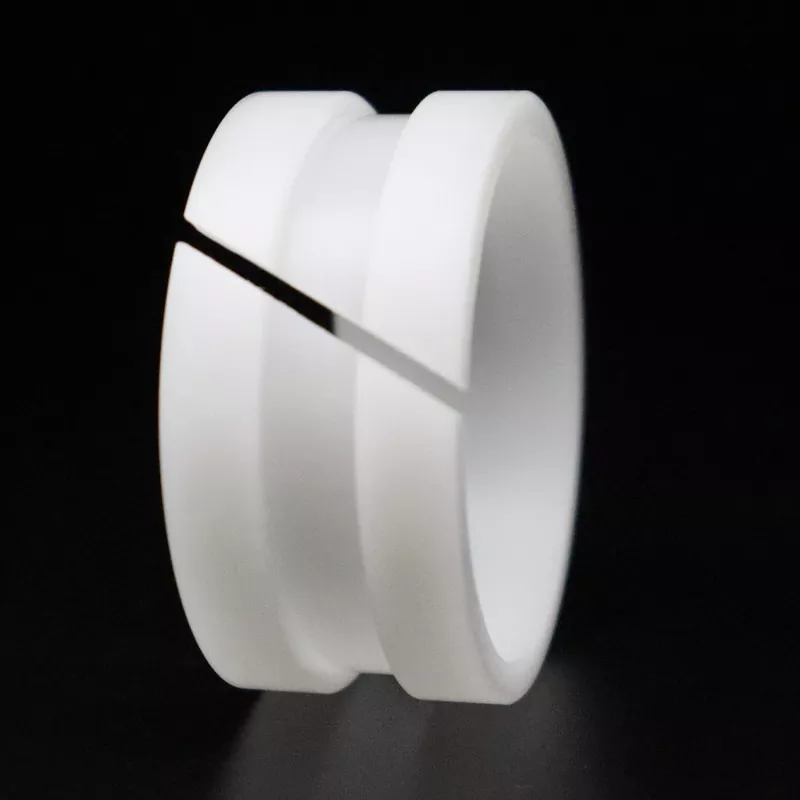

The design of this piston rod guide bush is based on the Hunger FI series standard, ensuring excellent compatibility. It utilizes the GFI coding system for ordering (e.g., GFI-0360PA), making selection convenient. It is a preferred component for piston rod guidance and support in hydraulic systems; cylinder manufacturers are invited to select, sample, and bulk-order this product.
Performance and Application: The GFI guide bush is designed for piston rods, providing both support and guidance.
Materials: Nylon (PA), Polyoxymethylene (POM), and Polytetrafluoroethylene (PTFE).
Operating Conditions: Operating temperature range: -55°C to +255°C (PTFE is used for temperatures above 120°C).
Design Standard: Design and selection may reference the Hunger FI series.
Designation and Ordering: The GFI guide bush is specified by an order number; example: GFI-0360PA.
|

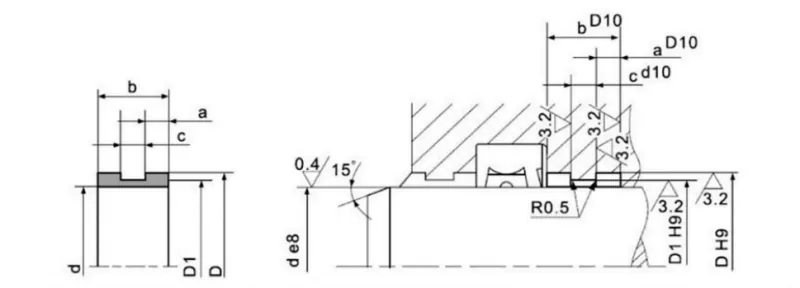

Order Number |
d |
b |
D |
D1 |
c |
a |
|
GFI-0360 |
36 |
19 |
42 |
39 |
6 |
6.5 |
|
GFI-0400 |
40 |
46 |
43 |
|||
|
GFI-0420 |
42 |
48 |
45 |
|||
|
GFI-0450 |
45 |
51 |
48 |
|||
|
GFI-0500 |
50 |
56 |
53 |
|||
|
GFI-0550 |
55 |
61 |
58 |
|||
|
GFI-0560 |
56 |
62 |
59 |
