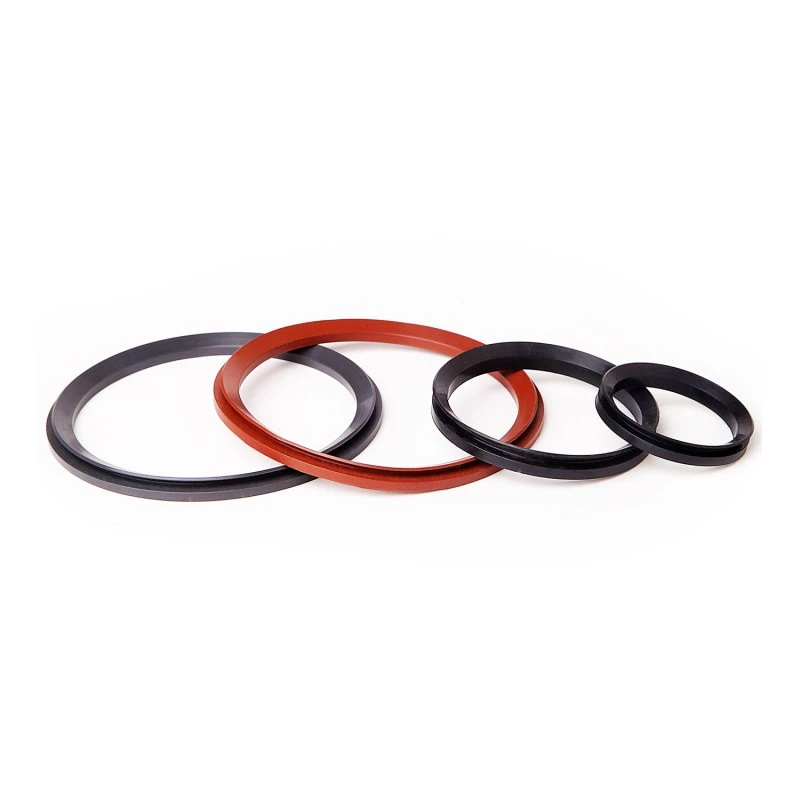

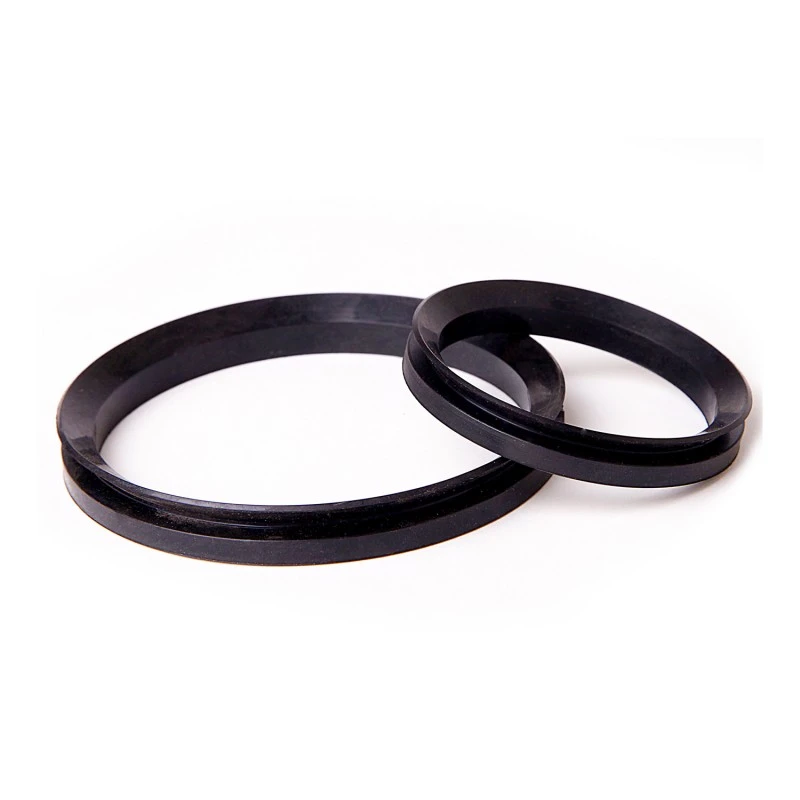

The design highlight of VAX Water Seals lies in their superior adaptability. Even under conditions allowing for a certain degree of shaft eccentricity, Ruichen VAX water seals maintain uniform lip contact and long-lasting sealing. Utilizing advanced rubber compounds with superior resistance to various media, they effectively withstand the corrosive effects of oil and water mixtures. If the ambient temperature exceeds 100°C, our custom fluororubber solution is the key to reliably solving high-temperature sealing challenges.
For sealing challenges in medium-diameter shaft equipment such as construction machinery and large water pumps, we recommend wholesale purchase of Ruichen VAX series water seals. They are particularly suitable for rotating parts in complex operating conditions involving vibration or eccentricity. As a manufacturer of VAX water seals, Ruichen has provided numerous successful solutions for this model in harsh environments such as mining and metallurgy, effectively extending equipment maintenance cycles.
Recommended surface roughness for friction surfaces
|
Ra(μm) |
Linear velocity (m/s) |
Medium |
|
0.4-0.8 |
>10 |
Oil, water |
|
0.8-1.6 |
5-10 |
Splashed oil, splashed water, grease |
|
1.6-2.0 |
1-5 |
Grease, dust, splashed water |
|
2.0-2.5 |
<1 |
Grease, dust |
Note: The surface quality must not exceed Ra 0.05 μm.

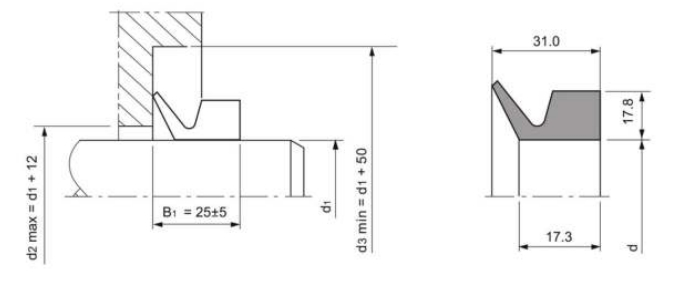

VAX Specifications and Groove Dimensions Table:
Note: Products up to 6000mm are available.
|
Product Number |
Shaft diameter d1 |
inner diameter d |
|
VAX200 |
200-205 |
192 |
|
VAX205 |
205-210 |
196 |
|
VAX210 |
210-215 |
200 |
|
VAX215 |
215-219 |
204 |
|
VAX220 |
219-224 |
207 |
|
VAX225 |
224-228 |
211 |
|
VAX230 |
228-232 |
215 |
|
VAX235 |
232-236 |
219 |
|
VAX240 |
236-240 |
223 |
|
VAX250 |
240-250 |
227 |
|
VAX260 |
250-260 |
236 |
|
VAX270 |
260-270 |
245 |
|
VAX280 |
270-281 |
255 |
|
VAX290 |
281-292 |
265 |
|
VAX300 |
292-303 |
275 |
|
VAX310 |
303-313 |
285 |
|
VAX320 |
313-325 |
295 |
|
VAX330 |
325-335 |
305 |
|
VAX340 |
335-345 |
315 |
|
VAX350 |
345-355 |
322 |
|
VAX360 |
355-372 |
328 |
|
VAX380 |
372-390 |
344 |
|
VAX400 |
390-415 |
360 |
|
VAX425 |
415-443 |
385 |
|
VAX450 |
443-480 |
410 |
|
VAX500 |
480-530 |
450 |
|
VAX550 |
530-580 |
495 |
|
VAX600 |
580-630 |
540 |
|
VAX650 |
630-665 |
600 |
|
Product Number |
Shaft diameter d1 |
inner diameter d |
|
VAX700 |
665-705 |
630 |
|
VAX725 |
705-745 |
670 |
|
VAX750 |
745-785 |
705 |
|
VAX800 |
785-830 |
745 |
|
VAX850 |
830-875 |
785 |
|
VAX900 |
875-920 |
825 |
|
VAX950 |
920-965 |
865 |
|
VAX1000 |
965-1015 |
910 |
|
VAX1050 |
1015-1065 |
955 |
|
VAX1100 |
1065-1115 |
1000 |
|
VAX1150 |
1115-1165 |
1045 |
|
VAX1200 |
1165-1215 |
1090 |
|
VAX1250 |
1215-1270 |
1135 |
|
VAX1300 |
1270-1320 |
1180 |
|
VAX1350 |
1320-1370 |
1225 |
|
VAX1400 |
1370-1420 |
1270 |
|
VAX1450 |
1420-1470 |
1315 |
|
VAX1500 |
1470-1520 |
1360 |
|
VAX1550 |
1520-1570 |
1405 |
|
VAX1600 |
1570-1620 |
1450 |
|
VAX1650 |
1620-1670 |
1495 |
|
VAX1700 |
1670-1720 |
1540 |
|
VAX1750 |
1720-1770 |
1585 |
|
VAX1800 |
1770-1820 |
1630 |
|
VAX1850 |
1820-1870 |
1675 |
|
VAX1900 |
1870-1920 |
1720 |
|
VAX1950 |
1920-1970 |
1765 |
|
VAX2000 |
1970-2020 |
1810 |
