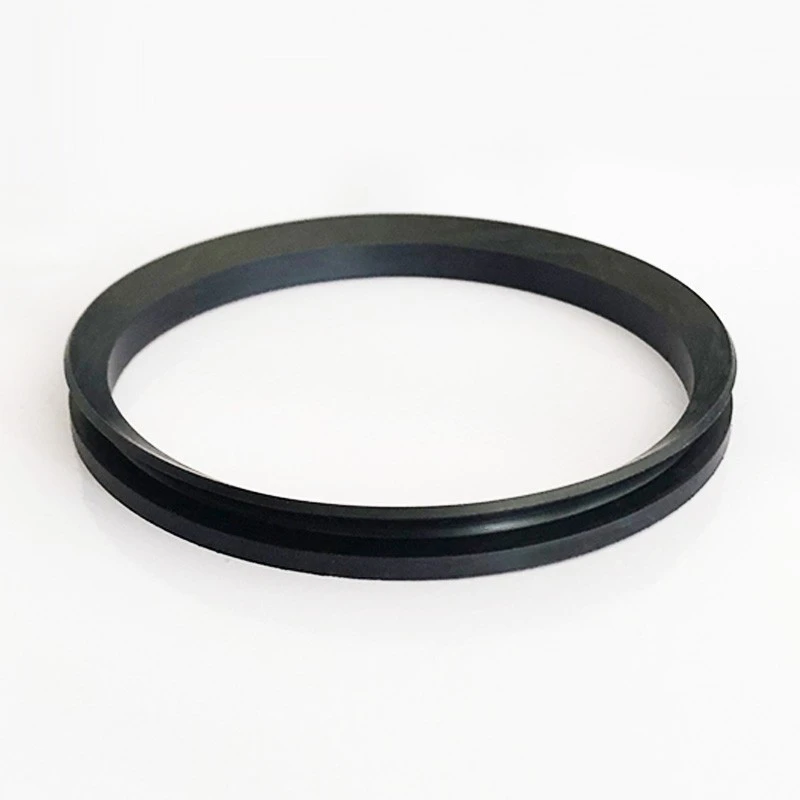

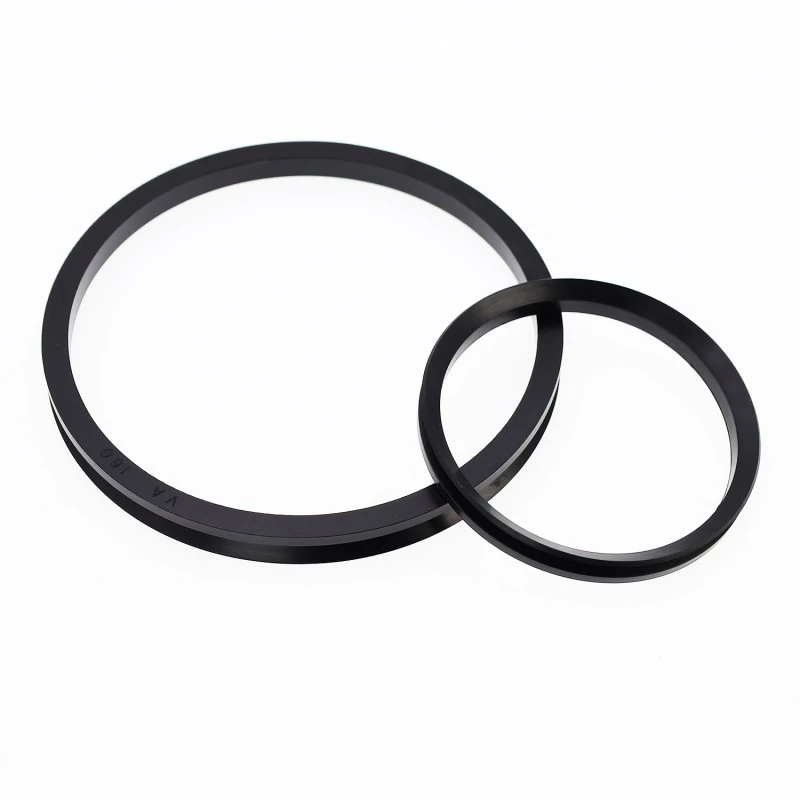

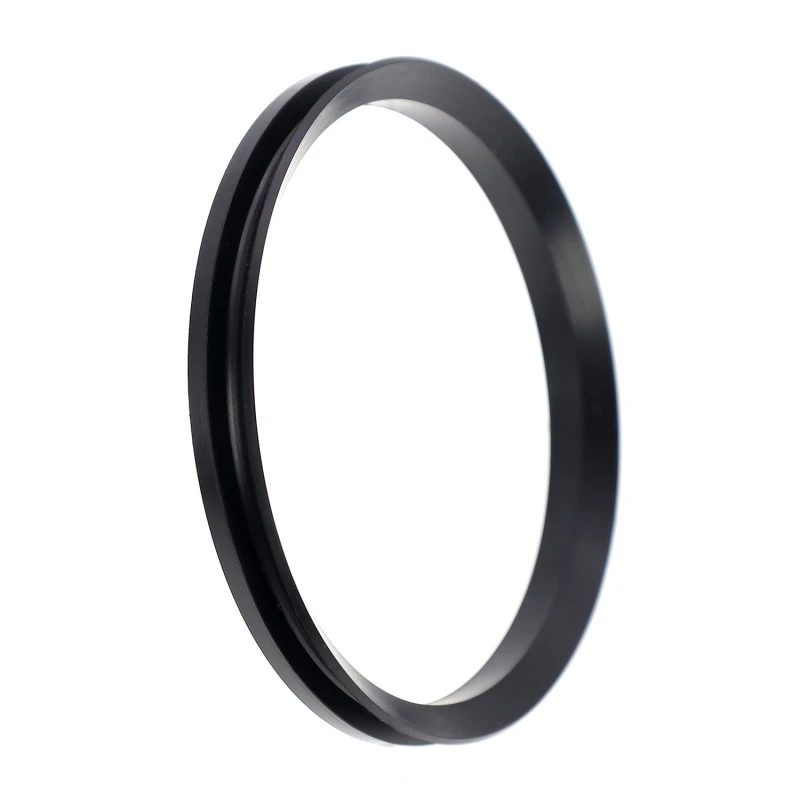

1. Easy to install, it can be stretched normally and held tightly onto the shaft by the elasticity of the rubber.
2. Low contact pressure at the lip and good wear resistance.
3. Allows for a certain degree of shaft eccentricity.
4. Effectively prevents the ingress of dust, powder, water, and their mixtures.
a-substrate b-sealing lip C-waist
|
Section |
Name |
Speed |
Temperature |
Pressure |
Medium |
Available range |
|
|
VA |
15m/s |
35~+100(NBR) -20~+180(FKM) |
0.03 |
Hydraulic oil, emulsions, water, grease, etc. |
3~6000mm |
|
|
VS |
12~200mm |

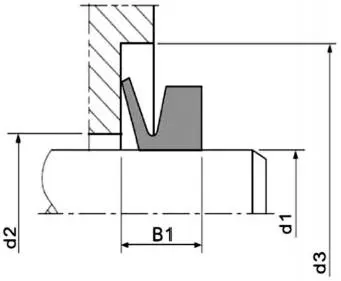

Schematic diagram of a V-shaped water seal
Recommended surface roughness for friction surfaces
|
Ra(μm) |
Linear velocity (m/s) |
Medium |
|
0.4-0.8 |
>10 |
Oil, water |
|
0.8-1.6 |
5-10 |
Splashed oil, splashed water, grease |
|
1.6-2.0 |
1-5 |
Grease, dust, splashed water |
|
2.0-2.5 |
<1 |
Grease, dust |
Note: The surface quality must not exceed Ra 0.05 μm.
VA Specifications and Groove Dimensions Table
|
Product Number |
dl |
d2 |
d3 |
B1 |
d |
C |
B |
A |
|
Va3 |
2.7~3.5 |
d1+1 |
d1+4 |
2.5±0.3 |
2.5 |
1.5 |
3 |
2.1 |
|
Va4 |
3.5~4.5 |
d1+6 |
3±0.4 |
3.2 |
2 |
3.7 |
2.4 |
|
|
Va5 |
4.5~5.5 |
4 |
||||||
|
Va6 |
5.5~6.5 |
5 |
||||||
|
Va7 |
6.5~8 |
6 |
||||||
|
Va8 |
8~9.5 |
7 |
||||||
|
Va10 |
9.5~11.5 |
d1+9 |
4.5±0.6 |
9 |
3 |
5.5 |
3.4 |
|
|
Va12 |
11.5~12.5 |
10.5 |
||||||
|
Va14 |
13.5~15.5 |
12.5 |
||||||
|
Va16 |
15.5~17 |
14 |
||||||
|
Va18 |
17.5~19 |
16 |
||||||
|
Va20 |
19~21 |
d1+2 |
d1+12 |
6±0.8 |
18 |
4 |
7.5 |
4.7 |
|
Va22 |
21~24 |
20 |
||||||
|
Va25 |
24~27 |
22 |
||||||
|
Va28 |
27~29 |
25 |
||||||
|
Va30 |
29~31 |
27 |
||||||
|
Va32 |
31~33 |
29 |
||||||
|
Va35 |
33~36 |
31 |
||||||
|
Va38 |
36~38 |
34 |
||||||
|
Va40 |
38~43 |
d1+15 |
7±1 |
36 |
5 |
9 |
5.5 |
|
|
Va45 |
43~48 |
40 |
||||||
|
Va50 |
48~53 |
45 |
||||||
|
Va55 |
53~58 |
49 |
||||||
|
Va60 |
58~63 |
54 |
||||||
|
Va65 |
63~68 |
58 |
||||||
|
Va70 |
68~73 |
d1+3 |
dl+18 |
9±1.2 |
63 |
6 |
11 |
6.8 |
|
Va75 |
73~78 |
67 |
||||||
|
Va80 |
78~83 |
72 |
||||||
|
Va85 |
83~88 |
76 |
||||||
|
Va90 |
88~93 |
81 |
||||||
|
Va95 |
93~98 |
85 |
||||||
|
Va100 |
98~105 |
90 |
|
Product Number |
dl |
d2 |
d3 |
BI |
d |
C |
B |
A |
|
Val10 |
105~115 |
d1+4 |
d1+21 |
10.5±1.5 |
99 |
7 |
12.8 |
7.9 |
|
Va120 |
115~125 |
108 |
||||||
|
Va130 |
125~135 |
117 |
||||||
|
Va140 |
135~145 |
126 |
||||||
|
Va150 |
145~155 |
135 |
||||||
|
Va160 |
155~165 |
d1+24 |
12±1.8 |
144 |
8 |
14.5 |
9 |
|
|
Va170 |
165~175 |
153 |
||||||
|
Va180 |
175~185 |
162 |
||||||
|
Va190 |
185~195 |
171 |
||||||
|
Va200 |
190~210 |
d1+10 |
d1+45 |
20±4 |
180 |
15 |
25 |
14.3 |
|
Va220 |
210~235 |
198 |
||||||
|
Va250 |
235~265 |
225 |
||||||
|
Va275 |
265~290 |
247 |
||||||
|
Va300 |
290~310 |
270 |
||||||
|
Va325 |
310~335 |
292 |
||||||
|
Va350 |
335~365 |
315 |
||||||
|
Va375 |
365~390 |
337 |
||||||
|
Va400 |
390~430 |
360 |
||||||
|
Va450 |
430~480 |
405 |
||||||
|
Va500 |
480~530 |
450 |
||||||
|
Va550 |
530~580 |
495 |
||||||
|
Va600 |
580~630 |
540 |
||||||
|
Va650 |
630~665 |
600 |
||||||
|
Va700 |
665~705 |
630 |
||||||
|
Va725 |
705~745 |
670 |
||||||
|
Va750 |
745~785 |
705 |
||||||
|
Va800 |
785~830 |
745 |
||||||
|
Va850 |
830~875 |
785 |
||||||
|
Va900 |
875~920 |
825 |
||||||
|
Va950 |
920~965 |
865 |
||||||
|
Va1000 |
965~1015 |
910 |
Note: Products up to 6000mm in length are available.
VS Specifications and Groove Dimensions Table
|
Product Number |
dl |
d2 |
d3 |
B1 |
d |
C |
B |
A |
|
Vs12 |
11.5~13.5 |
dl+1 |
dl+9 |
6.7±0.6 |
10.5 |
3 |
7.7 |
5.6 |
|
Vs14 |
13.5~15.5 |
12.5 |
||||||
|
Vs16 |
15.5~17.5 |
14 |
||||||
|
Vs18 |
17.5~19 |
16 |
||||||
|
Vs20 |
19~21 |
dl+2 |
dl+12 |
9±0.8 |
18 |
4 |
10.5 |
7.9 |
|
Vs22 |
21~24 |
20 |
||||||
|
Vs25 |
24~27 |
22 |
||||||
|
Vs28 |
27~29 |
25 |
||||||
|
Vs30 |
29~31 |
27 |
||||||
|
Vs32 |
31~33 |
29 |
||||||
|
Vs35 |
33~36 |
31 |
||||||
|
Vs38 |
36~38 |
34 |
||||||
|
Vs40 |
38-43 |
d1+2 |
dl+15 |
11±1 |
36 |
5 |
13 |
9.5 |
|
Vs45 |
43~48 |
40 |
||||||
|
Vs50 |
48~53 |
45 |
||||||
|
Vs55 |
53~58 |
49 |
||||||
|
Vs60 |
58~63 |
54 |
||||||
|
Vs65 |
63~68 |
58 |
||||||
|
Vs70 |
68~73 |
dl+3 |
dl+18 |
13.5±1.2 |
63 |
6 |
15.5 |
11.3 |
|
Vs75 |
73~78 |
67 |
||||||
|
Vs80 |
78~83 |
72 |
||||||
|
Vs85 |
83~88 |
76 |
||||||
|
Vs90 |
88~93 |
81 |
||||||
|
Vs95 |
93~98 |
85 |
||||||
|
Vs100 |
98~105 |
90 |
||||||
|
Vs110 |
105~115 |
d1+4 |
d1+21 |
15.5±1.5 |
99 |
7 |
18 |
13.1 |
|
Vs120 |
115~125 |
108 |
||||||
|
Vs130 |
125~135 |
117 |
||||||
|
Vs140 |
135~145 |
126 |
||||||
|
Vs150 |
145~155 |
135 |
||||||
|
Vs160 |
155~165 |
d1+24 |
18±1.8 |
144 |
8 |
20.5 |
15 |
|
|
Vs170 |
165~175 |
153 |
||||||
|
Vs180 |
175~185 |
162 |
||||||
|
Vs190 |
185~195 |
171 |
||||||
|
Vs199 |
195~210 |
180 |
Note: If the required specifications are not listed in this table, please contact our company.
