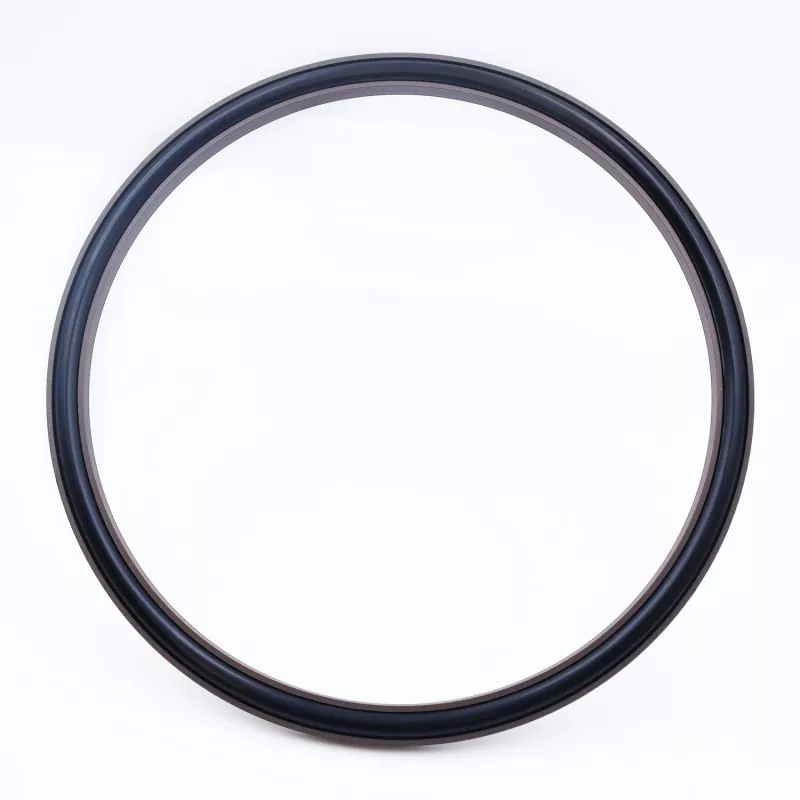

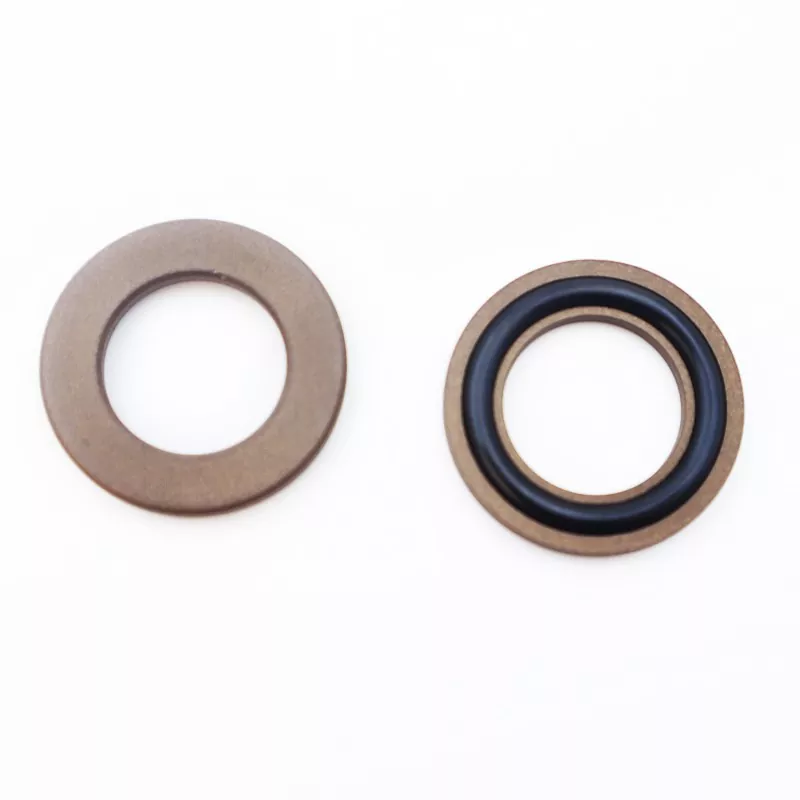

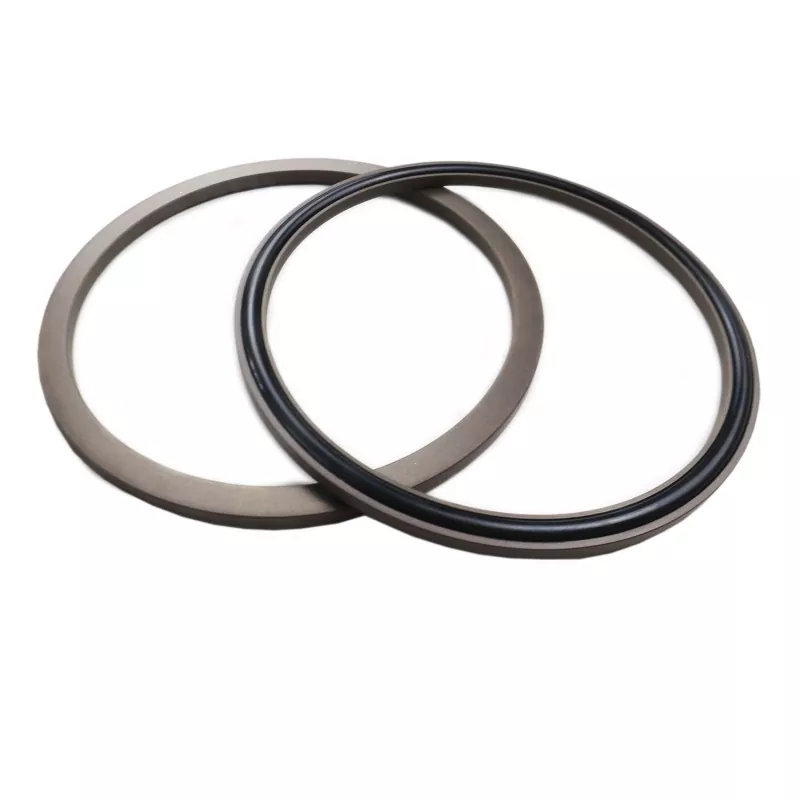

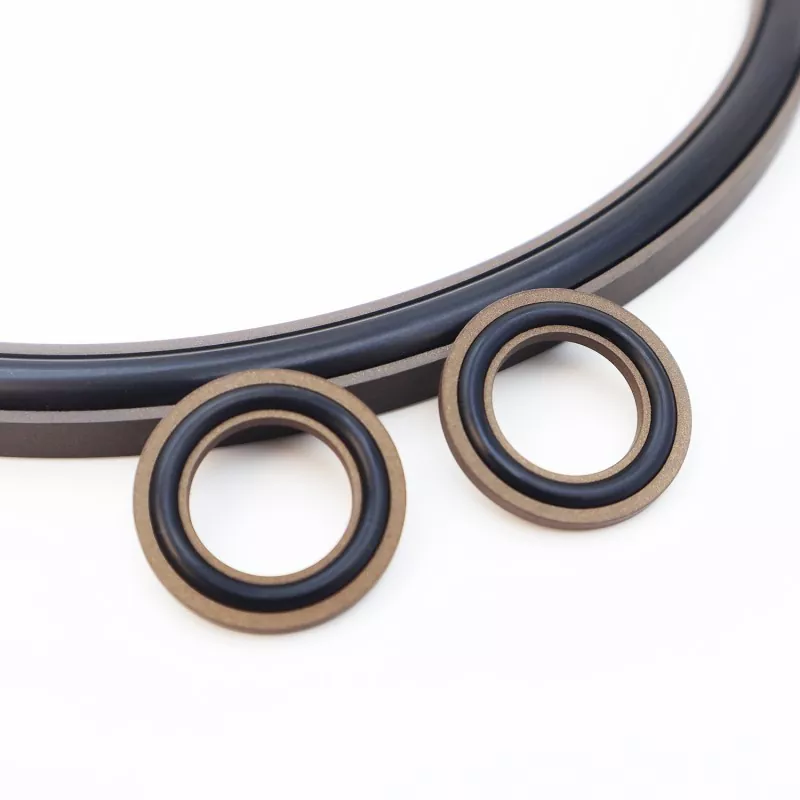

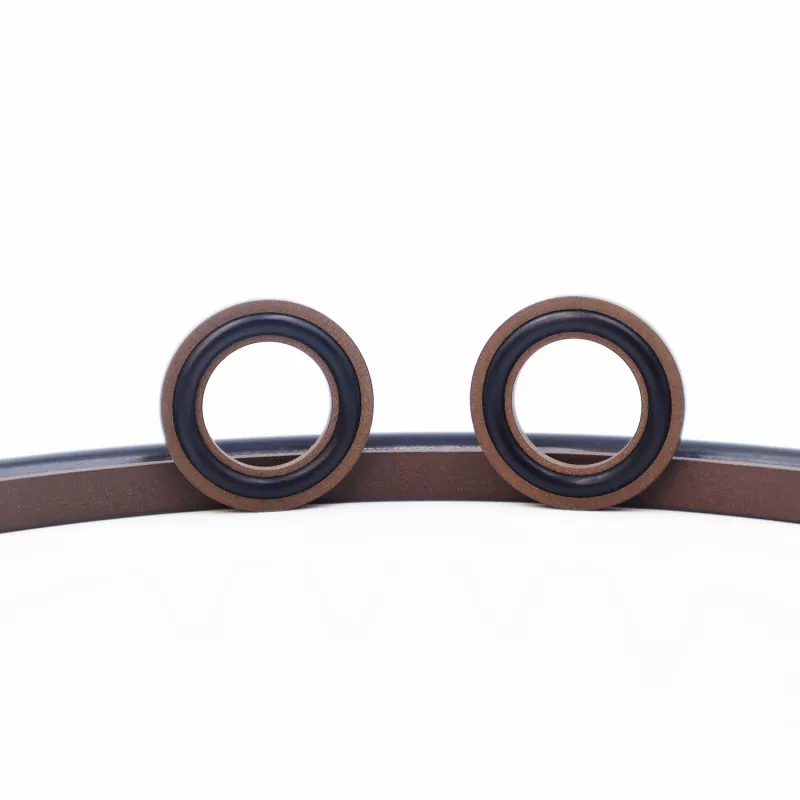

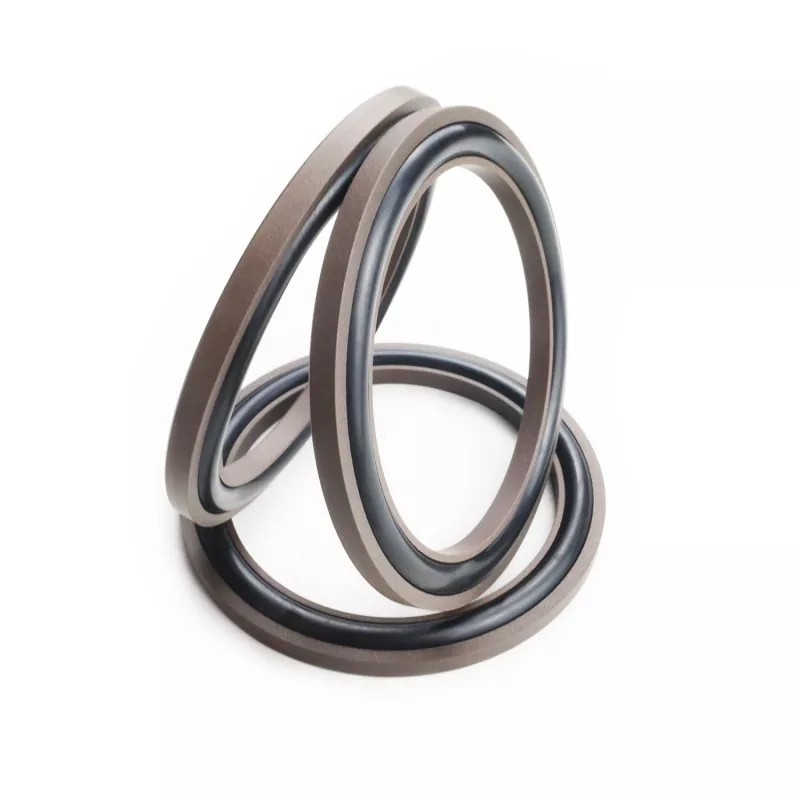

The Axial C-Type Combined Seal consists of a C-shaped sealing ring made of filled PTFE and a rubber O-ring; it is designed for static sealing applications such as axial (end-face) and flange seals. Key features include a long service life, excellent sealing performance, high-pressure resistance, and a compact structural footprint; it is also suitable for hydraulic sealing applications. Available in two versions: RC2872-A (for internal pressure) and RC2872-B (for external pressure).
The compact design facilitates installation in confined spaces, ensuring reliable sealing and extended service life during long-term operation. A full range of specifications is available in stock, with services provided to global buyers including technical selection, price inquiries, and bulk ordering.
|
Pressure (MPa) |
Temperature (°C) |
Speed (m/s) |
Medium |
|
≤100 |
-35 to +100 (with NBR O-ring) |
- |
Hydraulic oil, emulsion, water, etc. |
|
-20 to +200 (with FKM O-ring) |
This seal consists of a C-shaped PTFE sealing ring and an O-ring; the O-ring provides pre-compression, generating the clamping force required to achieve a seal. Under pressure, this clamping force increases—meaning the seal performs better as pressure rises. Thanks to the slipper ring's double-flange design, the O-ring is prevented from extruding, allowing the seal to withstand high pressures.
All specifications within the parameter range are available.
|

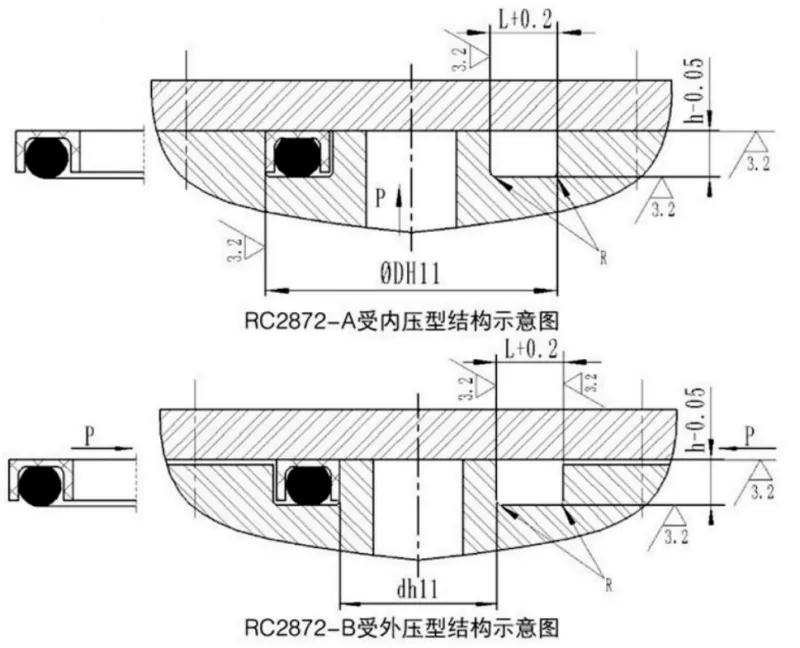

Outer diameter range D H11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Corner Radius Rmax |
O-ring wire diameter do |
|
15~30 |
2.35 |
5.5 |
0.4 |
2.65 |
|
31~50 |
3.10 |
6.6 |
0.4 |
3.55 |
|
51~127 |
4.65 |
9.6 |
0.5 |
5.30 |
|
128~499 |
6.25 |
11.7 |
0.6 |
7.00 |
|
500~1600 |
7.5 |
13.6 |
0.7 |
8.60 |
All specifications within the parameter range are available.
|
Inner diameter range d h11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Corner Radius Rmax |
O-ring wire diameter do |
|
5~30 |
2.35 |
5.5 |
0.4 |
2.65 |
|
31~50 |
3.10 |
6.6 |
0.4 |
3.55 |
|
51~127 |
4.65 |
9.6 |
0.5 |
5.30 |
|
128~499 |
6.25 |
11.7 |
0.6 |
7.00 |
|
500~1600 |
7.5 |
13.6 |
0.7 |
8.60 |
