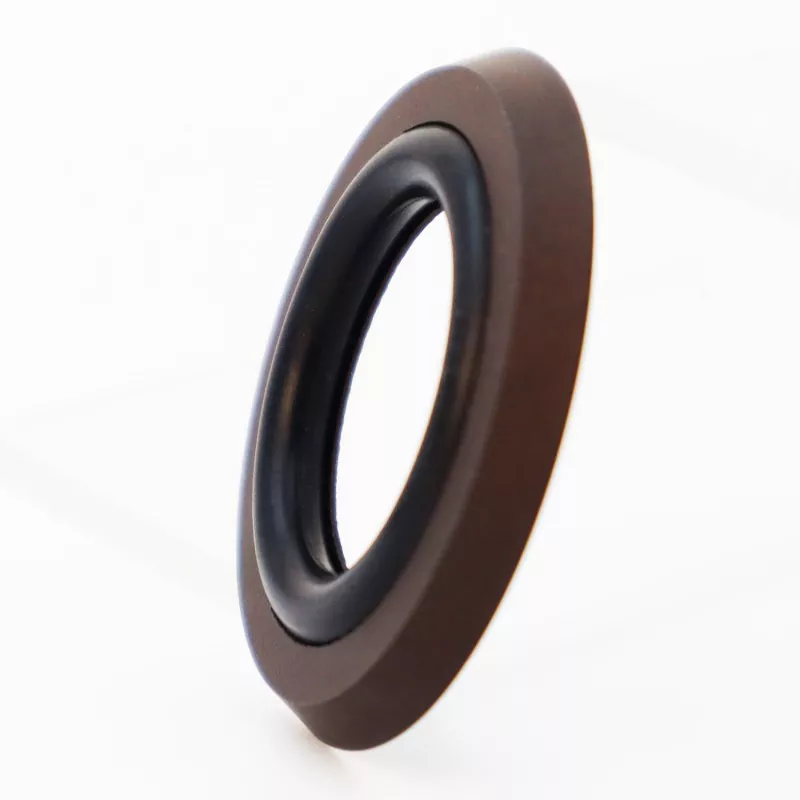

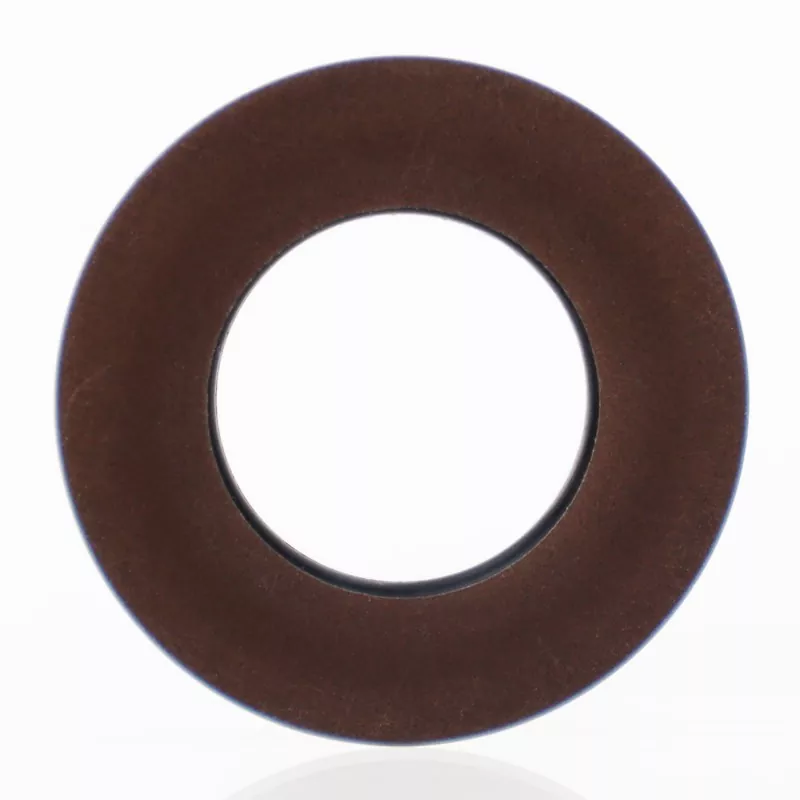

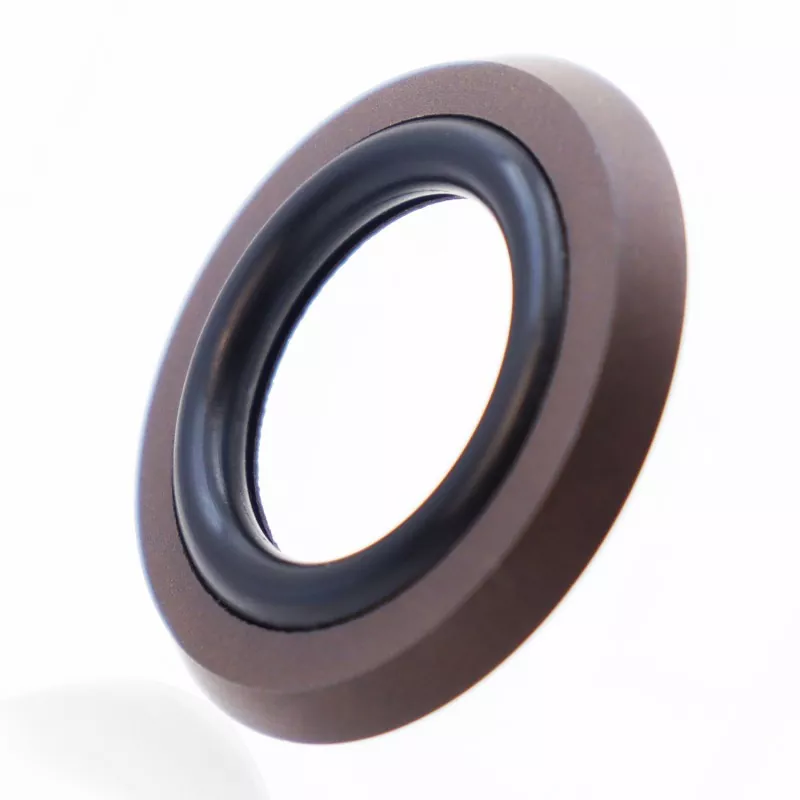

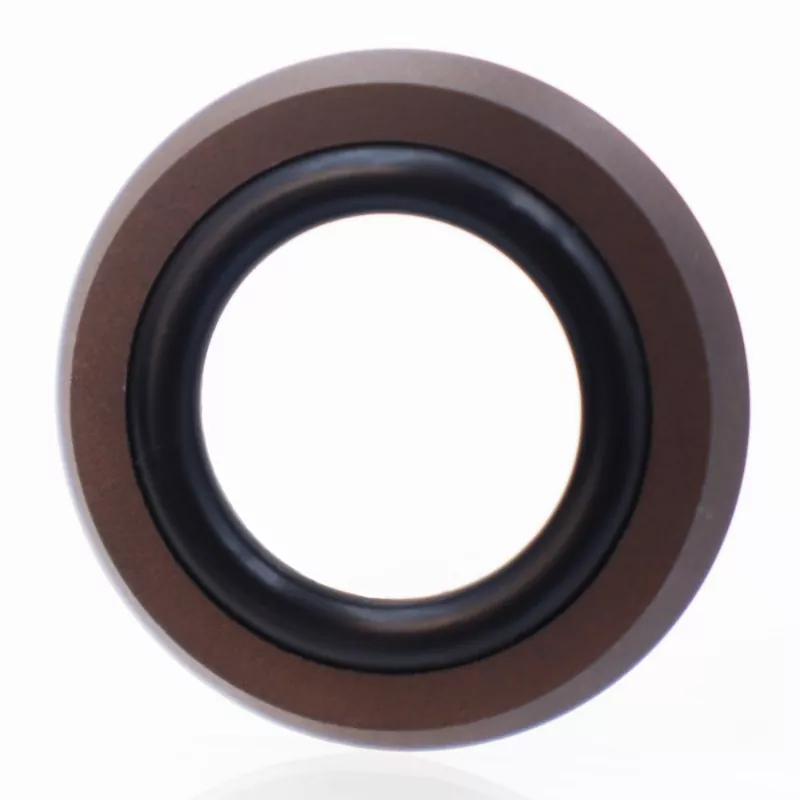

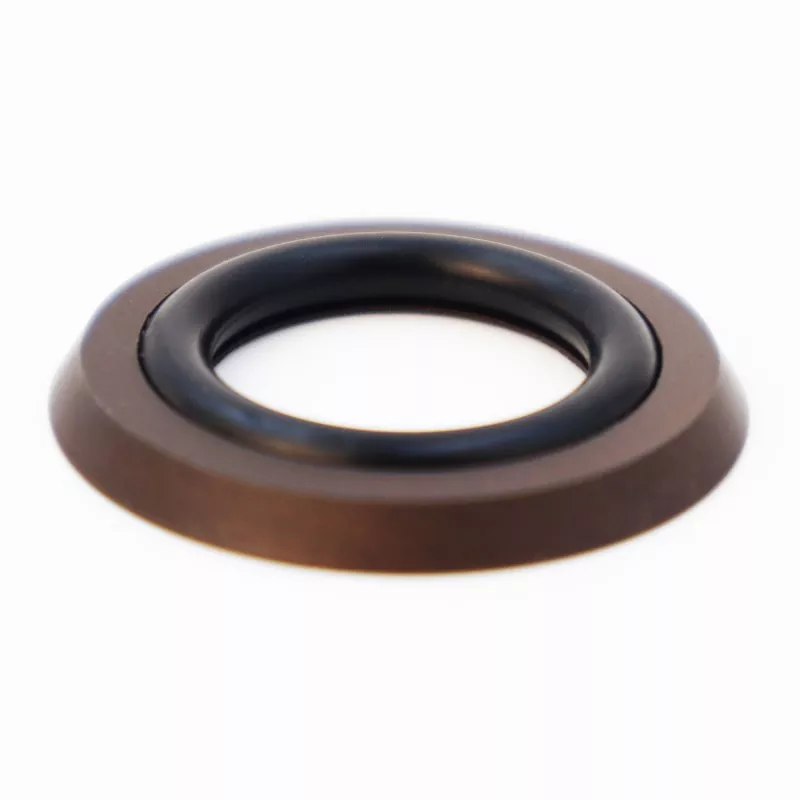

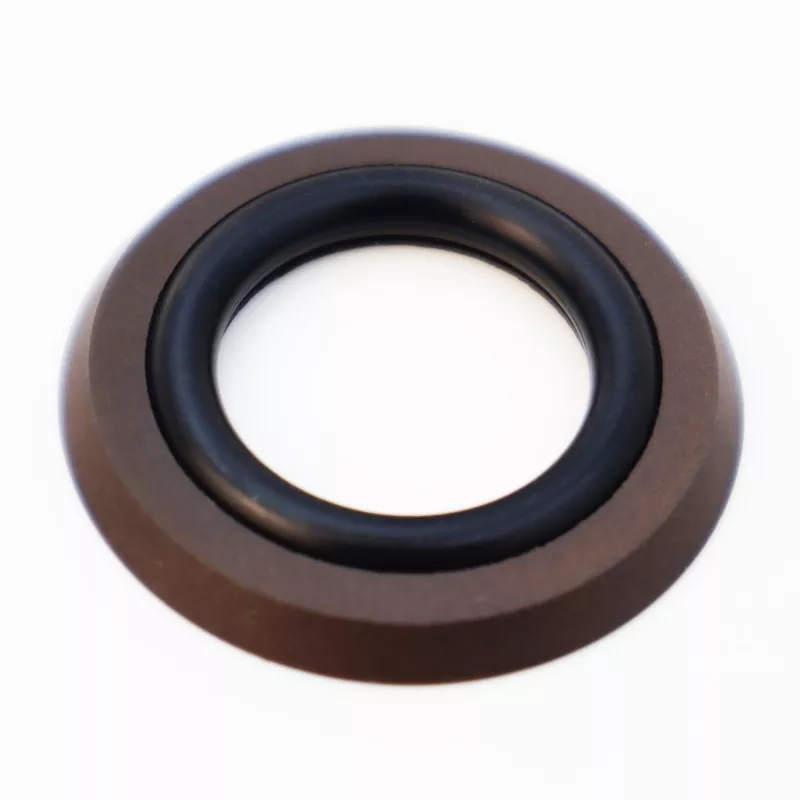

The Axial Foot Type Combined Seal consists of a foot-shaped sealing ring made of filled PTFE and a rubber O-ring. It is designed for unidirectional static sealing applications, such as axial (end-face) and flange seals. Key features include a long service life, excellent sealing performance, resistance to high and ultra-high pressures, and a compact design that requires minimal installation space; it is also suitable for hydraulic sealing applications. Available in two versions: RC2875-A (for internal pressure) and RC2875-B (for external pressure).
Its compact structure fits into narrow installation grooves, significantly reducing the risk of equipment leakage. A full range of specifications is available in stock, and we welcome inquiries and sample orders from global buyers.
|
Pressure (MPa) |
Temperature (°C) |
Speed (m/s) |
Medium |
|
≤60 |
-35 to +100 (with NBR O-ring) |
≤6 |
Mineral-based hydraulic oils, fire-resistant fluids (HFA/HFB), water, etc. |
|
-20 to +200 (with FKM O-ring) |

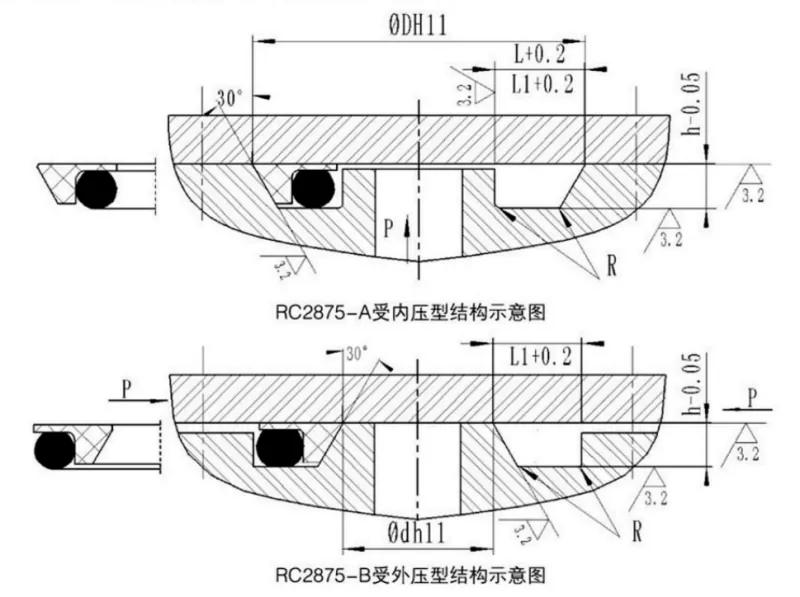

This seal consists of a modified PTFE seal ring with a foot-shaped profile and an O-ring. Under pressure, the seal's gripping force increases—meaning the higher the pressure, the better the sealing performance. Thanks to the slide ring's foot-shaped side flange design, the O-ring is prevented from extruding, allowing the seal to withstand high and ultra-high pressures.
All specifications within the parameter range are available.
|
Outer diameter range D H11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Groove width L1 + 0.2 Pressure > 100 MPa |
Corner Radius Rmax |
O-ring wire diameter do |
|
17~50 |
3.1 |
6.6 |
8.6 |
0.4 |
3.55 |
|
51~127 |
4.6 |
10.0 |
12.0 |
0.5 |
5.30 |
|
128~499 |
6.3 |
13.2 |
15.2 |
0.6 |
7.00 |
|
500~1600 |
7.5 |
15.8 |
17.8 |
0.7 |
8.60 |
All specifications within the parameter range are available.
|
Inner diameter range dh11 |
Groove depth h-0.05 |
Groove width L+0.2 |
Groove width L1 + 0.2 Pressure > 100 MPa |
Corner Radius Rmax |
O-ring wire diameter do |
|
5~40 |
3.1 |
6.6 |
8.6 |
0.4 |
3.55 |
|
41~127 |
4.6 |
10.0 |
12.0 |
0.5 |
5.30 |
|
128~499 |
6.3 |
13.2 |
15.2 |
0.6 |
7.00 |
|
500~1600 |
7.5 |
15.8 |
17.8 |
0.7 |
8.60 |
