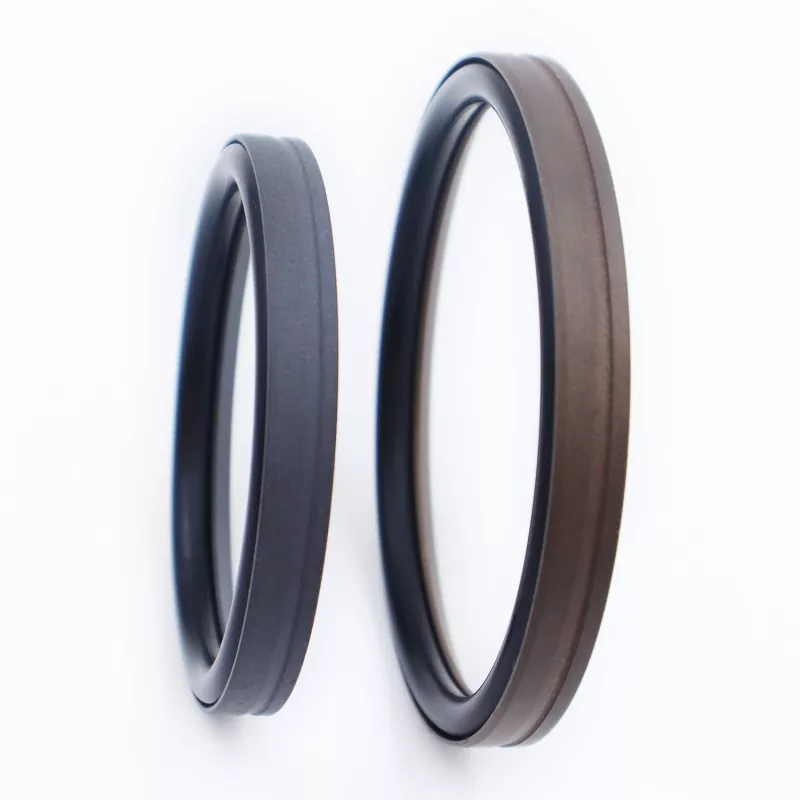

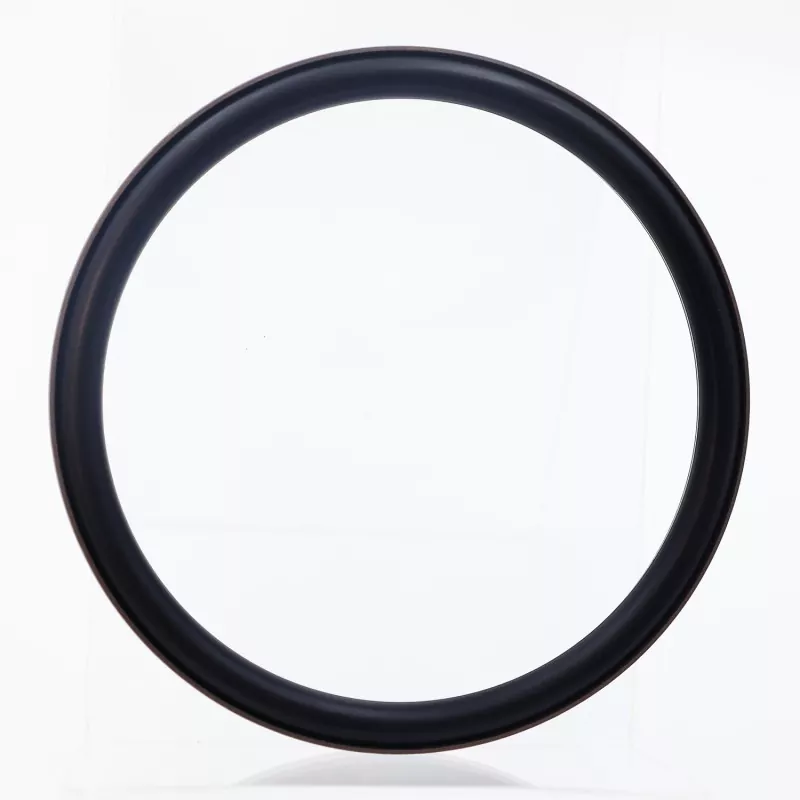

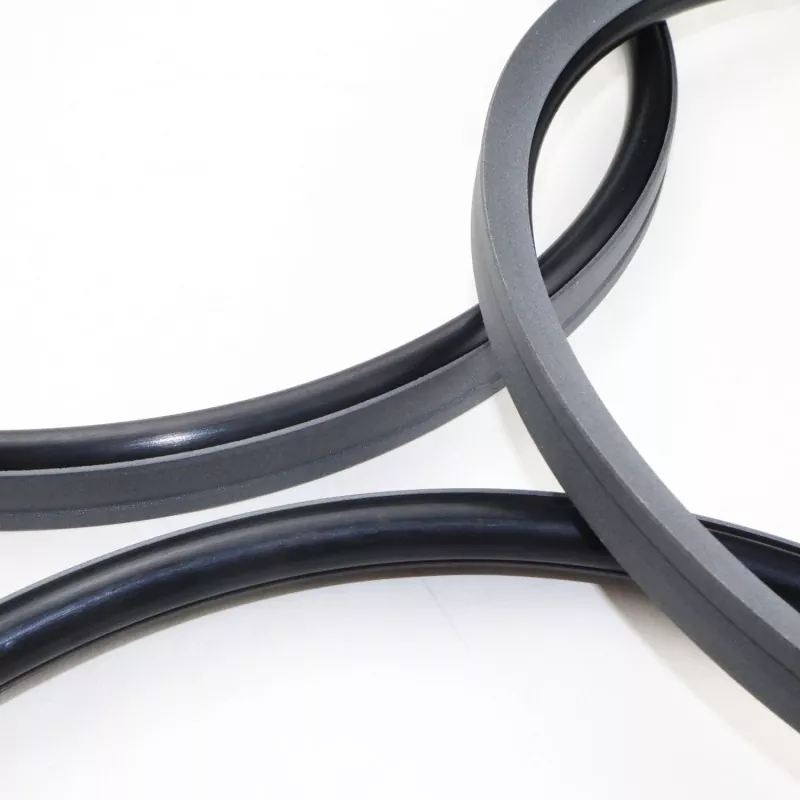

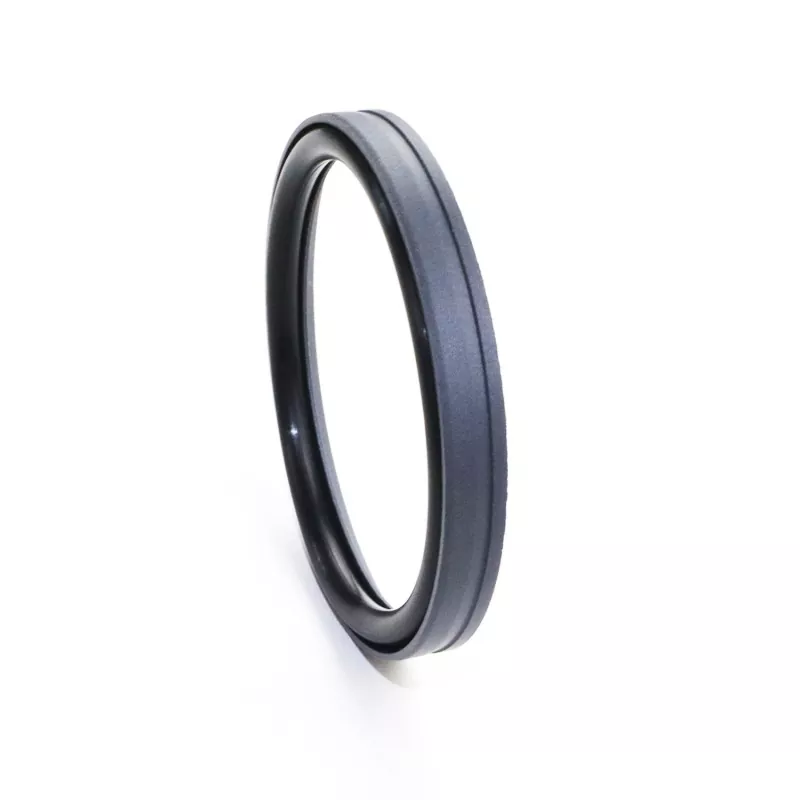

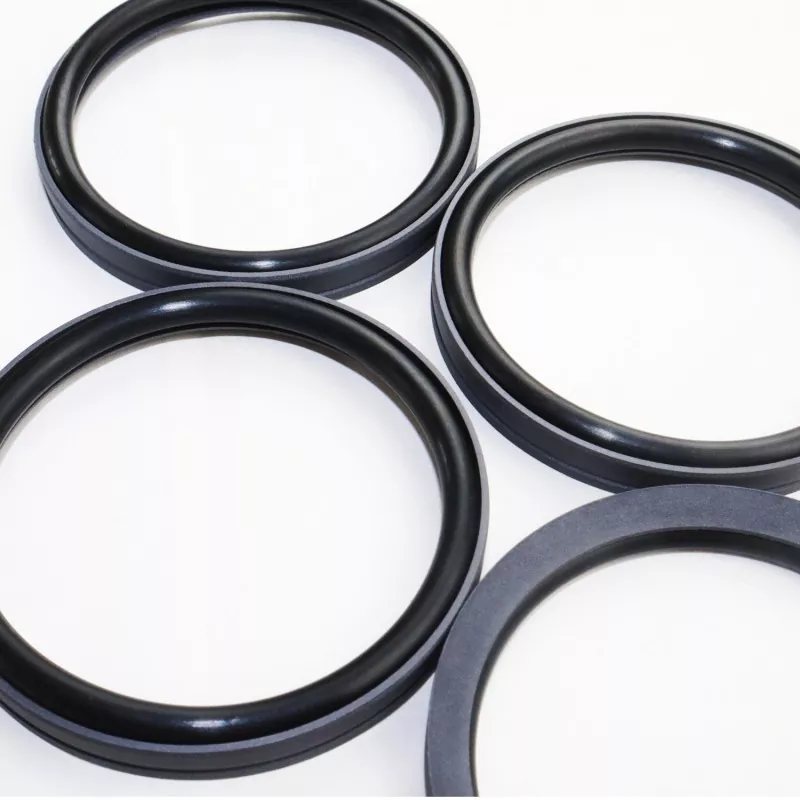

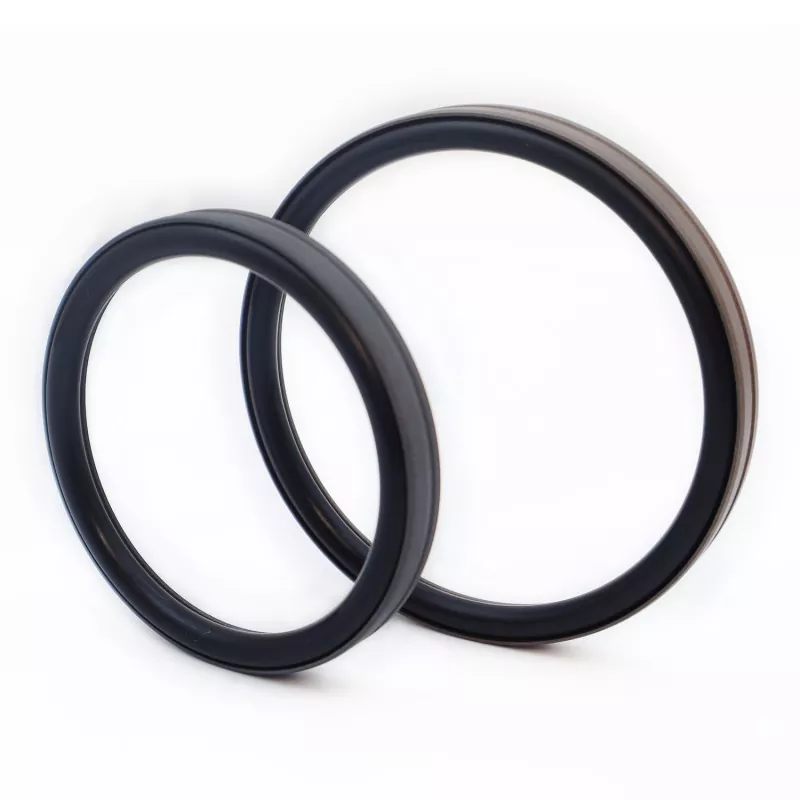

The Bore Foot Type Combined Seal consists of a foot-shaped sealing ring made of PTFE (or a PTFE composite) and a rubber O-ring; it is designed for single-acting sealing in hydraulic and pneumatic reciprocating applications. It is categorized into the RC53 and RC54 series based on the matching O-ring (compliant with the GB1235 standard). Thanks to the thin-lip design of the sealing ring, it offers excellent follow-up compensation and superior sealing performance. It performs well under both high and low-pressure conditions, operates without "stick-slip" (crawling), supports long-term oil-free sealing, and is widely used for high-pressure cylinder pistons.
The wedge-shaped groove on the foot-shaped sealing surface enhances sealing integrity and contamination resistance while reducing friction. The structural design also improves the seal's pressure-bearing capacity. Generally, it is not suitable for installation in closed grooves.
1. Suitable for both hydraulic and pneumatic applications;
2. Excellent sealing performance under both high and low-pressure conditions;
3. Low friction, minimal breakaway resistance, smooth motion, equal dynamic and static friction, and no stick-slip;
4. Long service life; suitable for oil-free lubrication applications;
5. Suitable for high-pressure and ultra-high-pressure sealing;
Limit values should not occur simultaneously.
|
Pressure (MPa) |
Temperature (°C) |
Speed m/s |
Media |
|
≤100 |
-35 to +100 (with NBR O-ring) |
≤6 |
Mineral-based hydraulic oils, fire-resistant fluids (HFA/HFB), gases, etc. |
|
-20 to +180 (with FKM O-ring) |
1. Compatible O-ring materials include: R01 Nitrile Rubber (NBR), R02 Fluoroelastomer (FKM), etc.
2. Sealing ring material: Standard material PTFE3; other available materials include PTFE2, PTFE4, and other high-performance plastics.
Order Model: RC53-80x69.6x9.8-PTFE3-R01
Bore Diameter x Groove Diameter x Groove Width | PTFE3: Modified PTFE material code | R01: O-ring material code
Any size within the parameter range is available
|

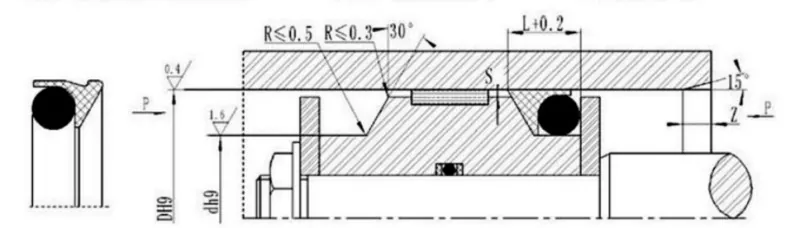

Aperture range D H9 |
Groove diameter d h9 |
Groove width L+0.2 |
Radial clearance Smax |
Chamfer Zmin |
O-ring wire diameter do |
|
|
<40Mpa |
<60Mpa |
|||||
|
13~24 |
D-5.4 |
5.2 |
0.25 |
0.15 |
4 |
2.65 |
|
25~49 |
D-7.2 |
6.6 |
0.25 |
0.2 |
5 |
3.55 |
|
50~121 |
D-10.4 |
9.8 |
0.3 |
0.2 |
7 |
5.30 |
|
122~1500 |
D-13.6 |
12.8 |
0.35 |
0.25 |
10 |
7.00 |
Compatible with GB1235 O-rings; any size within the specified range can be supplied.
|
Aperture range D H9 |
Groove diameter d h9 |
Groove width L+0.2 |
Radial clearance Smax |
Chamfer Zmin |
O-ring wire diameter do |
|
|
<40Mpa |
<60Mpa |
|||||
|
12~49 |
D-7.0 |
6.6 |
0.25 |
0.2 |
5 |
3.5 |
|
50~169 |
D-11.0 |
10.5 |
0.3 |
0.2 |
7 |
5.7 |
|
170~1500 |
D-16.6 |
15.5 |
0.5 |
0.3 |
12 |
8.6 |
Note: For pressures >60 MPa, an H8/8 fit tolerance is used at the seal base area, and the ultra-high-pressure seal clearance Smax is <0.05.
