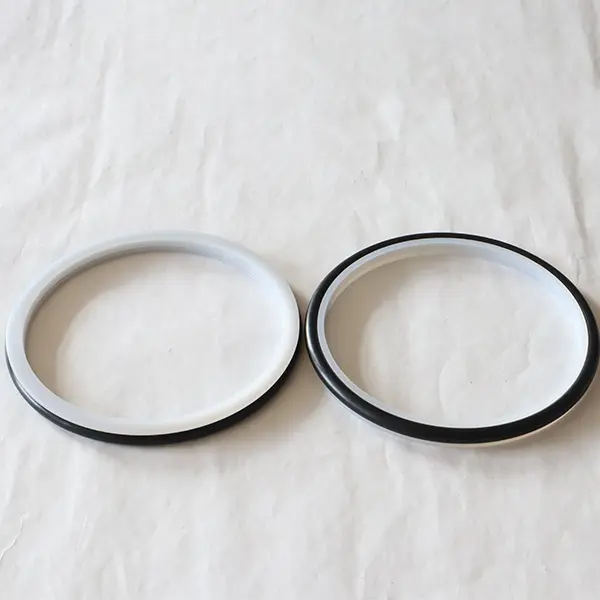

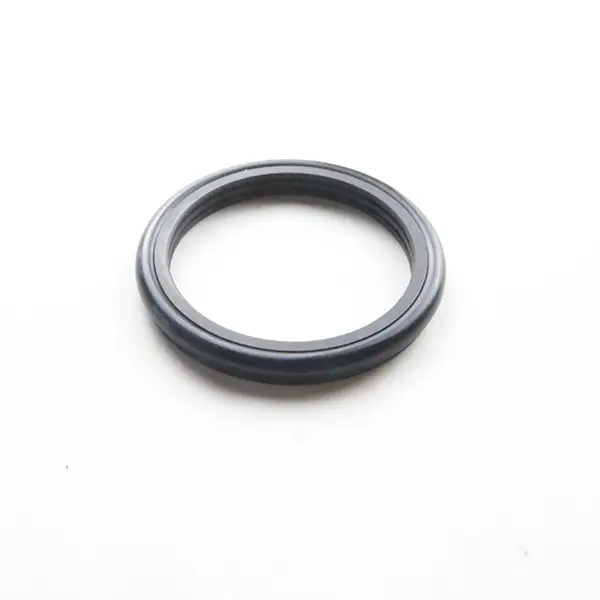

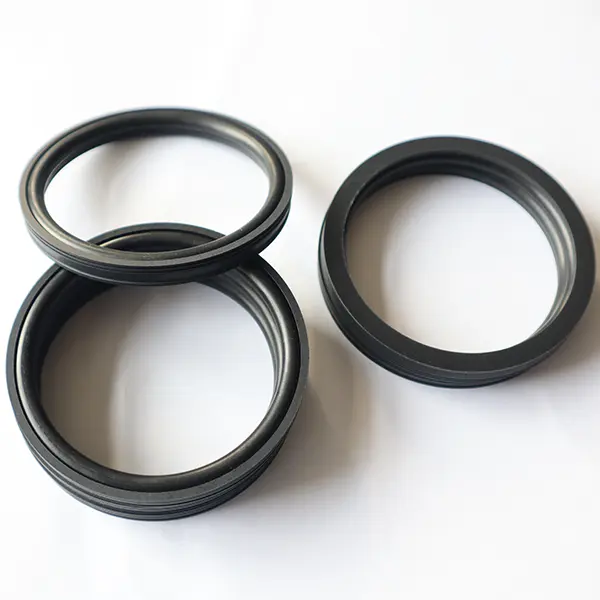

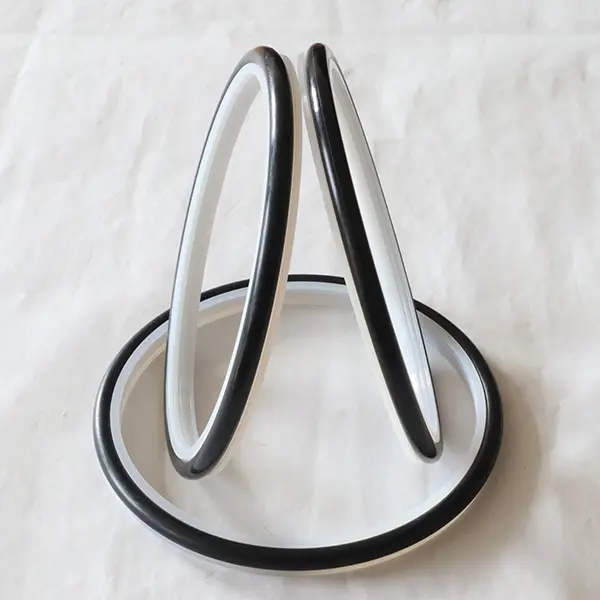

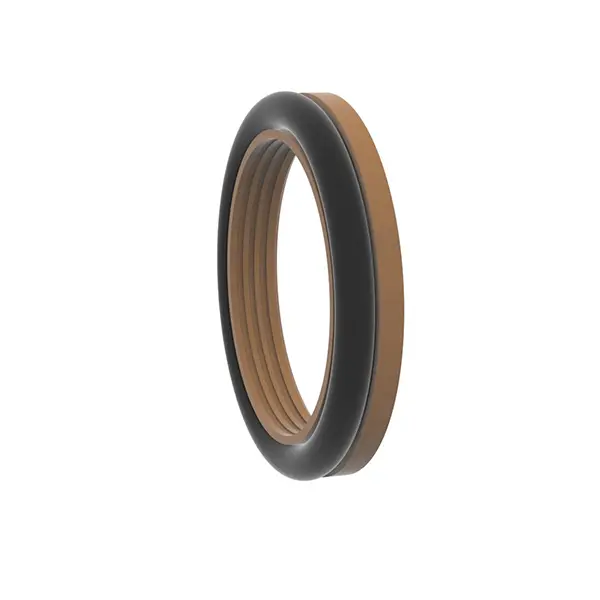

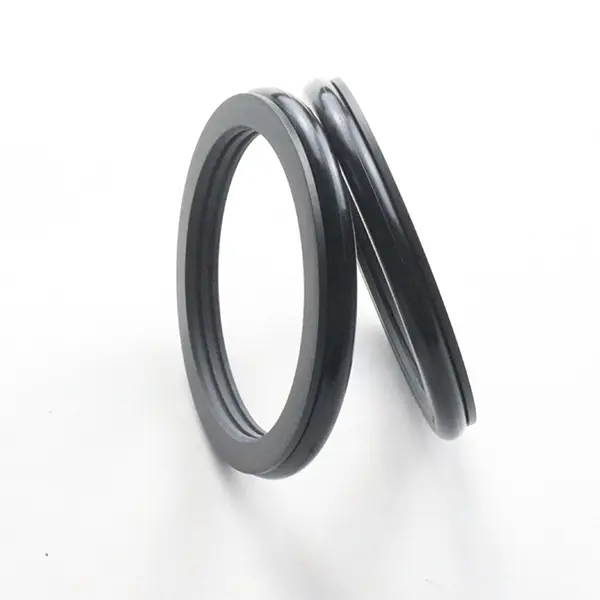

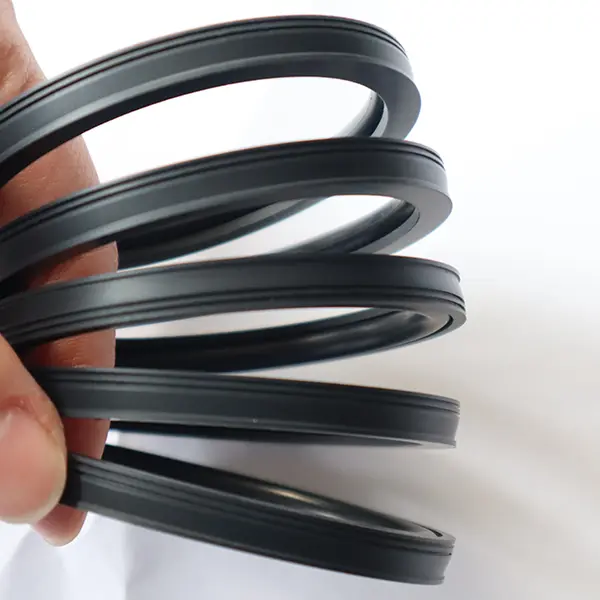

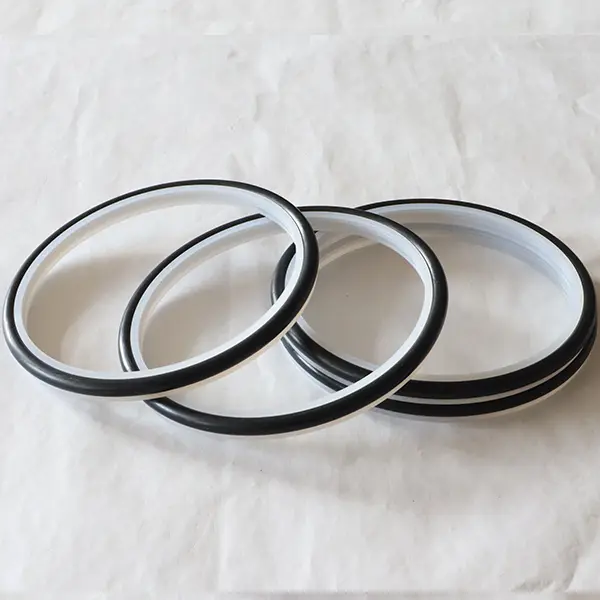

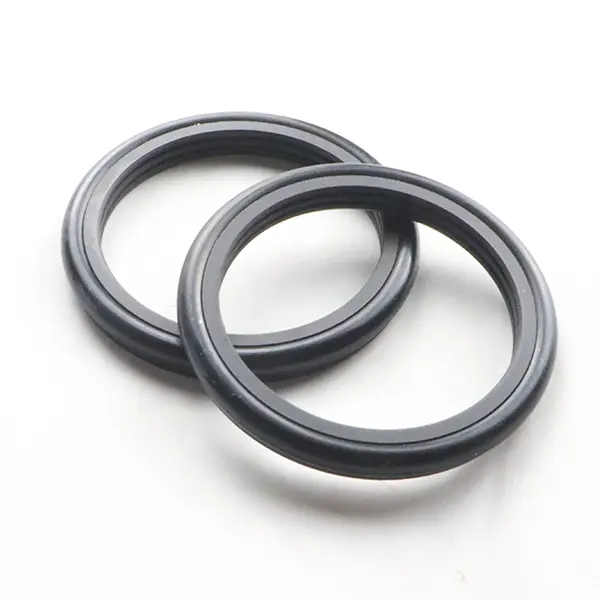

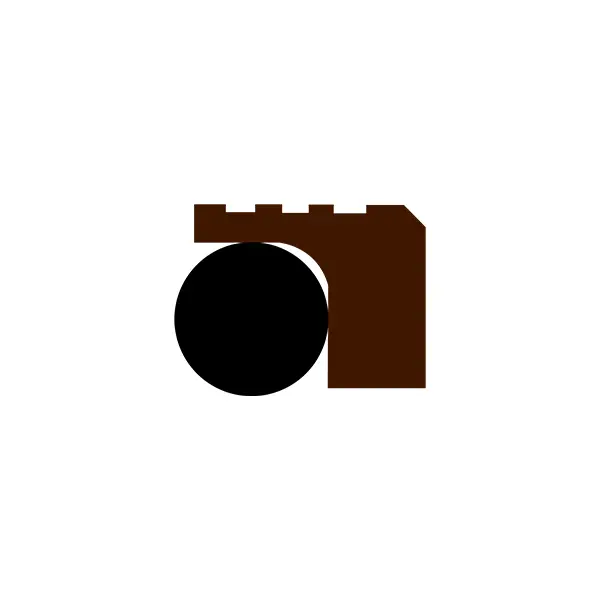

Ruichen Seal's rotary seals for cement slurry are made of high-performance engineering plastic toothed seal rings and O-shaped rubber rings. They are suitable for harsh working conditions such as plunger pumps, mud pumps, screw drills, drilling rigs, oil exploration equipment and concrete mixing plants. They are divided into two models: RC2061 and RC2062.
Both RC2061 and RC2062 are suitable for one-way sealing of hydraulic reciprocating and rotary motions. They have the characteristics of long life, low friction, good sealing, small structural space, and easy installation, use and maintenance. The special sealing lip and thickness optimization design have good sealing effect even in malignant media such as cement slurry. When used for sealing slurry media, we recommend grease lubrication between two (or more) seals.
Product features and applications:
Product features:
Long life: Combination of high-function engineering plastics and rubber, strong durability.
Low friction: Optimized design reduces running resistance and improves efficiency.
Excellent sealing: Special sealing lip design, suitable for malignant media such as cement slurry.
Compact structure: Small space design, easy installation and maintenance.
Applicable to harsh working conditions: Designed for media such as mud and cement slurry, with stable performance.
Application scenarios:
Oil exploration equipment such as plunger pumps, mud pumps, screw drills, drilling rigs, etc.
Construction machinery and equipment such as concrete mixing stations.
Other hydraulic reciprocating and rotary seals that require wear resistance and resistance to malignant media.
Technical advantages:
Special lip and thickness optimization design to adapt to extreme working conditions.
Easy installation, low maintenance cost and long service life.
Applicable to harsh environments with high wear and high pollution.
Usage suggestions:
When used for mud media, it is recommended to grease and lubricate between two (or more) seals to extend the life of the seal.

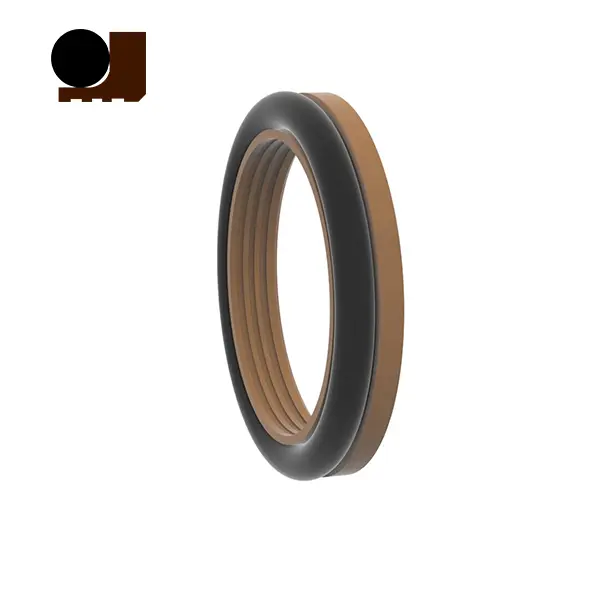

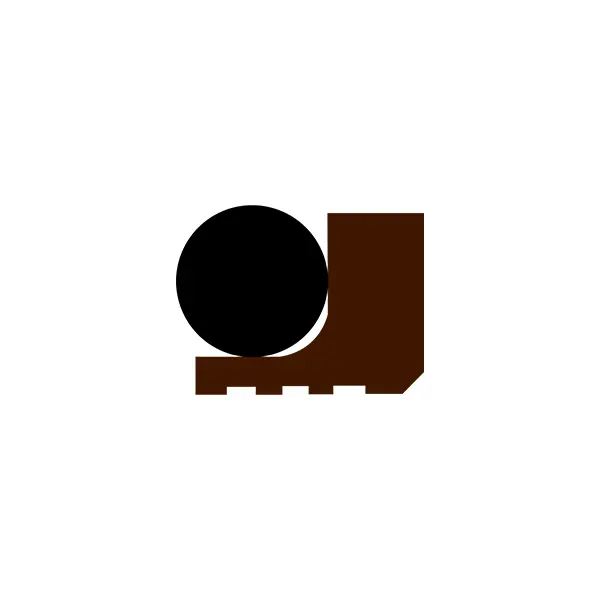

RC2061
Applicable working conditions (limit values should not appear at the same time)
| Pressure (MPa) | Temperature (℃) | Speed (m/s) | Medium | |
| Reciprocating motion | Rotational motion | |||
| ≤100 | -35~+100 (matching O-ring NBR) | ≤6 | ≤2 | Hydraulic oil, emulsion, water, mud, crude oil, etc. |
| -20~+200 (matching O-ring FKM) | ||||
Material selection
1. The matching O-ring materials can be selected: R01 nitrile rubber (NBR), R02 fluororubber (FKM), etc.
2. Sealing ring material: standard material PTFE4, other optional materials PTFE2/PTFE3/PTFE5/UPE/PK1/PK2, etc.
Ordering example
Order model RC2061-80*91.7*7.6-PTFE4-R01 Model-shaft diameter*groove diameter*groove width-material code
Specifications (Any size within the parameter range is available)

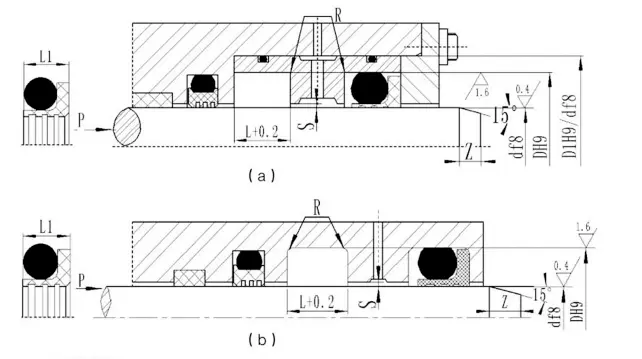

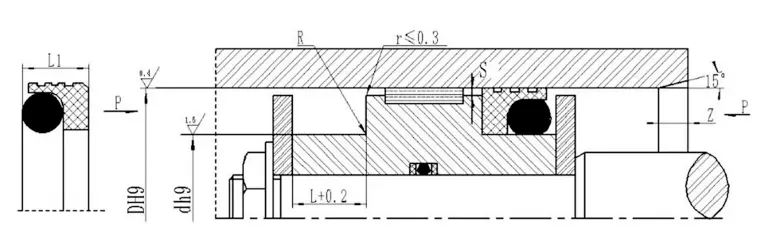

| Shaft diameter range Standard d f8 RC2061 | Shaft diameter range Heavy type d f8 RC2061-Z | Groove diameter D H9 | Groove width L+0.2 | Seal Width L1 | Round Corners Rmax | Radial clearance Smax | Chamfer Zmin | O-Ring Wire Diameter | ||
| <10MPA | <20MPA | <40MPA | ||||||||
| 5~15.9 | - | d+6.3 | 4.0 | 3.65 | 0.4 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| 16~38.9 | 5~15.9 | d+8.2 | 5.2 | 4.55 | 0.4 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| 39~107.9 | 16~38.9 | d+11.7 | 7.6 | 6.80 | 0.5 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| 108~670. | 39~107.9 | d+15.5 | 9.6 | 8.50 | 0.6 | 0.6 | 0.35 | 0.25 | 8 | 7.00 |
| 671~1600 | 108~670.9 | d+19.4 | 12.1 | 11.1 | 0.7 | 0.7 | 0.5 | 0.3 | 10 | 8.60 |
Note: 1. For shaft diameter ≤30mm, open groove is recommended.
2. For rotary seal, the surface hardness of the rotary shaft is recommended to be HRC ≥58.
3. For pressure greater than 30MPA, H8/f8 is recommended for extrusion gap.

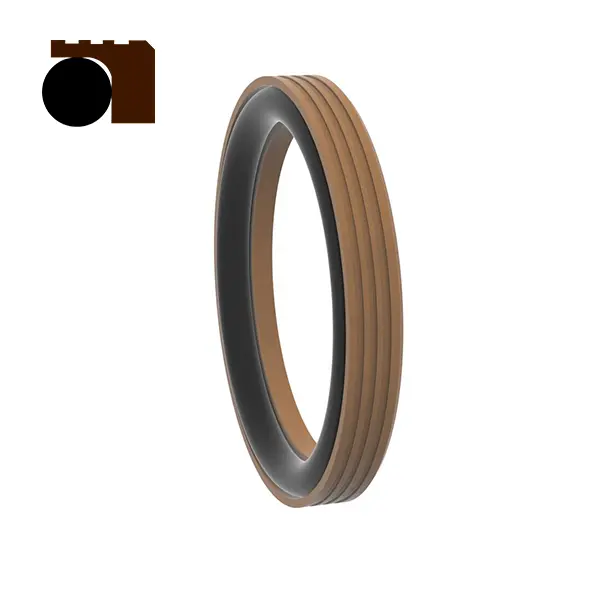

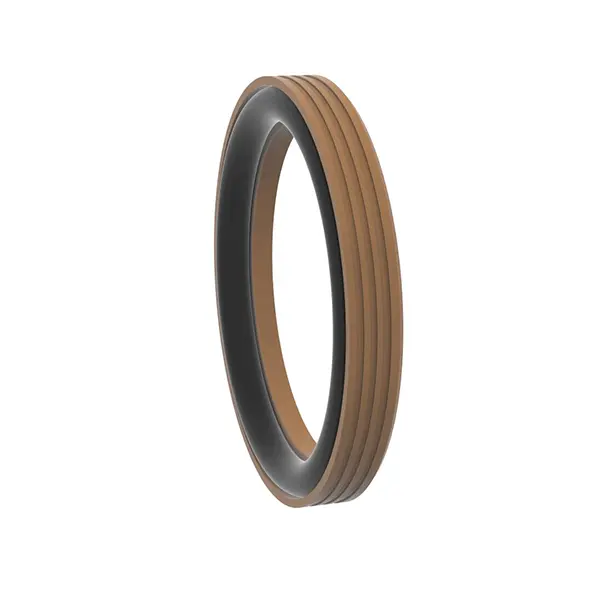

RC2062 Applicable working conditions (limit values should not appear at the same time)
| Pressure (MPa) | Temperature (℃) | Speed (m/s) | Medium | |
| Reciprocating motion | Rotational motion | |||
| ≤100 | -35~+100 (matching O-ring NBR) | ≤6 | ≤2 | Hydraulic oil, emulsion, water, mud, crude oil, etc. |
| -20~+200 (matching O-ring FKM) | ||||
Material selection
1. The matching O-ring materials can be selected: R01 nitrile rubber (NBR), R02 fluororubber (FKM), etc.
2. Sealing ring material: standard material PTFE4, other optional materials PTFE2/PTFE3/PTFE5/UPE/PK1/PK2, etc.
Ordering example
Order model RC2062-80*68.3*7.6-PTFE4-R01 model-cylinder diameter*groove diameter*groove width-material code
Specifications (Any size within the parameter range is available)
| Aperture range Standard type D H9 RC2062 | Aperture range Heavy type D H9 RC2062-Z | Groove diameter d h9 | Groove width L+0.2 | Seal Width L1 | Round Corners Rmax | Radial clearance Smax | Chamfer Zmin | O-ring wire diameter | ||
| <10MPA | <20MPA | <40MPA | ||||||||
| 8~12.9 | - | D-4.5 | 3.1 | 2.8 | 0.3 | 0.3 | 0.2 | 0.15 | 3 | 1.8 |
| 13~24.9 | 10~12.9 | D-6.3 | 4 | 3.65 | 0.4 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| 25~51.9 | 13~24.9 | D-8.2 | 5.2 | 4.55 | 0.4 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| 52~127.9 | 25~51.9 | D-11.7 | 7.6 | 6.80 | 0.5 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| 128~500.9 | 52~127.9 | D-15.5 | 9.6 | 8.50 | 0.6 | 0.6 | 0.35 | 0.25 | 8 | 7.00 |
| 501~1500 | 128~500.9 | D-19.4 | 12.1 | 11.1 | 0.7 | 0.7 | 0.5 | 0.3 | 10 | 8.60 |
Note: 1. For cylinder diameter ≤ 30mm, it is recommended to use open groove.
2. For pressure greater than 30MPA, it is recommended to use H8/f8 for extrusion gap.
