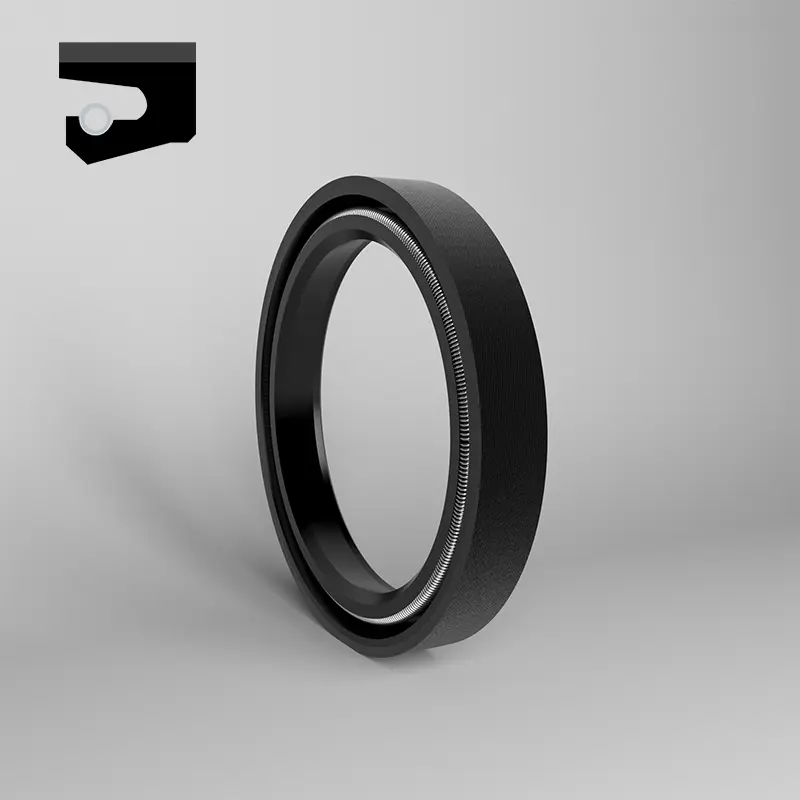

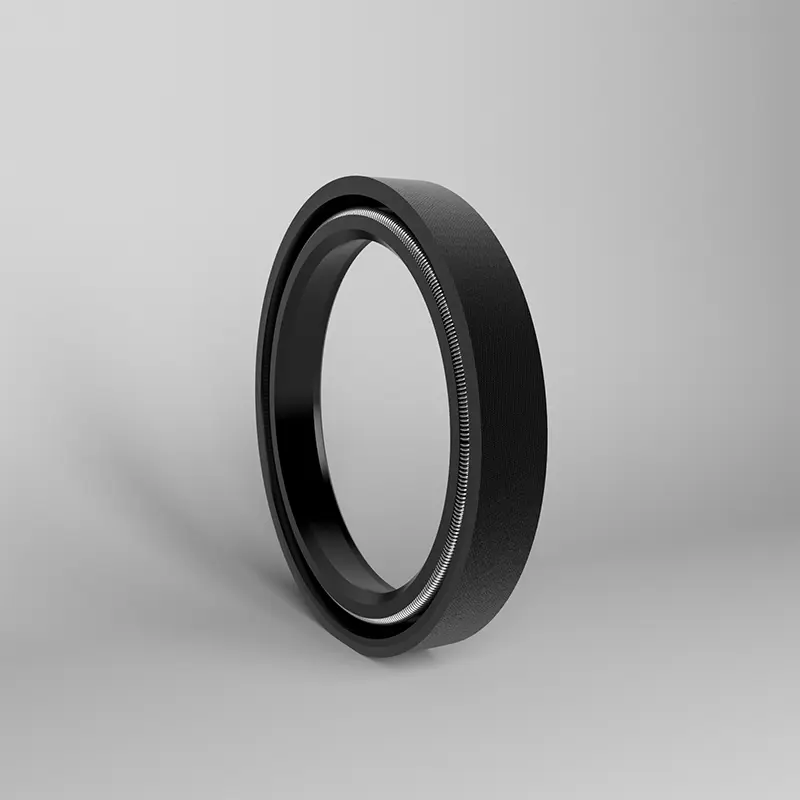

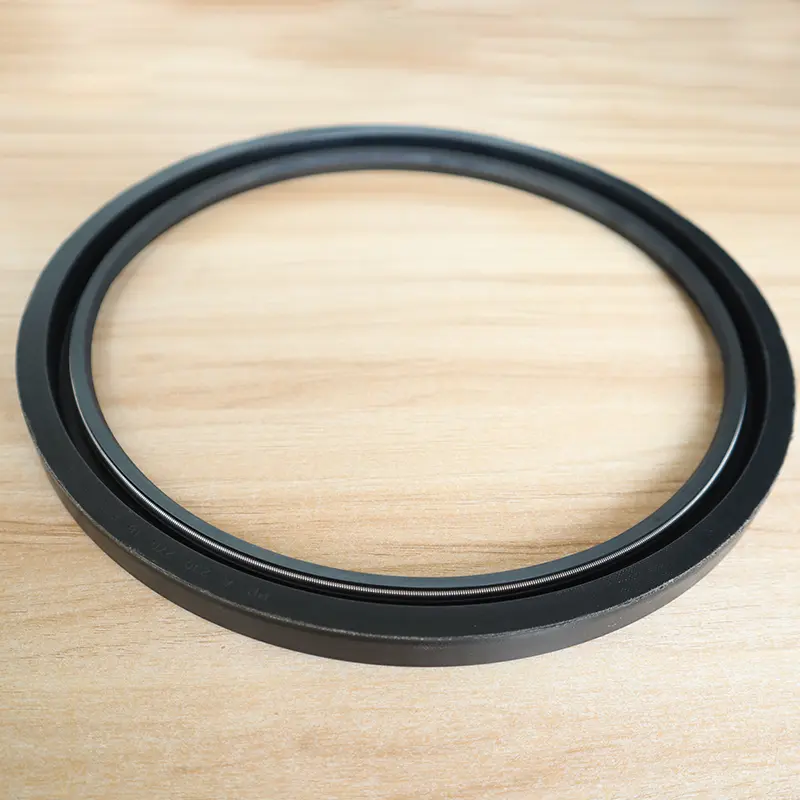

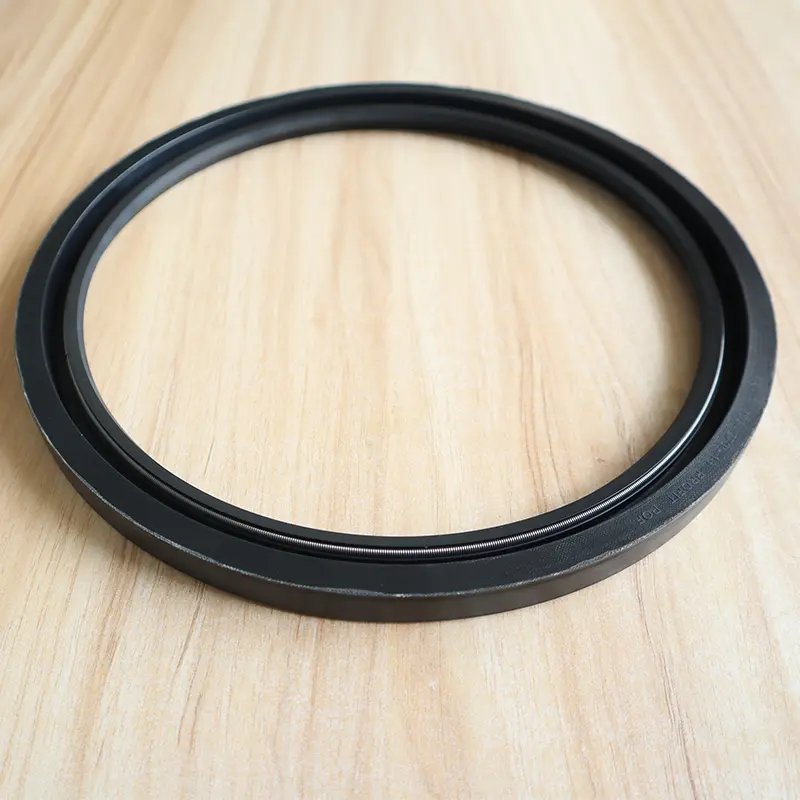

Cloth-Reinforced Rotary Oil Seals

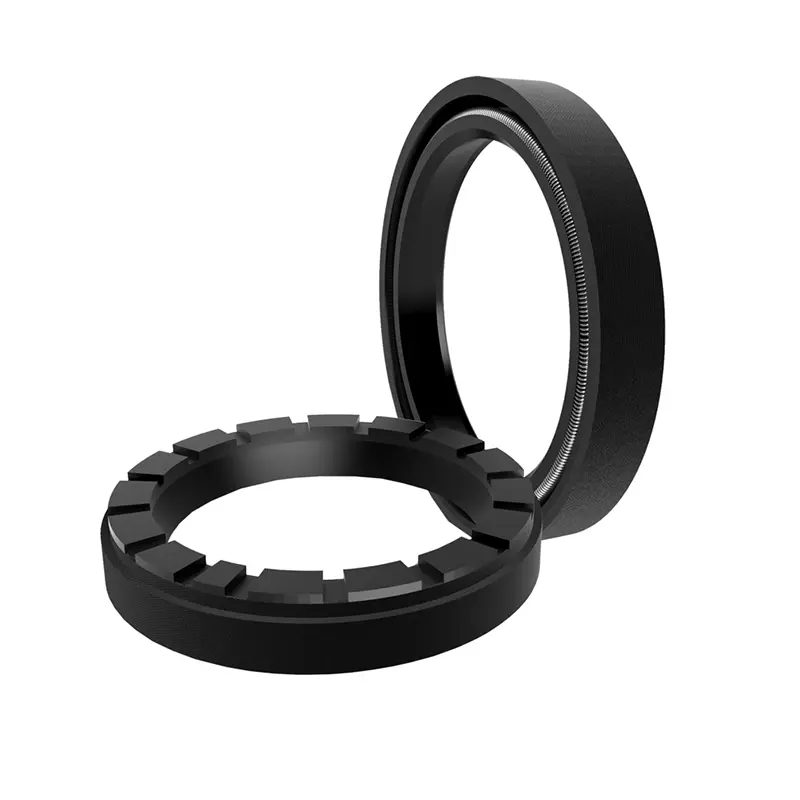

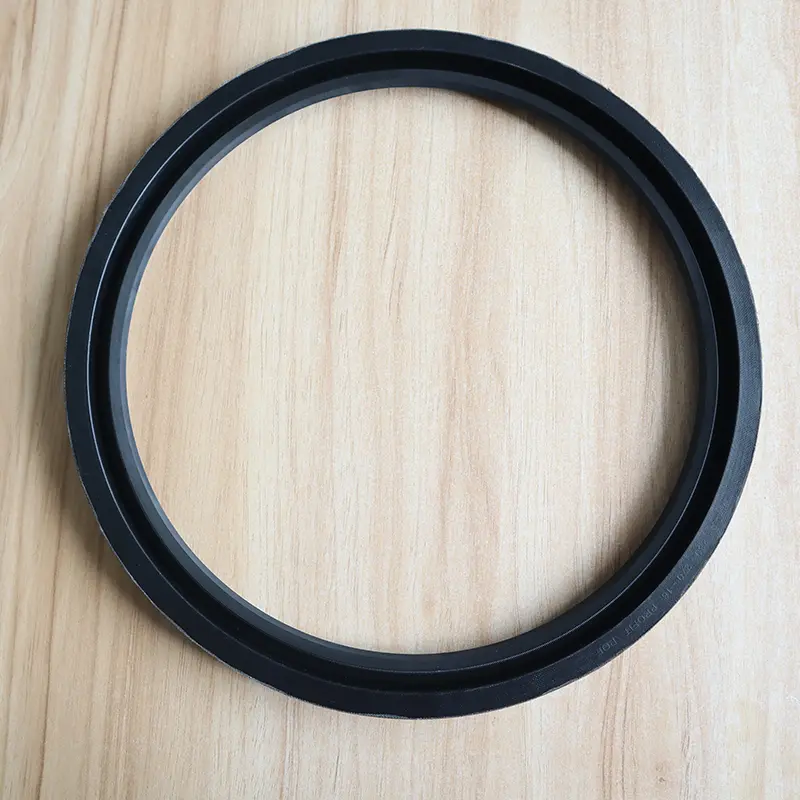

The R35/R37 cloth-reinforced rotary oil seals launched by Ruichen Seals belong to the category of cloth-reinforced rotary oil seals. They are high-performance rotary seals designed for rolling mills and heavy machinery transmission parts. R35 is suitable for fully lubricated occasions, while R37 has a lubricating oil groove on the outer diameter to provide additional lubrication support when lubrication is insufficient. For high-temperature conditions (over 100°C), we use fluororubber cloth-reinforced materials to ensure the durability and reliability of seals in harsh environments and meet customers' needs for high-performance sealing solutions.

Product features and applications:

1. Product features: Cloth-reinforced rotary oil seals and other products use spring-reinforced design to increase the radial force of the sealing lip, fit tightly and prevent leakage.

2. Different designs for different models:

R35: Suitable for fully lubricated occasions.

R37: Lubricating oil groove on the outer diameter supports additional lubrication and is suitable for insufficient lubrication conditions.

High temperature adaptability: Fluorine rubber cloth material, temperature resistance exceeds 100℃, suitable for high temperature environment.

3. Application:

Rolling mill equipment: roller bearing seat, transmission shaft seal.

Heavy machinery: high-load transmission parts such as engineering machinery and mining equipment.

High temperature conditions: high-temperature rolling, heat treatment equipment, etc.

4. Technical advantages: reliable sealing, strong durability, adaptable to high load, high speed and high temperature conditions.

5. Ruichen's suggestions for use:

Make sure the shaft and cavity are clean before installation.

R37 requires additional lubrication through the oil groove when lubrication is insufficient.

Fluorine rubber cloth sandwich material oil seal is used in high temperature environment.

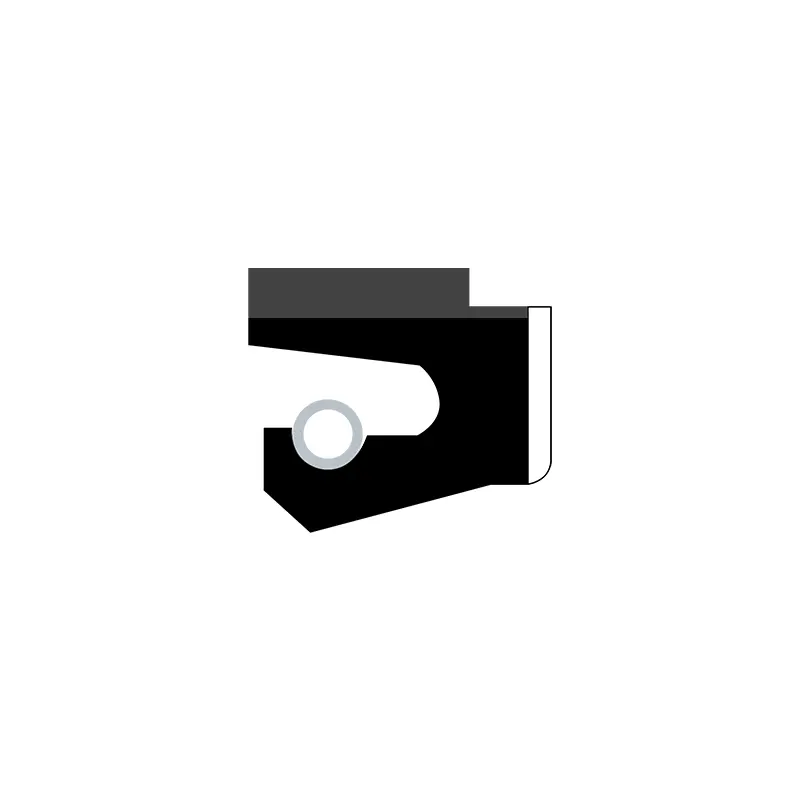

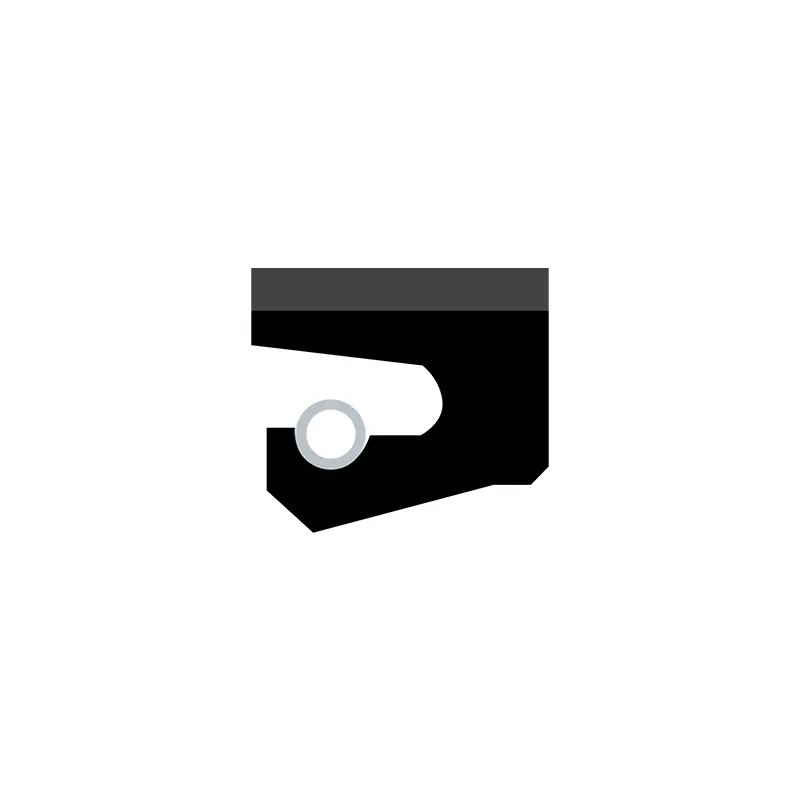

Cross-sectional shape	Model	Name	Pressure (MPa)	Temperature (℃)	Speed (m/s)	Medium	Material
	R35	Cloth-Reinforced Rotary Oil Seals	0.05	-30~+180	25	Cloth oil seal, grease, water, etc.	NBR/FKM fabric
	R37

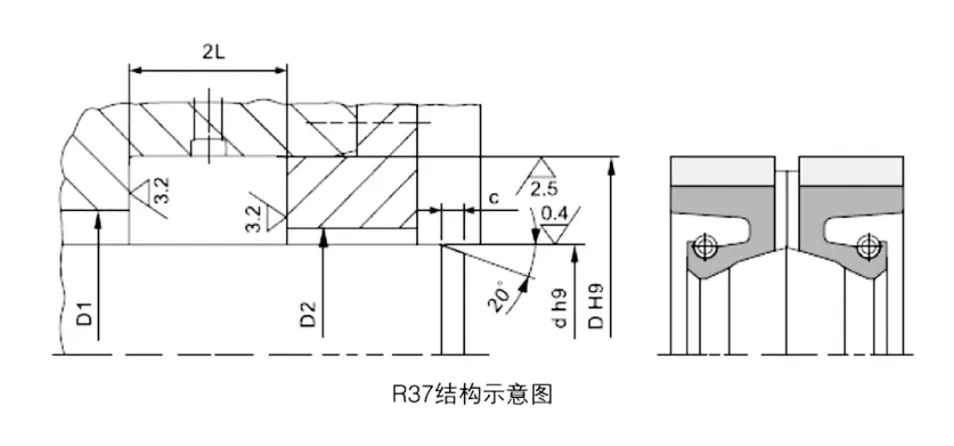

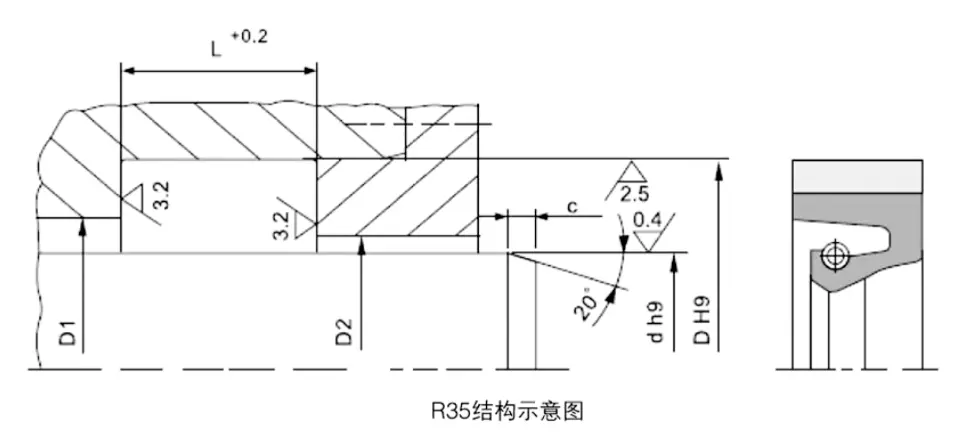

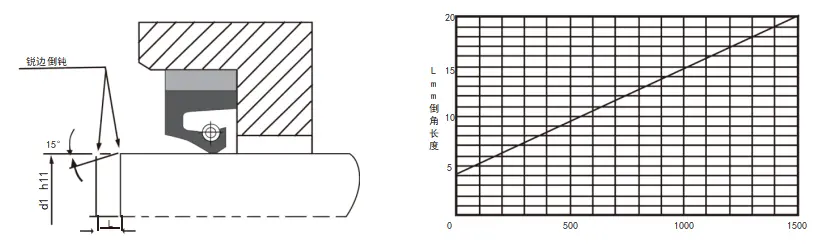

Installation of cloth-reinforced oil seal: Careful installation is the prerequisite for normal use of the oil seal. See the table below for installation chamfers.
