High Pressure Rotary Seals

As a professional seal manufacturer, Ruichen Seals provides a variety of high-performance High Pressure Rotary Seals, covering a variety of seal combinations with different structures and materials, suitable for reciprocating and rotary motion sealing needs in hydraulic, pneumatic and water pressure environments. Whether it is standard working conditions or special working conditions, our seals can provide reliable sealing solutions.

Send Inquiry

Product Description

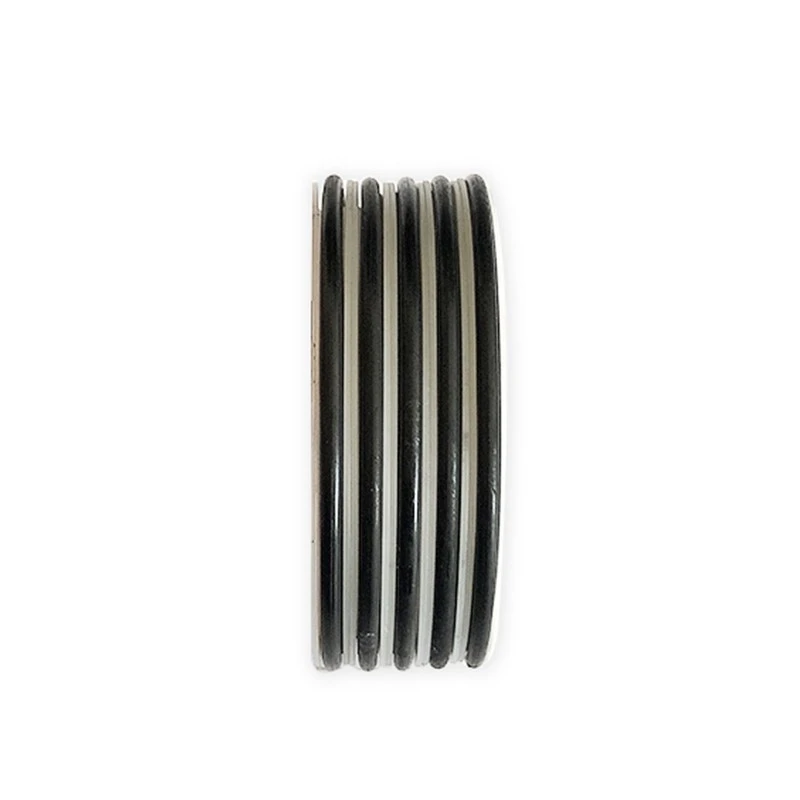

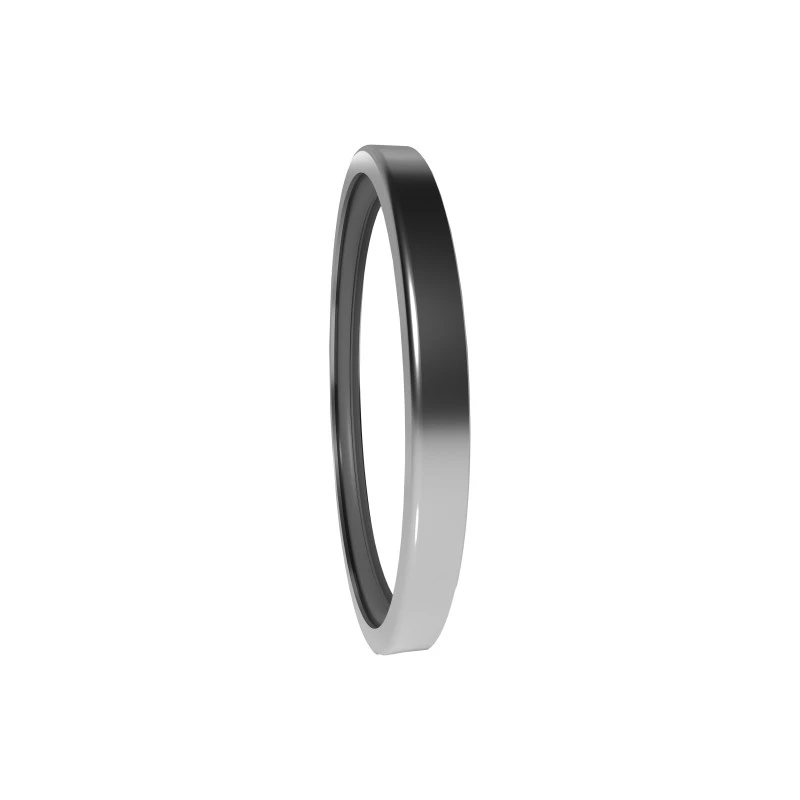

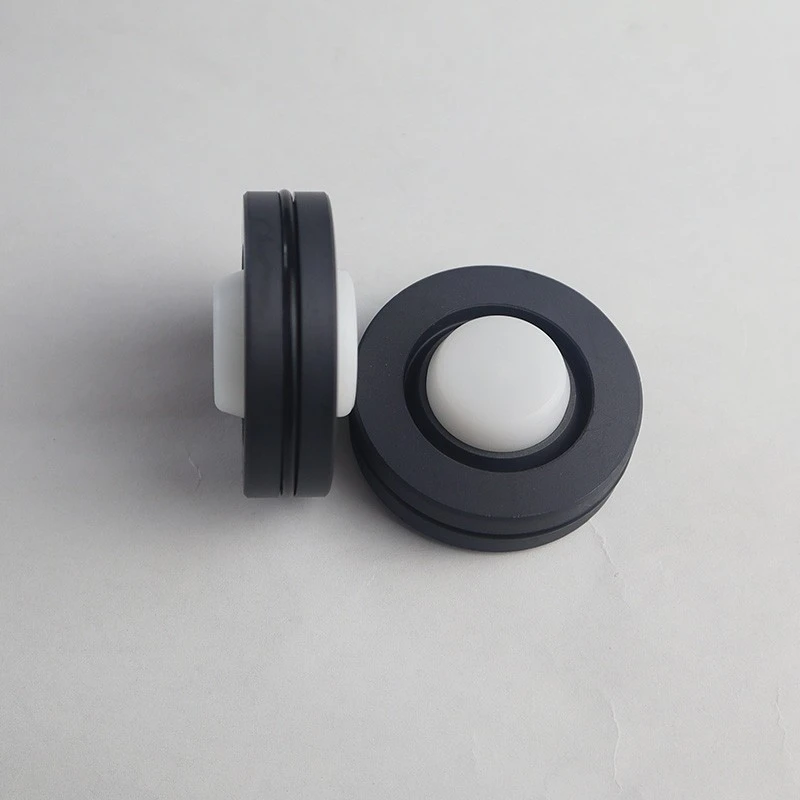

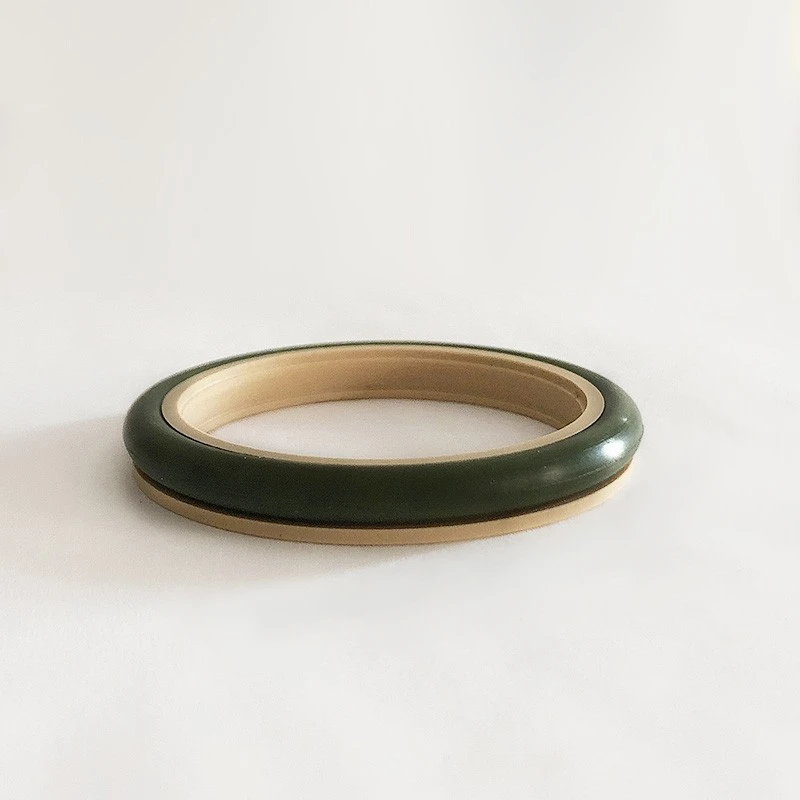

Our high pressure rotary seals series covers a variety of high-performance products, including RC2051, RC2052, RC2053, RC2054, RCX17, RCX18, RDI, RDA, RCS and RC2057, which are designed for reciprocating and rotary motion in hydraulic, pneumatic and water pressure environments.

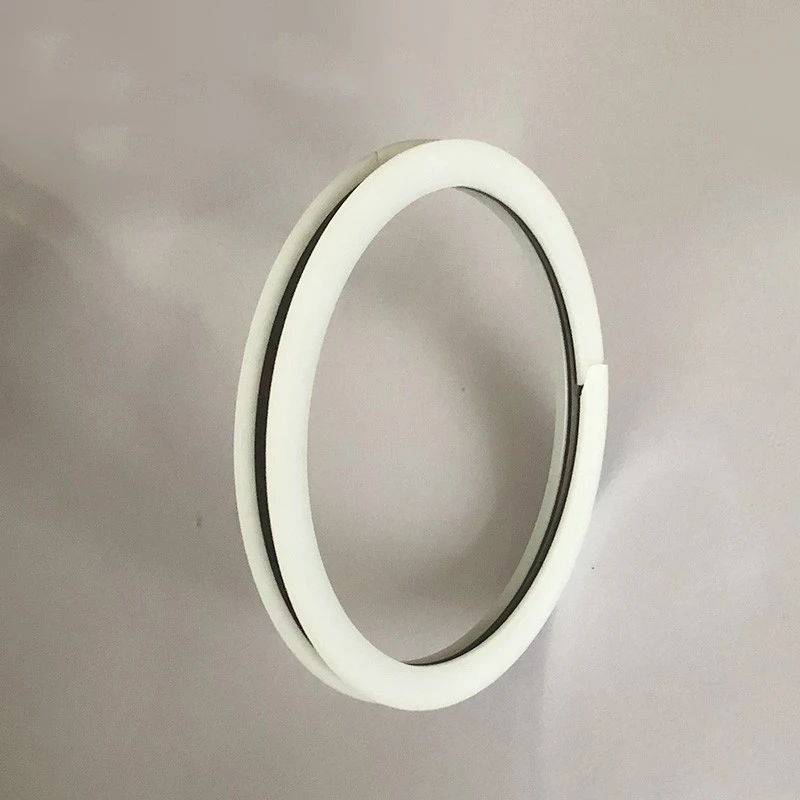

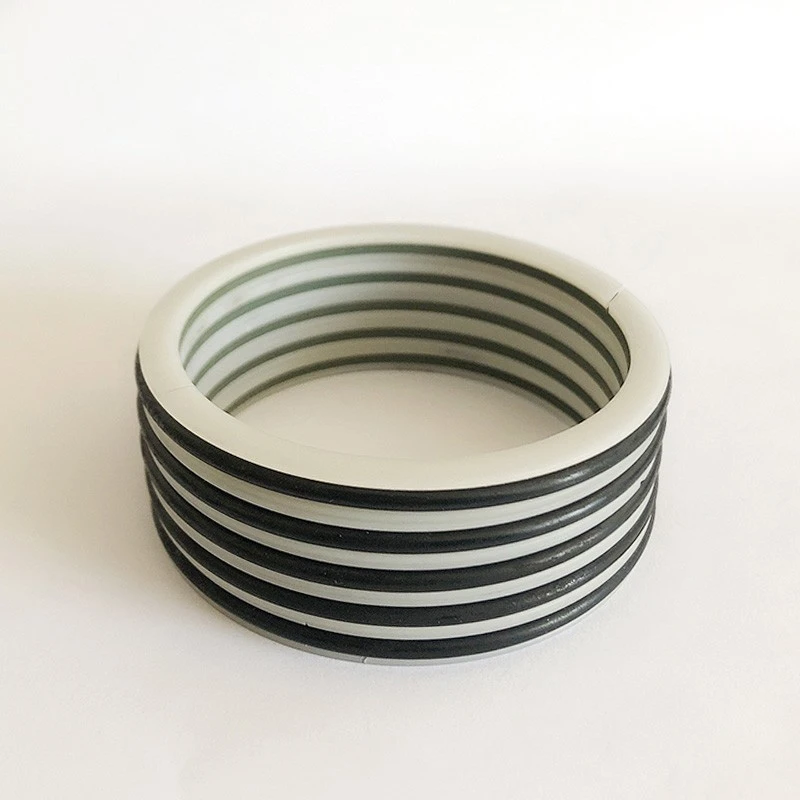

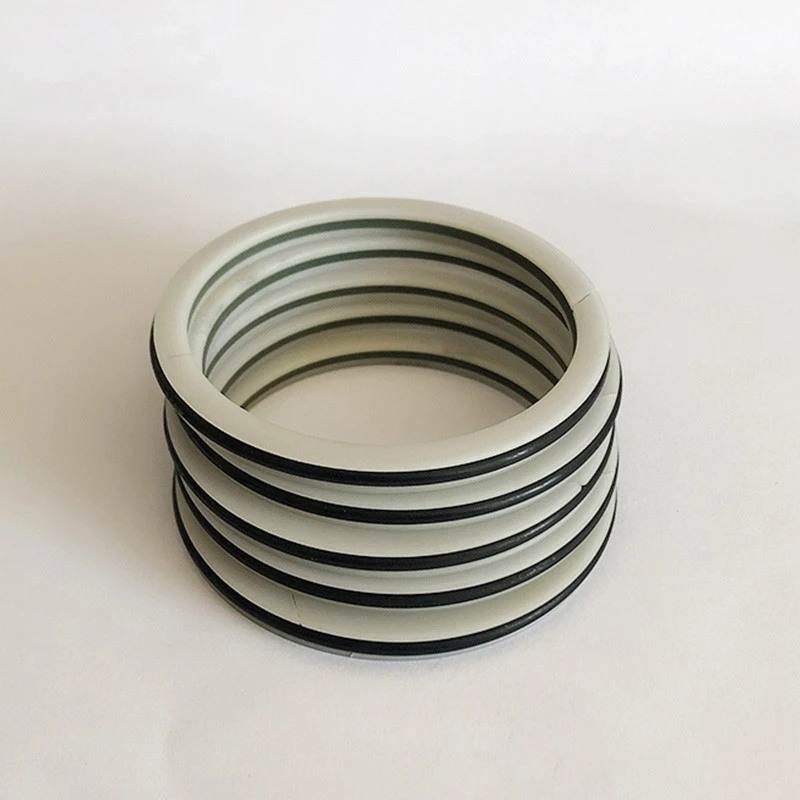

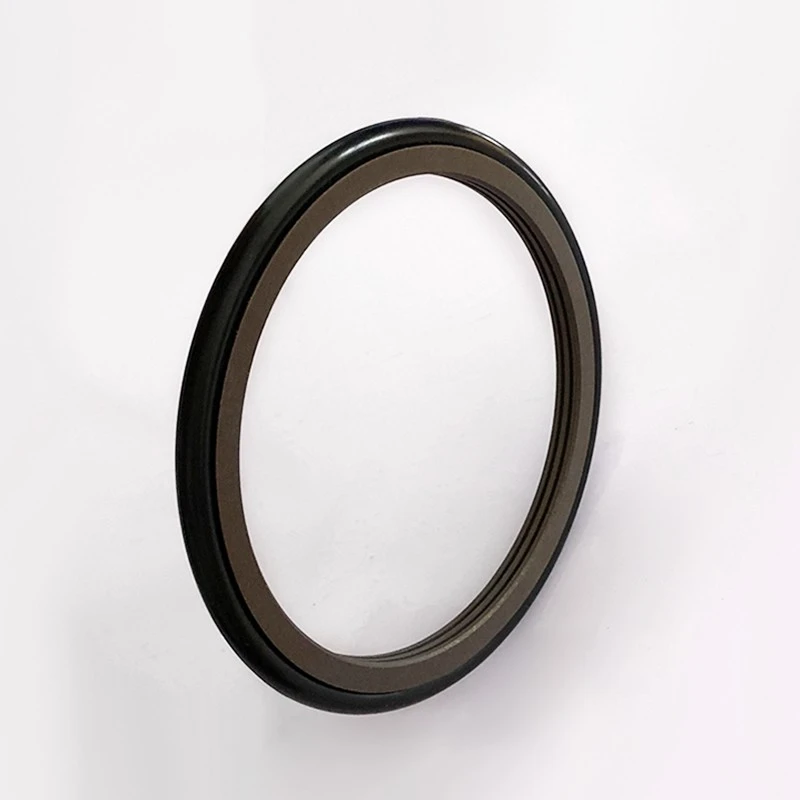

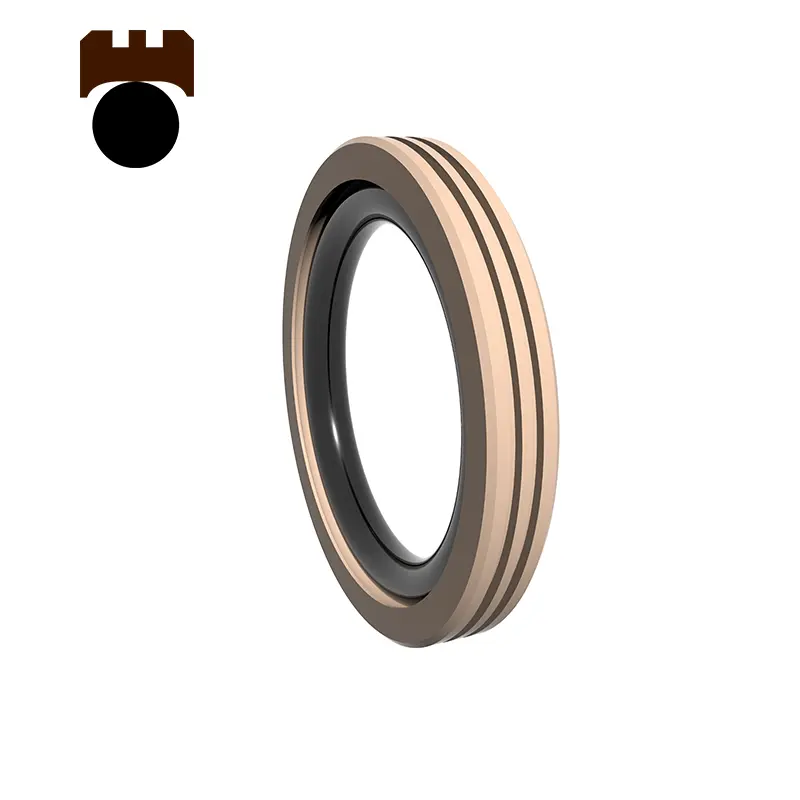

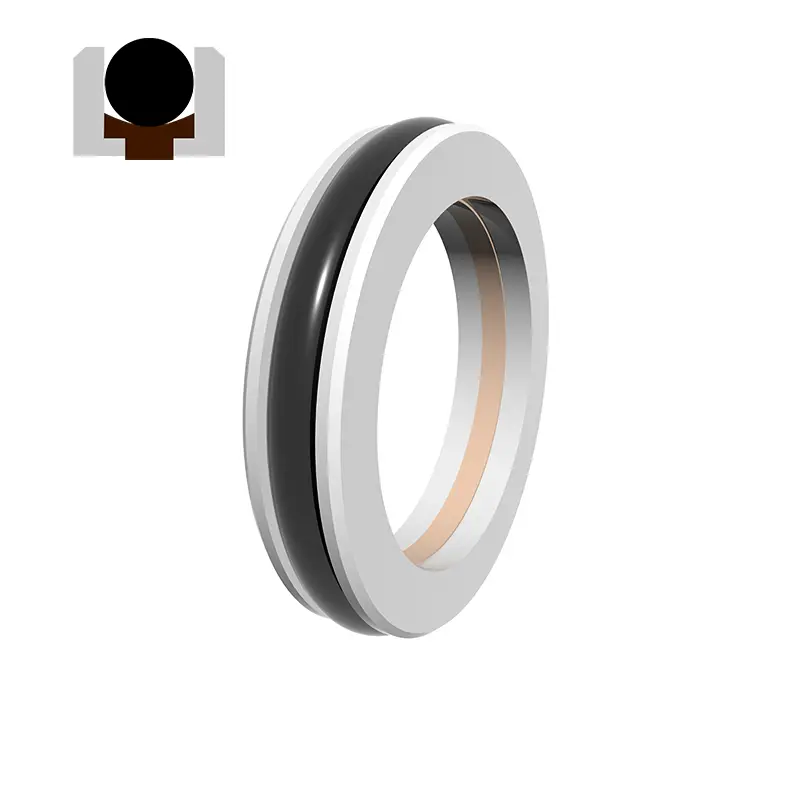

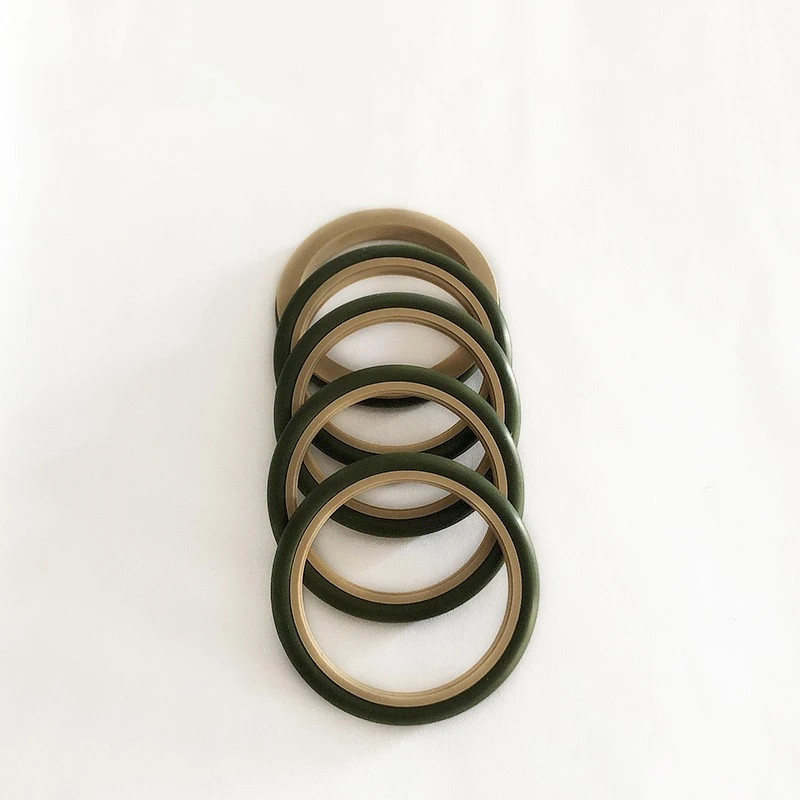

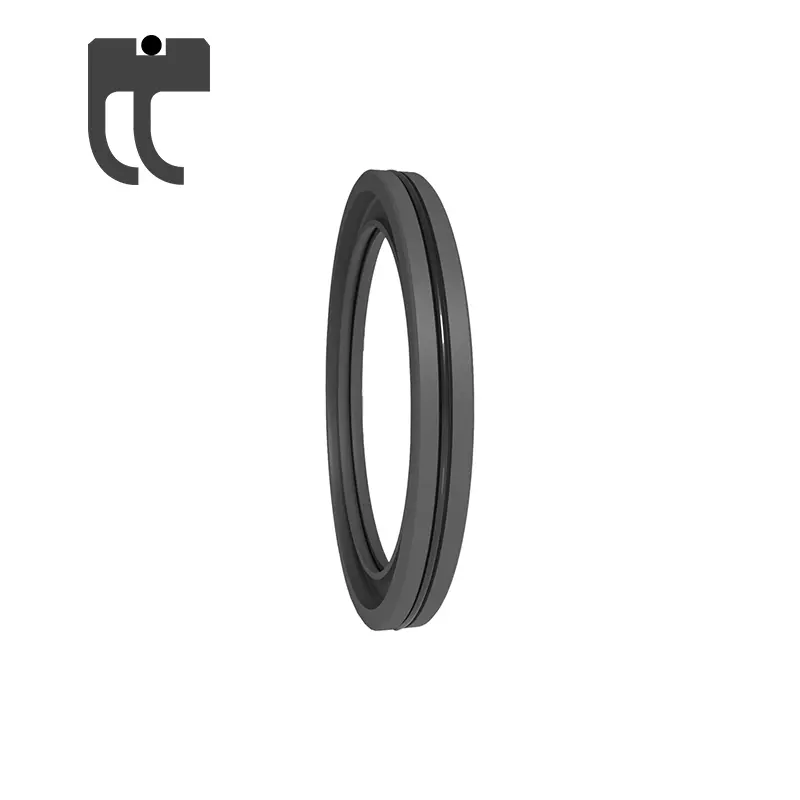

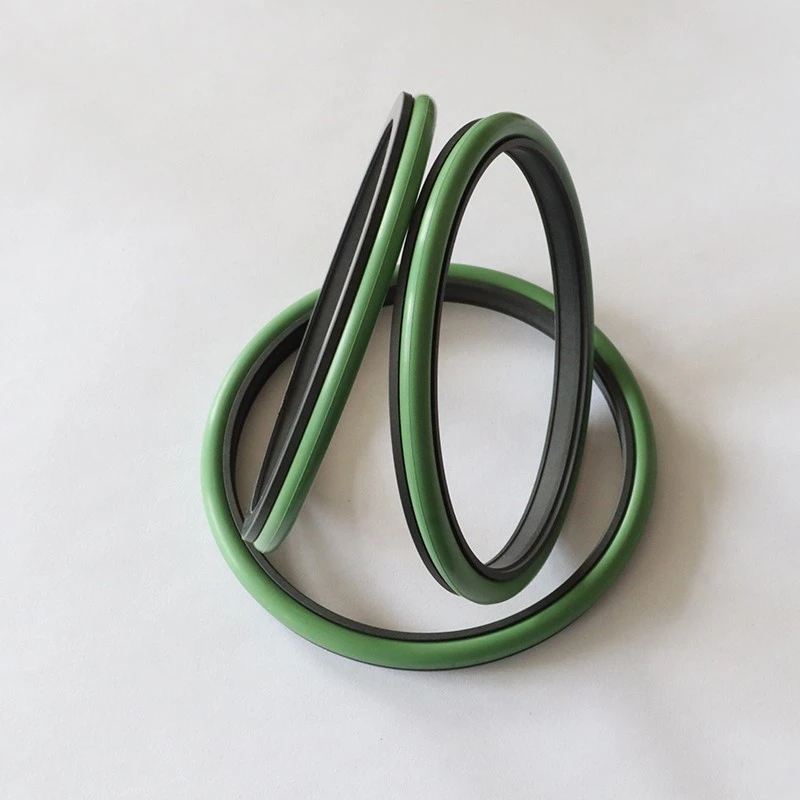

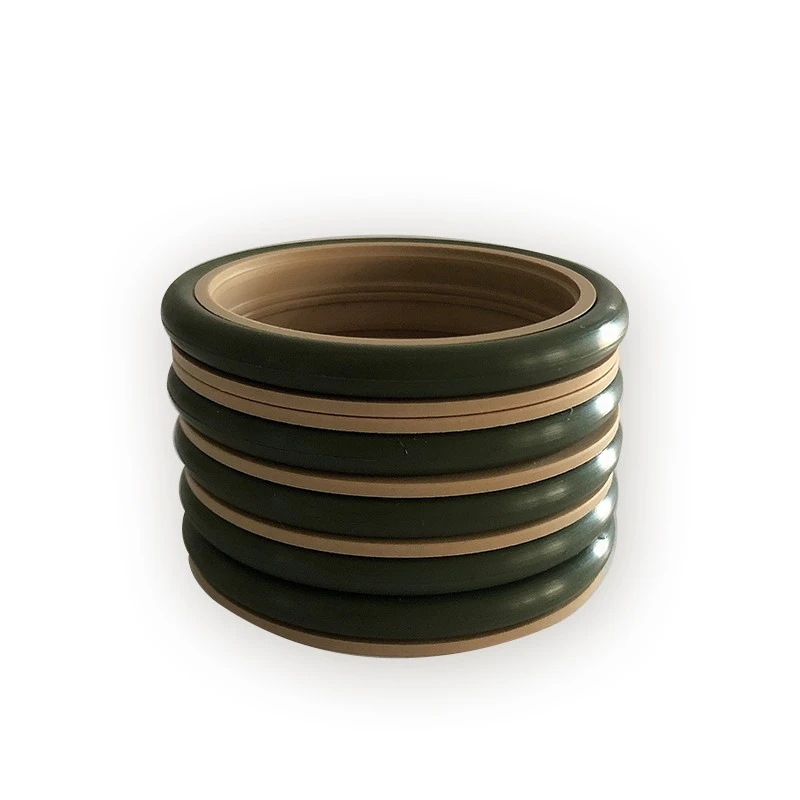

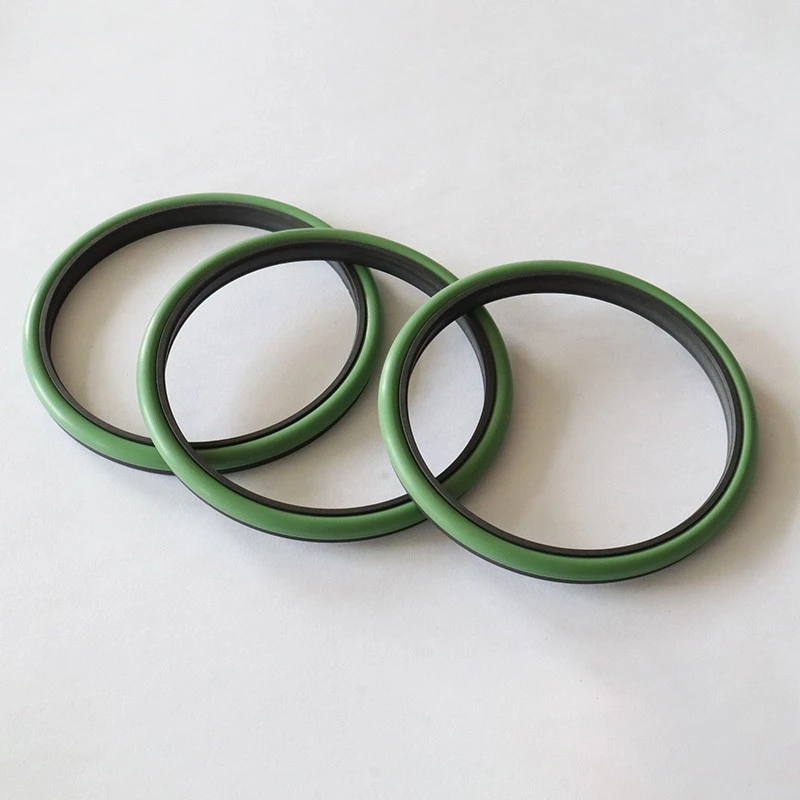

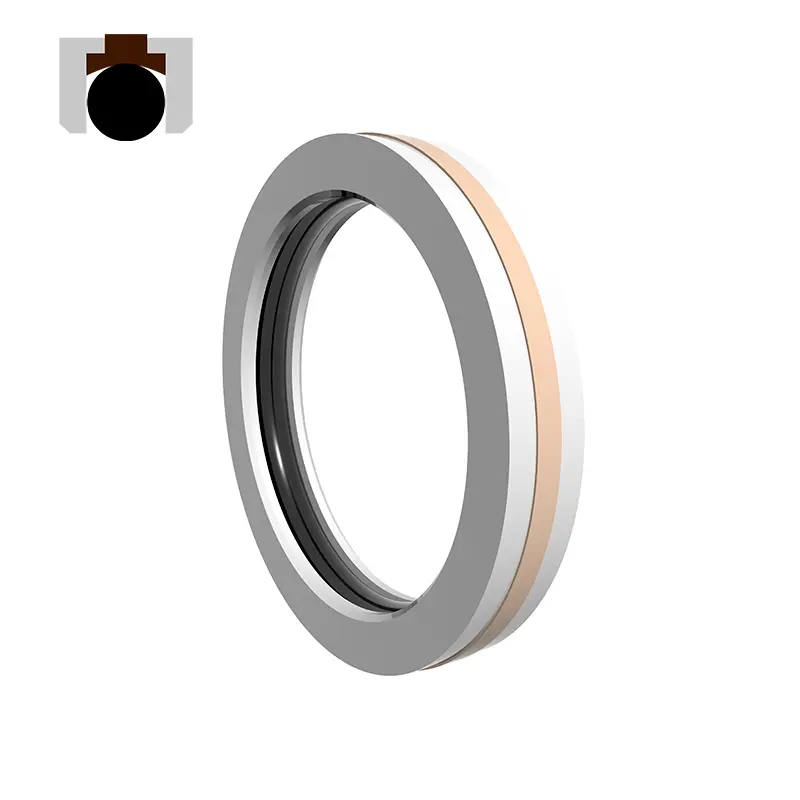

The RC2051 series uses a combination of filled PTFE toothed seal rings and O-rings for one-way sealing. It has low friction and high sealing characteristics and is divided into standard type (RC2051-B) and high-speed type (RC2051-G).

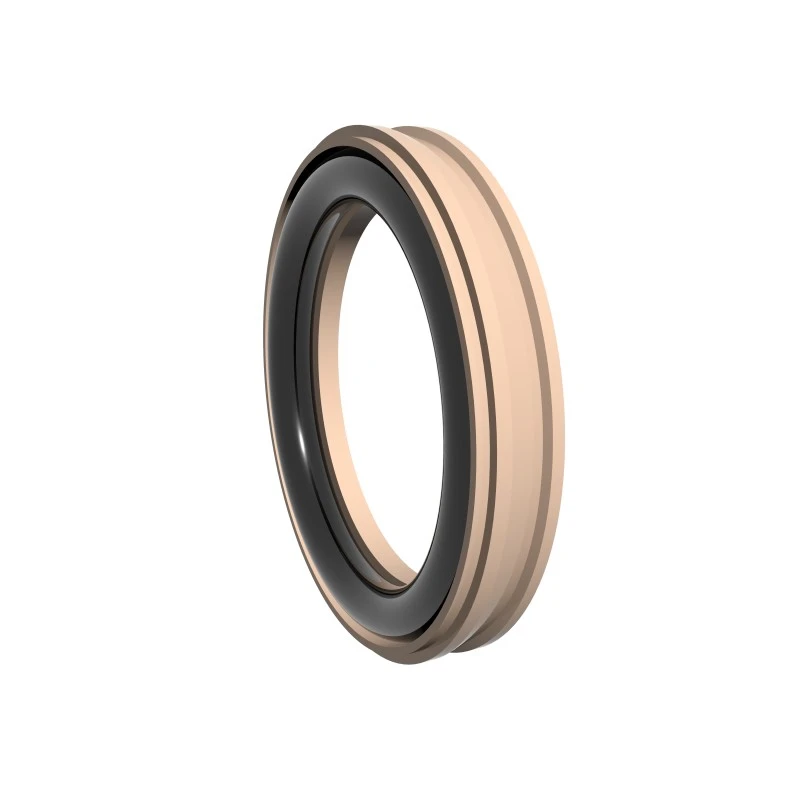

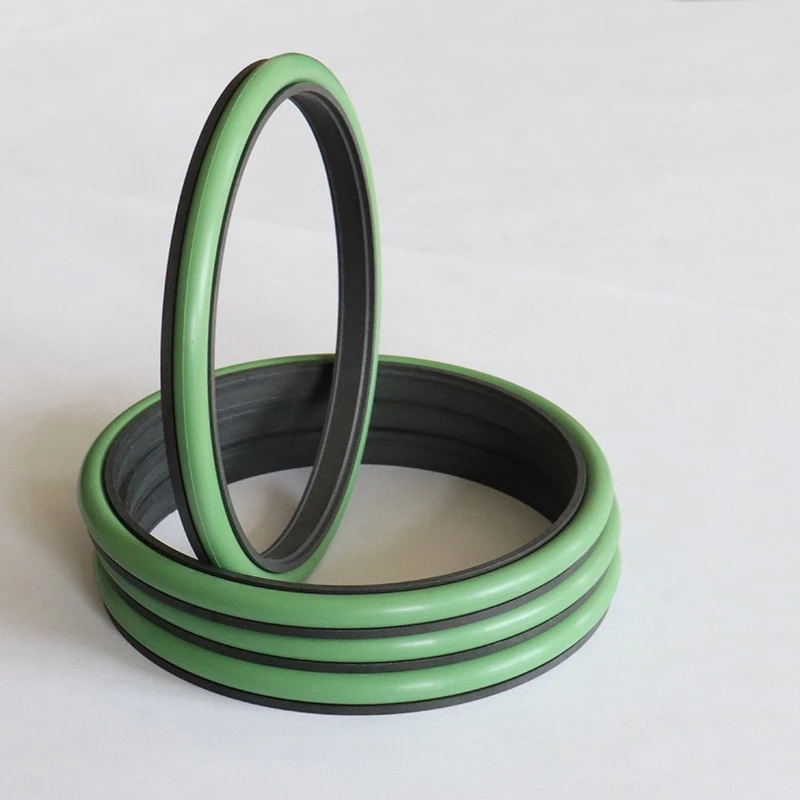

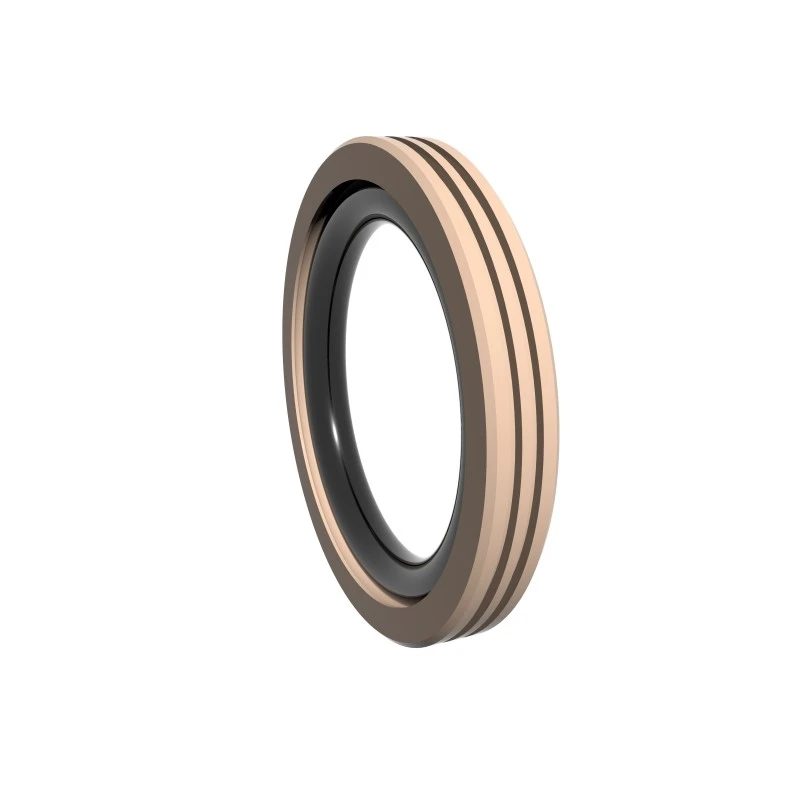

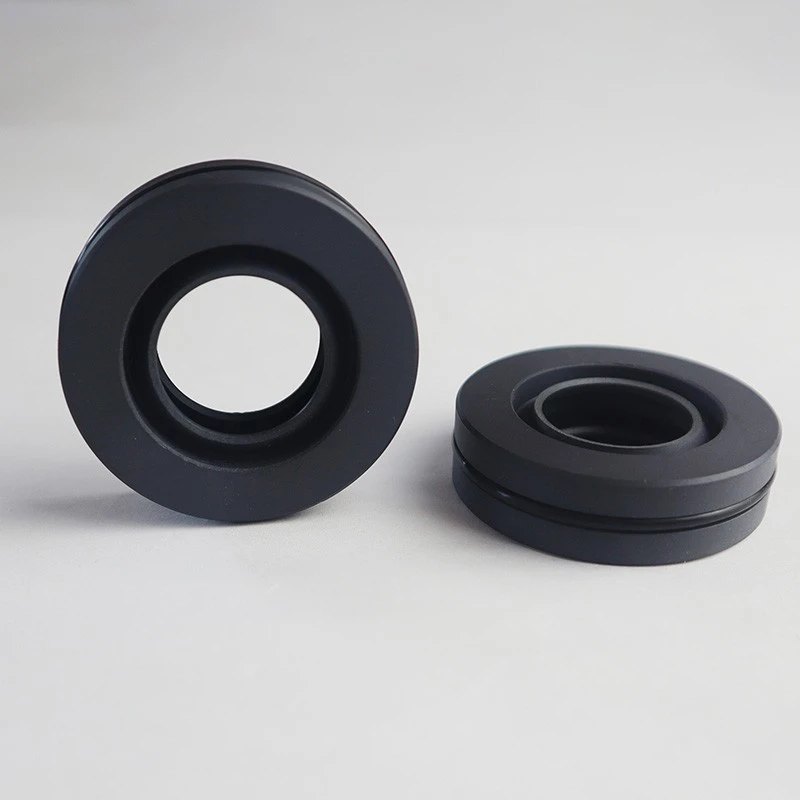

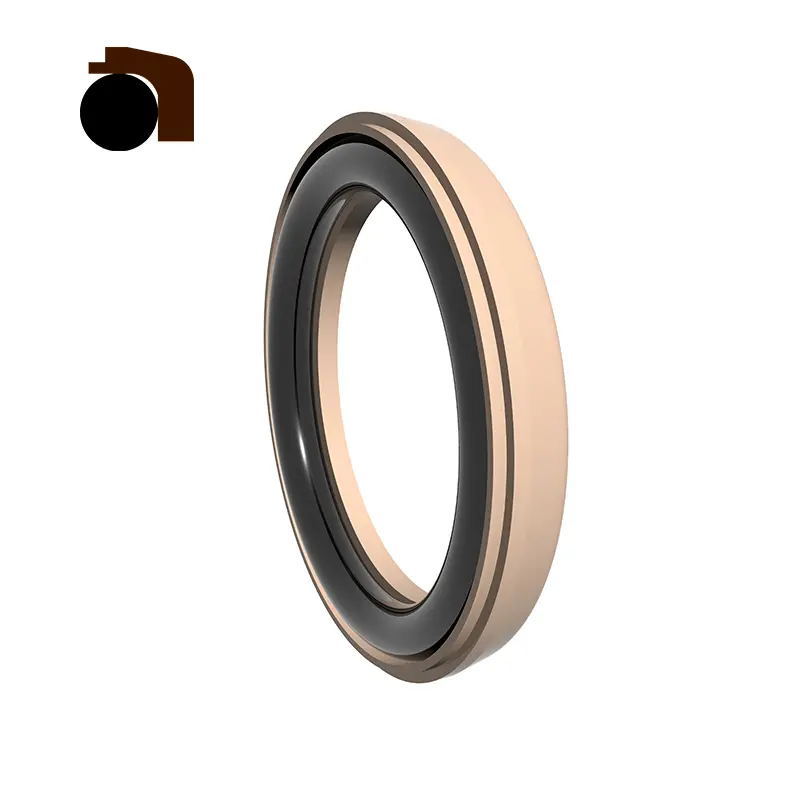

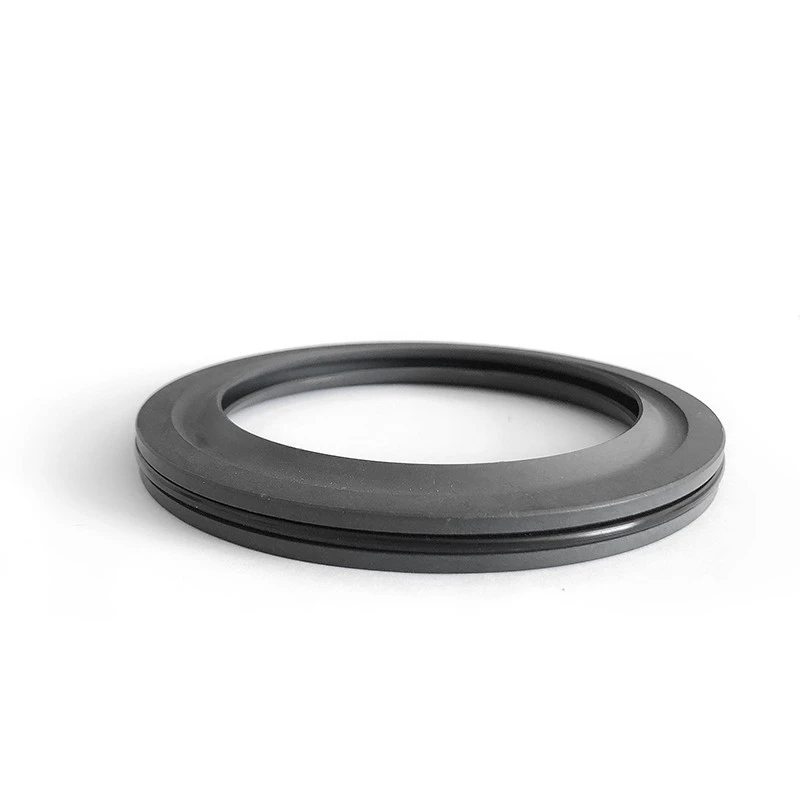

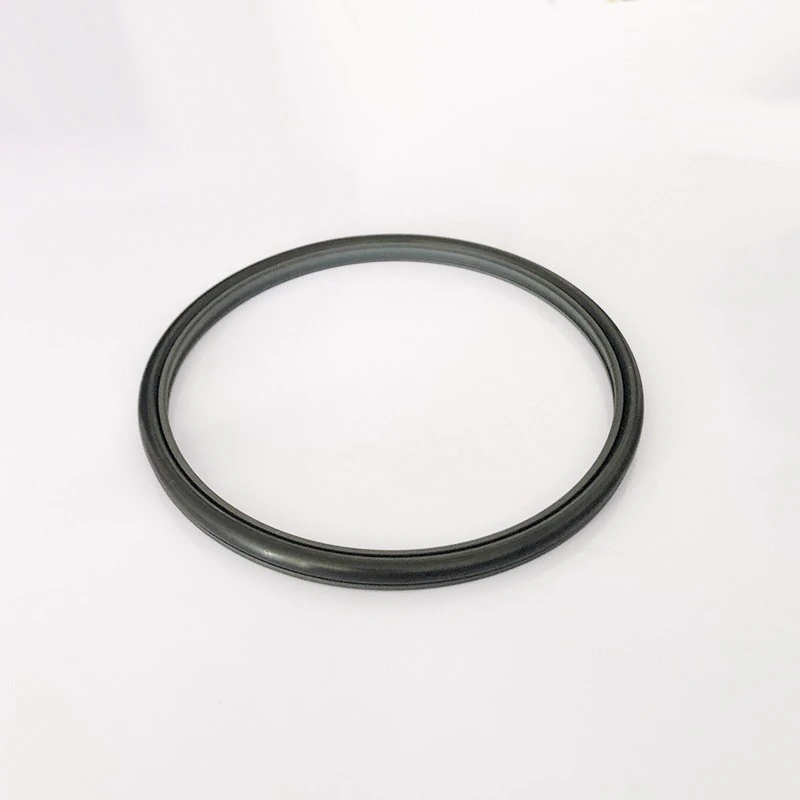

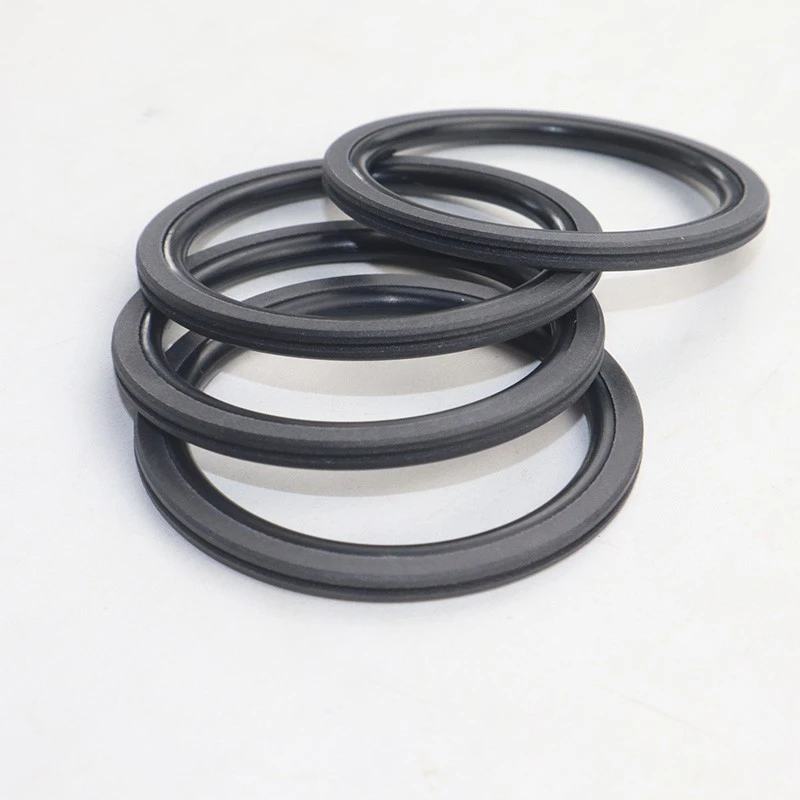

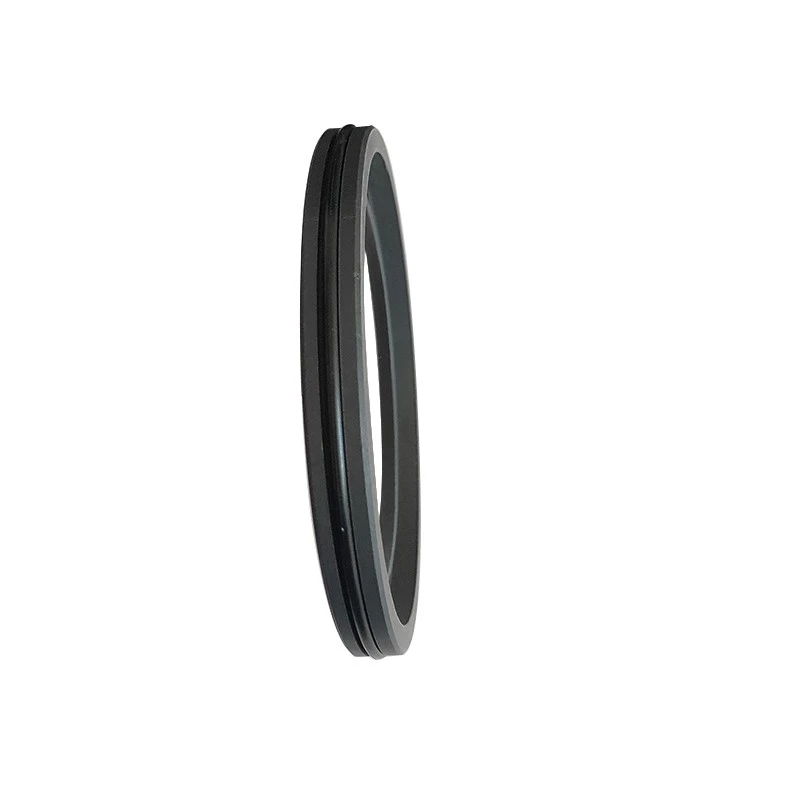

The RC2052 and RC2054 series are equipped with square seal rings with oil storage grooves, which are suitable for hydraulic rotary bidirectional sealing. The structure is compact and supports water pressure environment.

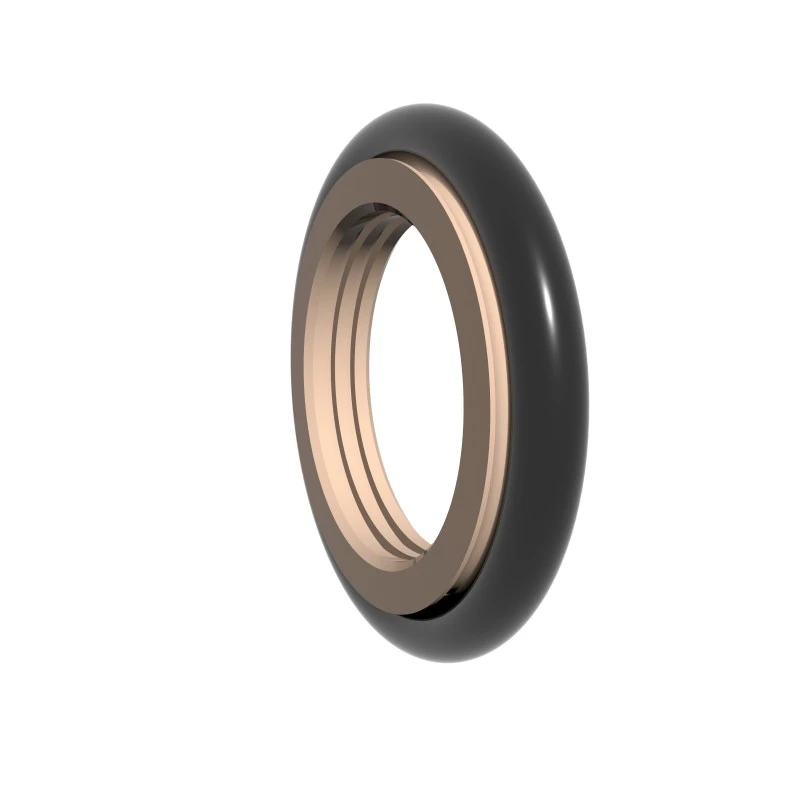

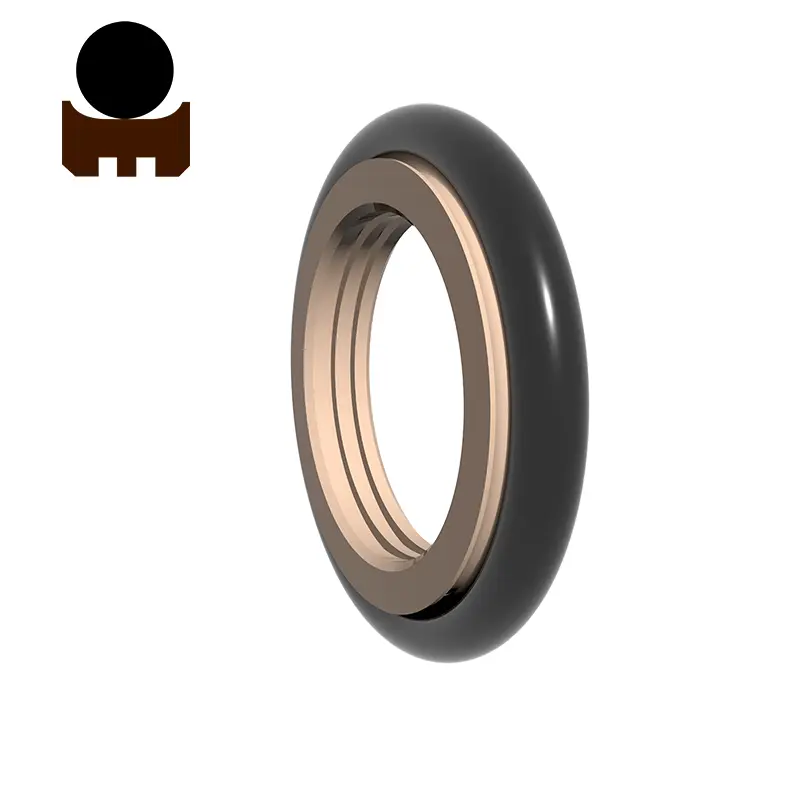

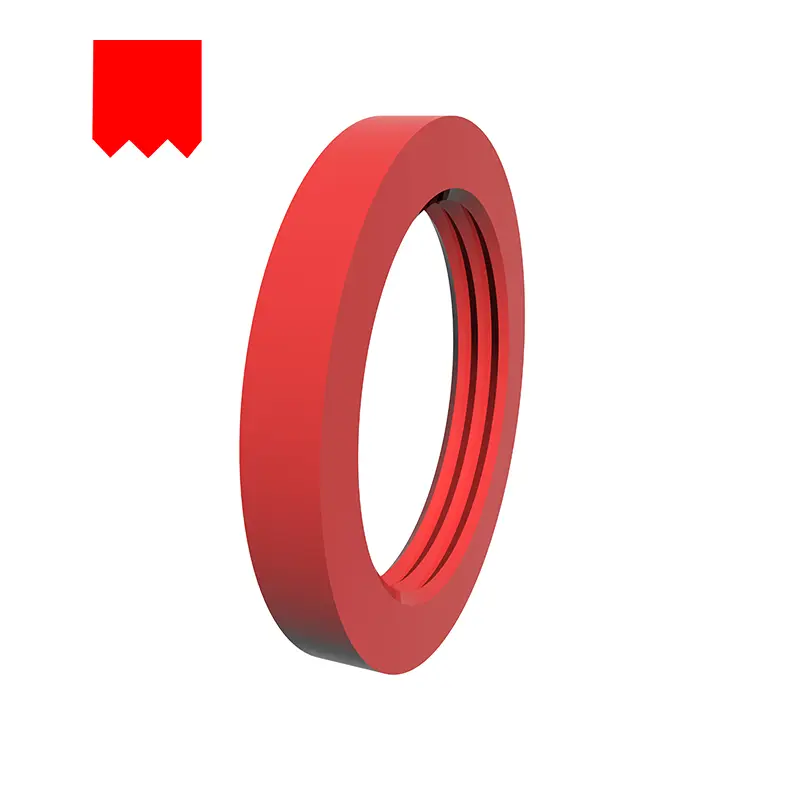

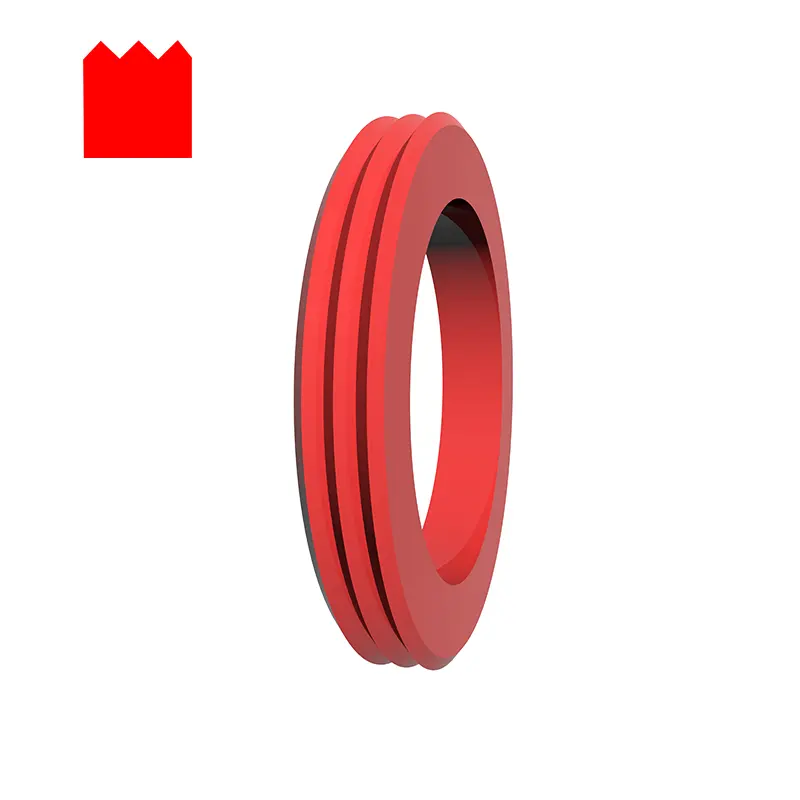

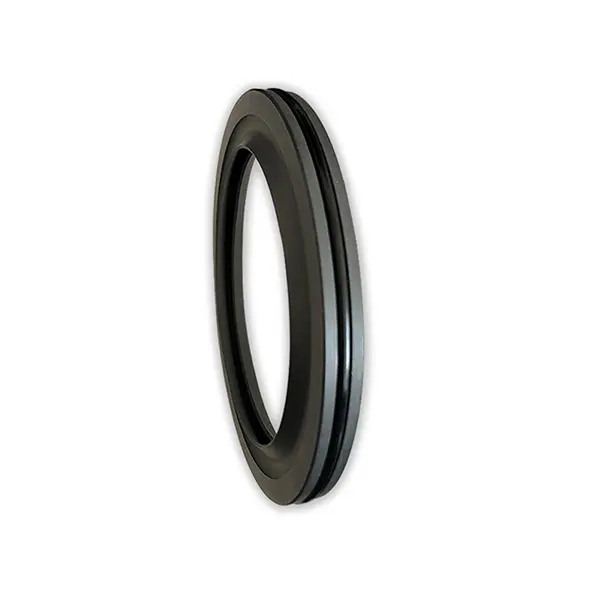

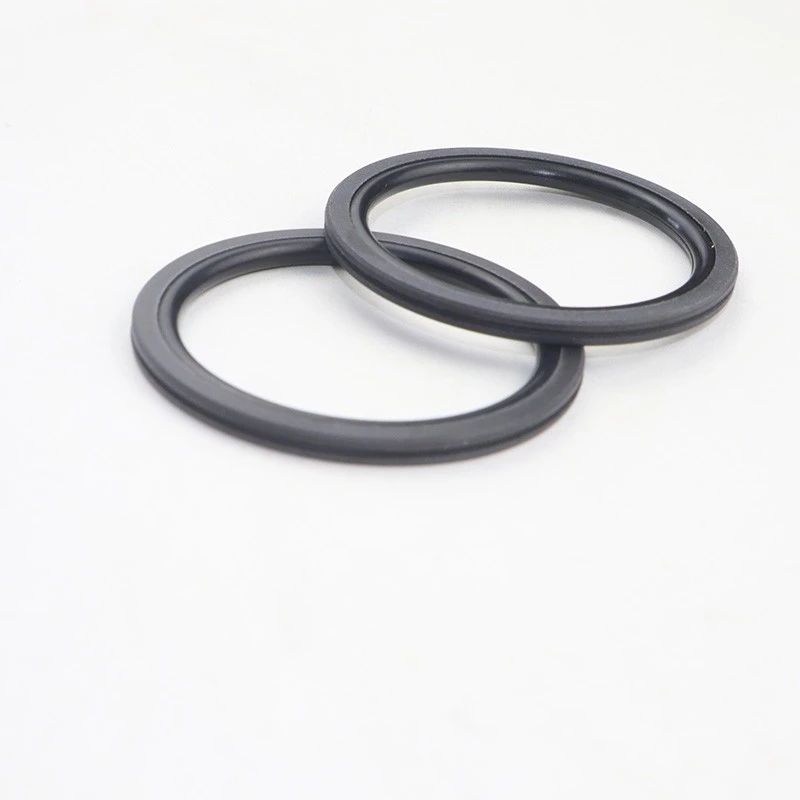

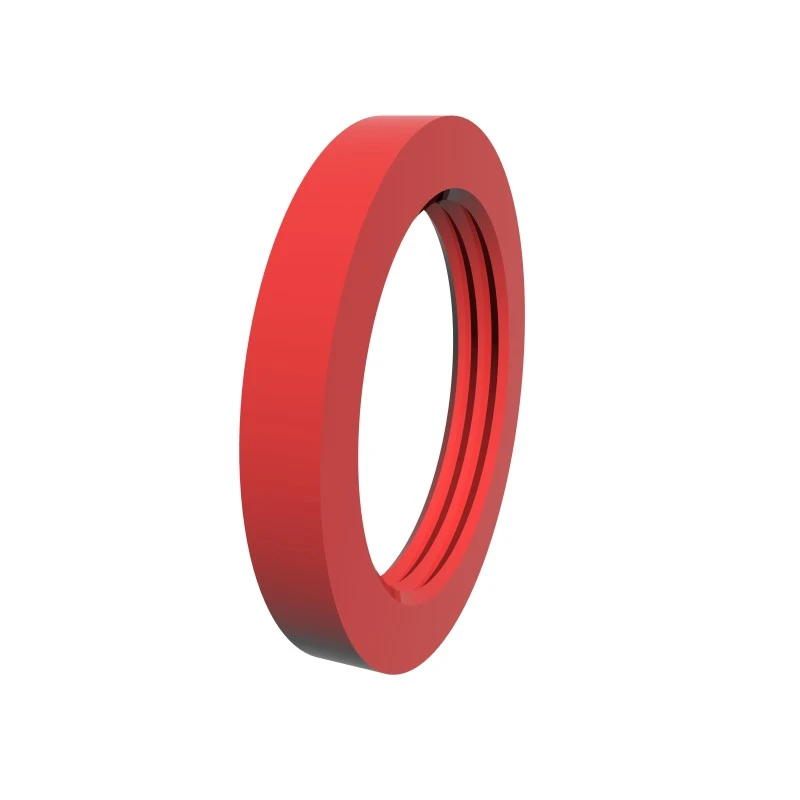

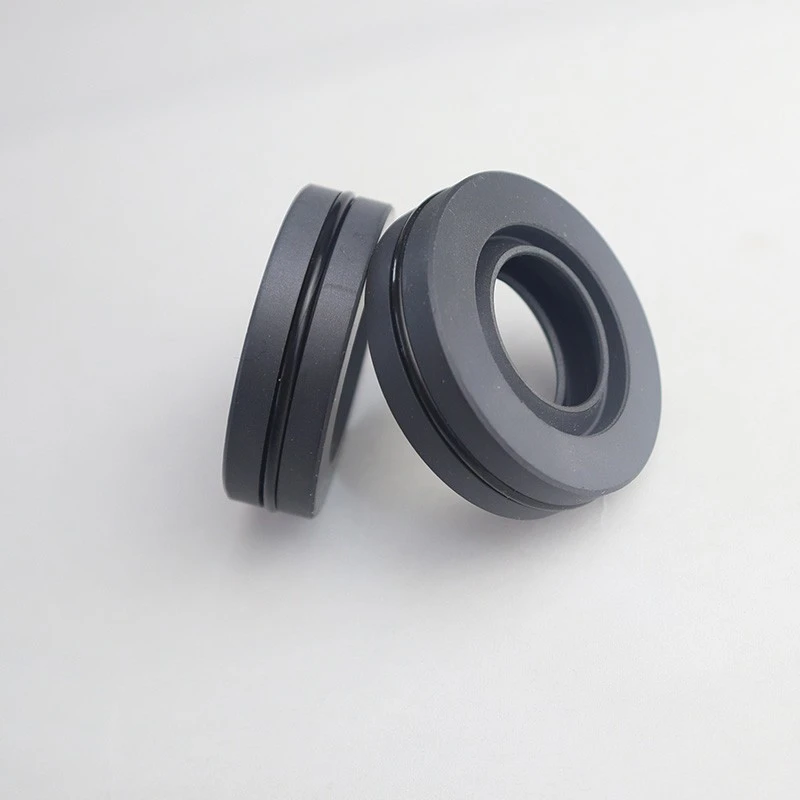

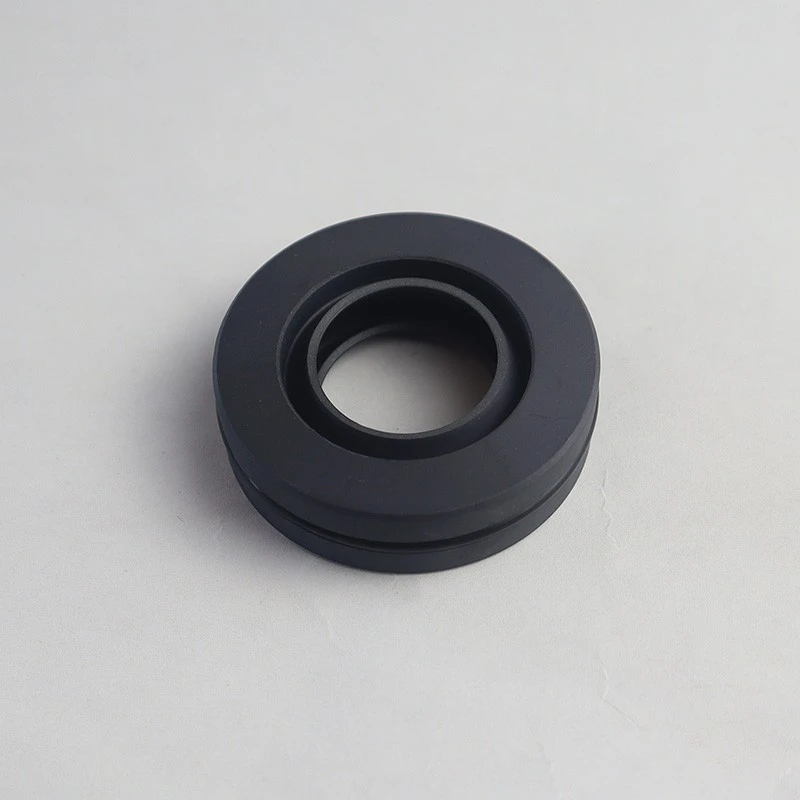

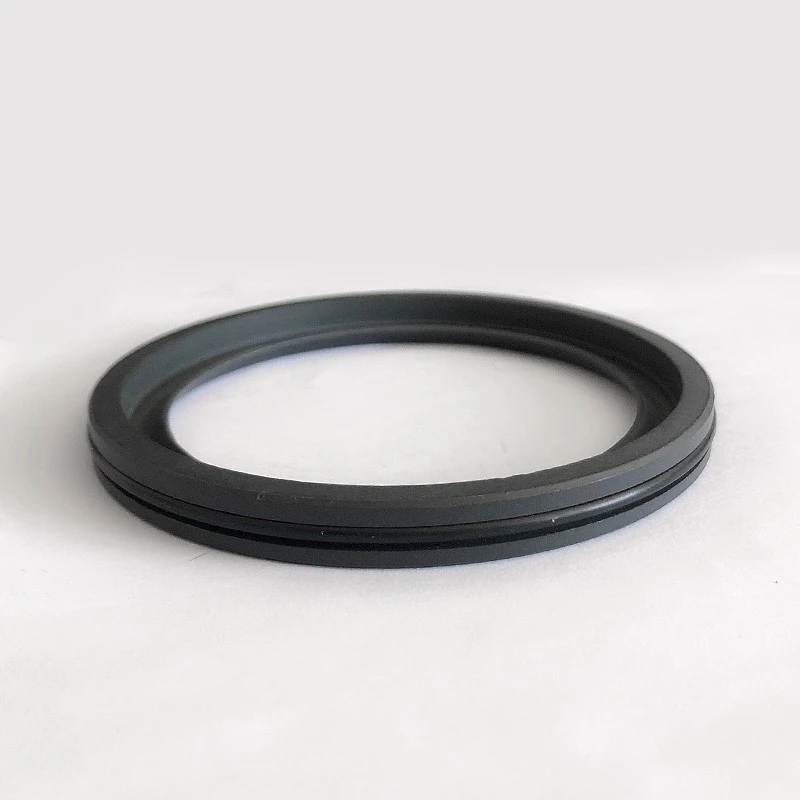

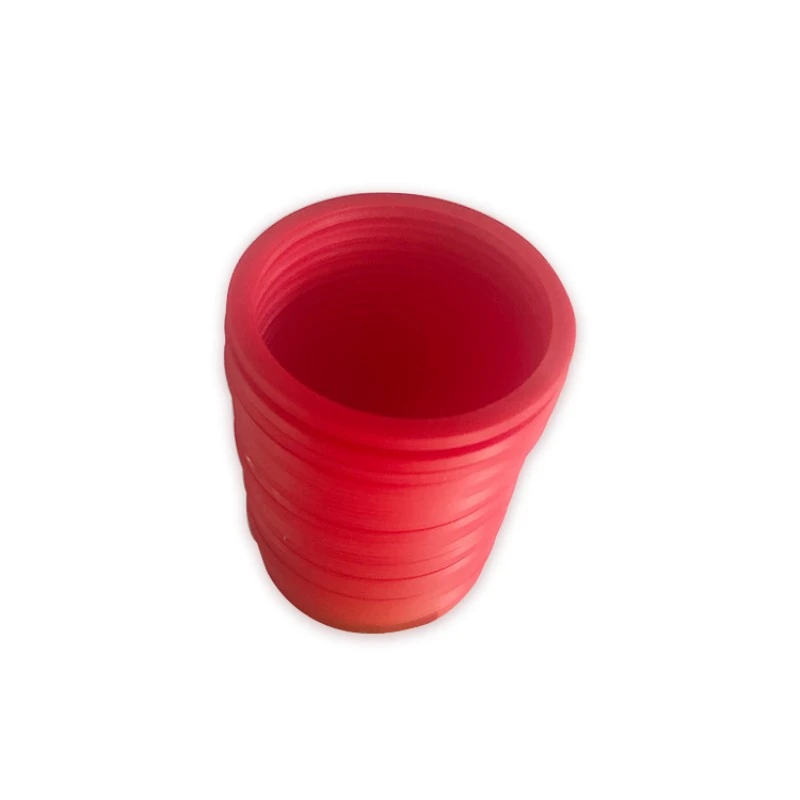

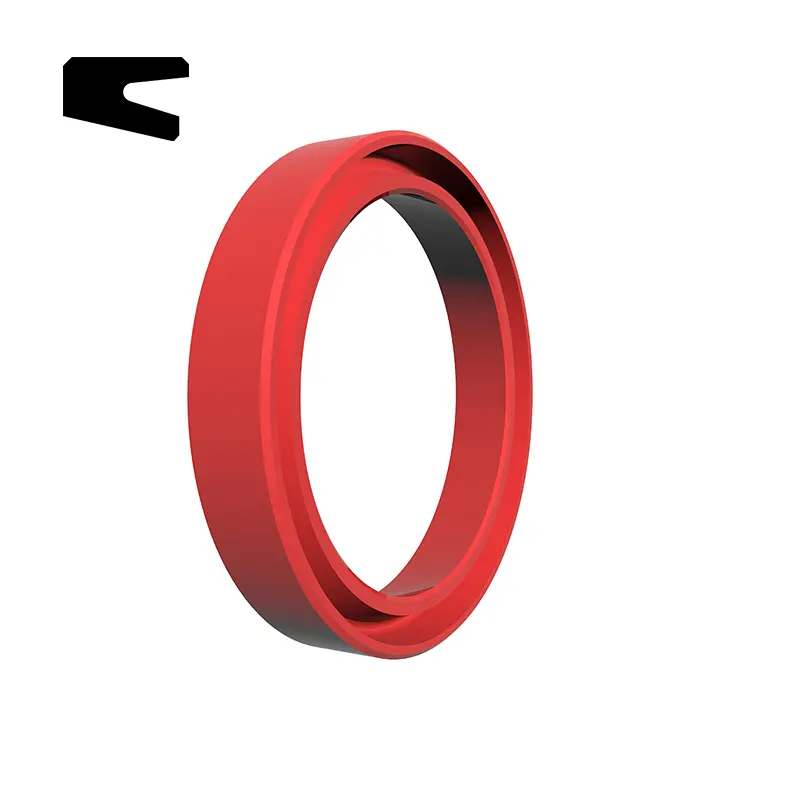

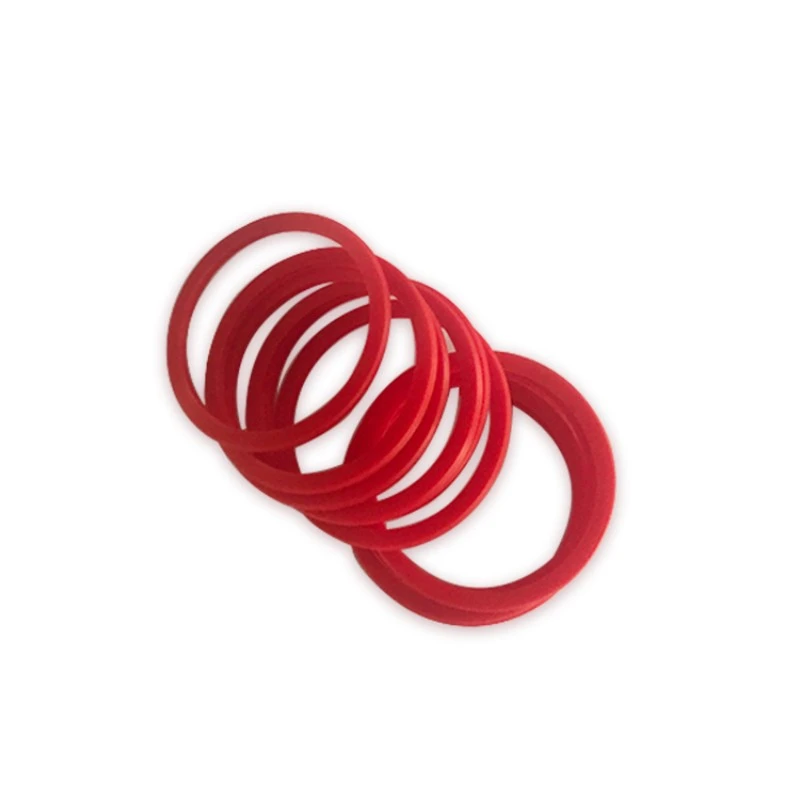

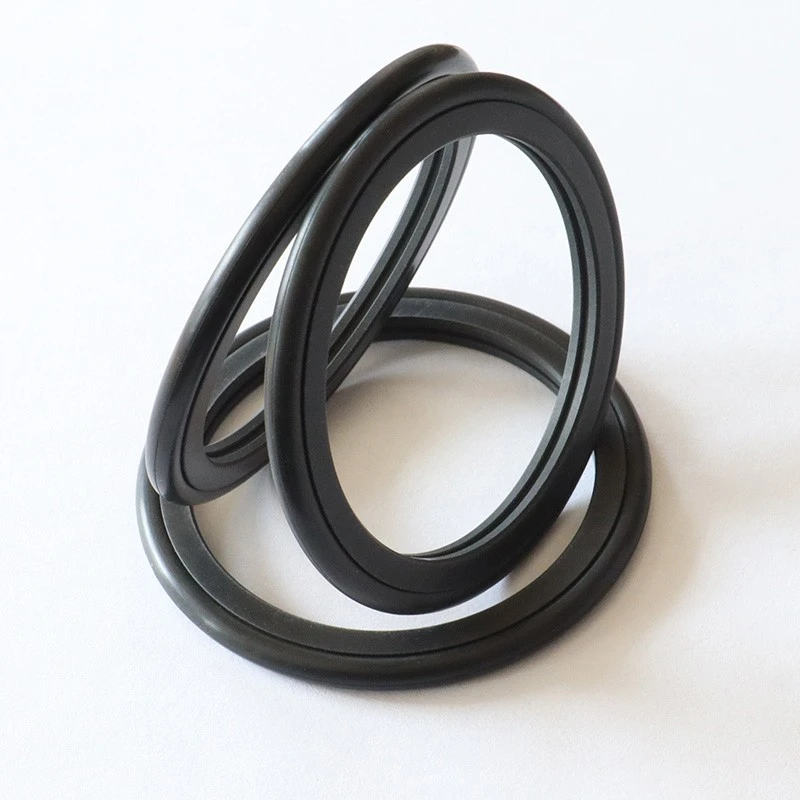

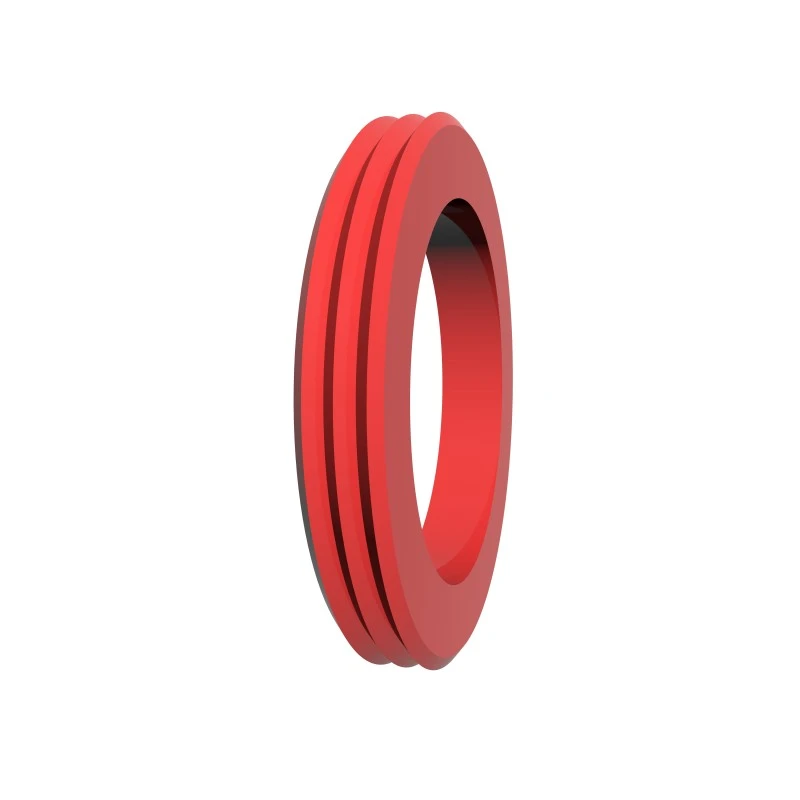

The RCX17 and RCX18 series are made of high-performance PU materials, with toothed cross-section design for easy installation. They are suitable for rotary shaft and rotary hole sealing, and the groove design is interchangeable.

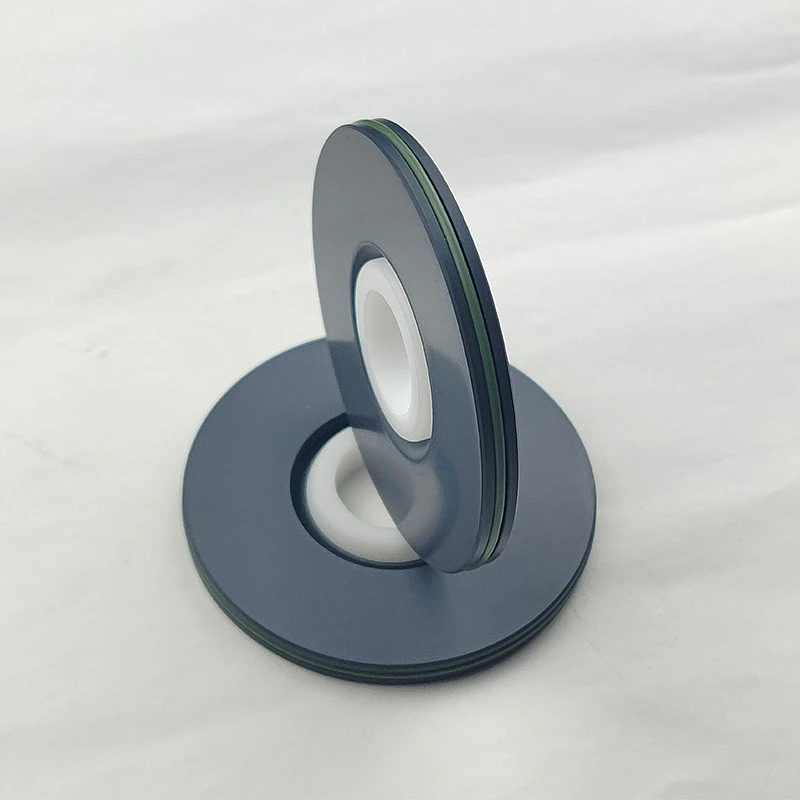

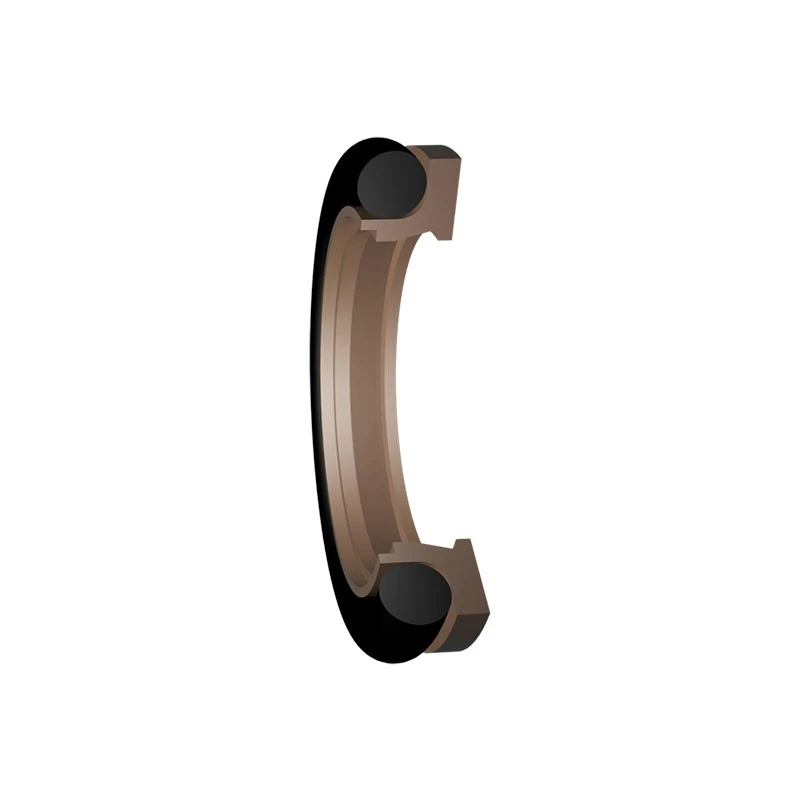

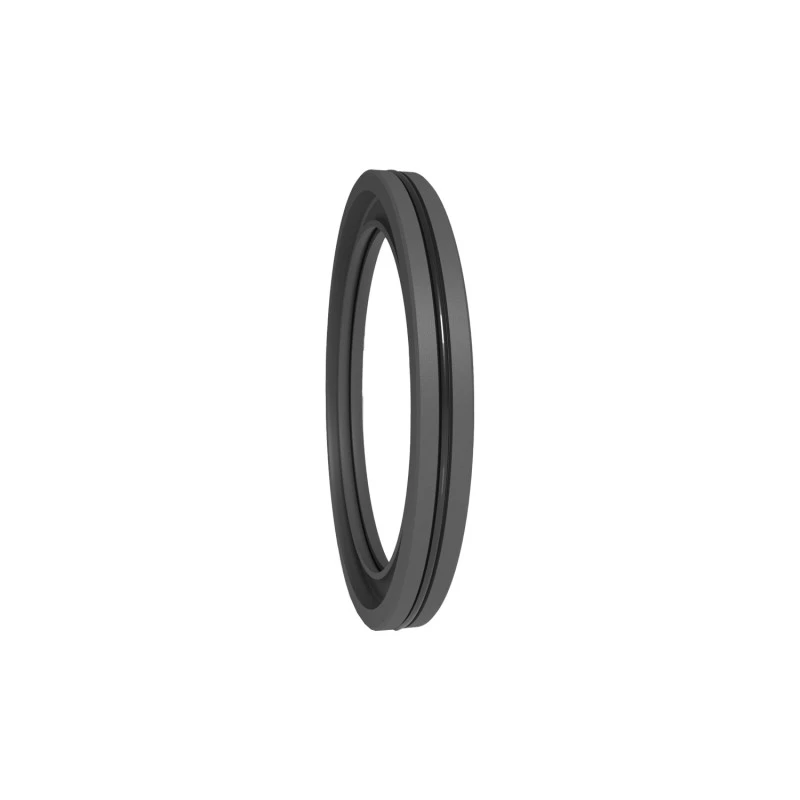

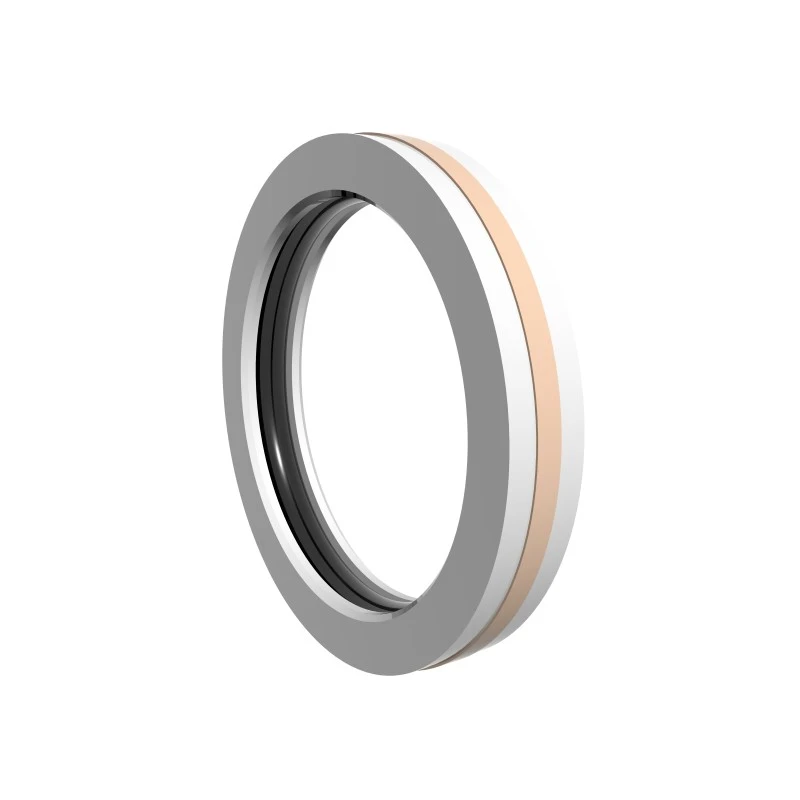

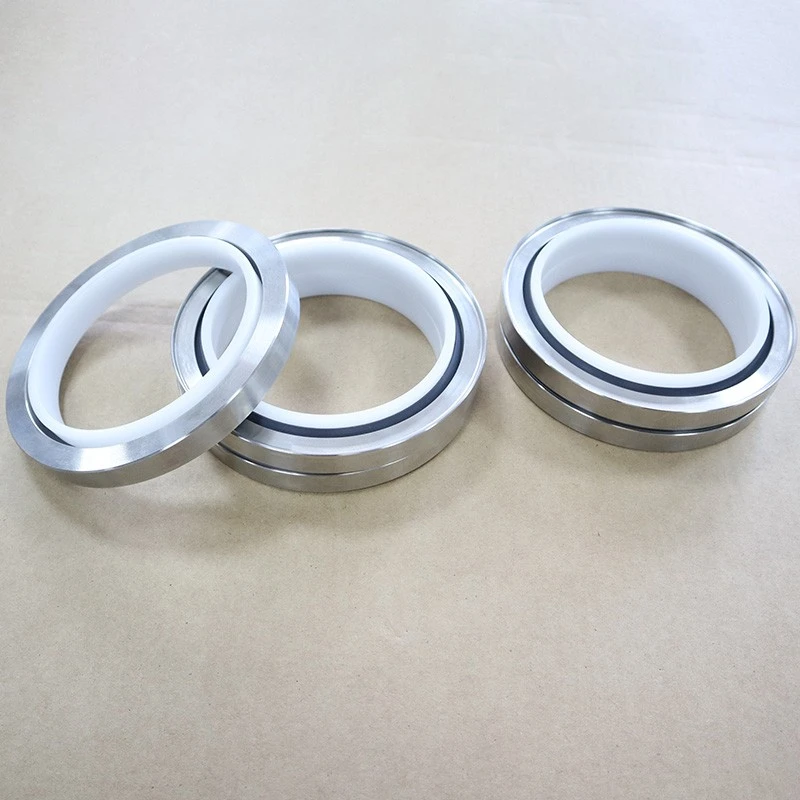

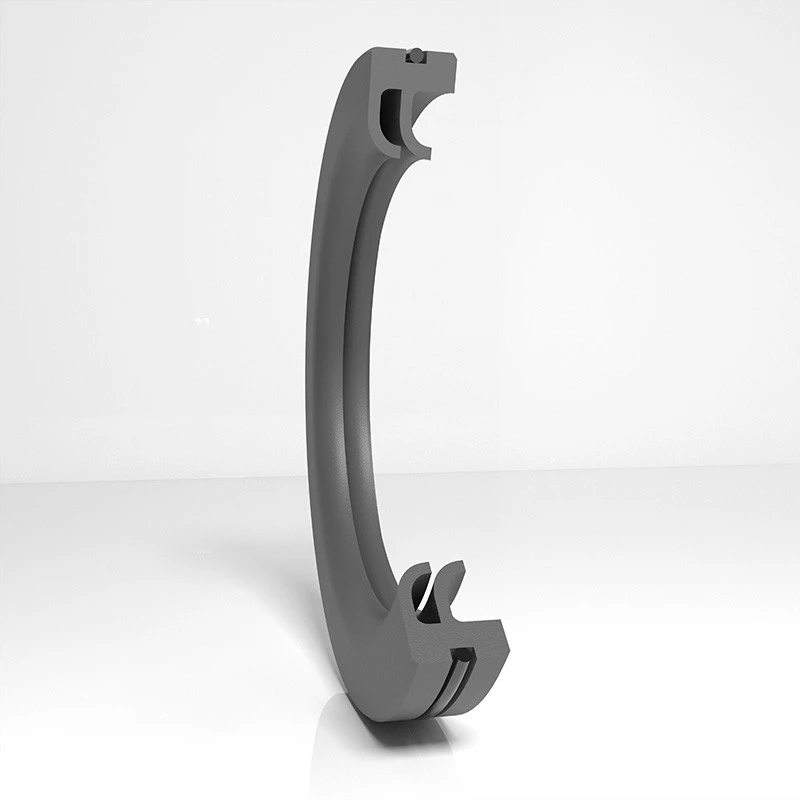

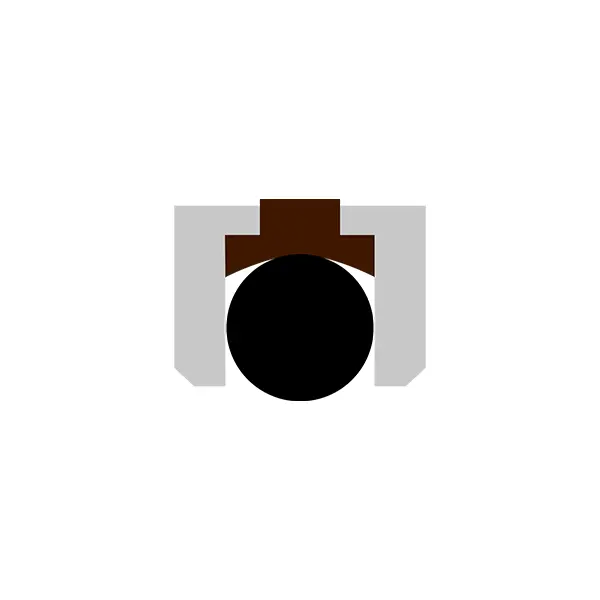

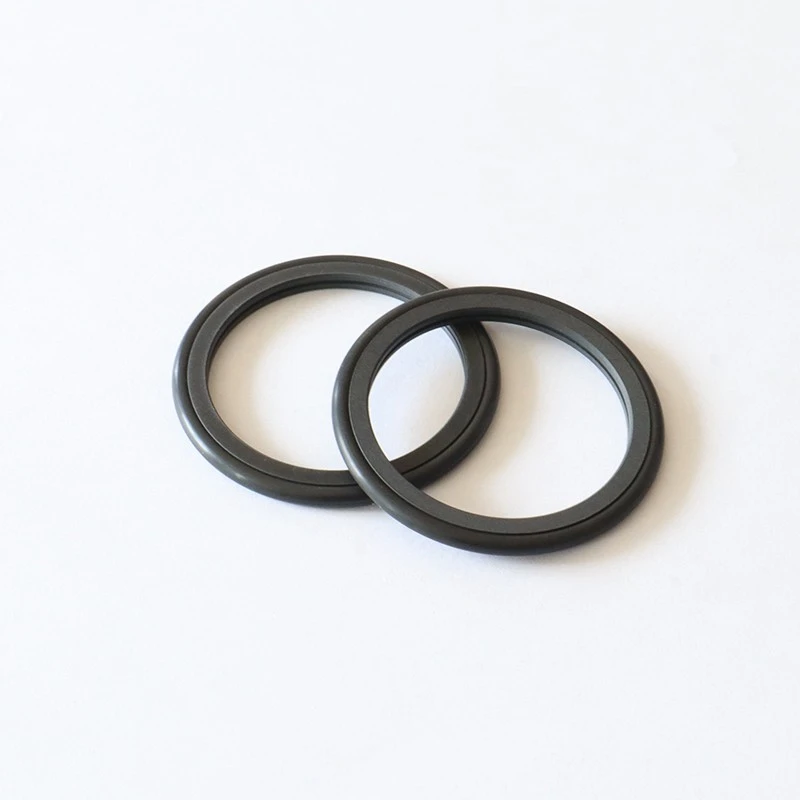

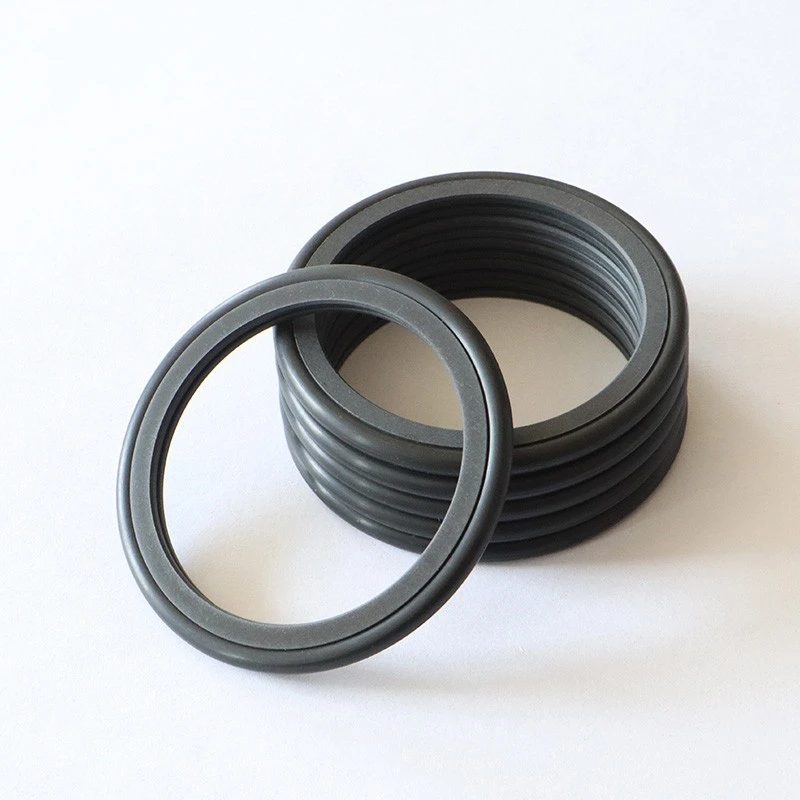

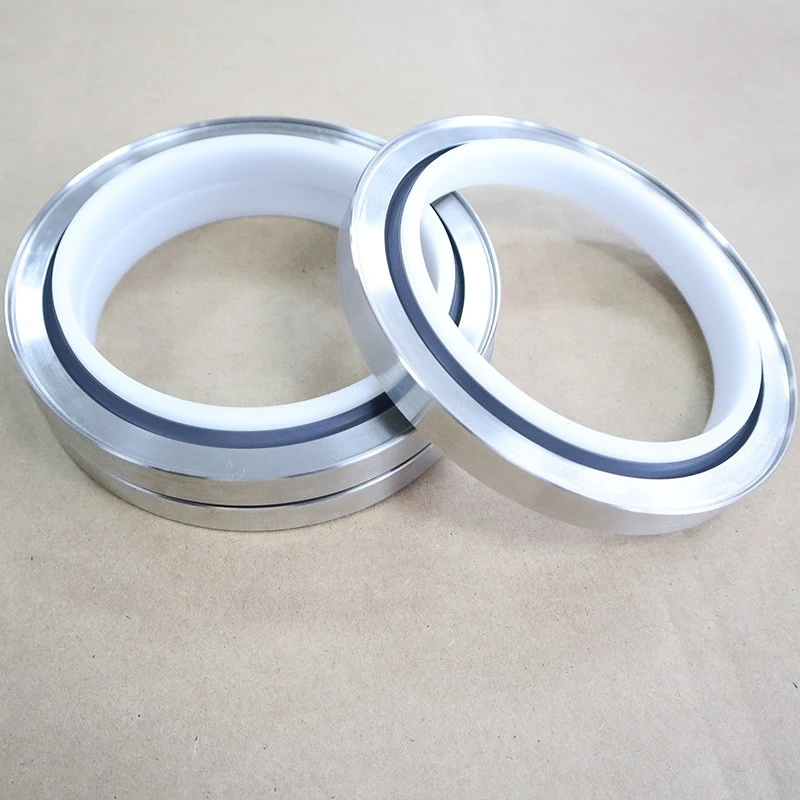

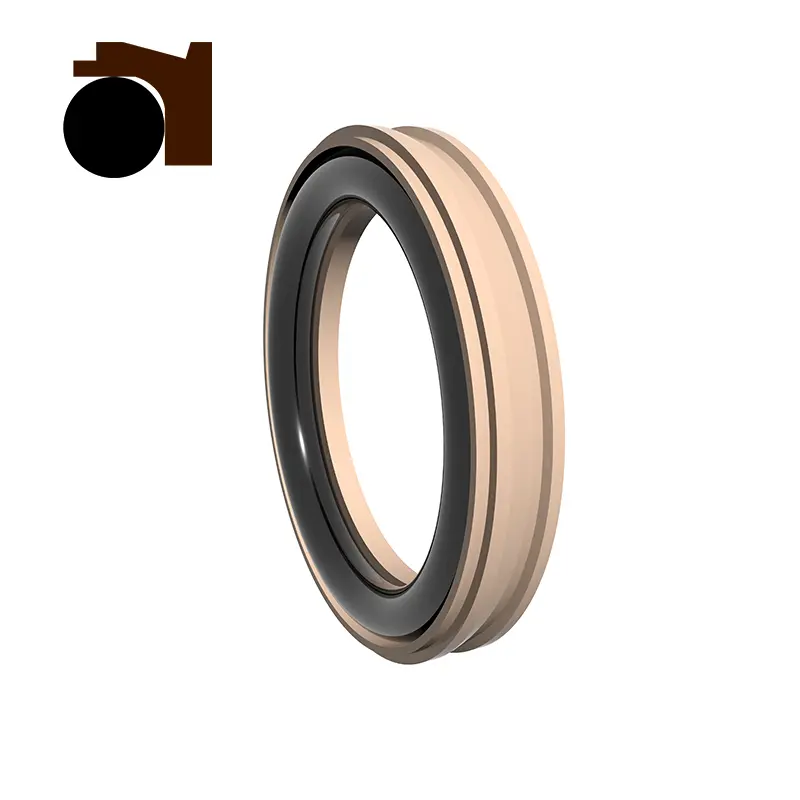

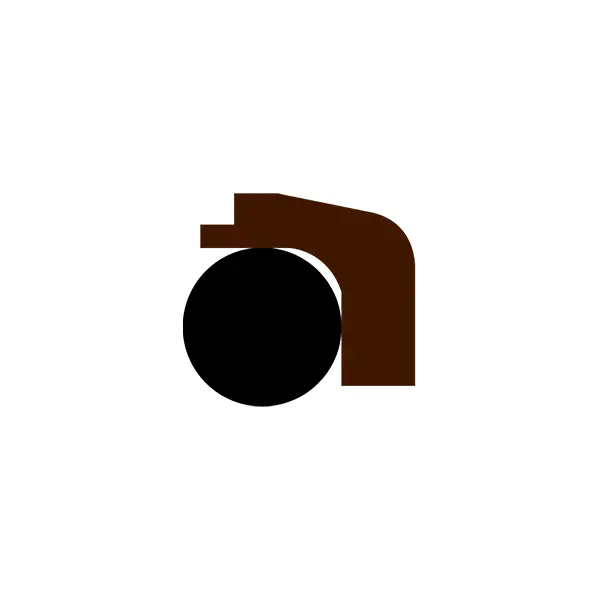

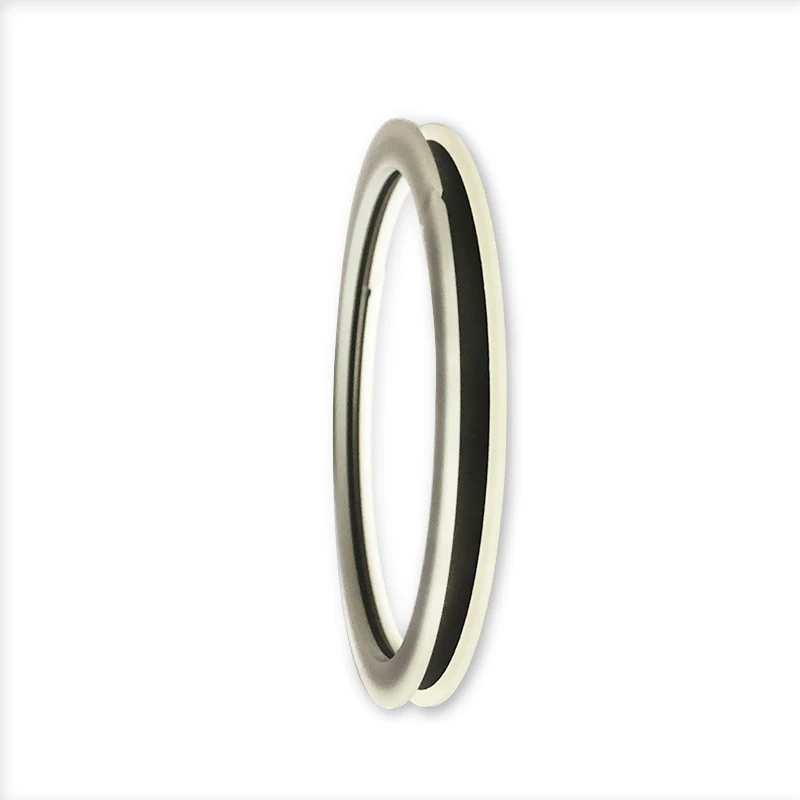

The RDI and RDA series are composed of PTFE sealing rings, L-shaped plastic support rings and O-rings, which are suitable for high-pressure, low-speed, rotating bidirectional sealing, high-pressure resistance, low friction and long life.

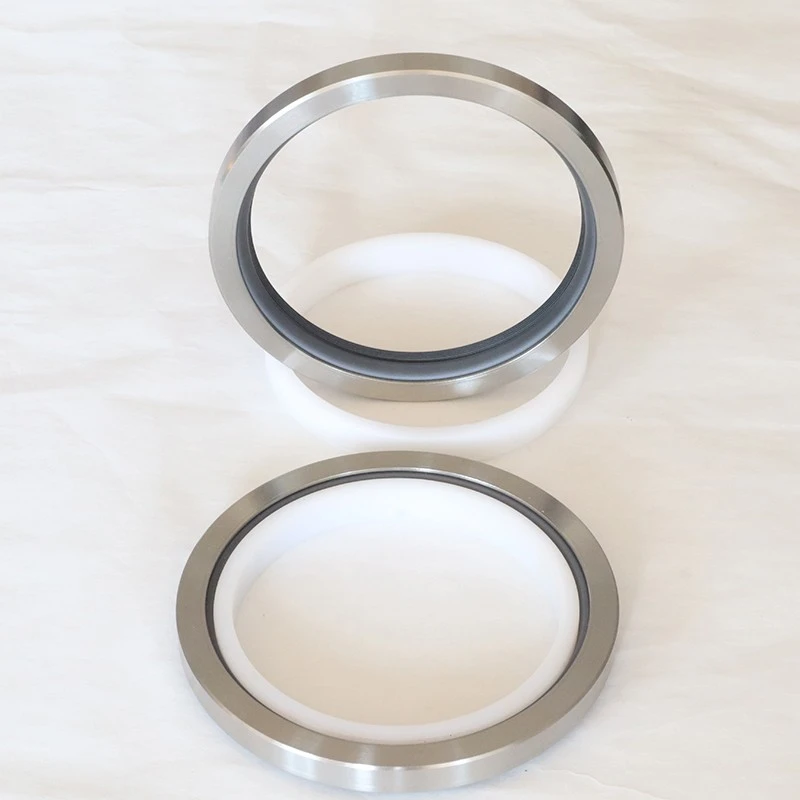

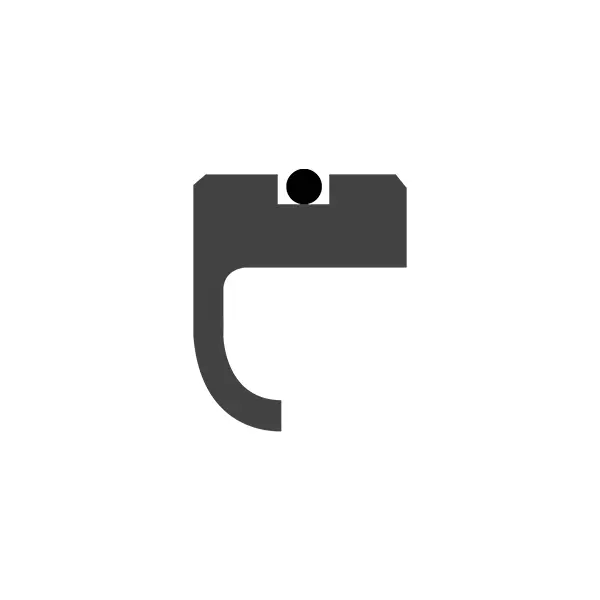

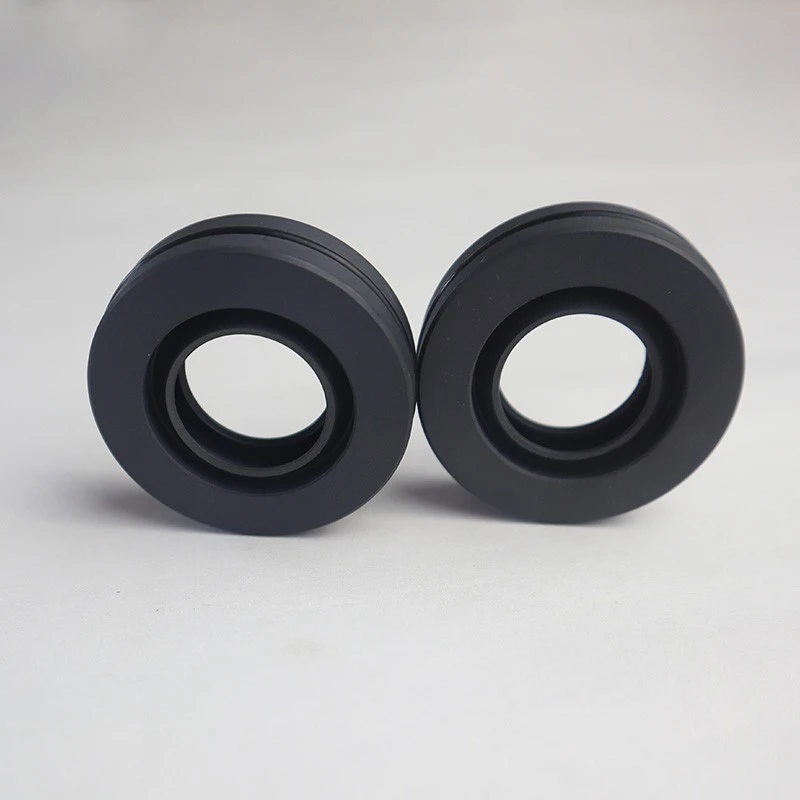

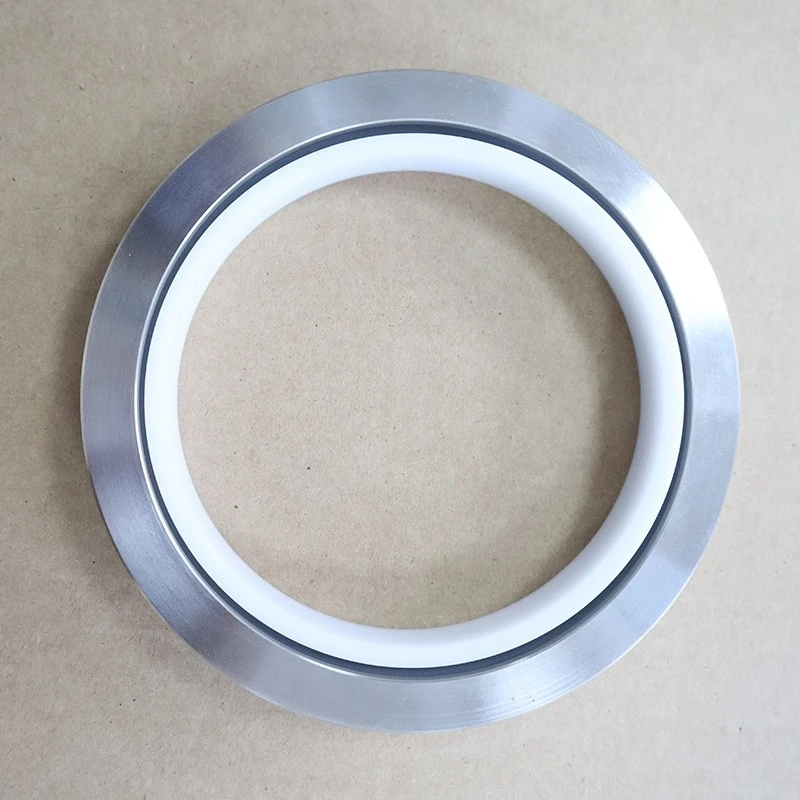

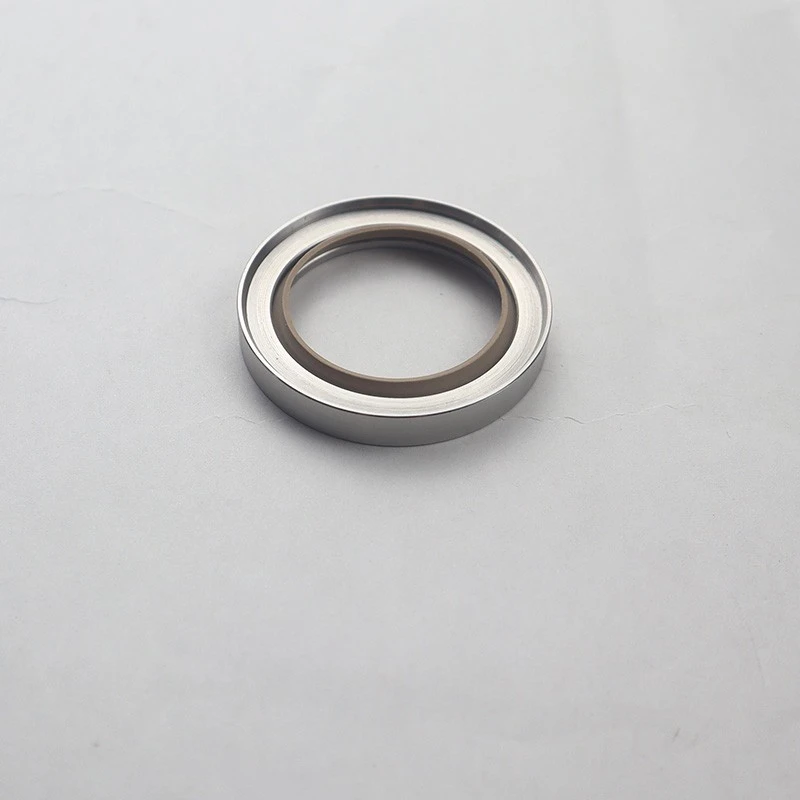

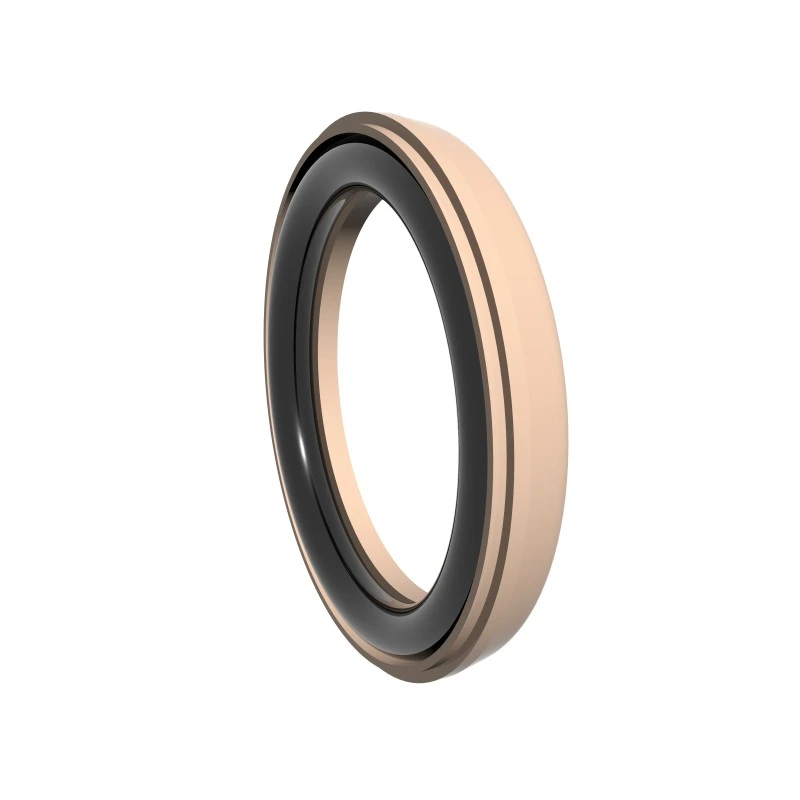

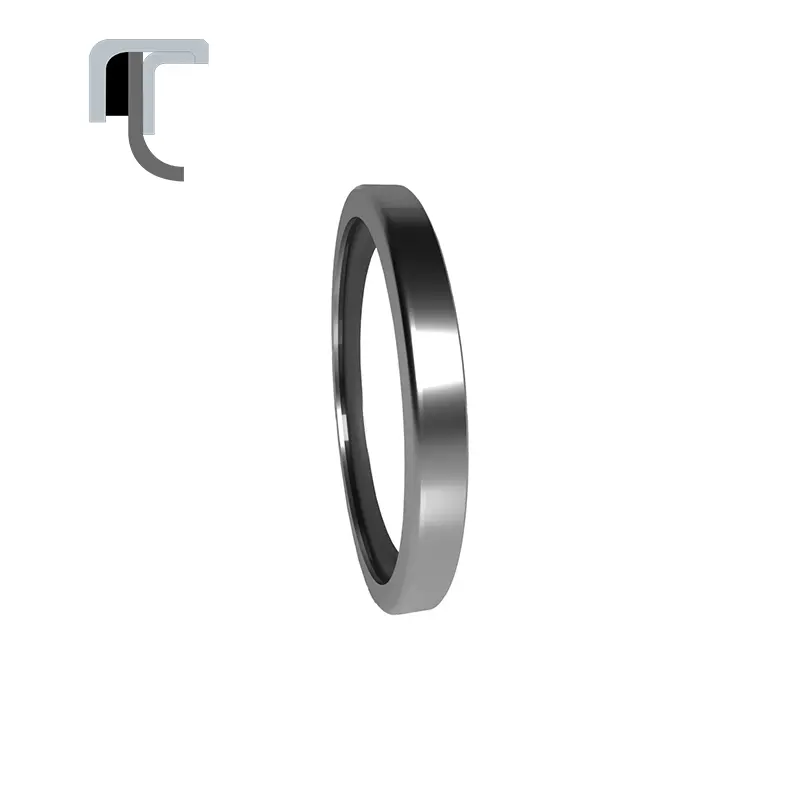

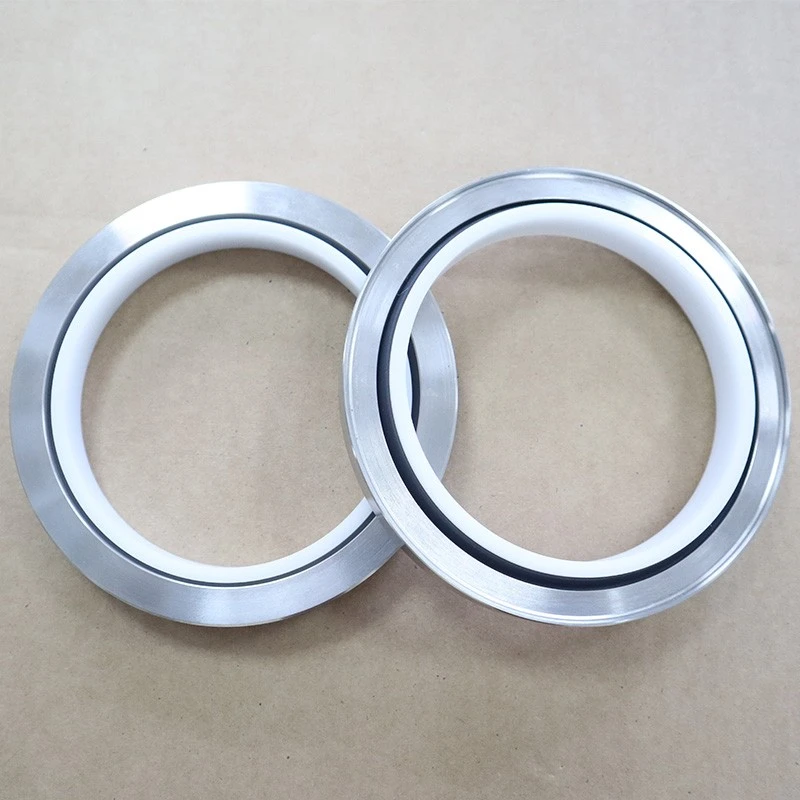

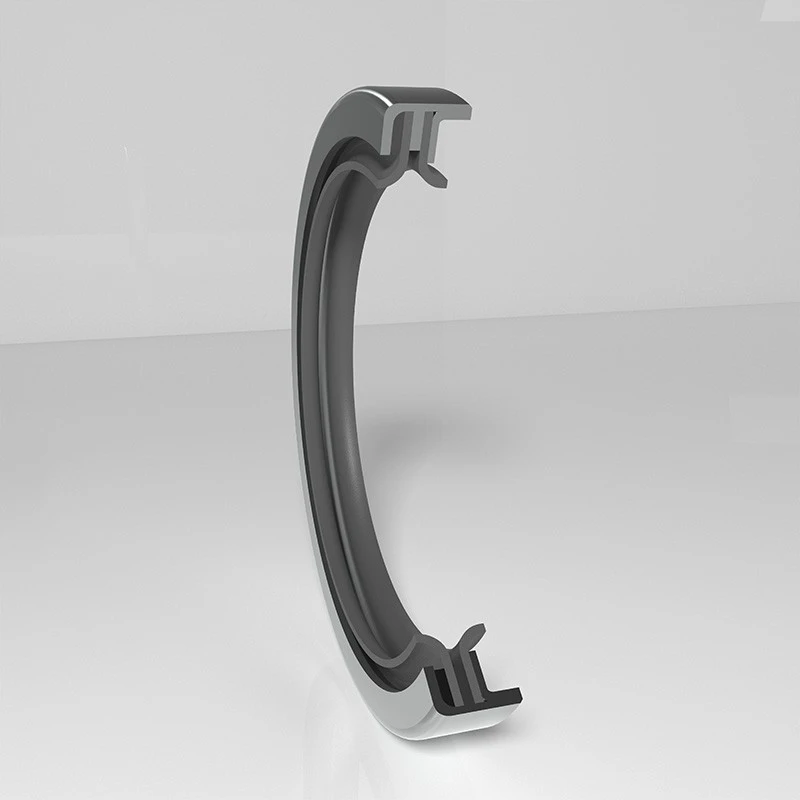

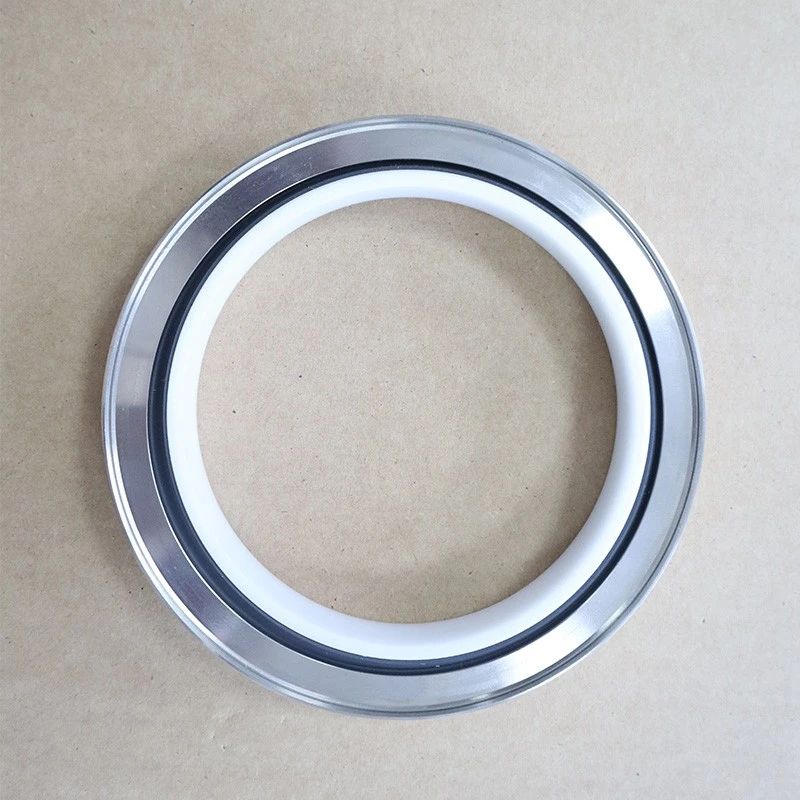

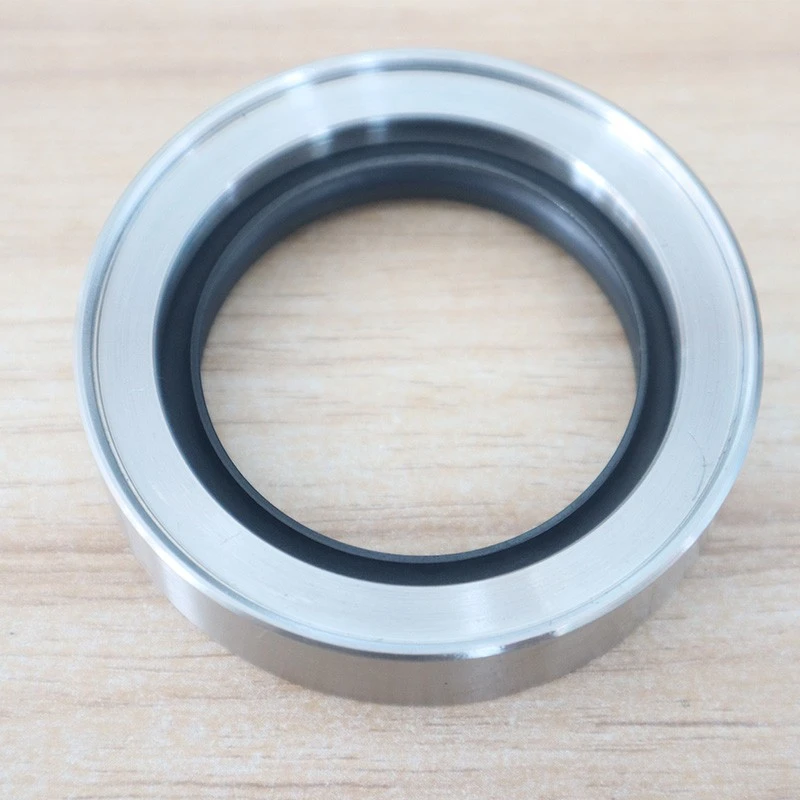

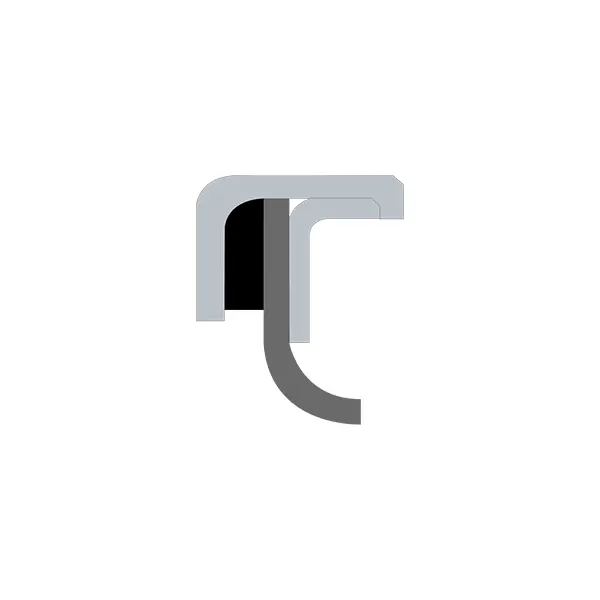

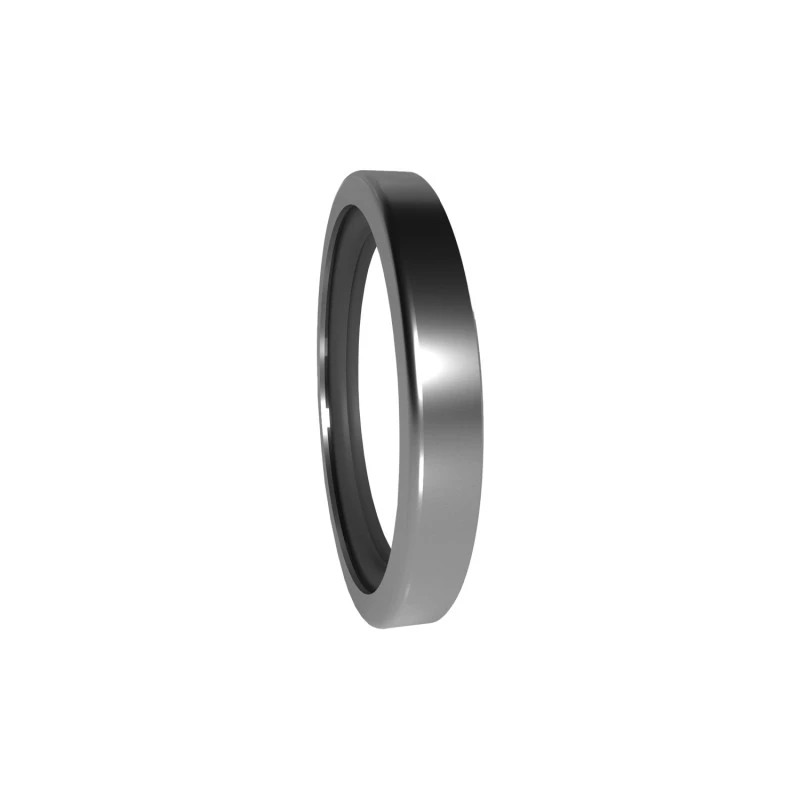

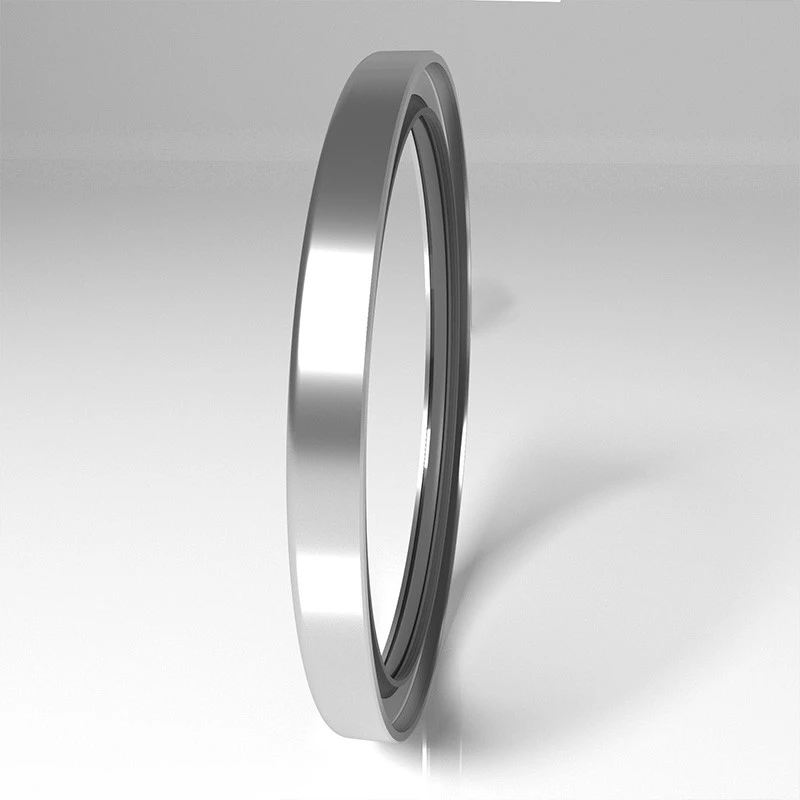

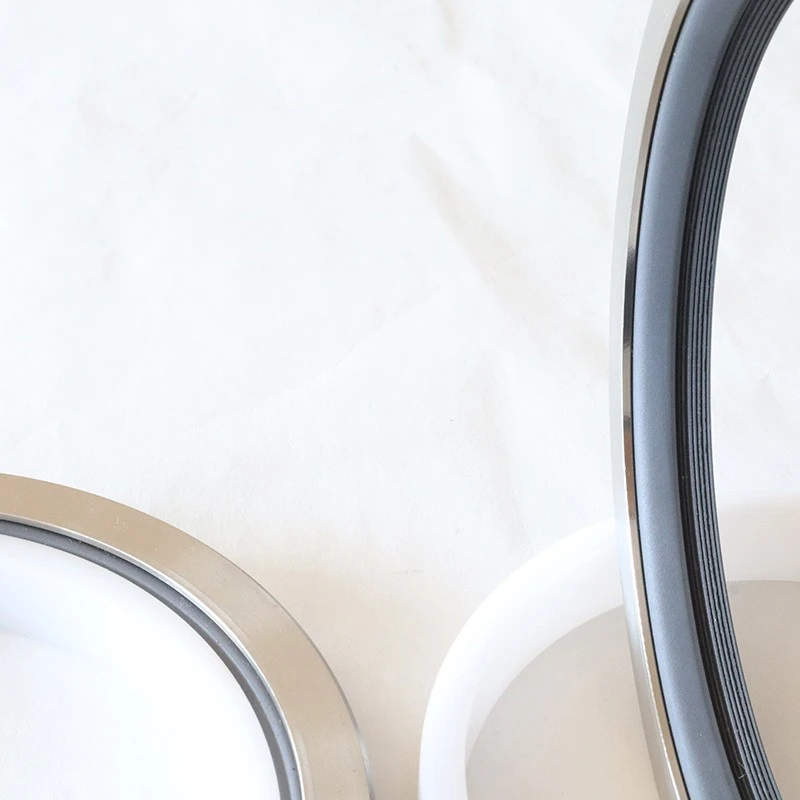

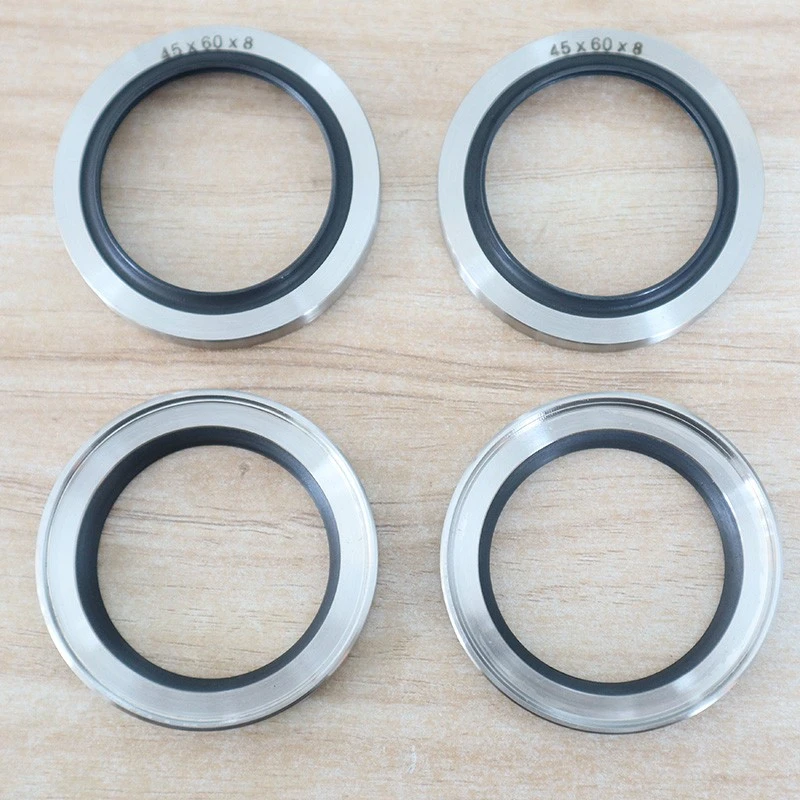

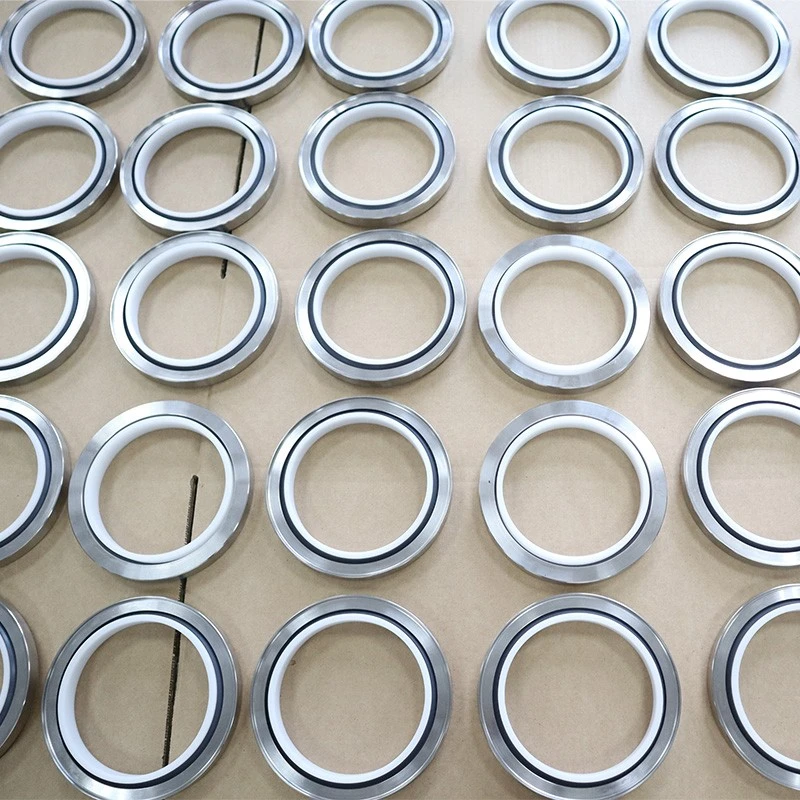

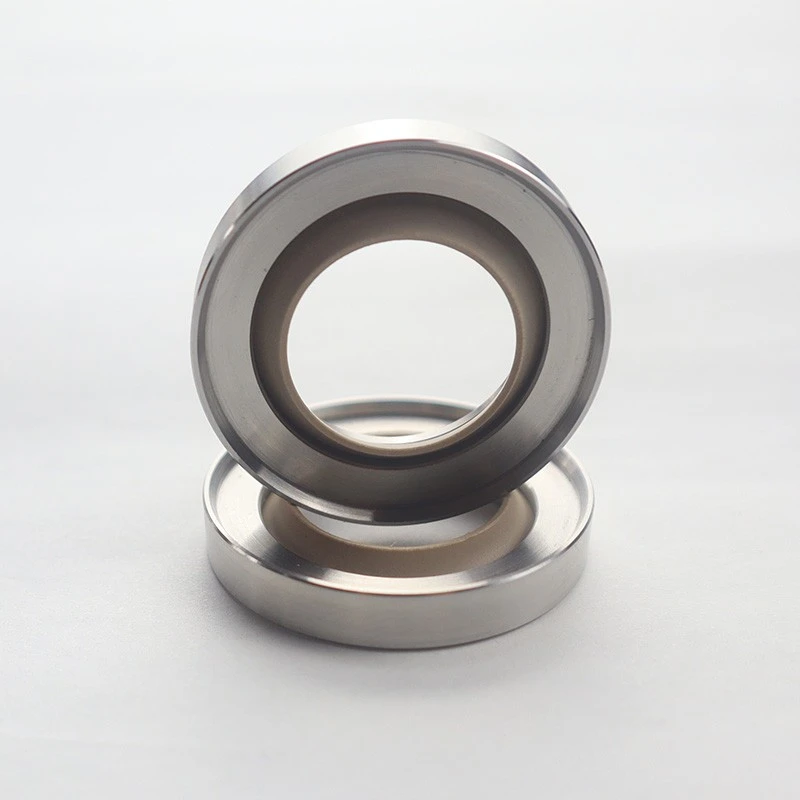

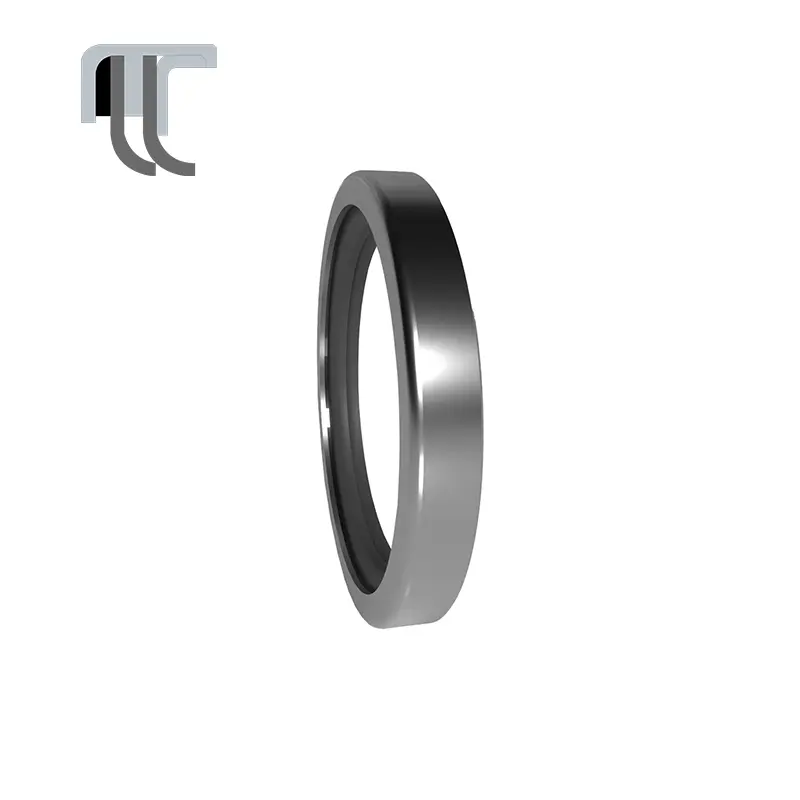

The RCS series PTFE power oil seal contains a metal skeleton and a PTFE sealing lip, which is suitable for complex working conditions.

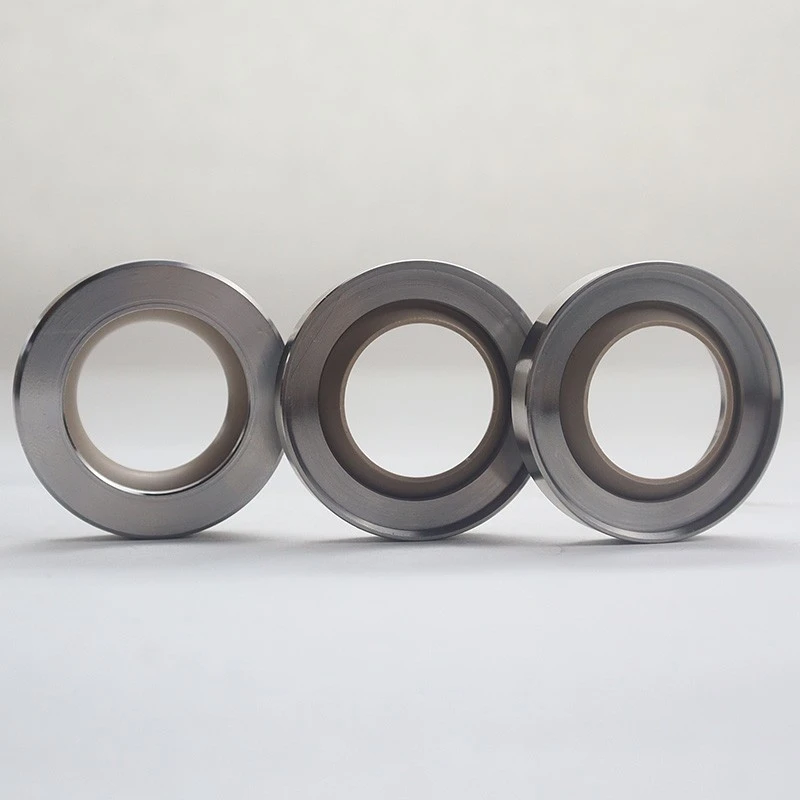

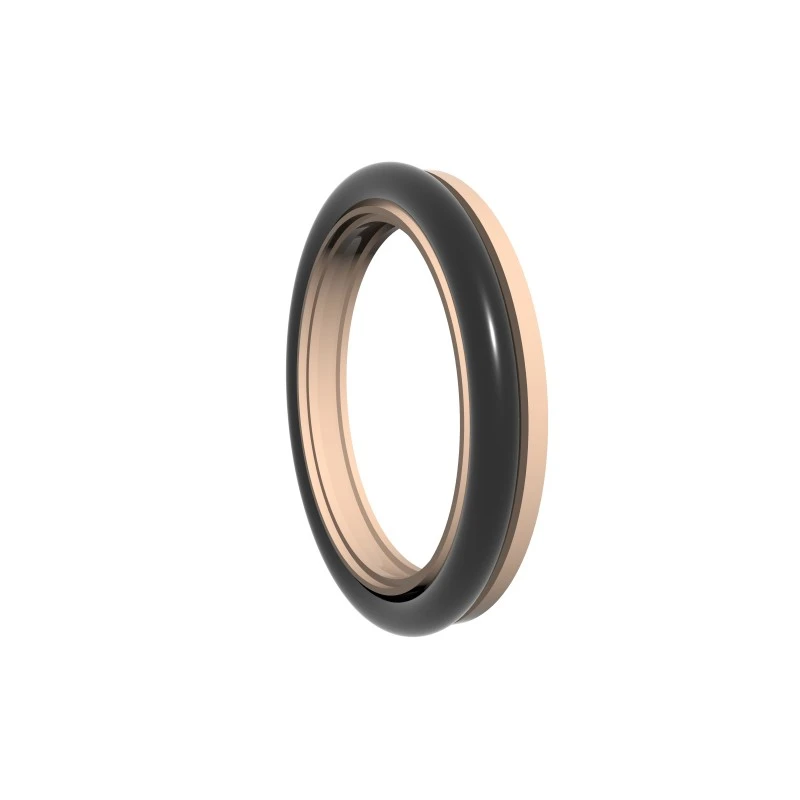

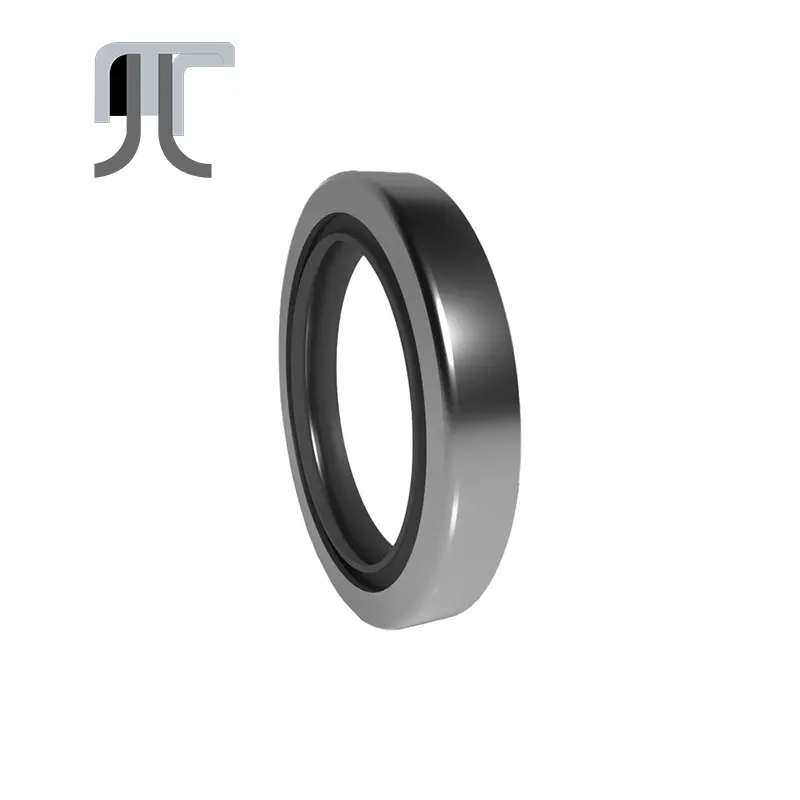

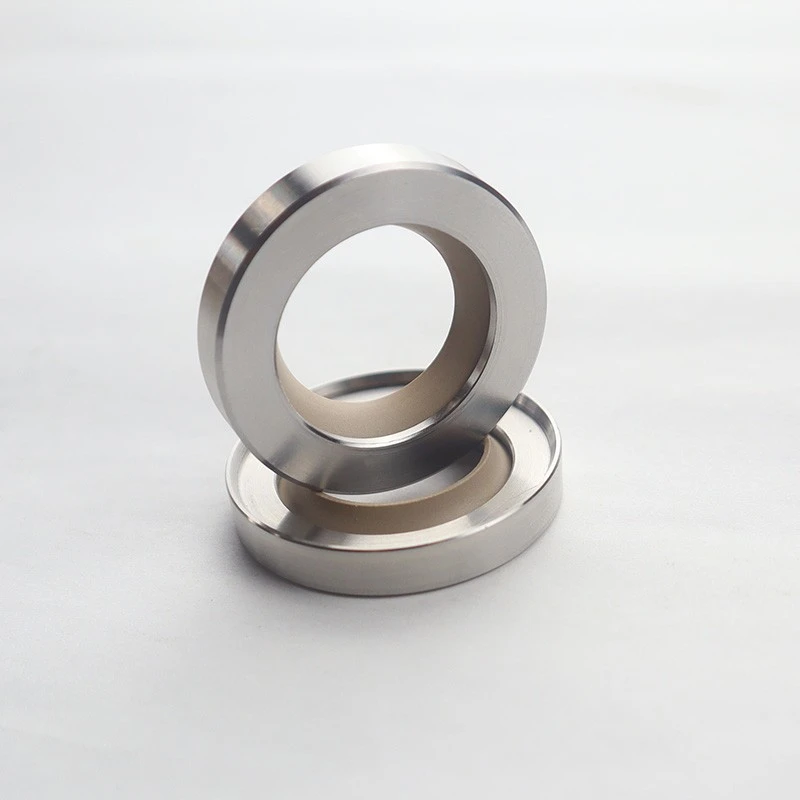

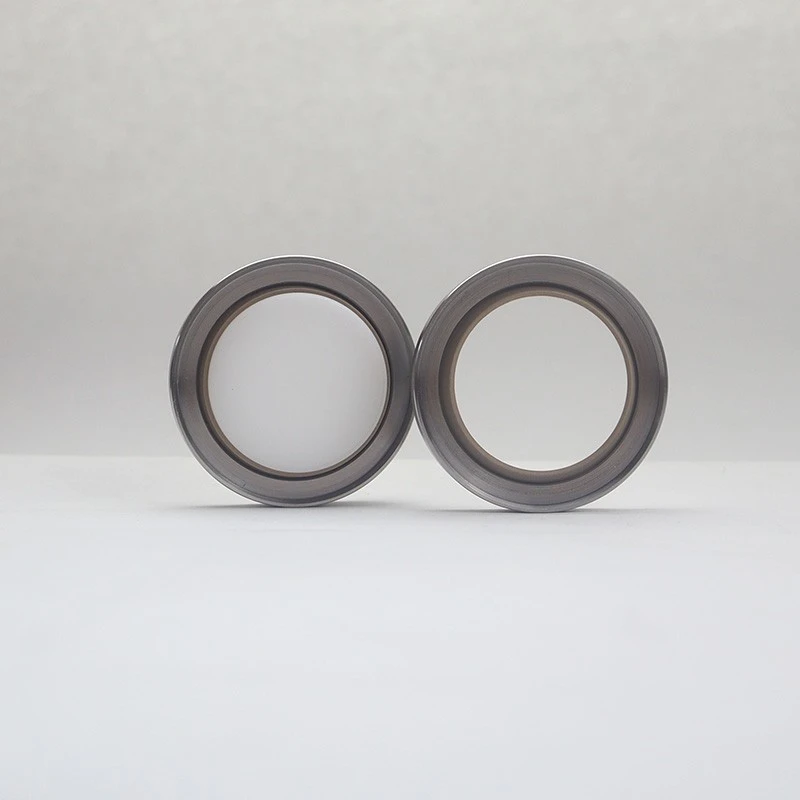

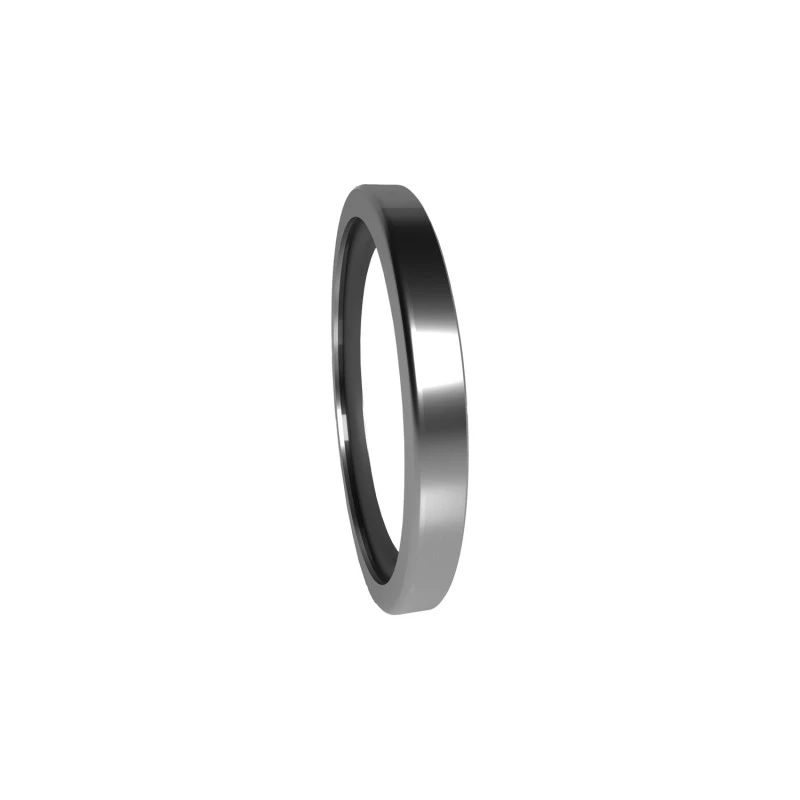

The RC2057 series full PTFE oil seal is designed for special occasions that traditional oil seals cannot meet.

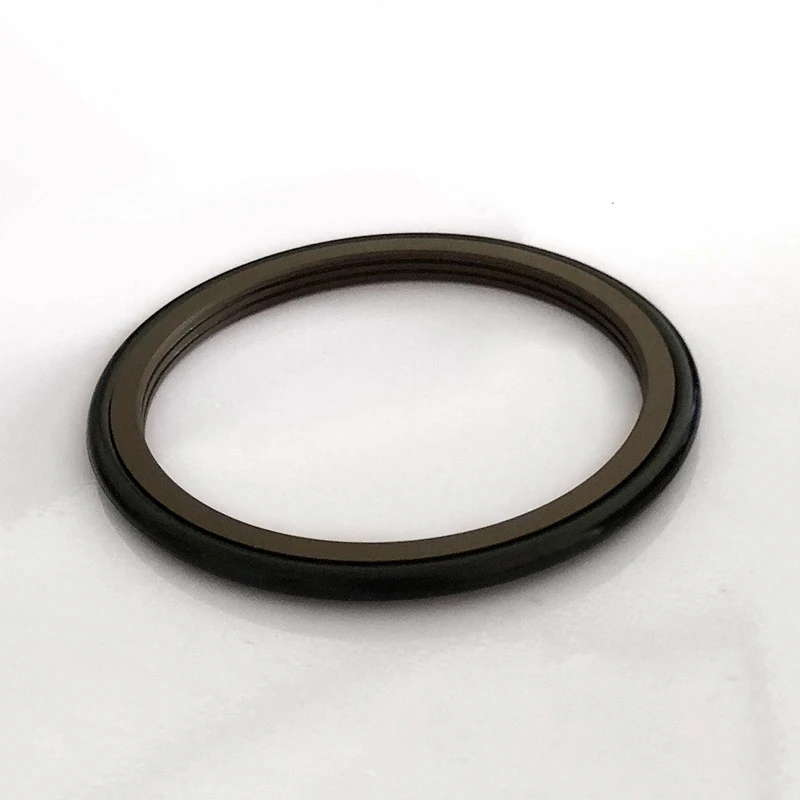

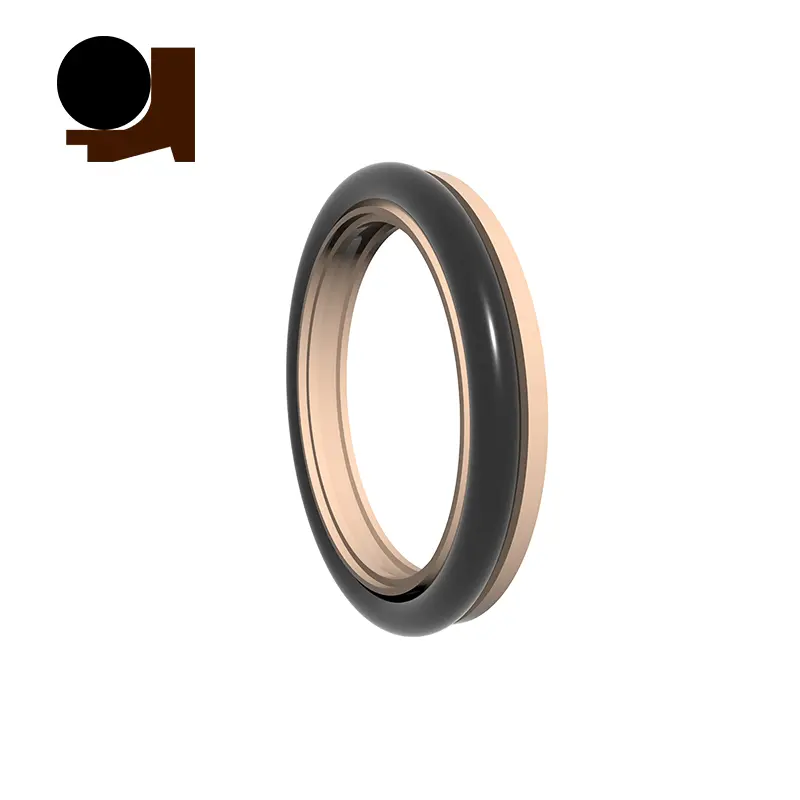

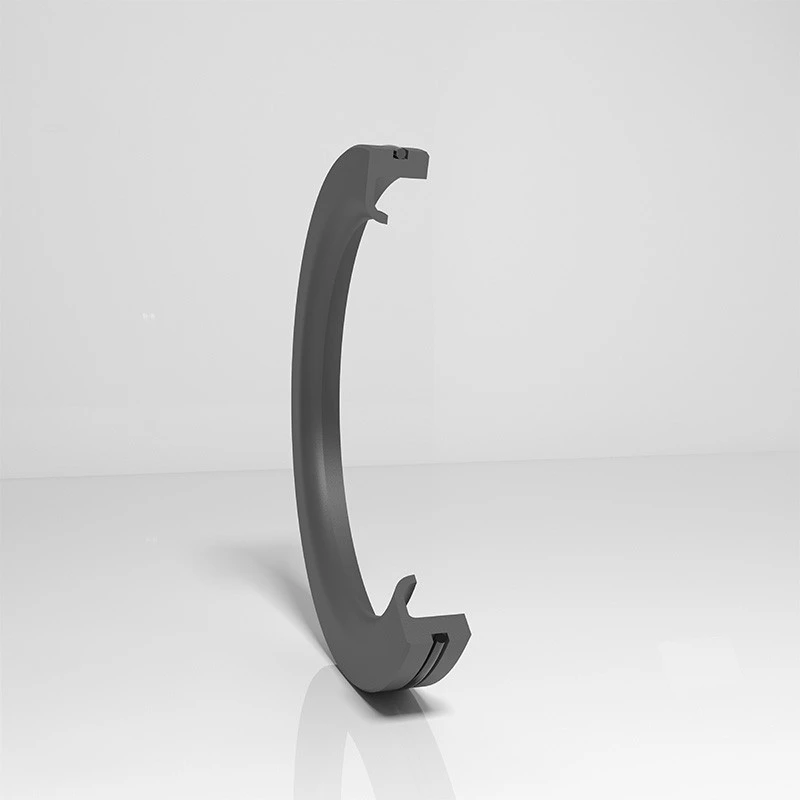

The RC2065 series provides a one-way pressure seal for rotating shafts, with a simple structure and easy installation. The materials can be nitrile rubber (NBR) or fluororubber (FKM).

Ruichen Seal's various seals have the characteristics of high life, low friction, excellent sealing and compact structure. They are widely used in hydraulic systems, pneumatic equipment, water pressure equipment, high-pressure rotating machinery and industrial equipment, etc., providing you with reliable high-performance sealing solutions.

Product features and applications:

Product Features:

Long life: High-quality materials and structural design extend service life.

Low friction: PTFE and PU materials reduce running resistance and improve efficiency.

Good sealing: Special lip and oil storage tank design ensure excellent sealing performance.

Compact structure: Small space design, suitable for a variety of installation environments.

Widely applicable: Suitable for hydraulic, pneumatic, water pressure and high pressure, high speed, low speed and other working conditions.

Application areas:

Hydraulic system, pneumatic equipment, water pressure equipment.

High-pressure rotating machinery, low-speed heavy-load equipment.

Industrial equipment, engineering machinery, automobile and aerospace and other fields.

Material selection:

1. The matching O-ring material can be selected: R01 nitrile rubber (NBR), R02 fluororubber (FKM), etc.

2. Sealing ring material: standard material PTFE4, other optional materials PTFE1, PTFE2, PTFE3, PTFE5.

RCX18 material: HPU.

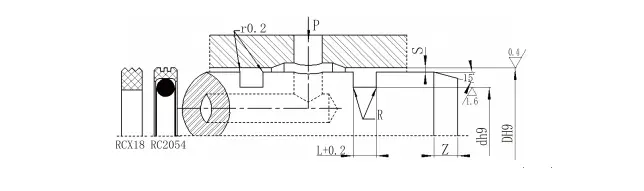

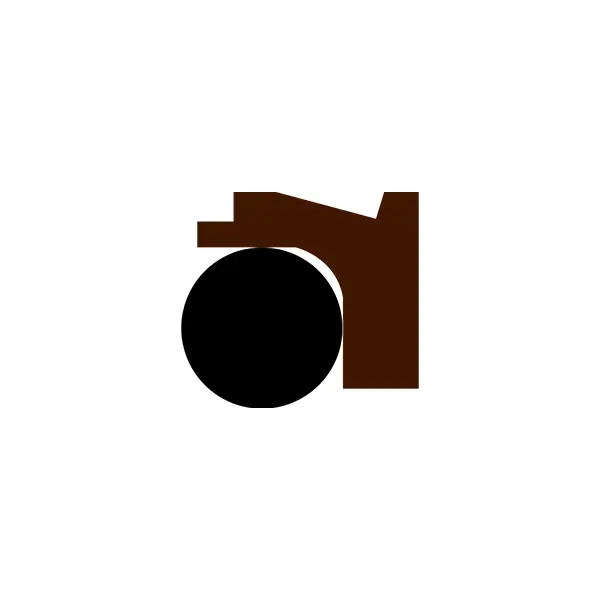

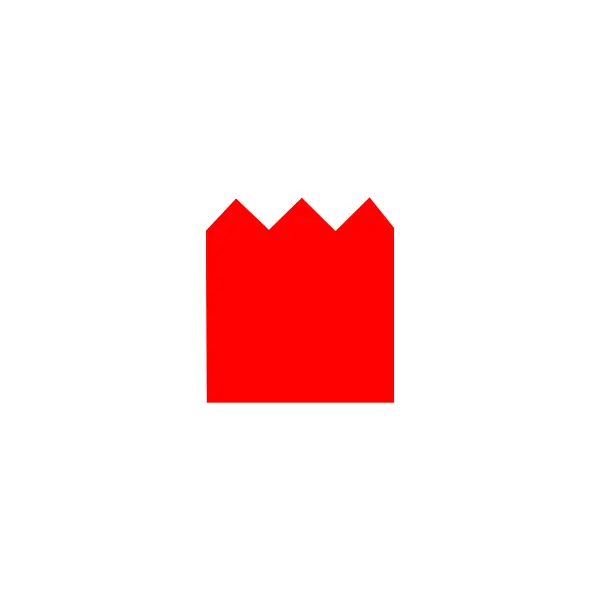

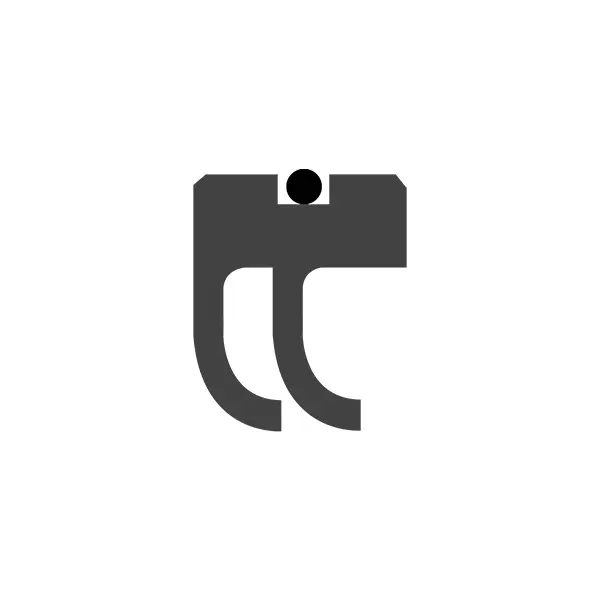

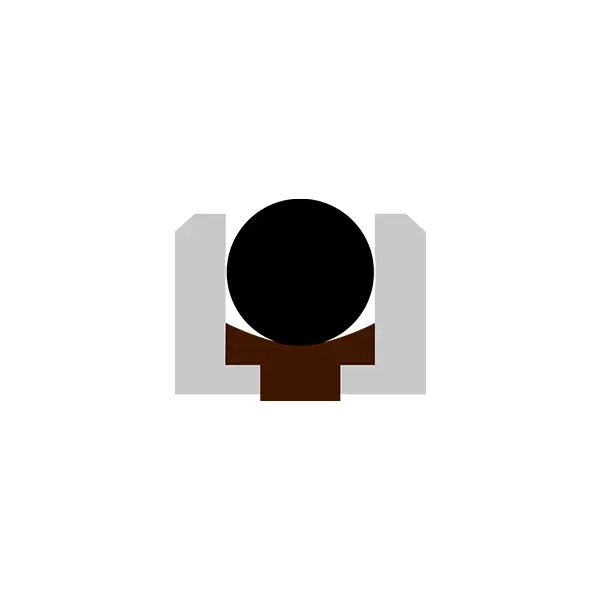

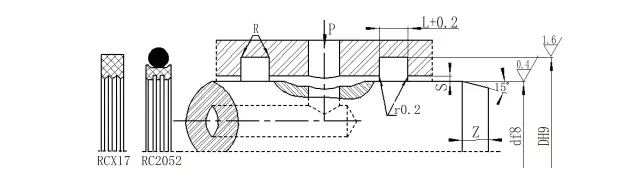

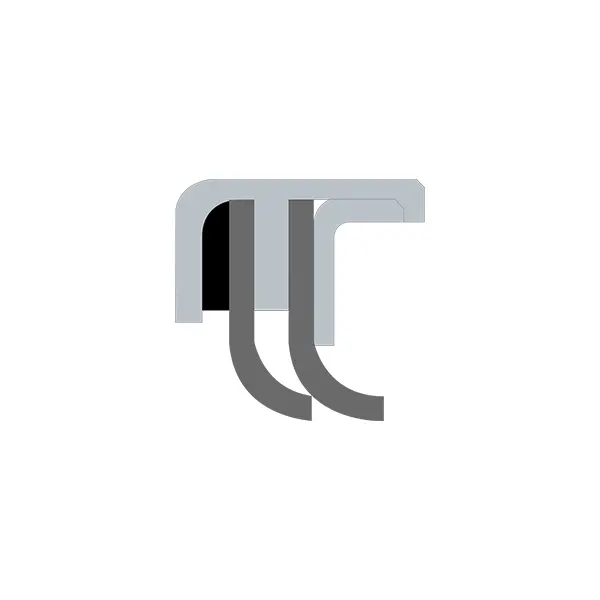

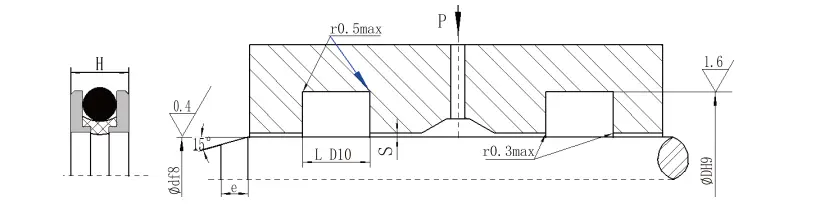

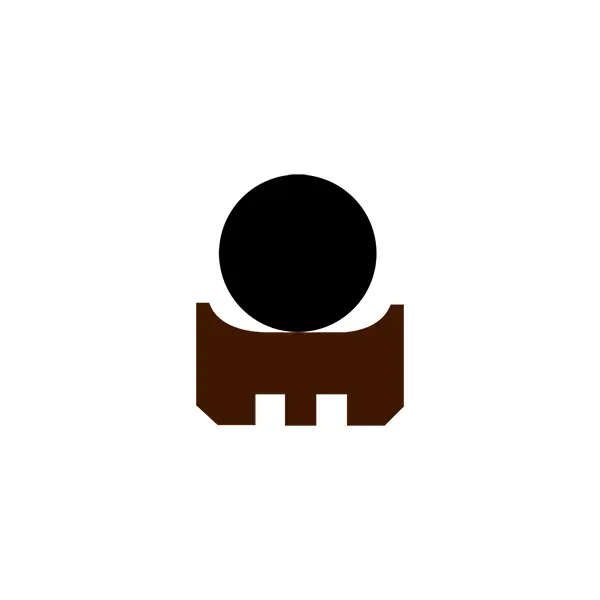

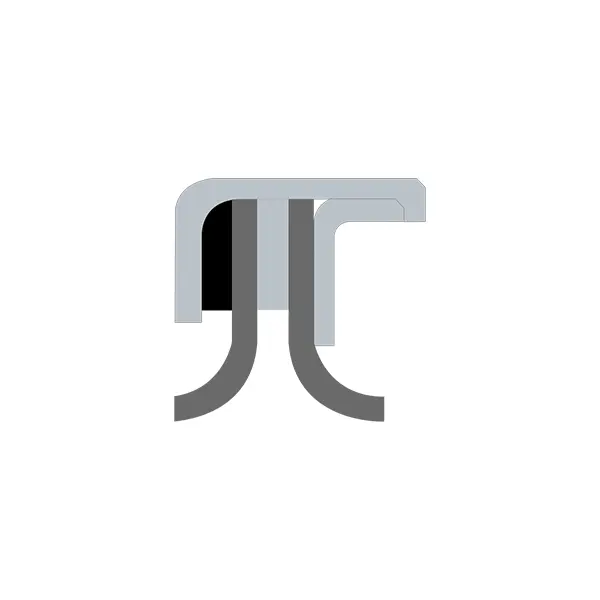

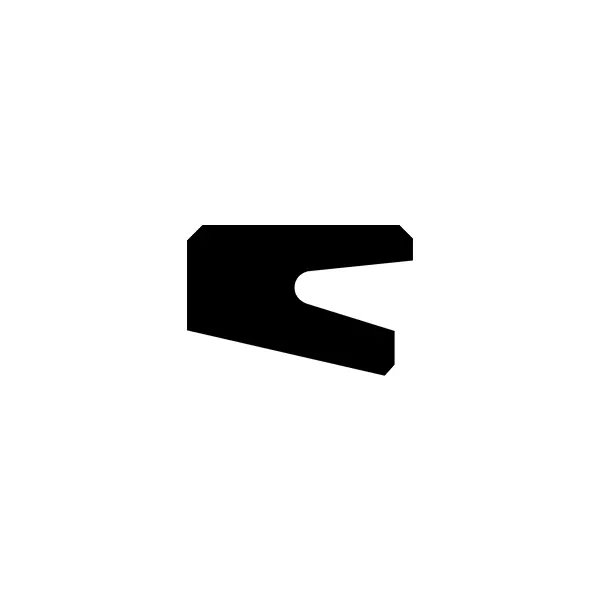

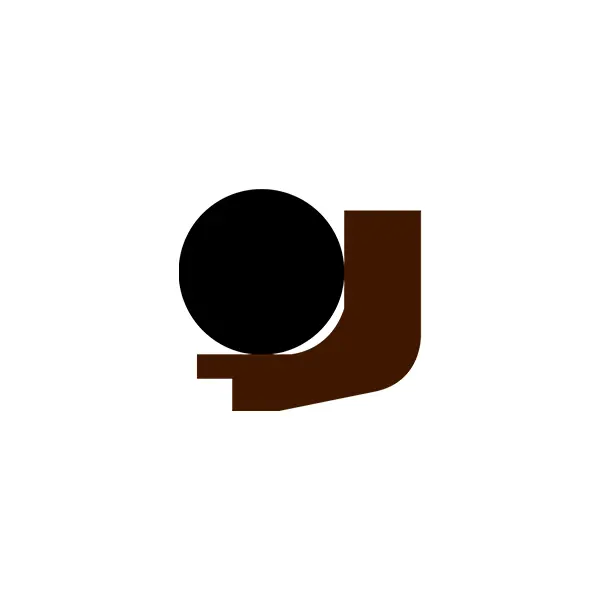

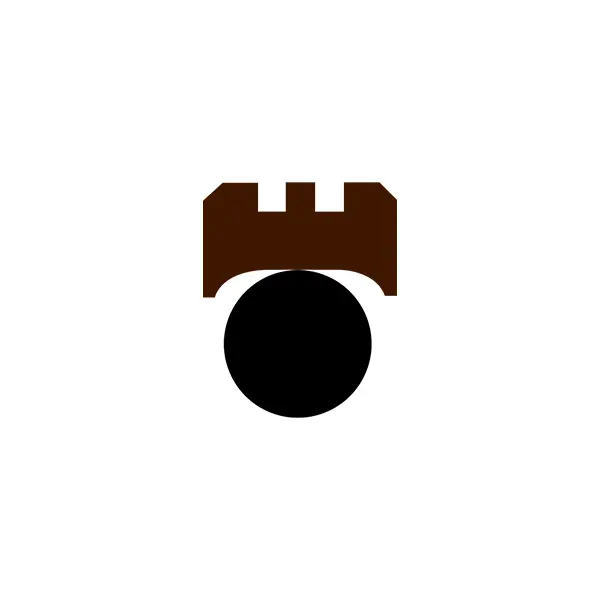

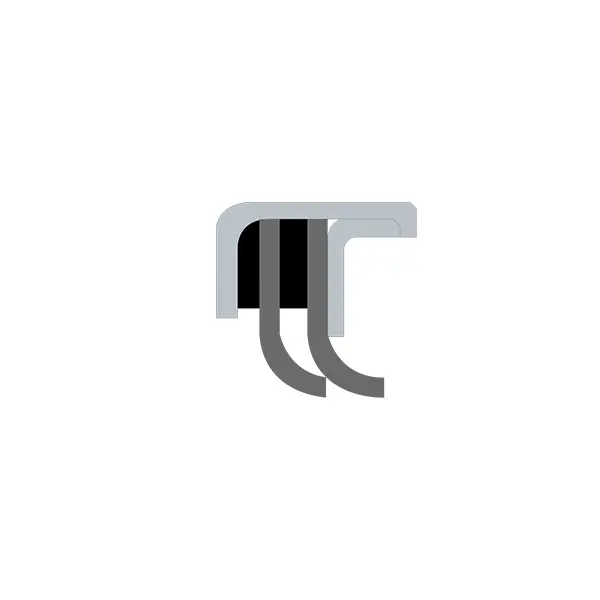

Structural diagram

Order Model RC2052-80x91x4.2-PTFE3-RO1 Model-dxDxL-Material Code Order Model RCX17-80x91x4.2-HPU Model-dxDxL-Material Code

Order Model RC2054-80x69x4.2-PTFE3-RO1 Model-D*d*L-Material Code Order Model RCX18-80x69x4.2-HPU Model-D*d*L-Material Code

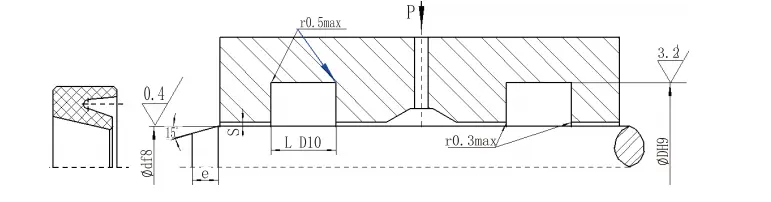

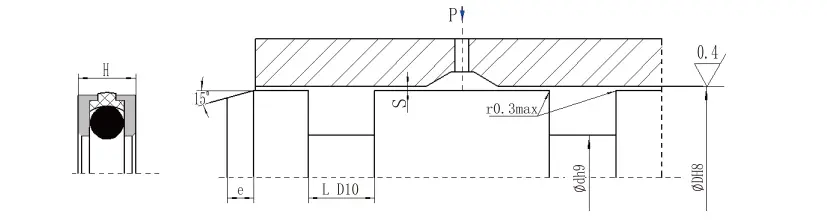

RDI Installation Dimensions

df8	DH9	L D10	H	Gap S
df8	DH9	L D10	H	0-10MPA	10-36MPA
50-79	d+10	5	4.5	0.4-0.3	0.3-0.25
80-109	d+13.8	7.5	7	0.45-0.35	0.35-0.3
110-299	d+20	10	9.5	0.55-0.45	0.45-0.35
300-600	d+24	13	12.5	0.6-0.55	0.55-0.45
>600	Please consult our company

Chamfer length

Rod diameter range	Chamfer length e≥
50-56	6
57-100	7
101-290	10
291-600	15

RDA Installation Dimensions

DH8	dh9	L D10	H	Gap S
DH8	dh9	L D10	H	0-10MPA	10-36MPA
50-124	D-16	8	7.5	0.45-0.35	0.35-0.3
125-199	D-20	10	9.5	0.55-0.45	0.45-0.35
200-600	D-26	13	12.5	0.6-0.55	0.55-0.45

Chamfer length

Rod diameter range	Chamfer length e≥
50-95	7
96-190	10
191-300	12
301-600	15

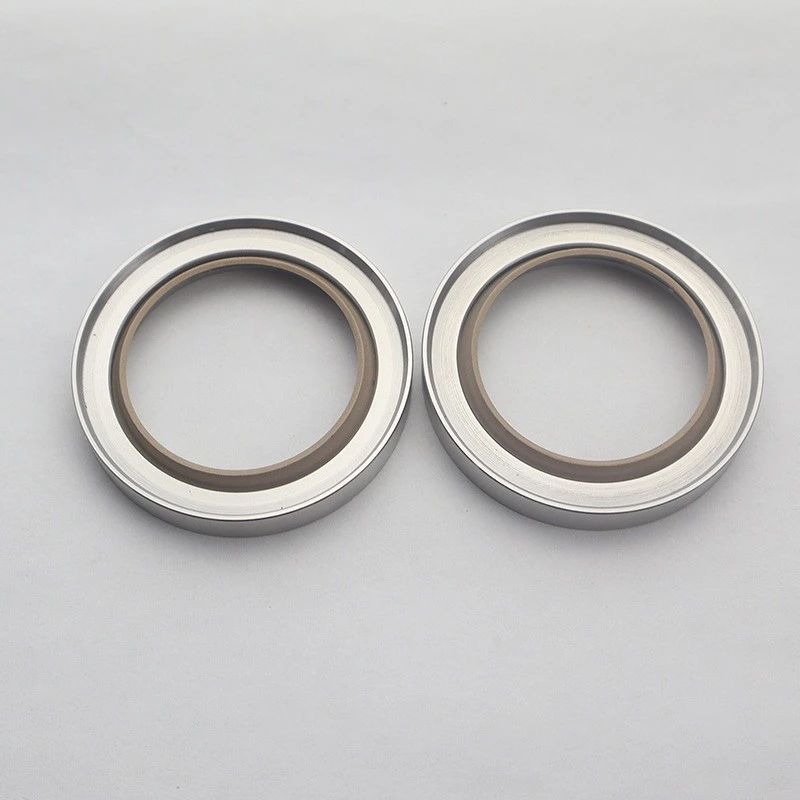

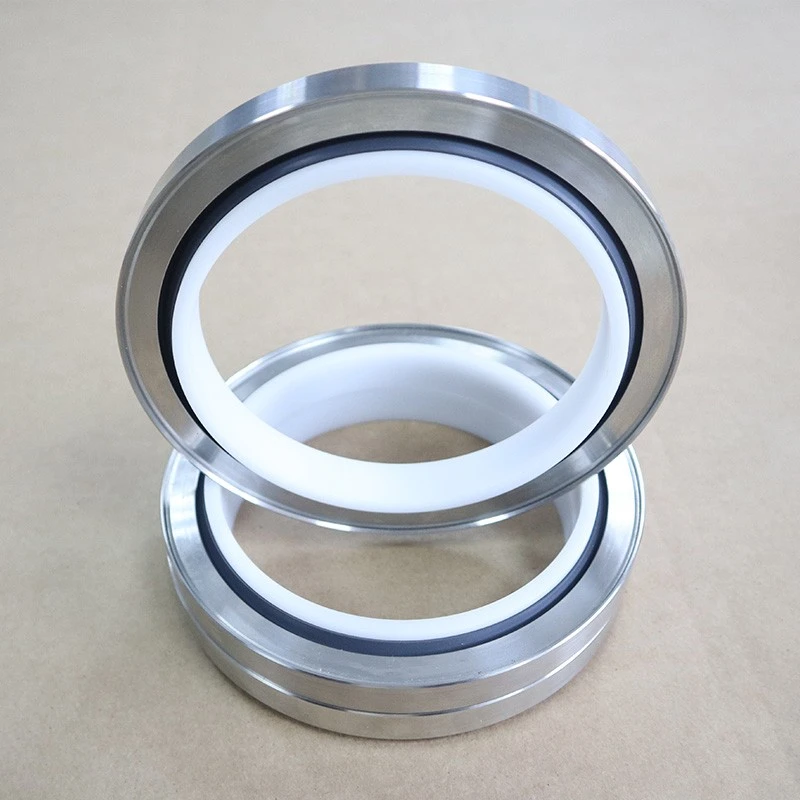

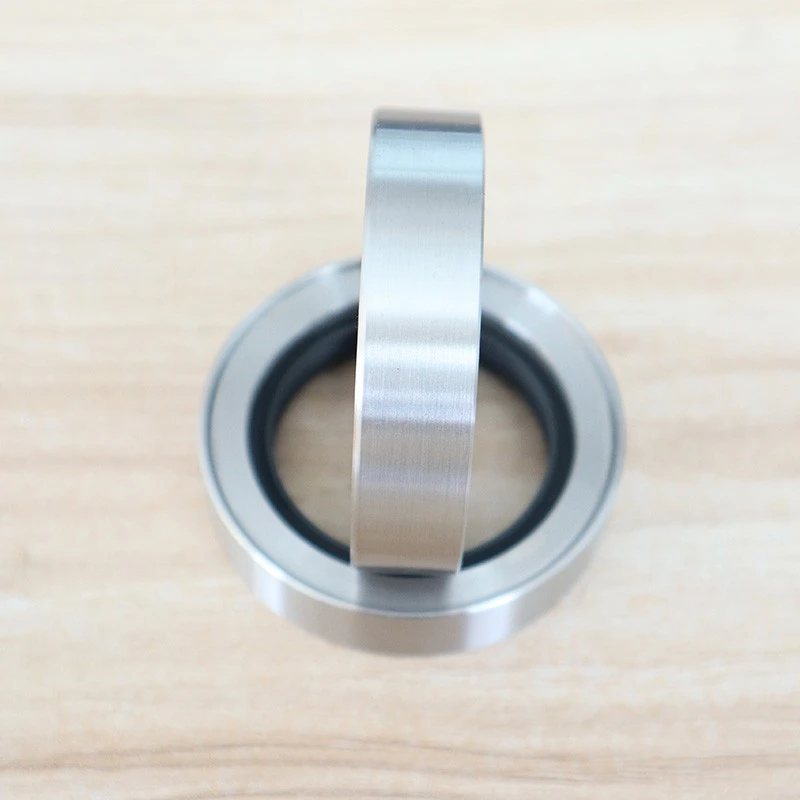

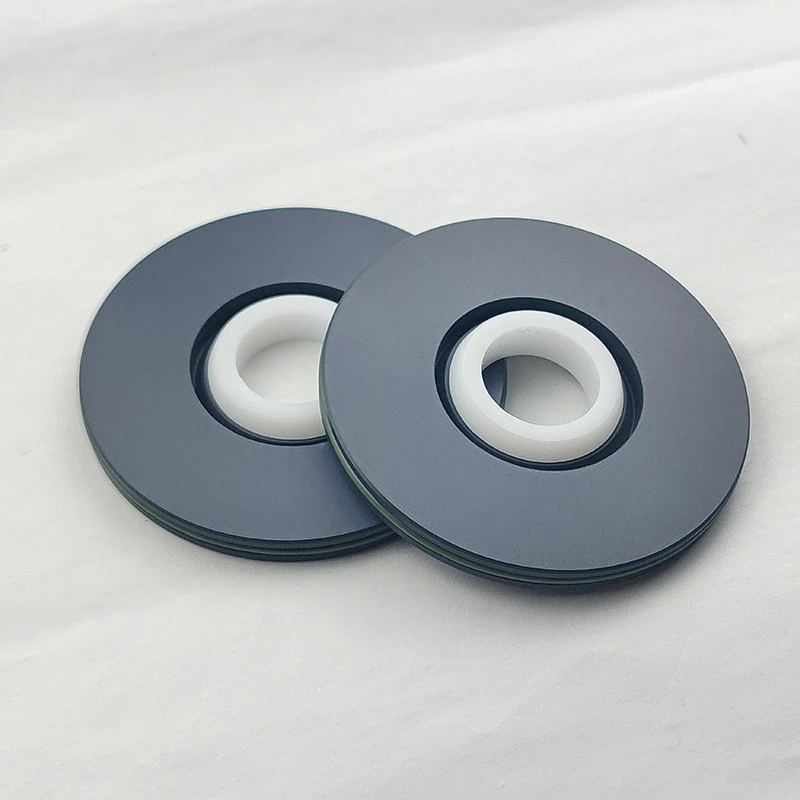

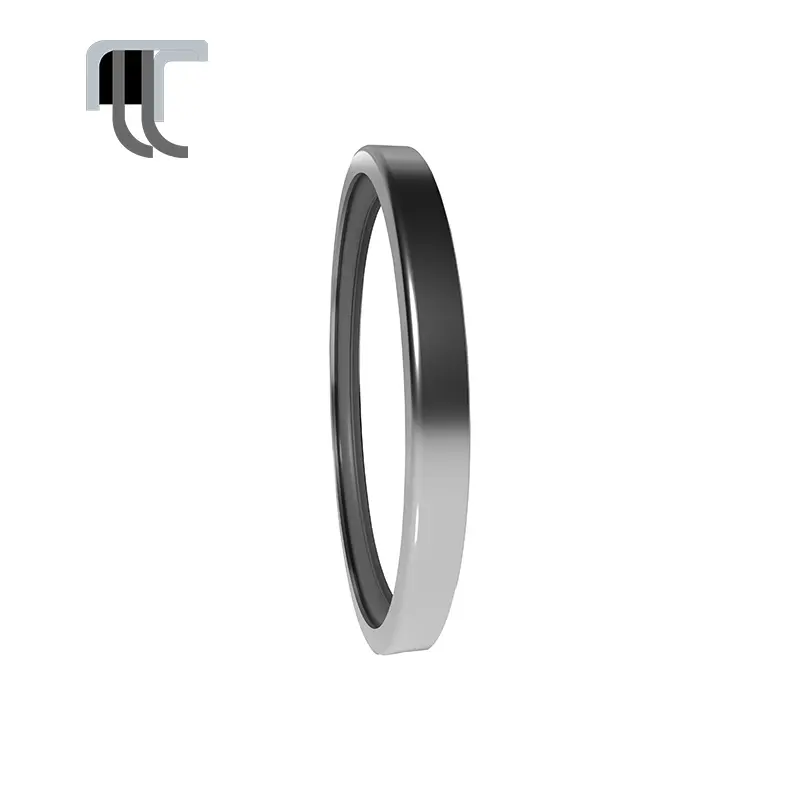

RCS type PT FE power oil seal (PTFE oil seal)

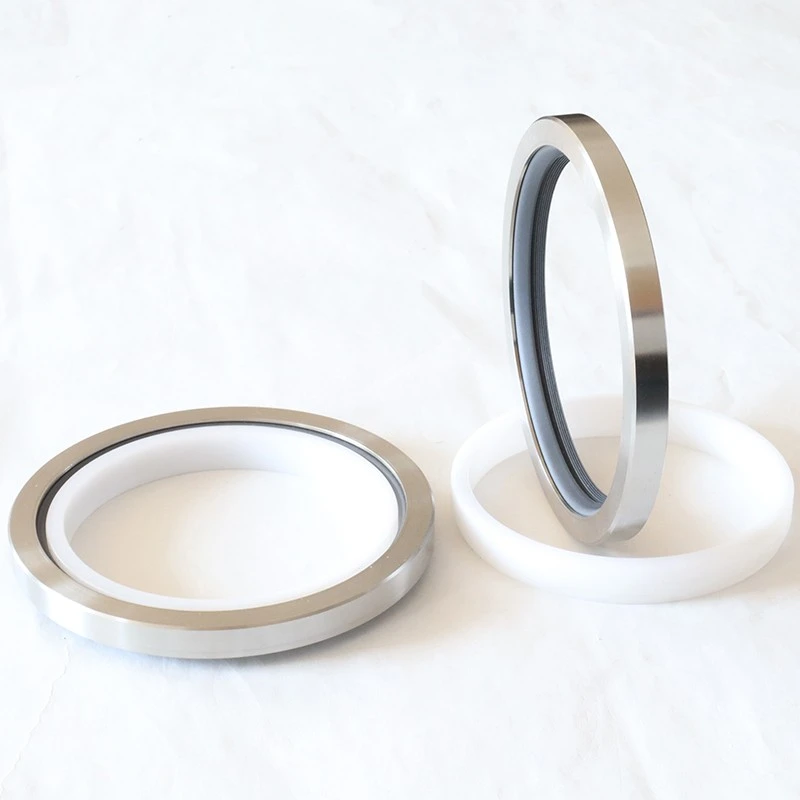

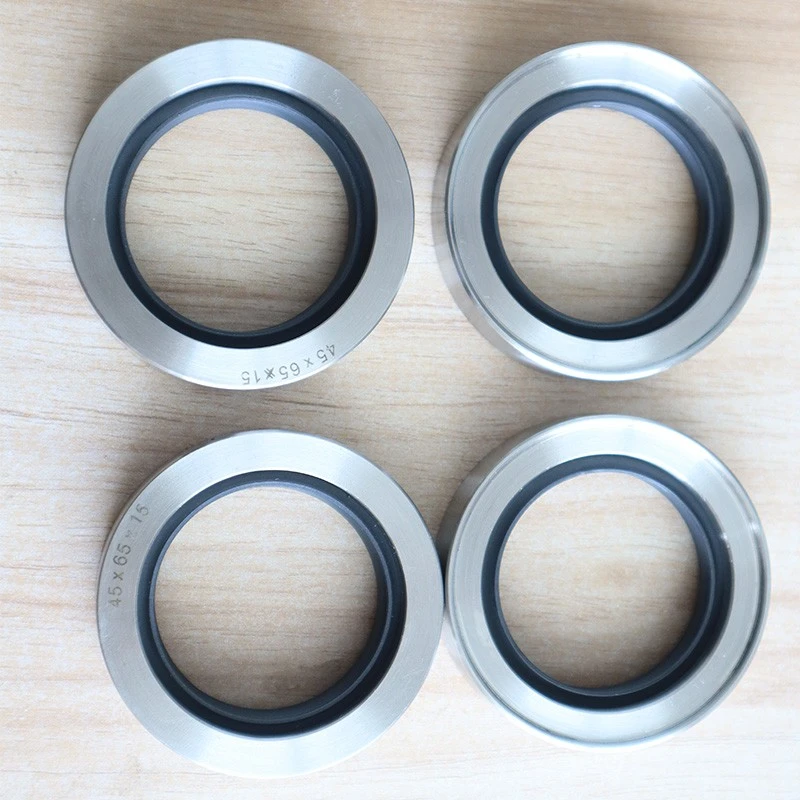

RC2057 type full PT FE oil seal

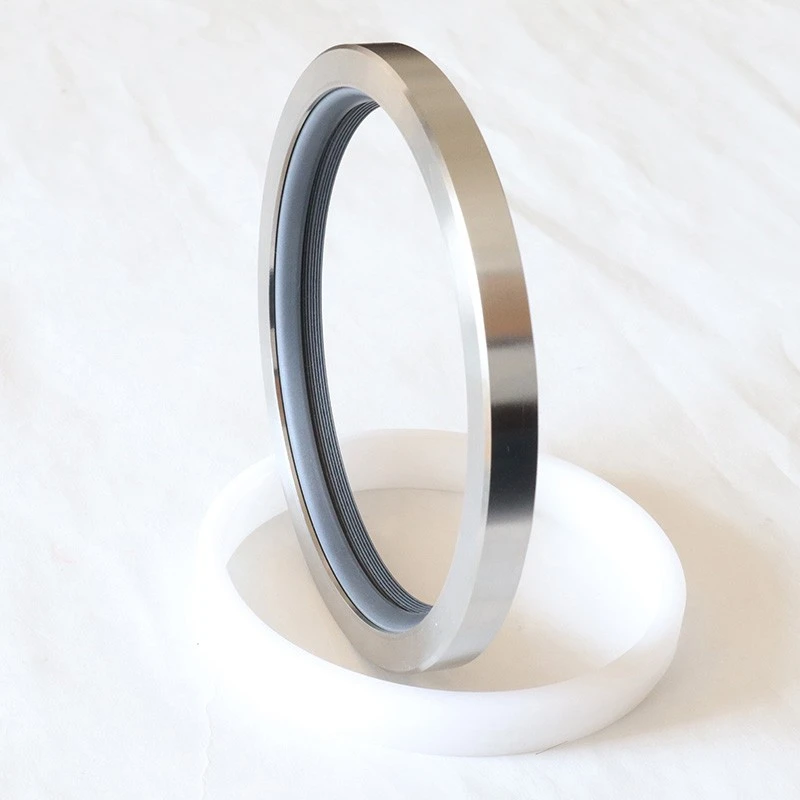

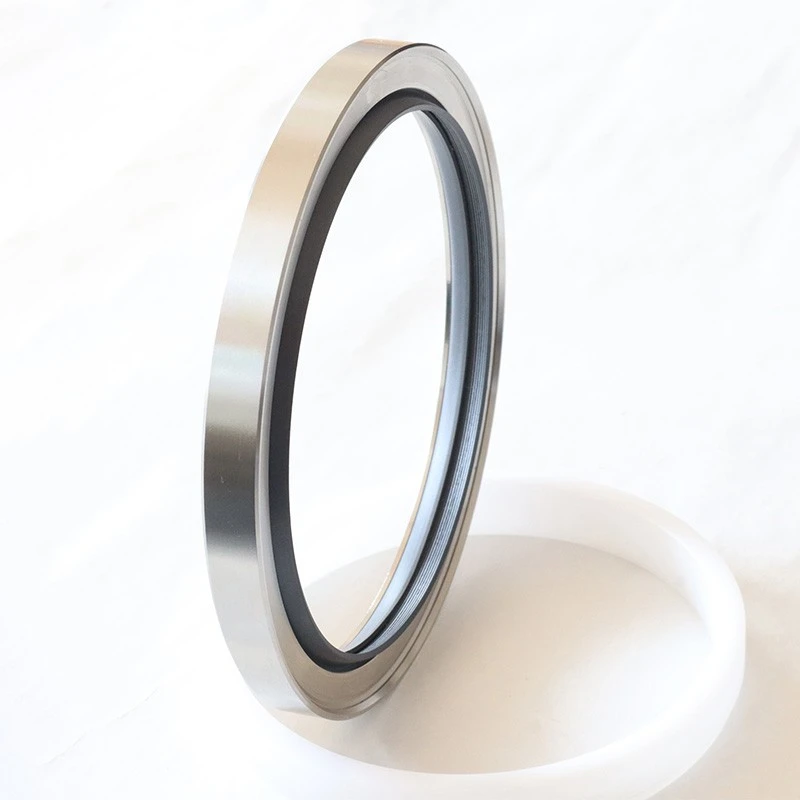

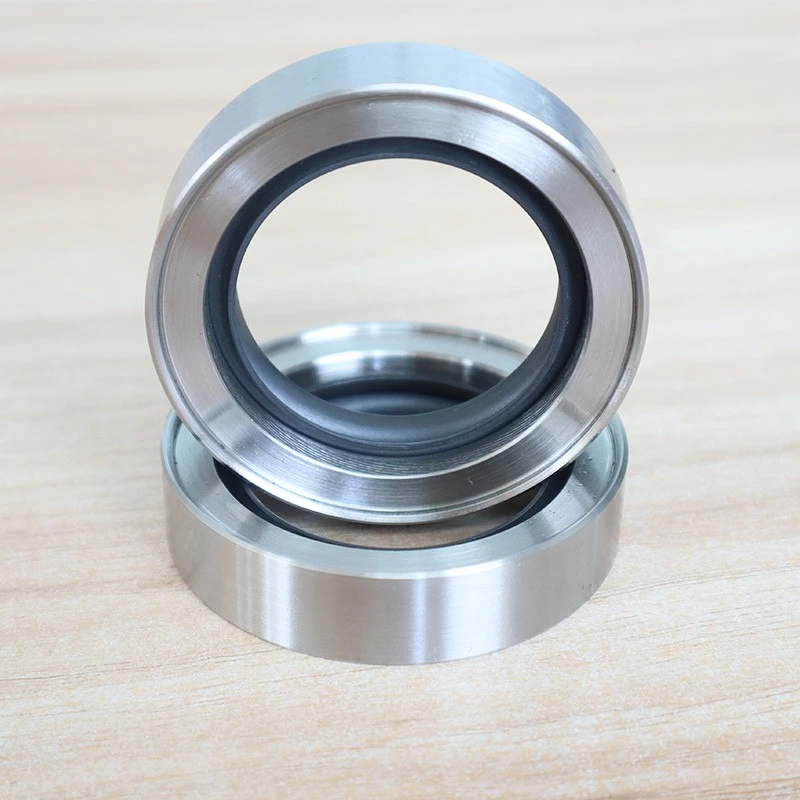

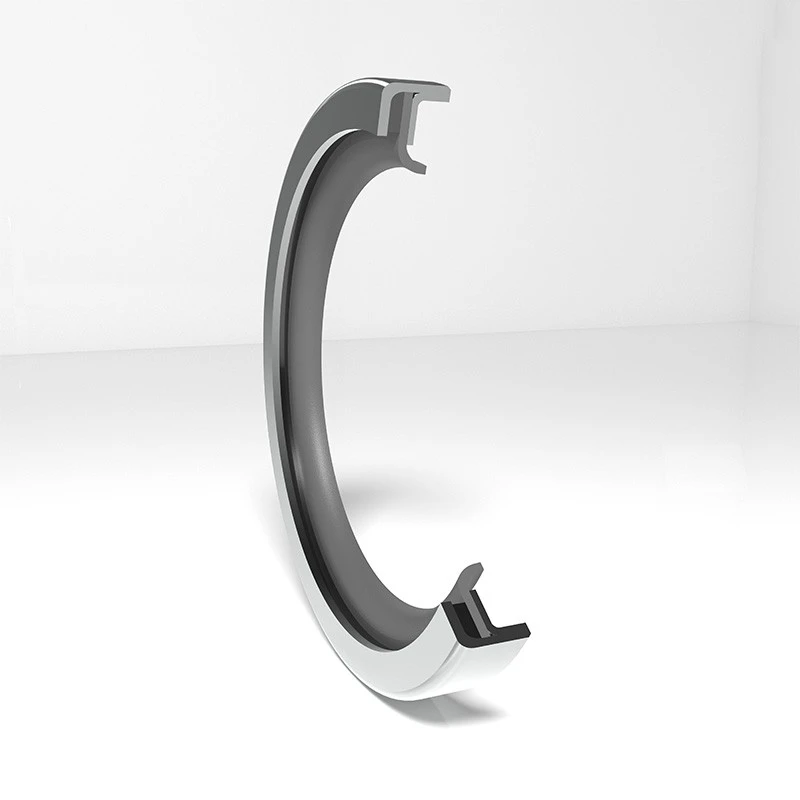

RCS type PTFE power oil seal is composed of metal frame, PTFE sealing lip and internal static seal. It is divided into A type, B type, C type, D type, etc. RC2057 type full PTFE oil seal is divided into A type and B type, especially suitable for occasions where traditional oil seals cannot meet the requirements. Features:

1. Chemical corrosion resistance

2. Wide temperature range

3. Suitable for low lubrication and oil-free lubrication

4. Low friction to achieve minimum power consumption

5. Suitable for high line speed

6. No sticking, low resistance to start-up after long-term shutdown

7. Suitable for rotating shafts that have not been hardened (reasonable selection of PTFE lip)

8. Suitable for occasions with higher pressure

Ⅰ. Typical applications:

Rotary compressors, screw compressors, transmission/gearboxes, blowers, engines, machine tool pumps, hydraulic motors, centrifuges, etc.

Ⅱ. Hardness requirements for mating surfaces

Recommended hardness: HRC ≥ 58. The required hardness is related to many factors. Soft rotating shafts are also applicable in low-pressure and low-speed situations. PTFE6 lip plates are recommended for soft metals.

Ⅲ. Quality requirements for mating surfaces

Ra = 0.2-0.63 um Rz = 1-3um Rmax = 1-4um

Cross-sectional shape	Model	Pressure (Mpa)	Temperature (℃)	Speed (m/s)	Medium
	RCS-A	0.5	-35~+200	40	Oil, gas, water, etc.
	RCS-B	2	-35~+200	20	Oil, gas, water, etc.
	RCS-C	1	-35~+200	20	Oil, gas, water, etc.
	RCS-D	2	-35~+200	20	Oil, gas, water, etc.
	RC2057-A	0.5	-35~+200	30	Almost all media
	RC2057-B	2	-35~+200	20	Almost all media

Ⅳ. Fluid power spiral flow pattern:

RCS-D type adopts a lip plate with a spiral flow pattern structure to improve the sealing ability. The rotating shaft is only allowed to rotate in one direction.

RC20658 Installation Dimensions

Model	df8	DH9	L D10	Smax
RC2065A	400-3000	d+16.8	15.1	1.2
RC2065	400-3000	d+17.5	15.1	1.2
>3000	Please consult our company

Chamfer length

Rod diameter range	Chamfer length e≥
400-1000	15
1001-2000	20
2001-3000	25

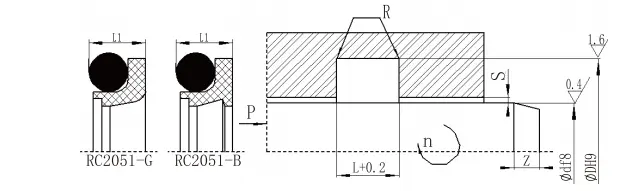

Specifications and dimensions:

d f8 Standard RC2051	d f8 Light load RC2051-Q	d f8 Heavy load RC2051-Z	D H9	L^+0.2	L1	Rmax	S_max			Z_min	d₀
d f8 Standard RC2051	d f8 Light load RC2051-Q	d f8 Heavy load RC2051-Z	D H9	L^+0.2	L1	Rmax	<10MPa	<20MPa	<40MPa	Z_min	d₀
--	5~ 15.9	--	d+4.5	3. 1	2.8	0.3	0.3	0.2	0. 15	3	1.8
5~ 15.9	16~38.9	--	d+6.3	4.0	3.7	0.4	0.4	0.25	0. 15	4	2.65
16~38.9	39~ 107.9	5~ 15.9	d+8.2	5.2	4.7	0.4	0.4	0.25	0.2	5	3.55
39~ 107.9	108~670.9	16~38.9	d+11.7	7.6	7. 1	0.5	0.5	0.3	0.2	7	5.30
108~670.9	671～999	39~ 107.9	d+15.5	9.6	8.9	0.6	0.6	0.35	0.25	10	7.00
671～999	1000~ 1599	108~670.9	d+19.4	12. 1	11.3	0.7	0.7	0.5	0.3	12	8.60
1000~ 1599	≥1600	671～999	d +22	14.8	13.5	0.8	0.8	0.6	0.4	15	10.0
≥1600	--	1000~ 1599	d+26	17.8	16.3	1.0	1.0	0.7	0.6	20	12.0

Note: 1. For shaft diameter ≤30mm, it is recommended to use open groove. Light load type is easier to install in closed groove.

2. It is recommended that the surface hardness of the rotating shaft is HRC>58.

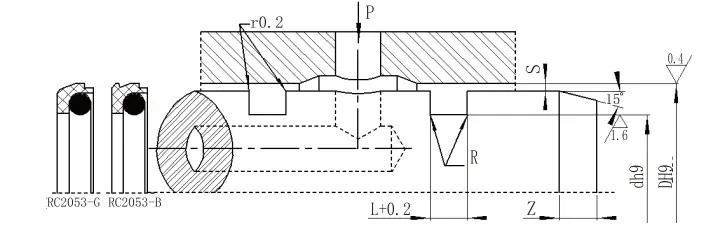

RC2053

Aperture range D H9	Groove diameter d h9	Groove width L+0.2	Seal Height L1	Rounded Corners Rmax	Radial clearance S			Chamfer Zmin	O-Ring Wire Diameter d0
Aperture range D H9	Groove diameter d h9	Groove width L+0.2	Seal Height L1	Rounded Corners Rmax	<10MPA	<20MPA	<40MPA	Chamfer Zmin	O-Ring Wire Diameter d0
8~12	D-4.5	3.1	2.8	0.3	0.3	0.2	0.15	3	1.8
13~24	D-6.3	4	3.7	0.4	0.4	0.25	0.15	4	2.65
25~51	D-8.2	5.2	4.7	0.4	0.4	0.25	0.2	5	3.55
52~127	D-11.7	7.6	7.1	0.5	0.5	0.3	0.2	7	5.30
128~ 500	D-15.5	9.6	8.9	0.6	0.6	0.35	0.25	10	7.00
501~1600	D-19.4	12.1	11.3	0.7	0.7	0.5	0.3	12	8.6

Note: 1. For shaft diameter ≤ 30 mm, open groove is recommended.

RC2052

Shaft diameter range d f8	Groove diameter D H9	Groove width L^+0.2	Radial clearance S_max		Rounded Corners R_max	Chamfer Z_min
Shaft diameter range d f8	Groove diameter D H9	Groove width L^+0.2	0~10Mpa	10~20Mpa	Rounded Corners R_max	Chamfer Z_min
6~18	d+4.9	2.2	0.15	0.1	0.4	2
19~37	d+7.5	3.2	0.2	0.15	0.6	3
38~199	d+11.0	4.2	0.25	0.2	1.0	4
200~255	d+15.5	6.3	0.3	0.25	1.3	5
256~649	d+21.0	8.1	0.3	0.25	1.8	7
650~1500	d+28.0	9.5	0.45	0.3	2.0	8

Note: 1. For shaft diameter ≤ 30 mm, open groove is recommended.

2. For pressures > 30 MPA, the seal root area uses H8/f8 tolerance.

RC2054

Aperture range D H9	Groove diameter d h9	Groove width L^+0.2	Radial clearance S_max		Rounded Corners R_max	Chamfer Z_min
Aperture range D H9	Groove diameter d h9	Groove width L^+0.2	0~10Mpa	10~20Mpa	Rounded Corners R_max	Chamfer Z_min
8~39	D-4.9	2.2	0.15	0.1	0.4	2
40~79	D-7.5	3.2	0.2	0.15	0.6	3
80~132	D-11.0	4.2	0.25	0.2	1.0	4
133~329	D-15.5	6.3	0.3	0.25	1.3	5
330~669	D-21.0	8.1	0.3	0.25	1.8	7
670~1500	D-28.0	9.5	0.45	0.3	2.0	8

Applicable working conditions of high pressure rotary seals:

Profile	Model	Pressure (MPa)	Temperature (℃)	Reference speed (m/s)	Reference Pv value Mpa.m/s	Media
	RC2051-B	≤70(standard)	-35~+100 (matching O-ring NBR)	<2	≤5	Hydraulic oil, emulsion, water, gas, etc. Hydraulic oil, emulsion, water, gas, etc.
	RC2051-B	≤30(high speed)	-20~+200 (matching O-ring FKM)	<6	≤5
	RC051-G	≤70(standard)	-35~+100 (matching O-ring NBR)	<2	≤5	Hydraulic oil, emulsion, water, gas, etc. Hydraulic oil, emulsion, water, gas, etc.
	RC051-G	≤30(high speed)	-20~+200 (matching O-ring FKM)	<6	≤5
	RC2053-B	≤70(standard)	-35~+100 (matching O-ring NBR)	<2	≤5	Hydraulic oil, emulsion, water, gas, etc. Hydraulic oil, emulsion, water, gas, etc.
	RC2053-B	≤30(high speed)	-20~+200 (matching O-ring FKM)	<6	≤5
	RC2053-G	≤70(standard)	-35~+100 (matching O-ring NBR)	<2	≤5	Hydraulic oil, emulsion, water, gas, etc. Hydraulic oil, emulsion, water, gas, etc.
	RC2053-G	≤30(high speed)	-20~+200 (matching O-ring FKM)	<6	≤5
	RC2052	≤40	-35~+100 (matching O-ring NBR)	≤2	≤2.5	Hydraulic oil, emulsion, water, gas, etc. Hydraulic oil, emulsion, water, gas, etc.
	RC2052	≤40	-20~+200 (matching O-ring FKM)	≤2	≤2.5
	RCX17	≤20	-35~+100	≤0.5	-	Hydraulic oil, emulsion, water, gas, etc.
	RC2054	≤40	-35~+100 (matching O-ring NBR)	≤2	-	Hydraulic oil, emulsion, water, gas, etc. Hydraulic oil, emulsion, water, gas, etc.
	RC2054	≤40	-20~+200 (matching O-ring FKM)	≤2	-
	RCX18	≤20	-35~+100	≤0.5	-	Hydraulic oil, emulsion, water, gas, etc.
	RDI	<36	-35~+100	<0.5	-	Hydraulic oil, emulsion, water, gas, etc.
	RDA	<36	-35~+100	<0.5	-	Hydraulic oil, emulsion, water, gas, etc.
	RCS-A	0.5	-35~+200	40	≤6	Oil, water, gas, etc.
	RCS-B	2	-35~+200	20	≤1	Oil, water, gas, etc.
	RCS-C	1	-35~+200	20	≤6	Oil, water, gas, etc.
	RCS-D	2	-35~+100	20	≤6	Oil, water, gas, etc.
	RC2057-A	0.5	-35~+200	30	≤6	Almost all media
	RC2057-B	2	-35~+200	20	≤6	Almost all media
	RC2065	1	-35~+200	6	≤1	Hydraulic oil, emulsion, water, grease, etc.
