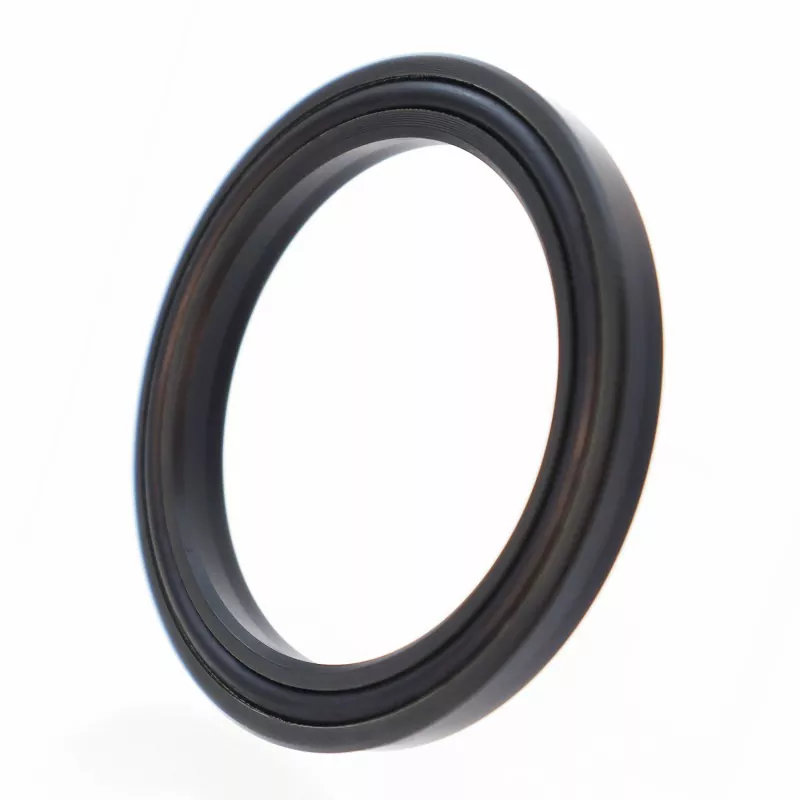

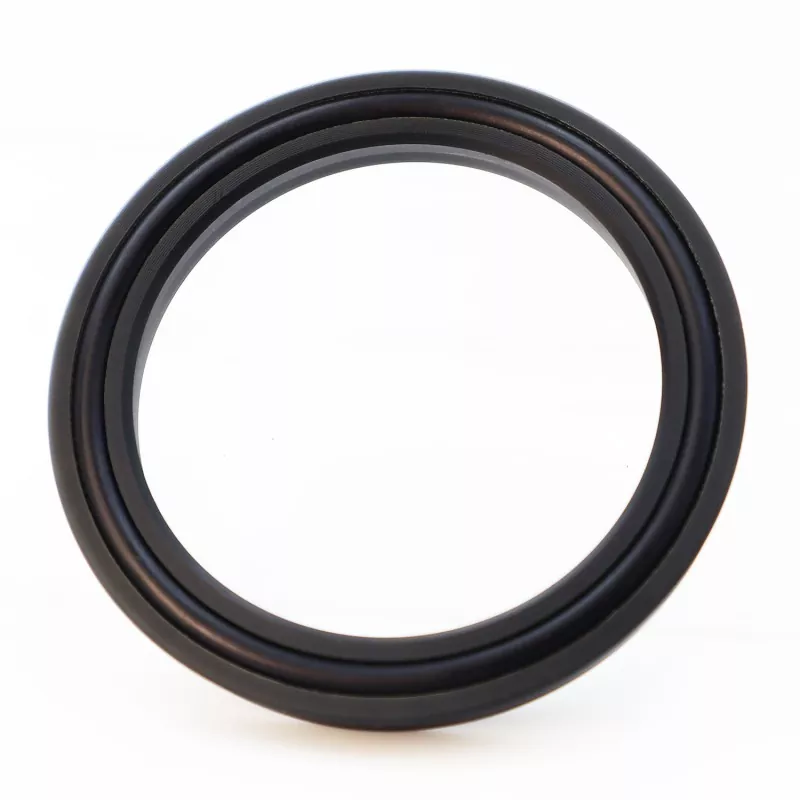

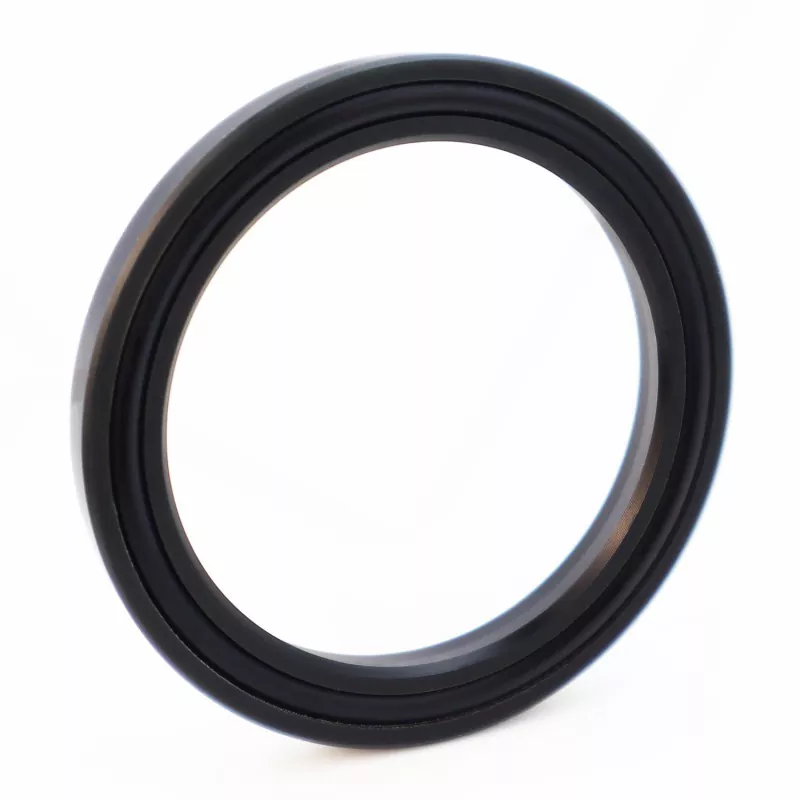

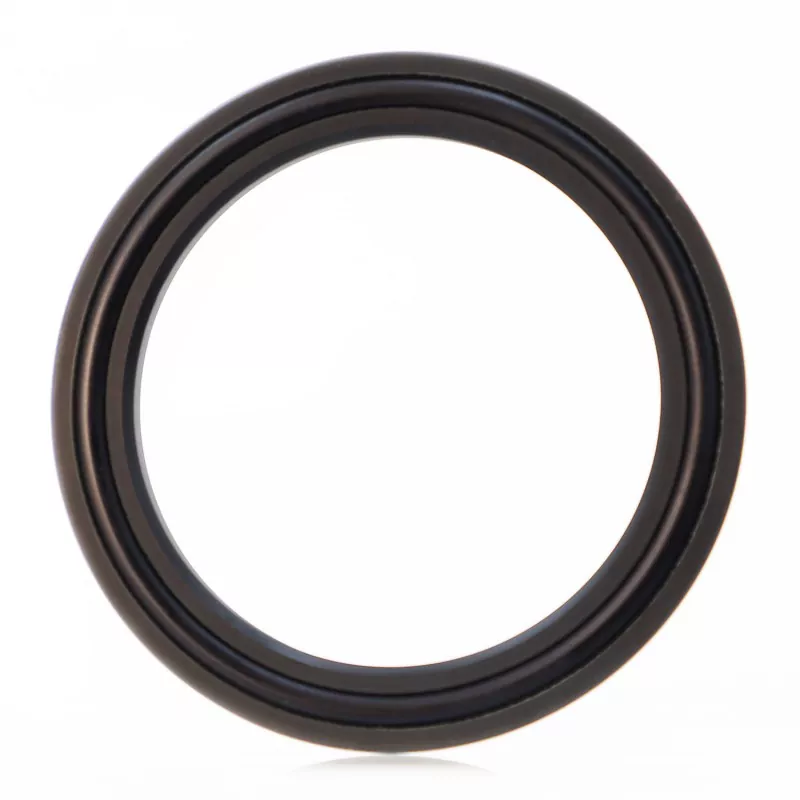

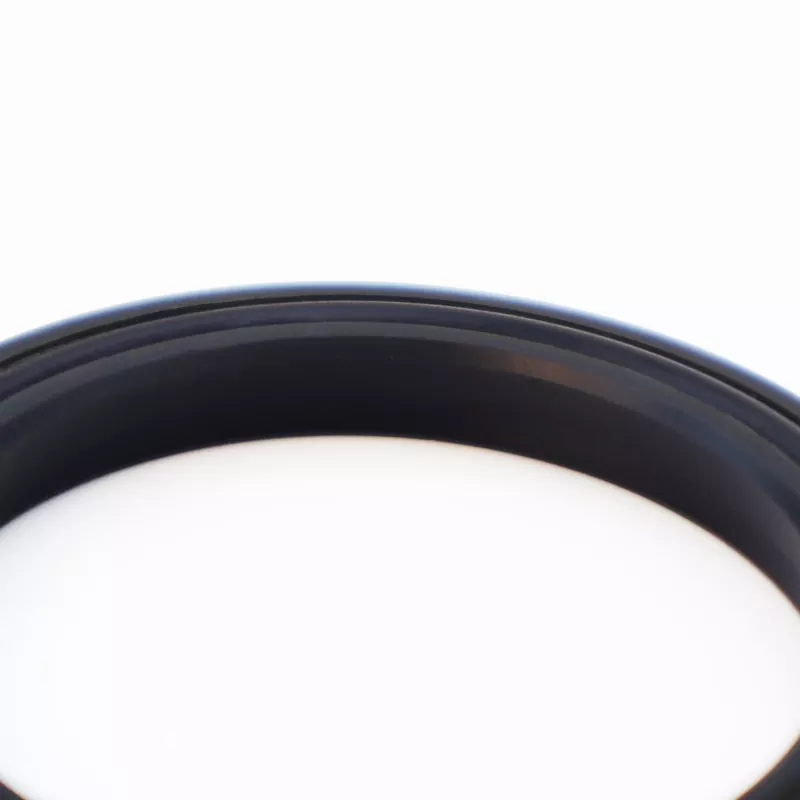

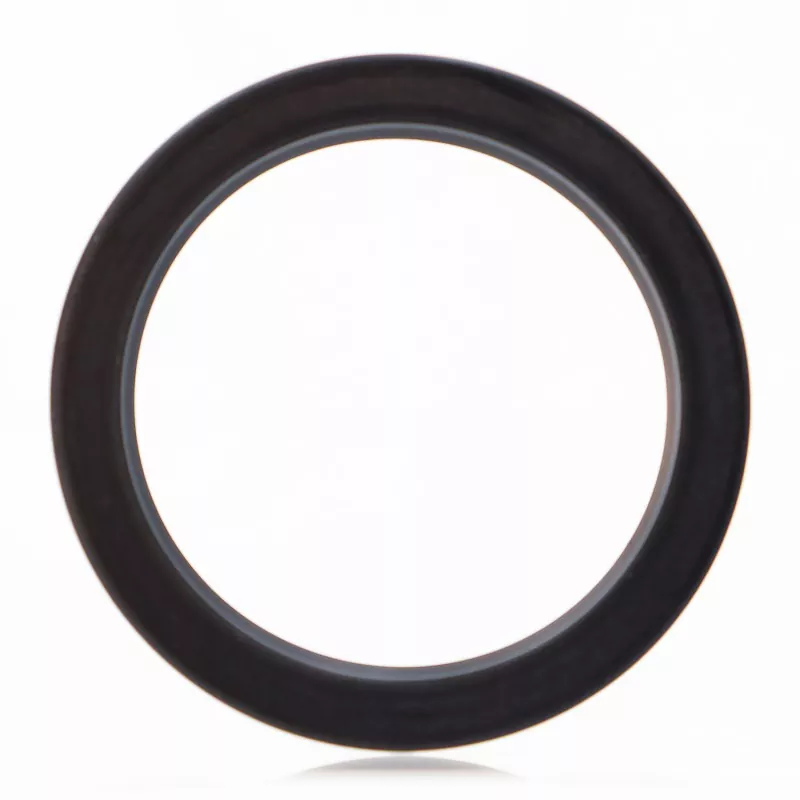

The Ruichen RC16-B Y combination rod seal is engineered to meet rigorous industrial demands. By choosing the RC16-B, you secure a piston rod sealing solution compatible with grooves meeting ML5514F and ISO3771 standards, distinguished by its exceptional adaptability to harsh operating conditions and specialized media.
|
Pressure (MPa) |
Speed (m/s) |
Temperature °C |
Medium |
||
|
RC16<40 |
RC16-B<80 |
<10 |
RC16-200~+250 |
RC16-B -35~+250 |
Almost all media |
When sourcing Ruichen RC16-B seals, it is essential to select the appropriate elastomer material based on the specific application medium (such as highly corrosive chemicals or high-purity food-grade fluids), temperature range, and pressure conditions.
As a specialist seal manufacturer, Ruichen offers customized material selection support—ranging from fluoroelastomers to specialty polyurethanes—which is key to ensuring long-term sealing reliability.
Suitable for reciprocating, rotary (oscillating), and static sealing applications, it offers true versatility in a single seal design. Its material is compatible with virtually all fluids and chemical media, maintaining stable sealing performance across extremes of temperature and pressure, as well as in vacuum environments.
The RC16-B excels in meeting the rigorous demands of the food and pharmaceutical industries—such as preventing media contamination—and satisfies requirements for smooth, low-friction, and stick-slip-free motion in equipment operating with poor lubrication. It supports oil-free operation, withstands sterilization processes, and has virtually no shelf-life limitations, thereby greatly simplifying maintenance and inventory management.
Consequently, whether for pressure vessels and hydraulic cylinders in petrochemical machinery, valves and vacuum pumps in the food and pharmaceutical sectors, or aerospace equipment demanding the highest levels of reliability, the RC16-B composite seal is a dependable choice for addressing complex sealing challenges. We provide comprehensive support, ranging from material consultation to installation guidance.

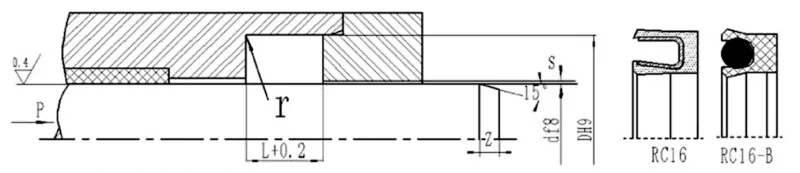

Available in any size within the specified range.
|
df8 |
DH9 |
L+0.2 |
Smax(<20MPA) |
Smax(<40MPA) |
Zmin |
rmax |
|
4~9.9 |
d+2.9 |
2.4 |
0.08 |
0.05 |
0.8L |
0.4 |
|
10~19.9 |
d+4.5 |
3.6 |
0.10 |
0.07 |
0.4 |
|
|
20~39.9 |
d+6.2 |
4.8 |
0.15 |
0.08 |
0.6 |
|
|
40~119.9 |
d+9.4 |
7.1 |
0.20 |
0.10 |
0.8 |
|
|
120~1000 |
d+12.2 |
9.5 |
0.25 |
0.12 |
0.8 |
