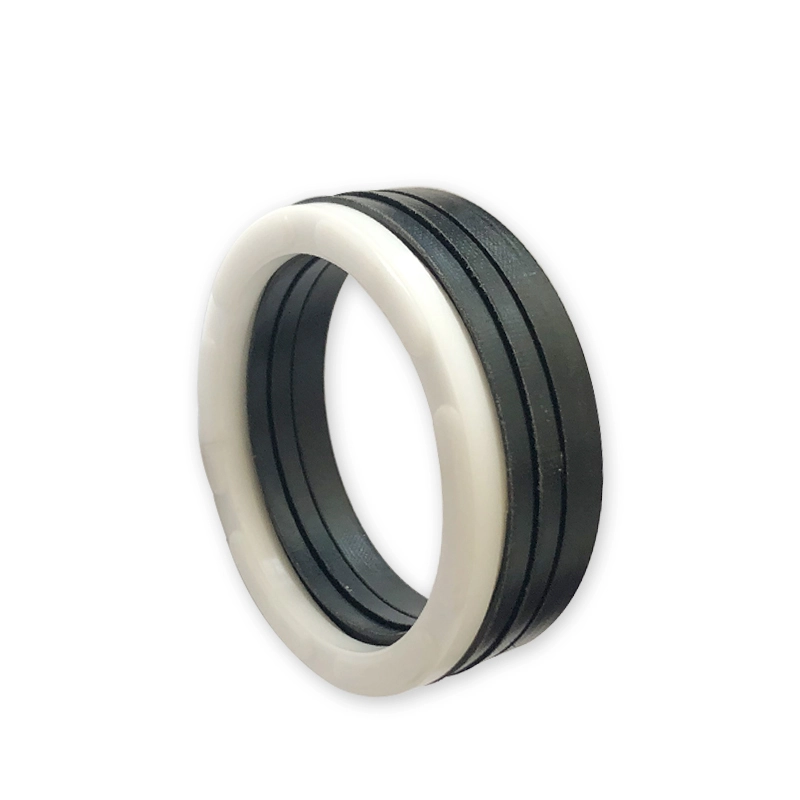

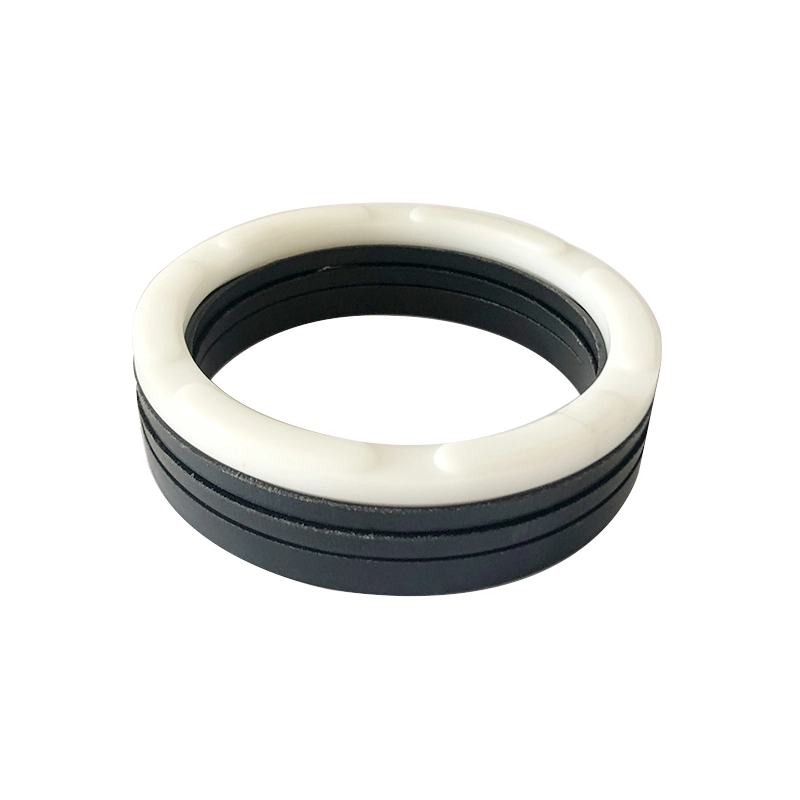

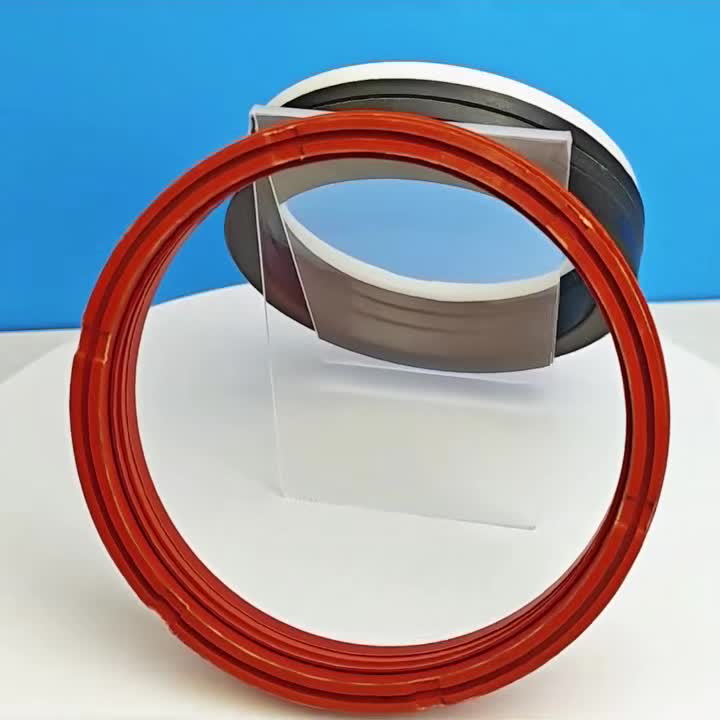

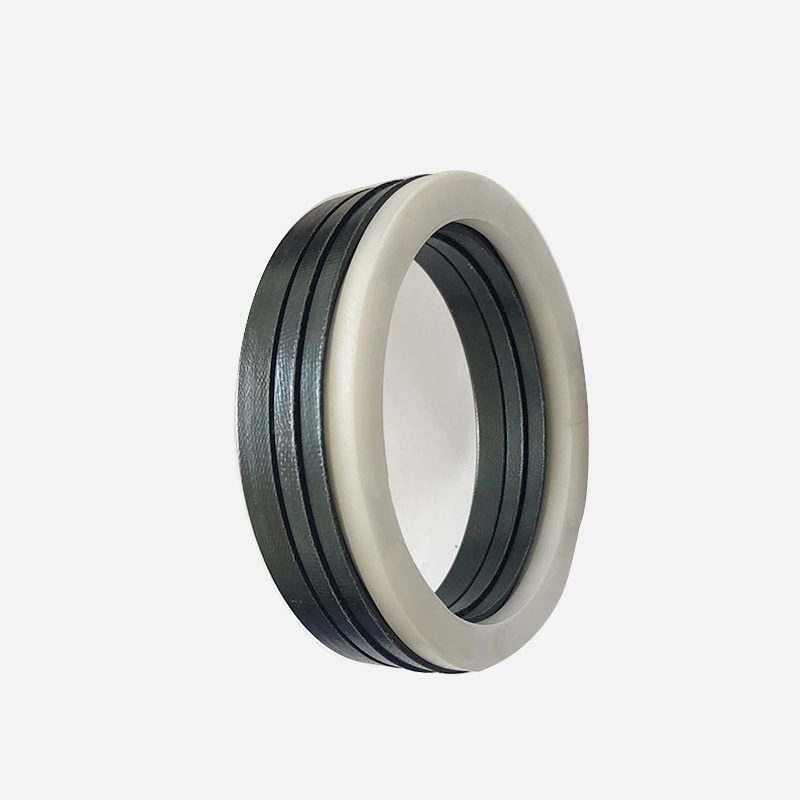

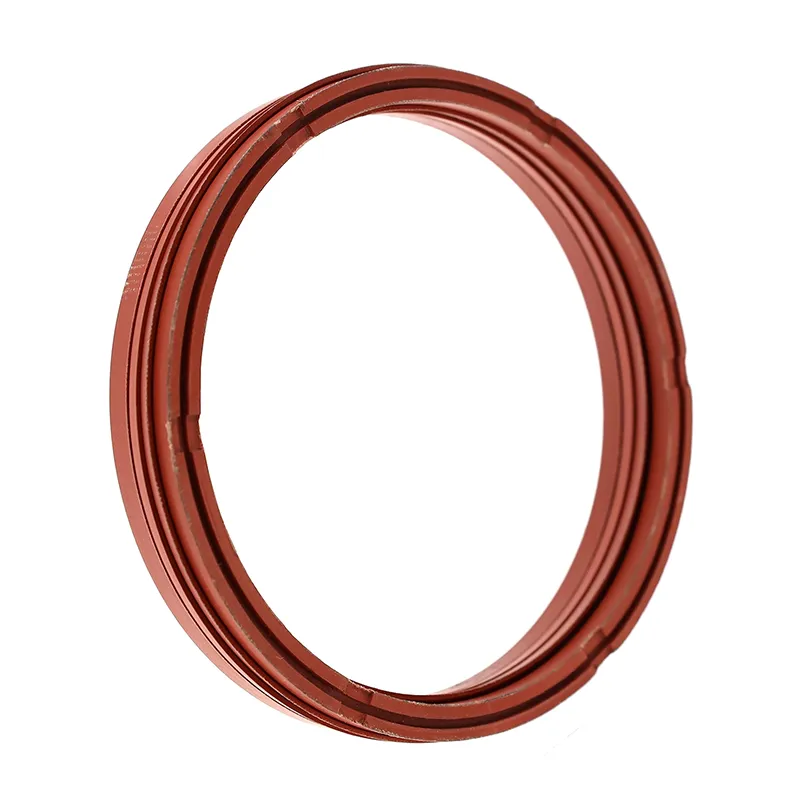

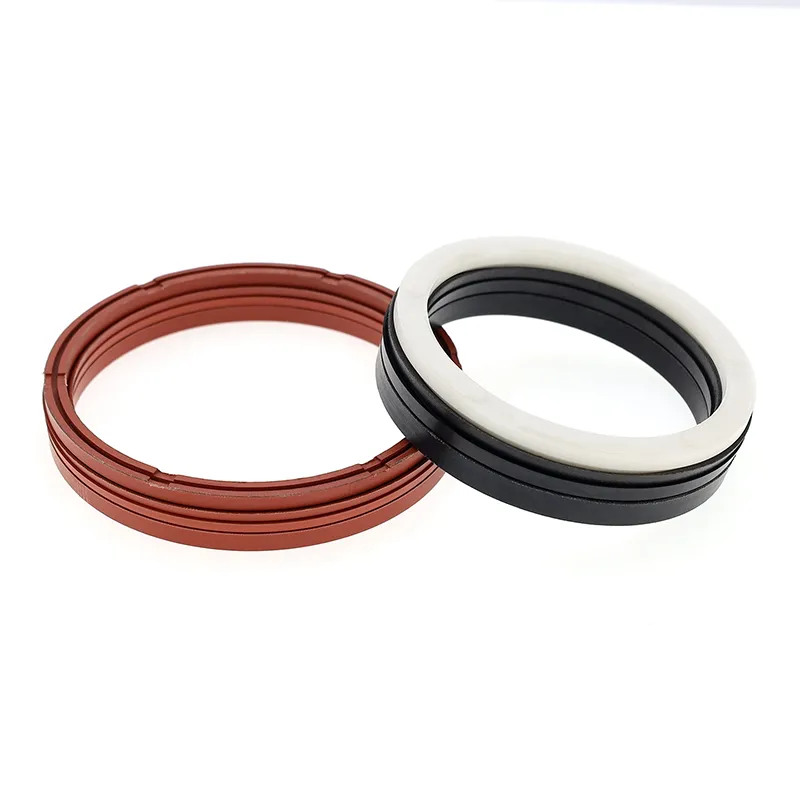

The Heavy-Duty V-Set Seal consists of a set of V-shaped sealing rings, a compression ring, and a support ring. It is suitable for unidirectional pressure sealing in reciprocating hydraulic applications. A grease compatible with the sealing material must be applied during installation. It cannot be installed in integral (closed) housings. It is designed for piston sealing in medium and heavy load applications.
1. A wide range of materials are available, allowing for optimal adjustment to suit various applications.
2. Suitable for use in harsh operating conditions, adapting to virtually all media and demanding conditions.
3. Long service life, suitable for oil-free lubrication (with appropriate material selection).
4. Adjustable sealing performance: axial dimension can be adjusted by adding or removing V-rings.
5. Effective even with poor sealing surface quality.
|
Pressure Mpa |
Temperature ℃ |
Speed m/s |
Medium |
|||
|
≤60 |
-30~+100 (nitrile rubber or nitrile cloth rubber) |
-20~+200 (fluororubber or fluororubber cloth) |
-100~+260 (PTFE) |
≤0.5 (rubber or cloth-reinforced rubber) |
≤15 (PTFE) |
Almost all media (select the right combination of materials) |
1. Pressure Ring Materials: PTFE, Nitrile Fabric, Fluororubber Fabric, Nylon, Polyoxymethylene
2. V-Ring Materials: PTFE, Nitrile Rubber, Nitrile Fabric, Fluororubber, Fluororubber Fabric
3. Support Ring Materials: Nitrile Fabric, Fluororubber Fabric, Nylon, Polyoxymethylene, PTFE
|
model |
Materials |
Applicable range |
Sealing |
|
RCEK-A |
V-ring: NBR cloth, pressure ring, support ring: NBR cloth/PA/POM/PTFE |
Normal temperature, high pressure |
Good |
|
RCEK-B |
V-ring: FKM cloth, pressure ring, support ring: FKM cloth/PTFE |
High temperature, high pressure |
Good |
|
RCEK-C |
V-ring: NBR, pressure ring, support ring: NBR cloth/PA/POM/PTFE |
Normal temperature, medium and low pressure |
Excellent |
|
RCEK-D |
V-ring: FKM, pressure ring, support ring: FKM cloth/PTFE |
High temperature, medium and low pressure |
Excellent |
|
RCEK-E |
V-ring: NBR and NBR cloth combination, pressure ring, support ring: NBR cloth/PA/POM/PTFE |
Normal temperature, medium and high pressure |
Excellent |
|
RCEK-F |
V-ring: FKM and FKM cloth combination, pressure ring, support ring: FKM cloth/PTFE |
High temperature, medium and high pressure |
Excellent |
|
RCEK-G |
V-ring, pressure ring, support ring: PTFE1/PTFE2/PTFE3/PTFE4 |
High temperature and high pressure corrosive media |
Fair |
|
RCEK-H |
V-ring: PU, pressure ring, support ring: PU/PA/POM/PTFE |
Normal temperature, medium and high pressure |
Excellent |
|

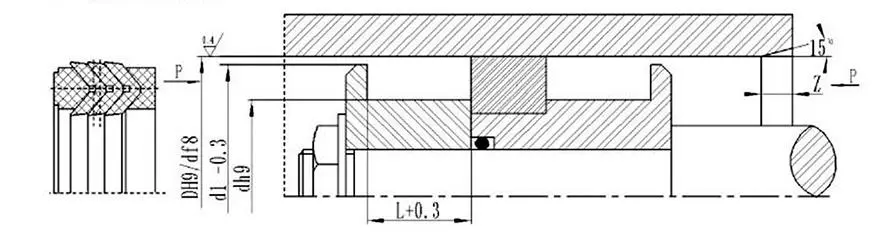

Order model RCEK-A-120×95x25.3 Model-cylinder diameter x groove bottom diameter x groove width |
|||
