TPM Compound Seal

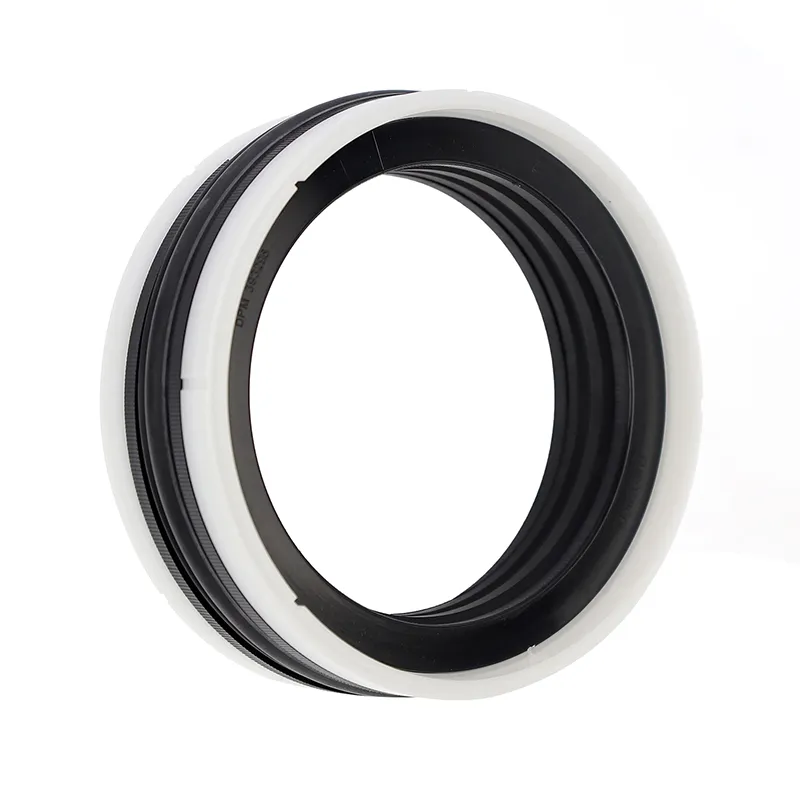

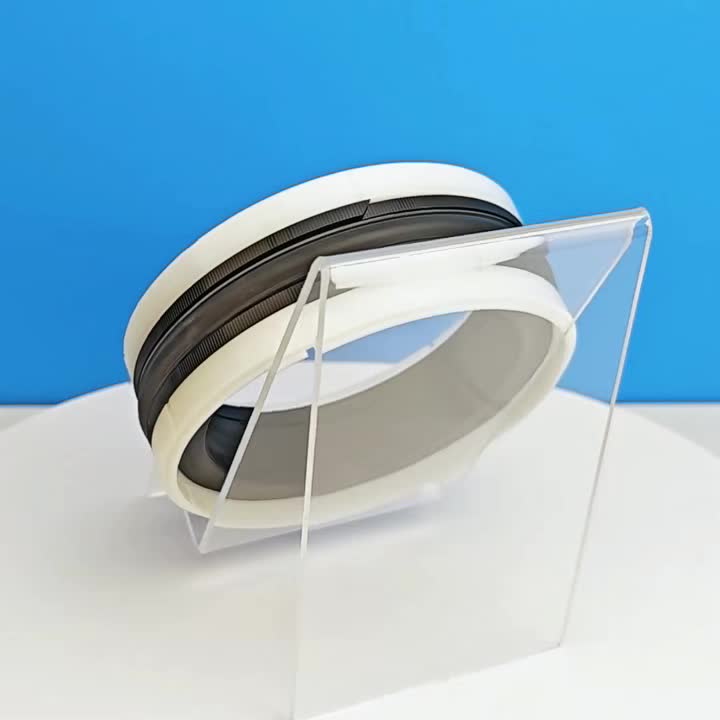

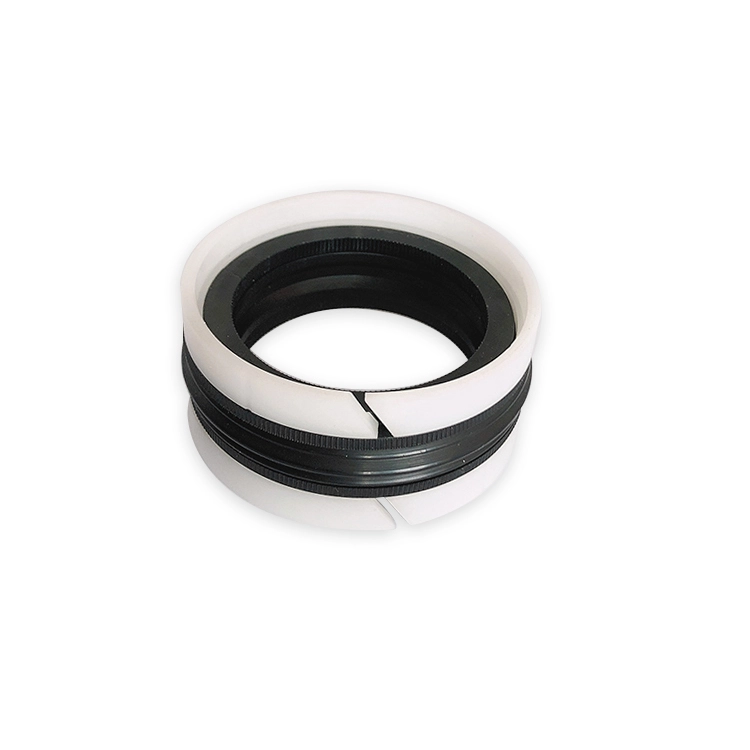

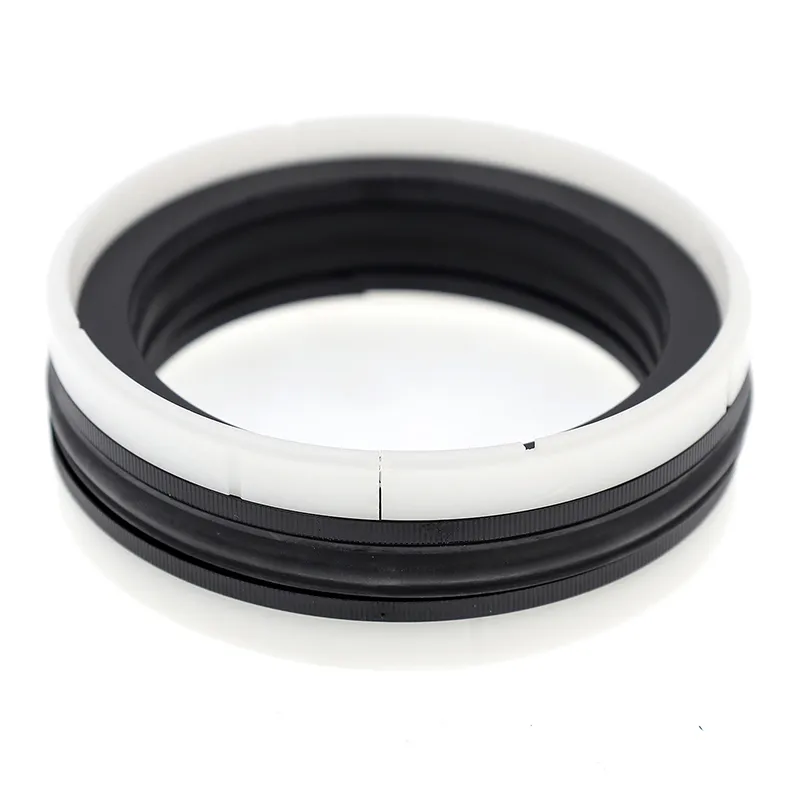

The TPM combined piston (bore) seal is a five-component compression piston seal assembly consisting of a profiled rubber sealing element, two retaining rings, and two guide rings. Its groove design effectively prevents distortion during assembly and is suitable for bidirectional pressure piston sealing.

Features:

1. Excellent sealing, high reliability, and compact structure;

2. No intrusion into radial clearances;

3. Simple installation, integral piston mounting;

4. The special geometry of the NBR sealing element prevents distortion within the groove during installation.

Applicable working conditions (limit values should not appear at the same time)

Material Selection

1. Rubber Ring Material: R01 Nitrile

2. Retaining Ring Material: Nylon PA/Polyoxymethylene (POM)

3. Guide Ring Material: Nylon PA/Polyoxymethylene (POM)/Polytetrafluoroethylene (PTFE)

Ordering Example

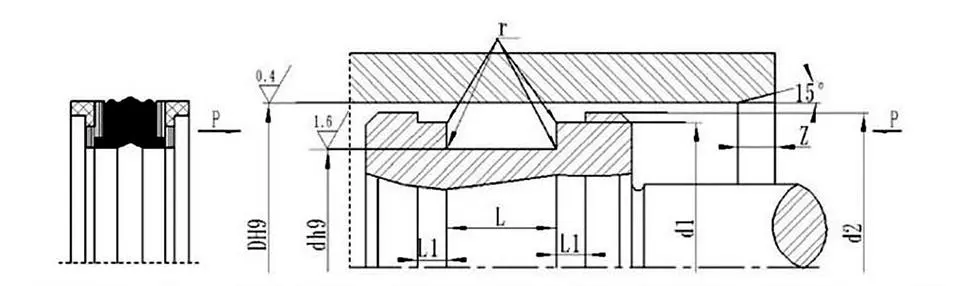

Order Model TPM-80x60x22.4 Cylinder Bore x Groove Diameter x Groove Width (L)
